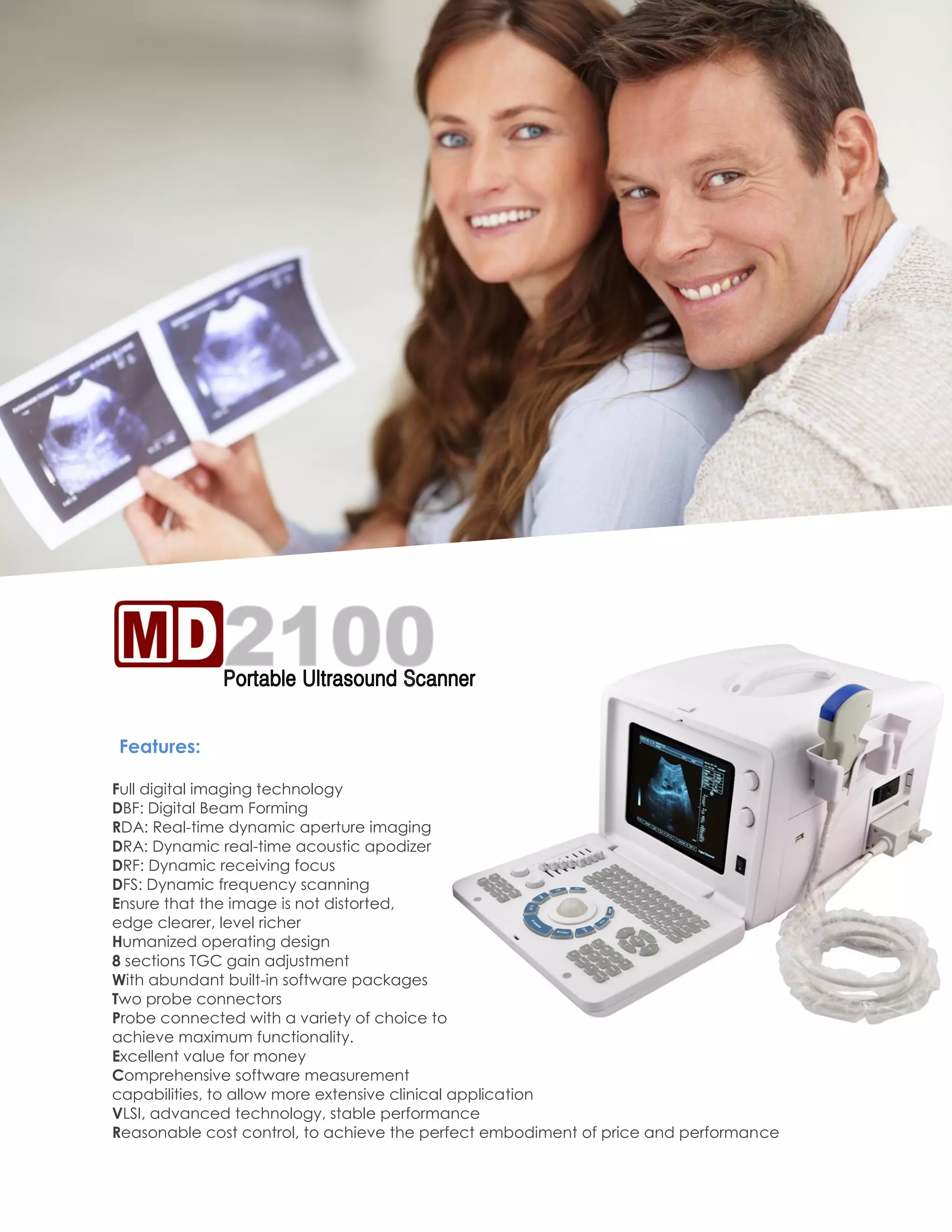

1. Features:
Full digital imaging technology
DBF: Digital Beam Forming
RDA: Real-time dynamic aperture imaging
DRA: Dynamic real-time acoustic apodizer
DRF: Dynamic receiving focus
DFS: Dynamic frequency scanning
Ensure that the image is not distorted,
edge clearer, level richer
Humanized operating design
8 sections TGC gain adjustment
With abundant built-in software packages
Two probe connectors
Probe connected with a variety of choice to
achieve maximum functionality.
Excellent value for money
Comprehensive software measurement
capabilities, to allow more extensive clinical application
VLSI, advanced technology, stable performance
Reasonable cost control, to achieve the perfect embodiment of price and performance

2. Meditech Equipment Co., Ltd (Meditech Group)
Address: Nanjing Road No.100, Qingdao, Shandong Province, P. R. China
China Tel: 86-532-85832673 85820563
Fax: 86-532-85832155
Email: sales@meditech.com.cn
0123 Web: www.meditech.com.cn

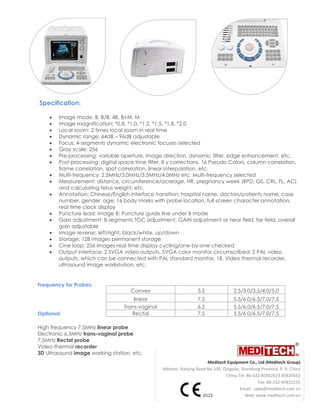

Specification:
 Image mode: B, B/B, 4B, B+M, M
 Image magnification: *0.8, *1.0, *1.2, *1.5, *1.8, *2.0
 Local zoom: 2 times local zoom in real time
 Dynamic range: 64dB – 96dB adjustable
 Focus: 4-segments dynamic electronic focuses selected
 Gray scale: 256
 Pre-processing: variable aperture, image direction, dynamic filter, edge enhancement, etc.
 Post-processing: digital space time filter, 8 y corrections, 16 Pseudo Colors, column correlation,
frame correlation, spot correlation, linear interpolation, etc.
 Multi-frequency: 2.5MHz/3.0MHz/3.5MHz/4.0MHz etc. Multi-frequency selected
 Measurement: distance, circumference/acreage, HR, pregnancy week (BPD, GS, CRL, FL, AC)
and calculating fetus weight, etc.
 Annotation: Chinese/English interface transition; hospital name, doctors/patients name, case
number, gender, age; 16 body marks with probe location, full screen character annotation,
real time clock display
 Puncture lead: Image B: Puncture guide line under B mode
 Gain adjustment: 8-segments TGC adjustment, GAIN adjustment or near field, far field, overall
gain adjustable
 Image reverse: left/right, black/white, up/down
 Storage: 128 images permanent storage
 Cine loop: 256 images real time display cycling/one-by-one checked
 Output interface: 2 SVGA video outputs, SVGA color monitor circumscribed; 2 PAL video
outputs, which can be connected with PAL standard monitor, 18. Video thermal recorder,
ultrasound image workstation, etc.
Frequency for Probes:
Optional:
High frequency 7.5MHz linear probe
Electronic 6.5MHz trans-vaginal probe
7.5MHz Rectal probe
Video thermal recorder
3D Ultrasound image working station, etc.
Convex 3.5 2.5/3.0/3.5/4.0/5.0
linear 7.5 5.5/6.0/6.5/7.0/7.5
Trans-vaginal 6.5 5.5/6.0/6.5/7.0/7.5
Rectal 7.5 5.5/6.0/6.5/7.0/7.5
