This document describes an ultrasound system that features full digital imaging technology, a 10 inch high-resolution monitor, storage for up to 1024 frame cine loops, multi-frequency probes, adjustable TGC and gain, and measurement functions for organs like the heart, uterus, prostate and more. It can output to devices like USB drives, printers and has optional 3D imaging capabilities. The system is produced by Meditech Equipment Co. and includes features like crystal clear images, powerful management software, and portable design weighing 12kg.

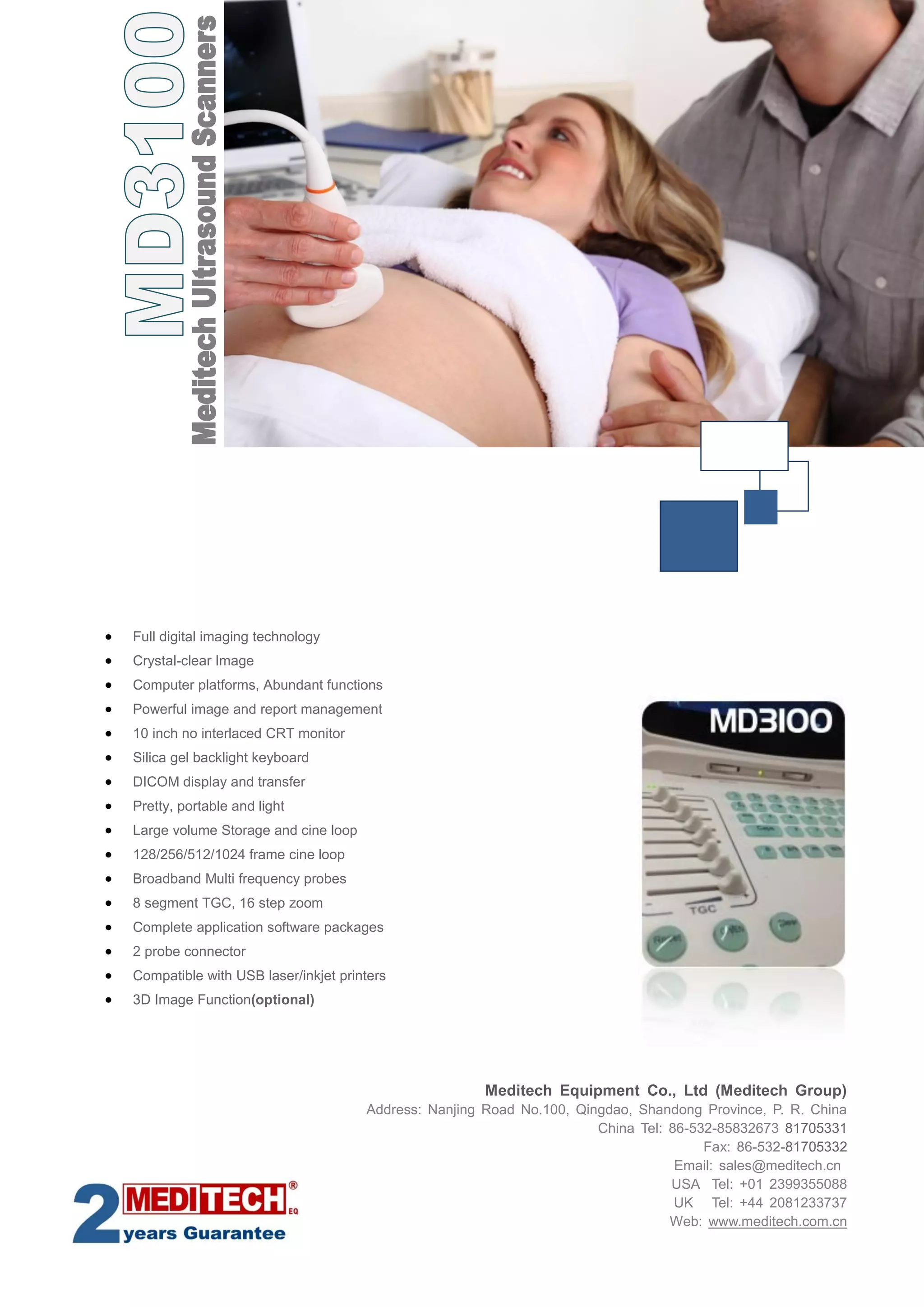

1.  Full digital imaging technology
 Crystal-clear Image
 Computer platforms, Abundant functions
 Powerful image and report management
 10 inch no interlaced CRT monitor
 Silica gel backlight keyboard
 DICOM display and transfer
 Pretty, portable and light
 Large volume Storage and cine loop
 128/256/512/1024 frame cine loop
 Broadband Multi frequency probes
 8 segment TGC, 16 step zoom
 Complete application software packages
 2 probe connector
 Compatible with USB laser/inkjet printers
 3D Image Function(optional)
Meditech Equipment Co., Ltd (Meditech Group)
Address: Nanjing Road No.100, Qingdao, Shandong Province, P. R. China
China Tel: 86-532-85832673 81705331
Fax: 86-532-81705332
Email: sales@meditech.cn
USA Tel: +01 2399355088
UK Tel: +44 2081233737
Web: www.meditech.com.cn

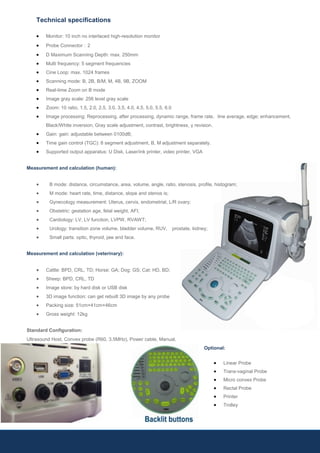

2. Technical specifications
 Monitor: 10 inch no interlaced high-resolution monitor
 Probe Connector：2
 D Maximum Scanning Depth: max. 250mm
 Multi frequency: 5 segment frequencies
 Cine Loop: max. 1024 frames
 Scanning mode: B, 2B, B/M, M, 4B, 9B, ZOOM
 Real-time Zoom on B mode
 Image gray scale: 256 level gray scale
 Zoom: 10 ratio, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0
 Image processing: Reprocessing, after processing, dynamic range, frame rate, line average, edge; enhancement,
Black/White inversion; Gray scale adjustment, contrast, brightness, γ revision.
 Gain: gain: adjustable between 0100dB;
 Time gain control (TGC): 8 segment adjustment, B, M adjustment separately.
 Supported output apparatus: U Disk, Laser/ink printer, video printer, VGA
Measurement and calculation (human):
 B mode: distance, circumstance, area, volume, angle, ratio, stenosis, profile, histogram;
 M mode: heart rate, time, distance, slope and stenos is;
 Gynecology measurement: Uterus, cervix, endometrial, L/R ovary;
 Obstetric: gestation age, fetal weight, AFI;
 Cardiology: LV, LV function, LVPW, RVAWT;
 Urology: transition zone volume, bladder volume, RUV, prostate, kidney;
 Small parts: optic, thyroid, jaw and face.
Measurement and calculation (veterinary):
 Cattle: BPD, CRL, TD; Horse: GA; Dog: GS; Cat: HD, BD;
 Sheep: BPD, CRL, TD
 Image store: by hard disk or USB disk
 3D image function: can get rebuilt 3D image by any probe
 Packing size: 51cm×41cm×46cm
 Gross weight: 12kg
Standard Configuration:
Ultrasound Host, Convex probe (R60, 3.5MHz), Power cable, Manual.
Optional:
 Linear Probe
 Trans-vaginal Probe
 Micro convex Probe
 Rectal Probe
 Printer
 Trolley
