1. Mobile WebVR game
https://github.com/daoshengmu/aframe-lesson
Daosheng Mu
05/25/2016

2. What is a mobile VR game?

3. A general 3D game
- 3D scene
- Game character
- Game controller
- Monoscopic camera
- Sound effect
- Collision detection

4. A Mobile VR game needs?
- 3D scene
- Game character
- Game controller
Auto movement
- Stereoscopic camera
- Sound effect
- Collision detection

5. Training Stage

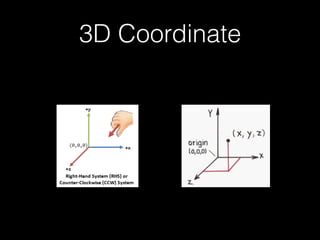

6. 3D Coordinate

7. 3D Transform
Object3D
http://math.hws.edu/graphicsbook/c3/s5.html

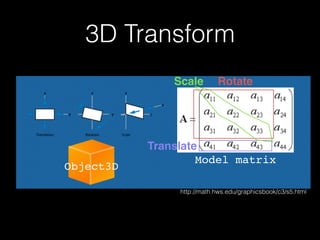

8. 3D Transform
Object3D
http://math.hws.edu/graphicsbook/c3/s5.html
Model matrix
Rotate
Translate
Scale

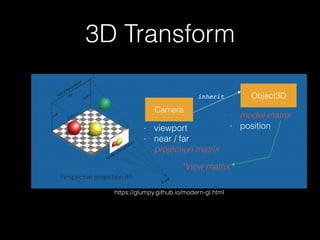

9. 3D Transform
https://glumpy.github.io/modern-gl.html
Camera
Object3D
- model matrix
- position- viewport
- near / far
- projection matrix
*View matrix
inherit

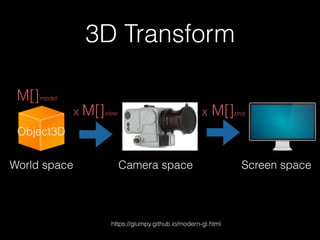

10. 3D Transform
https://glumpy.github.io/modern-gl.html
x M[]projx M[]view
Object3D
M[]model
Camera space Screen spaceWorld space

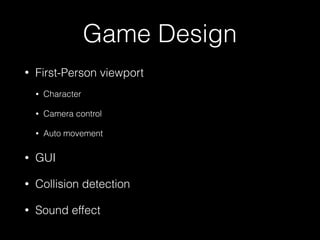

12. Game Design
• First-Person viewport
• Character
• Camera control
• Auto movement
• GUI
• Collision detection
• Sound effect

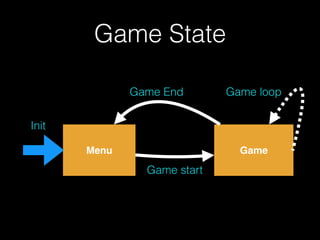

13. Game State
Menu Game
Game start
Game End Game loop
Init

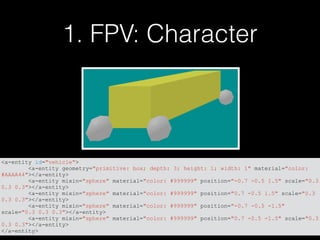

14. 1. FPV: Character
<a-entity id="vehicle">
<a-entity geometry="primitive: box; depth: 3; height: 1; width: 1" material="color:
#AAAA44"></a-entity>
<a-entity mixin="sphere" material="color: #999999" position="-0.7 -0.5 1.5" scale="0.3
0.3 0.3"></a-entity>
<a-entity mixin="sphere" material="color: #999999" position="0.7 -0.5 1.5" scale="0.3
0.3 0.3"></a-entity>
<a-entity mixin="sphere" material="color: #999999" position="-0.7 -0.5 -1.5"
scale="0.3 0.3 0.3"></a-entity>
<a-entity mixin="sphere" material="color: #999999" position="0.7 -0.5 -1.5" scale="0.3
0.3 0.3"></a-entity>
</a-entity>

15. 1. FPV: Camera control
<a-entity id=“camera" wasd-
controls camera look-controls
position="0 5 2">
<a-entity id="cursor"
cursor="fuse: false; maxDistance:
30; timeout: 500"
position="0 0 -5"
geometry="primitive:
ring; segmentsTheta: 8;
segmentsPhi: 2"
material="color:
#4CC3D9; shader: flat"
scale="0.1, 0.1, 0.1">
</a-entity>
</a-entity>

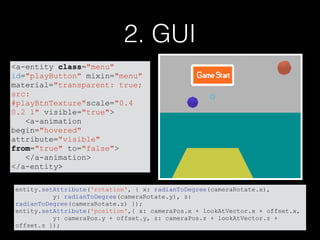

16. 2. GUI
entity.setAttribute('rotation', { x: radianToDegree(cameraRotate.x),
y: radianToDegree(cameraRotate.y), z:
radianToDegree(cameraRotate.z) });
entity.setAttribute('position',{ x: cameraPos.x + lookAtVector.x + offset.x,
y: cameraPos.y + offset.y, z: cameraPos.z + lookAtVector.z +
offset.z });
<a-entity class="menu"
id="playButton" mixin="menu"
material="transparent: true;
src:
#playBtnTexture"scale="0.4
0.2 1" visible="true">
<a-animation
begin="hovered"
attribute="visible"
from="true" to="false">
</a-animation>
</a-entity>

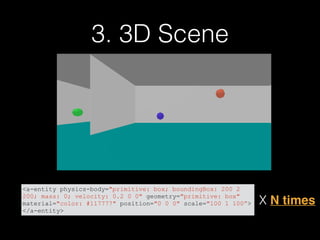

17. 3. 3D Scene
<a-entity physics-body="primitive: box; boundingBox: 200 2
200; mass: 0; velocity: 0.2 0 0" geometry="primitive: box"
material="color: #117777" position="0 0 0" scale="100 1 100”>
</a-entity>
X N times

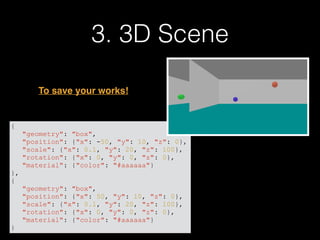

18. 3. 3D Scene
{
"geometry": "box",
"position": {"x": -50, "y": 10, "z": 0},
"scale": {"x": 0.1, "y": 20, "z": 100},
"rotation": {"x": 0, "y": 0, "z": 0},
"material": {"color": "#aaaaaa"}
},
{
"geometry": "box",
"position": {"x": 50, "y": 10, "z": 0},
"scale": {"x": 0.1, "y": 20, "z": 100},
"rotation": {"x": 0, "y": 0, "z": 0},
"material": {"color": "#aaaaaa"}
}
To save your works!

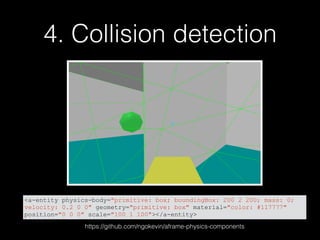

19. 4. Collision detection
<a-entity physics-body="primitive: box; boundingBox: 200 2 200; mass: 0;
velocity: 0.2 0 0" geometry="primitive: box" material="color: #117777"
position="0 0 0" scale="100 1 100"></a-entity>
https://github.com/ngokevin/aframe-physics-components

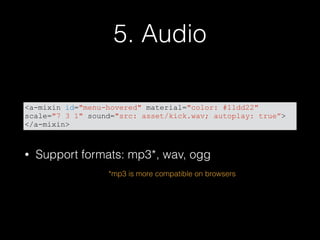

20. 5. Audio
• Support formats: mp3*, wav, ogg
<a-mixin id="menu-hovered" material="color: #11dd22"
scale="7 3 1" sound="src: asset/kick.wav; autoplay: true”>
</a-mixin>
*mp3 is more compatible on browsers

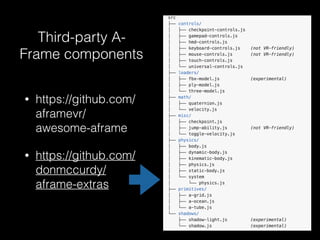

21. Third-party A-
Frame components
• https://github.com/
aframevr/
awesome-aframe
• https://github.com/
donmccurdy/
aframe-extras

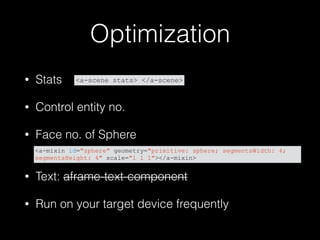

22. Optimization
• Stats
• Control entity no.
• Face no. of Sphere
• Text: aframe-text-component
• Run on your target device frequently
<a-mixin id="sphere" geometry="primitive: sphere; segmentsWidth: 4;
segmentsHeight: 4" scale="1 1 1"></a-mixin>
<a-scene stats> </a-scene>

23. Thanks for your attention
https://github.com/daoshengmu/aframe-lesson
• Build from BasicScene
1.Modify map
2.Making GUI
3.Implement hitting function
