A-Frame: Building virtual
reality experiences for the
Web
@doJester13
Nice to meet you
Erik Minarini
@doJester13
Unity and Android Developer at Touchlabs
Manager at GDG Bologna
Founder of ToughNutToCrack
Virtual reality (VR) is an interactive computer-generated experience taking place
within a simulated environment, that incorporates mainly auditory and visual, but
also other types of sensory feedback like haptic
What is VR?
Virtual reality is growing so fast in many areas.
VR isn’t just for games, it is also largely used in business, marketing, commercial
and many others.
VR is growing
https://immersive-web.github.io/webvr/
The WebVR is a javascript API that provides interfaces to VR hardware to allow
developers to build compelling, comfortable VR experiences on the web.
https://webvr.rocks/

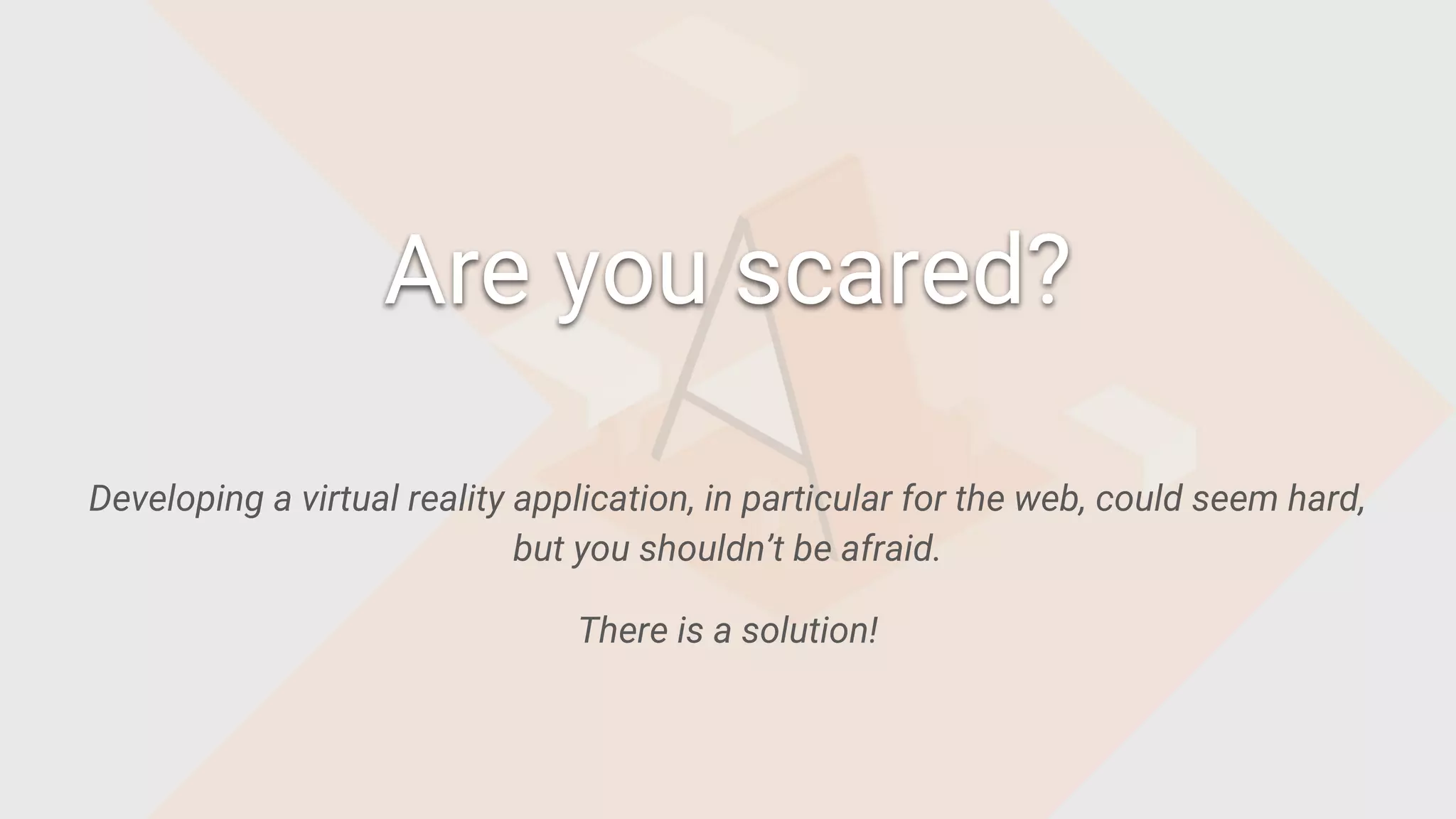

Developing a virtual reality application, in particular for the web, could seem hard,
but you shouldn’t be afraid.
There is a solution!
Are you scared?
A open source web framework for building virtual reality experiences
A-Frame

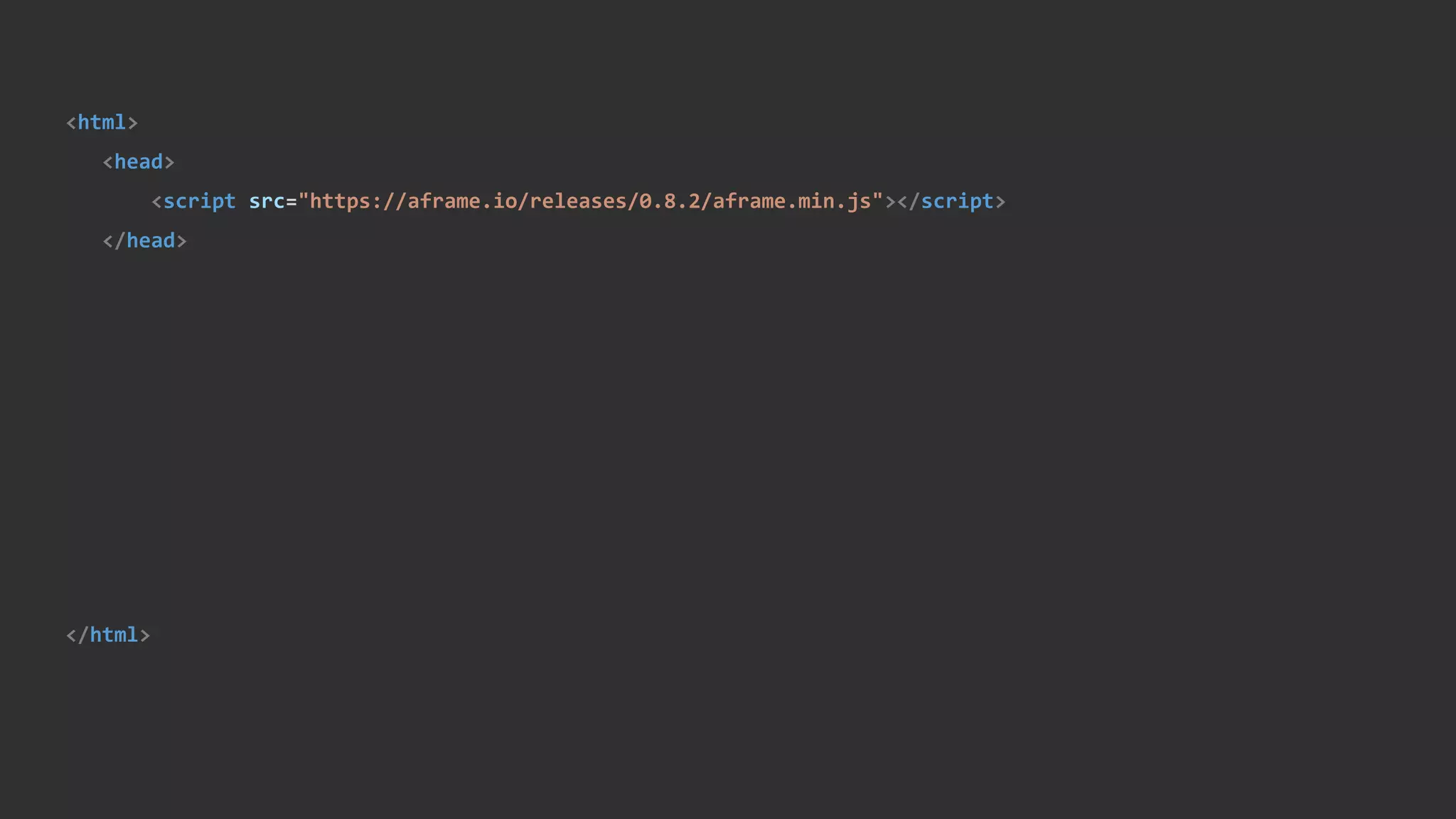

<html>
<head>
<script src="https://aframe.io/releases/0.8.2/aframe.min.js"></script>
</head>
</html>

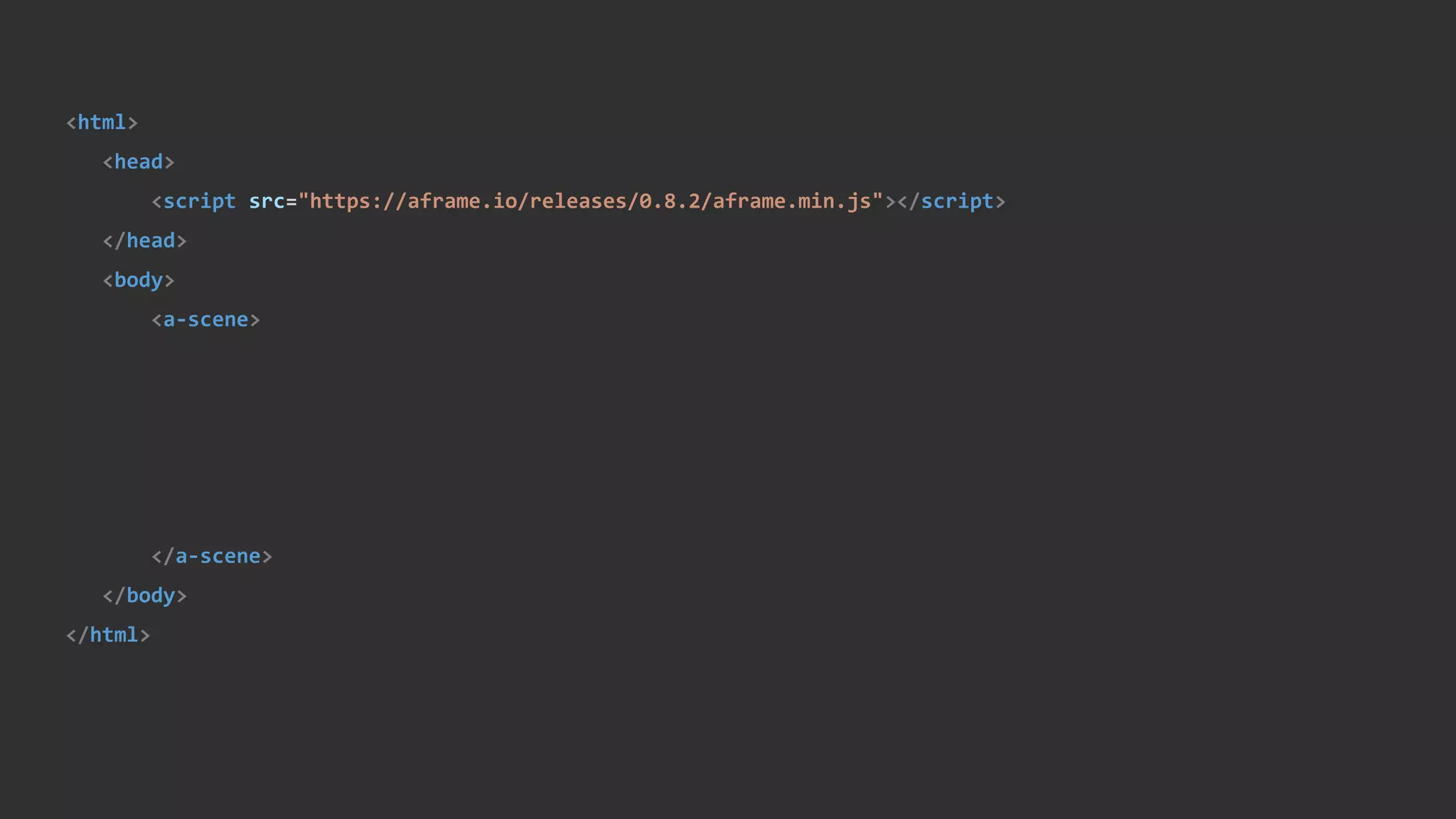

<html>
<head>
<script src="https://aframe.io/releases/0.8.2/aframe.min.js"></script>
</head>
<body>
<a-scene>
</a-scene>
</body>
</html>

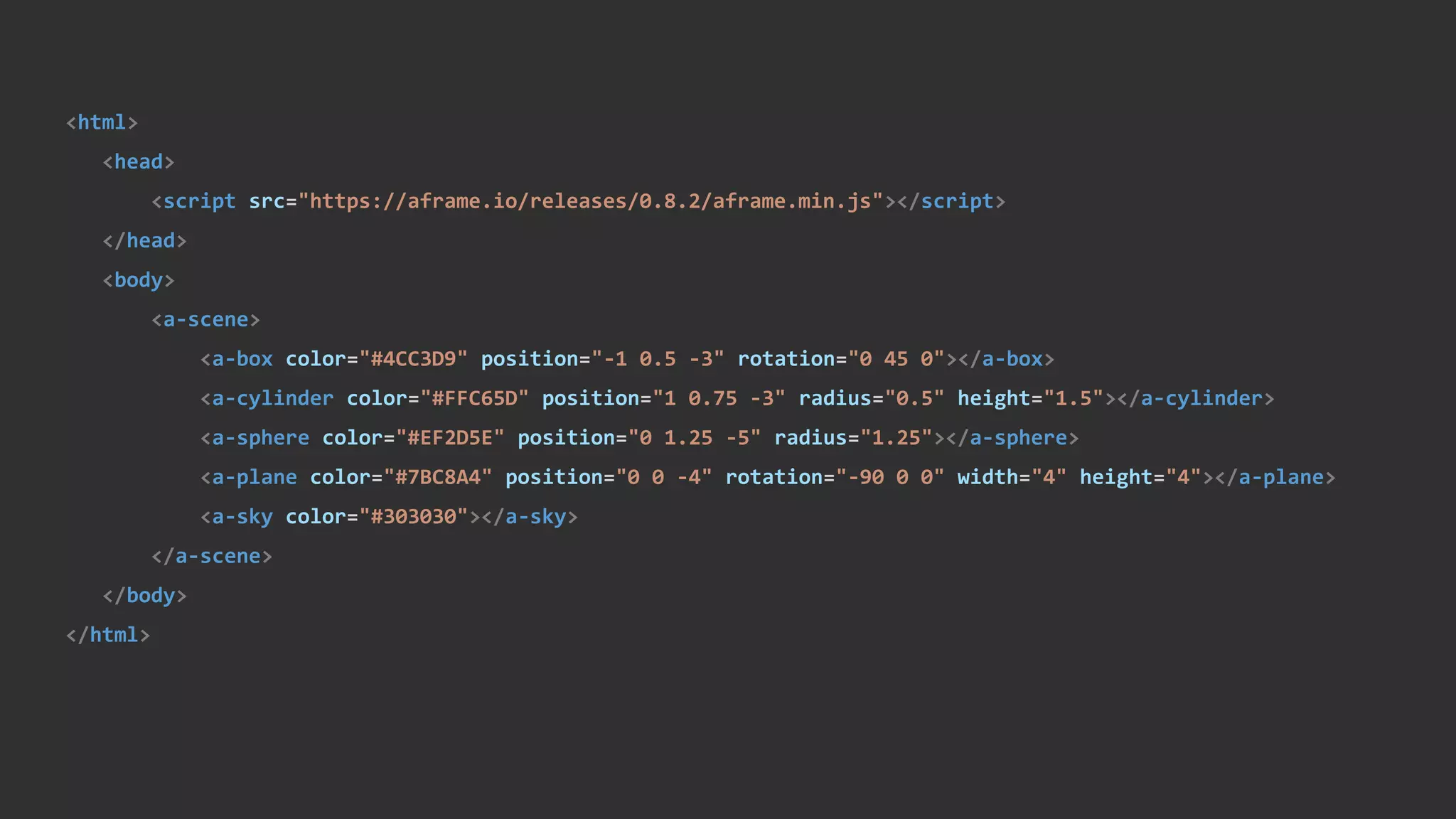

<html>
<head>
<script src="https://aframe.io/releases/0.8.2/aframe.min.js"></script>
</head>
<body>
<a-scene>
<a-box color="#4CC3D9" position="-1 0.5 -3" rotation="0 45 0"></a-box>
<a-cylinder color="#FFC65D" position="1 0.75 -3" radius="0.5" height="1.5"></a-cylinder>
<a-sphere color="#EF2D5E" position="0 1.25 -5" radius="1.25"></a-sphere>
<a-plane color="#7BC8A4" position="0 0 -4" rotation="-90 0 0" width="4" height="4"></a-plane>
<a-sky color="#303030"></a-sky>
</a-scene>
</body>
</html>

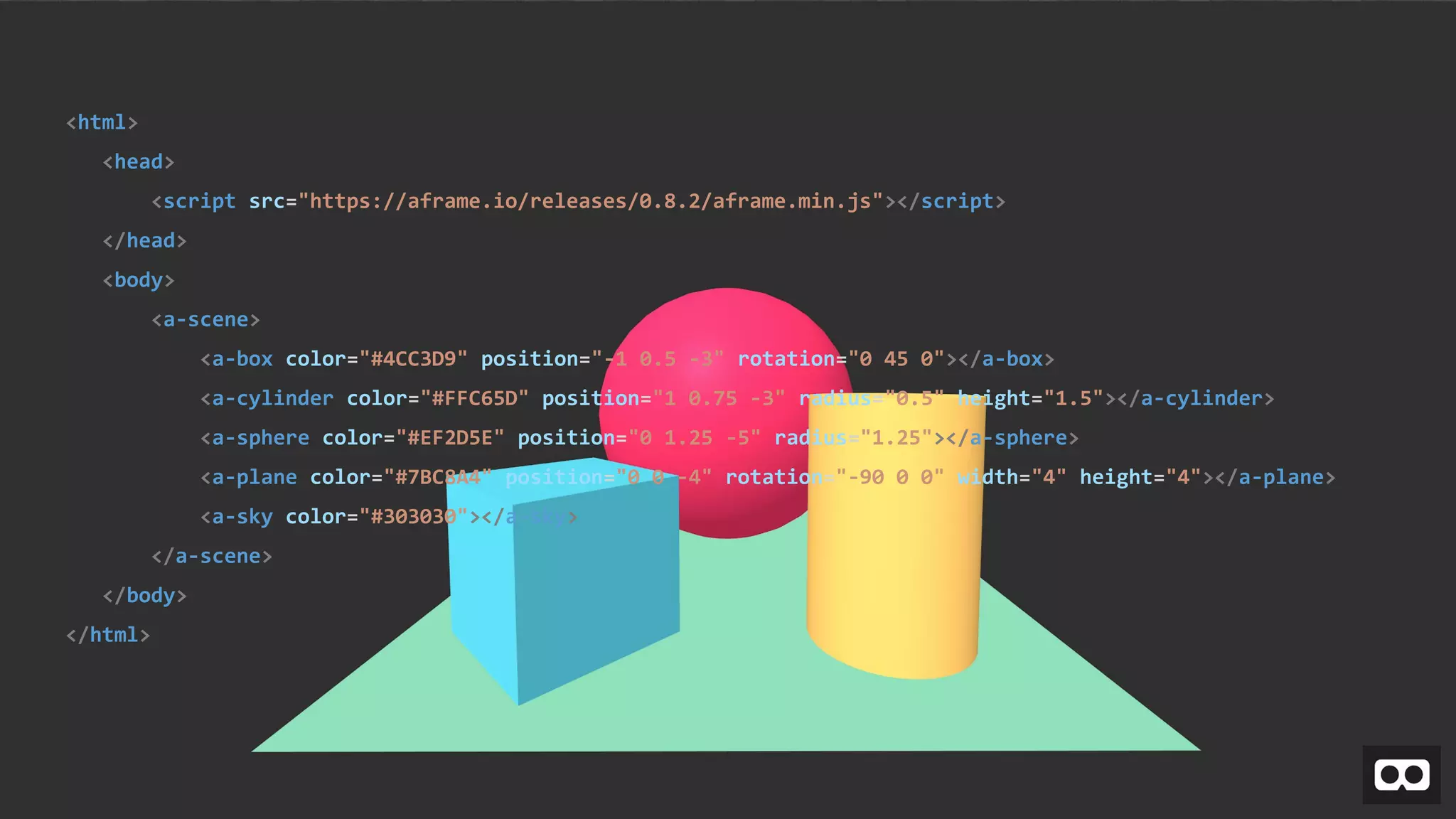

<html>
<head>
<script src="https://aframe.io/releases/0.8.2/aframe.min.js"></script>
</head>
<body>
<a-scene>
<a-box color="#4CC3D9" position="-1 0.5 -3" rotation="0 45 0"></a-box>
<a-cylinder color="#FFC65D" position="1 0.75 -3" radius="0.5" height="1.5"></a-cylinder>
<a-sphere color="#EF2D5E" position="0 1.25 -5" radius="1.25"></a-sphere>
<a-plane color="#7BC8A4" position="0 0 -4" rotation="-90 0 0" width="4" height="4"></a-plane>
<a-sky color="#303030"></a-sky>
</a-scene>
</body>
</html>
ECS architecture is a common and desirable pattern in 3D and game development
that follows the composition over inheritance and hierarchy principle
Entity-Component-System

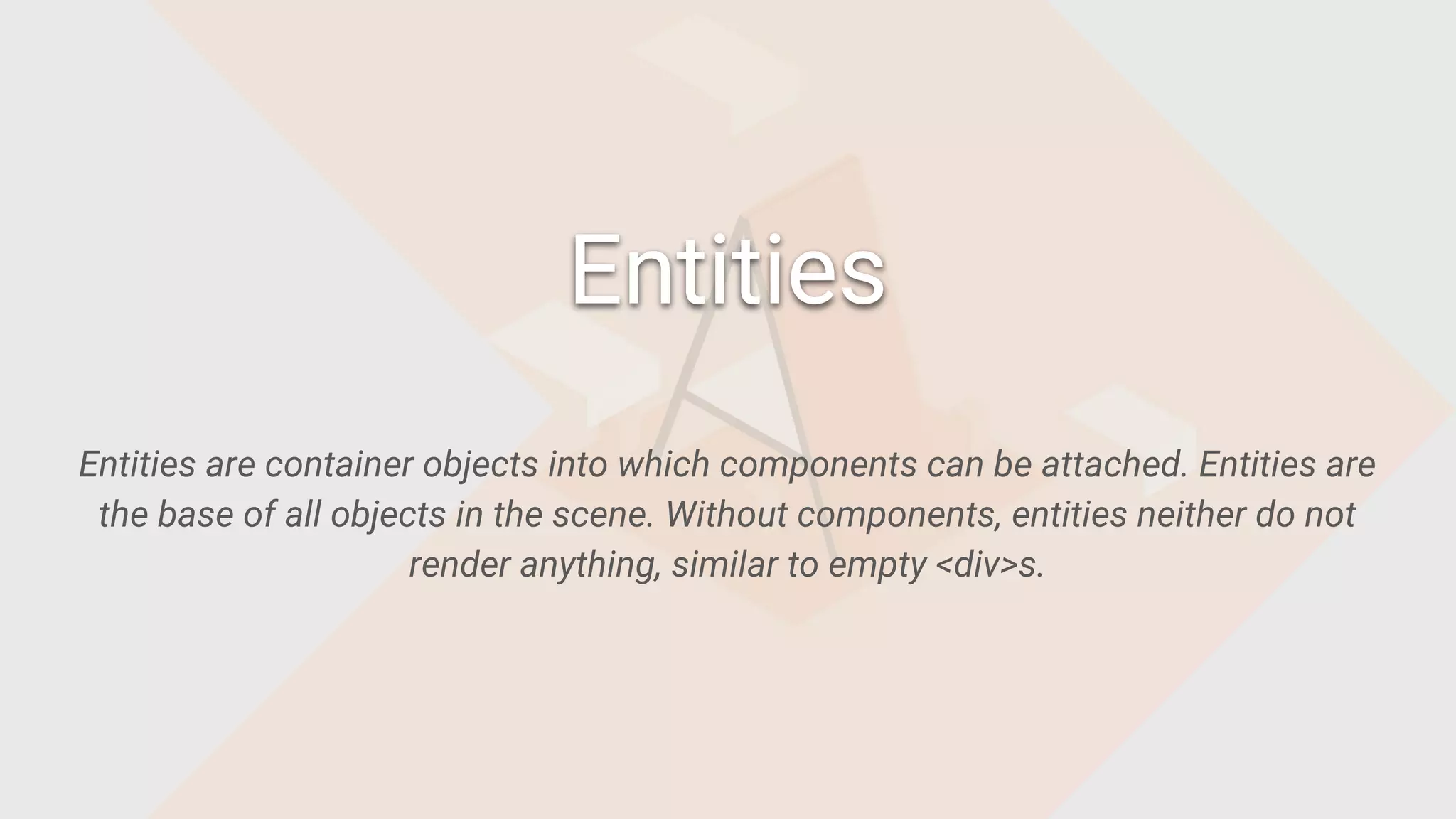

Entities are container objects into which components can be attached. Entities are
the base of all objects in the scene. Without components, entities neither do not
render anything, similar to empty <div>s.
Entities

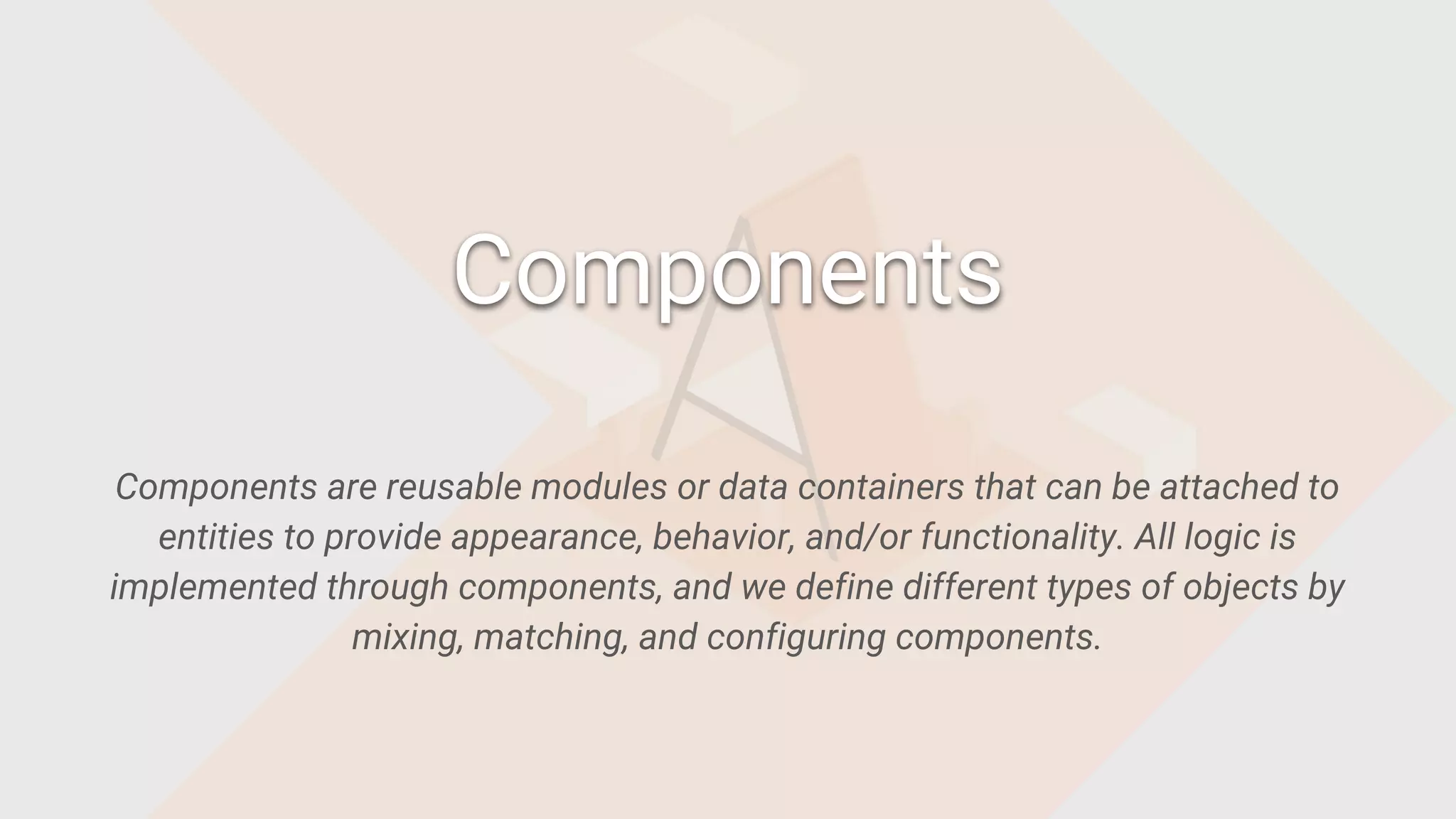

Components are reusable modules or data containers that can be attached to
entities to provide appearance, behavior, and/or functionality. All logic is
implemented through components, and we define different types of objects by
mixing, matching, and configuring components.
Components
Systems provide global scope, management, and services for classes of
components. Systems are often optional, but we can use them to separate logic and
data; systems handle the logic, components act as data containers.
Systems

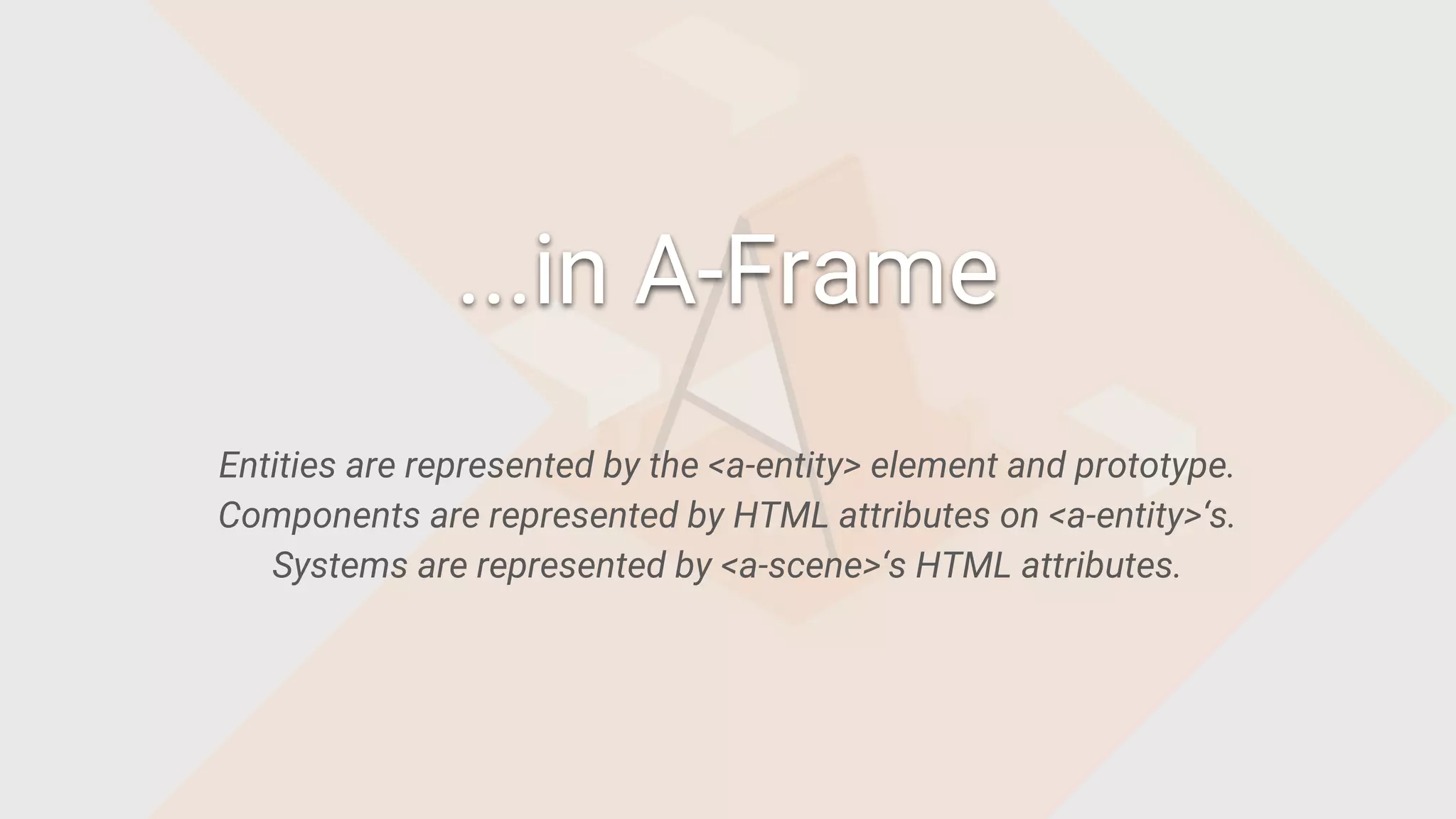

Entities are represented by the <a-entity> element and prototype.
Components are represented by HTML attributes on <a-entity>‘s.
Systems are represented by <a-scene>‘s HTML attributes.
...in A-Frame

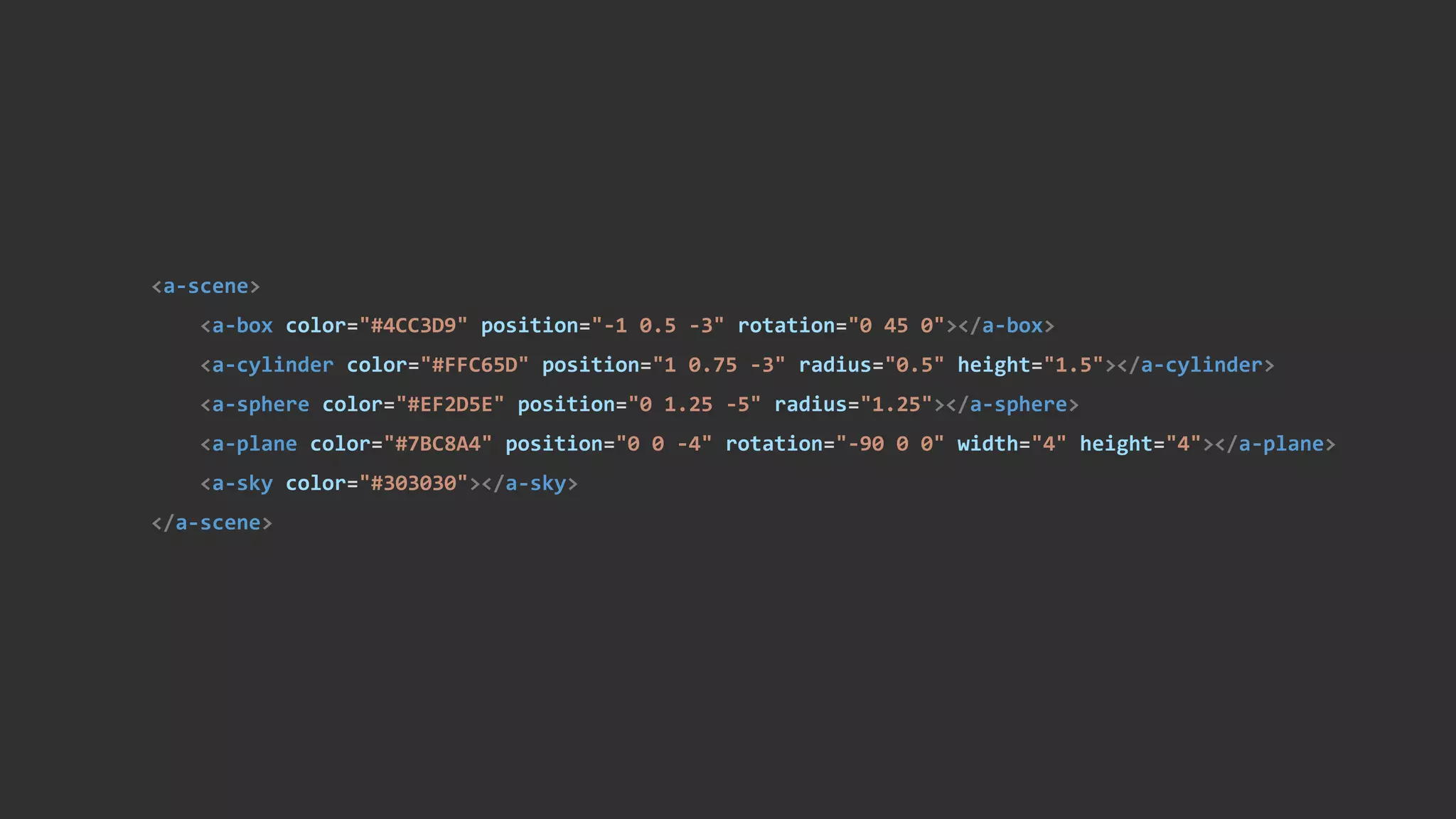

<a-scene>
<a-box color="#4CC3D9" position="-1 0.5 -3" rotation="0 45 0"></a-box>
<a-cylinder color="#FFC65D" position="1 0.75 -3" radius="0.5" height="1.5"></a-cylinder>
<a-sphere color="#EF2D5E" position="0 1.25 -5" radius="1.25"></a-sphere>
<a-plane color="#7BC8A4" position="0 0 -4" rotation="-90 0 0" width="4" height="4"></a-plane>
<a-sky color="#303030"></a-sky>
</a-scene>

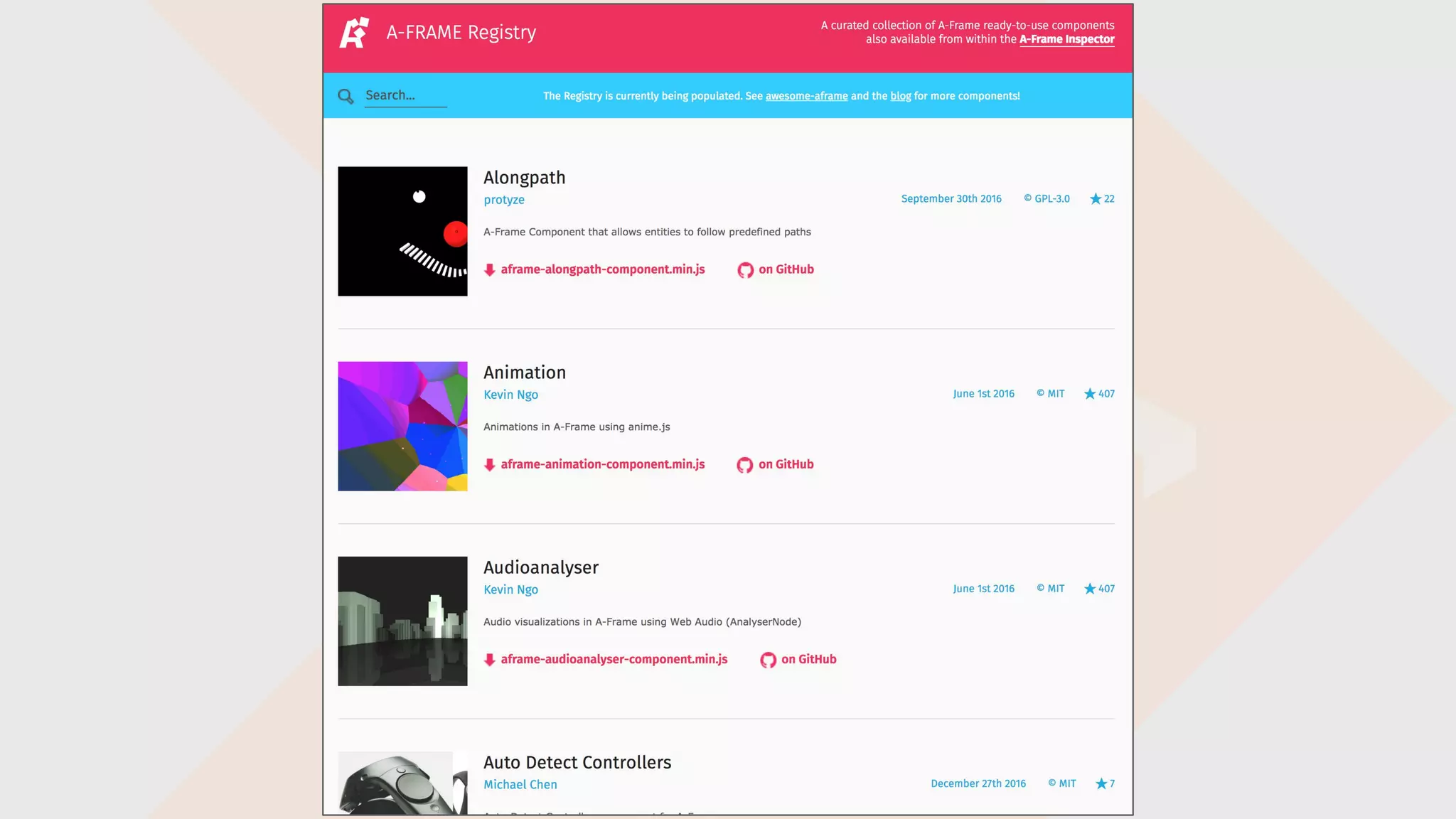

A curated collection of A-Frame ready-to-use components.
Registry
https://aframe.io/aframe-registry/

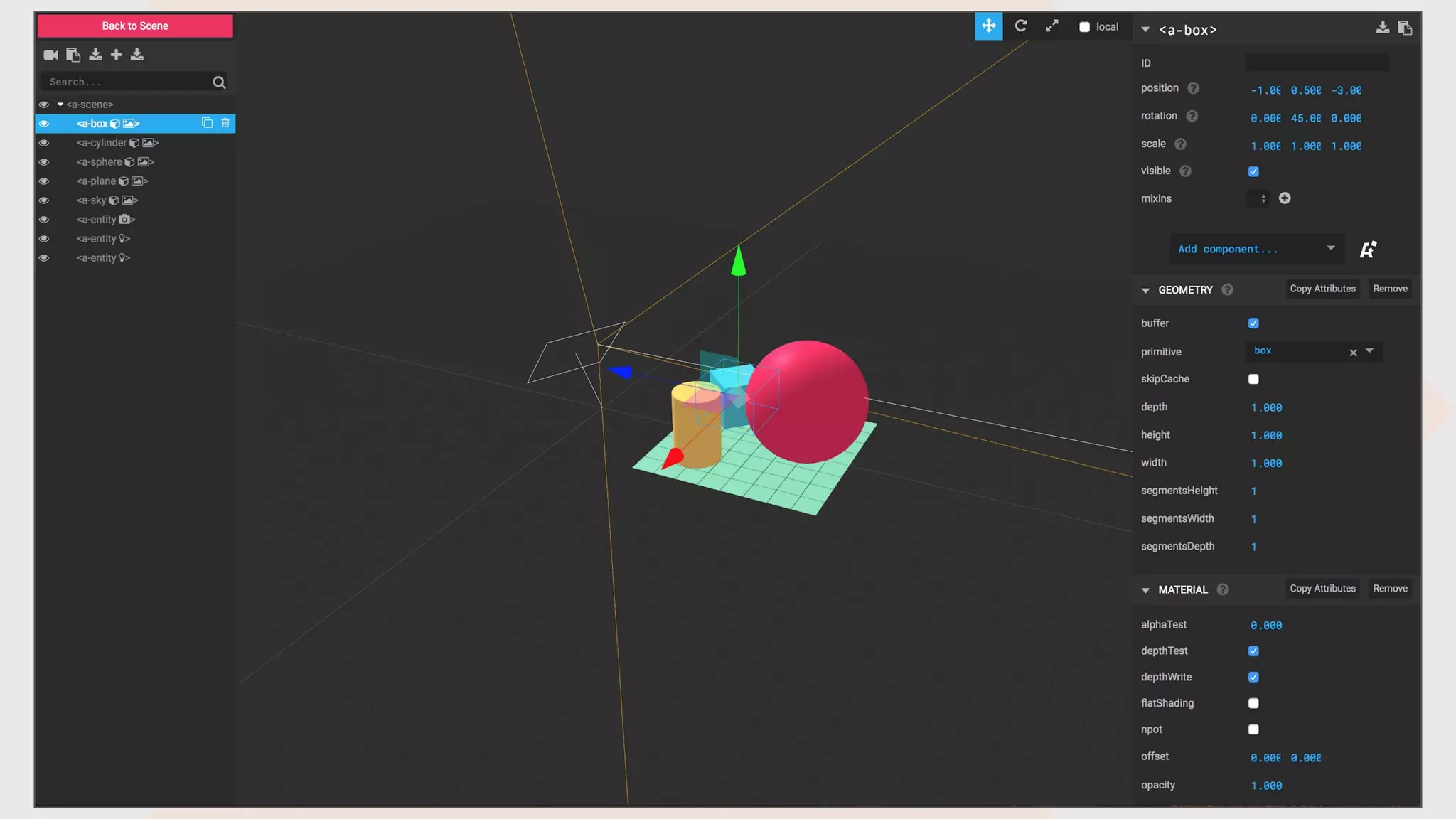

Just <ctrl>+<alt>+i.
Inspector

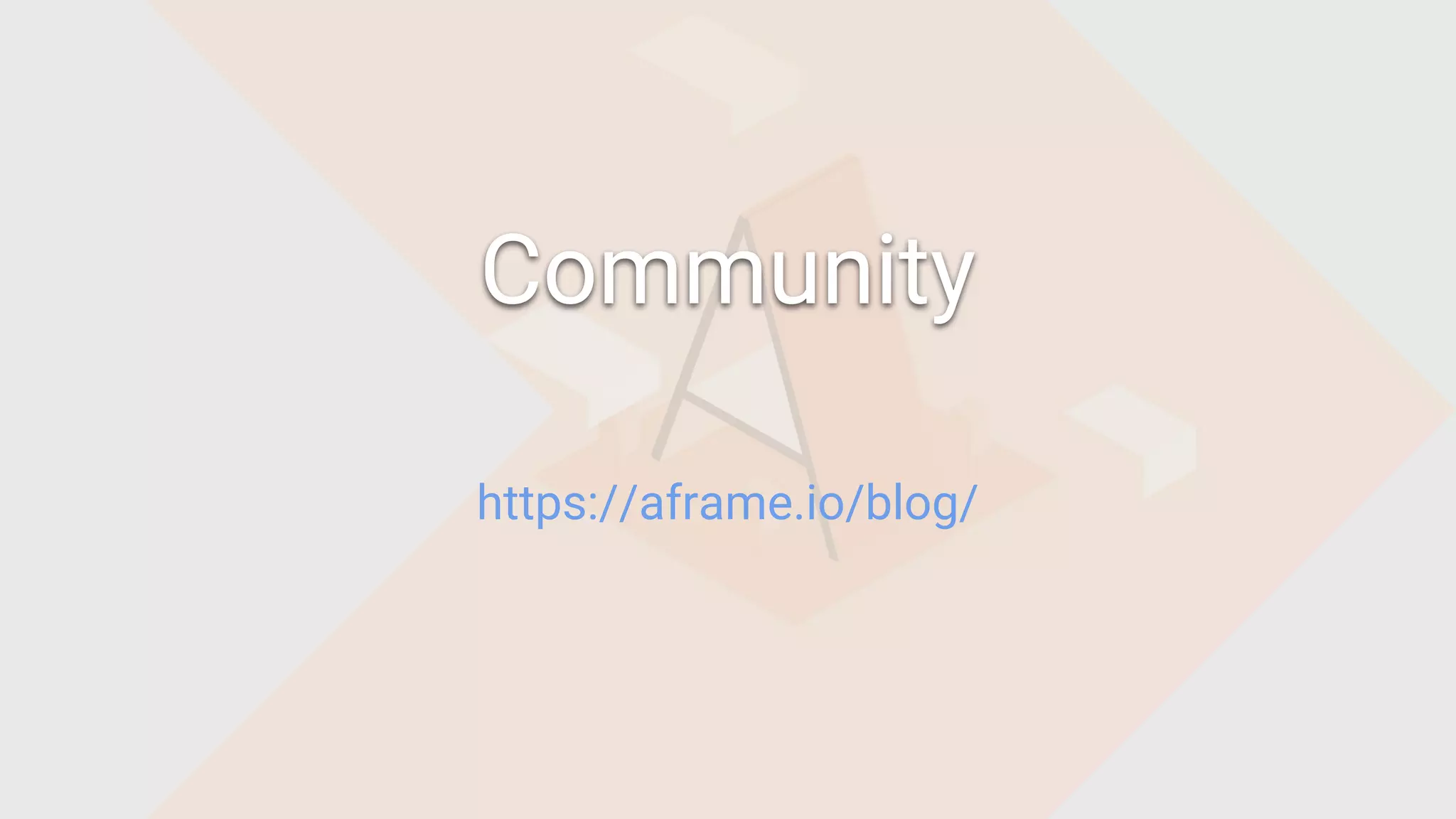

Community

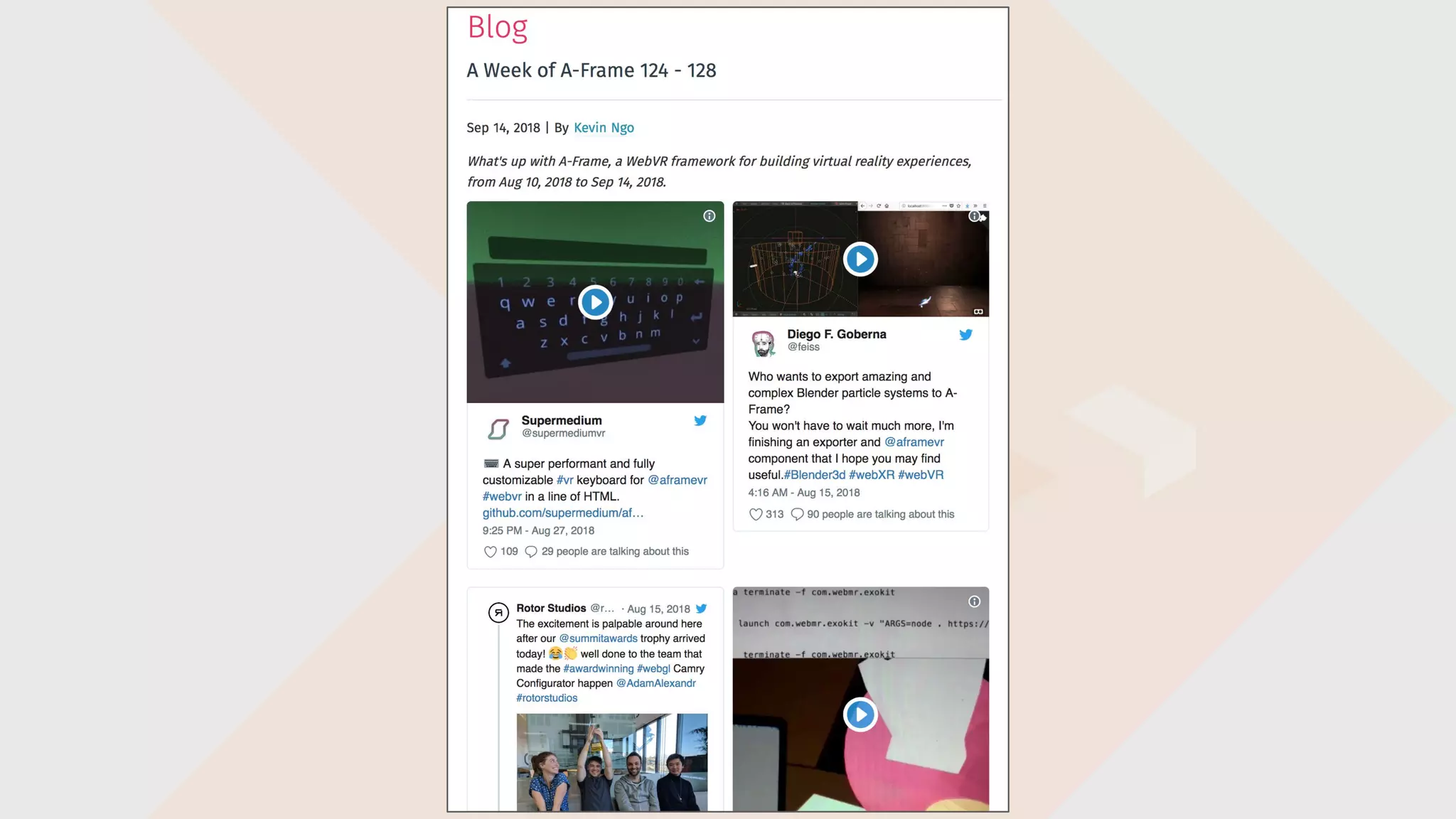

https://aframe.io/blog/
250+ contributors
8000+ stargazers
4500+ members
100s of featured projects

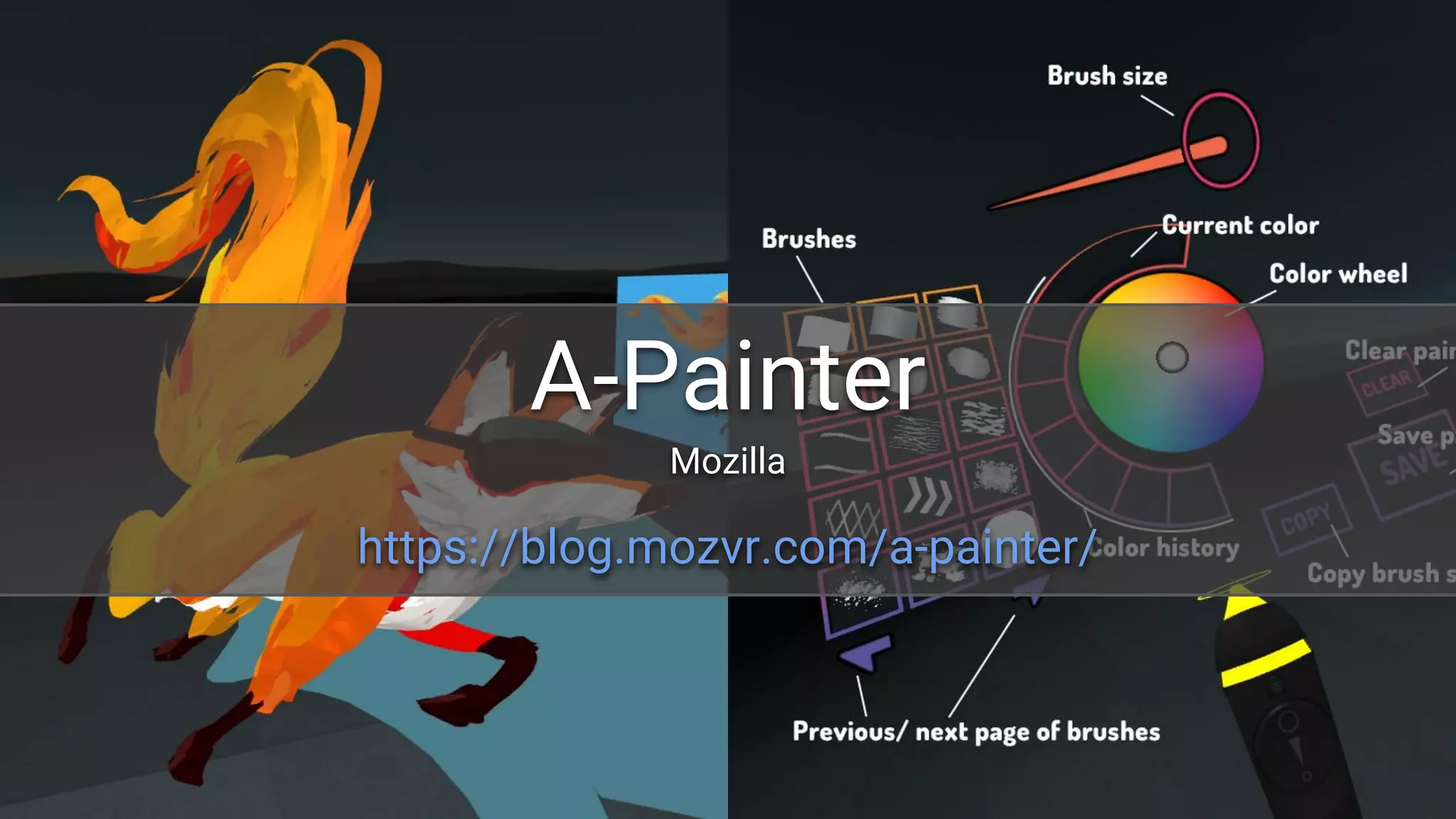

A-Painter
https://blog.mozvr.com/a-painter/
Mozilla
Fear of the Sky
http://www.360syria.com/
Amnesty International UK

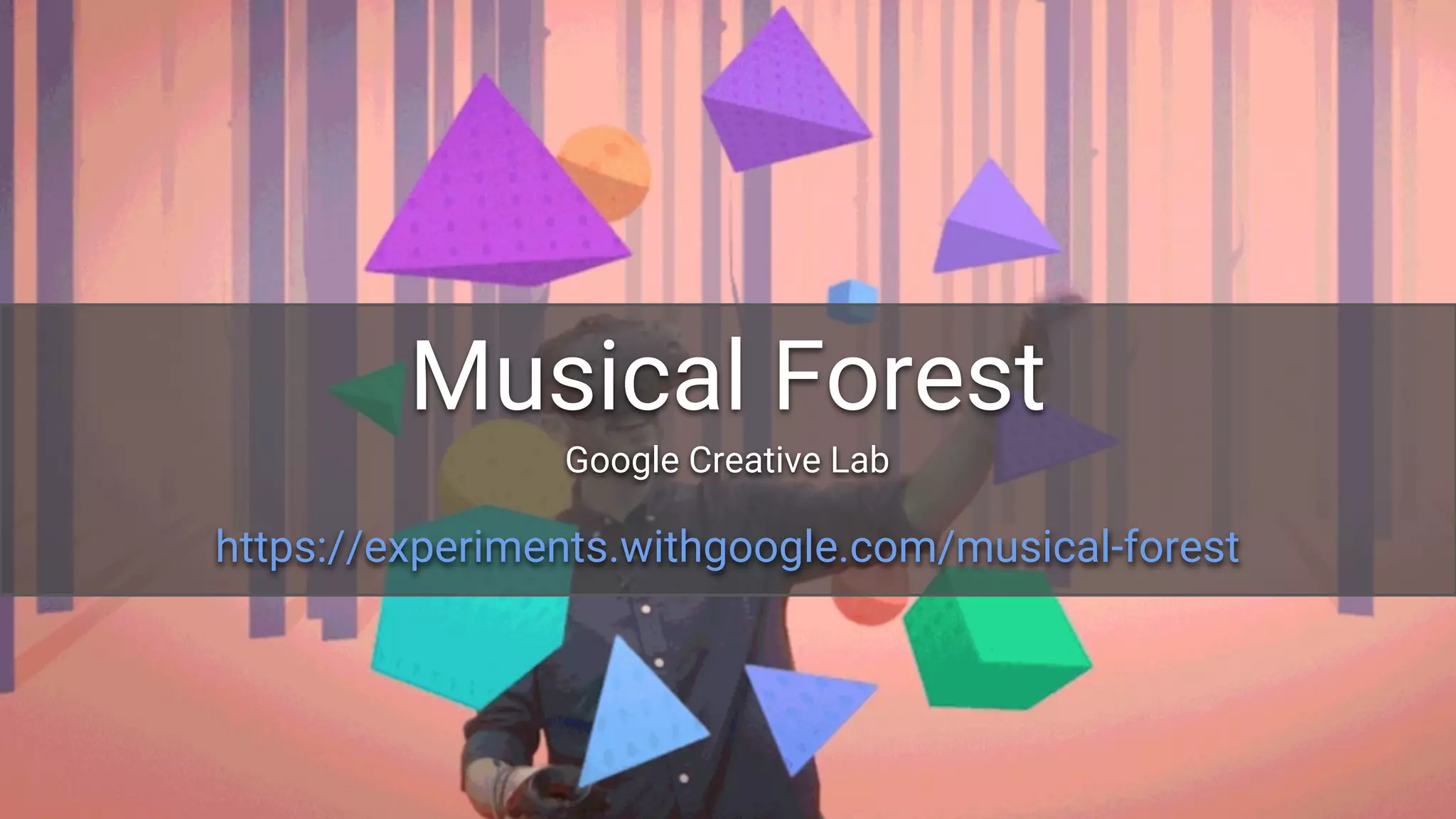

Musical Forest
https://experiments.withgoogle.com/musical-forest
Google Creative Lab
Thank you
@doJester13

A-Frame: building virtual reality experiences for the web
