1. Joint Math-Bridge Training
Program
Michael Dietrich (DFKI)
Math-Bridge Installation
10.07.2015 Saarbrücken

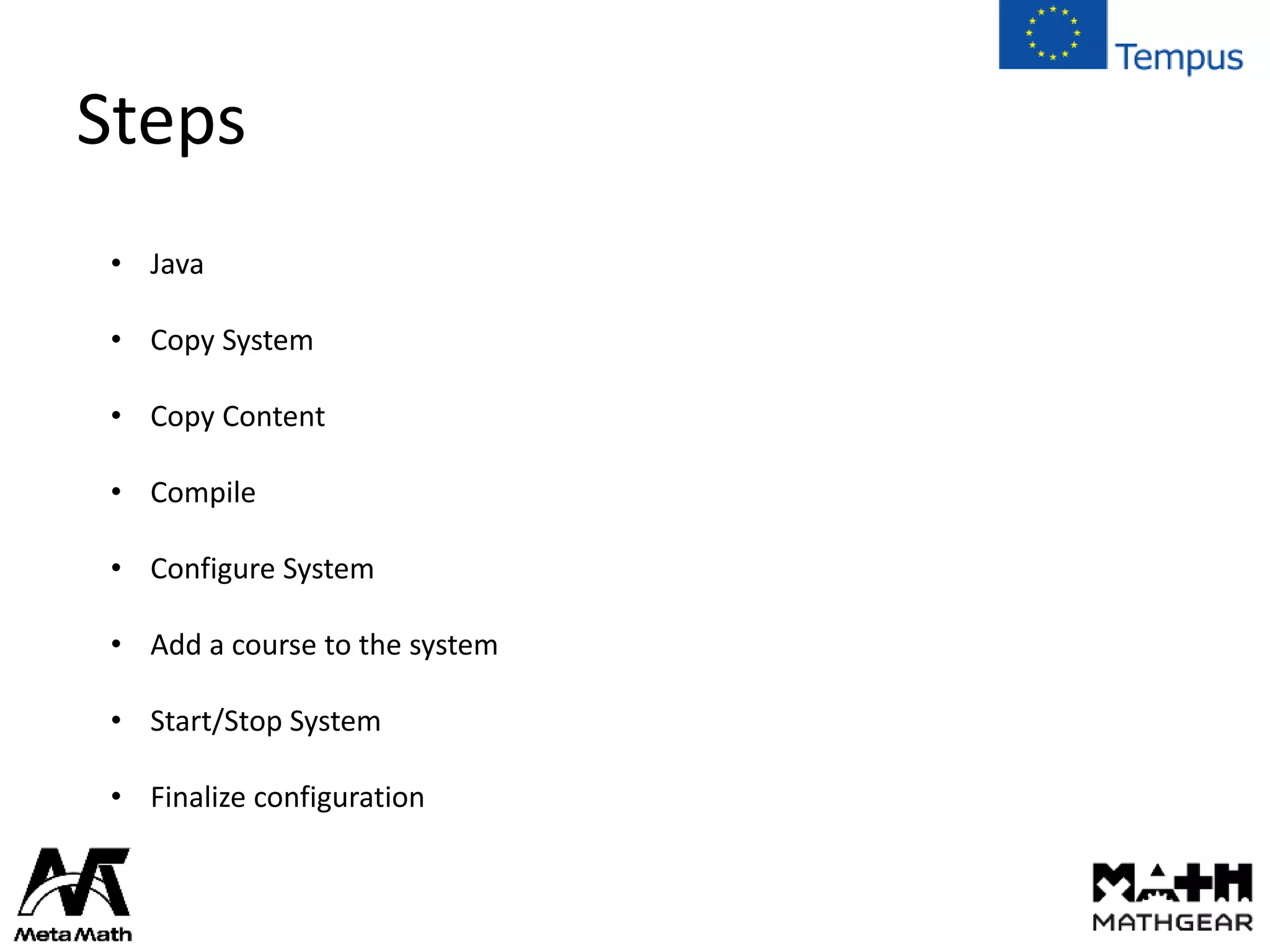

2. Steps
• Java
• Copy System
• Copy Content
• Compile
• Configure System
• Add a course to the system
• Start/Stop System
• Finalize configuration

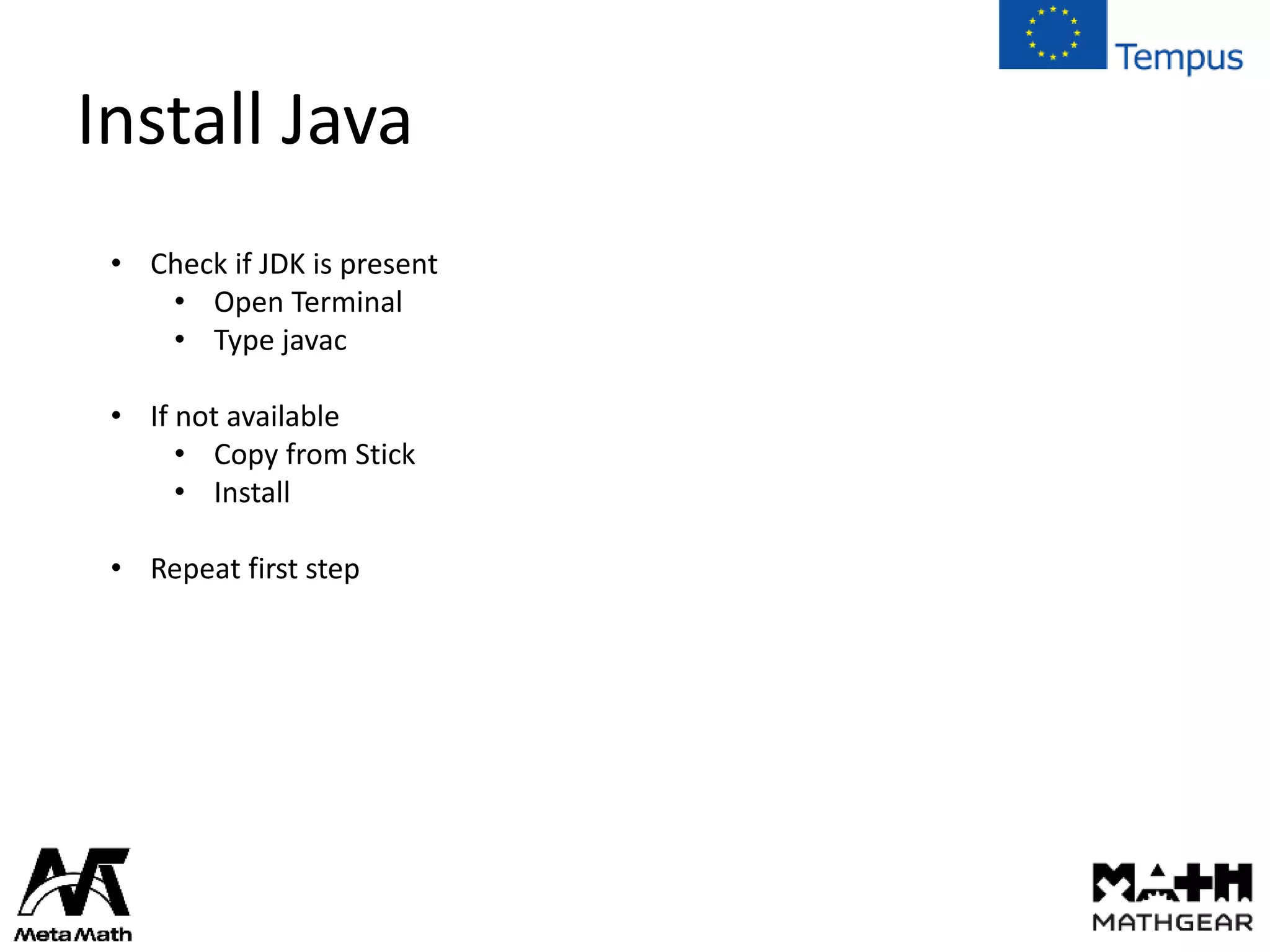

3. Install Java
• Check if JDK is present
• Open Terminal
• Type javac
• If not available
• Copy from Stick
• Install
• Repeat first step

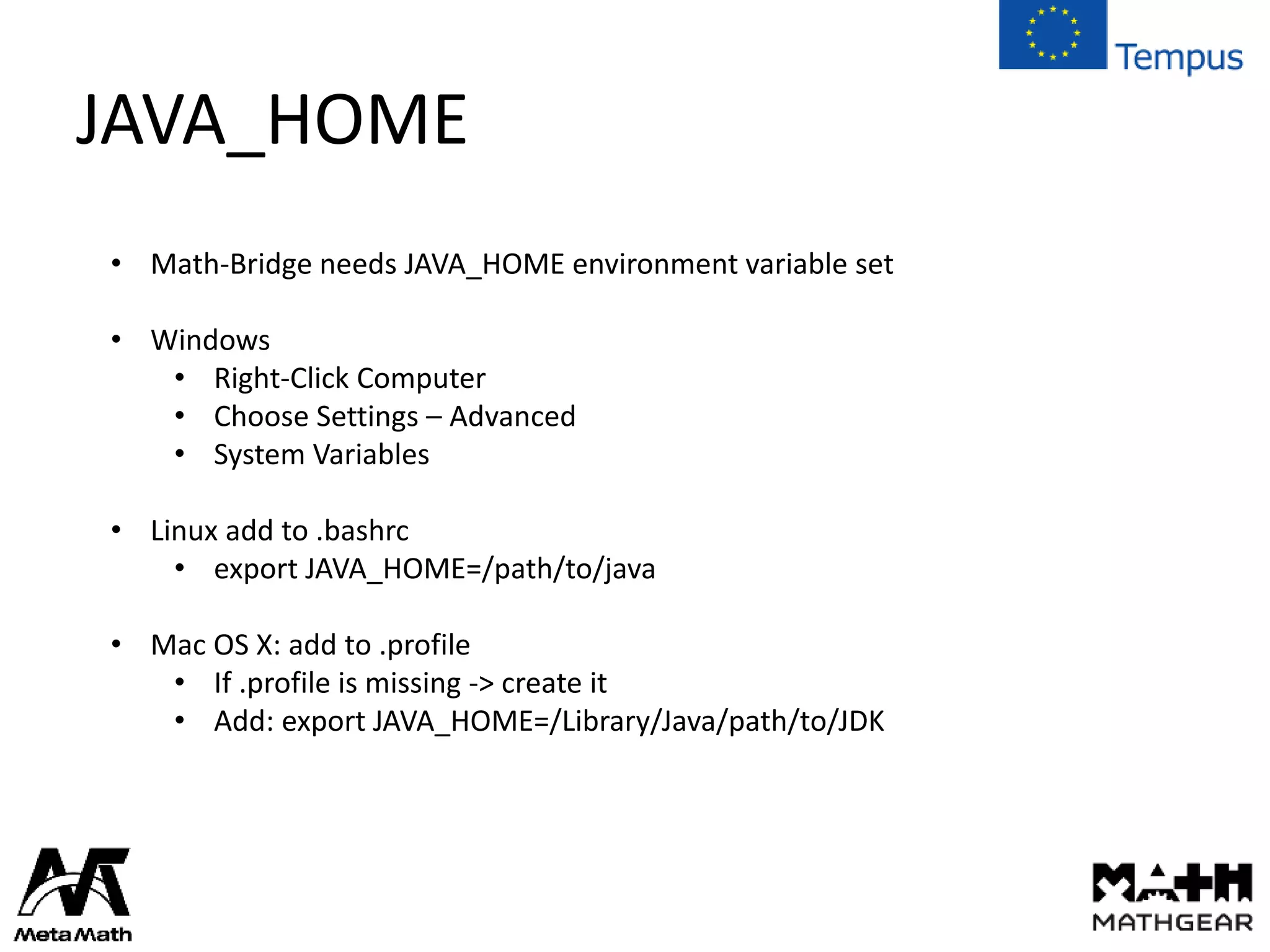

4. JAVA_HOME
• Math-Bridge needs JAVA_HOME environment variable set
• Windows
• Right-Click Computer
• Choose Settings – Advanced
• System Variables
• Linux add to .bashrc
• export JAVA_HOME=/path/to/java
• Mac OS X: add to .profile
• If .profile is missing -> create it
• Add: export JAVA_HOME=/Library/Java/path/to/JDK

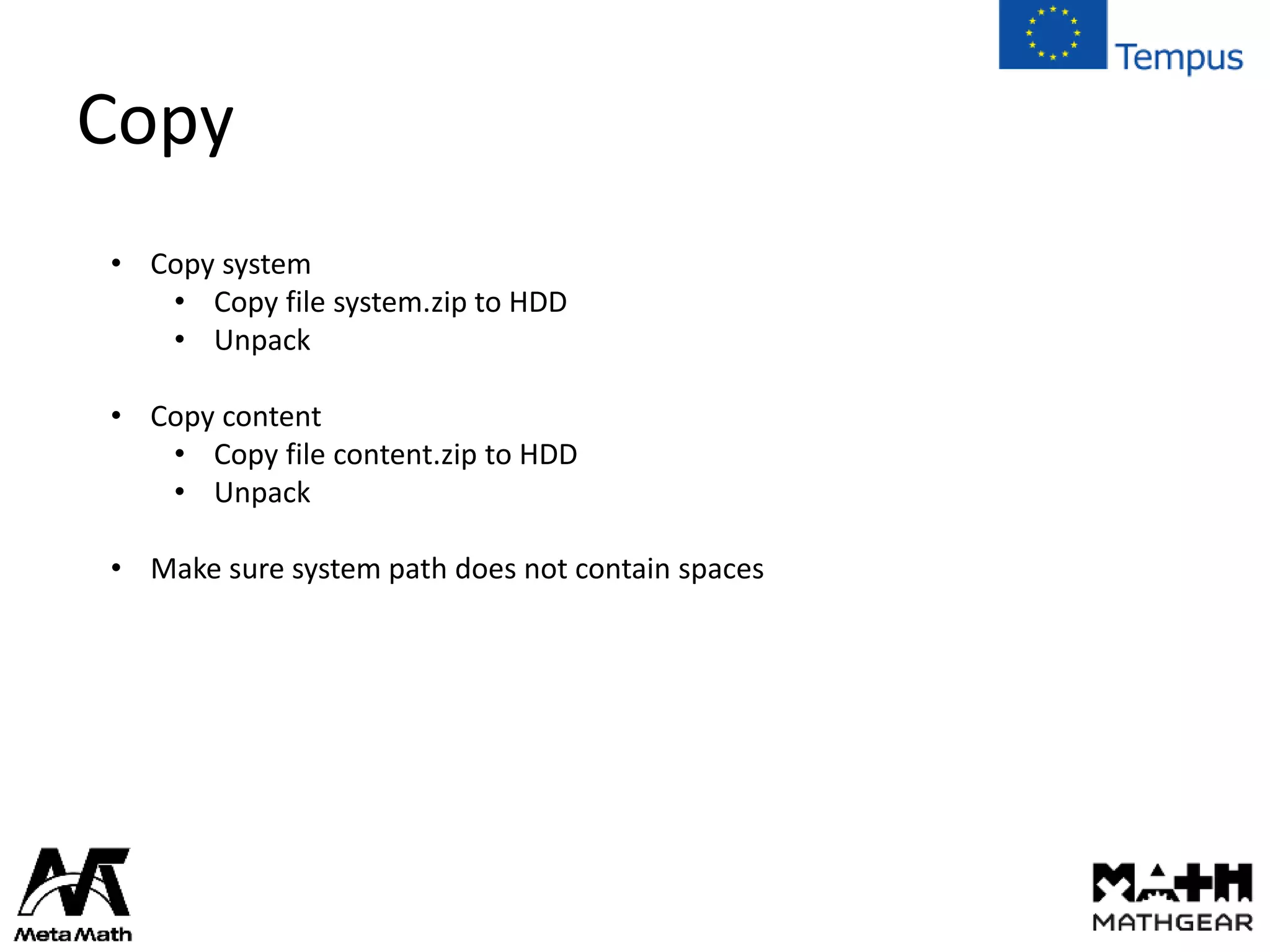

5. Copy
• Copy system
• Copy file system.zip to HDD
• Unpack
• Copy content
• Copy file content.zip to HDD
• Unpack
• Make sure system path does not contain spaces

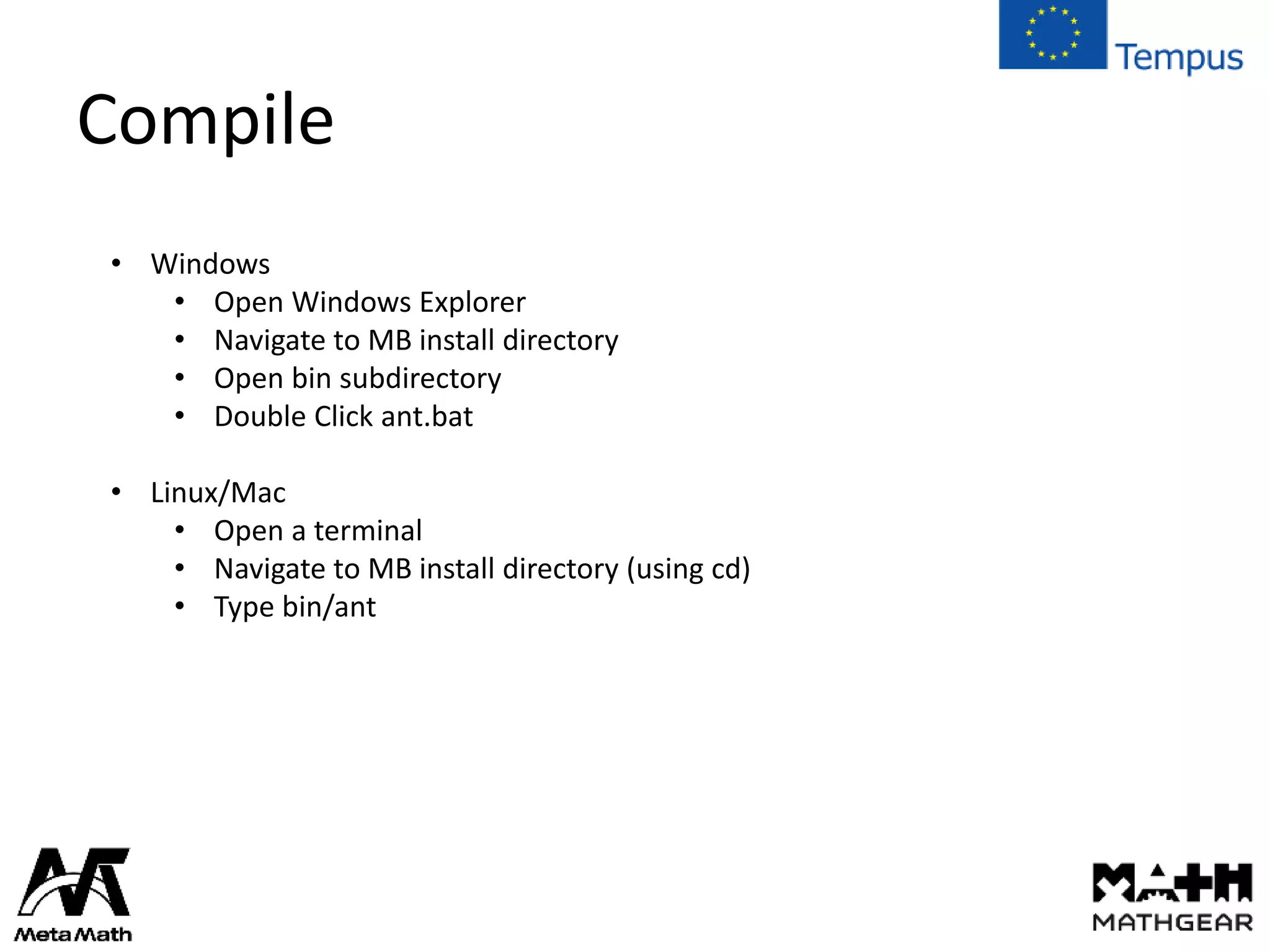

6. Compile
• Windows
• Open Windows Explorer
• Navigate to MB install directory
• Open bin subdirectory
• Double Click ant.bat
• Linux/Mac
• Open a terminal
• Navigate to MB install directory (using cd)
• Type bin/ant

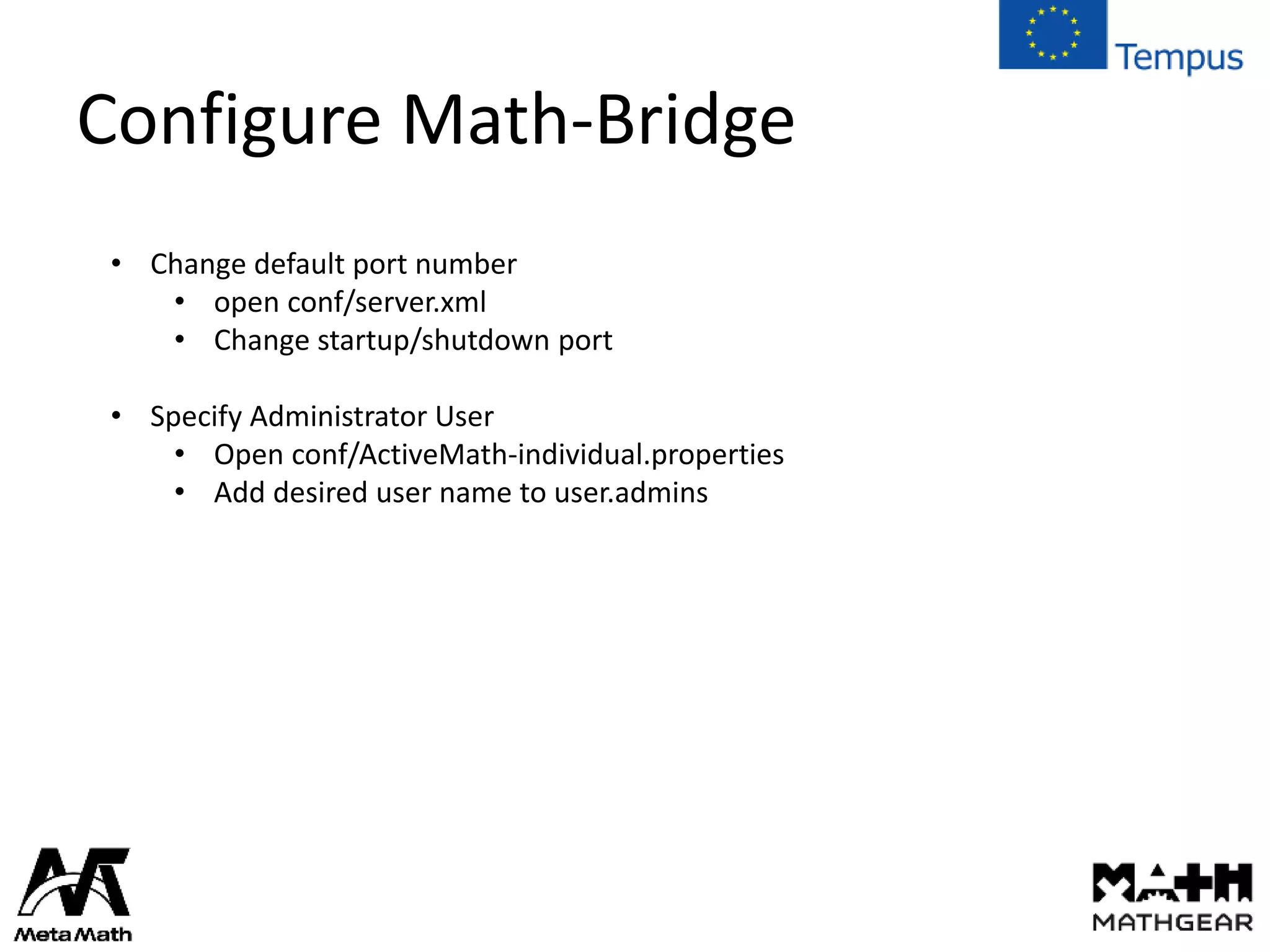

7. Configure Math-Bridge
• Change default port number
• open conf/server.xml
• Change startup/shutdown port
• Specify Administrator User
• Open conf/ActiveMath-individual.properties
• Add desired user name to user.admins

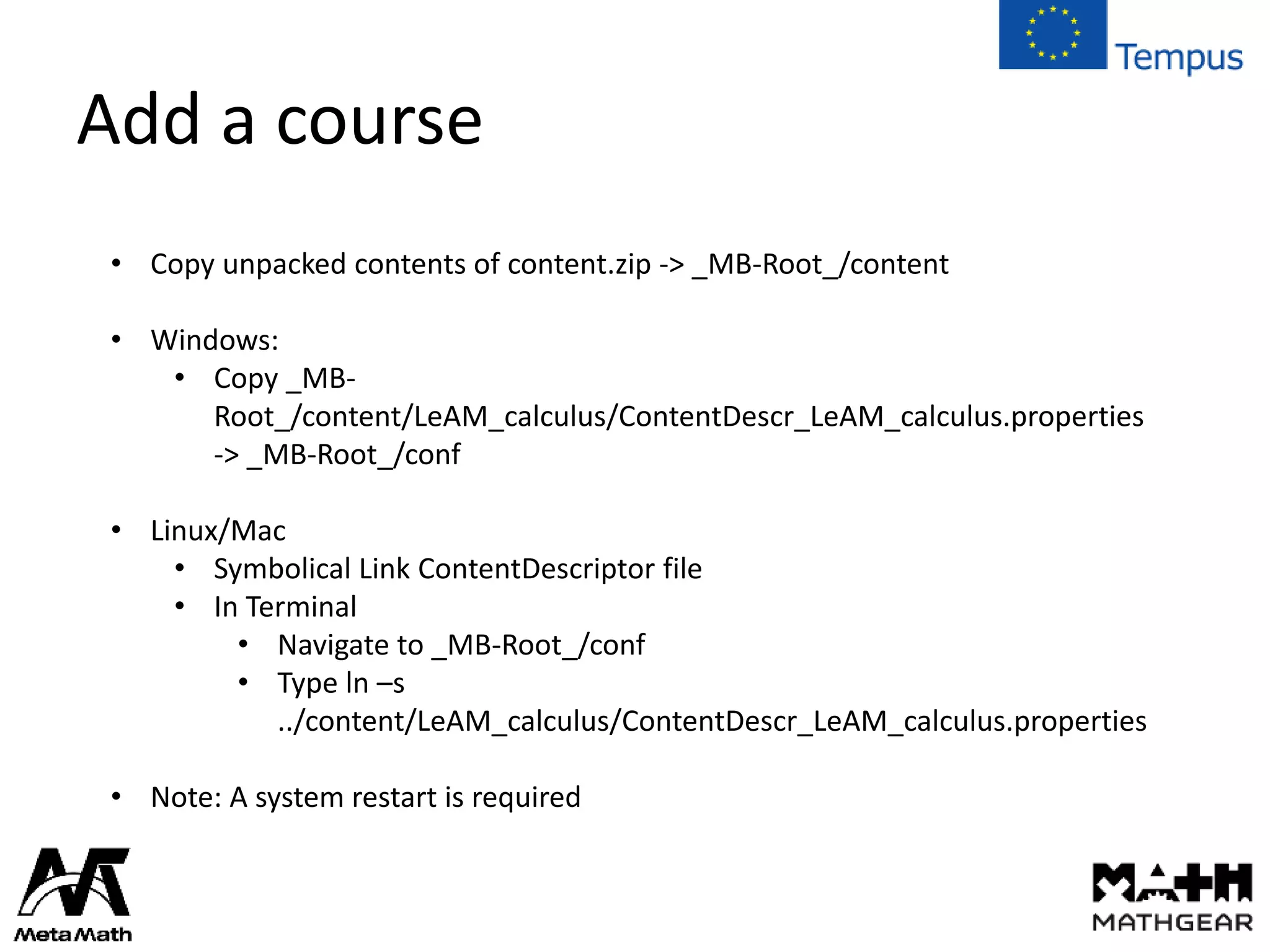

8. Add a course
• Copy unpacked contents of content.zip -> _MB-Root_/content
• Windows:
• Copy _MB-
Root_/content/LeAM_calculus/ContentDescr_LeAM_calculus.properties
-> _MB-Root_/conf
• Linux/Mac
• Symbolical Link ContentDescriptor file
• In Terminal
• Navigate to _MB-Root_/conf
• Type ln –s
../content/LeAM_calculus/ContentDescr_LeAM_calculus.properties
• Note: A system restart is required

9. Start Math-Bridge
• Start Math-Bridge
• bin/amStartup (*nix/Mac)
• doubleclick bin/activemath.bat (Windows)
• Shutdown Math-Bridge
• bin/amShutdown (*nix/Mac)
• close Math-Bridge server window (Windows)
• Restart Math-Bridge (*nix/Mac only)
• Bin/amRestart

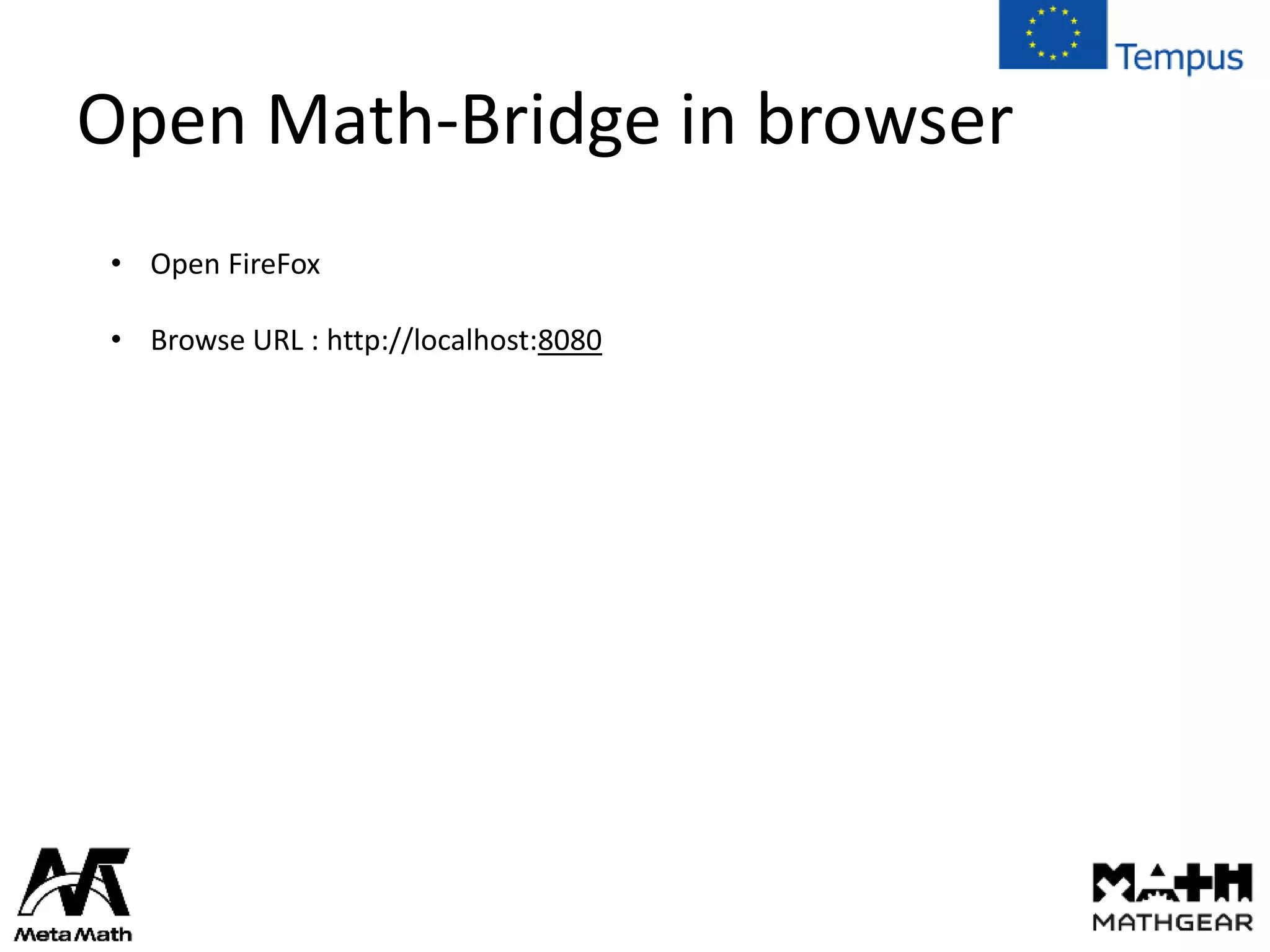

10. Open Math-Bridge in browser
• Open FireFox
• Browse URL : http://localhost:8080

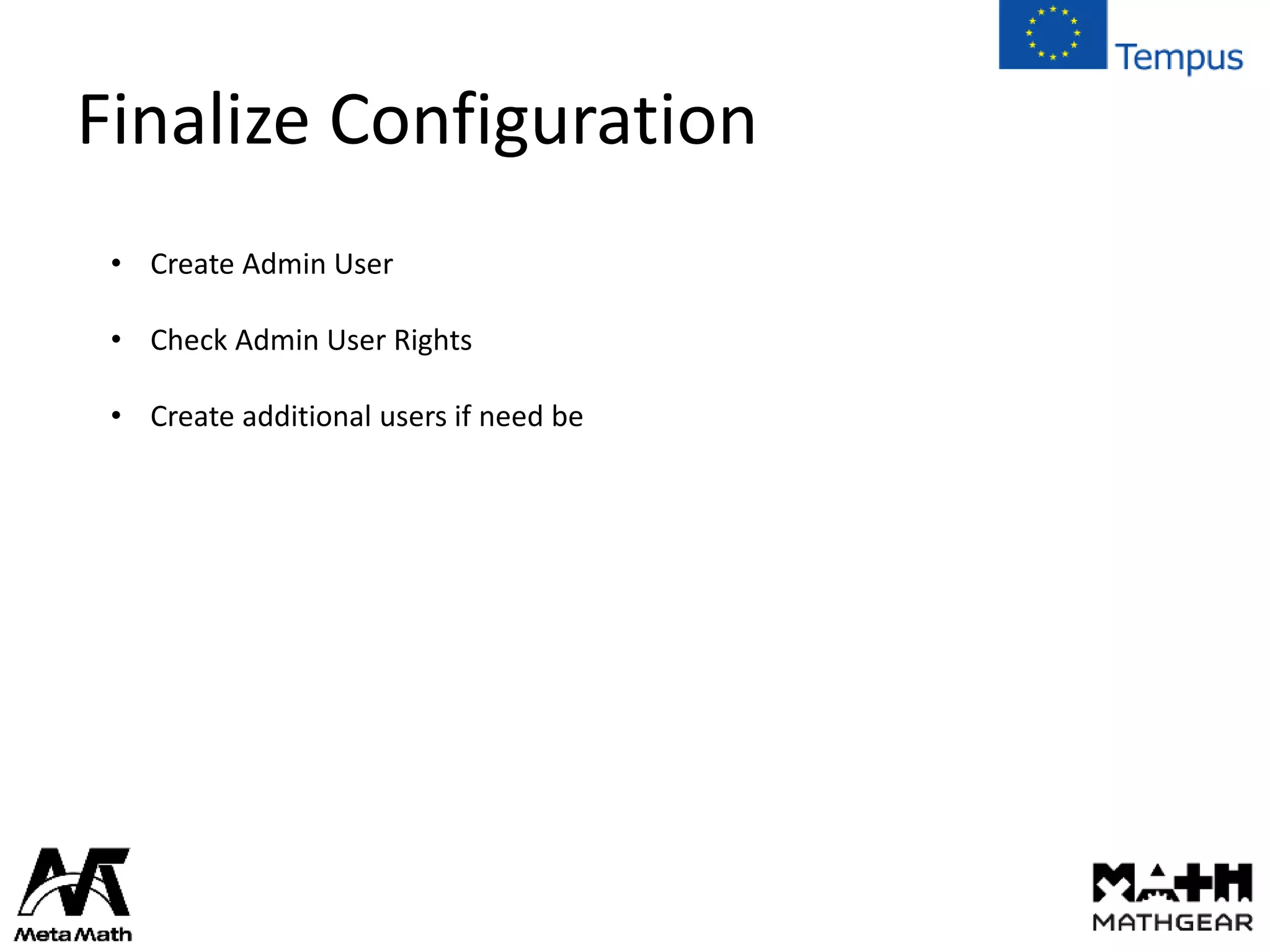

11. Finalize Configuration
• Create Admin User
• Check Admin User Rights
• Create additional users if need be

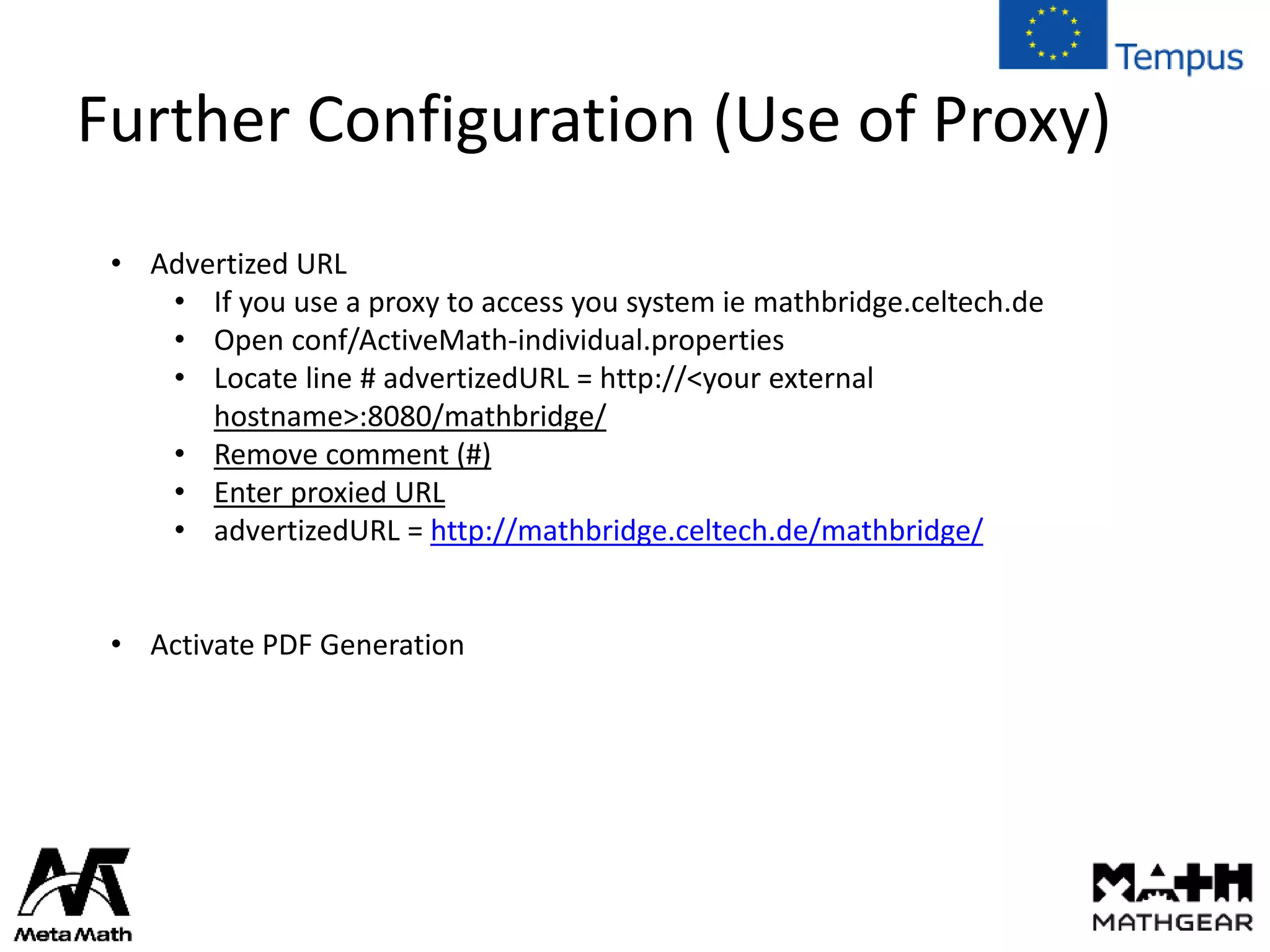

12. Further Configuration (Use of Proxy)
• Advertized URL
• If you use a proxy to access you system ie mathbridge.celtech.de
• Open conf/ActiveMath-individual.properties
• Locate line # advertizedURL = http://<your external
hostname>:8080/mathbridge/
• Remove comment (#)
• Enter proxied URL
• advertizedURL = http://mathbridge.celtech.de/mathbridge/
• Activate PDF Generation

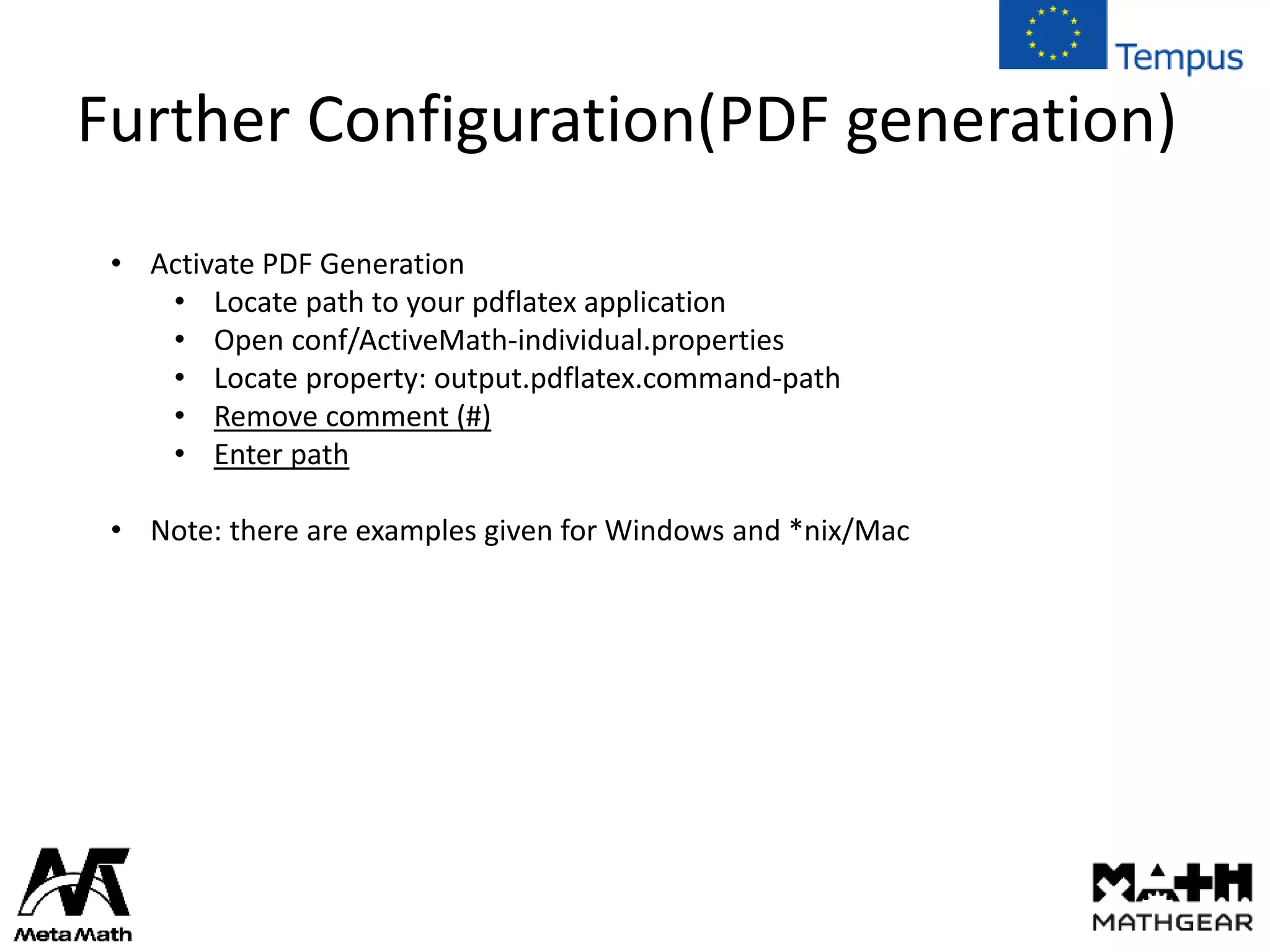

13. Further Configuration(PDF generation)
• Activate PDF Generation
• Locate path to your pdflatex application
• Open conf/ActiveMath-individual.properties
• Locate property: output.pdflatex.command-path
• Remove comment (#)
• Enter path
• Note: there are examples given for Windows and *nix/Mac

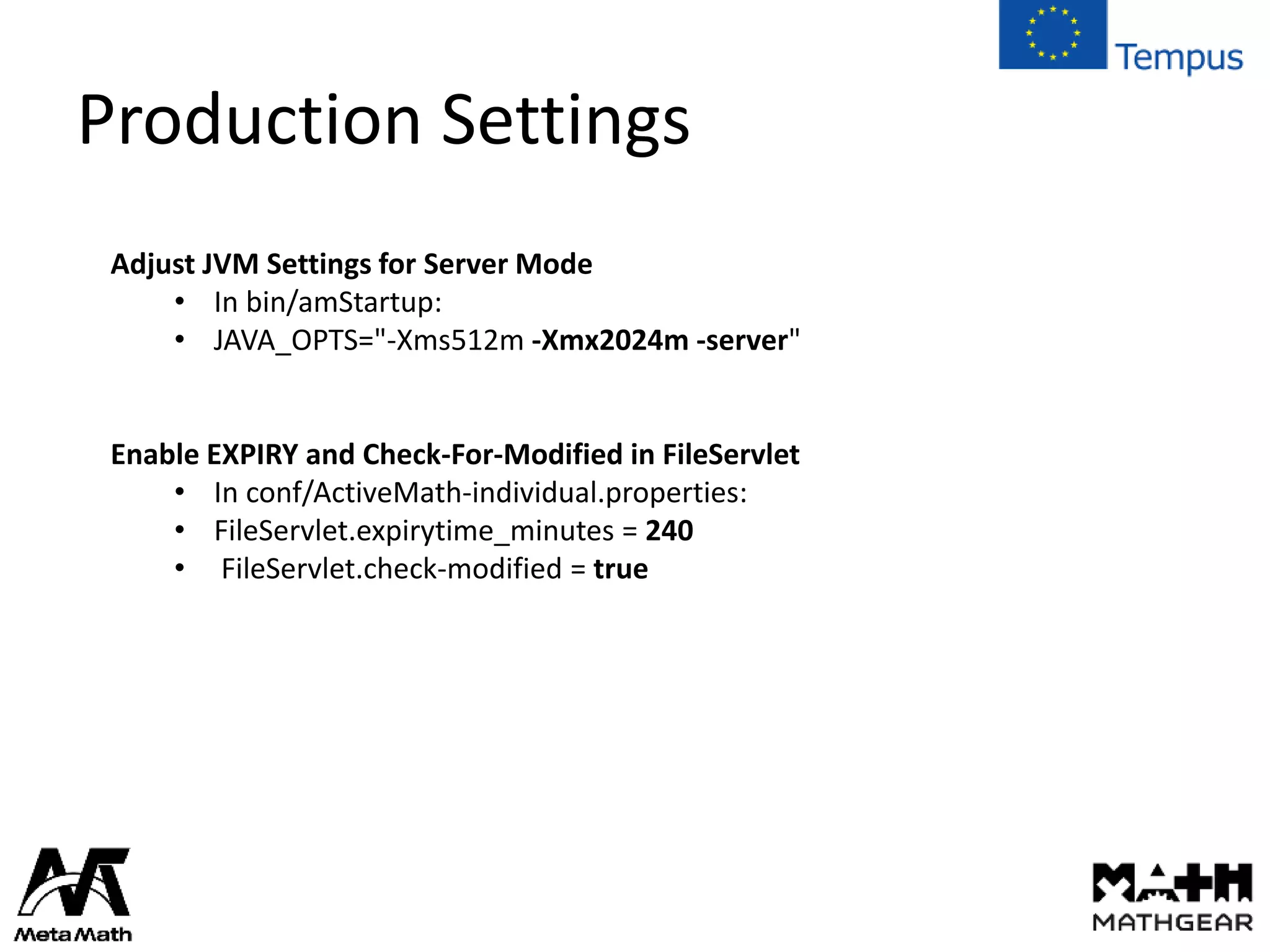

14. Production Settings
Adjust JVM Settings for Server Mode
• In bin/amStartup:
• JAVA_OPTS="-Xms512m -Xmx2024m -server"
Enable EXPIRY and Check-For-Modified in FileServlet
• In conf/ActiveMath-individual.properties:
• FileServlet.expirytime_minutes = 240
• FileServlet.check-modified = true

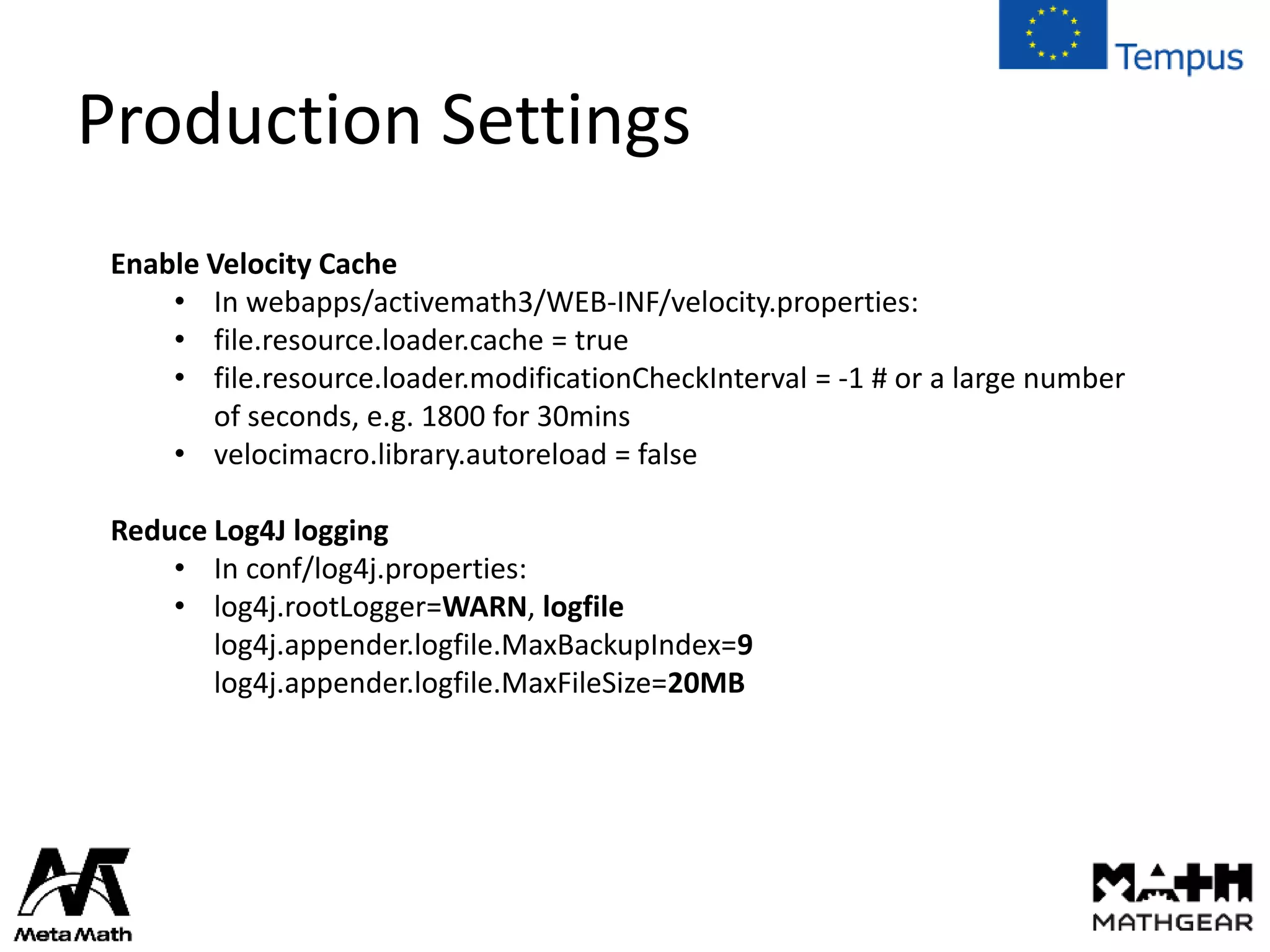

15. Production Settings
Enable Velocity Cache
• In webapps/activemath3/WEB-INF/velocity.properties:
• file.resource.loader.cache = true
• file.resource.loader.modificationCheckInterval = -1 # or a large number
of seconds, e.g. 1800 for 30mins
• velocimacro.library.autoreload = false
Reduce Log4J logging
• In conf/log4j.properties:
• log4j.rootLogger=WARN, logfile
log4j.appender.logfile.MaxBackupIndex=9
log4j.appender.logfile.MaxFileSize=20MB

16. Update System
• Keep old version for safety
• Install new system
• Before first start
• Copy content directory to new version
• Copy conf/ActiveMath-individual.properties
• Copy Content Descriptor Files
• Copy data directory
• Ready to start
