The intent of this presentation is to show that a vehicle designed in true accordance with the balanced viewpoint of a professional mass properties engineer may not only demonstrate superior acceleration, braking, and handling, but superior ride, stability, fuel economy, and safety as well. If a design begins with the first principles of how mass properties affect automotive performance in all its aspects , and is optimized accordingly in an integrated manner, then the resulting advanced automotive design may truly “go where none have gone before”.

1. Brian Paul Wiegand, PE
74TH SAWE International Conference on Mass Properties Engineering
Alexandria, VA, 18-22 May 2015

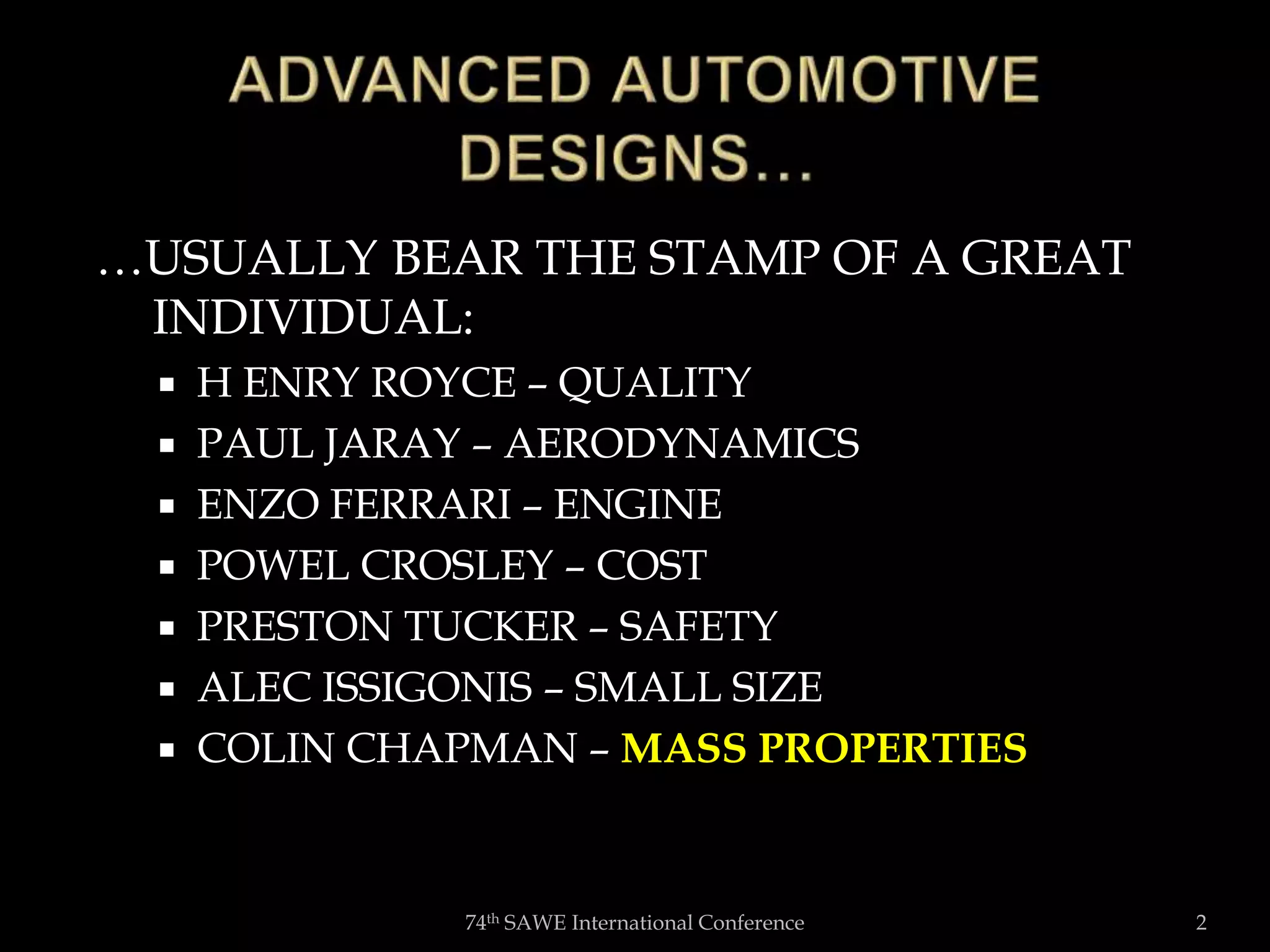

2. …USUALLY BEAR THE STAMP OF A GREAT
INDIVIDUAL:
 H ENRY ROYCE – QUALITY
 PAUL JARAY – AERODYNAMICS
 ENZO FERRARI – ENGINE
 POWEL CROSLEY – COST
 PRESTON TUCKER – SAFETY
 ALEC ISSIGONIS – SMALL SIZE
 COLIN CHAPMAN – MASS PROPERTIES
74th SAWE International Conference 2

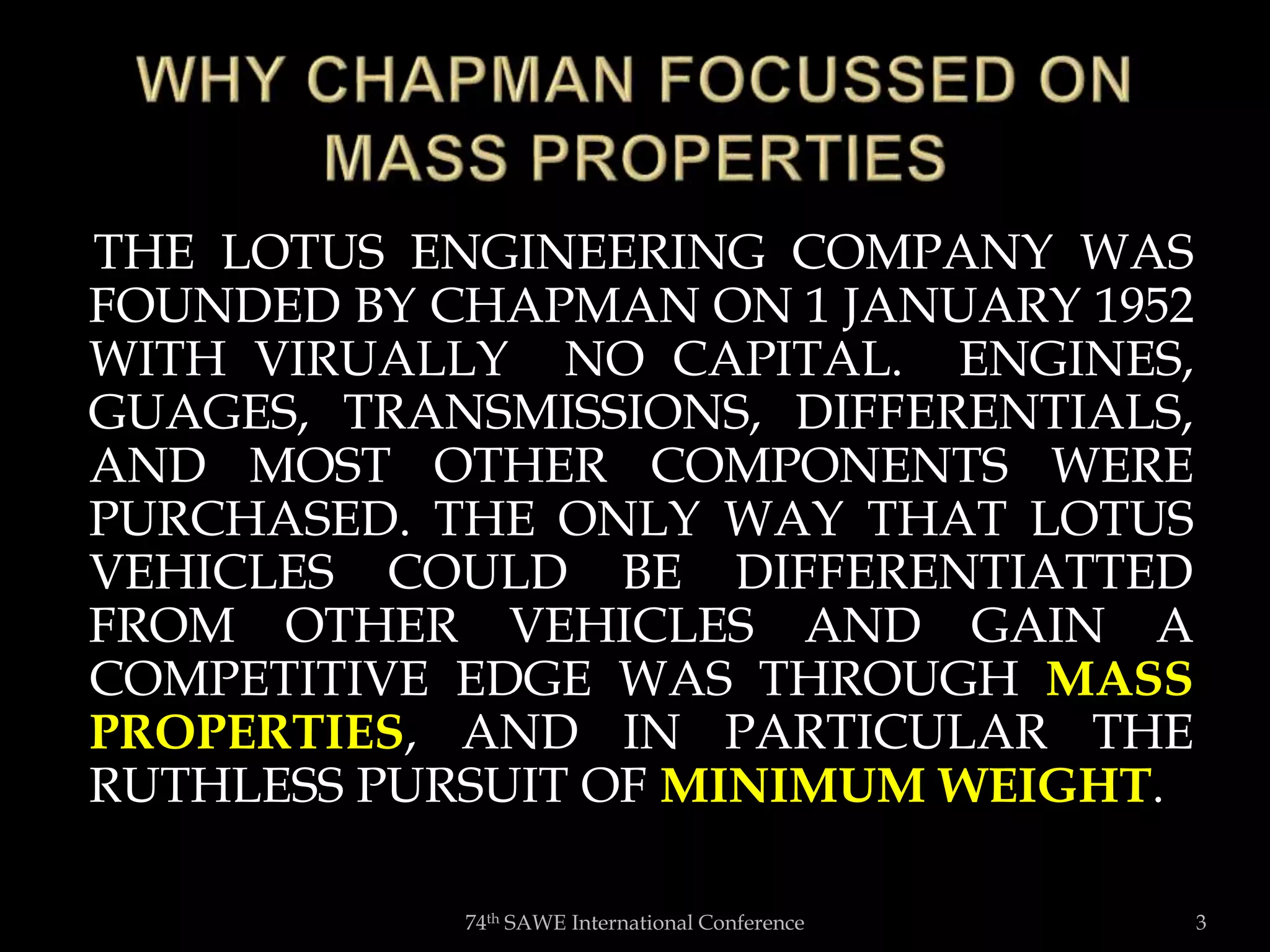

3. THE LOTUS ENGINEERING COMPANY WAS
FOUNDED BY CHAPMAN ON 1 JANUARY 1952
WITH VIRUALLY NO CAPITAL. ENGINES,
GUAGES, TRANSMISSIONS, DIFFERENTIALS,
AND MOST OTHER COMPONENTS WERE
PURCHASED. THE ONLY WAY THAT LOTUS
VEHICLES COULD BE DIFFERENTIATTED
FROM OTHER VEHICLES AND GAIN A
COMPETITIVE EDGE WAS THROUGH MASS
PROPERTIES, AND IN PARTICULAR THE
RUTHLESS PURSUIT OF MINIMUM WEIGHT.
74th SAWE International Conference 3

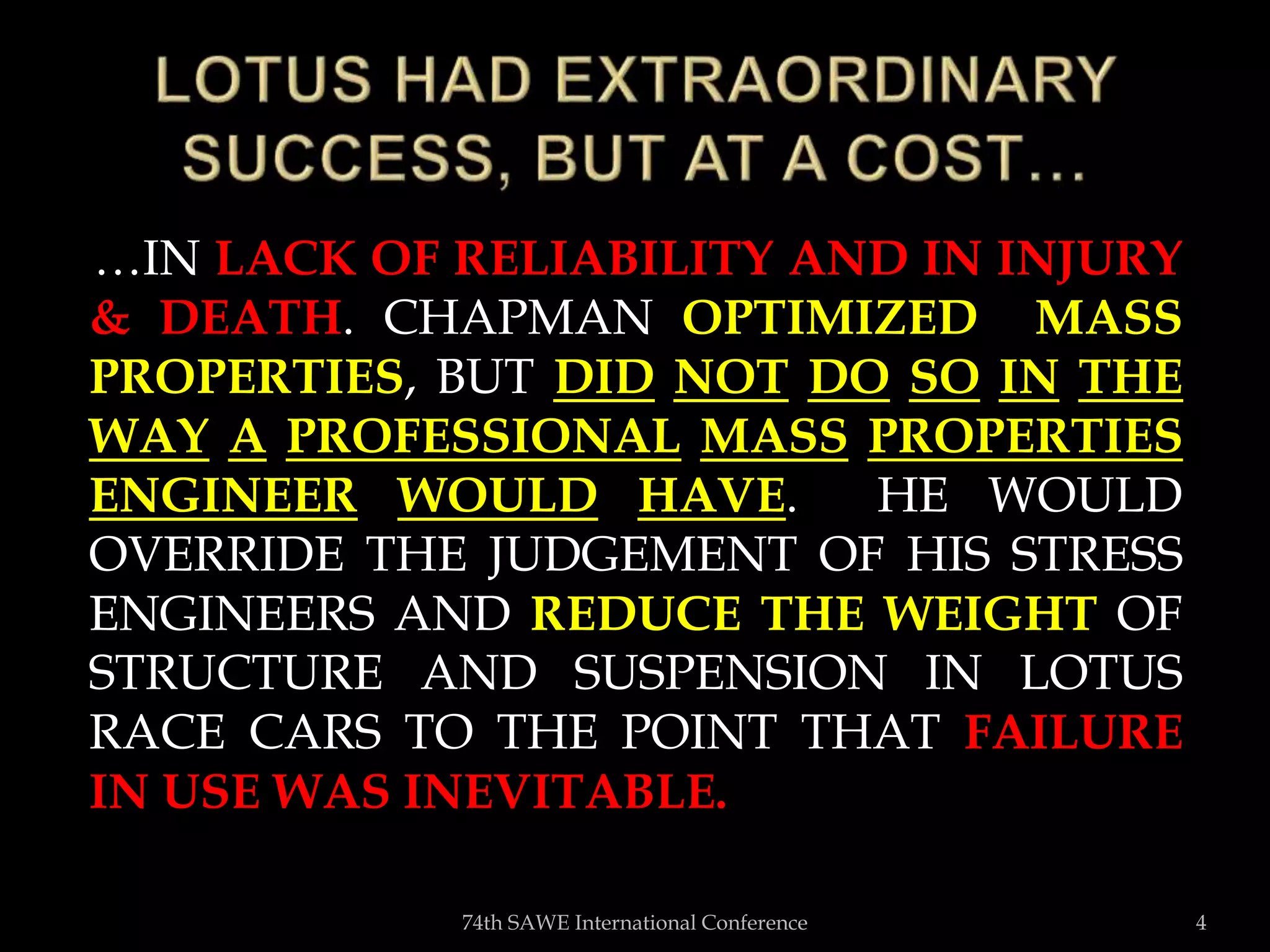

4. …IN LACK OF RELIABILITY AND IN INJURY
& DEATH. CHAPMAN OPTIMIZED MASS
PROPERTIES, BUT DID NOT DO SO IN THE
WAY A PROFESSIONAL MASS PROPERTIES
ENGINEER WOULD HAVE. HE WOULD
OVERRIDE THE JUDGEMENT OF HIS STRESS
ENGINEERS AND REDUCE THE WEIGHT OF
STRUCTURE AND SUSPENSION IN LOTUS
RACE CARS TO THE POINT THAT FAILURE
IN USE WAS INEVITABLE.
74th SAWE International Conference 4

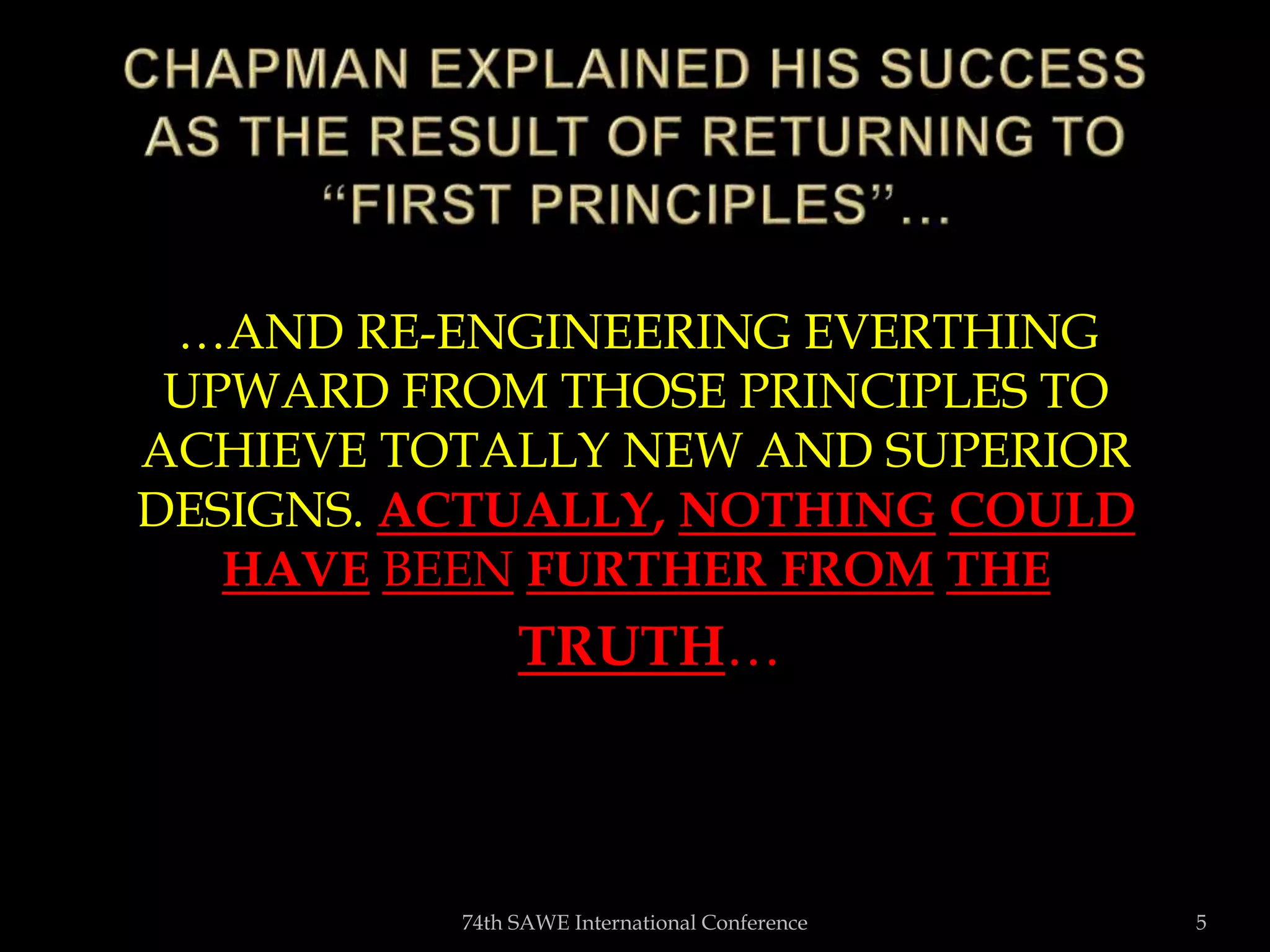

5. …AND RE-ENGINEERING EVERTHING
UPWARD FROM THOSE PRINCIPLES TO
ACHIEVE TOTALLY NEW AND SUPERIOR
DESIGNS. ACTUALLY, NOTHING COULD
HAVE BEEN FURTHER FROM THE
TRUTH…
74th SAWE International Conference 5

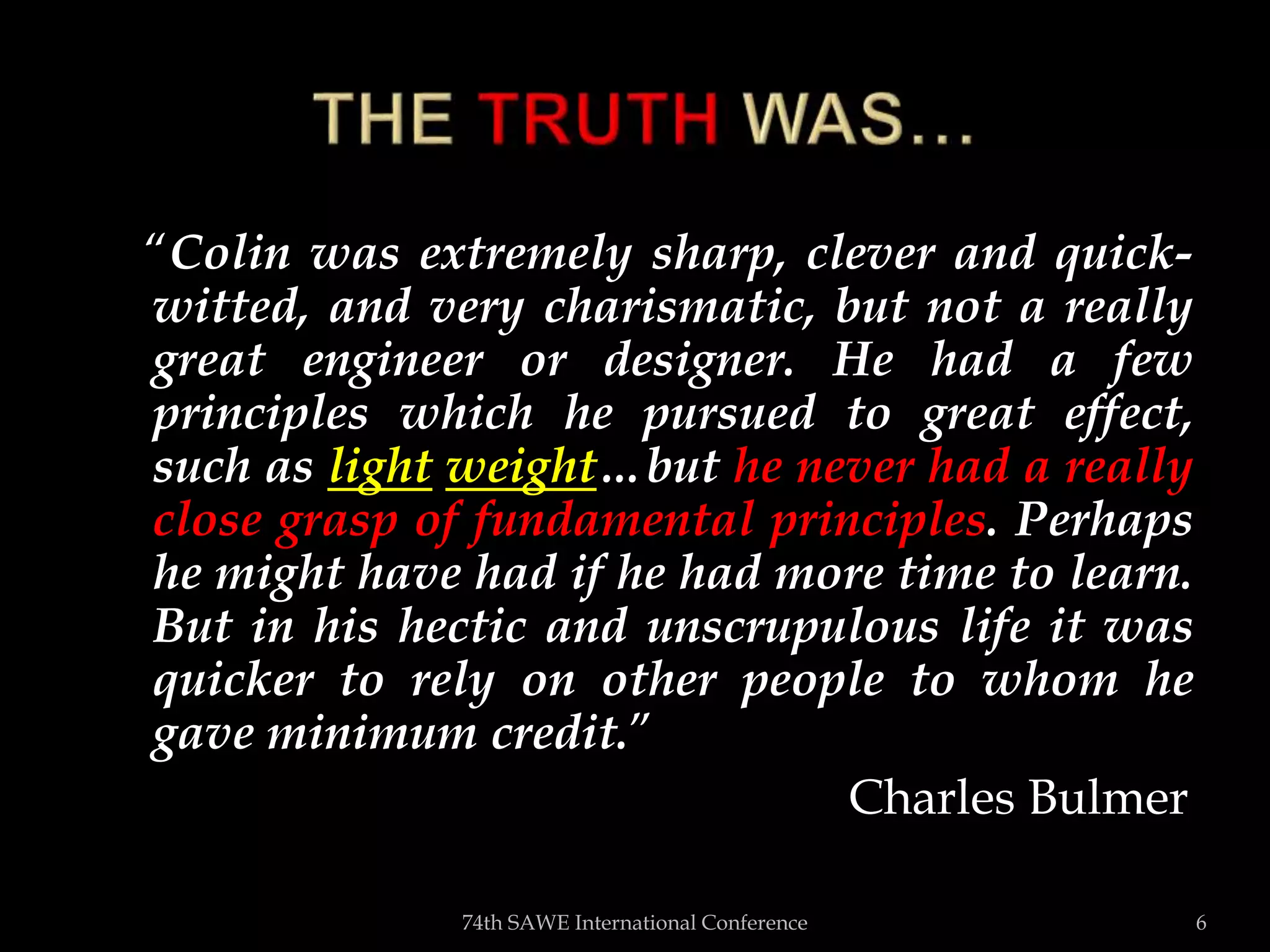

6. “Colin was extremely sharp, clever and quick-
witted, and very charismatic, but not a really
great engineer or designer. He had a few
principles which he pursued to great effect,
such as light weight…but he never had a really
close grasp of fundamental principles. Perhaps
he might have had if he had more time to learn.
But in his hectic and unscrupulous life it was
quicker to rely on other people to whom he
gave minimum credit.”
Charles Bulmer
74th SAWE International Conference 6

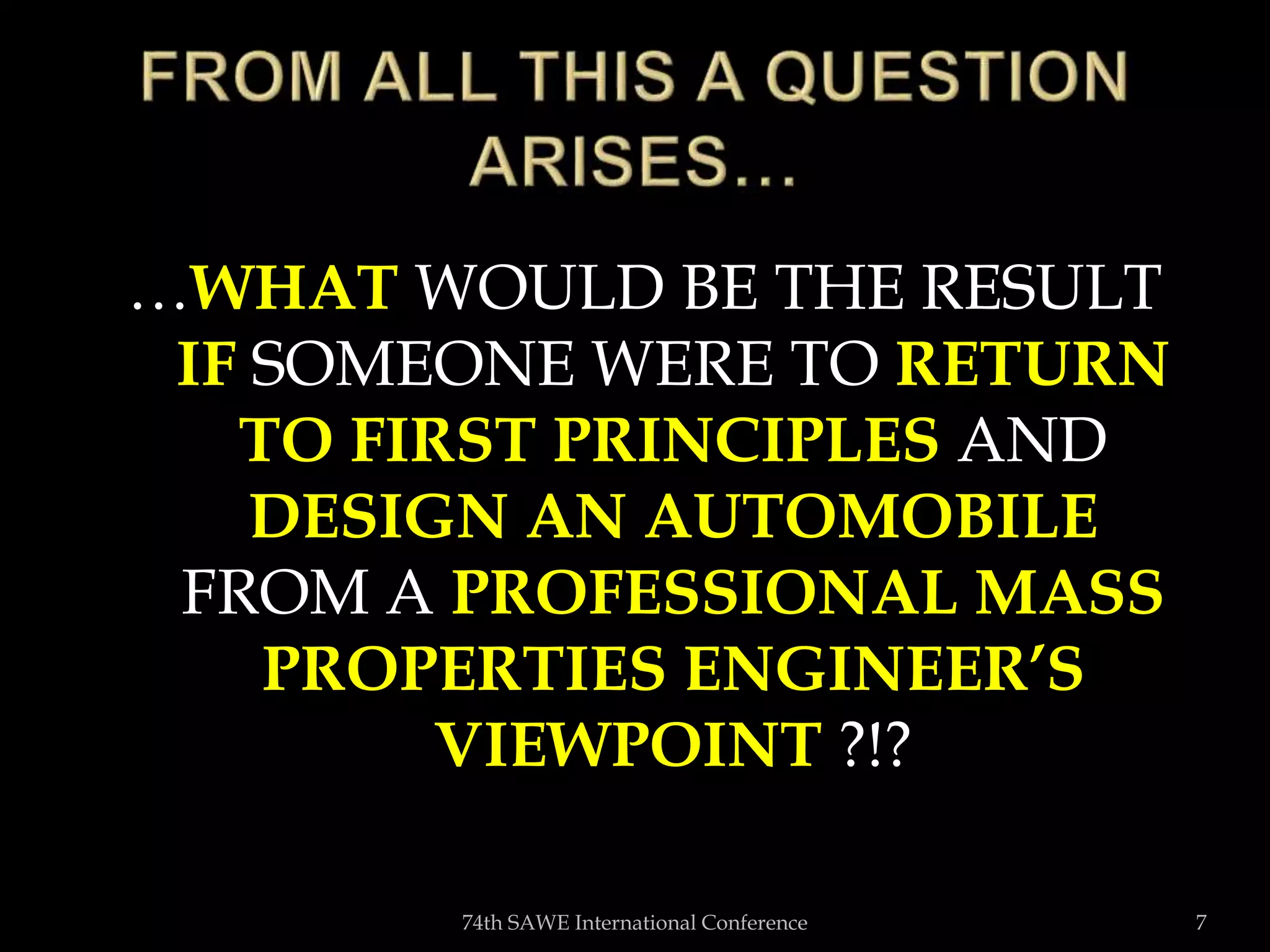

7. …WHAT WOULD BE THE RESULT
IF SOMEONE WERE TO RETURN
TO FIRST PRINCIPLES AND
DESIGN AN AUTOMOBILE
FROM A PROFESSIONAL MASS
PROPERTIES ENGINEER’S
VIEWPOINT ?!?
74th SAWE International Conference 7

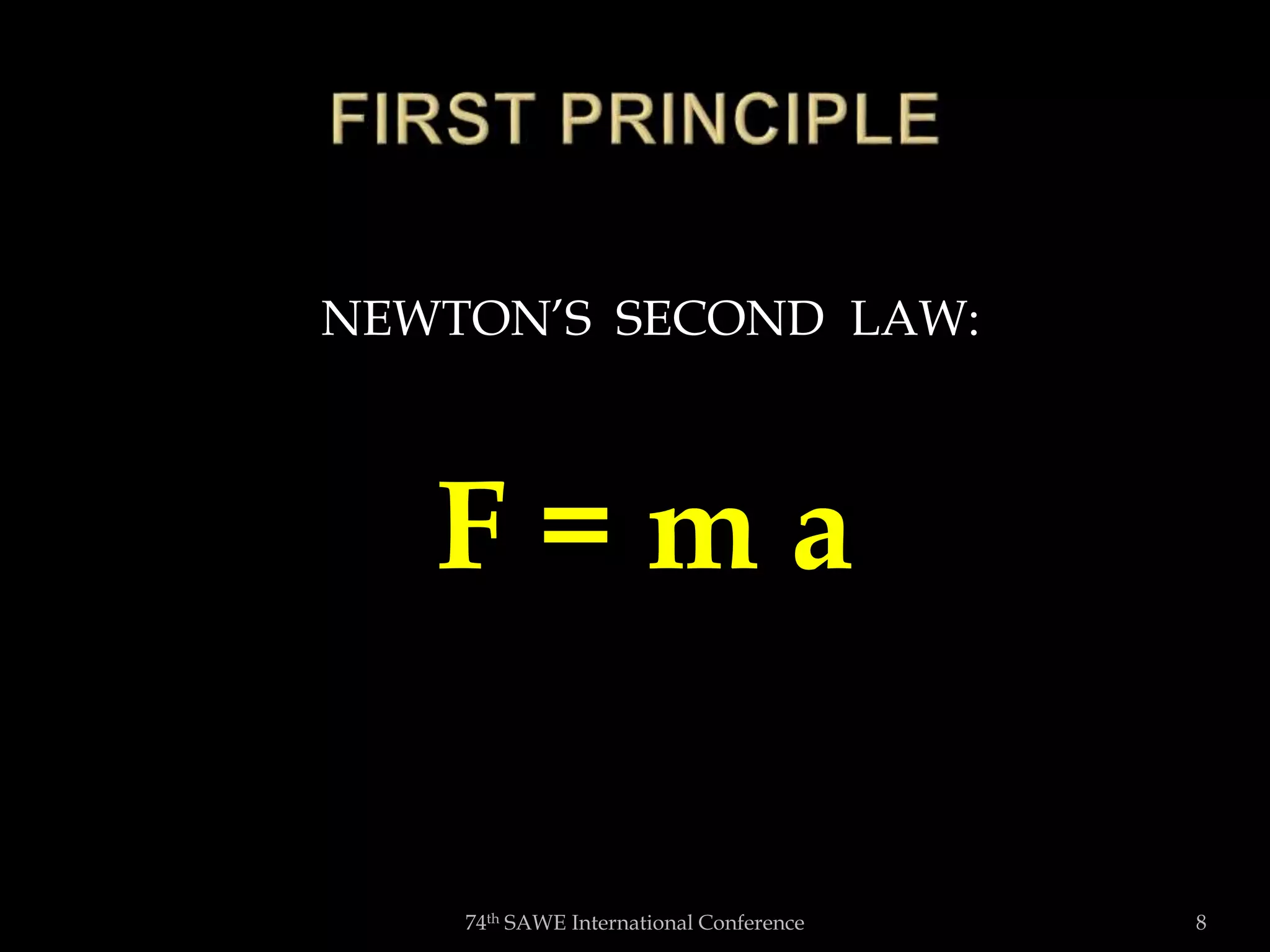

8. NEWTON’S SECOND LAW:
F = m a
74th SAWE International Conference 8

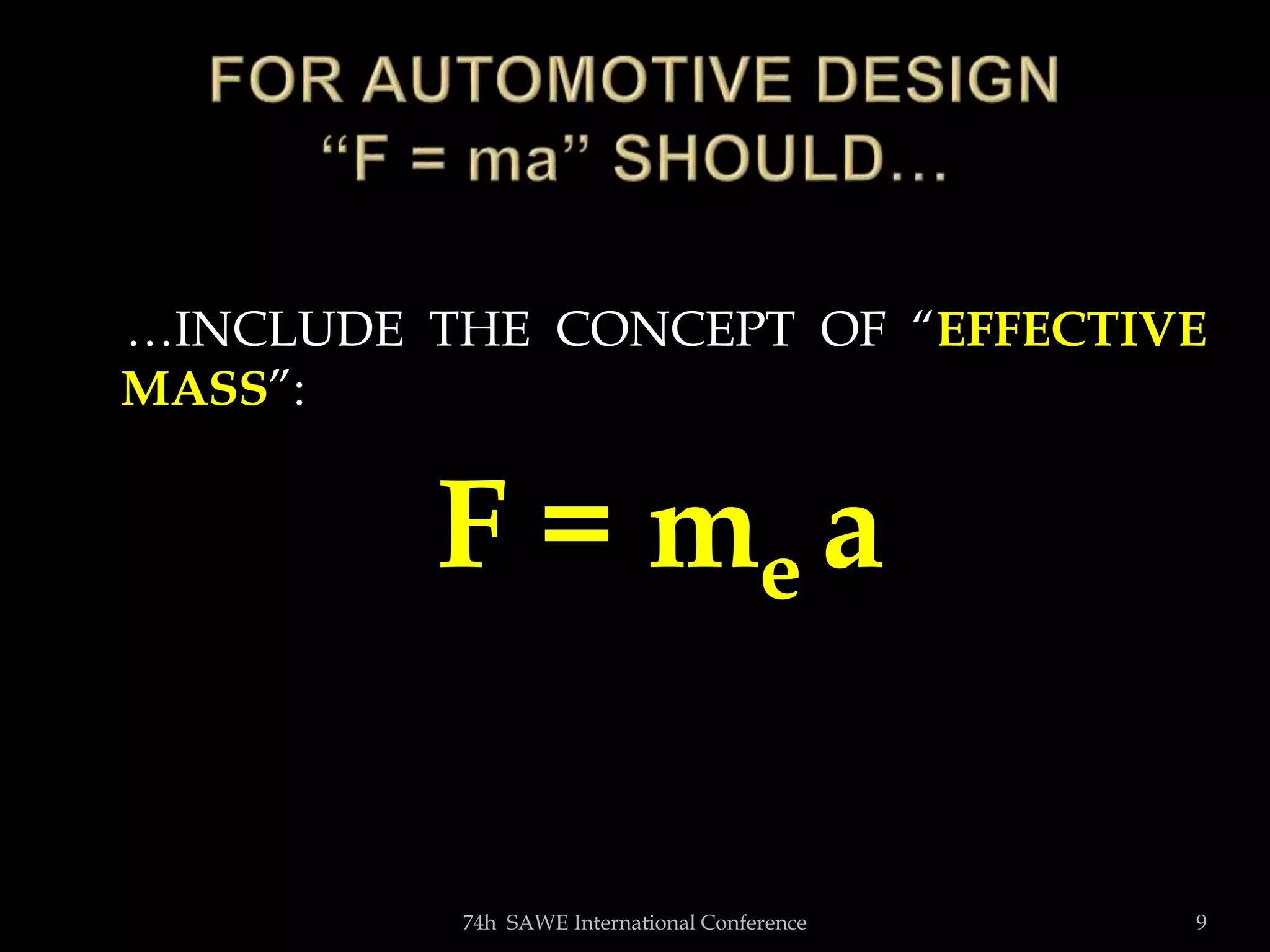

9. …INCLUDE THE CONCEPT OF “EFFECTIVE
MASS”:
F = me a
74h SAWE International Conference 9

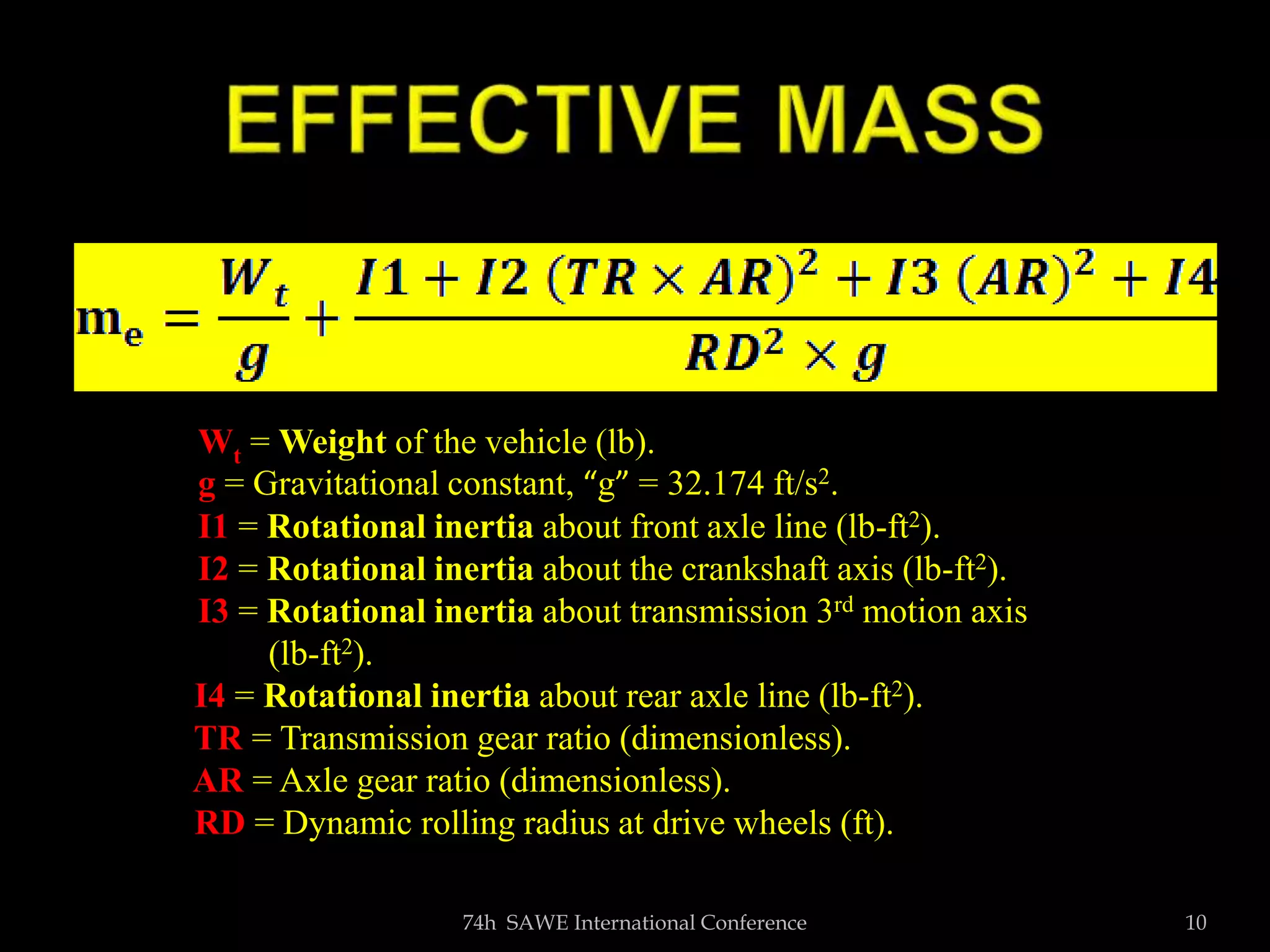

10. TEXT
74h SAWE International Conference 10
Wt = Weight of the vehicle (lb).
g = Gravitational constant, “g” = 32.174 ft/s2.
I1 = Rotational inertia about front axle line (lb-ft2).
I2 = Rotational inertia about the crankshaft axis (lb-ft2).
I3 = Rotational inertia about transmission 3rd motion axis
(lb-ft2).
I4 = Rotational inertia about rear axle line (lb-ft2).
TR = Transmission gear ratio (dimensionless).
AR = Axle gear ratio (dimensionless).
RD = Dynamic rolling radius at drive wheels (ft).

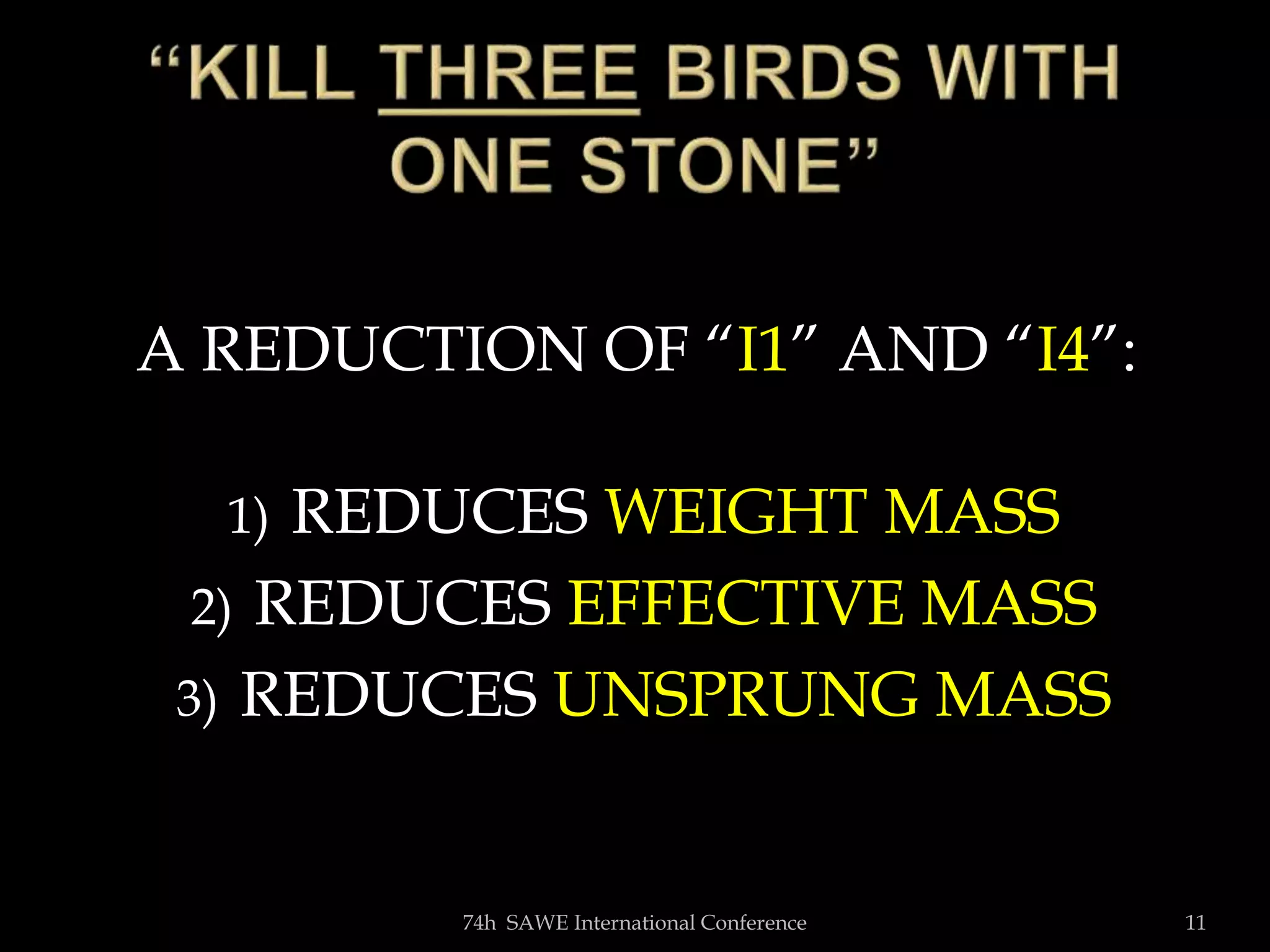

11. A REDUCTION OF “I1” AND “I4”:
1) REDUCES WEIGHT MASS
2) REDUCES EFFECTIVE MASS
3) REDUCES UNSPRUNG MASS
74h SAWE International Conference 11

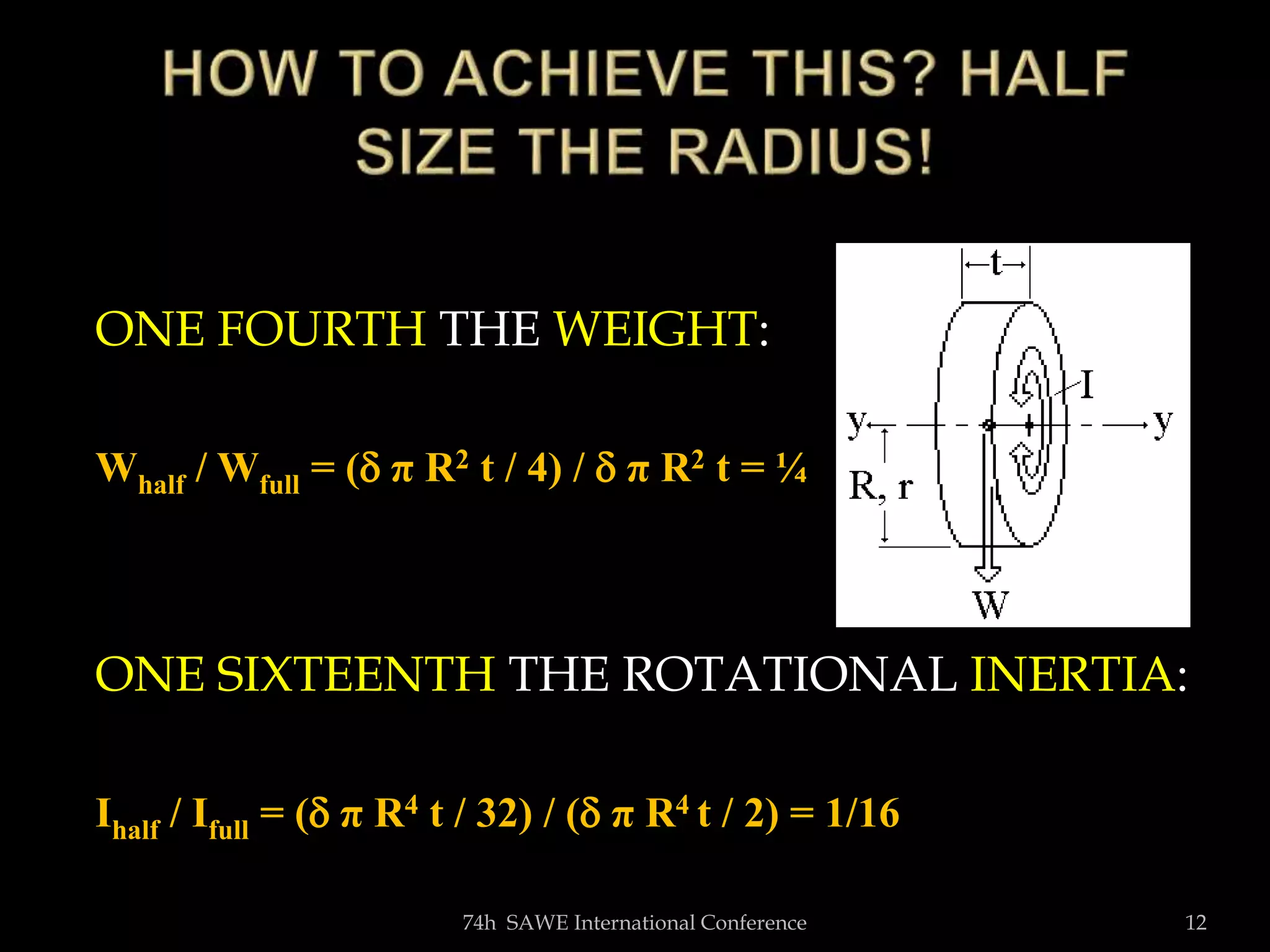

12. ONE FOURTH THE WEIGHT:
Whalf / Wfull = ( π R2 t / 4) /  π R2 t = ¼
ONE SIXTEENTH THE ROTATIONAL INERTIA:
Ihalf / Ifull = ( π R4 t / 32) / ( π R4 t / 2) = 1/16
74h SAWE International Conference 12

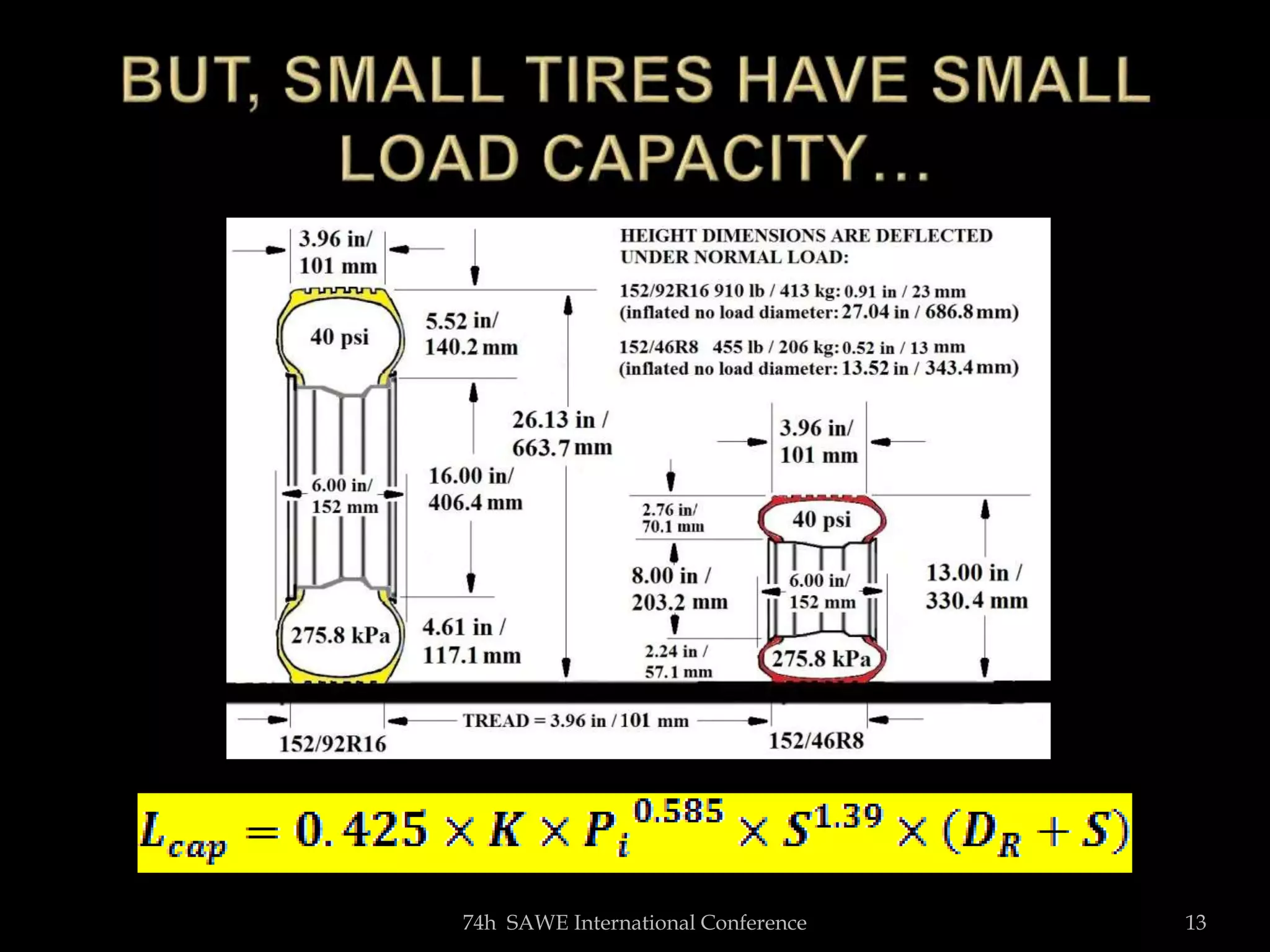

13. 74h SAWE International Conference 13

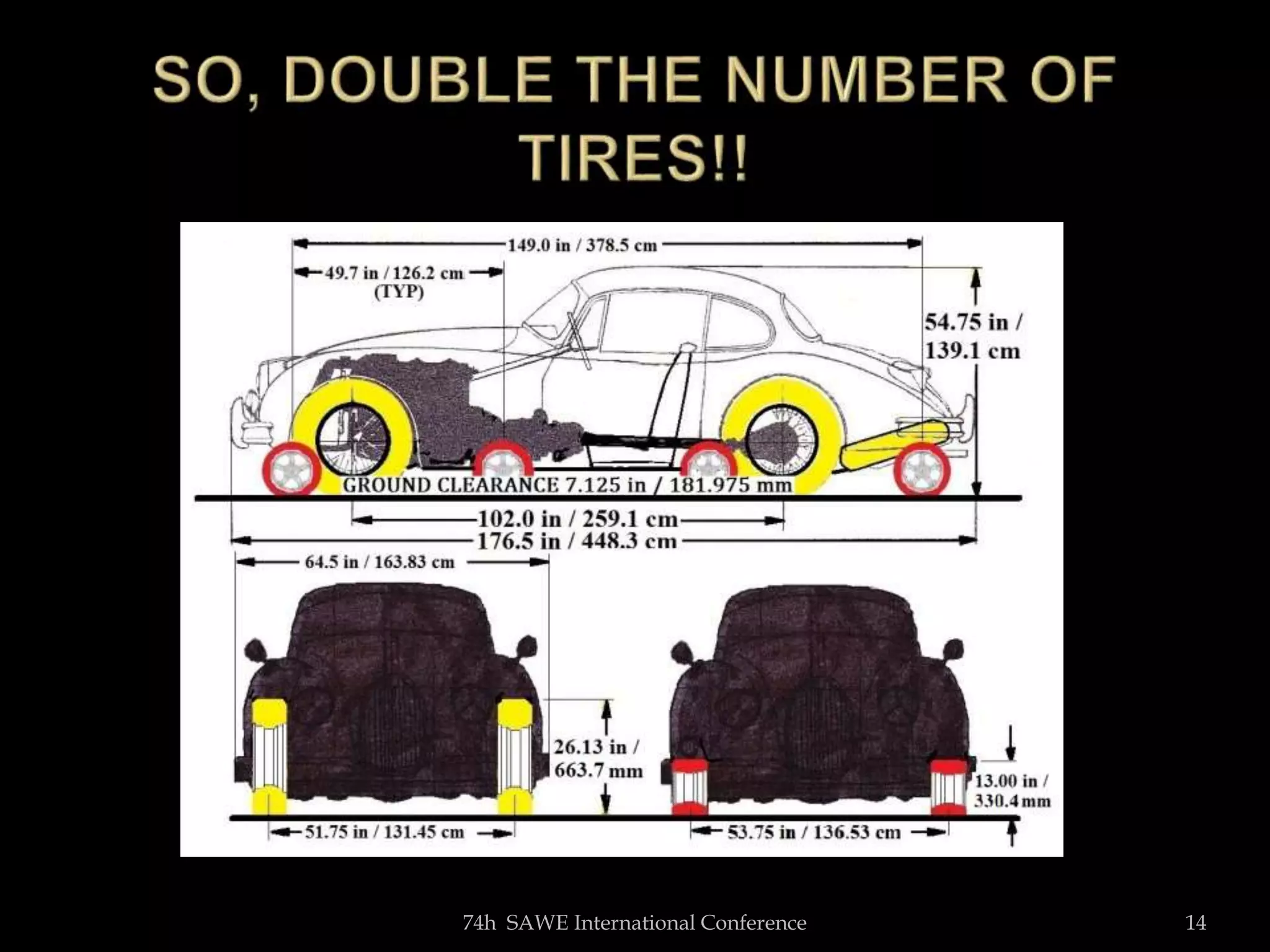

14. 74h SAWE International Conference 14

15. 74h SAWE International Conference 15

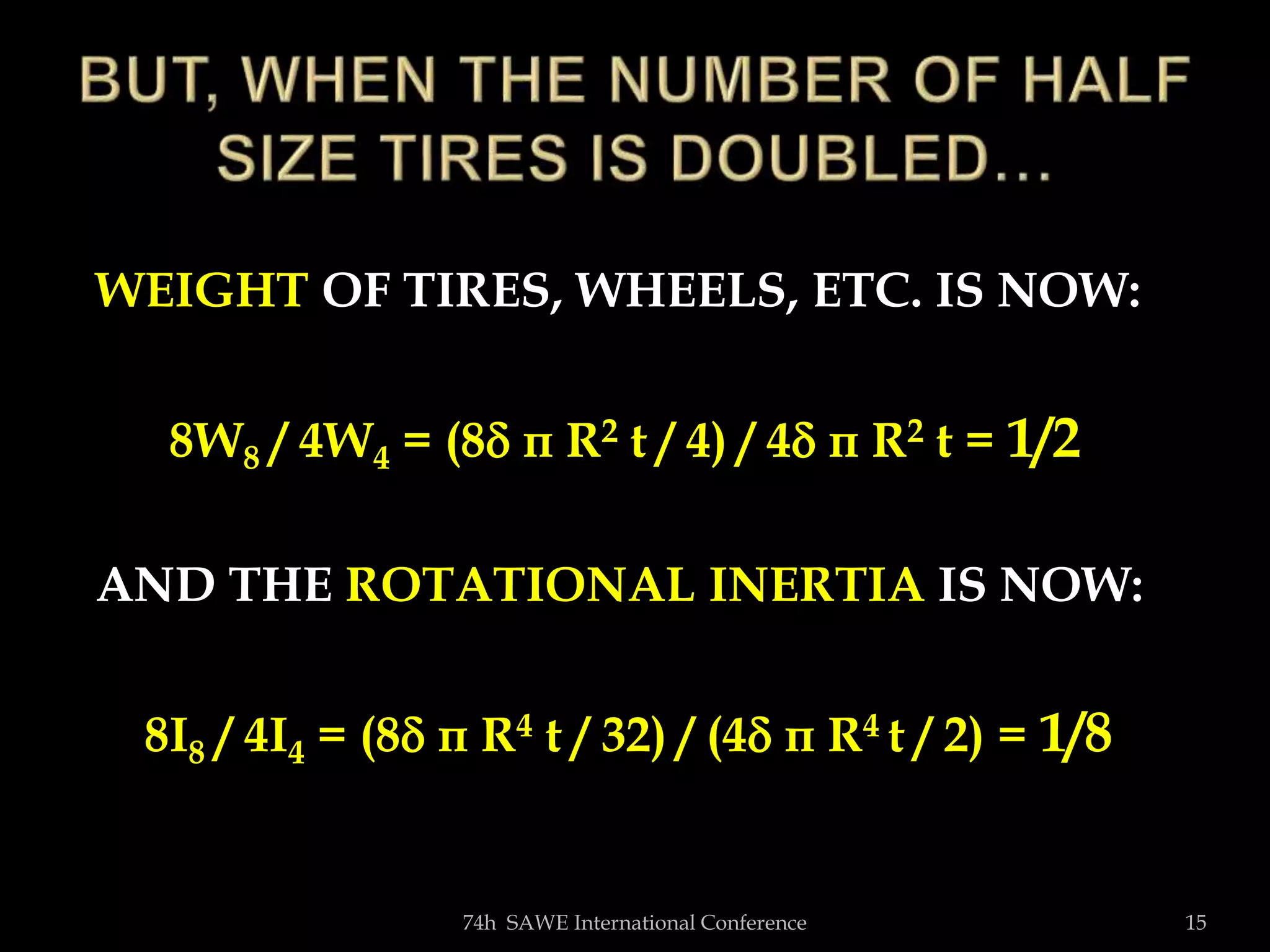

WEIGHT OF TIRES, WHEELS, ETC. IS NOW:
8W8 / 4W4 = (8 π R2 t / 4) / 4 π R2 t = 1/2
AND THE ROTATIONAL INERTIA IS NOW:
8I8 / 4I4 = (8 π R4 t / 32) / (4 π R4 t / 2) = 1/8

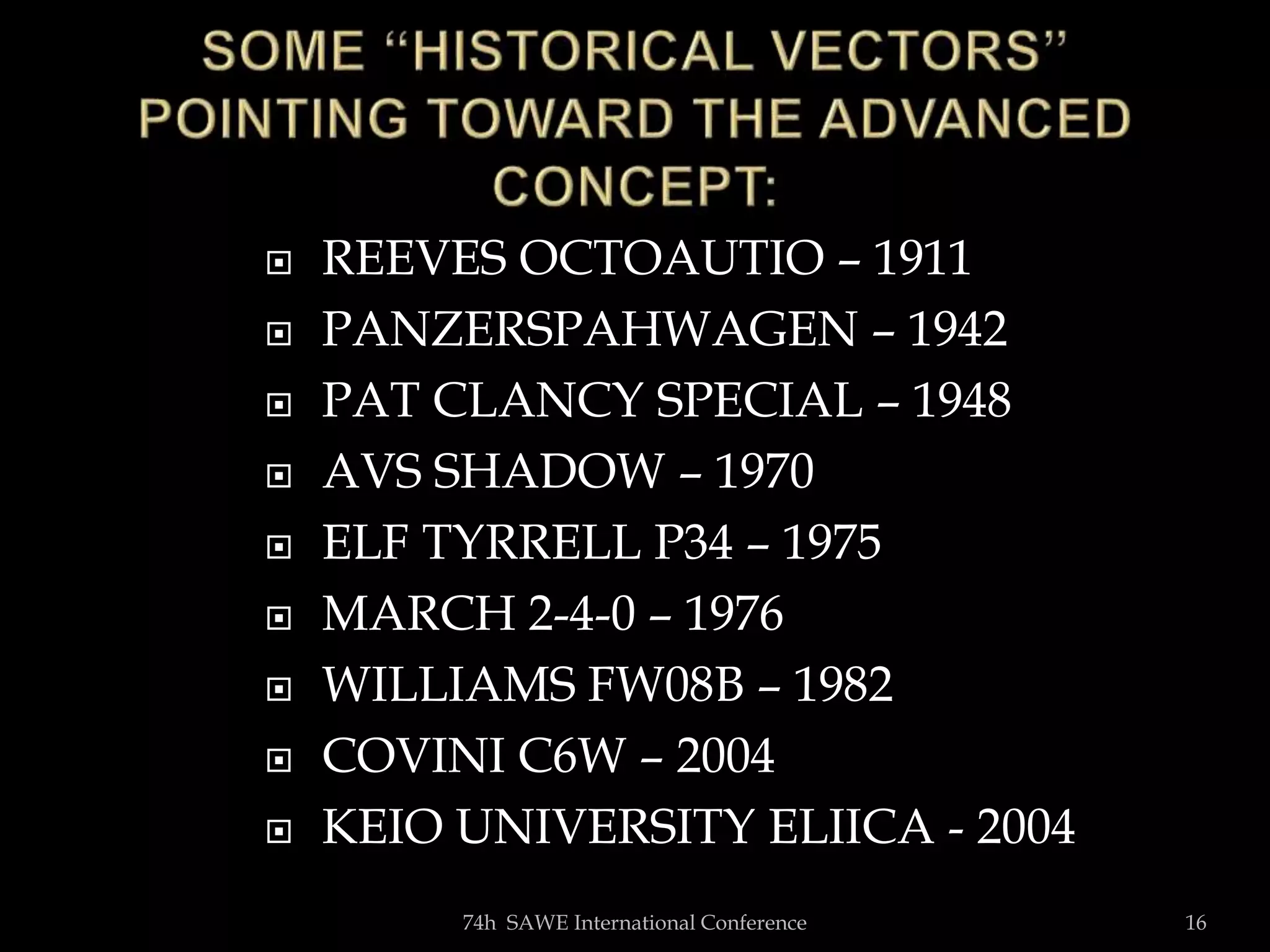

16.  REEVES OCTOAUTIO – 1911

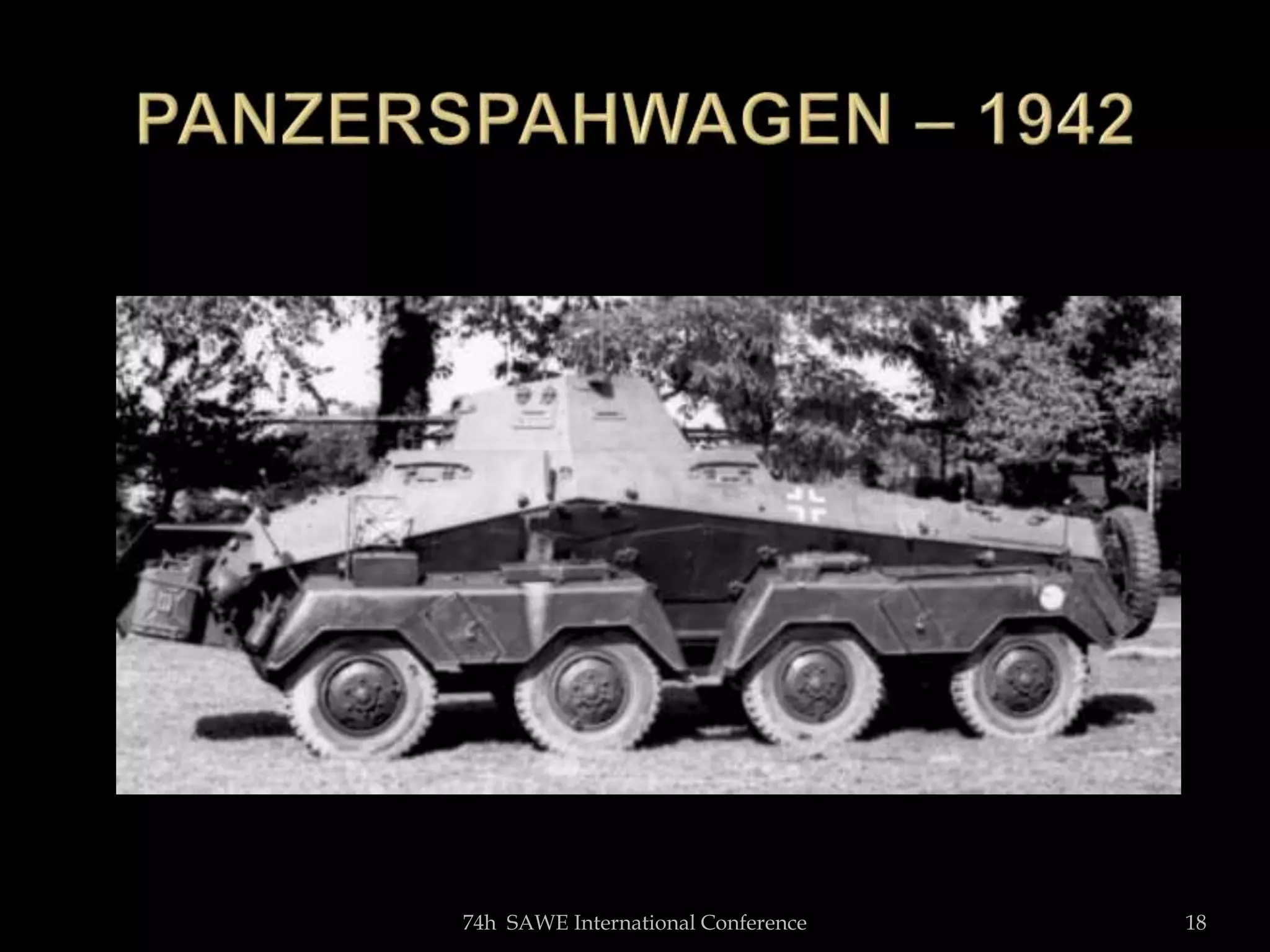

 PANZERSPAHWAGEN – 1942
 PAT CLANCY SPECIAL – 1948

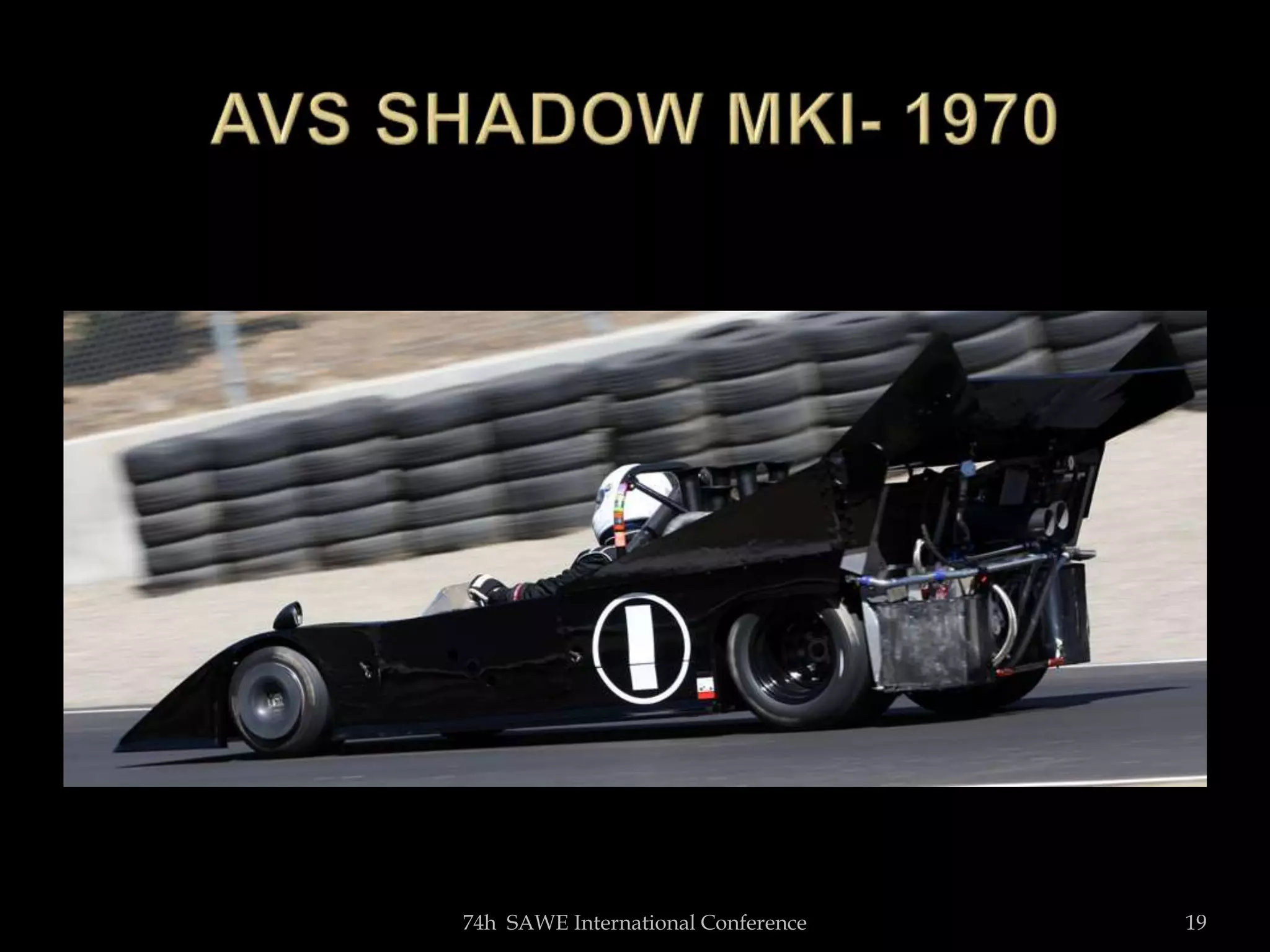

 AVS SHADOW – 1970

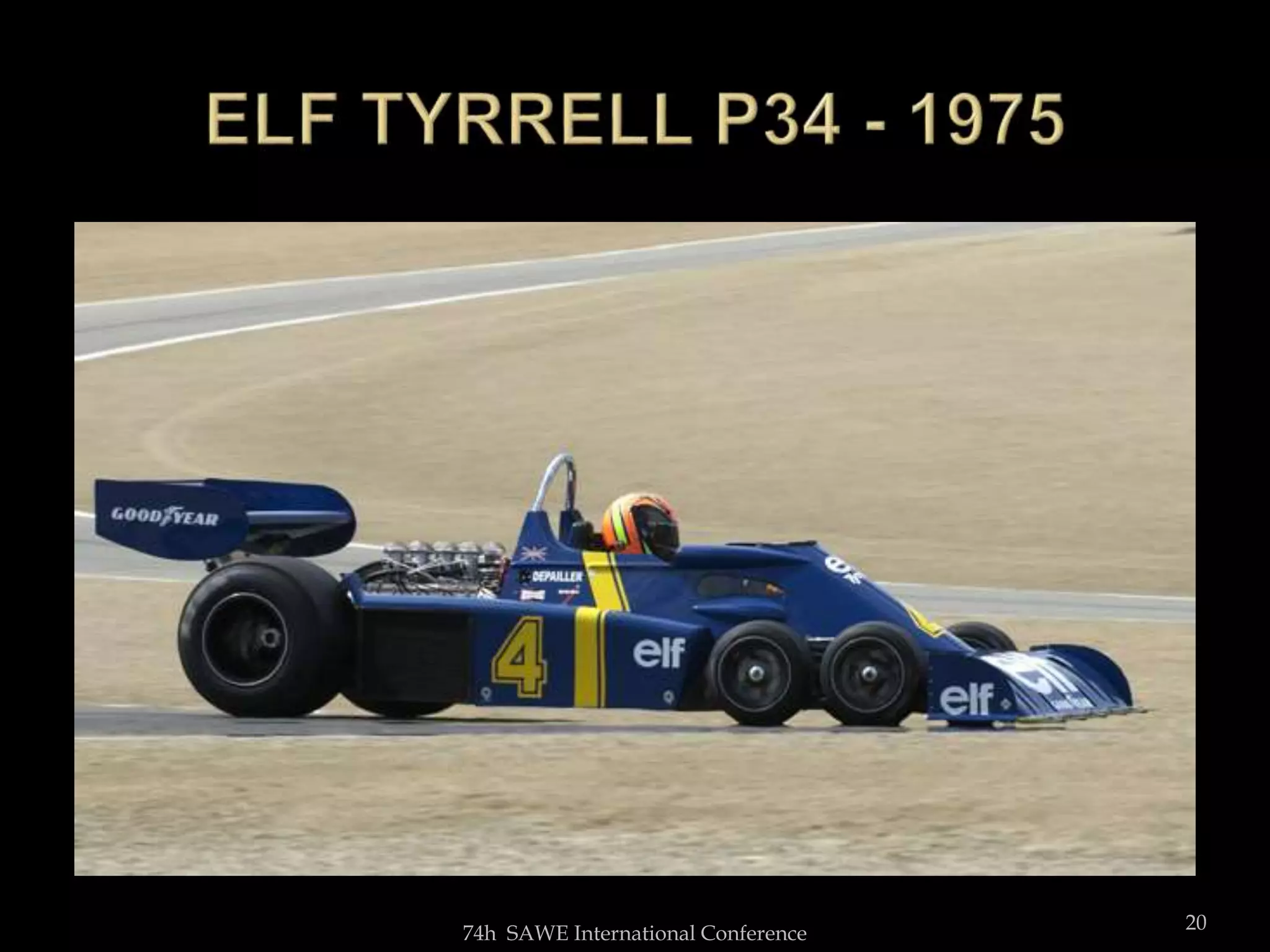

 ELF TYRRELL P34 – 1975
 MARCH 2-4-0 – 1976
 WILLIAMS FW08B – 1982

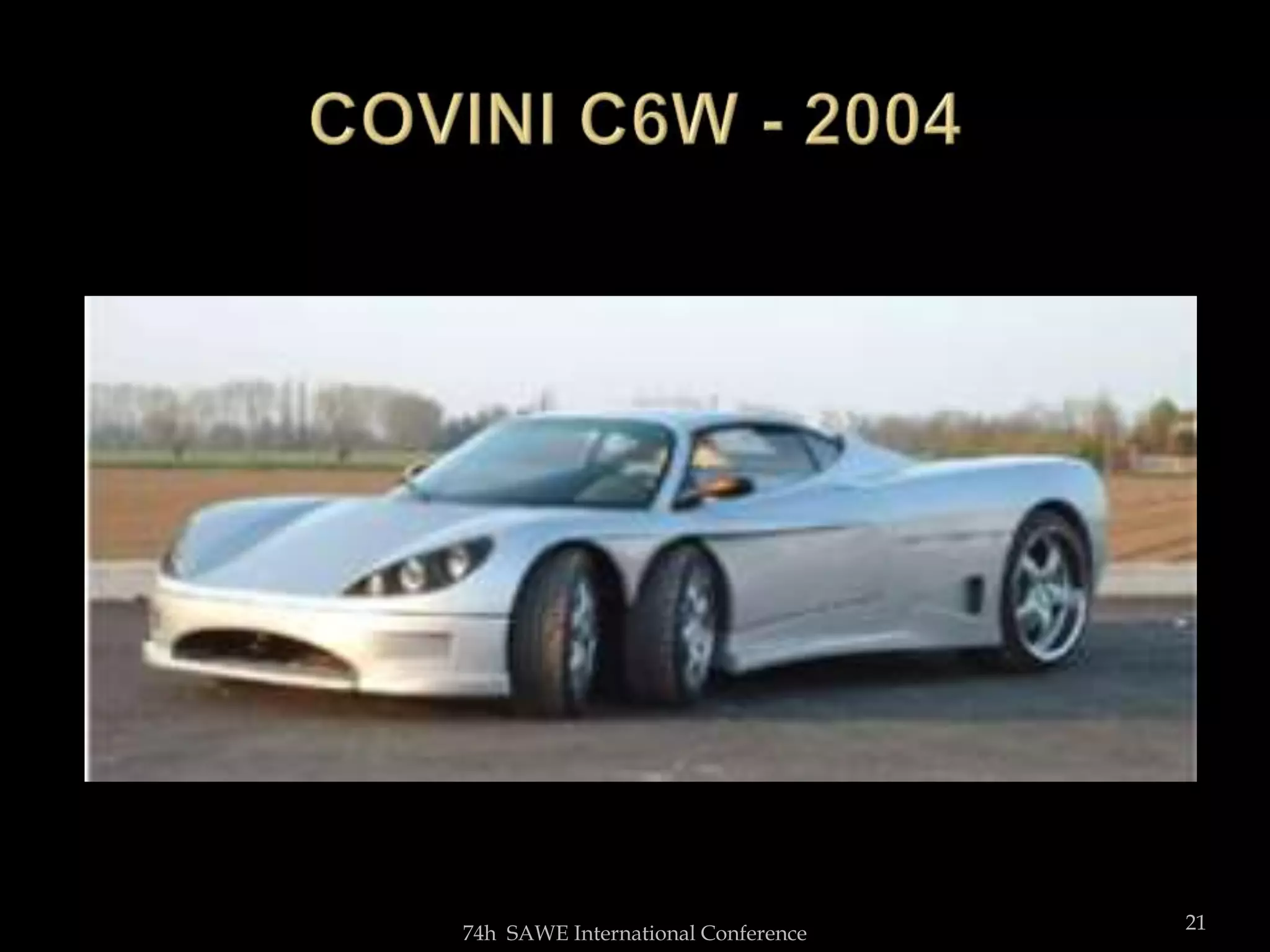

 COVINI C6W – 2004

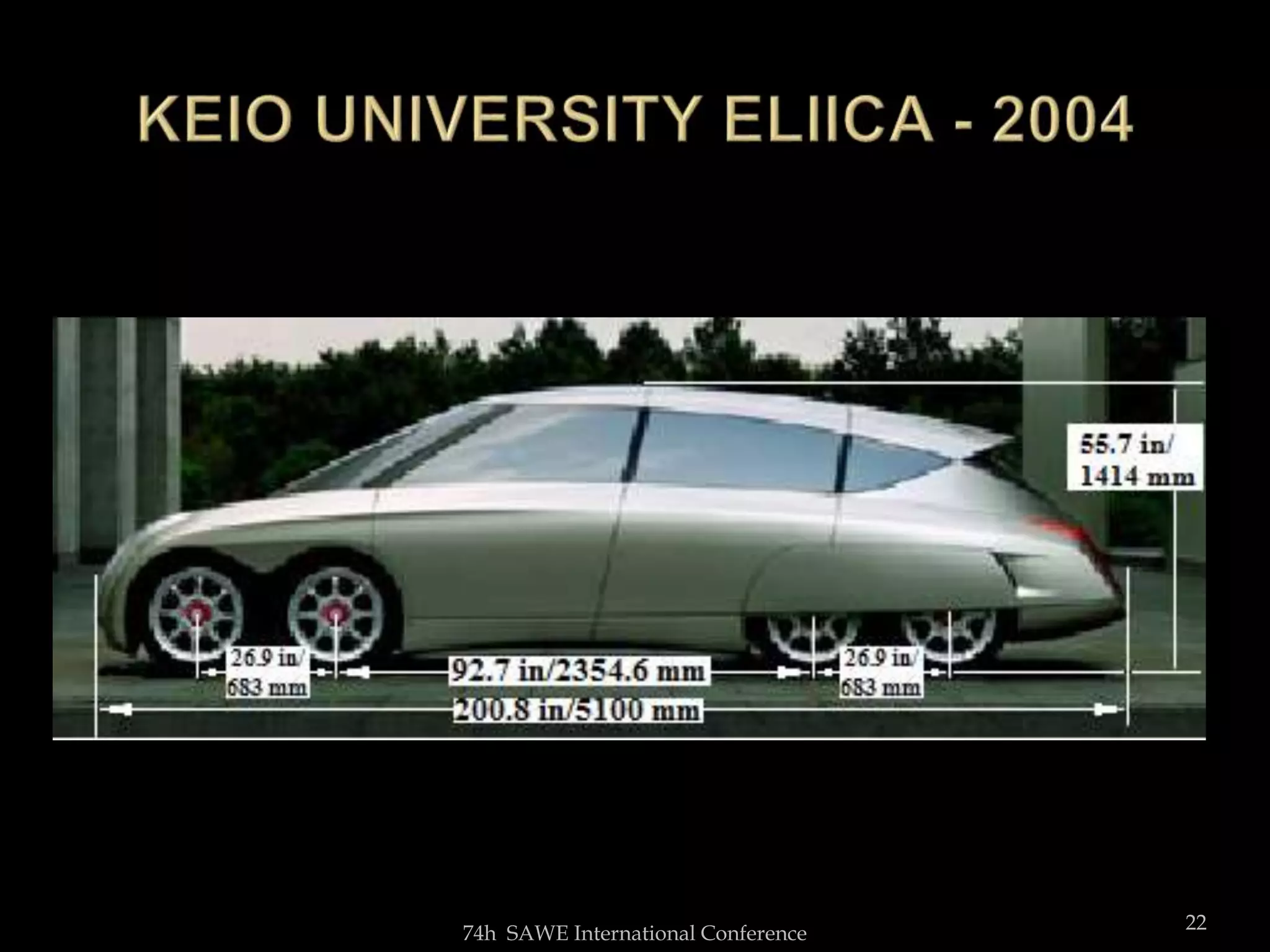

 KEIO UNIVERSITY ELIICA - 2004
74h SAWE International Conference 16

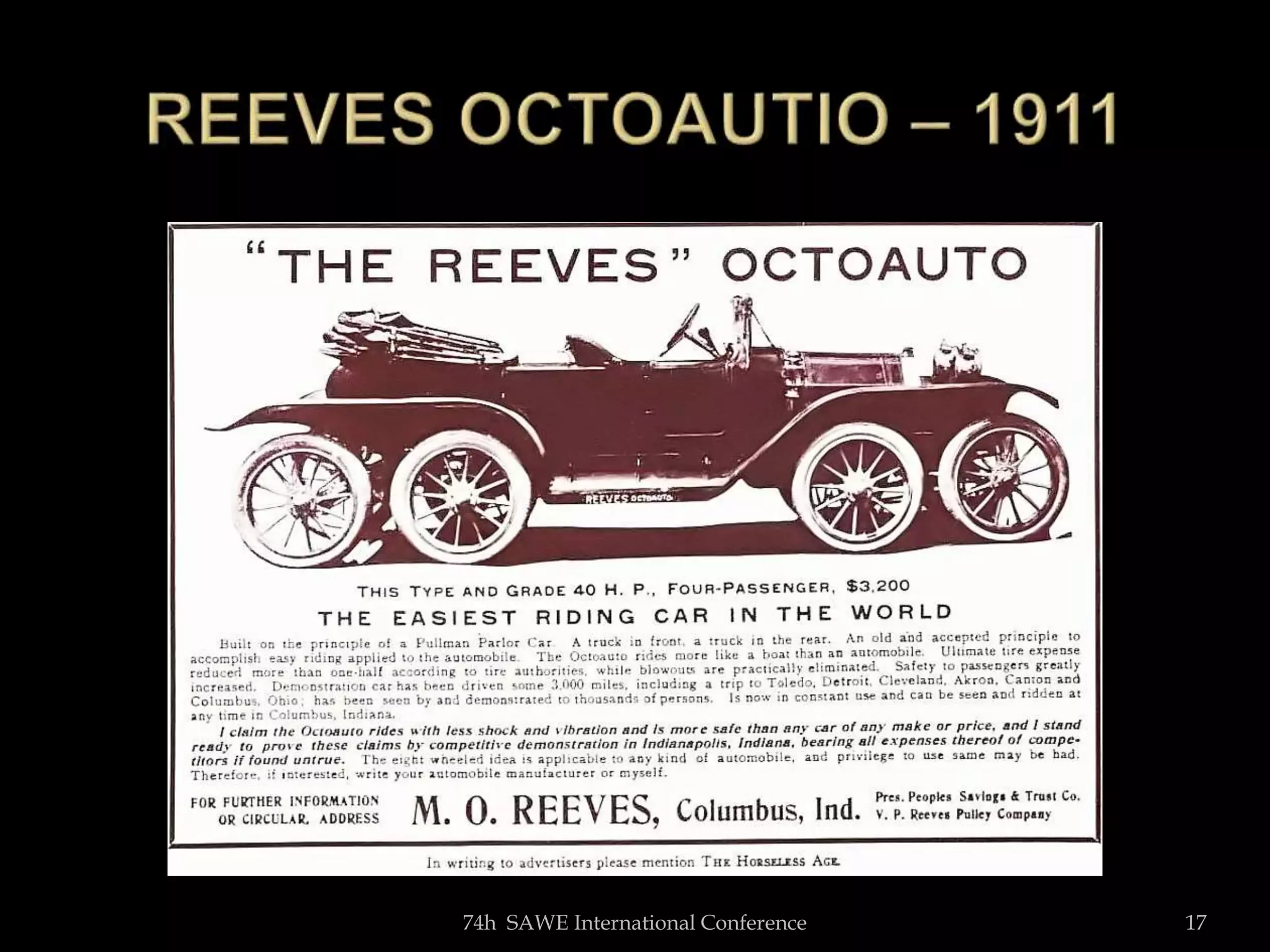

17. 74h SAWE International Conference 17

18. 74h SAWE International Conference 18

19. 74h SAWE International Conference 19

20. 74h SAWE International Conference 20

21. 21
74h SAWE International Conference

22. 22
74h SAWE International Conference

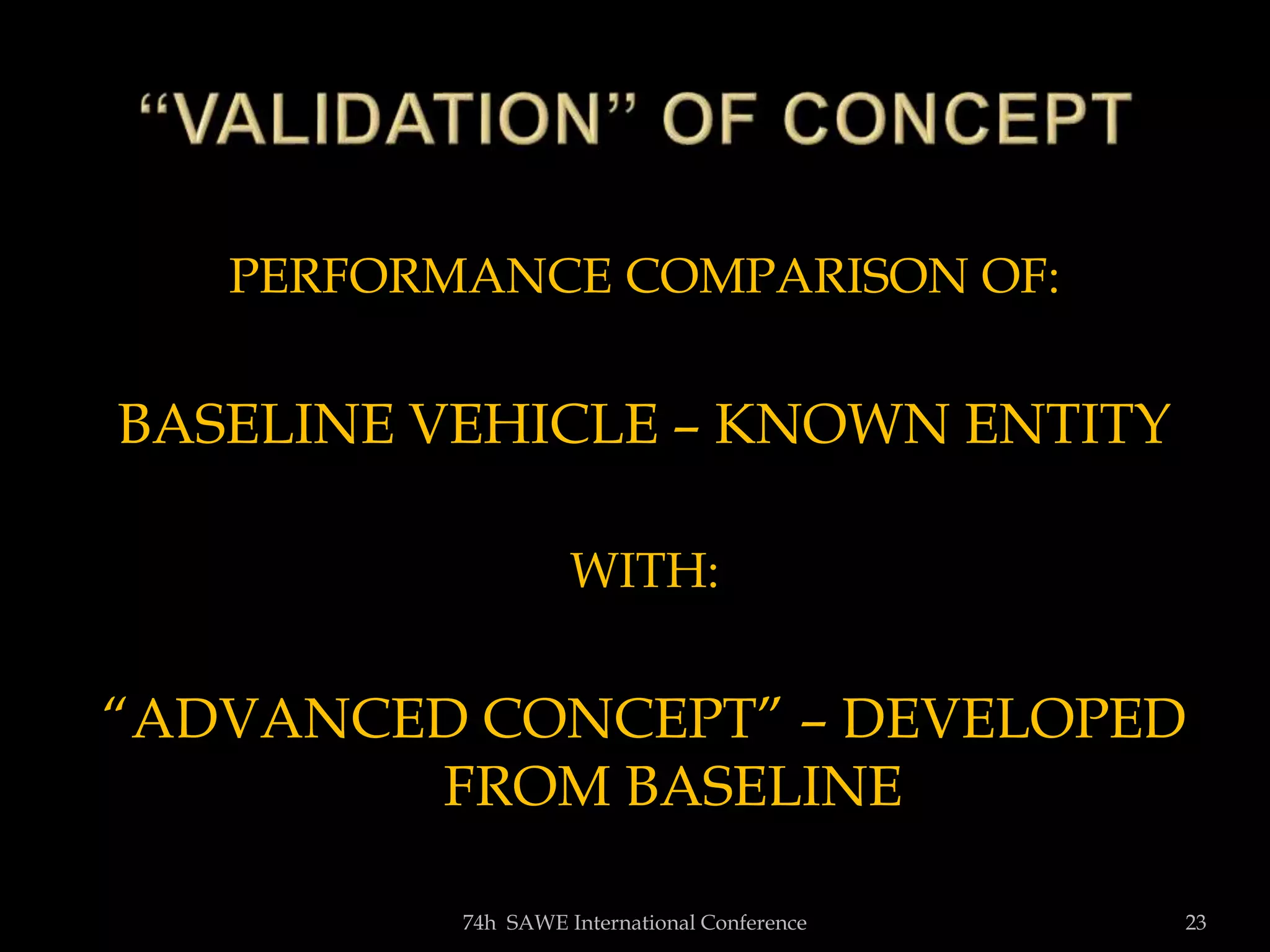

23. PERFORMANCE COMPARISON OF:
BASELINE VEHICLE – KNOWN ENTITY
WITH:
“ADVANCED CONCEPT” – DEVELOPED
FROM BASELINE
74h SAWE International Conference 23

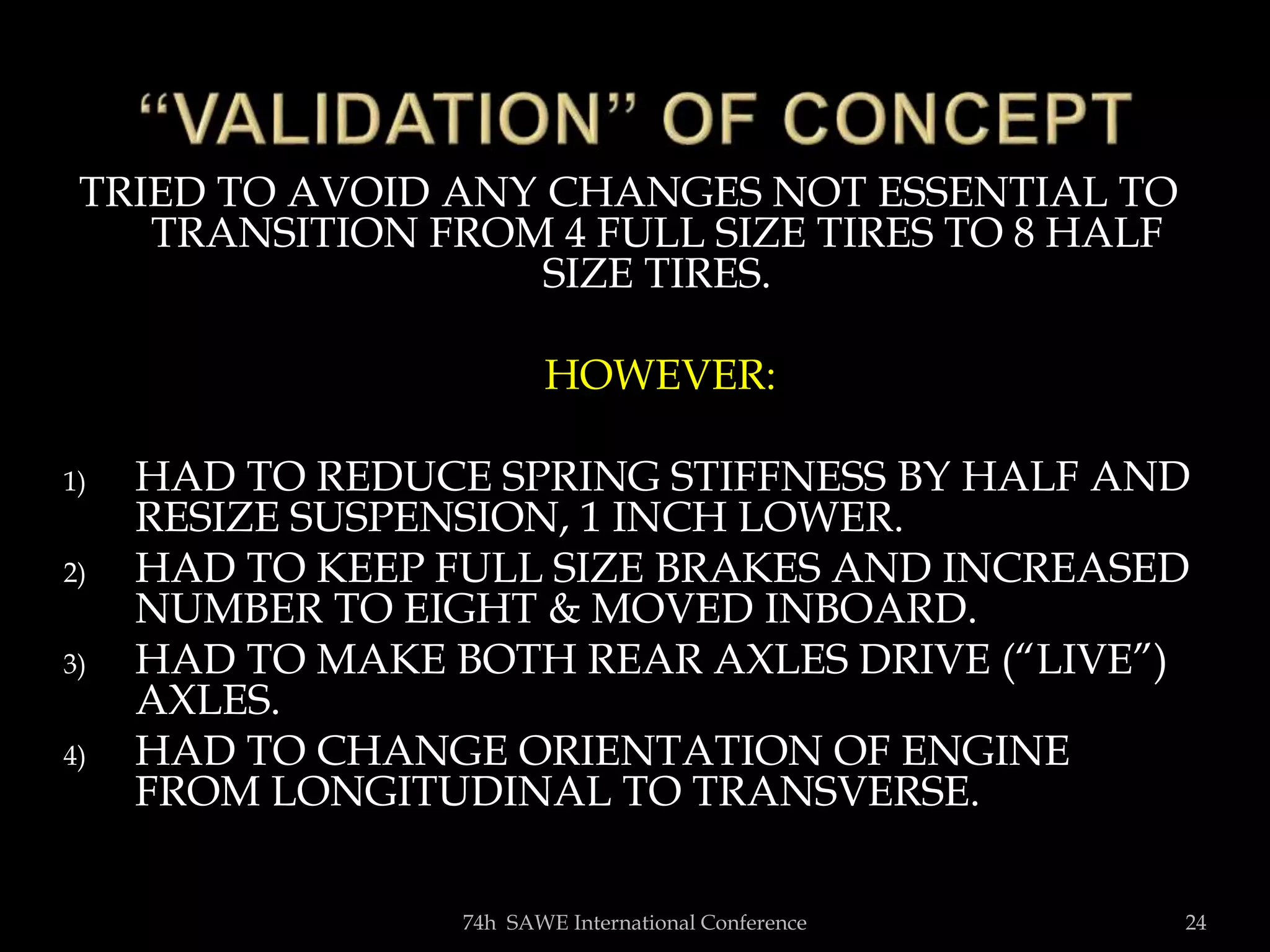

24. TRIED TO AVOID ANY CHANGES NOT ESSENTIAL TO
TRANSITION FROM 4 FULL SIZE TIRES TO 8 HALF
SIZE TIRES.
HOWEVER:
1) HAD TO REDUCE SPRING STIFFNESS BY HALF AND
RESIZE SUSPENSION, 1 INCH LOWER.
2) HAD TO KEEP FULL SIZE BRAKES AND INCREASED
NUMBER TO EIGHT & MOVED INBOARD.
3) HAD TO MAKE BOTH REAR AXLES DRIVE (“LIVE”)
AXLES.
4) HAD TO CHANGE ORIENTATION OF ENGINE
FROM LONGITUDINAL TO TRANSVERSE.
74h SAWE International Conference 24

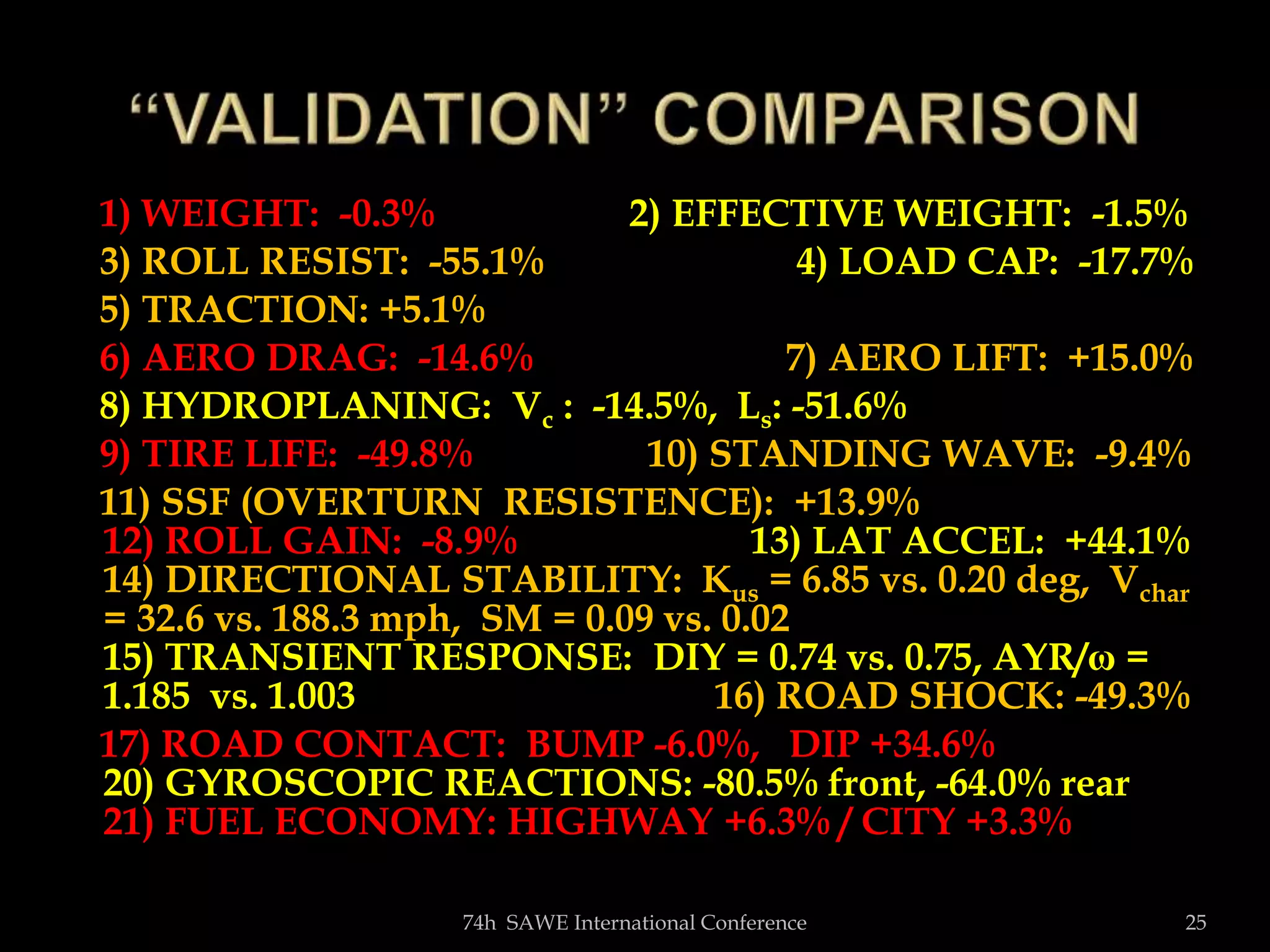

25. 1) WEIGHT: -0.3% 2) EFFECTIVE WEIGHT: -1.5%
3) ROLL RESIST: -55.1% 4) LOAD CAP: -17.7%
5) TRACTION: +5.1%
6) AERO DRAG: -14.6% 7) AERO LIFT: +15.0%
8) HYDROPLANING: Vc : -14.5%, Ls: -51.6%
9) TIRE LIFE: -49.8% 10) STANDING WAVE: -9.4%
11) SSF (OVERTURN RESISTENCE): +13.9%
12) ROLL GAIN: -8.9% 13) LAT ACCEL: +44.1%
14) DIRECTIONAL STABILITY: Kus = 6.85 vs. 0.20 deg, Vchar
= 32.6 vs. 188.3 mph, SM = 0.09 vs. 0.02
15) TRANSIENT RESPONSE: DIY = 0.74 vs. 0.75, AYR/ω =
1.185 vs. 1.003 16) ROAD SHOCK: -49.3%
17) ROAD CONTACT: BUMP -6.0%, DIP +34.6%
20) GYROSCOPIC REACTIONS: -80.5% front, -64.0% rear
21) FUEL ECONOMY: HIGHWAY +6.3% / CITY +3.3%
74h SAWE International Conference 25

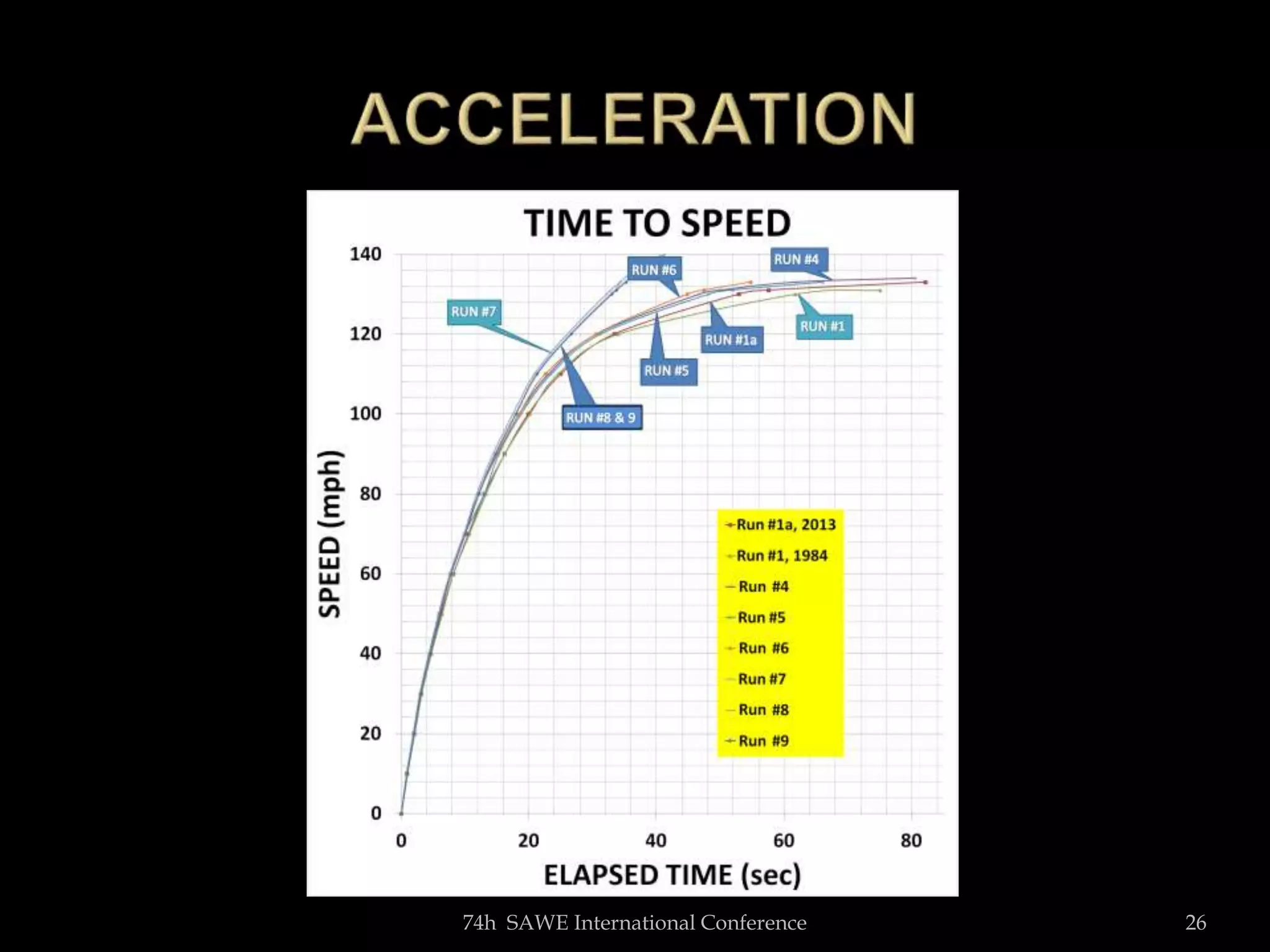

26. 74h SAWE International Conference 26

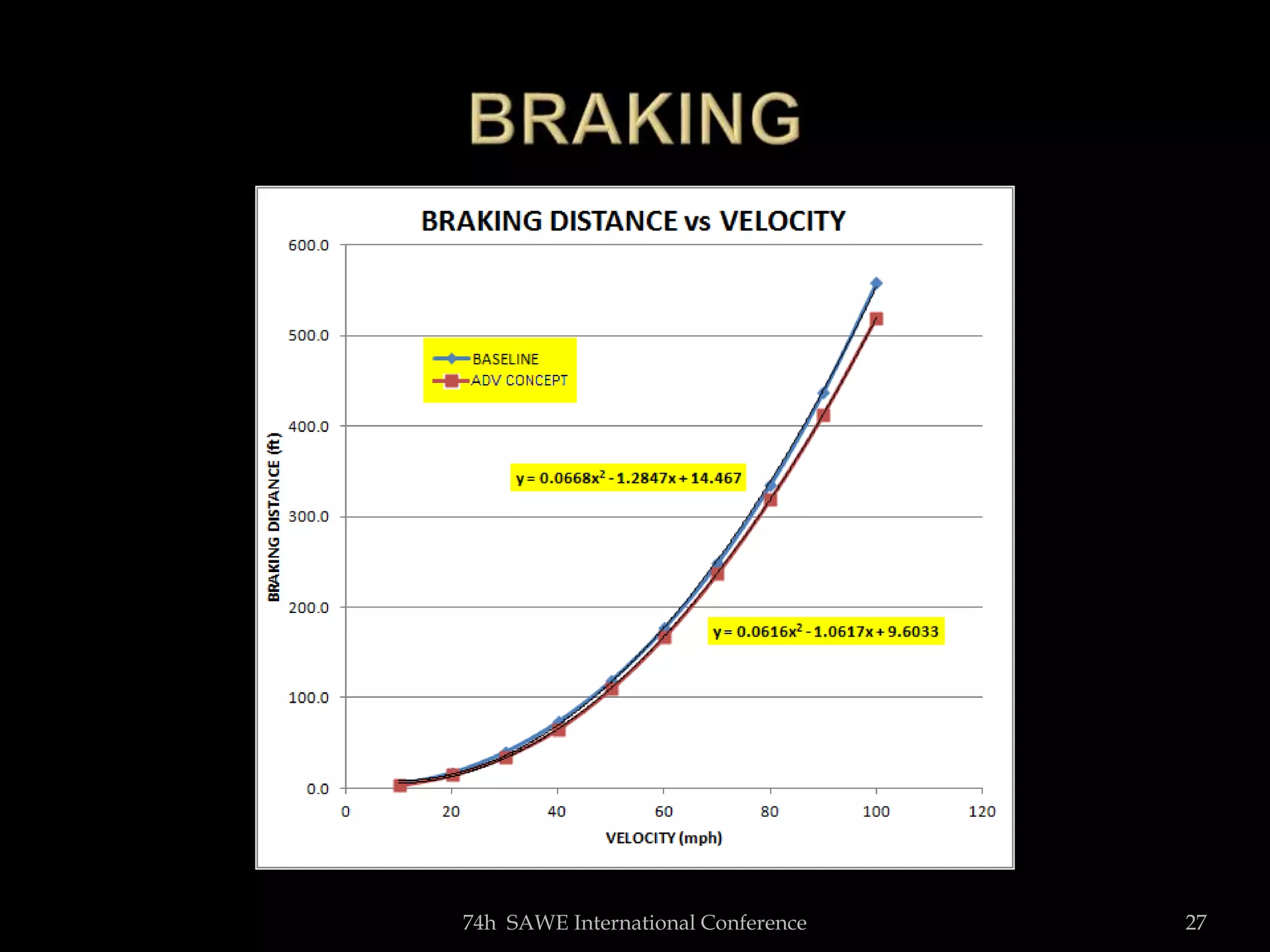

27. 74h SAWE International Conference 27

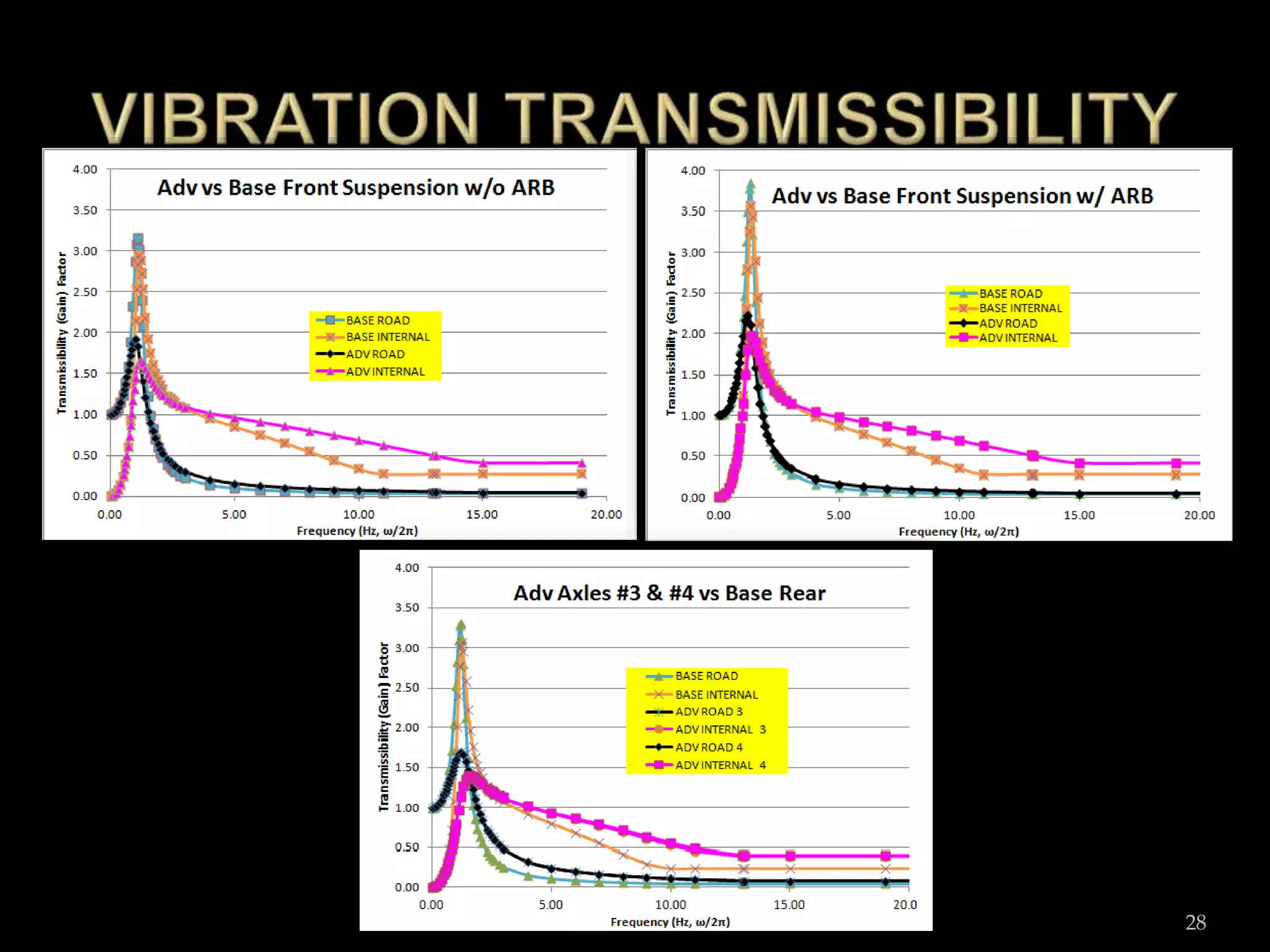

28. 74h SAWE International Conference 28

29. 74h SAWE International Conference 29

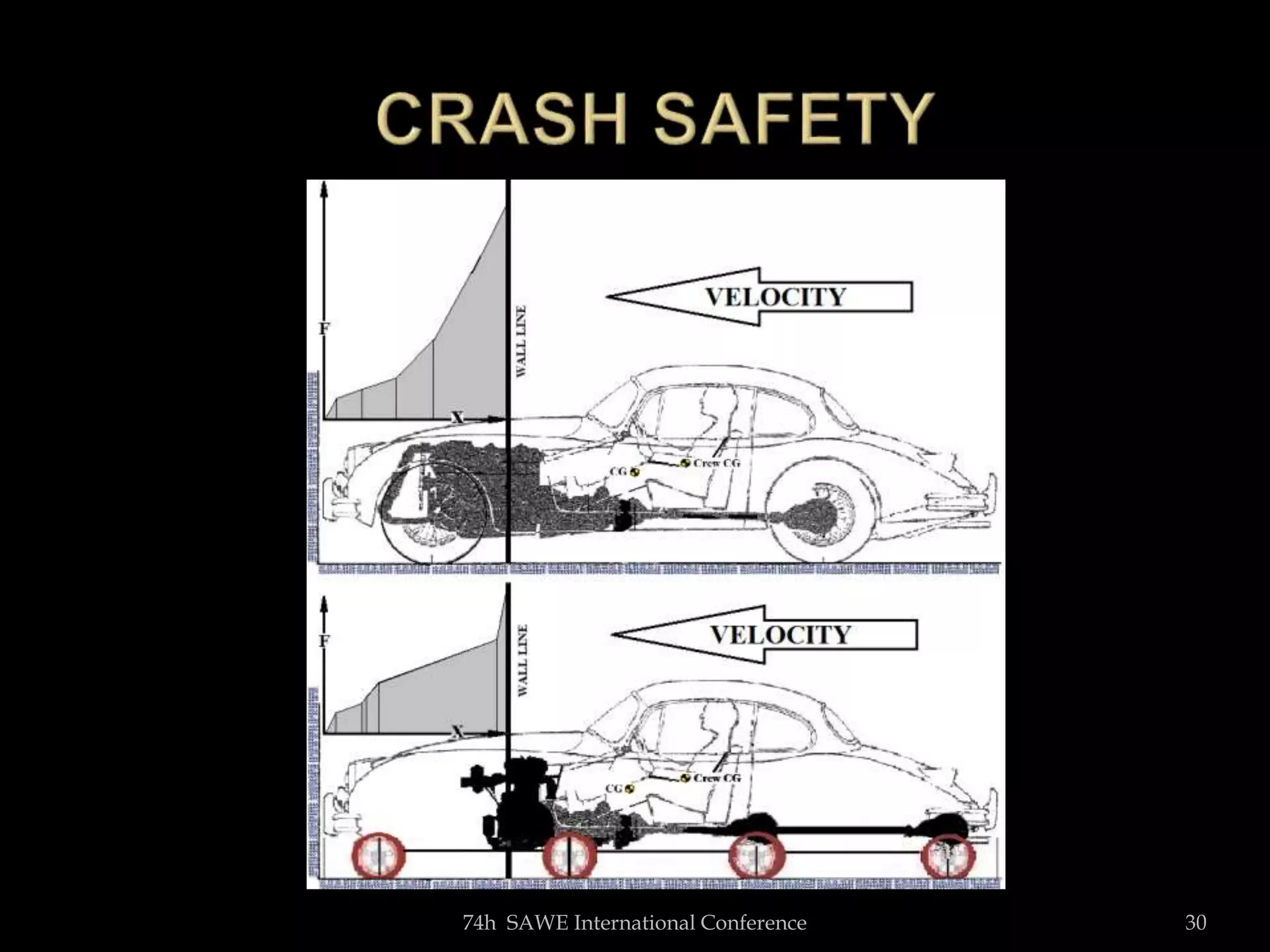

30. 74h SAWE International Conference 30

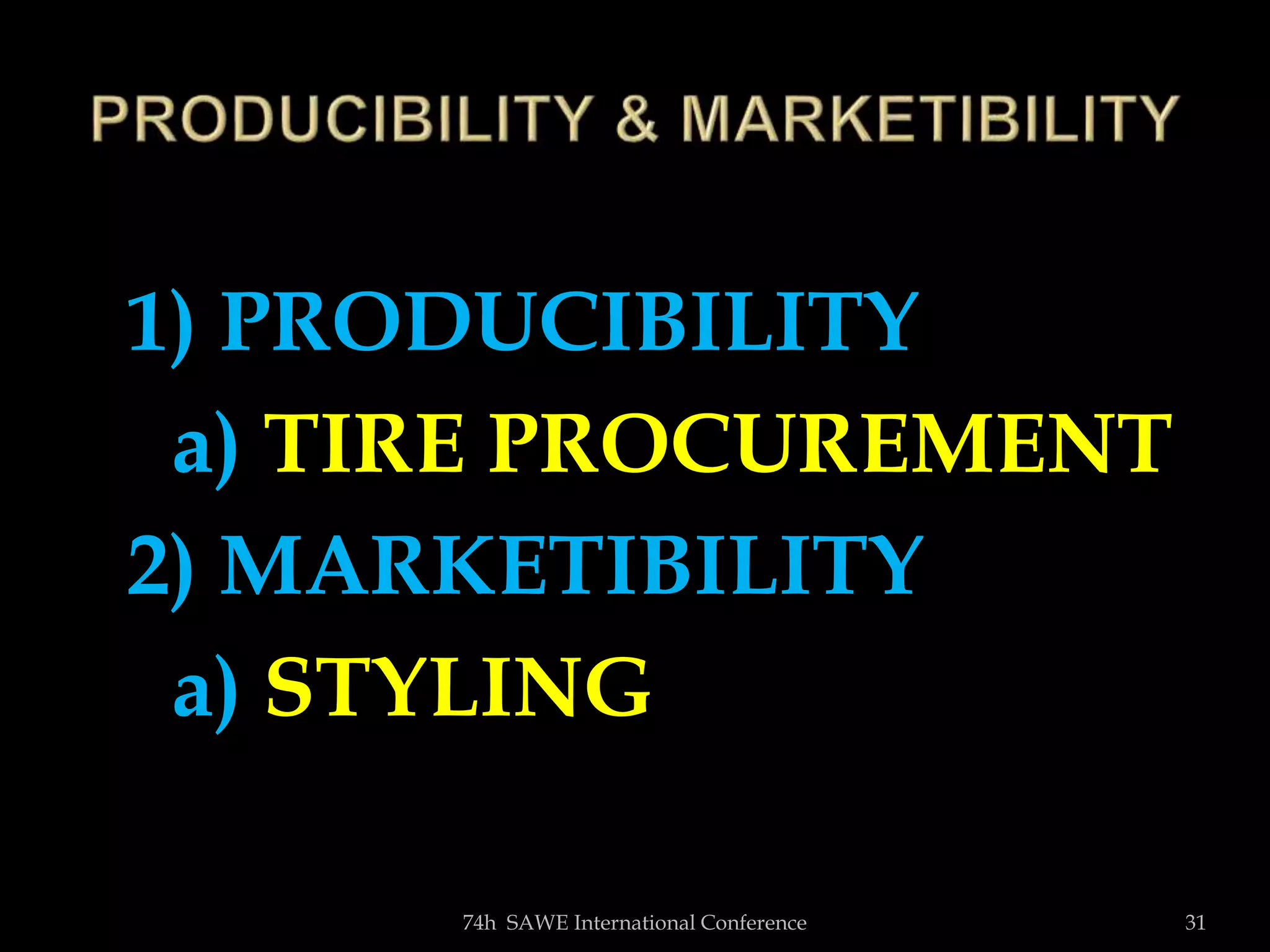

31. 1) PRODUCIBILITY
a) TIRE PROCUREMENT
2) MARKETIBILITY
a) STYLING
74h SAWE International Conference 31

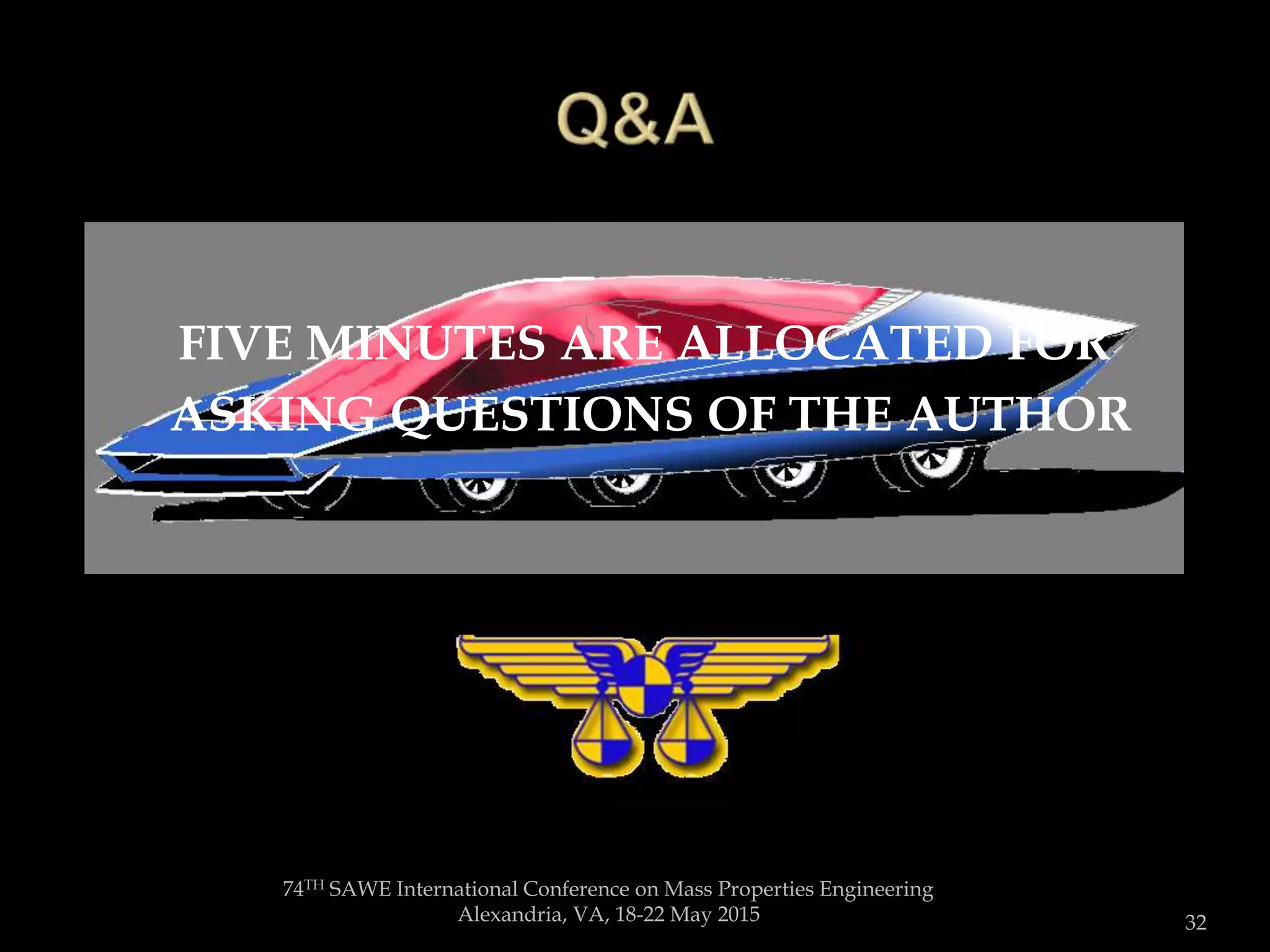

32. FIVE MINUTES ARE ALLOCATED FOR
ASKING QUESTIONS OF THE AUTHOR
74TH SAWE International Conference on Mass Properties Engineering
Alexandria, VA, 18-22 May 2015 32

33. 74TH SAWE International Conference on Mass Properties Engineering
Alexandria, VA, 18-22 May 2015 33

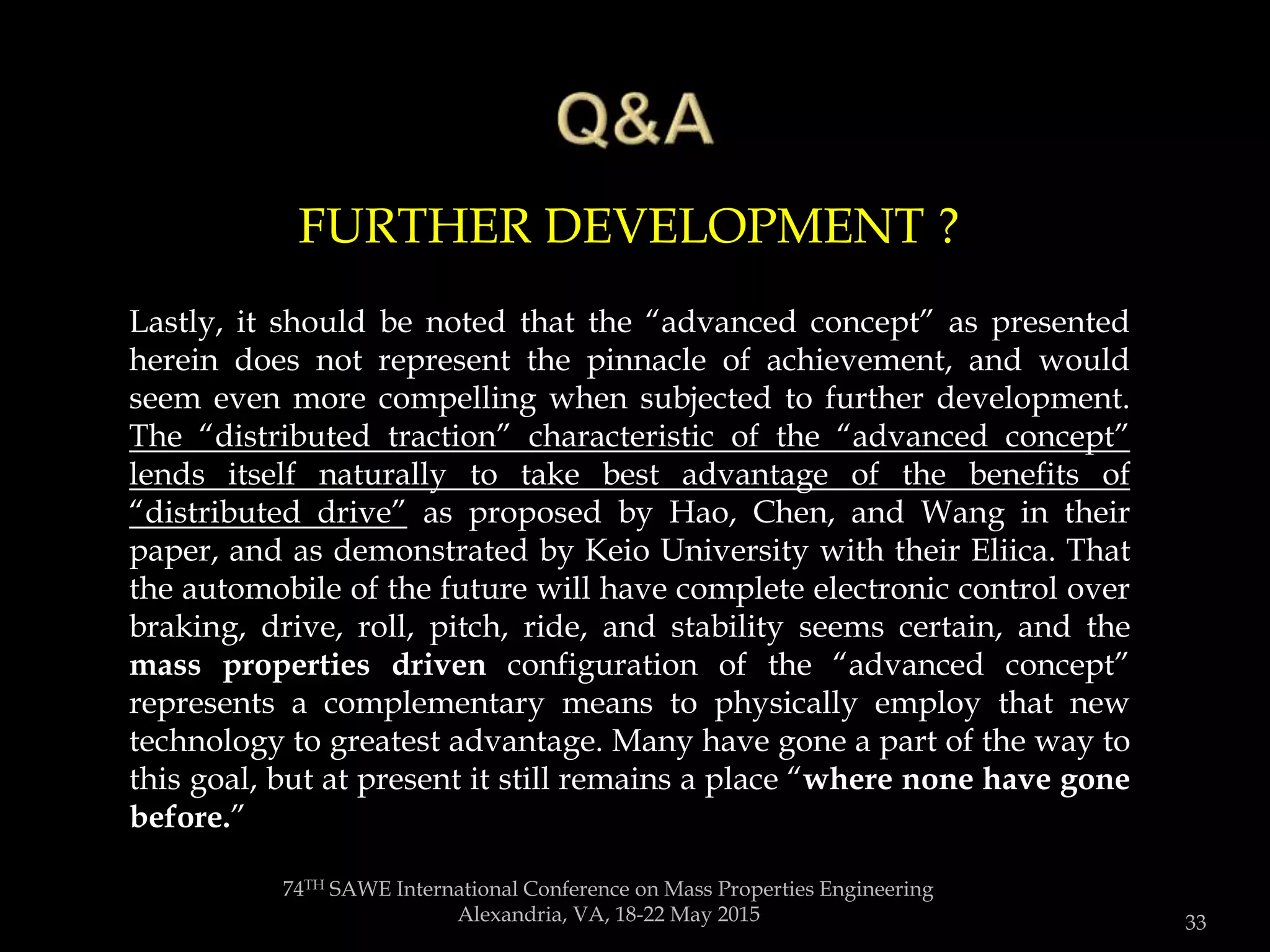

Lastly, it should be noted that the “advanced concept” as presented
herein does not represent the pinnacle of achievement, and would
seem even more compelling when subjected to further development.
The “distributed traction” characteristic of the “advanced concept”
lends itself naturally to take best advantage of the benefits of
“distributed drive” as proposed by Hao, Chen, and Wang in their
paper, and as demonstrated by Keio University with their Eliica. That
the automobile of the future will have complete electronic control over
braking, drive, roll, pitch, ride, and stability seems certain, and the
mass properties driven configuration of the “advanced concept”
represents a complementary means to physically employ that new
technology to greatest advantage. Many have gone a part of the way to
this goal, but at present it still remains a place “where none have gone
before.”
FURTHER DEVELOPMENT ?

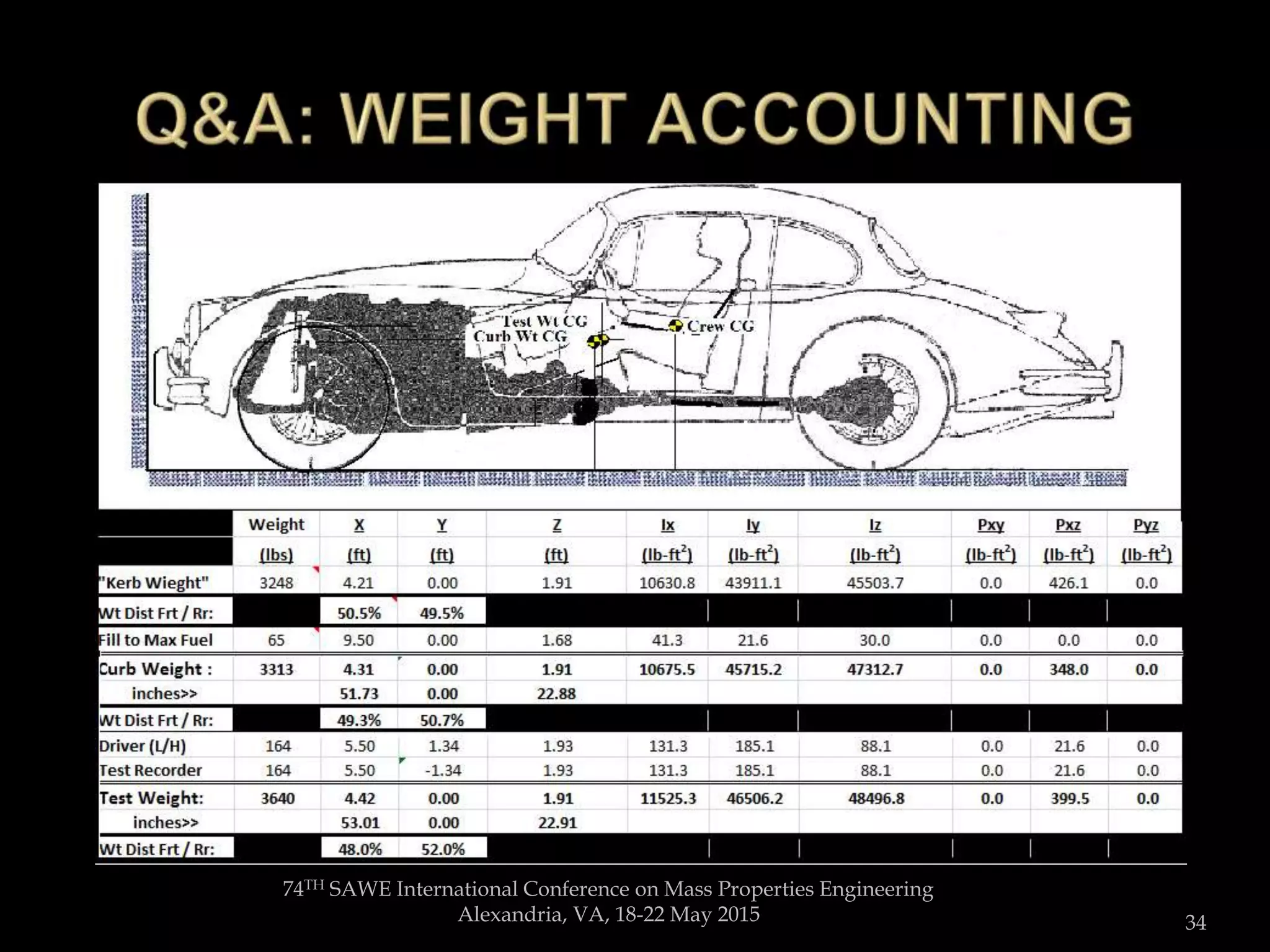

34. 74TH SAWE International Conference on Mass Properties Engineering
Alexandria, VA, 18-22 May 2015 34

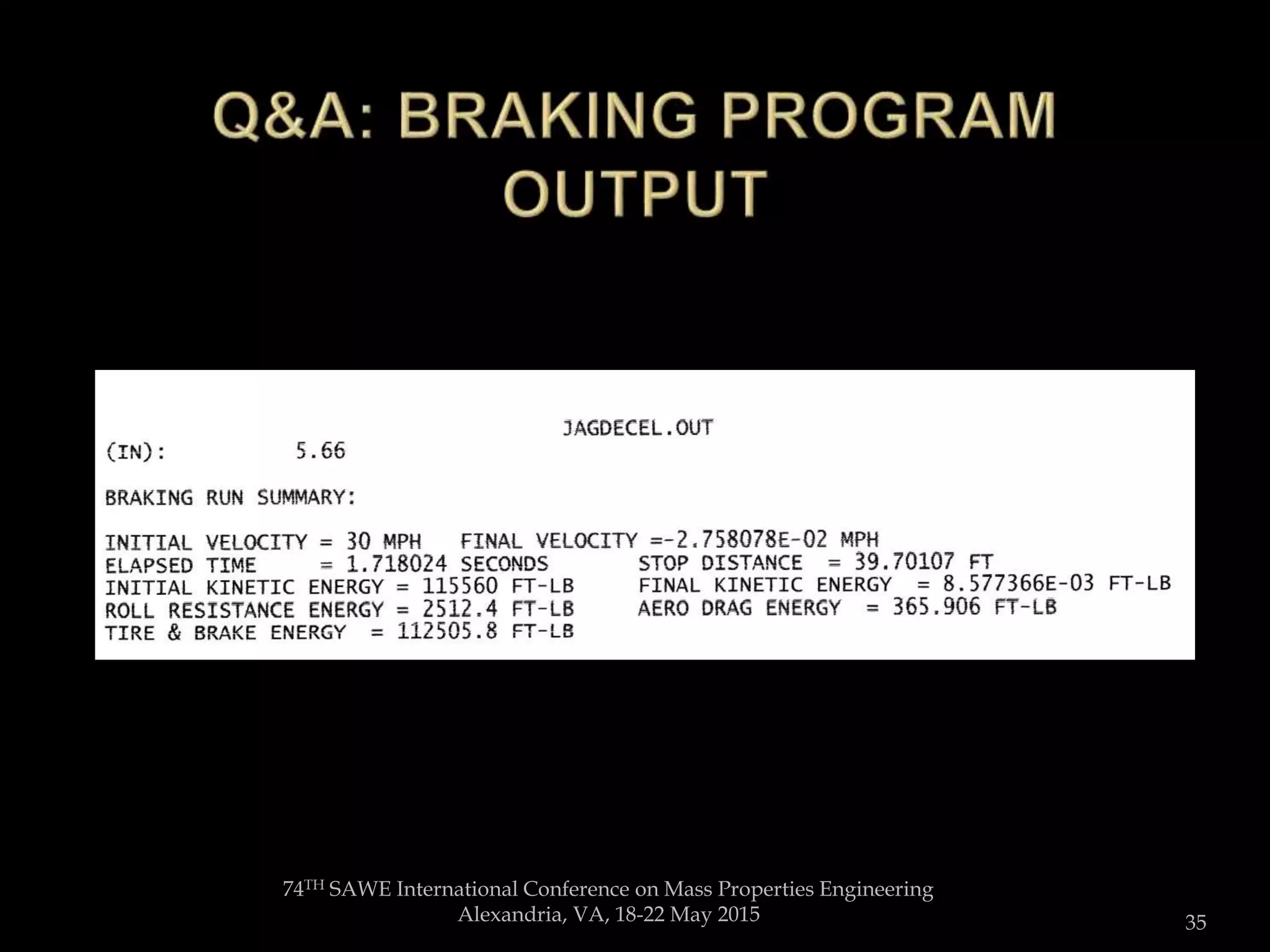

35. 74TH SAWE International Conference on Mass Properties Engineering
Alexandria, VA, 18-22 May 2015 35

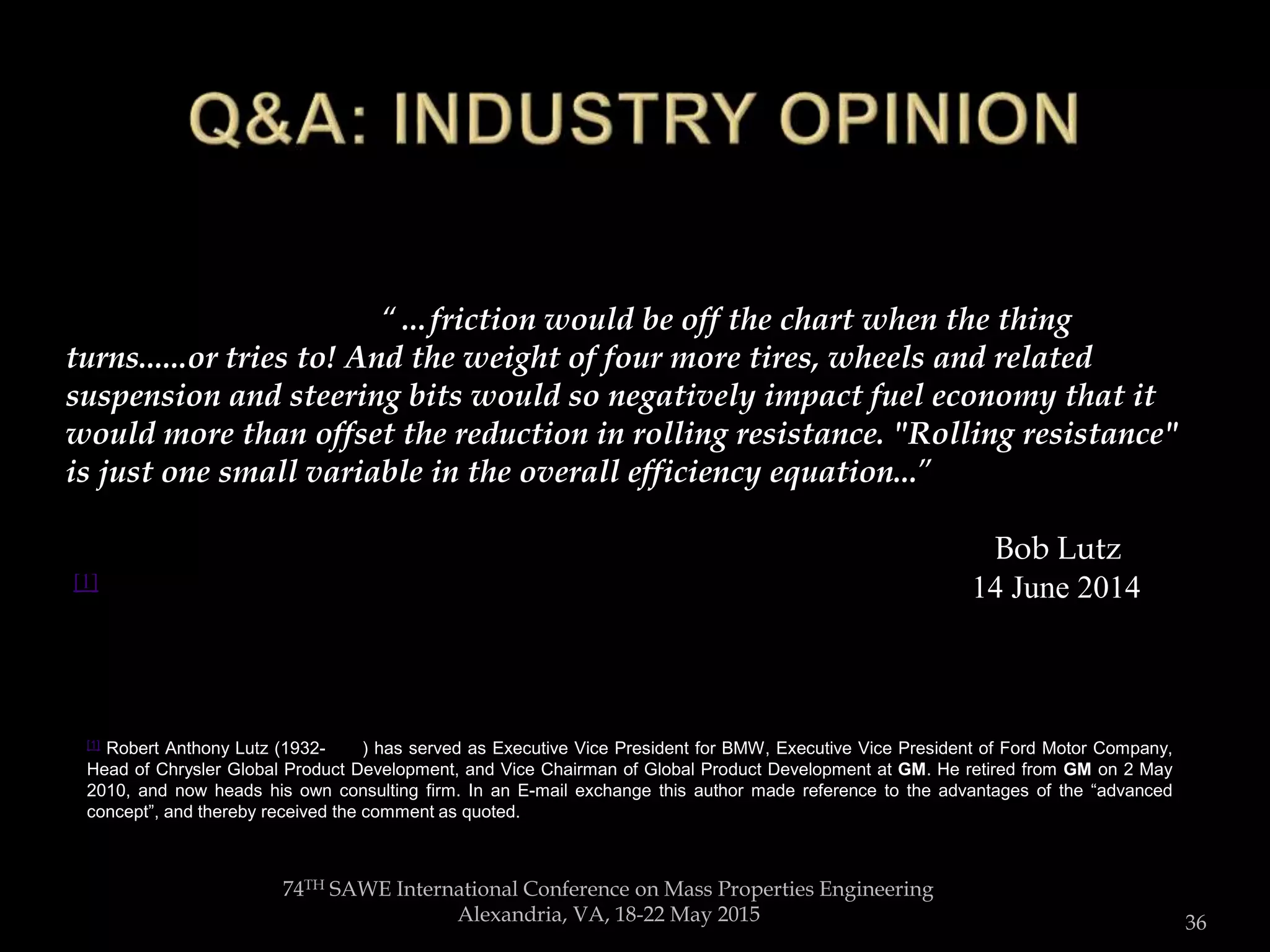

36. 74TH SAWE International Conference on Mass Properties Engineering
Alexandria, VA, 18-22 May 2015 36
“…friction would be off the chart when the thing turns......or tries to! And the weight of four more tires, wheels and related suspension and
steering bits would so negatively impact fuel economy that it would more than offset the reduction in rolling resistance. "Rolling resistance"
is just one small variable in the overall “…friction would be off the chart when the thing
turns......or tries to! And the weight of four more tires, wheels and related
suspension and steering bits would so negatively impact fuel economy that it
would more than offset the reduction in rolling resistance. "Rolling resistance"
is just one small variable in the overall efficiency equation...”
Bob Lutz...”
[1] 14 June 2014
[1] Robert Anthony Lutz (1932- ) has served as Executive Vice President for BMW, Executive Vice President of Ford Motor Company,
Head of Chrysler Global Product Development, and Vice Chairman of Global Product Development at GM. He retired from GM on 2 May
2010, and now heads his own consulting firm. In an E-mail exchange this author made reference to the advantages of the “advanced
concept”, and thereby received the comment as quoted.

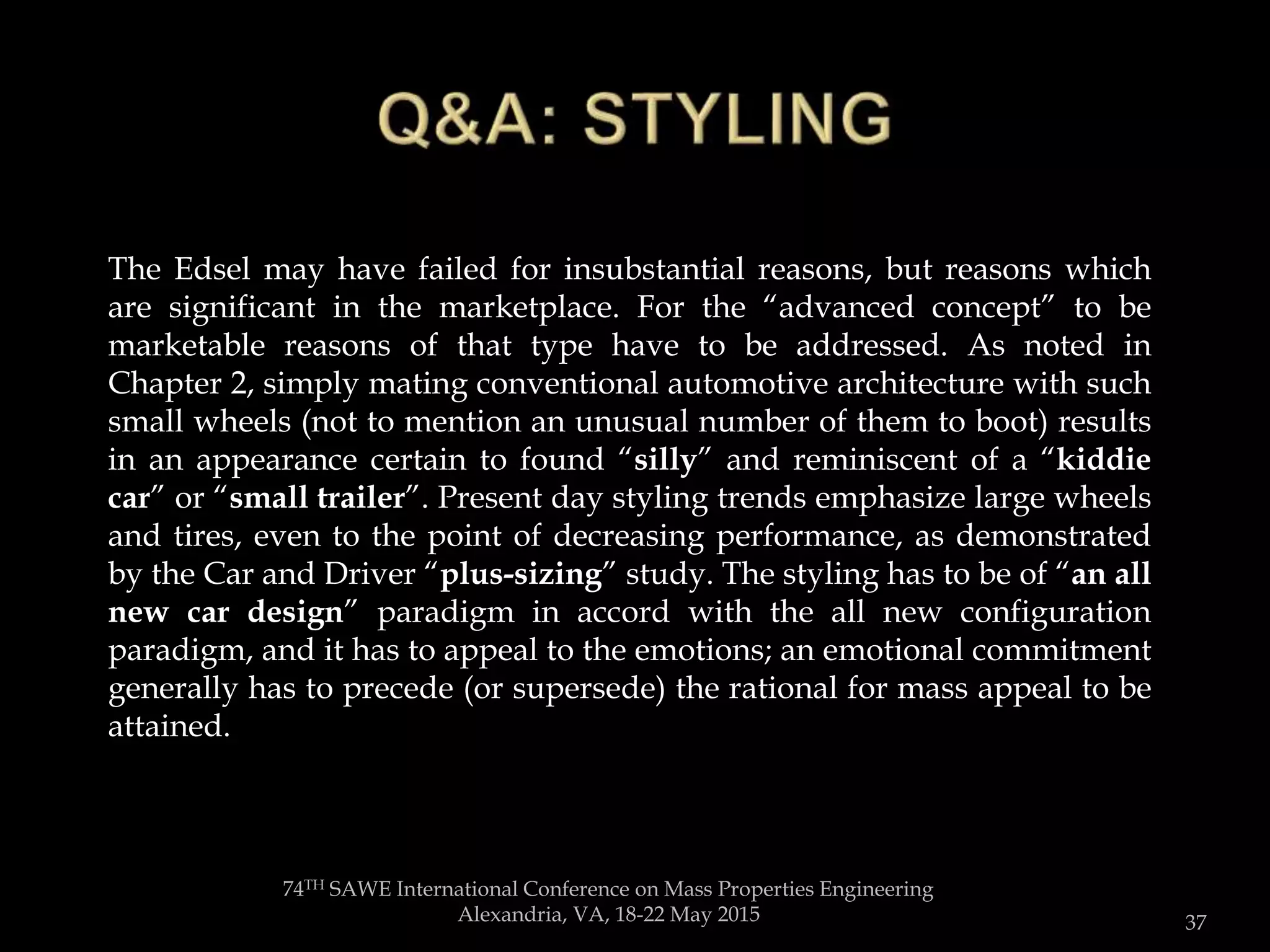

37. 74TH SAWE International Conference on Mass Properties Engineering
Alexandria, VA, 18-22 May 2015 37
“…friction would be off the chart when the thing turns......or tries to! And the weight of four more tires, wheels and related suspension and
steering bits would so negatively impact fuel economy that it would more than offset the reduction in rolling resistance. "Rolling resistance"
is
The Edsel may have failed for insubstantial reasons, but reasons which
are significant in the marketplace. For the “advanced concept” to be
marketable reasons of that type have to be addressed. As noted in
Chapter 2, simply mating conventional automotive architecture with such
small wheels (not to mention an unusual number of them to boot) results
in an appearance certain to found “silly” and reminiscent of a “kiddie
car” or “small trailer”. Present day styling trends emphasize large wheels
and tires, even to the point of decreasing performance, as demonstrated
by the Car and Driver “plus-sizing” study. The styling has to be of “an all
new car design” paradigm in accord with the all new configuration
paradigm, and it has to appeal to the emotions; an emotional commitment
generally has to precede (or supersede) the rational for mass appeal to be
attained.
