Malware Analysis and Defeating using Virtual Machines
- 1. THE DETECTION ANDDEFEATING OF MALWARE IN POPULAR VIRTUAL MACHINES 1

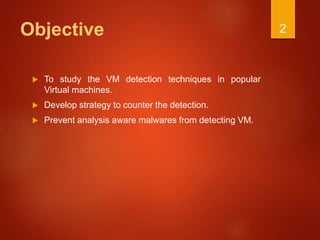

- 2. Objective To studythe VM detection techniques in popular Virtual machines. Develop strategy to counter the detection. Prevent analysis aware malwares from detecting VM. 2

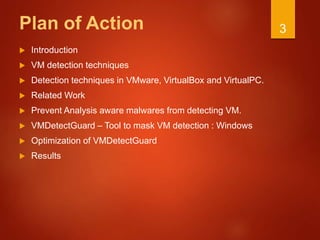

- 3. Plan of Action Introduction VM detection techniques Detection techniques in VMware, VirtualBox and VirtualPC. Related Work Prevent Analysis aware malwares from detecting VM. VMDetectGuard – Tool to mask VM detection : Windows Optimization of VMDetectGuard Results 3

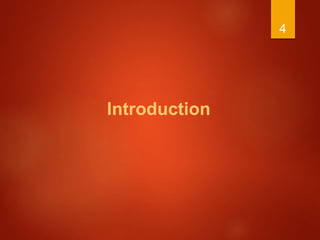

- 4.

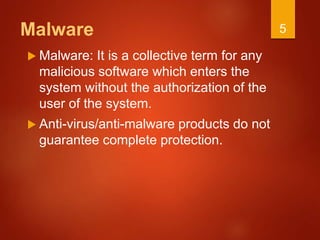

- 5. Malware Malware: Itis a collective term for any malicious software which enters the system without the authorization of the user of the system. Anti-virus/anti-malware products do not guarantee complete protection. 5

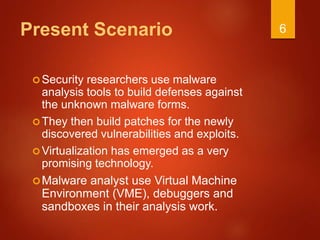

- 6. Present Scenario Security researchersuse malware analysis tools to build defenses against the unknown malware forms. They then build patches for the newly discovered vulnerabilities and exploits. Virtualization has emerged as a very promising technology. Malware analyst use Virtual Machine Environment (VME), debuggers and sandboxes in their analysis work. 6

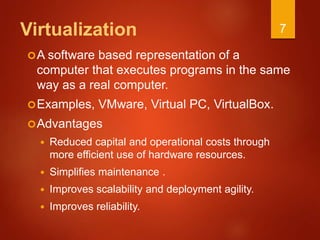

- 7. Virtualization A software basedrepresentation of a computer that executes programs in the same way as a real computer. Examples, VMware, Virtual PC, VirtualBox. Advantages Reduced capital and operational costs through more efficient use of hardware resources. Simplifies maintenance . Improves scalability and deployment agility. Improves reliability. 7

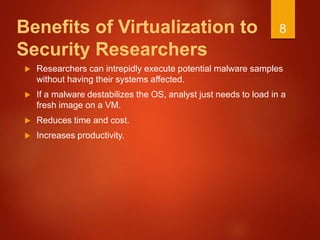

- 8. Benefits of Virtualizationto Security Researchers Researchers can intrepidly execute potential malware samples without having their systems affected. If a malware destabilizes the OS, analyst just needs to load in a fresh image on a VM. Reduces time and cost. Increases productivity. 8
- 9. Analysis Awareness Functionality Malwaredevelopers have added a new functionality to malware. Detect the presence of analysis tools such as VMs, debuggers and sandboxes. Hide their malicious behavior on detection. Analysis Aware / Split Personality malware. 9

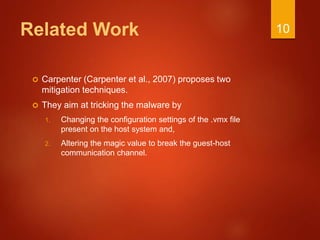

- 10. Related Work Carpenter(Carpenter et al., 2007) proposes two mitigation techniques. They aim at tricking the malware by 1. Changing the configuration settings of the .vmx file present on the host system and, 2. Altering the magic value to break the guest-host communication channel. 10

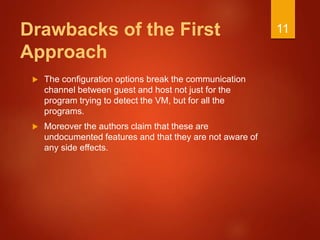

- 11. Drawbacks of theFirst Approach The configuration options break the communication channel between guest and host not just for the program trying to detect the VM, but for all the programs. Moreover the authors claim that these are undocumented features and that they are not aware of any side effects. 11

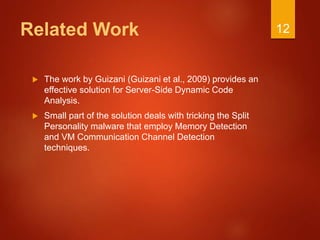

- 12. Related Work Thework by Guizani (Guizani et al., 2009) provides an effective solution for Server-Side Dynamic Code Analysis. Small part of the solution deals with tricking the Split Personality malware that employ Memory Detection and VM Communication Channel Detection techniques. 12

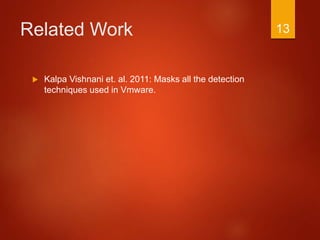

- 13. Related Work KalpaVishnani et. al. 2011: Masks all the detection techniques used in Vmware. 13

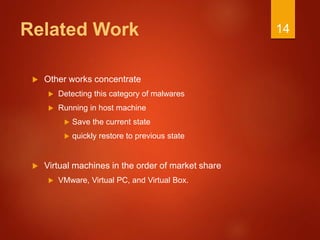

- 14. Related Work Otherworks concentrate Detecting this category of malwares Running in host machine Save the current state quickly restore to previous state Virtual machines in the order of market share VMware, Virtual PC, and Virtual Box. 14

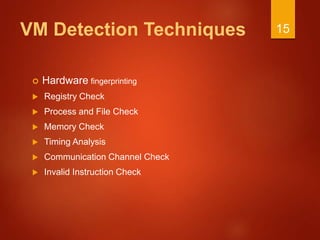

- 15. VM Detection Techniques Hardware fingerprinting Registry Check Process and File Check Memory Check Timing Analysis Communication Channel Check Invalid Instruction Check 15

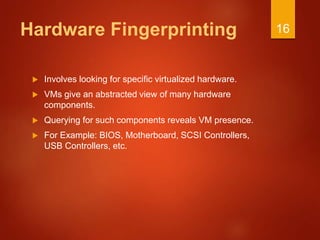

- 16. Hardware Fingerprinting Involveslooking for specific virtualized hardware. VMs give an abstracted view of many hardware components. Querying for such components reveals VM presence. For Example: BIOS, Motherboard, SCSI Controllers, USB Controllers, etc. 16

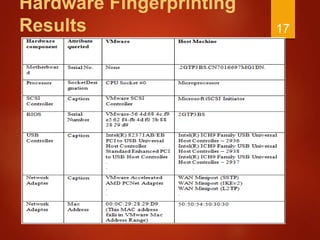

- 17.
- 18. Registry Check Theregistry entries contain hundreds of references to the string containing the name of the VM, Ex. “Vmware”, VirtualPC and VirtualBox. Checking the registry values for certain keys clearly reveals the VM presence. 18

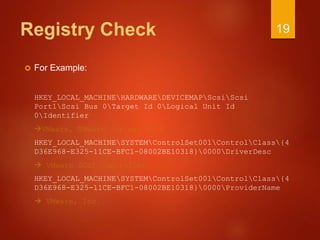

- 19. Registry Check ForExample: HKEY_LOCAL_MACHINEHARDWAREDEVICEMAPScsiScsi Port1Scsi Bus 0Target Id 0Logical Unit Id 0Identifier VMware, VMware Virtual S1.0 HKEY_LOCAL_MACHINESYSTEMControlSet001ControlClass{4 D36E968-E325-11CE-BFC1-08002BE10318}0000DriverDesc VMware SCSI Controller HKEY_LOCAL_MACHINESYSTEMControlSet001ControlClass{4 D36E968-E325-11CE-BFC1-08002BE10318}0000ProviderName VMware, Inc. 19
- 20. Process and FileCheck Check - VM specific processes and files presence Eg. VBoxService.exe : In VirtualBox for synchronization with host drivers like “vboxhook.dll” and “vpcbus” driver present in %SYSDIR%/drivers 20

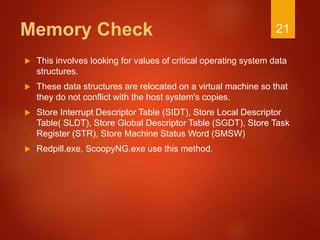

- 21. Memory Check Thisinvolves looking for values of critical operating system data structures. These data structures are relocated on a virtual machine so that they do not conflict with the host system's copies. Store Interrupt Descriptor Table (SIDT), Store Local Descriptor Table( SLDT), Store Global Descriptor Table (SGDT), Store Task Register (STR), Store Machine Status Word (SMSW) Redpill.exe, ScoopyNG.exe use this method. 21

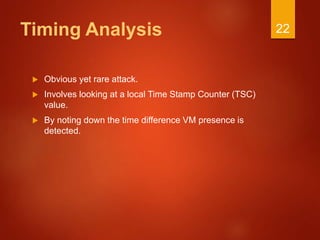

- 22. Timing Analysis Obviousyet rare attack. Involves looking at a local Time Stamp Counter (TSC) value. By noting down the time difference VM presence is detected. 22

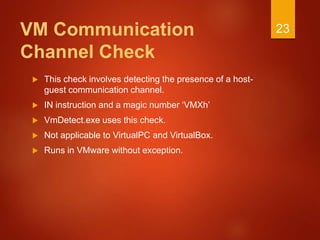

- 23. VM Communication Channel Check This check involves detecting the presence of a host- guest communication channel. IN instruction and a magic number ‘VMXh’ VmDetect.exe uses this check. Not applicable to VirtualPC and VirtualBox. Runs in VMware without exception. 23

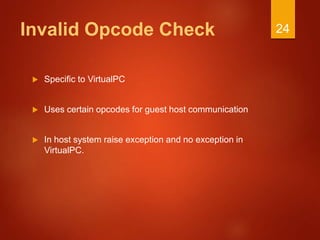

- 24. Invalid Opcode Check Specific to VirtualPC Uses certain opcodes for guest host communication In host system raise exception and no exception in VirtualPC. 24
- 25. Vmware Detection hardwaredetails motherboard serial number, graphics card and network adapter captions Windows Management Instrumentation (WMI) contains classes hardware, display, registry etc. Check for VM specific strings 25 HARDWARE FINGERPRINTING

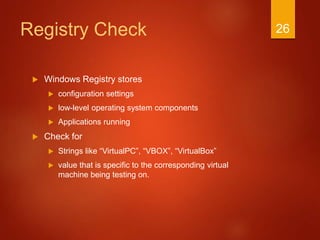

- 26. Registry Check WindowsRegistry stores configuration settings low-level operating system components Applications running Check for Strings like “VirtualPC”, “VBOX”, “VirtualBox” value that is specific to the corresponding virtual machine being testing on. 26
- 27. Process and FileCheck Check - VM specific processes and files presence Eg. VBoxService.exe : In VirtualBox for synchronization with host drivers like “vboxhook.dll” and “vpcbus” driver present in %SYSDIR%/drivers 27
- 28. Memory Check involveslooking at the values of specific memory locations STR (Store Task Register) stores the selector segment of the TR register (Task Register) in the specified operand (memory or other general purpose register). Value specific in Virtual Machine 28

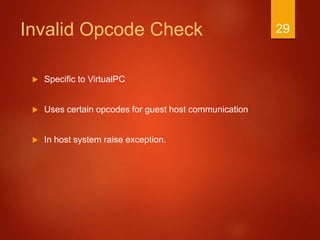

- 29. Invalid Opcode Check Specific to VirtualPC Uses certain opcodes for guest host communication In host system raise exception. 29

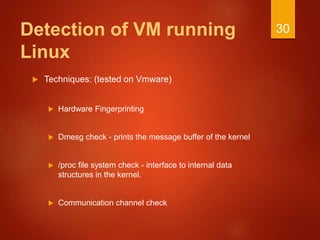

- 30. Detection of VMrunning Linux Techniques: (tested on Vmware) Hardware Fingerprinting Dmesg check - prints the message buffer of the kernel /proc file system check - interface to internal data structures in the kernel. Communication channel check 30

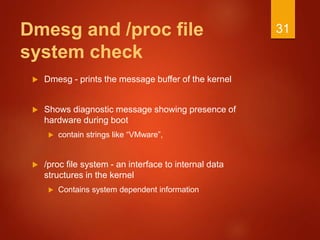

- 31. Dmesg and /procfile system check Dmesg - prints the message buffer of the kernel Shows diagnostic message showing presence of hardware during boot contain strings like “VMware”, /proc file system - an interface to internal data structures in the kernel Contains system dependent information 31

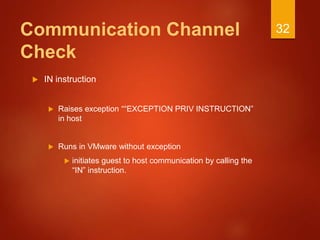

- 32. Communication Channel Check INinstruction Raises exception ““EXCEPTION PRIV INSTRUCTION” in host Runs in VMware without exception initiates guest to host communication by calling the “IN” instruction. 32

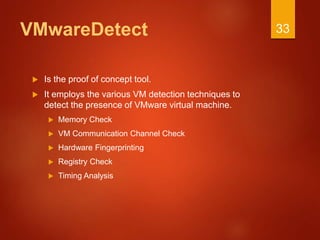

- 33. VMwareDetect Is theproof of concept tool. It employs the various VM detection techniques to detect the presence of VMware virtual machine. Memory Check VM Communication Channel Check Hardware Fingerprinting Registry Check Timing Analysis 33

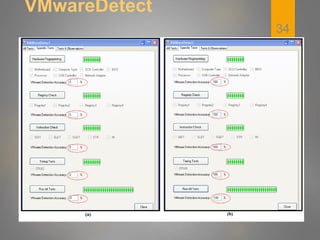

- 34.

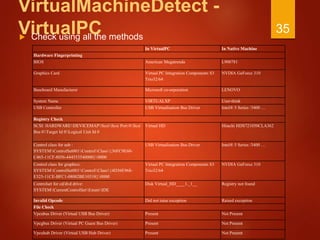

- 35. VirtualMachineDetect - VirtualPC Checkusing all the methods 35 In VirtualPC In Native Machine Hardware Fingerprinting BIOS American Megatrenda L900781 Graphics Card Virtual PC Integration Components S3 Trio32/64 NVDIA GeForce 310 Baseboard Manufacturer Microsoft co-orporation LENOVO System Name VIRTUALXP User-think USB Controller USB Virtualisation Bus Driver Intel® 5 Series /3400 … Registry Check SCSI: HARDWAREDEVICEMAPScsiScsi Port 0Scsi Bus 0Target Id 0Logical Unit Id 0 Virtual HD Hitachi HDS721050CLA362 Control class for usb : SYSTEMControlSet001ControlClass{36FC9E60- C465-11CF-8056-444553540000}0000 USB Virtualisation Bus Driver Intel® 5 Series /3400 … Control class for graphics: SYSTEMControlSet001ControlClass{4D36E968- E325-11CE-BFC1-08002BE10318}0000 Virtual PC Integration Components S3 Trio32/64 NVDIA GeForce 310 Controlset for cd/dvd drive: SYSTEMCurrentControlSetEnumIDE Disk Virtual_HD____1._1__ Registry not found Invalid Opcode Did not raise exception Raised exception File Check Vpcubus Driver (Virtual USB Bus Driver) Present Not Present Vpcgbus Driver (Virtual PC Guest Bus Driver) Present Not Present Vpcuhub Driver (Virtual USB Hub Driver) Present Not Present
- 36. VirtualMachineDetect - VirtualBox Virtual Boxrunning windows Host Windows Machine Hardware Fingerprinting BIOS 0 L900781 Graphics Card Virtual Box Graphics Adapter NVDIA GeForce 310 N/W adapter AMD PCNET Family PCI Ethernet Adapter WAN Miniport(SSTP) … Processor Null CPU1 USB Controller Std Open HCD USB Host Controller Intel® 5 Series /3400 … Registry Check Dsdt: : HARDWAREACPIDSDT VBOX__ Registry not present Scsi P0 : HARDWAREDEVICEMAPScsiScsi Port 0Scsi Bus 0Target Id 0Logical Unit Id 0 VBOX HARDDISK Hitachi HDS721050CLA362 Scsi P1: HARDWAREDEVICEMAPScsiScsi Port 1Scsi Bus 0Target Id 0Logical Unit Id 0 VBOX CD-ROM Null Vedio Bios Version: HARDWAREDESCRIPTIONSystemVideoBiosVersion Oracle VM VirtualBox Version 4.1.2 VGA Bios Version 70.18.3E.00.05 System Bios Version: HARDWAREDESCRIPTIONSystemSystemBiosVersion VBOX-1 LENOVO-133 Instruction Check STR (store task register) 28 0 40 00 File Check VBOXHook.exe Present Not Present VBOXTray Present Not Present VBOXService.exe Present Not Present 36
- 37.

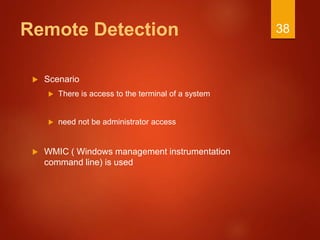

- 38. Remote Detection Scenario There is access to the terminal of a system need not be administrator access WMIC ( Windows management instrumentation command line) is used 38

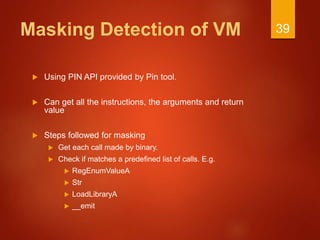

- 39. Masking Detection ofVM Using PIN API provided by Pin tool. Can get all the instructions, the arguments and return value Steps followed for masking Get each call made by binary. Check if matches a predefined list of calls. E.g. RegEnumValueA Str LoadLibraryA __emit 39

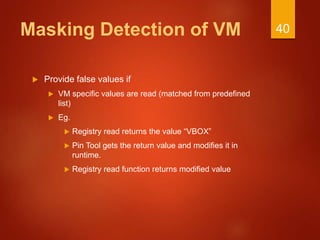

- 40. Masking Detection ofVM Provide false values if VM specific values are read (matched from predefined list) Eg. Registry read returns the value “VBOX” Pin Tool gets the return value and modifies it in runtime. Registry read function returns modified value 40

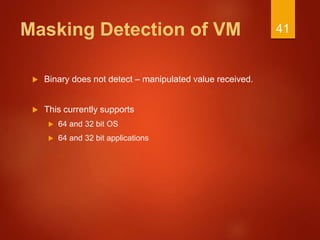

- 41. Masking Detection ofVM Binary does not detect – manipulated value received. This currently supports 64 and 32 bit OS 64 and 32 bit applications 41

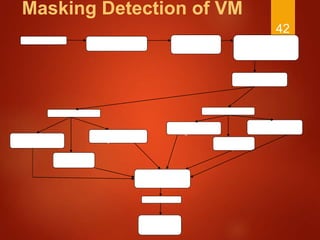

- 42. Masking Detection ofVM 42 Load Binary Detect if the binary is 64 or 32 bit. Display the detection and give option to user to change it. Detect the OS as 64/32 bit. Detect the Underlying VM Virtual PC VirtualBox Register Check masking Invalid Opcode Check Masking File Check Masking File Check Masking Register Check Masking Instruction Check Masking Feedback Save to db for further analysis Execution of loaded binary completed

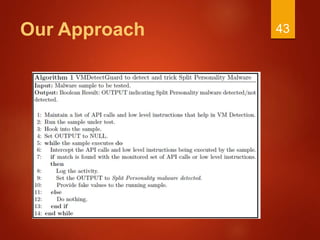

- 43.

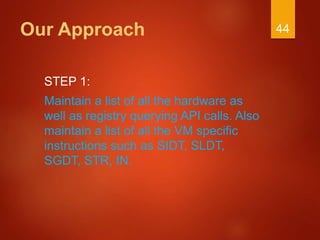

- 44. Our Approach STEP 1: Maintaina list of all the hardware as well as registry querying API calls. Also maintain a list of all the VM specific instructions such as SIDT, SLDT, SGDT, STR, IN. 44

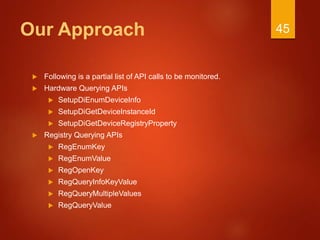

- 45. Our Approach Followingis a partial list of API calls to be monitored. Hardware Querying APIs SetupDiEnumDeviceInfo SetupDiGetDeviceInstanceId SetupDiGetDeviceRegistryProperty Registry Querying APIs RegEnumKey RegEnumValue RegOpenKey RegQueryInfoKeyValue RegQueryMultipleValues RegQueryValue 45

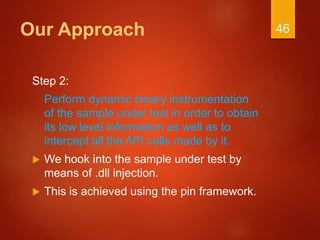

- 46. Our Approach Step 2: Performdynamic binary instrumentation of the sample under test in order to obtain its low level information as well as to intercept all the API calls made by it. We hook into the sample under test by means of .dll injection. This is achieved using the pin framework. 46

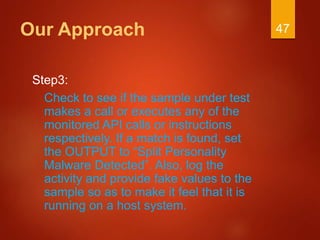

- 47. Our Approach Step3: Check tosee if the sample under test makes a call or executes any of the monitored API calls or instructions respectively. If a match is found, set the OUTPUT to “Split Personality Malware Detected”. Also, log the activity and provide fake values to the sample so as to make it feel that it is running on a host system. 47

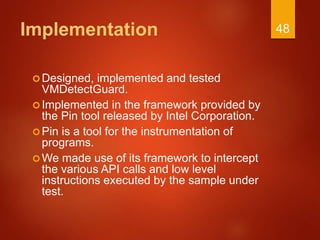

- 48. Implementation Designed, implemented andtested VMDetectGuard. Implemented in the framework provided by the Pin tool released by Intel Corporation. Pin is a tool for the instrumentation of programs. We made use of its framework to intercept the various API calls and low level instructions executed by the sample under test. 48
- 49. COUNTERING HARDWARE FINGERPRINTING Hardware emulation. APIs that query for BIOS, Motherboard, Processor, Network Adapter. Ex. VM returns a value “none” for motherboard serial number. VMDetectGuard returns a more appropriate string such as “.16LV3BS.CN70166983G1XF” instead. 49

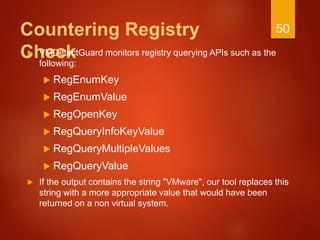

- 50. Countering Registry Check VMDetectGuardmonitors registry querying APIs such as the following: RegEnumKey RegEnumValue RegOpenKey RegQueryInfoKeyValue RegQueryMultipleValues RegQueryValue If the output contains the string "VMware", our tool replaces this string with a more appropriate value that would have been returned on a non virtual system. 50

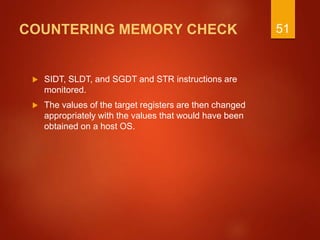

- 51. COUNTERING MEMORY CHECK SIDT, SLDT, and SGDT and STR instructions are monitored. The values of the target registers are then changed appropriately with the values that would have been obtained on a host OS. 51

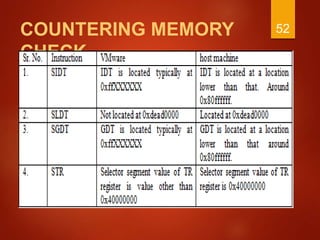

- 52.

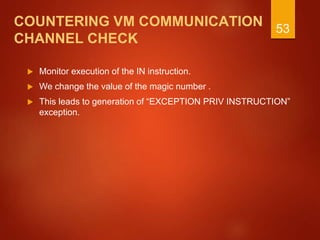

- 53. COUNTERING VM COMMUNICATION CHANNELCHECK Monitor execution of the IN instruction. We change the value of the magic number . This leads to generation of “EXCEPTION PRIV INSTRUCTION” exception. 53

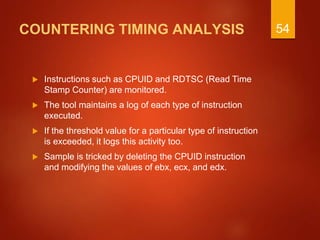

- 54. COUNTERING TIMING ANALYSIS Instructions such as CPUID and RDTSC (Read Time Stamp Counter) are monitored. The tool maintains a log of each type of instruction executed. If the threshold value for a particular type of instruction is exceeded, it logs this activity too. Sample is tricked by deleting the CPUID instruction and modifying the values of ebx, ecx, and edx. 54
- 55. VMDetectGuard VMDetectGuard isour solution tool to counter Split Personality Malware. VMDetectGuard runs in two different modes. VM Guard Mode Non VM Guard Mode 55
- 56. VMDetectGuard Output Generatedby VMDetectGuard Result: Split Personality malware detected/not detected. VM Specific Log Instruction Trace System Call Trace Registry Trace Opcode Mix Instruction Count Diff Tool Feature 56

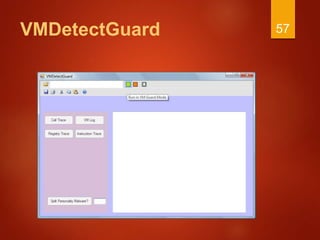

- 57.

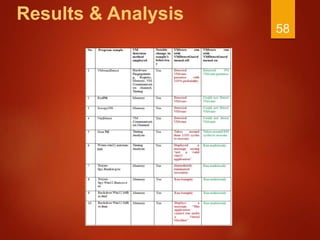

- 58.

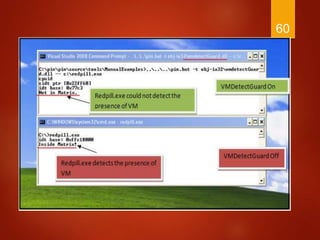

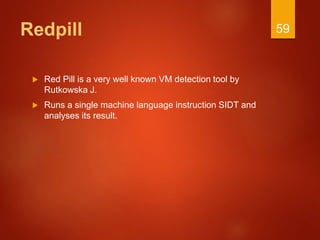

- 59. Redpill Red Pillis a very well known VM detection tool by Rutkowska J. Runs a single machine language instruction SIDT and analyses its result. 59
- 60.

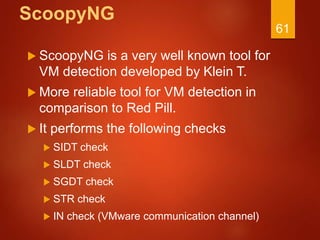

- 61. ScoopyNG ScoopyNG isa very well known tool for VM detection developed by Klein T. More reliable tool for VM detection in comparison to Red Pill. It performs the following checks SIDT check SLDT check SGDT check STR check IN check (VMware communication channel) 61
- 62.

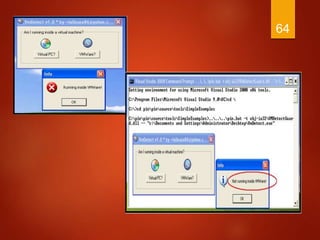

- 63. VmDetect This isanother well known proof of concept VM detecting sample that makes use of the VMware communication channel to detect VMware Presence. 63
- 64.

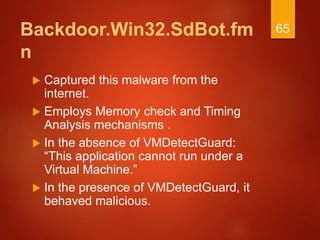

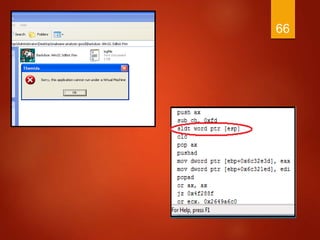

- 65. Backdoor.Win32.SdBot.fm n Captured thismalware from the internet. Employs Memory check and Timing Analysis mechanisms . In the absence of VMDetectGuard: “This application cannot run under a Virtual Machine.” In the presence of VMDetectGuard, it behaved malicious. 65
- 66.
- 67.
- 68. VMDetectGuard Running VMDetect in VirtualPC RunningVMDetect under masking tool 68

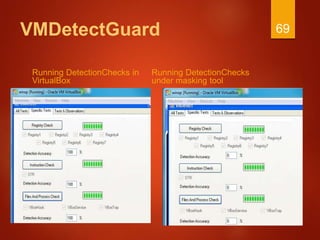

- 69. VMDetectGuard Running DetectionChecks in VirtualBox RunningDetectionChecks under masking tool 69

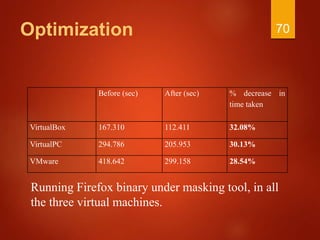

- 70. Optimization Before (sec) After(sec) % decrease in time taken VirtualBox 167.310 112.411 32.08% VirtualPC 294.786 205.953 30.13% VMware 418.642 299.158 28.54% 70 Running Firefox binary under masking tool, in all the three virtual machines.

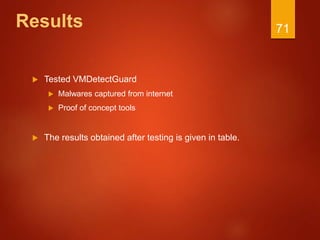

- 71. Results Tested VMDetectGuard Malwares captured from internet Proof of concept tools The results obtained after testing is given in table. 71
- 72. Results Binary Detection TechniqueUsed Run without tool Run under tool Virtual Box VBDetect: calls others binaries for individual checks within. Registry Check File and Process Check Instruction Check Detected VirtualBox Did not detect VirtualBox Rebhip File and Process Check Runs benignly Runs maliciously VirtualPC VPCDetect: calls others binaries for individual checks within. Registry Check File and Process Check Invalid Opcode Check Detected VirtualPC Did not detect VirtualPC Backdoor.Win32.SdBot.fmn File and Process Check Invalid Opcode Check Displays a message, “This application cannot run under a Virtual Machine Ran maliciously VMDetect Invalid Opcode Check Detects VirtualPC Does not detect VirtualPC Trojen.Karsh-252 Invalid Opcode Check Displays a message, “This application cannot run under a Virtual Machine Ran Maliciously 72

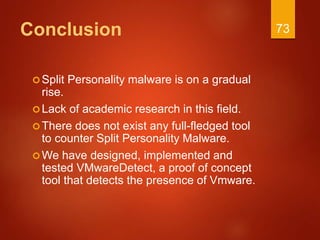

- 73. Conclusion Split Personality malwareis on a gradual rise. Lack of academic research in this field. There does not exist any full-fledged tool to counter Split Personality Malware. We have designed, implemented and tested VMwareDetect, a proof of concept tool that detects the presence of Vmware. 73

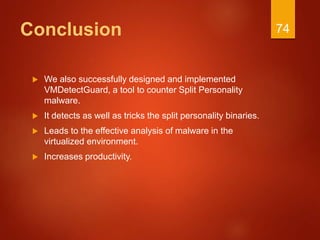

- 74. Conclusion We alsosuccessfully designed and implemented VMDetectGuard, a tool to counter Split Personality malware. It detects as well as tricks the split personality binaries. Leads to the effective analysis of malware in the virtualized environment. Increases productivity. 74
Editor's Notes
- #31 /proc- details of system. Dmesg- when h/w loads writes desc of loaded h/w.
