DSpace XMLUI (Manakin) Tutorial given at the DSpace User Group Meeting (DSUG) 2009 in Gothenburg, Sweden.

1. MAKING DSPACE XMLUI YOUR OWN
CUSTOMIZATION VIA OVERLAYS
Tim Donohue
Research Programmer
IDEALS
University of Illinois
DSUG 2009 – Gothenburg, Sweden

2. DSpace 1.5 & 1.6 Overview
 Maven Build Architecture
 DSpace “modules”
 Application “Overlays”
 XMLUI (aka. Manakin)
 JSPUI
 SWORD Interface
 LNI (Lightweight Network Interface)
 OAI-PMH Interface

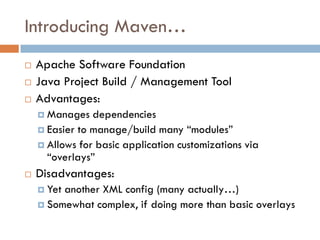

3. Introducing Maven…
 Apache Software Foundation
 Java Project Build / Management Tool
 Advantages:
 Manages dependencies
 Easier to manage/build many “modules”
 Allows for basic application customizations via
“overlays”
 Disadvantages:
 Yetanother XML config (many actually…)
 Somewhat complex, if doing more than basic overlays

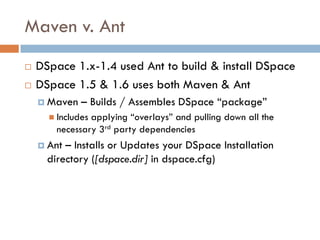

4. Maven v. Ant
 DSpace 1.x-1.4 used Ant to build & install DSpace
 DSpace 1.5 & 1.6 uses both Maven & Ant
 Maven – Builds / Assembles DSpace “package”
 Includesapplying “overlays” and pulling down all the
necessary 3rd party dependencies
 Ant – Installs or Updates your DSpace Installation
directory ([dspace.dir] in dspace.cfg)

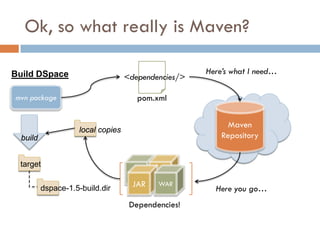

5. Ok, so what really is Maven?
Build DSpace Here’s what I need…
<dependencies/>
mvn package pom.xml
Maven
local copies
build Repository
target
JAR WAR
dspace-1.5-build.dir Here you go…
Dependencies!

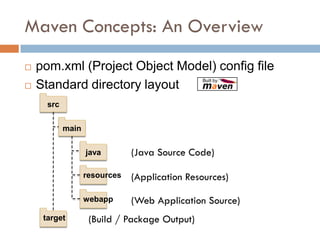

6. Maven Concepts: An Overview
 pom.xml (Project Object Model) config file
 Standard directory layout
src
main
java (Java Source Code)
resources (Application Resources)
webapp (Web Application Source)
target (Build / Package Output)

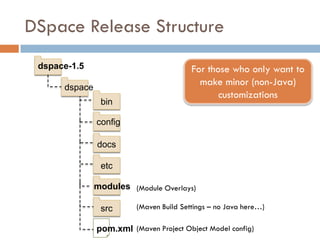

7. DSpace Release Structure
dspace-1.5 For those who only want to
dspace
make minor (non-Java)
customizations
bin
config
docs
etc
modules (Module Overlays)
src (Maven Build Settings – no Java here…)
pom.xml (Maven Project Object Model config)

8. DSpace “Modules”
dspace-1.5 modules
dspace
src / main / resources
jspui
src / main / webapp
….
(empty directories)
lni
modules
oai
….
sword
xmlui
Where’s the
actual source
code?
src / main / java?

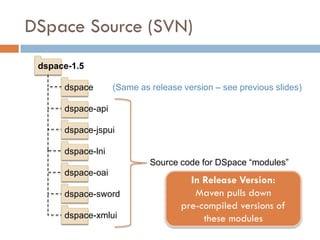

9. DSpace Source (SVN)
dspace-1.5
dspace (Same as release version – see previous slides)
dspace-api
dspace-jspui
dspace-lni
Source code for DSpace “modules”
dspace-oai
In Release Version:
dspace-sword Maven pulls down
pre-compiled versions of
dspace-xmlui these modules

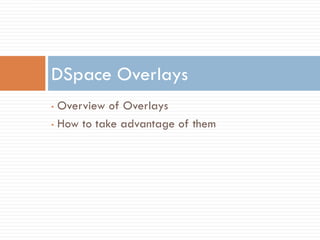

10. DSpace Overlays
• Overview of Overlays
• How to take advantage of them

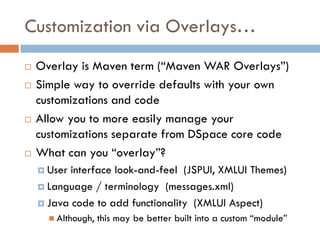

11. Customization via Overlays…
 Overlay is Maven term (“Maven WAR Overlays”)
 Simple way to override defaults with your own
customizations and code
 Allow you to more easily manage your
customizations separate from DSpace core code
 What can you “overlay”?
 User interface look-and-feel (JSPUI, XMLUI Themes)
 Language / terminology (messages.xml)
 Java code to add functionality (XMLUI Aspect)
 Although, this may be better built into a custom “module”

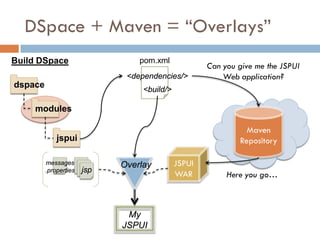

12. DSpace + Maven = “Overlays”
Build DSpace pom.xml
Can you give me the JSPUI
<dependencies/> Web application?
dspace
<build/>
modules
Maven
jspui Repository
messages Overlay JSPUI
.properties jsp
WAR Here you go…
My
JSPUI

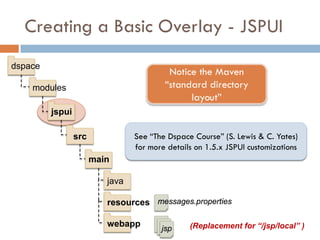

13. Creating a Basic Overlay - JSPUI
dspace
Notice the Maven
modules “standard directory
layout”
jspui
src See “The Dspace Course” (S. Lewis & C. Yates)
for more details on 1.5.x JSPUI customizations
main
java
resources messages.properties
webapp (Replacement for “/jsp/local” )
jsp

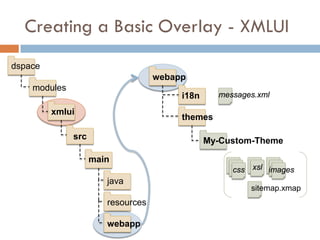

14. Creating a Basic Overlay - XMLUI
dspace
webapp
modules
i18n messages.xml
xmlui
themes
src My-Custom-Theme
main
css xsl images
java
sitemap.xmap
resources
webapp

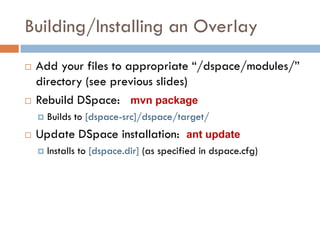

15. Building/Installing an Overlay
 Add your files to appropriate “/dspace/modules/”
directory (see previous slides)
 Rebuild DSpace: mvn package
 Builds to [dspace-src]/dspace/target/
 Update DSpace installation: ant update
 Installs to [dspace.dir] (as specified in dspace.cfg)

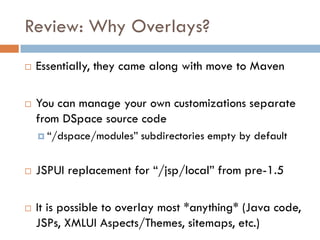

16. Review: Why Overlays?
 Essentially, they came along with move to Maven
 You can manage your own customizations separate
from DSpace source code
 “/dspace/modules” subdirectories empty by default
 JSPUI replacement for “/jsp/local” from pre-1.5
 It is possible to overlay most *anything* (Java code,
JSPs, XMLUI Aspects/Themes, sitemaps, etc.)

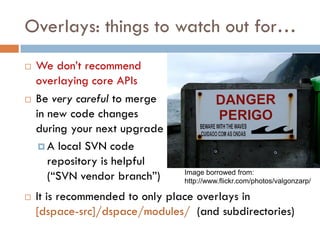

17. Overlays: things to watch out for…
 We don’t recommend
overlaying core APIs
 Be very careful to merge
in new code changes
during your next upgrade
 A local SVN code
repository is helpful
(“SVN vendor branch”) Image borrowed from:
http://www.flickr.com/photos/valgonzarp/
 It is recommended to only place overlays in
[dspace-src]/dspace/modules/ (and subdirectories)

18. XML-UI Overview
• Intro to Manakin / XMLUI
• Tiered interface development
Credit: Scott Phillips, Texas Digital Library + Texas A&M
(Most of this content is borrowed heavily from Scott’s numerous Manakin tutorials)

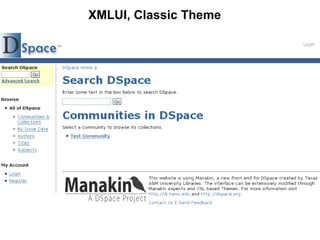

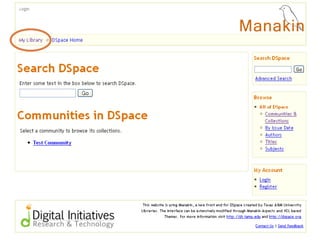

19. XMLUI, Classic Theme

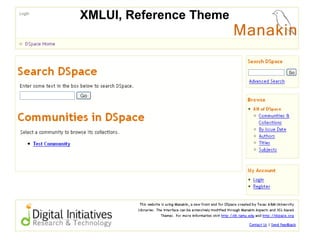

20. XMLUI, Reference Theme

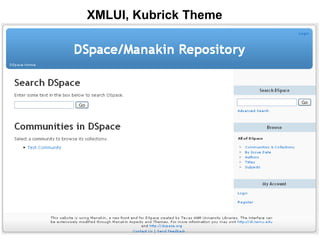

21. XMLUI, Kubrick Theme

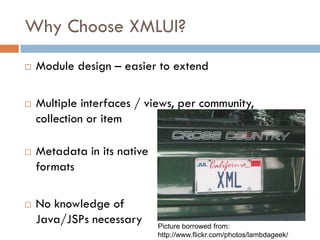

22. Why Choose XMLUI?
 Module design – easier to extend
 Multiple interfaces / views, per community,
collection or item
 Metadata in its native
formats
 No knowledge of
Java/JSPs necessary Picture borrowed from:
http://www.flickr.com/photos/lambdageek/

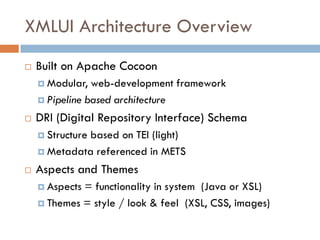

23. XMLUI Architecture Overview
 Built on Apache Cocoon
 Modular, web-development framework
 Pipeline based architecture
 DRI (Digital Repository Interface) Schema
 Structure
based on TEI (light)
 Metadata referenced in METS
 Aspects and Themes
 Aspects= functionality in system (Java or XSL)
 Themes = style / look & feel (XSL, CSS, images)

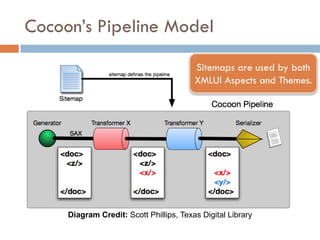

24. Cocoon’s Pipeline Model
Sitemaps are used by both
XMLUI Aspects and Themes.
Diagram Credit: Scott Phillips, Texas Digital Library

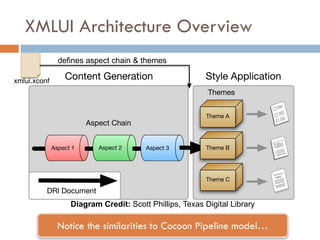

25. XMLUI Architecture Overview
defines aspect chain & themes
xmlui.xconf
Diagram Credit: Scott Phillips, Texas Digital Library
Notice the similarities to Cocoon Pipeline model…

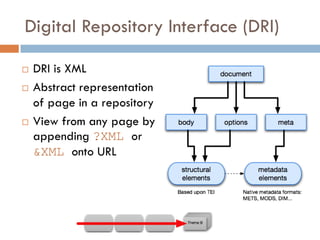

26. Digital Repository Interface (DRI)
 DRI is XML
 Abstract representation
of page in a repository
 View from any page by
appending ?XML or
&XML onto URL

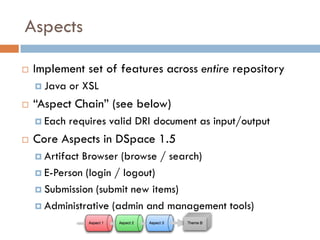

27. Aspects
 Implement set of features across entire repository
 Java or XSL
 “Aspect Chain” (see below)
 Each requires valid DRI document as input/output
 Core Aspects in DSpace 1.5
 ArtifactBrowser (browse / search)
 E-Person (login / logout)
 Submission (submit new items)
 Administrative (admin and management tools)

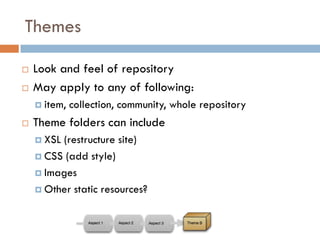

28. Themes
 Look and feel of repository
 May apply to any of following:
 item, collection, community, whole repository
 Theme folders can include
 XSL(restructure site)
 CSS (add style)
 Images
 Other static resources?

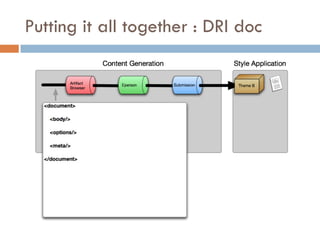

29. Putting it all together : DRI doc

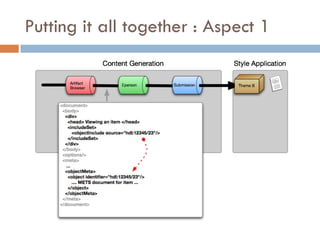

30. Putting it all together : Aspect 1

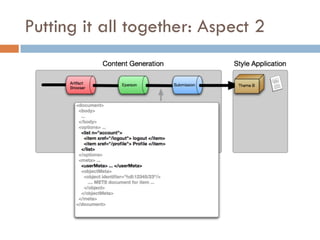

31. Putting it all together: Aspect 2

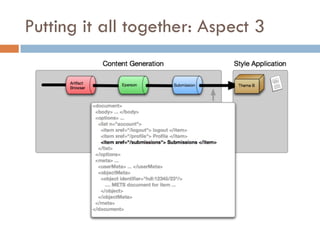

32. Putting it all together: Aspect 3

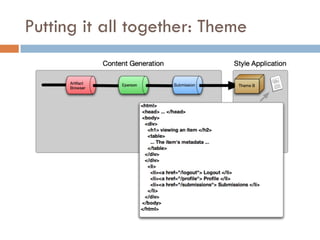

33. Putting it all together: Theme

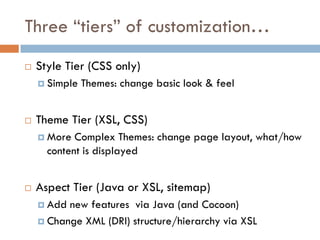

34. Three “tiers” of customization…
 Style Tier (CSS only)
 Simple Themes: change basic look & feel
 Theme Tier (XSL, CSS)
 More Complex Themes: change page layout, what/how
content is displayed
 Aspect Tier (Java or XSL, sitemap)
 Add new features via Java (and Cocoon)
 Change XML (DRI) structure/hierarchy via XSL

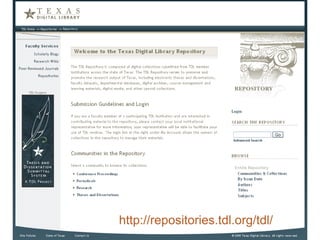

35. http://txspace.tamu.edu/
http://repositories.tdl.org/tdl/

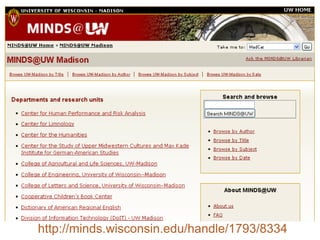

36. http://minds.wisconsin.edu/handle/1793/8334

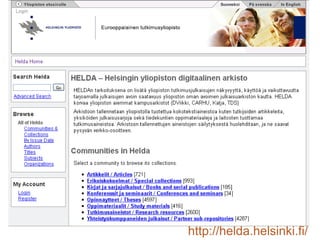

37. http://helda.helsinki.fi/

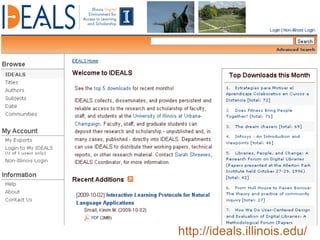

38. http://ideals.illinois.edu/

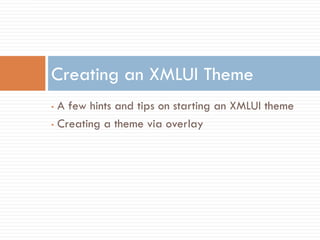

39. Creating an XMLUI Theme
• A few hints and tips on starting an XMLUI theme
• Creating a theme via overlay

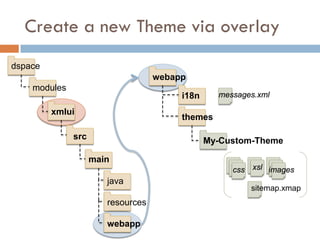

40. Create a new Theme via overlay
dspace
webapp
modules
i18n messages.xml
xmlui
themes
src My-Custom-Theme
main
css xsl images
java
sitemap.xmap
resources
webapp

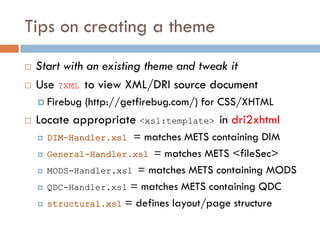

41. Tips on creating a theme
 Start with an existing theme and tweak it
 Use ?XML to view XML/DRI source document
 Firebug (http://getfirebug.com/) for CSS/XHTML
 Locate appropriate <xsl:template> in dri2xhtml
 DIM-Handler.xsl = matches METS containing DIM
 General-Handler.xsl = matches METS <fileSec>
 MODS-Handler.xsl = matches METS containing MODS
 QDC-Handler.xsl = matches METS containing QDC
 structural.xsl = defines layout/page structure

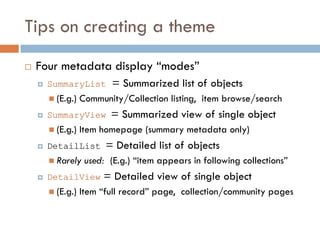

42. Tips on creating a theme
 Four metadata display “modes”
 SummaryList = Summarized list of objects
 (E.g.) Community/Collection listing, item browse/search
 SummaryView = Summarized view of single object
 (E.g.) Item homepage (summary metadata only)
 DetailList = Detailed list of objects
 Rarely used: (E.g.) “item appears in following collections”
 DetailView = Detailed view of single object
 (E.g.) Item “full record” page, collection/community pages

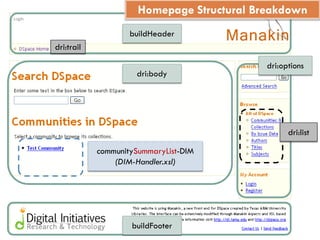

43. Homepage Structural Breakdown
buildHeader
dri:trail
dri:options
dri:body
dri:list
communitySummaryList-DIM
(DIM-Handler.xsl)
buildFooter

44. Item Page Structural Breakdown
itemSummaryView-DIM
(DIM-Handler.xsl)
mets:filegrp
(General-Handler.xsl)
collectionDetailList-DIM
(DIM-Handler.xsl)

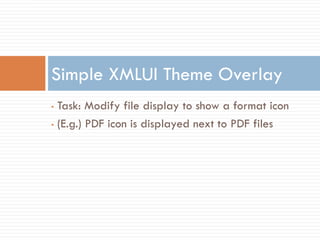

45. Simple XMLUI Theme Overlay
• Task: Modify file display to show a format icon
• (E.g.) PDF icon is displayed next to PDF files

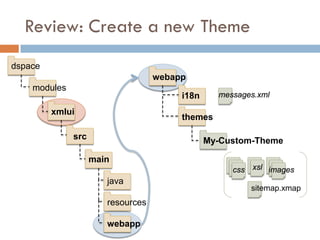

46. Review: Create a new Theme
dspace
webapp
modules
i18n messages.xml
xmlui
themes
src My-Custom-Theme
main
css xsl images
java
sitemap.xmap
resources
webapp

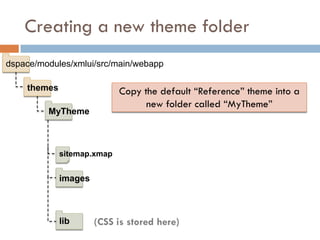

47. Creating a new theme folder
dspace/modules/xmlui/src/main/webapp
themes Copy the default “Reference” theme into a
new folder called “MyTheme”
MyTheme
sitemap.xmap
images
lib (CSS is stored here)

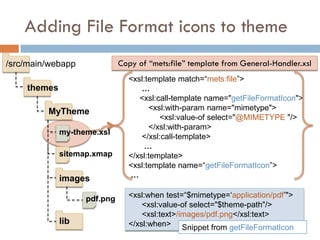

48. Adding File Format icons to theme
/src/main/webapp Copy of “mets:file” template from General-Handler.xsl
<xsl:template match=“mets:file”>
themes …
<xsl:call-template name="getFileFormatIcon">
MyTheme <xsl:with-param name="mimetype">
<xsl:value-of select="@MIMETYPE "/>
</xsl:with-param>
my-theme.xsl
</xsl:call-template>
…
sitemap.xmap </xsl:template>
<xsl:template name=“getFileFormatIcon”>
images …
pdf.png <xsl:when test=“$mimetype=‘application/pdf’">
<xsl:value-of select="$theme-path"/>
<xsl:text>/images/pdf.png</xsl:text>
lib </xsl:when> Snippet from getFileFormatIcon

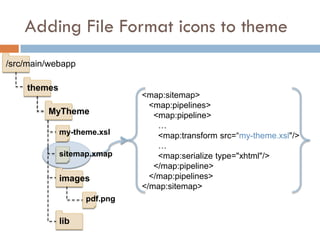

49. Adding File Format icons to theme
/src/main/webapp
themes
<map:sitemap>
<map:pipelines>
MyTheme <map:pipeline>
…
my-theme.xsl <map:transform src=“my-theme.xsl"/>
…
sitemap.xmap <map:serialize type="xhtml"/>
</map:pipeline>
images </map:pipelines>
</map:sitemap>
lib

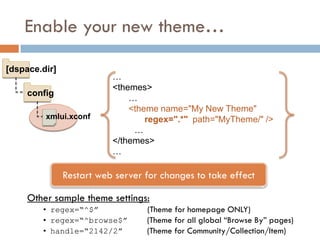

50. Enable your new theme…
[dspace.dir]
…
<themes>
config
…
<theme name="My New Theme"
xmlui.xconf regex=".*" path="MyTheme/" />
…
</themes>
…
Restart web server for changes to take effect
Other sample theme settings:
• regex=“^$” (Theme for homepage ONLY)
• regex=“^browse$” (Theme for all global “Browse By” pages)
• handle=“2142/2” (Theme for Community/Collection/Item)

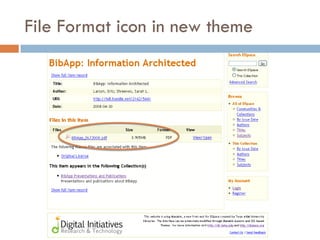

51. File Format icon in new theme

52. Creating an XMLUI Aspect
•A few (high-level) hints and tips on starting an
XMLUI aspect

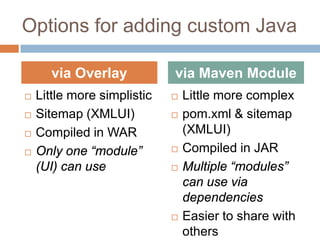

53. Options for adding custom Java
via Overlay via Maven Module
 Little more simplistic  Little more complex
 Sitemap (XMLUI)  pom.xml & sitemap
 Compiled in WAR (XMLUI)
 Only one “module”  Compiled in JAR
(UI) can use  Multiple “modules”
can use via
dependencies
 Easier to share with
others

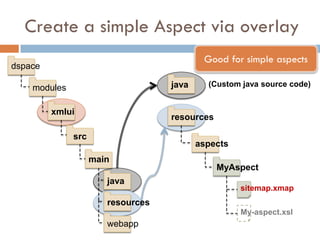

54. Create a simple Aspect via overlay
Good for simple aspects
dspace
modules java (Custom java source code)
xmlui
resources
src
aspects
main
MyAspect
java
sitemap.xmap
resources
My-aspect.xsl
webapp

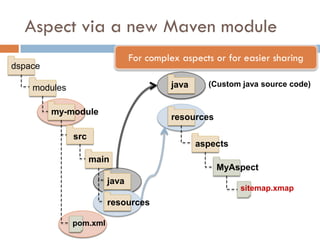

55. Aspect via a new Maven module
For complex aspects or for easier sharing
dspace
modules java (Custom java source code)
my-module
resources
src
aspects
main
MyAspect
java
sitemap.xmap
resources
pom.xml

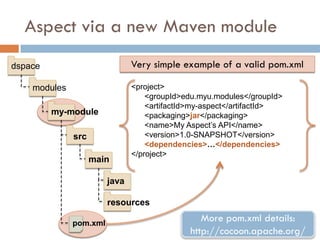

56. Aspect via a new Maven module
dspace Very simple example of a valid pom.xml
modules <project>
<groupId>edu.myu.modules</groupId>
<artifactId>my-aspect</artifactId>
my-module <packaging>jar</packaging>
<name>My Aspect’s API</name>
src <version>1.0-SNAPSHOT</version>
<dependencies>…</dependencies>
</project>
main
java
resources
pom.xml
More pom.xml details:
http://cocoon.apache.org/

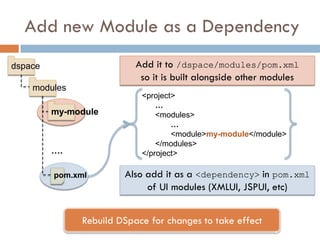

57. Add new Module as a Dependency
dspace Add it to /dspace/modules/pom.xml
so it is built alongside other modules
modules
<project>
…
my-module <modules>
…
<module>my-module</module>
</modules>
…. </project>
pom.xml Also add it as a <dependency> in pom.xml
of UI modules (XMLUI, JSPUI, etc)
Rebuild DSpace for changes to take effect

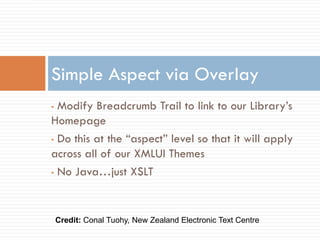

58. Simple Aspect via Overlay
• Modify Breadcrumb Trail to link to our Library’s
Homepage
• Do this at the “aspect” level so that it will apply
across all of our XMLUI Themes
• No Java…just XSLT
Credit: Conal Tuohy, New Zealand Electronic Text Centre

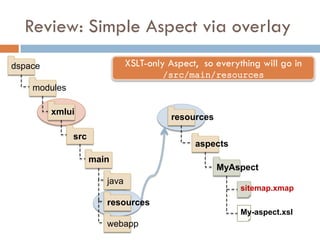

59. Review: Simple Aspect via overlay
dspace XSLT-only Aspect, so everything will go in
/src/main/resources
modules
xmlui
resources
src
aspects
main
MyAspect
java
sitemap.xmap
resources
My-aspect.xsl
webapp

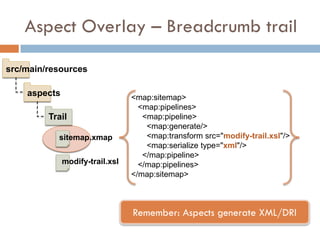

60. Aspect Overlay – Breadcrumb trail
src/main/resources
aspects <map:sitemap>
<map:pipelines>
Trail <map:pipeline>
<map:generate/>
sitemap.xmap <map:transform src="modify-trail.xsl"/>
<map:serialize type="xml"/>
</map:pipeline>
modify-trail.xsl </map:pipelines>
</map:sitemap>
Remember: Aspects generate XML/DRI

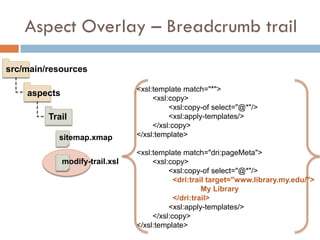

61. Aspect Overlay – Breadcrumb trail
src/main/resources
<xsl:template match="*">
aspects
<xsl:copy>
<xsl:copy-of select="@*"/>
Trail <xsl:apply-templates/>
</xsl:copy>
sitemap.xmap </xsl:template>
<xsl:template match="dri:pageMeta">
modify-trail.xsl <xsl:copy>
<xsl:copy-of select="@*"/>
<dri:trail target="www.library.my.edu/">
My Library
</dri:trail>
<xsl:apply-templates/>
</xsl:copy>
</xsl:template>

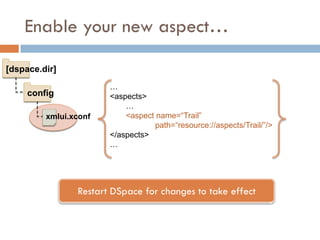

62. Enable your new aspect…
[dspace.dir]
…
config <aspects>
…
xmlui.xconf <aspect name=“Trail”
path=“resource://aspects/Trail/”/>
</aspects>
…
Restart DSpace for changes to take effect

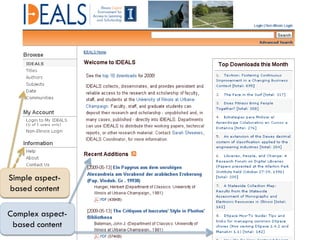

64. Simple aspect-
based content
Complex aspect-
based content

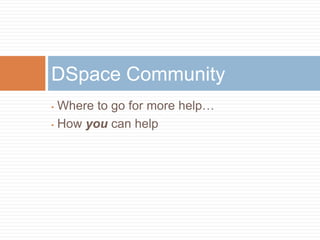

65. DSpace Community
• Where to go for more help…
• How you can help

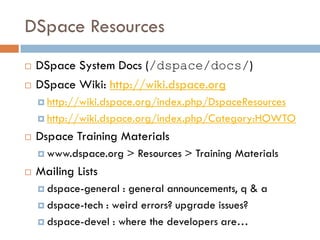

66. DSpace Resources
 DSpace System Docs (/dspace/docs/)
 DSpace Wiki: http://wiki.dspace.org
 http://wiki.dspace.org/index.php/DspaceResources
 http://wiki.dspace.org/index.php/Category:HOWTO
 Dspace Training Materials
 www.dspace.org > Resources > Training Materials
 Mailing Lists
 dspace-general : general announcements, q & a
 dspace-tech : weird errors? upgrade issues?
 dspace-devel : where the developers are…

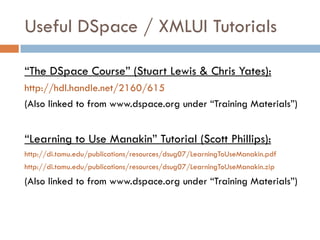

67. Useful DSpace / XMLUI Tutorials
“The DSpace Course” (Stuart Lewis & Chris Yates):
http://hdl.handle.net/2160/615
(Also linked to from www.dspace.org under “Training Materials”)
“Learning to Use Manakin” Tutorial (Scott Phillips):
http://di.tamu.edu/publications/resources/dsug07/LearningToUseManakin.pdf
http://di.tamu.edu/publications/resources/dsug07/LearningToUseManakin.zip
(Also linked to from www.dspace.org under “Training Materials”)

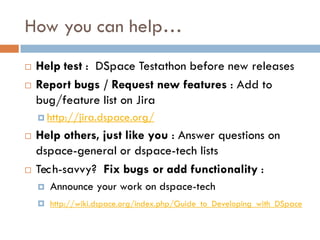

68. How you can help…
 Help test : DSpace Testathon before new releases
 Report bugs / Request new features : Add to
bug/feature list on Jira
 http://jira.dspace.org/
 Help others, just like you : Answer questions on
dspace-general or dspace-tech lists
 Tec h-savvy? Fix bugs or add functionality :
 Announce your work on dspace-tech
 http://wiki.dspace.org/index.php/Guide_to_Developing_with_DSpace

69. Contact Info
Tim Donohue
(Before Nov. 2009) (As of Nov. 2009)
University of Illinois DuraSpace
http://ideals.illinois.edu/ tdonohue@duraspace.org
DSpace Mailing Lists
Technical Questions:
dspace-tech@lists.sourceforge.net
Development Questions / Suggestions:
dspace-devel@lists.sourceforge.net
This work is licensed under a Creative Commons Attribution-
Noncommercial-Share Alike 3.0 United States License.
