This document discusses how to make testing Java applications with CDI more effective using mock objects and the Arquillian testing framework. It recommends using CDI alternatives to inject mock implementations instead of real dependencies during tests. It also describes how to write portable extensions that allow mocking injection points and defining mocks at runtime to leverage mock frameworks' capabilities within integration tests.

1. Make it test-driven with CDI!
Rafael Liu

2. the red
2

3. Runtime environment
3

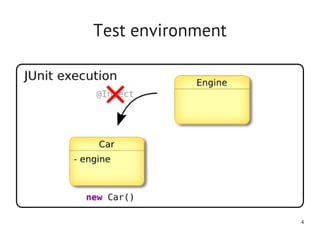

4. Test environment
4

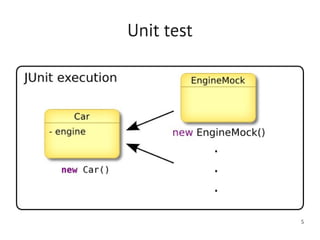

5. Unit test
5

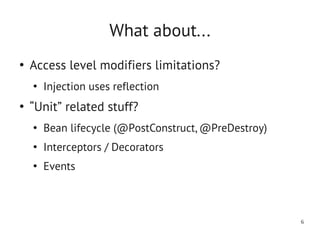

6. What about...
●
Access level modifiers limitations?
●
Injection uses reflection
●
“Unit” related stuff?
●
Bean lifecycle (@PostConstruct, @PreDestroy)
●
Interceptors / Decorators
●
Events
6

7. Integration test
7

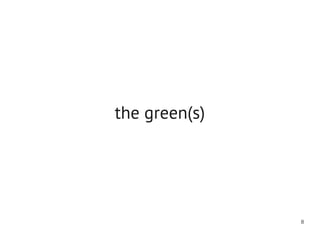

8. the green(s)
8

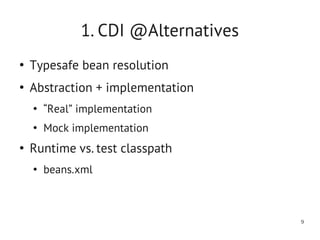

9. 1. CDI @Alternatives
●
Typesafe bean resolution
●
Abstraction + implementation
●
“Real” implementation
●
Mock implementation
●
Runtime vs. test classpath
●
beans.xml
9

10. Extracting an interface
10

11. Creating a mock @Alternative
11

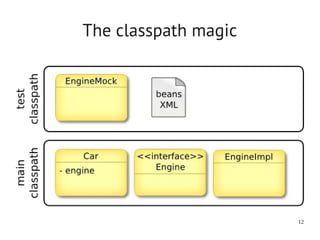

12. The classpath magic
12

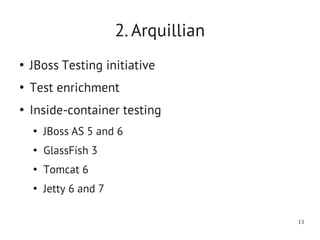

13. 2. Arquillian
●
JBoss Testing initiative
●
Test enrichment
●
Inside-container testing
●
JBoss AS 5 and 6
●
GlassFish 3
●
Tomcat 6
●
Jetty 6 and 7
13

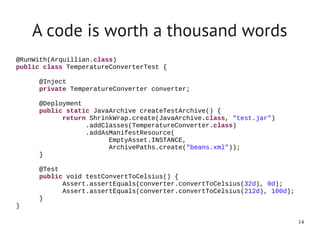

14. A code is worth a thousand words
@RunWith(Arquillian.class)
public class TemperatureConverterTest {
@Inject
private TemperatureConverter converter;
@Deployment
public static JavaArchive createTestArchive() {
return ShrinkWrap.create(JavaArchive.class, "test.jar")
.addClasses(TemperatureConverter.class)
.addAsManifestResource(
EmptyAsset.INSTANCE,
ArchivePaths.create("beans.xml"));
}
@Test
public void testConvertToCelsius() {
Assert.assertEquals(converter.convertToCelsius(32d), 0d);
Assert.assertEquals(converter.convertToCelsius(212d), 100d);
}
}
14

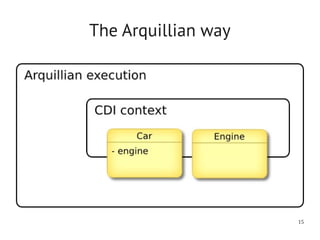

15. The Arquillian way
15

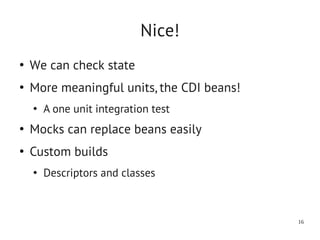

16. Nice!
●
We can check state
●
More meaningful units, the CDI beans!
●
A one unit integration test
●
Mocks can replace beans easily
●
Custom builds
●
Descriptors and classes
16

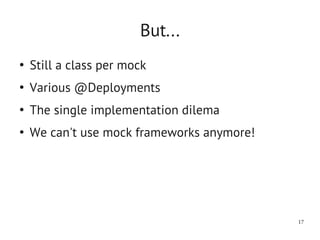

17. But...
●
Still a class per mock
●
Various @Deployments
●
The single implementation dilema
●
We can't use mock frameworks anymore!
17

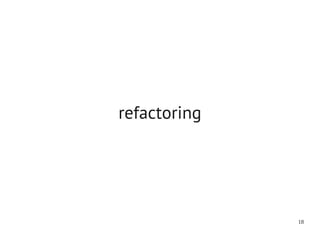

18. refactoring
18

19. What we want?
19

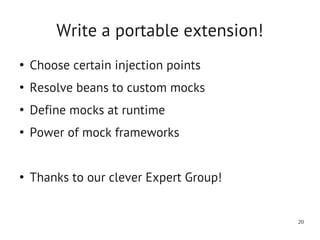

20. Write a portable extension!
●
Choose certain injection points
●
Resolve beans to custom mocks
●
Define mocks at runtime
●
Power of mock frameworks
●
Thanks to our clever Expert Group!
20

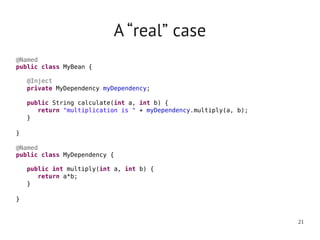

21. A “real” case
@Named
public class MyBean {
@Inject
private MyDependency myDependency;
public String calculate(int a, int b) {
return "multiplication is " + myDependency.multiply(a, b);
}
}
@Named
public class MyDependency {
public int multiply(int a, int b) {
return a*b;
}
}
21

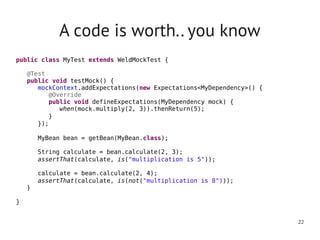

22. A code is worth.. you know
public class MyTest extends WeldMockTest {
@Test
public void testMock() {
mockContext.addExpectations(new Expectations<MyDependency>() {
@Override
public void defineExpectations(MyDependency mock) {
when(mock.multiply(2, 3)).thenReturn(5);
}
});
MyBean bean = getBean(MyBean.class);
String calculate = bean.calculate(2, 3);
assertThat(calculate, is("multiplication is 5"));
calculate = bean.calculate(2, 4);
assertThat(calculate, is(not("multiplication is 8")));
}
}
22

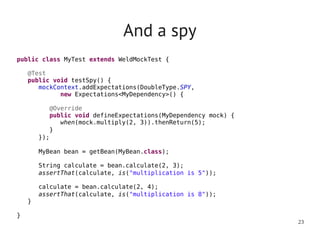

23. And a spy
public class MyTest extends WeldMockTest {
@Test
public void testSpy() {
mockContext.addExpectations(DoubleType.SPY,
new Expectations<MyDependency>() {
@Override
public void defineExpectations(MyDependency mock) {
when(mock.multiply(2, 3)).thenReturn(5);
}
});
MyBean bean = getBean(MyBean.class);
String calculate = bean.calculate(2, 3);
assertThat(calculate, is("multiplication is 5"));
calculate = bean.calculate(2, 4);
assertThat(calculate, is("multiplication is 8"));
}
}
23

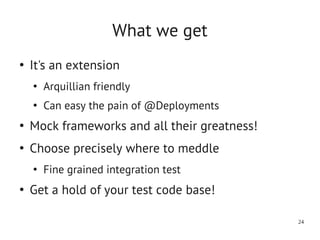

24. What we get
●
It's an extension
●
Arquillian friendly
●
Can easy the pain of @Deployments
●
Mock frameworks and all their greatness!
●
Choose precisely where to meddle
●
Fine grained integration test
●
Get a hold of your test code base!
24

25. Fork me!
http://github.com/rafaelliu
25

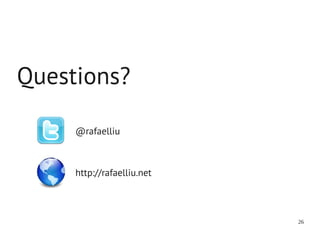

26. Questions?
@rafaelliu
http://rafaelliu.net
26

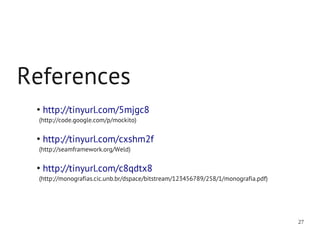

27. References
●
http://tinyurl.com/5mjgc8
(http://code.google.com/p/mockito)
●
http://tinyurl.com/cxshm2f
(http://seamframework.org/Weld)
●
http://tinyurl.com/c8qdtx8
(http://monografias.cic.unb.br/dspace/bitstream/123456789/258/1/monografia.pdf)
27
