This document discusses JSR-303, which specifies a common validation concept for JavaBeans. It defines constraints that can be used to validate objects in all layers of an application. Some key points covered include defining constraints using annotations, validating objects against those constraints, and integrating validation into Java EE and JSF. The JSR-303 API provides a standardized way to define and validate constraints across frameworks and layers.

1. JSR-303 Bean Validation API
•
Overview
•
Concept
•
Defining Constraints
•
Validate Constraints
•
Bootstrapping
•
Integration JEE/JSF
Heiko Scherrer

2. Preface JSR-303
•
Specifies common validation concept for
JavaBeans™
•
For JavaEE & SE, extension of the
JavaBeans object model
•
JSR-303 addresses validation in all
layers of the application
Heiko Scherrer

3. Before JSR-303
DDL: CHECK(length(email)==8)
Script:if (email.length == 8) {...}
if (email.length() == 8) {...}
Person {
<f:validateLength minimum="8" /> …
@Column(length=8)
String email;
…
}
Heiko Scherrer

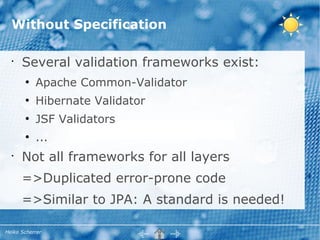

4. Without Specification
•
Several validation frameworks exist:
●
Apache Common-Validator
●
Hibernate Validator
●
JSF Validators
●
...
•
Not all frameworks for all layers
=>Duplicated error-prone code
=>Similar to JPA: A standard is needed!
Heiko Scherrer

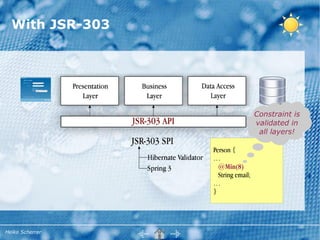

5. With JSR-303
Constraint is
validated in
all layers!
Person {
…
@Min(8)
String email;
…
}
Heiko Scherrer

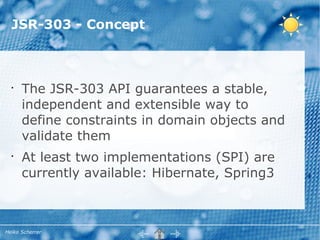

6. JSR-303 - Concept
•
The JSR-303 API guarantees a stable,
independent and extensible way to
define constraints in domain objects and
validate them
•
At least two implementations (SPI) are
currently available: Hibernate, Spring3
Heiko Scherrer

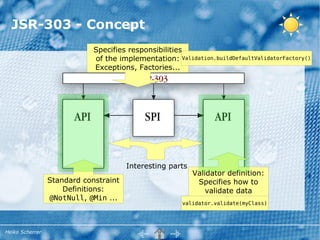

7. JSR-303 - Concept
Specifies responsibilities
of the implementation: Validation.buildDefaultValidatorFactory()
Exceptions, Factories...
Interesting parts
Validator definition:
Standard constraint Specifies how to
Definitions: validate data
@NotNull, @Min ...
validator.validate(myClass)
Heiko Scherrer

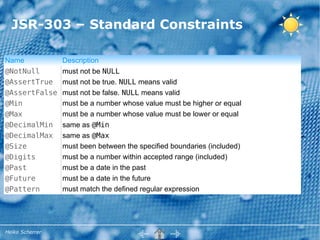

8. JSR-303 – Standard Constraints
Name Description
@NotNull must not be NULL
@AssertTrue must not be true. NULL means valid
@AssertFalse must not be false. NULL means valid
@Min must be a number whose value must be higher or equal
@Max must be a number whose value must be lower or equal
@DecimalMin same as @Min
@DecimalMax same as @Max
@Size must been between the specified boundaries (included)
@Digits must be a number within accepted range (included)
@Past must be a date in the past
@Future must be a date in the future
@Pattern must match the defined regular expression
Heiko Scherrer

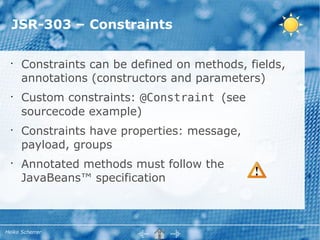

9. JSR-303 – Constraints
•
Constraints can be defined on methods, fields,
annotations (constructors and parameters)
•
Custom constraints: @Constraint (see
sourcecode example)
•
Constraints have properties: message,
payload, groups
•
Annotated methods must follow the
JavaBeans™ specification
Heiko Scherrer

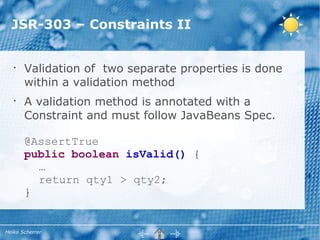

10. JSR-303 – Constraints II
•
Validation of two separate properties is done
within a validation method
•
A validation method is annotated with a
Constraint and must follow JavaBeans Spec.
@AssertTrue
public boolean isValid() {
…
return qty1 > qty2;
}
Heiko Scherrer

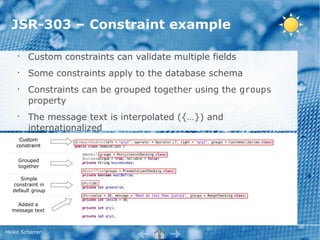

11. JSR-303 – Constraint example
•
Custom constraints can validate multiple fields
•
Some constraints apply to the database schema
•
Constraints can be grouped together using the groups
property
•
The message text is interpolated ({…}) and
internationalized
Custom
constraint
Grouped
together
Simple
constraint in
default group
Added a
message text
Heiko Scherrer

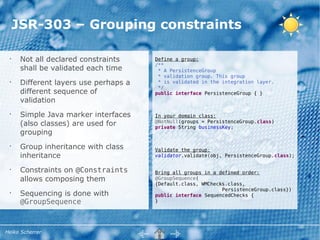

12. JSR-303 – Grouping constraints
•
Not all declared constraints Define a group:
/**
shall be validated each time * A PersistenceGroup
* validation group. This group
•
Different layers use perhaps a * is validated in the integration layer.
*/
different sequence of public interface PersistenceGroup { }
validation
•
Simple Java marker interfaces In your domain class:
(also classes) are used for @NotNull(groups = PersistenceGroup.class)
private String businessKey;
grouping
•
Group inheritance with class Validate the group:
inheritance validator.validate(obj, PersistenceGroup.class);
•
Constraints on @Constraints Bring all groups in a defined order:
allows composing them @GroupSequence(
{Default.class, WMChecks.class,
PersistenceGroup.class})
•
Sequencing is done with public interface SequencedChecks {
@GroupSequence }
Heiko Scherrer

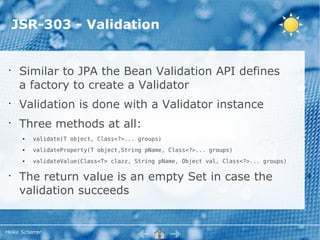

13. JSR-303 - Validation
•
Similar to JPA the Bean Validation API defines
a factory to create a Validator
•
Validation is done with a Validator instance
•
Three methods at all:
● validate(T object, Class<?>... groups)
● validateProperty(T object,String pName, Class<?>... groups)
● validateValue(Class<T> clazz, String pName, Object val, Class<?>... groups)
•
The return value is an empty Set in case the
validation succeeds
Heiko Scherrer

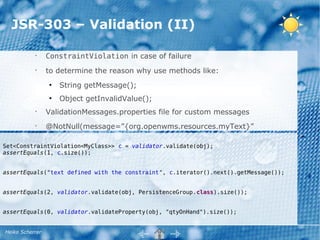

14. JSR-303 – Validation (II)
•
ConstraintViolation in case of failure
•
to determine the reason why use methods like:
●
String getMessage();
●
Object getInvalidValue();
•
ValidationMessages.properties file for custom messages
•
@NotNull(message=”{org.openwms.resources.myText}”
Set<ConstraintViolation<MyClass>> c = validator.validate(obj);
assertEquals(1, c.size());
assertEquals("text defined with the constraint", c.iterator().next().getMessage());
assertEquals(2, validator.validate(obj, PersistenceGroup.class).size());
assertEquals(0, validator.validateProperty(obj, "qtyOnHand").size());
Heiko Scherrer

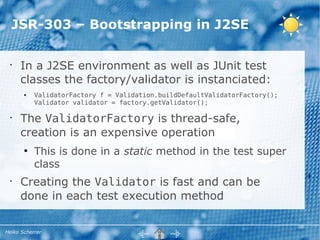

15. JSR-303 – Bootstrapping in J2SE
•
In a J2SE environment as well as JUnit test
classes the factory/validator is instanciated:
● ValidatorFactory f = Validation.buildDefaultValidatorFactory();
Validator validator = factory.getValidator();
•
The ValidatorFactory is thread-safe,
creation is an expensive operation
●
This is done in a static method in the test super
class
•
Creating the Validator is fast and can be
done in each test execution method
Heiko Scherrer

16. JSR-303 – Bootstrapping in JEE6
•
In an EJB container it is not allowed to call the
static build method
•
The factory and the validator are handled as
Resources
•
In an EJB container use:
● @Resource ValidatorFactory factory;
@Resource Validator validator;
•
Or JNDI to lookup both:
● initCtx.lookup("java:comp/ValidatorFactory");
initCtx.lookup("java:comp/Validator");
•
JEE5 does not implement the Bean Val. SPI!
Heiko Scherrer

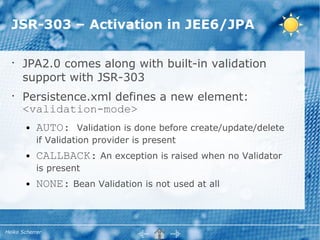

17. JSR-303 – Activation in JEE6/JPA
•
JPA2.0 comes along with built-in validation
support with JSR-303
•
Persistence.xml defines a new element:
<validation-mode>
● AUTO: Validation is done before create/update/delete
if Validation provider is present
● CALLBACK: An exception is raised when no Validator
is present
● NONE: Bean Validation is not used at all
Heiko Scherrer

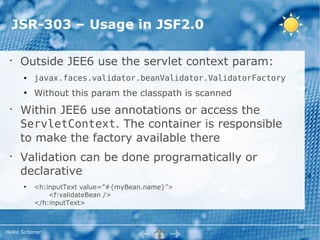

18. JSR-303 – Usage in JSF2.0
•
Outside JEE6 use the servlet context param:
● javax.faces.validator.beanValidator.ValidatorFactory
●
Without this param the classpath is scanned
•
Within JEE6 use annotations or access the
ServletContext. The container is responsible
to make the factory available there
•
Validation can be done programatically or
declarative
●
<h:inputText value=”#{myBean.name}”>
<f:validateBean />
</h:inputText>
Heiko Scherrer

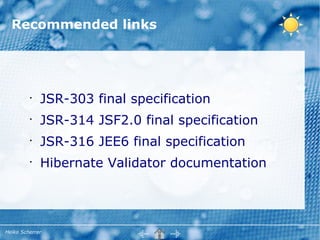

19. Recommended links
•
JSR-303 final specification
•
JSR-314 JSF2.0 final specification
•
JSR-316 JEE6 final specification
•
Hibernate Validator documentation
Heiko Scherrer

20. Q&A
Heiko Scherrer
