One Deceptively Simple Question to Unlock Testability, Better Design, and TDD

One Deceptively Simple Question
...to Unlock Testability, Better Design, and TDD
Derek Lee @thextremeprogrammer
Software Testing Meetup | April 16, 2025
1/149

Derek Lee @theextremeprogrammer
→ Music Software EdTech Innovator/Founder
→ Specializes in XP, TDD, Pair Pro, Mobile Dev
→ Passionate about refactoring, OODP, SOLID
→ Experienced in lean product UI/UX design/mgmt
→ 25+ years software dev
→ 35+ years drumming
2/149

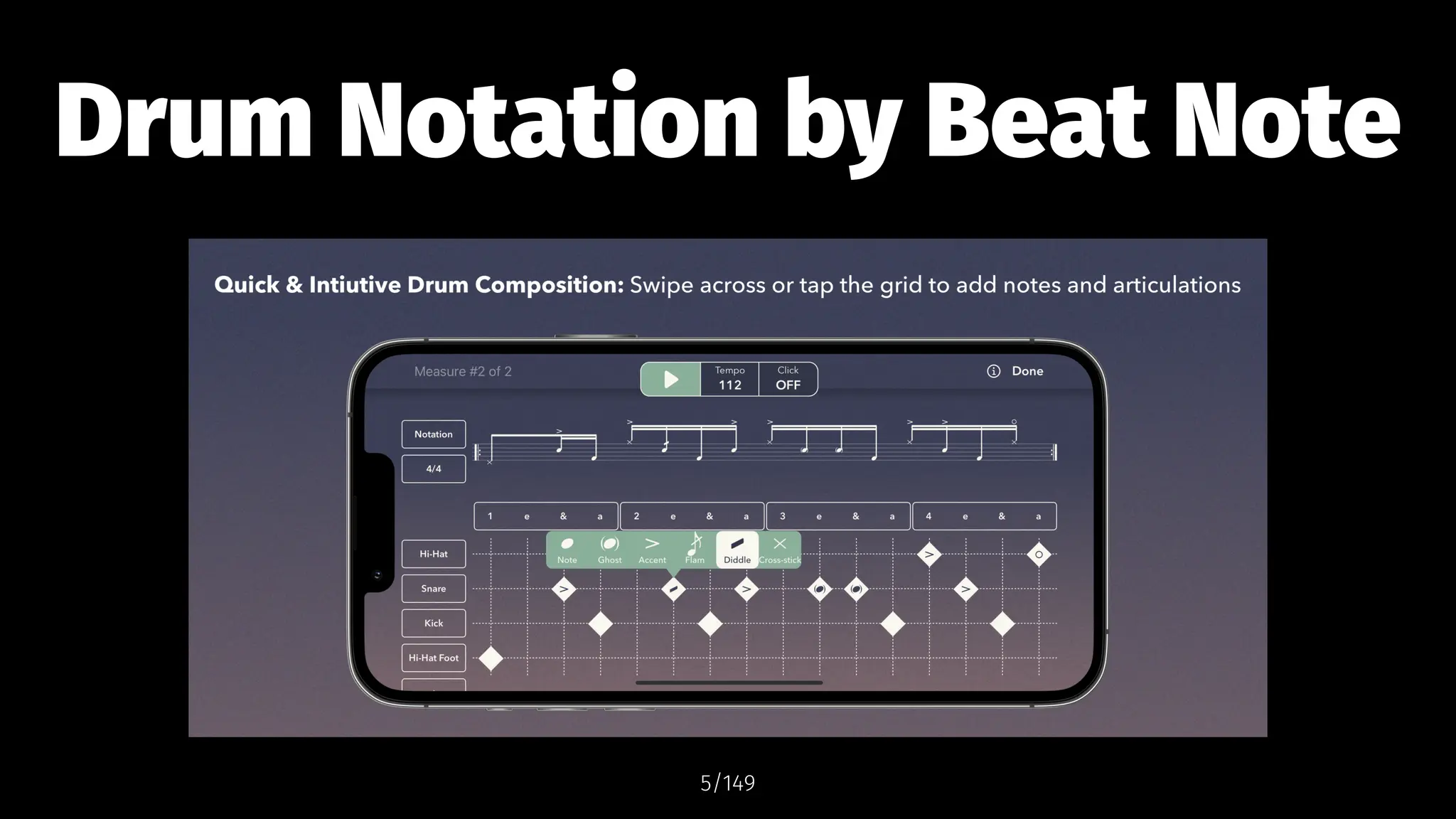

Drum Notation by Beat Note
4/149

Drum Notation by Beat Note
5/149

!
Goals For This Talk
I want to help you:
→ Unlock Testability
→ Unlock Better Design
→ Unlock TDD
26/149

!

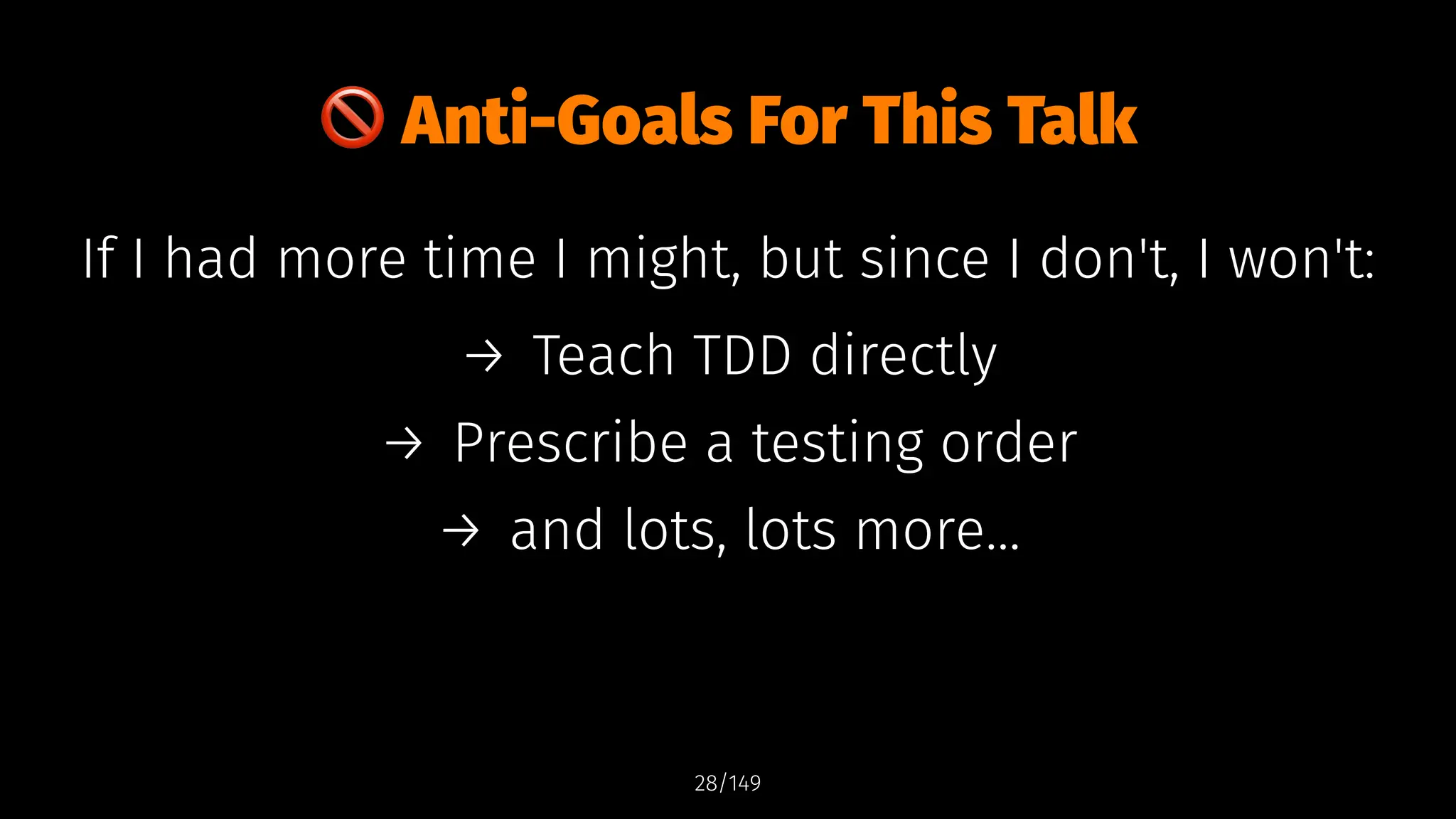

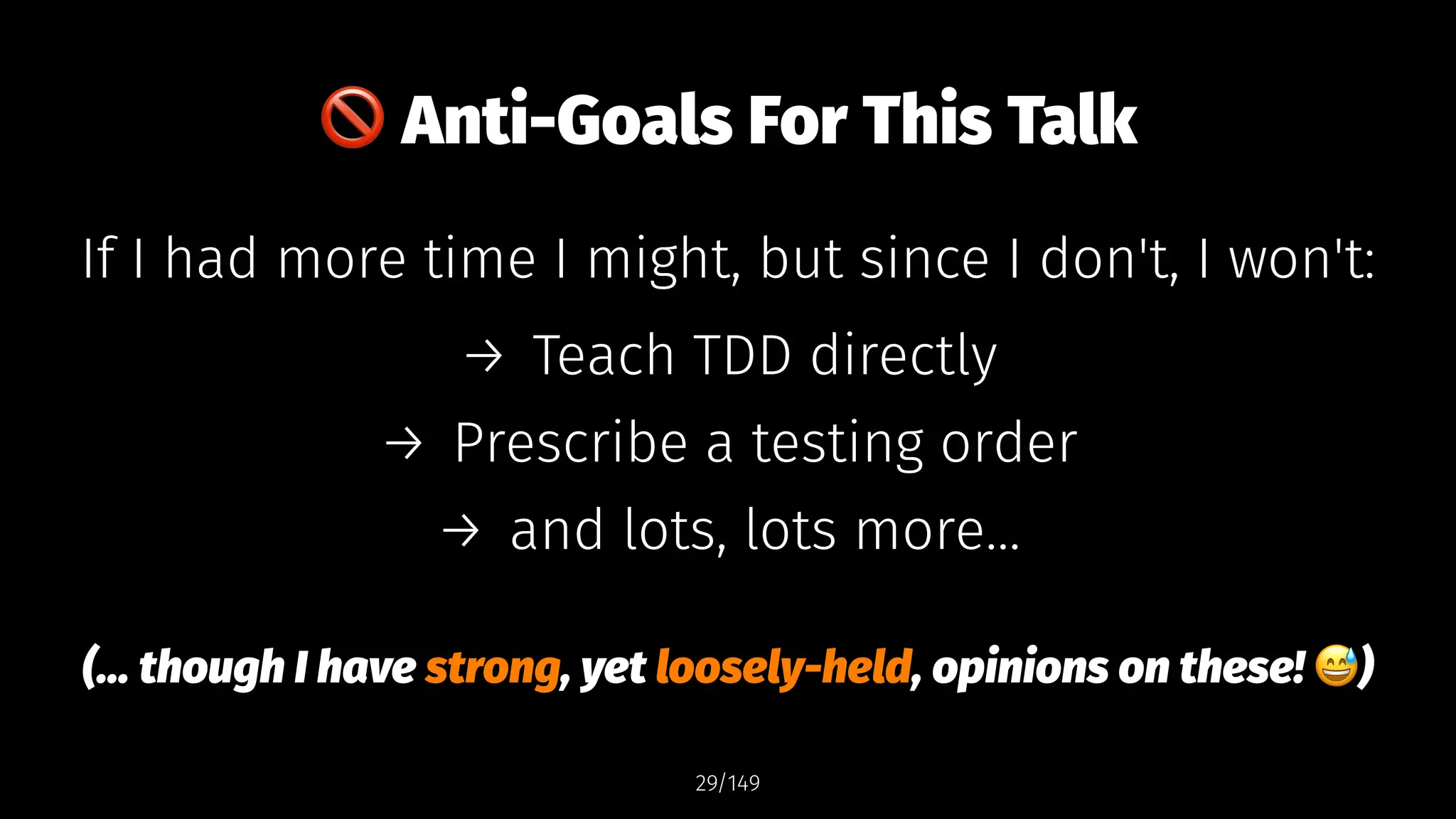

Anti-Goals For This Talk
If I had more time I might, but since I don't, I won't:
→ Teach TDD directly
→ Prescribe a testing order
→ and lots, lots more...
28/149

!
If I had more time I might, but since I don't, I won't:
(... though I have strong, yet loosely-held, opinions on these! )
29/149

We're building a back-
end HTTP API for a book
store that specializes in
software testing books.
31/149

Let's look at the implementation code first.
Why?
!
Before we can become comfortable with testing,
or a test-first approach,
it can often be helpful to
spike on and understand
the implementation code first.
32/149

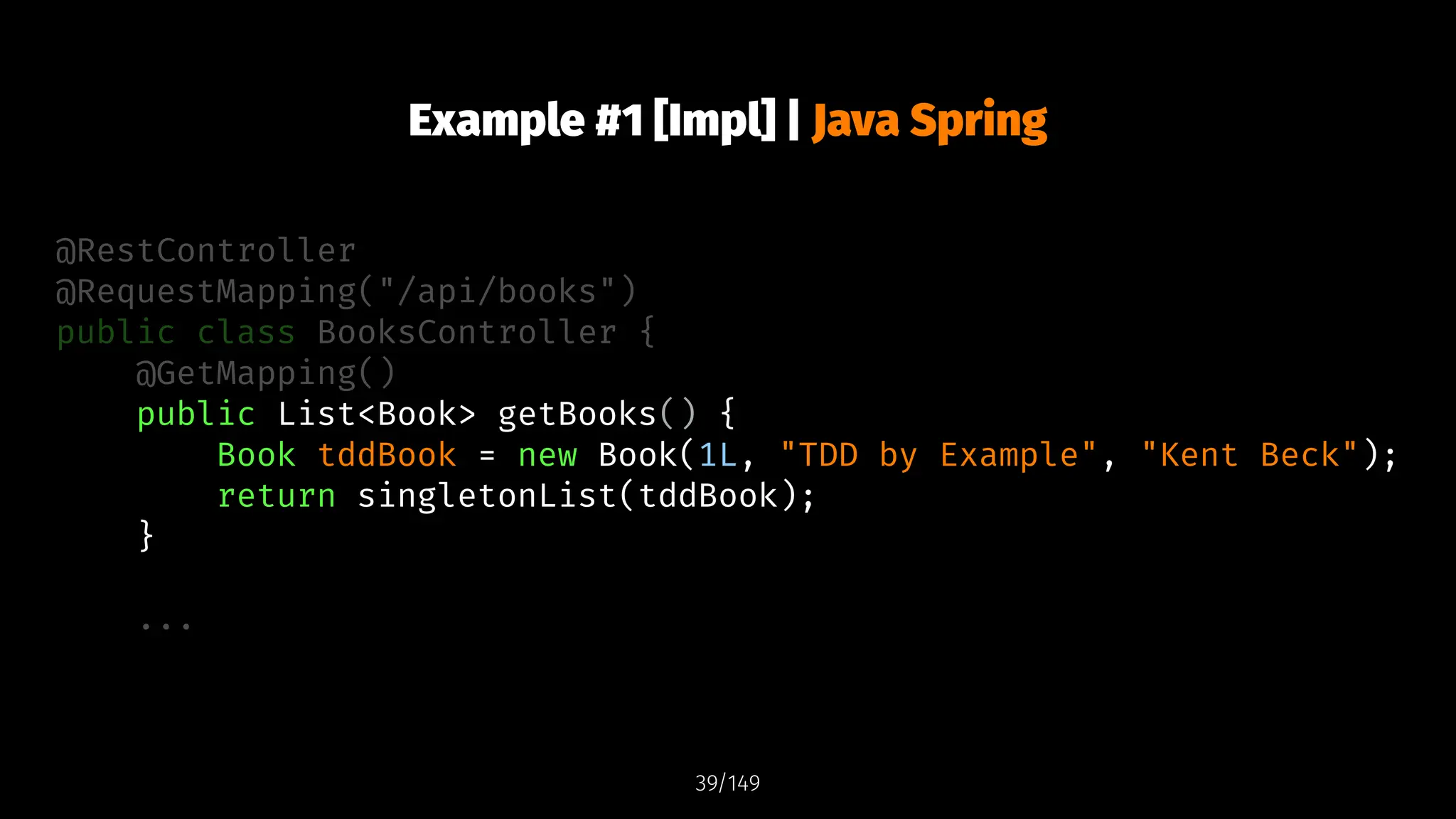

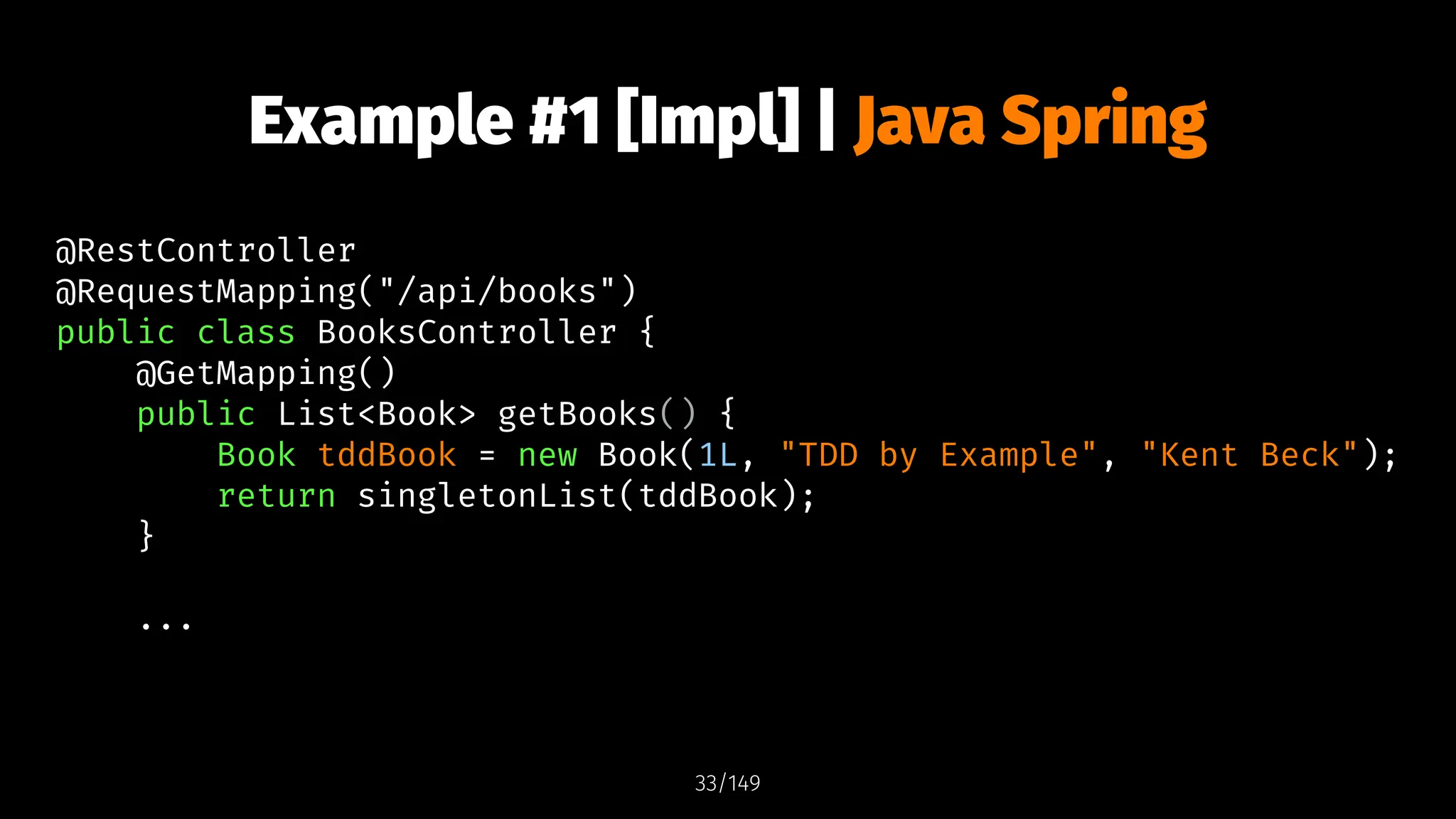

Example #1 [Impl] | Java Spring
@RestController
@RequestMapping("/api/books")
public class BooksController {
@GetMapping()
public List<Book> getBooks() {
Book tddBook = new Book(1L, "TDD by Example", "Kent Beck");
return singletonList(tddBook);
}
...
33/149

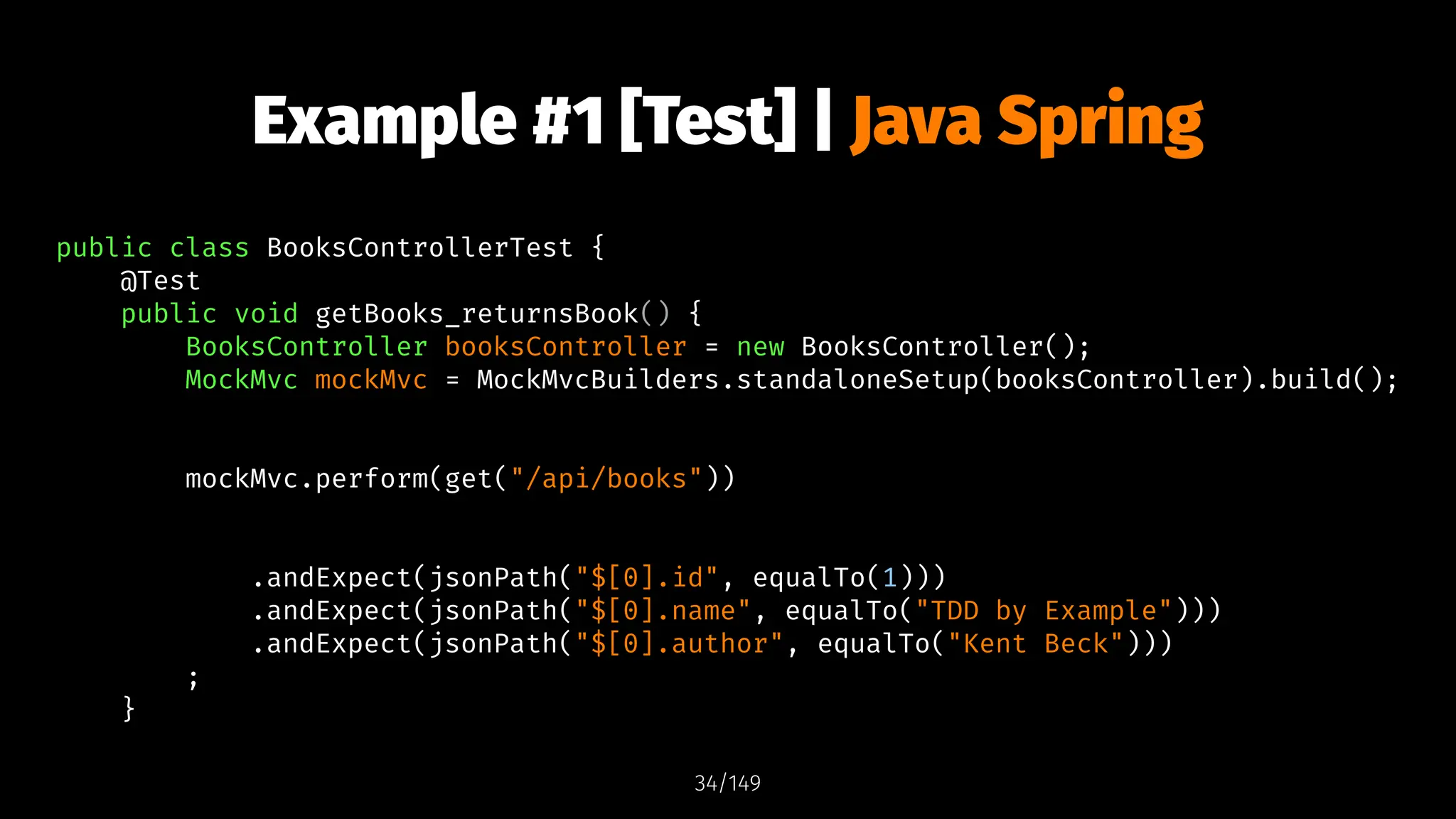

Example #1 [Test] | Java Spring
public class BooksControllerTest {
@Test
public void getBooks_returnsBook() {
BooksController booksController = new BooksController();
MockMvc mockMvc = MockMvcBuilders.standaloneSetup(booksController).build();
mockMvc.perform(get("/api/books"))
.andExpect(jsonPath("$[0].id", equalTo(1)))
.andExpect(jsonPath("$[0].name", equalTo("TDD by Example")))
.andExpect(jsonPath("$[0].author", equalTo("Kent Beck")))
;
}
34/149

Back to the implementation code...
38/149

@RestController
@GetMapping()
}
...
39/149

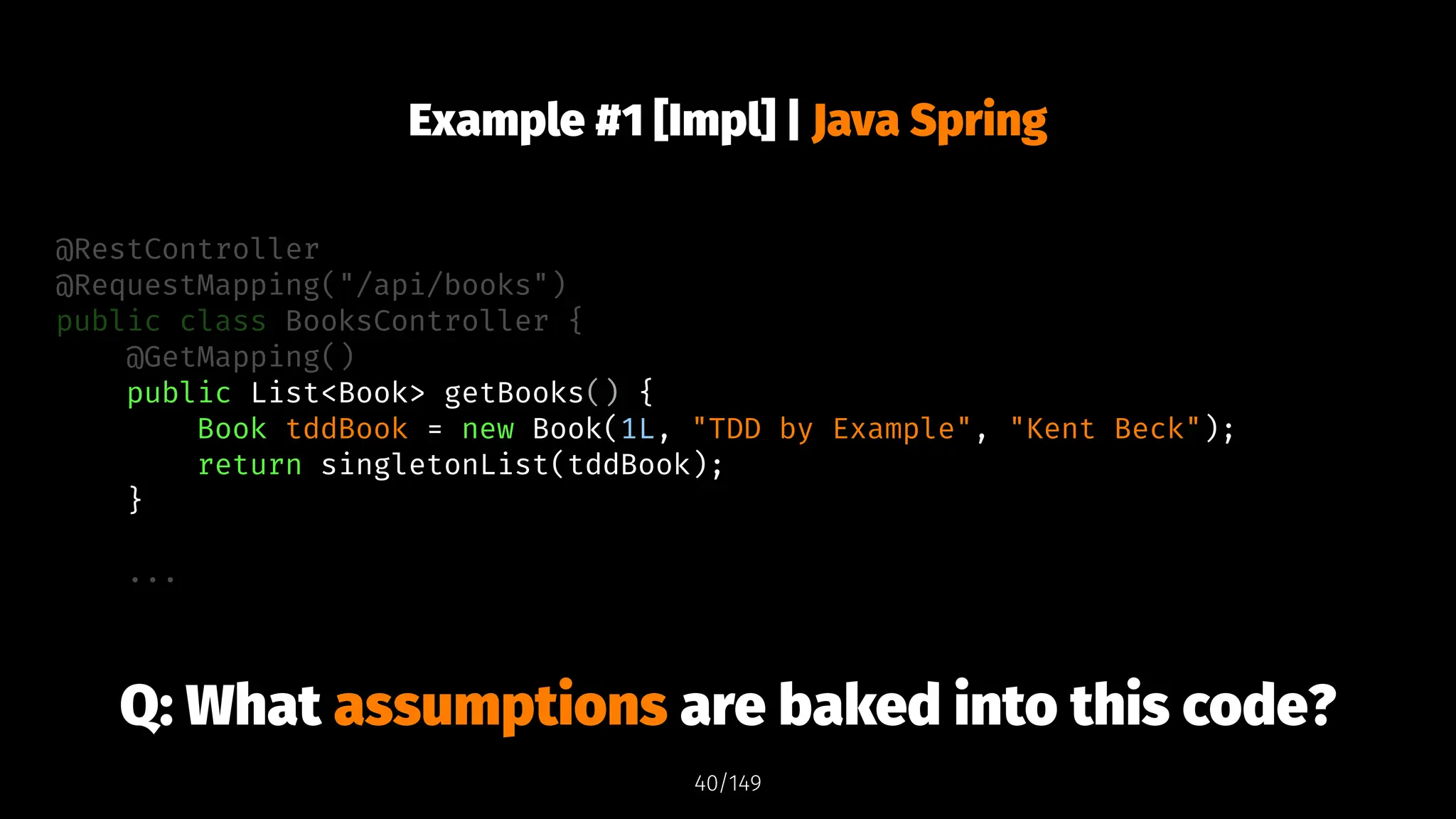

@RestController
@GetMapping()
}
...
Q: What assumptions are baked into this code?
40/149

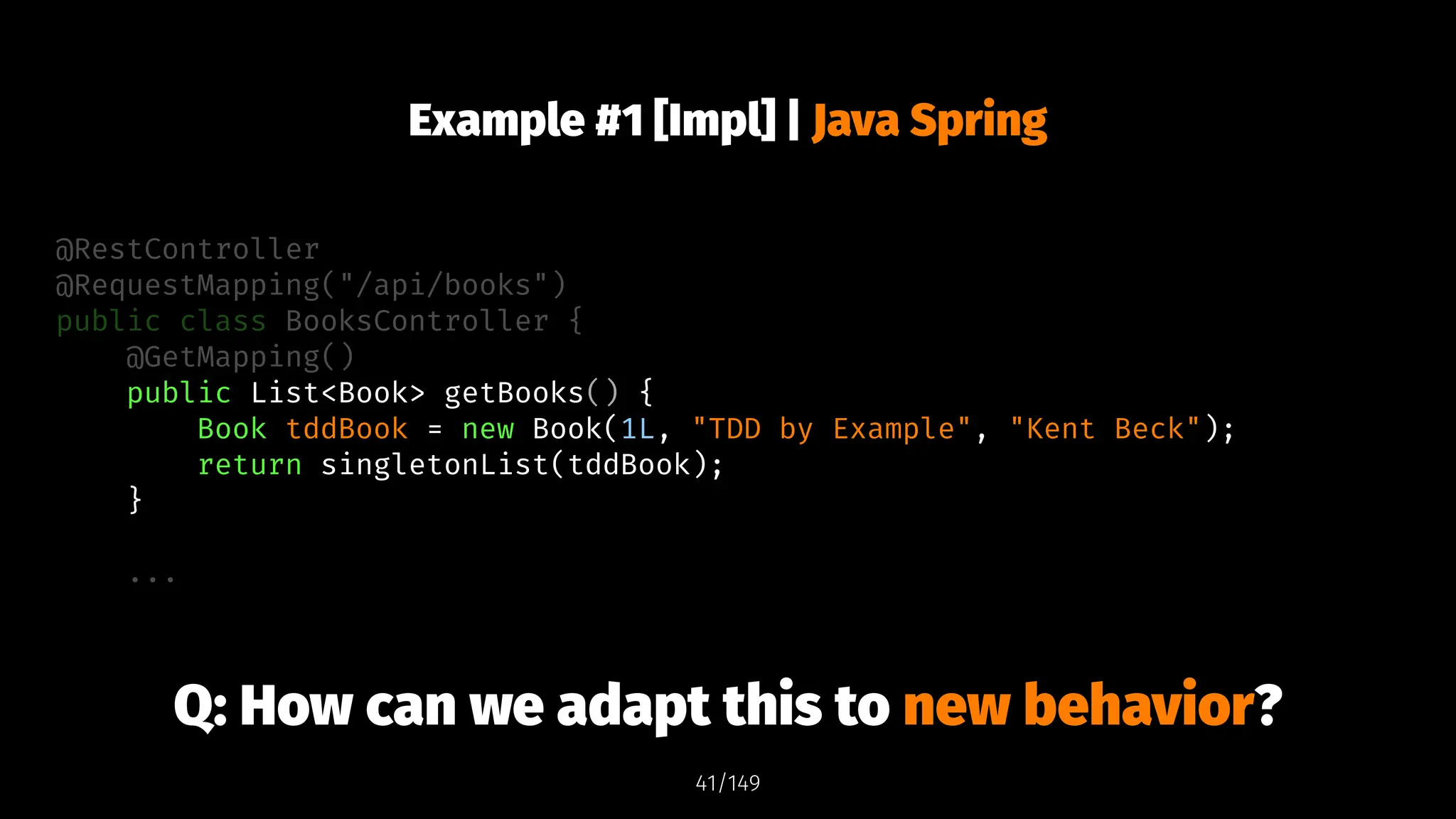

@RestController
@GetMapping()
}
...
Q: How can we adapt this to new behavior?
41/149

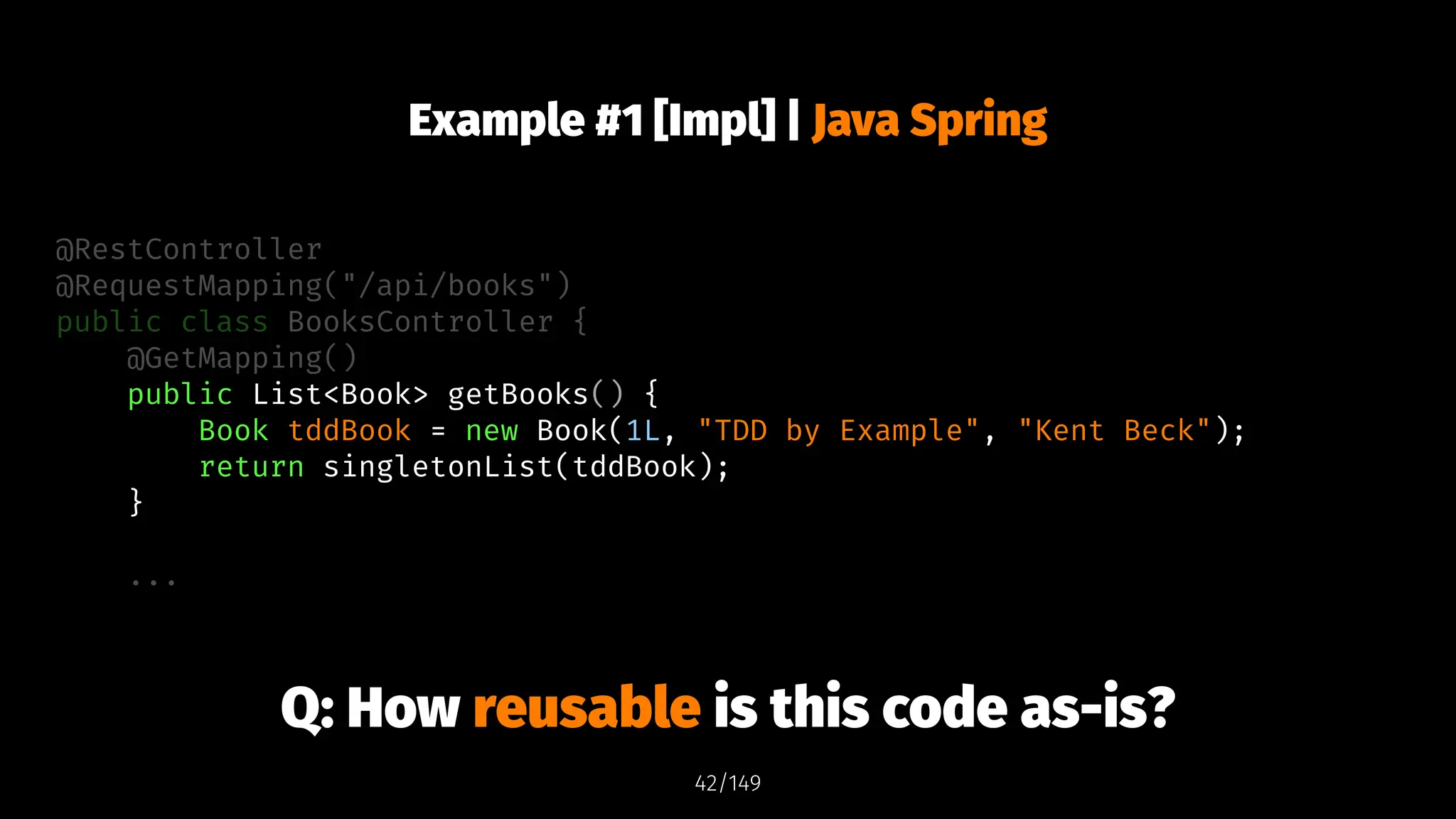

@RestController
@GetMapping()
}
...
Q: How reusable is this code as-is?
42/149

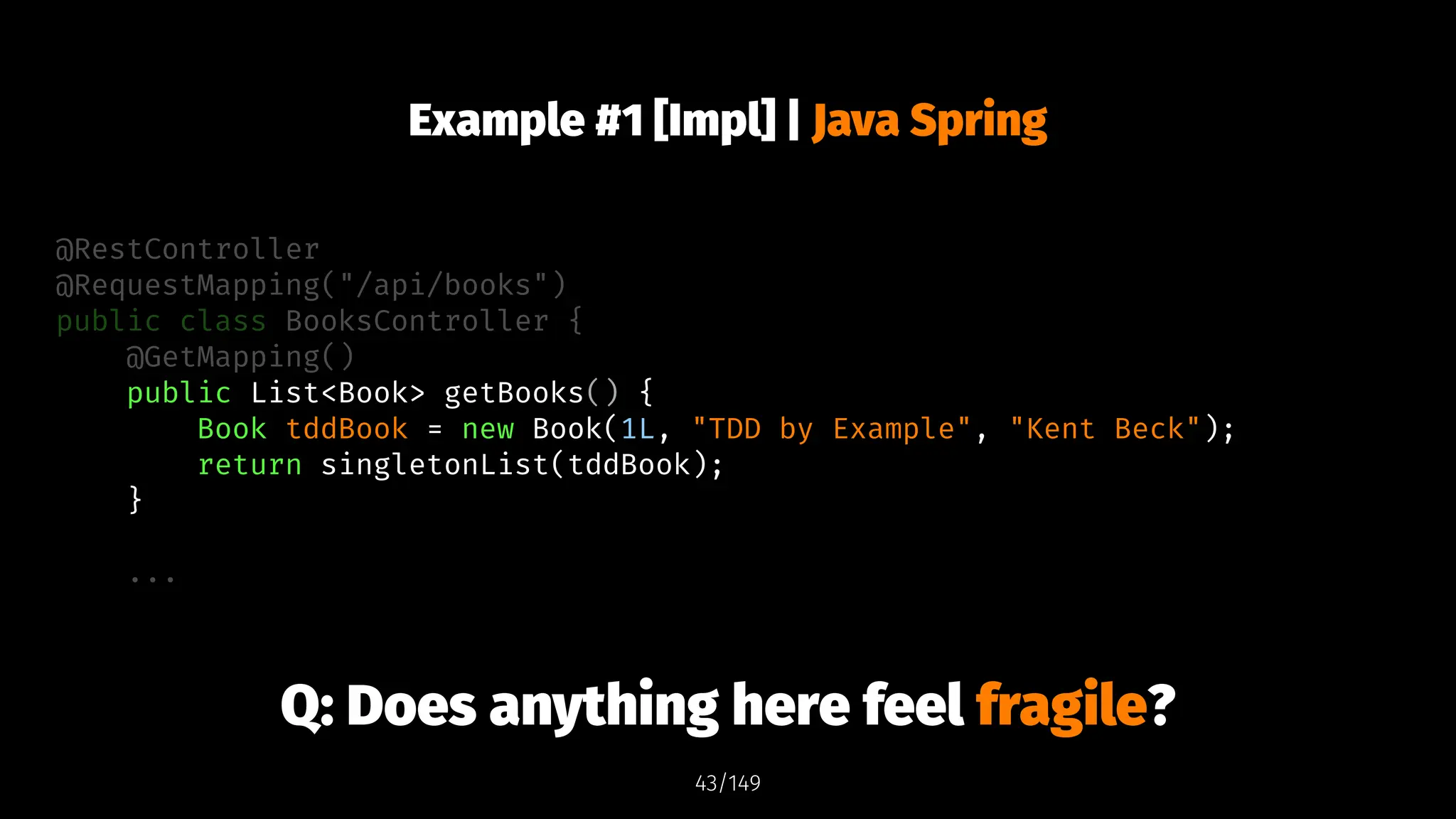

@RestController
@GetMapping()
}
...
Q: Does anything here feel fragile?
43/149

!

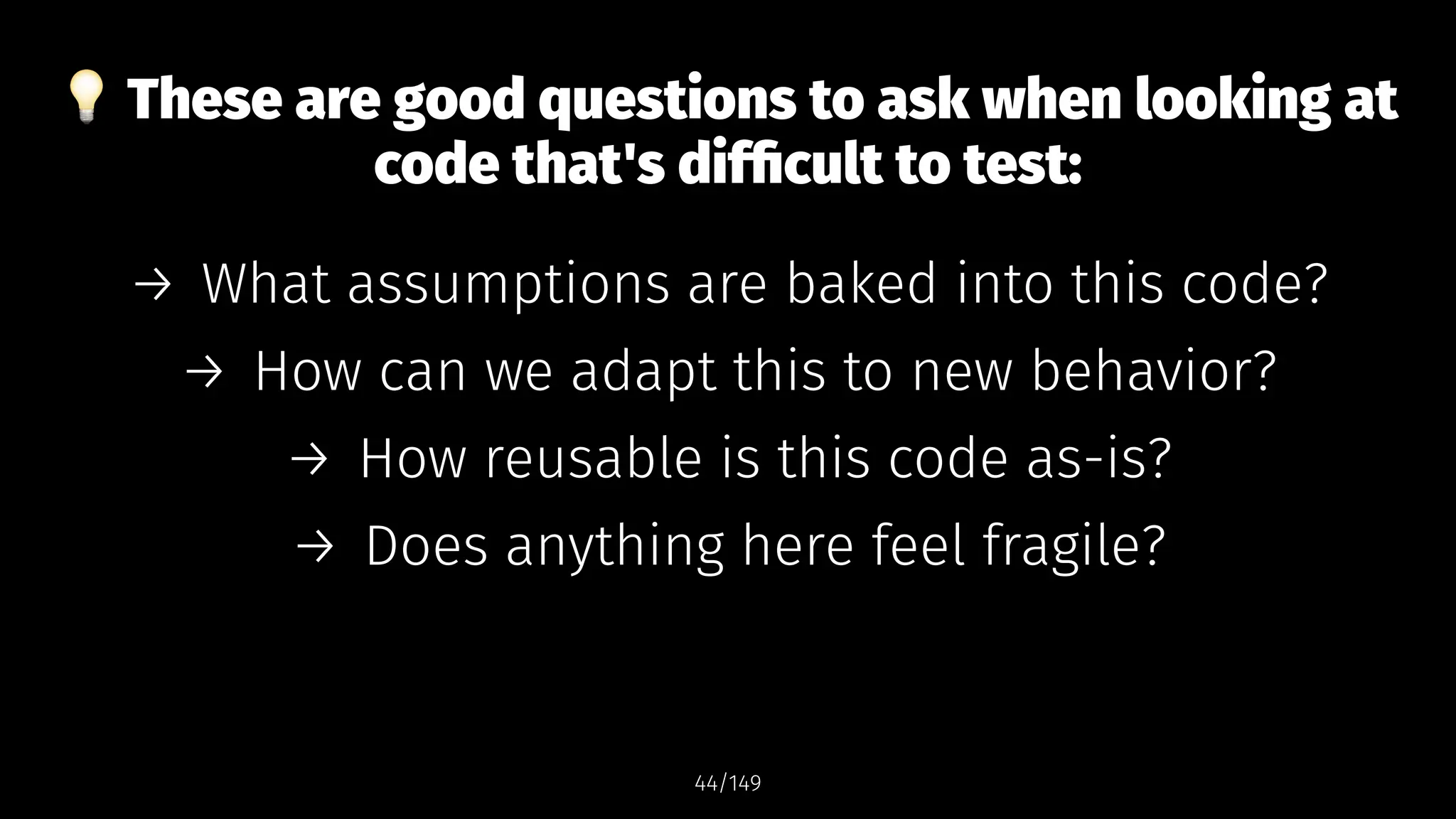

These are good questions to ask when looking at
code that's difficult to test:
→ What assumptions are baked into this code?
→ How can we adapt this to new behavior?
→ How reusable is this code as-is?
→ Does anything here feel fragile?
44/149

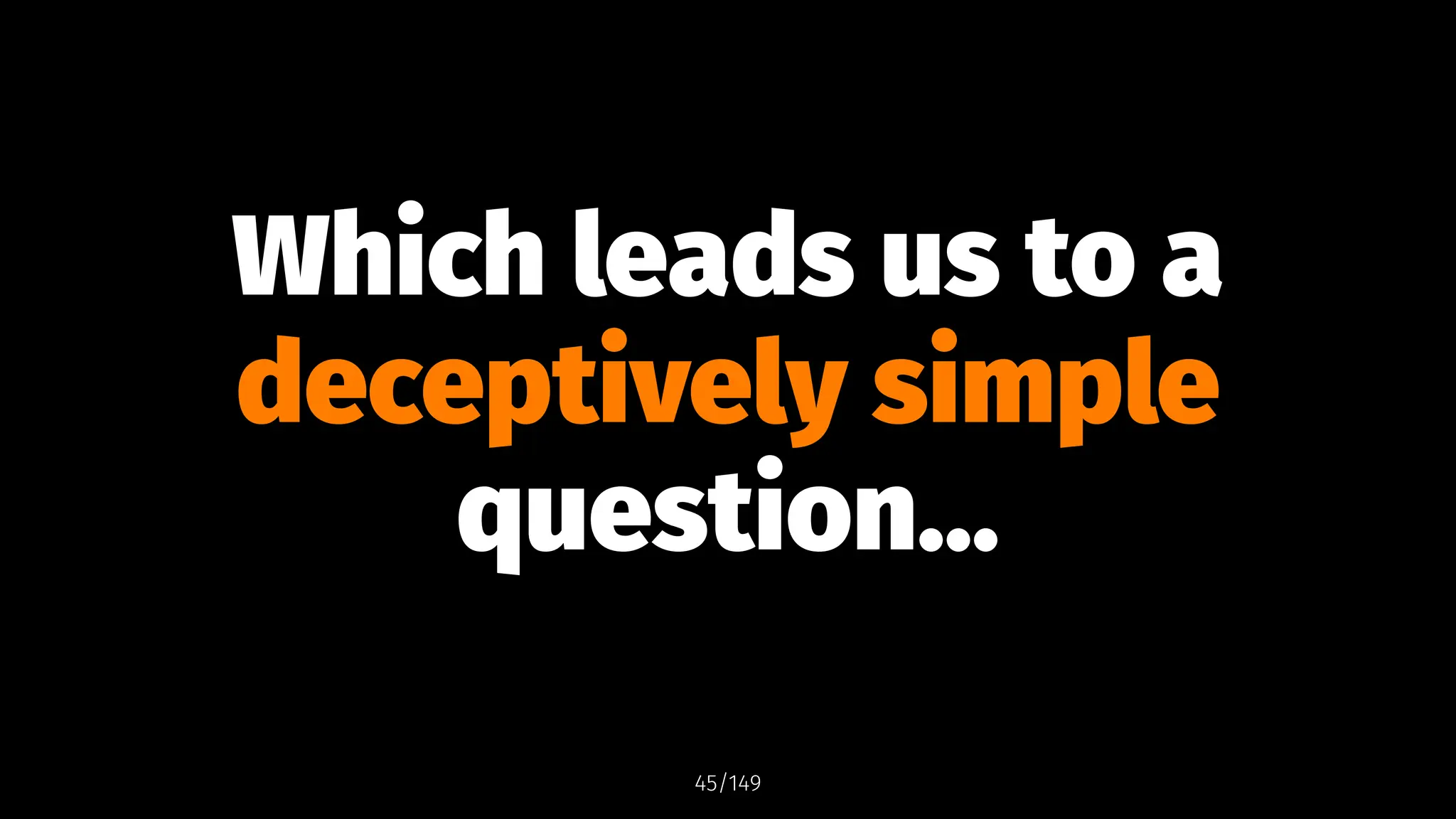

Which leads us to a
deceptively simple
question...
45/149

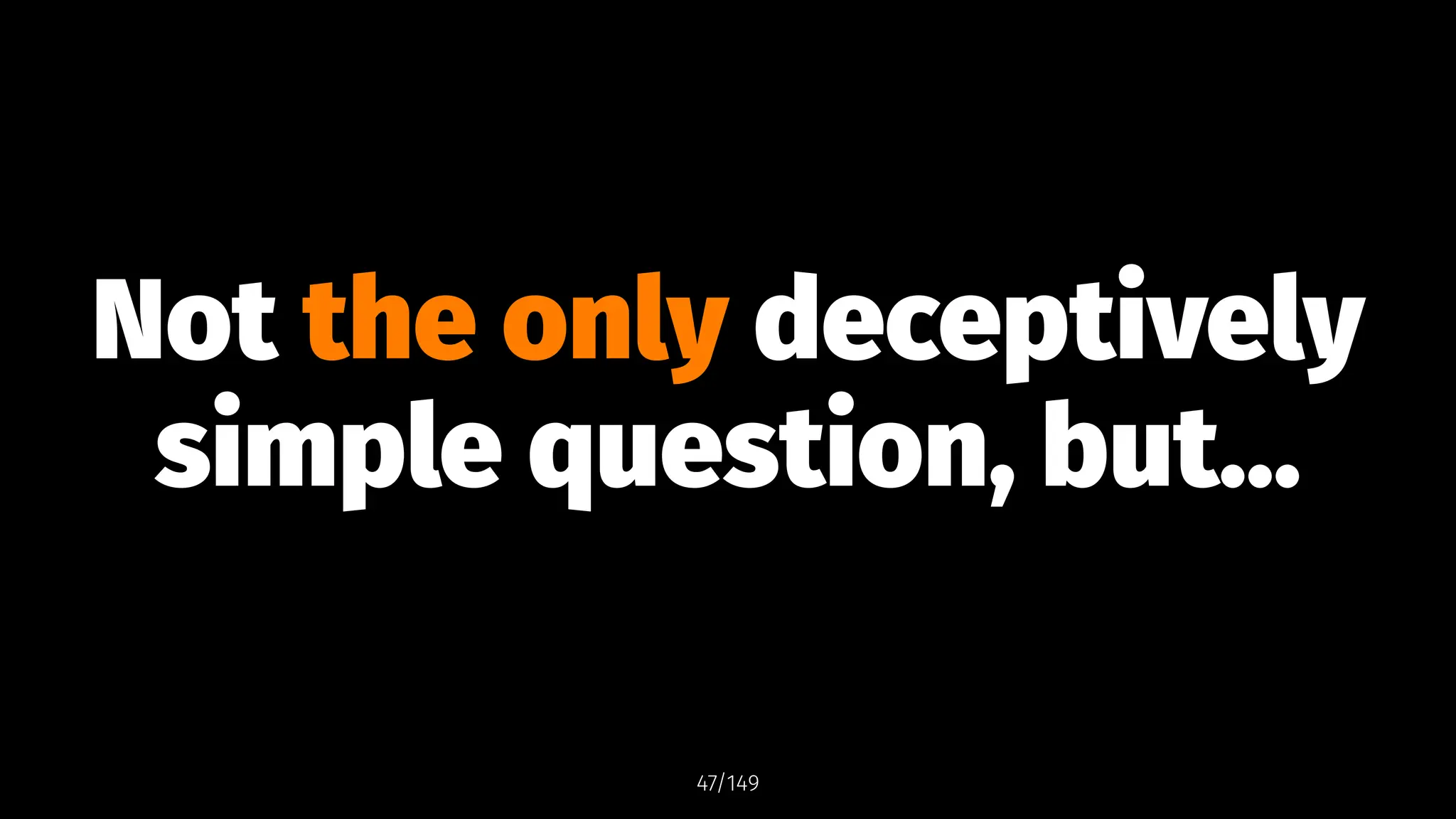

Not the only deceptively
simple question, but...
47/149

At least one deceptively
simple question
48/149

(there may be others...)
50/149

"What is this code
dependent on?"
57/149

"What is this code
dependent on?"
59/149

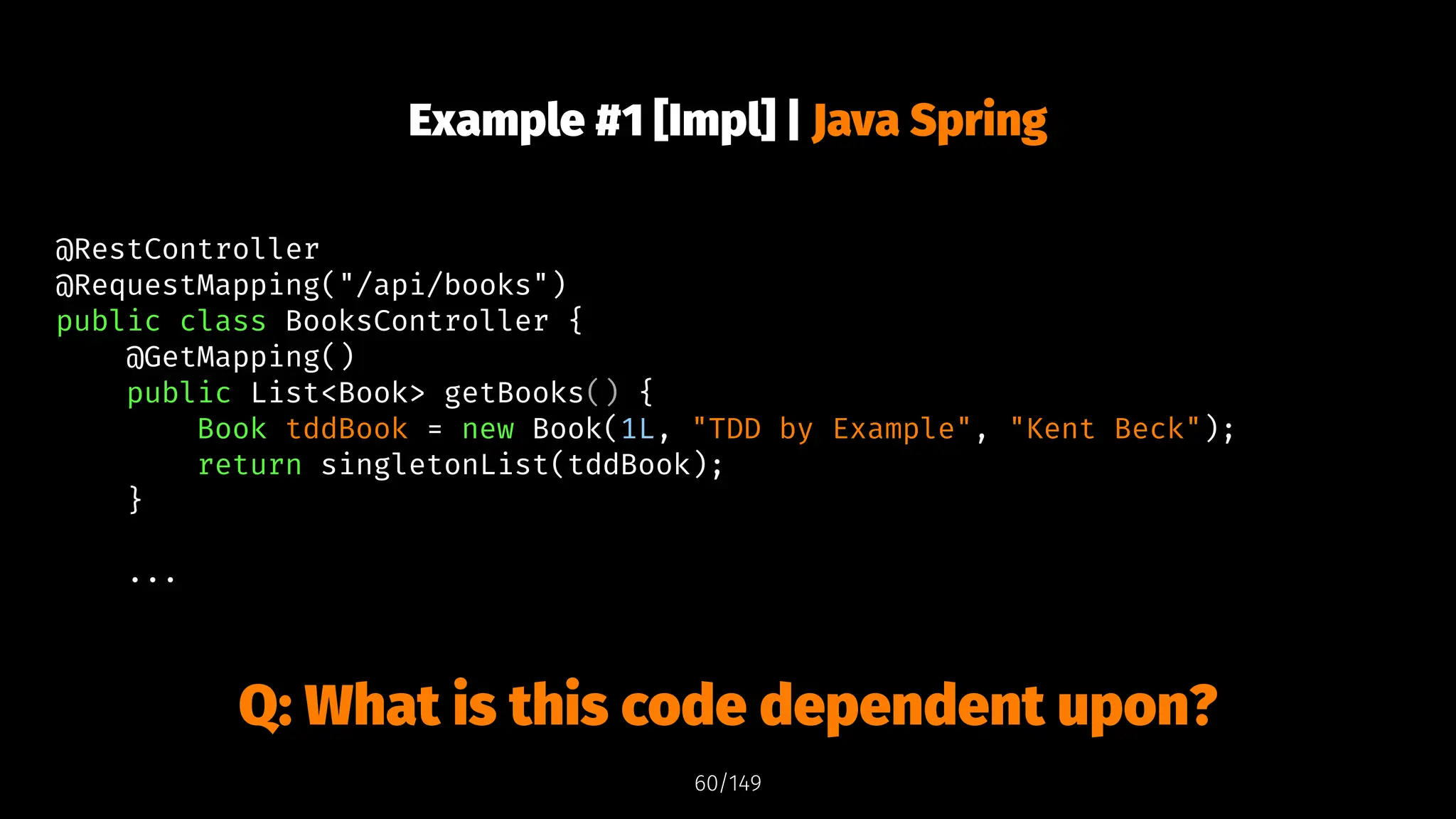

@RestController
@GetMapping()
}
...
Q: What is this code dependent upon?
60/149

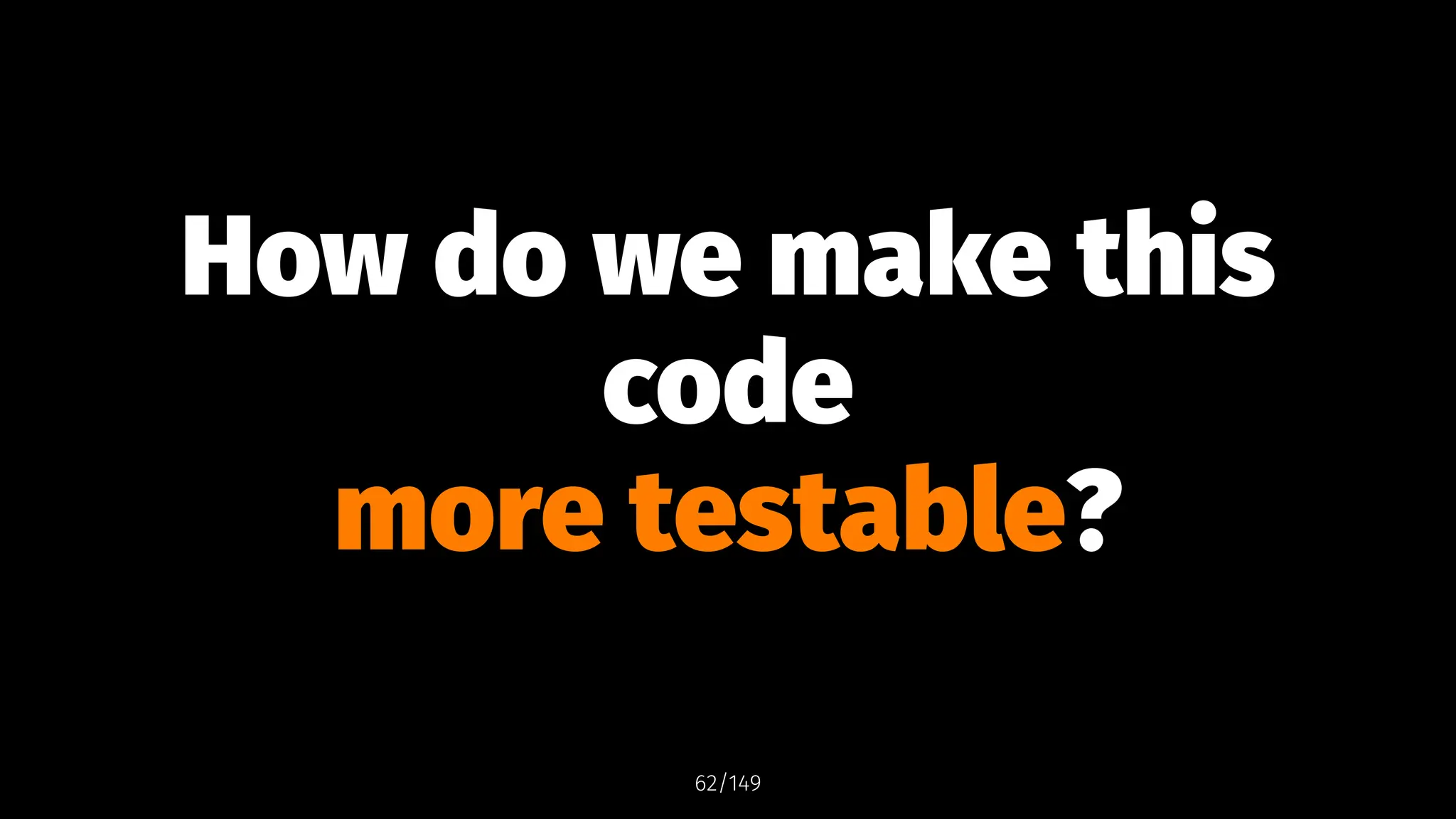

How do we make this
code
more testable?
62/149

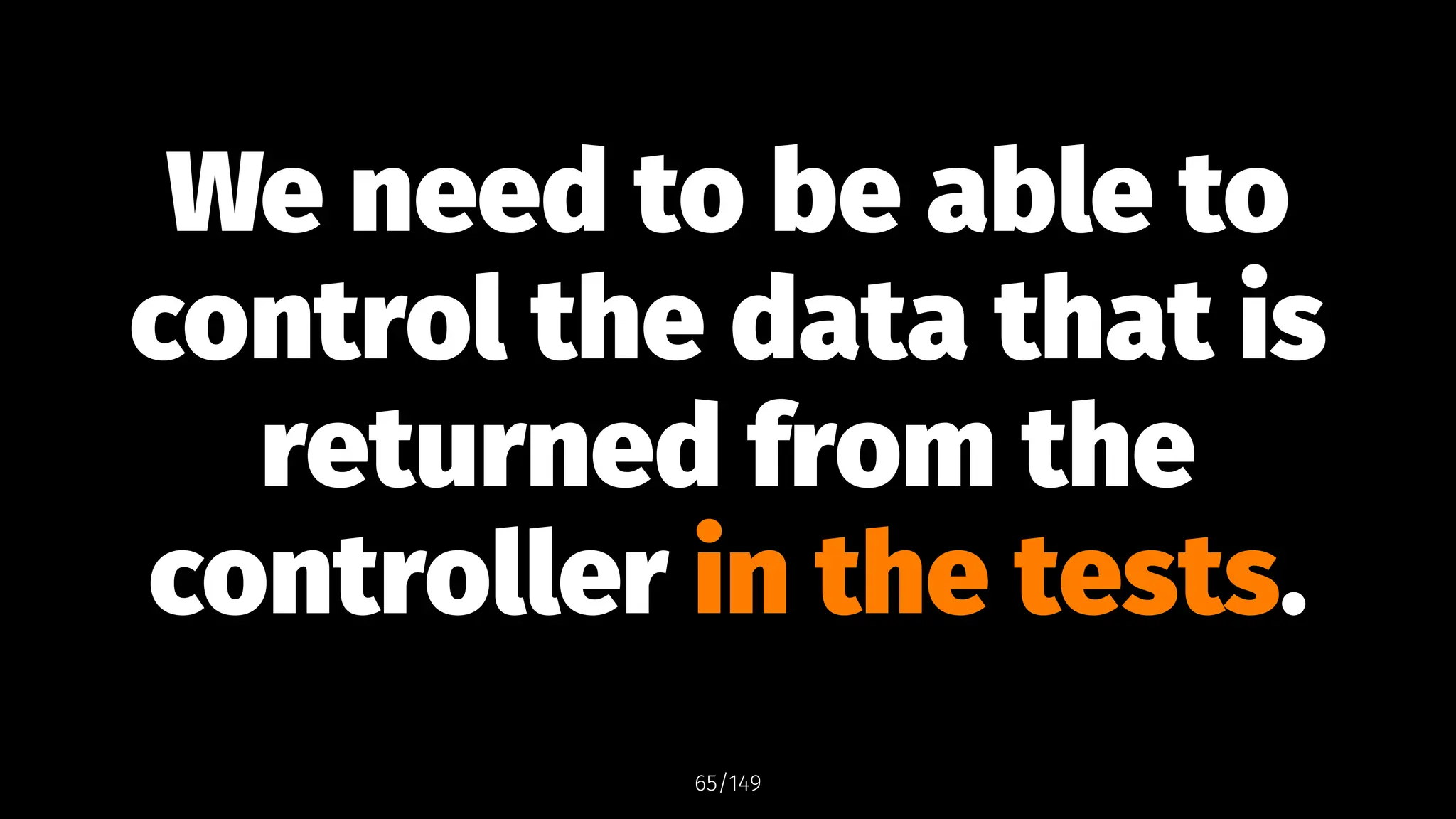

We need to be able to
control the data that is
returned from the
controller in the tests.
65/149

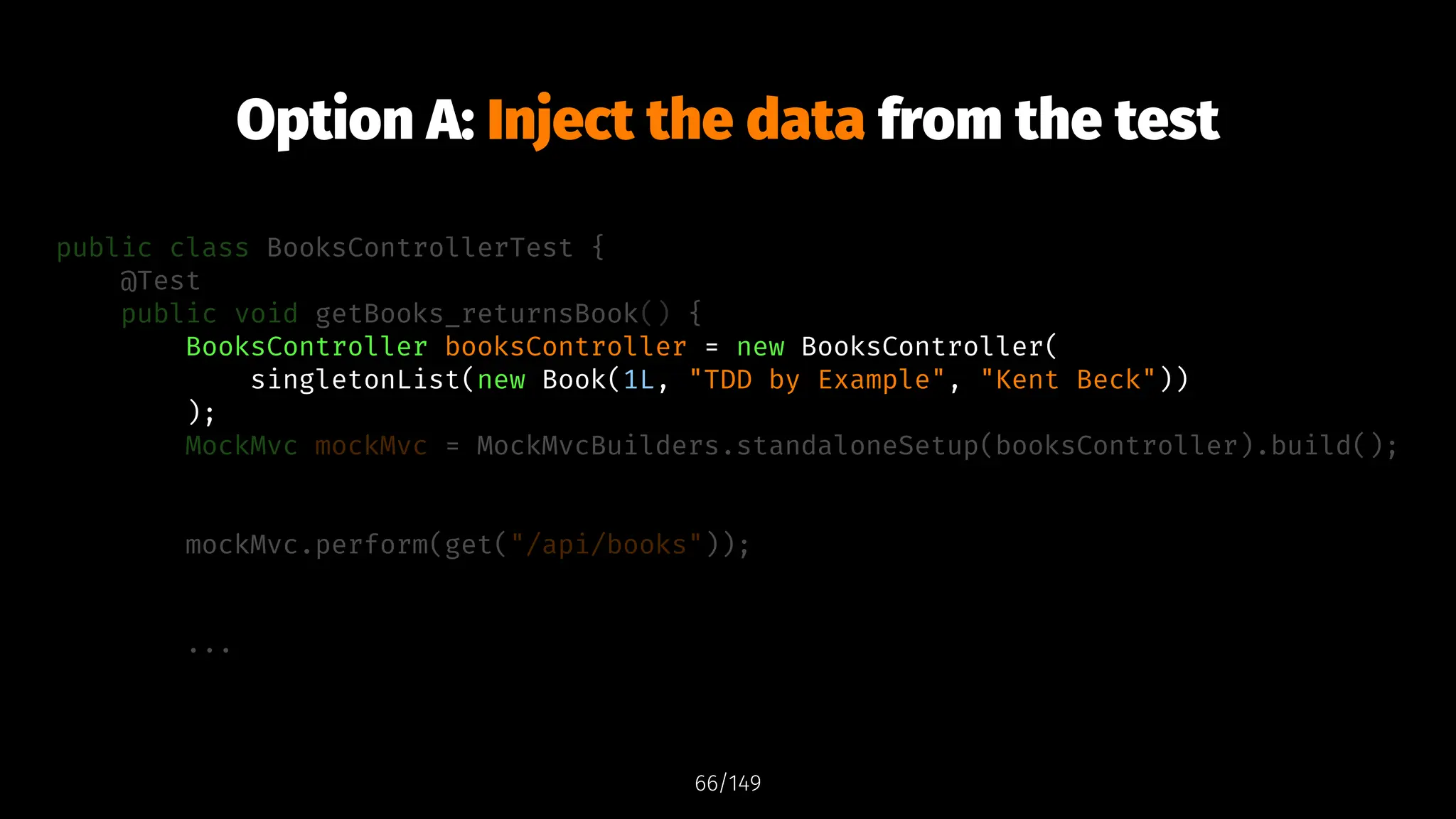

Option A: Inject the data from the test
@Test
BooksController booksController = new BooksController(
singletonList(new Book(1L, "TDD by Example", "Kent Beck"))
);
mockMvc.perform(get("/api/books"));
...
66/149

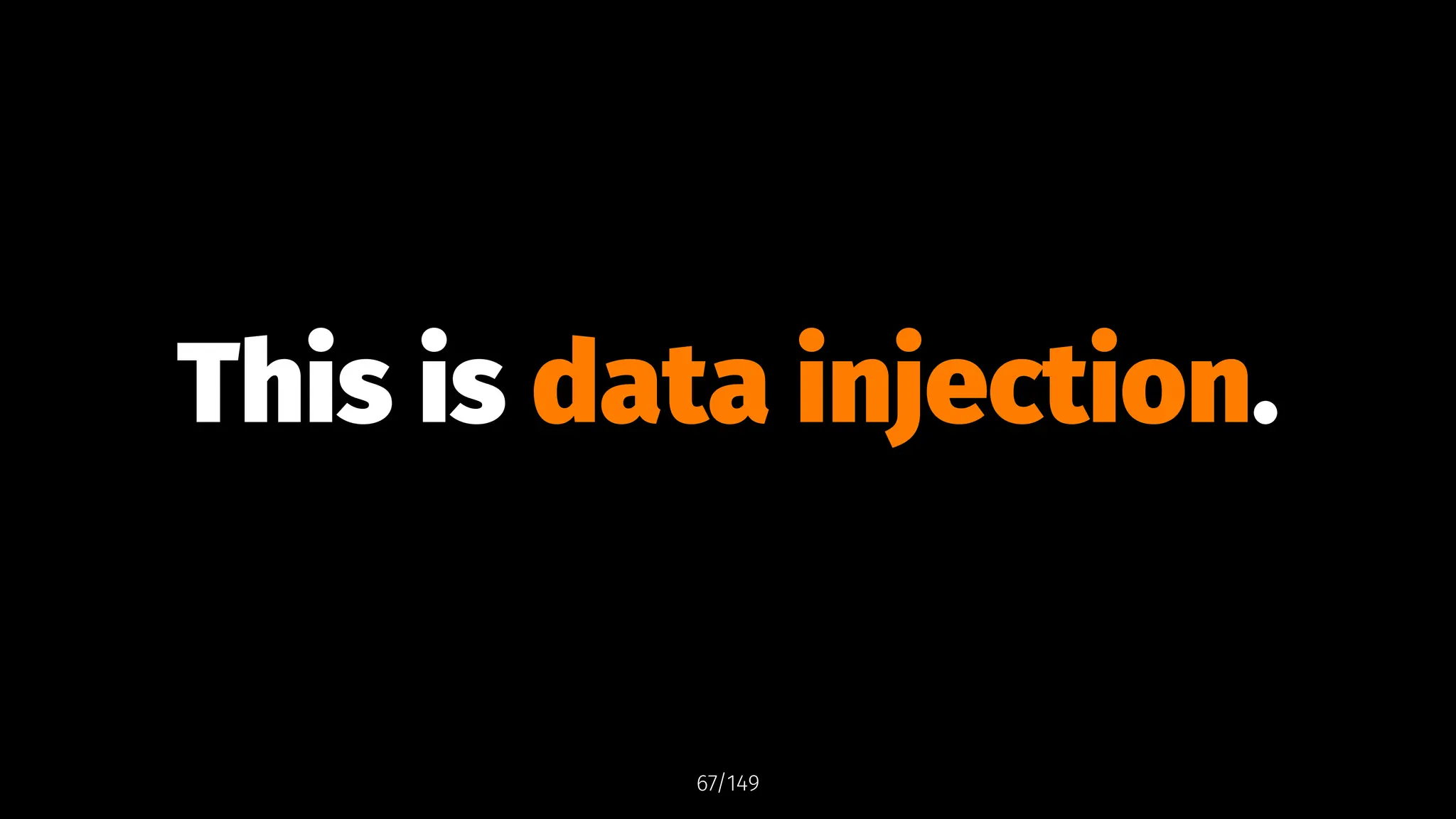

This is data injection.
67/149

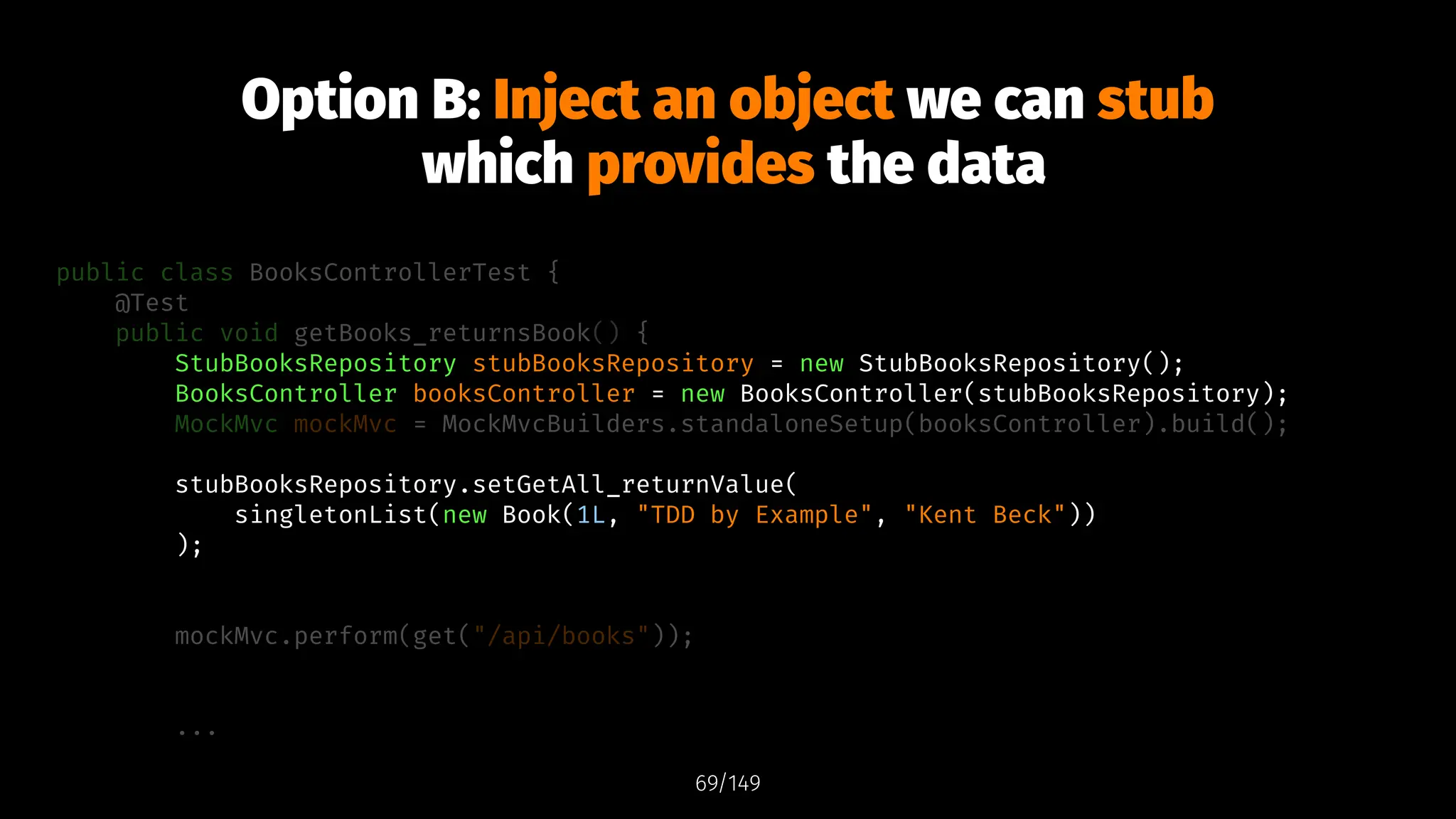

Option B: Inject an object we can stub
which provides the data
@Test
StubBooksRepository stubBooksRepository = new StubBooksRepository();
BooksController booksController = new BooksController(stubBooksRepository);
stubBooksRepository.setGetAll_returnValue(
singletonList(new Book(1L, "TDD by Example", "Kent Beck"))
);
mockMvc.perform(get("/api/books"));
...
69/149

This is
dependency injection.
70/149

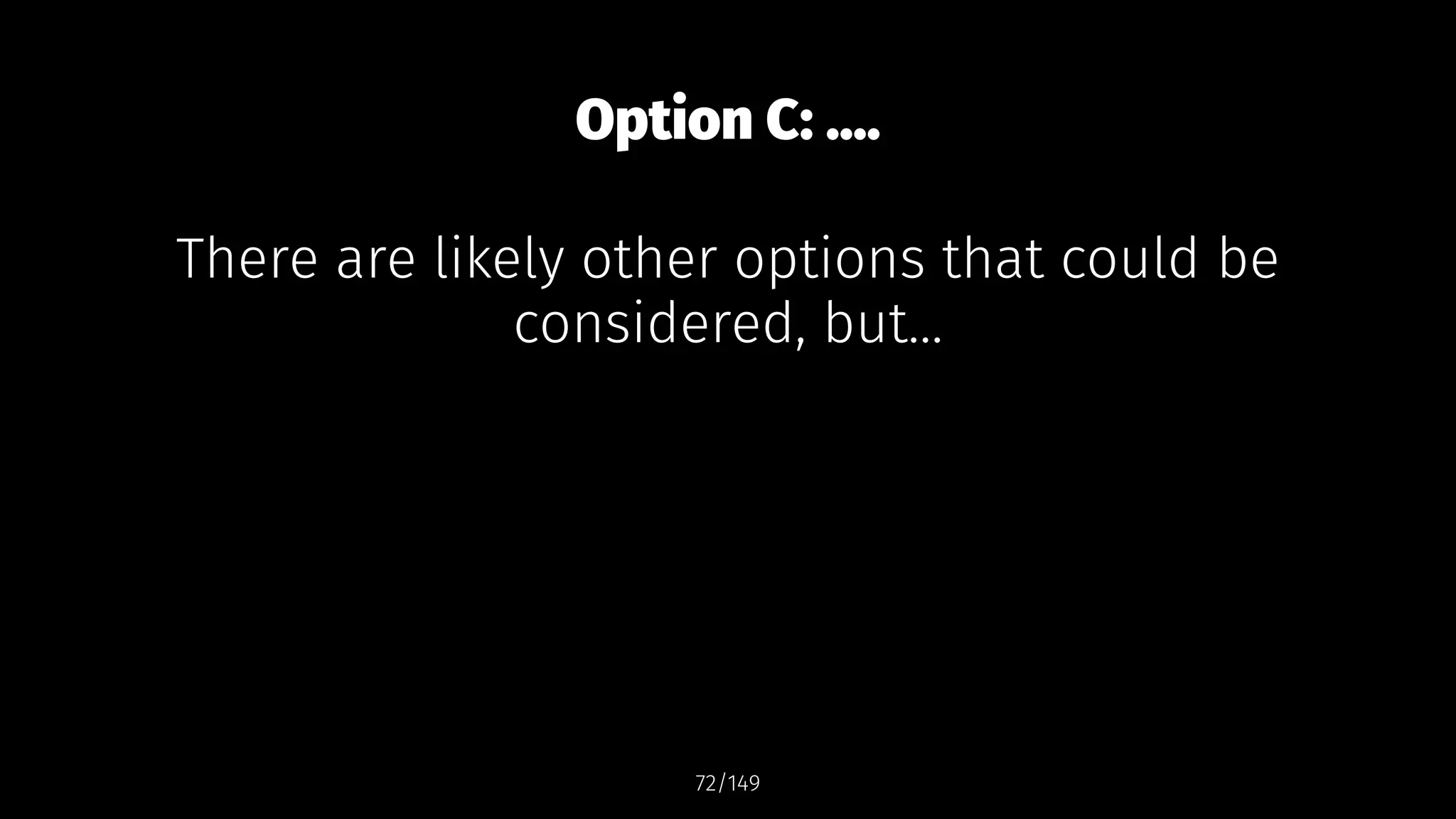

Option C: ....
There are likely other options that could be
considered, but...
72/149

I want to learn more!
See Kent Beck's TDD by Example book:
→ Hard-coding return values = "TDD Green Bar
Pattern" Fake It Till You Make It
→ Refactoring to use a stub = "TDD Green Bar
Pattern" Triangulation
74/149

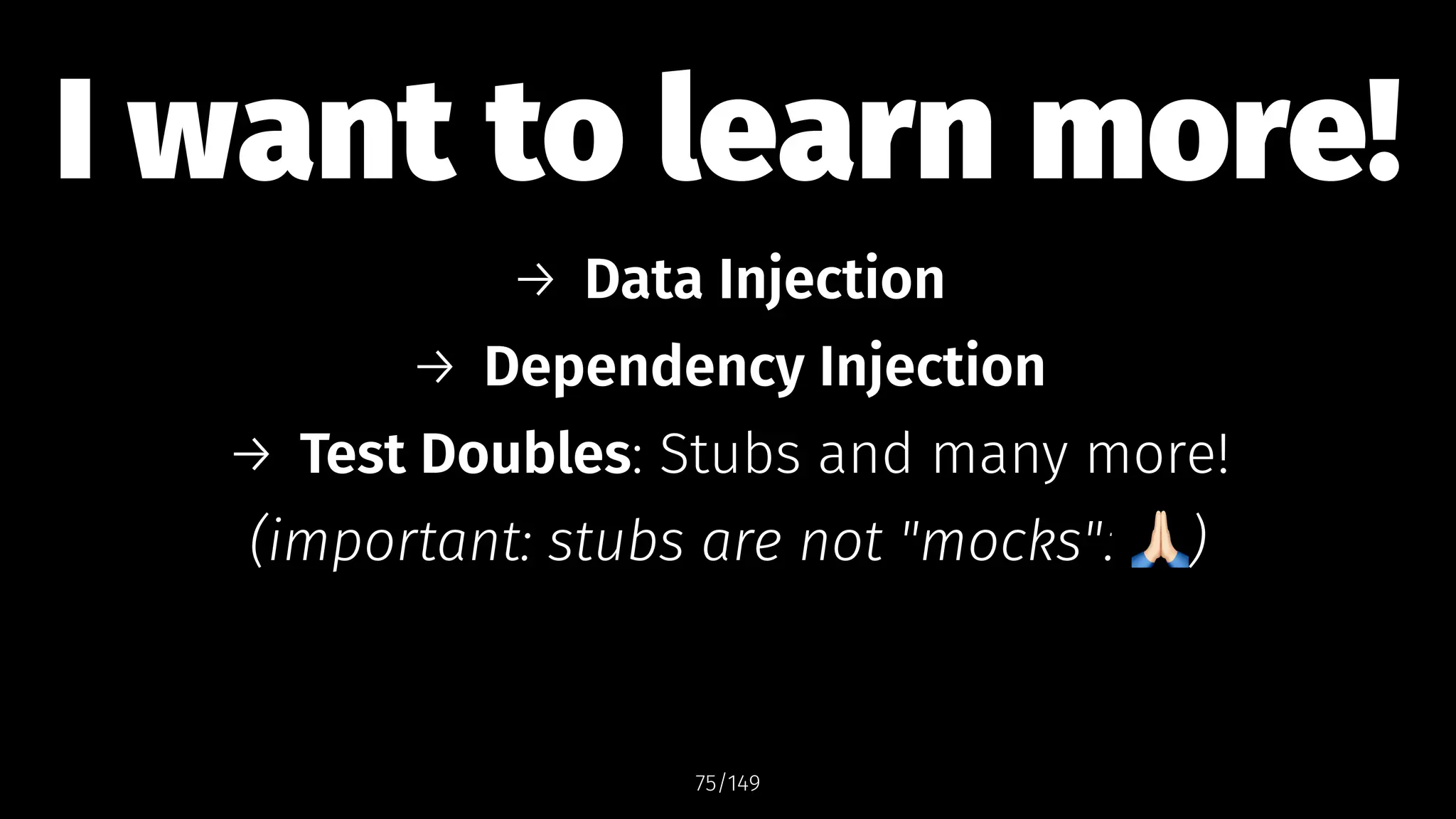

→ Data Injection
→ Dependency Injection
→ Test Doubles: Stubs and many more!
(important: stubs are not "mocks"! )
75/149

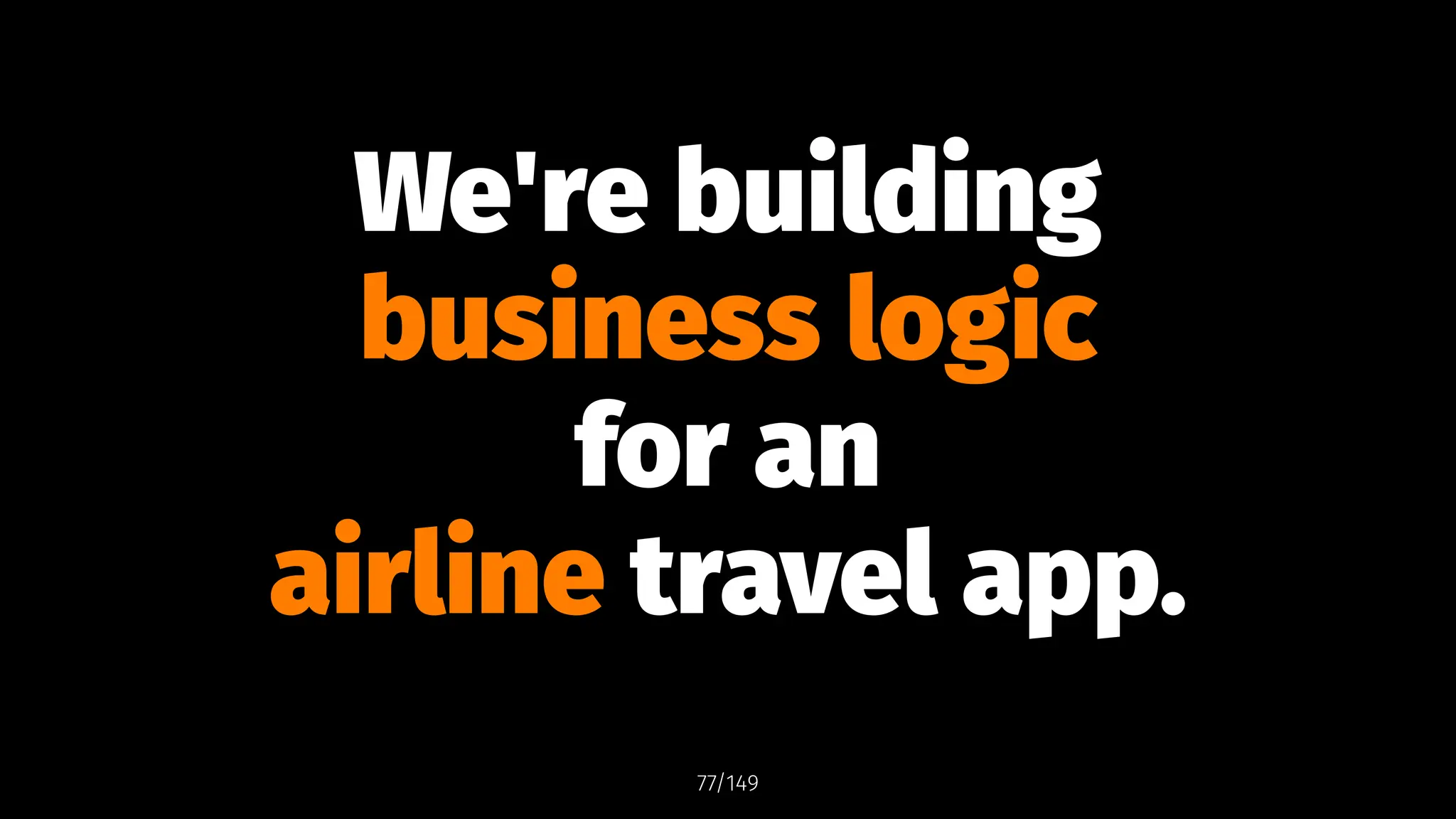

We're building
business logic
for an
airline travel app.
77/149

Remember,
we'll look at the
implementation code
first.
78/149

!
Before we can become
comfortable with testing,
79/149

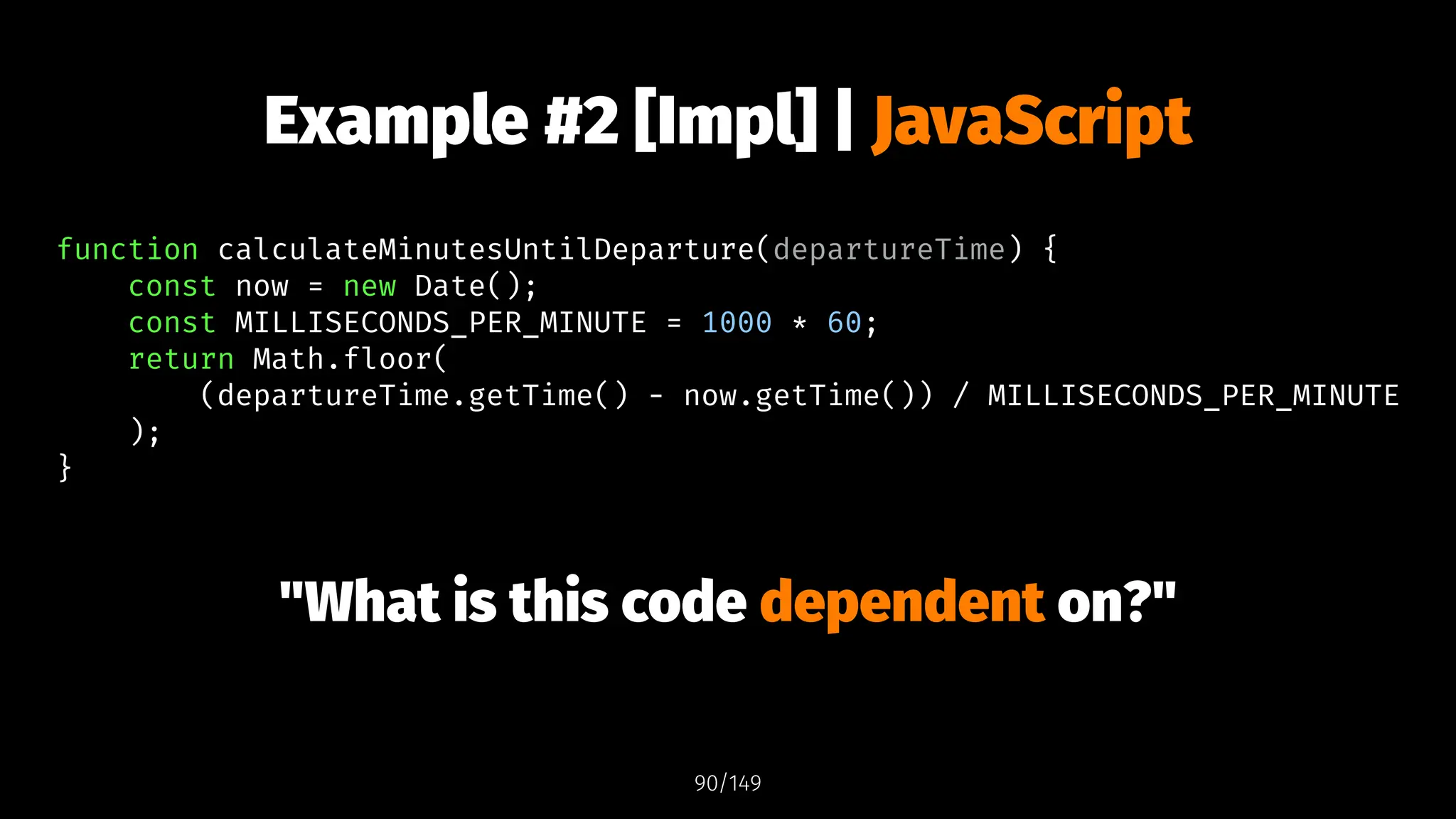

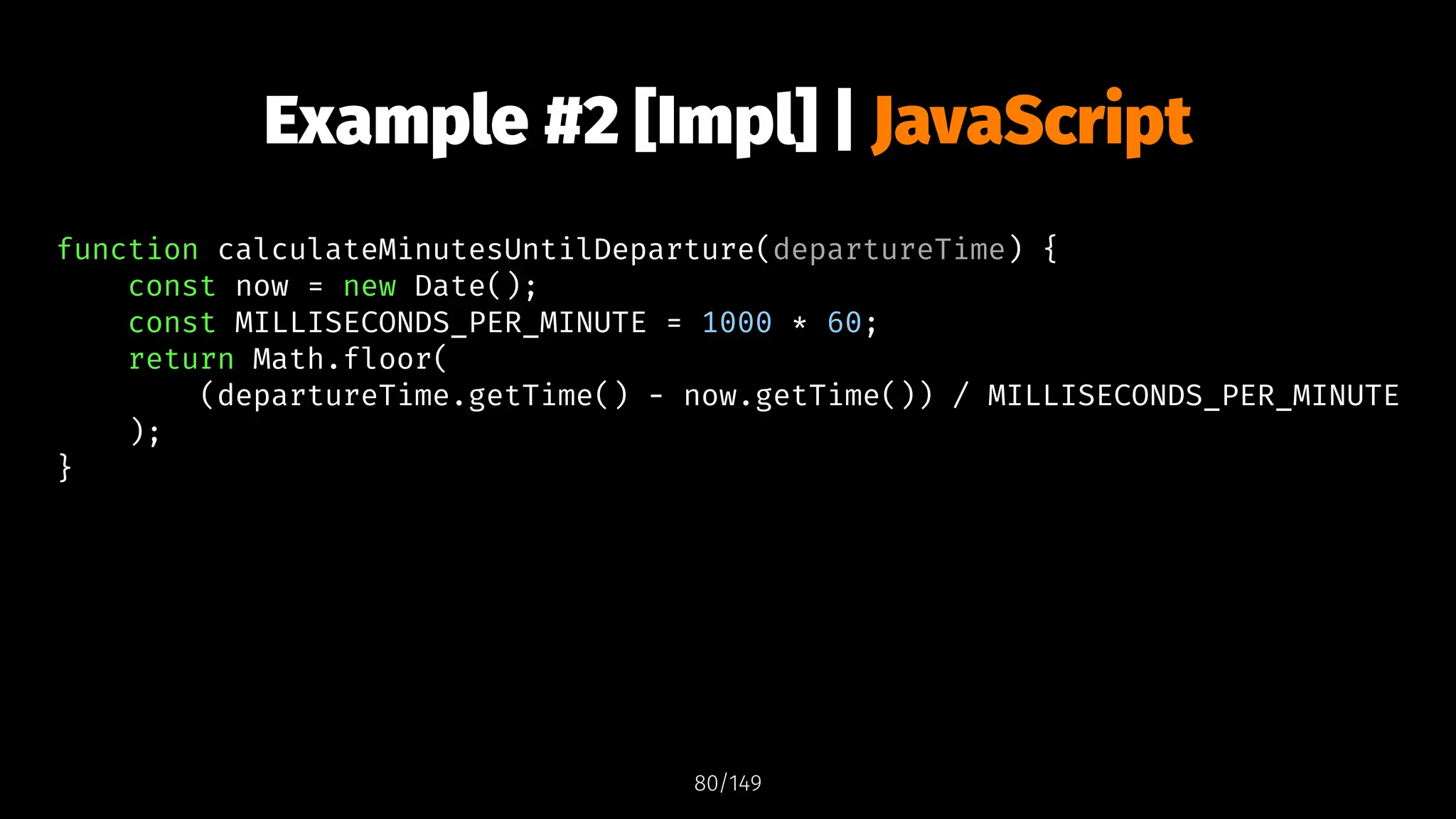

Example #2 [Impl] | JavaScript
function calculateMinutesUntilDeparture(departureTime) {
const now = new Date();
const MILLISECONDS_PER_MINUTE = 1000 * 60;
return Math.floor(
(departureTime.getTime() - now.getTime()) / MILLISECONDS_PER_MINUTE
);
}
80/149

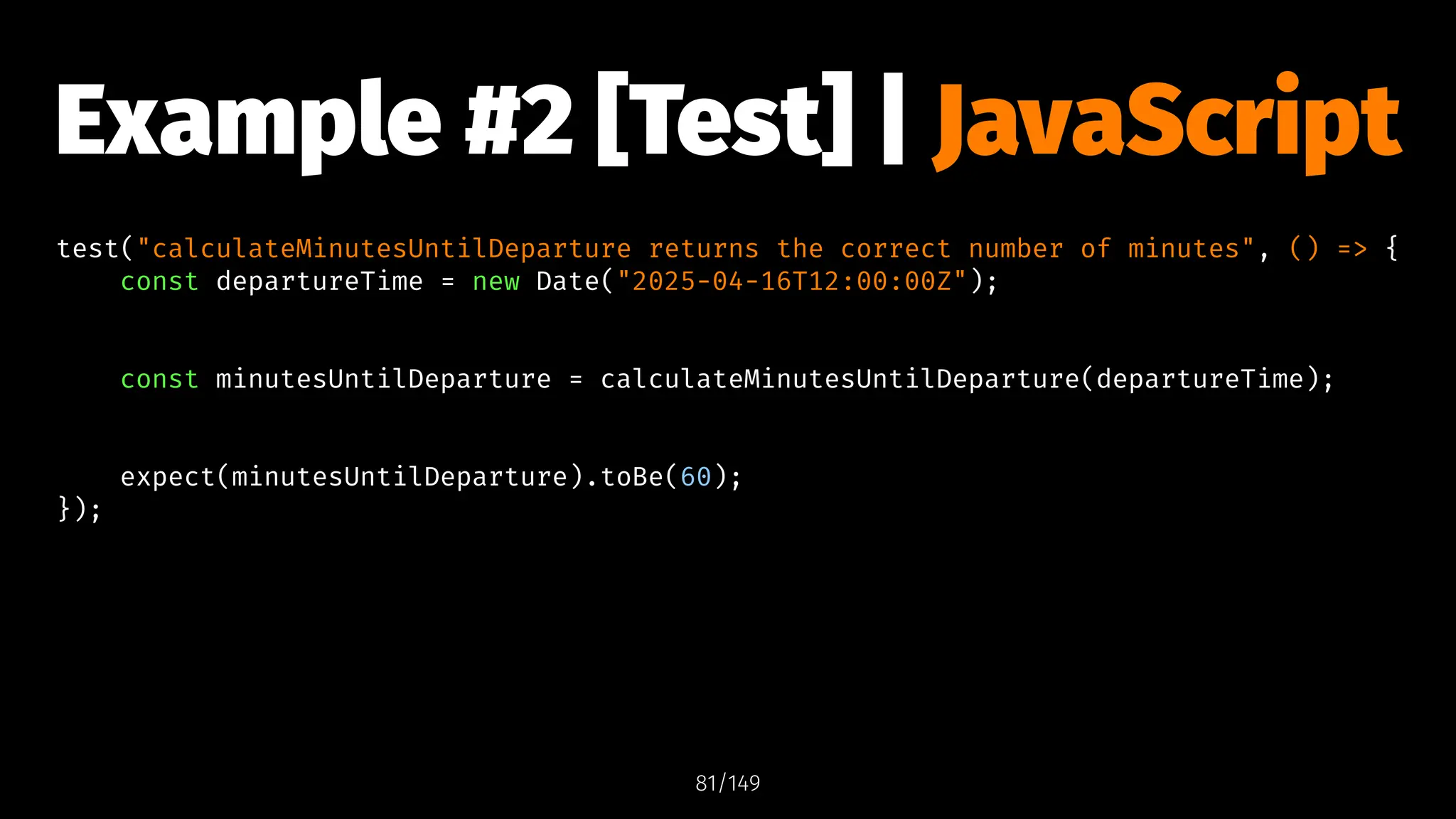

Example #2 [Test] | JavaScript
test("calculateMinutesUntilDeparture returns the correct number of minutes", () => {
const departureTime = new Date("2025-04-16T12:00:00Z");
const minutesUntilDeparture = calculateMinutesUntilDeparture(departureTime);
expect(minutesUntilDeparture).toBe(60);
});
81/149

});

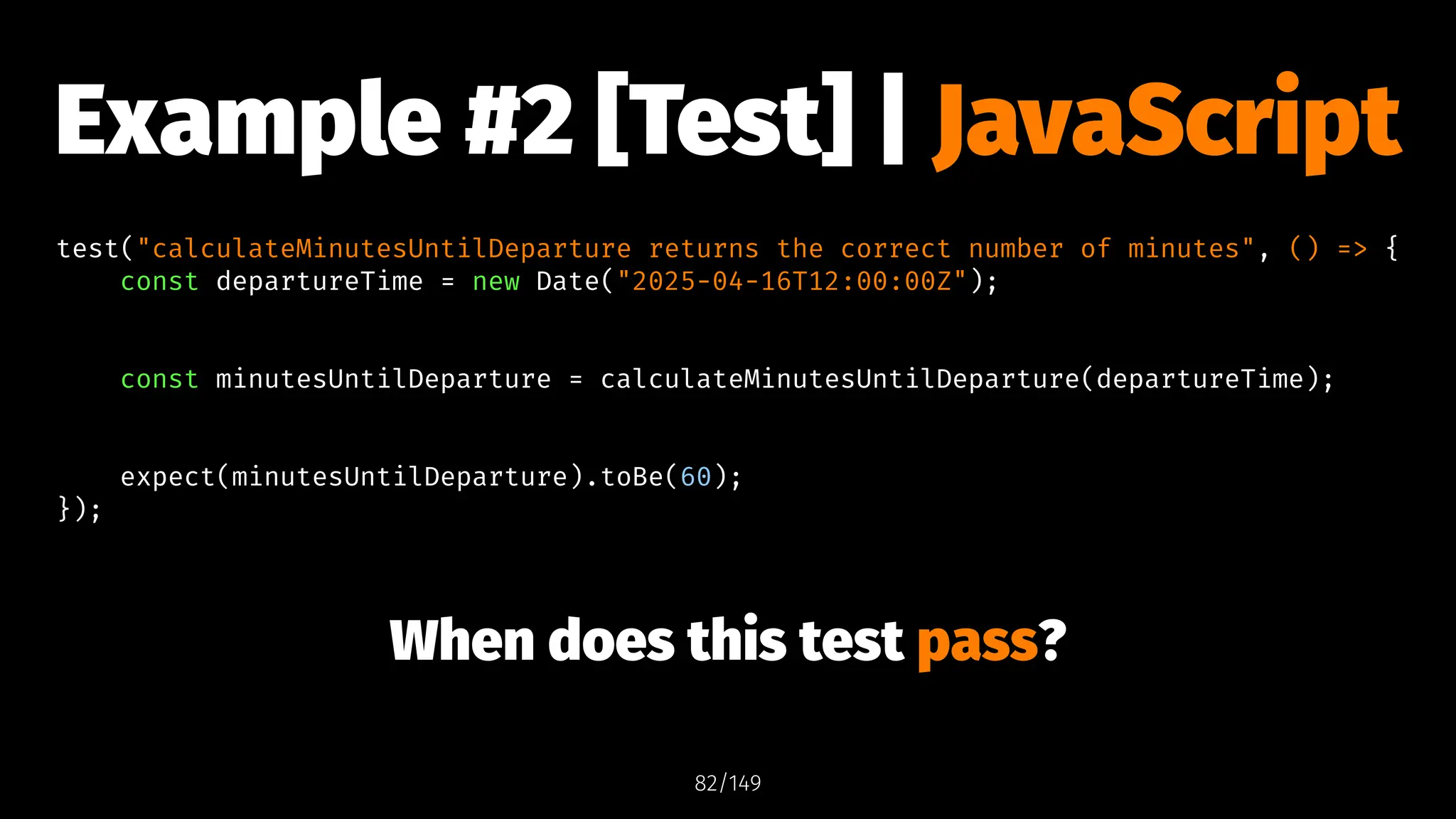

When does this test pass?
82/149

});

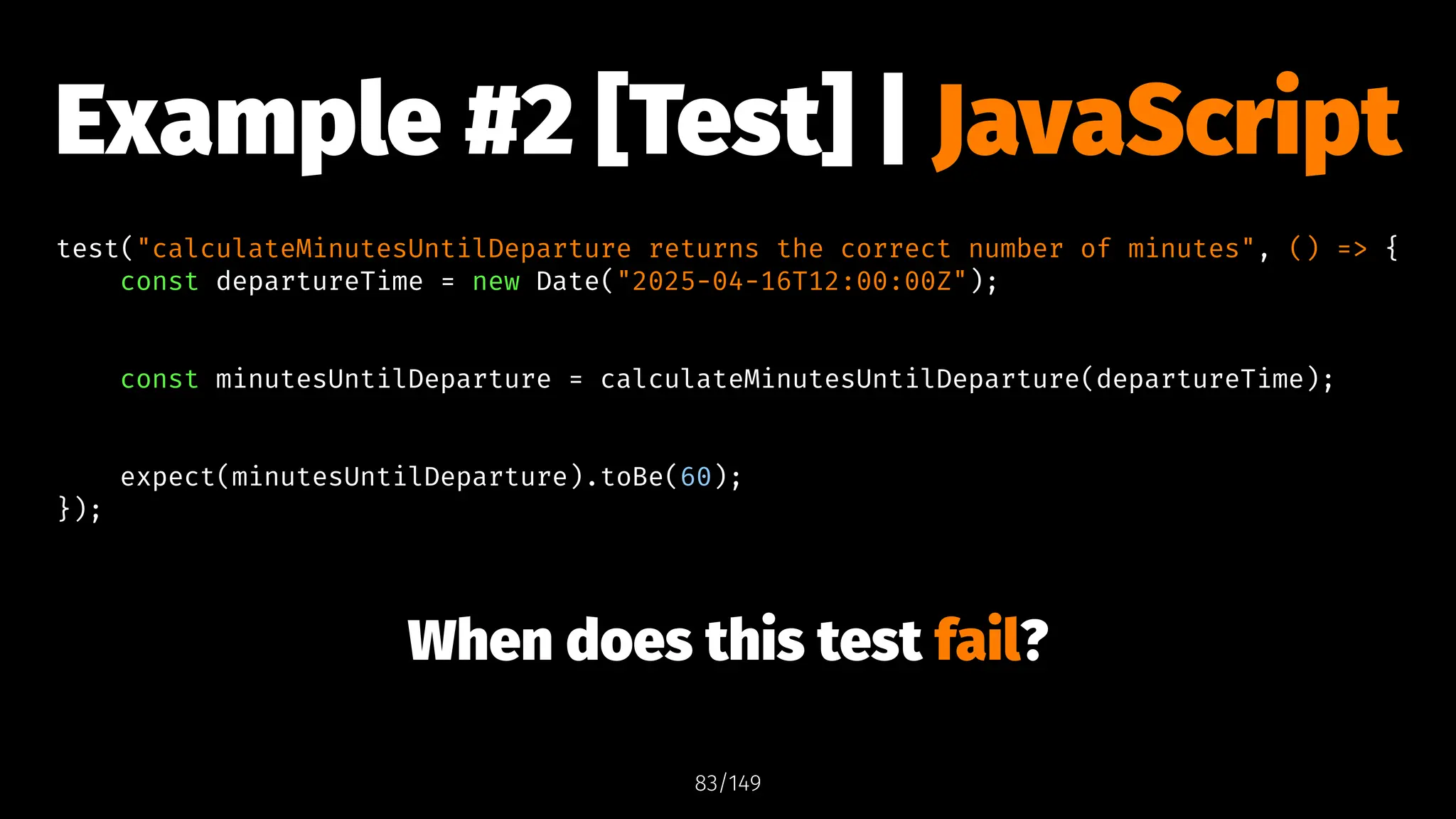

When does this test fail?
83/149

84/149

return Math.floor(
);
}
85/149

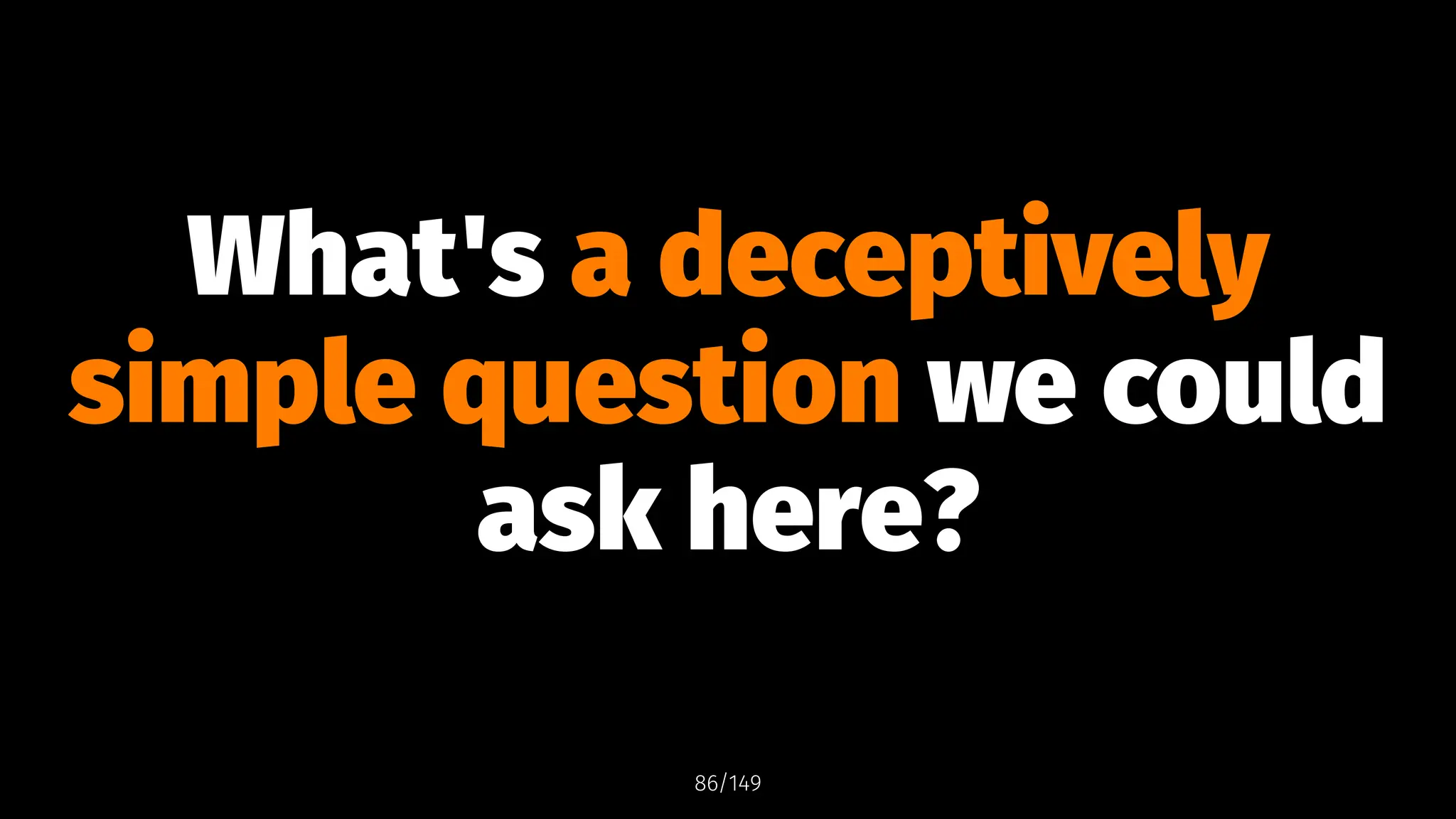

What's a deceptively
simple question we could
ask here?
86/149

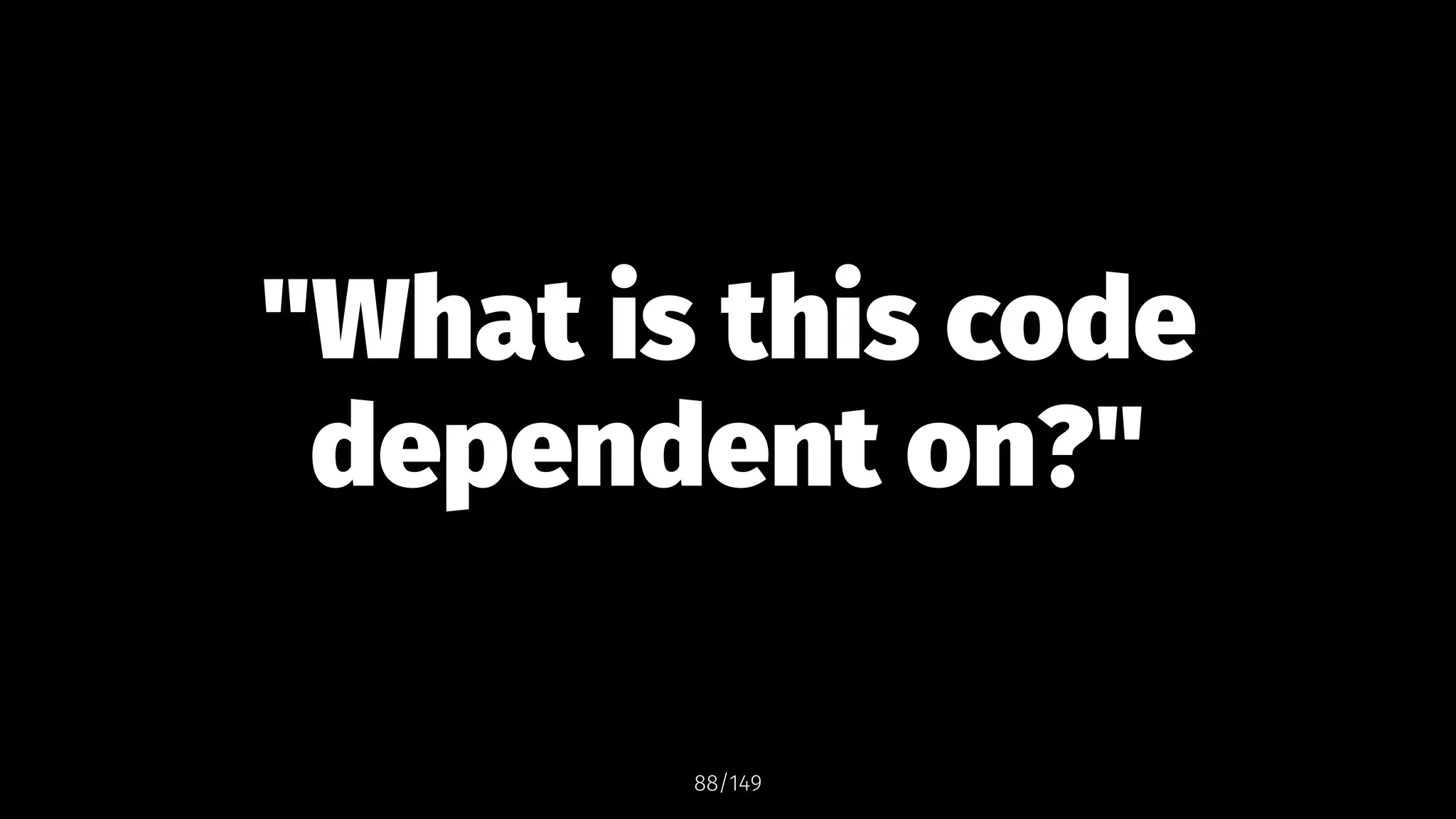

"What is this code
dependent on?"
88/149

"What is this code
dependent on?"
89/149

return Math.floor(
);
}
"What is this code dependent on?"
90/149

!

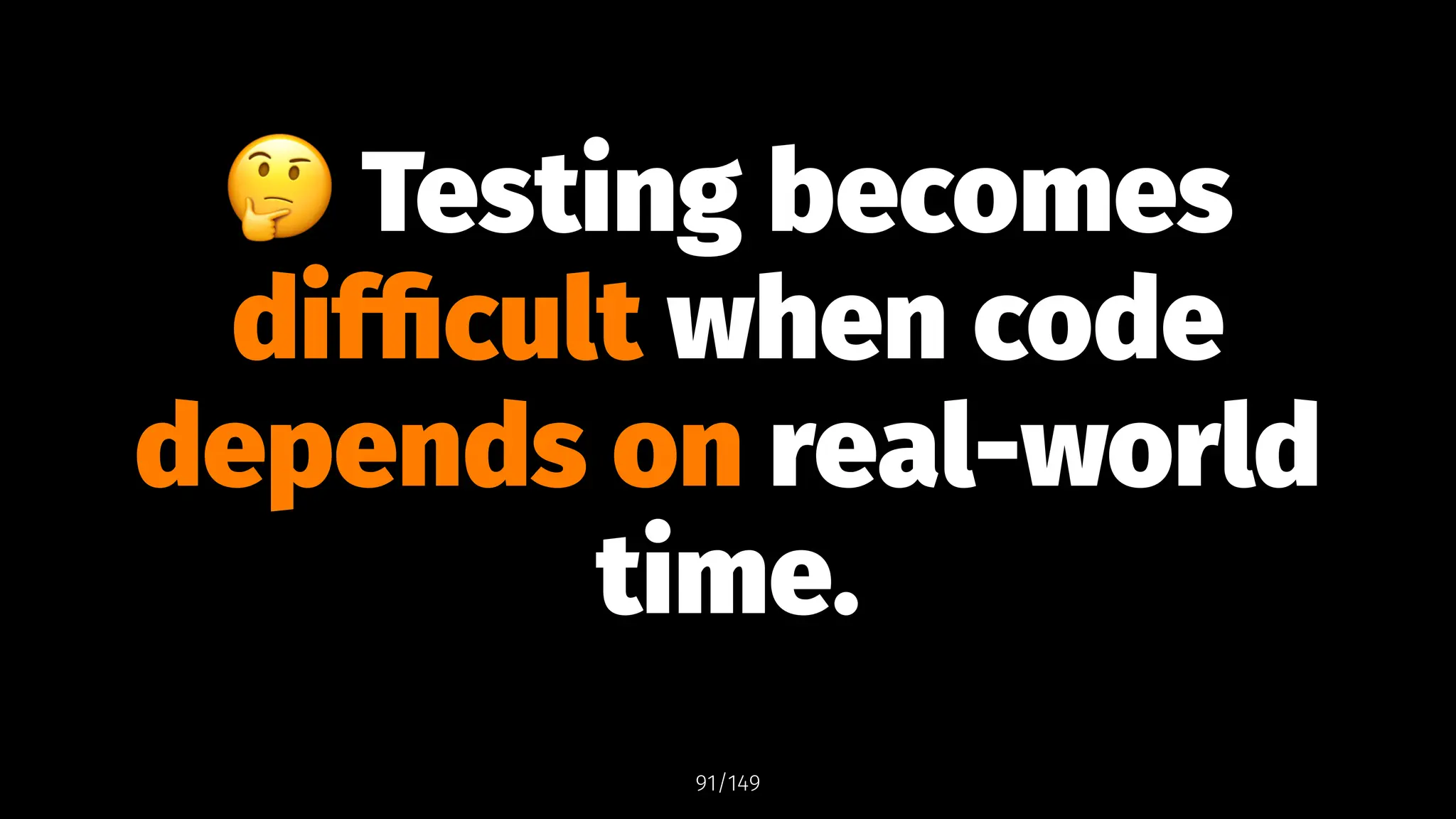

Testing becomes
difficult when code
depends on real-world
time.
91/149

!

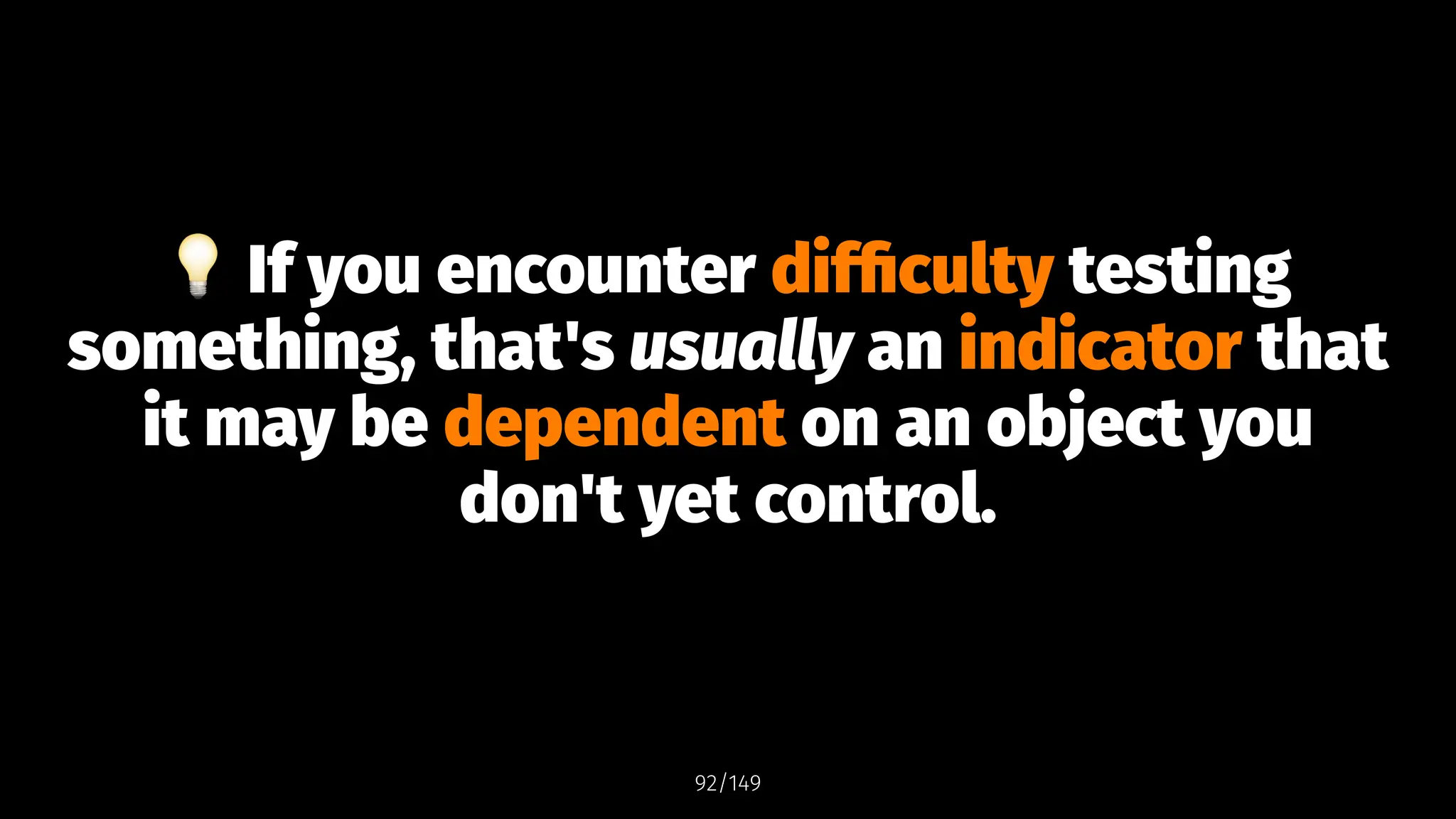

If you encounter difficulty testing
something, that's usually an indicator that
it may be dependent on an object you
don't yet control.
92/149

What do we need to be
able to control
from the tests?
(in this case)
93/149

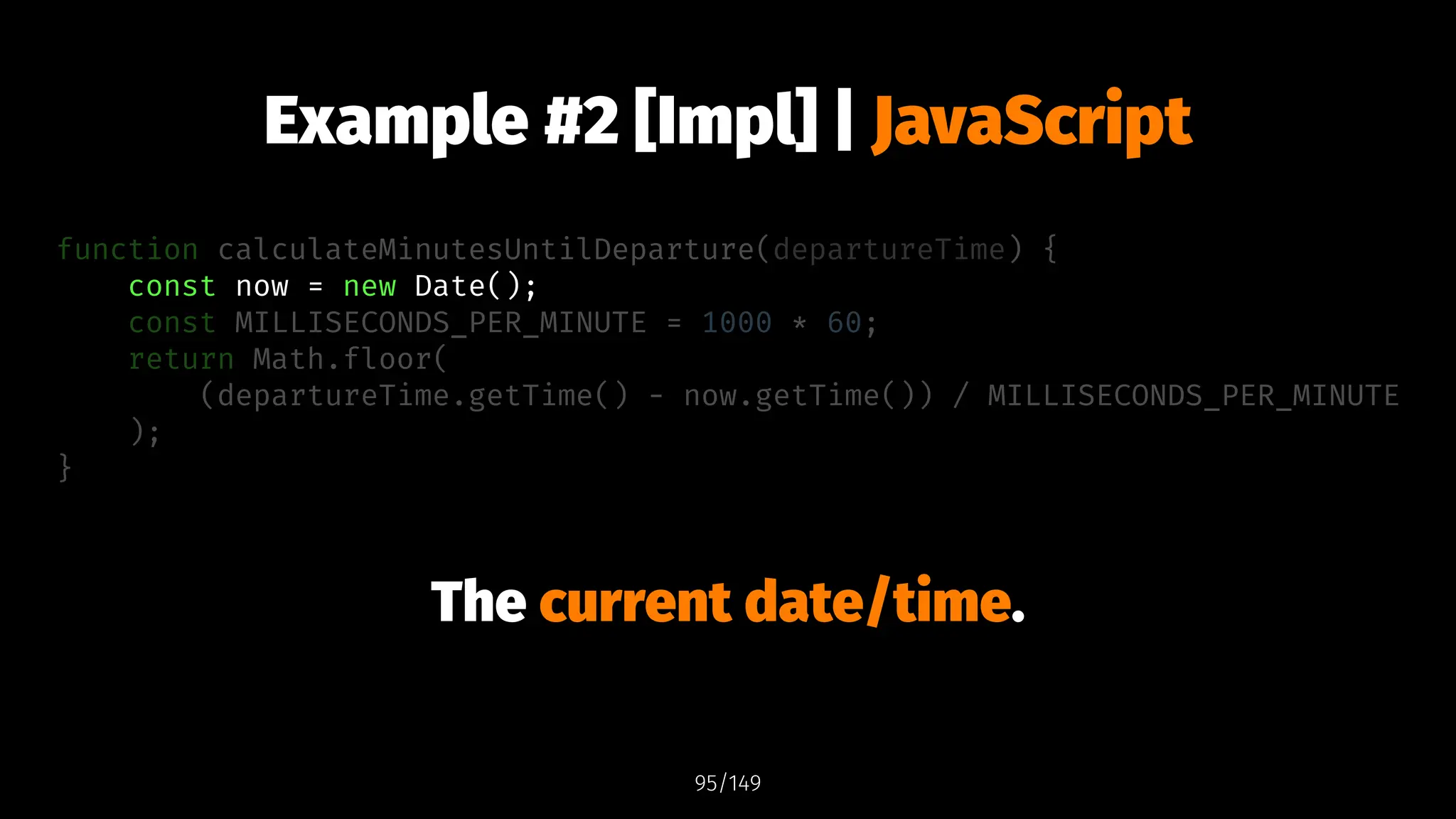

return Math.floor(
);
}
94/149

return Math.floor(
);
}
The current date/time.
95/149

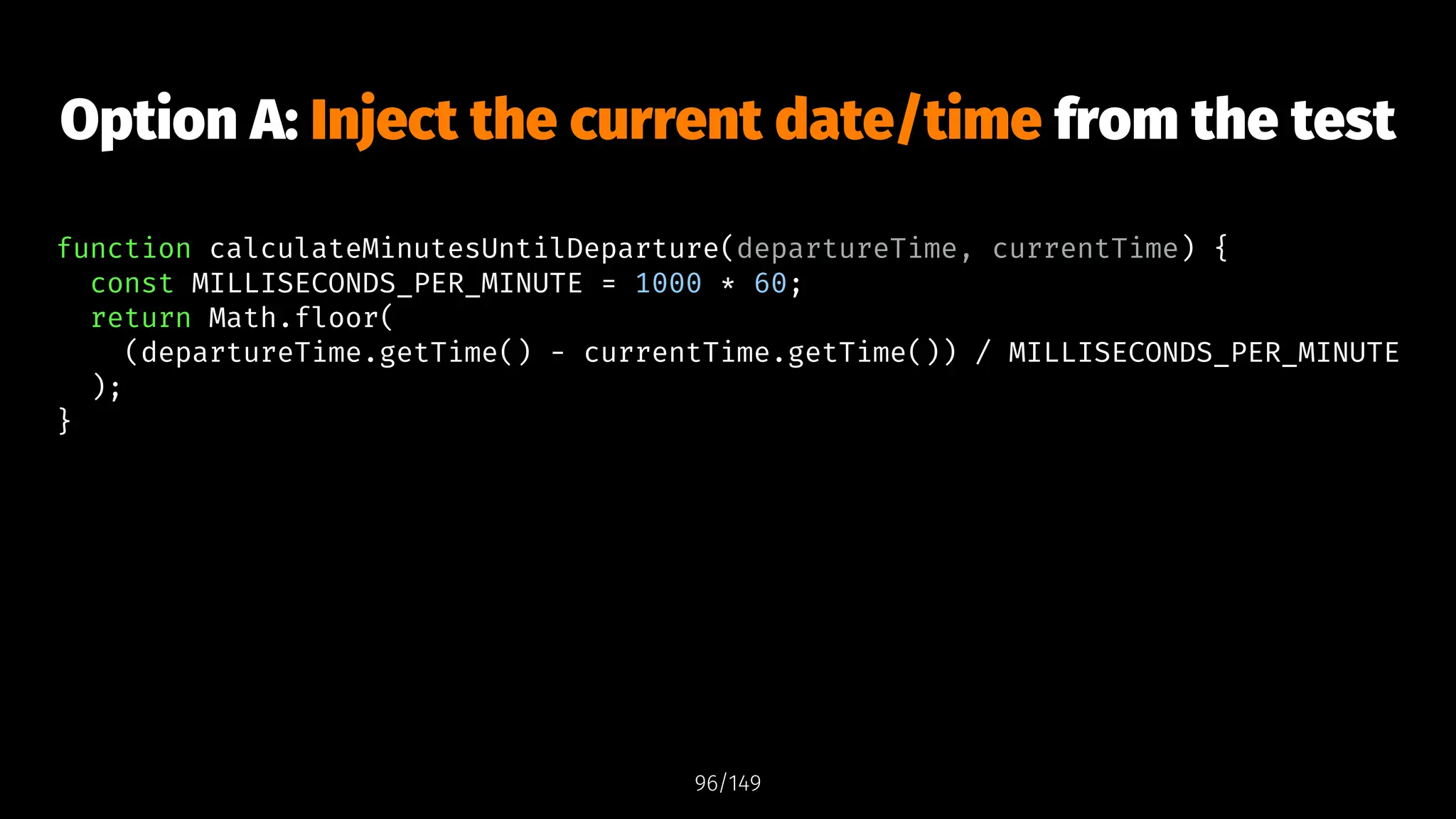

Option A: Inject the current date/time from the test
function calculateMinutesUntilDeparture(departureTime, currentTime) {
return Math.floor(
(departureTime.getTime() - currentTime.getTime()) / MILLISECONDS_PER_MINUTE
);
}
96/149

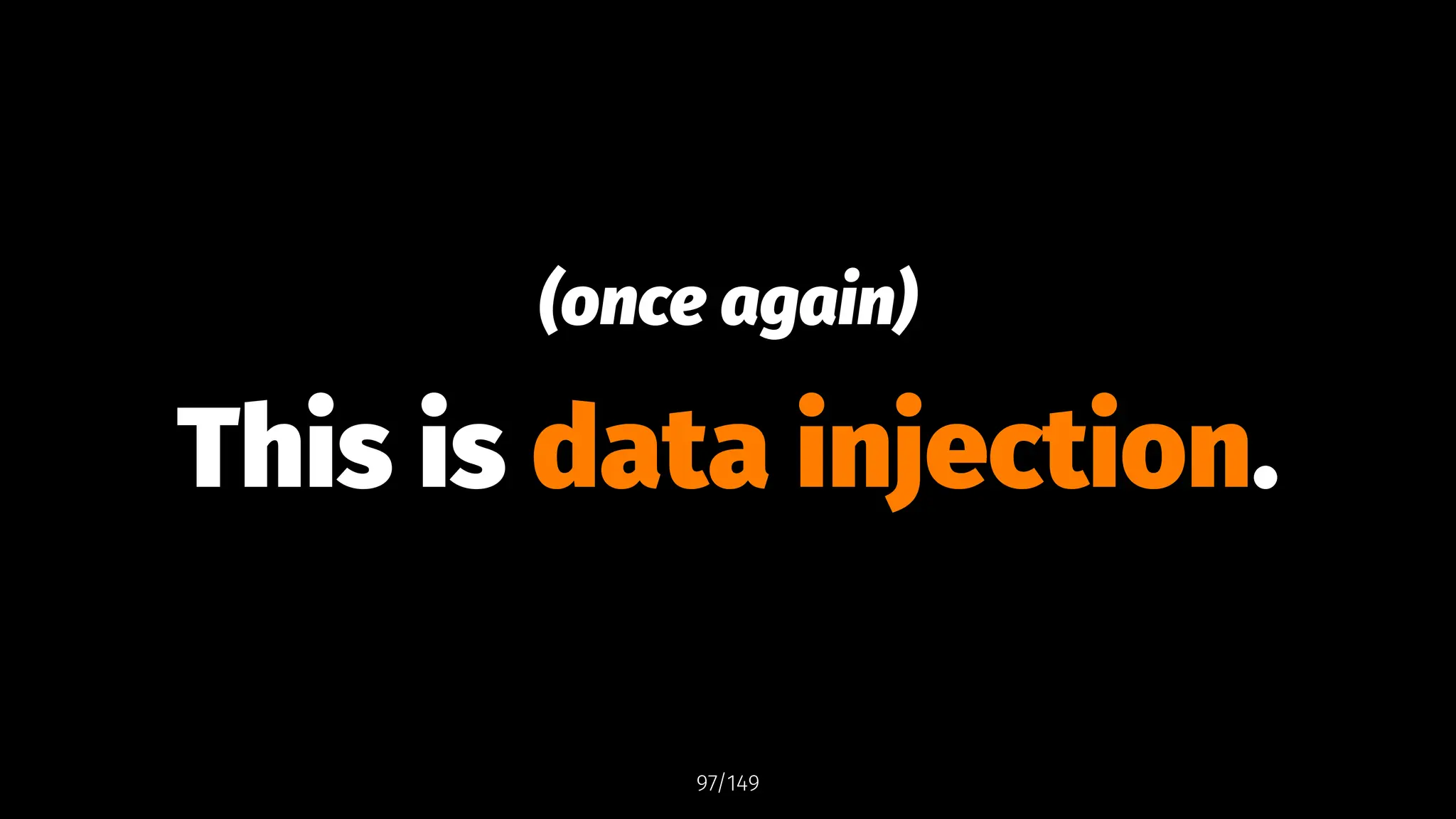

(once again)
This is data injection.
97/149

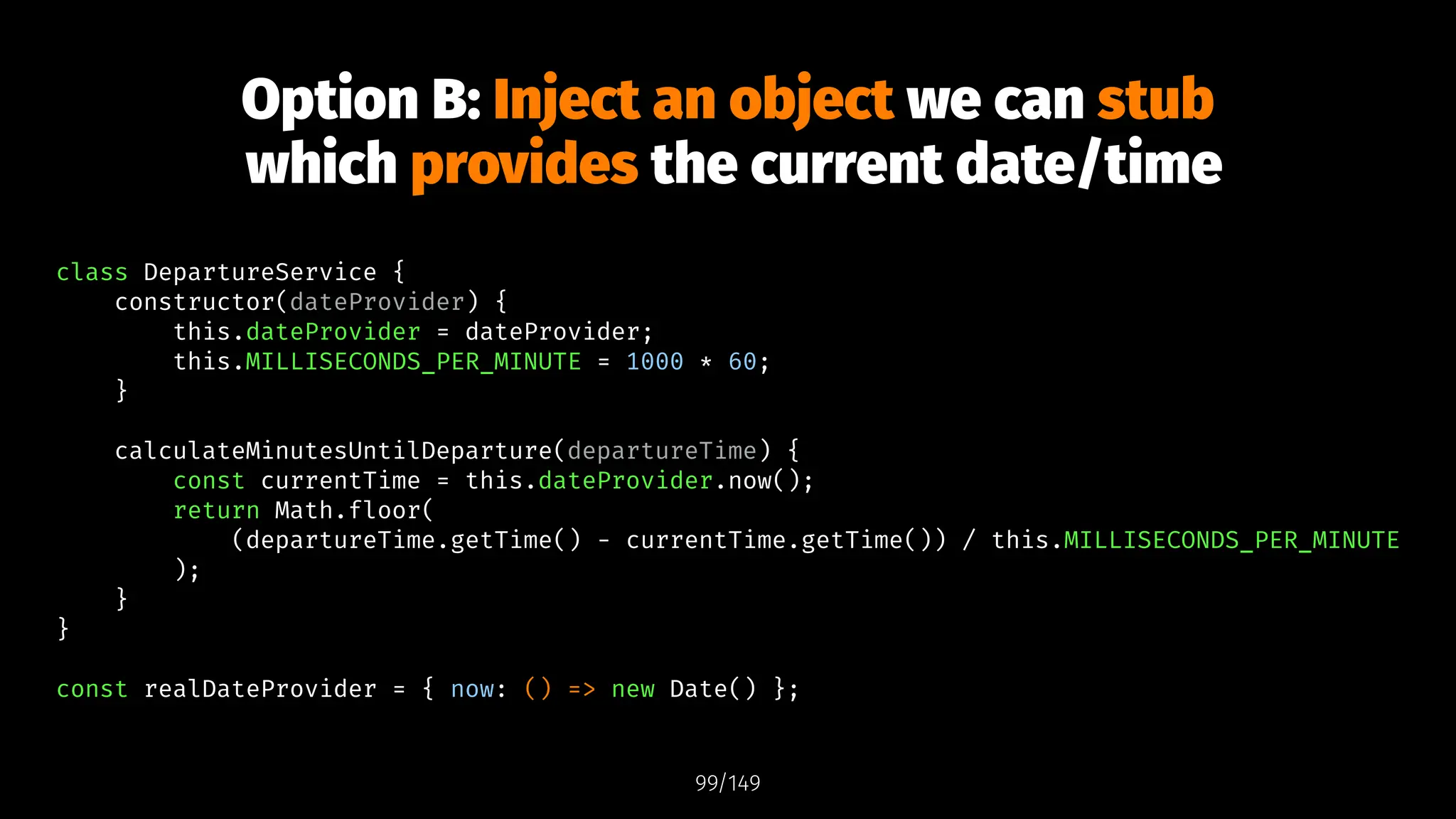

Option B: Inject an object we can stub
which provides the current date/time
class DepartureService {
constructor(dateProvider) {
this.dateProvider = dateProvider;
this.MILLISECONDS_PER_MINUTE = 1000 * 60;
}
calculateMinutesUntilDeparture(departureTime) {
const currentTime = this.dateProvider.now();
return Math.floor(
(departureTime.getTime() - currentTime.getTime()) / this.MILLISECONDS_PER_MINUTE
);
}
}
const realDateProvider = { now: () => new Date() };
99/149

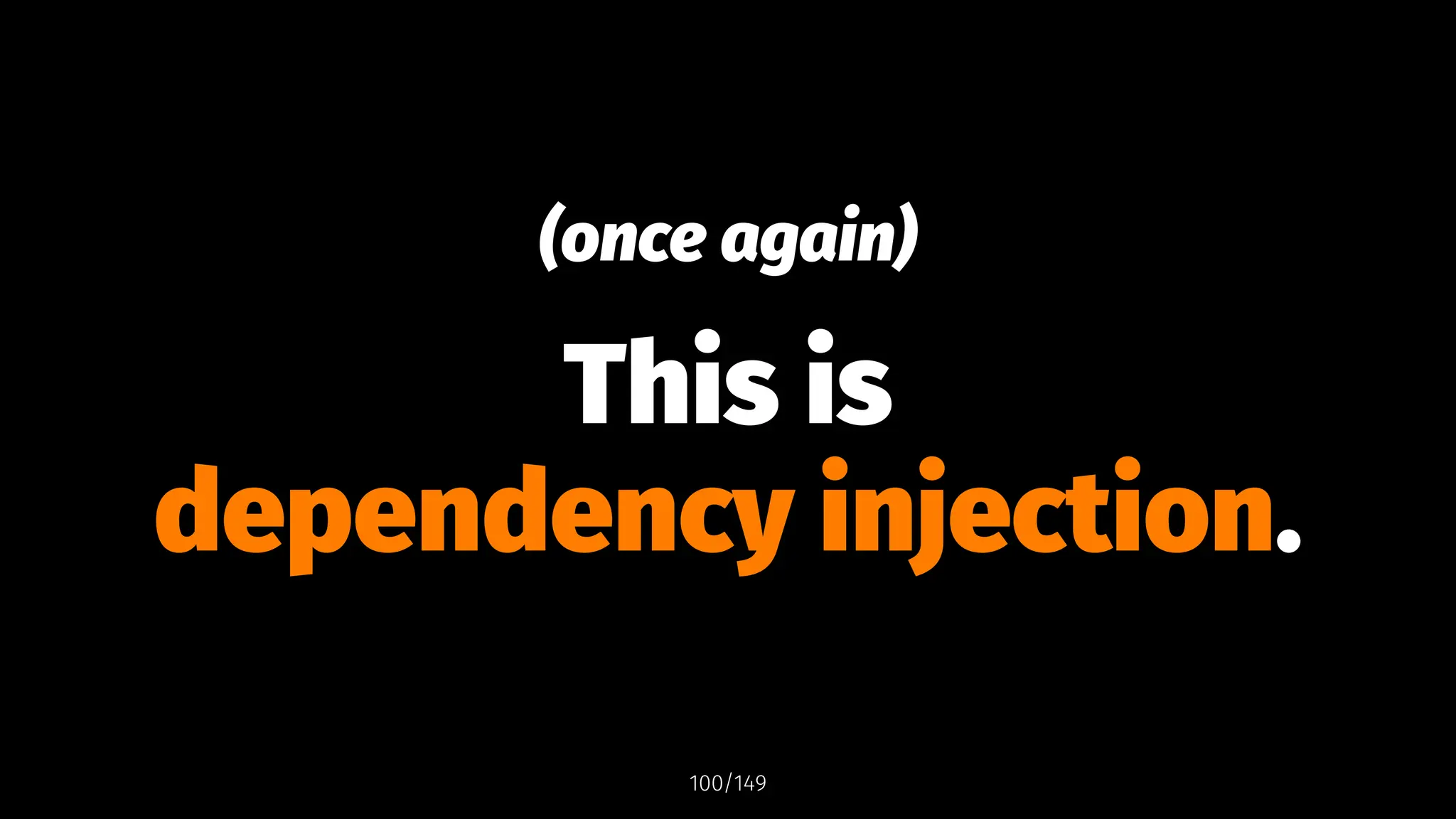

(once again)
This is
dependency injection.
100/149

Option C: ....
There are likely other options that could be
considered, but...
102/149

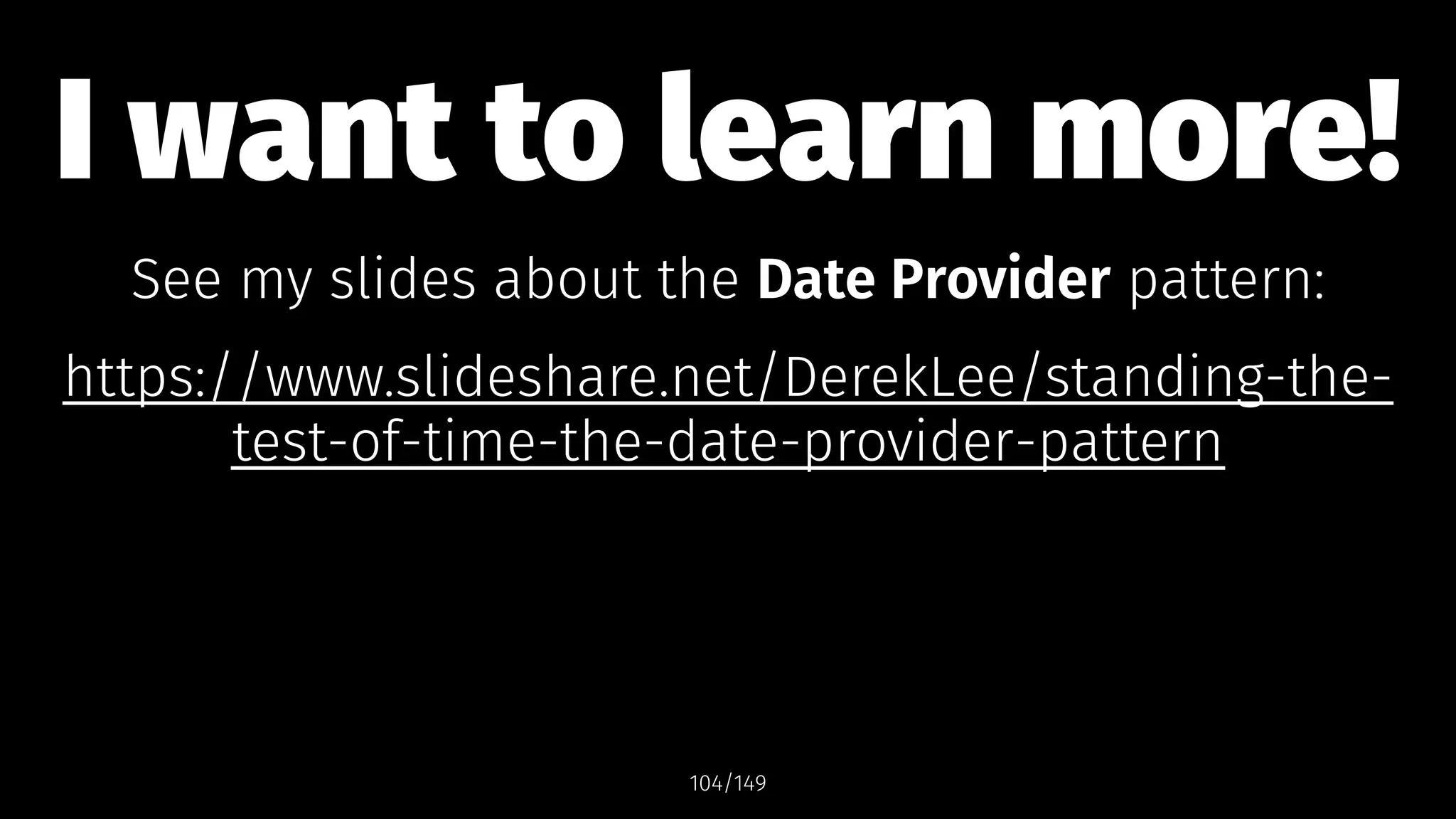

See my slides about the Date Provider pattern:
https://www.slideshare.net/DerekLee/standing-the-
test-of-time-the-date-provider-pattern
104/149

We're building the
infrastructure
for a
front end mobile app
to communicate with the
back-end HTTP API.
106/149

Remember,
we'll look at the
implementation code
first.
107/149

!
Before we can become
comfortable with testing,
108/149

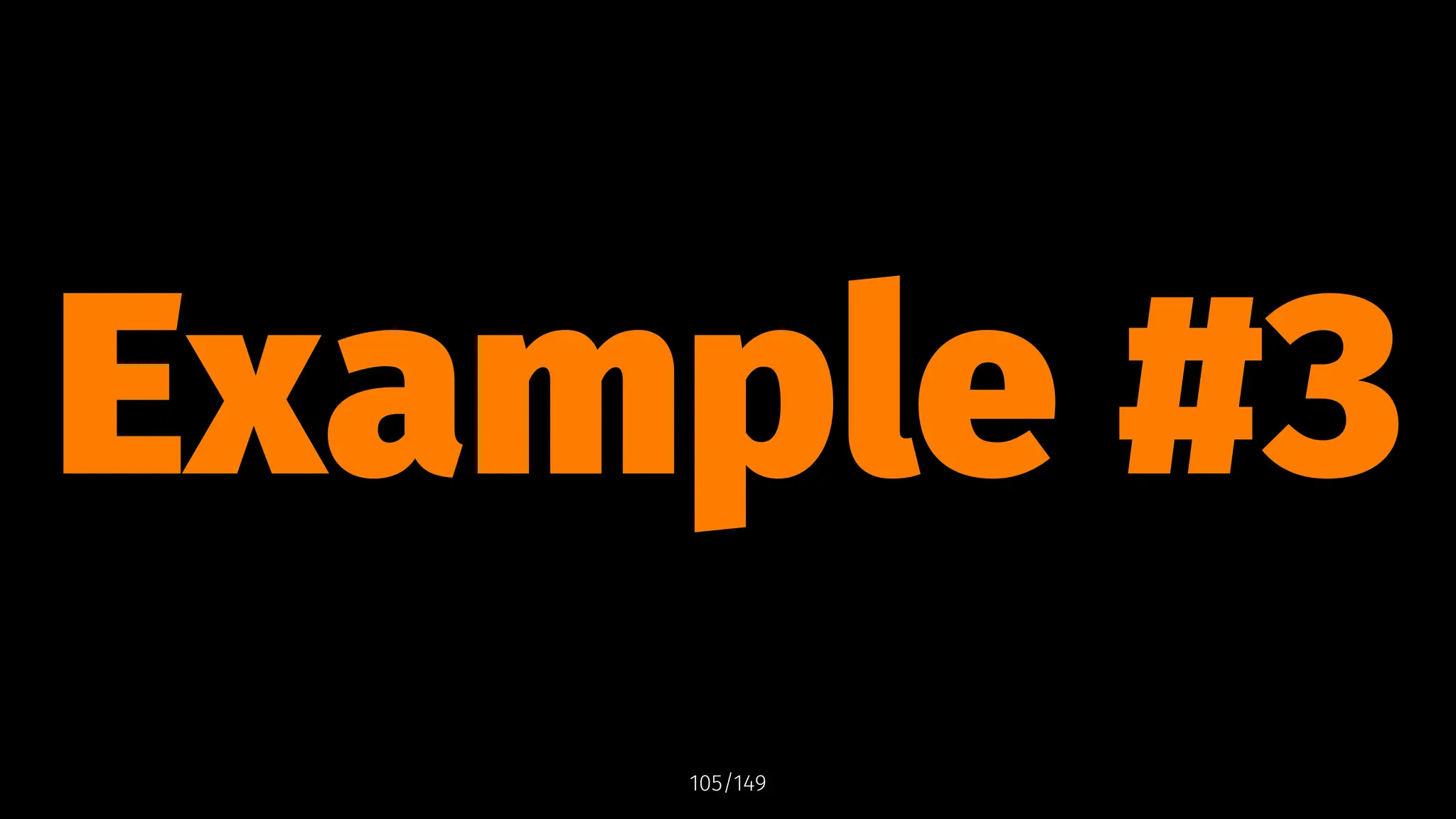

Example #3 [Impl] | Swift iOS
import Foundation
struct NetworkHttp {
let baseServerUrl: String
func get(endpoint: String) async throws -> Data {
let urlString = baseServerUrl + endpoint
let url = URL(string: urlString)!
let (data, _) = try await URLSession.shared.data(from: url)
return data
}
}
109/149

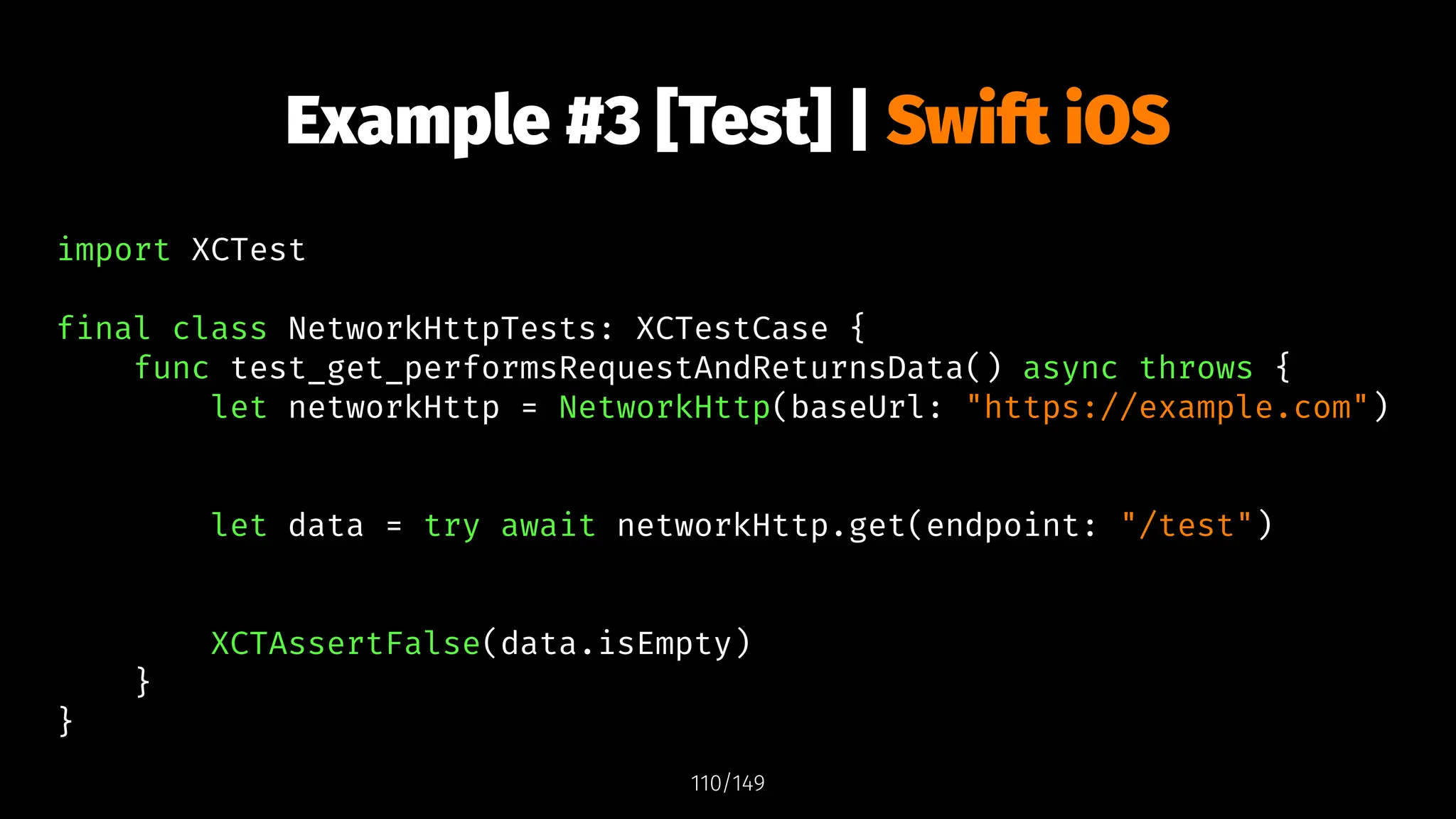

Example #3 [Test] | Swift iOS
import XCTest
final class NetworkHttpTests: XCTestCase {
func test_get_performsRequestAndReturnsData() async throws {
let networkHttp = NetworkHttp(baseUrl: "https://example.com")
let data = try await networkHttp.get(endpoint: "/test")
XCTAssertFalse(data.isEmpty)
}
}
110/149

What are some of the
challenges with this
testing approach?
111/149

This test depends on
real-world conditions.
If the server is down or the endpoint is
invalid, this test will fail.
112/149

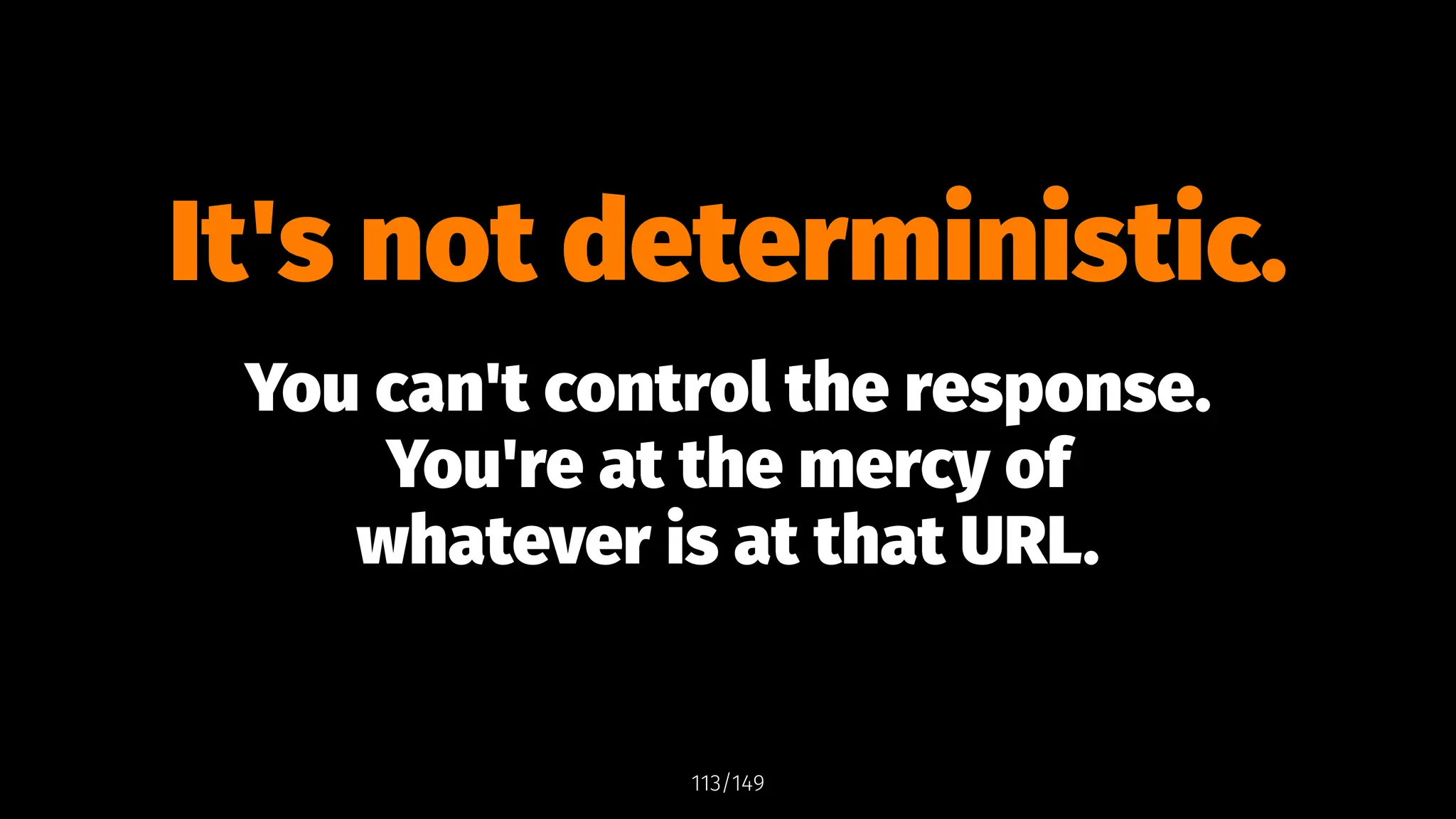

It's not deterministic.
You can't control the response.
You're at the mercy of
whatever is at that URL.
113/149

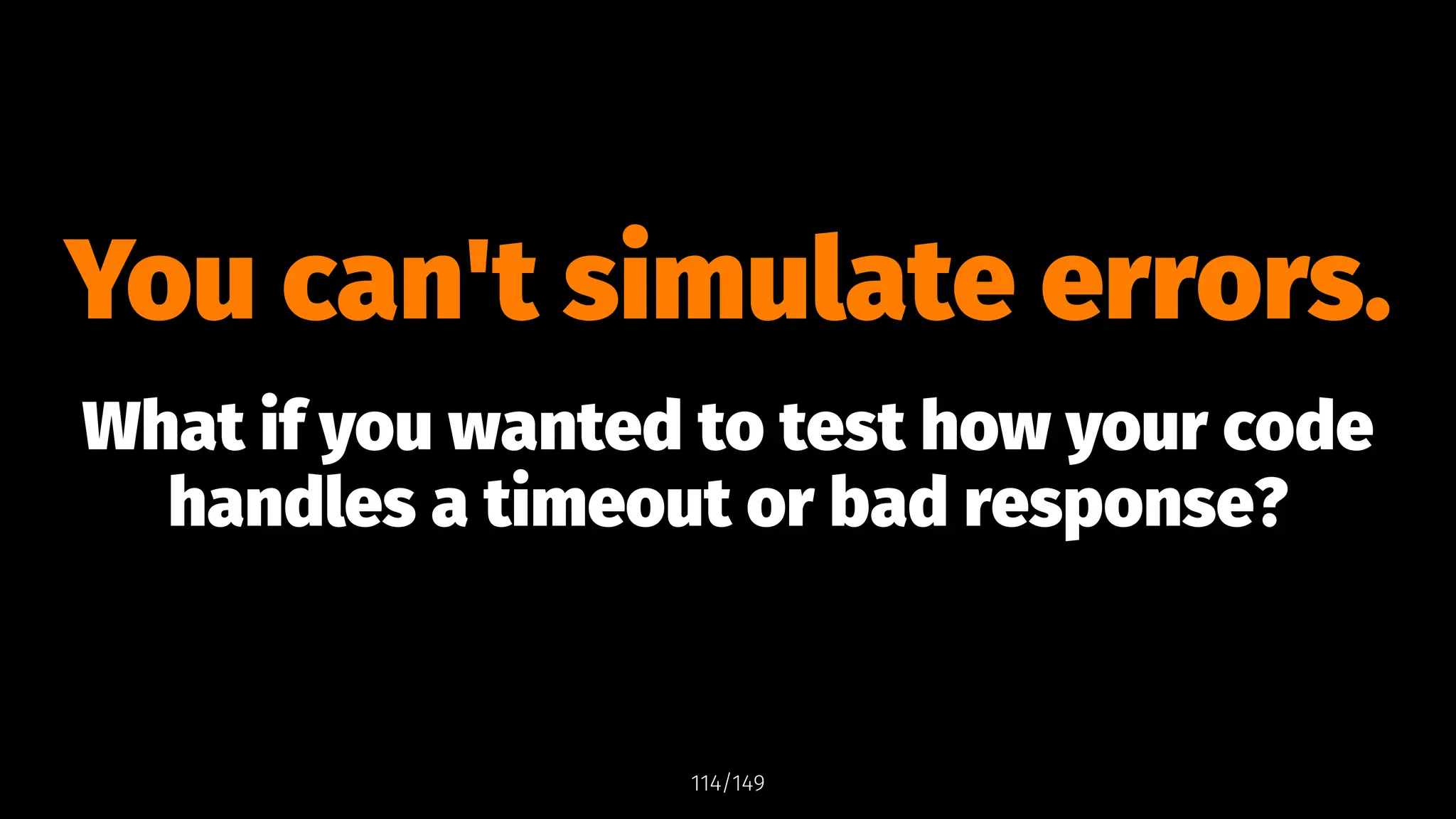

You can't simulate errors.
What if you wanted to test how your code
handles a timeout or bad response?
114/149

Flaky!
Fail on bad network
115/149

Long-running tests!
Network latency
116/149

Environment Instability!
"Works on my machine"
117/149

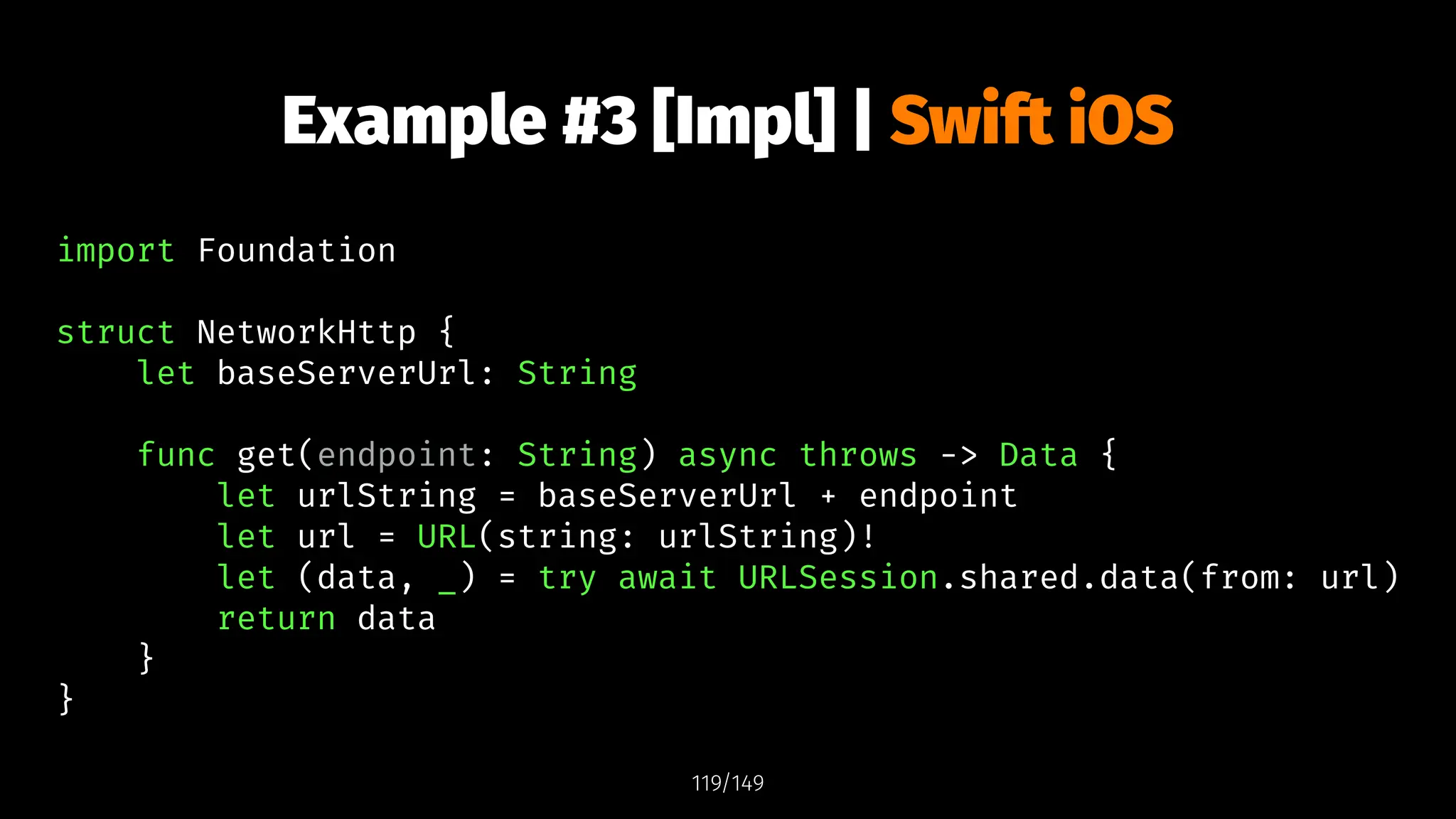

118/149

import Foundation
return data
}
}
119/149

What's a deceptively
simple question we could
ask here?
120/149

"What is this code
dependent on?"
122/149

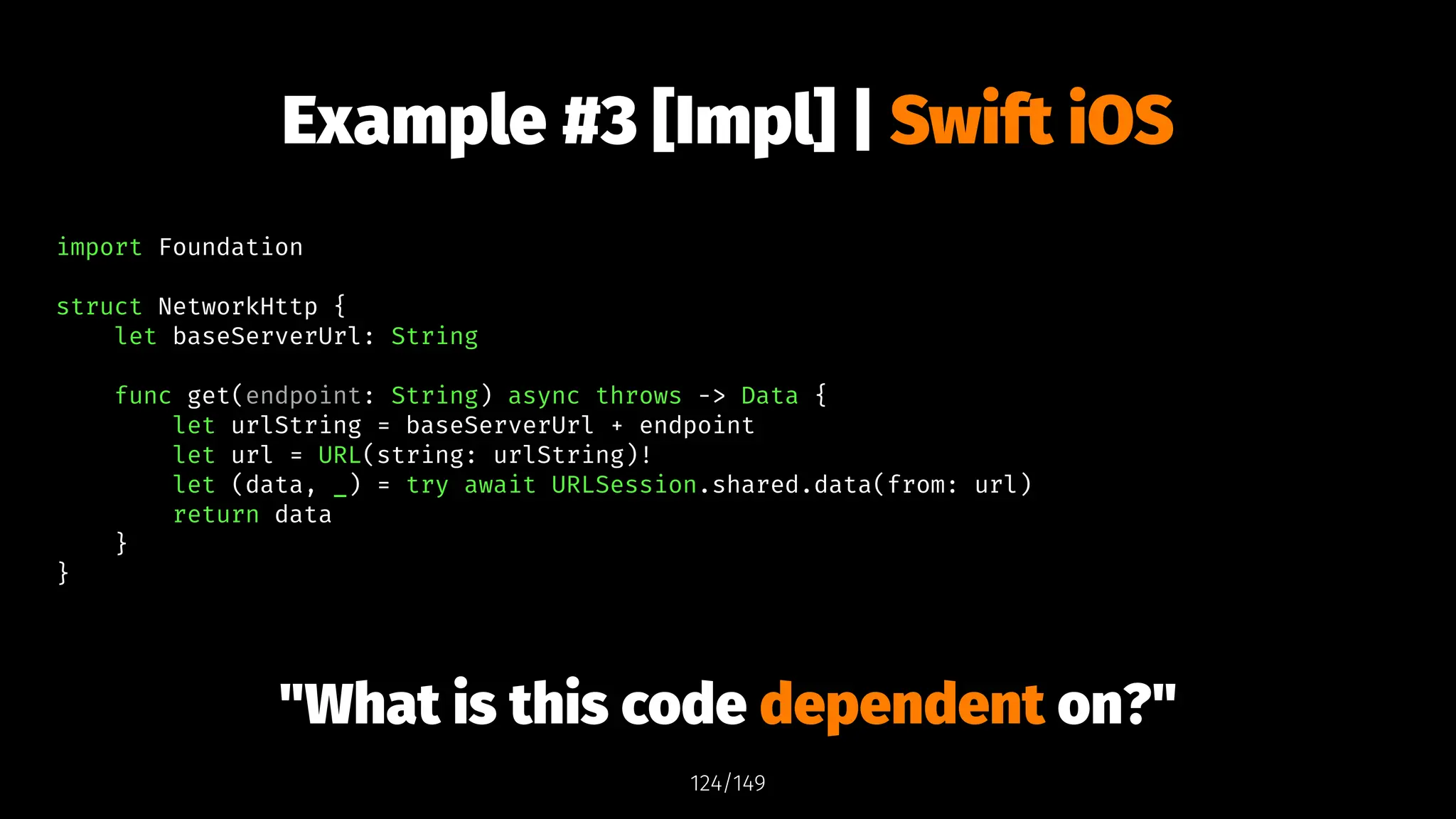

"What is this code
dependent on?"
123/149

import Foundation
return data
}
}
124/149

!

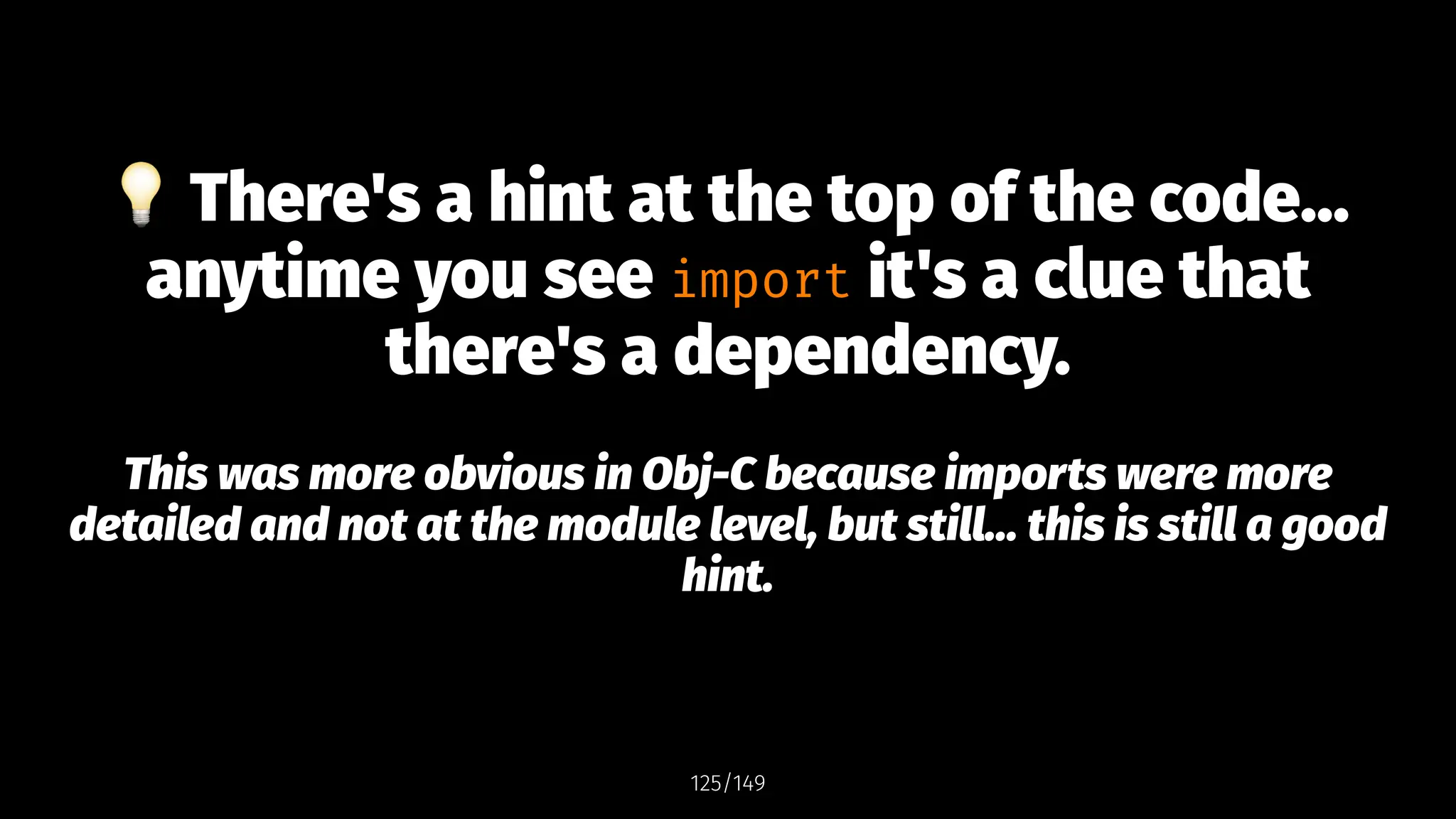

There's a hint at the top of the code...
anytime you see import it's a clue that
there's a dependency.
This was more obvious in Obj-C because imports were more
detailed and not at the module level, but still... this is still a good
hint.
125/149

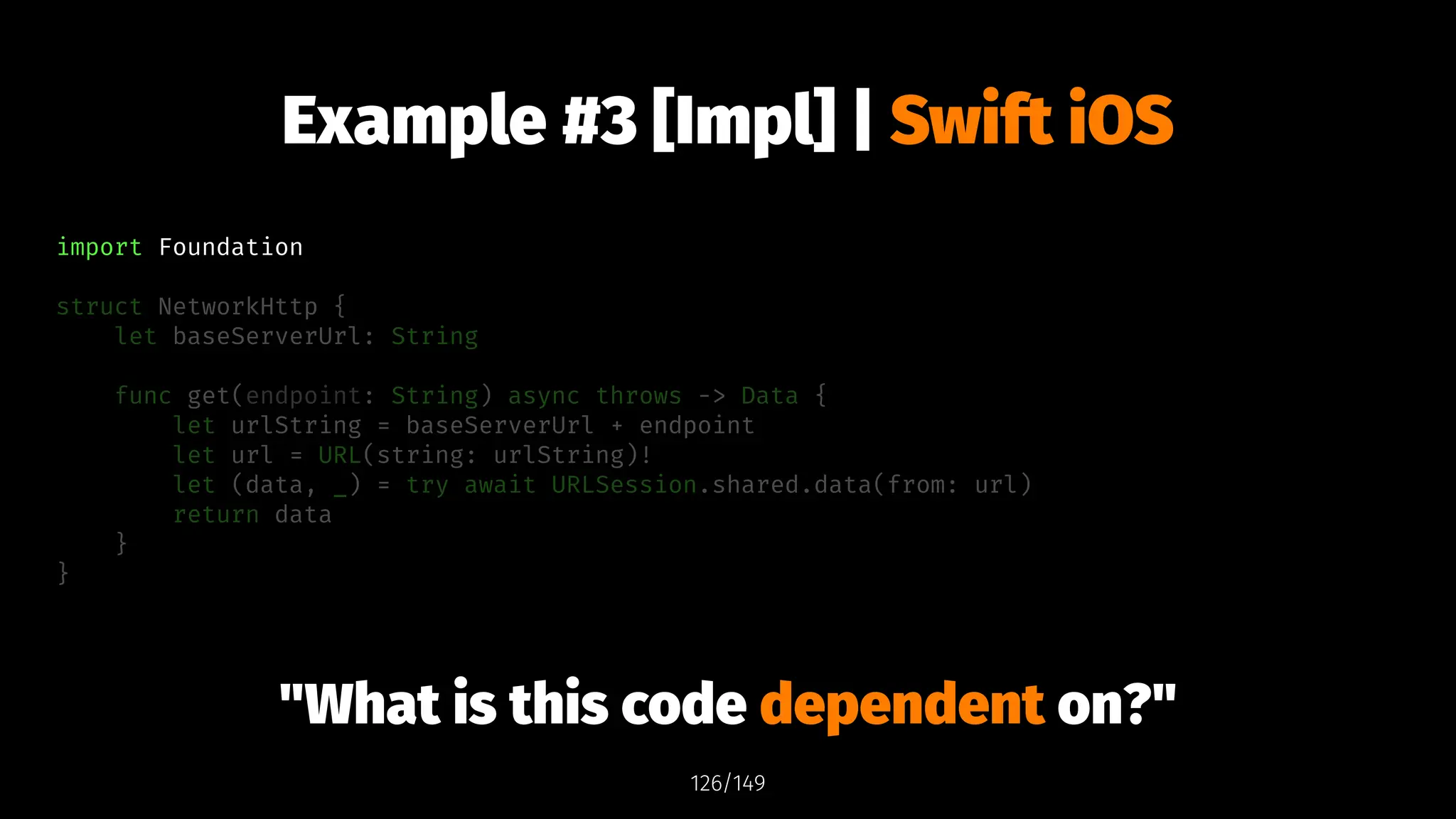

import Foundation
return data
}
}
126/149

import Foundation
return data
}
}
127/149

So how do we make this
code more testable?
128/149

There's a lot to this so I'll give you the
overview and you can check the details
later.
129/149

Example #3 [Impl v2] | Swift iOS
import Foundation
protocol NetworkSession {
func data(from url: URL) async throws -> (Data, URLResponse)
}
130/149

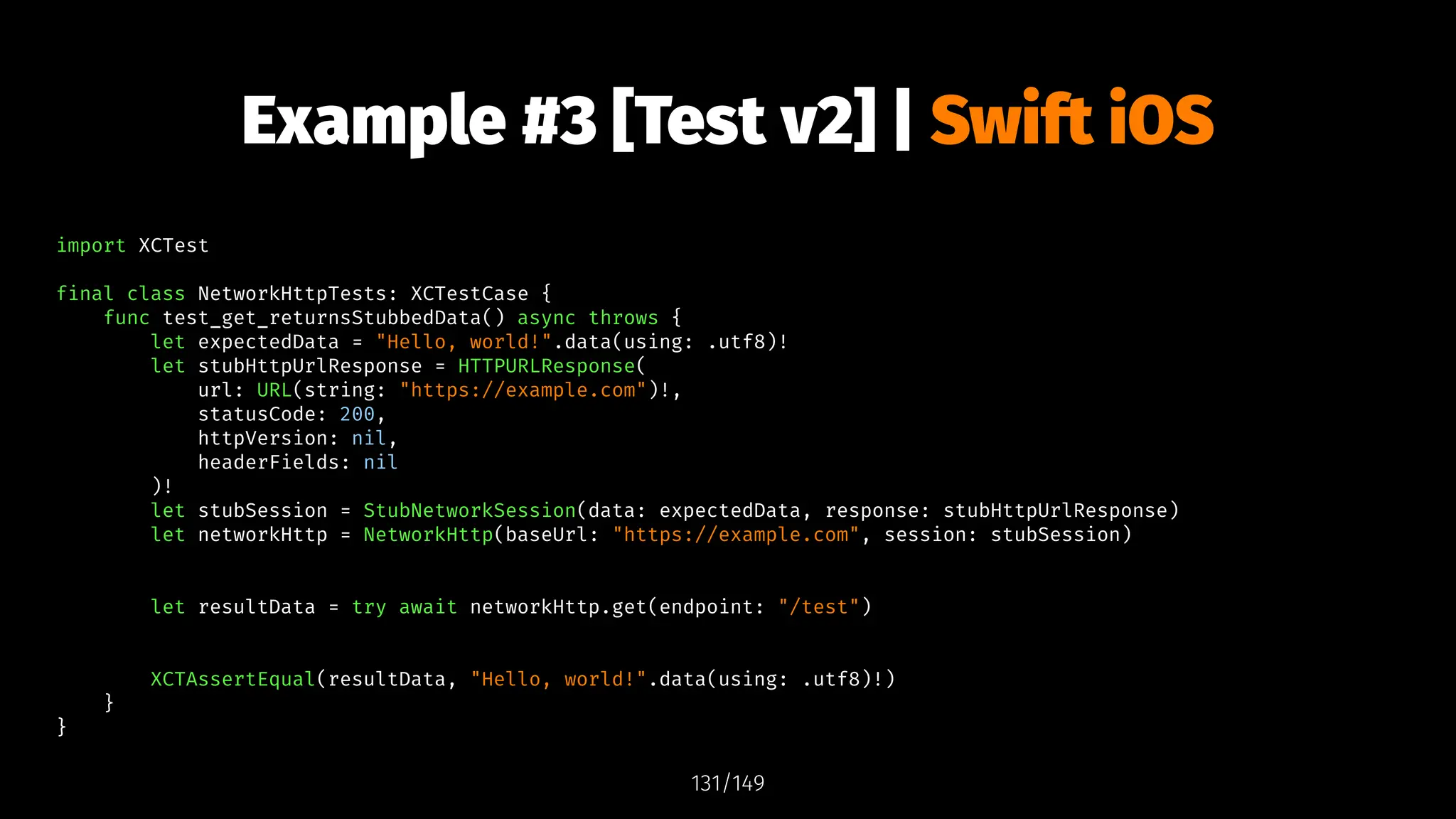

Example #3 [Test v2] | Swift iOS
import XCTest
final class NetworkHttpTests: XCTestCase {
func test_get_returnsStubbedData() async throws {
let expectedData = "Hello, world!".data(using: .utf8)!
let stubHttpUrlResponse = HTTPURLResponse(
url: URL(string: "https://example.com")!,
statusCode: 200,
httpVersion: nil,
headerFields: nil
)!
let stubSession = StubNetworkSession(data: expectedData, response: stubHttpUrlResponse)
let networkHttp = NetworkHttp(baseUrl: "https://example.com", session: stubSession)
let resultData = try await networkHttp.get(endpoint: "/test")
XCTAssertEqual(resultData, "Hello, world!".data(using: .utf8)!)
}
}
131/149

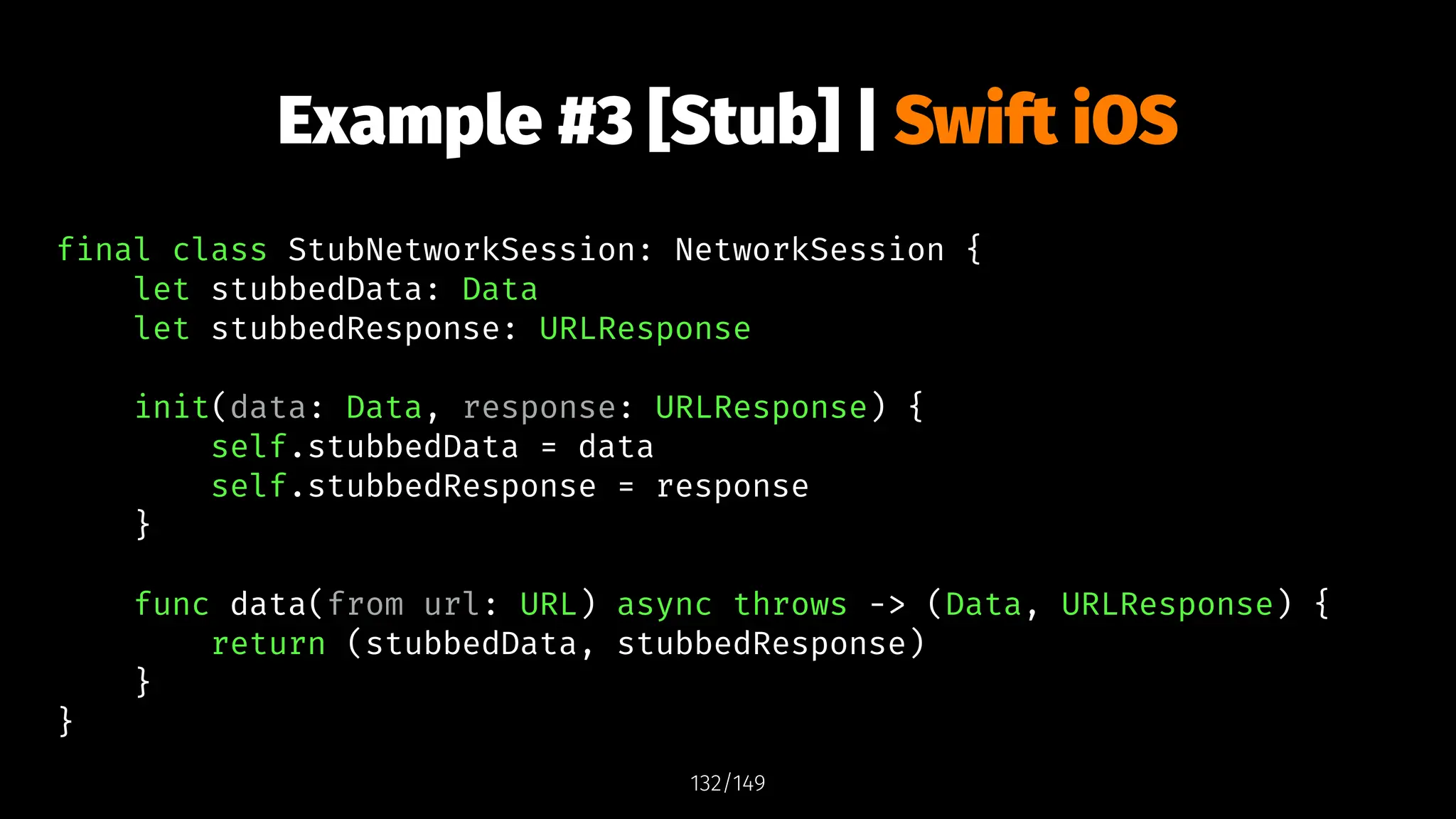

Example #3 [Stub] | Swift iOS
final class StubNetworkSession: NetworkSession {
let stubbedData: Data
let stubbedResponse: URLResponse
init(data: Data, response: URLResponse) {
self.stubbedData = data
self.stubbedResponse = response
}
func data(from url: URL) async throws -> (Data, URLResponse) {
return (stubbedData, stubbedResponse)
}
}
132/149

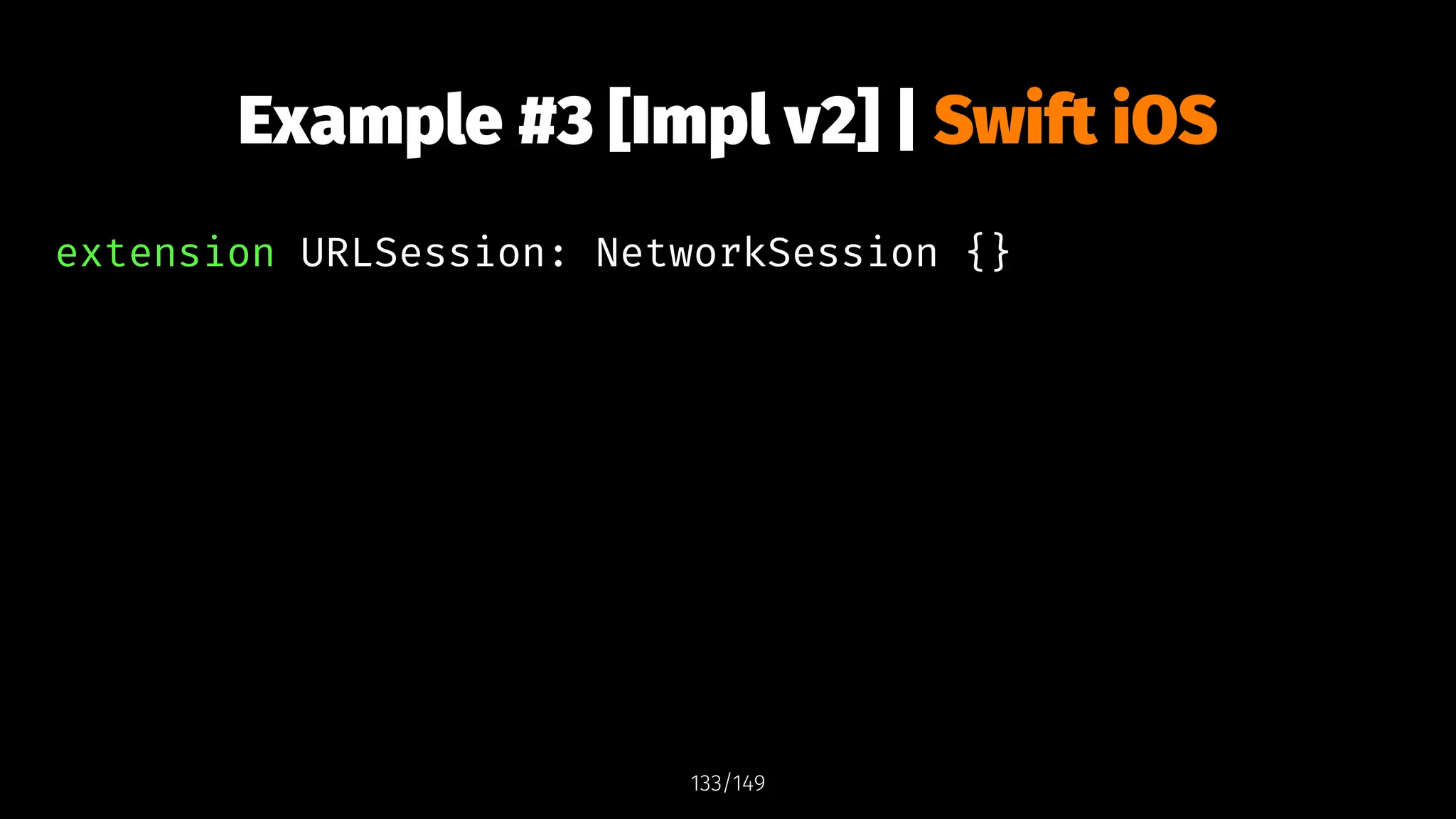

extension URLSession: NetworkSession {}
133/149

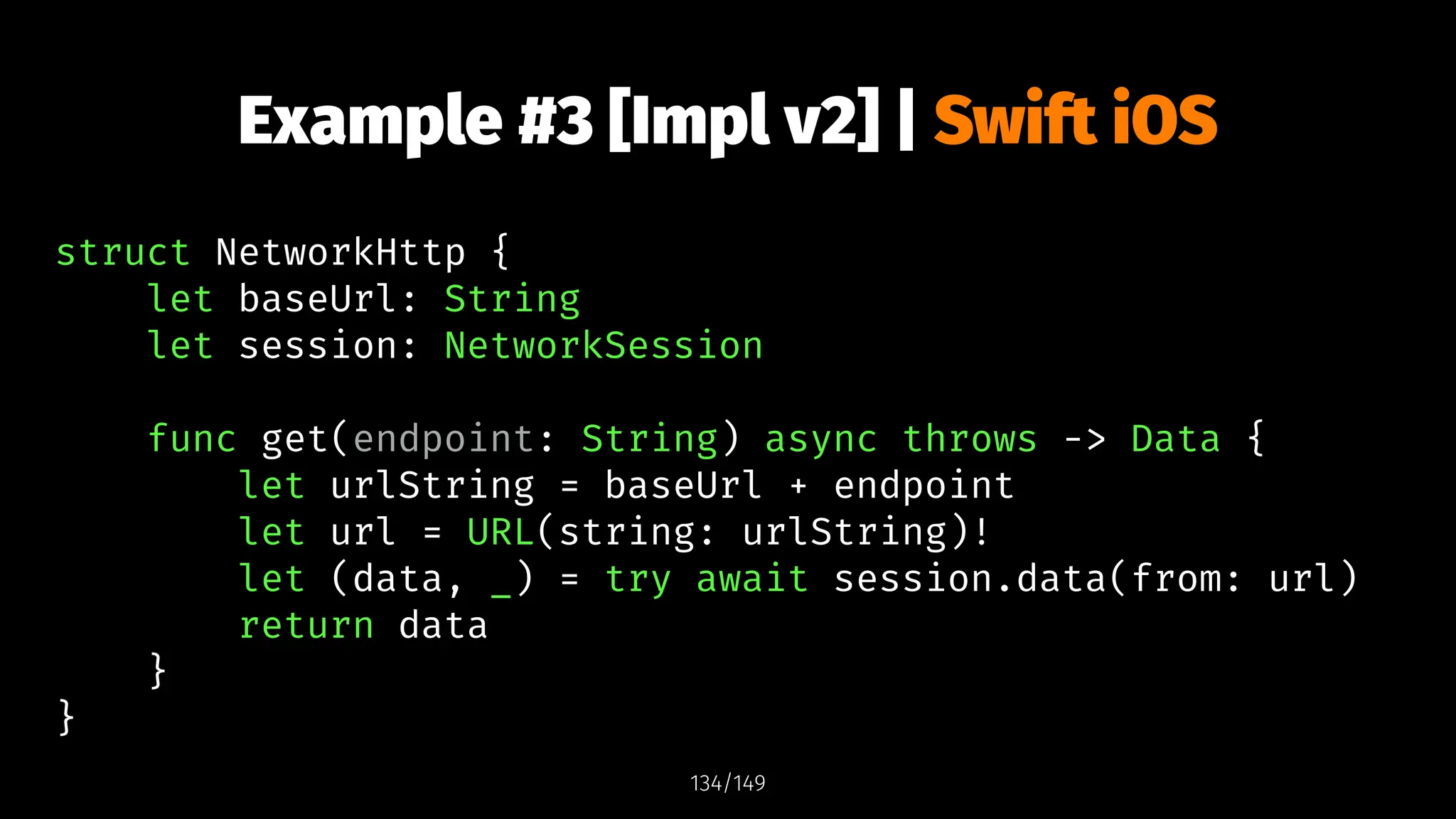

let baseUrl: String
let session: NetworkSession
let urlString = baseUrl + endpoint
let (data, _) = try await session.data(from: url)
return data
}
}
134/149

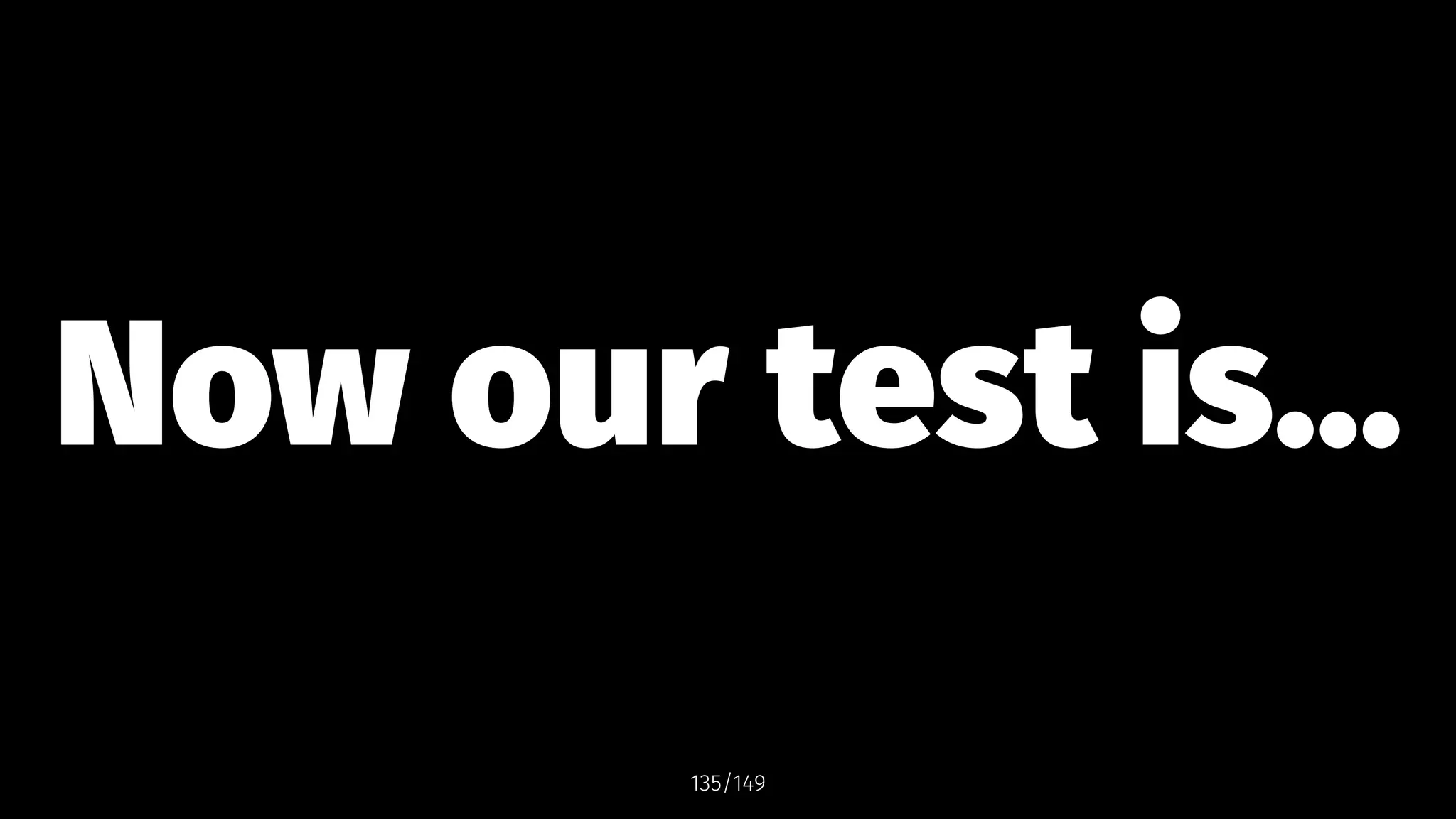

Fast
Deterministic
Doesn't touch the network
138/149

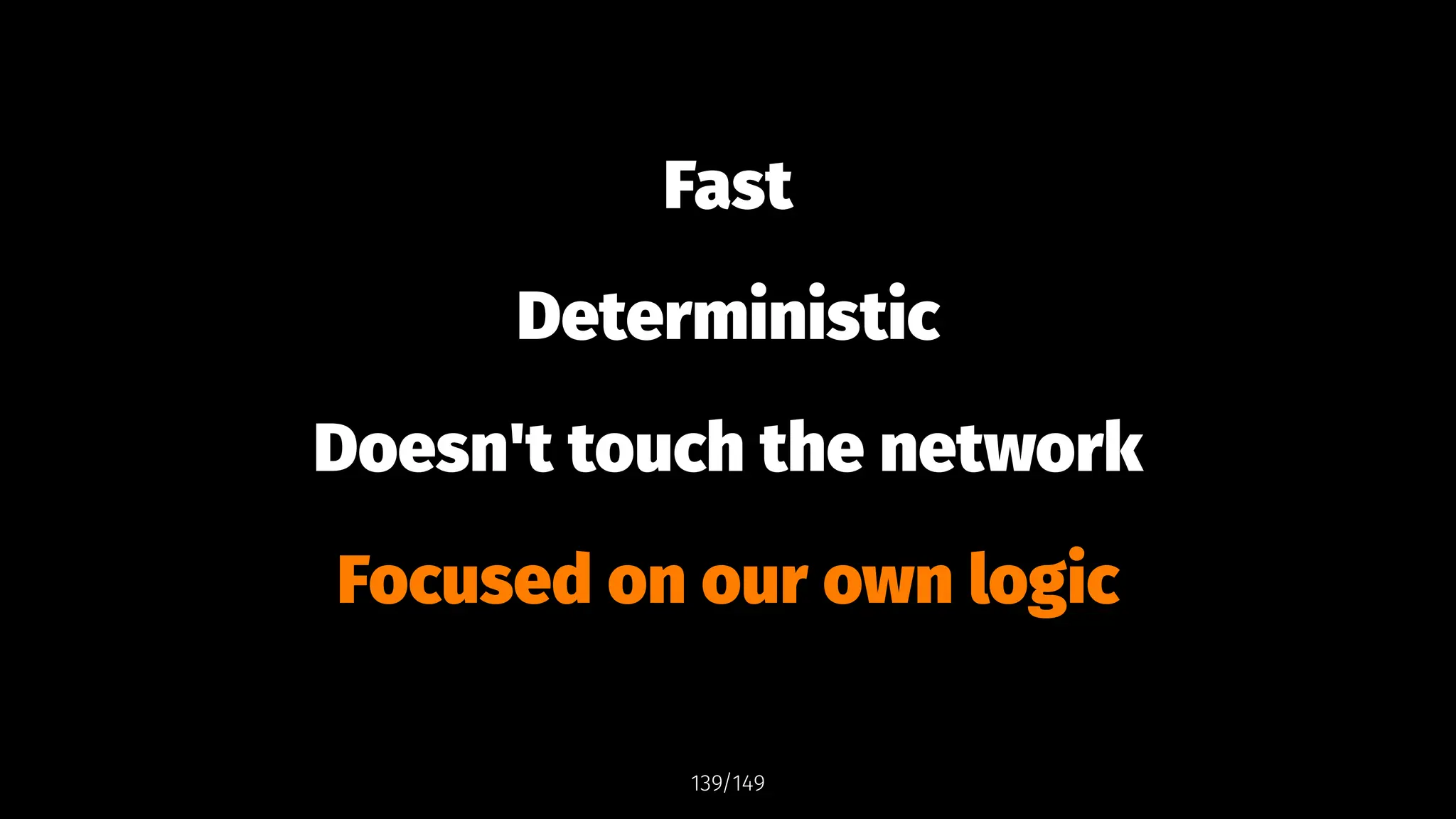

Fast
Deterministic
Doesn't touch the network
Focused on our own logic
139/149

!

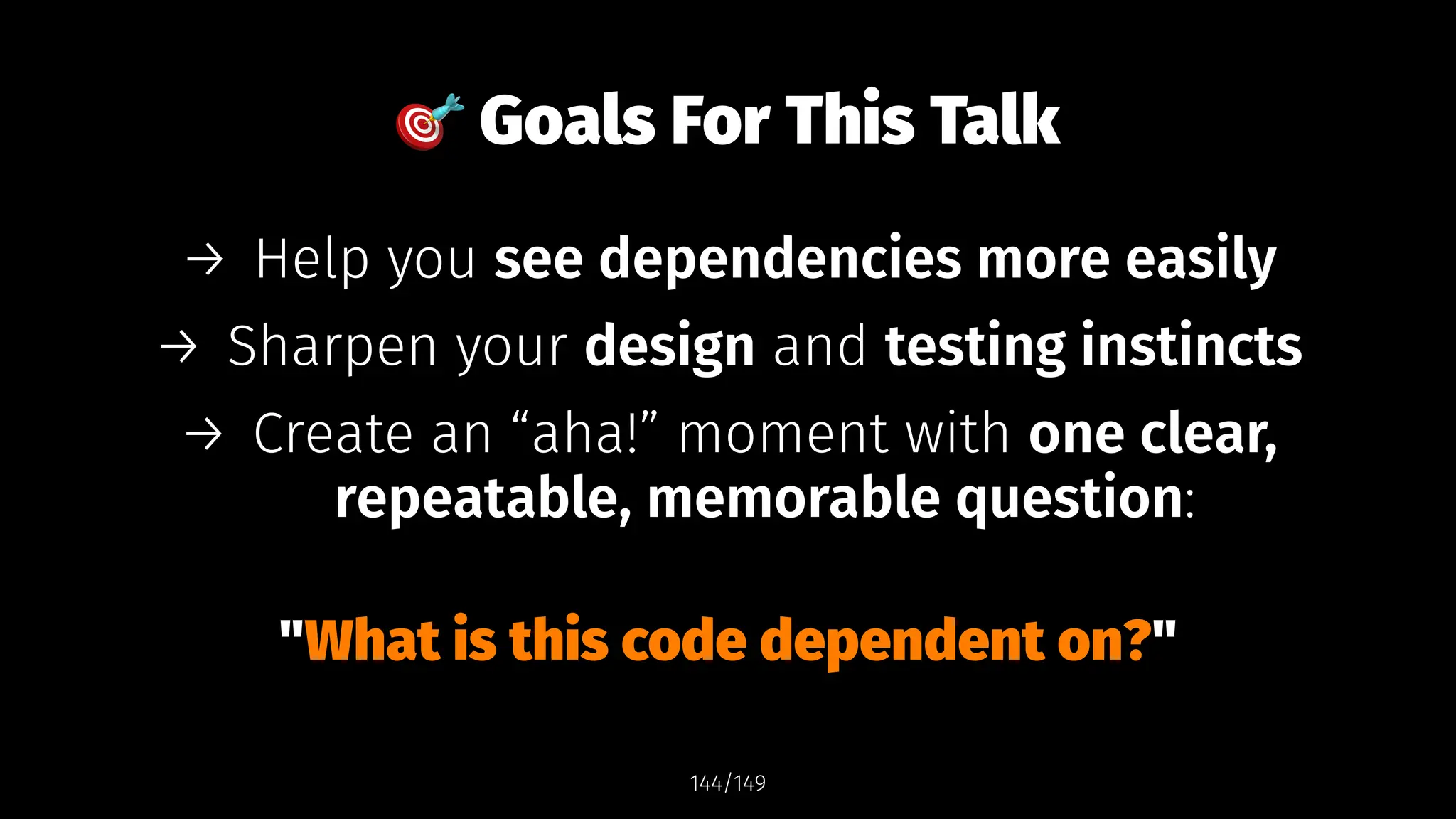

Goals For This Talk
→ Help you see dependencies more easily
→ Sharpen your design and testing instincts
→ Create an “aha!” moment with one clear,
repeatable, memorable question:
144/149

!
(... though I have strong, yet loosely-held, opinions on these! )
146/149

How did I do?
https://forms.gle/X18Wmspm5y2TyCfA7
Please share your feedback!
147/149

Thank you!
Tokyo Software Testing Meetup!
Attendees, Organizers,
Presenters, Le Wagon!
148/149

!
Thank you!
Find me online: @theextremeprogrammer
https://artandscienceofcoding.com/
149/149

One Deceptively Simple Question to Unlock Testability, Better Design, and TDD

More Related Content

Similar to One Deceptively Simple Question to Unlock Testability, Better Design, and TDD

More from Derek Lee

Recently uploaded

One Deceptively Simple Question to Unlock Testability, Better Design, and TDD
