1. 28 August 2015
Introduction to CDI

2. 1
1 Introduction to CDI
2 Basic Dependency Injection
3 Using Qualifiers to Distinguish Beans of the Same Type
4 Contexts
5 Producers and Disposers
6 Events
7 Interceptors
8 Decorators
9 CDI in Java SE
10 Using CDI and JPA Together
Agenda

3. 2

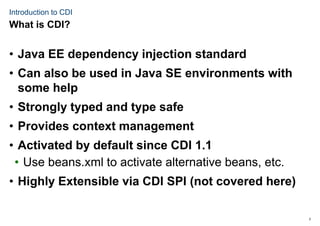

Introduction to CDI
• Java EE dependency injection standard
• Can also be used in Java SE environments with
some help
• Strongly typed and type safe
• Provides context management
• Activated by default since CDI 1.1
• Use beans.xml to activate alternative beans, etc.
• Highly Extensible via CDI SPI (not covered here)
What is CDI?

4. 3

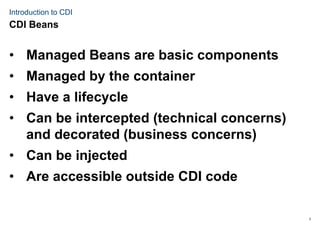

Introduction to CDI
• Managed Beans are basic components
• Managed by the container
• Have a lifecycle
• Can be intercepted (technical concerns)
and decorated (business concerns)
• Can be injected
• Are accessible outside CDI code
CDI Beans

5. 4

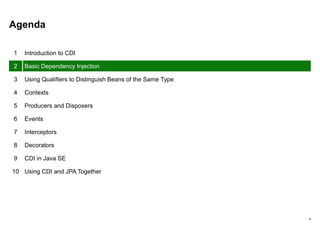

Agenda
1 Introduction to CDI
2 Basic Dependency Injection
3 Using Qualifiers to Distinguish Beans of the Same Type
4 Contexts
5 Producers and Disposers
6 Events
7 Interceptors
8 Decorators
9 CDI in Java SE
10 Using CDI and JPA Together

6. 5

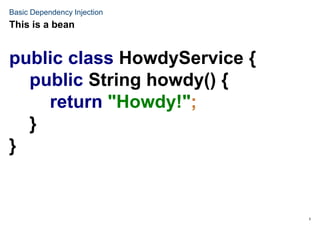

Basic Dependency Injection
public class HowdyService {
public String howdy() {
return "Howdy!";
}
}
This is a bean

7. 6

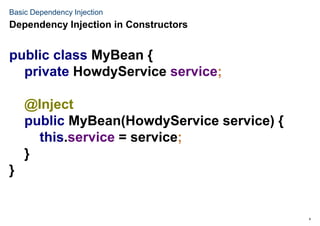

Basic Dependency Injection
public class MyBean {
private HowdyService service;
@Inject
public MyBean(HowdyService service) {
this.service = service;
}
}
Dependency Injection in Constructors

8. 7
Basic Dependency Injection
public class MyBean {
private HowdyService service;
@Inject
public void setService(HowdyService service) {
this.service = service;
}
}
Dependency Injection in Setter

9. 8
Basic Dependency Injection
public class MyBean {
@Inject
private HowdyService service;
public void sayHowdy() {
display(service.howdy());
}
}
Dependency Injection in Fields

10. 9

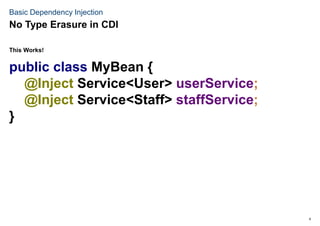

Basic Dependency Injection
This Works!
public class MyBean {
@Inject Service<User> userService;
@Inject Service<Staff> staffService;
}
No Type Erasure in CDI

11. 10

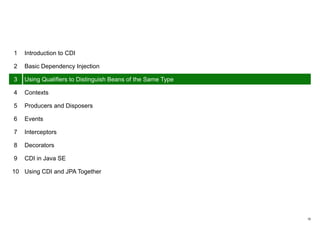

1 Introduction to CDI
2 Basic Dependency Injection
3 Using Qualifiers to Distinguish Beans of the Same Type
4 Contexts
5 Producers and Disposers
6 Events
7 Interceptors
8 Decorators
9 CDI in Java SE
10 Using CDI and JPA Together

12. 11
Using Qualifiers to Distinguish Beans of the Same Type
public interface HelloService {
public String hello();
}
public class TexanHelloService implements HelloService {
public String hello() {
return "Howdy!";
}
}
public class AustralianHelloService implements HelloService {
public String hello() {
return "G’day!";
}
}
Multiple Service Implementations

13. 12

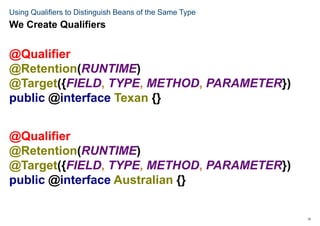

Using Qualifiers to Distinguish Beans of the Same Type
@Qualifier
@Retention(RUNTIME)
@Target({FIELD, TYPE, METHOD, PARAMETER})
public @interface Texan {}
@Qualifier
@Retention(RUNTIME)
@Target({FIELD, TYPE, METHOD, PARAMETER})
public @interface Australian {}
We Create Qualifiers

14. 13

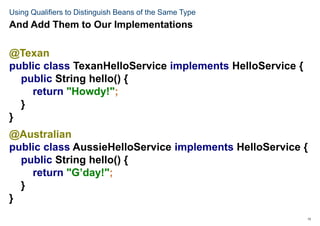

Using Qualifiers to Distinguish Beans of the Same Type
@Texan
public class TexanHelloService implements HelloService {
public String hello() {
return "Howdy!";
}
}
@Australian
public class AussieHelloService implements HelloService {
public String hello() {
return "G’day!";
}
}
And Add Them to Our Implementations

15. 14

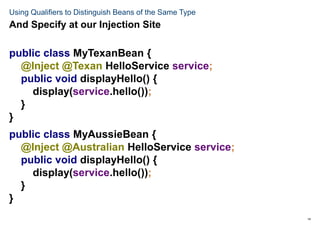

Using Qualifiers to Distinguish Beans of the Same Type
public class MyTexanBean {
@Inject @Texan HelloService service;
public void displayHello() {
display(service.hello());
}
}
public class MyAussieBean {
@Inject @Australian HelloService service;
public void displayHello() {
display(service.hello());
}
}
And Specify at our Injection Site

16. 15

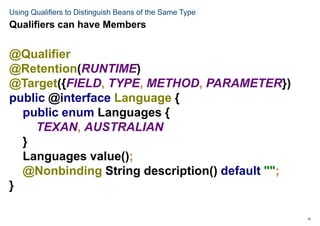

Using Qualifiers to Distinguish Beans of the Same Type
@Qualifier
@Retention(RUNTIME)
@Target({FIELD, TYPE, METHOD, PARAMETER})
public @interface Language {
public enum Languages {
TEXAN, AUSTRALIAN
}
Languages value();
@Nonbinding String description() default "";
}
Qualifiers can have Members

17. 16
Using Qualifiers to Distinguish Beans of the Same Type
@Language(TEXAN)
public class TexanHelloService implements HelloService {
public String hello() {
return "Howdy!";
}
}
@Language(AUSTRALIAN)
public class AussieHelloService implements HelloService {
public String hello() {
return "G’day!";
}
}
Class definition for Qualifiers with Members

18. 17

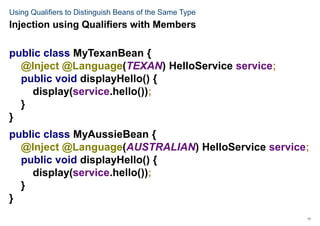

Using Qualifiers to Distinguish Beans of the Same Type
public class MyTexanBean {
@Inject @Language(TEXAN) HelloService service;
public void displayHello() {
display(service.hello());
}
}
public class MyAussieBean {
@Inject @Language(AUSTRALIAN) HelloService service;
public void displayHello() {
display(service.hello());
}
}
Injection using Qualifiers with Members

19. 18

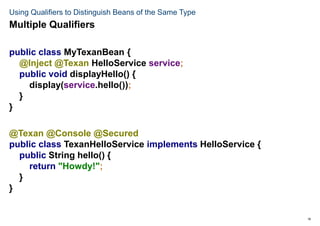

Using Qualifiers to Distinguish Beans of the Same Type
public class MyTexanBean {
@Inject @Texan HelloService service;
public void displayHello() {
display(service.hello());
}
}
@Texan @Console @Secured
public class TexanHelloService implements HelloService {
public String hello() {
return "Howdy!";
}
}
Multiple Qualifiers

20. 19

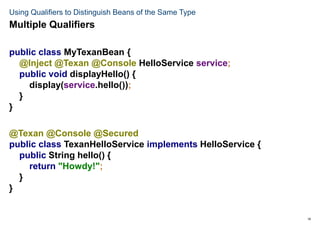

Using Qualifiers to Distinguish Beans of the Same Type
public class MyTexanBean {
@Inject @Texan @Console HelloService service;
public void displayHello() {
display(service.hello());
}
}
@Texan @Console @Secured
public class TexanHelloService implements HelloService {
public String hello() {
return "Howdy!";
}
}
Multiple Qualifiers

21. 20

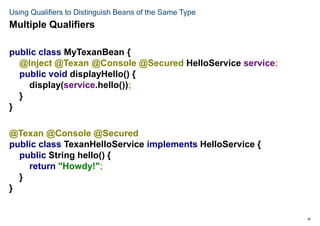

Using Qualifiers to Distinguish Beans of the Same Type
public class MyTexanBean {
@Inject @Texan @Console @Secured HelloService service;
public void displayHello() {
display(service.hello());
}
}
@Texan @Console @Secured
public class TexanHelloService implements HelloService {
public String hello() {
return "Howdy!";
}
}
Multiple Qualifiers

22. 21

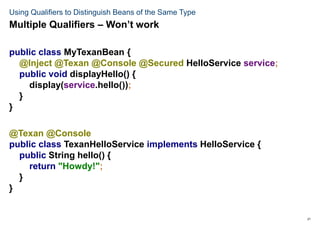

Using Qualifiers to Distinguish Beans of the Same Type
public class MyTexanBean {
@Inject @Texan @Console @Secured HelloService service;
public void displayHello() {
display(service.hello());
}
}
@Texan @Console
public class TexanHelloService implements HelloService {
public String hello() {
return "Howdy!";
}
}
Multiple Qualifiers – Won’t work

23. 22

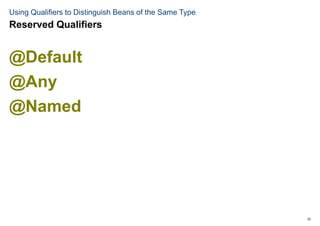

Using Qualifiers to Distinguish Beans of the Same Type
@Default
@Any
@Named
Reserved Qualifiers

24. 23
Using Qualifiers to Distinguish Beans of the Same Type
public class MyBean {
@Inject @Any
Instance<HelloService> service;
public void displayHello() {
HelloService helloService =
service.select(new AnnotationLiteral<Texan>(){}).get();
display(helloService.hello());
}
}
Programmatic Bean Lookup (a.k.a. Lazy Injection)

25. 24

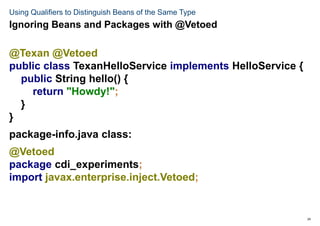

Using Qualifiers to Distinguish Beans of the Same Type
@Texan @Vetoed
public class TexanHelloService implements HelloService {
public String hello() {
return "Howdy!";
}
}
package-info.java class:
@Vetoed
package cdi_experiments;
import javax.enterprise.inject.Vetoed;
Ignoring Beans and Packages with @Vetoed

26. 25

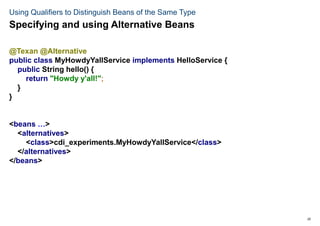

Using Qualifiers to Distinguish Beans of the Same Type
@Texan @Alternative
public class MyHowdyYallService implements HelloService {
public String hello() {
return "Howdy y'all!";
}
}
<beans …>
<alternatives>
<class>cdi_experiments.MyHowdyYallService</class>
</alternatives>
</beans>
Specifying and using Alternative Beans

27. 26

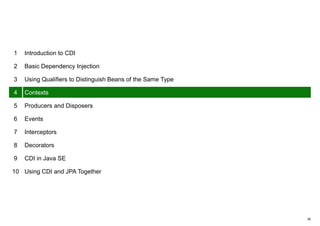

1 Introduction to CDI
2 Basic Dependency Injection
3 Using Qualifiers to Distinguish Beans of the Same Type
4 Contexts
5 Producers and Disposers
6 Events
7 Interceptors
8 Decorators
9 CDI in Java SE
10 Using CDI and JPA Together

28. 27

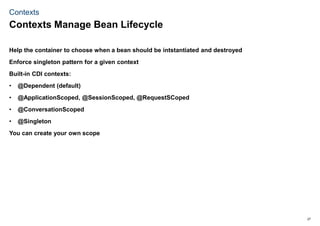

Contexts
Help the container to choose when a bean should be intstantiated and destroyed
Enforce singleton pattern for a given context
Built-in CDI contexts:
• @Dependent (default)
• @ApplicationScoped, @SessionScoped, @RequestSCoped
• @ConversationScoped
• @Singleton
You can create your own scope
Contexts Manage Bean Lifecycle

29. 28
Contexts
@SessionScoped
public class CartBean {
public void addItem(Item item) {
...
}
}
A shopping cart is almost always tied to a user’s session,
so using the @SessionScoped context makes the most
sense.
Choosing the Right Context

30. 29

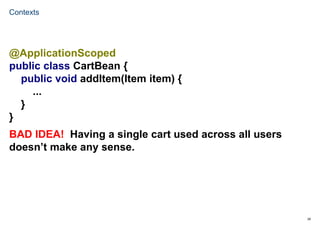

Contexts
@ApplicationScoped
public class CartBean {
public void addItem(Item item) {
...
}
}
BAD IDEA! Having a single cart used across all users
doesn’t make any sense.

31. 30
1 Introduction to CDI
2 Basic Dependency Injection
3 Using Qualifiers to Distinguish Beans of the Same Type
4 Contexts
5 Producers and Disposers
6 Events
7 Interceptors
8 Decorators
9 CDI in Java SE
10 Using CDI and JPA Together

32. 31

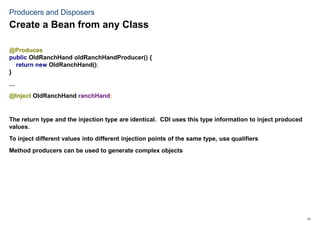

Producers and Disposers
@Produces
public OldRanchHand oldRanchHandProducer() {
return new OldRanchHand();
}
…
@Inject OldRanchHand ranchHand;
The return type and the injection type are identical. CDI uses this type information to inject produced
values.
To inject different values into different injection points of the same type, use qualifiers
Method producers can be used to generate complex objects
Create a Bean from any Class

33. 32

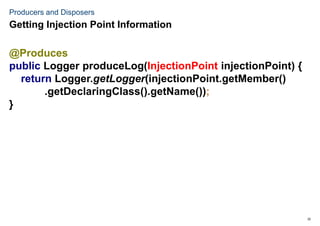

Producers and Disposers
@Produces
public Logger produceLog(InjectionPoint injectionPoint) {
return Logger.getLogger(injectionPoint.getMember()
.getDeclaringClass().getName());
}
Getting Injection Point Information

34. 33

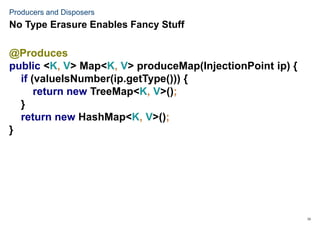

Producers and Disposers
@Produces
public <K, V> Map<K, V> produceMap(InjectionPoint ip) {
if (valueIsNumber(ip.getType())) {
return new TreeMap<K, V>();
}
return new HashMap<K, V>();
}
No Type Erasure Enables Fancy Stuff

35. 34
1 Introduction to CDI
2 Basic Dependency Injection
3 Using Qualifiers to Distinguish Beans of the Same Type
4 Contexts
5 Producers and Disposers
6 Events
7 Interceptors
8 Decorators
9 CDI in Java SE
10 Using CDI and JPA Together

36. 35
Events
public class MyTexanBean {
@Inject Event<HelloService> helloEvent;
@Inject @Texan HelloService service;
public void displayHello() {
display(service.hello());
}
public void iSaidHowdy(HelloService helloService) {
helloEvent.fire(helloService);
}
}
public class HelloListenerBean {
public void listenForHello(@Observes HelloService hello) {
System.out.println(hello.hello() + " to you too!");
}
}

37. 36
Events
public class HelloListenerBean {
public void listenForHello(@Observes @Texan HelloService hello) {
System.out.println(hello.hello() + " to you too!");
}
}
Qualifiers on Observers

38. 37

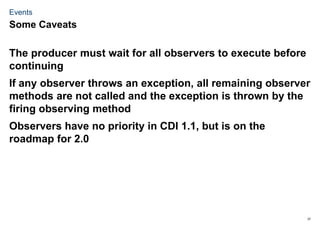

Events
The producer must wait for all observers to execute before
continuing
If any observer throws an exception, all remaining observer
methods are not called and the exception is thrown by the
firing observing method
Observers have no priority in CDI 1.1, but is on the
roadmap for 2.0
Some Caveats

39. 38
1 Introduction to CDI
2 Basic Dependency Injection
3 Using Qualifiers to Distinguish Beans of the Same Type
4 Contexts
5 Producers and Disposers
6 Events
7 Interceptors
8 Decorators
9 CDI in Java SE
10 Using CDI and JPA Together

40. 39

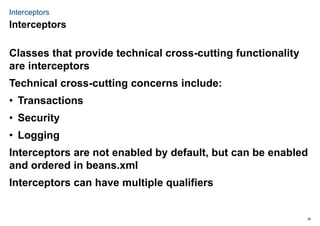

Interceptors
Classes that provide technical cross-cutting functionality
are interceptors
Technical cross-cutting concerns include:
• Transactions
• Security
• Logging
Interceptors are not enabled by default, but can be enabled
and ordered in beans.xml
Interceptors can have multiple qualifiers
Interceptors

41. 40
Interceptors
Interceptor bindings are qualifiers that instruct the CDI
container to intercept a method or all methods on a class
@InterceptorBinding
@Target({METHOD, TYPE})
@Retention(RUNTIME)
public @interface Loggable {}
Qualified Interceptor Binding

42. 41

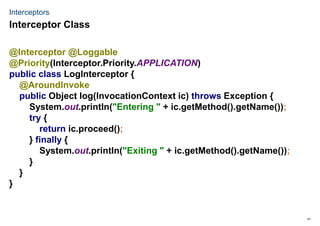

Interceptors
@Interceptor @Loggable
@Priority(Interceptor.Priority.APPLICATION)
public class LogInterceptor {
@AroundInvoke
public Object log(InvocationContext ic) throws Exception {
System.out.println("Entering " + ic.getMethod().getName());
try {
return ic.proceed();
} finally {
System.out.println("Exiting " + ic.getMethod().getName());
}
}
}
Interceptor Class

43. 42

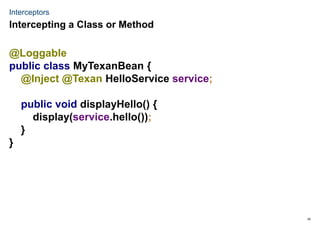

Interceptors
@Loggable
public class MyTexanBean {
@Inject @Texan HelloService service;
public void displayHello() {
display(service.hello());
}
}
Intercepting a Class or Method

44. 43

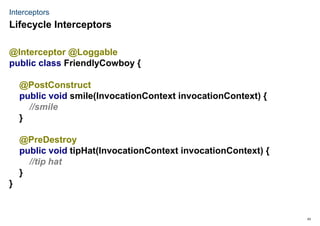

Interceptors
@Interceptor @Loggable
public class FriendlyCowboy {
@PostConstruct
public void smile(InvocationContext invocationContext) {
//smile
}
@PreDestroy
public void tipHat(InvocationContext invocationContext) {
//tip hat
}
}
Lifecycle Interceptors

45. 44
1 Introduction to CDI
2 Basic Dependency Injection
3 Using Qualifiers to Distinguish Beans of the Same Type
4 Contexts
5 Producers and Disposers
6 Events
7 Interceptors
8 Decorators
9 CDI in Java SE
10 Using CDI and JPA Together

46. 45

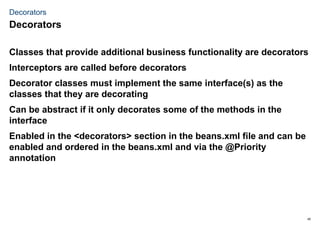

Decorators
Classes that provide additional business functionality are decorators
Interceptors are called before decorators
Decorator classes must implement the same interface(s) as the
classes that they are decorating
Can be abstract if it only decorates some of the methods in the
interface
Enabled in the <decorators> section in the beans.xml file and can be
enabled and ordered in the beans.xml and via the @Priority
annotation
Decorators

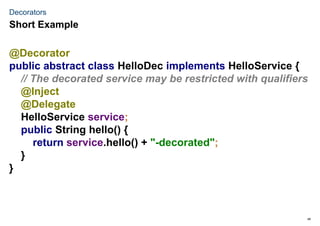

47. 46
Decorators
@Decorator
public abstract class HelloDec implements HelloService {
// The decorated service may be restricted with qualifiers
@Inject
@Delegate
HelloService service;
public String hello() {
return service.hello() + "-decorated";
}
}
Short Example

48. 47

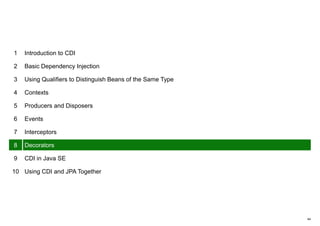

1 Introduction to CDI
2 Basic Dependency Injection
3 Using Qualifiers to Distinguish Beans of the Same Type
4 Contexts
5 Producers and Disposers
6 Events
7 Interceptors
8 Decorators
9 CDI in Java SE
10 Using CDI and JPA Together

49. 48
CDI in Java SE
Currently possible through the DeltaSpike library
Slated for standardization in CDI 2.0
public class MainApp {
public static void main(String[] args) {
CdiContainer cdiContainer = CdiContainerLoader.getCdiContainer();
cdiContainer.boot();
// Starting the application-context enables use of @ApplicationScoped beans
ContextControl contextControl = cdiContainer.getContextControl();
contextControl.startContext(ApplicationScoped.class);
// You can use CDI here
//...
cdiContainer.shutdown();
}
}
CDI – Not Just for JEE!

50. 49

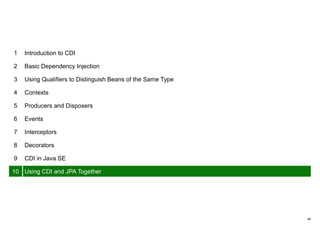

1 Introduction to CDI
2 Basic Dependency Injection
3 Using Qualifiers to Distinguish Beans of the Same Type
4 Contexts
5 Producers and Disposers
6 Events
7 Interceptors
8 Decorators
9 CDI in Java SE
10 Using CDI and JPA Together

51. 50

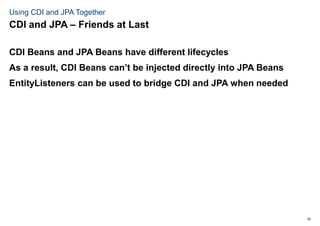

Using CDI and JPA Together
CDI Beans and JPA Beans have different lifecycles
As a result, CDI Beans can’t be injected directly into JPA Beans
EntityListeners can be used to bridge CDI and JPA when needed
CDI and JPA – Friends at Last

52. 51

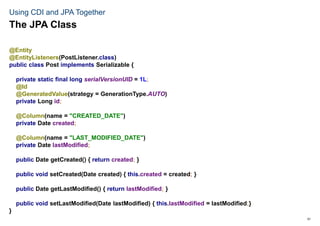

Using CDI and JPA Together
@Entity
@EntityListeners(PostListener.class)
public class Post implements Serializable {
private static final long serialVersionUID = 1L;
@Id
@GeneratedValue(strategy = GenerationType.AUTO)
private Long id;
@Column(name = "CREATED_DATE")
private Date created;
@Column(name = "LAST_MODIFIED_DATE")
private Date lastModified;
public Date getCreated() { return created; }
public void setCreated(Date created) { this.created = created; }
public Date getLastModified() { return lastModified; }
public void setLastModified(Date lastModified) { this.lastModified = lastModified;}
}
The JPA Class

53. 52
Using CDI and JPA Together
public class PostListener {
@Inject Logger log;
@PrePersist
public void prePresist(Object o) {
log.info("call prePresist");
if (o instanceof Post) {
Post post = (Post) o;
final Date created = new Date();
post.setCreated(created);
post.setLastModified(created);
}
}
@PreUpdate
public void preUpdate(Object o) {
log.info("call preUpdate");
if (o instanceof Post) {
Post post = (Post) o;
post.setLastModified(new Date());
}
}
}
