This document discusses magnetism and magnetic fields. It describes testing magnets by bringing specimens near magnet poles to observe attraction or repulsion. Induced magnetism occurs when an unmagnetized material becomes a magnet when near a permanent magnet. The document also discusses the theory of magnet domains, methods of magnetization and demagnetization, and plotting magnetic field lines. It provides examples of magnetic field patterns for single and multiple magnets, including the neutral point between magnets with like poles facing. Finally, it compares the magnetic properties of iron and steel.

1. Overview…
• Testing of a magnet
• Induced magnetism
• Theory of magnetism
• Methods of magnetisation & demagnetisation
• Plotting / Drawing of magnetic field lines

2. Testing of Magnet
One end of specimen The other end of
Specimen brought near to N specimen brought
pole near to N pole
Bar Magnet Attraction occurs Repulsion occurs
(or repulsion occurs) (or attraction occurs)
Soft Iron Rod Attraction occurs Attraction occurs
(magnetic material)
Wooden Rod Nothing happens Nothing happens

3. Testing of magnet
Thus
• If attraction occurs for both ends of the
material, then it must be a soft iron (or any
magnetic material)
• If repulsion occurs for one side of its end,
then it must be a magnet.
• Only repulsion between a specimen and a
magnet allows us to conclude that the
specimen is a magnet

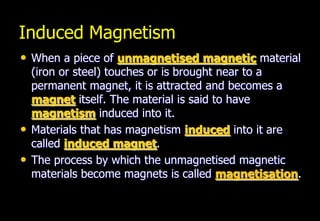

4. Induced Magnetism
• When a piece of unmagnetised magnetic material
(iron or steel) touches or is brought near to a
permanent magnet, it is attracted and becomes a
magnet itself. The material is said to have
magnetism induced into it.
• Materials that has magnetism induced into it are
called induced magnet.
• The process by which the unmagnetised magnetic
materials become magnets is called magnetisation.

5. Induced Magnetism
How do we know the
two ends of the irons
nails are of North
polarity?

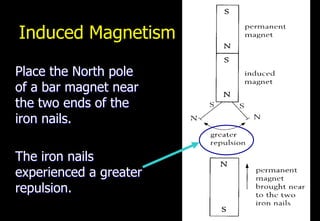

6. Induced Magnetism
Place the North pole
of a bar magnet near
the two ends of the
iron nails.
The iron nails
experienced a greater
repulsion.

7. Induced Magnetism
Temporary. They lose their
magnetism once the permanent
magnet is drawn away from it.

8. Background
knowledge
Theory of Magnetism

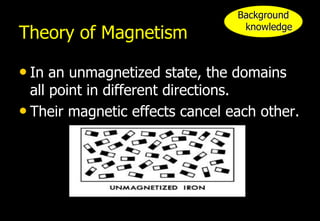

• In an unmagnetized state, the domains
all point in different directions.
• Their magnetic effects cancel each other.

9. Background
knowledge
Theory of Magnetism
• All the domains of a fully magnetized
material point in the same direction.

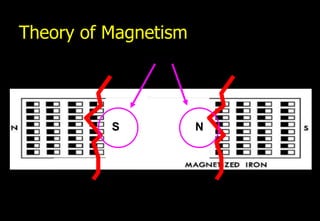

10. Theory of Magnetism
S N

11. Method of magnetization
• The process of magnetization
converts a piece of steel into a
permanent magnet.
• Note: Methods of magnetisation
produces permanent magnet, unlike
induced magnets. Thus, steel must be
used for all magnetisation and not iron

12. Method of magnetization
• Magnetization by stroking
 Single stroke method
 Double touch method
• Magnetization using an electric current.

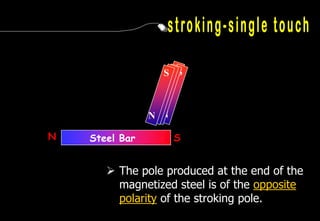

13. SS S
SS
NN
NNN
N Steel Bar S
 The pole produced at the end of the
magnetized steel is of the opposite
polarity of the stroking pole.

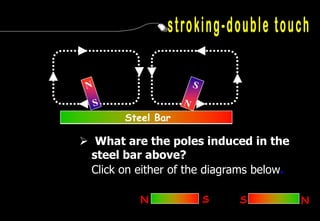

14. Steel Bar
 What are the poles induced in the
steel bar above?
Click on either of the diagrams below.
N S S N

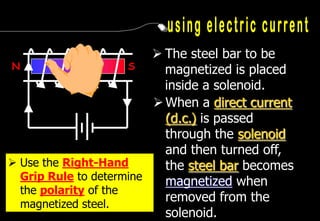

15.  The steel bar to be
N S magnetized is placed
inside a solenoid.
 When a direct current
(d.c.) is passed
through the solenoid
and then turned off,
 Use the Right-Hand the steel bar becomes
Grip Rule to determine magnetized when
the polarity of the
magnetized steel.
removed from the
solenoid.

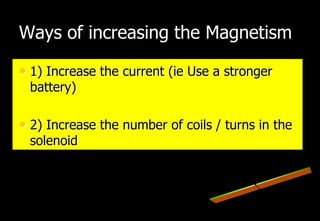

16. Ways of increasing the Magnetism
• 1) Increase the current (ie Use a stronger
battery)
• 2) Increase the number of coils / turns in the
solenoid

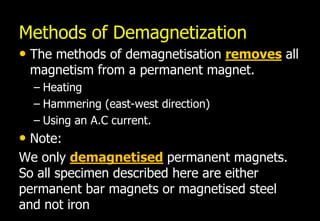

17. Methods of Demagnetization
• The methods of demagnetisation removes all
magnetism from a permanent magnet.
– Heating
– Hammering (east-west direction)
– Using an A.C current.
• Note:
We only demagnetised permanent magnets.
So all specimen described here are either
permanent bar magnets or magnetised steel
and not iron

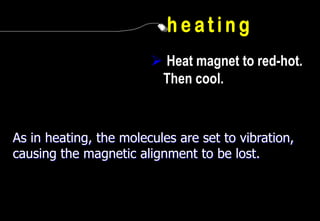

18.  Heat magnet to red-hot.
Then cool.
As in heating, the molecules are set to vibration,
causing the magnetic alignment to be lost.

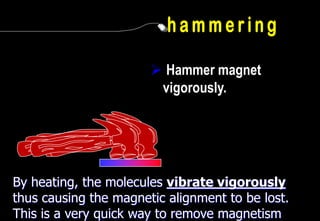

19.  Hammer magnet
vigorously.
By heating, the molecules vibrate vigorously
thus causing the magnetic alignment to be lost.
This is a very quick way to remove magnetism

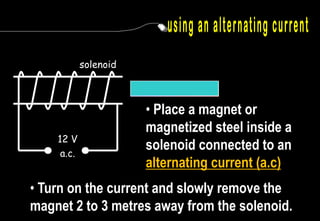

20. solenoid
• Place a magnet or
magnetized steel inside a
12 V
a.c.
solenoid connected to an
alternating current (a.c)
• Turn on the current and slowly remove the
magnet 2 to 3 metres away from the solenoid.

21. Magnetic Field
Magnetic field lines were introduced
by Michael Faraday (1791 – 1867)
who named them lines of force.

22. Magnetic Field
It is a region around a magnet where
other magnetic objects experience a
magnetic force.

23. Experiment: To plot the field lines of a
magnetic field
Use of compass.

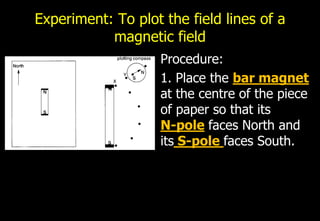

24. Experiment: To plot the field lines of a
magnetic field
Procedure:
1. Place the bar magnet
at the centre of the piece
of paper so that its
N-pole faces North and
its S-pole faces South.

25. Experiment: To plot the field lines of a
magnetic field
2. Starting near one pole
of the magnet, the
positions of the ends, N and
S, of the compass needle
are marked by pencil dots X
and Y. The compass is
then moved until one end is
exactly over Y and the new
position of the other end is
marked with a third dot.

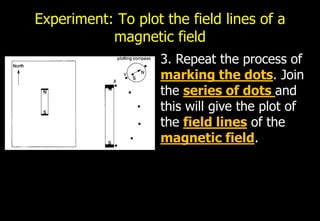

26. Experiment: To plot the field lines of a
magnetic field
3. Repeat the process of
marking the dots. Join
the series of dots and
this will give the plot of
the field lines of the
magnetic field.

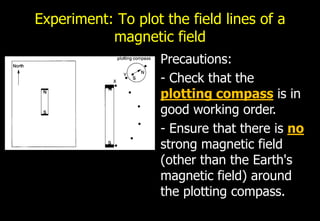

27. Experiment: To plot the field lines of a
magnetic field
Precautions:
- Check that the
plotting compass is in
good working order.
- Ensure that there is no
strong magnetic field
(other than the Earth's
magnetic field) around
the plotting compass.

28. Magnetic Field
Lines used to represent
the direction of
magnetic field
pattern.

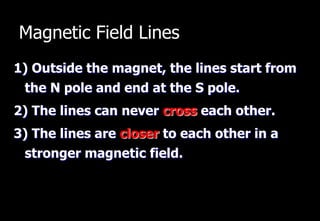

29. Magnetic Field Lines
1) Outside the magnet, the lines start from
the N pole and end at the S pole.
2) The lines can never cross each other.
3) The lines are closer to each other in a
stronger magnetic field.

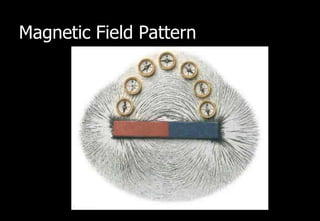

30. Magnetic Field Pattern

31. Magnetic Field Pattern
• Single Bar Magnet

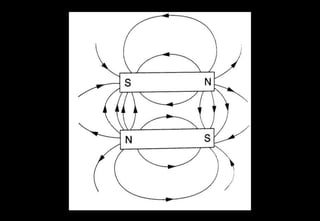

32. More Magnetic Field Patterns

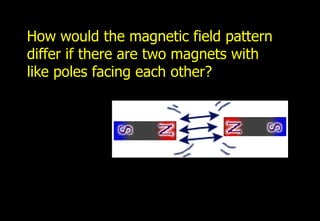

33. How would the magnetic field pattern
differ if there are two magnets with
like poles facing each other?

34. X is known as the neutral point.
No magnetic field lines at X.

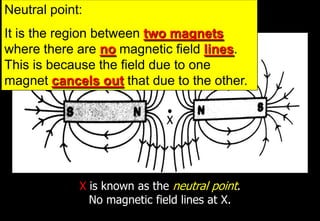

35. Neutral point:
It is the region between two magnets
where there are no magnetic field lines.
This is because the field due to one
magnet cancels out that due to the other.
X is known as the neutral point.
No magnetic field lines at X.

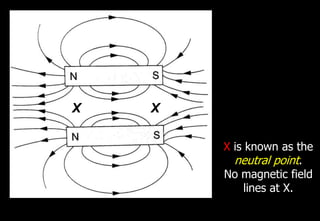

36. X X
X is known as the
neutral point.
No magnetic field
lines at X.

38. Magnetic Properties of Iron and Steel
Iron Steel
It gets easily magnetized It is hard to get
magnetized
It gets easily It is hard to get
demagnetized demagnetized
Used for temporary Used to make permanent
magnets such as induced magnets
and electromagnets
Known as soft-magnetic Known as hard magnetic
material material
