1. SigOpt. Confidential.
Machine Learning Infrastructure
Alexandra Johnson
alexandra@sigopt.com @alexandraj777

2. SigOpt. Confidential.
Alexandra Johnson
Tech Lead, Platform Team

3. SigOpt. Confidential.

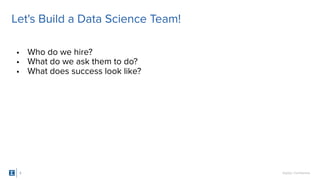

Let's Build a Data Science Team!
• Who do we hire?
• What do we ask them to do?
• What does success look like?
3

4. SigOpt. Confidential.
Let's Build a Data Science Team!
Call out your answers!
• Who do we hire?
• Statisticians
• PhDs in science / math related fields
• People interested in building models!
• What do we ask them to do?
• Gather data
• Build models
• Extract insights
• What does success look like?
• ML models driving business decisions
4

5. SigOpt. Confidential.
A Data Scientist Wants to Build a Model
1. Gather data
2. Feature extraction
3. Pick ML framework
4. Train model
5. Analyze results
5
A typical model-building
workflow for a data scientist
working in a local
development environment,
such as their work laptop

6. SigOpt. Confidential.

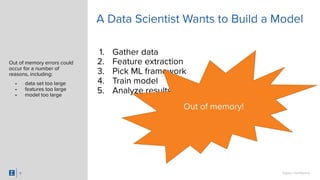

A Data Scientist Wants to Build a Model
1. Gather data
2. Feature extraction
3. Pick ML framework
4. Train model
5. Analyze results
6
Out of memory!
Out of memory errors could
occur for a number of
reasons, including:
• data set too large
• features too large
• model too large

7. SigOpt. Confidential.

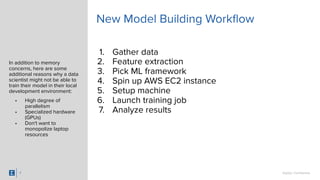

In addition to memory
concerns, here are some
additional reasons why a data
scientist might not be able to
train their model in their local
development environment:
• High degree of
parallelism
• Specialized hardware
(GPUs)
• Don't want to
monopolize laptop
resources
New Model Building Workflow
1. Gather data
2. Feature extraction
3. Pick ML framework
4. Spin up AWS EC2 instance
5. Setup machine
6. Launch training job
7. Analyze results
7

8. SigOpt. Confidential.
New Model Building Workflow
1. Gather data
2. Feature extraction
3. Pick ML framework
4. Spin up AWS EC2 instance
5. Setup machine
6. Launch training job
7. Analyze results
8
Data Science work
In the new workflow, only half
of the work relates to the
data scientist's specialty

9. SigOpt. Confidential.

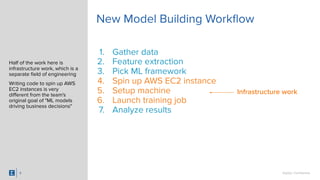

New Model Building Workflow
1. Gather data
2. Feature extraction
3. Pick ML framework
4. Spin up AWS EC2 instance
5. Setup machine
6. Launch training job
7. Analyze results
9
Infrastructure work
Half of the work here is
infrastructure work, which is a
separate field of engineering
Writing code to spin up AWS
EC2 instances is very
different from the team's
original goal of "ML models
driving business decisions"

10. SigOpt. Confidential.

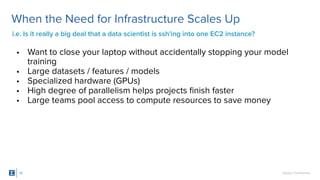

• Want to close your laptop without accidentally stopping your model
training
• Large datasets / features / models
• Specialized hardware (GPUs)
• High degree of parallelism helps projects finish faster
• Large teams pool access to compute resources to save money
When the Need for Infrastructure Scales Up
i.e. Is it really a big deal that a data scientist is ssh'ing into one EC2 instance?
10

11. SigOpt. Confidential.
SigOpt
Who is responsible for spinning up and managing
the data scientist's infrastructure?

12. SigOpt. Confidential.
Traditional Infrastructure Teams
• Who do we hire?
• What do we ask them to do?
• What does success look like?
12

13. SigOpt. Confidential.
• Who do we hire?
• Systems experts
• Backend engineers
• People who love reliability and scalability!
• What do we ask them to do?
• Reliability
• Scalability
• Performance
• What does success look like?
• 99.99% uptime of API
• 99.99% uptime of website
• No data loss
Traditional Infrastructure Teams
Call out your answers!
13

14. SigOpt. Confidential.
SigOpt
The data science team feels the pain, but the
infrastructure team has pre-existing objectives

15. SigOpt. Confidential.15

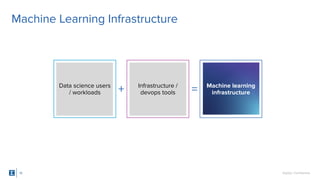

Machine Learning Infrastructure
Data science users
/ workloads
Infrastructure /
devops tools+ = Machine learning
infrastructure

16. SigOpt. Confidential.
Case Studies

17. SigOpt. Confidential.
Example: Hyperparameter Optimization
What is hyperparameter optimization?
• Every model has hyperparameters, aka configurations that you set
before you train the model
• Different settings of hyperparameters product different levels of model
performance
• Hyperparameter optimization (HPO) is the search for the set of
hyperparameters that produces the best model performance
17

18. SigOpt. Confidential.
Example: Hyperparameter Optimization
Example hyperparameters
• Random Forest (sklearn)
• Number of trees in a forest
• Maximum depth per tree
• Elastic Net (sklearn)
• Regularization coefficient
• Weight of the l1 norm term
• Deep Learning Models (MXNet, TensorFlow, PyTorch)
• Learning rate
• Number of hidden layers
18

19. SigOpt. Confidential.

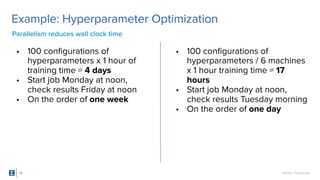

Example: Hyperparameter Optimization
19
• 100 configurations of
hyperparameters x 1 hour of
training time ≈ 4 days
• Start job Monday at noon,
check results Friday at noon
• On the order of one week
Parallelism reduces wall clock time
• 100 configurations of
hyperparameters / 6 machines
x 1 hour training time ≈ 17
hours
• Start job Monday at noon,
check results Tuesday morning
• On the order of one day

20. SigOpt. Confidential.

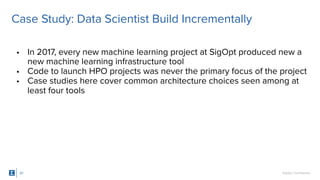

• In 2017, every new machine learning project at SigOpt produced new a
new machine learning infrastructure tool
• Code to launch HPO projects was never the primary focus of the project
• Case studies here cover common architecture choices seen among at
least four tools
20
Case Study: Data Scientist Build Incrementally

21. SigOpt. Confidential.
Problem: Setup code and
dependencies on each remote
machine
Solution: Use scp to send data,
code, and setup script from local
environment to every remote
machine
21
Data Scientist: Setup Machines

22. SigOpt. Confidential.

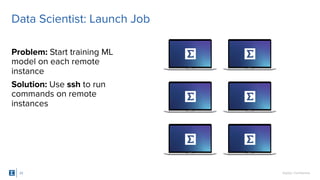

Problem: Start training ML
model on each remote
instance
Solution: Use ssh to run
commands on remote
instances
22
Data Scientist: Launch Job

23. SigOpt. Confidential.

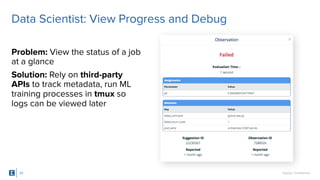

Problem: View the status of a job
at a glance
Solution: Rely on third-party
APIs to track metadata, run ML
training processes in tmux so
logs can be viewed later
23
Data Scientist: View Progress and Debug

24. SigOpt. Confidential.

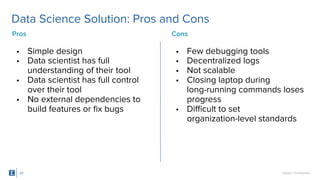

• Simple design
• Data scientist has full
understanding of their tool
• Data scientist has full control
over their tool
• No external dependencies to
build features or fix bugs
Data Science Solution: Pros and Cons
24
Pros Cons
• Few debugging tools
• Decentralized logs
• Not scalable
• Closing laptop during
long-running commands loses
progress
• Difficult to set
organization-level standards

25. SigOpt. Confidential.
SigOpt
"Creating shared services also creates
dependencies and can impinge on autonomy"
- Marty Cagan, Inspired

26. SigOpt. Confidential.

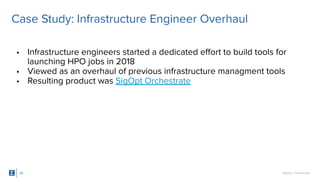

• Infrastructure engineers started a dedicated effort to build tools for
launching HPO jobs in 2018
• Viewed as an overhaul of previous infrastructure managment tools
• Resulting product was SigOpt Orchestrate
26
Case Study: Infrastructure Engineer Overhaul

27. SigOpt. Confidential.

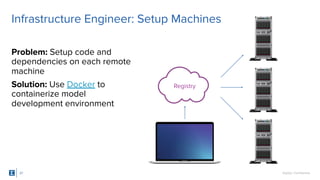

Problem: Setup code and
dependencies on each remote
machine
Solution: Use Docker to
containerize model
development environment
27
Infrastructure Engineer: Setup Machines
Registry

28. SigOpt. Confidential.
Problem: Start training ML
model on each remote instance
Solution: Use Kubernetes to
provide a uniform interface to
the cluster
28
Infrastructure Engineer: Launch Job

29. SigOpt. Confidential.

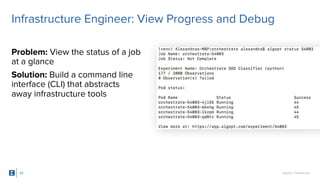

Problem: View the status of a job
at a glance
Solution: Build a command line
interface (CLI) that abstracts
away infrastructure tools
29
Infrastructure Engineer: View Progress and Debug

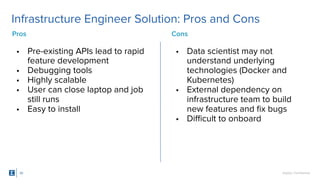

30. SigOpt. Confidential.
• Pre-existing APIs lead to rapid
feature development
• Debugging tools
• Highly scalable
• User can close laptop and job
still runs
• Easy to install
Infrastructure Engineer Solution: Pros and Cons
• Data scientist may not
understand underlying
technologies (Docker and
Kubernetes)
• External dependency on
infrastructure team to build
new features and fix bugs
• Difficult to onboard
30
Pros Cons

31. SigOpt. Confidential.
Looking Forwards

32. SigOpt. Confidential.
SigOpt
Machine Learning Infrastructure requires a tight user
feedback loop

33. SigOpt. Confidential.
ML Infrastructure Within Large Companies
33
• Google's Borg
• Uber's Michelangelo
• AirBnb's BigHead
• Lyft's ML Platform

34. SigOpt. Confidential.

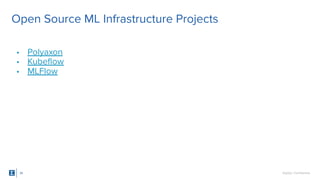

• Polyaxon
• Kubeflow
• MLFlow
Open Source ML Infrastructure Projects
34

35. SigOpt. Confidential.

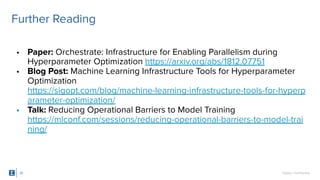

Further Reading
35
• Paper: Orchestrate: Infrastructure for Enabling Parallelism during
Hyperparameter Optimization https://arxiv.org/abs/1812.07751
• Blog Post: Machine Learning Infrastructure Tools for Hyperparameter
Optimization
https://sigopt.com/blog/machine-learning-infrastructure-tools-for-hyperp
arameter-optimization/
• Talk: Reducing Operational Barriers to Model Training
https://mlconf.com/sessions/reducing-operational-barriers-to-model-trai
ning/

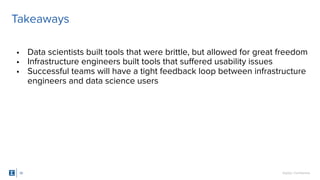

36. SigOpt. Confidential.
• Data scientists built tools that were brittle, but allowed for great freedom
• Infrastructure engineers built tools that suffered usability issues
• Successful teams will have a tight feedback loop between infrastructure
engineers and data science users
Takeaways
36

37. SigOpt. Confidential.

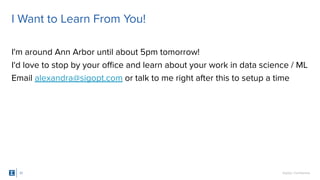

I Want to Learn From You!
I'm around Ann Arbor until about 5pm tomorrow!
I'd love to stop by your office and learn about your work in data science / ML
Email alexandra@sigopt.com or talk to me right after this to setup a time
37

38. SigOpt. Confidential.
Thank you!
Any questions?
Alexandra Johnson
alexandra@sigopt.com @alexandraj777
