Livre blanc iot

Internet of Things, for smarter
Industries & Services
WHITE PAPER
for smarter
Industries,

Internet of Things, for smarter Industries & Services
White paper
for smTable of contents
1. Market overview
2. A large technology/technical universe
3. Industry Use Cases

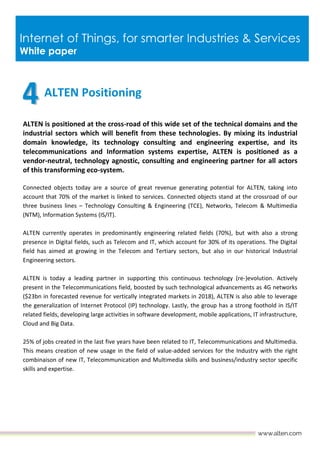

4. ALTEN’s positioning
5. Conclusion

White paper

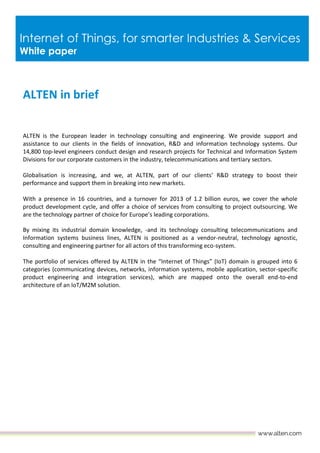

ALTEN in brief
ALTEN is the European leader in technology consulting and engineering. We provide support and
assistance to our clients in the fields of innovation, R&D and information technology systems. Our
14,800 top-level engineers conduct design and research projects for Technical and Information System
Divisions for our corporate customers in the industry, telecommunications and tertiary sectors.
Globalisation is increasing, and we, at ALTEN, part of our clients’ R&D strategy to boost their
performance and support them in breaking into new markets.
With a presence in 16 countries, and a turnover for 2013 of 1.2 billion euros, we cover the whole
product development cycle, and offer a choice of services from consulting to project outsourcing. We
are the technology partner of choice for Europe’s leading corporations.
By mixing its industrial domain knowledge, -and its technology consulting telecommunications and
Information systems business lines, ALTEN is positioned as a vendor-neutral, technology agnostic,
consulting and engineering partner for all actors of this transforming eco-system.
The portfolio of services offered by ALTEN in the “Internet of Things” (IoT) domain is grouped into 6
categories (communicating devices, networks, information systems, mobile application, sector-specific
product engineering and integration services), which are mapped onto the overall end-to-end
architecture of an IoT/M2M solution.

White paper
Market overview
Over the past 50 years, the Internet has exponentially grown from a small research network to a
worldwide widespread network that services more than a billion users. The further miniaturization and
cost reduction of electronic devices makes it possible to expand the Internet into a new dimension: the
smart objects. A smart object is a cyber-physical system or an embedded system, consisting of a thing
(the physical entity) and a component (the computer) that processes the sensor data and supports a
wireless communication link to the Internet. The novelty of the Internet of Things (IoT) seems to have its
roots not only in the functional capability of a smart object (because today many embedded systems are
connected to the Internet) but even more in the size of billions or even trillions of smart objects that
bring about new technical and societal issues that are only going to grow.
According to Cisco, the “Internet of Things” world appears as long as there is more connected devices
than people.

White paper

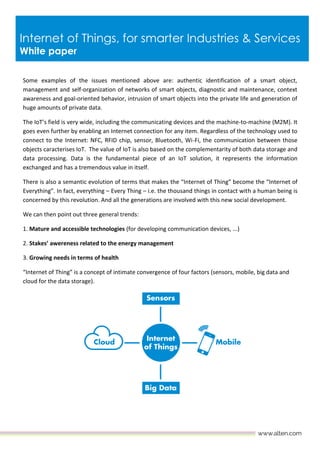

Some examples of the issues mentioned above are: authentic identification of a smart object,
management and self-organization of networks of smart objects, diagnostic and maintenance, context
awareness and goal-oriented behavior, intrusion of smart objects into the private life and generation of
huge amounts of private data.
The IoT’s field is very wide, including the communicating devices and the machine-to-machine (M2M). It
goes even further by enabling an Internet connection for any item. Regardless of the technology used to
connect to the Internet: NFC, RFID chip, sensor, Bluetooth, Wi-Fi, the communication between those
objects caracterises IoT. The value of IoT is also based on the complementarity of both data storage and
data processing. Data is the fundamental piece of an IoT solution, it represents the information
exchanged and has a tremendous value in itself.
There is also a semantic evolution of terms that makes the “Internet of Thing” become the “Internet of
Everything”. In fact, everything – Every Thing – i.e. the thousand things in contact with a human being is
concerned by this revolution. And all the generations are involved with this new social development.
We can then point out three general trends:
1. Mature and accessible technologies (for developing communication devices, ...)
2. Stakes’ awereness related to the energy management
3. Growing needs in terms of health
“Internet of Thing” is a concept of intimate convergence of four factors (sensors, mobile, big data and
cloud for the data storage).

White paper

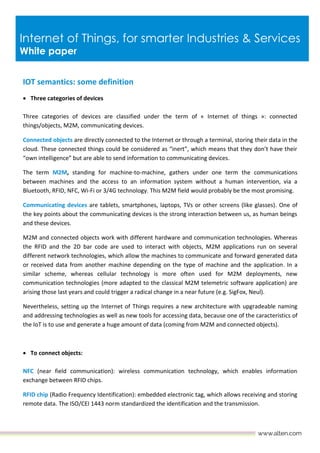

IOT semantics: some definition
 Three categories of devices
Three categories of devices are classified under the term of « Internet of things »: connected
things/objects, M2M, communicating devices.
Connected objects are directly connected to the Internet or through a terminal, storing their data in the
cloud. These connected things could be considered as “inert”, which means that they don’t have their
“own intelligence” but are able to send information to communicating devices.
The term M2M, standing for machine-to-machine, gathers under one term the communications
between machines and the access to an information system without a human intervention, via a
Bluetooth, RFID, NFC, Wi-Fi or 3/4G technology. This M2M field would probably be the most promising.
Communicating devices are tablets, smartphones, laptops, TVs or other screens (like glasses). One of
the key points about the communicating devices is the strong interaction between us, as human beings
and these devices.
M2M and connected objects work with different hardware and communication technologies. Whereas
the RFID and the 2D bar code are used to interact with objects, M2M applications run on several
different network technologies, which allow the machines to communicate and forward generated data
or received data from another machine depending on the type of machine and the application. In a
similar scheme, whereas cellular technology is more often used for M2M deployments, new
communication technologies (more adapted to the classical M2M telemetric software application) are
arising those last years and could trigger a radical change in a near future (e.g. SigFox, Neul).
Nevertheless, setting up the Internet of Things requires a new architecture with upgradeable naming
and addressing technologies as well as new tools for accessing data, because one of the caracteristics of
the IoT is to use and generate a huge amount of data (coming from M2M and connected objects).
 To connect objects:
NFC (near field communication): wireless communication technology, which enables information
exchange between RFID chips.
RFID chip (Radio Frequency Identification): embedded electronic tag, which allows receiving and storing
remote data. The ISO/CEI 1443 norm standardized the identification and the transmission.

White paper

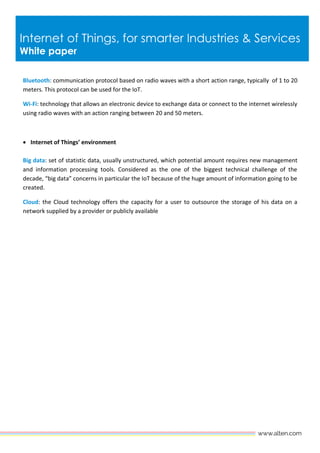

Bluetooth: communication protocol based on radio waves with a short action range, typically of 1 to 20
meters. This protocol can be used for the IoT.
Wi-Fi: technology that allows an electronic device to exchange data or connect to the internet wirelessly
using radio waves with an action ranging between 20 and 50 meters.
 Internet of Things’ environment
Big data: set of statistic data, usually unstructured, which potential amount requires new management
and information processing tools. Considered as the one of the biggest technical challenge of the
decade, “big data” concerns in particular the IoT because of the huge amount of information going to be
created.
Cloud: the Cloud technology offers the capacity for a user to outsource the storage of his data on a
network supplied by a provider or publicly available

White paper

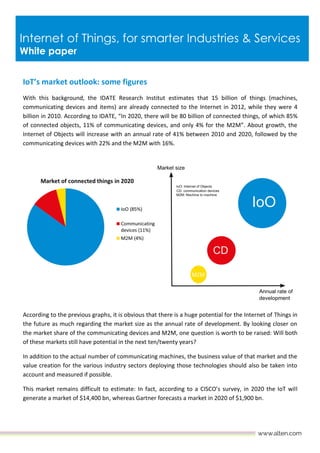

IoT’s market outlook: some figures
With this background, the IDATE Research Institut estimates that 15 billion of things (machines,
communicating devices and items) are already connected to the Internet in 2012, while they were 4
billion in 2010. According to IDATE, “In 2020, there will be 80 billion of connected things, of which 85%
of connected objects, 11% of communicating devices, and only 4% for the M2M”. About growth, the
Internet of Objects will increase with an annual rate of 41% between 2010 and 2020, followed by the
communicating devices with 22% and the M2M with 16%.
According to the previous graphs, it is obvious that there is a huge potential for the Internet of Things in
the future as much regarding the market size as the annual rate of development. By looking closer on
the market share of the communicating devices and M2M, one question is worth to be raised: Will both
of these markets still have potential in the next ten/twenty years?
In addition to the actual number of communicating machines, the business value of that market and the
value creation for the various industry sectors deploying those technologies should also be taken into
account and measured if possible.
This market remains difficult to estimate: In fact, according to a CISCO’s survey, in 2020 the IoT will
generate a market of $14,400 bn, whereas Gartner forecasts a market in 2020 of $1,900 bn.

White paper
The market of IoT is full of issues linked in particular to the industrial market. Connected things are going
to change completely the relationship between the industry manufacturer, the object and the
consumer. The relationship between the industry and the object goes on after the sale, because of the
necessary storage of data that the device is relaying to its parent industry. Thus, the industry can use
those data to always provide new services to the consumers.
There are real opportunities for the IoT in so many fields such as Energy (smart home, smart city, smart
grid, smart water, …), Transportation (connected cars, communication car to car, public transportation,
traffic improvement, …), Health (remote diagnosis, silver economy, …) and the Manufacturing world
(logistics, smart manufacturing, large retailing, …). Without forgetting the issues of security, protection
of data and private life.

White paper

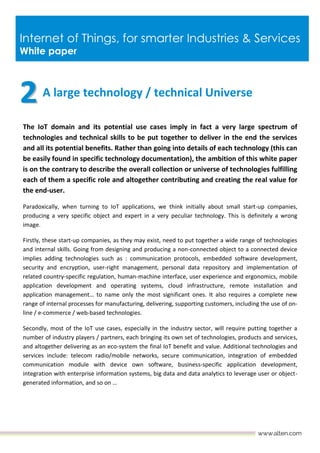

A large technology / technical Universe
The IoT domain and its potential use cases imply in fact a very large spectrum of
technologies and technical skills to be put together to deliver in the end the services
and all its potential benefits. Rather than going into details of each technology (this can
be easily found in specific technology documentation), the ambition of this white paper
is on the contrary to describe the overall collection or universe of technologies fulfilling
each of them a specific role and altogether contributing and creating the real value for
the end-user.
Paradoxically, when turning to IoT applications, we think initially about small start-up companies,
producing a very specific object and expert in a very peculiar technology. This is definitely a wrong
image.
Firstly, these start-up companies, as they may exist, need to put together a wide range of technologies
and internal skills. Going from designing and producing a non-connected object to a connected device
implies adding technologies such as : communication protocols, embedded software development,
security and encryption, user-right management, personal data repository and implementation of
related country-specific regulation, human-machine interface, user experience and ergonomics, mobile
application development and operating systems, cloud infrastructure, remote installation and
application management… to name only the most significant ones. It also requires a complete new
range of internal processes for manufacturing, delivering, supporting customers, including the use of on-
line / e-commerce / web-based technologies.
Secondly, most of the IoT use cases, especially in the industry sector, will require putting together a
number of industry players / partners, each bringing its own set of technologies, products and services,
and altogether delivering as an eco-system the final IoT benefit and value. Additional technologies and
services include: telecom radio/mobile networks, secure communication, integration of embedded
communication module with device own software, business-specific application development,
integration with enterprise information systems, big data and data analytics to leverage user or object-
generated information, and so on …

White paper
Without pretending being exhaustive, this chapter tries to organize, describe and position briefly each of
the above technologies, their relative dependencies and the contribution they bring to the overall use
case.
We propose to group the various technologies into the following categories: Device & Embedded
technologies, Communication & networking technologies, Application technologies and Process-related
technologies. The first 3 domains cover the three main building blocks of an end-to-end IoT use case:
Device & Embedded technologies
The technologies embedded into the device/object are numerous and of various
types depending on the amount of processing to be done locally on the device, the
amount of data to be transferred from/to the device and the non-functional
requirements like encryption, storage, boot or wake-up time, battery consumption
and so on… These technologies are, among others:
 Hardware, electronics and microprocessor technologies. Most of these devices will integrate
specific tailor made electronic components, able to support the software necessary to implement
the use case.
 Sensor technologies, to monitor and report the key parameters of the device (e.g. temperature,
human physical data, technical sensor data, …)
 Embedded software development, going from small footprint software to full software stacks
including Operating System (OS), middleware and embedded applications. There exist many
embedded OS with real-time or semi real-time features. Well known general purpose OS are
RTOS, Windows Embedded, and Embedded Linux. iOS and Android OS are used of course for
communicating devices such as smartphones but may be used also in a very near future for other
types of connected devices.
 Battery consumption is a key factor for devices. This again goes from zero energy storage, such as
passive RFID tags receiving energy through the scanning device, to devices with standard batteries.

White paper
 Communication protocols from the device are also many, and will remain probably so, as the radio
characteristics support the actual use case. A given protocol has unique characteristics including
distance range, frequency, latency, interference, security, and so on. Typical protocols used are
NFC, RFID, ZigBee, Bluetooth, Wi-Fi, 2G/GPRS, 3G/HSPA, 4G/LTE. One trend though of these
data/packet protocols is the convergence towards the IP (Internet Protocol) stack for connecting
to the internet and transporting data packets. The generalization of IPv6, using a much wider
addressing scheme than IPv4, will allow connected devices to have their own IP address. Specific
radio protocols are also emerging, dedicated to M2M use cases where latency and high
throughput is not an issue, but low-energy and low-cost is important.
 Mechanical design. This is also a critical part of the device overall design. Besides the actual
function of the device to be supported, the fact that the device is possibly connected to the
Internet, implies a new/different mechanical/body design taking into account this “high-tech”
nature and the early adopter customers, be it consumers or enterprises.
Communication & networking technologies
Once the device is equipped with energy, connectivity and processing power, it
will communicate with other devices or with “the Internet” through a network.
The network can be: a Point-to-Point connection between a RFID or NFC-enabled
device and a reader (itself most probably connected also), a local (e.g. home over
Wifi) network with an access point connection to the Internet, or a private or public radio network
operated by a Service Provider. These networks will have themselves various characteristics in order
to support the required use case. As underlined before, the Internet Protocol (IP) technology, with its
IPv6 recent flavor, is the underlying protocol that will be the most widely used, in particular obviously
for devices with direct connections to the internet. The networking technology used will have to
address topics/issues such as:
 Addressing / Identification of smart objects. Depending again on the technology used, the device
identification can have multiple forms: Electronic Product Code (EPC) for RFID-enabled objects,
IPv6 identification for network-connected devices, SIM-card based (IMEI) authentication for
mobile network connected devices, etc …
 Secure communications, secure access. Each time a device becomes “connected”, there is a risk of
intrusion, malware attacks, proprietary/confidential data access and so on… Security is a key
element to be addressed by the underlying network.
 Communication and networking technologies. The communication requirement for a connected
device is a data/packet transport network. Besides the “simple” NFC device-to-device
communication, the connected device will interact with Application Servers, Information Systems,
smartphones and possibly human beings, through a public radio network operated by a Service

White paper
Provider and/or through an access network operated by an internet Service provider. Network
features like network Quality of Service (QoS), network latency (round trip duration), network
upstream and downstream bandwidth, network security, and so on … are features delivered by
the underlying network, which can be adapted/tailored to the specific IoT use case. Also, the
network subscriptions, service charging, support services, all these need to be tailored / adapted
to the IoT use case.
Application technologies
An IoT or Connected Device alone does not bring any value. It is
in association with a server application or an information system,
itself possibly connected and accessed by a user through a web
or mobile application on a smartphone, that it delivers its value.
This Application may sit either in “the cloud” or in a private
enterprise data center. The various components / technologies for this application part are:
 Service Platforms and APIs. More and more communication device makers deliver also
frameworks/platforms for managing the communication with the devices. These platforms may
offer APIs (Application Programming Interfaces) to ease the development of the specific use cases.
 Integration with Information System and data base Applications. In the case of industrial
applications, the end-to-end value will come from the integration of the connected devices with
the information system of the enterprise, either populating or accessing databases, or providing
greater value by mixing connected device data with enterprise business data and business logic
applications. The implementation of an IoT industrial use case will imply in most/all cases a
significant integration work.
 Mobile Applications. Interestingly, a lot of current IoT use cases have a mobile application
component. Not only because mobile access to web applications is becoming the preferred access
method compared to fixed access, but also because there are additional features and companion
applications that are interesting to provide when on the move, either close to the connected
object or not. The IoT use case becomes in fact a 3-party relationship: a connected device, an
application server (public or enterprise specific) and a human being user.
 Data Storage, Big data, Data analytics. One of the main characteristics of IoT use cases is the
generation of tremendous volumes of data. With sensors and an always-on connection, a device
can generate a lot of data. Most of the time, this data will be stored for processing in the
Application Server related database. This implies a number of technologies first for storing these
amounts of data, then to analyze and take benefit of the results of this data processing. Big Data
and data analytics technologies are playing a key role there.

White paper
The processed data can itself be exposed further to other application use cases and/or third party
partners, taking benefit of the aggregated results (e.g. profiling applications, targeted ads …).
Process-related technologies
There are also a number of technologies, products, and services to be
developed to deploy and support IoT use cases. In the industrial domain or
B2B2C context, the connected world will change tremendously the design,
manufacturing, delivery and enterprise support organizations. Just to mention,
as an illustration, the few areas impacted by the IoT use cases deployments:
 Software over-the-air delivery and software upgrades allow simplifying and saving operation costs
and keeping a consistent installed base. The versioning and localization (delivery packages
according to geography, regulation, language constraints…) of delivery has to be adapted and can
take into benefit of course of the remote and auto-configuration capabilities.
 Remote Management of smart objects. Connected objects/devices can be managed remotely. So
network inventory, automatic network discovery, device status supervision and monitoring can be
“easily” done remotely. This has to be taken into account at early stage of projects.
 Diagnostic, Maintenance, Customer care, customer support. All these tasks can take benefit of the
connected nature of the devices. Internal processes need be deployed to do this.
Device manufacturers often provide tools and platforms for such remote administration. These tools
can/should be integrated with the network supervision and administration “standard” tools. This also
requires a lot of integration activities.

White paper
Industry Use Cases
The Internet of Things and the Connected Devices are now known by the end-user
consumer market, following the recent fashionable objects that we see emerging into
our everyday life (weighing scales, watchs, bands, glasses, ...). The IoT has also entered
the industrial sector, from multiple angles and with multiples impacts and benefits.
This section explores typical use cases in the Transportation, Energy, Health and
Manufacturing sectors.
Most analytists predict that the IoT/M2M will not only change industry products, but also (1) impact the
production/manufacturing organization and (2) open new services revenue streams and opportunities.
Value chains, business models, eco-systems will dramatically evolve because of these technologies.
An evolution of the relationships between the different players is happening. Currently brought
together as closed “silos”, those industrial actors are going to turn to an opened “cluster” organization,
with more and more partnerships “Industrial Constructor – Telecom player – Services player”, which we
could already noticed in the field of “connected cars” for example.
As we have started to discuss, industries able to assemble cross-functional teams and multi-technology
skills will probably be the leading enterprises of tomorrow.
This section explores typical use cases in the Transportation, Energy, Health and Manufacturing sectors.
While talking a neutral position in each section, we show some of ALTEN project case studies (within
blue boxes) as concrete examples in each sector.

White paper
There are multiple factors tied to connected object, in relation to
transportation. The first is to succeed in the conception of connected car,
which would effectively lead to a reduction in the number of accidents and
traffic jams. Another challenge would be to coordinate the multiple methods
of transportation in a city, while lastly, the last challenge would be to set up a
payment system in which the user would pay for the “real time use”
equivalent or proportion of the insurance premium.
 In the connected car field, two primary concerns revolve around the concepts of “Entertainment
modules for internal use” and of “Modules for external use”, which when wirelessly connected can
offer such service as the “Intelligent Transport System (ITS)”. This system deals with the coordination
of vehicle trajectories, like the one present in Google Cars.
 Vehicle with embedded systems: collection systems, treatment and Information dissemination
 Telecommunications network: GSM and Satellite
 Information system and “Back-office”, which are aimed at the multiple parties using the vehicle
transmitted information (automotive manufacturers, fleet managers, insurance companies…)
 Emergence of multimodal transport, “shared car” services such as Autolib offered by the Bollore
group.
 Connect on a unique platform Implementation shared communications between vehicles, trains
and bikes.
 Strengthen standards and politics for regulation of these interconnected objects.
 Completely secure the information network to prevent from any trains – cars – bikes
interconnection hacking.
 Usage based Insurance « UBI », a predictive after sale service which enables remote supervision - in
real time – of the vehicle condition through CAN bus data.
 Implementation of telematic boxes in vehicles, which send through mobile network, and in real
time, collected data such as speed, conduct actions, traveled distance and travel time.
 IT “back-office” processes the collected information, calculates insurance premium of the vehicle
in real time and gives it to the drivers either through the vehicle onboard computer, or through a
mobile application on a smartphone.

White paper
Within a leading automotive
equipment manufacturer, ALTEN
joined the innovation center,
which works to develop the
tomorrow’s products and
prototypes. ALTEN brought its
technical expertise on an
aftermaket part car radio project
totally diven by a smartphone.
ALTEN took also part in the
setting up of a communication
protocol for the navigation on
smartphone.
TRANSPORTATION
Within a leading automotive
equipment manufacturer, ALTEN
took part in the Bluetooth
application development of a
French automotive manu-
facturer’s radio. ALTEN was in
particular in charge of the
software architecture (redesign
of the already existing HIM,
design of the new display, system
architecture) as well as the
Bluetooth applicative develop-
ment part.
TRANSPORTATION
Our customer – a Telecom
operator – was looking for a
partner to help in the realization
of a demonstrator on a GENIVI
platform, integrating and
enhancing the Group technology
« Natural language ».
The goal is to develop a
prototype both multimodal
(sound/text, touch command,
voice recognition) and multi-
media oriented (image, videos,
maps..)
TRANSPORTATION

White paper
The problematics tied to the field of energy and connected objects concern an
improvement of the energy efficiency of buildings, the time reduction of the
energy network cut, the integration of new consumer behavior (charging
stations of electric vehicles, datacenter etc…) as well as distant drive of house
devices in order to master consumptions and budget.
 SMART GRID – “Intelligent” network for transportation/ energy distribution.
 Implementation of measuring devices and communicants remote control on energy networks
 Implementation of communicants counters at final consumer level
 IS “back-office” of distant drive of energy network, consumption measure, billing emission and
personalized distribution of consumption information.
 SMART BUILDING – Building technical management “intelligent”
 Implementation of alternatives energy sources (solar, geothermal, cogeneration) controlled
through communicants module.
 Implementation of equipment and communicating sensors on management system of building:
energy, lighting, air conditioning, ventilation, heating access, video surveillance
 Computing system of the whole connected system management
 Equipment and sensor in the building
 Building communication network.
 Supervisory software SCADA (Supervisory Control and Data Acquisition) type
 SMART HOME – Connected house
 Implementation of communicant modules in all the housing environment equipment: computer,
touchpad, smartphone, television, screen, household electrical appliances, meters ….)
 Implementation of framework software allowing the interconnection of the whole equipment and
application of the housing environment.
 Implementation of IS “Back-office” with a centralized management

White paper
ALTEN’s team worked for an
energy efficiency project through
statistical modeling among which
the objectives were to:
-Supply decision elements
enriched in the conception of the
building
-Improve the energy earnings ratio
vs investment
-Facilitate the replicate ability
based on a model
-Bring a teaching aid to the
inhabitants of the building
ENERGY
Our customer, an energy, digital
and services solutions integrator,
was willing to develop a solution
for several actors (energy mana-
gers, maintenance…) to improve
the energetic efficiency on a long-
term basis. ALTEN’s team set up a
complex solution (box, communi-
cation systems, decision support
application, hosting…) in line with
the client expectations.
ALTEN’s team influence also the
process of changes in this project.
ENERGY

White paper
The booming of the Internet of Things also concerns healthcare field. Several
objects are wired to smartphones allowing from now on taking care of user’s
sleep, physical activity or heart rate. Shared with the doctors, this collected
information allows a real follow-up care of the patient. Connected things may
also be directly useful to the patients. One of the major stakes will be to
increase the wellbeing of people with disabilities (due to illnesses, disability and
old age) as well as enable a better remoted medical follow-up.
 Robot helping old-age or handicap persons to be maintain in their houses
Communicant robot development with the whole equipment of the house environment:
 “Follow-up” of the everyday-life objects (robot back-office)
 Multimedia equipment drive (Schedule, music, TV, net, phone…)
 Medical follow-up (biomedical constants)
 Close relations alert (behavior learning – blackout, fall)
 Mobile video teleoperated
 Augmented immersive reality

White paper
ALTEN worked with a leader in
management of biomedical dev-
ices and connectivity, which
develops and sets up integration
solutions for biomedical devices.
Our customer develops in parti-
cular a smart touch command
device dedicated to the mana-
gement of connectivity between
medical devices and to the
gathering of data, directly at
patient’s bedside. ALTEN’s team
worked on hardware validation
and solutions maintenance.
ALTEN was involved in the design
of an old-age persons robot
aiming to provide them support in
their house.
Developed services:
-“Follow up” of the everyday-life
objects (Robot back-office)
-Multimedia management
(schedule, music, TV, internet,
tel…)
-Medical follow-up and mobile
video alerts teleoperated
HEALTH
HEALTH
A global leader specialized in
cardiovascular medical devices
partnered with one of the French
major telecommunication opera-
tors for a new tele-cardiology
project, wich allows a permanent
monitoring on patients. ALTEN’s
team worked in particular on
pacemakers miniaturization and
on the improvement of wireless
communication between the
implant and the external environ-
ment
HEALTH

White paper
With the introduction of the Internet of Things and services into the
manufacturing environment, we are entering the fourth industrial
revolution: Industry 4.0, as quoted in the german report
“recommendations for implementing the strategic initiative INDUSTRIE
4.0”. The keyword for this new industry is the digitization of the factories.
This revolution is at the crossroad of a virtual and delocalized world of the
internet and the real world of the industrial plants. The Industry 4.0 – also
called future factory – becomes the major reference for the industrial
production.
This industry facilitates fundamental improvements to the industrial processes involved in
manufacturing, engineering, material usage, supply chain and life cycle management. It enables a better
interaction between all the actors of the production chain: robots, engines, customers, partners, other
production sites… The goal of the Industry 4.0 is to make the factories become smart factories. The final
product will be able to communicate with engines during its realization phase. Such products will thus
be renamed “smart products”.
The “technological bricks”, which will ensure the transition from Industry 3.0 towards Industry 4.0
already exist or are going to be set up: sensors, robot, big data, Internet of Things, cloud computing.
Industry 4.0 will address and solve some of the challenges facing the world today such as resource and
energy efficiency, urban production and demographic change.

White paper
ALTEN Positioning
ALTEN is positioned at the cross-road of this wide set of the technical domains and the
industrial sectors which will benefit from these technologies. By mixing its industrial
domain knowledge, its technology consulting and engineering expertise, and its
telecommunications and Information systems expertise, ALTEN is positioned as a
vendor-neutral, technology agnostic, consulting and engineering partner for all actors
of this transforming eco-system.
Connected objects today are a source of great revenue generating potential for ALTEN, taking into
account that 70% of the market is linked to services. Connected objects stand at the crossroad of our
three business lines – Technology Consulting & Engineering (TCE), Networks, Telecom & Multimedia
(NTM), Information Systems (IS/IT).
ALTEN currently operates in predominantly engineering related fields (70%), but with also a strong
presence in Digital fields, such as Telecom and IT, which account for 30% of its operations. The Digital
field has aimed at growing in the Telecom and Tertiary sectors, but also in our historical Industrial
Engineering sectors.
ALTEN is today a leading partner in supporting this continuous technology (re-)evolution. Actively
present in the Telecommunications field, boosted by such technological advancements as 4G networks
($23bn in forecasted revenue for vertically integrated markets in 2018), ALTEN is also able to leverage
the generalization of Internet Protocol (IP) technology. Lastly, the group has a strong foothold in IS/IT
related fields, developing large activities in software development, mobile applications, IT infrastructure,
Cloud and Big Data.
25% of jobs created in the last five years have been related to IT, Telecommunications and Multimedia.
This means creation of new usage in the field of value-added services for the Industry with the right
combinaison of new IT, Telecommunication and Multimedia skills and business/industry sector specific
skills and expertise.

White paper
The portfolio of services offered by ALTEN is described in the picture below. The services are grouped
into 6 categories, mapped onto the overall end-to-end architecture of an IoT/M2M solution.
These services are related to the device itself and its communicating
features/functionalities. Necessary skills are related to hardware
integration and embedded software development. ALTEN has a vendor-
neutral position and can advise on best technologies to be used for the
embedded part: Operating System possibly with small footprint features,
Radio and communication protocols. This part includes also the
integration and interworking with the core device features. Besides
embedded software development expertise, ALTEN has a long practice of testing activities and can put
in place dedicated teams and service center organization for performing device testing, from protocol-
level testing to application level testing.

White paper
ALTEN has a large offerings of services related to telecommunications.
ALTEN is one of the service partners of many equipement vendors and
major service providers in Europe, with activities related to
telecommunications products and technologies, as well as activities
related to network engineering, network roll-out, network configuration,
network operations and support activities. ALTEN can help in a global
IoT/M2M use case to choose the best communication network
technologies. As for device testing, ALTEN can put in place activities to
integrate and validate inter-operability between devices and networks, including roaming issues
between service providers. Also ALTEN can take in charge volume activities related to network and
service provisioning, up to service supervision and technical support activities.
As we have seen in section 2, and even more in an industrial use case,
the IoT/M2M solution will require in almost all cases an adaptation or
even a complete new information system. ALTEN can then propose its
IS/IT service offerings, including IS software development (using
Microsoft, Open-source or Java technologies), and integration with
database and existing legacy applications. As for the device and network
aspect, ALTEN has developed specific skills and expertise on
IS/application testing, following in particular the ISTQB standard
practices. Besides the IS part, ALTEN can help in the IT infrastructure
deployment for hosting the dedicated application, which may include deployment on private or public
cloud infrastuctures or dedicated servers. ALTEN brings also in this domain its IT Service Management
(ITSM) expertise for handling the IS/IT production-related activities (system administration,
configuration, monitoring, support, …). The deployed information system can / shall include the
handling of collected data from the connected devices and the storage and application processing to
take benefit from this (in general huge) amount of information. Big data, business intelligence, Data
analytics technologies are used for this purpose.
As we have also seen, mobile applications are very often part of the
overall solution, either as mandatory component or as a portal to
configure and administrate the service. ALTEN, in particular through its
affiliate company id.apps in France, or through ALTEN branches in other
countries, is providing complete Mobile Application development
services, from consulting on mobile technologies (native, web-based, …)
to design of the mobile application, software development on leading
mobile embedded operating systems (iOS, Android, Windows, …), testing of application on
representative smartphone panels and in live network environments, and publishing of application onto

White paper
public or private application stores. The design phase of mobile applications are particularly important.
Ergonomics and user experience skills are used during this phase, as well as iterative processes with the
customer.
As opposed to specialized IS/IT companies who will handle
only this application-level part, ALTEN brings into these
IoT/M2M use cases its domain knowledge and product
expertise coming from its Technology Consulting and
Engineering services deployed into various industrial sectors : Transportation and Automotive,
Aeropsace and Defense, Energy and life sciences. ALTEN is taking part of major product development or
R&D programs of its large customers. Adapting a product design and implementation to take benefit of
its new connected nature is key. Understanding the nature of data to be transmitted to a central
information system is also a key differentiator.
ALTEN is not a System Integrator, who will take on one
hand global end-to-end project responsibility but who will
also push and tune a specific solution to avoid taking risks
on unknown technology or third-party products. ALTEN is
providing instead System integration Services, helping its
customer to handle the global solution. These services include Program and project management
services, end-to-end architecture services, consulting on technologies and third-party components, end-
to-end integration and validation services. This end-to-end expertise relies on the specific expertise and
offerings described briefly in this section.
ALTEN has realized a number of projects, each of them covering one or several aspects of these 6
service categories. To better illustrate the industrial domain benefits, the ALTEN case studies have been
inserted into the previous section under each industrial sector.

White paper
Conclusion
The Internet of Things will be the next evolution/revolution in terms of general public and industrial use
cases. This sector involves many technical and various fields. In the industrial ones, we have explored
use cases in the automotive, energy, health and manufacturing sectors, but our study is of course not
exhaustive and these sectors are not restrictive.
ALTEN is strongly positioned in three fields: ETC, networks and IT. ALTEN is thus able to be one of the
essential players for the future of the Internet of Things. ALTEN is ready to anticipate and serve this new
kind of industrialization.
Beyond this huge deployment of the Internet of Things, the networks and all the linked applications
don’t have to be forgotten. To make the Internet of Things operational, ALTEN will be able to manage
services like network deployment steering and protocolary test.
ALTEN is strongly positioned to cope with this revolution of Internet of Things and to serve this industrial
revolution, thanks to:
 An IP culture and expertise
 A combined expertise in operator networks and information systems
 An ability to work in the complementary fields of Technology Engineering, Deployment
Management and Assistance & Operations.
ALTEN is prepared to help its clients move to this transformation in order to improve their
competitiveness and increase their production flexibility.
- Detection of physical interaction between user and virtual o

White paper
bstacle
In light of IDATE’s forecast (80 billion of
connected objects in 2020) and of the many
actions conducted to provide support of this
Internet of Things world’s boom
(fundraising, appointments, investments in
every field (consumption and industrial
world)…), the potential of the Internet of
Things is considerable.
By mixing its industrial domain knowledge,
- and its technology consulting, telecom-
munications and Information systems
business lines, ALTEN is positioned as a
vendor-neutral, technology agnostic,
consulting and engineering partner for all
actors of this transforming eco-system.
This white paper draws up a panorama of
the opportunities offered by the Internet of
Things in the industrial world, with non-
exhaustive examples in the fields of energy,
automotive, health and manufacturing
engineering.
Connected objects stand at the crossroad of the three ALTEN’s business lines
– Technology Consulting & Engineering (TCE), Networks, Telecom & Multimedia (NTM),
Information Systems (IS/IT).
40, avenue André Morizet
92514 Boulogne-Billancourt Cedex
Tel : +33 (0)1 46 08 70 00
www.alten.fr
© Direction Marketing Groupe ALTEN
Juin 2014

Livre blanc iot

More Related Content

What's hot

Similar to Livre blanc iot

More from Frederic Simottel

Recently uploaded

Livre blanc iot
