GlusterFSGlusterFS
A Scale-out Software Defined Storage
Rajesh Joseph
Poornima Gurusiddaiah

2. 05/17/16

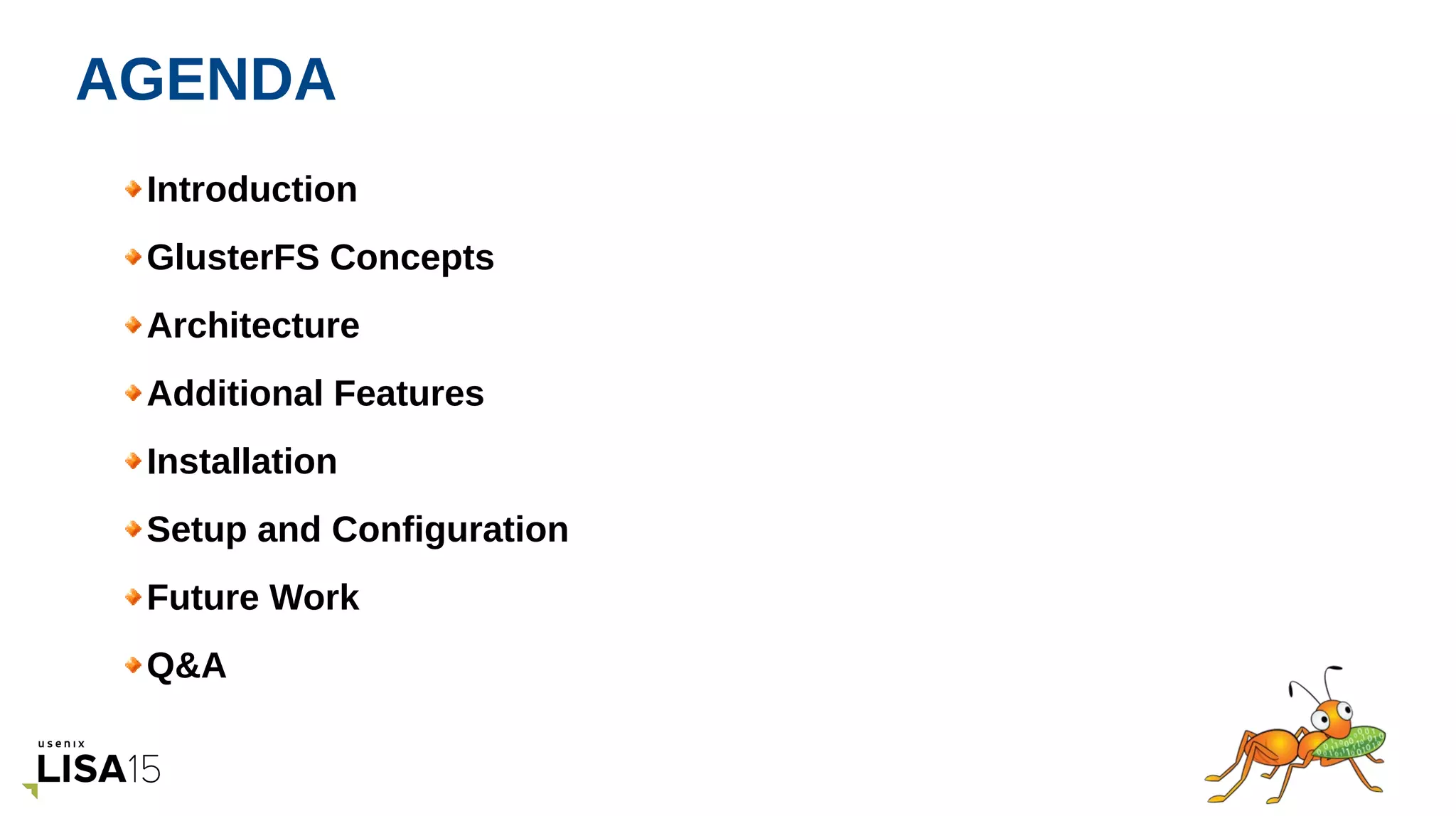

AGENDA
Introduction
GlusterFS Concepts
Architecture
Additional Features
Installation
Setup and Configuration
Future Work
Q&A

3. 05/17/16
GlusterFS
Open-source general purpose scale-out
distributed file system
Aggregates storage exports over
network interconnect to provide a single
unified namespace
Layered on disk file systems that support
extended attributes
No meta-data server
Modular Architecture for Scale
and Functionality
Heterogeneous commodity
hardware
Scalable to petabytes & beyond

4. 05/17/16
GlusterFS Concepts

5. 05/17/16
Server
Intel/AMD x86 64-bit processor
Disk: 8GB minimum using direct-
attached-storage, RAID, Amazon EBS,
and FC/Infiniband/iSCSI SAN disk
backends using SATA/SAS/FC disks
Memory: 1GB minimum
Logical Volume Manager
LVM2 with thin provisioning
Networking
Gigabit Ethernet
10 Gigabit Ethernet
InfiniBand (OFED 1.5.2 or later)
Filesystem
POSIX w/ Extended Attributes (EXT4,
XFS, BTRFS, …)
A node is server capable of hosting GlusterFS bricks
Node

6. 05/17/16
Trusted Storage Pool
Also known as Cluster
Trusted Storage Pool is formed by invitation – “probe”
Members can be dynamically added and removed from the pool
Only nodes in a Trusted Storage Pool can participate in volume creation
A collection of storage servers (Node)
Node 2Node 1 Node 3

7. 05/17/16
Bricks
A brick is the combination of a node and an export directory – e.g.
hostname:/dir
Layered on posix compliant file-system (e.g. XFS, ext4)
Each brick inherits limits of the underlying filesystem
It is recommended to use an independent thinly provisioned LVM as brick
Thin provisioning is needed by Snapshot feature
A unit of storage used as a capacity building block

8. 05/17/16
Bricks
Storage devices
Thin LV
Volume GroupBrick1 Brick2
Thin Pool
mount
Thin LV
Thin Pool
mount

9. 05/17/16
GlusterFS Volume
Node hosting these bricks should be part of a single Trusted
Storage Pool
One or more volumes can be hosted on the same node
A volume is a logical collection of one or more bricks

10. 05/17/16
GlusterFS Volume
GlusterFS Volume
Storage Node Storage Node Storage Node
Brick Brick Brick Brick

11. 05/17/16
GlusterFS Volume
Volume1
Storage Node Storage Node Storage Node
Brick Brick Brick BrickBrick Brick
Volume2

12. 05/17/16
Translators
Translators can be stacked together for achieving desired
functionality
Translators are deployment agnostic – can be loaded in either the
client or server stacks
Building block of GlusterFS process

13. 05/17/16
Translators
GigE, 10GigE – TCP/IP / Inifiniband - RDMA
Client Client Client Client
Network
VFS
Distribute
Replicate Replicate
Server
POSIX
Server
POSIX
Server
POSIX
Server
POSIX
I/O Cache
Read Ahead
Bricks
Client

14. 05/17/16
GlusterFS Processes
glusterd
Management daemon
One instance on each GlusterFS node
glusterfsd
GlusterFS brick daemon
One process per brick on each node
Managed by glusterd
gluster
Gluster console manager (CLI)
glusterfs
Node services
One process for each service
NFS Server, Self heal, Quota, ...
mount.glusterfs
FUSE native client mount extension

15. 05/17/16
Accessing Volume
Volume can be mounted on local file-system
Following protocols supported for accessing volume
GlusterFS Native client
Filesystem in Userspace (FUSE)
libgfapi flexible abstracted storage
Samba, NFS-Ganesha, QEMU
NFS
NFS Ganesha
Gluster NFSv3
SMB / CIFS
Windows and Linux
Gluster For OpenStack
Object-based access via OpenStack Swift

16. 05/17/16
Fuse Native
Network Interconnect
NFS
Samba
libgfapi
NFSGanesha
AppQEMU

17. 05/17/16
GlusterFS Native Client (FUSE)
FUSE kernel module allows the filesystem to be built and operated entirely in userspace
Specify mount to any GlusterFS server
Native Client fetches volfile from mount server, then communicates directly with all nodes to
access data

18. 05/17/16
Accessing Volume – Fuse client
Gluster Volume
Storage Node Storage Node Storage Node
Brick Brick Brick Brick
mount Client

19. 05/17/16
libgfapi
Userspace library for accessing GlusterFS volume
File-system like API
No FUSE, No copies, No context switches
Samba, QEMU, NFS-Ganesha integrated with libgfapi

20. 05/17/16
Libgfapi - Advantage
Storage NodeClient
Userspace
Kernel
Userspace
Kernel
App
/mnt/gmount
/dev/fuseKernel VFS
Net Net
Glusterfsd
Brick
XFS
GlusterFS
Fuse Library

21. 05/17/16
Libgfapi - Advantage
Storage NodeClient
Userspace
Kernel
Userspace
Kernel
Net Net
Glusterfsd
Brick
XFS
App
libgfapi

22. 05/17/16
Gluster NFS
Supports NFS v3 protocol
Mount to any server or use load-balancer
GlusterFS NFS server uses Network Lock Manager (NLM) to synchronize locks across clients
Load balancing should be managed externally

23. 05/17/16
Accessing Volume – Gluster NFS
Gluster Volume
Storage Node Storage Node Storage Node
Brick Brick Brick Brick
mount
Client
NFSNFSNFS
IP Load Balancer

24. 05/17/16
SMB / CIFS
Samba VFS plugin for GlusterFS
Uses libgfapi
Must be setup on each server you wish to connect
CTDB is required for Samba clustering

25. 05/17/16
Accessing Volume – SMB
Gluster Volume
Storage Node Storage Node Storage Node
Brick Brick Brick Brick
mount
Client
SMBDSMBDSMBD
IP Load Balancer

26. 05/17/16
Volume Types
Type of a volume is specified at the time of volume creation
Volume type determines how and where data is placed
Basic Volume Types
Distributed
Replicated
Dispersed
Striped
Sharded
Advance Volume Types
Distributed Replicated
Distributed Dispersed
Distributed Striped
Distributed Striped Replicated

27. 05/17/16
Distributed Volume
Distributes files across various bricks of the volume
Similar to file-level RAID-0
Scaling but no high availability
Uses Davies-Meyer hash algorithm
A 32-bit hash space is divided into N ranges for N bricks
Removes the need for an external meta data server

28. 05/17/16
Distribute Volume
Storage Node Storage Node Storage Node
Brick Brick Brick
Client
File1File2
[0, a] [a + 1, b] [b + 1, c]
File1 Hash = x, Where 0 <= x <= aFile2 Hash = y, Where b < y <= c

29. 05/17/16
Replicate Volume
Synchronous replication of all directory and file updates
Similar to file-level RAID-1
High availability but no scaling
Replica pairs are decided at the volume creation time
Its recommended to host each brick of replica set on different node

30. 05/17/16
Replicate Volume
Storage Node
Brick
Client
File1
Storage Node
Brick

31. 05/17/16
Disperse Volume
Erasure Coded volume
High availability with less number of bricks
Store m disk of data on k disk (k > m)
n (k-m) redundant disks
Following setup is the most tested configuration
6 bricks with redundancy level 2 (4 +2)
11 bricks with redundancy level 3 (8 +3)
12 bricks with redundancy level 4 (8 + 4)

32. 05/17/16
Disperse Volume
Storage Node
Brick
Client
File1
Storage Node
Brick
Storage Node
Brick
Data Part
Parity / Redundancy Part

33. 05/17/16
Striped Volume
Individual files split among bricks (sparse files)
Similar to block-level RAID-0
Recommended only when very large files greater than the size of the disks are present
Chunks are files with holes – this helps in maintaining offset consistency

34. 05/17/16
Striped Volume
Storage Node
Brick
Client
File1
Storage Node
Brick
Storage Node
Brick

35. 05/17/16
Sharded (Stripe – 2.0) Volume
Individual files split among bricks
Each part split is a different file in the backend
File name of each part derived from GFID (UUID) of actual file
Unlike Stripe file rename will not have any impact on these parts.
Unlike other volume types shard is a volume option which can be set on any volume
Recommended only when very large files greater than the size of the disks are present

36. 05/17/16
Sharded Volume
Storage Node
Brick
Client
File1
Storage Node
Brick
Storage Node
Brick
GFID1.1 GFID1.2
GFID1.3

37. 05/17/16
Distribute Replicate Volume
Distribute files across replicated bricks
Number of bricks must be a multiple of the replica count
Ordering of bricks in volume definition matters
Scaling and high availability
Most preferred model of deployment

38. 05/17/16
Distribute Replicate Volume
Storage Node
Brick
Storage Node
Brick
Storage Node
Brick
Client
File1File2
Storage Node
Brick
Replica Pairs
Replica Pairs

39. 05/17/16
Performance
Different SLA than a local file-system
Uneven performance distribution between nodes and clients
Various performance options available (e.g., read-ahead, md-cache, etc)
Based on workload use various options
Don't forget to attend detailed session on performance by Jeff Darcy
Topic : Evaluating Distributed File System Performance (GlusterFS and Ceph)
When : Friday, November 13, 2015 ­ 9:00am­10:30am
Detail : https://www.usenix.org/conference/lisa15/conference­program/presentation/darcy

40. 05/17/16
Additional Features

41. 05/17/16
Additional Features
Geo Replication
Volume Snapshot
Quota
Bit-rot
Compression
Encryption at rest
Trash / Recycle-bin
pNFS with NFS-Ganesha
Data Tiering
User Serviceable Snapshots
Server side Quorum
Client side Quorum
And many more ...

42. 05/17/16
Geo-Replication
Mirrors data across geographically distributed trusted storage pools
Provides back-ups of data for disaster recovery
Master-Slave model
Asynchronous replication
Provides an incremental continuous replication service over
Local Area Networks (LANs)
Wide Area Network (WANs)
Internet

43. 05/17/16
Geo-Replication
Trusted Storage Pool Trusted Storage Pool
Network
LAN/WAN/Internet
Master Volume Slave Volume

44. 05/17/16
GlusterFS Snapshot
Volume level crash consistent snapshots
LVM2 based
Operates only on thin-provisioned volumes
Snapshots themselves are thin-provisioned snapshot volumes
A GlusterFS volume snapshot consists of snapshots of the individual bricks making up the
volume
Snapshot of a GlusterFS volume is also a GlusterFS volume

45. 05/17/16
Thinly Provisioned LVM2 Volume & Snapshot
Storage devices
SnapshotThin LV
Thin Pool
Volume Group

46. 05/17/16
Gluster Volume Snapshot
Gluster Volume
Storage Node Storage Node
Brick1 Brick2
Brick3 Brick4
Brick1_s1 Brick2_s1
Brick4_s1Brick3_s1
Snapshot volume
Barrier

47. 05/17/16
Data Tiering
Data classification and placement of data
Currently based on access rate
Tiered volume can be created by attaching a tier
Bricks in original volume are “cold” bricks
Bricks in attached tier are “hot” bricks
Hot bricks are normally hosted on faster disks e.g. SSDs
Tier can be attached or detached using volume commands

48. 05/17/16
Tiered Volume
Storage Node
Brick
Storage Node
Brick
Storage Node
Brick
Client
Storage Node
BrickBrick
Cold Tier Hot Tier
TT

49. 05/17/16
Tiered Volume
Replica
Tier
Distribute
Replica Replica
Brick Brick Brick Brick Brick Brick Brick
Hot Tier
Cold Tier

50. 05/17/16
Future Work
New Style Replication (NSR)
Scalability improvements (1000+ Nodes)
Multi-protocol support
Multi-master Geo-Replication
Caching Improvements
Btrfs Support
And many more…
