This document discusses how LinkedIn uses a custom Gradle plugin to provide consistent Android testing environments across machines. The plugin bundles emulator system and user files to avoid slow emulator creation. It can start up to 16 emulators in parallel and dynamically adds emulator dependencies based on test configuration. This approach bootstraps emulators much faster and ensures tests fail for the same reasons on all machines.

1. Consistent Android testing
environments using Gradle
Drew Hannay (@drewhannay)

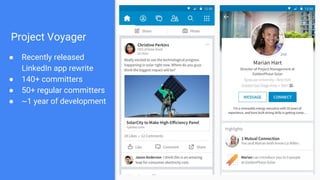

2. Project Voyager
● Recently released
LinkedIn app rewrite
● 140+ committers
● 50+ regular committers
● ~1 year of development

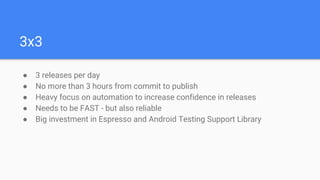

3. 3x3
● 3 releases per day
● No more than 3 hours from commit to publish
● Heavy focus on automation to increase confidence in releases
● Needs to be FAST - but also reliable
● Big investment in Espresso and Android Testing Support Library

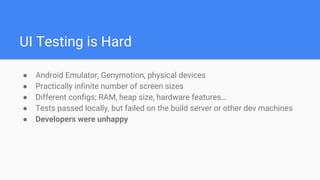

4. UI Testing is Hard
● Android Emulator, Genymotion, physical devices
● Practically infinite number of screen sizes
● Different configs; RAM, heap size, hardware features…
● Tests passed locally, but failed on the build server or other dev machines
● Developers were unhappy

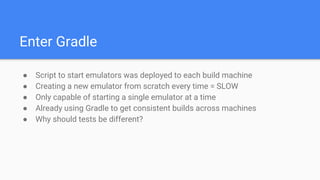

5. Enter Gradle
● Script to start emulators was deployed to each build machine
● Creating a new emulator from scratch every time = SLOW
● Only capable of starting a single emulator at a time
● Already using Gradle to get consistent builds across machines
● Why should tests be different?

6. What’s an emulator/AVD?

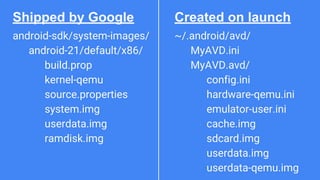

7. ~/.android/avd/
MyAVD.ini
MyAVD.avd/
config.ini
hardware-qemu.ini
emulator-user.ini
cache.img
sdcard.img
userdata.img
userdata-qemu.img
android-sdk/system-images/
android-21/default/x86/
build.prop
kernel-qemu
source.properties
system.img
userdata.img
ramdisk.img
Shipped by Google Created on launch

8. Emulator Skins Skin No Skin
sdk/platforms/android-21/
skins/{skin-name}/
hardware.ini
layout

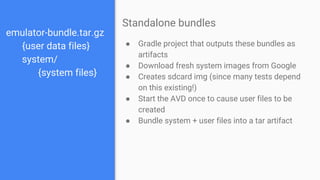

9. emulator-bundle.tar.gz
{user data files}
system/
{system files}
● Gradle project that outputs these bundles as
artifacts
● Download fresh system images from Google
● Creates sdcard img (since many tests depend
on this existing!)
● Start the AVD once to cause user files to be
created
● Bundle system + user files into a tar artifact
Standalone bundles

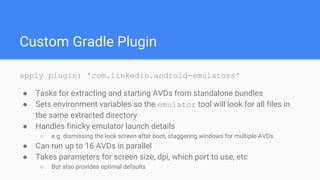

10. Custom Gradle Plugin
apply plugin: 'com.linkedin.android-emulators'
● Tasks for extracting and starting AVDs from standalone bundles
● Sets environment variables so the emulator tool will look for all files in
the same extracted directory
● Handles finicky emulator launch details
○ e.g. dismissing the lock screen after boot, staggering windows for multiple AVDs
● Can run up to 16 AVDs in parallel
● Takes parameters for screen size, dpi, which port to use, etc
○ But also provides optimal defaults

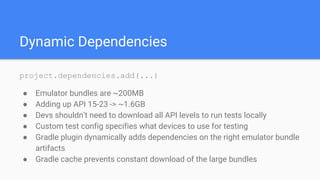

11. Dynamic Dependencies
project.dependencies.add(...)
● Emulator bundles are ~200MB
● Adding up API 15-23 -> ~1.6GB
● Devs shouldn’t need to download all API levels to run tests locally
● Custom test config specifies what devices to use for testing
● Gradle plugin dynamically adds dependencies on the right emulator bundle
artifacts
● Gradle cache prevents constant download of the large bundles

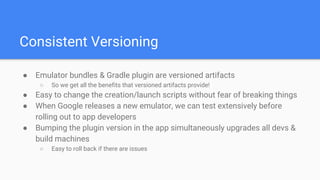

12. Consistent Versioning
● Emulator bundles & Gradle plugin are versioned artifacts
○ So we get all the benefits that versioned artifacts provide!
● Easy to change the creation/launch scripts without fear of breaking things
● When Google releases a new emulator, we can test extensively before
rolling out to app developers
● Bumping the plugin version in the app simultaneously upgrades all devs &
build machines
○ Easy to roll back if there are issues

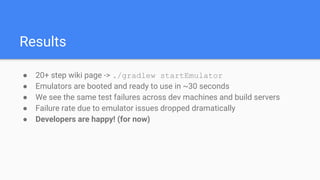

13. Results
● 20+ step wiki page -> ./gradlew startEmulator
● Emulators are booted and ready to use in ~30 seconds
● We see the same test failures across dev machines and build servers
● Failure rate due to emulator issues dropped dramatically
● Developers are happy! (for now)
