Robot Framework with actual robot

Robot Framework with actual robot

• 1.
  Robot Framework with actualrobot Sakari Pesonen 2.11.2015
• 2.

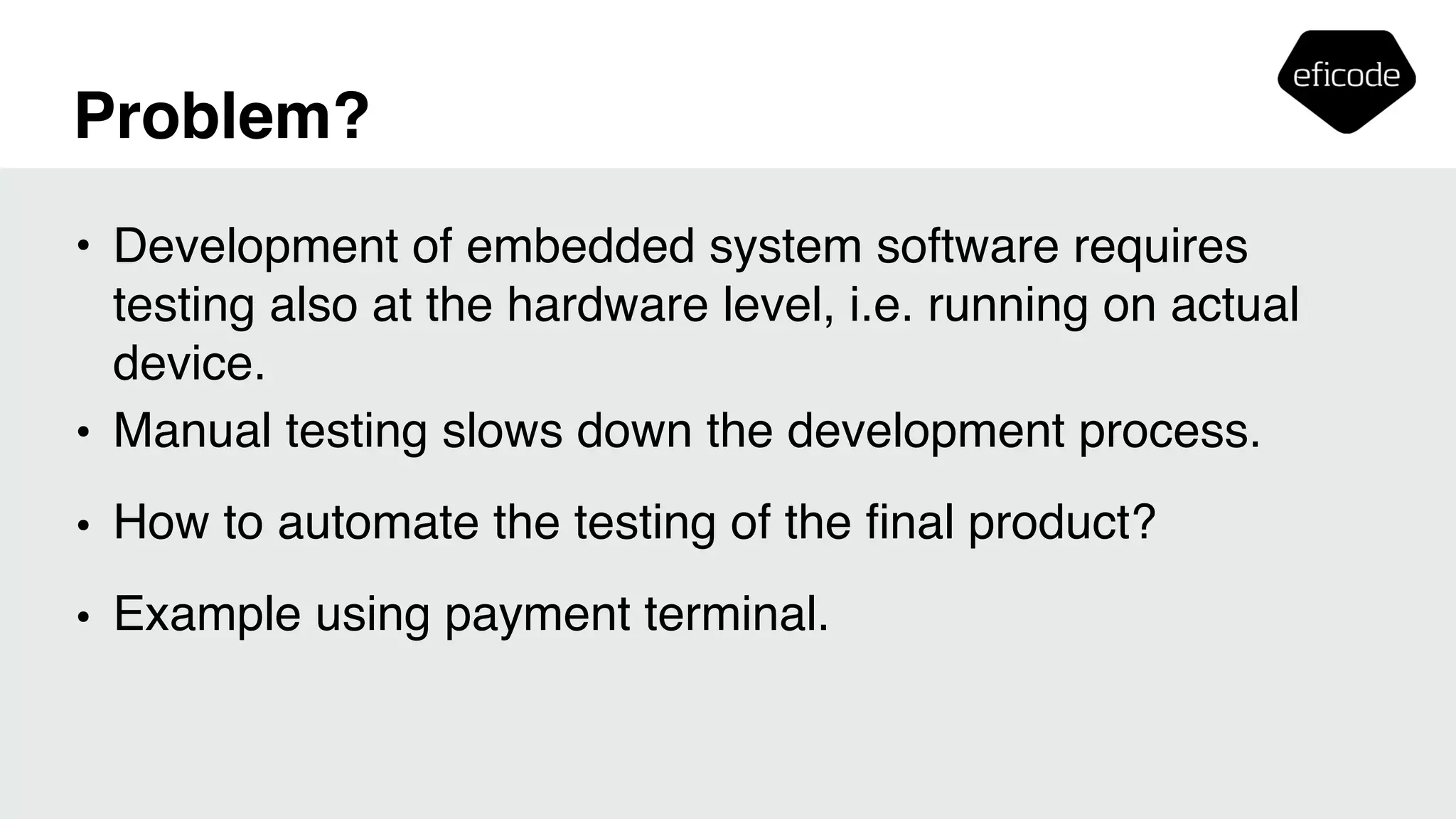

  Problem? • Development ofembedded system software requires testing also at the hardware level, i.e. running on actual device. • Manual testing slows down the development process. • How to automate the testing of the final product? • Example using payment terminal.
• 3.

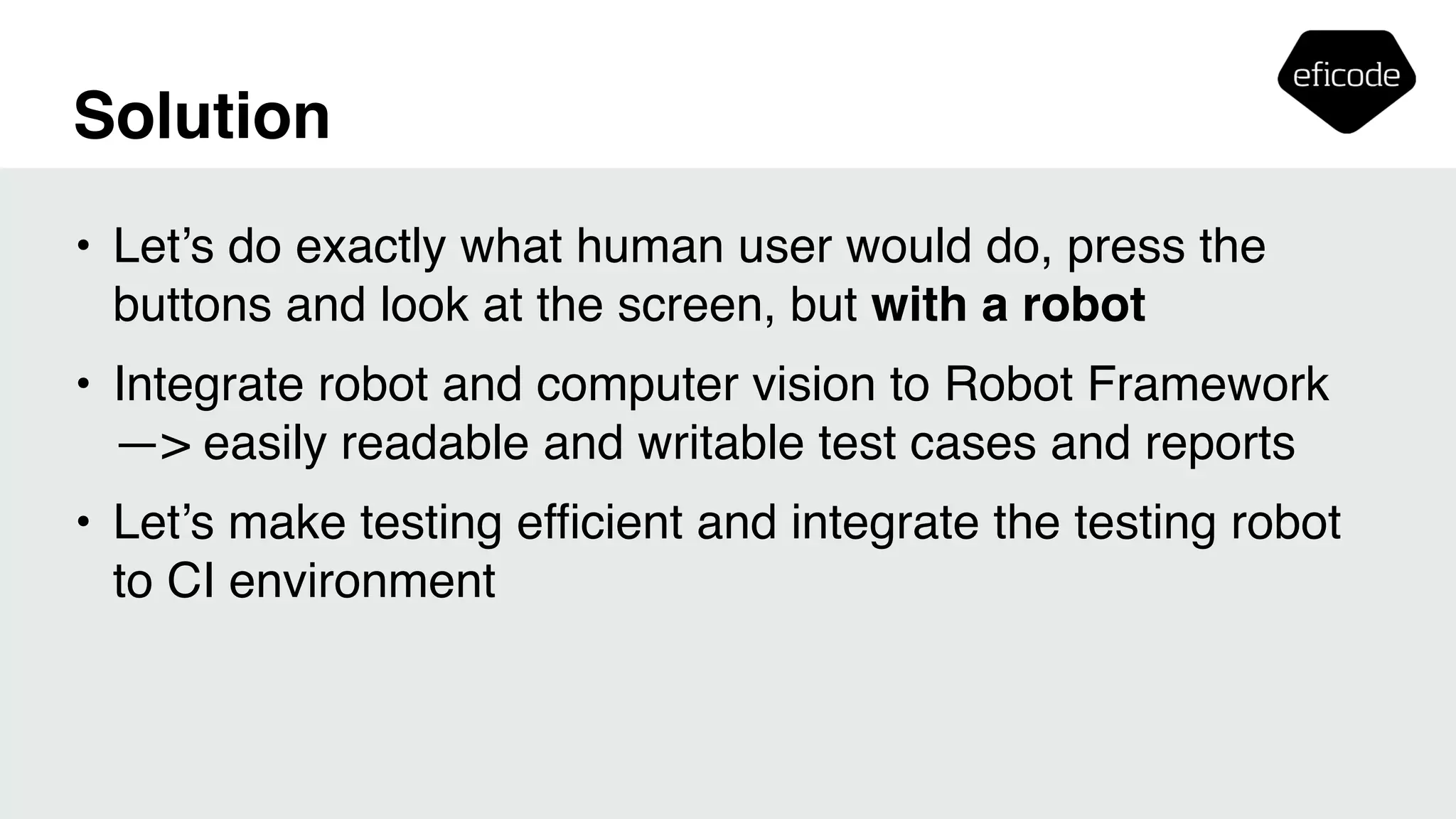

  Solution • Let’s doexactly what human user would do, press the buttons and look at the screen, but with a robot • Integrate robot and computer vision to Robot Framework —> easily readable and writable test cases and reports • Let’s make testing efficient and integrate the testing robot to CI environment
• 4.

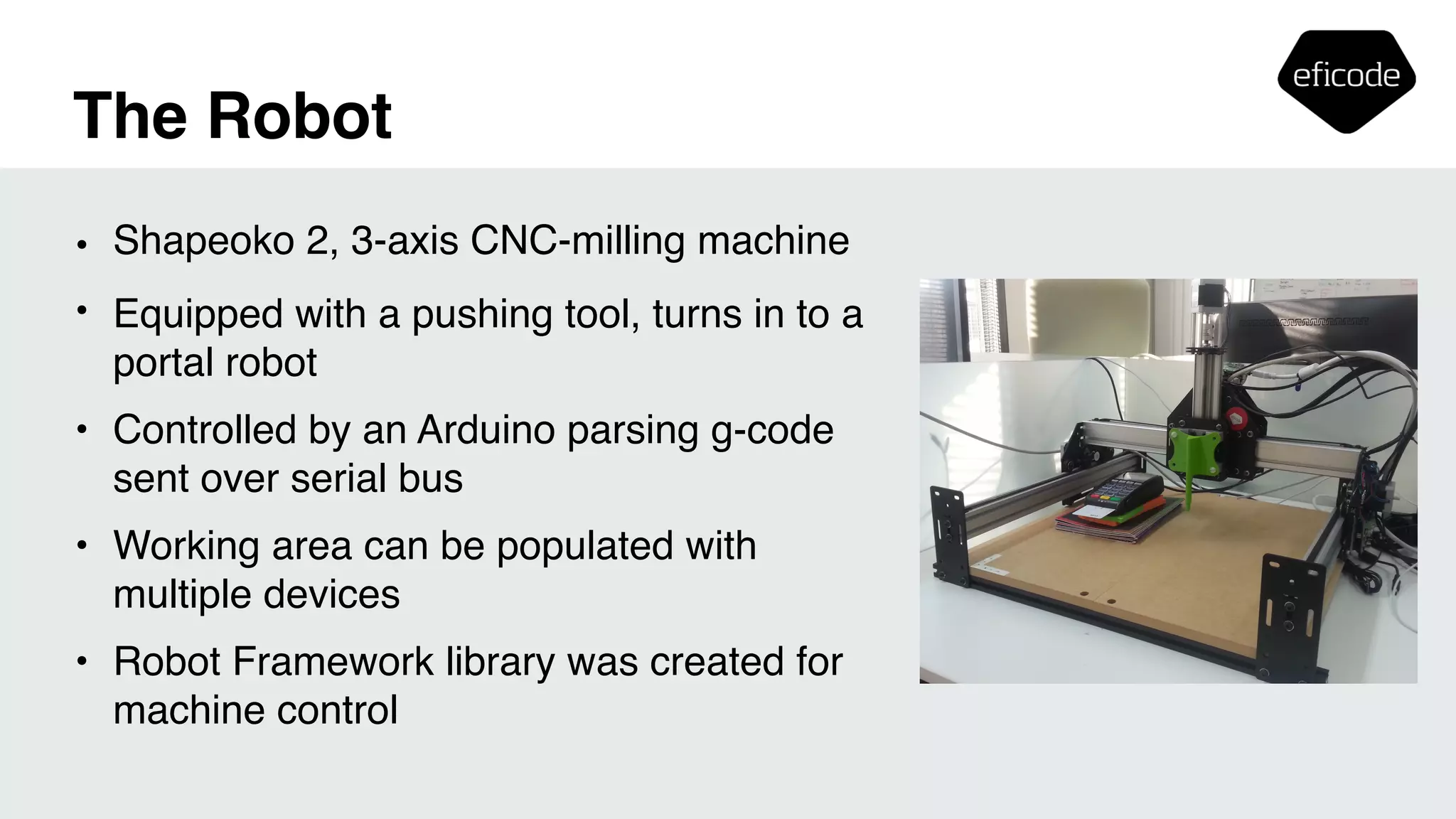

  The Robot • Shapeoko2, 3-axis CNC-milling machine • Equipped with a pushing tool, turns in to a portal robot • Controlled by an Arduino parsing g-code sent over serial bus • Working area can be populated with multiple devices • Robot Framework library was created for machine control
• 5.

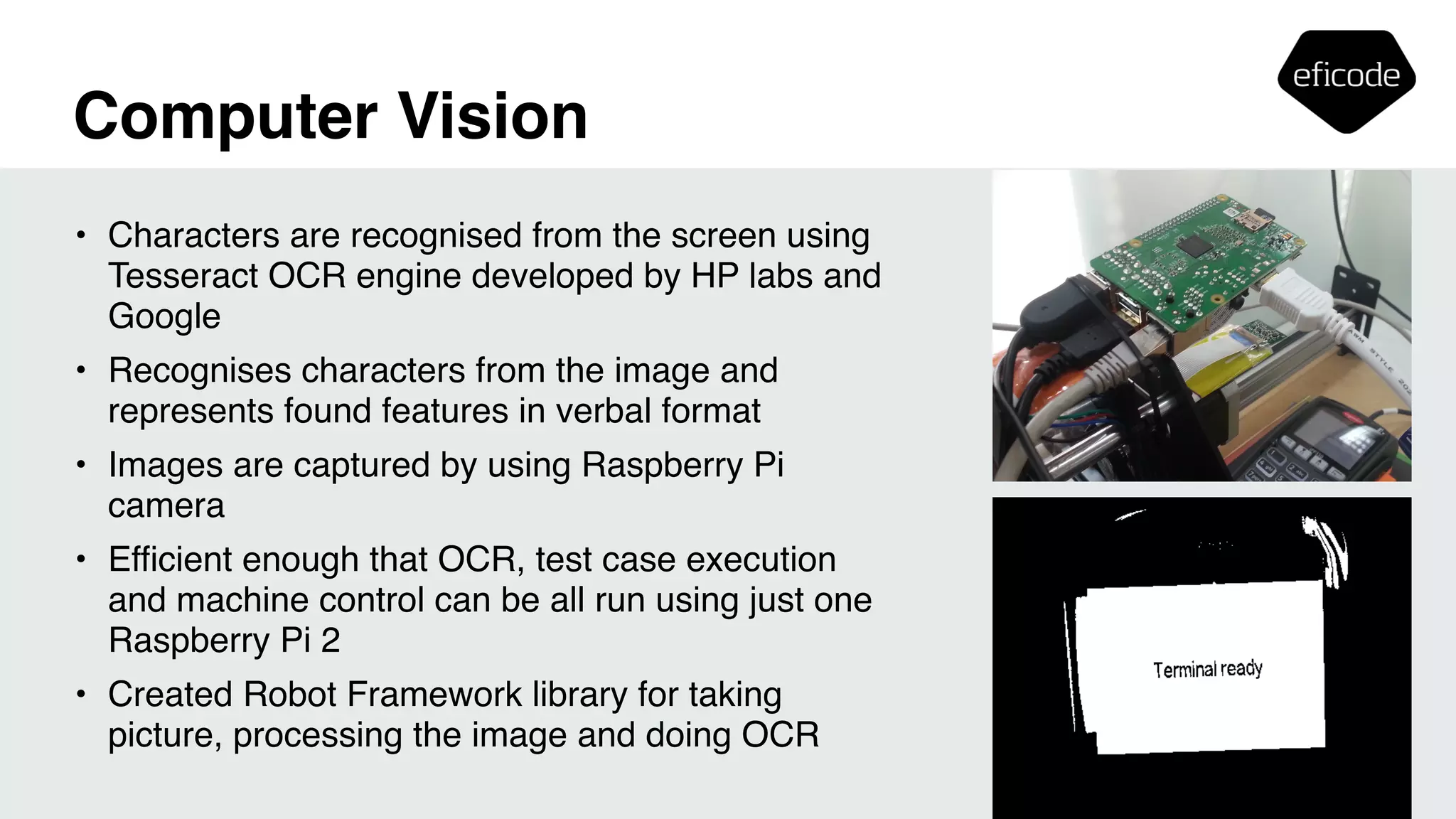

  Computer Vision • Charactersare recognised from the screen using Tesseract OCR engine developed by HP labs and Google • Recognises characters from the image and represents found features in verbal format • Images are captured by using Raspberry Pi camera • Efficient enough that OCR, test case execution and machine control can be all run using just one Raspberry Pi 2 • Created Robot Framework library for taking picture, processing the image and doing OCR

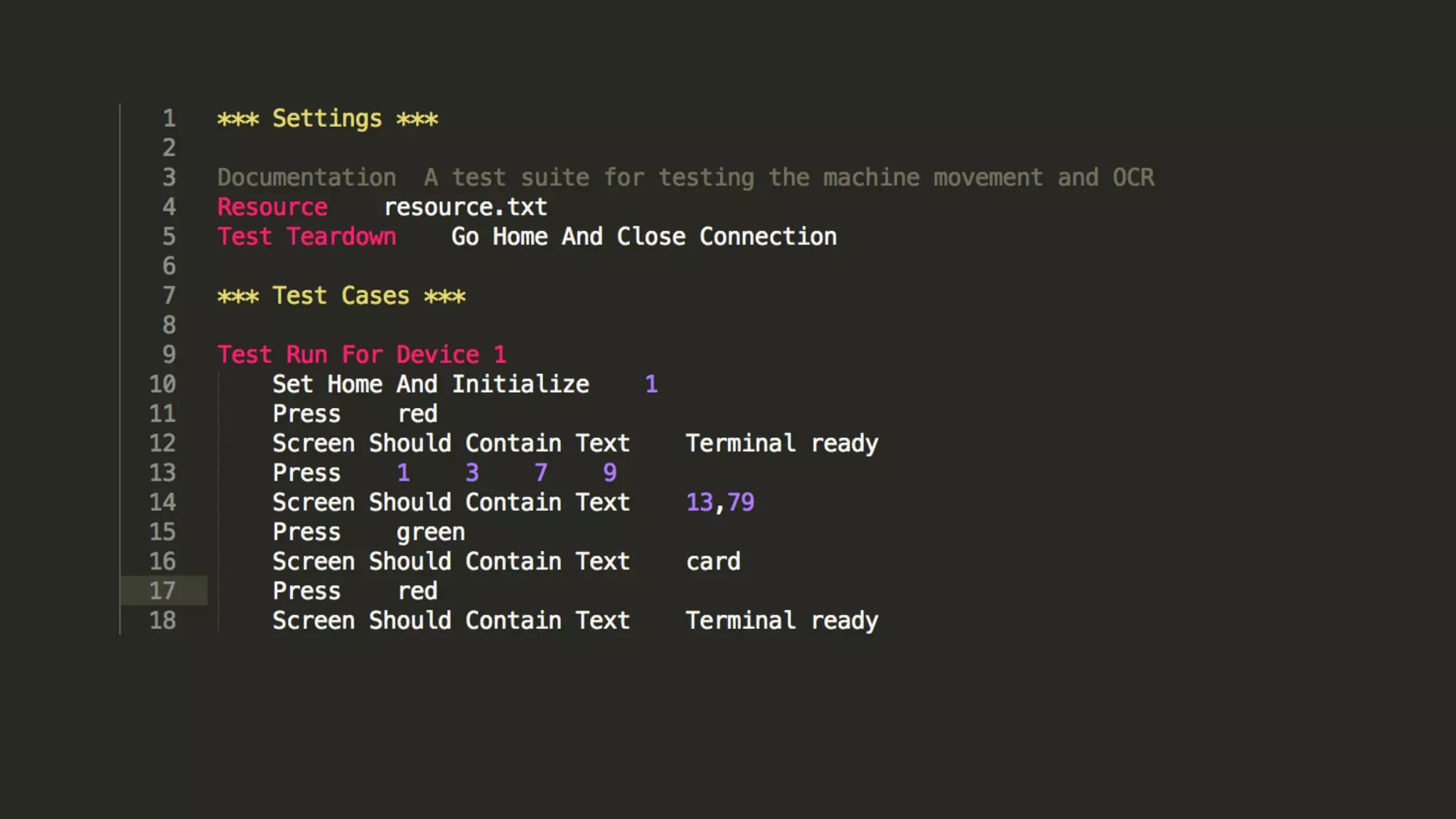

• 7.

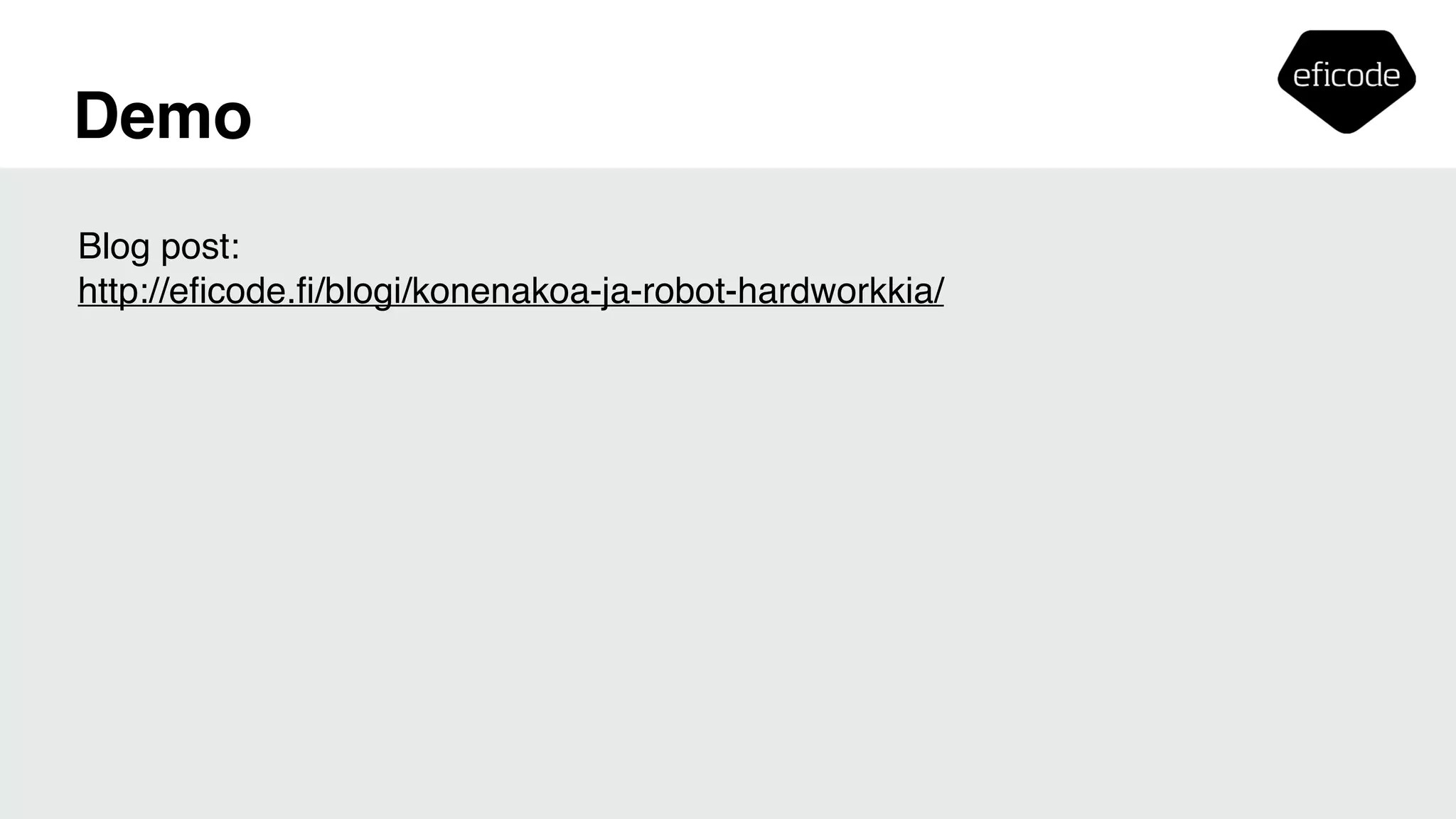

  Demo Blog post: http://eficode.fi/blogi/konenakoa-ja-robot-hardworkkia/
• 8.
  Sakari Pesonen, Consultant sakari.pesonen@eficode.com +358(0)40 753 0283 eficode.fi THANK YOU!
