Lighting Schedule

This lighting schedule summarizes the lighting fixtures and products specified for a residential warehouse renovation project. It includes 17 different lighting items ranging from wall sconces, pendants, and downlights to be used in various rooms of the property including entry, living areas, kitchen, dining room, and more. For each item, the schedule provides details on product name, specifications, supplier, quantity, unit price and total price. The total estimated cost for all lighting items is $75,592.

Embed presentation

Downloaded 21 times
Lighting Schedule Project: Designer: Linda Jane Vanhear Address: 31 Australia St, Camperdown, NSW Company: Billy Blue College of Design Issue: Address Date: Code Item Type Specification Supplier QTY Unit Price Total Image Comments LT - 01 Fizi Single Ball Wall Sconce Wall-mounted Product Name: Fizi Wall Sconce Single Ball with Kick Light Source: 12V 2W LED Bipin // 2700K Fitting Finish: Mid-Bronze Dimensions:H 261 x D 68 x W 125mm Lead time: 6-8 weeks Articolo 4 $3,115 $12,460 LT - 02 Trimless Semi- Recessed Rotational Downlight Semi-Recessed Rotational Downlight Product Name: SPY TRIMLESS 92733 B Product Code: 414 31 811 922 W Colour: White Adjustable: 0-45°/355° Recess Depth: 80mm Hole Size: 133mm Ø Power: 10.4W Technics (Light Source): 1032lm // 10 W // 105 lm/W Technics (Luminaire): 530 lm // 12 W // 44 lm/W Protection Level: IP20 Current: 350mA, 500mA Lumen Package: 1032lm System Power: 12W Requirements: LED Power Supply 350 / 500mA-DC DIM Supplier: Inlite Brand: Delta Light 2 $280 $560 LIGHTING SCHEDULE Entry Residential Warehouse Renovation Tender Issue A 29/08/2019 46-52 Mountain St, Ultimo NSW IDR205A ‐ Brief 3 Page 3 of 20 Vanhear, Linda‐Jane
Lighting Schedule Code Item Type Specification Supplier QTY Unit Price Total Image Comments LT - 03 Furl Wall-Mounted Brass Triangle Light Fixture Wall-mounted Product Name: Furl Wall Light Triangle Brass Designers: Coco Reynolds & Christel Hadiwibawa Material: Brass Max Voltage/Wattage: DC12V / 1-W Light Type: LED Tube Strip with heat sink housing, PVC diffuser and end caps Dimensions: H 380 x W 1 90 x D 70mm Lead Time: 4-5 weeks Supplier: The Design Hunter Brand: Marz Designs 3 $875 $2,625 IDR205A ‐ Brief 3 Page 4 of 20 Vanhear, Linda‐Jane
Lighting Schedule Code Item Type Specification Supplier QTY Unit Price Total Image Comments LT - 02 Trimless Semi- Recessed Rotational Downlight Semi-Recessed Rotational Downlight Product Name: SPY TRIMLESS 92733 B Product Code: 414 31 811 922 W Colour: White Adjustable: 0-45°/355° Recess Depth: 80mm Hole Size: 133mm Ø Power: 10.4W Technics (Light Source): 1032lm // 10 W // 105 lm/W Technics (Luminaire): 530 lm // 12 W // 44 lm/W Protection Level: IP20 Current: 350mA, 500mA Lumen Package: 1032lm System Power: 12W Requirements: LED Power Supply 350 / 500mA-DC DIM Supplier: Inlite Brand: Delta Light 9 $280 $2,520 LT - 04 Punk 39 Clip Light Surface mounted Adjustable Accent Light Product name: Punk 39 Clip Light Product Number: PUNK 39 CLIP 92724 Recessed Depth: 40mm Diameter: 92mm (L) x 38mm (Diameter) Finish: Black-Black CRI: CRI90 Colour Temp: Halogen White (+2700K) LED Technics (light source): 743lm // 7W // 111lm/W LED Technics (luminaire): 500l, // 8 W // 61 lm/W Colour Temp: 2700K/3000K Distribution: Rotationally Symettrical Adjustable: 0-90°/355° Beam Angle: 24° Control Gear: Remote Requirements: LED Power Supply 350mA-DC DIM Mounting Kit Flush Spy Requirements: LED Power Supply 350mA=DC Dim Supplier: Inlite Manufacturer: Delta Light 4 $523 $2,092 Living 1 IDR205A ‐ Brief 3 Page 5 of 20 Vanhear, Linda‐Jane
Lighting Schedule Code Item Type Specification Supplier QTY Unit Price Total Image Comments LT - 05 Tona Table Lamp Table Lamp Product Name: Tona Table Lamp Materials: Collar and bulb in crystal resin, pedestal in Mexican Onyx. Dimensions: 320 H x 24 W x 24 D Lead time: 4 weeks Adriancruz Elements 2 $2,142 $4,284 LT - 06 Chandelier Y Chandelier 05 Product Name: Y Chandelier 05 Lamp Specifications: E27 LED / candle / Clear / 3-4W / 330-35lm / Dimmable Dimensions: Custom Drop - W 1090 x D 760mm Glass Globe: Ø 130mm Materials: Brass and mouthblown glass diffuser Finish: Brushed and Lacquared Brass / Glass Globe in 'Midnight' Supplier: Douglas & Bec Designers: Douglas Snelling and Rebecca Downie 1 $3,590 $3,590 LT - 07 Pare Floor Lamp 01 Floor Lamp / Ambient lighting Product Name: Pare Floor Lamp 01 Materials: Brass, Glass, Marble Finish: Glass globe in Midnight Lamp Specifications: E27LED / Candle / Clear / 3-4W / 330-350lm / Dimmable Dimensions: H 1520mm x W 400 x D 400 Douglas & Bec 1 $1,490 $1,490 IDR205A ‐ Brief 3 Page 6 of 20 Vanhear, Linda‐Jane
Lighting Schedule Code Item Type Specification Supplier QTY Unit Price Total Image Comments LT - 02 Trimless Semi- Recessed Rotational Downlight Semi-Recessed Rotational Downlight Product Name: SPY TRIMLESS 92733 B Product Code: 414 31 811 922 W Colour: White Adjustable: 0-45°/355° Recess Depth: 80mm Hole Size: 133mm Ø Power: 10.4W Technics (Light Source): 1032lm // 10 W // 105 lm/W Technics (Luminaire): 530 lm // 12 W // 44 lm/W Protection Level: IP20 Current: 350mA, 500mA Lumen Package: 1032lm System Power: 12W Requirements: LED Power Supply 350 / 500mA-DC DIM Supplier: Inlite Brand: Delta Light 11 $280 $3,080 LT - 04 Punk 39 Clip Light Surface mounted Adjustable Accent Light Product name: Punk 39 Clip Light Product Number: PUNK 39 CLIP 92724 Recessed Depth: 40mm Diameter: 92mm (L) x 38mm (Diameter) Finish: Black-Black CRI: CRI90 Colour Temp: Halogen White (+2700K) LED Technics (light source): 743lm // 7W // 111lm/W LED Technics (luminaire): 500l, // 8 W // 61 lm/W Colour Temp: 2700K/3000K Distribution: Rotationally Symettrical Adjustable: 0-90°/355° Beam Angle: 24° Control Gear: Remote Requirements: LED Power Supply 350mA-DC DIM Mounting Kit Flush Spy Requirements: LED Power Supply 350mA=DC Dim Supplier: Inlite Manufacturer: Delta Light 2 $523 $1,046 Living 2 IDR205A ‐ Brief 3 Page 7 of 20 Vanhear, Linda‐Jane

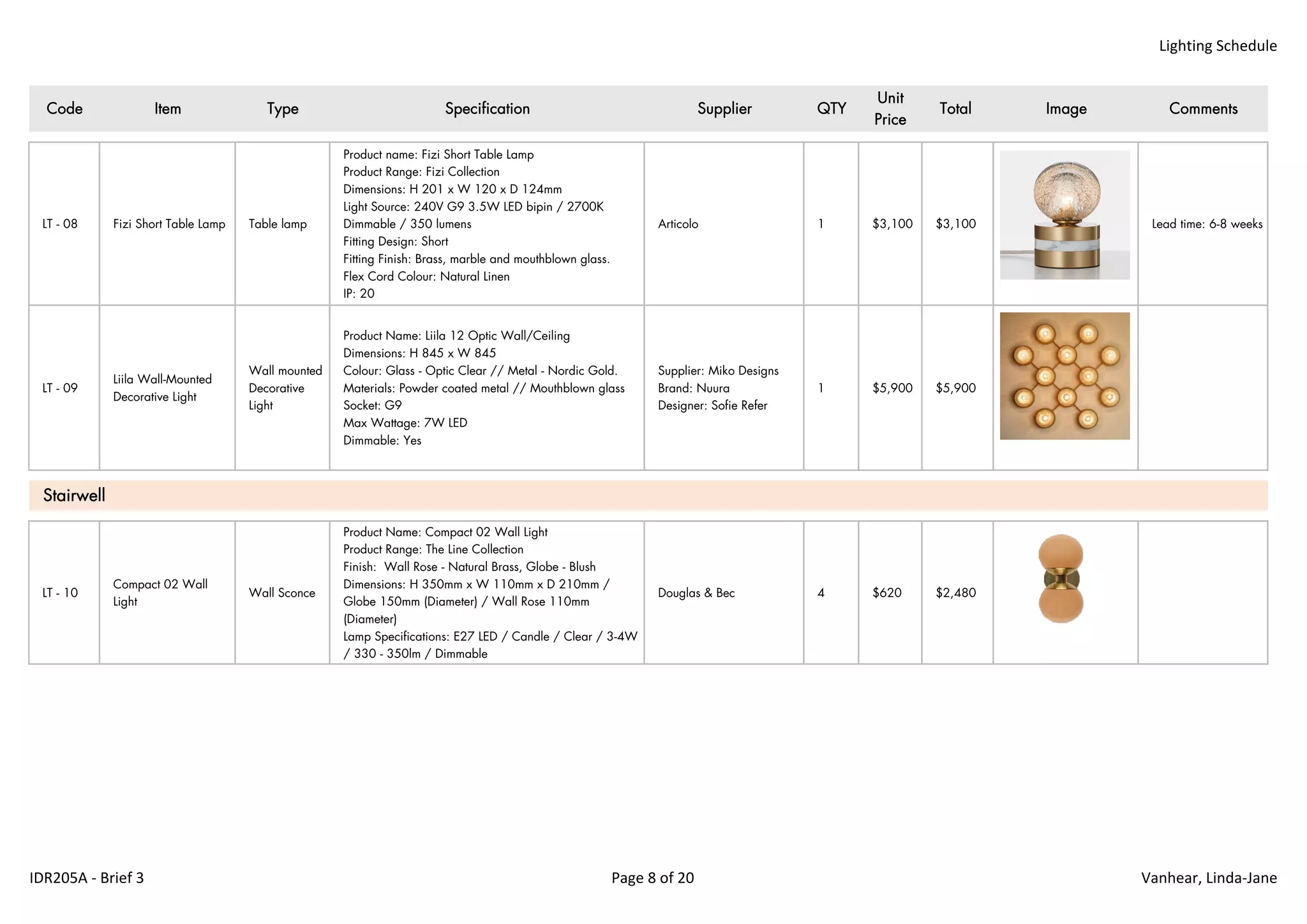

Lighting Schedule Code Item Type Specification Supplier QTY Unit Price Total Image Comments LT - 08 Fizi Short Table Lamp Table lamp Product name: Fizi Short Table Lamp Product Range: Fizi Collection Dimensions: H 201 x W 120 x D 124mm Light Source: 240V G9 3.5W LED bipin / 2700K Dimmable / 350 lumens Fitting Design: Short Fitting Finish: Brass, marble and mouthblown glass. Flex Cord Colour: Natural Linen IP: 20 Articolo 1 $3,100 $3,100 Lead time: 6-8 weeks LT - 09 Liila Wall-Mounted Decorative Light Wall mounted Decorative Light Product Name: Liila 12 Optic Wall/Ceiling Dimensions: H 845 x W 845 Colour: Glass - Optic Clear // Metal - Nordic Gold. Materials: Powder coated metal // Mouthblown glass Socket: G9 Max Wattage: 7W LED Dimmable: Yes Supplier: Miko Designs Brand: Nuura Designer: Sofie Refer 1 $5,900 $5,900 LT - 10 Compact 02 Wall Light Wall Sconce Product Name: Compact 02 Wall Light Product Range: The Line Collection Finish: Wall Rose - Natural Brass, Globe - Blush Dimensions: H 350mm x W 110mm x D 210mm / Globe 150mm (Diameter) / Wall Rose 110mm (Diameter) Lamp Specifications: E27 LED / Candle / Clear / 3-4W / 330 - 350lm / Dimmable Douglas & Bec 4 $620 $2,480 Stairwell IDR205A ‐ Brief 3 Page 8 of 20 Vanhear, Linda‐Jane
Lighting Schedule Code Item Type Specification Supplier QTY Unit Price Total Image Comments LT-10 Pare Floor Lamp 01 Floor Lamp / Ambient lighting Product Name: Pare Floor Lamp 01 Materials: Brass, Glass, Marble Finish: Moss Green Lamp Specifications: E27LED / Candle / Clear / 3-4W / 330-350lm / Dimmable Dimensions: H 1520mm x W 400 x D 400 Douglas & Bec 1 $1,490 $1,490 LT - 11 Orion Tube Light Polished Gold - Finish 1 Feature Suspension Light Product Name: Orion Tube Light Finish: Opaque Sphere and solid polished gold tube Materials: Opal acrylic, steel Illumination: 110-130v, 16.8w, 2700k, 1069 lumen, 24cDC, CRI85 Dimming: Recommended dimmers for up to 8 units Dimensions: H 130mm x W 885 Suspension: 5000mm long adjustable steel tensile wire and 1 cord with transparent casing. Kit to hang horizontal or vertically included. Canopy: 2 x mini canopies to enable LED driver to be surface mounted or installed in ceiling. Supplier: Space Furniture Designer: Lee Broom 3 $1,700 $5,100 Final configuration to be decided on site. Dining IDR205A ‐ Brief 3 Page 9 of 20 Vanhear, Linda‐Jane
Lighting Schedule Code Item Type Specification Supplier QTY Unit Price Total Image Comments LT - 12 Orion Tube Light Polished Gold - Finish 2 Feature Suspension Light Product Name: Orion Tube Light Finish: Solid Gold Sphere and opaque tube Materials: Opal acrylic, steel Illumination: 110-130v, 16.8w, 2700k, 1069 lumen, 24cDC, CRI85 Dimming: Recommended dimmers for up to 8 units Dimensions: H 130mm x W 885 Suspension: 5000mm long adjustable steel tensile wire and 1 cord with transparent casing. Kit to hang horizontal or vertically included. Canopy: 2 x mini canopies to enable LED driver to be surface mounted or installed in ceiling. Supplier: Space Furniture Designer: Lee Broom 2 $1,700 $3,400 Modular lighting which expands horizontally and vertically. Final constellation configuration to be decided. LT - 13 Diro Trimless OK LED Light Recessed adjustable downlight Product Name: Diro Trimless OK LED Light Product Code: 202 145 811 822 Finish: White Matt Dimensions: Diameter Adjustable: 0-30°/355° Recess Depth: 105mm Hole Size: 122mm Round Power: 10.4W Current: 350mA, 500mA Lumen Package: 1032lm System Power: 12W Protection Level: IP20 Supplier: Inlite Brand: Delta Light 13 $270 $3,510 IDR205A ‐ Brief 3 Page 10 of 20 Vanhear, Linda‐Jane

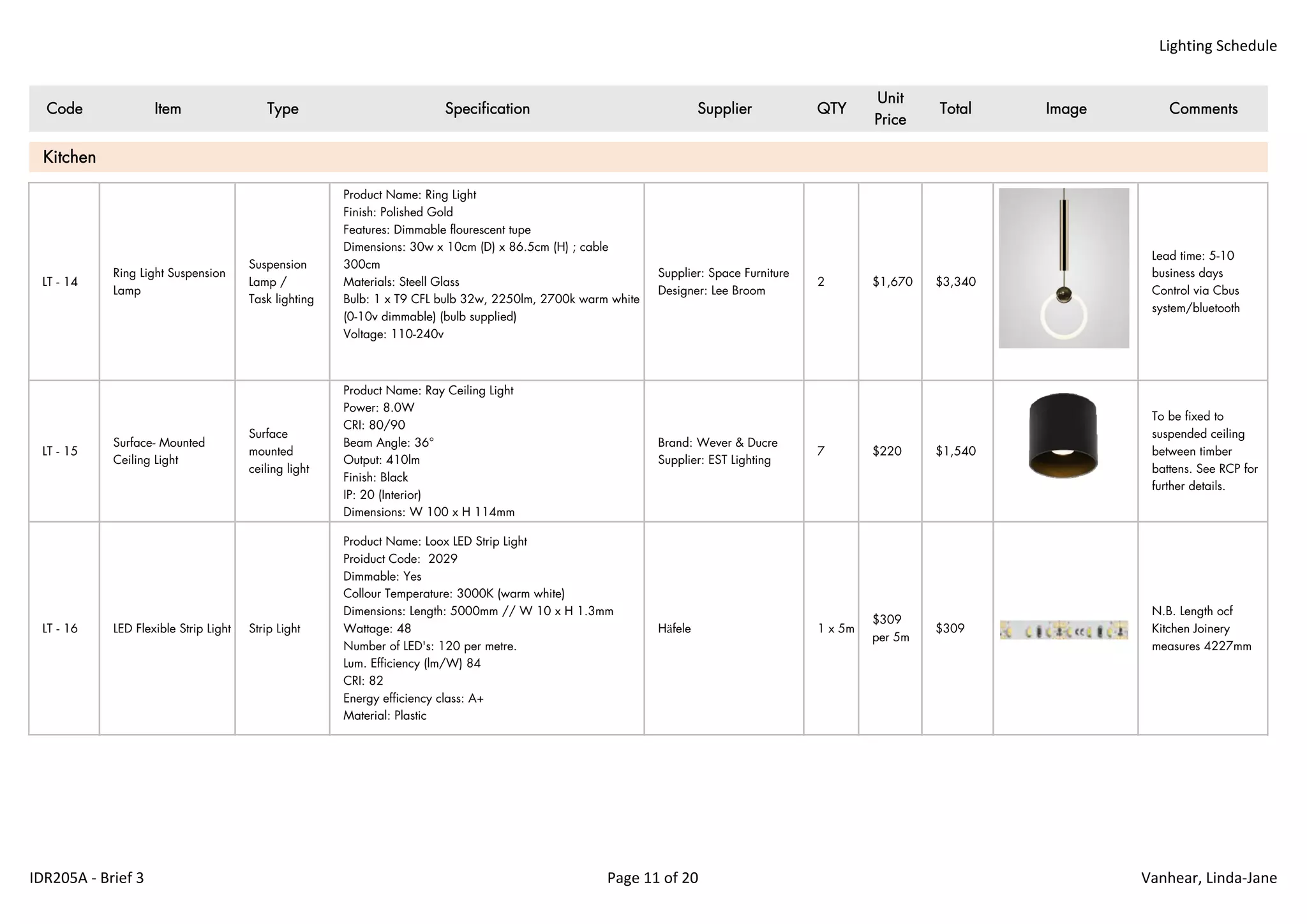

Lighting Schedule Code Item Type Specification Supplier QTY Unit Price Total Image Comments LT - 14 Ring Light Suspension Lamp Suspension Lamp / Task lighting Product Name: Ring Light Finish: Polished Gold Features: Dimmable flourescent tupe Dimensions: 30w x 10cm (D) x 86.5cm (H) ; cable 300cm Materials: Steell Glass Bulb: 1 x T9 CFL bulb 32w, 2250lm, 2700k warm white (0-10v dimmable) (bulb supplied) Voltage: 110-240v Supplier: Space Furniture Designer: Lee Broom 2 $1,670 $3,340 Lead time: 5-10 business days Control via Cbus system/bluetooth LT - 15 Surface- Mounted Ceiling Light Surface mounted ceiling light Product Name: Ray Ceiling Light Power: 8.0W CRI: 80/90 Beam Angle: 36° Output: 410lm Finish: Black IP: 20 (Interior) Dimensions: W 100 x H 114mm Brand: Wever & Ducre Supplier: EST Lighting 7 $220 $1,540 To be fixed to suspended ceiling between timber battens. See RCP for further details. LT - 16 LED Flexible Strip Light Strip Light Product Name: Loox LED Strip Light Proiduct Code: 2029 Dimmable: Yes Collour Temperature: 3000K (warm white) Dimensions: Length: 5000mm // W 10 x H 1.3mm Wattage: 48 Number of LED's: 120 per metre. Lum. Efficiency (lm/W) 84 CRI: 82 Energy efficiency class: A+ Material: Plastic Häfele 1 x 5m $309 per 5m $309 N.B. Length ocf Kitchen Joinery measures 4227mm Kitchen IDR205A ‐ Brief 3 Page 11 of 20 Vanhear, Linda‐Jane
Lighting Schedule Code Item Type Specification Supplier QTY Unit Price Total Image Comments LT - 13 Diro Trimless OK LED Light Recessed adjustable downlight Product Name: Diro Trimless OK LED Light Product Code: 202 145 811 822MMA Finish: White Matt Dimensions: Diameter Adjustable: 0-30°/355° Recess Depth: 105mm Hole Size: 122mm Round Power: 10.4W Current: 350mA, 500mA Lumen Package: 1032lm System Power: 12W Protection Level: IP20 Supplier: Inlite Brand: Delta Light 2 $270 $540 LT - 17 Sunrise Ceramic Wall Light Ambient Product Name: Sunrise Materials: Earthenware ceramic Finish: Sealed matt exterior and interior is clear closs glaze Mounted to wall with metal bracket Lighting: Stadard B22 bayonet globe Dimensions W 320 x H 160 x D 90mm Designer: Ash Allen Supplier: Catapult Design 2 $550 $1,100 WC IDR205A ‐ Brief 3 Page 12 of 20 Vanhear, Linda‐Jane

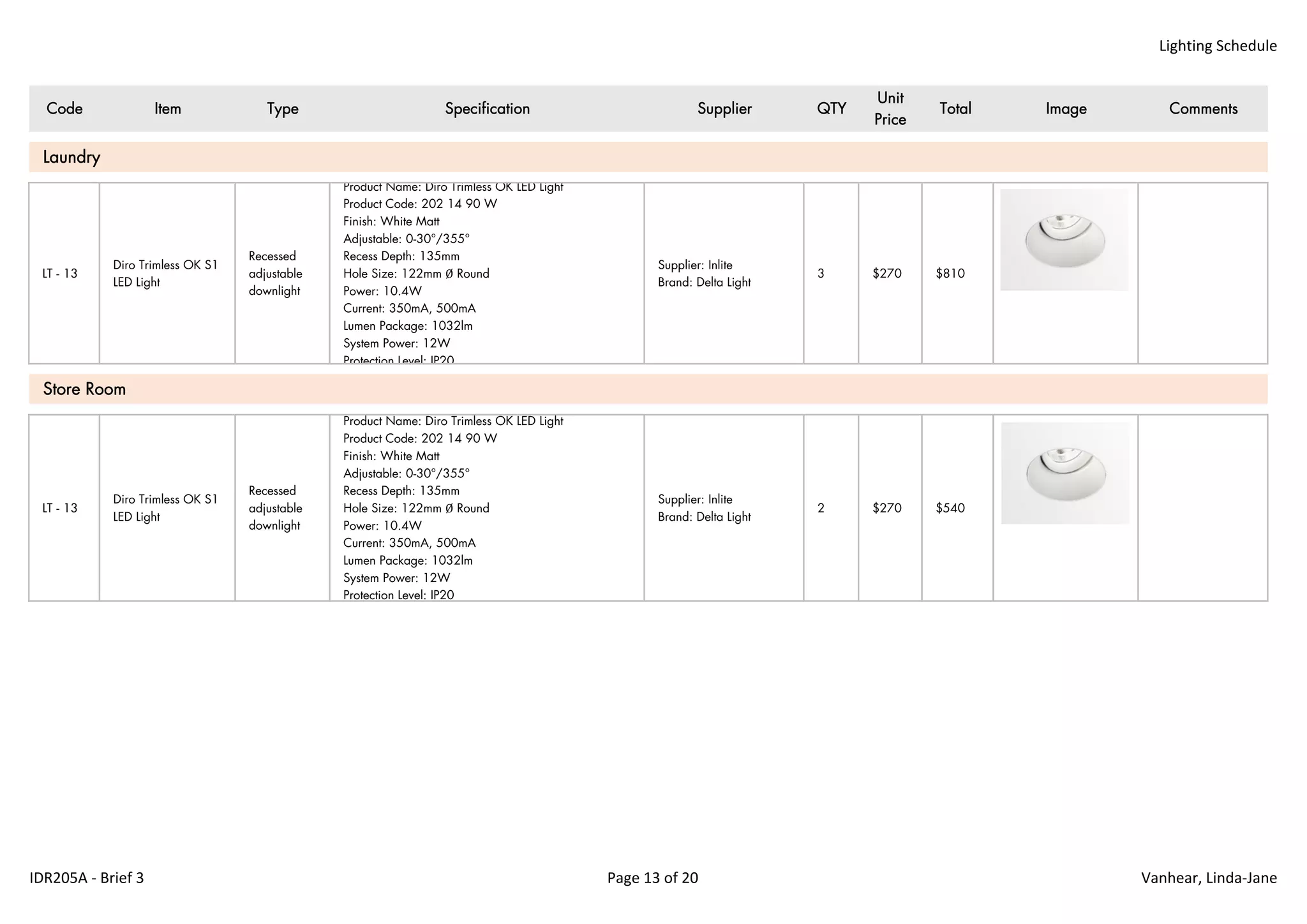

Lighting Schedule Code Item Type Specification Supplier QTY Unit Price Total Image Comments LT - 13 Diro Trimless OK S1 LED Light Recessed adjustable downlight Product Name: Diro Trimless OK LED Light Product Code: 202 14 90 W Finish: White Matt Adjustable: 0-30°/355° Recess Depth: 135mm Hole Size: 122mm Ø Round Power: 10.4W Current: 350mA, 500mA Lumen Package: 1032lm System Power: 12W Protection Level: IP20 Supplier: Inlite Brand: Delta Light 3 $270 $810 LT - 13 Diro Trimless OK S1 LED Light Recessed adjustable downlight Product Name: Diro Trimless OK LED Light Product Code: 202 14 90 W Finish: White Matt Adjustable: 0-30°/355° Recess Depth: 135mm Hole Size: 122mm Ø Round Power: 10.4W Current: 350mA, 500mA Lumen Package: 1032lm System Power: 12W Protection Level: IP20 Supplier: Inlite Brand: Delta Light 2 $270 $540 Store Room Laundry IDR205A ‐ Brief 3 Page 13 of 20 Vanhear, Linda‐Jane

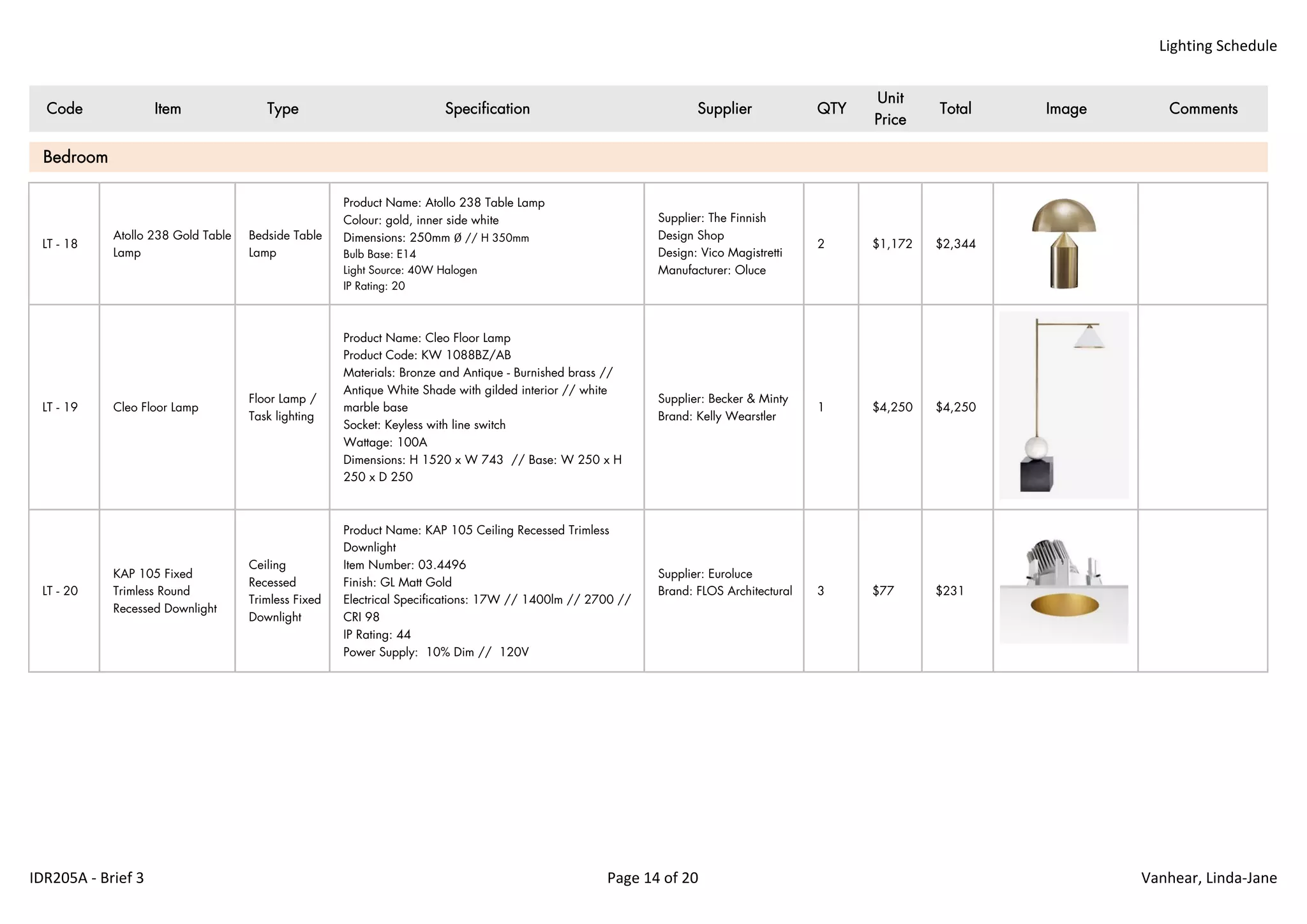

Lighting Schedule Code Item Type Specification Supplier QTY Unit Price Total Image Comments LT - 18 Atollo 238 Gold Table Lamp Bedside Table Lamp Product Name: Atollo 238 Table Lamp Colour: gold, inner side white Dimensions: 250mm Ø // H 350mm Bulb Base: E14 Light Source: 40W Halogen IP Rating: 20 Supplier: The Finnish Design Shop Design: Vico Magistretti Manufacturer: Oluce 2 $1,172 $2,344 LT - 19 Cleo Floor Lamp Floor Lamp / Task lighting Product Name: Cleo Floor Lamp Product Code: KW 1088BZ/AB Materials: Bronze and Antique - Burnished brass // Antique White Shade with gilded interior // white marble base Socket: Keyless with line switch Wattage: 100A Dimensions: H 1520 x W 743 // Base: W 250 x H 250 x D 250 Supplier: Becker & Minty Brand: Kelly Wearstler 1 $4,250 $4,250 LT - 20 KAP 105 Fixed Trimless Round Recessed Downlight Ceiling Recessed Trimless Fixed Downlight Product Name: KAP 105 Ceiling Recessed Trimless Downlight Item Number: 03.4496 Finish: GL Matt Gold Electrical Specifications: 17W // 1400lm // 2700 // CRI 98 IP Rating: 44 Power Supply: 10% Dim // 120V Supplier: Euroluce Brand: FLOS Architectural 3 $77 $231 Bedroom IDR205A ‐ Brief 3 Page 14 of 20 Vanhear, Linda‐Jane

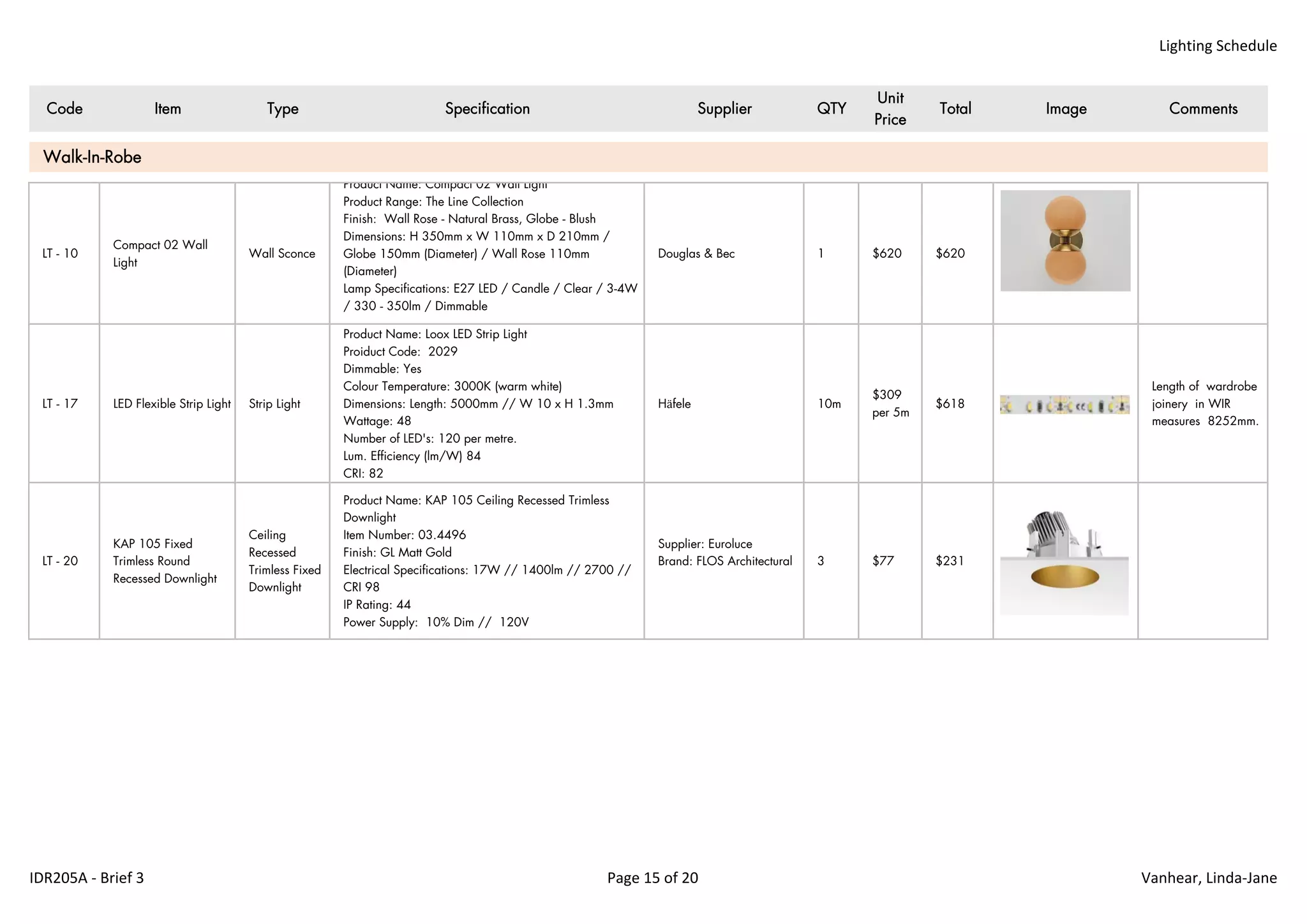

Lighting Schedule Code Item Type Specification Supplier QTY Unit Price Total Image Comments LT - 10 Compact 02 Wall Light Wall Sconce Product Name: Compact 02 Wall Light Product Range: The Line Collection Finish: Wall Rose - Natural Brass, Globe - Blush Dimensions: H 350mm x W 110mm x D 210mm / Globe 150mm (Diameter) / Wall Rose 110mm (Diameter) Lamp Specifications: E27 LED / Candle / Clear / 3-4W / 330 - 350lm / Dimmable Douglas & Bec 1 $620 $620 LT - 17 LED Flexible Strip Light Strip Light Product Name: Loox LED Strip Light Proiduct Code: 2029 Dimmable: Yes Colour Temperature: 3000K (warm white) Dimensions: Length: 5000mm // W 10 x H 1.3mm Wattage: 48 Number of LED's: 120 per metre. Lum. Efficiency (lm/W) 84 CRI: 82 Häfele 10m $309 per 5m $618 Length of wardrobe joinery in WIR measures 8252mm. LT - 20 KAP 105 Fixed Trimless Round Recessed Downlight Ceiling Recessed Trimless Fixed Downlight Product Name: KAP 105 Ceiling Recessed Trimless Downlight Item Number: 03.4496 Finish: GL Matt Gold Electrical Specifications: 17W // 1400lm // 2700 // CRI 98 IP Rating: 44 Power Supply: 10% Dim // 120V Supplier: Euroluce Brand: FLOS Architectural 3 $77 $231 Walk-In-Robe IDR205A ‐ Brief 3 Page 15 of 20 Vanhear, Linda‐Jane
Lighting Schedule Code Item Type Specification Supplier QTY Unit Price Total Image Comments LT - 20 KAP 105 Fixed Trimless Round Recessed Downlight Ceiling Recessed Trimless Fixed downlight Product Name: KAP 105 Ceiling Recessed Trimless Downlight Item Number: 03.4496 Finish: GL Matt Gold Electrical Specifications: 17W // 1400lm // 2700 // CRI 98 IP Rating: 44 Power Supply: 10% Dim // 120V Supplier: Euroluce Brand: FLOS Architectural 6 $77 $462 LT - 21 Bermuda Wall- Mounted Light Fixture Wall-Mounted Task Light Product Name: Bermuda Wall Light Finish: Marble - Moss; Metal Detailing - Brass. Dimensions: W380 x H 330 x D 90 Lamp Base: G9 Push Fit Globe: 4.5W 3000K LED Voltage: 220V // 50Hz Supplier: Modern Times Brand: Marz Designs 2 $850 $1,700 LT - 22 LT04 Colour Atmospheric Product Name: LT04 COLOUR Product Code: 1020436 Dimensions: H 750 x W 850mm Supplier: Living Edge Brand: E15 Designers: Daniel Rybakken and Andreas Engesvik 1 $2,900 $2,900 Open to individual compositions and leant against the wall. Final configuration TBC on site. Workshop N.B. Additional lights for Workshop to be specified by installation artist James Turrell. TBC. Ensuite IDR205A ‐ Brief 3 Page 16 of 20 Vanhear, Linda‐Jane

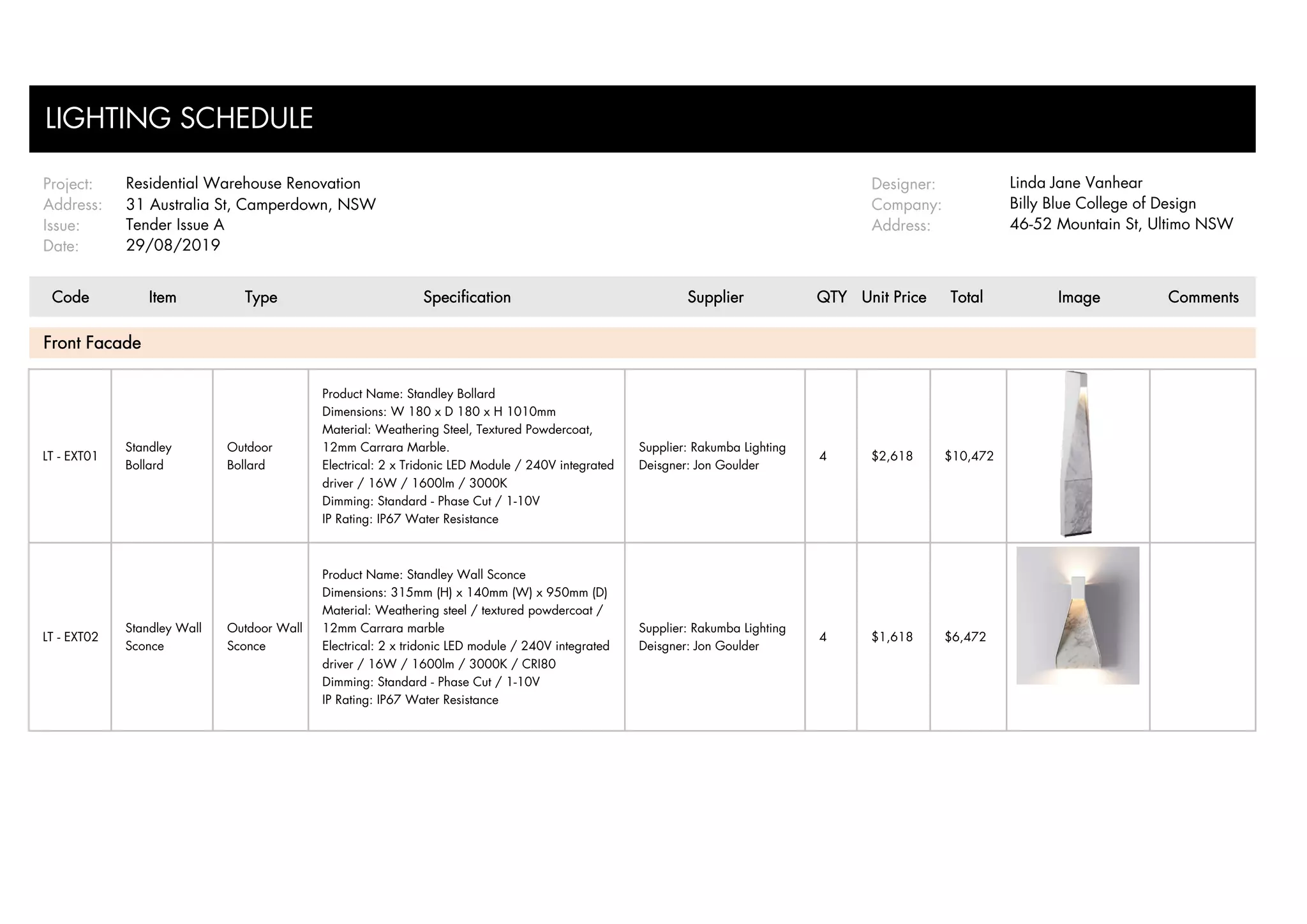

Project: Designer: Linda Jane Vanhear Address: 31 Australia St, Camperdown, NSW Company: Billy Blue College of Design Issue: Address: 46-52 Mountain St, Ultimo NSW Date: Code Item Type Specification Supplier QTY Unit Price Total Image Comments LT - EXT01 Standley Bollard Outdoor Bollard Product Name: Standley Bollard Dimensions: W 180 x D 180 x H 1010mm Material: Weathering Steel, Textured Powdercoat, 12mm Carrara Marble. Electrical: 2 x Tridonic LED Module / 240V integrated driver / 16W / 1600lm / 3000K Dimming: Standard - Phase Cut / 1-10V IP Rating: IP67 Water Resistance Supplier: Rakumba Lighting Deisgner: Jon Goulder 4 $2,618 $10,472 LT - EXT02 Standley Wall Sconce Outdoor Wall Sconce Product Name: Standley Wall Sconce Dimensions: 315mm (H) x 140mm (W) x 950mm (D) Material: Weathering steel / textured powdercoat / 12mm Carrara marble Electrical: 2 x tridonic LED module / 240V integrated driver / 16W / 1600lm / 3000K / CRI80 Dimming: Standard - Phase Cut / 1-10V IP Rating: IP67 Water Resistance Supplier: Rakumba Lighting Deisgner: Jon Goulder 4 $1,618 $6,472 LIGHTING SCHEDULE Tender Issue A 29/08/2019 Front Facade Residential Warehouse Renovation

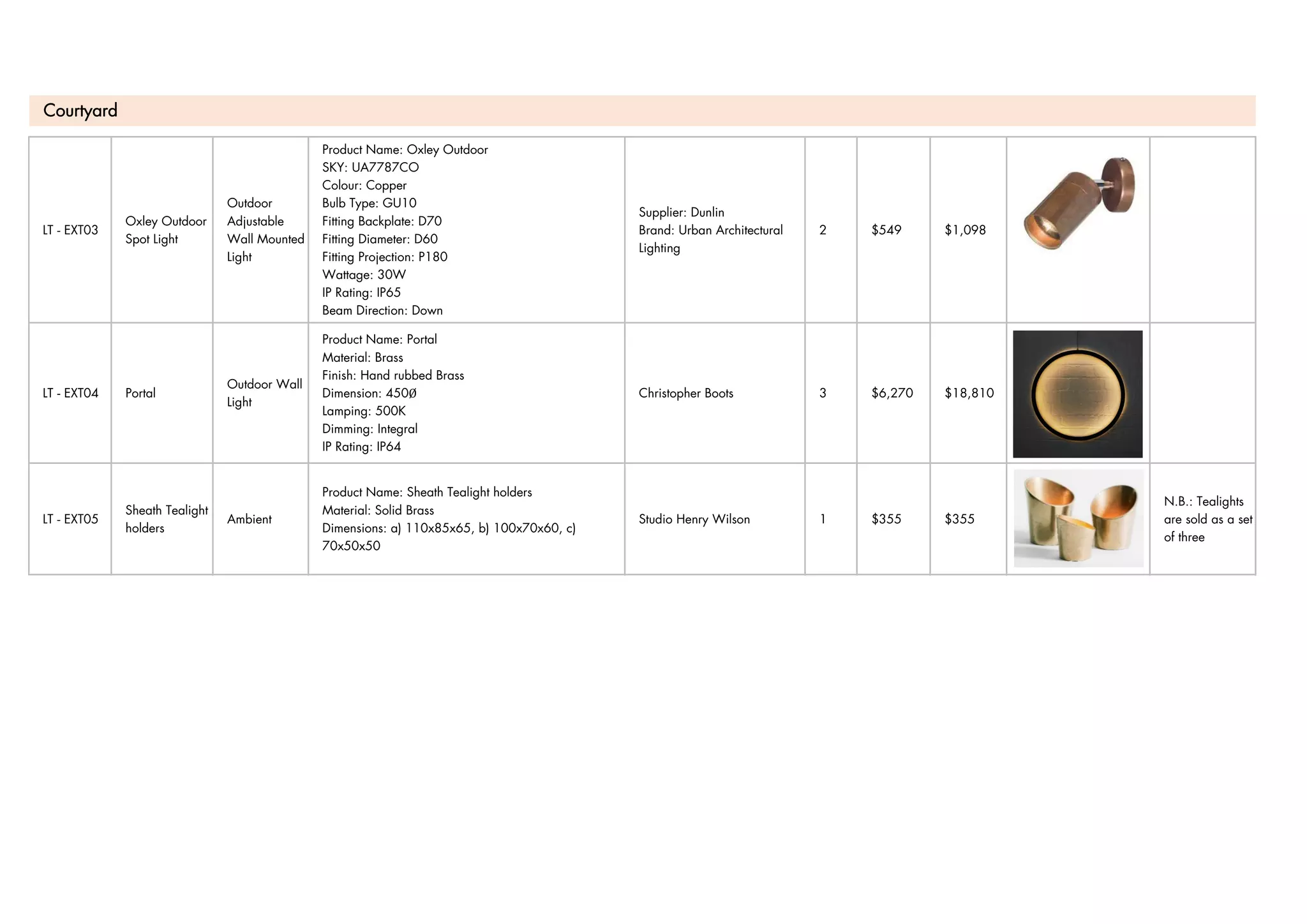

LT - EXT03 Oxley Outdoor Spot Light Outdoor Adjustable Wall Mounted Light Product Name: Oxley Outdoor SKY: UA7787CO Colour: Copper Bulb Type: GU10 Fitting Backplate: D70 Fitting Diameter: D60 Fitting Projection: P180 Wattage: 30W IP Rating: IP65 Beam Direction: Down Supplier: Dunlin Brand: Urban Architectural Lighting 2 $549 $1,098 LT - EXT04 Portal Outdoor Wall Light Product Name: Portal Material: Brass Finish: Hand rubbed Brass Dimension: 450Ø Lamping: 500K Dimming: Integral IP Rating: IP64 Christopher Boots 3 $6,270 $18,810 LT - EXT05 Sheath Tealight holders Ambient Product Name: Sheath Tealight holders Material: Solid Brass Dimensions: a) 110x85x65, b) 100x70x60, c) 70x50x50 Studio Henry Wilson 1 $355 $355 N.B.: Tealights are sold as a set of three Courtyard

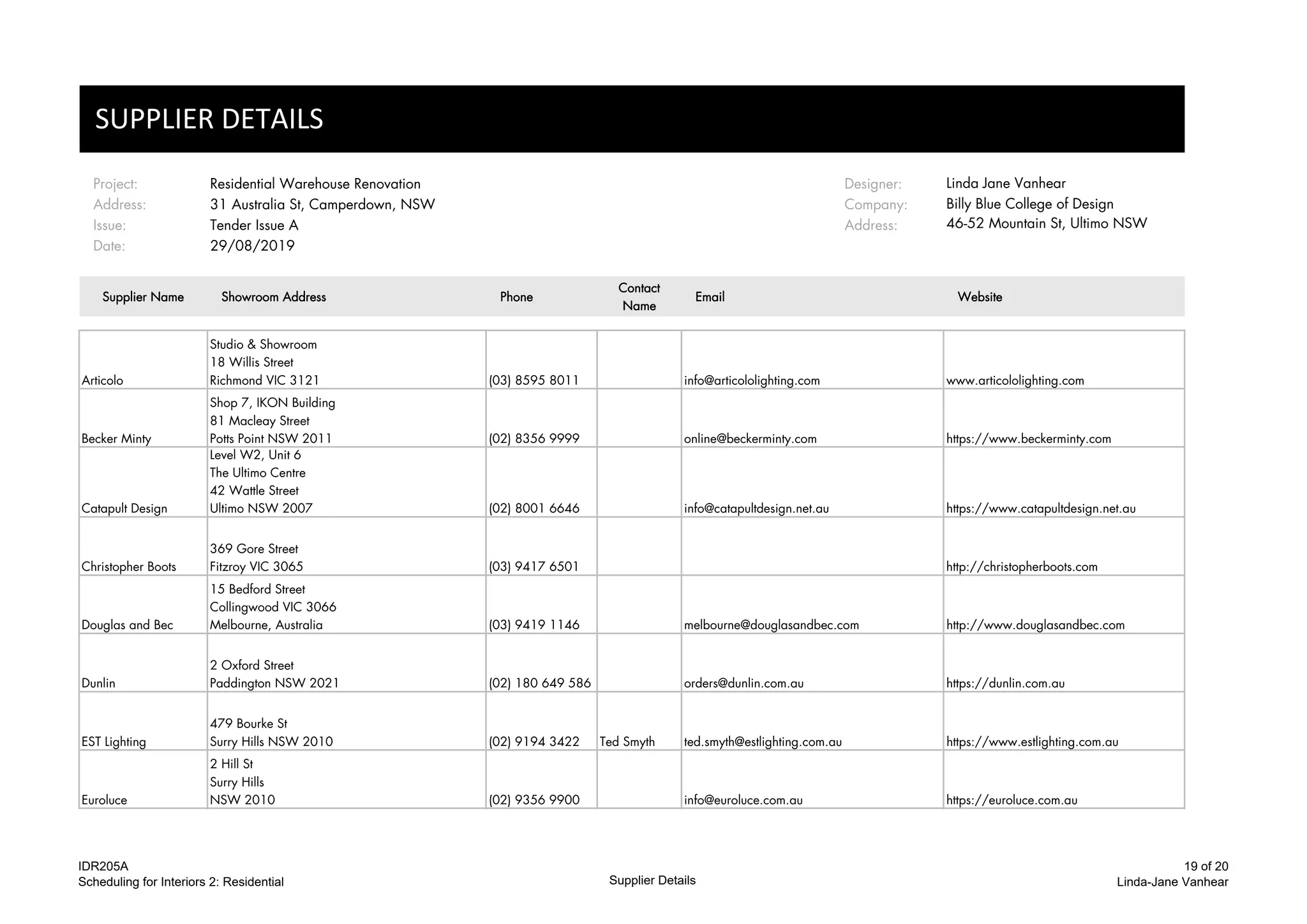

Project: Residential Warehouse Renovation Designer: Address: 31 Australia St, Camperdown, NSW Company: Issue: Tender Issue A Address: 46-52 Mountain St, Ultimo NSW Date: 29/08/2019 Supplier Name Showroom Address Phone Contact Name Email Website Articolo Studio & Showroom 18 Willis Street Richmond VIC 3121 (03) 8595 8011 info@articololighting.com www.articololighting.com Becker Minty Shop 7, IKON Building 81 Macleay Street Potts Point NSW 2011 (02) 8356 9999 online@beckerminty.com https://www.beckerminty.com Catapult Design Level W2, Unit 6 The Ultimo Centre 42 Wattle Street Ultimo NSW 2007 (02) 8001 6646 info@catapultdesign.net.au https://www.catapultdesign.net.au Christopher Boots 369 Gore Street Fitzroy VIC 3065 (03) 9417 6501 http://christopherboots.com Douglas and Bec 15 Bedford Street Collingwood VIC 3066 Melbourne, Australia (03) 9419 1146 melbourne@douglasandbec.com http://www.douglasandbec.com Dunlin 2 Oxford Street Paddington NSW 2021 (02) 180 649 586 orders@dunlin.com.au https://dunlin.com.au EST Lighting 479 Bourke St Surry Hills NSW 2010 (02) 9194 3422 Ted Smyth ted.smyth@estlighting.com.au https://www.estlighting.com.au Euroluce 2 Hill St Surry Hills NSW 2010 (02) 9356 9900 info@euroluce.com.au https://euroluce.com.au SUPPLIER DETAILS Linda Jane Vanhear Billy Blue College of Design IDR205A Scheduling for Interiors 2: Residential Supplier Details 19 of 20 Linda-Jane Vanhear
Supplier Name Showroom Address Phone Contact Name Email Website Häfele 35/69-73 O'Riordan Street Alexandria NSW 2015 1300 659 728 info@hafele.com.au https://www.hafele.com.au Inlite 44-46 Chippen St Chippendale NSW 2008 (02) 8384 1000 NSW@inlite.com.au https://www.inlite.com.au Living Edge The Woolstores Shed 74 4D Huntley Street Alexandria NSW 2015 (02) 9640 5600 info@livingedge.com.au https://livingedge.com.au Marz Designs Shop 8, 1 Porter Street Byron Bay NSW (02) 6684 0929 info@marzdesigns.com https://marzdesigns.com Miko Designs 1/72 Barrier St Fyshwick ACT 2609 (02) 6280 9664 hello@mikodesigns.com.au https://www.mikodesigns.com.au Modern Times 311 Smith St Fitzroy VIC 3065 (03) 9913 8598 hello@moderntimes.com.au https://www.moderntimes.com.au Neon Republic 6/9 Rothcote Court Burleight Heads WLD 4220 0499 854 889 hello@neonrepublic.com.au www.neonrepublic.com.au Rakumba Lighting 4 Ardena Court Bentleigh East VIC 3165 (03) 9579 2355 sales@rakumba.com https://rakumba.com.au Søktas 9/16 Hawker St Currumbin Waters WLD 4223 0423 909 055 Ryan Roberts ryan@soktas.co https://www.soktas.com Space Furniture 84 O'Riordan St Alexandria NSW 2015 (02) 8339 7588 https://www.spacefurniture.com.au Studio Henry Wilson 257 Palmer St Darlinghurst NSW 2010 (02) 8958 7614 studio@henrywilson.com.au https://store.henrywilson.com.au Volker Haug Studio 2-12 Phillip St Brunswick East VIC 3057 (03) 9387 1803 info@volkerhaug.com https://www.volkerhaug.com IDR205A Scheduling for Interiors 2: Residential Supplier Details 20 of 20 Linda-Jane Vanhear
