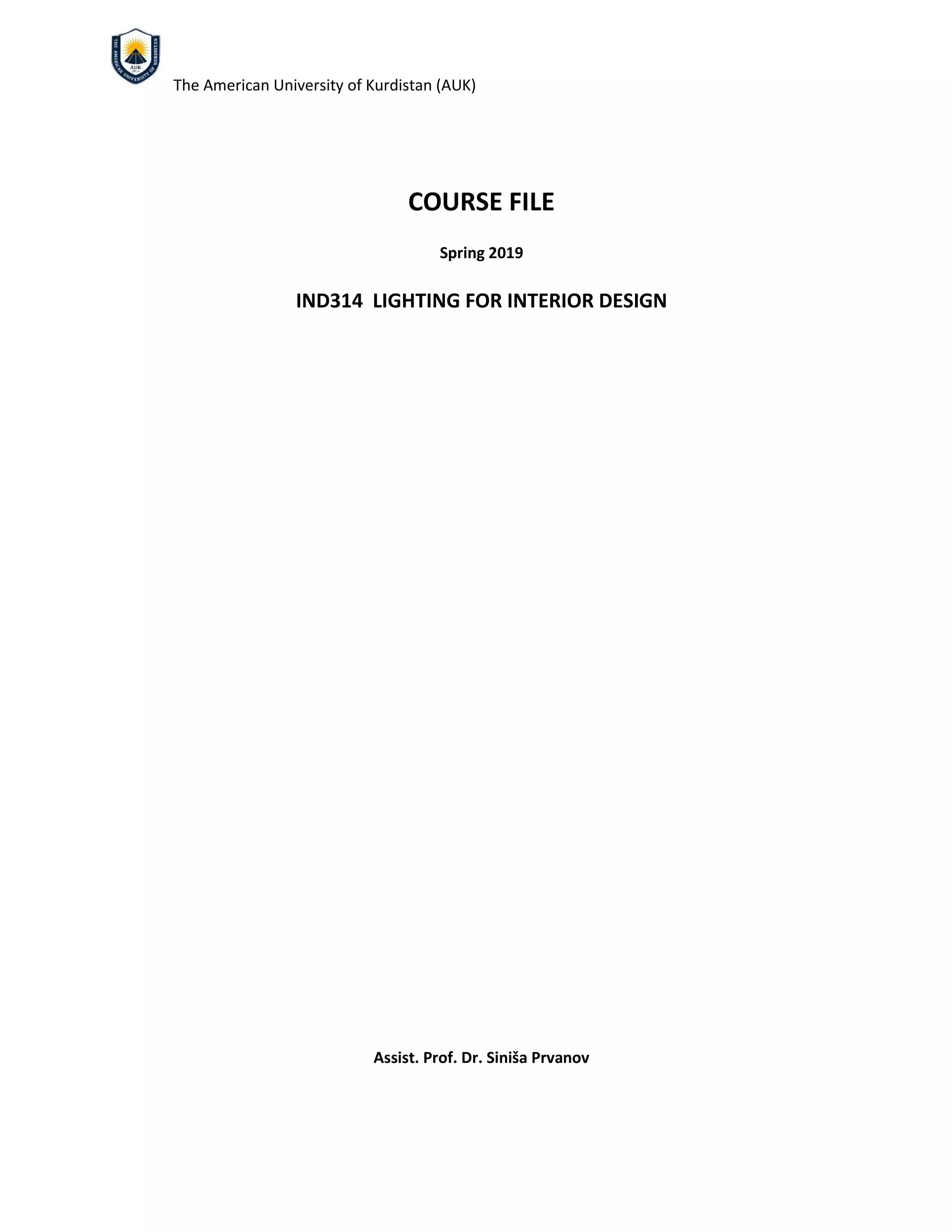

IND314 Lighting for interior design, Course File

The American University of Kurdistan (AUK)
COURSE FILE
Spring 2019
IND314 LIGHTING FOR INTERIOR DESIGN
Assist. Prof. Dr. Siniša Prvanov

Spring 2019
IND314: LIGHTING FOR INTERIOR DESIGN
Monday and Wednesday 10:30‐11:50
Instructor: Dr. Siniša Prvanov
Office: 201-3
Office hours: Sunday and Thursday 12:30‐1:30 or by appointment
E‐mail: sinisa.prvanov@auk.edu.krd

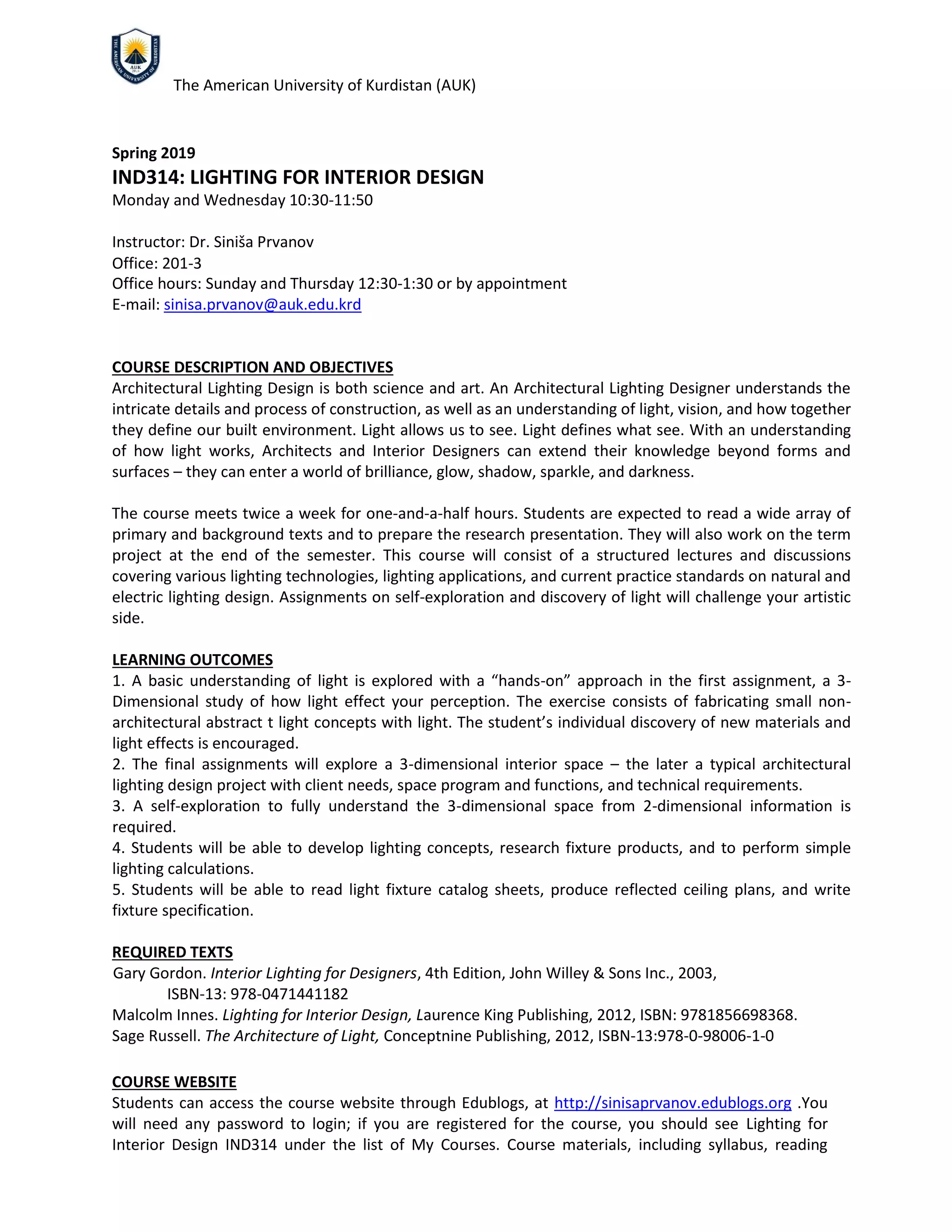

COURSE DESCRIPTION AND OBJECTIVES
Architectural Lighting Design is both science and art. An Architectural Lighting Designer understands the
intricate details and process of construction, as well as an understanding of light, vision, and how together
they define our built environment. Light allows us to see. Light defines what see. With an understanding
of how light works, Architects and Interior Designers can extend their knowledge beyond forms and
surfaces – they can enter a world of brilliance, glow, shadow, sparkle, and darkness.
The course meets twice a week for one‐and‐a‐half hours. Students are expected to read a wide array of
primary and background texts and to prepare the research presentation. They will also work on the term
project at the end of the semester. This course will consist of a structured lectures and discussions
covering various lighting technologies, lighting applications, and current practice standards on natural and
electric lighting design. Assignments on self-exploration and discovery of light will challenge your artistic
side.
LEARNING OUTCOMES
1. A basic understanding of light is explored with a “hands-on” approach in the first assignment, a 3-
Dimensional study of how light effect your perception. The exercise consists of fabricating small non-
architectural abstract t light concepts with light. The student’s individual discovery of new materials and
light effects is encouraged.
2. The final assignments will explore a 3-dimensional interior space – the later a typical architectural
lighting design project with client needs, space program and functions, and technical requirements.
3. A self-exploration to fully understand the 3-dimensional space from 2-dimensional information is
required.
4. Students will be able to develop lighting concepts, research fixture products, and to perform simple
lighting calculations.
5. Students will be able to read light fixture catalog sheets, produce reflected ceiling plans, and write
fixture specification.
REQUIRED TEXTS
Gary Gordon. Interior Lighting for Designers, 4th Edition, John Willey & Sons Inc., 2003,
ISBN-13: 978-0471441182
Malcolm Innes. Lighting for Interior Design, Laurence King Publishing, 2012, ISBN: 9781856698368.
Sage Russell. The Architecture of Light, Conceptnine Publishing, 2012, ISBN-13:978-0-98006-1-0
COURSE WEBSITE
Students can access the course website through Edublogs, at http://sinisaprvanov.edublogs.org .You
will need any password to login; if you are registered for the course, you should see Lighting for
Interior Design IND314 under the list of My Courses. Course materials, including syllabus, reading

assignments, auxiliary readings, and work assignments will be posted on this site. You may also be
asked to submit some assignments electronically through course website.
ASSIGNMENT DUE DATE/EXAM SCHEDULE
Tues. January 29 Research Presentation (Day 1st
)
Sun. February 3 Research Presentation (Day 2nd
)
Tues. February 19 Mid‐term Project Presentation
Tues. April 30 Term Project Presentation (Day 1st
)
Sun. May 5 Term Project Presentation (Day 2nd
)
COURSE REQUIREMENTS AND GRADING
Students’ grades will be based on research presentation (15%), a mid‐term project (30%), final term
project presentation (40%), home works (10%), and attendance and participation in class (5%).
The distribution of percent and corresponding grades is given below (plus and minus will be given)
A (94‐100%) C (75‐73%)
A‐ (93‐90%) C‐ (72‐70%)
B+ (89‐86%) D+ (69‐66%)
B (85‐83%) D (65‐63%)
B‐ (82‐80%) D‐ (62‐60%)
C+ (79‐76%) F (59% or below)
WORKLOAD GUIDELINES
As a minimum, students are expected to spend about two hours of outside preparation for every hour in
class. For this class it means a minimum of six hours outside of class per week; if writing assignments are
due, students should expect to spend more time to complete their work. Required readings are outside
preparation for this course and should be completed before class for the day they are assigned.
Students are responsible for all the material in the required readings, whether or not the material has
been discussed in class.
ATTENDANCE POLICY
Class attendance is required. Students are also required to attend all discussion sessions. Your success
in this class will depend, to a large degree, upon your attendance and active engagement. In‐class
material will be reinforced in the required and recommended readings, and some in‐class material may
not be covered in the readings. Students are responsible for all lecture material whether or not it is
included in the assigned readings. Class attendance is required and will be monitored. Sometimes an
illness, emergency, or other circumstances may cause you to miss class. You are allowed THREE absences
for the semester. Missing extensive days results in a significant impact on your work, and to your
participation in the class. EACH ABSENCE, FOR ANY REASON (except in rare extenuating circumstances)
BEYOND THREE, WILL RESULT IN A REDUCTION OF YOUR FINAL EARNED GRADE.
Therefore, 10 points of your total score will be deducted from your final grade for each absence after
three absences. (For example, 4 absences = 10 points deducted from your total points. Five absences =
20 points deducted from your total points, etc.) If you miss class, try to borrow a classmate's notes. The
instructor will not assume responsibility for providing class notes to you.

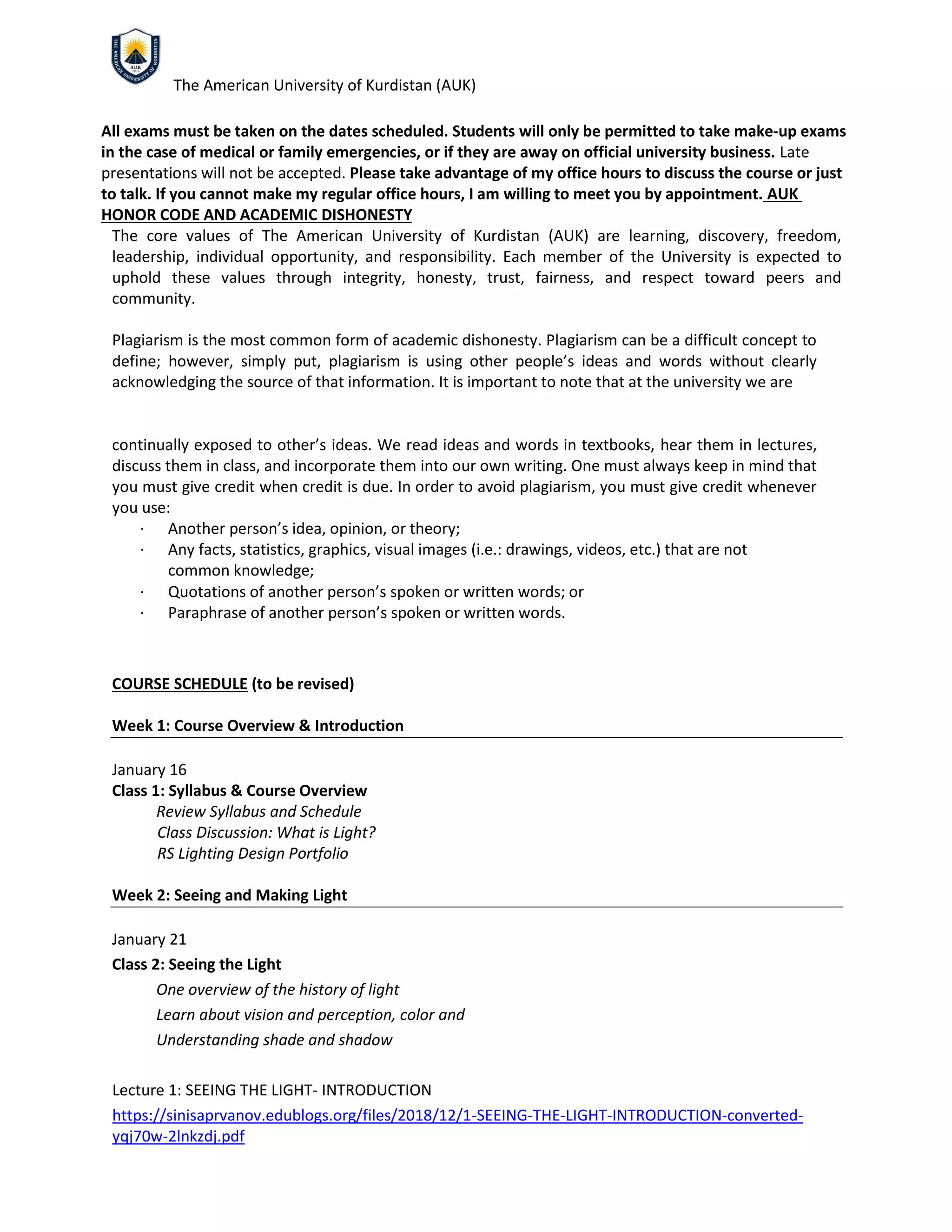

All exams must be taken on the dates scheduled. Students will only be permitted to take make‐up exams
in the case of medical or family emergencies, or if they are away on official university business. Late
presentations will not be accepted. Please take advantage of my office hours to discuss the course or just
to talk. If you cannot make my regular office hours, I am willing to meet you by appointment. AUK
HONOR CODE AND ACADEMIC DISHONESTY
The core values of The American University of Kurdistan (AUK) are learning, discovery, freedom,
leadership, individual opportunity, and responsibility. Each member of the University is expected to
uphold these values through integrity, honesty, trust, fairness, and respect toward peers and
community.
Plagiarism is the most common form of academic dishonesty. Plagiarism can be a difficult concept to
define; however, simply put, plagiarism is using other people’s ideas and words without clearly
acknowledging the source of that information. It is important to note that at the university we are
continually exposed to other’s ideas. We read ideas and words in textbooks, hear them in lectures,
discuss them in class, and incorporate them into our own writing. One must always keep in mind that
you must give credit when credit is due. In order to avoid plagiarism, you must give credit whenever
you use:
∙ Another person’s idea, opinion, or theory;
∙ Any facts, statistics, graphics, visual images (i.e.: drawings, videos, etc.) that are not
common knowledge;
∙ Quotations of another person’s spoken or written words; or
∙ Paraphrase of another person’s spoken or written words.
COURSE SCHEDULE (to be revised)
Week 1: Course Overview & Introduction
January 16
Class 1: Syllabus & Course Overview
Review Syllabus and Schedule
Class Discussion: What is Light?
RS Lighting Design Portfolio
Week 2: Seeing and Making Light
January 21
Class 2: Seeing the Light
One overview of the history of light
Learn about vision and perception, color and
Understanding shade and shadow
Lecture 1: SEEING THE LIGHT- INTRODUCTION
https://sinisaprvanov.edublogs.org/files/2018/12/1-SEEING-THE-LIGHT-INTRODUCTION-converted-
yqj70w-2lnkzdj.pdf

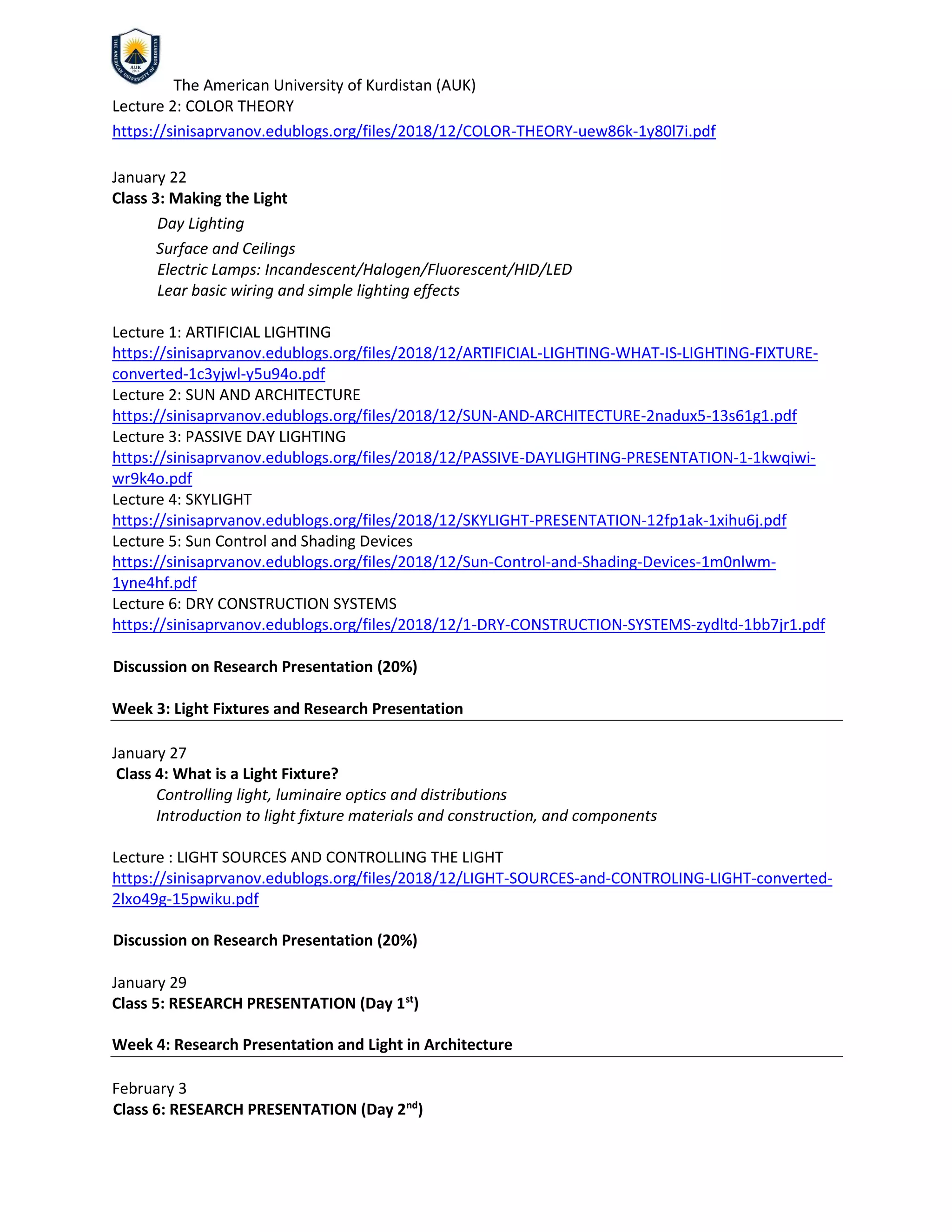

Lecture 2: COLOR THEORY
https://sinisaprvanov.edublogs.org/files/2018/12/COLOR-THEORY-uew86k-1y80l7i.pdf
January 22
Class 3: Making the Light
Day Lighting
Surface and Ceilings
Electric Lamps: Incandescent/Halogen/Fluorescent/HID/LED
Lear basic wiring and simple lighting effects
Lecture 1: ARTIFICIAL LIGHTING
https://sinisaprvanov.edublogs.org/files/2018/12/ARTIFICIAL-LIGHTING-WHAT-IS-LIGHTING-FIXTURE-
converted-1c3yjwl-y5u94o.pdf
Lecture 2: SUN AND ARCHITECTURE
https://sinisaprvanov.edublogs.org/files/2018/12/SUN-AND-ARCHITECTURE-2nadux5-13s61g1.pdf
Lecture 3: PASSIVE DAY LIGHTING
https://sinisaprvanov.edublogs.org/files/2018/12/PASSIVE-DAYLIGHTING-PRESENTATION-1-1kwqiwi-
wr9k4o.pdf
Lecture 4: SKYLIGHT
https://sinisaprvanov.edublogs.org/files/2018/12/SKYLIGHT-PRESENTATION-12fp1ak-1xihu6j.pdf
Lecture 5: Sun Control and Shading Devices
https://sinisaprvanov.edublogs.org/files/2018/12/Sun-Control-and-Shading-Devices-1m0nlwm-
1yne4hf.pdf
Lecture 6: DRY CONSTRUCTION SYSTEMS
https://sinisaprvanov.edublogs.org/files/2018/12/1-DRY-CONSTRUCTION-SYSTEMS-zydltd-1bb7jr1.pdf
Discussion on Research Presentation (20%)
Week 3: Light Fixtures and Research Presentation
January 27
Class 4: What is a Light Fixture?
Controlling light, luminaire optics and distributions
Introduction to light fixture materials and construction, and components
Lecture : LIGHT SOURCES AND CONTROLLING THE LIGHT
https://sinisaprvanov.edublogs.org/files/2018/12/LIGHT-SOURCES-and-CONTROLING-LIGHT-converted-
2lxo49g-15pwiku.pdf
Discussion on Research Presentation (20%)
January 29
Class 5: RESEARCH PRESENTATION (Day 1st
)
Week 4: Research Presentation and Light in Architecture
February 3
Class 6: RESEARCH PRESENTATION (Day 2nd
)

February 5

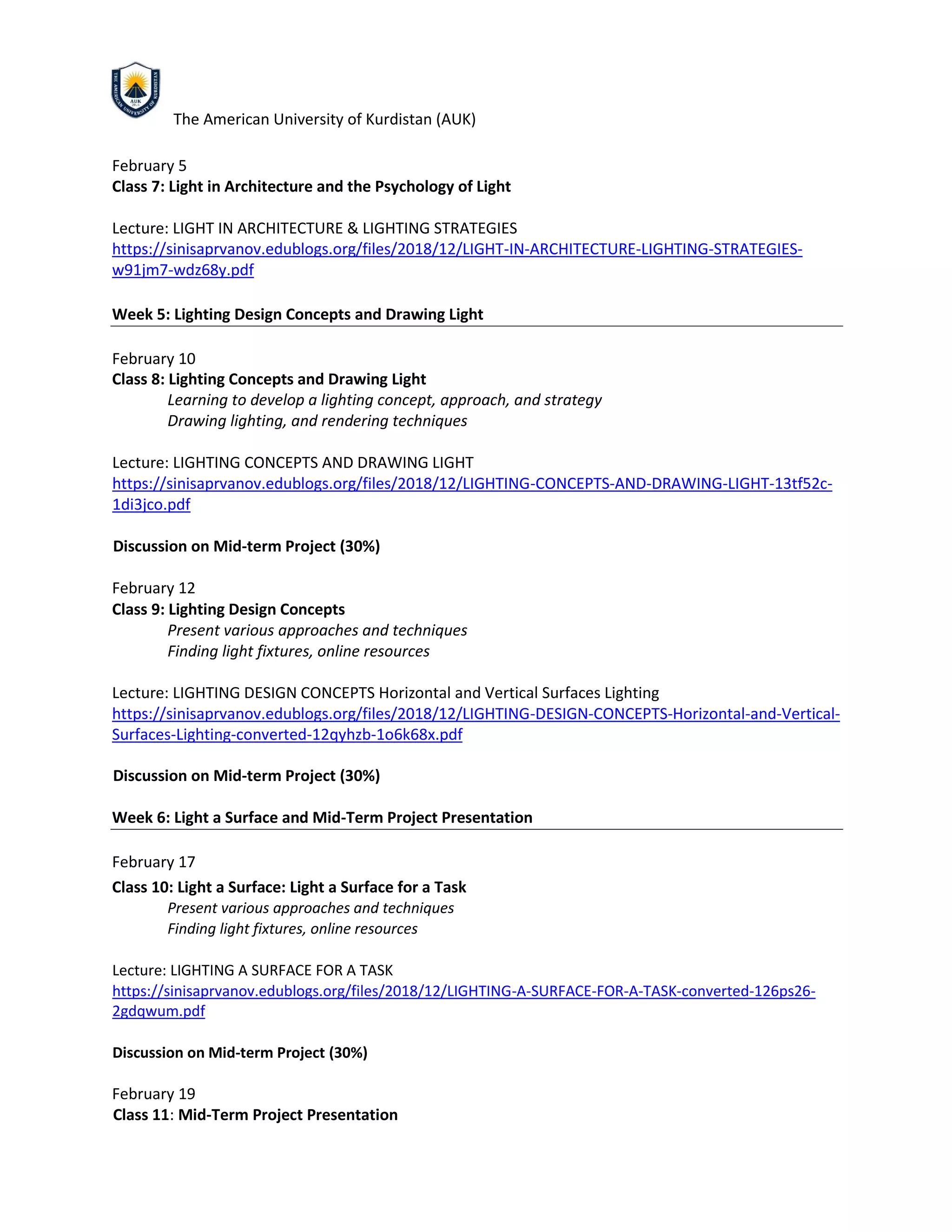

Class 7: Light in Architecture and the Psychology of Light
Lecture: LIGHT IN ARCHITECTURE & LIGHTING STRATEGIES
https://sinisaprvanov.edublogs.org/files/2018/12/LIGHT-IN-ARCHITECTURE-LIGHTING-STRATEGIES-
w91jm7-wdz68y.pdf
Week 5: Lighting Design Concepts and Drawing Light
February 10
Class 8: Lighting Concepts and Drawing Light
Learning to develop a lighting concept, approach, and strategy
Drawing lighting, and rendering techniques
Lecture: LIGHTING CONCEPTS AND DRAWING LIGHT
https://sinisaprvanov.edublogs.org/files/2018/12/LIGHTING-CONCEPTS-AND-DRAWING-LIGHT-13tf52c-
1di3jco.pdf
Discussion on Mid-term Project (30%)
February 12
Class 9: Lighting Design Concepts
Present various approaches and techniques
Finding light fixtures, online resources
Lecture: LIGHTING DESIGN CONCEPTS Horizontal and Vertical Surfaces Lighting
https://sinisaprvanov.edublogs.org/files/2018/12/LIGHTING-DESIGN-CONCEPTS-Horizontal-and-Vertical-
Surfaces-Lighting-converted-12qyhzb-1o6k68x.pdf
Week 6: Light a Surface and Mid-Term Project Presentation
February 17
Class 10: Light a Surface: Light a Surface for a Task
Finding light fixtures, online resources
Lecture: LIGHTING A SURFACE FOR A TASK
https://sinisaprvanov.edublogs.org/files/2018/12/LIGHTING-A-SURFACE-FOR-A-TASK-converted-126ps26-
2gdqwum.pdf
February 19
Class 11: Mid-Term Project Presentation

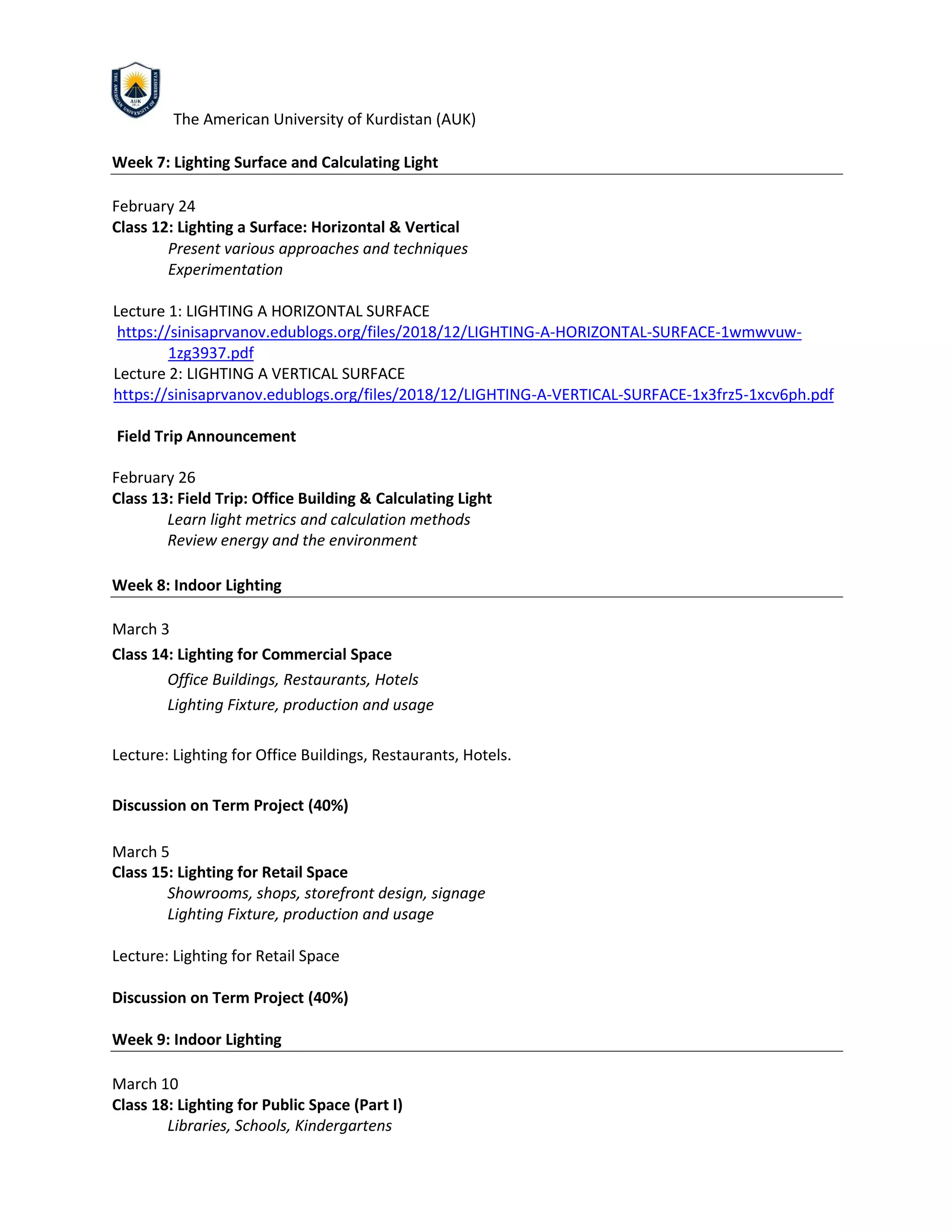

Week 7: Lighting Surface and Calculating Light
February 24
Class 12: Lighting a Surface: Horizontal & Vertical
Experimentation
Lecture 1: LIGHTING A HORIZONTAL SURFACE
https://sinisaprvanov.edublogs.org/files/2018/12/LIGHTING-A-HORIZONTAL-SURFACE-1wmwvuw-
1zg3937.pdf
Lecture 2: LIGHTING A VERTICAL SURFACE
https://sinisaprvanov.edublogs.org/files/2018/12/LIGHTING-A-VERTICAL-SURFACE-1x3frz5-1xcv6ph.pdf
Field Trip Announcement
February 26
Class 13: Field Trip: Office Building & Calculating Light
Learn light metrics and calculation methods
Review energy and the environment
Week 8: Indoor Lighting
March 3
Class 14: Lighting for Commercial Space
Office Buildings, Restaurants, Hotels
Lighting Fixture, production and usage
Lecture: Lighting for Office Buildings, Restaurants, Hotels.
Discussion on Term Project (40%)
March 5
Class 15: Lighting for Retail Space
Showrooms, shops, storefront design, signage
Lecture: Lighting for Retail Space
Week 9: Indoor Lighting
March 10

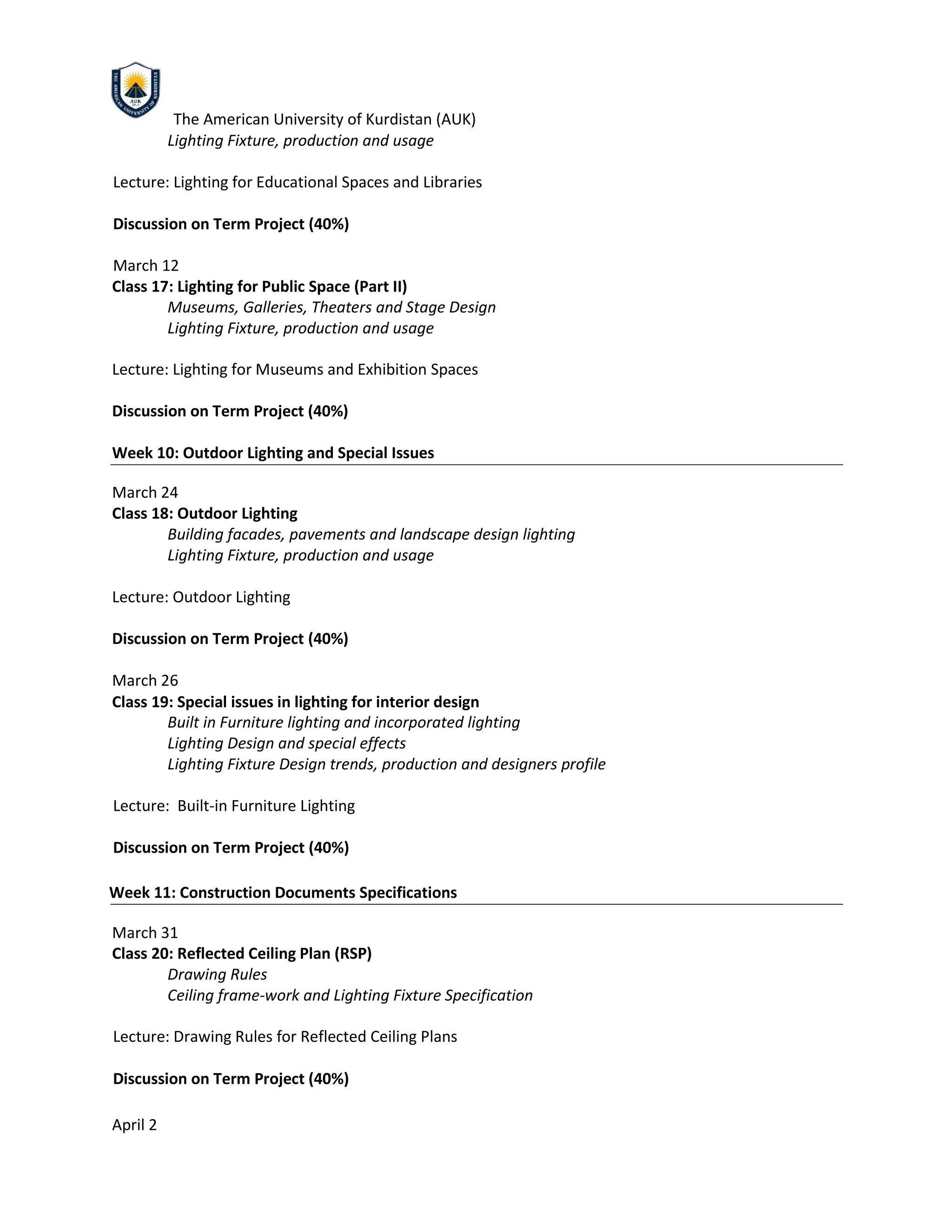

Class 18: Lighting for Public Space (Part I)
Libraries, Schools, Kindergartens

Lecture: Lighting for Educational Spaces and Libraries
March 12
Class 17: Lighting for Public Space (Part II)
Museums, Galleries, Theaters and Stage Design
Lecture: Lighting for Museums and Exhibition Spaces
Week 10: Outdoor Lighting and Special Issues
March 24
Class 18: Outdoor Lighting
Building facades, pavements and landscape design lighting
Lecture: Outdoor Lighting
March 26
Class 19: Special issues in lighting for interior design
Built in Furniture lighting and incorporated lighting
Lighting Design and special effects
Lighting Fixture Design trends, production and designers profile
Lecture: Built-in Furniture Lighting
Week 11: Construction Documents Specifications
March 31
Class 20: Reflected Ceiling Plan (RSP)
Drawing Rules
Ceiling frame-work and Lighting Fixture Specification
Lecture: Drawing Rules for Reflected Ceiling Plans
April 2

Class 21: Reflected Ceiling Plan (RCP)
Drawing Rules for switchers, dimmers and Symbols
Drawing details and sub-component
Lecture: Drawing rules for switchers
Week 12: Light Calculation and Metrics
April 7
Class 22: Light Calculation
Space size and requirements
Measurement of the light intensity
Lumen Method
Lecture: Light Calculation
April 9
Class 23: Light Metrics
Light Metrics and Light Control
Lecture: Light Metrics
Week 13: Critiques on Term Project
April 14
Class 24: Critiques on Term Project
April 16
Week 14: Critiques on Term Project
April 22
Class: 26: Critiques on Term Project
April 23
TERM PROJECT SUBMISSION DUE
April 30
TERM PROJECT PRESENTATION 10:30‐11:50

Assignment no. 1
Research Presentation
(15%)

AMERICAN UNIVERSITY OF KURDISTAN (AUK)
COLLEGE OF ART & SCIENCES
DEPARTMENT OF INTERIOR DESIGN
IND314 – LIGHTING FOR INTERIOR DESIGN SPRING 2019
Instructor: Asst. Prof. Siniša Prvanov

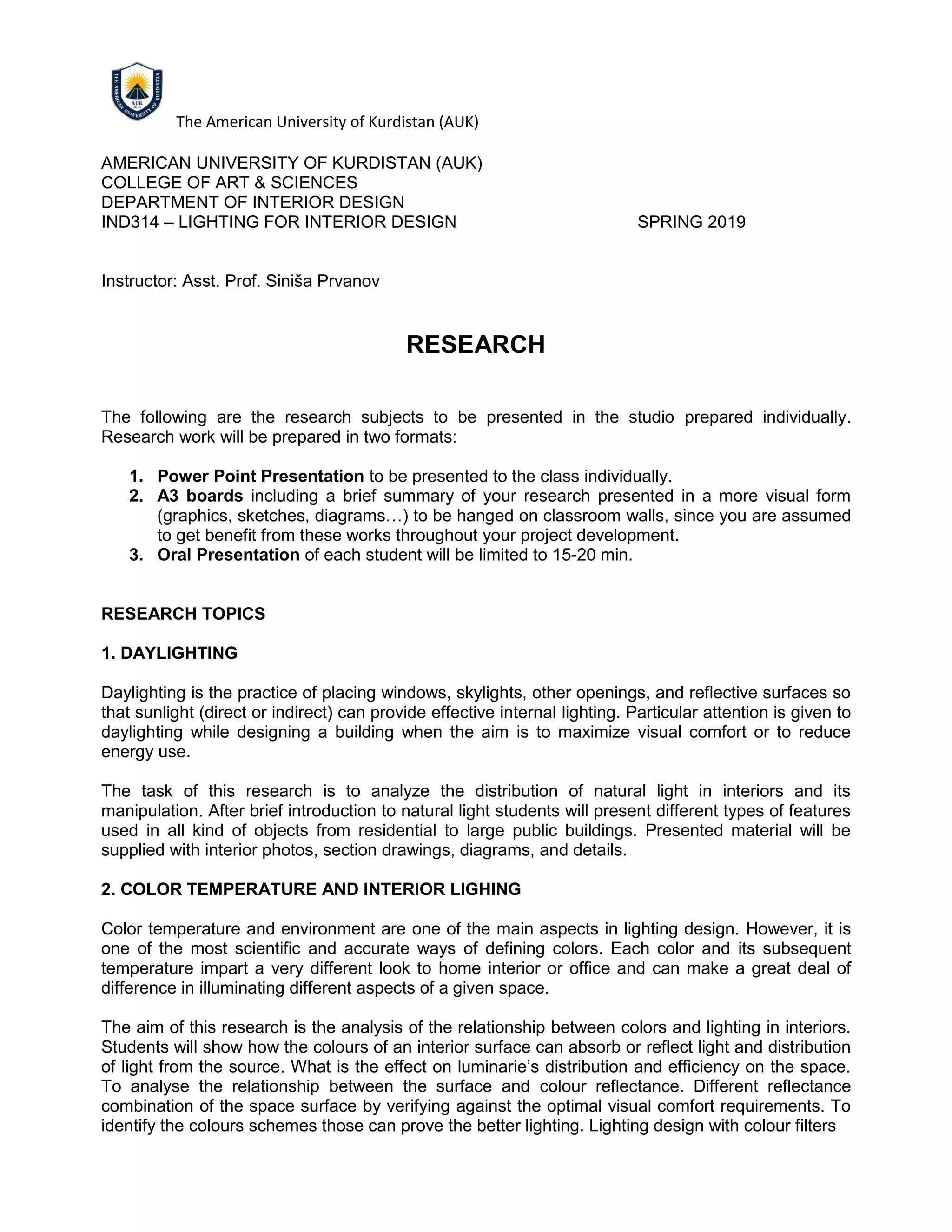

RESEARCH
The following are the research subjects to be presented in the studio prepared individually.
Research work will be prepared in two formats:
1. Power Point Presentation to be presented to the class individually.
2. A3 boards including a brief summary of your research presented in a more visual form
(graphics, sketches, diagrams…) to be hanged on classroom walls, since you are assumed
to get benefit from these works throughout your project development.
3. Oral Presentation of each student will be limited to 15-20 min.
RESEARCH TOPICS
1. DAYLIGHTING
Daylighting is the practice of placing windows, skylights, other openings, and reflective surfaces so
that sunlight (direct or indirect) can provide effective internal lighting. Particular attention is given to
daylighting while designing a building when the aim is to maximize visual comfort or to reduce
energy use.
The task of this research is to analyze the distribution of natural light in interiors and its
manipulation. After brief introduction to natural light students will present different types of features
used in all kind of objects from residential to large public buildings. Presented material will be
supplied with interior photos, section drawings, diagrams, and details.

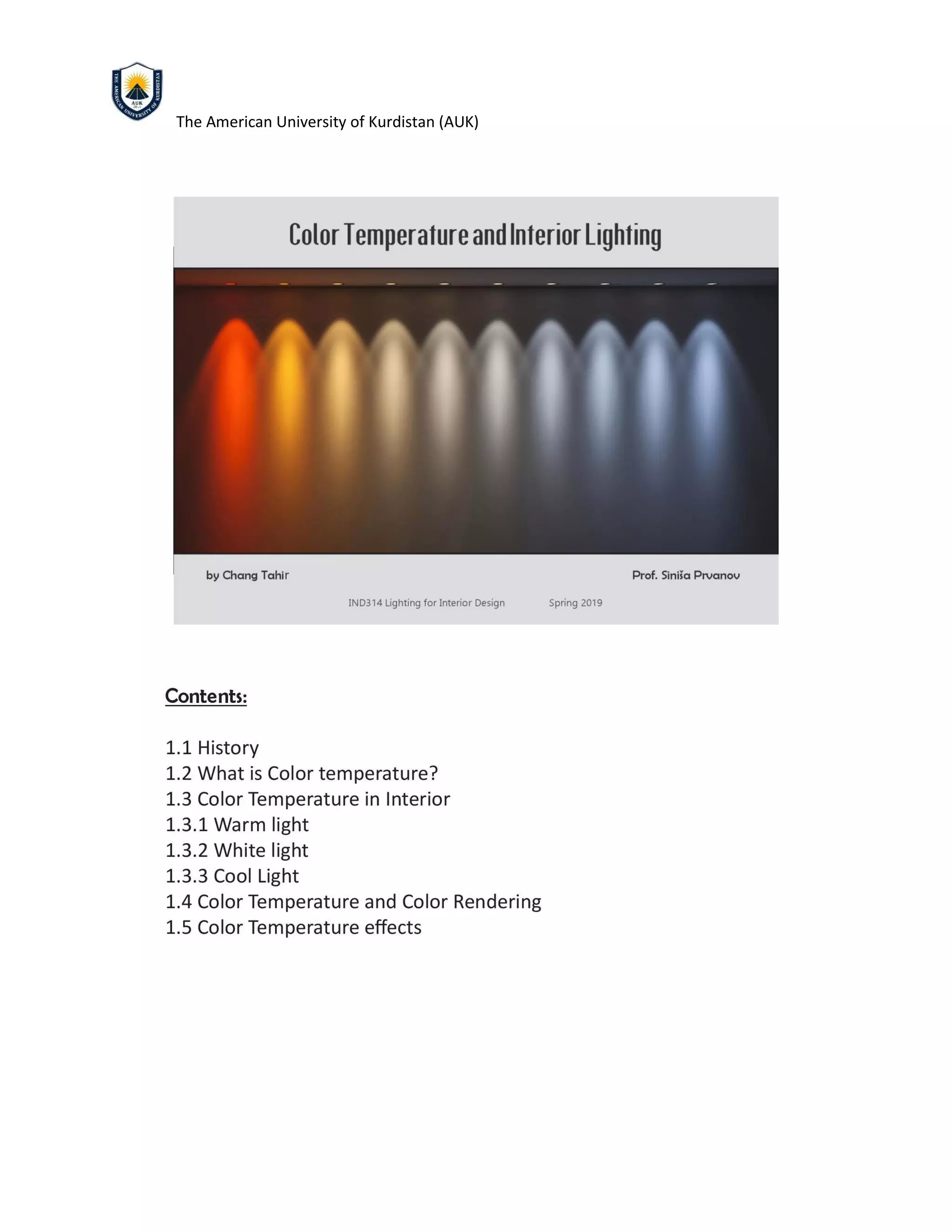

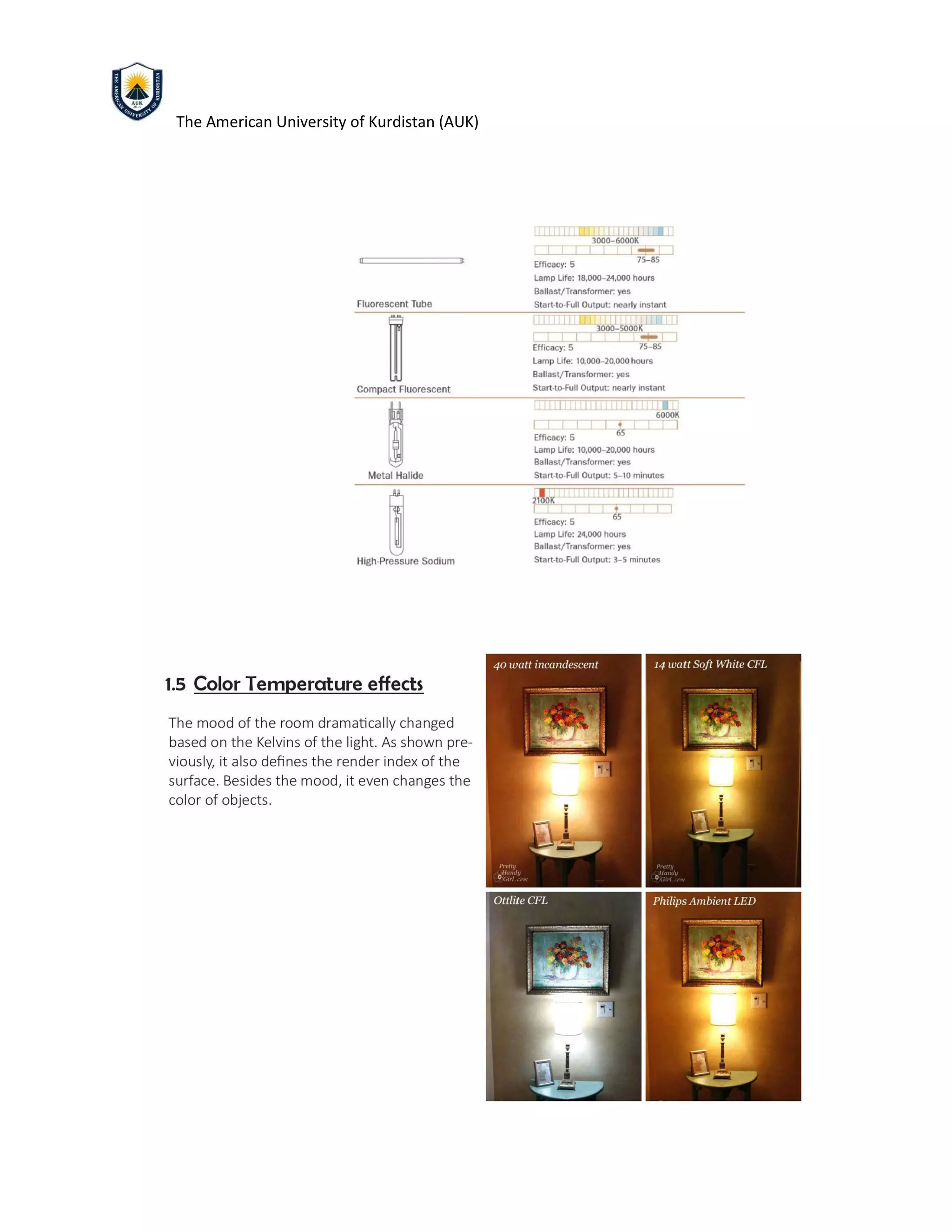

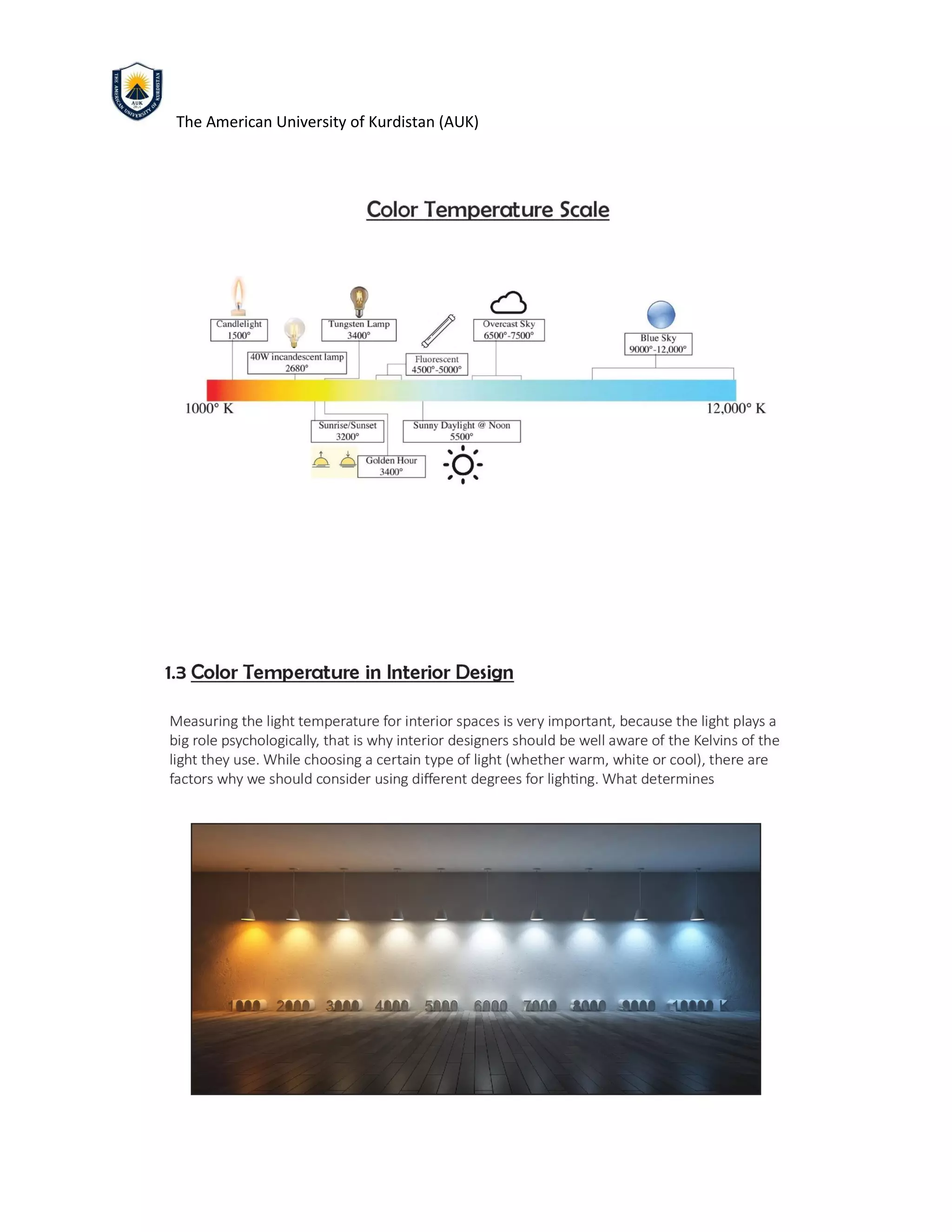

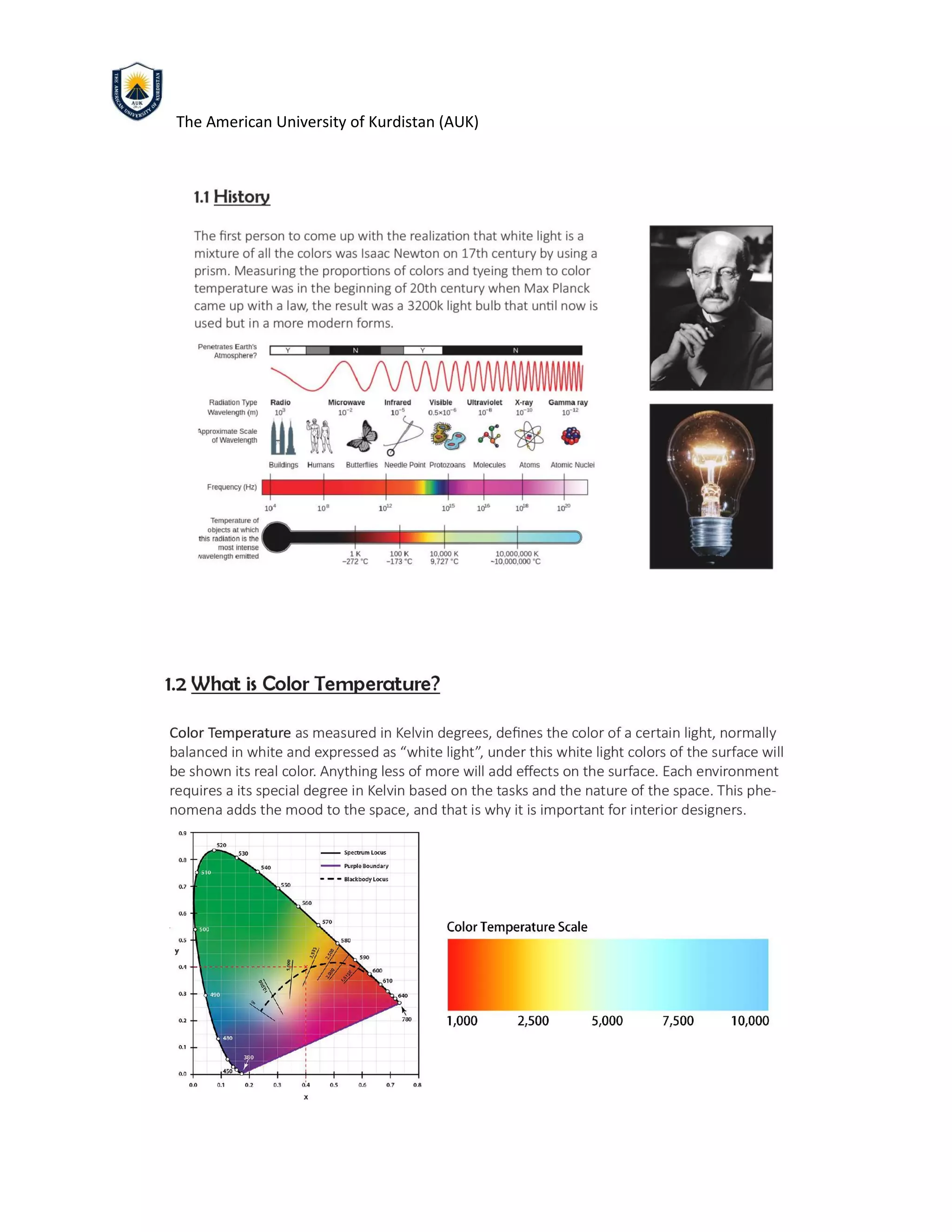

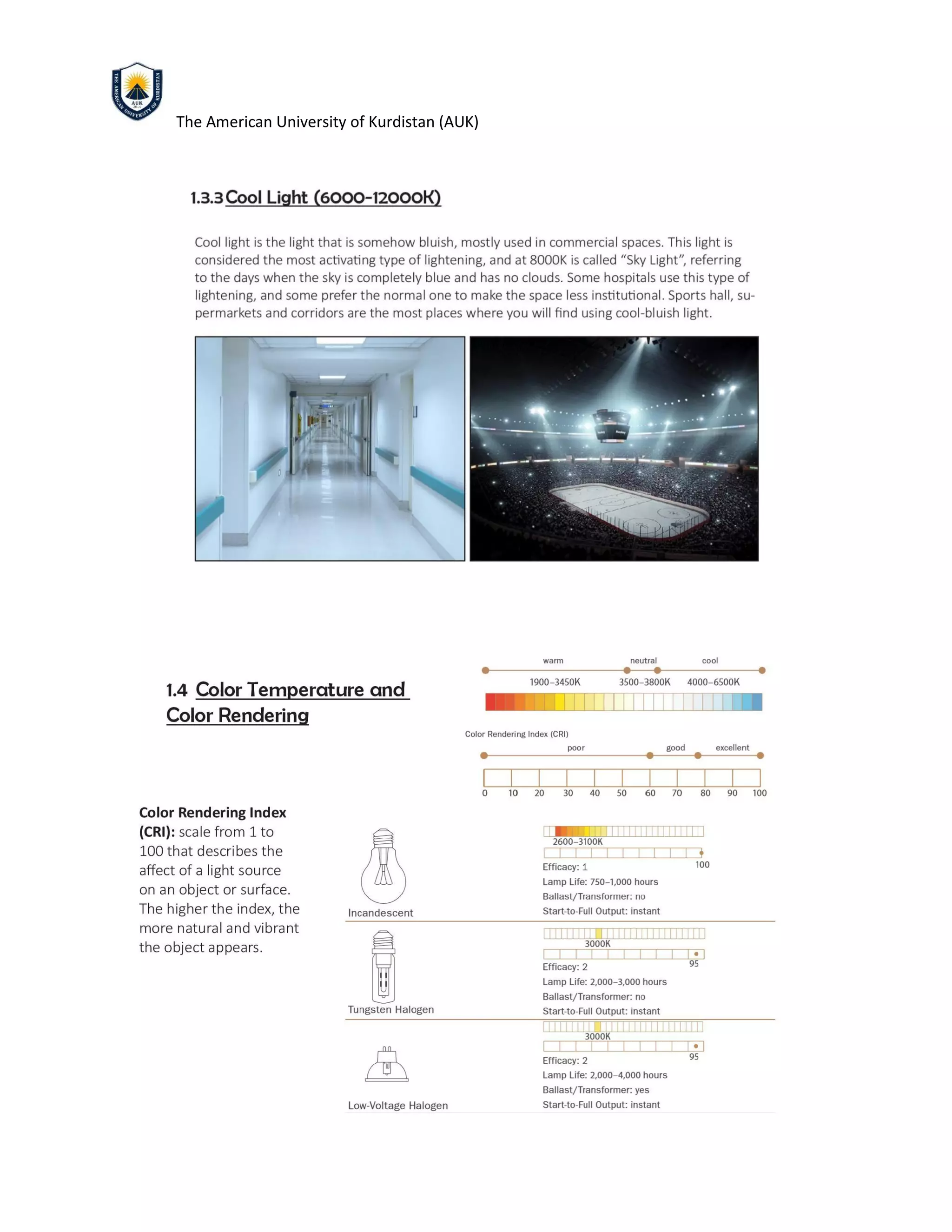

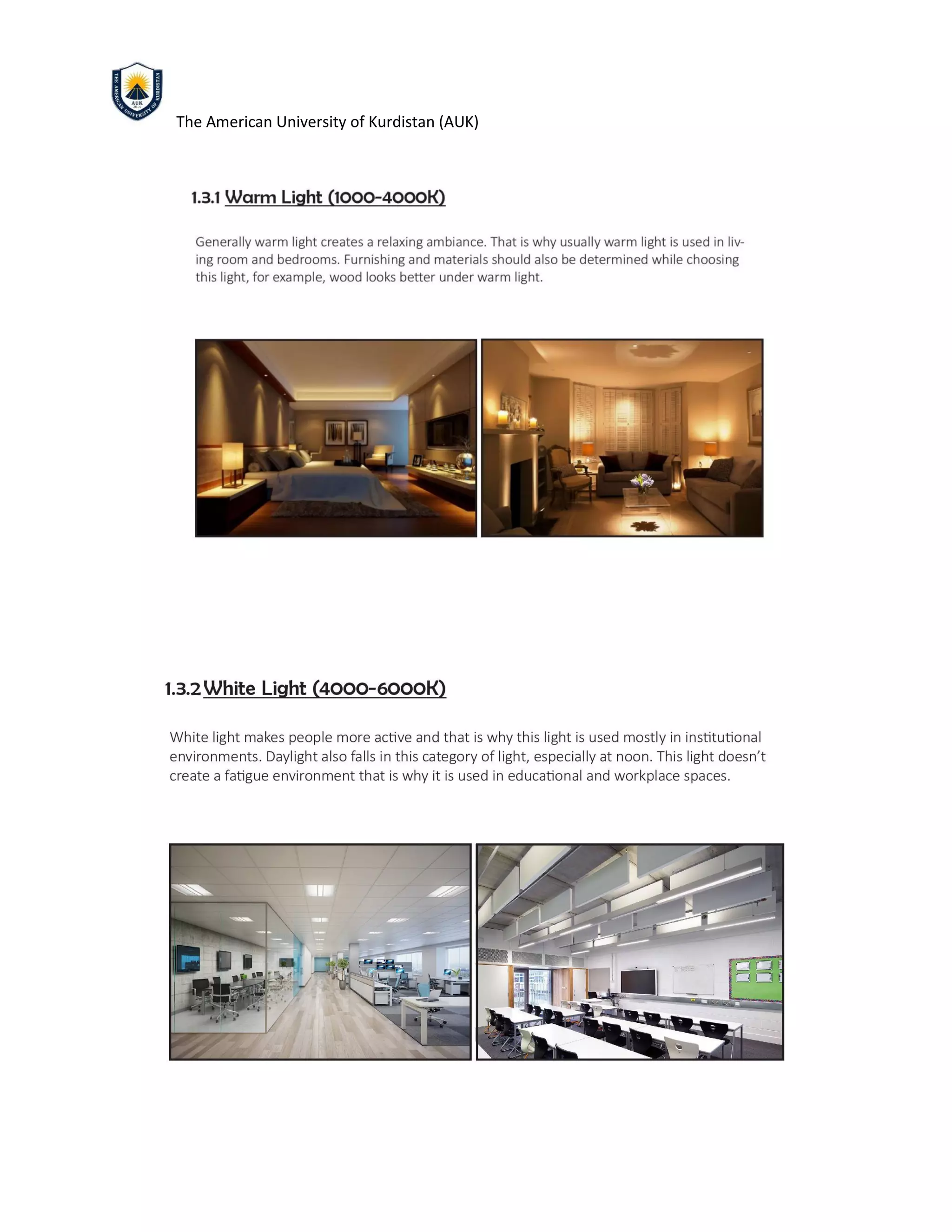

2. COLOR TEMPERATURE AND INTERIOR LIGHING
Color temperature and environment are one of the main aspects in lighting design. However, it is
one of the most scientific and accurate ways of defining colors. Each color and its subsequent
temperature impart a very different look to home interior or office and can make a great deal of
difference in illuminating different aspects of a given space.
The aim of this research is the analysis of the relationship between colors and lighting in interiors.
Students will show how the colours of an interior surface can absorb or reflect light and distribution
of light from the source. What is the effect on luminarie’s distribution and efficiency on the space.
To analyse the relationship between the surface and colour reflectance. Different reflectance
combination of the space surface by verifying against the optimal visual comfort requirements. To
identify the colours schemes those can prove the better lighting. Lighting design with colour filters

and materials and surface techniques. Research will be supported by variety of interior photos and
samples.

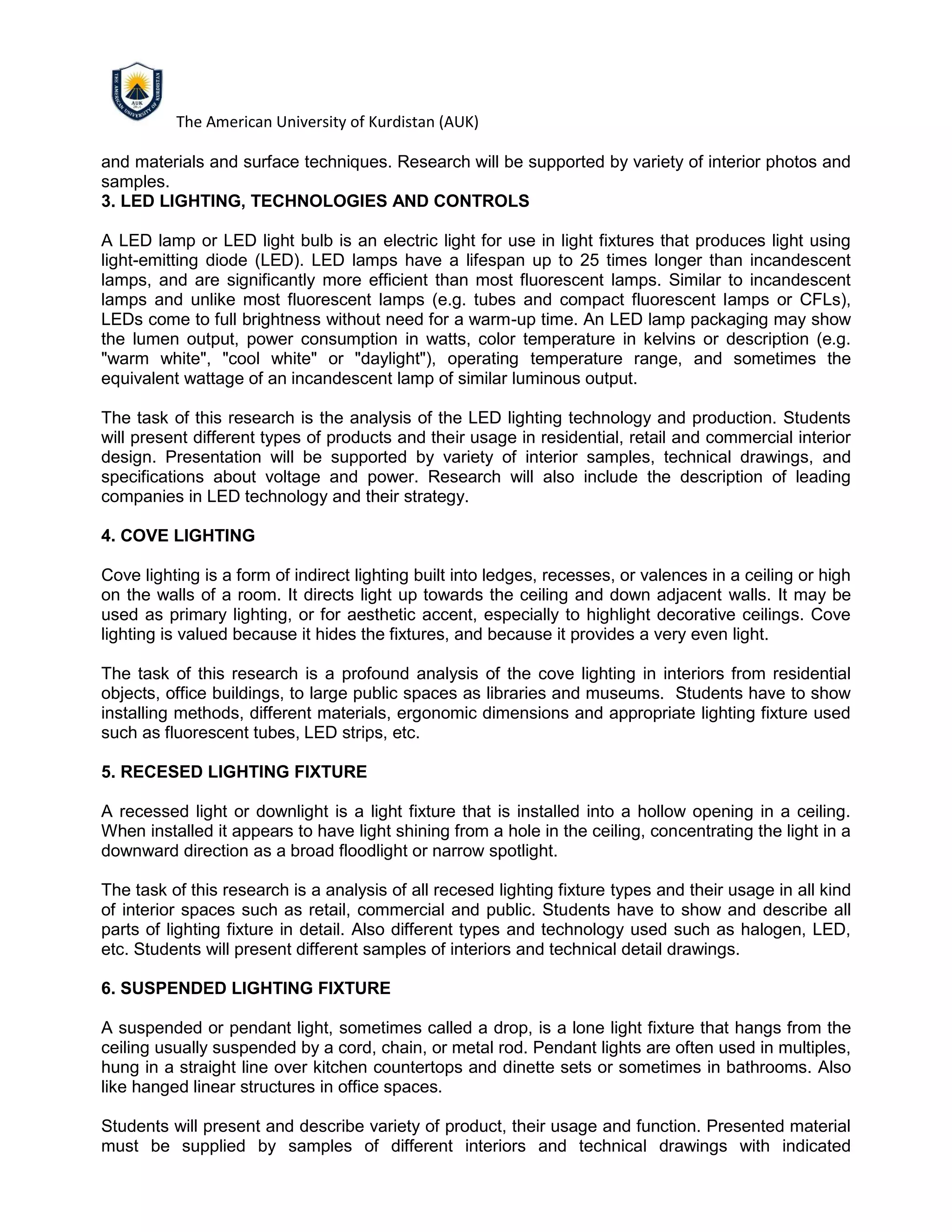

3. LED LIGHTING, TECHNOLOGIES AND CONTROLS
A LED lamp or LED light bulb is an electric light for use in light fixtures that produces light using
light-emitting diode (LED). LED lamps have a lifespan up to 25 times longer than incandescent
lamps, and are significantly more efficient than most fluorescent lamps. Similar to incandescent
lamps and unlike most fluorescent lamps (e.g. tubes and compact fluorescent lamps or CFLs),
LEDs come to full brightness without need for a warm-up time. An LED lamp packaging may show
the lumen output, power consumption in watts, color temperature in kelvins or description (e.g.
"warm white", "cool white" or "daylight"), operating temperature range, and sometimes the
equivalent wattage of an incandescent lamp of similar luminous output.
The task of this research is the analysis of the LED lighting technology and production. Students
will present different types of products and their usage in residential, retail and commercial interior
design. Presentation will be supported by variety of interior samples, technical drawings, and
specifications about voltage and power. Research will also include the description of leading
companies in LED technology and their strategy.

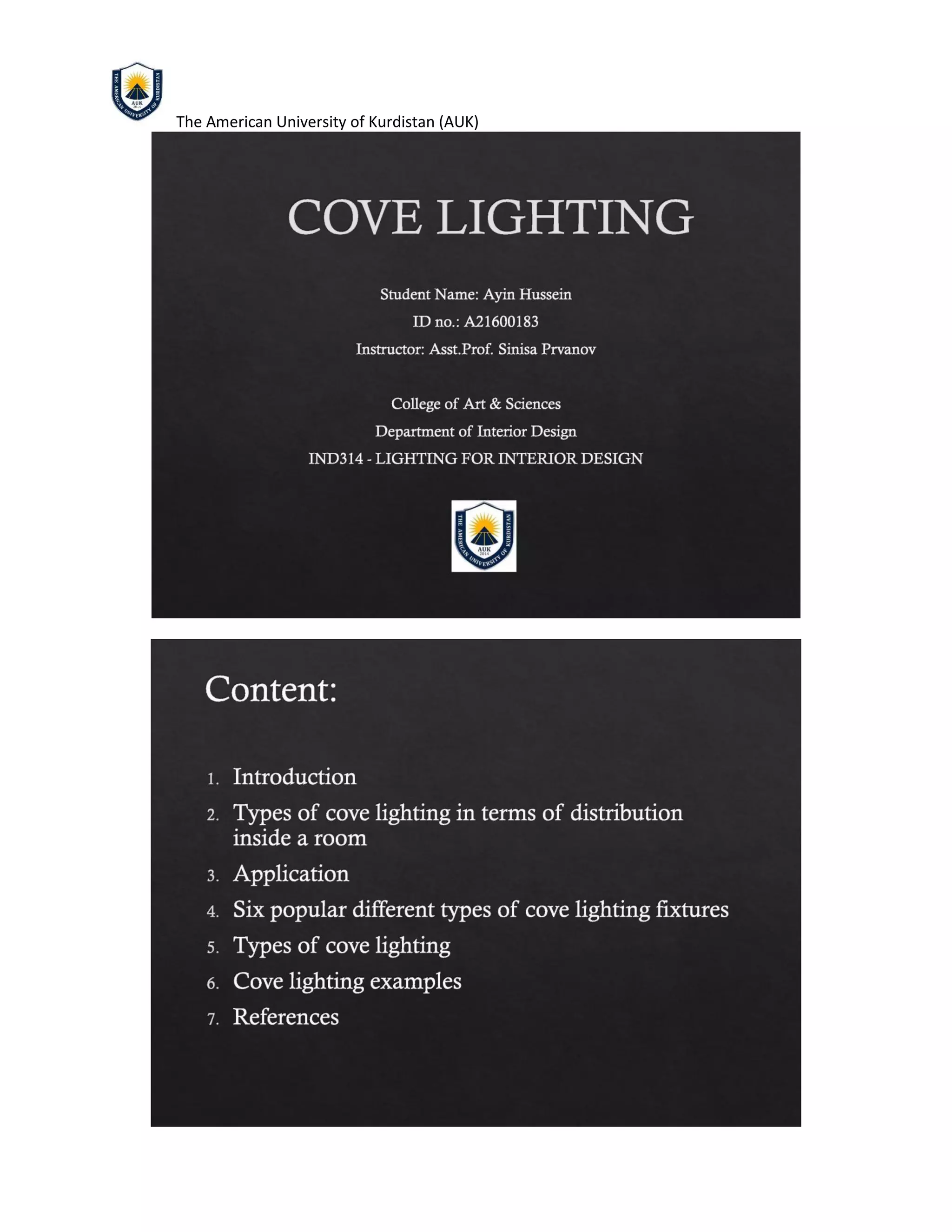

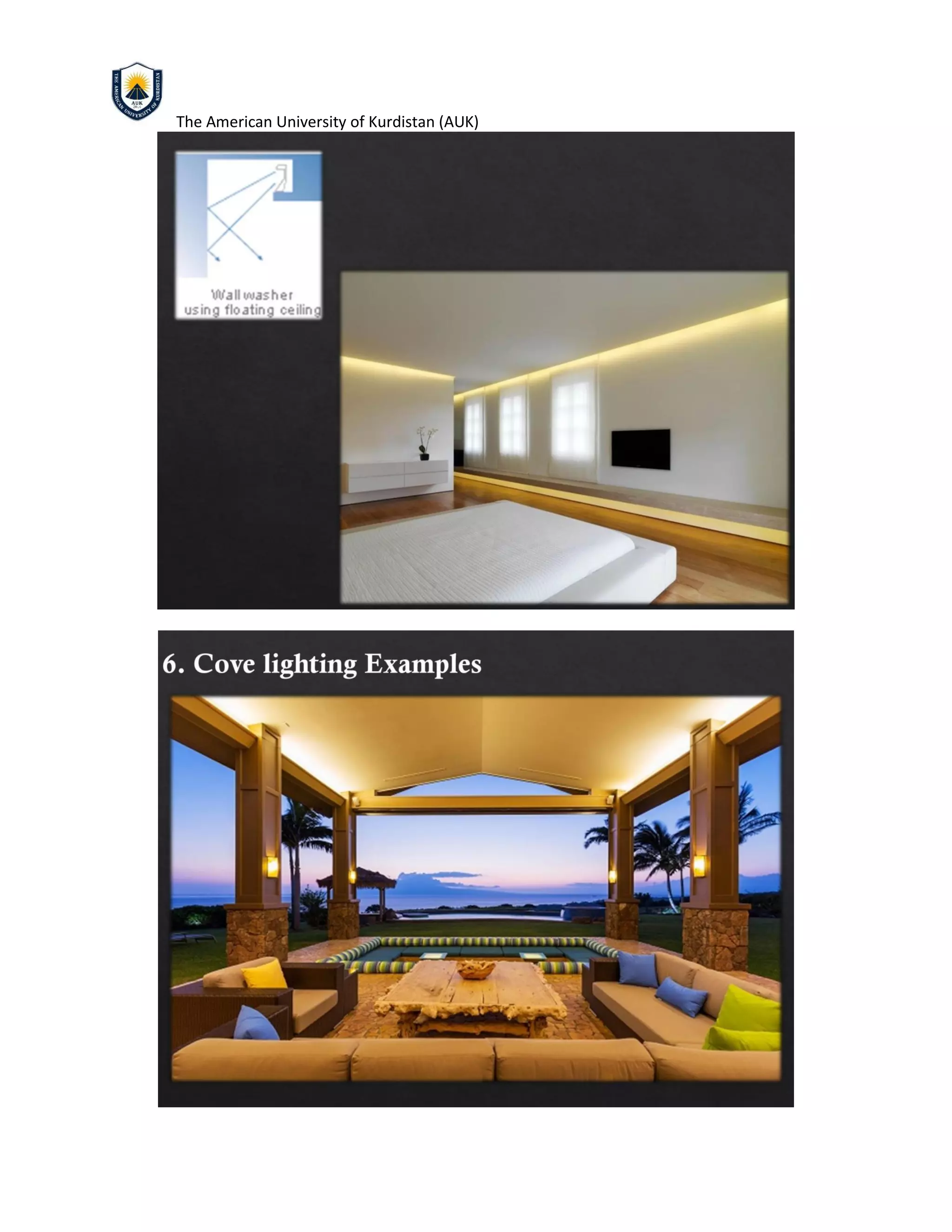

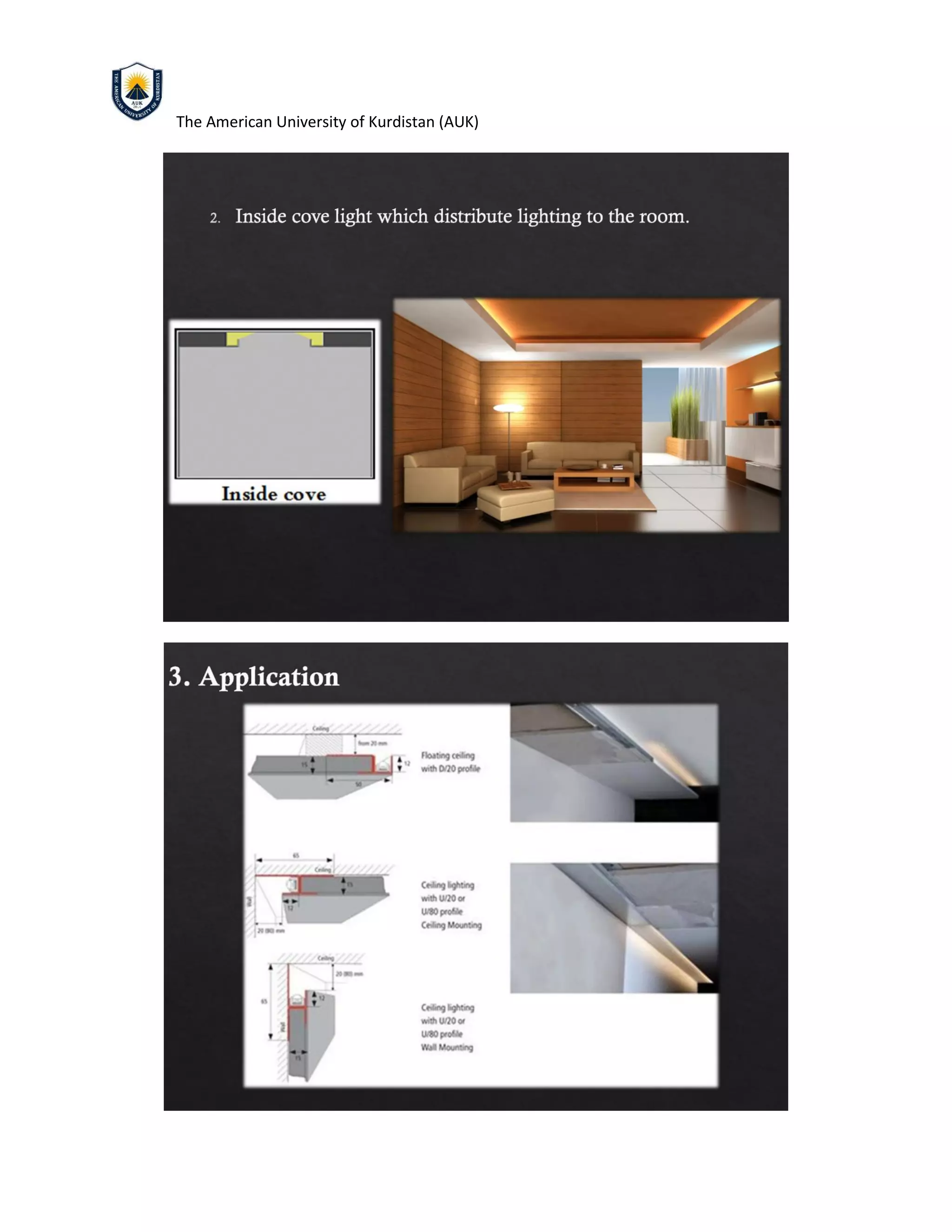

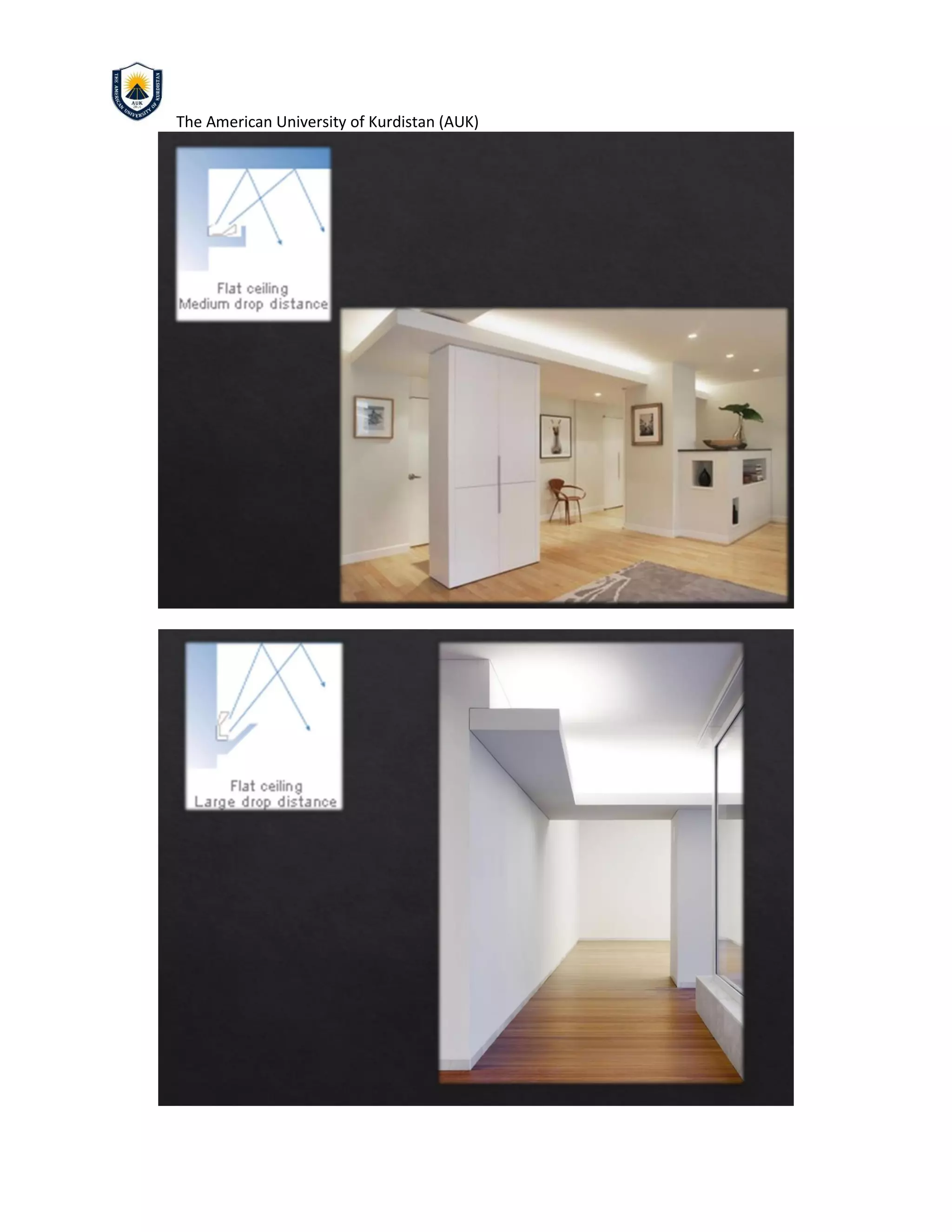

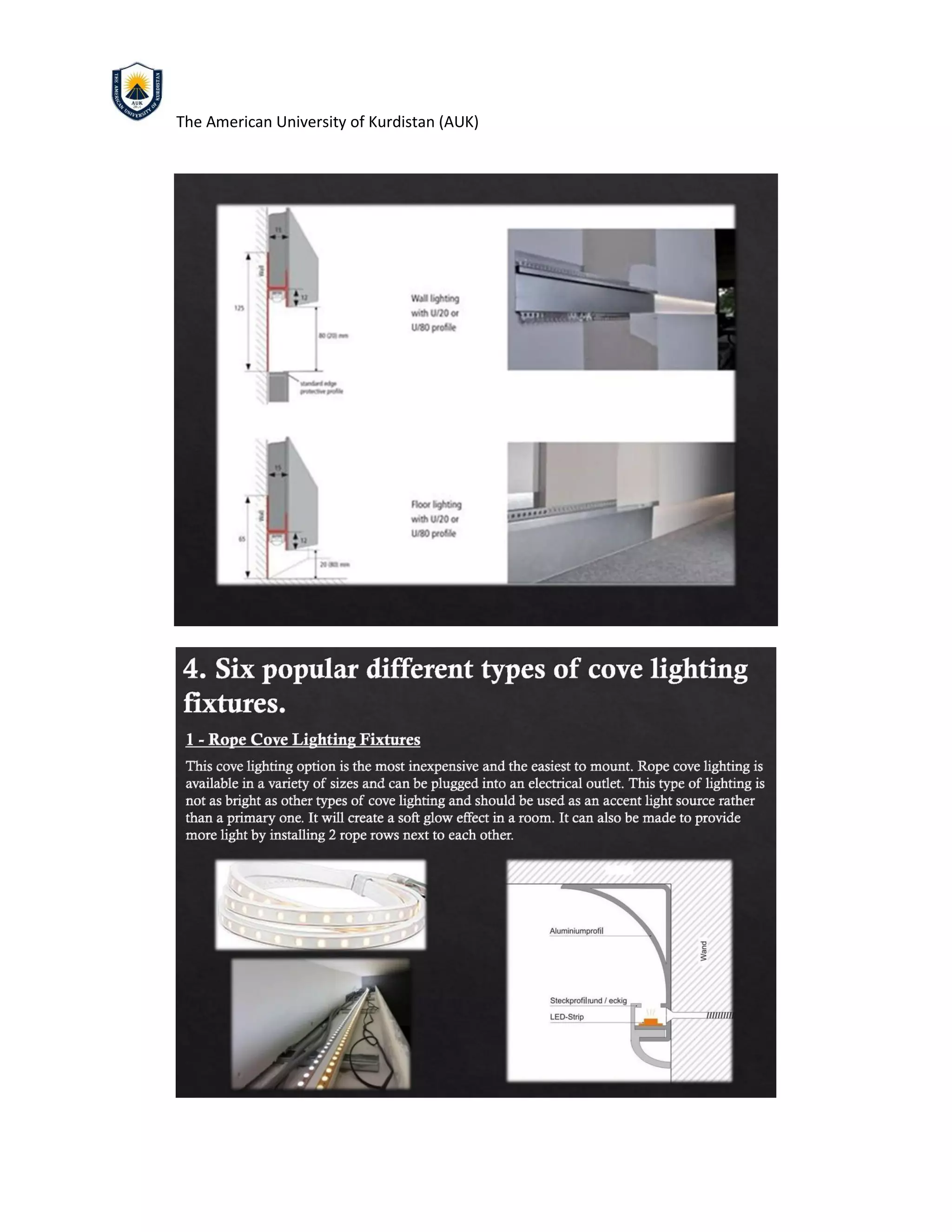

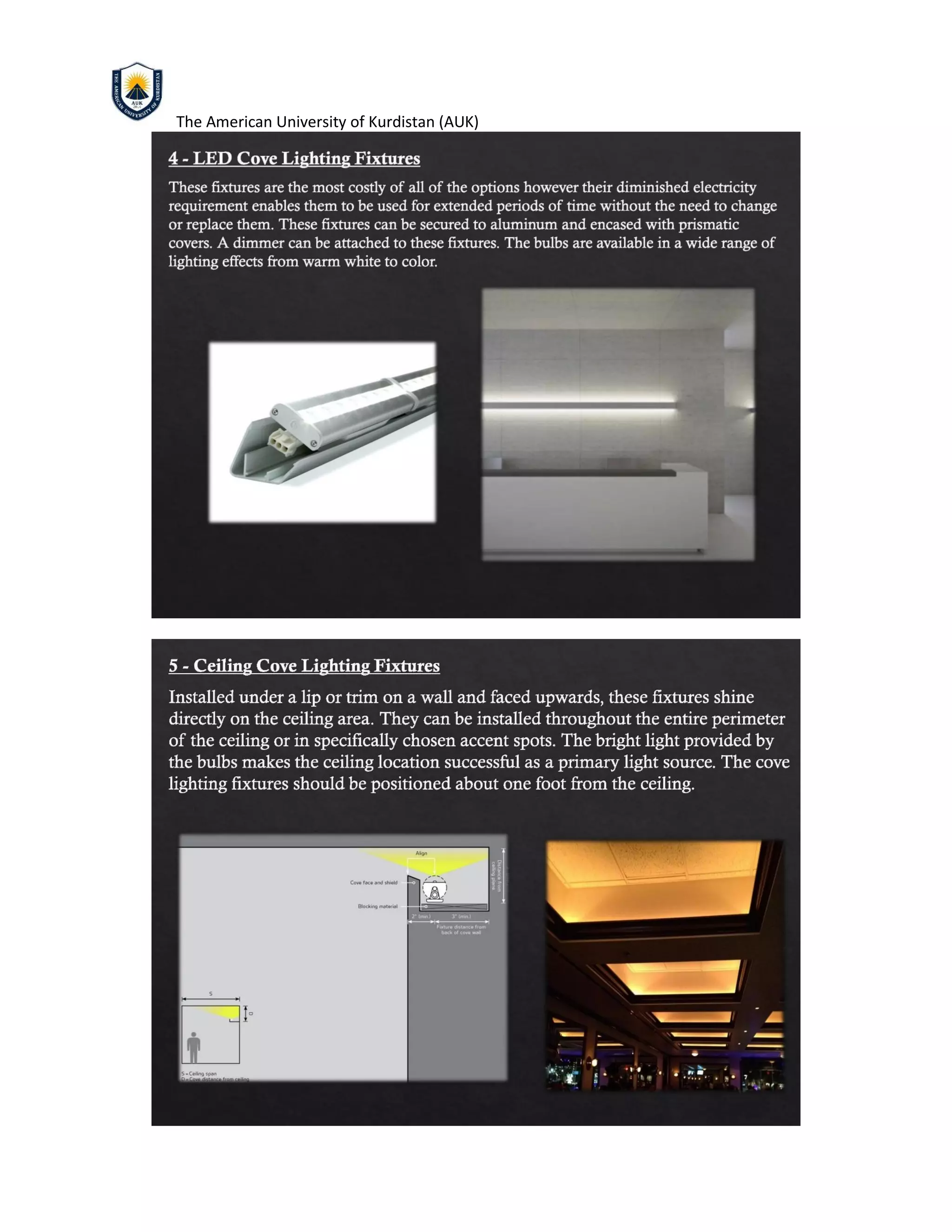

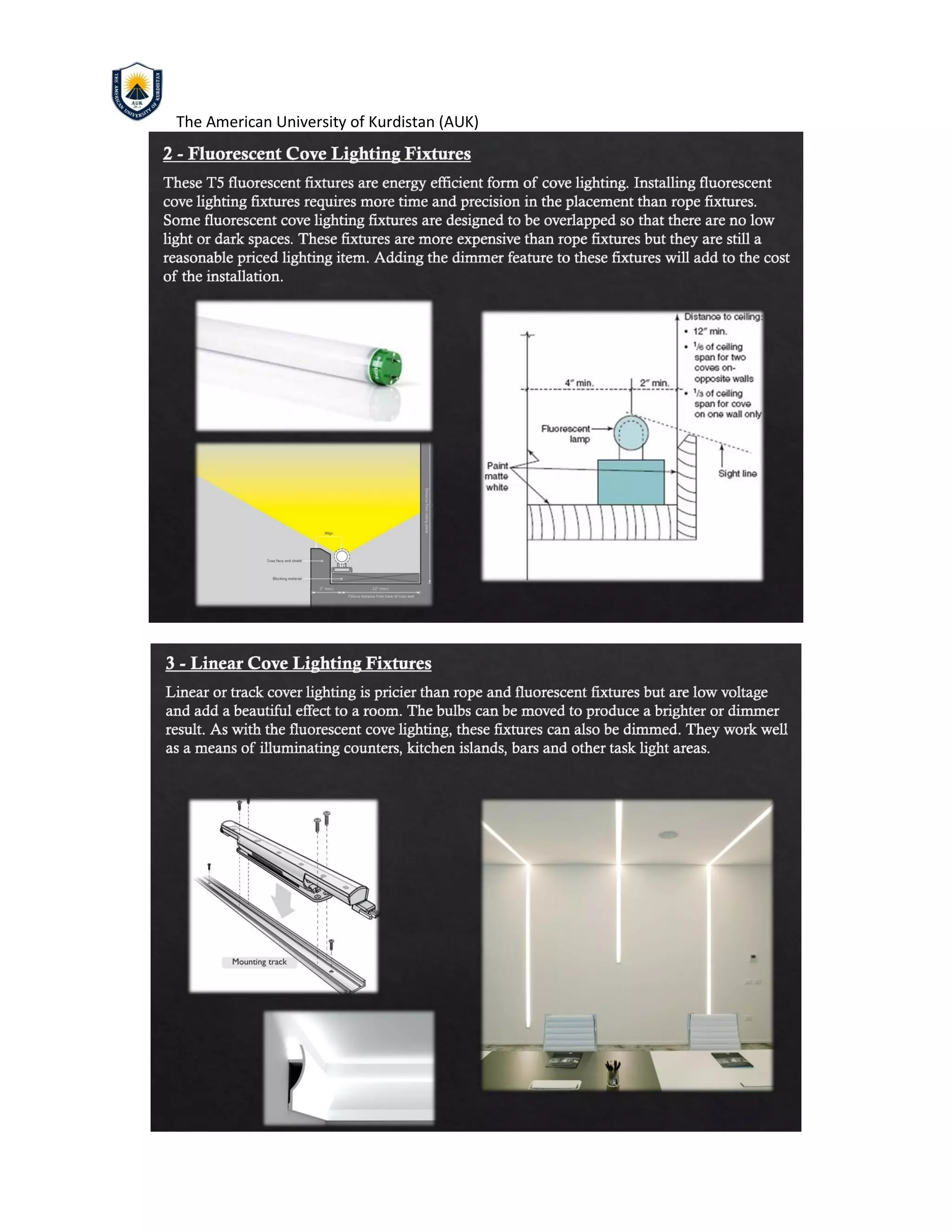

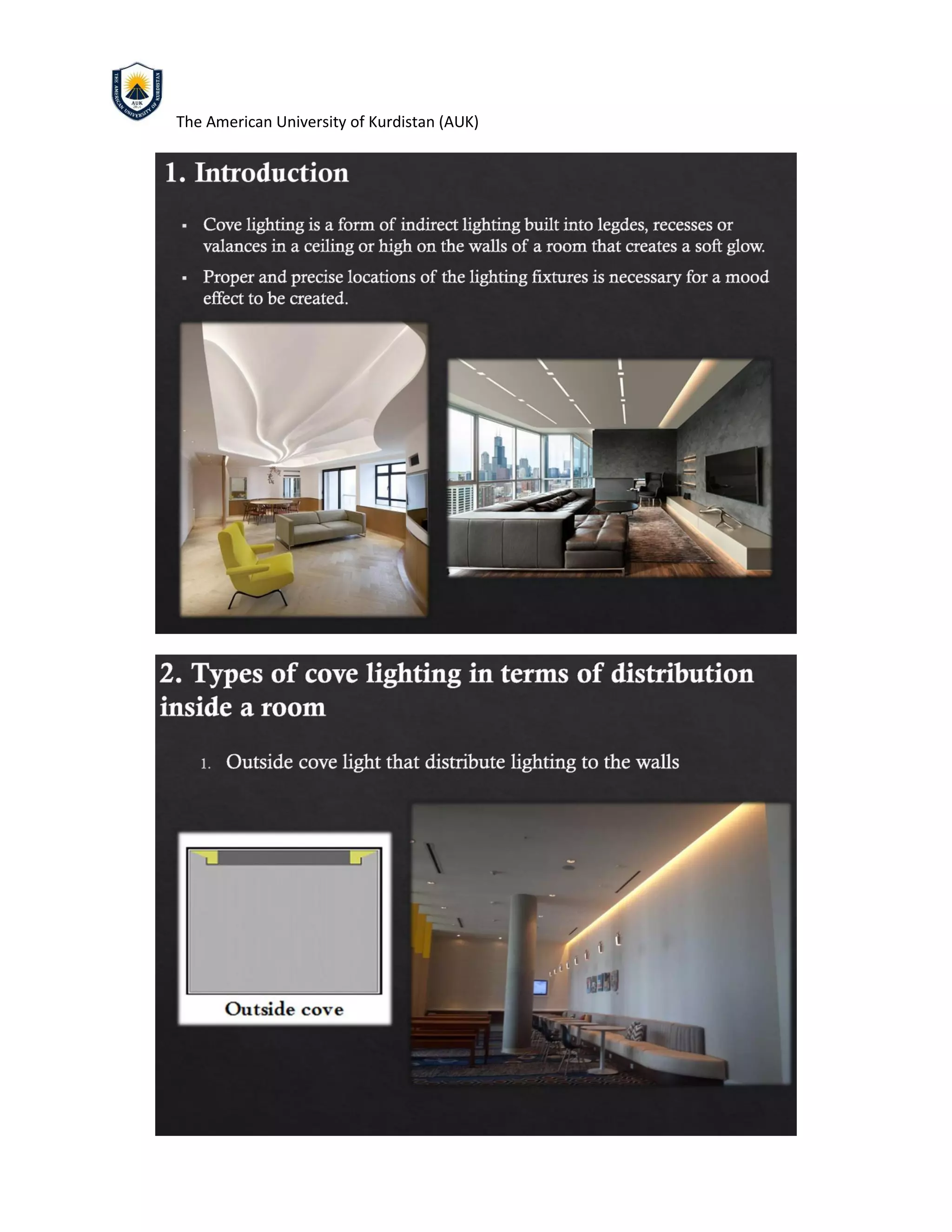

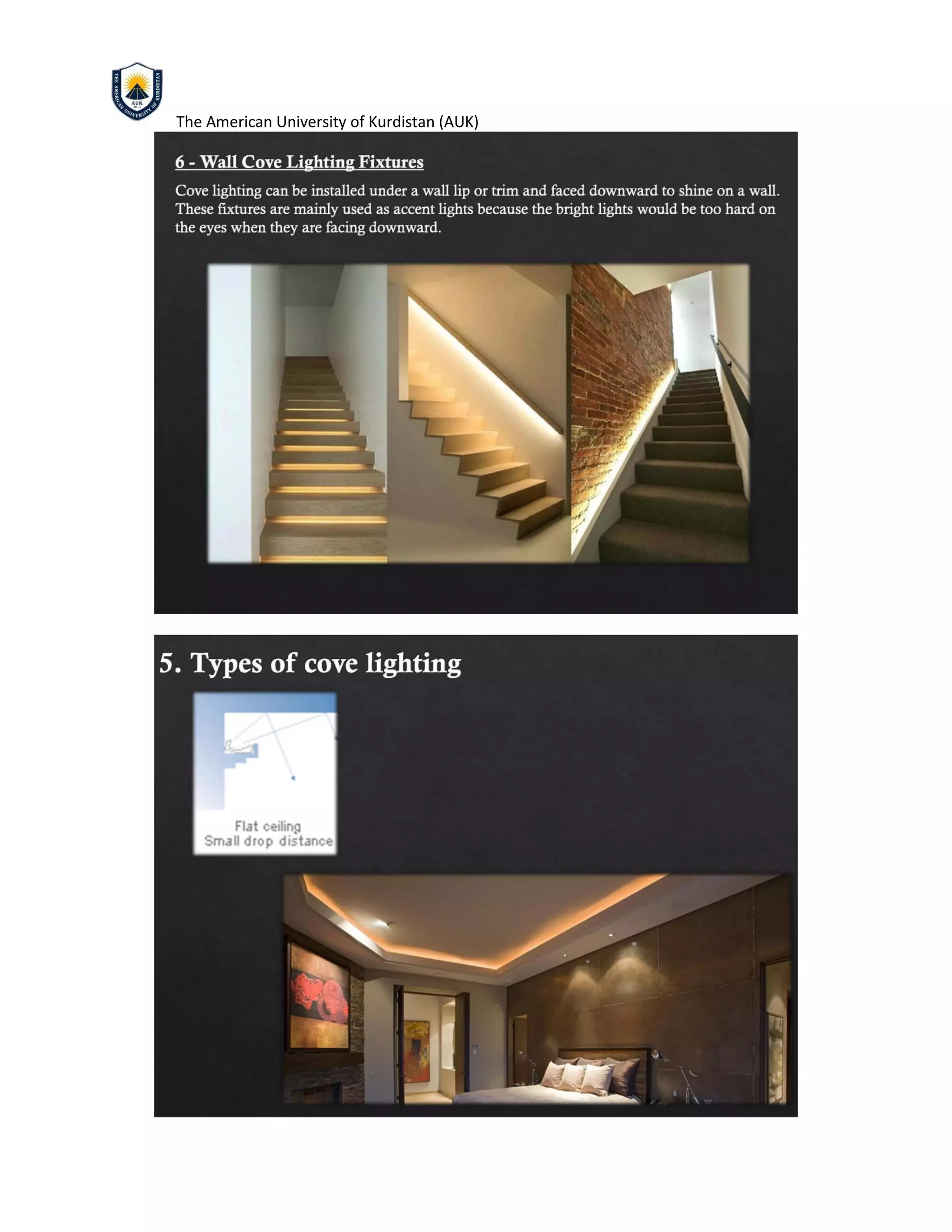

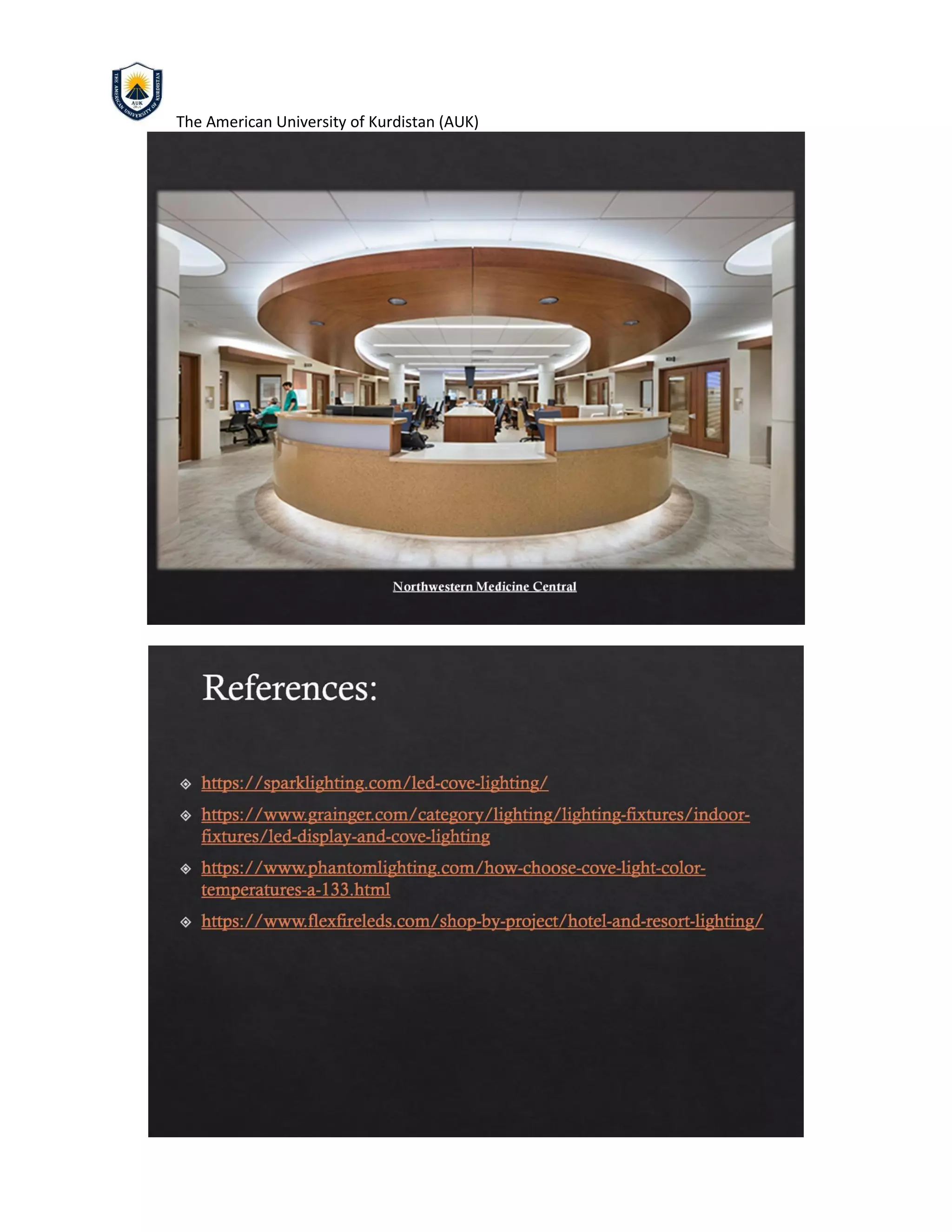

4. COVE LIGHTING
Cove lighting is a form of indirect lighting built into ledges, recesses, or valences in a ceiling or high
on the walls of a room. It directs light up towards the ceiling and down adjacent walls. It may be
used as primary lighting, or for aesthetic accent, especially to highlight decorative ceilings. Cove
lighting is valued because it hides the fixtures, and because it provides a very even light.
The task of this research is a profound analysis of the cove lighting in interiors from residential
objects, office buildings, to large public spaces as libraries and museums. Students have to show
installing methods, different materials, ergonomic dimensions and appropriate lighting fixture used
such as fluorescent tubes, LED strips, etc.
5. RECESED LIGHTING FIXTURE
A recessed light or downlight is a light fixture that is installed into a hollow opening in a ceiling.
When installed it appears to have light shining from a hole in the ceiling, concentrating the light in a
downward direction as a broad floodlight or narrow spotlight.
The task of this research is a analysis of all recesed lighting fixture types and their usage in all kind
of interior spaces such as retail, commercial and public. Students have to show and describe all
parts of lighting fixture in detail. Also different types and technology used such as halogen, LED,
etc. Students will present different samples of interiors and technical detail drawings.
6. SUSPENDED LIGHTING FIXTURE
A suspended or pendant light, sometimes called a drop, is a lone light fixture that hangs from the
ceiling usually suspended by a cord, chain, or metal rod. Pendant lights are often used in multiples,
hung in a straight line over kitchen countertops and dinette sets or sometimes in bathrooms. Also
like hanged linear structures in office spaces.
Students will present and describe variety of product, their usage and function. Presented material
must be supplied by samples of different interiors and technical drawings with indicated

dimensions and ergonomic standards.

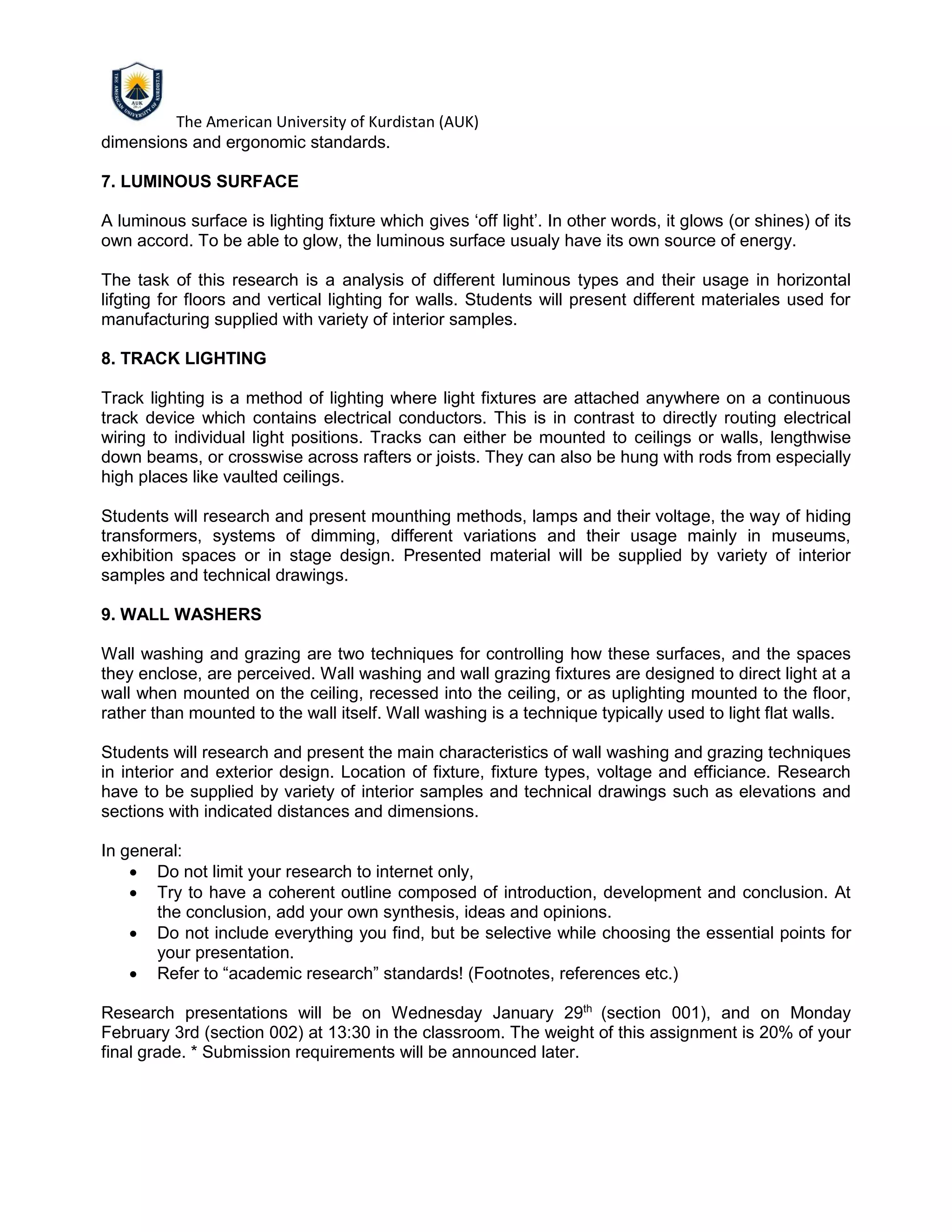

7. LUMINOUS SURFACE
A luminous surface is lighting fixture which gives ‘off light’. In other words, it glows (or shines) of its
own accord. To be able to glow, the luminous surface usualy have its own source of energy.
The task of this research is a analysis of different luminous types and their usage in horizontal
lifgting for floors and vertical lighting for walls. Students will present different materiales used for
manufacturing supplied with variety of interior samples.
8. TRACK LIGHTING
Track lighting is a method of lighting where light fixtures are attached anywhere on a continuous
track device which contains electrical conductors. This is in contrast to directly routing electrical
wiring to individual light positions. Tracks can either be mounted to ceilings or walls, lengthwise
down beams, or crosswise across rafters or joists. They can also be hung with rods from especially
high places like vaulted ceilings.
Students will research and present mounthing methods, lamps and their voltage, the way of hiding
transformers, systems of dimming, different variations and their usage mainly in museums,
exhibition spaces or in stage design. Presented material will be supplied by variety of interior
samples and technical drawings.
9. WALL WASHERS
Wall washing and grazing are two techniques for controlling how these surfaces, and the spaces
they enclose, are perceived. Wall washing and wall grazing fixtures are designed to direct light at a
wall when mounted on the ceiling, recessed into the ceiling, or as uplighting mounted to the floor,
rather than mounted to the wall itself. Wall washing is a technique typically used to light flat walls.
Students will research and present the main characteristics of wall washing and grazing techniques
in interior and exterior design. Location of fixture, fixture types, voltage and efficiance. Research
have to be supplied by variety of interior samples and technical drawings such as elevations and
sections with indicated distances and dimensions.
In general:
• Do not limit your research to internet only,
• Try to have a coherent outline composed of introduction, development and conclusion. At
the conclusion, add your own synthesis, ideas and opinions.
• Do not include everything you find, but be selective while choosing the essential points for
your presentation.
• Refer to “academic research” standards! (Footnotes, references etc.)
Research presentations will be on Wednesday January 29th
(section 001), and on Monday
February 3rd (section 002) at 13:30 in the classroom. The weight of this assignment is 20% of your
final grade. * Submission requirements will be announced later.

Student Presentation:

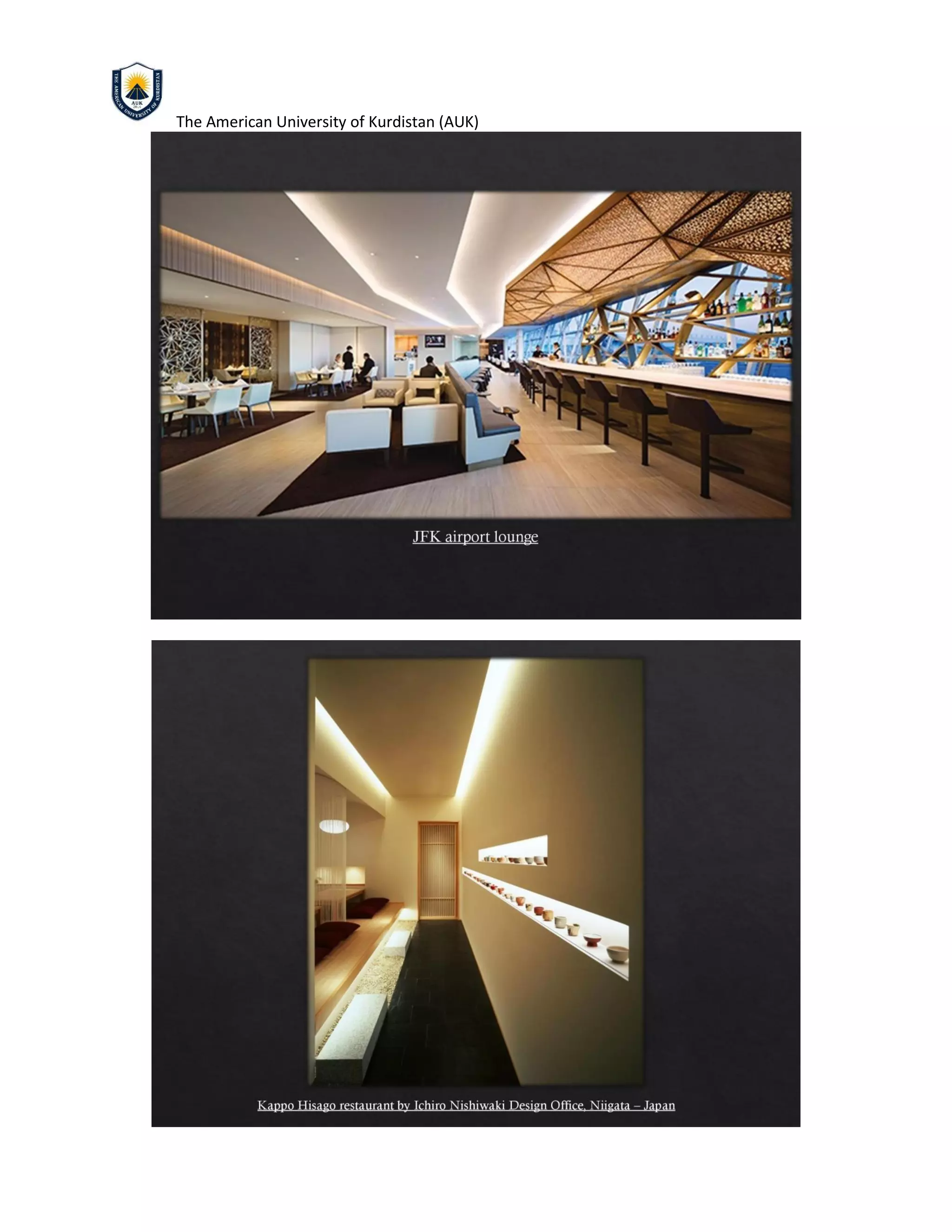

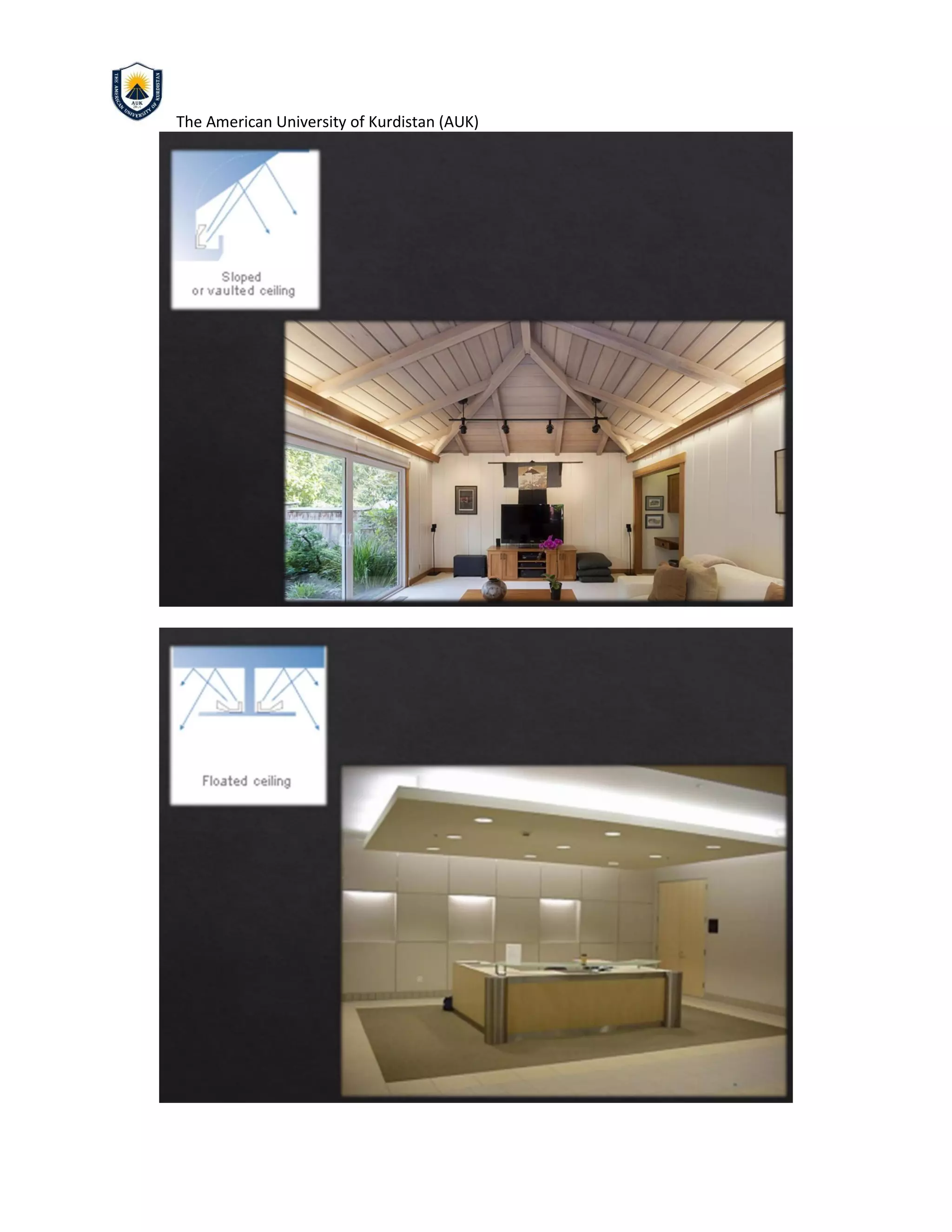

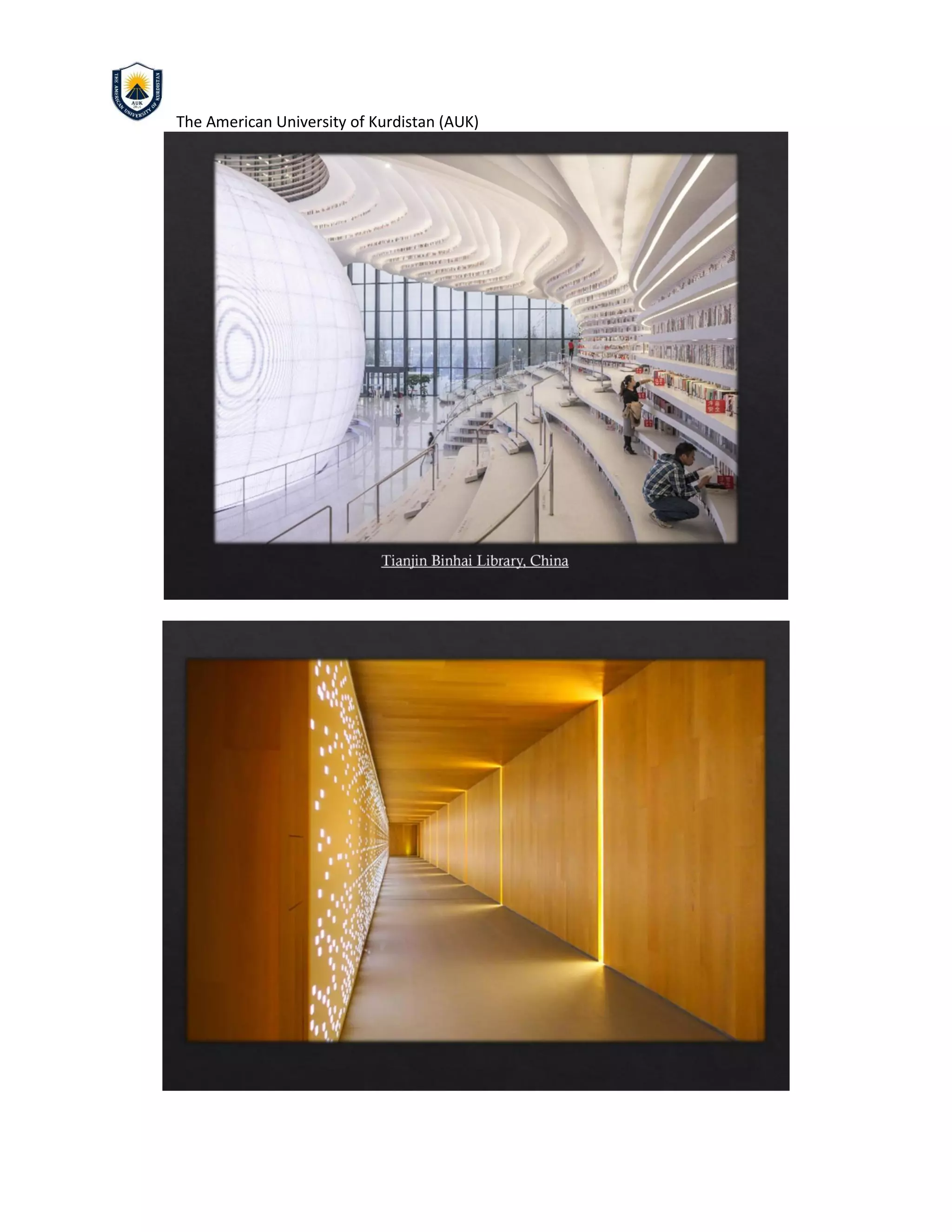

Ms. Ayin M.Bahaaddin Hussein
(Median Work)

Ms. Chang Farhan Tahir
(Best Work)

Assist. Prof. Siniša Prvanov
Department of Interior Design
College of Art & Sciences
IND314 LIGHTING FOR INTERIOR DESIGN Spring 2019

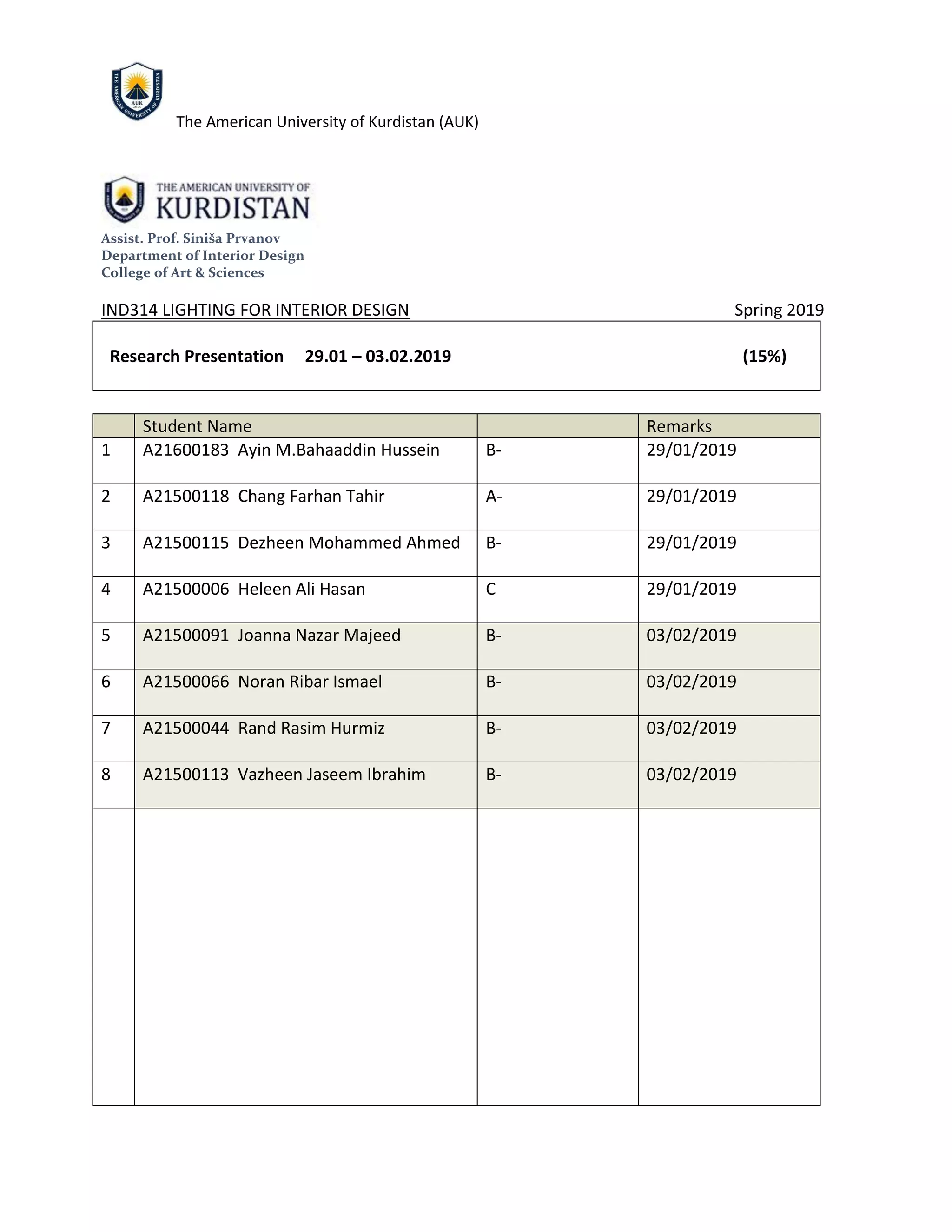

Research Presentation 29.01 – 03.02.2019 (15%)
Student Name Remarks
1 A21600183 Ayin M.Bahaaddin Hussein B- 29/01/2019
2 A21500118 Chang Farhan Tahir A- 29/01/2019
3 A21500115 Dezheen Mohammed Ahmed B- 29/01/2019
4 A21500006 Heleen Ali Hasan C 29/01/2019
5 A21500091 Joanna Nazar Majeed B- 03/02/2019
6 A21500066 Noran Ribar Ismael B- 03/02/2019
7 A21500044 Rand Rasim Hurmiz B- 03/02/2019
8 A21500113 Vazheen Jaseem Ibrahim B- 03/02/2019

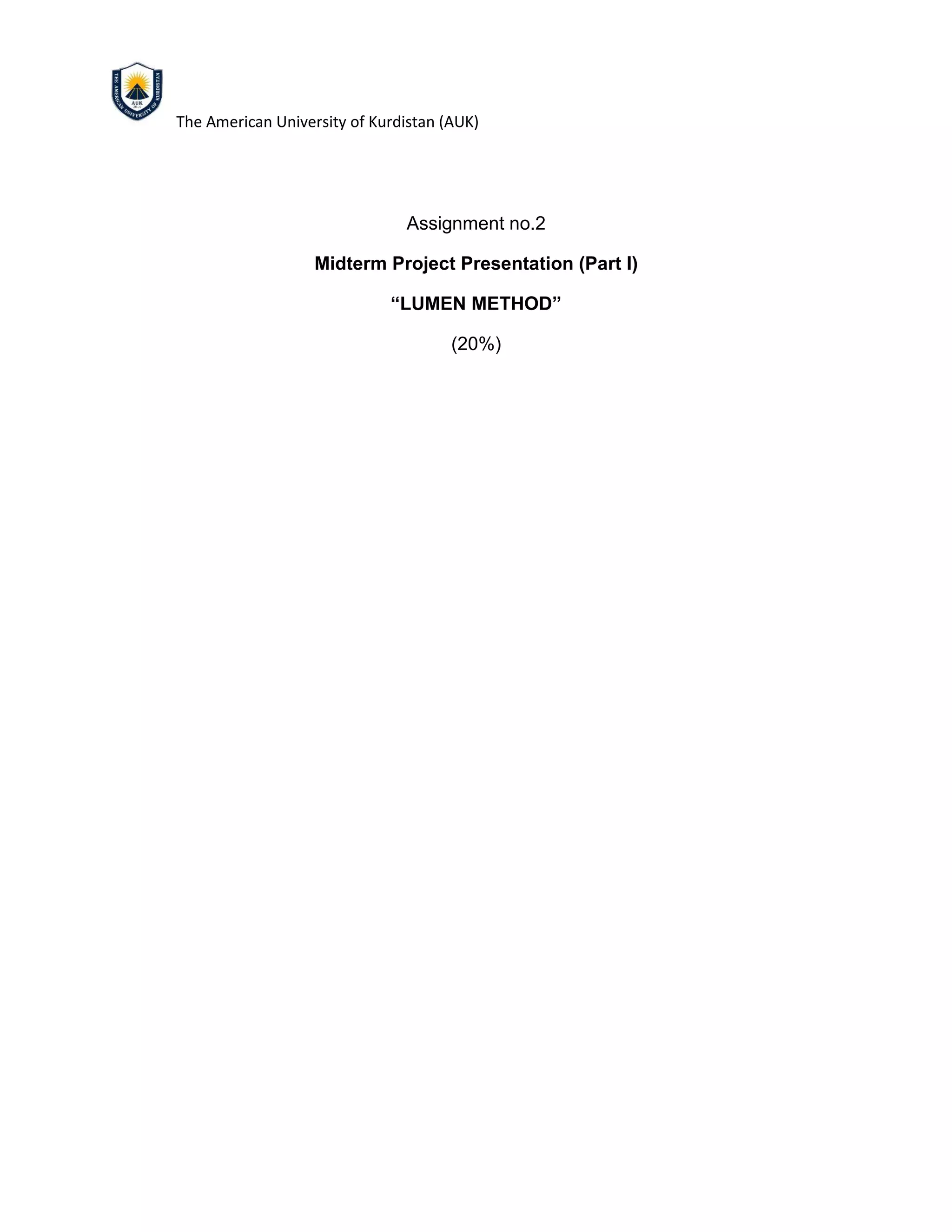

Assignment no.2

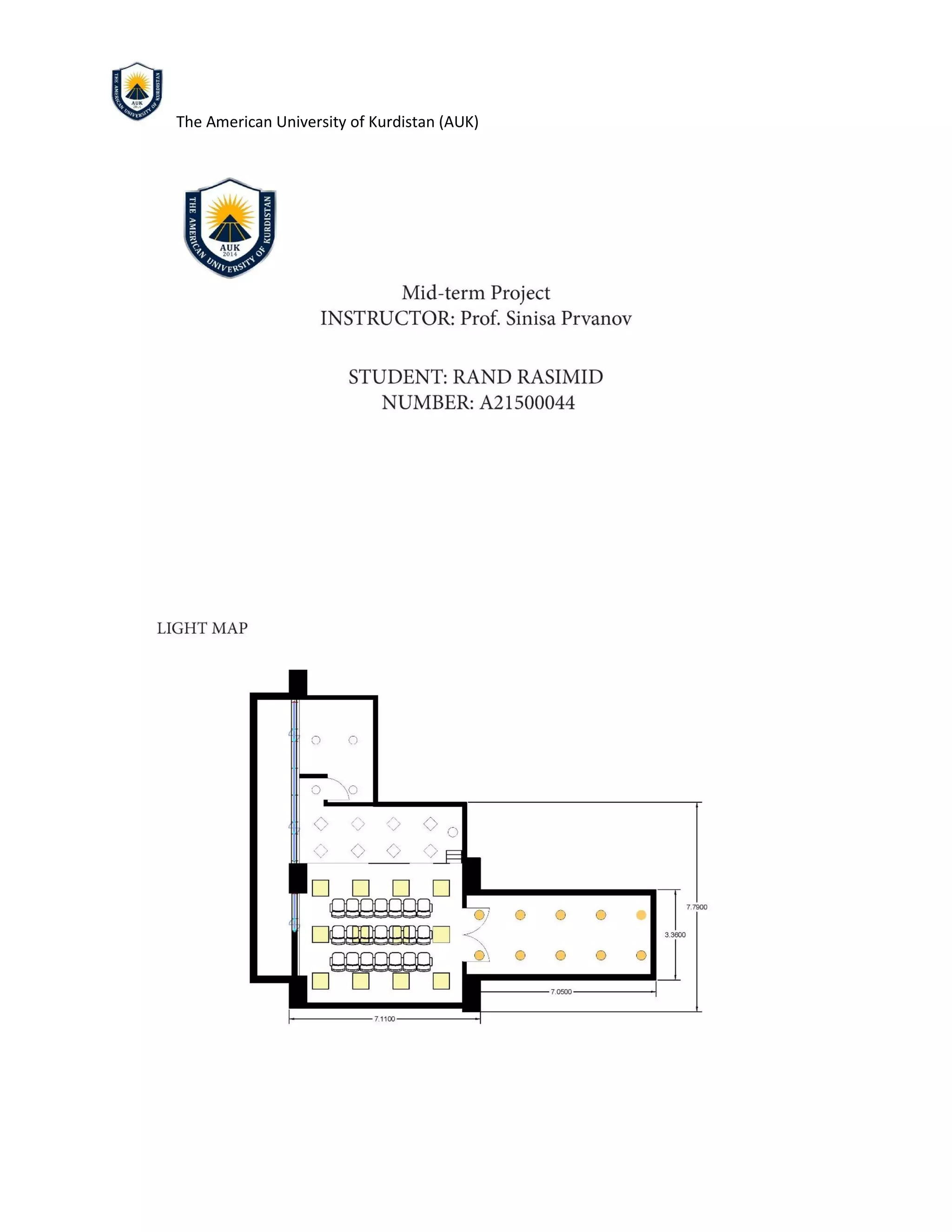

Midterm Project Presentation (Part I)
“LUMEN METHOD”
(20%)

IND314 – LIGHTING FOR INTERIOR DESIGN – MID-TERM PROJECT REQUIREMENTS
Spring 2019
Sheet 1. ASSIGNMENT TITLE
• Assignment Name, student name, date, course cod, University logo.

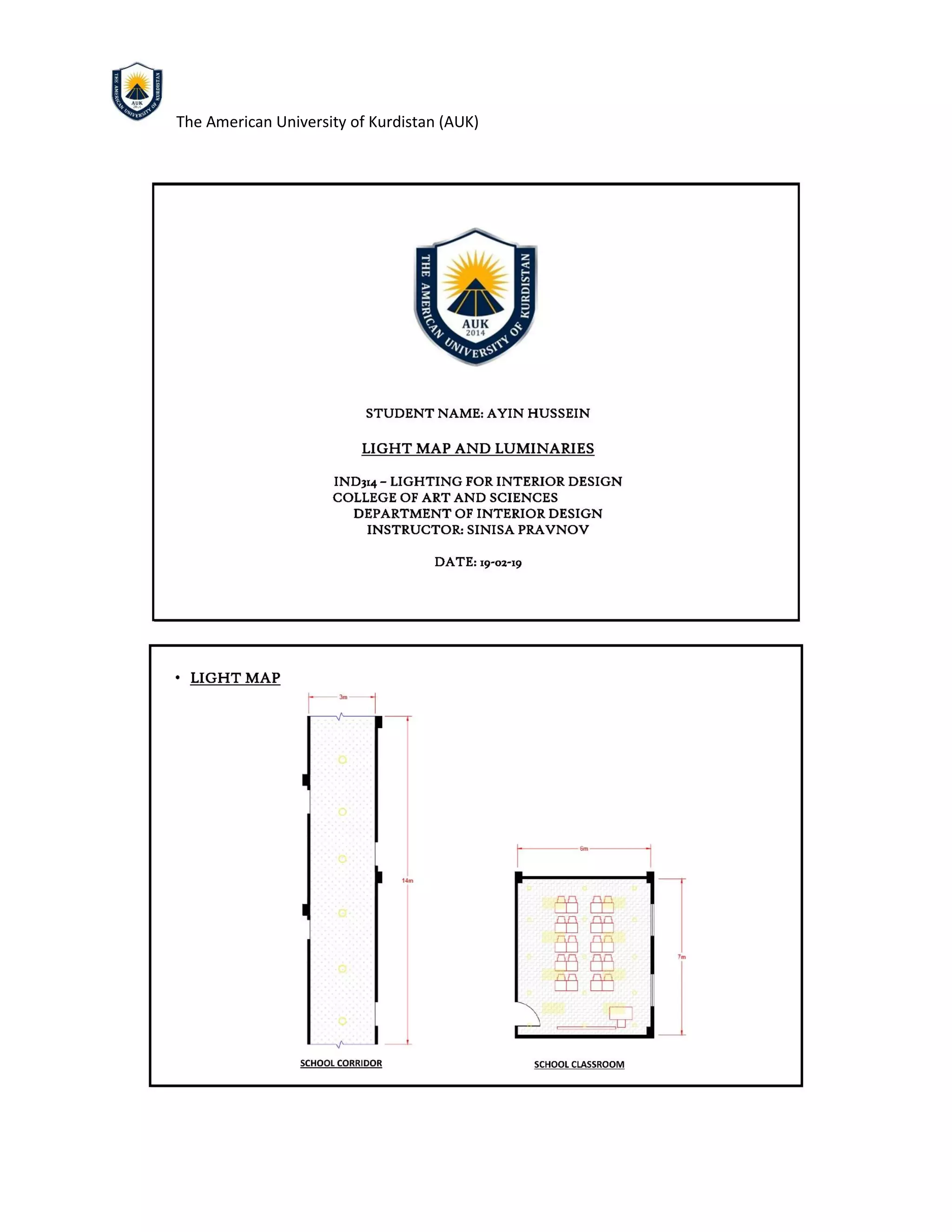

Sheet 2. LIGHT MAP:
• Lighting concept of your extracted space and entering corridor(s).

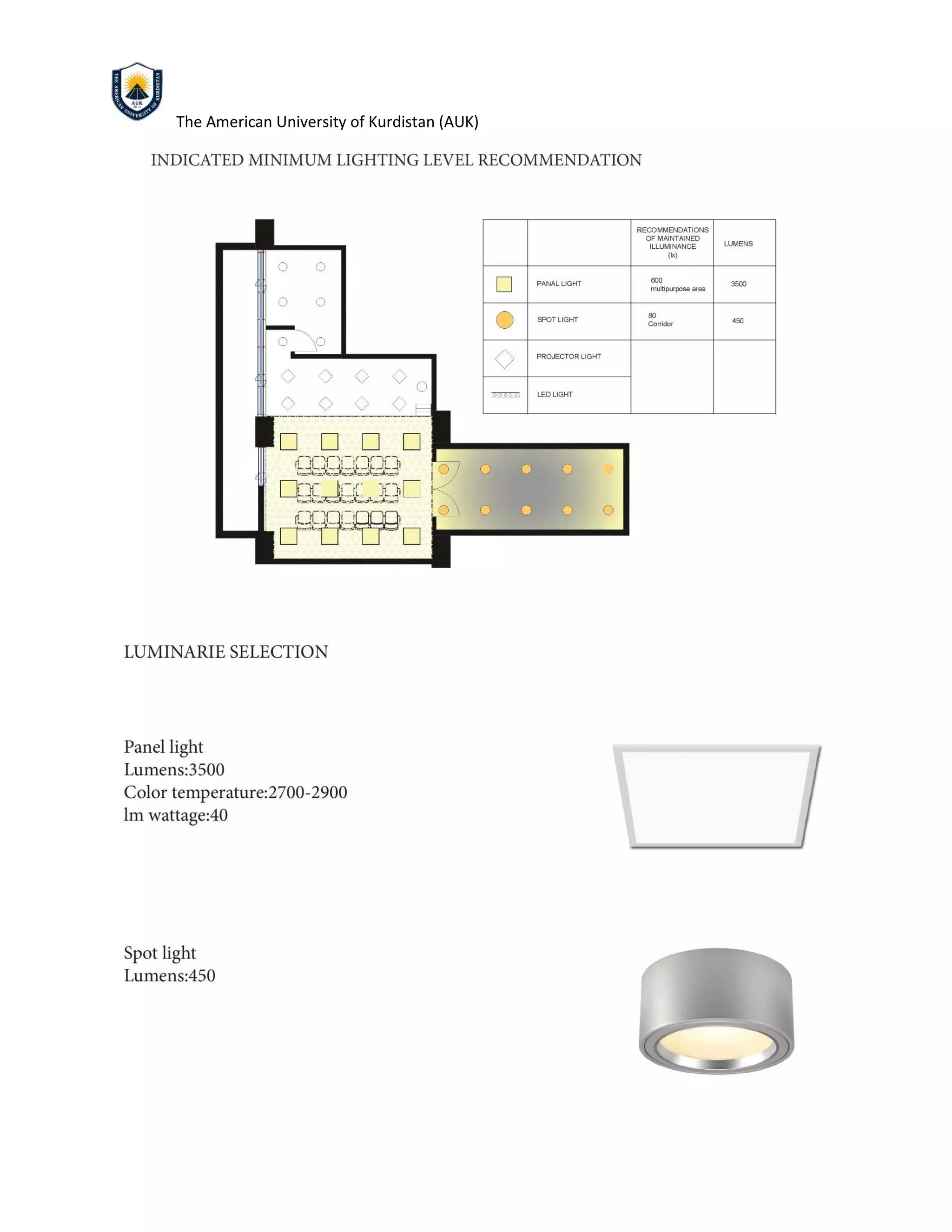

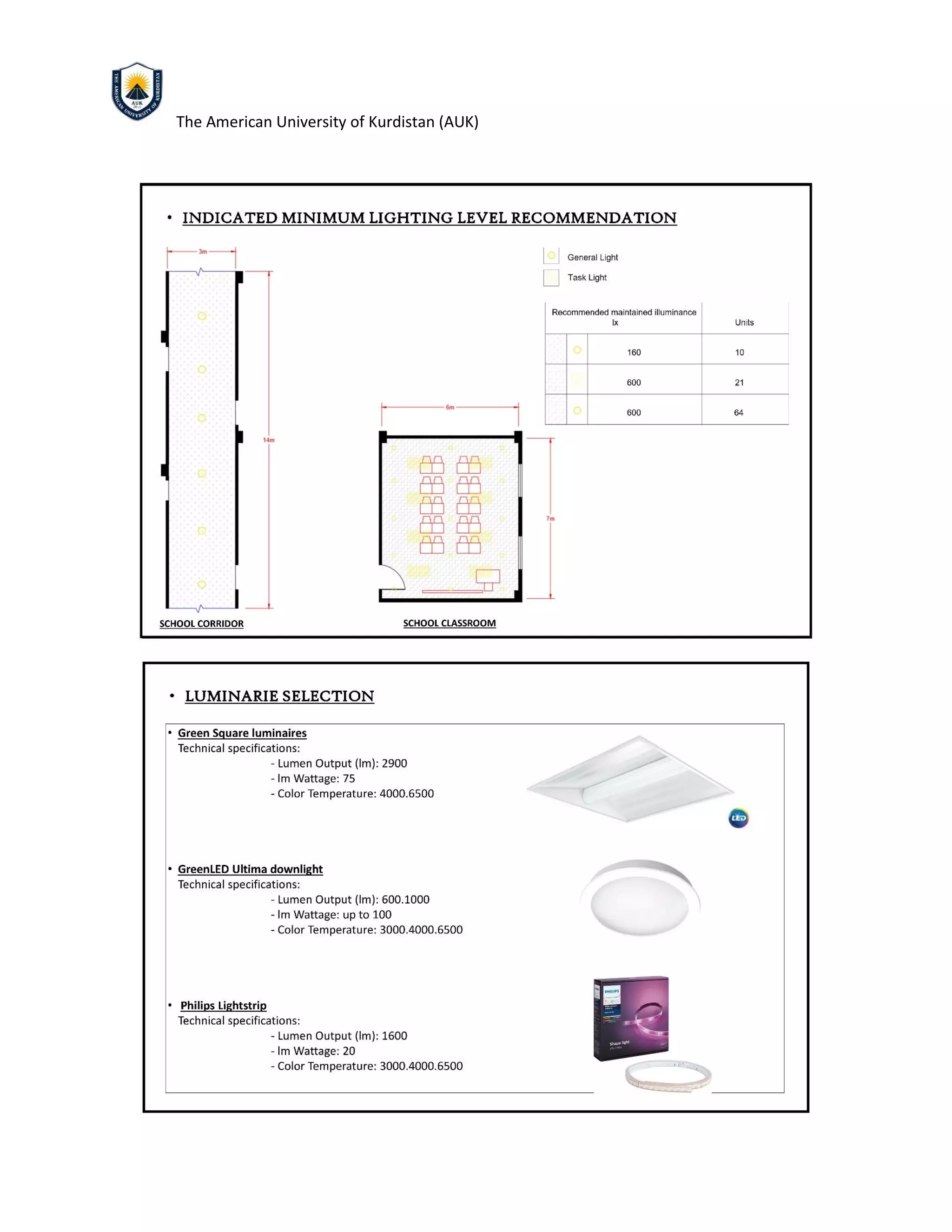

Sheet 3. INDICATED MINIMUM LIGHTING LEVEL RECOMMENDATION
• Shown on Light Map in different color.
Sheet 4. LUMINARIE SELECTION:
• With indicated specification for each luminaire. Wattage, Color Temperature, Light Output (in Lumens),
etc.

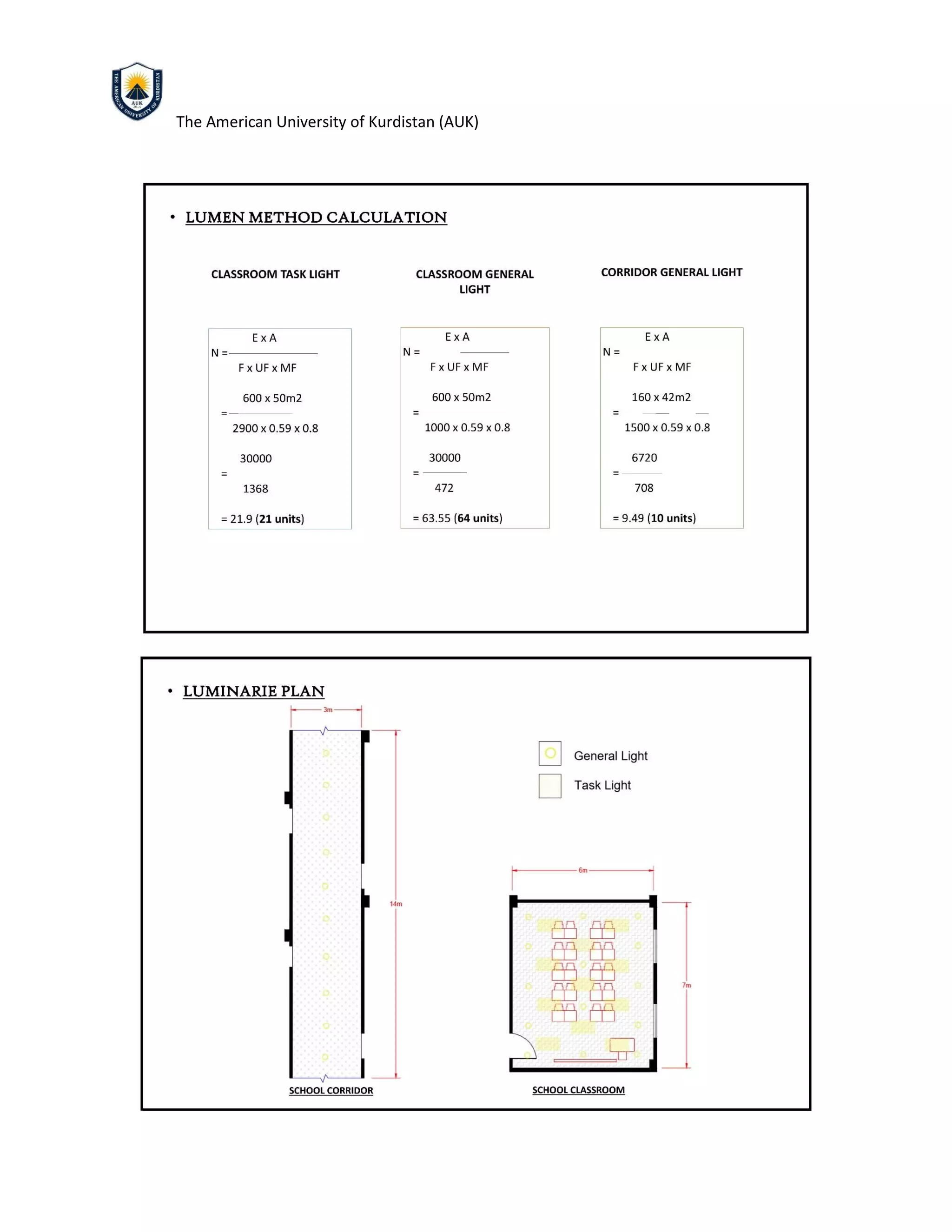

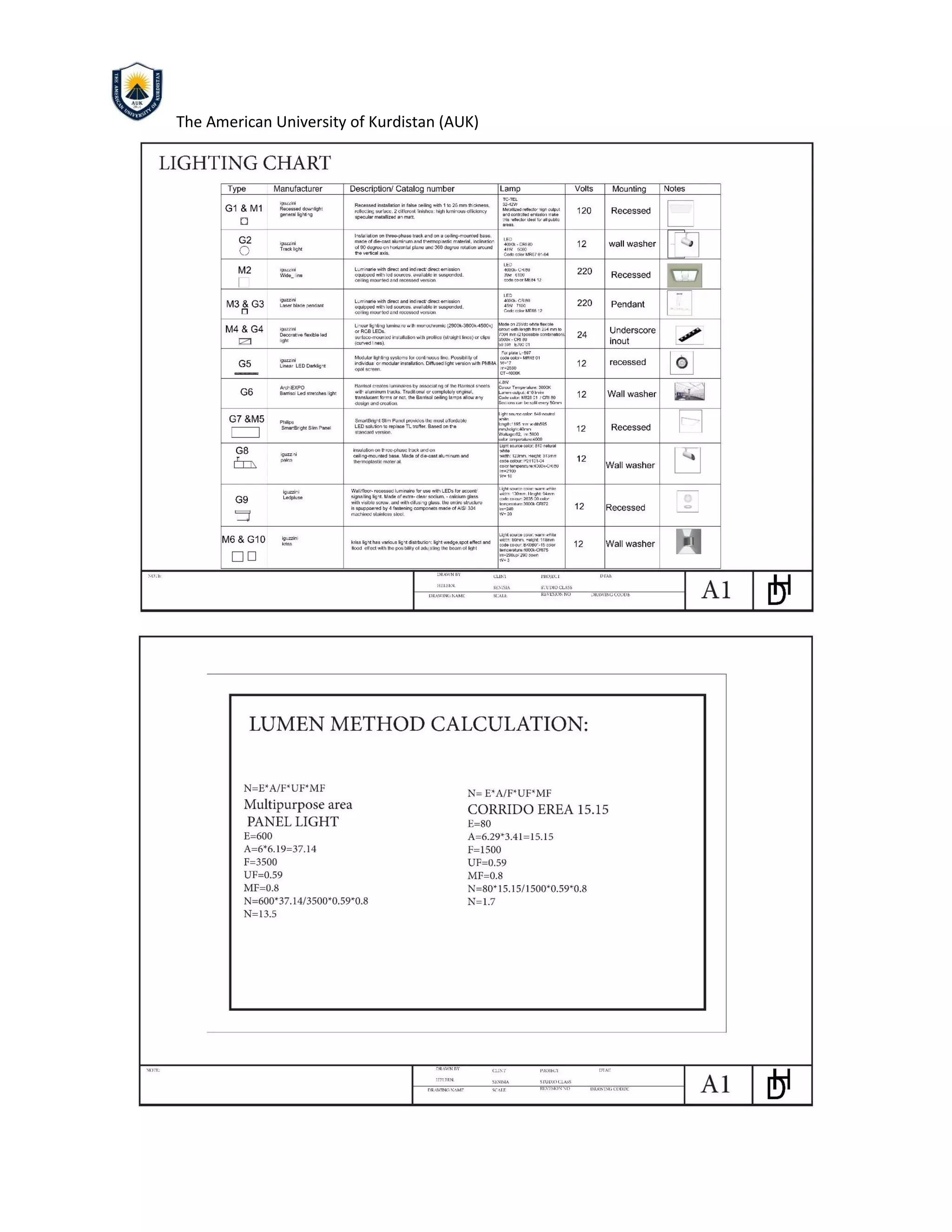

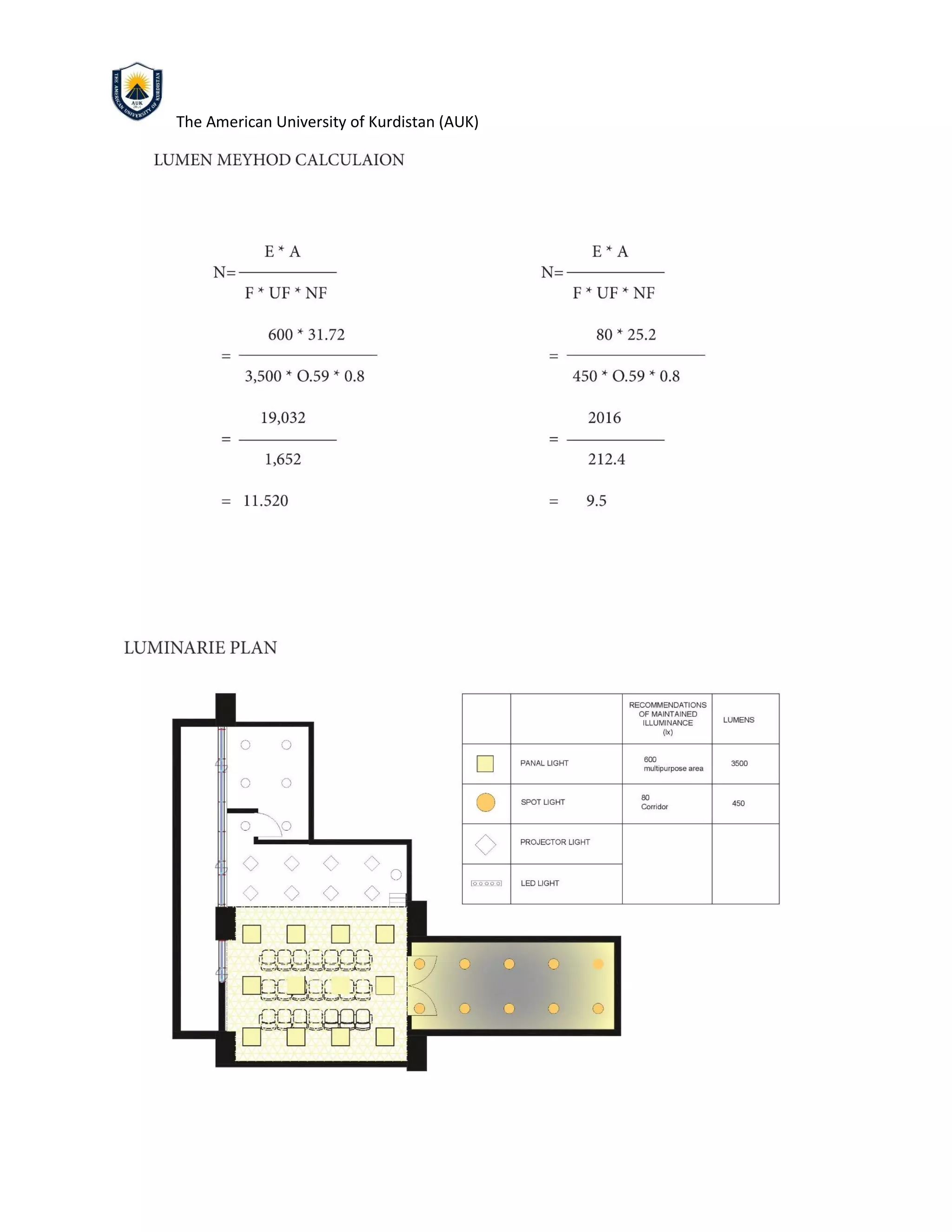

Sheet 5. LUMEN METHOD CALCULATION:
• Shown as summary of calculation. Step by Step.
Sheet 6. LUMINARIE PLAN:
• Plan will show arrangement of your calculated luminaries and spacing between them in scale.

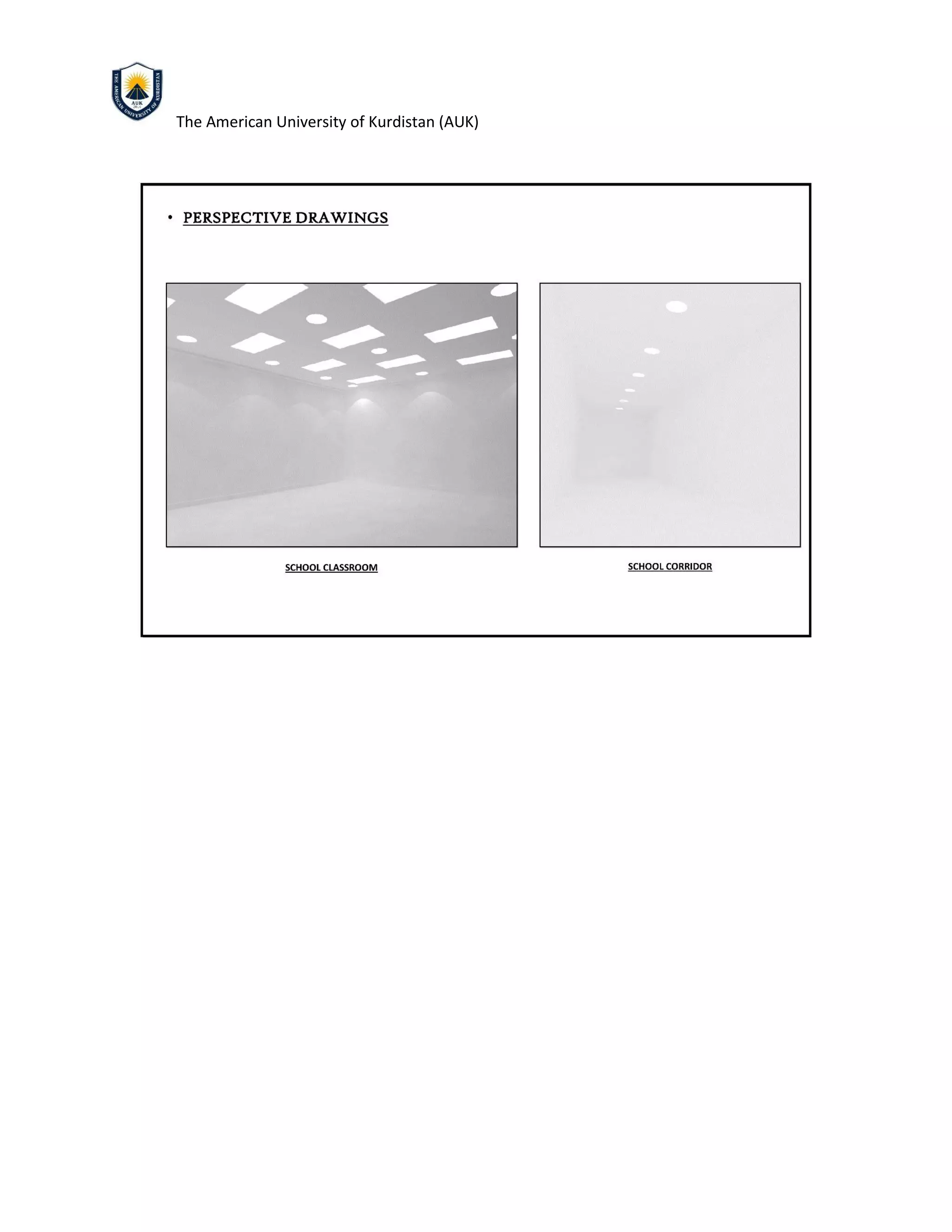

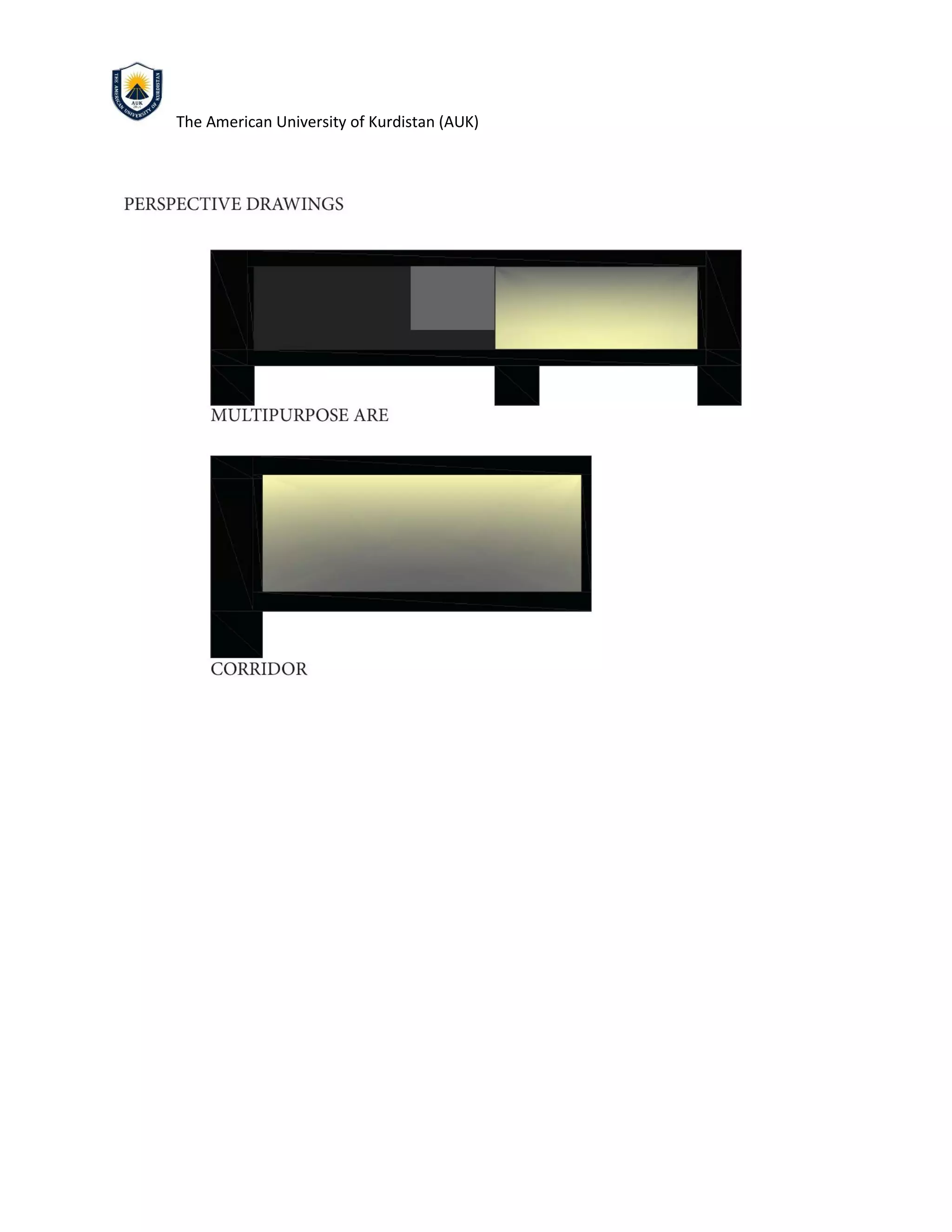

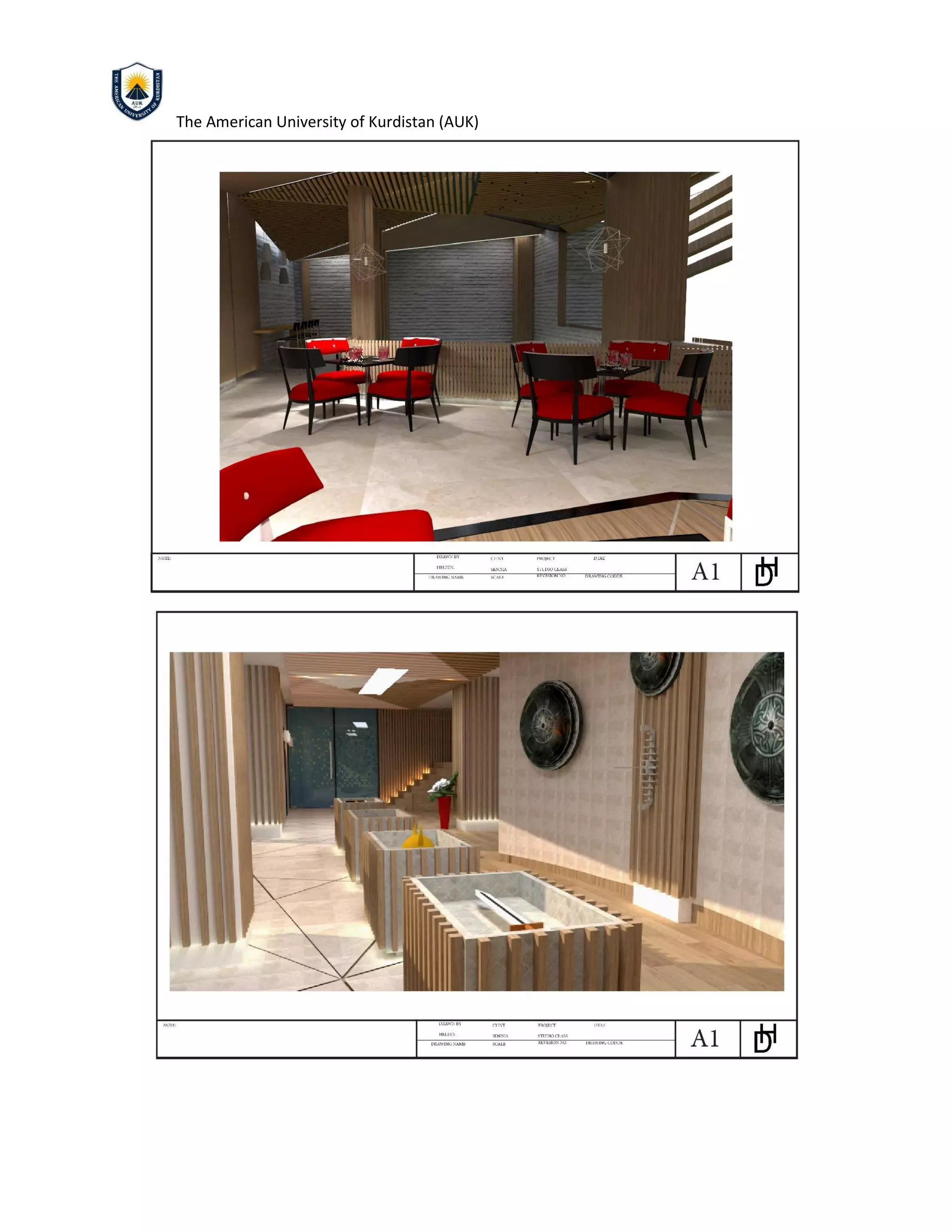

Sheet 7. TWO PERSPECTIVE DRAWINGS OF OVERALL SPACE:
• Rendering are supposed to show your lighting concept and direction of light distribution of each
luminaire.
SCALE: 1/50
FORMAT: A1 DRAWING SHEET (Landscape. Number of sheets: 6)
SUBMISSION: UPLOAD ALL REQUIREMENTS AND 2 DRAWING SHEETS AS A SINGLE PDF FILE
TO TEAM or to my MAIL due the night before YOUR PRESENTATION. Presentation will be digital in
class. No need to print out your presentation boards.
Instructor: Asst. Prof. Dr. Siniša Prvanov

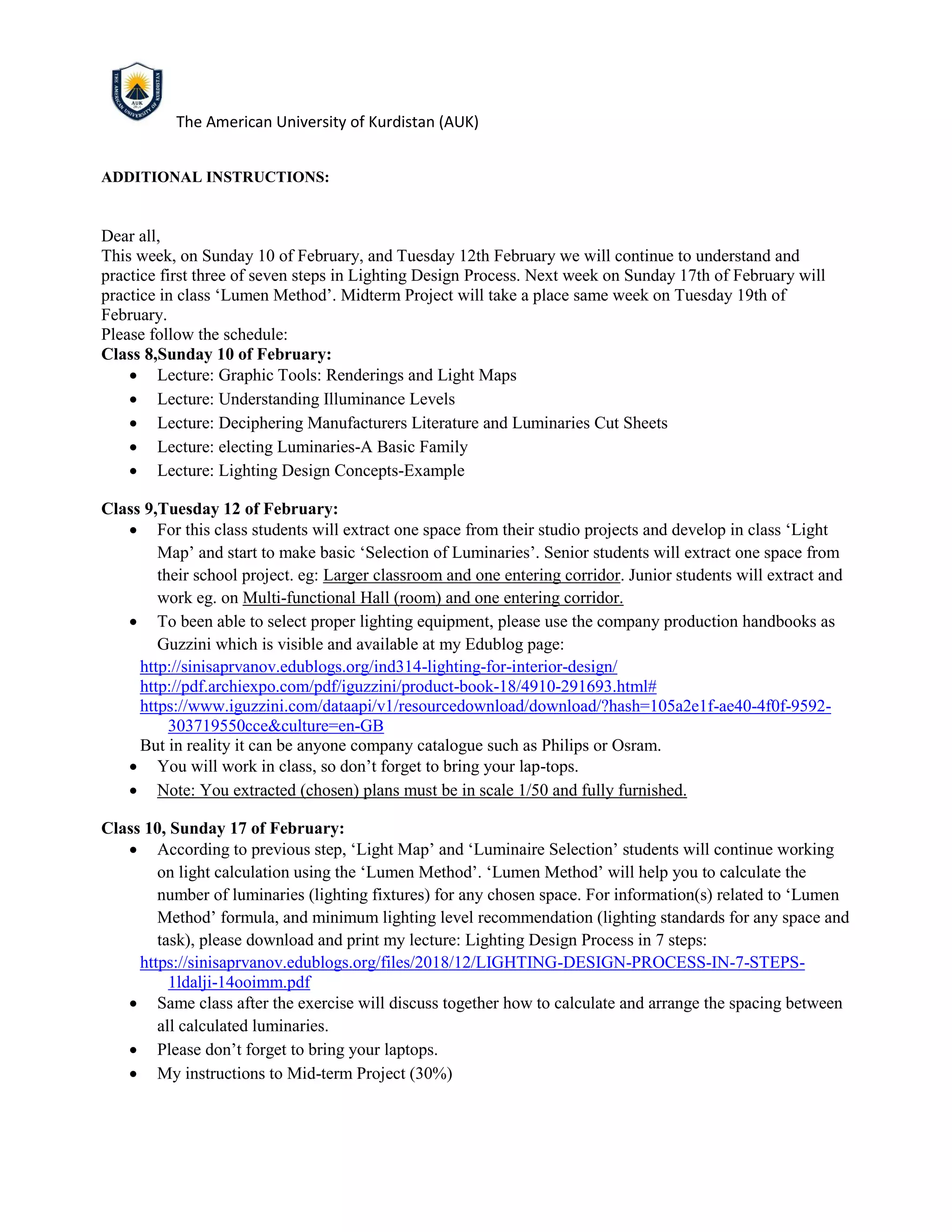

ADDITIONAL INSTRUCTIONS:
Dear all,
This week, on Sunday 10 of February, and Tuesday 12th February we will continue to understand and
practice first three of seven steps in Lighting Design Process. Next week on Sunday 17th of February will
practice in class ‘Lumen Method’. Midterm Project will take a place same week on Tuesday 19th of
February.
Please follow the schedule:
Class 8,Sunday 10 of February:
• Lecture: Graphic Tools: Renderings and Light Maps
• Lecture: Understanding Illuminance Levels
• Lecture: Deciphering Manufacturers Literature and Luminaries Cut Sheets
• Lecture: electing Luminaries-A Basic Family
• Lecture: Lighting Design Concepts-Example
Class 9,Tuesday 12 of February:
• For this class students will extract one space from their studio projects and develop in class ‘Light
Map’ and start to make basic ‘Selection of Luminaries’. Senior students will extract one space from
their school project. eg: Larger classroom and one entering corridor. Junior students will extract and
work eg. on Multi-functional Hall (room) and one entering corridor.
• To been able to select proper lighting equipment, please use the company production handbooks as
Guzzini which is visible and available at my Edublog page:
http://sinisaprvanov.edublogs.org/ind314-lighting-for-interior-design/
http://pdf.archiexpo.com/pdf/iguzzini/product-book-18/4910-291693.html#
https://www.iguzzini.com/dataapi/v1/resourcedownload/download/?hash=105a2e1f-ae40-4f0f-9592-
303719550cce&culture=en-GB
But in reality it can be anyone company catalogue such as Philips or Osram.
• You will work in class, so don’t forget to bring your lap-tops.
• Note: You extracted (chosen) plans must be in scale 1/50 and fully furnished.
Class 10, Sunday 17 of February:
• According to previous step, ‘Light Map’ and ‘Luminaire Selection’ students will continue working
on light calculation using the ‘Lumen Method’. ‘Lumen Method’ will help you to calculate the
number of luminaries (lighting fixtures) for any chosen space. For information(s) related to ‘Lumen
Method’ formula, and minimum lighting level recommendation (lighting standards for any space and
task), please download and print my lecture: Lighting Design Process in 7 steps:
https://sinisaprvanov.edublogs.org/files/2018/12/LIGHTING-DESIGN-PROCESS-IN-7-STEPS-
1ldalji-14ooimm.pdf
• Same class after the exercise will discuss together how to calculate and arrange the spacing between
all calculated luminaries.
• Please don’t forget to bring your laptops.
• My instructions to Mid-term Project (30%)

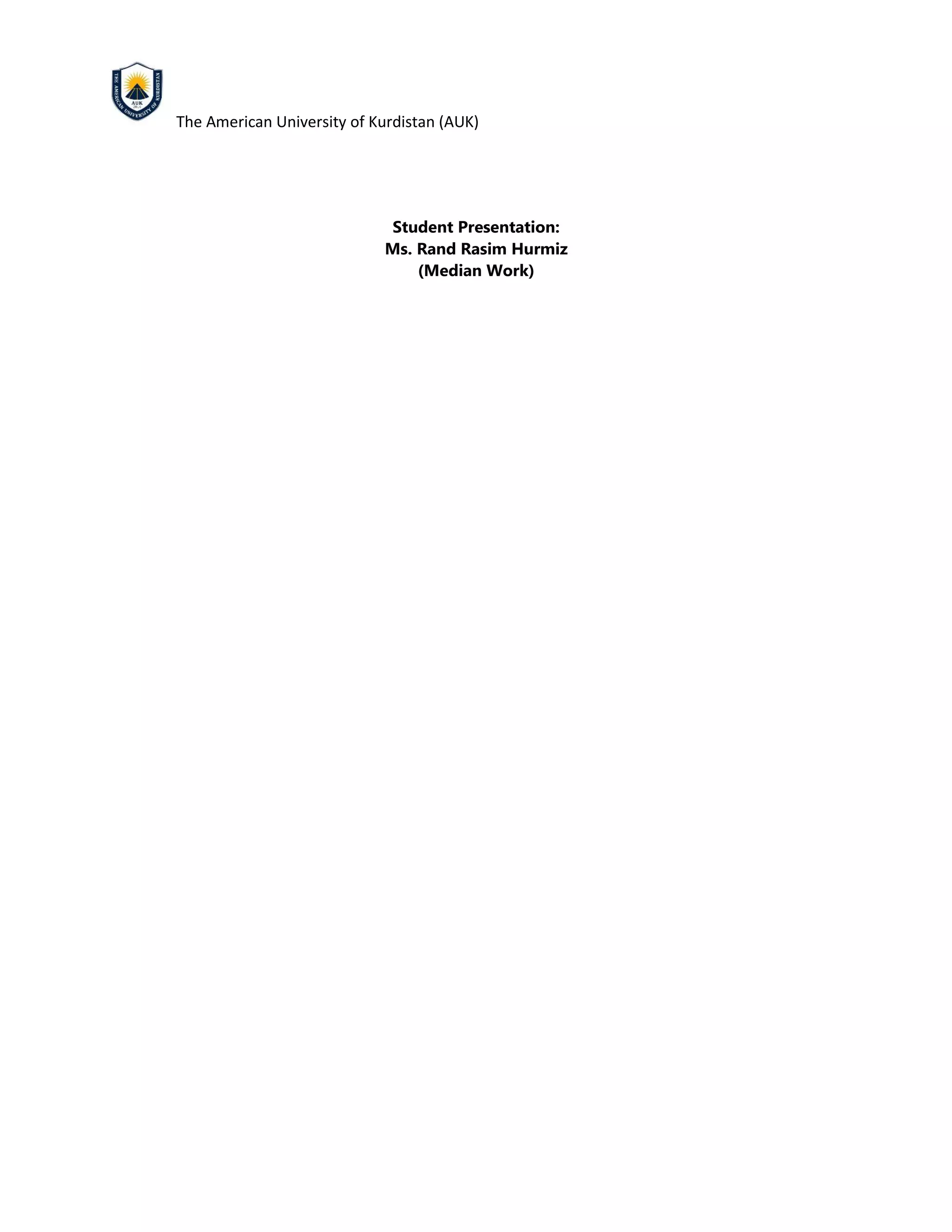

Ms. Rand Rasim Hurmiz
(Median Work)

(Best Work)

Midterm Project Presentation (Part I) Tuesday 19/02/2019 (20%)
Student Name Grade Remarks
1 A21600183 Ayin M.Bahaaddin Hussein A
2 A21500118 Chang Farhan Tahir A-
3 A21500115 Dezheen Mohammed Ahmed B
4 A21500006 Heleen Ali Hasan B+
5 A21500091 Joanna Nazar Majeed A-
6 A21500066 Noran Ribar Ismael B-
7 A21500044 Rand Rasim Hurmiz B+
8 A21500113 Vazheen Jaseem Ibrahim A-

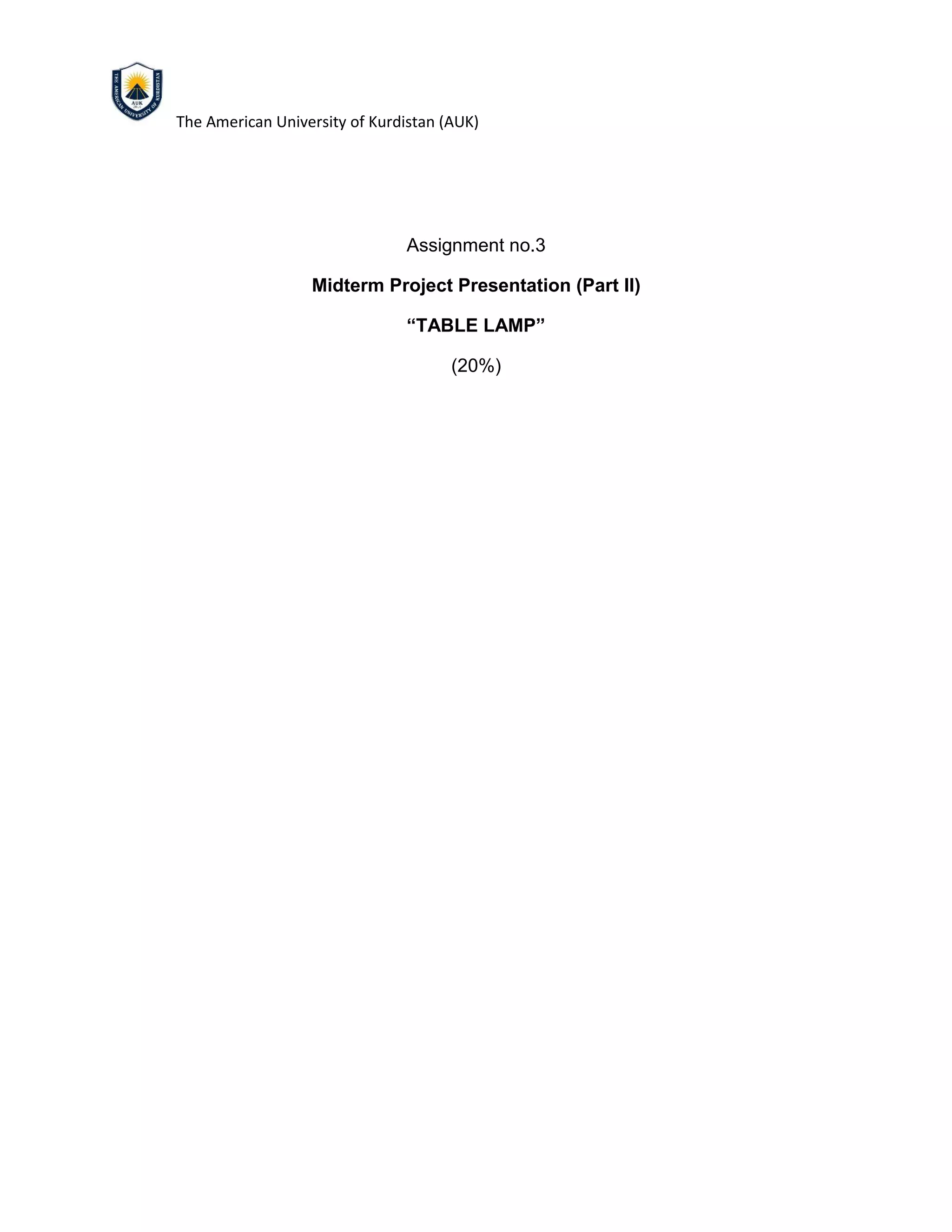

Assignment no.3
Midterm Project Presentation (Part II)
“TABLE LAMP”
(20%)

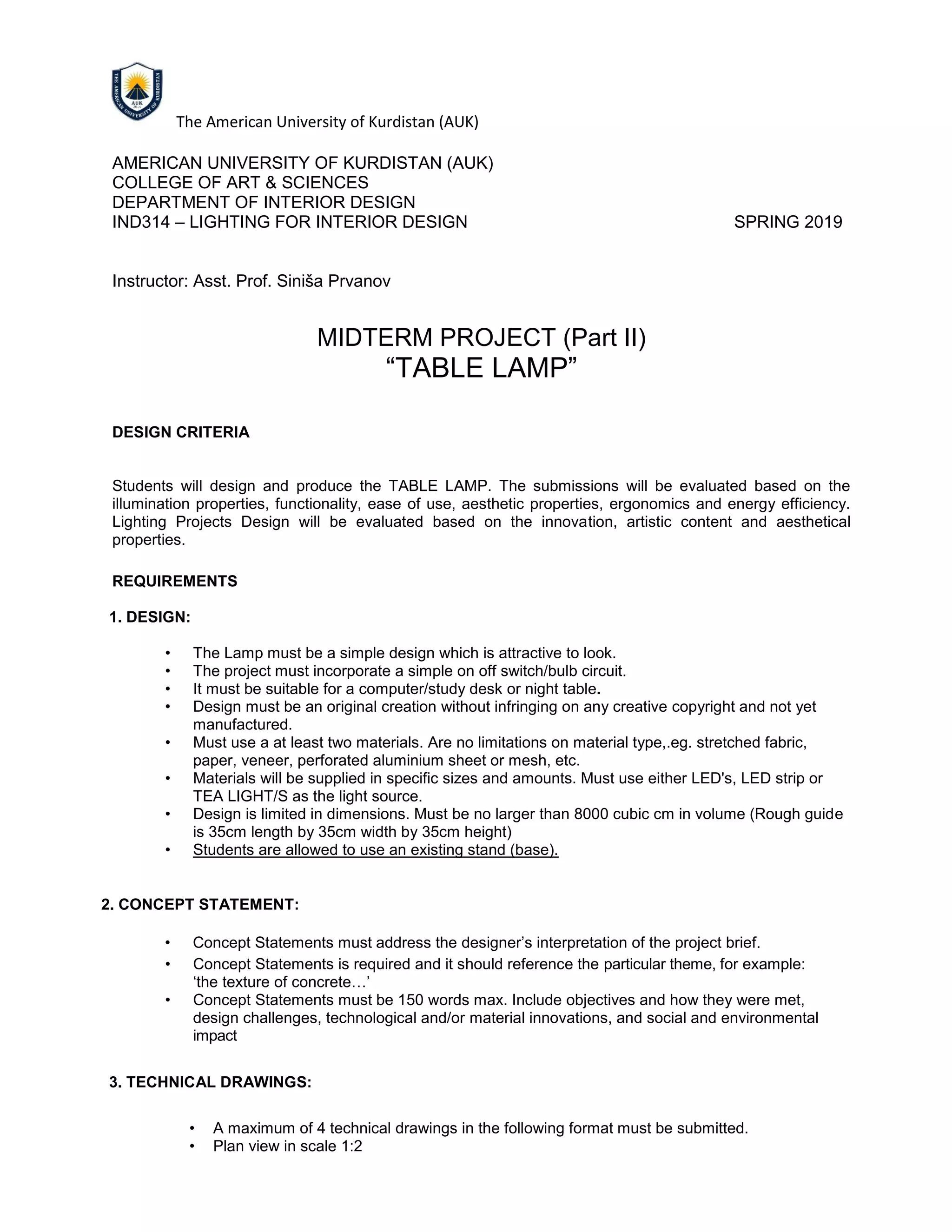

MIDTERM PROJECT (Part II)
“TABLE LAMP”
DESIGN CRITERIA
Students will design and produce the TABLE LAMP. The submissions will be evaluated based on the
illumination properties, functionality, ease of use, aesthetic properties, ergonomics and energy efficiency.
Lighting Projects Design will be evaluated based on the innovation, artistic content and aesthetical
properties.
REQUIREMENTS
1. DESIGN:
• The Lamp must be a simple design which is attractive to look.
• The project must incorporate a simple on off switch/bulb circuit.
• It must be suitable for a computer/study desk or night table.
• Design must be an original creation without infringing on any creative copyright and not yet
manufactured.
• Must use a at least two materials. Are no limitations on material type,.eg. stretched fabric,
paper, veneer, perforated aluminium sheet or mesh, etc.
• Materials will be supplied in specific sizes and amounts. Must use either LED's, LED strip or
TEA LIGHT/S as the light source.
• Design is limited in dimensions. Must be no larger than 8000 cubic cm in volume (Rough guide
is 35cm length by 35cm width by 35cm height)
• Students are allowed to use an existing stand (base).
2. CONCEPT STATEMENT:
• Concept Statements must address the designer’s interpretation of the project brief.
• Concept Statements is required and it should reference the particular theme, for example:
‘the texture of concrete…’
• Concept Statements must be 150 words max. Include objectives and how they were met,
design challenges, technological and/or material innovations, and social and environmental
impact
3. TECHNICAL DRAWINGS:
• A maximum of 4 technical drawings in the following format must be submitted.
• Plan view in scale 1:2

• One elevation drawing (side view) in scale 1:2
• One section drawing in scale 1:2
• One detail drawing in scale 1:1 with indicated detail of joinery.

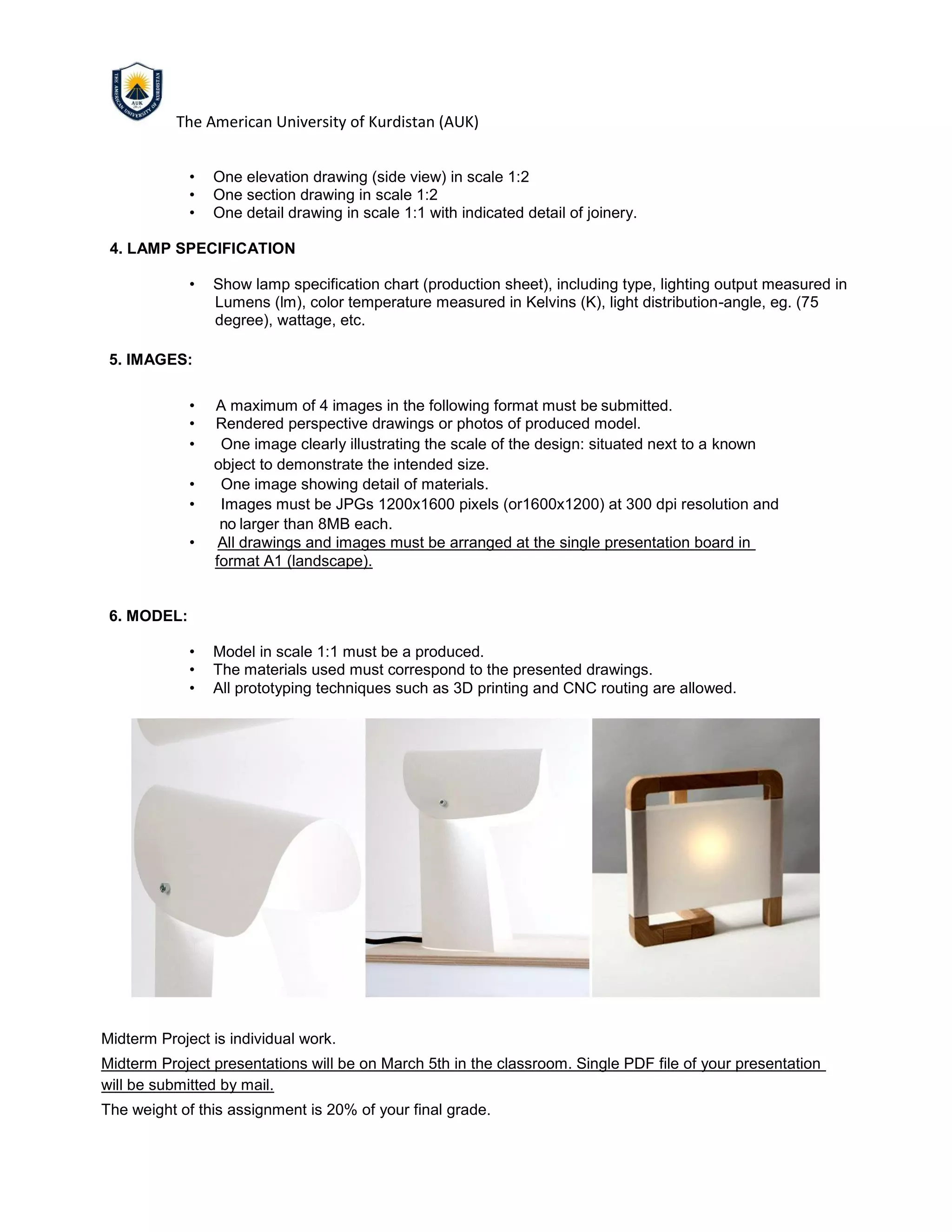

4. LAMP SPECIFICATION
• Show lamp specification chart (production sheet), including type, lighting output measured in
Lumens (lm), color temperature measured in Kelvins (K), light distribution-angle, eg. (75
degree), wattage, etc.
5. IMAGES:
• A maximum of 4 images in the following format must be submitted.
• Rendered perspective drawings or photos of produced model.
• One image clearly illustrating the scale of the design: situated next to a known
object to demonstrate the intended size.
• One image showing detail of materials.
• Images must be JPGs 1200x1600 pixels (or1600x1200) at 300 dpi resolution and
no larger than 8MB each.
• All drawings and images must be arranged at the single presentation board in
format A1 (landscape).
6. MODEL:
• Model in scale 1:1 must be a produced.
• The materials used must correspond to the presented drawings.
• All prototyping techniques such as 3D printing and CNC routing are allowed.
Midterm Project is individual work.
Midterm Project presentations will be on March 5th in the classroom. Single PDF file of your presentation
will be submitted by mail.
The weight of this assignment is 20% of your final grade.

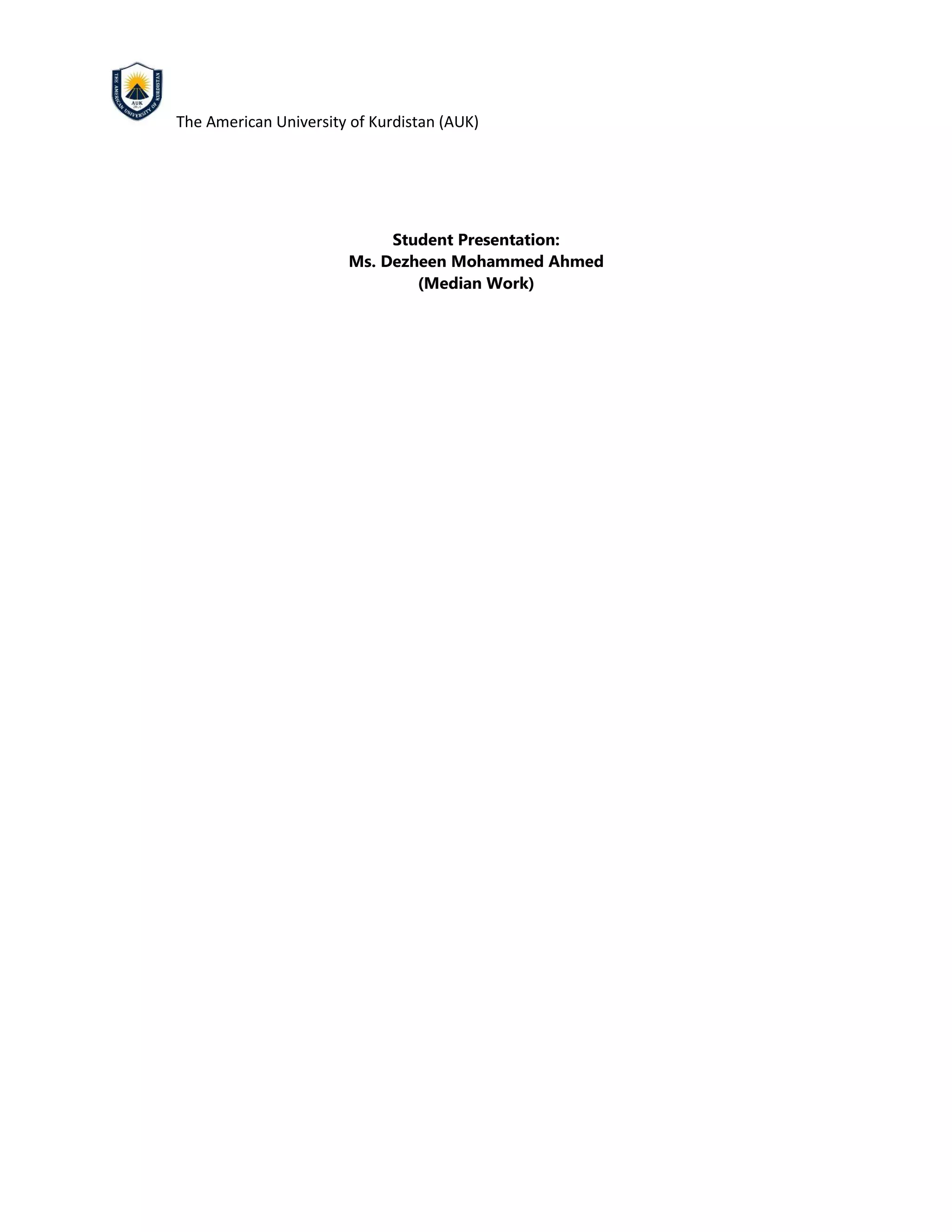

Ms. Dezheen Mohammed Ahmed
(Median Work)

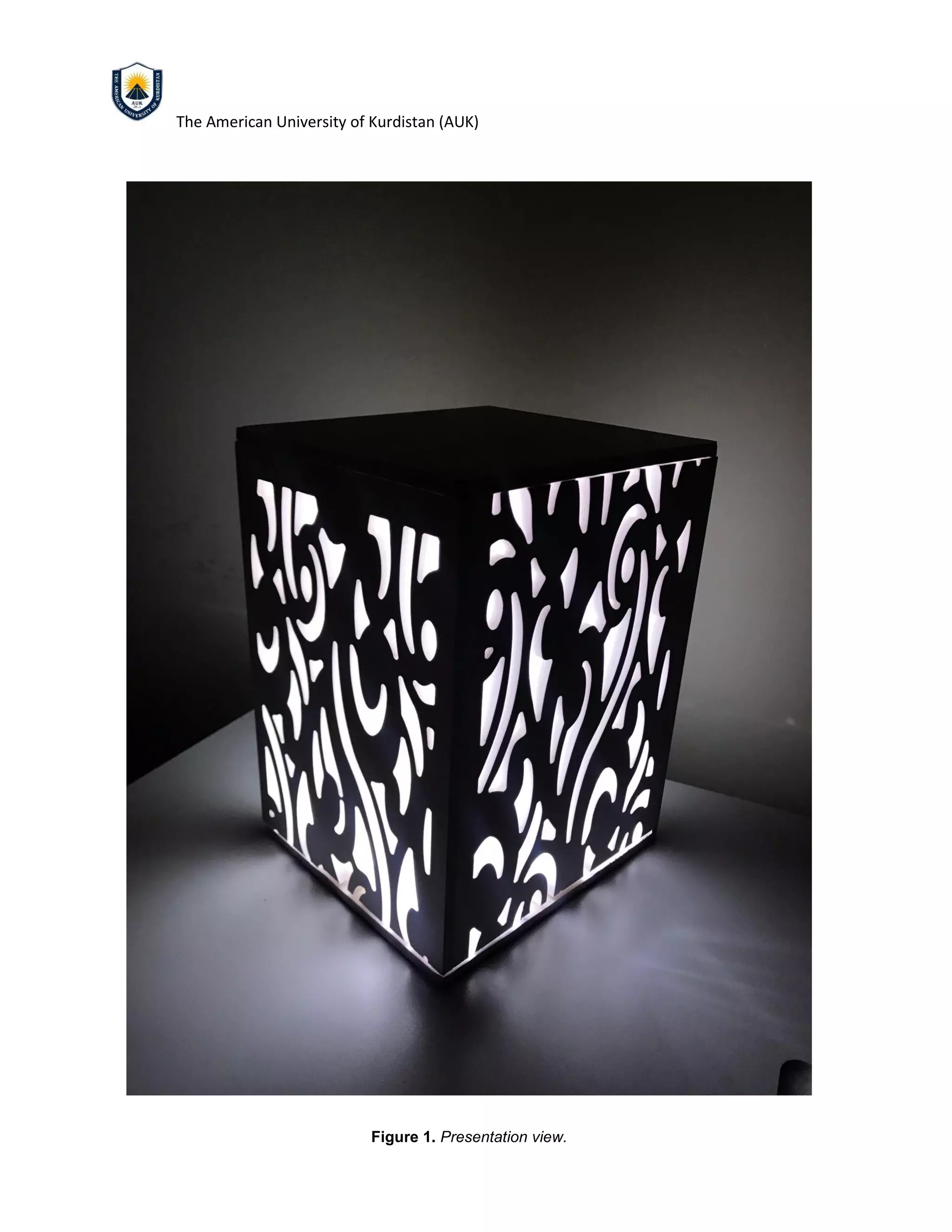

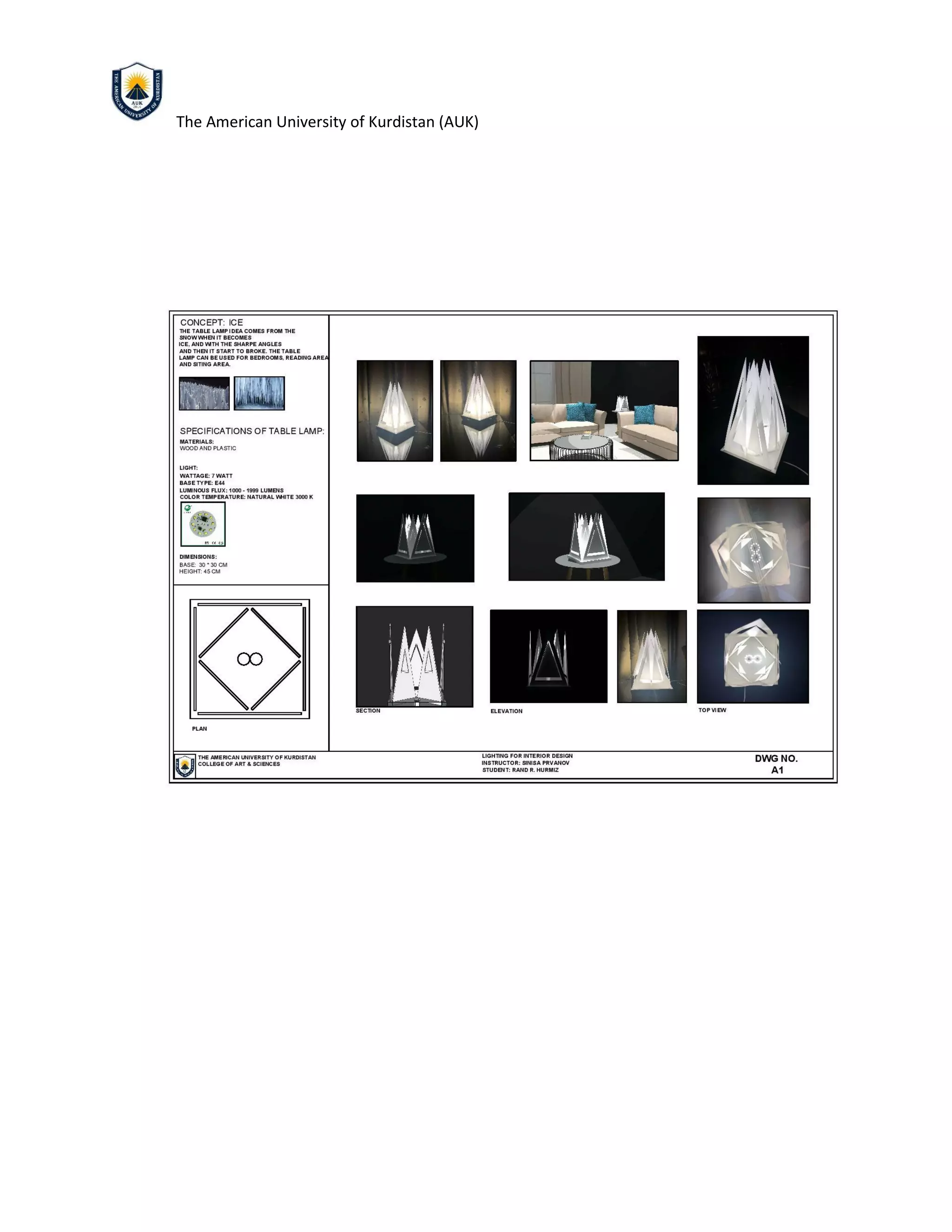

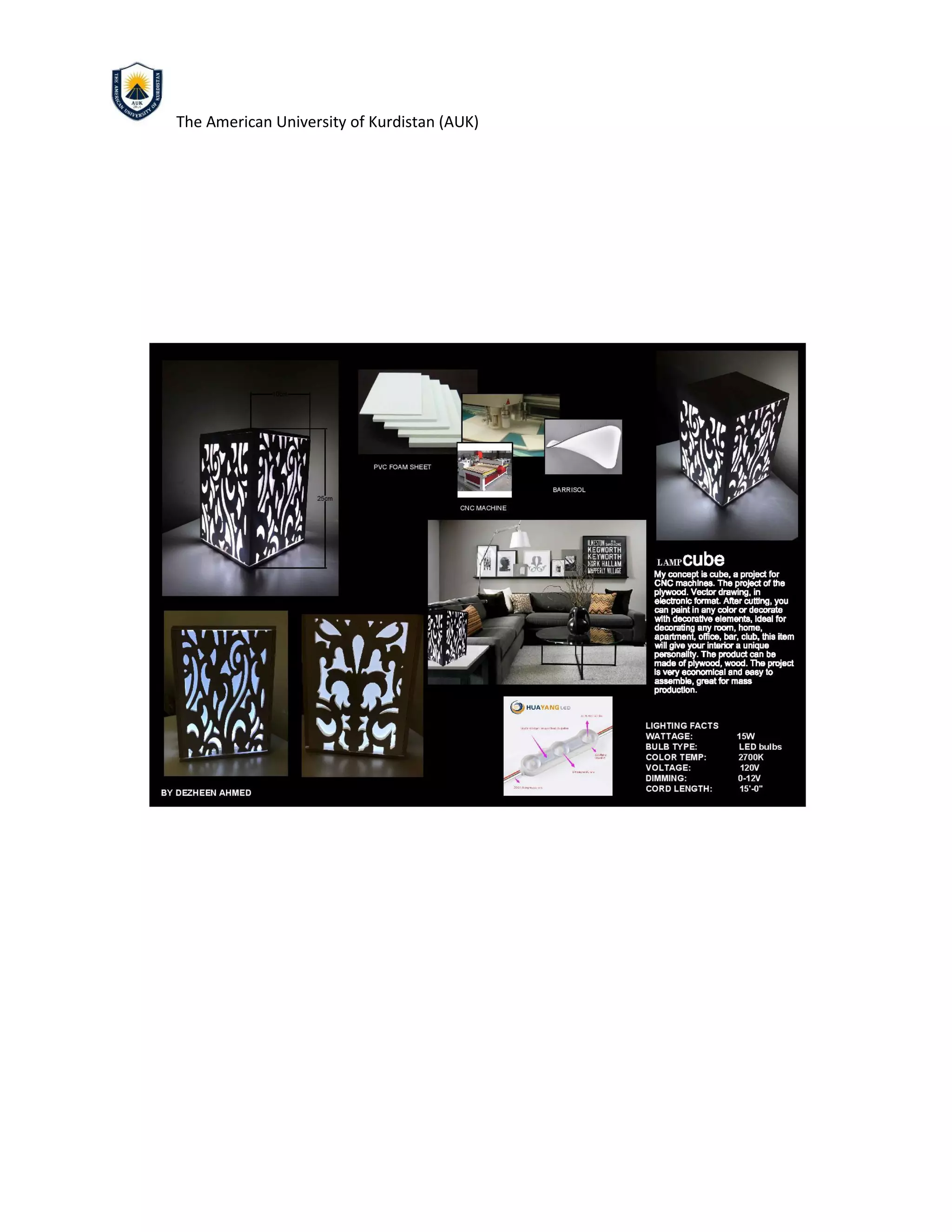

Figure 1. Presentation view.

Ms. Rand Rasim Hurmiz
(Best Work)

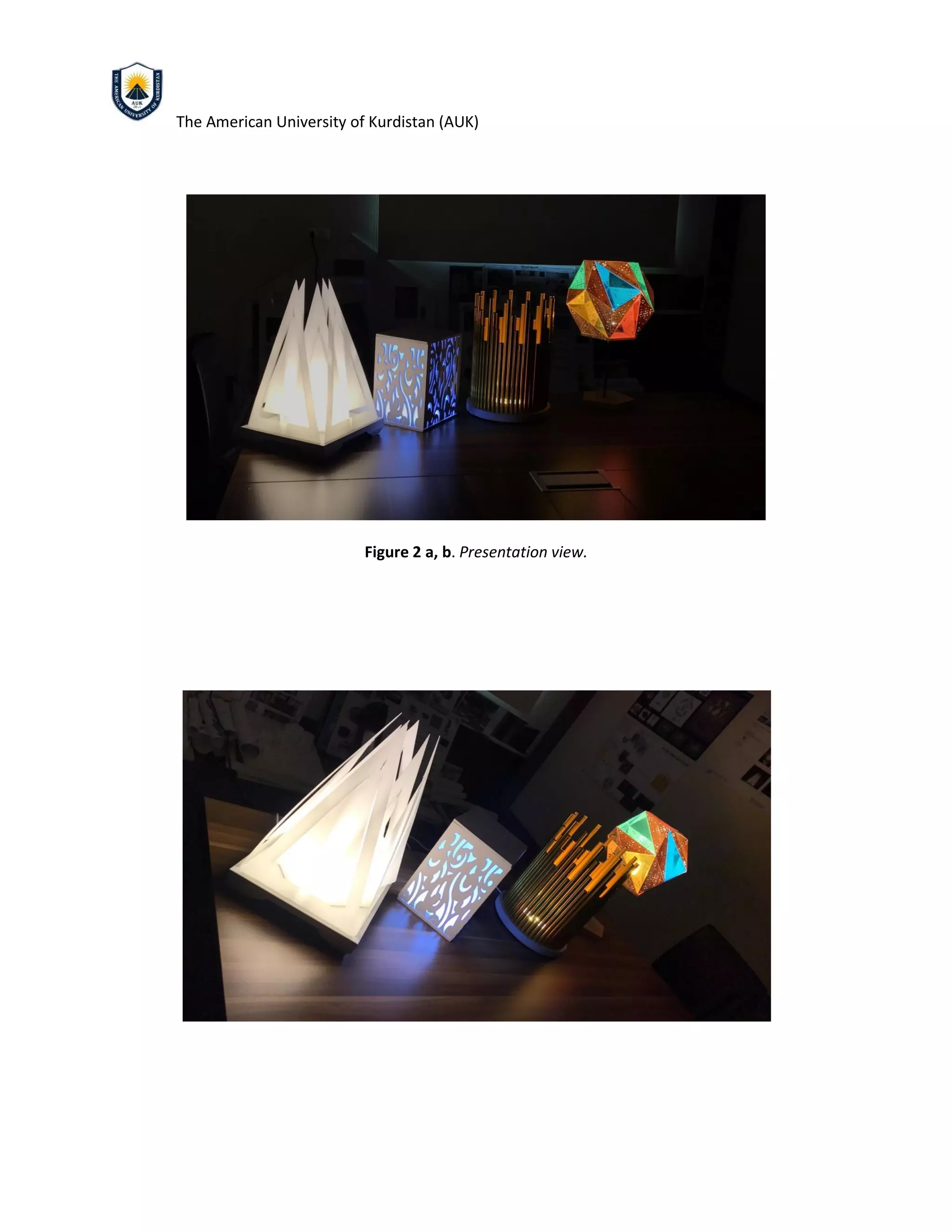

Figure 2 a, b. Presentation view.

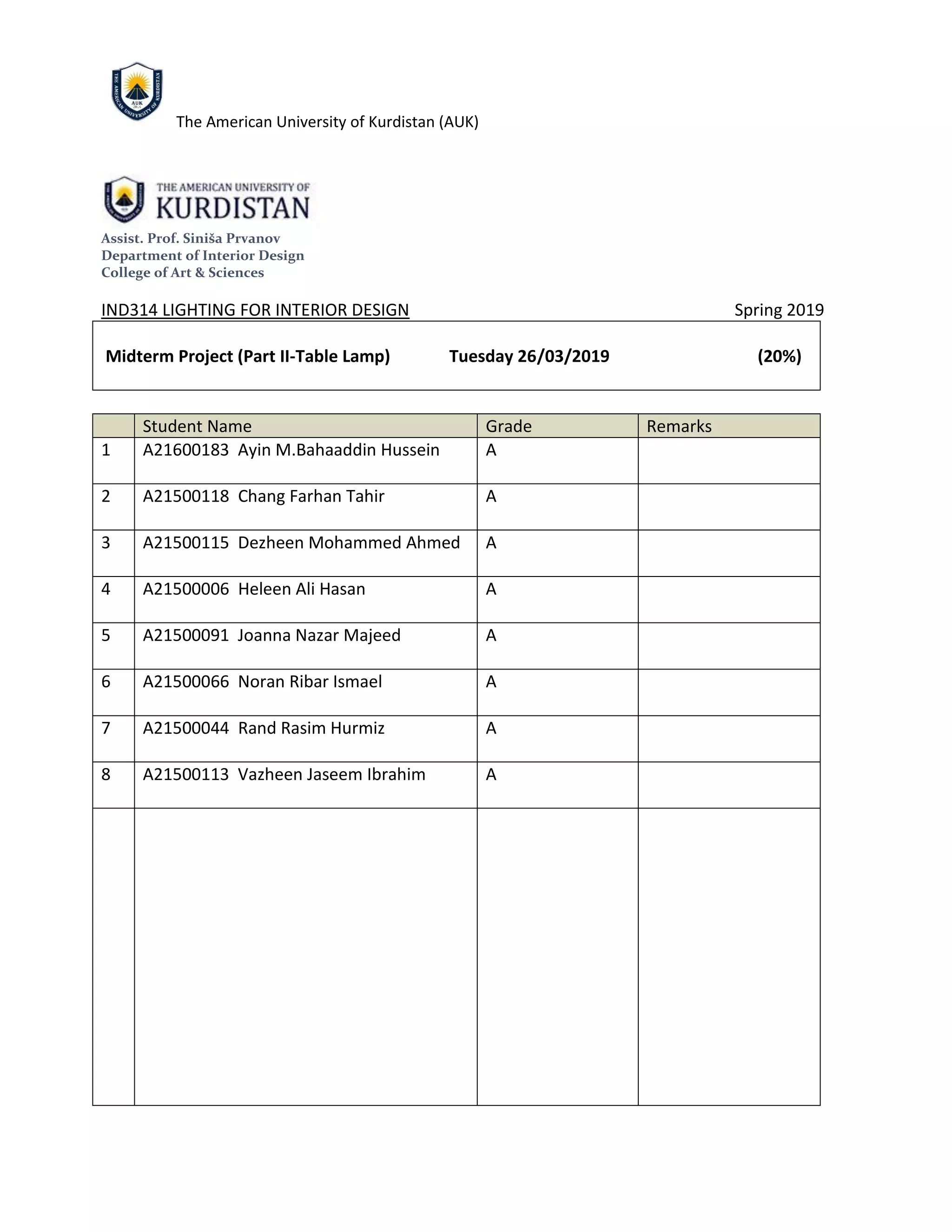

Midterm Project (Part II-Table Lamp) Tuesday 26/03/2019 (20%)
Student Name Grade Remarks
1 A21600183 Ayin M.Bahaaddin Hussein A
2 A21500118 Chang Farhan Tahir A
3 A21500115 Dezheen Mohammed Ahmed A
4 A21500006 Heleen Ali Hasan A
5 A21500091 Joanna Nazar Majeed A
6 A21500066 Noran Ribar Ismael A
7 A21500044 Rand Rasim Hurmiz A
8 A21500113 Vazheen Jaseem Ibrahim A

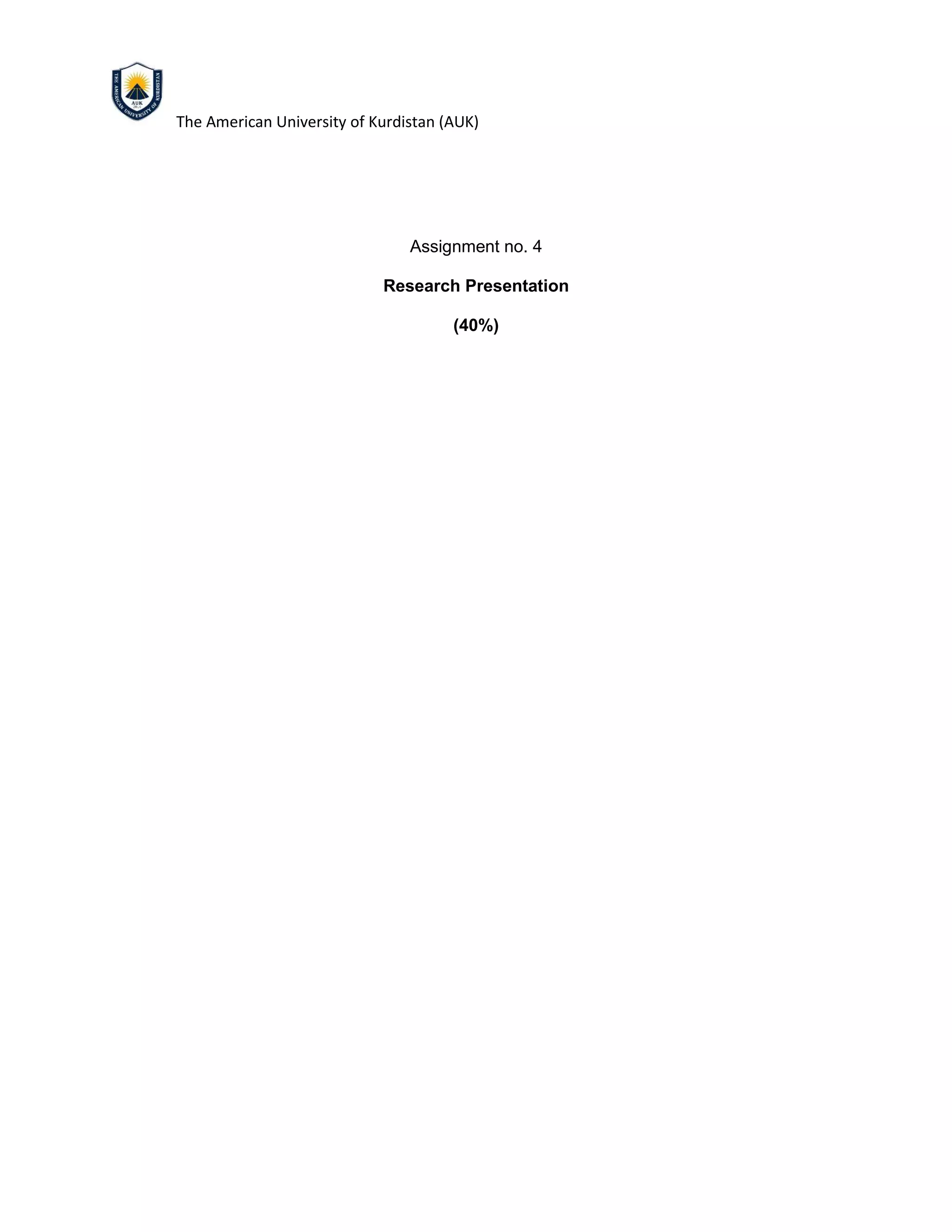

Assignment no. 4
Research Presentation
(40%)

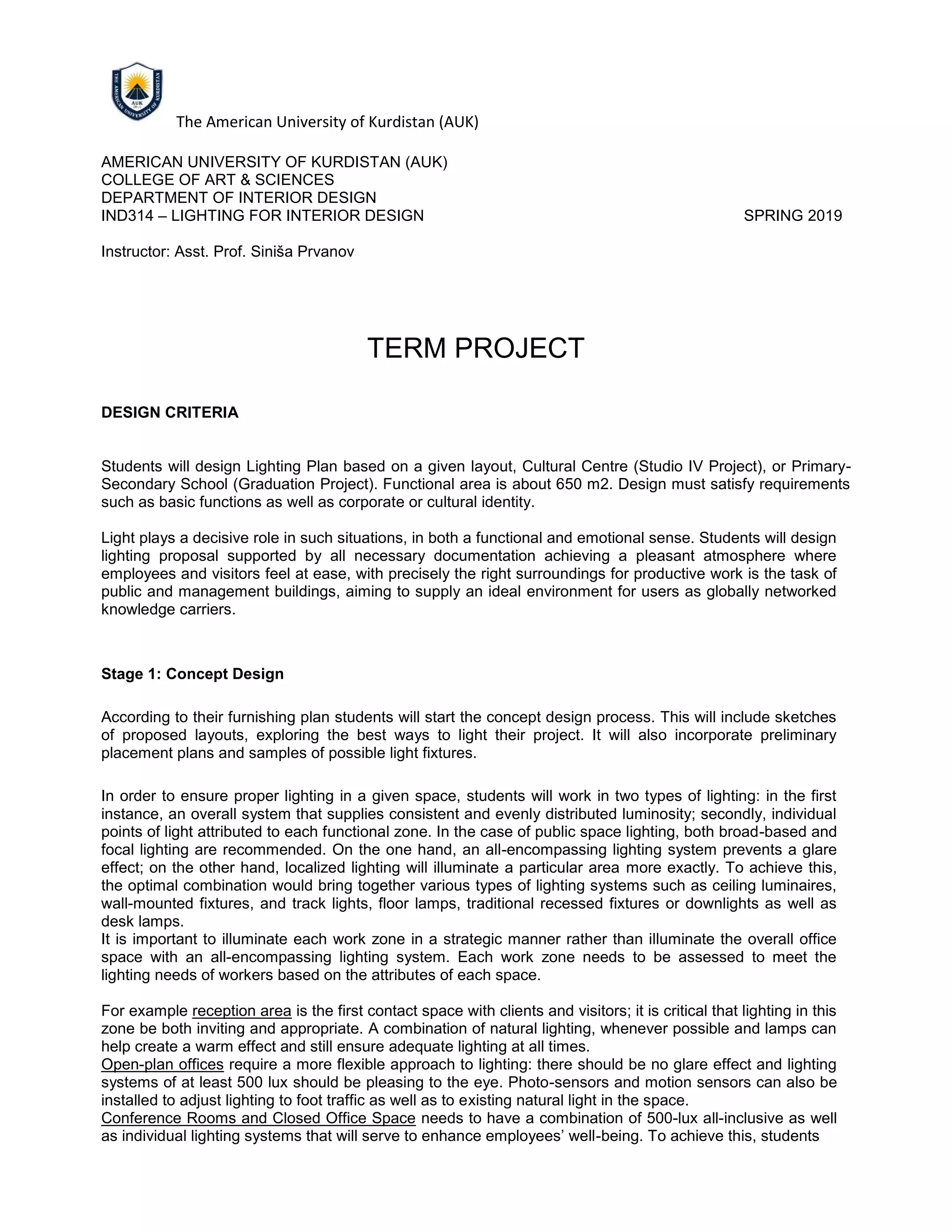

TERM PROJECT
DESIGN CRITERIA
Students will design Lighting Plan based on a given layout, Cultural Centre (Studio IV Project), or Primary-
Secondary School (Graduation Project). Functional area is about 650 m2. Design must satisfy requirements
such as basic functions as well as corporate or cultural identity.
Light plays a decisive role in such situations, in both a functional and emotional sense. Students will design
lighting proposal supported by all necessary documentation achieving a pleasant atmosphere where
employees and visitors feel at ease, with precisely the right surroundings for productive work is the task of
public and management buildings, aiming to supply an ideal environment for users as globally networked
knowledge carriers.
Stage 1: Concept Design
According to their furnishing plan students will start the concept design process. This will include sketches
of proposed layouts, exploring the best ways to light their project. It will also incorporate preliminary
placement plans and samples of possible light fixtures.
In order to ensure proper lighting in a given space, students will work in two types of lighting: in the first
instance, an overall system that supplies consistent and evenly distributed luminosity; secondly, individual
points of light attributed to each functional zone. In the case of public space lighting, both broad-based and
focal lighting are recommended. On the one hand, an all-encompassing lighting system prevents a glare
effect; on the other hand, localized lighting will illuminate a particular area more exactly. To achieve this,
the optimal combination would bring together various types of lighting systems such as ceiling luminaires,
wall-mounted fixtures, and track lights, floor lamps, traditional recessed fixtures or downlights as well as
desk lamps.
It is important to illuminate each work zone in a strategic manner rather than illuminate the overall office
space with an all-encompassing lighting system. Each work zone needs to be assessed to meet the
lighting needs of workers based on the attributes of each space.
For example reception area is the first contact space with clients and visitors; it is critical that lighting in this
zone be both inviting and appropriate. A combination of natural lighting, whenever possible and lamps can
help create a warm effect and still ensure adequate lighting at all times.
Open-plan offices require a more flexible approach to lighting: there should be no glare effect and lighting
systems of at least 500 lux should be pleasing to the eye. Photo-sensors and motion sensors can also be
installed to adjust lighting to foot traffic as well as to existing natural light in the space.
Conference Rooms and Closed Office Space needs to have a combination of 500-lux all-inclusive as well
as individual lighting systems that will serve to enhance employees’ well-being. To achieve this, students

may consider installing hanging fixtures and wall packs.
Hallways, as people do not work in these spaces, lighting proposal can include economical lighting
solutions every time respecting all rules and guidelines that regulate safe lighting. In this way, your people
will be able to come and go easily and safely at all times.

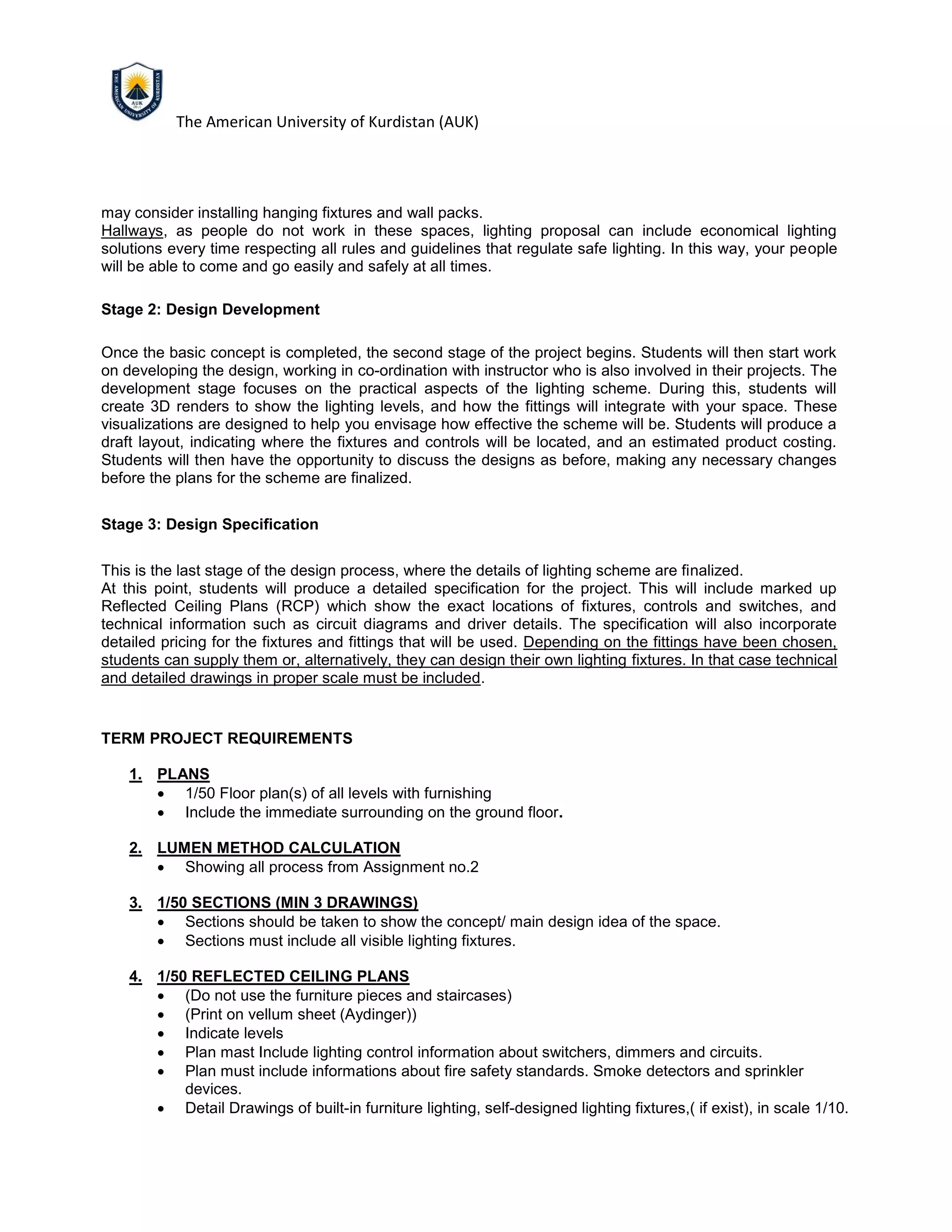

Stage 2: Design Development
Once the basic concept is completed, the second stage of the project begins. Students will then start work
on developing the design, working in co-ordination with instructor who is also involved in their projects. The
development stage focuses on the practical aspects of the lighting scheme. During this, students will
create 3D renders to show the lighting levels, and how the fittings will integrate with your space. These
visualizations are designed to help you envisage how effective the scheme will be. Students will produce a
draft layout, indicating where the fixtures and controls will be located, and an estimated product costing.
Students will then have the opportunity to discuss the designs as before, making any necessary changes
before the plans for the scheme are finalized.
Stage 3: Design Specification
This is the last stage of the design process, where the details of lighting scheme are finalized.
At this point, students will produce a detailed specification for the project. This will include marked up
Reflected Ceiling Plans (RCP) which show the exact locations of fixtures, controls and switches, and
technical information such as circuit diagrams and driver details. The specification will also incorporate
detailed pricing for the fixtures and fittings that will be used. Depending on the fittings have been chosen,
students can supply them or, alternatively, they can design their own lighting fixtures. In that case technical
and detailed drawings in proper scale must be included.
TERM PROJECT REQUIREMENTS
1. PLANS
• 1/50 Floor plan(s) of all levels with furnishing
• Include the immediate surrounding on the ground floor.
2. LUMEN METHOD CALCULATION
• Showing all process from Assignment no.2
3. 1/50 SECTIONS (MIN 3 DRAWINGS)
• Sections should be taken to show the concept/ main design idea of the space.
• Sections must include all visible lighting fixtures.

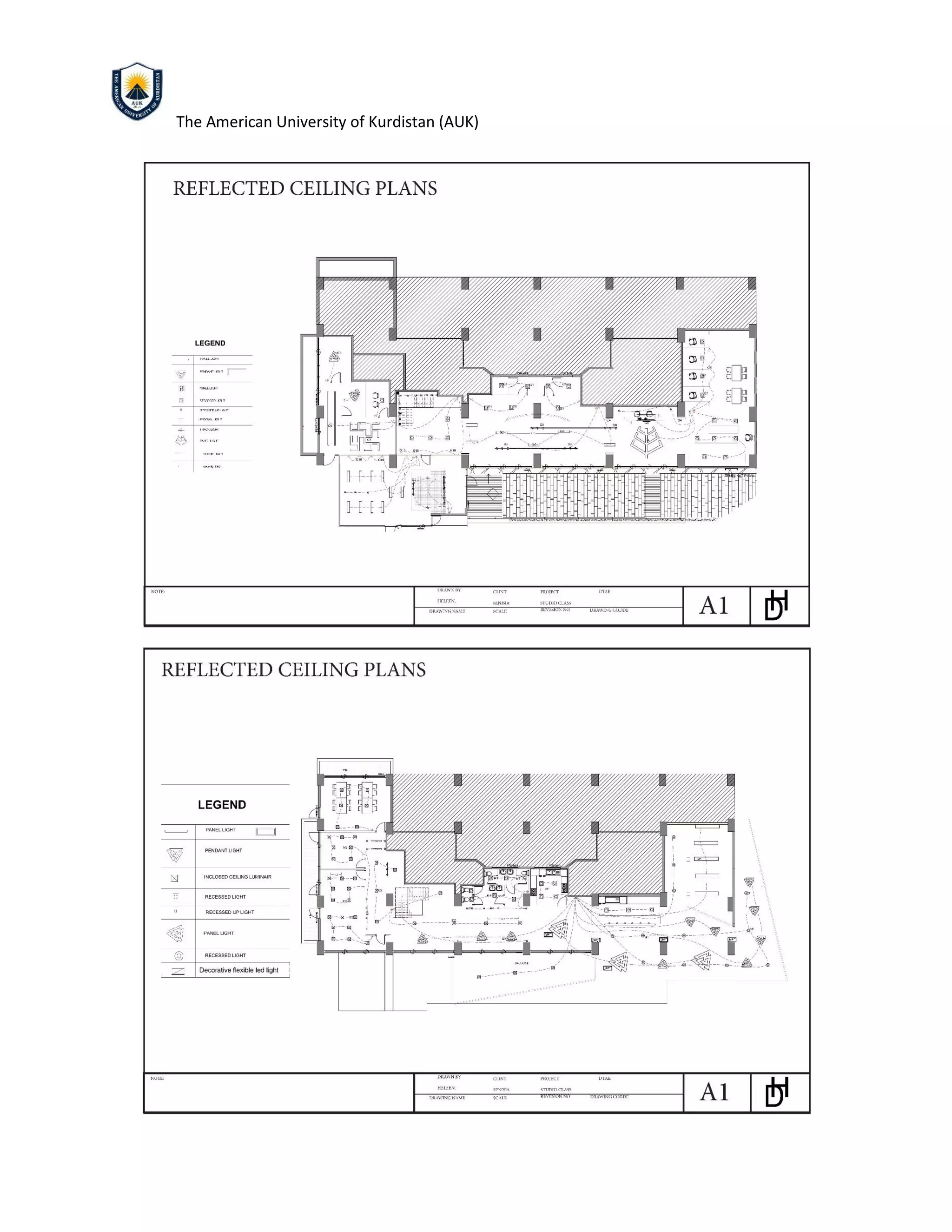

4. 1/50 REFLECTED CEILING PLANS
• (Do not use the furniture pieces and staircases)
• (Print on vellum sheet (Aydinger))
• Indicate levels
• Plan mast Include lighting control information about switchers, dimmers and circuits.
• Plan must include informations about fire safety standards. Smoke detectors and sprinkler
devices.
• Detail Drawings of built-in furniture lighting, self-designed lighting fixtures,( if exist), in scale 1/10.

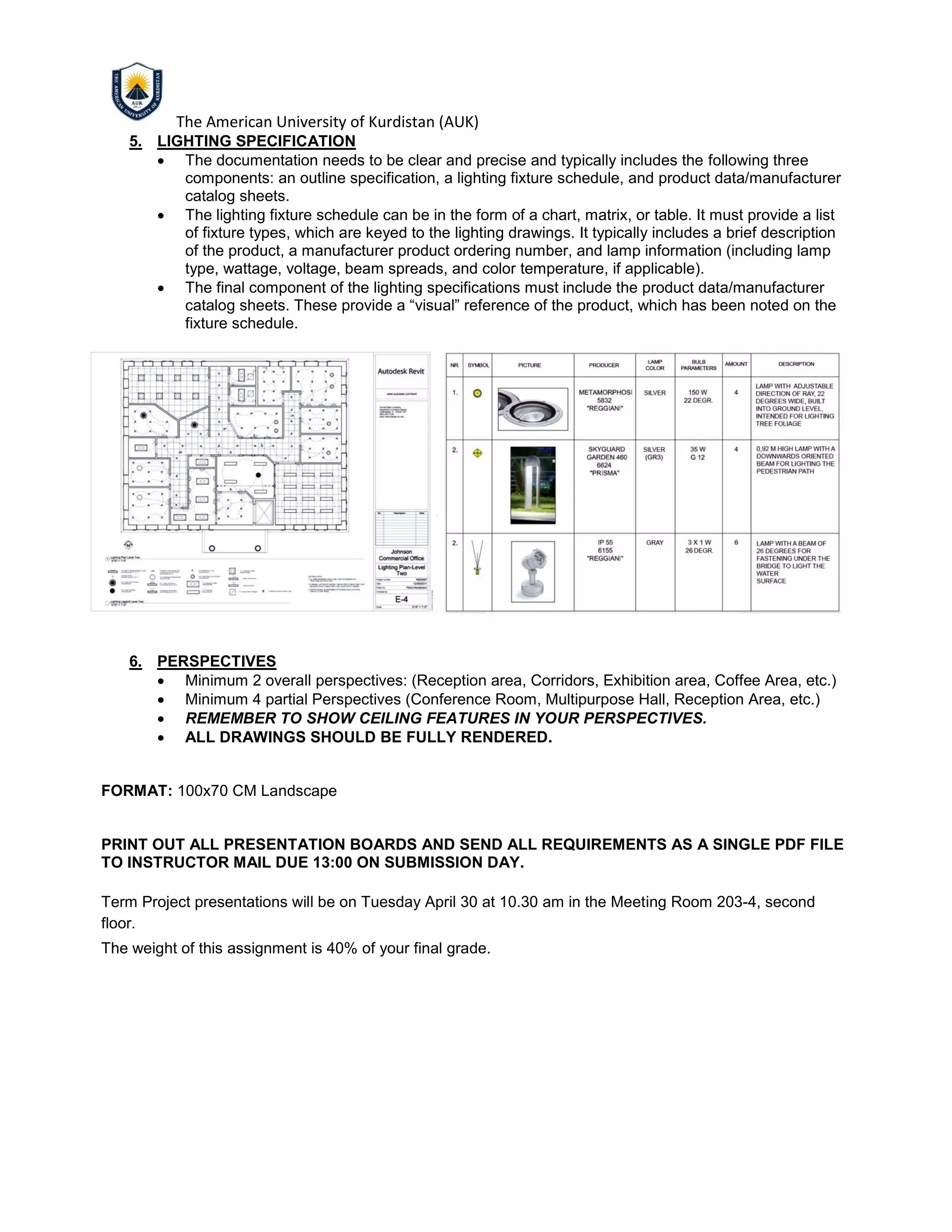

5. LIGHTING SPECIFICATION
• The documentation needs to be clear and precise and typically includes the following three
components: an outline specification, a lighting fixture schedule, and product data/manufacturer
catalog sheets.
• The lighting fixture schedule can be in the form of a chart, matrix, or table. It must provide a list
of fixture types, which are keyed to the lighting drawings. It typically includes a brief description
of the product, a manufacturer product ordering number, and lamp information (including lamp
type, wattage, voltage, beam spreads, and color temperature, if applicable).
• The final component of the lighting specifications must include the product data/manufacturer
catalog sheets. These provide a “visual” reference of the product, which has been noted on the
fixture schedule.
6. PERSPECTIVES
• Minimum 2 overall perspectives: (Reception area, Corridors, Exhibition area, Coffee Area, etc.)
• Minimum 4 partial Perspectives (Conference Room, Multipurpose Hall, Reception Area, etc.)
• REMEMBER TO SHOW CEILING FEATURES IN YOUR PERSPECTIVES.
• ALL DRAWINGS SHOULD BE FULLY RENDERED.
FORMAT: 100x70 CM Landscape
PRINT OUT ALL PRESENTATION BOARDS AND SEND ALL REQUIREMENTS AS A SINGLE PDF FILE
TO INSTRUCTOR MAIL DUE 13:00 ON SUBMISSION DAY.
Term Project presentations will be on Tuesday April 30 at 10.30 am in the Meeting Room 203-4, second
floor.
The weight of this assignment is 40% of your final grade.

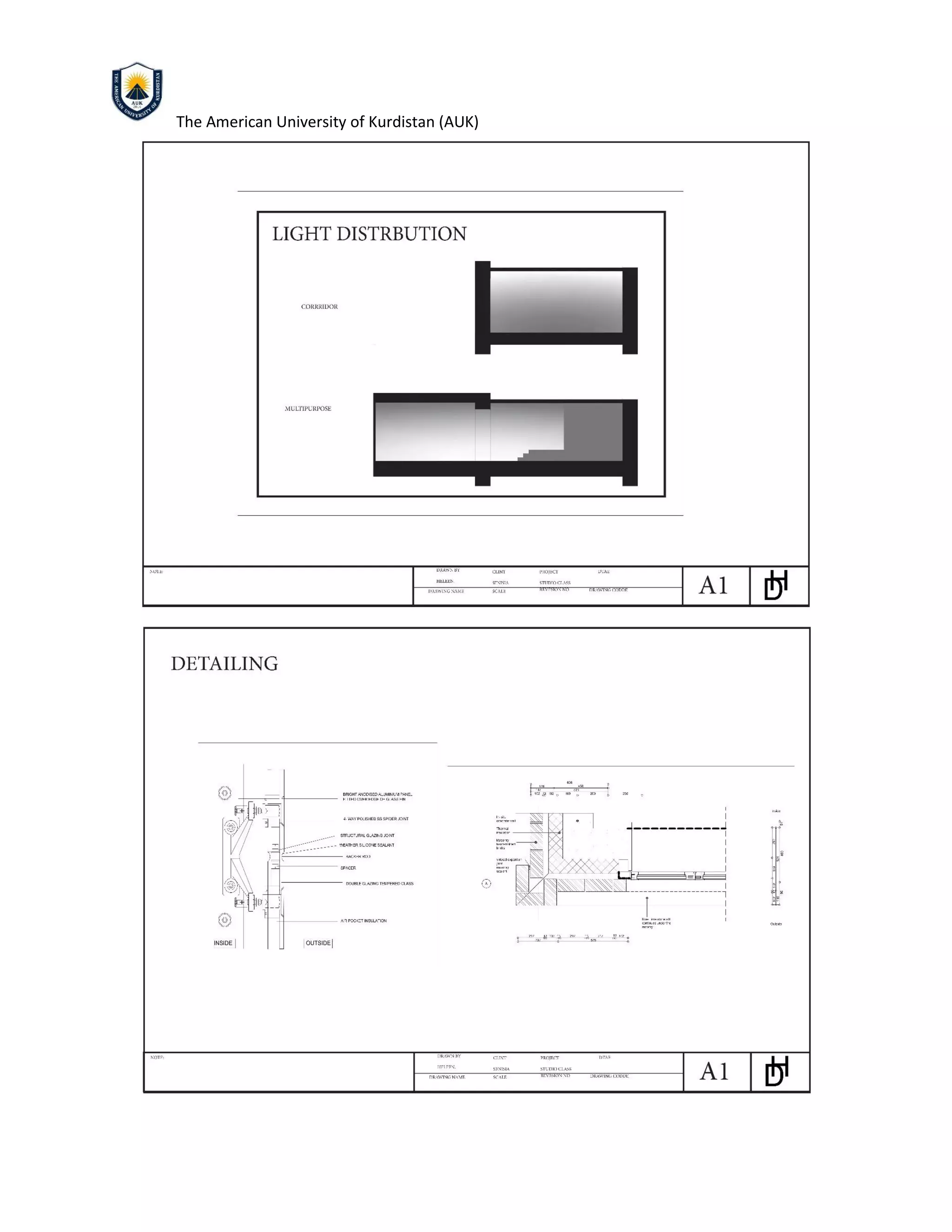

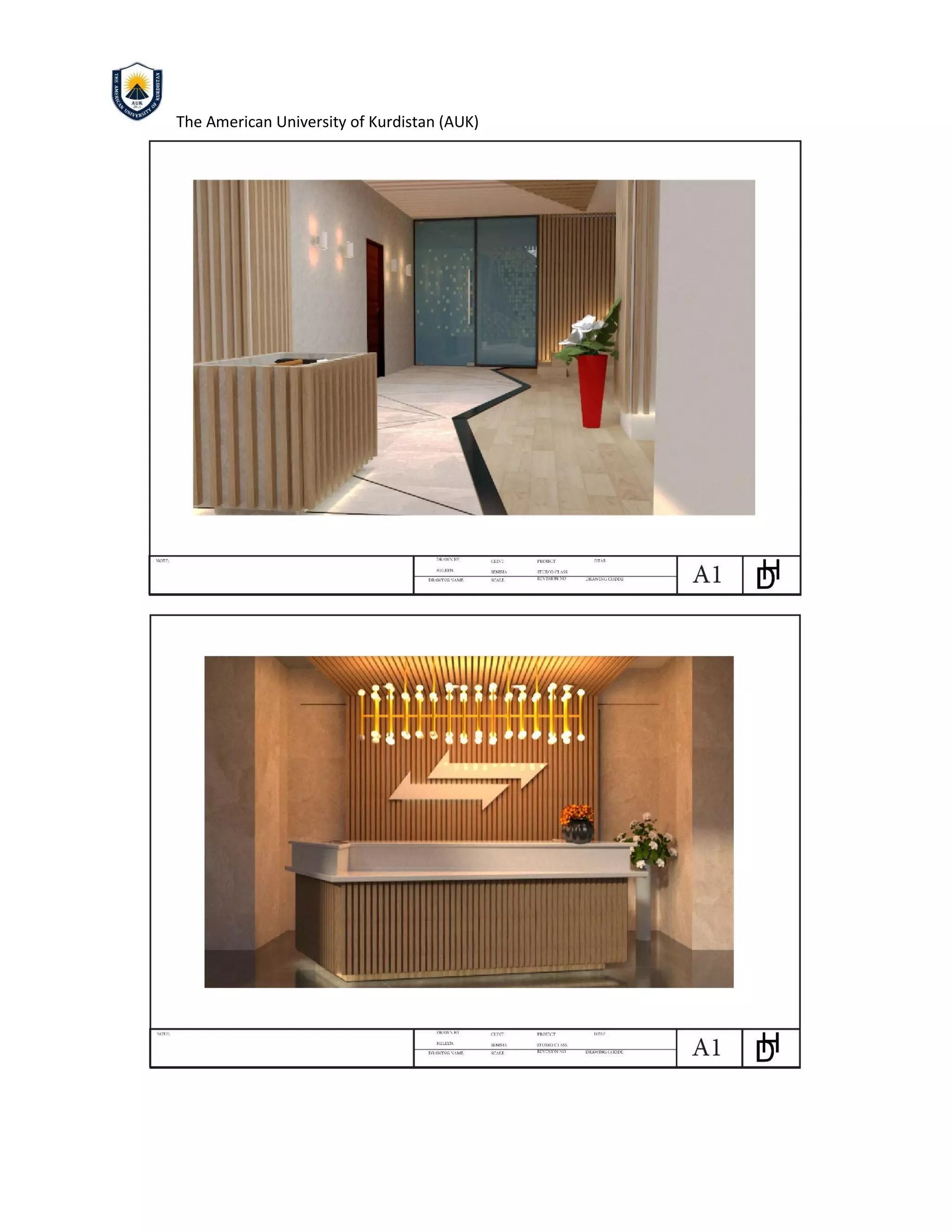

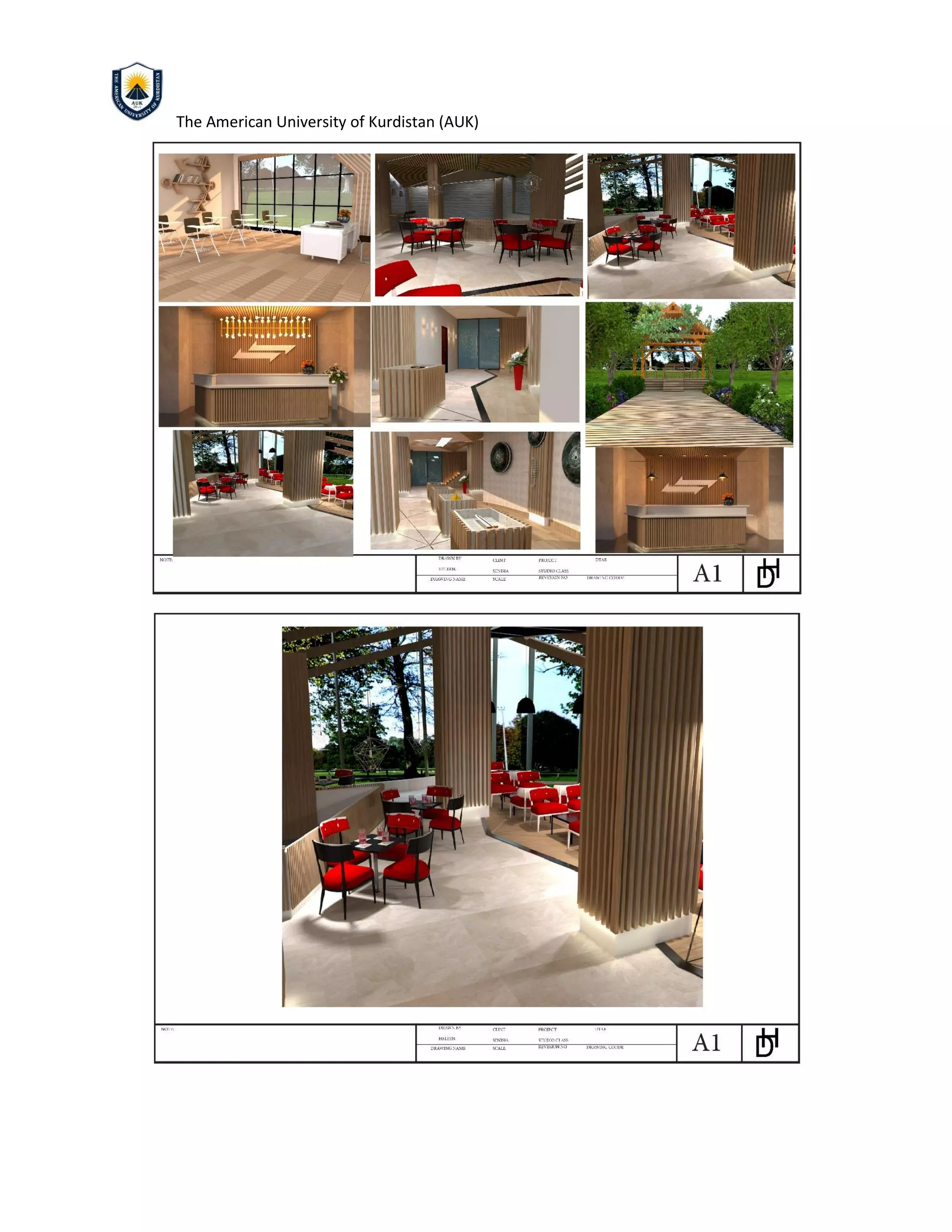

Ms. Heleen Ali Hasan
(Median Work)

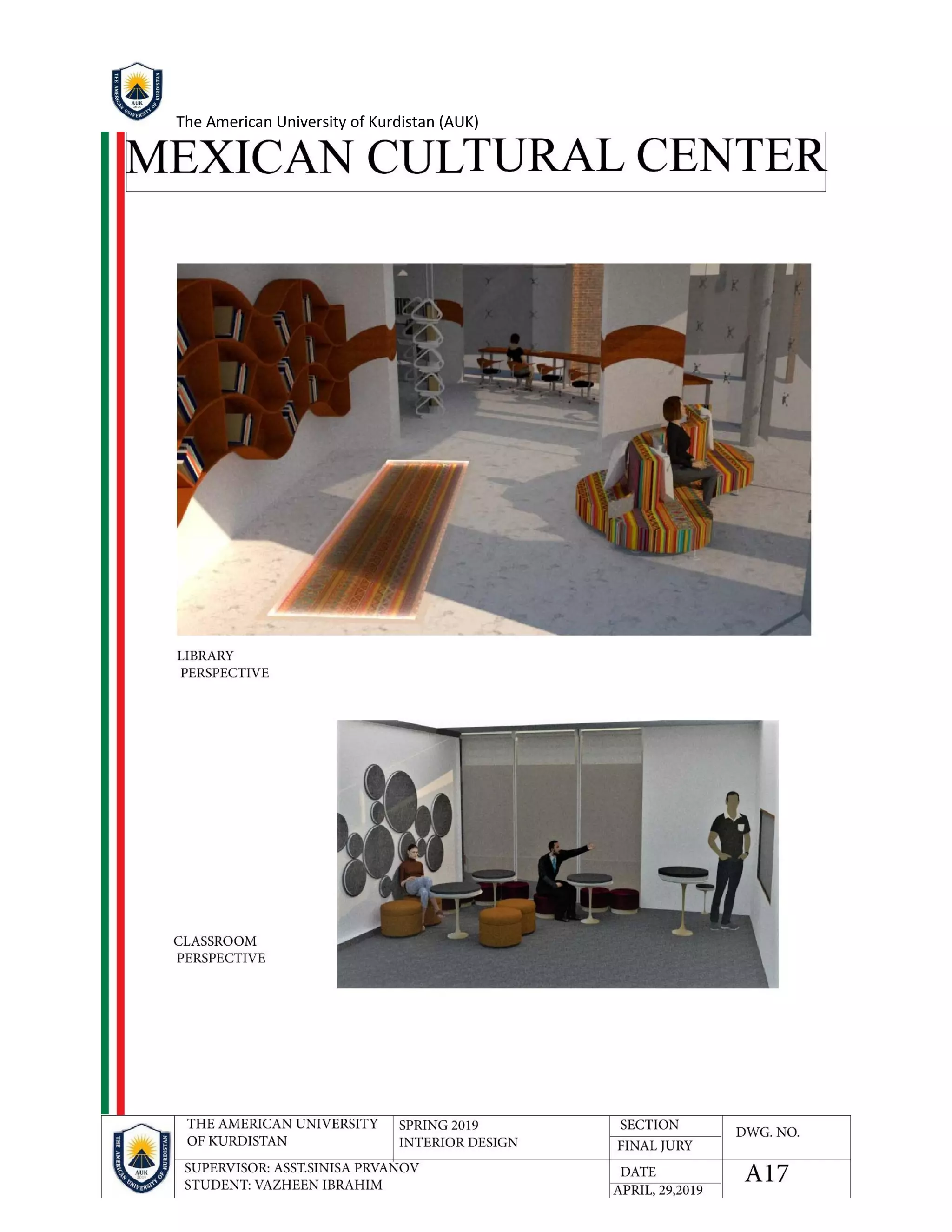

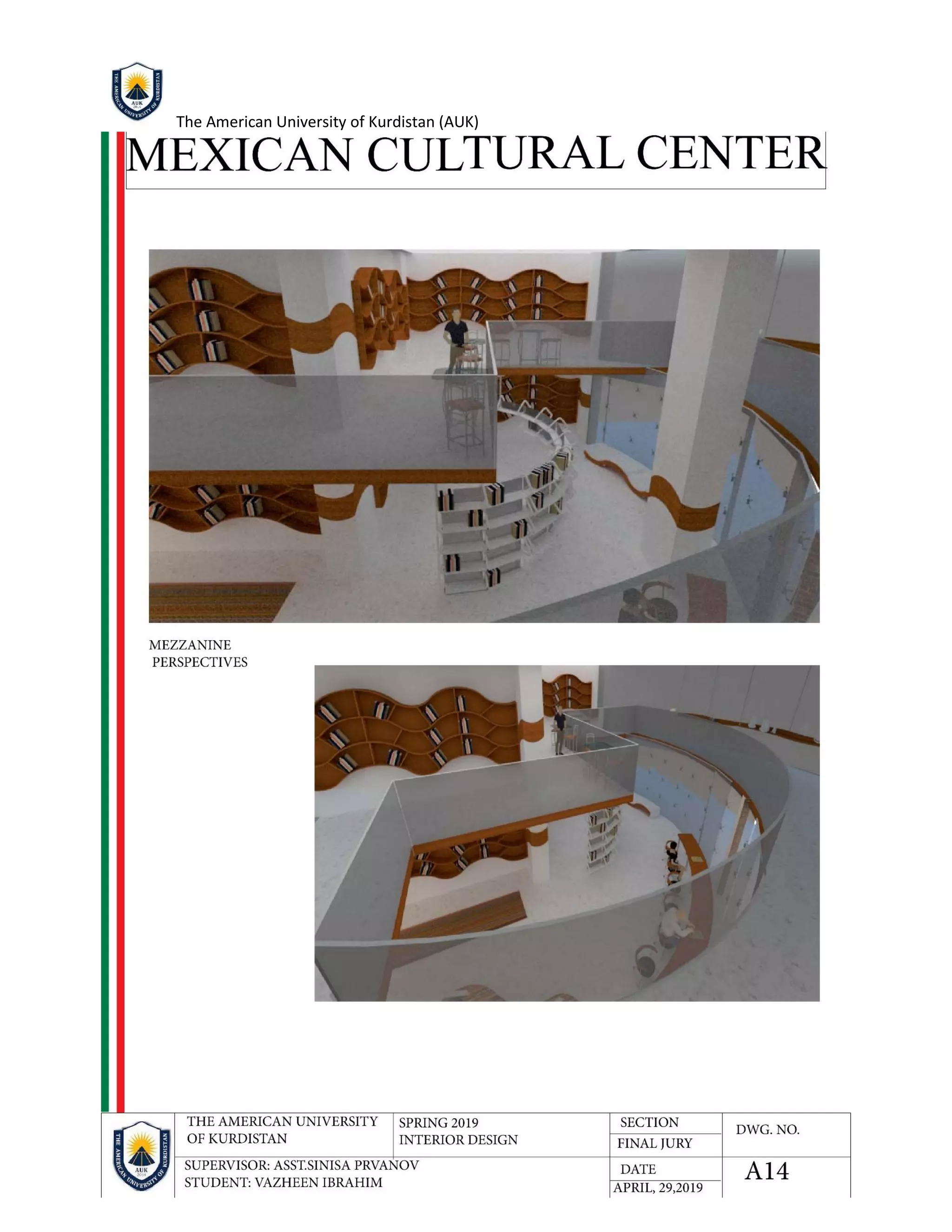

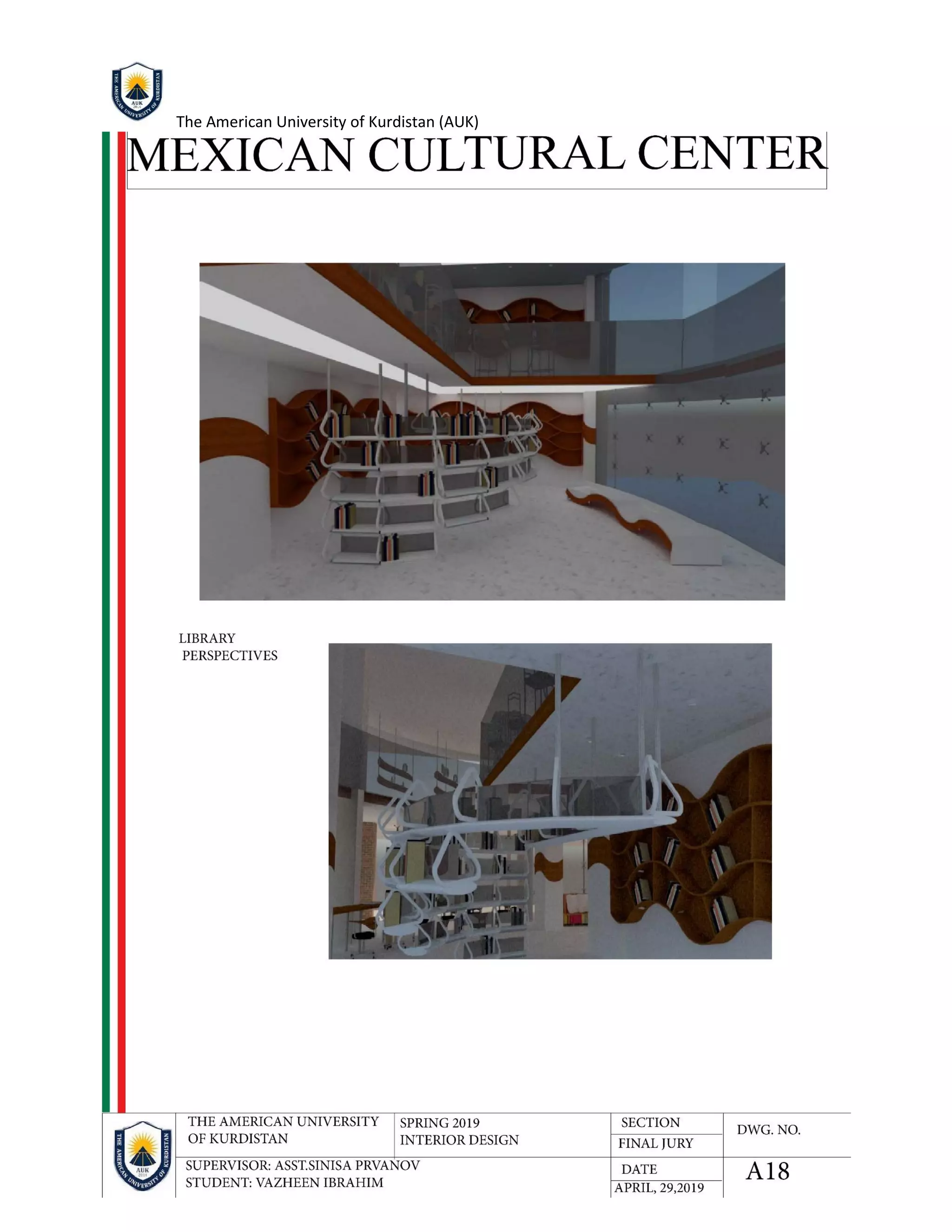

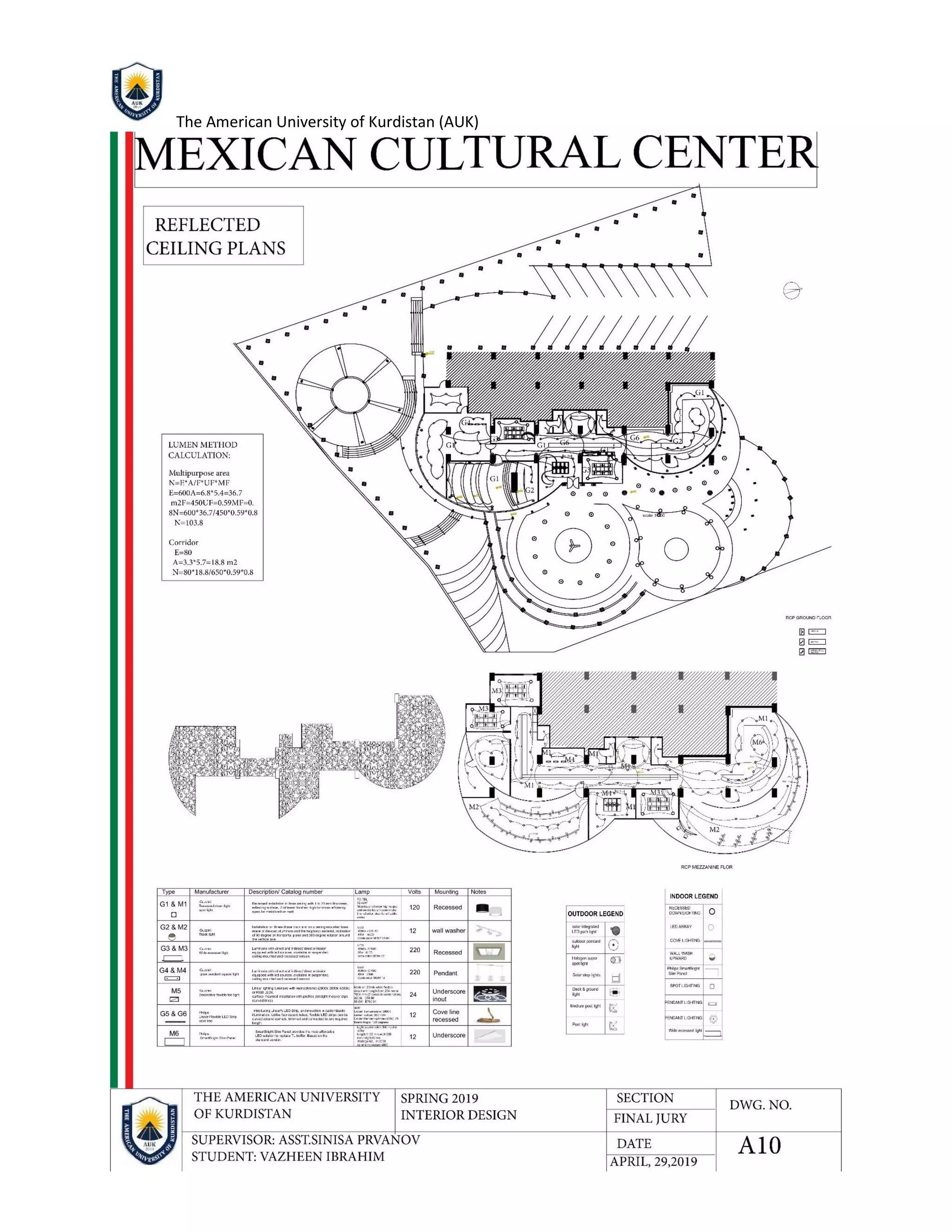

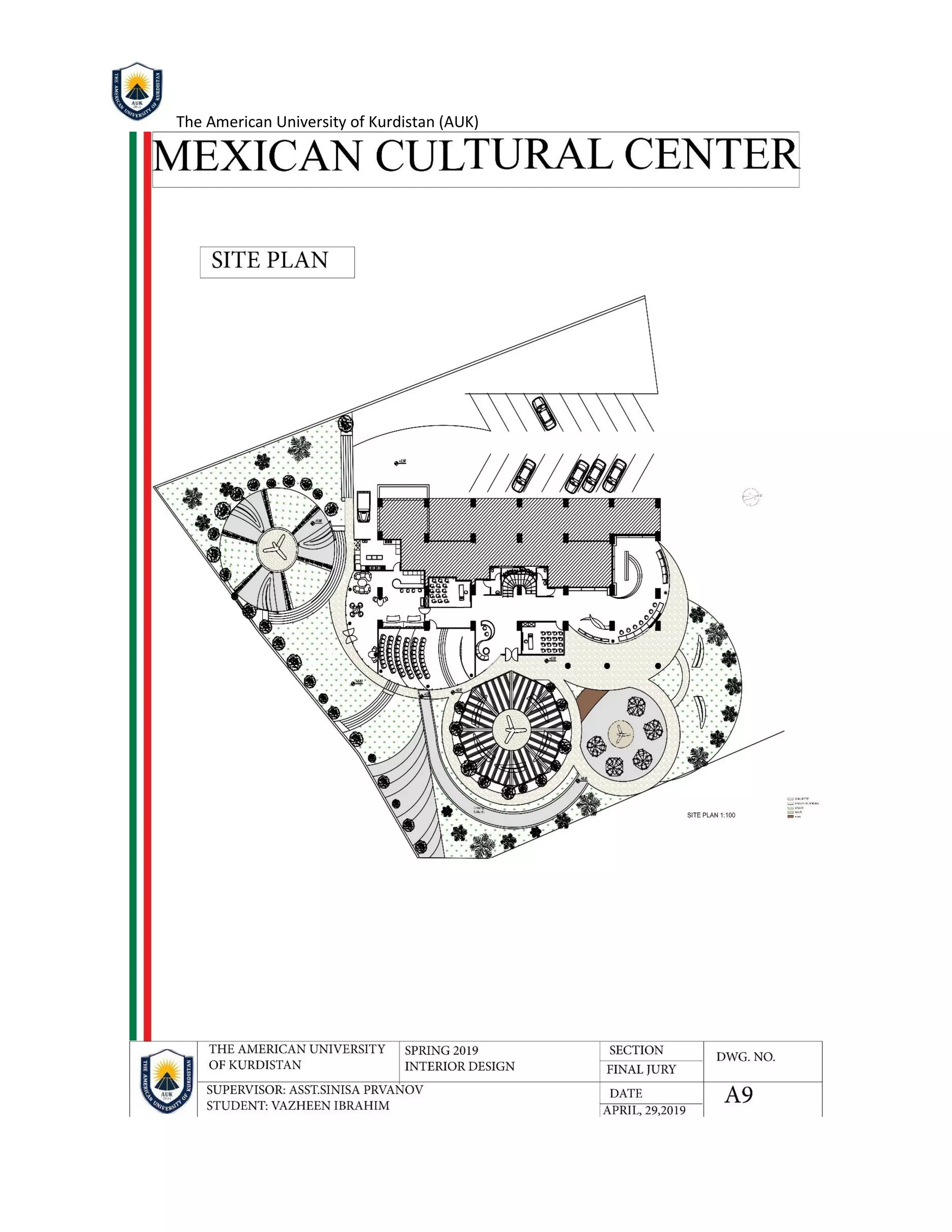

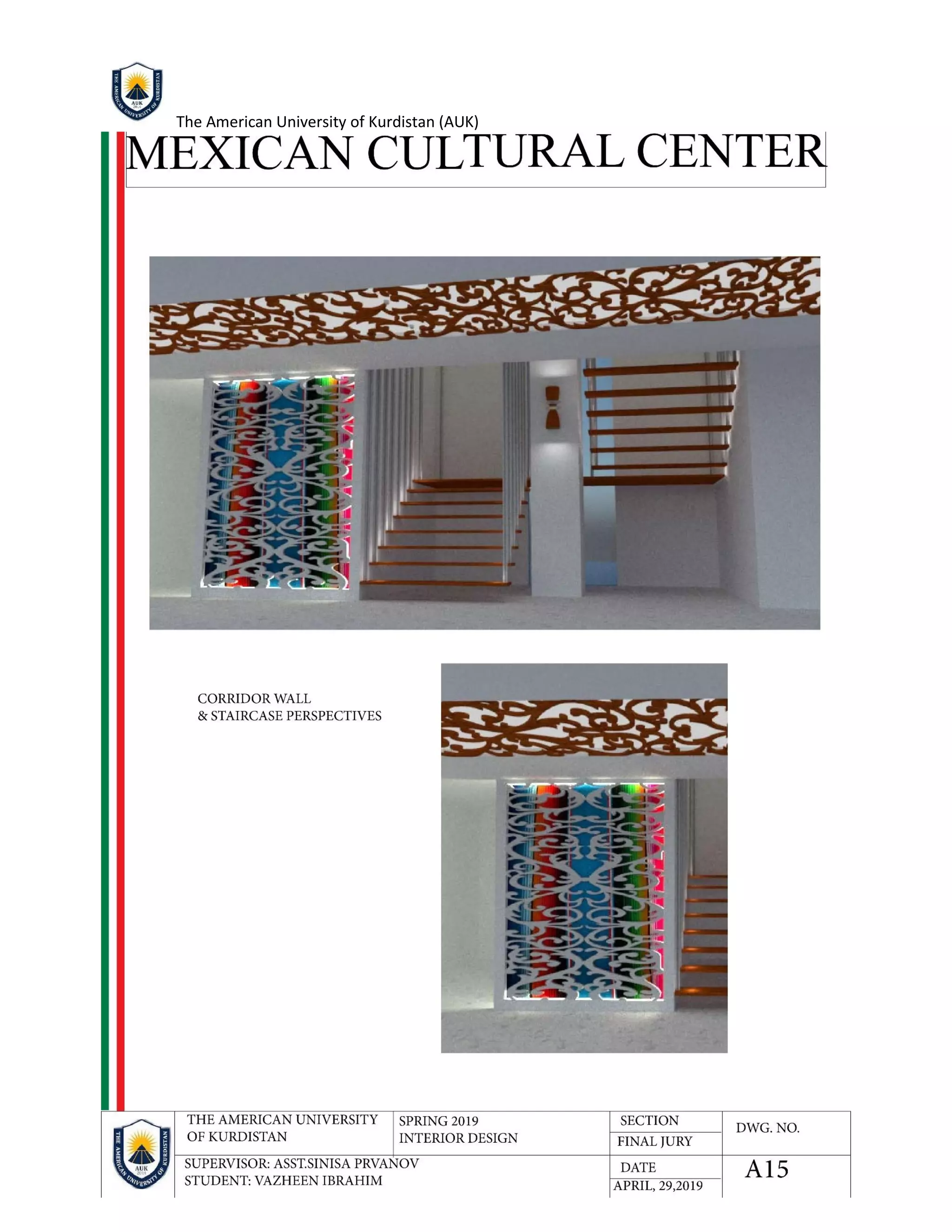

Ms. Vazheen Gasim Ibrahim
(Best Work)

Assignment no. 5
Final Exam
(10%)

American University of Kurdistan (AUK)
sinisa.prvanov@auk.edu.krd

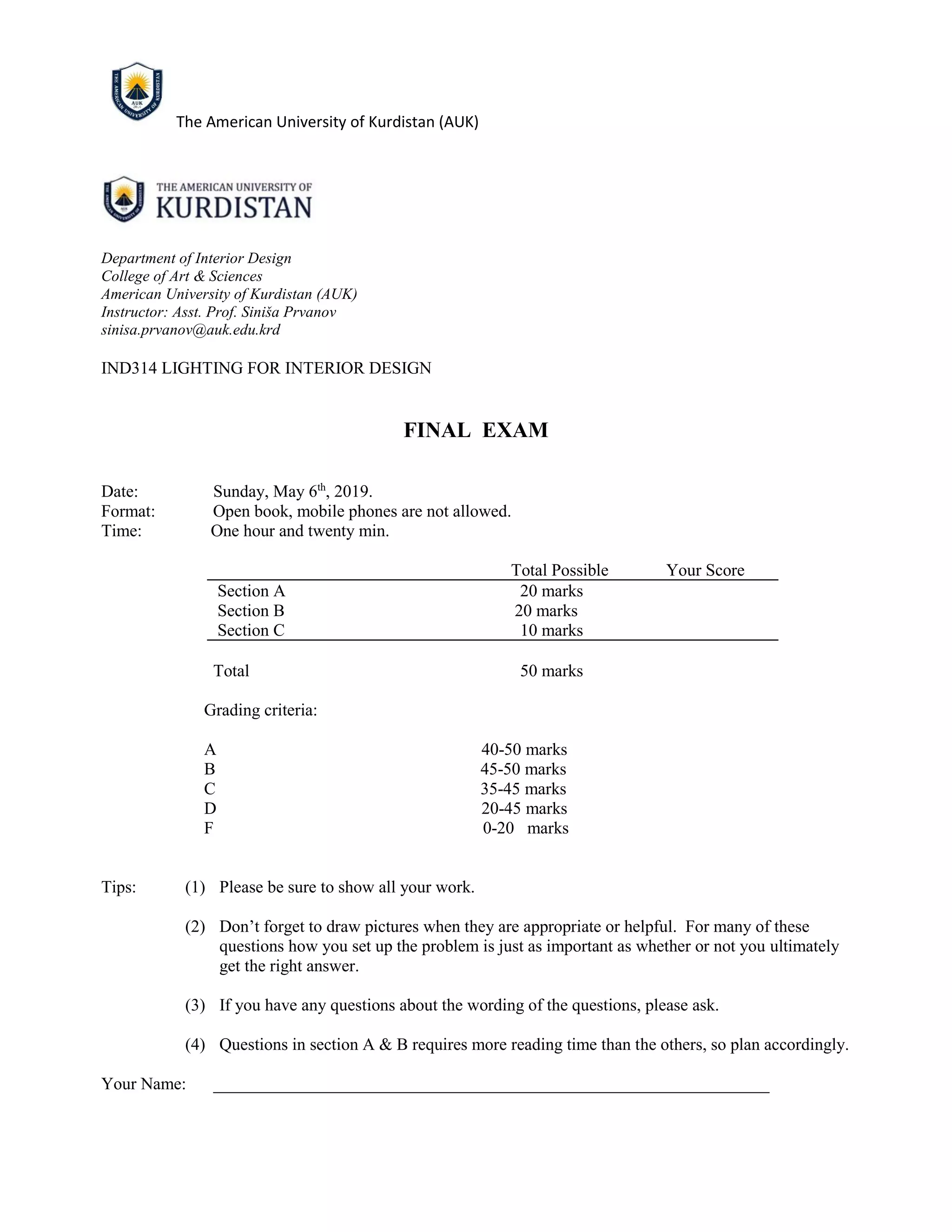

FINAL EXAM
Date: Sunday, May 6th
, 2019.
Format: Open book, mobile phones are not allowed.
Time: One hour and twenty min.
Total Possible Your Score
Section A 20 marks
Section B 20 marks
Section C 10 marks
Total 50 marks
Grading criteria:
A 40-50 marks
B 45-50 marks
C 35-45 marks
D 20-45 marks
F 0-20 marks
Tips: (1) Please be sure to show all your work.
(2) Don’t forget to draw pictures when they are appropriate or helpful. For many of these
questions how you set up the problem is just as important as whether or not you ultimately
get the right answer.
(3) If you have any questions about the wording of the questions, please ask.
(4) Questions in section A & B requires more reading time than the others, so plan accordingly.
Your Name: _________________________________________________________________

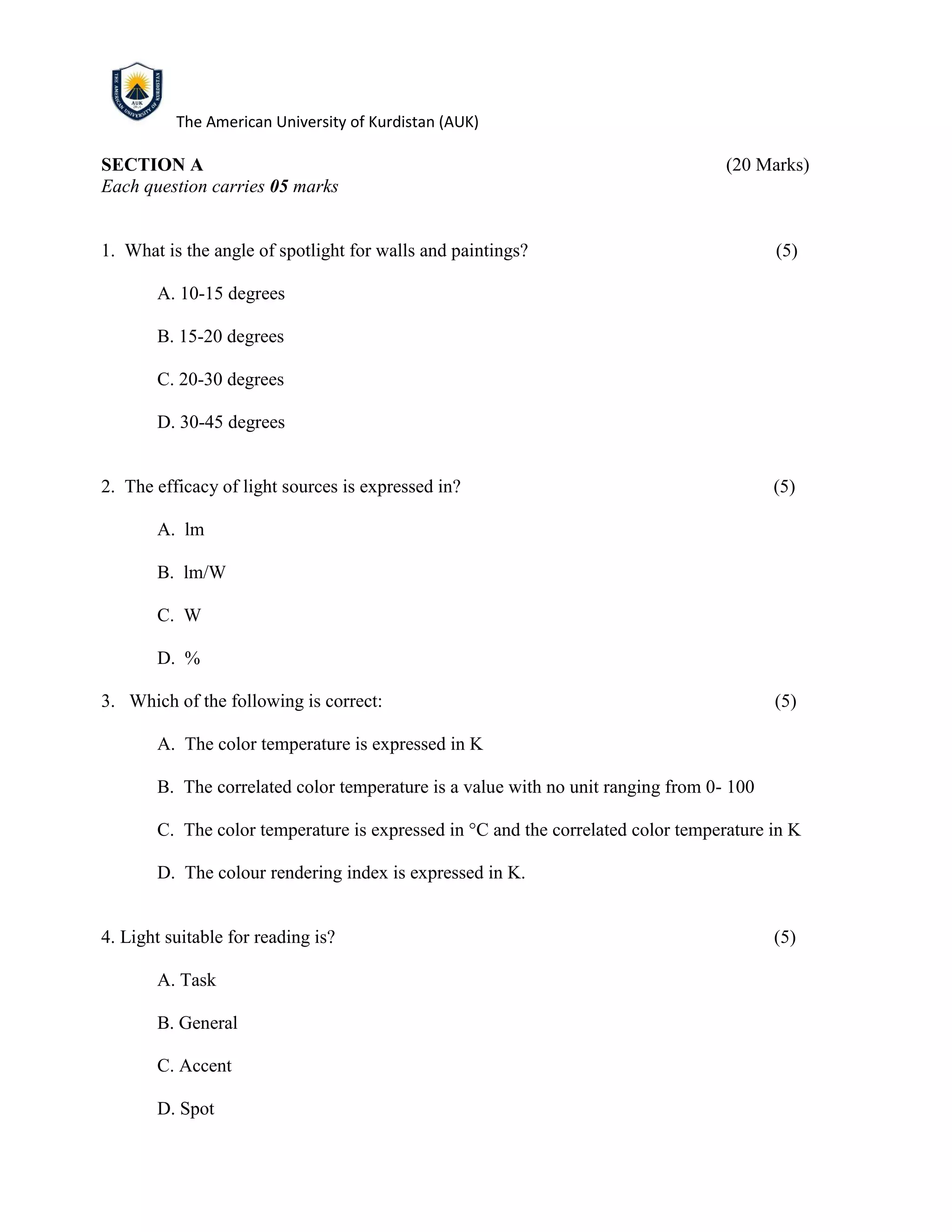

SECTION A (20 Marks)
Each question carries 05 marks
1. What is the angle of spotlight for walls and paintings? (5)
A. 10-15 degrees
B. 15-20 degrees
C. 20-30 degrees
D. 30-45 degrees
2. The efficacy of light sources is expressed in? (5)
A. lm
B. lm/W
C. W
D. %
3. Which of the following is correct: (5)
A. The color temperature is expressed in K
B. The correlated color temperature is a value with no unit ranging from 0- 100
C. The color temperature is expressed in °C and the correlated color temperature in K
D. The colour rendering index is expressed in K.
4. Light suitable for reading is? (5)
A. Task
B. General
C. Accent
D. Spot

SECTION B (20 Marks)
5. Why do we use down-lights or pin light in stores? (10)
A. Dramatic effect
B. Emphasize the texture of the materials
C. Gives the original tone of color and material
D. None
6. What type of light is best use for cove lighting? (10)
A. Fluorescent light
B. T5
C. Halogen
D. Incandescent
SECTION C (10 Marks)

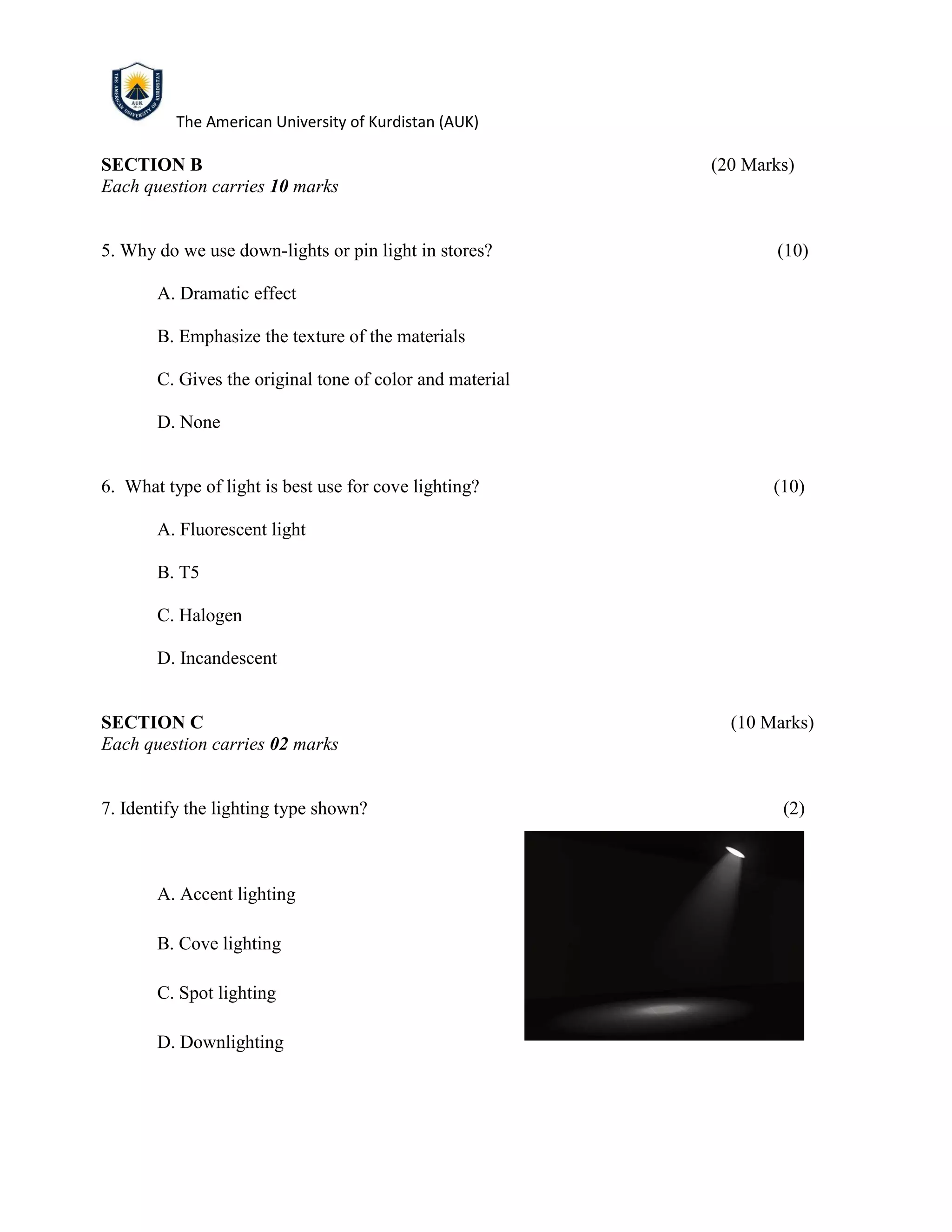

7. Identify the lighting type shown? (2)
A. Accent lighting
B. Cove lighting
C. Spot lighting
D. Downlighting

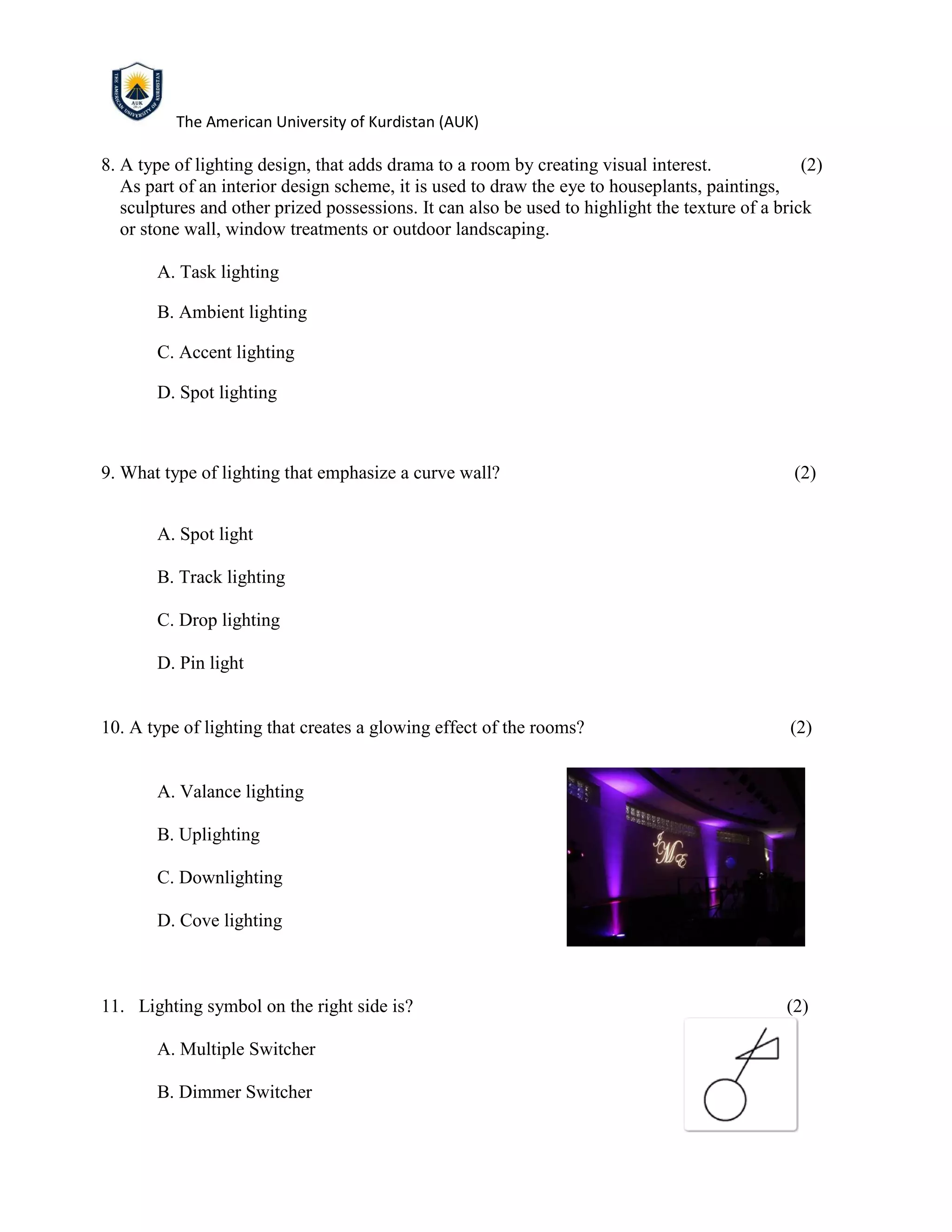

8. A type of lighting design, that adds drama to a room by creating visual interest. (2)
As part of an interior design scheme, it is used to draw the eye to houseplants, paintings,
sculptures and other prized possessions. It can also be used to highlight the texture of a brick
or stone wall, window treatments or outdoor landscaping.
A. Task lighting
B. Ambient lighting
C. Accent lighting
D. Spot lighting
9. What type of lighting that emphasize a curve wall? (2)
A. Spot light
B. Track lighting
C. Drop lighting
D. Pin light
10. A type of lighting that creates a glowing effect of the rooms? (2)
A. Valance lighting
B. Uplighting
C. Downlighting
D. Cove lighting
11. Lighting symbol on the right side is? (2)
A. Multiple Switcher
B. Dimmer Switcher

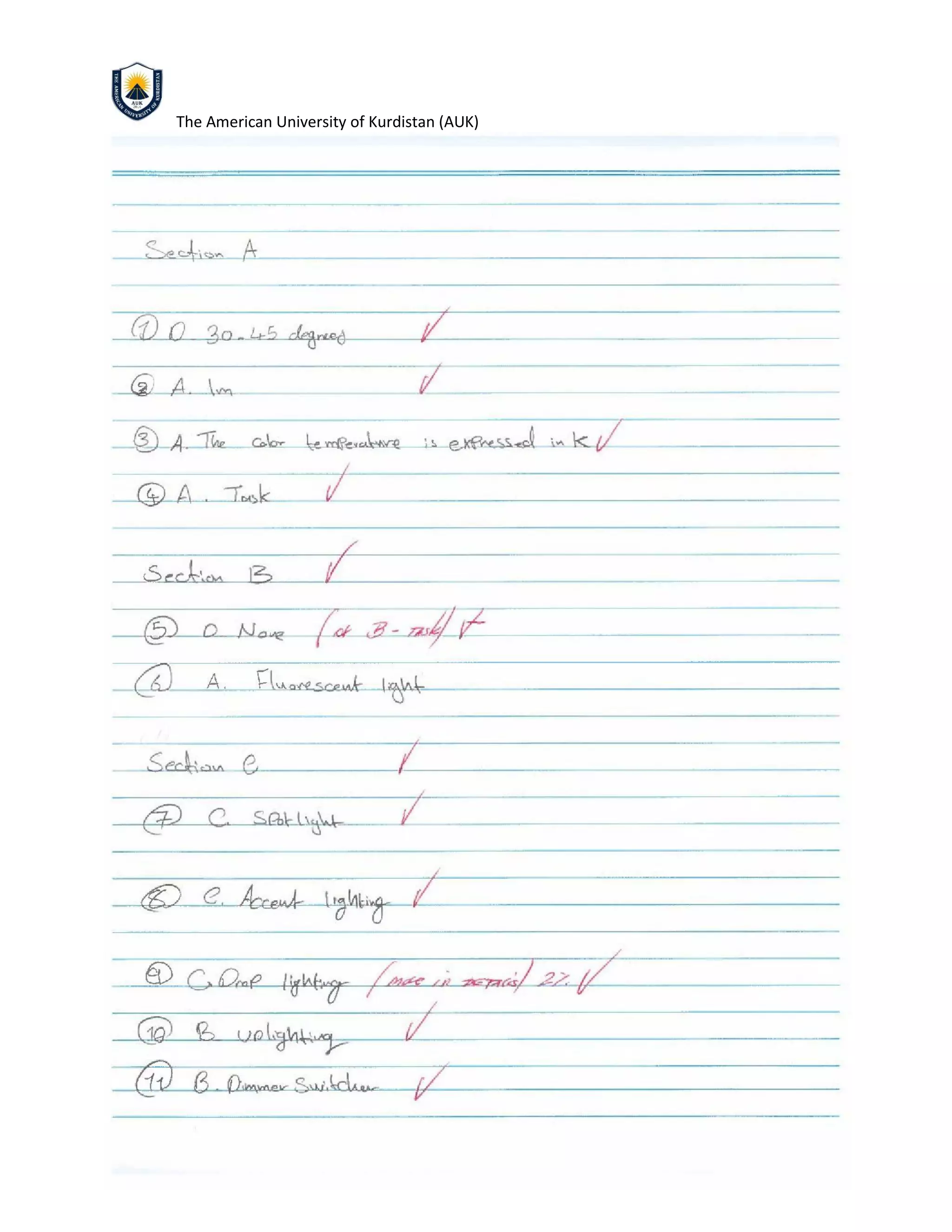

Student Final Exam Paper:
Ms. Chang Farhan Tahir
(Median Work)

Student Final Exam Paper:
(Best Work)

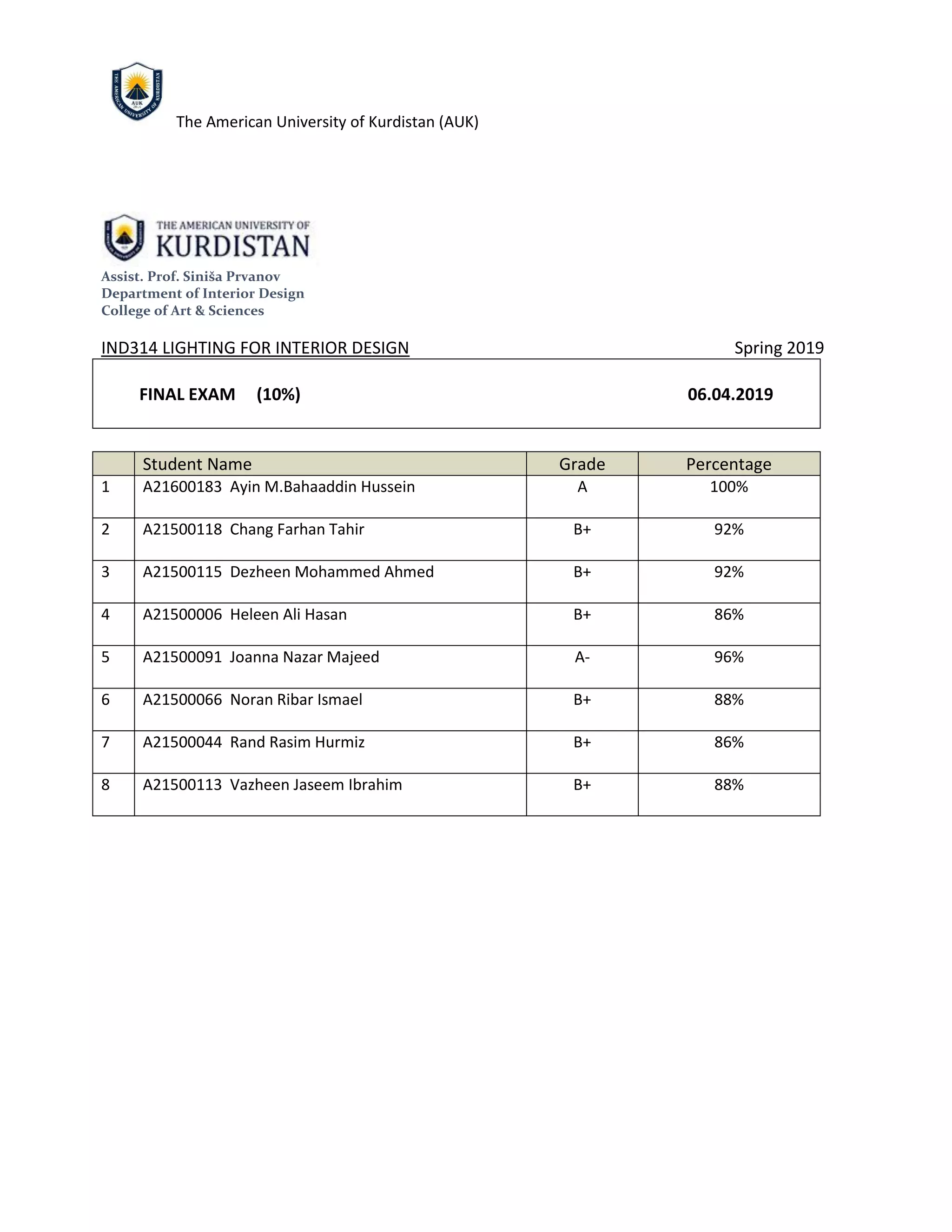

FINAL EXAM (10%) 06.04.2019
Student Name Grade Percentage
1 A21600183 Ayin M.Bahaaddin Hussein A 100%
2 A21500118 Chang Farhan Tahir B+ 92%
3 A21500115 Dezheen Mohammed Ahmed B+ 92%
4 A21500006 Heleen Ali Hasan B+ 86%
5 A21500091 Joanna Nazar Majeed A- 96%
6 A21500066 Noran Ribar Ismael B+ 88%
7 A21500044 Rand Rasim Hurmiz B+ 86%
8 A21500113 Vazheen Jaseem Ibrahim B+ 88%

Overall Grades

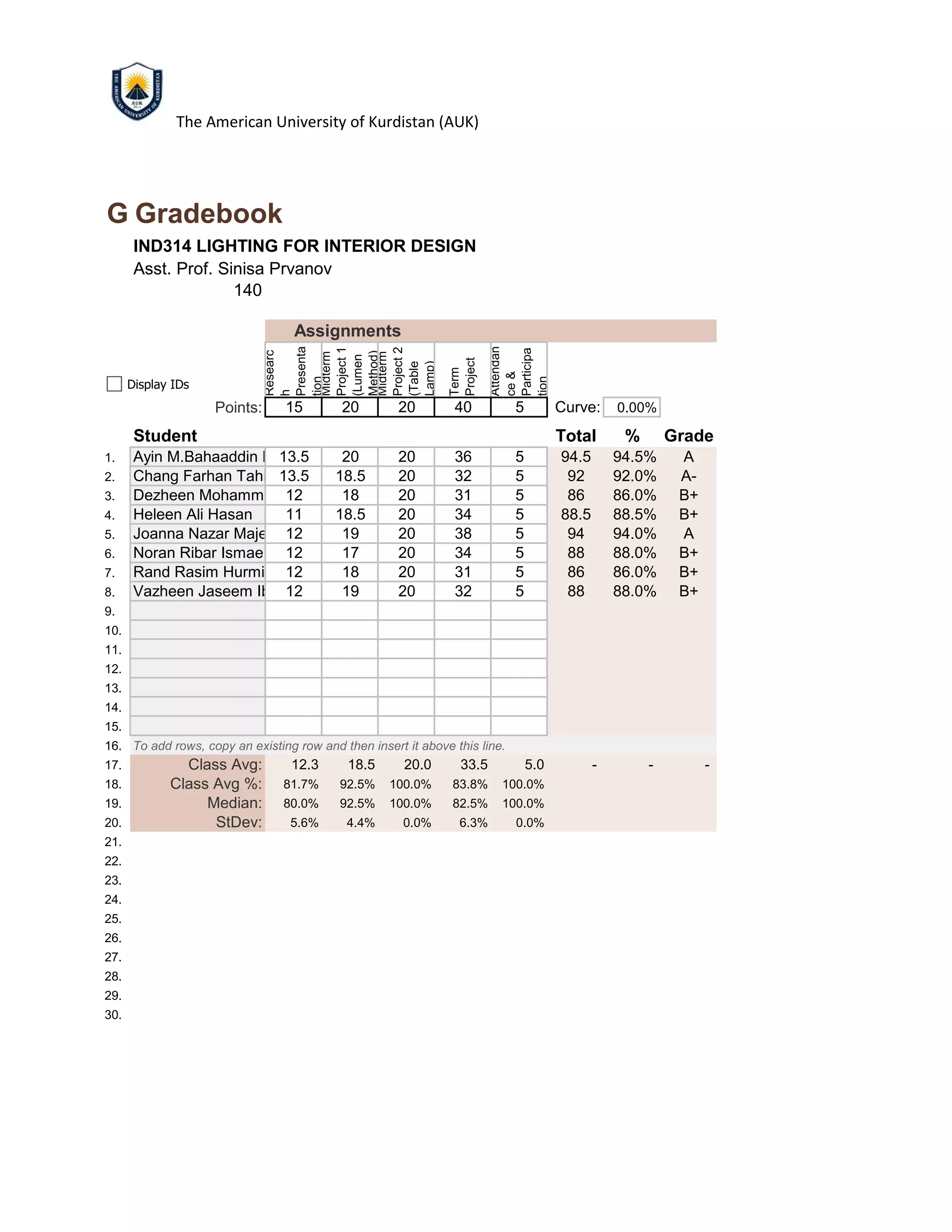

GradebookGradebook
Asst. Prof. Sinisa Prvanov
140
Assignments
Researc
h
Presenta
tion
Midterm
Project1
(Lumen
Method)
Midterm
Project2
(Table
Lamp)
Term
Project
Attendan
ce&
Participa
tion
Points: 15 20 20 40 5 Curve: 0.00%
Student Total % Grade
1. Ayin M.Bahaaddin Hussein13.5 20 20 36 5 94.5 94.5% A
2. Chang Farhan Tahir 13.5 18.5 20 32 5 92 92.0% A-
3. Dezheen Mohammed Ahmed12 18 20 31 5 86 86.0% B+
4. Heleen Ali Hasan 11 18.5 20 34 5 88.5 88.5% B+
5. Joanna Nazar Majeed12 19 20 38 5 94 94.0% A
6. Noran Ribar Ismael 12 17 20 34 5 88 88.0% B+
7. Rand Rasim Hurmiz 12 18 20 31 5 86 86.0% B+
8. Vazheen Jaseem Ibrahim12 19 20 32 5 88 88.0% B+
9.
10.
11.
12.
13.
14.
15.
16. To add rows, copy an existing row and then insert it above this line.
17. Class Avg: 12.3 18.5 20.0 33.5 5.0 - - -
18. Class Avg %: 81.7% 92.5% 100.0% 83.8% 100.0%
19. Median: 80.0% 92.5% 100.0% 82.5% 100.0%
20. StDev: 5.6% 4.4% 0.0% 6.3% 0.0%
21.
22.
23.
24.
25.
26.
27.
28.
29.
30.
[42]
Display IDs

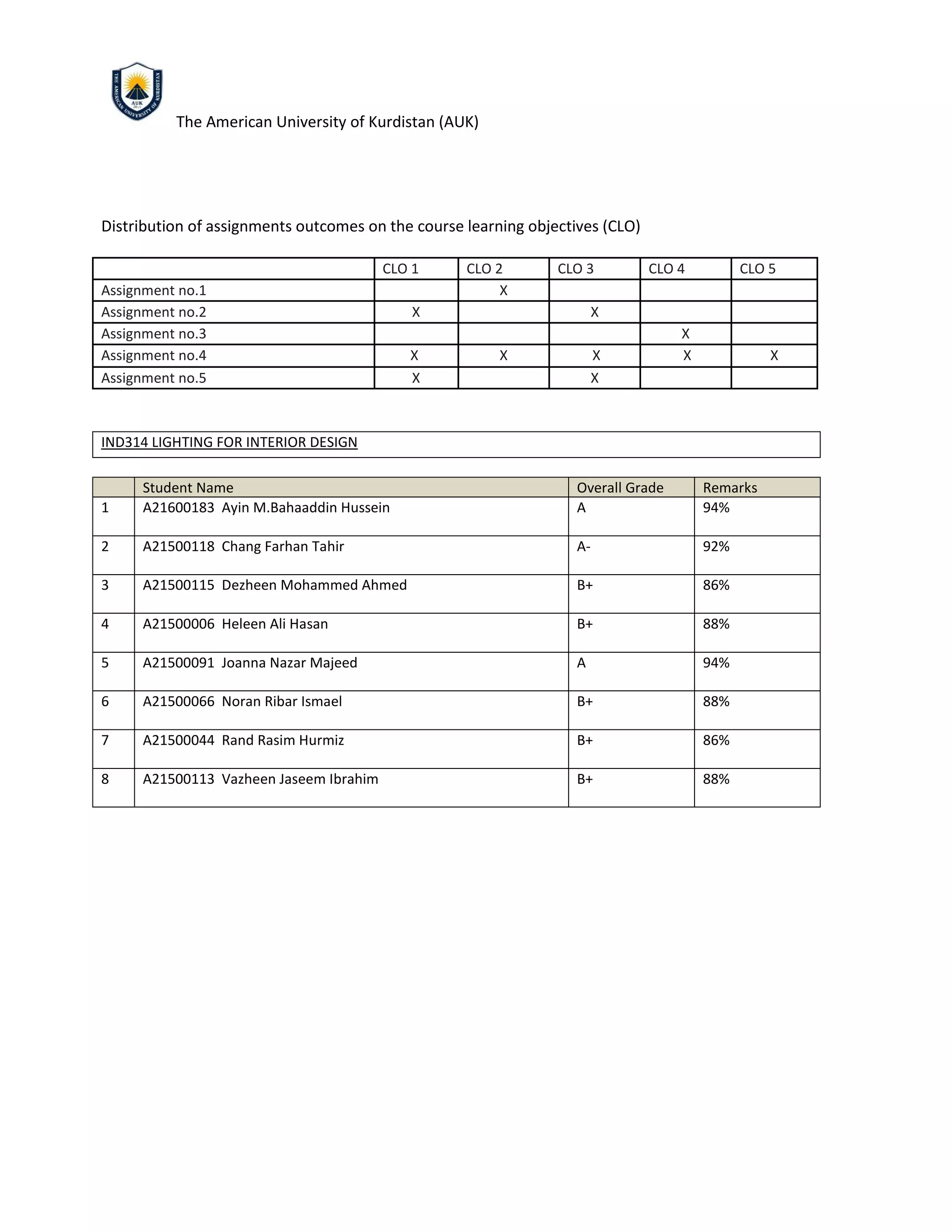

Distribution of assignments outcomes on the course learning objectives (CLO)
CLO 1 CLO 2 CLO 3 CLO 4 CLO 5
Assignment no.1 X
Assignment no.2 X X
Assignment no.3 X
Assignment no.4 X X X X X
Assignment no.5 X X
Student Name Overall Grade Remarks
1 A21600183 Ayin M.Bahaaddin Hussein A 94%
2 A21500118 Chang Farhan Tahir A- 92%
3 A21500115 Dezheen Mohammed Ahmed B+ 86%
4 A21500006 Heleen Ali Hasan B+ 88%
5 A21500091 Joanna Nazar Majeed A 94%
6 A21500066 Noran Ribar Ismael B+ 88%
7 A21500044 Rand Rasim Hurmiz B+ 86%
8 A21500113 Vazheen Jaseem Ibrahim B+ 88%

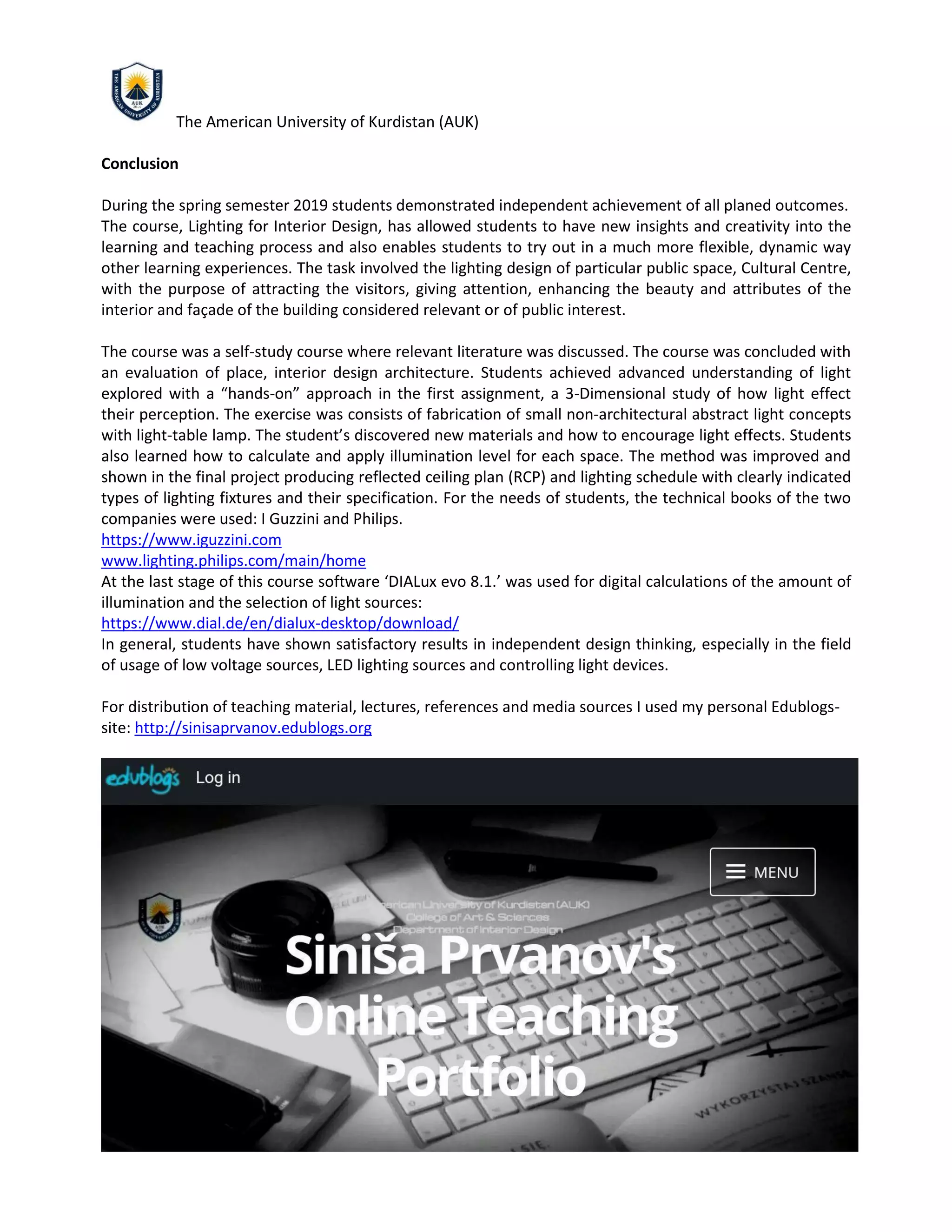

Conclusion
During the spring semester 2019 students demonstrated independent achievement of all planed outcomes.
The course, Lighting for Interior Design, has allowed students to have new insights and creativity into the
learning and teaching process and also enables students to try out in a much more flexible, dynamic way
other learning experiences. The task involved the lighting design of particular public space, Cultural Centre,
with the purpose of attracting the visitors, giving attention, enhancing the beauty and attributes of the
interior and façade of the building considered relevant or of public interest.
The course was a self-study course where relevant literature was discussed. The course was concluded with
an evaluation of place, interior design architecture. Students achieved advanced understanding of light
explored with a “hands-on” approach in the first assignment, a 3-Dimensional study of how light effect
their perception. The exercise was consists of fabrication of small non-architectural abstract light concepts
with light-table lamp. The student’s discovered new materials and how to encourage light effects. Students
also learned how to calculate and apply illumination level for each space. The method was improved and
shown in the final project producing reflected ceiling plan (RCP) and lighting schedule with clearly indicated
types of lighting fixtures and their specification. For the needs of students, the technical books of the two
companies were used: I Guzzini and Philips.
https://www.iguzzini.com
www.lighting.philips.com/main/home
At the last stage of this course software ‘DIALux evo 8.1.’ was used for digital calculations of the amount of
illumination and the selection of light sources:
https://www.dial.de/en/dialux-desktop/download/
In general, students have shown satisfactory results in independent design thinking, especially in the field
of usage of low voltage sources, LED lighting sources and controlling light devices.
For distribution of teaching material, lectures, references and media sources I used my personal Edublogs-
site: http://sinisaprvanov.edublogs.org

IND314 Lighting for interior design, Course File

Recommended

Recommended

More Related Content

What's hot

What's hot (20)

Similar to IND314 Lighting for interior design, Course File

Similar to IND314 Lighting for interior design, Course File (20)

More from Siniša Prvanov

More from Siniša Prvanov (20)

Recently uploaded

Recently uploaded (20)

IND314 Lighting for interior design, Course File
