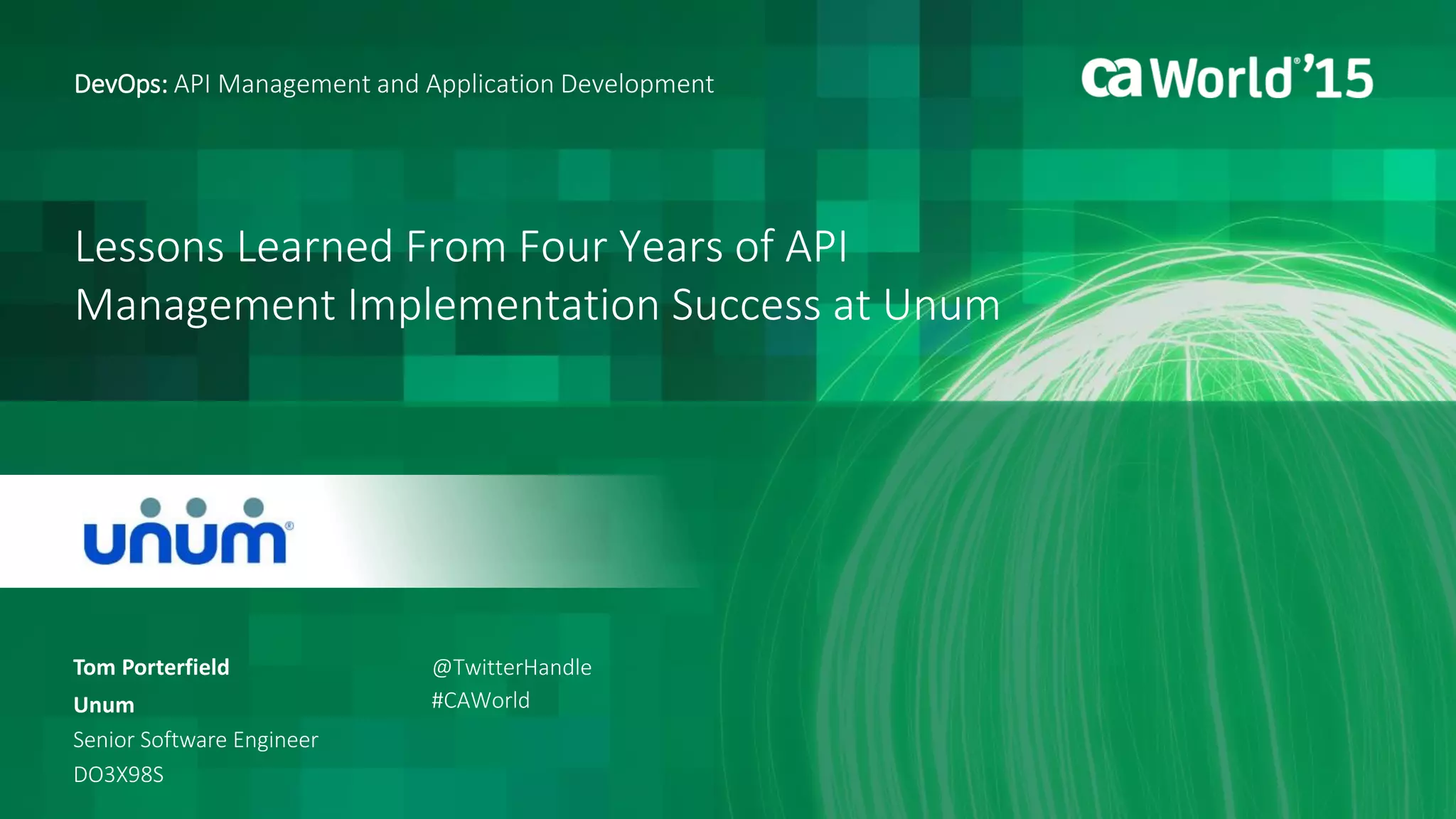

Lessons Learned From Four Years of API Management Implementation Success at Unum

Lessons Learned From Four Years of API
Management Implementation Success at Unum
Tom Porterfield
DevOps: API Management and Application Development
Unum
Senior Software Engineer
DO3X98S
@TwitterHandle
#CAWorld

2 © 2015 CA. ALL RIGHTS RESERVED.@CAWORLD #CAWORLD
© 2015 CA. All rights reserved. All trademarks referenced herein belong to their respective companies.

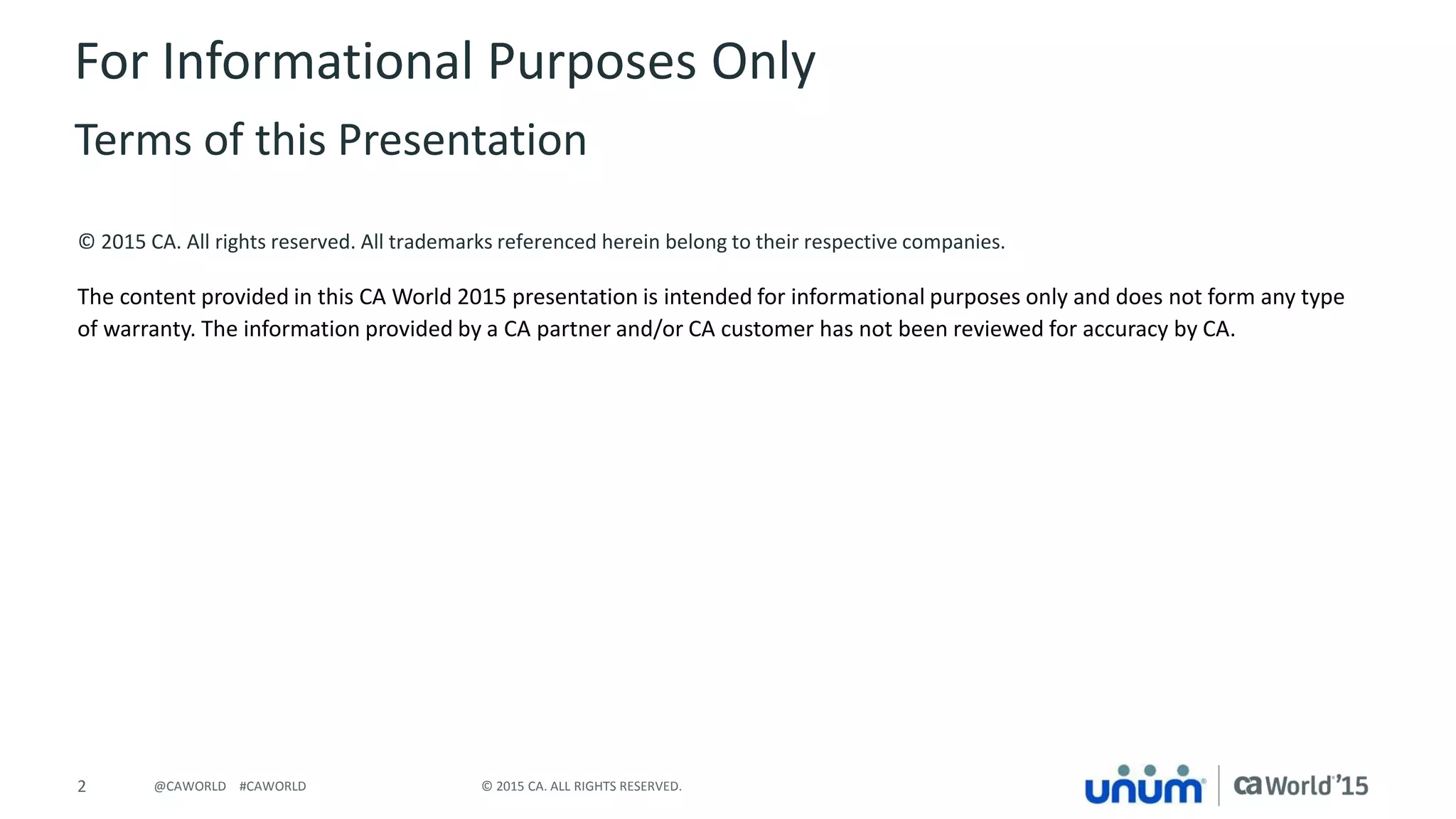

The content provided in this CA World 2015 presentation is intended for informational purposes only and does not form any type
of warranty. The information provided by a CA partner and/or CA customer has not been reviewed for accuracy by CA.
For Informational Purposes Only
Terms of this Presentation

Agenda
ABOUT UNUM
WHERE IT STARTED
PROTECTING CRITICAL ASSETS
THE ROLE OF A MEDIATOR
WHAT IS AN API
PUTTING IT ALL TOGETHER
1
2
3
4
5
6

About UNUM
Who is Unum?
Unum is a leading provider of employee benefits, including disability, life and voluntary insurance. Nearly one in five U.S.
employers who provide group long term disability benefits and more than 42 percent of the Fortune 500 do business with Unum.
With operations in the United States and the United Kingdom, Unum is a diverse family of businesses with a 160-year history.
Our family of businesses
Unum Group consists of Unum US and Colonial Life in the United States and Unum UK in the United Kingdom. With primary
offices in Chattanooga, Tenn., and Portland, Maine, Unum employs about 10,000 people worldwide.
Unum US is a market leader in group and individual disability benefits in the United States, and is one of the largest providers of
group life and voluntary workplace benefits.
Colonial Life is one of the leading providers of voluntary worksite benefits, including disability, life, accident and critical illness
coverage, in the United States.
Unum UK is the leading provider of income protection and critical illness coverage in the United Kingdom, and also offers dual
benefit and life products and services.
Unum's vision and values
Unum's vision is to be the leading provider of employee benefits products and services that help employers manage their
businesses and employees protect their families and livelihoods.

What is SOA
 Service Oriented Architecture (SOA) is driven by business agility need, not
technical advancements
 SOA is an architectural style
– Contrary to some vendors, you cannot buy a SOA
– It is about approaches and principles, not fixed technical solutions or patterns
 Focuses on reuse, agility, integration, interoperability, standards…
 SOA is about the principles of constructing loosely-coupled, reusable, application-
agnostic business services
 SOA is about focusing on building services that map to business capabilities

Unum’s Approach
Business Capability Mapping:
 The enterprise Domain Model AKA Business Object Model is a conceptual model,
which defines the business objects of interest to the enterprise and how they
relate to one another
 It may also define critical attributes associated with a given business object,
especially if they are needed for business rules; however, this model is not a fully
attributed model
 This model sets the stage for driving out the enterprise vocabulary that is then
expanded upon once the fully attributed data objects are built out in the
Enterprise Data and Message Models

Unum Enterprise SOA
 Service Model (Service Interfaces and Contracts)
 Enterprise Data Model, used to drive message entities and contracts
 Business Services
 Message Based
 Workflow
 Orchestration
 Rules
Business ServicesRules
Workflow
Orchestration

Enterprise Models
IT Owned:
Business Object
Model
(aka Domain Model)
Enterprise Data
Model
(logical view)
Enterprise
Message Model
(physical view) Drives generation
of entity schemas
Enterprise
Glossary of
Terms
Central source of all business
concepts/objects and terms
identified through project initiatives
and used in development of rules.
Provides for an enterprise wide
common language and meaning of
terms used in the business.
Database Implementation
Data Models
e.g., DB2, SQL Server, Teradata
Logical
Data
Model
Physica
l Data
Model
LEGEND:
Green = Enterprise Models
Blue = Database Models (application level)
Pink = Enterprise Glossary
Enterprise
Service Model
(Service Interfaces
& Contracts)

What is Service Mediation
 An intermediate layer between service clients and physical service
– Provides a unified interface to service clients
 aka virtual service, compared to physical service
– Service clients no longer communicate directly with physical service
– Service mediation can interpret message requests from service clients and
decide how to communicate the request to the physical service
– Service mediation is fully trusted by physical service
– From a client perspective, the service response only comes from the mediated
(virtual) service. Client is unaware of physical implementation

Benefits of Service Mediation
 Separate physical service technical implementation from service clients to allow more flexible
service implementation, such as versioning, physical server location and set up, service
technology selection and so on
– Service mediation exposes virtual service interface with service contract that can be accessed with
industry standard way of communication, but not a particular service communication requirement
– Physical service selects a particular vendor product or technology that fits best with the physical
service logic implementation
– Physical Service clients will only care about service contract and use the standard way to access service
 Physical service focuses on implementing service logic to deliver business requirements and
leaves service mediation to handle additional service requirements, such as security,
exception formatting, message validation, etc.
 Service mediation applies runtime policy and capabilities to filter message traffic, validate
messages, control traffic, route traffic and so on

CA API Gateway
 Used as a mediation gateway for all of our enterprise services (and a number of tactical services) for
internal consumers
 Provides additional flexibility by decoupling the consumer service endpoint from the
physical implementation
– Allowing for split routing
 Send message to different physical service based on service version
– Control service availability
 Prevent messages from being routed to physical service when that service is scheduled to be unavailable
– Throttle consumer traffic
 Prevent a high volume consumer from impacting overall service performance by restricting the amount of traffic that
consumer is allowed to send to a service
 Optimized for XML
– Very fast schema validation
 Prevents invalid messages from ever reaching the physical service
 And more…
Role in Unum’s SOA Architecture

Web API and SOA
 Web API is one of the masks of SOA service
 SOA is not dead
 SOA service is from capability provider’s view
 Web API is from capability consumer’s view
 Web API’s success relies on SOA
service’s maturity

API Categories
 Private
– SOAP
– URI Style
 Public
– URI Style
– Hypermedia Style
 Partner
– SOAP
– URI Style

ESB Technology at Unum
ESB = CA API Gateway + IBM Integration Bus

CA API Gateway as Part of Enterprise Service Bus
 Protection
– No unauthorized access to services
– Invalid messages stopped at
the perimeter
 Reliability
– Throttle high volume consumers
(BizTalk) to prevent impact to customers
– Enforce usage metrics (Salesforce)
 Flexibility
– Decouple consumer
from implementation
– Routing based on version or other
message content
Securing the Perimeter of the Web Service/API Boundary
CA API Gateway
Service Client
HTTP
IBM Integration Bus
Enterprise Identity
Provider
Management Console
Application Servers
MQ
Mainframe
MDM Server
Informatica

CA API Gateway in DMZ
 Authentication/Authorization
– SAML 2.0 Single Sign-on
 Unum EE’s securely access cloud providers
– Workday, Box, Salesforce,
BrightIdea, ServiceNow
 Partners securely access Unum services
– WS-Security
– OAuth 2.0
 Mobile
– Mutual SSL
 Lightweight Message Transformation
– SOAP 1.1 to 1.2
– XML to JSON and back
 Protection
– Protect against Denial of Service (DoS)
– Protect against replay attack
Securely enable access to Unum resources for partners
Cloud Application
Enterprise Service Bus
Firewal
Admin Portal
Tablet
Web Application
Smart Phone
or PDA
CA API Gateway
Enterprise Identity
Provider
Firewal
