Lecture 21 Dickson House
Dickson House Restoration Dickson House is among the most important Heritage Buildings in Kuwait. This building has a unique character that is seen in the ingenious planning and characterization of spaces. The house served as offices and residence of the British Political Agent for more than 50 years and took the present form from the Dickson family who has great attachment to this house. Thus the name Dickson House.

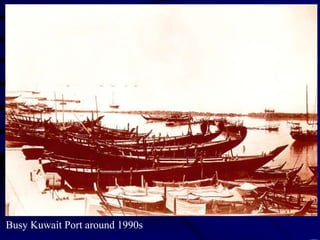

Busy Kuwait Port around 1990s

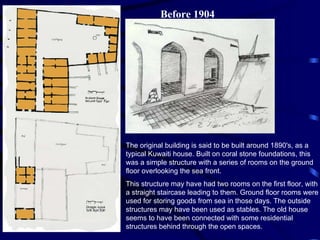

Before 1904 The original building is said to be built around 1890's, as a typical Kuwaiti house. Built on coral stone foundations, this was a simple structure with a series of rooms on the ground floor overlooking the sea front. This structure may have had two rooms on the first floor, with a straight staircase leading to them. Ground floor rooms were used for storing goods from sea in those days. The outside structures may have been used as stables. The old house seems to have been connected with some residential structures behind through the open spaces.

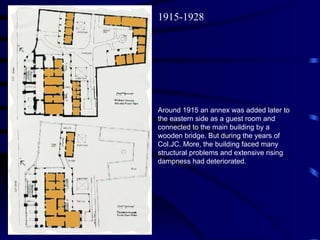

Around 1915 an annex was added later to the eastern side as a guest room and connected to the main building by a wooden bridge. But during the years of Col.JC. More, the building faced many structural problems and extensive rising dampness had deteriorated.  1915-1928

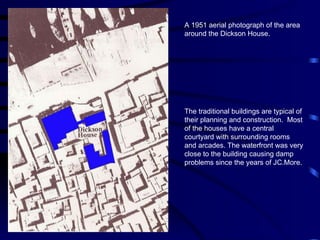

A 1951 aerial photograph of the area around the Dickson House.  The traditional buildings are typical of their planning and construction.  Most of the houses have a central courtyard with surrounding rooms and arcades. The waterfront was very close to the building causing damp problems since the years of JC.More.

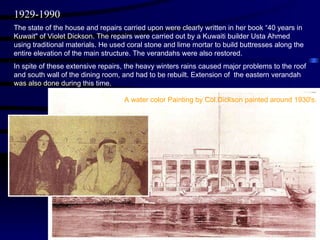

The state of the house and repairs carried upon were clearly written in her book “40 years in Kuwait" of Violet Dickson. The repairs were carried out by a Kuwaiti builder Usta Ahmed using traditional materials. He used coral stone and lime mortar to build buttresses along the entire elevation of the main structure. The verandahs were also restored. In spite of these extensive repairs, the heavy winters rains caused major problems to the roof and south wall of the dining room, and had to be rebuilt. Extension of  the eastern verandah was also done during this time. 1929-1990 A water color Painting by Col.Dickson painted around 1930's.
In 1935 the new British Embassy and residence was completed and Dicksons moved out for a year. After Col. Dickson's retirement as political agent in 1936, at the age of 55, he was appointed by the Amir of Kuwait, Shaikh Ahmad Al-Jabir Al-Sabah as the Chief Local Representative for the newly established Kuwait Oil Company. Col.Dickson had been closely involved with the development of oil exploration in Kuwait.  With his new position, Dicksons were invited to come back to their old house. Col. Dickson lived here until his death in 1959. In 1956 with the construction of the Gulf Street, the curved stairs were removed and replaced by a straight flight of steps. Affectionately known as Mother of Saud (Umm Saud) by Kuwaitis, Violet Dickson was made a Dame of the order of the British Empire in 1976. She lived in this house until 1990 when she was reluctantly evacuated to Britain during the Iraqi aggression, where she died in 1991.
View of Gulf Street towards Seif Palace.

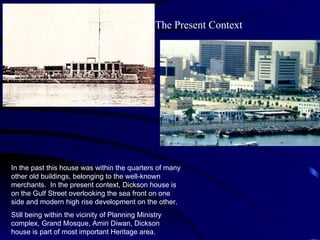

In the past this house was within the quarters of many other old buildings, belonging to the well-known merchants.  In the present context, Dickson house is on the Gulf Street overlooking the sea front on one side and modern high rise development on the other.  Still being within the vicinity of Planning Ministry complex, Grand Mosque, Amiri Diwan, Dickson house is part of most important Heritage area. The Present Context

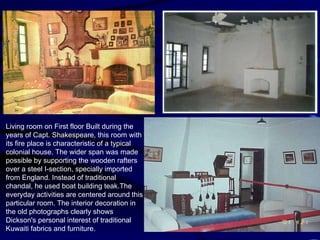

Living room on First floor Built during the years of Capt. Shakespeare, this room with its fire place is characteristic of a typical colonial house. The wider span was made possible by supporting the wooden rafters over a steel I-section, specially imported from England. Instead of traditional chandal, he used boat building teak.The everyday activities are centered around this particular room. The interior decoration in the old photographs clearly shows Dickson's personal interest of traditional Kuwaiti fabrics and furniture.

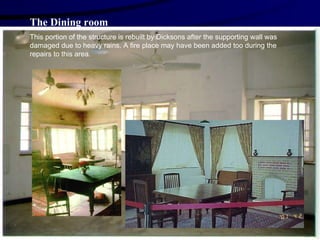

The Dining room This portion of the structure is rebuilt by Dicksons after the supporting wall was damaged due to heavy rains. A fire place may have been added too during the repairs to this area.

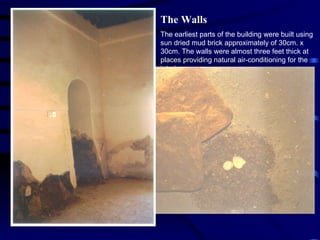

The Walls The earliest parts of the building were built using sun dried mud brick approximately of 30cm. x 30cm. The walls were almost three feet thick at places providing natural air-conditioning for the interior spaces. The mortar was simply mud or sometimes mixture of lime and mud. The end walls were usually built using coral stone and lime / mud mortar. Much of the later  repairs were carried out using cement block masonry and RCC for roofing by Dicksons.

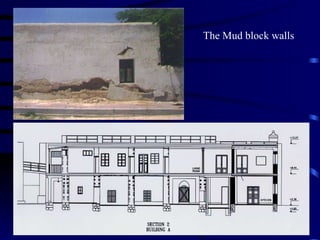

The Mud block walls

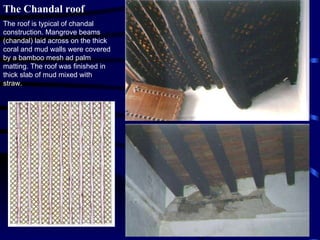

The Chandal roof The roof is typical of chandal construction. Mangrove beams (chandal) laid across on the thick coral and mud walls were covered by a bamboo mesh ad palm matting. The roof was finished in thick slab of mud mixed with straw.

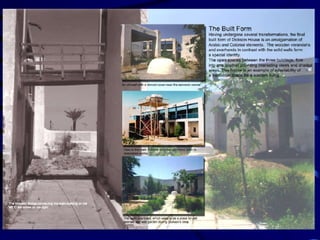

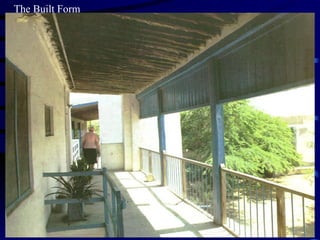

The Built Form

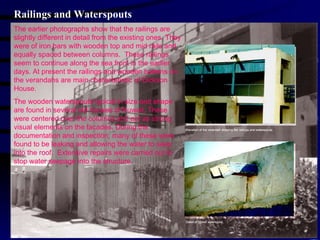

Railings and Waterspouts The earlier photographs show that the railings are slightly different in detail from the existing ones. They were of iron bars with wooden top and mid rails and equally spaced between columns.  These railings seem to continue along the sea front in the earlier days. At present the railings and wooden battens on the verandahs are main characteristic of Dickson House. The wooden waterspouts typical in size and shape are found in several old houses of Kuwait. These were centered over the columns and act as strong visual elements on the facades. During the documentation and inspection, many of these were found to be leaking and allowing the water to seep into the roof.  Extensive repairs were carried out to stop water seepage into the structure.

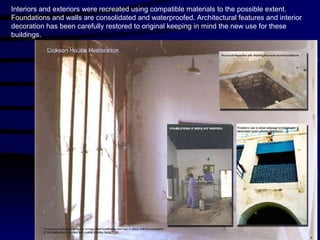

Interiors and exteriors were recreated using compatible materials to the possible extent. Foundations and walls are consolidated and waterproofed. Architectural features and interior decoration has been carefully restored to original keeping in mind the new use for these buildings.
END

More Related Content

What's hot

Indo saracenic architecture
Indo saracenic architectureIndo saracenic architecture
Indo saracenic architectureShivika Gulati

Architecture Art and Craft Movement
Architecture Art and Craft MovementArchitecture Art and Craft Movement
Architecture Art and Craft MovementShajeeah Daarain

Impact of industrial revolution in architecture
Impact of industrial revolution in architectureImpact of industrial revolution in architecture
Impact of industrial revolution in architectureShabna Azeez

British colonial architecture
British colonial architectureBritish colonial architecture
British colonial architectureRajat Nainwal

Art Nouveau and Antoni Gaudi
Art Nouveau and Antoni GaudiArt Nouveau and Antoni Gaudi
Art Nouveau and Antoni GaudiDaniPintado

Louis sullivan- "father of skyscrapers” "father of modernism“
Louis sullivan- "father of skyscrapers” "father of modernism“Louis sullivan- "father of skyscrapers” "father of modernism“
Louis sullivan- "father of skyscrapers” "father of modernism“Sarthak Kaura

Chapter 3.4_ Art Deco.pdf
Chapter 3.4_  Art Deco.pdfChapter 3.4_  Art Deco.pdf
Chapter 3.4_ Art Deco.pdfcricketreview

Mario botta
Mario botta Mario botta
Mario botta POOJAAM

kutchh bhunga architecture
kutchh bhunga architecturekutchh bhunga architecture
kutchh bhunga architectureMadhulika Sanyal

Digital Architecture, Architectural photography and the Impacts of social med...
Digital Architecture, Architectural photography and the Impacts of social med...Digital Architecture, Architectural photography and the Impacts of social med...
Digital Architecture, Architectural photography and the Impacts of social med...Ogbuagu Kelechi Uchamma

Walter Gropius: Biography, Phylosophy, Works and The Bauhaus
Walter Gropius: Biography, Phylosophy, Works and The BauhausWalter Gropius: Biography, Phylosophy, Works and The Bauhaus
Walter Gropius: Biography, Phylosophy, Works and The BauhausSumit Ranjan

Unite'd habitation, Le corbusier.
Unite'd habitation, Le corbusier.Unite'd habitation, Le corbusier.
Unite'd habitation, Le corbusier.Mayur Waghulde

F.L. Wright - Architecture
F.L. Wright - ArchitectureF.L. Wright - Architecture
F.L. Wright - ArchitectureMansi Pushpakar


What's hot (20)

Indo saracenic architecture
Indo saracenic architectureIndo saracenic architecture
Indo saracenic architecture

Walter gropius
Walter gropiusWalter gropius
Walter gropius

Architecture Art and Craft Movement
Architecture Art and Craft MovementArchitecture Art and Craft Movement
Architecture Art and Craft Movement

Impact of industrial revolution in architecture
Impact of industrial revolution in architectureImpact of industrial revolution in architecture
Impact of industrial revolution in architecture

British colonial architecture
British colonial architectureBritish colonial architecture
British colonial architecture

Art Nouveau and Antoni Gaudi
Art Nouveau and Antoni GaudiArt Nouveau and Antoni Gaudi
Art Nouveau and Antoni Gaudi

Adolf Loos
Adolf LoosAdolf Loos
Adolf Loos

Louis sullivan- "father of skyscrapers” "father of modernism“
Louis sullivan- "father of skyscrapers” "father of modernism“Louis sullivan- "father of skyscrapers” "father of modernism“
Louis sullivan- "father of skyscrapers” "father of modernism“

Chapter 3.4_ Art Deco.pdf
Chapter 3.4_  Art Deco.pdfChapter 3.4_  Art Deco.pdf
Chapter 3.4_ Art Deco.pdf

AR. WALTER GROPIUS
AR. WALTER GROPIUSAR. WALTER GROPIUS
AR. WALTER GROPIUS

Philosophies of le corbusier
Philosophies of  le corbusierPhilosophies of  le corbusier
Philosophies of le corbusier

Mario botta
Mario botta Mario botta
Mario botta

Daniel lebiskind
Daniel lebiskindDaniel lebiskind
Daniel lebiskind

kutchh bhunga architecture
kutchh bhunga architecturekutchh bhunga architecture
kutchh bhunga architecture

Digital Architecture, Architectural photography and the Impacts of social med...
Digital Architecture, Architectural photography and the Impacts of social med...Digital Architecture, Architectural photography and the Impacts of social med...
Digital Architecture, Architectural photography and the Impacts of social med...

Walter Gropius: Biography, Phylosophy, Works and The Bauhaus
Walter Gropius: Biography, Phylosophy, Works and The BauhausWalter Gropius: Biography, Phylosophy, Works and The Bauhaus
Walter Gropius: Biography, Phylosophy, Works and The Bauhaus

Villa savoye
Villa savoye Villa savoye
Villa savoye

Modernism
ModernismModernism
Modernism

Unite'd habitation, Le corbusier.
Unite'd habitation, Le corbusier.Unite'd habitation, Le corbusier.
Unite'd habitation, Le corbusier.

F.L. Wright - Architecture
F.L. Wright - ArchitectureF.L. Wright - Architecture
F.L. Wright - Architecture


Similar to Dickson House Restoration Project

HISTORY OF THE LAND TITLES BUILDING
HISTORY OF THE LAND TITLES BUILDINGHISTORY OF THE LAND TITLES BUILDING
HISTORY OF THE LAND TITLES BUILDINGYvette Moore S.O.M.

Cape cod house an architectural style of simplicity and elegance!
Cape cod house an architectural style of simplicity and elegance!Cape cod house an architectural style of simplicity and elegance!
Cape cod house an architectural style of simplicity and elegance!SophiaJohnson29

Casestudy of falling water
Casestudy of falling waterCasestudy of falling water
Casestudy of falling waterTami Saher

Falling water (Frank Lloyd Wright)
Falling water (Frank Lloyd Wright)Falling water (Frank Lloyd Wright)
Falling water (Frank Lloyd Wright)Tehreem Saher

American Architecture Presentation
American Architecture PresentationAmerican Architecture Presentation
American Architecture PresentationNicole Stebnitz

Exercise 3.3 - Vernacular Architecture
Exercise 3.3 - Vernacular ArchitectureExercise 3.3 - Vernacular Architecture
Exercise 3.3 - Vernacular ArchitectureLouiseFlay

Vernacular architecture case study with examples
Vernacular architecture case study with examplesVernacular architecture case study with examples
Vernacular architecture case study with examplesVISHAKA BOTHRA

Lecture21 Traditional Architecture Of Kuwait And The Reg C Ym
Lecture21 Traditional Architecture Of Kuwait And The Reg C YmLecture21 Traditional Architecture Of Kuwait And The Reg C Ym
Lecture21 Traditional Architecture Of Kuwait And The Reg C YmGalala University

dispensary theory
dispensary theory dispensary theory
dispensary theory HugoCopire1

different building structures in jammu & kashmir
different building structures in jammu & kashmirdifferent building structures in jammu & kashmir
different building structures in jammu & kashmirshayiqRashid

Architecture of new zealand
Architecture of new zealandArchitecture of new zealand
Architecture of new zealandrachelletriste

Luxury Property: Heath Hall, Bishops Avenue, London
Luxury Property: Heath Hall, Bishops Avenue, LondonLuxury Property: Heath Hall, Bishops Avenue, London
Luxury Property: Heath Hall, Bishops Avenue, LondonKnight Frank LLP

Leptis magna ruins
Leptis magna ruinsLeptis magna ruins
Leptis magna ruinsDavid Sankey


Similar to Dickson House Restoration Project (20)

HISTORY OF THE LAND TITLES BUILDING
HISTORY OF THE LAND TITLES BUILDINGHISTORY OF THE LAND TITLES BUILDING
HISTORY OF THE LAND TITLES BUILDING

Cape cod house an architectural style of simplicity and elegance!
Cape cod house an architectural style of simplicity and elegance!Cape cod house an architectural style of simplicity and elegance!
Cape cod house an architectural style of simplicity and elegance!

Blackwell house
Blackwell houseBlackwell house
Blackwell house

Casestudy of falling water
Casestudy of falling waterCasestudy of falling water
Casestudy of falling water

Falling water (Frank Lloyd Wright)
Falling water (Frank Lloyd Wright)Falling water (Frank Lloyd Wright)
Falling water (Frank Lloyd Wright)

American Architecture Presentation
American Architecture PresentationAmerican Architecture Presentation
American Architecture Presentation

Exercise 3.3 - Vernacular Architecture
Exercise 3.3 - Vernacular ArchitectureExercise 3.3 - Vernacular Architecture
Exercise 3.3 - Vernacular Architecture

Vernacular architecture case study with examples
Vernacular architecture case study with examplesVernacular architecture case study with examples
Vernacular architecture case study with examples

Brochure 2016 for email
Brochure 2016 for emailBrochure 2016 for email
Brochure 2016 for email

Lecture21 Traditional Architecture Of Kuwait And The Reg C Ym
Lecture21 Traditional Architecture Of Kuwait And The Reg C YmLecture21 Traditional Architecture Of Kuwait And The Reg C Ym
Lecture21 Traditional Architecture Of Kuwait And The Reg C Ym

MACO Sourcebook 2013
MACO Sourcebook 2013MACO Sourcebook 2013
MACO Sourcebook 2013

dispensary theory
dispensary theory dispensary theory
dispensary theory

different building structures in jammu & kashmir
different building structures in jammu & kashmirdifferent building structures in jammu & kashmir
different building structures in jammu & kashmir

Salt Lake Costume Project (1701 S 1100 E)
Salt Lake Costume Project (1701 S 1100 E)Salt Lake Costume Project (1701 S 1100 E)
Salt Lake Costume Project (1701 S 1100 E)

What Classifies Victorian House
What Classifies Victorian House What Classifies Victorian House
What Classifies Victorian House

Architecture of new zealand
Architecture of new zealandArchitecture of new zealand
Architecture of new zealand

What style is your home?
What style is your home?What style is your home?
What style is your home?

Tour ppt (2)
Tour ppt (2)Tour ppt (2)
Tour ppt (2)

Luxury Property: Heath Hall, Bishops Avenue, London
Luxury Property: Heath Hall, Bishops Avenue, LondonLuxury Property: Heath Hall, Bishops Avenue, London
Luxury Property: Heath Hall, Bishops Avenue, London

Leptis magna ruins
Leptis magna ruinsLeptis magna ruins
Leptis magna ruins


More from Galala University

Architecture and Architects in Egypt b
Architecture and Architects in Egypt bArchitecture and Architects in Egypt b
Architecture and Architects in Egypt bGalala University

Architecture and Architects in Egypt a
Architecture and Architects in Egypt aArchitecture and Architects in Egypt a
Architecture and Architects in Egypt aGalala University

Impact of Climate and Environment Changes on the Sustainability of the Coasta...
Impact of Climate and Environment Changes on the Sustainability of the Coasta...Impact of Climate and Environment Changes on the Sustainability of the Coasta...
Impact of Climate and Environment Changes on the Sustainability of the Coasta...Galala University

Sustainability of Tourism Development in the city of Ain-Sukhna, Egypt
Sustainability of Tourism Development in the city of Ain-Sukhna, EgyptSustainability of Tourism Development in the city of Ain-Sukhna, Egypt
Sustainability of Tourism Development in the city of Ain-Sukhna, EgyptGalala University

Sustainability of Tourism Development in Al Ain Al Sukhna, Egypt Yasser Mahgo...
Sustainability of Tourism Development in Al Ain Al Sukhna, Egypt Yasser Mahgo...Sustainability of Tourism Development in Al Ain Al Sukhna, Egypt Yasser Mahgo...
Sustainability of Tourism Development in Al Ain Al Sukhna, Egypt Yasser Mahgo...Galala University

Typologies of Urban Development in Sukhna-Zaafarana Area.pdf
Typologies of Urban Development in Sukhna-Zaafarana Area.pdfTypologies of Urban Development in Sukhna-Zaafarana Area.pdf
Typologies of Urban Development in Sukhna-Zaafarana Area.pdfGalala University

AI-Human Dialogue for Architectural Design Concept Generation presentation 26...
AI-Human Dialogue for Architectural Design Concept Generation presentation 26...AI-Human Dialogue for Architectural Design Concept Generation presentation 26...
AI-Human Dialogue for Architectural Design Concept Generation presentation 26...Galala University

Arc341 building 3 spring 2019 lecture 5 - surface active - chapter 4
Arc341 building 3 spring 2019   lecture 5 - surface active - chapter 4Arc341 building 3 spring 2019   lecture 5 - surface active - chapter 4
Arc341 building 3 spring 2019 lecture 5 - surface active - chapter 4Galala University

Arc341 building 3 spring 2019 lecture 4 - section active - chapter 3
Arc341 building 3 spring 2019   lecture 4 - section active - chapter 3Arc341 building 3 spring 2019   lecture 4 - section active - chapter 3
Arc341 building 3 spring 2019 lecture 4 - section active - chapter 3Galala University

Arc341 building 3 spring 2019 lecture 3 - vector-active - chapter 2
Arc341 building 3 spring 2019   lecture 3 - vector-active - chapter 2Arc341 building 3 spring 2019   lecture 3 - vector-active - chapter 2
Arc341 building 3 spring 2019 lecture 3 - vector-active - chapter 2Galala University

Arc341 building 3 spring 2019 lecture 2 - basics - chapter 0
Arc341 building 3 spring 2019   lecture 2 - basics - chapter 0Arc341 building 3 spring 2019   lecture 2 - basics - chapter 0
Arc341 building 3 spring 2019 lecture 2 - basics - chapter 0Galala University

Arc341 building 3 spring 2019 lecture 1 - introduction to structures
Arc341 building 3 spring 2019   lecture 1 - introduction to structuresArc341 building 3 spring 2019   lecture 1 - introduction to structures
Arc341 building 3 spring 2019 lecture 1 - introduction to structuresGalala University

Fue theory 4 2018 lecture 5 - the formulation and analysis of architectural...
Fue theory 4 2018   lecture 5 - the formulation and analysis of architectural...Fue theory 4 2018   lecture 5 - the formulation and analysis of architectural...
Fue theory 4 2018 lecture 5 - the formulation and analysis of architectural...Galala University

Fue theory 4 2018 lecture 4 - the formulation and analysis of architectural...
Fue theory 4 2018   lecture 4 - the formulation and analysis of architectural...Fue theory 4 2018   lecture 4 - the formulation and analysis of architectural...
Fue theory 4 2018 lecture 4 - the formulation and analysis of architectural...Galala University

Fue theory 4 2018 lecture 3 - architectural timeline
Fue theory 4 2018   lecture 3 - architectural timelineFue theory 4 2018   lecture 3 - architectural timeline
Fue theory 4 2018 lecture 3 - architectural timelineGalala University

Fue theory 4 2018 lecture 2 - history of theory
Fue theory 4 2018   lecture 2 - history of theoryFue theory 4 2018   lecture 2 - history of theory
Fue theory 4 2018 lecture 2 - history of theoryGalala University

Fue theory 4 2018 lecture 1- introduction
Fue theory 4 2018   lecture 1- introductionFue theory 4 2018   lecture 1- introduction
Fue theory 4 2018 lecture 1- introductionGalala University

Fue theory 4 2018 lecture 6 - synthesis of the design concept- different te...
Fue theory 4 2018   lecture 6 - synthesis of the design concept- different te...Fue theory 4 2018   lecture 6 - synthesis of the design concept- different te...
Fue theory 4 2018 lecture 6 - synthesis of the design concept- different te...Galala University

Arc 323 human studies in architecture fall 2018 lecture 9-topics 2
Arc 323 human studies in architecture fall 2018 lecture 9-topics 2Arc 323 human studies in architecture fall 2018 lecture 9-topics 2
Arc 323 human studies in architecture fall 2018 lecture 9-topics 2Galala University

Arc 323 human studies in architecture fall 2018 lecture 8-topics 1
Arc 323 human studies in architecture fall 2018 lecture 8-topics 1Arc 323 human studies in architecture fall 2018 lecture 8-topics 1
Arc 323 human studies in architecture fall 2018 lecture 8-topics 1Galala University


More from Galala University (20)

Architecture and Architects in Egypt b
Architecture and Architects in Egypt bArchitecture and Architects in Egypt b
Architecture and Architects in Egypt b

Architecture and Architects in Egypt a
Architecture and Architects in Egypt aArchitecture and Architects in Egypt a
Architecture and Architects in Egypt a

Impact of Climate and Environment Changes on the Sustainability of the Coasta...
Impact of Climate and Environment Changes on the Sustainability of the Coasta...Impact of Climate and Environment Changes on the Sustainability of the Coasta...
Impact of Climate and Environment Changes on the Sustainability of the Coasta...

Sustainability of Tourism Development in the city of Ain-Sukhna, Egypt
Sustainability of Tourism Development in the city of Ain-Sukhna, EgyptSustainability of Tourism Development in the city of Ain-Sukhna, Egypt
Sustainability of Tourism Development in the city of Ain-Sukhna, Egypt

Sustainability of Tourism Development in Al Ain Al Sukhna, Egypt Yasser Mahgo...
Sustainability of Tourism Development in Al Ain Al Sukhna, Egypt Yasser Mahgo...Sustainability of Tourism Development in Al Ain Al Sukhna, Egypt Yasser Mahgo...
Sustainability of Tourism Development in Al Ain Al Sukhna, Egypt Yasser Mahgo...

Typologies of Urban Development in Sukhna-Zaafarana Area.pdf
Typologies of Urban Development in Sukhna-Zaafarana Area.pdfTypologies of Urban Development in Sukhna-Zaafarana Area.pdf
Typologies of Urban Development in Sukhna-Zaafarana Area.pdf

AI-Human Dialogue for Architectural Design Concept Generation presentation 26...
AI-Human Dialogue for Architectural Design Concept Generation presentation 26...AI-Human Dialogue for Architectural Design Concept Generation presentation 26...
AI-Human Dialogue for Architectural Design Concept Generation presentation 26...

Arc341 building 3 spring 2019 lecture 5 - surface active - chapter 4
Arc341 building 3 spring 2019   lecture 5 - surface active - chapter 4Arc341 building 3 spring 2019   lecture 5 - surface active - chapter 4
Arc341 building 3 spring 2019 lecture 5 - surface active - chapter 4

Arc341 building 3 spring 2019 lecture 4 - section active - chapter 3
Arc341 building 3 spring 2019   lecture 4 - section active - chapter 3Arc341 building 3 spring 2019   lecture 4 - section active - chapter 3
Arc341 building 3 spring 2019 lecture 4 - section active - chapter 3

Arc341 building 3 spring 2019 lecture 3 - vector-active - chapter 2
Arc341 building 3 spring 2019   lecture 3 - vector-active - chapter 2Arc341 building 3 spring 2019   lecture 3 - vector-active - chapter 2
Arc341 building 3 spring 2019 lecture 3 - vector-active - chapter 2

Arc341 building 3 spring 2019 lecture 2 - basics - chapter 0
Arc341 building 3 spring 2019   lecture 2 - basics - chapter 0Arc341 building 3 spring 2019   lecture 2 - basics - chapter 0
Arc341 building 3 spring 2019 lecture 2 - basics - chapter 0

Arc341 building 3 spring 2019 lecture 1 - introduction to structures
Arc341 building 3 spring 2019   lecture 1 - introduction to structuresArc341 building 3 spring 2019   lecture 1 - introduction to structures
Arc341 building 3 spring 2019 lecture 1 - introduction to structures

Fue theory 4 2018 lecture 5 - the formulation and analysis of architectural...
Fue theory 4 2018   lecture 5 - the formulation and analysis of architectural...Fue theory 4 2018   lecture 5 - the formulation and analysis of architectural...
Fue theory 4 2018 lecture 5 - the formulation and analysis of architectural...

Fue theory 4 2018 lecture 4 - the formulation and analysis of architectural...
Fue theory 4 2018   lecture 4 - the formulation and analysis of architectural...Fue theory 4 2018   lecture 4 - the formulation and analysis of architectural...
Fue theory 4 2018 lecture 4 - the formulation and analysis of architectural...

Fue theory 4 2018 lecture 3 - architectural timeline
Fue theory 4 2018   lecture 3 - architectural timelineFue theory 4 2018   lecture 3 - architectural timeline
Fue theory 4 2018 lecture 3 - architectural timeline

Fue theory 4 2018 lecture 2 - history of theory
Fue theory 4 2018   lecture 2 - history of theoryFue theory 4 2018   lecture 2 - history of theory
Fue theory 4 2018 lecture 2 - history of theory

Fue theory 4 2018 lecture 1- introduction
Fue theory 4 2018   lecture 1- introductionFue theory 4 2018   lecture 1- introduction
Fue theory 4 2018 lecture 1- introduction

Fue theory 4 2018 lecture 6 - synthesis of the design concept- different te...
Fue theory 4 2018   lecture 6 - synthesis of the design concept- different te...Fue theory 4 2018   lecture 6 - synthesis of the design concept- different te...
Fue theory 4 2018 lecture 6 - synthesis of the design concept- different te...

Arc 323 human studies in architecture fall 2018 lecture 9-topics 2
Arc 323 human studies in architecture fall 2018 lecture 9-topics 2Arc 323 human studies in architecture fall 2018 lecture 9-topics 2
Arc 323 human studies in architecture fall 2018 lecture 9-topics 2

Arc 323 human studies in architecture fall 2018 lecture 8-topics 1
Arc 323 human studies in architecture fall 2018 lecture 8-topics 1Arc 323 human studies in architecture fall 2018 lecture 8-topics 1
Arc 323 human studies in architecture fall 2018 lecture 8-topics 1


Recently uploaded

Kala jadu for love marriage | Real amil baba | Famous amil baba | kala jadu n...
Kala jadu for love marriage | Real amil baba | Famous amil baba | kala jadu n...Kala jadu for love marriage | Real amil baba | Famous amil baba | kala jadu n...
Kala jadu for love marriage | Real amil baba | Famous amil baba | kala jadu n...babafaisel

DragonBall PowerPoint Template for demo.pptx
DragonBall PowerPoint Template for demo.pptxDragonBall PowerPoint Template for demo.pptx
DragonBall PowerPoint Template for demo.pptxmirandajeremy200221

Editorial design Magazine design project.pdf
Editorial design Magazine design project.pdfEditorial design Magazine design project.pdf
Editorial design Magazine design project.pdftbatkhuu1

Cheap Rate Call girls Kalkaji 9205541914 shot 1500 night
Cheap Rate Call girls Kalkaji 9205541914 shot 1500 nightCheap Rate Call girls Kalkaji 9205541914 shot 1500 night
Cheap Rate Call girls Kalkaji 9205541914 shot 1500 nightDelhi Call girls

WAEC Carpentry and Joinery Past Questions
WAEC Carpentry and Joinery Past QuestionsWAEC Carpentry and Joinery Past Questions
WAEC Carpentry and Joinery Past QuestionsCharles Obaleagbon

VIP Call Girls Service Mehdipatnam Hyderabad Call +91-8250192130
VIP Call Girls Service Mehdipatnam Hyderabad Call +91-8250192130VIP Call Girls Service Mehdipatnam Hyderabad Call +91-8250192130
VIP Call Girls Service Mehdipatnam Hyderabad Call +91-8250192130Suhani Kapoor

VVIP Pune Call Girls Hadapsar (7001035870) Pune Escorts Nearby with Complete ...
VVIP Pune Call Girls Hadapsar (7001035870) Pune Escorts Nearby with Complete ...VVIP Pune Call Girls Hadapsar (7001035870) Pune Escorts Nearby with Complete ...
VVIP Pune Call Girls Hadapsar (7001035870) Pune Escorts Nearby with Complete ...Call Girls in Nagpur High Profile

Verified Trusted Call Girls Adugodi💘 9352852248 Good Looking standard Profil...
Verified Trusted Call Girls Adugodi💘 9352852248  Good Looking standard Profil...Verified Trusted Call Girls Adugodi💘 9352852248  Good Looking standard Profil...
Verified Trusted Call Girls Adugodi💘 9352852248 Good Looking standard Profil...kumaririma588

Chapter 19_DDA_TOD Policy_First Draft 2012.pdf
Chapter 19_DDA_TOD Policy_First Draft 2012.pdfChapter 19_DDA_TOD Policy_First Draft 2012.pdf
Chapter 19_DDA_TOD Policy_First Draft 2012.pdfParomita Roy

VIP College Call Girls Gorakhpur Bhavna 8250192130 Independent Escort Service...
VIP College Call Girls Gorakhpur Bhavna 8250192130 Independent Escort Service...VIP College Call Girls Gorakhpur Bhavna 8250192130 Independent Escort Service...
VIP College Call Girls Gorakhpur Bhavna 8250192130 Independent Escort Service...Suhani Kapoor

Best VIP Call Girls Noida Sector 47 Call Me: 8448380779
Best VIP Call Girls Noida Sector 47 Call Me: 8448380779Best VIP Call Girls Noida Sector 47 Call Me: 8448380779
Best VIP Call Girls Noida Sector 47 Call Me: 8448380779Delhi Call girls

VIP Call Girls Service Kukatpally Hyderabad Call +91-8250192130
VIP Call Girls Service Kukatpally Hyderabad Call +91-8250192130VIP Call Girls Service Kukatpally Hyderabad Call +91-8250192130
VIP Call Girls Service Kukatpally Hyderabad Call +91-8250192130Suhani Kapoor

Cheap Rate ➥8448380779 ▻Call Girls In Huda City Centre Gurgaon
Cheap Rate ➥8448380779 ▻Call Girls In Huda City Centre GurgaonCheap Rate ➥8448380779 ▻Call Girls In Huda City Centre Gurgaon
Cheap Rate ➥8448380779 ▻Call Girls In Huda City Centre GurgaonDelhi Call girls

CALL ON ➥8923113531 🔝Call Girls Kalyanpur Lucknow best Female service 🧵
CALL ON ➥8923113531 🔝Call Girls Kalyanpur Lucknow best Female service  🧵CALL ON ➥8923113531 🔝Call Girls Kalyanpur Lucknow best Female service  🧵
CALL ON ➥8923113531 🔝Call Girls Kalyanpur Lucknow best Female service 🧵anilsa9823

CBD Belapur Individual Call Girls In 08976425520 Panvel Only Genuine Call Girls
CBD Belapur Individual Call Girls In 08976425520 Panvel Only Genuine Call GirlsCBD Belapur Individual Call Girls In 08976425520 Panvel Only Genuine Call Girls
CBD Belapur Individual Call Girls In 08976425520 Panvel Only Genuine Call Girlsmodelanjalisharma4

Recommendable # 971589162217 # philippine Young Call Girls in Dubai By Marina...
Recommendable # 971589162217 # philippine Young Call Girls in Dubai By Marina...Recommendable # 971589162217 # philippine Young Call Girls in Dubai By Marina...
Recommendable # 971589162217 # philippine Young Call Girls in Dubai By Marina...home

Cheap Rate Call girls Malviya Nagar 9205541914 shot 1500 night
Cheap Rate Call girls Malviya Nagar 9205541914 shot 1500 nightCheap Rate Call girls Malviya Nagar 9205541914 shot 1500 night
Cheap Rate Call girls Malviya Nagar 9205541914 shot 1500 nightDelhi Call girls

SD_The MATATAG Curriculum Training Design.pptx
SD_The MATATAG Curriculum Training Design.pptxSD_The MATATAG Curriculum Training Design.pptx
SD_The MATATAG Curriculum Training Design.pptxjanettecruzeiro1

Captivating Charm: Exploring Marseille's Hillside Villas with Our 3D Architec...
Captivating Charm: Exploring Marseille's Hillside Villas with Our 3D Architec...Captivating Charm: Exploring Marseille's Hillside Villas with Our 3D Architec...
Captivating Charm: Exploring Marseille's Hillside Villas with Our 3D Architec...Yantram Animation Studio Corporation


Recently uploaded (20)

Kala jadu for love marriage | Real amil baba | Famous amil baba | kala jadu n...
Kala jadu for love marriage | Real amil baba | Famous amil baba | kala jadu n...Kala jadu for love marriage | Real amil baba | Famous amil baba | kala jadu n...
Kala jadu for love marriage | Real amil baba | Famous amil baba | kala jadu n...

DragonBall PowerPoint Template for demo.pptx
DragonBall PowerPoint Template for demo.pptxDragonBall PowerPoint Template for demo.pptx
DragonBall PowerPoint Template for demo.pptx

Editorial design Magazine design project.pdf
Editorial design Magazine design project.pdfEditorial design Magazine design project.pdf
Editorial design Magazine design project.pdf

Cheap Rate Call girls Kalkaji 9205541914 shot 1500 night
Cheap Rate Call girls Kalkaji 9205541914 shot 1500 nightCheap Rate Call girls Kalkaji 9205541914 shot 1500 night
Cheap Rate Call girls Kalkaji 9205541914 shot 1500 night

WAEC Carpentry and Joinery Past Questions
WAEC Carpentry and Joinery Past QuestionsWAEC Carpentry and Joinery Past Questions
WAEC Carpentry and Joinery Past Questions

VIP Call Girls Service Mehdipatnam Hyderabad Call +91-8250192130
VIP Call Girls Service Mehdipatnam Hyderabad Call +91-8250192130VIP Call Girls Service Mehdipatnam Hyderabad Call +91-8250192130
VIP Call Girls Service Mehdipatnam Hyderabad Call +91-8250192130

VVIP Pune Call Girls Hadapsar (7001035870) Pune Escorts Nearby with Complete ...
VVIP Pune Call Girls Hadapsar (7001035870) Pune Escorts Nearby with Complete ...VVIP Pune Call Girls Hadapsar (7001035870) Pune Escorts Nearby with Complete ...
VVIP Pune Call Girls Hadapsar (7001035870) Pune Escorts Nearby with Complete ...

Verified Trusted Call Girls Adugodi💘 9352852248 Good Looking standard Profil...
Verified Trusted Call Girls Adugodi💘 9352852248  Good Looking standard Profil...Verified Trusted Call Girls Adugodi💘 9352852248  Good Looking standard Profil...
Verified Trusted Call Girls Adugodi💘 9352852248 Good Looking standard Profil...

Chapter 19_DDA_TOD Policy_First Draft 2012.pdf
Chapter 19_DDA_TOD Policy_First Draft 2012.pdfChapter 19_DDA_TOD Policy_First Draft 2012.pdf
Chapter 19_DDA_TOD Policy_First Draft 2012.pdf

young call girls in Pandav nagar 🔝 9953056974 🔝 Delhi escort Service
young call girls in Pandav nagar 🔝 9953056974 🔝 Delhi escort Serviceyoung call girls in Pandav nagar 🔝 9953056974 🔝 Delhi escort Service
young call girls in Pandav nagar 🔝 9953056974 🔝 Delhi escort Service

VIP College Call Girls Gorakhpur Bhavna 8250192130 Independent Escort Service...
VIP College Call Girls Gorakhpur Bhavna 8250192130 Independent Escort Service...VIP College Call Girls Gorakhpur Bhavna 8250192130 Independent Escort Service...
VIP College Call Girls Gorakhpur Bhavna 8250192130 Independent Escort Service...

Best VIP Call Girls Noida Sector 47 Call Me: 8448380779
Best VIP Call Girls Noida Sector 47 Call Me: 8448380779Best VIP Call Girls Noida Sector 47 Call Me: 8448380779
Best VIP Call Girls Noida Sector 47 Call Me: 8448380779

VIP Call Girls Service Kukatpally Hyderabad Call +91-8250192130
VIP Call Girls Service Kukatpally Hyderabad Call +91-8250192130VIP Call Girls Service Kukatpally Hyderabad Call +91-8250192130
VIP Call Girls Service Kukatpally Hyderabad Call +91-8250192130

Cheap Rate ➥8448380779 ▻Call Girls In Huda City Centre Gurgaon
Cheap Rate ➥8448380779 ▻Call Girls In Huda City Centre GurgaonCheap Rate ➥8448380779 ▻Call Girls In Huda City Centre Gurgaon
Cheap Rate ➥8448380779 ▻Call Girls In Huda City Centre Gurgaon

CALL ON ➥8923113531 🔝Call Girls Kalyanpur Lucknow best Female service 🧵
CALL ON ➥8923113531 🔝Call Girls Kalyanpur Lucknow best Female service  🧵CALL ON ➥8923113531 🔝Call Girls Kalyanpur Lucknow best Female service  🧵
CALL ON ➥8923113531 🔝Call Girls Kalyanpur Lucknow best Female service 🧵

CBD Belapur Individual Call Girls In 08976425520 Panvel Only Genuine Call Girls
CBD Belapur Individual Call Girls In 08976425520 Panvel Only Genuine Call GirlsCBD Belapur Individual Call Girls In 08976425520 Panvel Only Genuine Call Girls
CBD Belapur Individual Call Girls In 08976425520 Panvel Only Genuine Call Girls

Recommendable # 971589162217 # philippine Young Call Girls in Dubai By Marina...
Recommendable # 971589162217 # philippine Young Call Girls in Dubai By Marina...Recommendable # 971589162217 # philippine Young Call Girls in Dubai By Marina...
Recommendable # 971589162217 # philippine Young Call Girls in Dubai By Marina...

Cheap Rate Call girls Malviya Nagar 9205541914 shot 1500 night
Cheap Rate Call girls Malviya Nagar 9205541914 shot 1500 nightCheap Rate Call girls Malviya Nagar 9205541914 shot 1500 night
Cheap Rate Call girls Malviya Nagar 9205541914 shot 1500 night

SD_The MATATAG Curriculum Training Design.pptx
SD_The MATATAG Curriculum Training Design.pptxSD_The MATATAG Curriculum Training Design.pptx
SD_The MATATAG Curriculum Training Design.pptx

Captivating Charm: Exploring Marseille's Hillside Villas with Our 3D Architec...
Captivating Charm: Exploring Marseille's Hillside Villas with Our 3D Architec...Captivating Charm: Exploring Marseille's Hillside Villas with Our 3D Architec...
Captivating Charm: Exploring Marseille's Hillside Villas with Our 3D Architec...


Dickson House Restoration Project

  • 2. Dickson House Restoration Dickson House is among the most important Heritage Buildings in Kuwait. This building has a unique character that is seen in the ingenious planning and characterization of spaces. The house served as offices and residence of the British Political Agent for more than 50 years and took the present form from the Dickson family who has great attachment to this house. Thus the name Dickson House.
  • 3. Busy Kuwait Port around 1990s
  • 4. Before 1904 The original building is said to be built around 1890's, as a typical Kuwaiti house. Built on coral stone foundations, this was a simple structure with a series of rooms on the ground floor overlooking the sea front. This structure may have had two rooms on the first floor, with a straight staircase leading to them. Ground floor rooms were used for storing goods from sea in those days. The outside structures may have been used as stables. The old house seems to have been connected with some residential structures behind through the open spaces.
  • 5. Around 1915 an annex was added later to the eastern side as a guest room and connected to the main building by a wooden bridge. But during the years of Col.JC. More, the building faced many structural problems and extensive rising dampness had deteriorated. 1915-1928
  • 6. A 1951 aerial photograph of the area around the Dickson House. The traditional buildings are typical of their planning and construction. Most of the houses have a central courtyard with surrounding rooms and arcades. The waterfront was very close to the building causing damp problems since the years of JC.More.
  • 7. The state of the house and repairs carried upon were clearly written in her book “40 years in Kuwait" of Violet Dickson. The repairs were carried out by a Kuwaiti builder Usta Ahmed using traditional materials. He used coral stone and lime mortar to build buttresses along the entire elevation of the main structure. The verandahs were also restored. In spite of these extensive repairs, the heavy winters rains caused major problems to the roof and south wall of the dining room, and had to be rebuilt. Extension of the eastern verandah was also done during this time. 1929-1990 A water color Painting by Col.Dickson painted around 1930's.
  • 8. In 1935 the new British Embassy and residence was completed and Dicksons moved out for a year. After Col. Dickson's retirement as political agent in 1936, at the age of 55, he was appointed by the Amir of Kuwait, Shaikh Ahmad Al-Jabir Al-Sabah as the Chief Local Representative for the newly established Kuwait Oil Company. Col.Dickson had been closely involved with the development of oil exploration in Kuwait. With his new position, Dicksons were invited to come back to their old house. Col. Dickson lived here until his death in 1959. In 1956 with the construction of the Gulf Street, the curved stairs were removed and replaced by a straight flight of steps. Affectionately known as Mother of Saud (Umm Saud) by Kuwaitis, Violet Dickson was made a Dame of the order of the British Empire in 1976. She lived in this house until 1990 when she was reluctantly evacuated to Britain during the Iraqi aggression, where she died in 1991.
  • 9. View of Gulf Street towards Seif Palace.
  • 10. In the past this house was within the quarters of many other old buildings, belonging to the well-known merchants. In the present context, Dickson house is on the Gulf Street overlooking the sea front on one side and modern high rise development on the other. Still being within the vicinity of Planning Ministry complex, Grand Mosque, Amiri Diwan, Dickson house is part of most important Heritage area. The Present Context
  • 11. Living room on First floor Built during the years of Capt. Shakespeare, this room with its fire place is characteristic of a typical colonial house. The wider span was made possible by supporting the wooden rafters over a steel I-section, specially imported from England. Instead of traditional chandal, he used boat building teak.The everyday activities are centered around this particular room. The interior decoration in the old photographs clearly shows Dickson's personal interest of traditional Kuwaiti fabrics and furniture.
  • 12.
  • 13. The Dining room This portion of the structure is rebuilt by Dicksons after the supporting wall was damaged due to heavy rains. A fire place may have been added too during the repairs to this area.
  • 14. The Walls The earliest parts of the building were built using sun dried mud brick approximately of 30cm. x 30cm. The walls were almost three feet thick at places providing natural air-conditioning for the interior spaces. The mortar was simply mud or sometimes mixture of lime and mud. The end walls were usually built using coral stone and lime / mud mortar. Much of the later repairs were carried out using cement block masonry and RCC for roofing by Dicksons.
  • 15. The Mud block walls
  • 16. The Chandal roof The roof is typical of chandal construction. Mangrove beams (chandal) laid across on the thick coral and mud walls were covered by a bamboo mesh ad palm matting. The roof was finished in thick slab of mud mixed with straw.
  • 17.

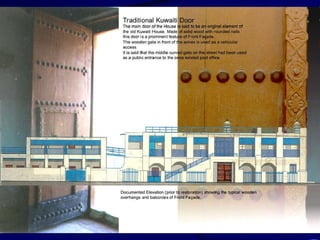

  • 19.
  • 20. Railings and Waterspouts The earlier photographs show that the railings are slightly different in detail from the existing ones. They were of iron bars with wooden top and mid rails and equally spaced between columns. These railings seem to continue along the sea front in the earlier days. At present the railings and wooden battens on the verandahs are main characteristic of Dickson House. The wooden waterspouts typical in size and shape are found in several old houses of Kuwait. These were centered over the columns and act as strong visual elements on the facades. During the documentation and inspection, many of these were found to be leaking and allowing the water to seep into the roof. Extensive repairs were carried out to stop water seepage into the structure.
  • 21. Interiors and exteriors were recreated using compatible materials to the possible extent. Foundations and walls are consolidated and waterproofed. Architectural features and interior decoration has been carefully restored to original keeping in mind the new use for these buildings.
  • 22. END

Editor's Notes

  1. The original building is said to be built around 1890's, as a typical Kuwaiti house. Built on coral stone foundations, this was a simple structure with a series of rooms on the ground floor overlooking the sea front. This structure may have had two rooms on the first floor, with a straight staircase leading to them. Ground floor rooms were used for storing goods from sea in those days. The outside structures may have been used as stables. The old house seems to have been connected with some residential structures behind through the open spaces.
