Configuration as Code: The Job DSL Plugin

Configuration as Code: The Job DSL Plugin
Daniel Spilker – CoreMedia AG

#jenkinsconf
Daniel Spilker
• Works for CoreMedia in Hamburg, Germany
• Software Architect on the Engineering Tools Team
• Maintainer of the
– Job DSL Plugin
– Gradle JPI Plugin

#jenkinsconf

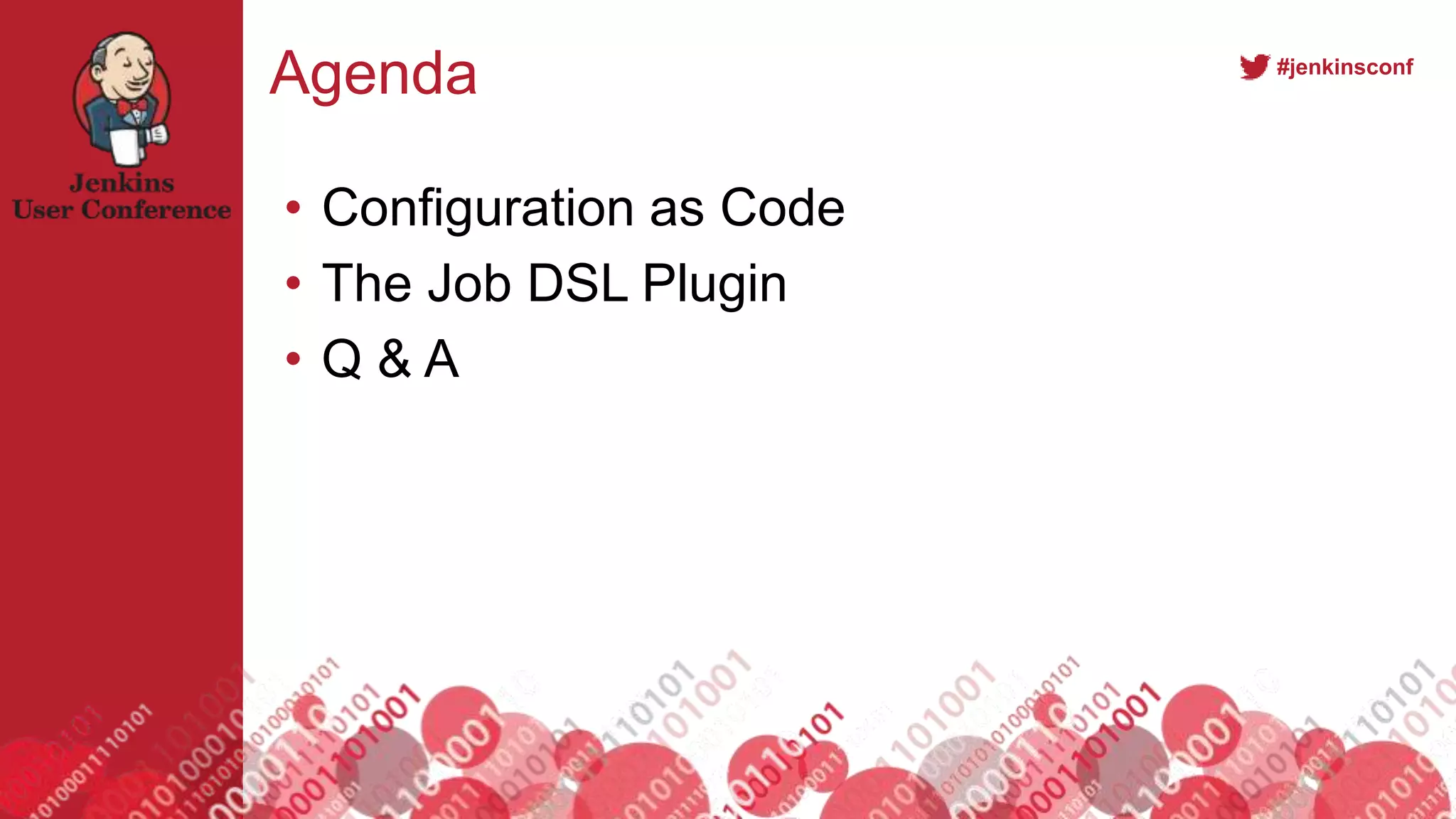

Agenda
• Configuration as Code
• The Job DSL Plugin
• Q & A

#jenkinsconf

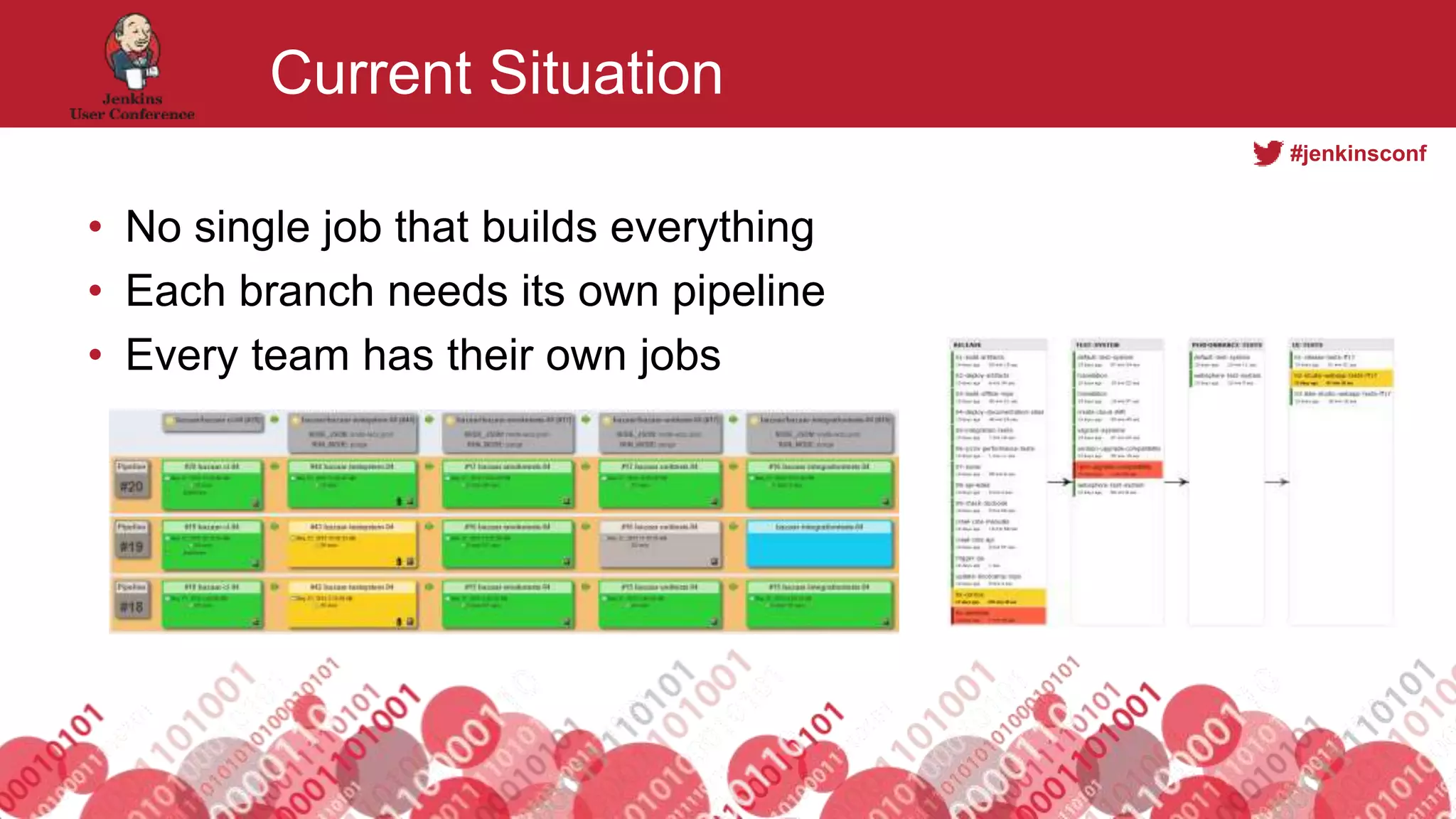

Current Situation
• No single job that builds everything
• Each branch needs its own pipeline
• Every team has their own jobs

#jenkinsconf

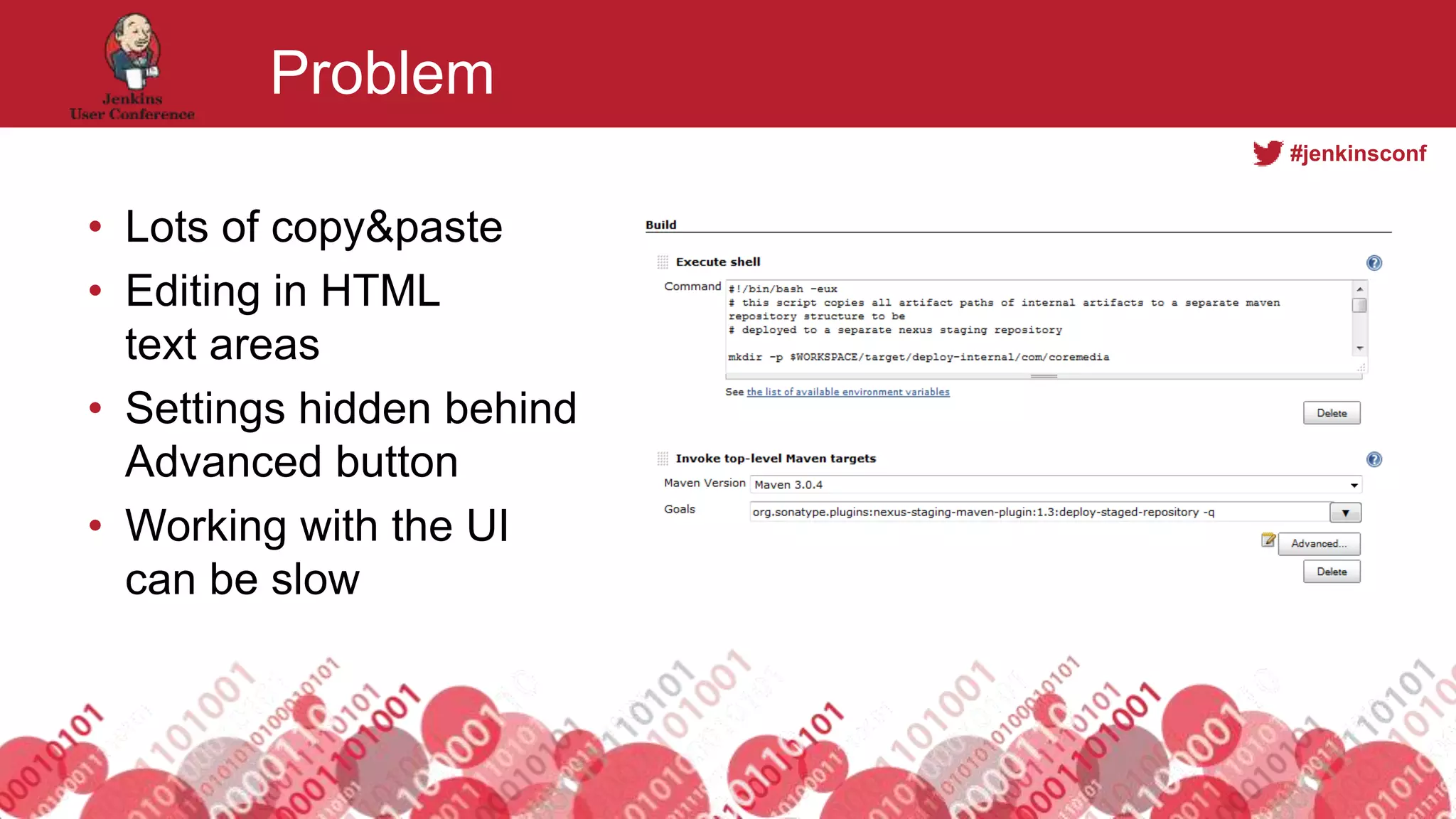

Problem
• Lots of copy&paste
• Editing in HTML
text areas
• Settings hidden behind
Advanced button
• Working with the UI
can be slow

#jenkinsconf

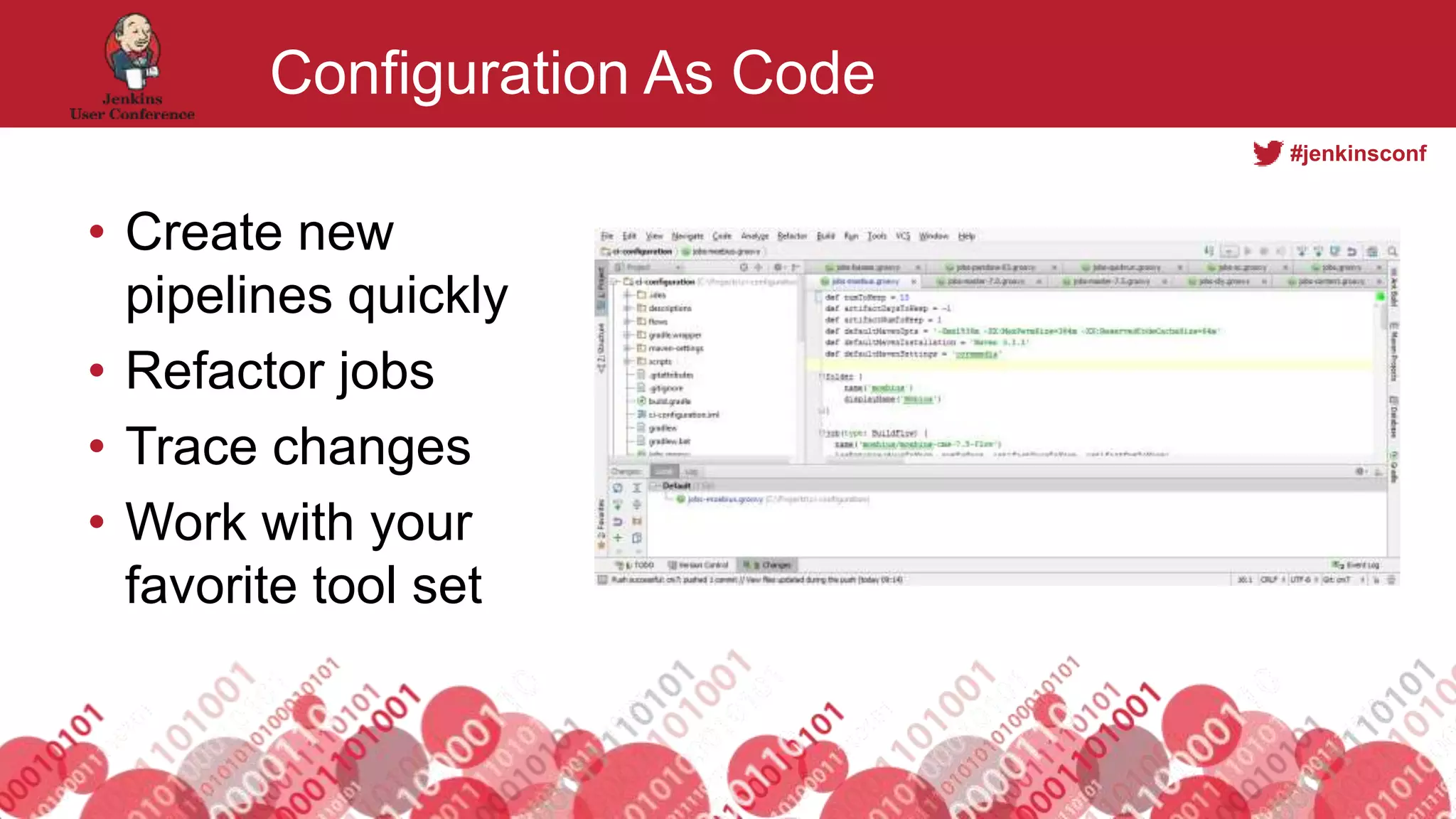

Configuration As Code
• Create new
pipelines quickly
• Refactor jobs
• Trace changes
• Work with your
favorite tool set

#jenkinsconf

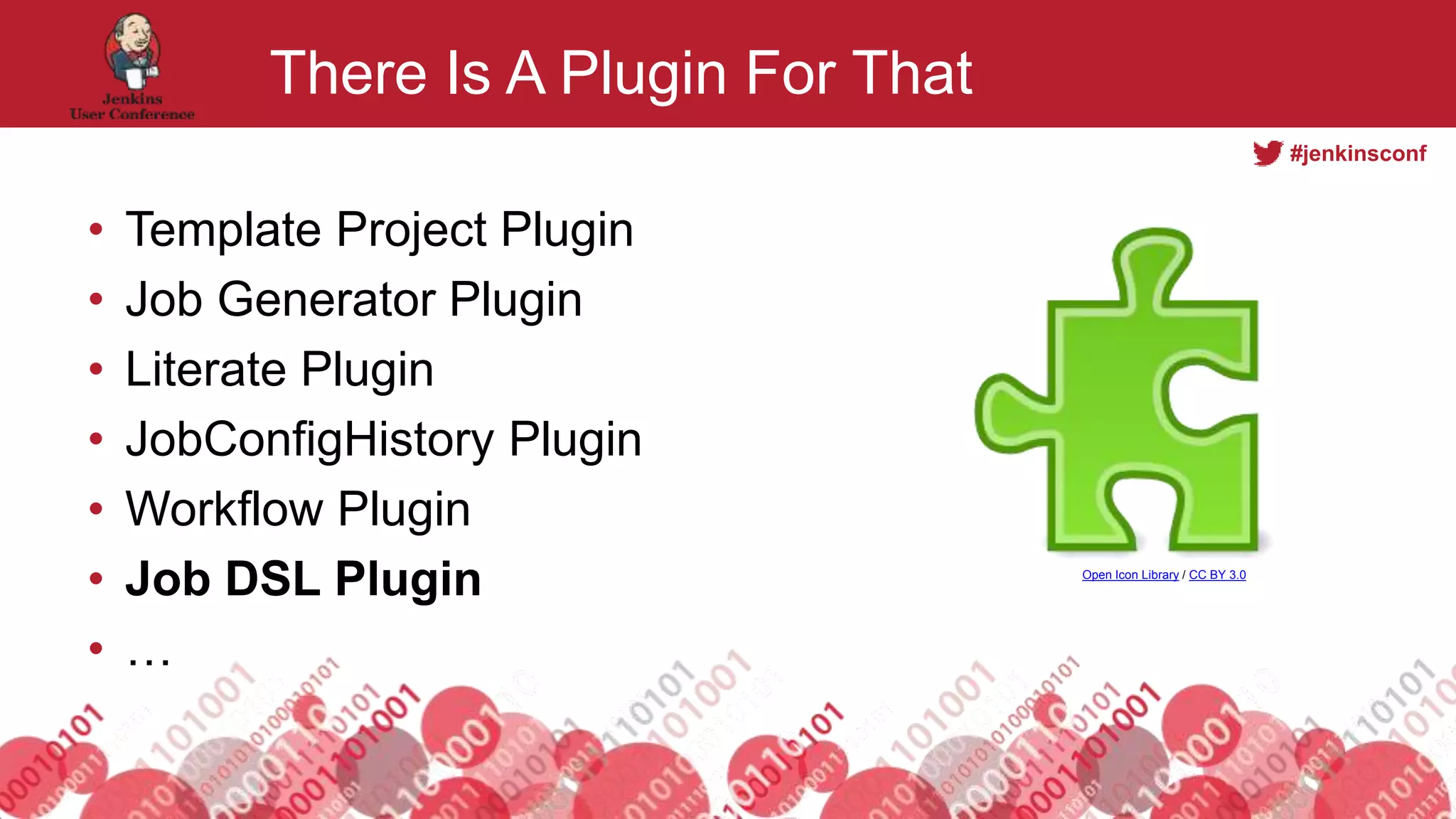

There Is A Plugin For That
• Template Project Plugin
• Job Generator Plugin
• Literate Plugin
• JobConfigHistory Plugin
• Workflow Plugin
• Job DSL Plugin
• …
Open Icon Library / CC BY 3.0

#jenkinsconf

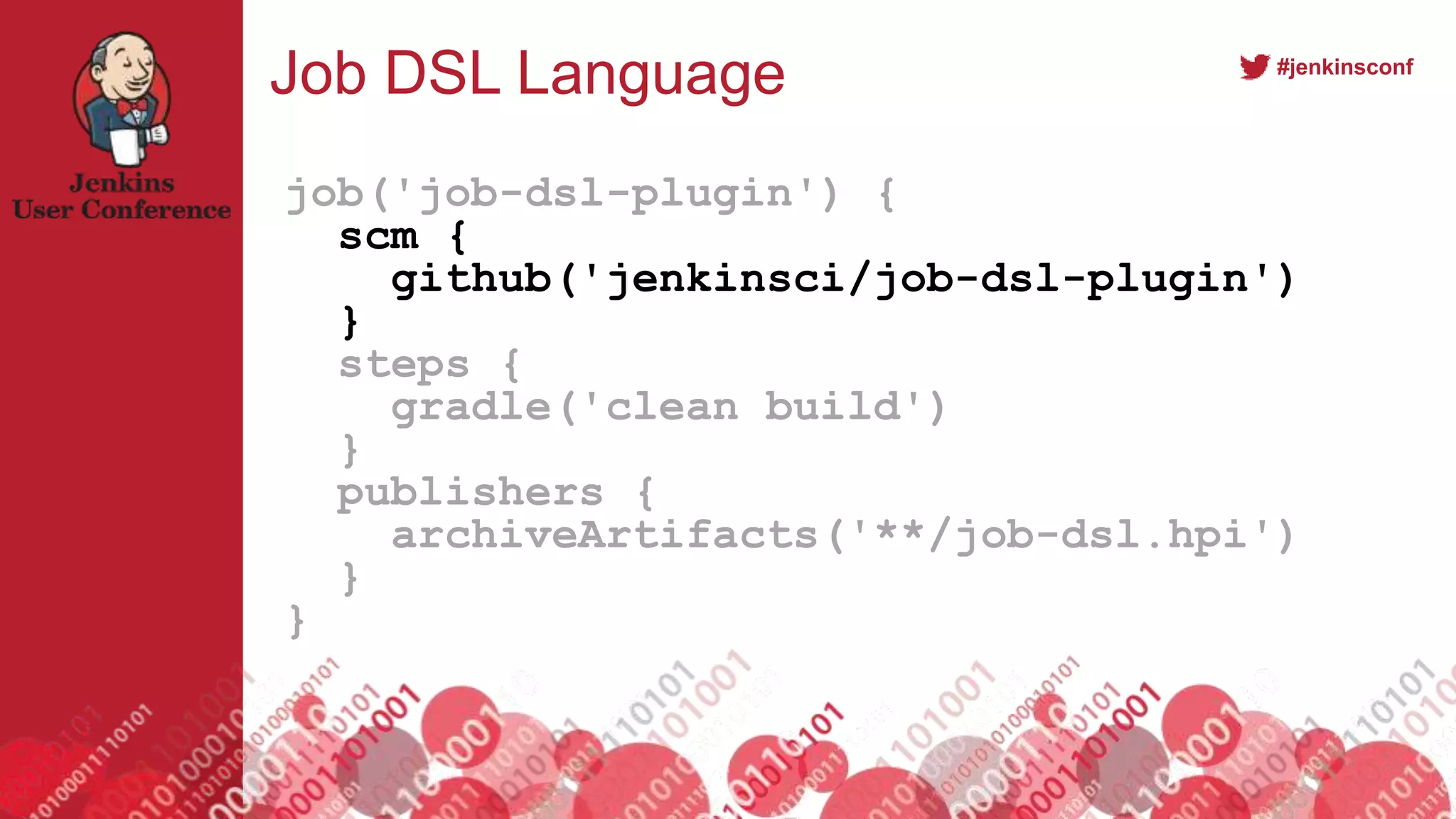

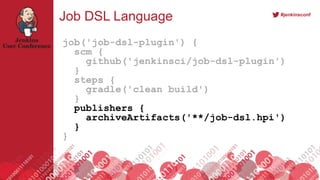

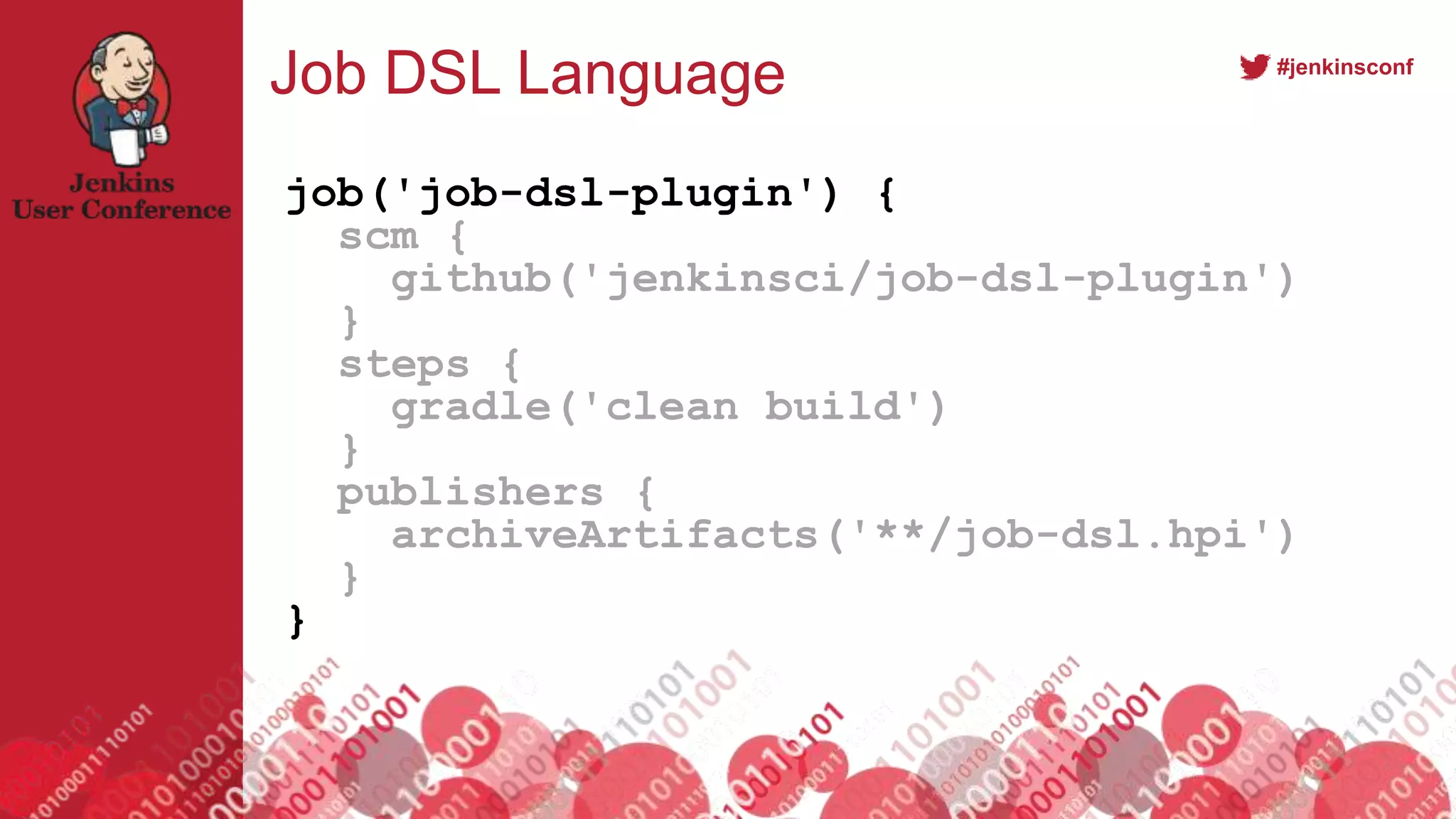

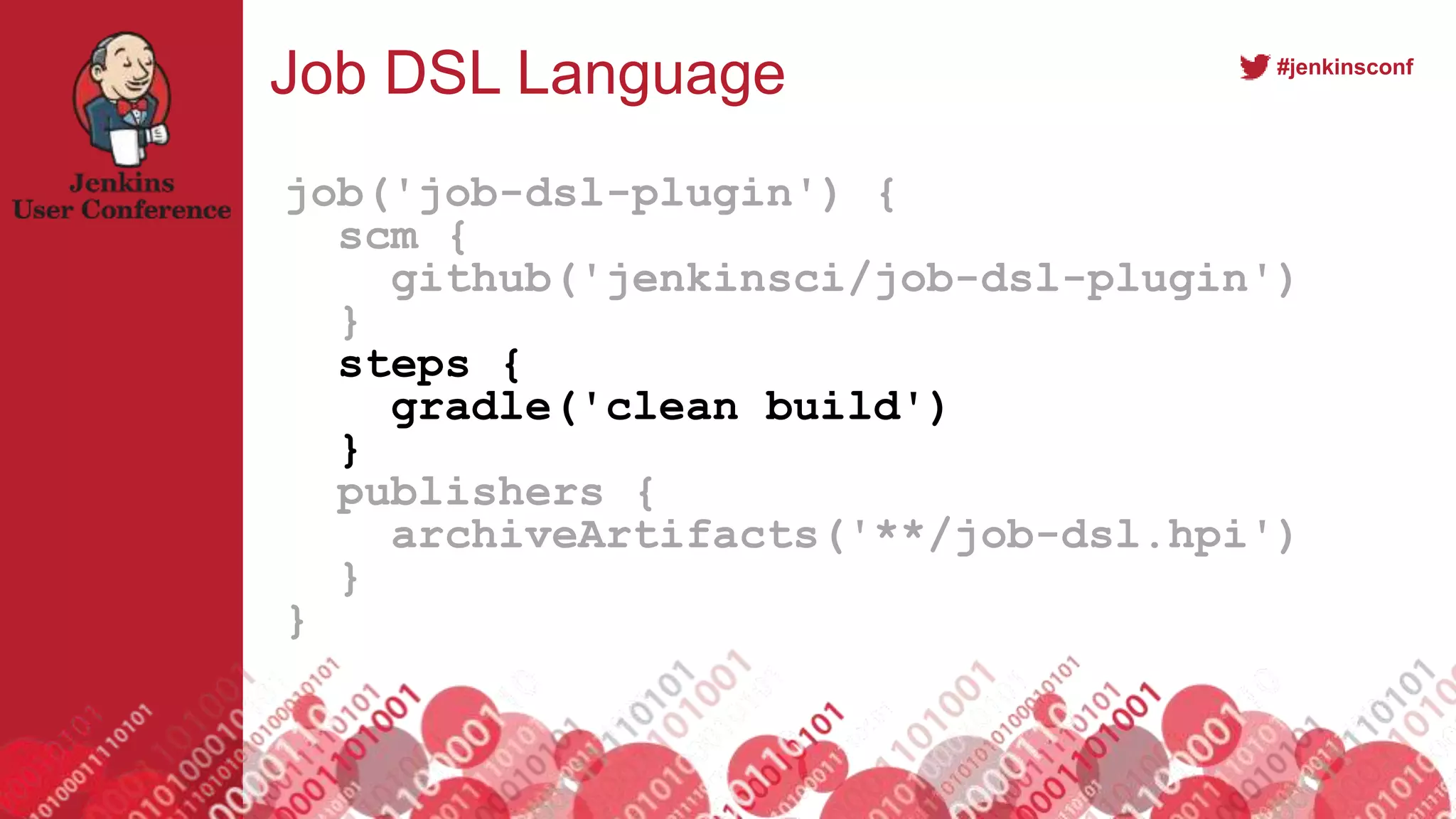

Job DSL Language
job('job-dsl-plugin') {
scm {
github('jenkinsci/job-dsl-plugin')
}
steps {
gradle('clean build')
}
publishers {
archiveArtifacts('**/job-dsl.hpi')
}
}

#jenkinsconf

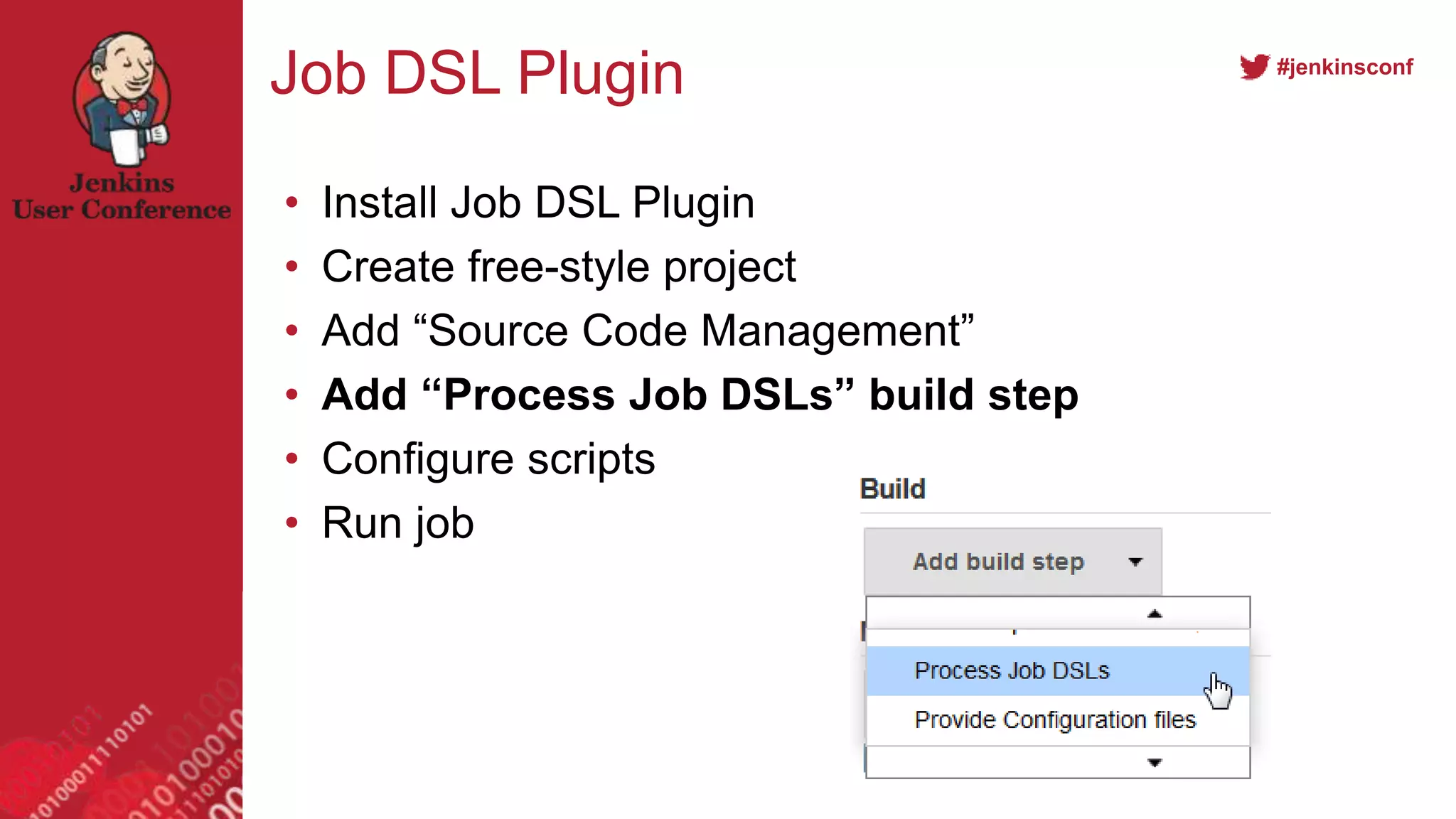

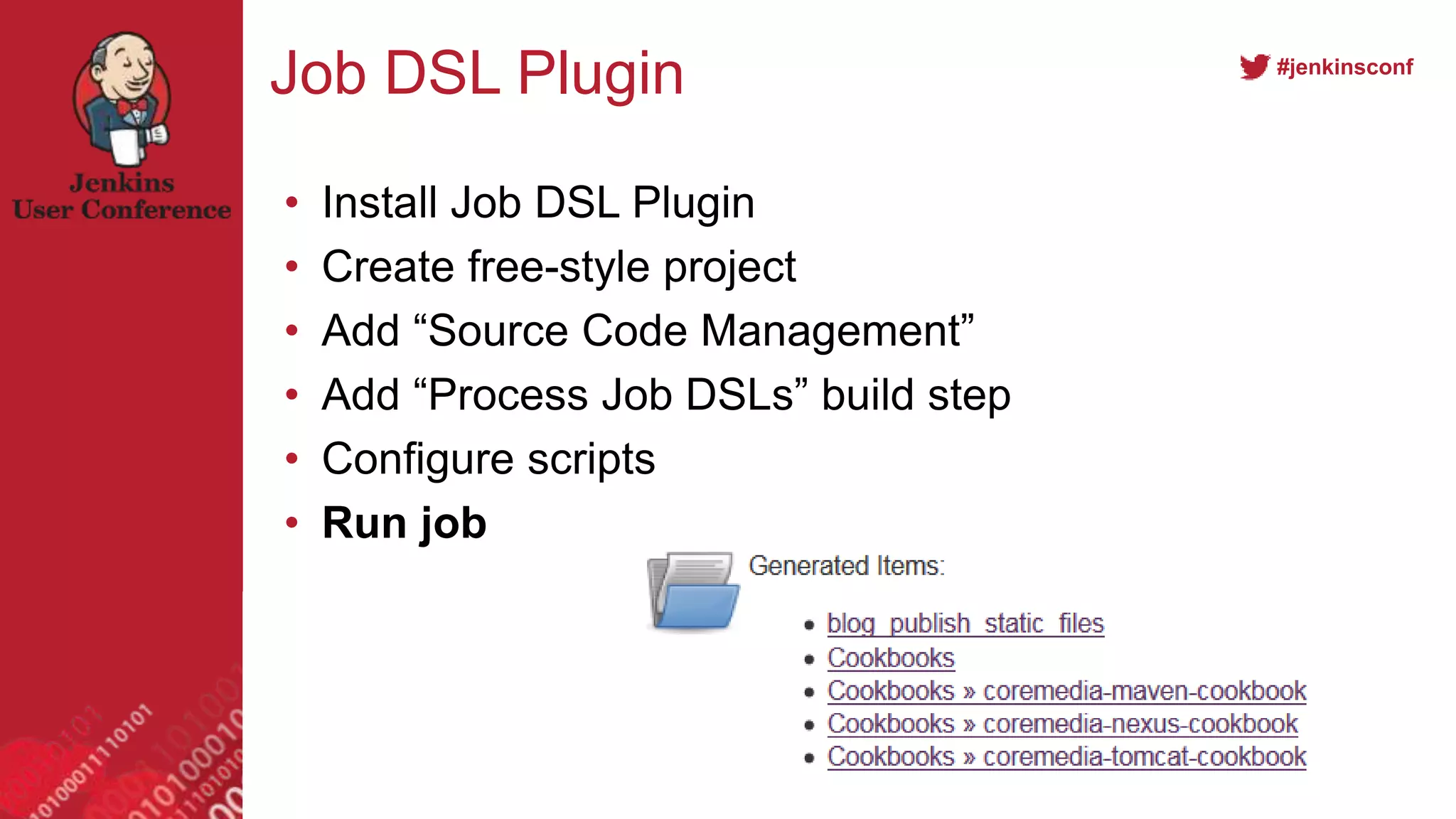

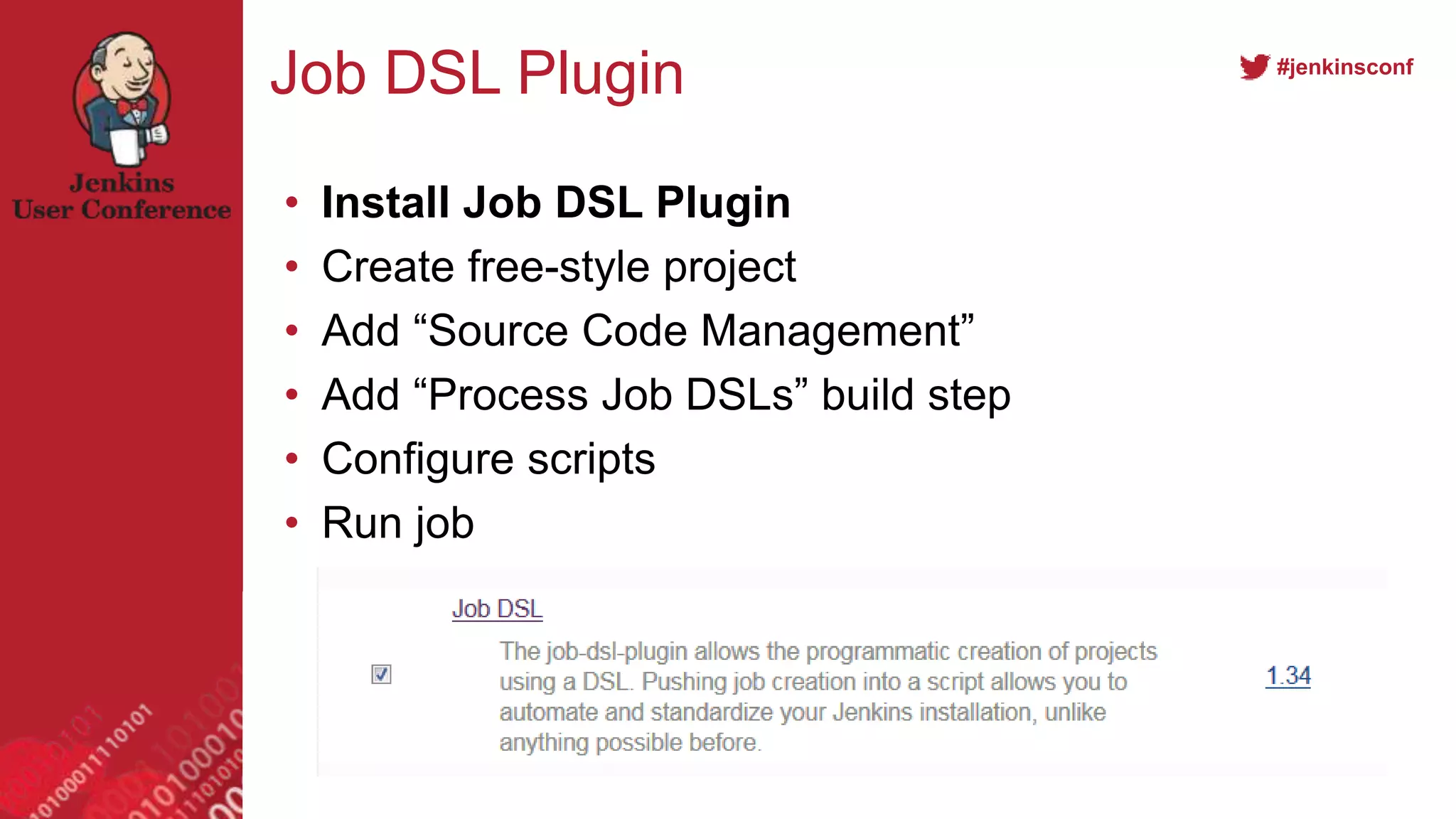

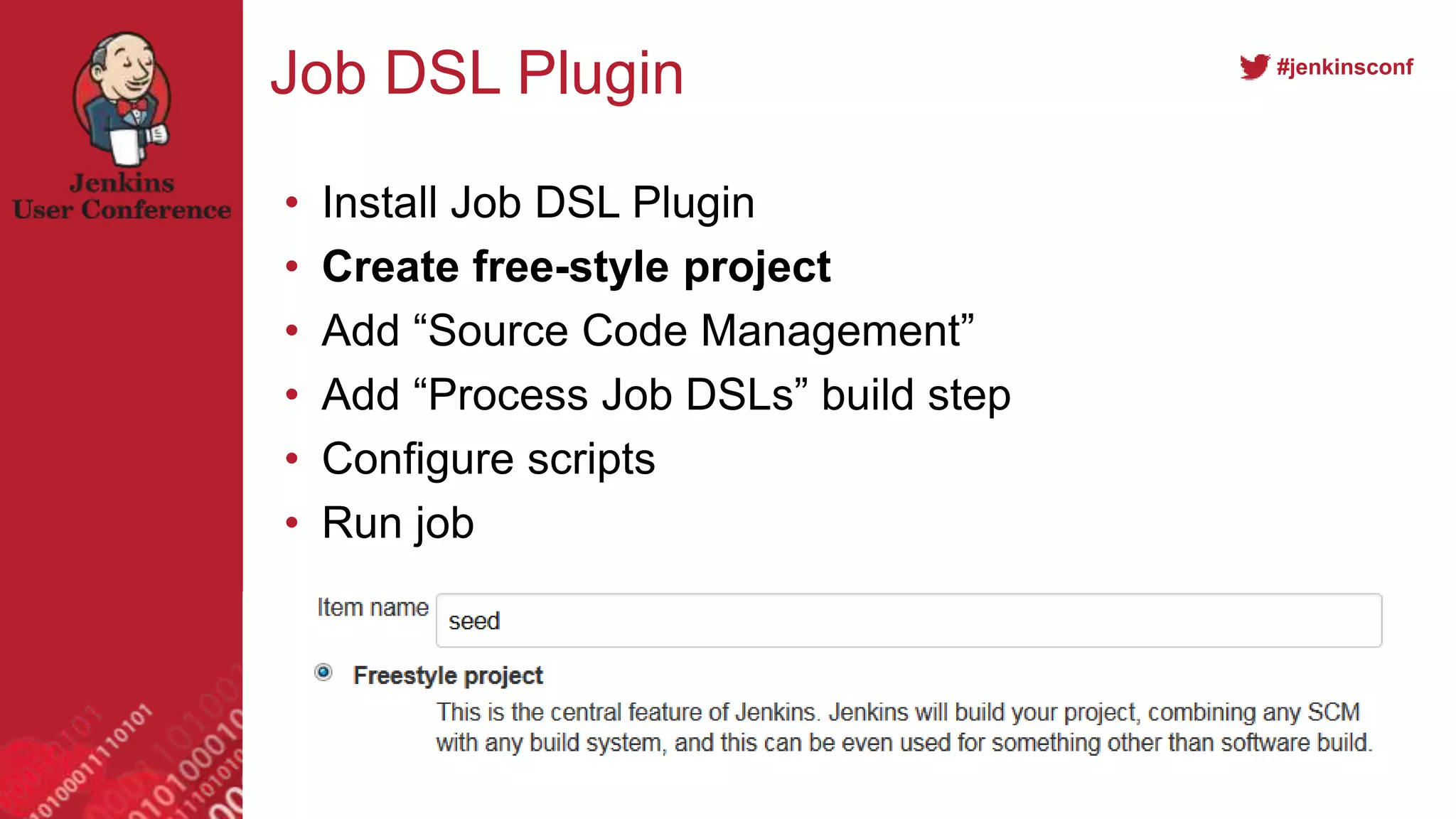

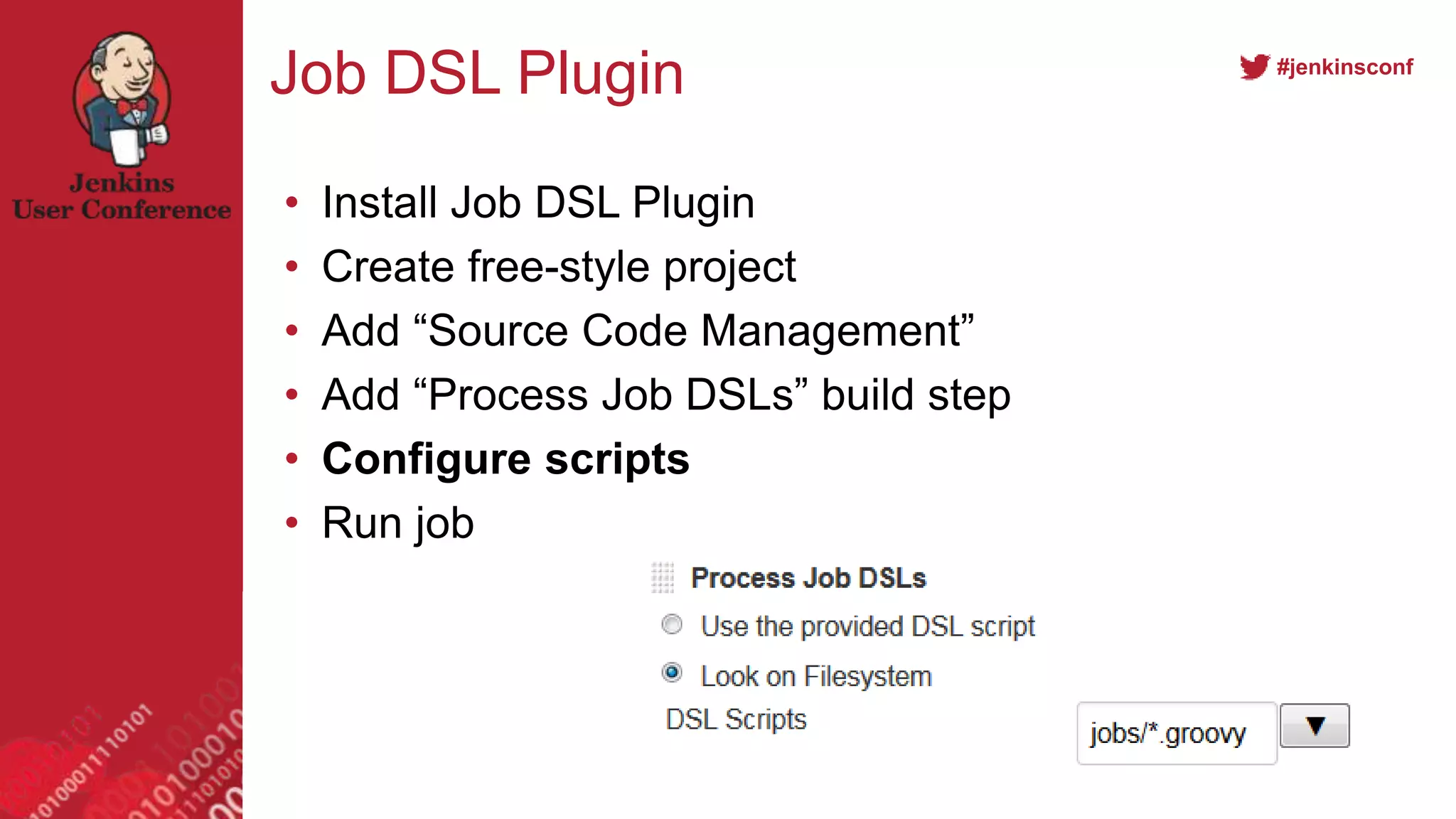

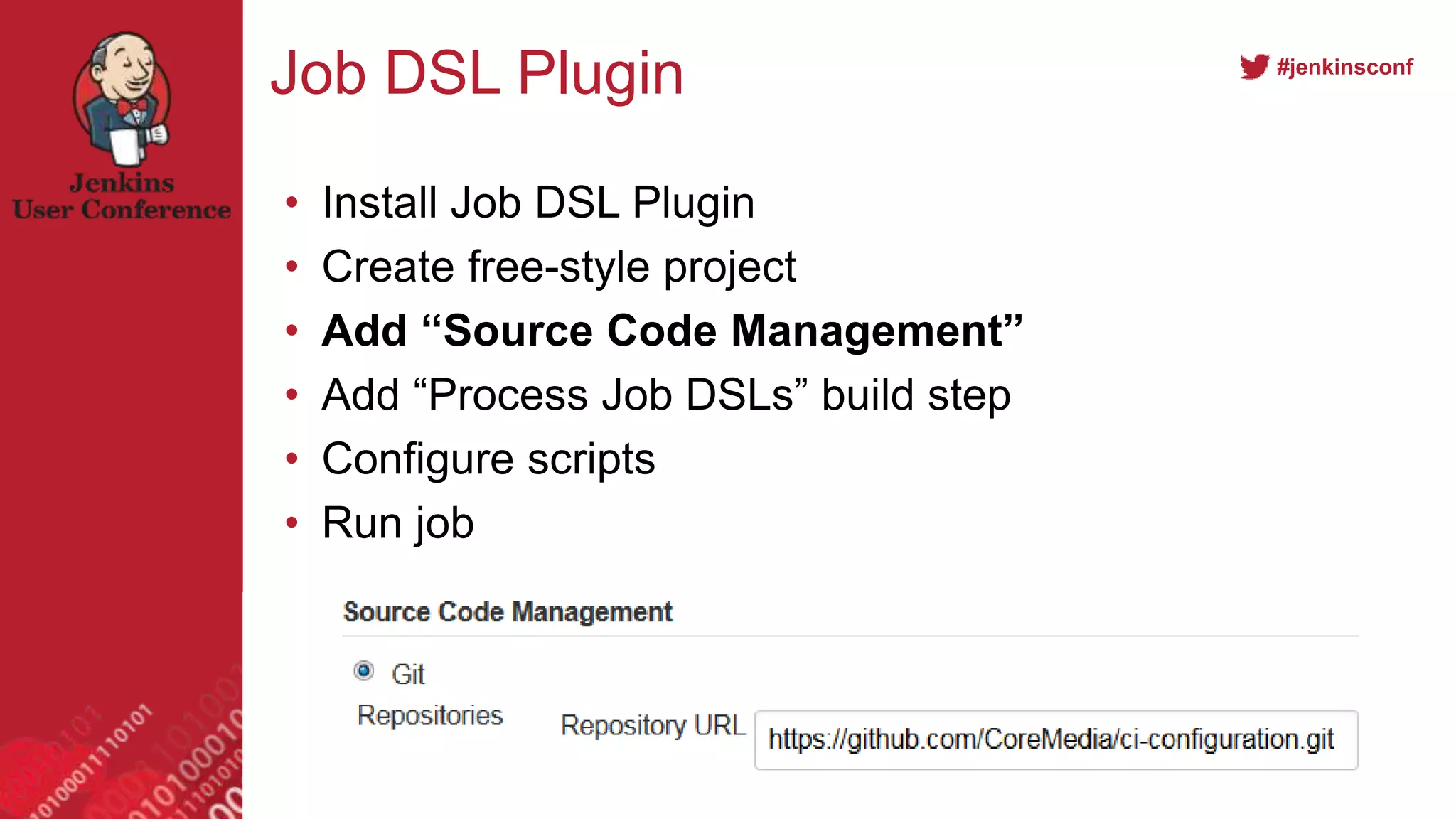

Job DSL Plugin
• Install Job DSL Plugin
• Create free-style project
• Add “Source Code Management”
• Add “Process Job DSLs” build step
• Configure scripts
• Run job

#jenkinsconf

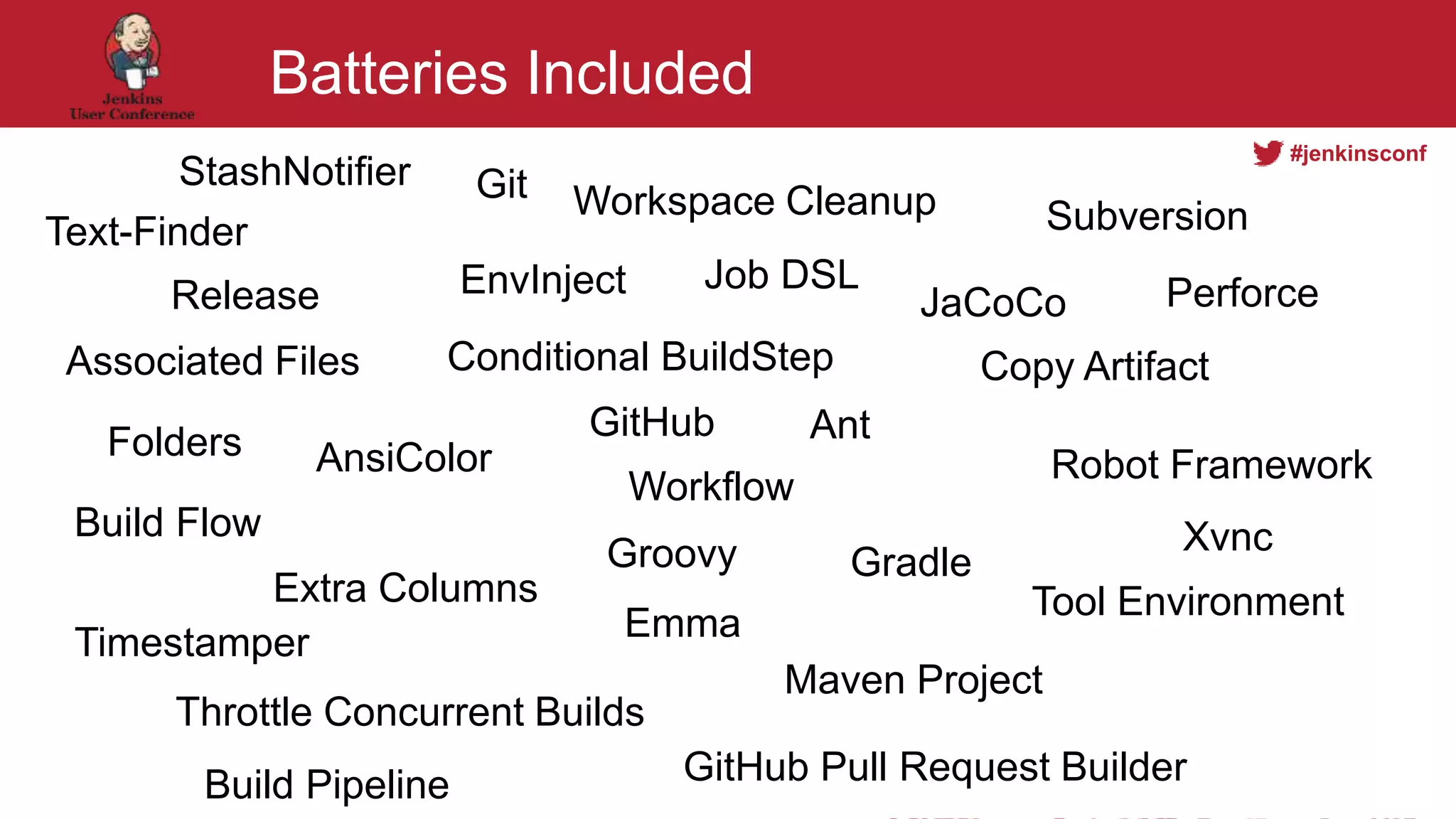

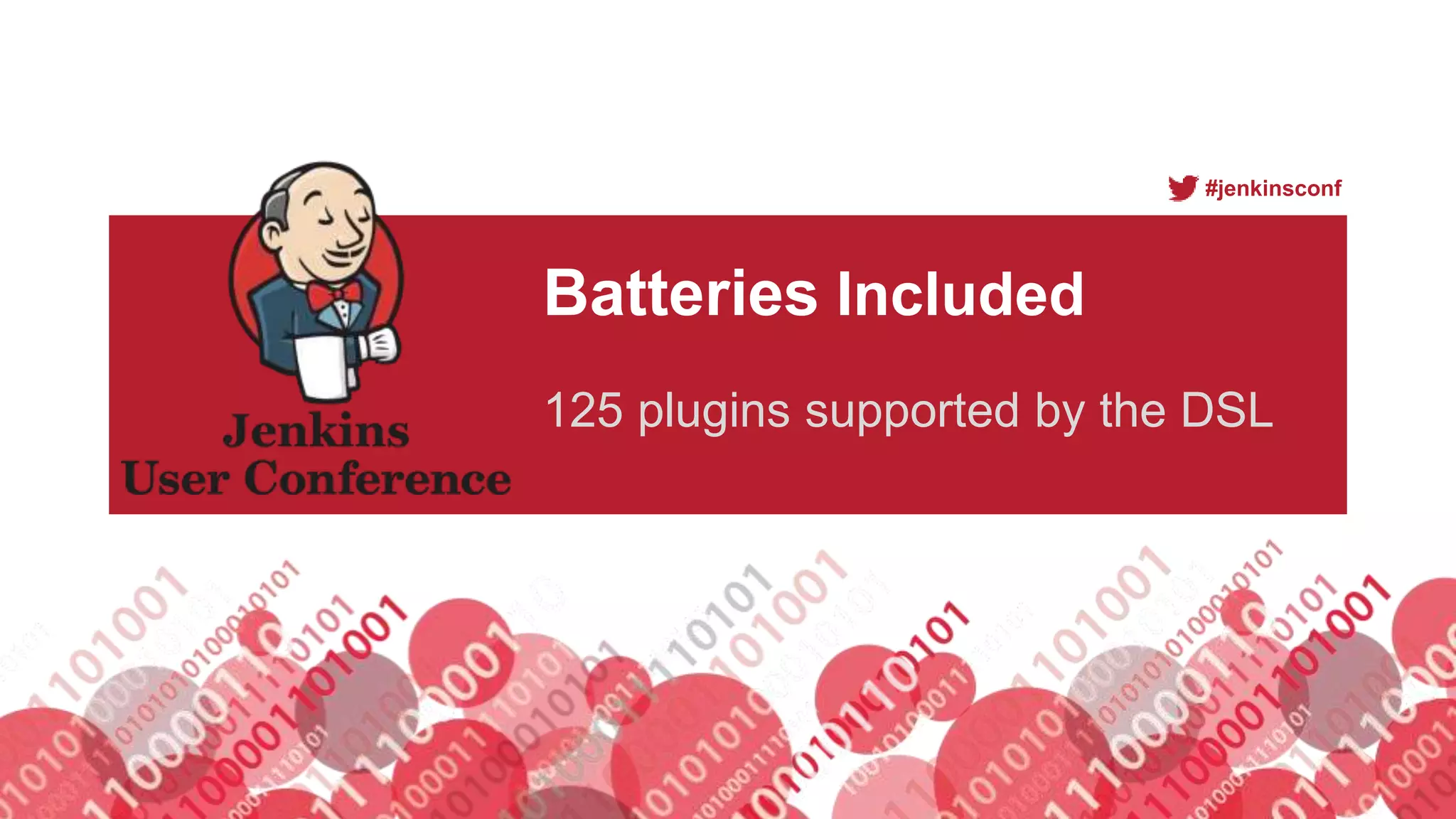

Batteries Included
125 plugins supported by the DSL

#jenkinsconf
Batteries Included
EnvInject
Groovy
Copy Artifact
Git
Subversion
Folders
Extra Columns
StashNotifier
Gradle
Build Pipeline
Workspace Cleanup
GitHub Pull Request Builder
GitHub
JaCoCoRelease
Build Flow
Robot Framework
Tool Environment
Conditional BuildStep
Throttle Concurrent Builds
Associated Files
Workflow
Emma
Xvnc
AnsiColor
Timestamper
Text-Finder
Job DSL Perforce
Ant
Maven Project

#jenkinsconf

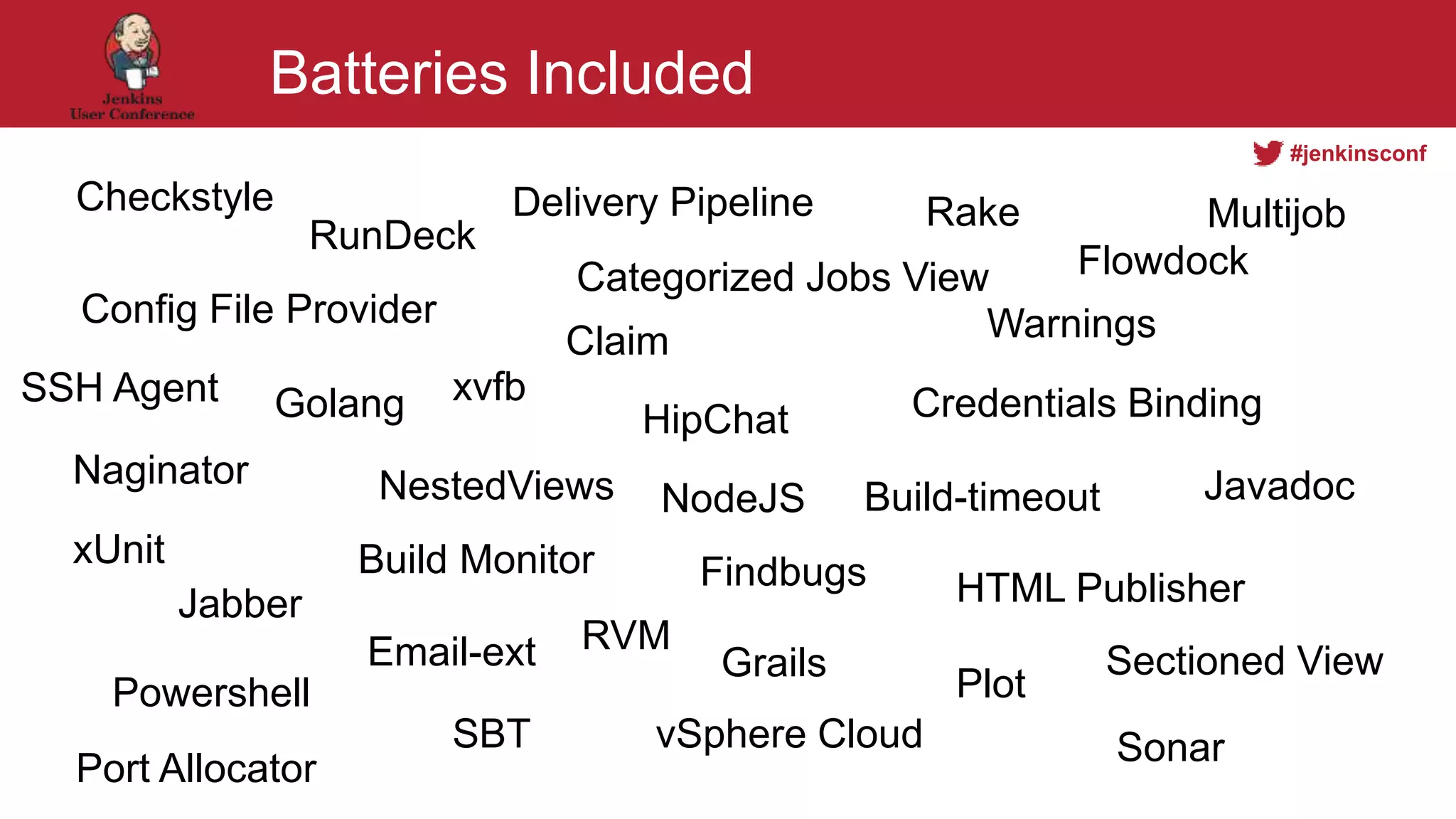

Batteries Included
Checkstyle
Categorized Jobs View
Build-timeout
Config File Provider
Golang
Delivery Pipeline
HipChat
Naginator
Jabber
NestedViews
HTML Publisher
NodeJS
Flowdock
Credentials Binding
Plot
RunDeck
Rake
Powershell
SBT
xUnit
xvfb
Warnings
SonarvSphere Cloud
RVM
Port Allocator
Sectioned View
SSH Agent
Build Monitor
Claim
Email-ext
Findbugs
Grails
Javadoc
Multijob

#jenkinsconf
Community Driven
70 contributors 500 pull requests

#jenkinsconf

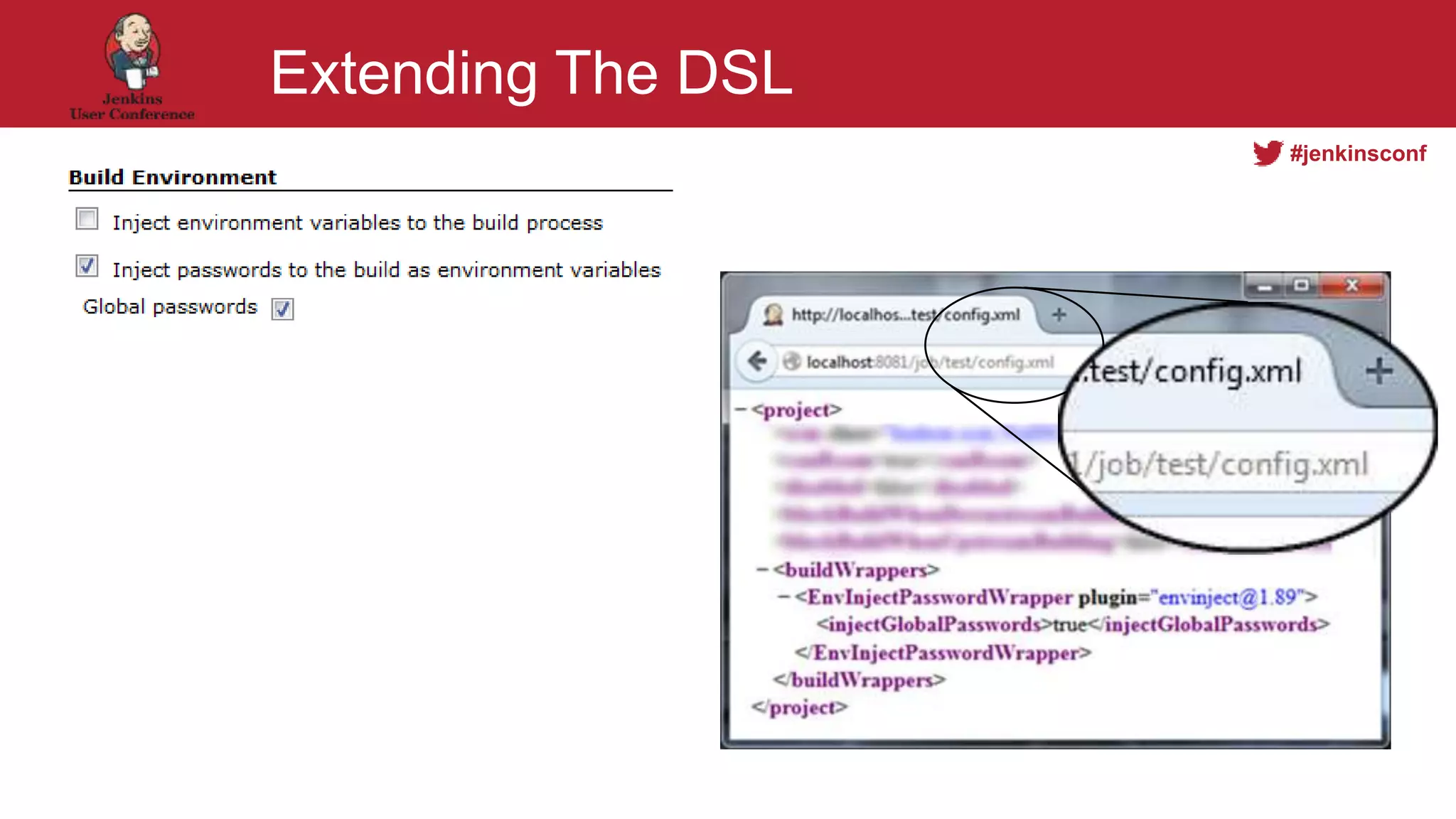

Extending The DSL

#jenkinsconf

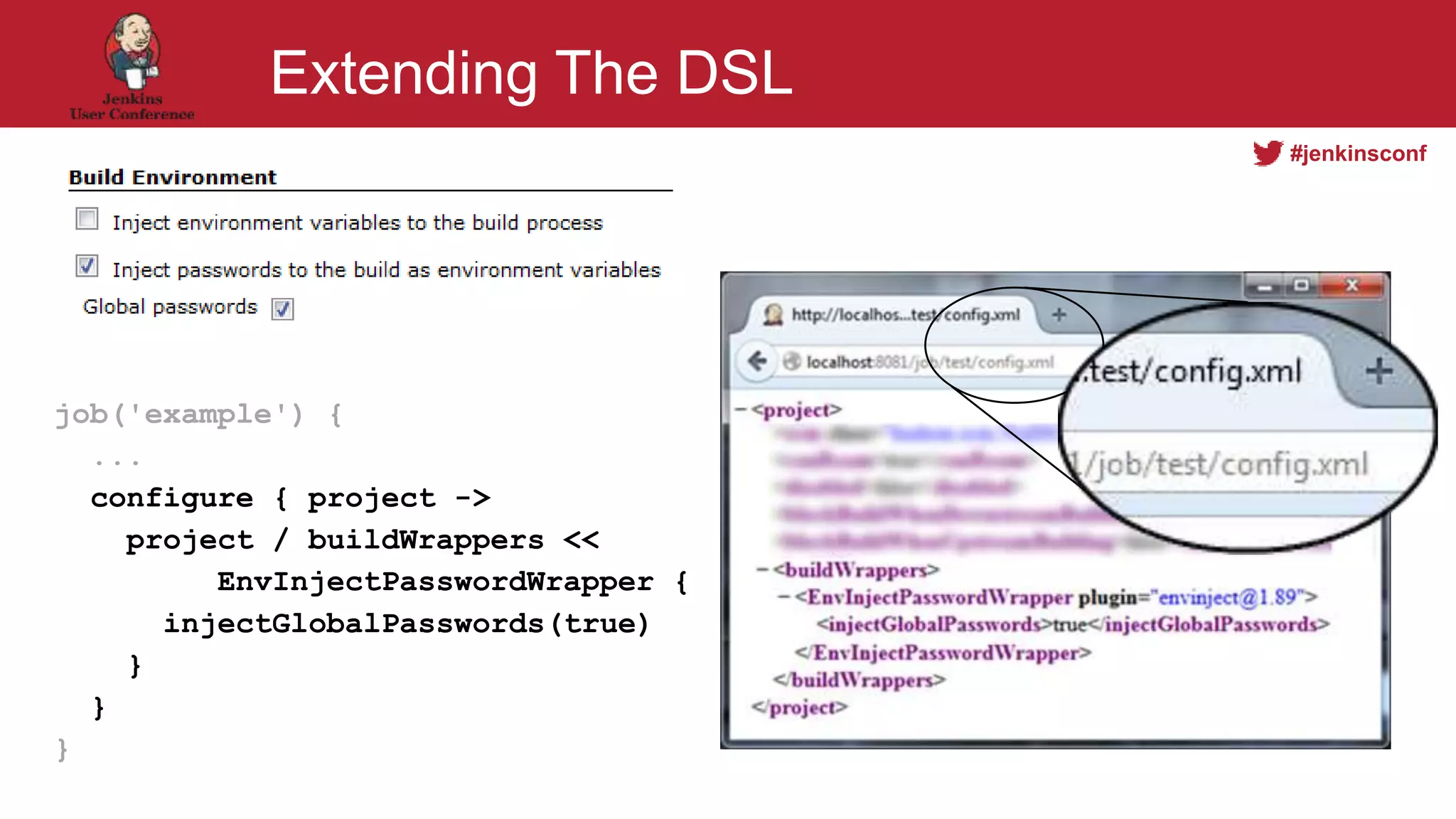

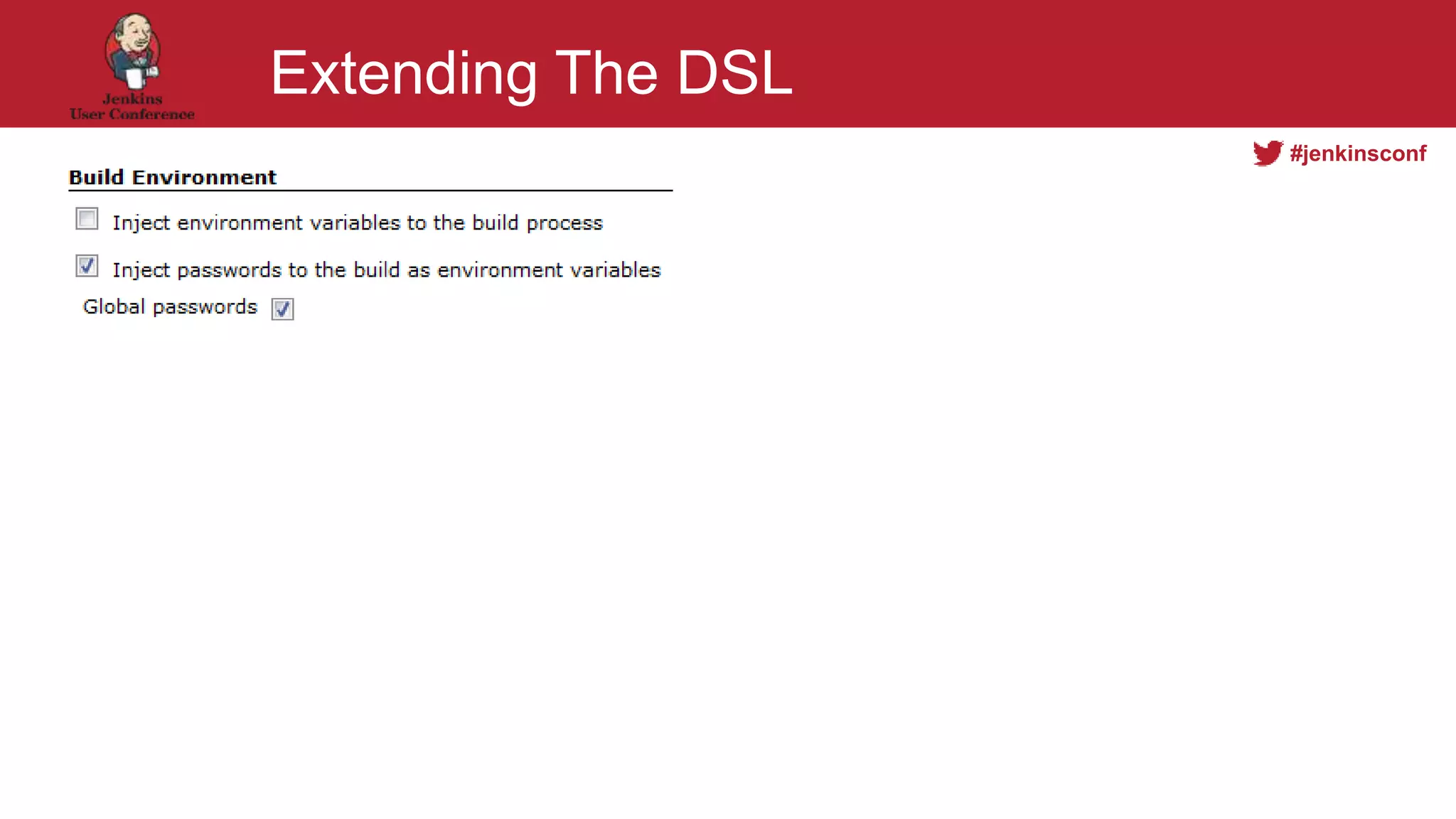

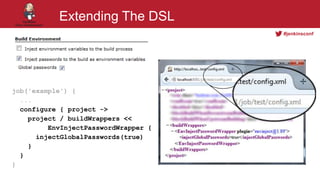

Extending The DSL
job('example') {
...
configure { project ->
project / buildWrappers <<
EnvInjectPasswordWrapper {
injectGlobalPasswords(true)
}
}
}

#jenkinsconf

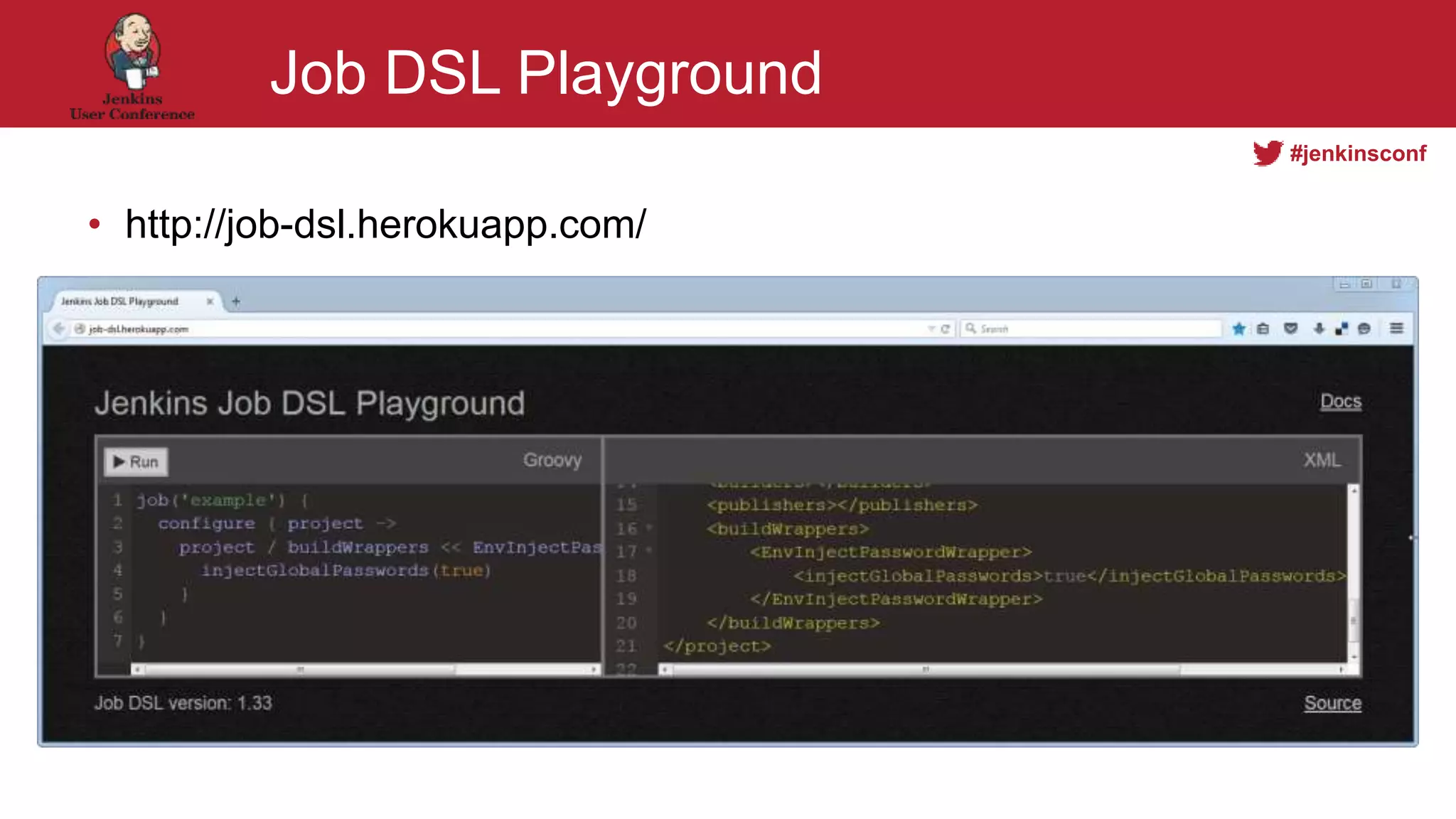

Job DSL Playground
• http://job-dsl.herokuapp.com/

#jenkinsconf
Everything is Groovy

#jenkinsconf

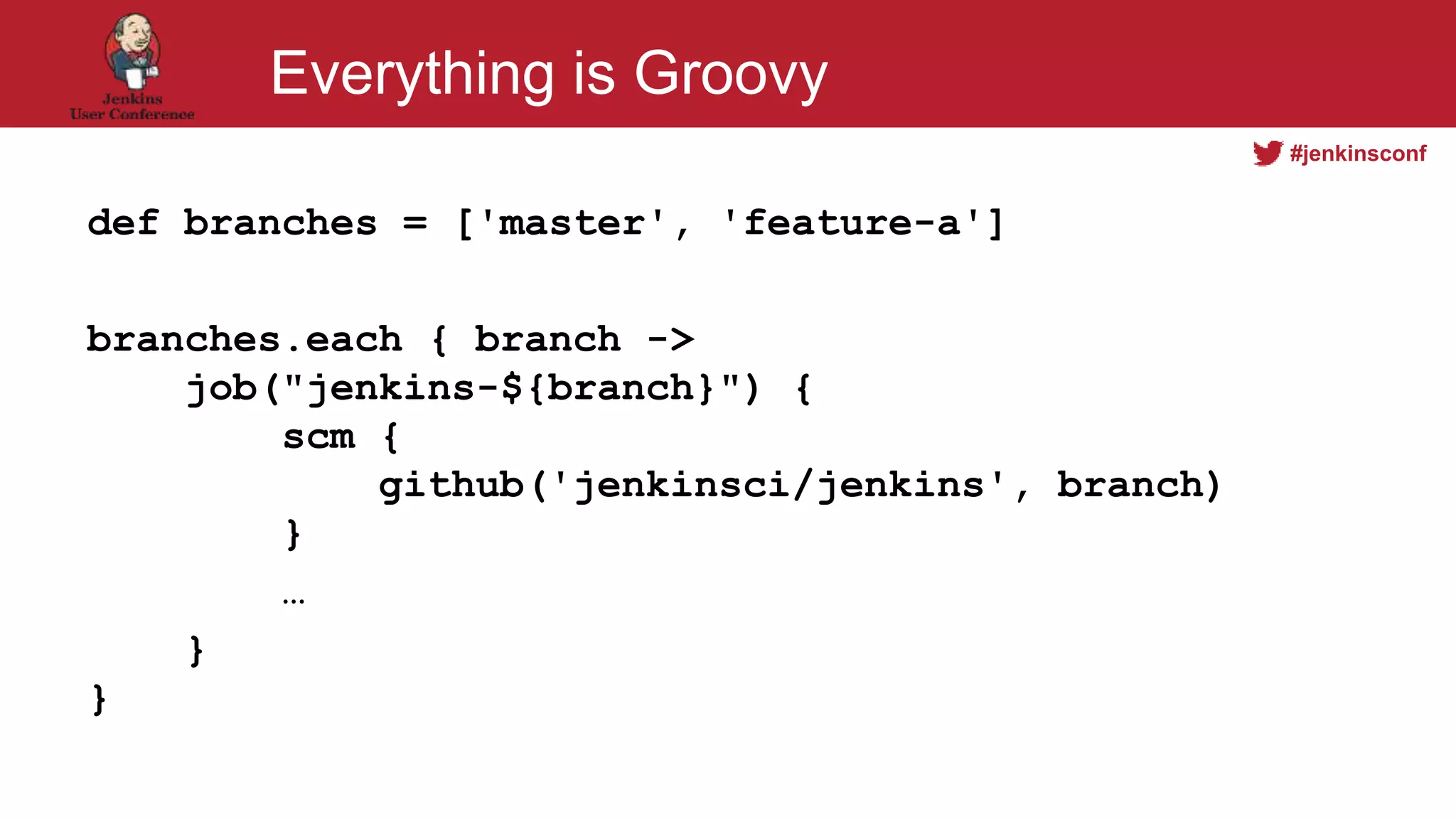

Everything is Groovy
def branches = ['master', 'feature-a']
branches.each { branch ->
job("jenkins-${branch}") {
scm {
github('jenkinsci/jenkins', branch)
}
…
}
}

#jenkinsconf

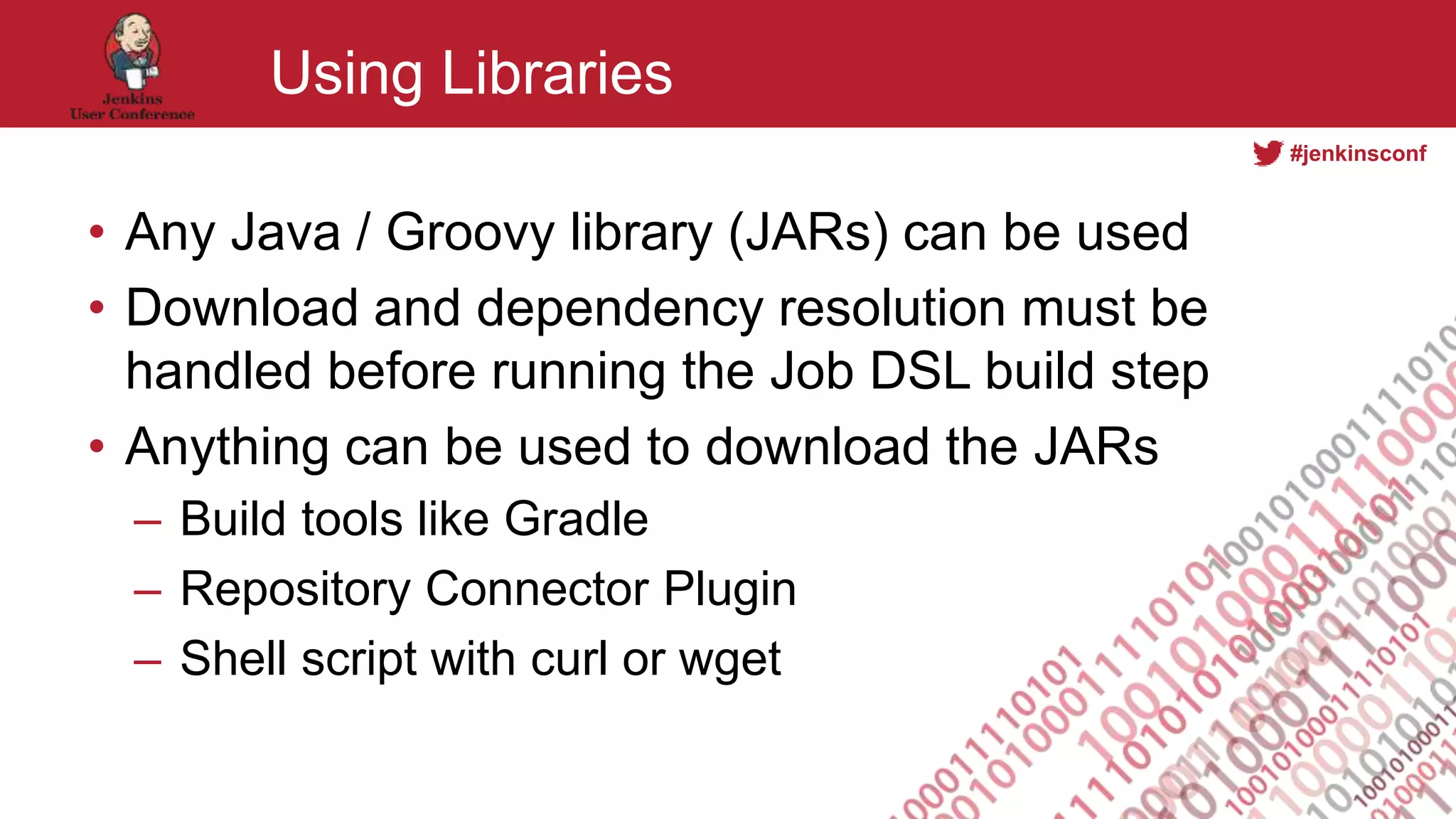

Using Libraries
• Any Java / Groovy library (JARs) can be used
• Download and dependency resolution must be
handled before running the Job DSL build step
• Anything can be used to download the JARs
– Build tools like Gradle
– Repository Connector Plugin
– Shell script with curl or wget

#jenkinsconf

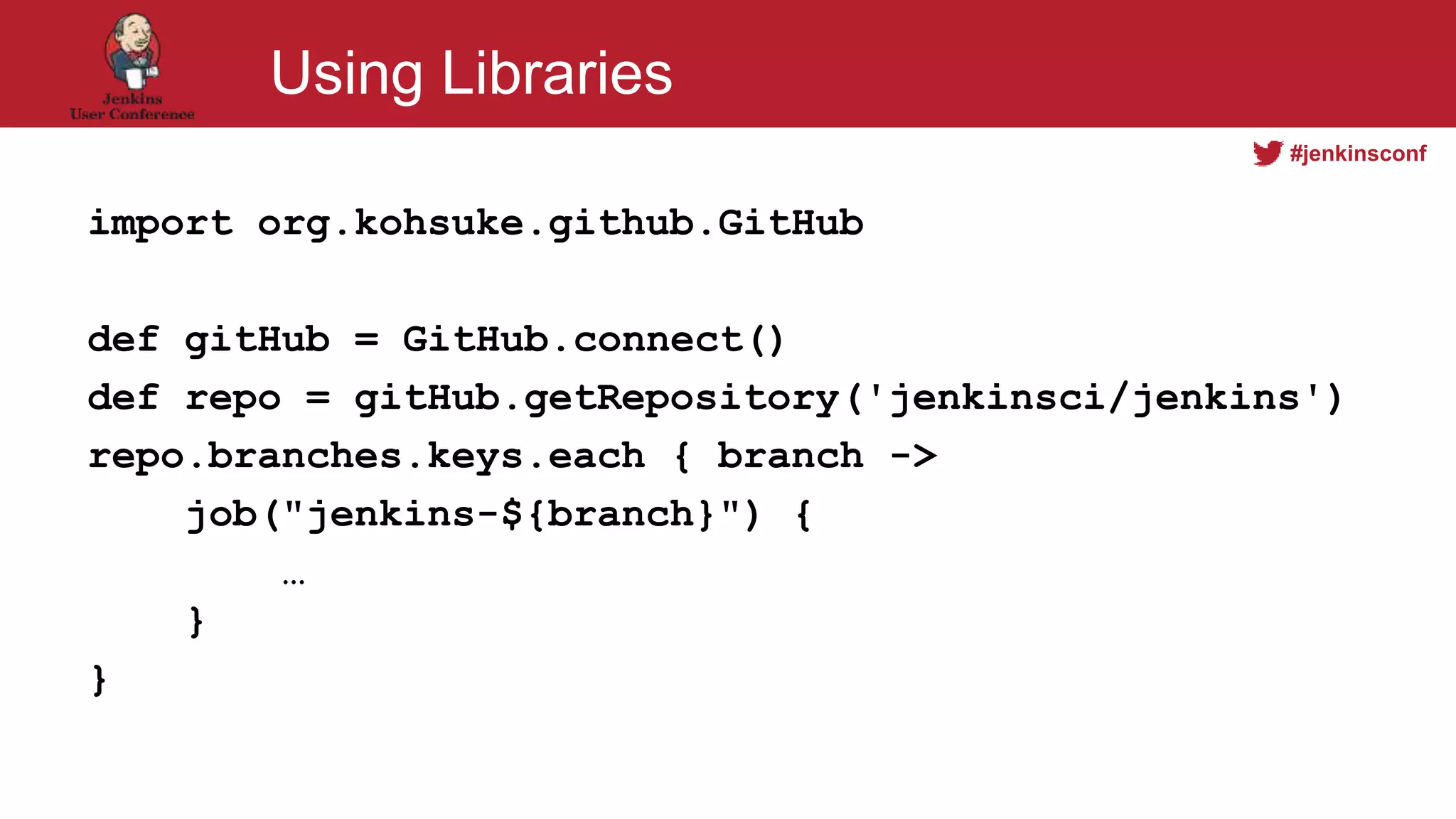

Using Libraries
import org.kohsuke.github.GitHub
def gitHub = GitHub.connect()
def repo = gitHub.getRepository('jenkinsci/jenkins')
repo.branches.keys.each { branch ->
job("jenkins-${branch}") {
…
}
}

#jenkinsconf

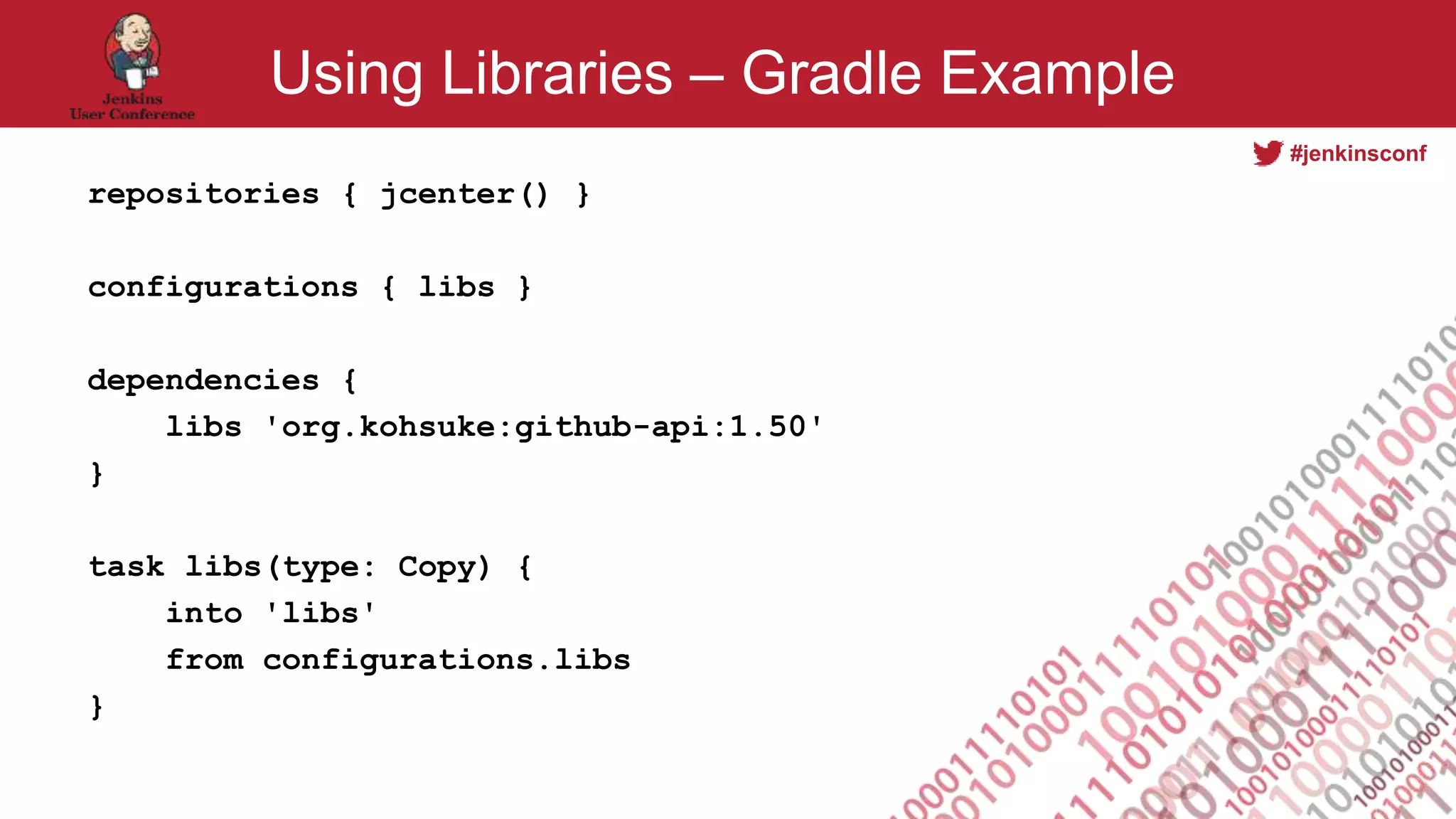

Using Libraries – Gradle Example
repositories { jcenter() }
configurations { libs }
dependencies {
libs 'org.kohsuke:github-api:1.50'
}
task libs(type: Copy) {
into 'libs'
from configurations.libs
}

#jenkinsconf

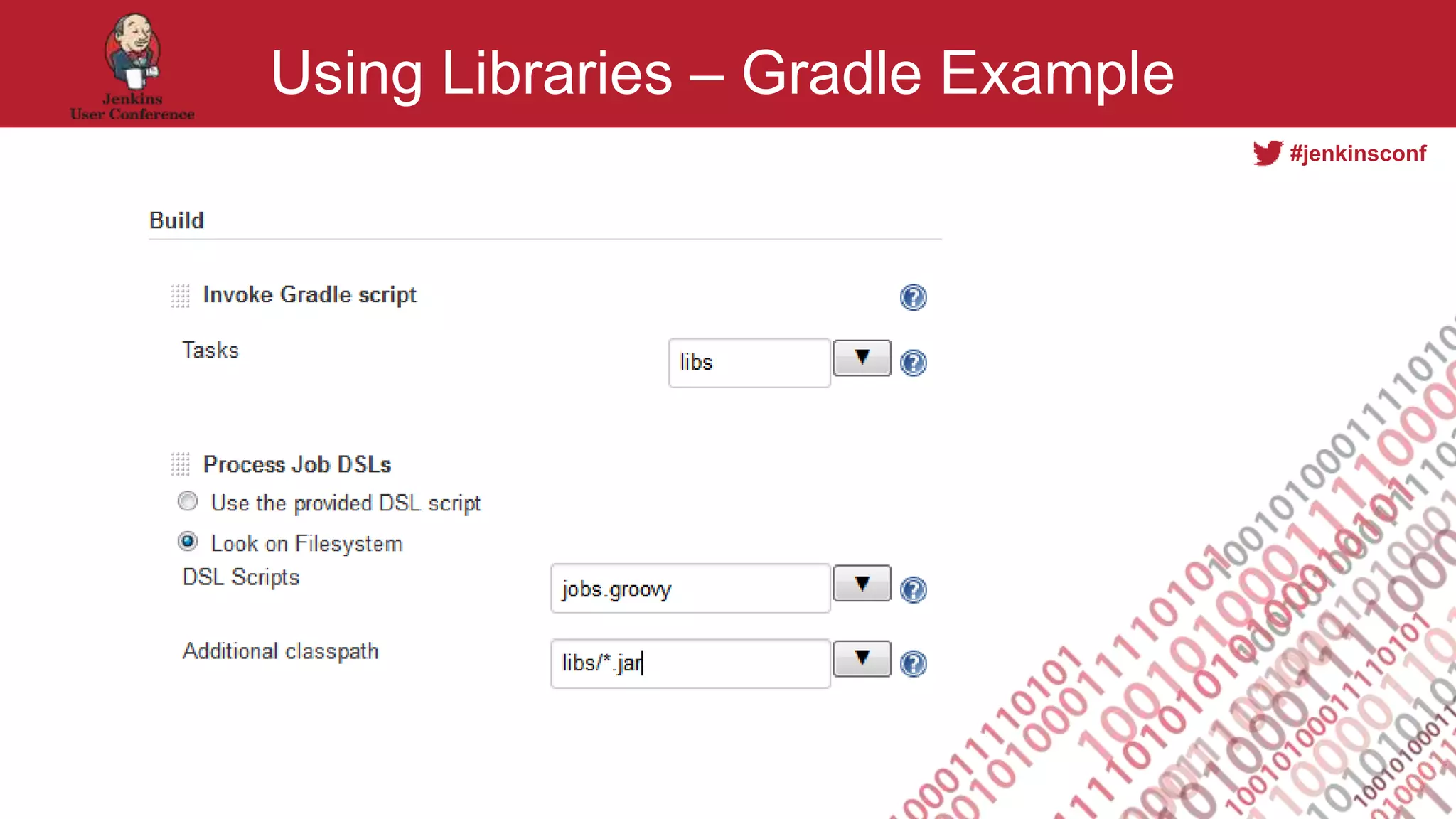

Using Libraries – Gradle Example

#jenkinsconf

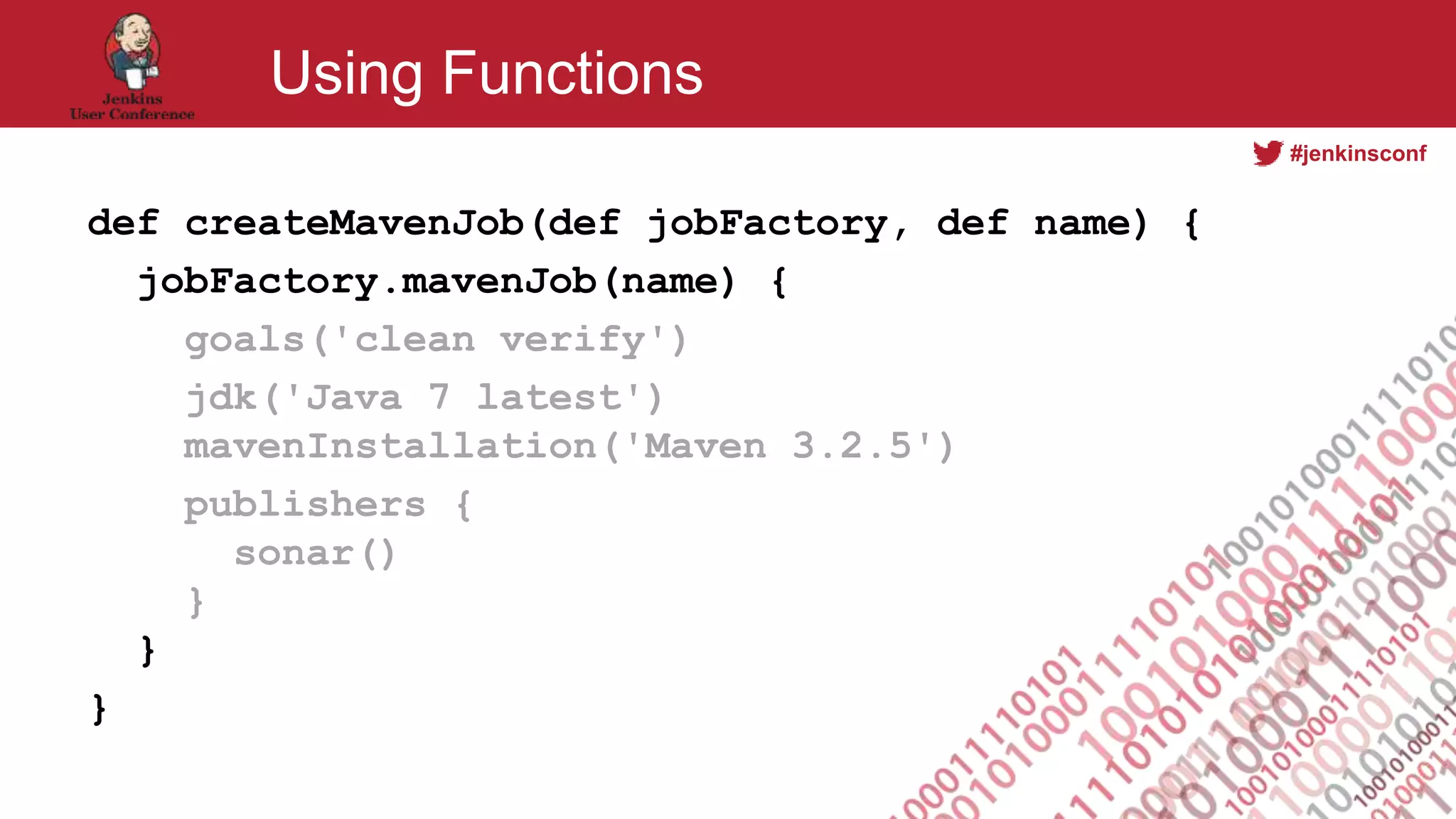

Using Functions
def createMavenJob(def jobFactory, def name) {
jobFactory.mavenJob(name) {
goals('clean verify')
jdk('Java 7 latest')
mavenInstallation('Maven 3.2.5')
publishers {
sonar()
}
}
}

#jenkinsconf

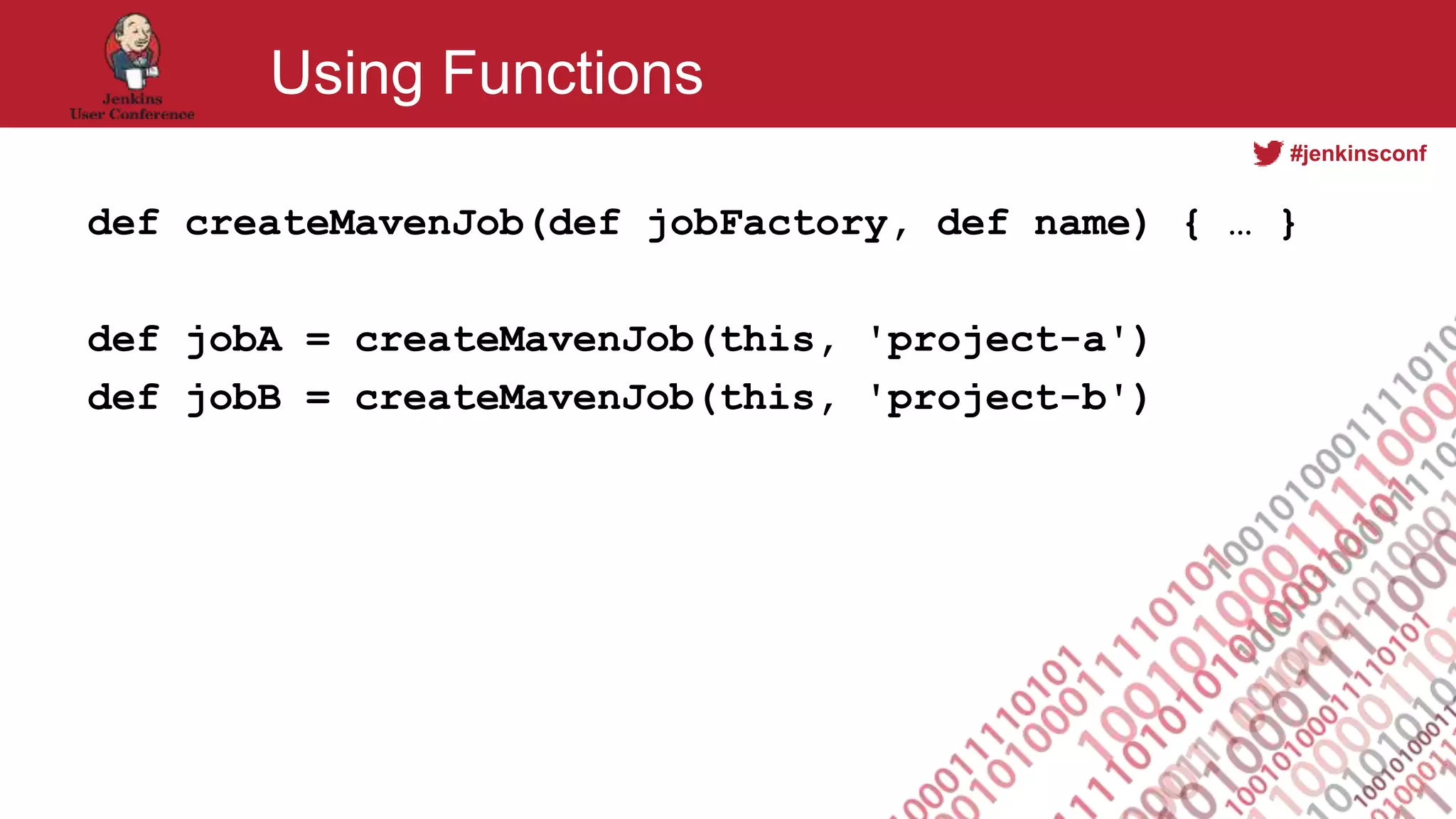

Using Functions
def createMavenJob(def jobFactory, def name) { … }
def jobA = createMavenJob(this, 'project-a')
def jobB = createMavenJob(this, 'project-b')

#jenkinsconf

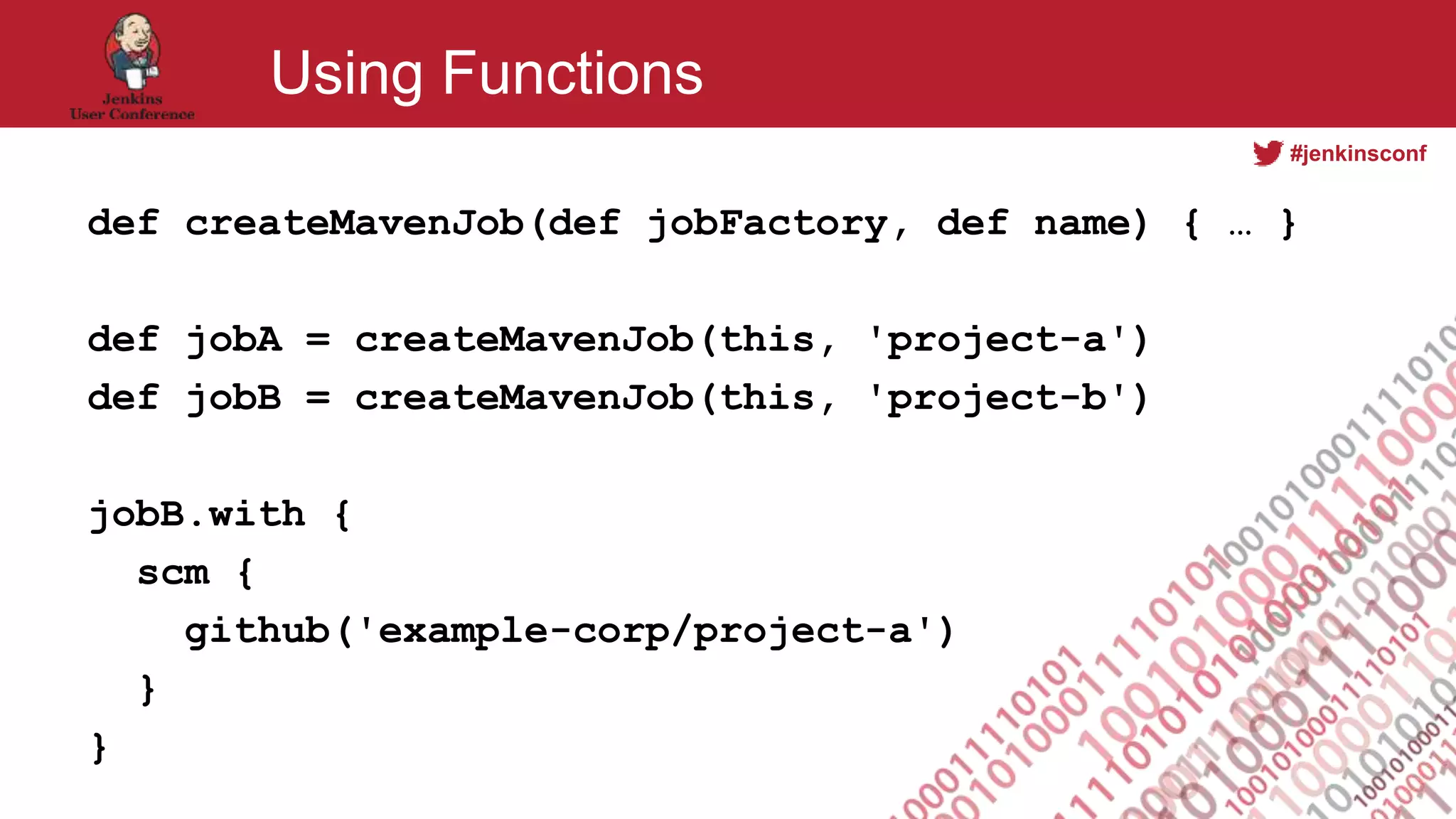

Using Functions
def createMavenJob(def jobFactory, def name) { … }
def jobA = createMavenJob(this, 'project-a')
def jobB = createMavenJob(this, 'project-b')
jobB.with {
scm {
github('example-corp/project-a')
}
}

#jenkinsconf

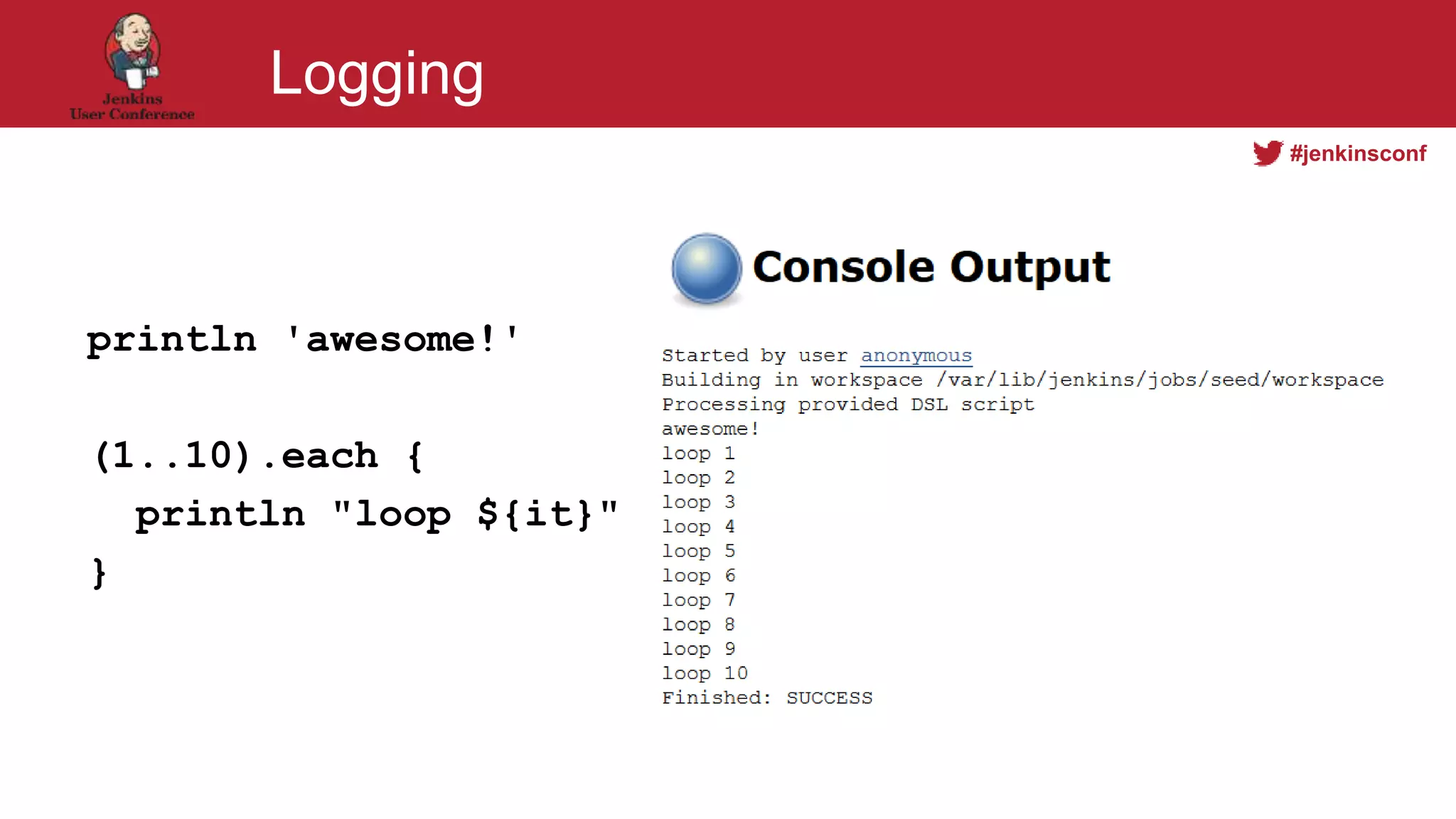

Logging
println 'awesome!'
(1..10).each {
println "loop ${it}"
}

#jenkinsconf

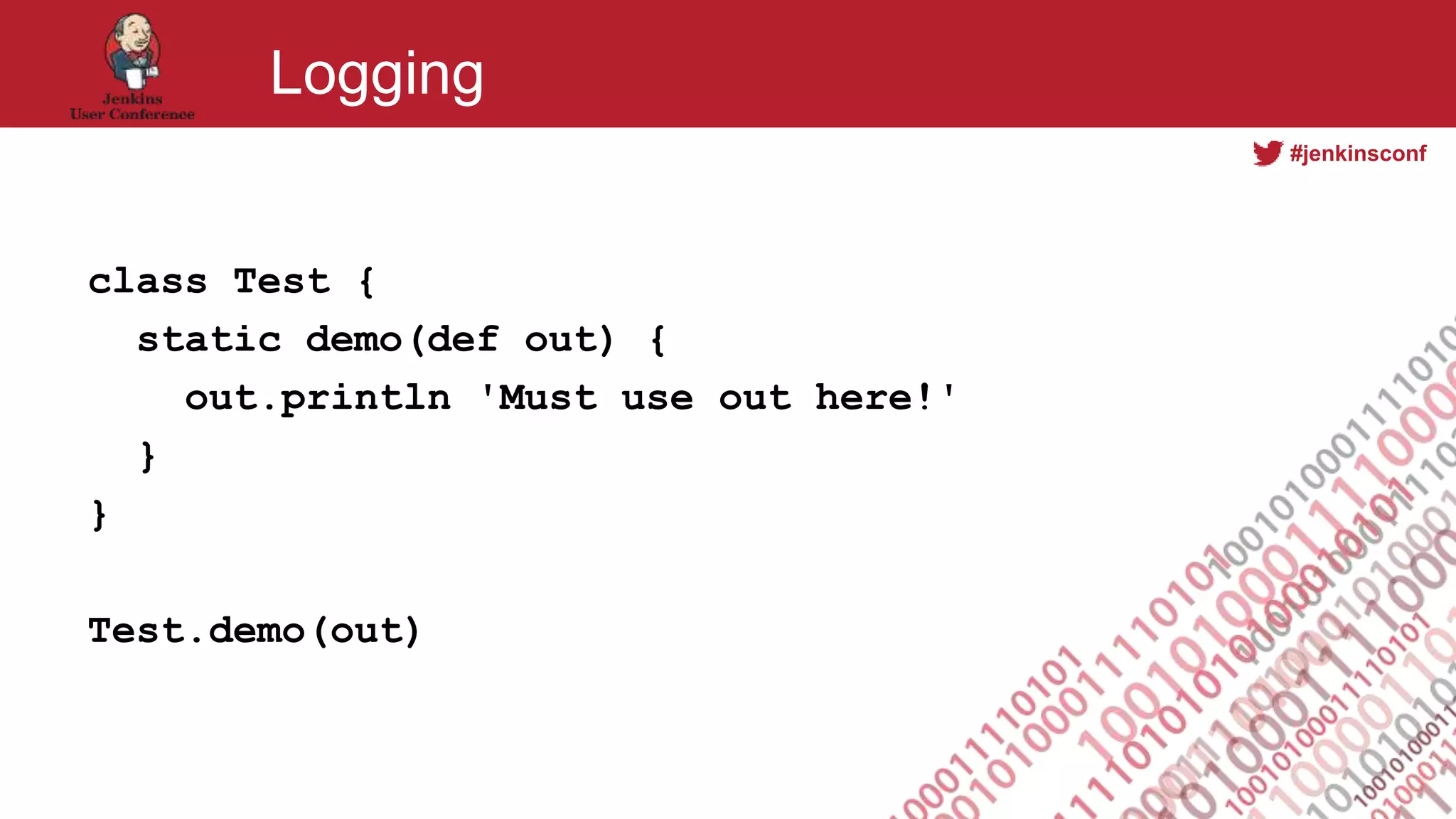

Logging
class Test {
static demo(def out) {
out.println 'Must use out here!'
}
}
Test.demo(out)

#jenkinsconf

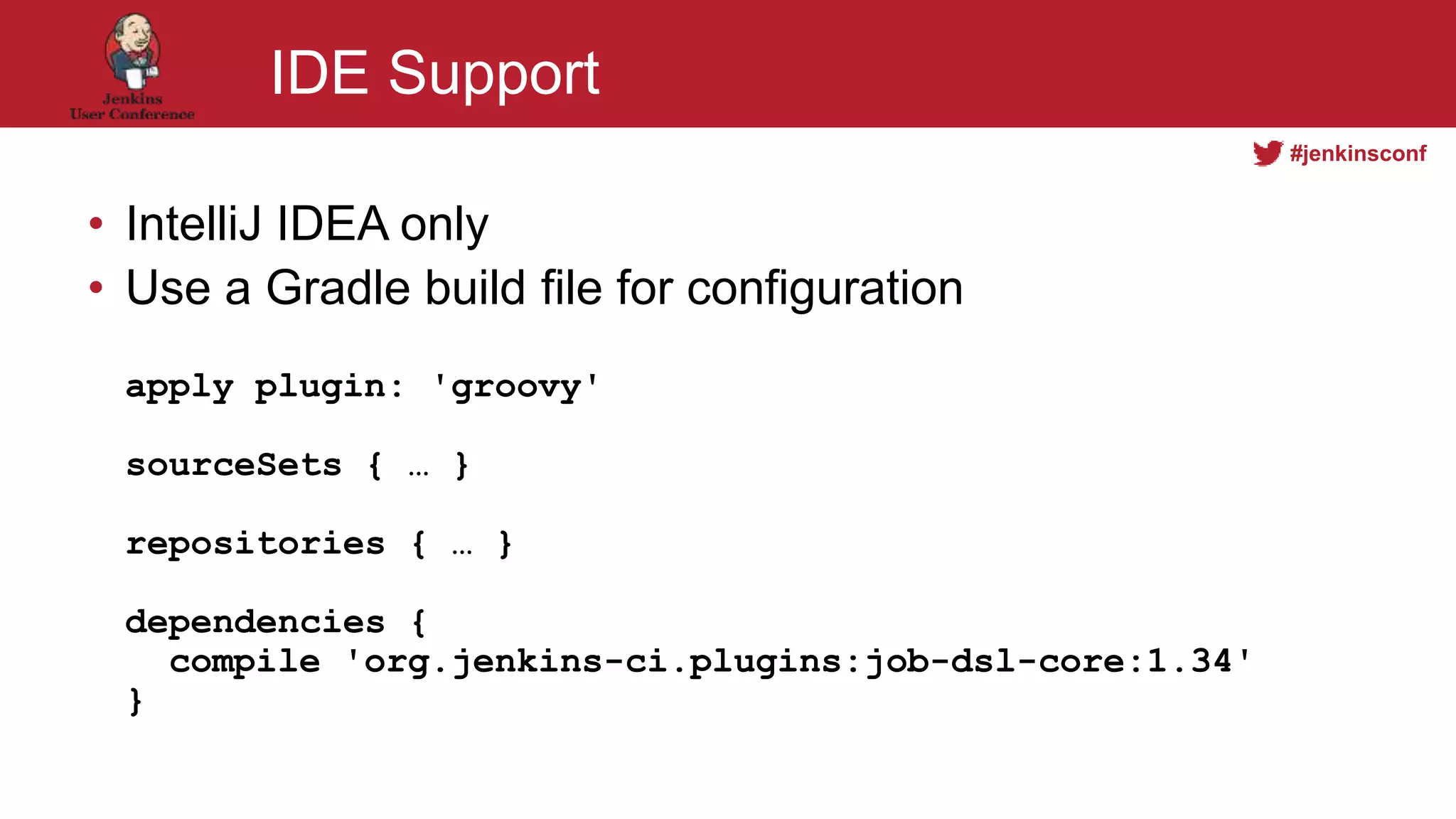

IDE Support
• IntelliJ IDEA only
• Use a Gradle build file for configuration
apply plugin: 'groovy'
sourceSets { … }
repositories { … }
dependencies {
compile 'org.jenkins-ci.plugins:job-dsl-core:1.34'
}

#jenkinsconf

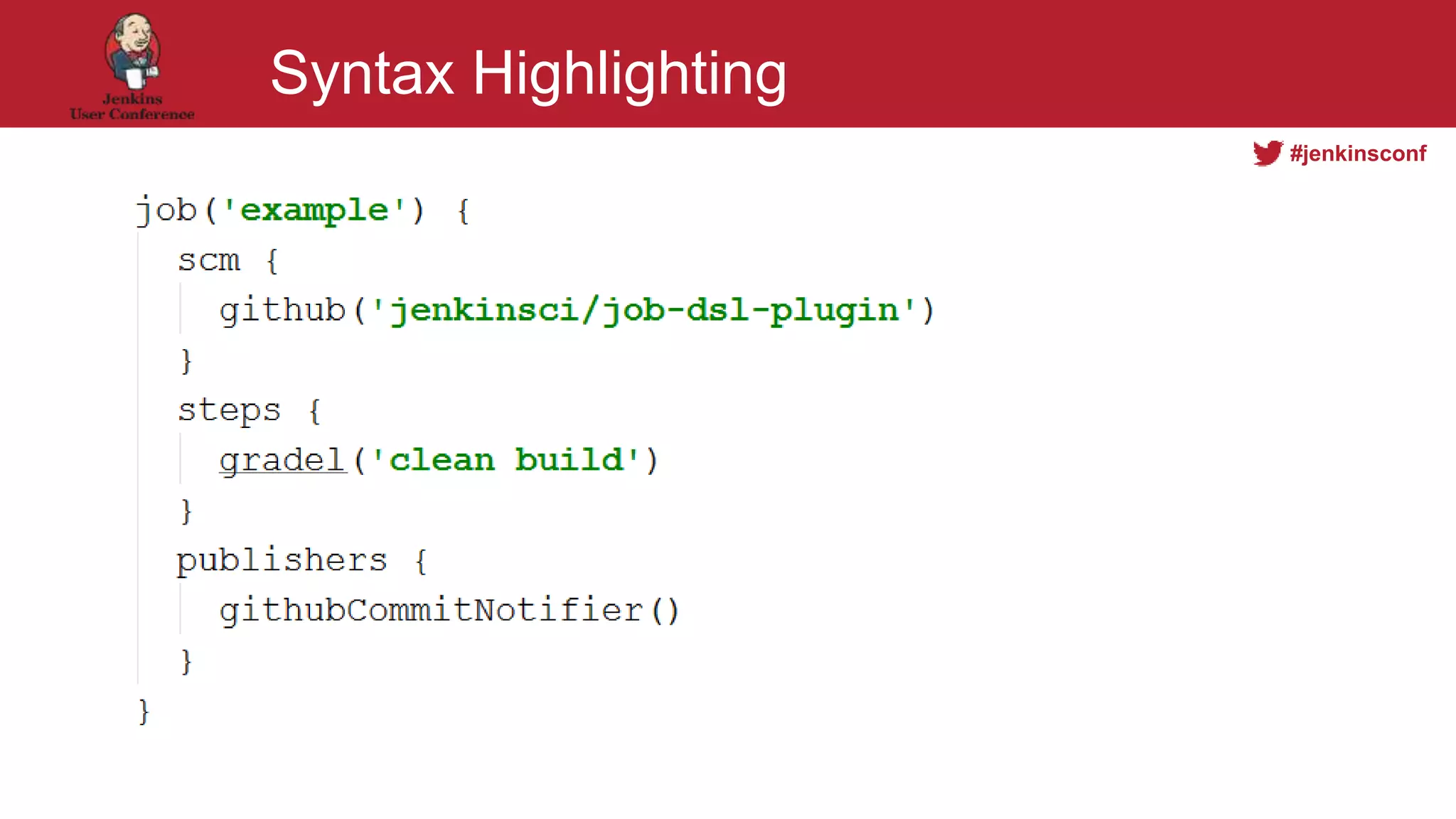

Syntax Highlighting

#jenkinsconf

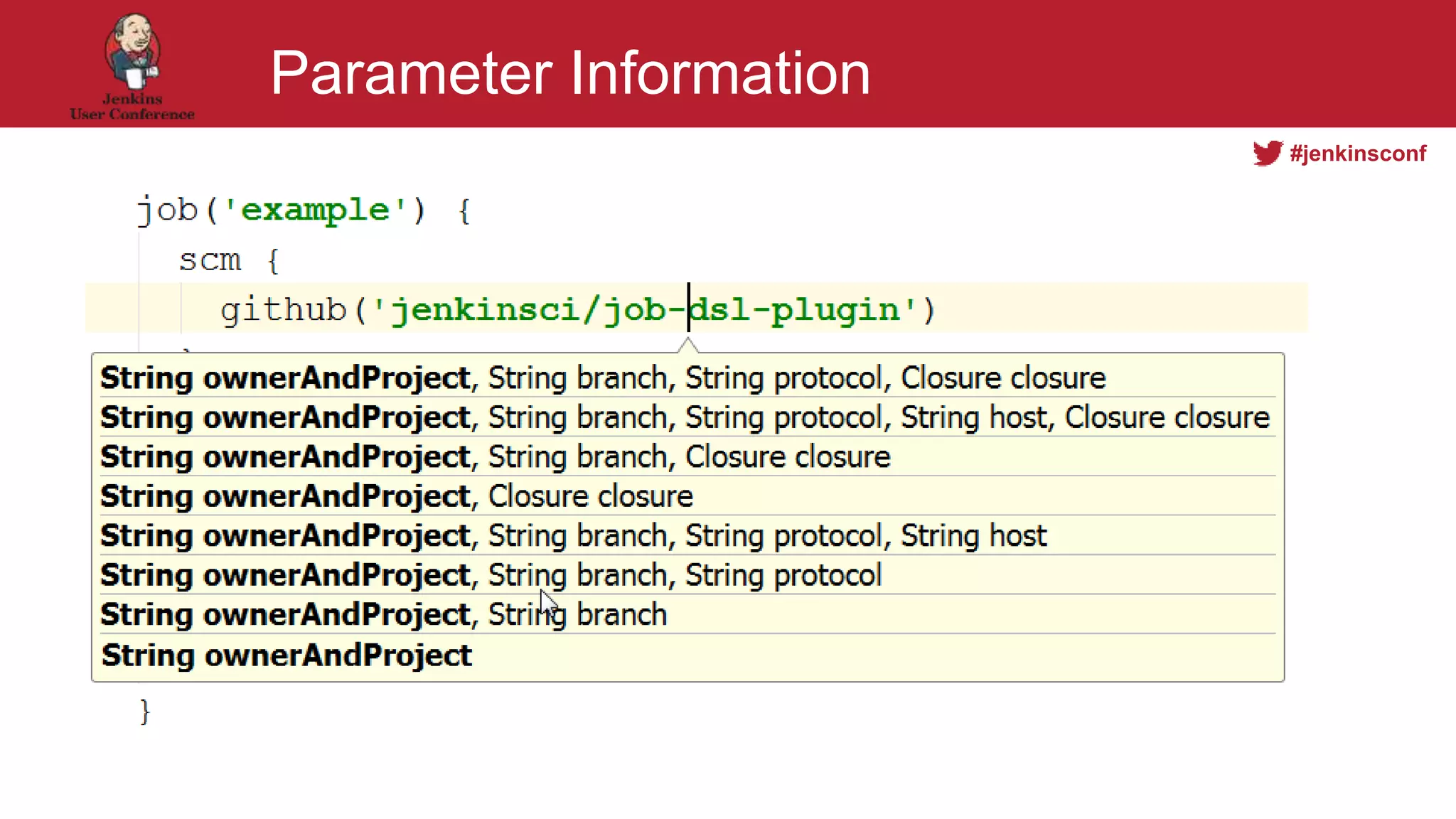

Parameter Information

#jenkinsconf
Using Credentials

#jenkinsconf
Do not put
plain text credentials
in a DSL script

#jenkinsconf

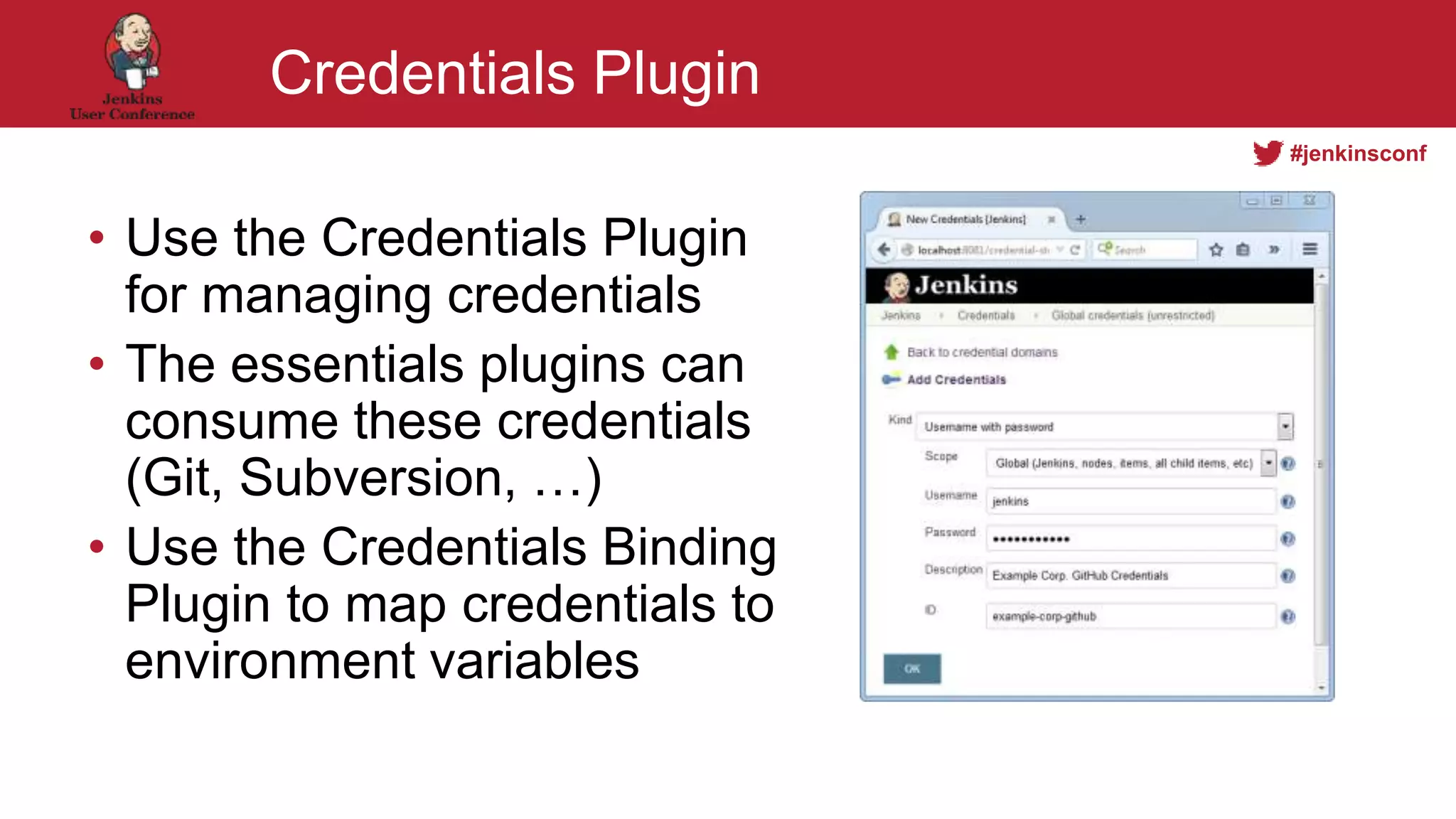

Credentials Plugin
• Use the Credentials Plugin
for managing credentials
• The essentials plugins can
consume these credentials
(Git, Subversion, …)
• Use the Credentials Binding
Plugin to map credentials to
environment variables

#jenkinsconf

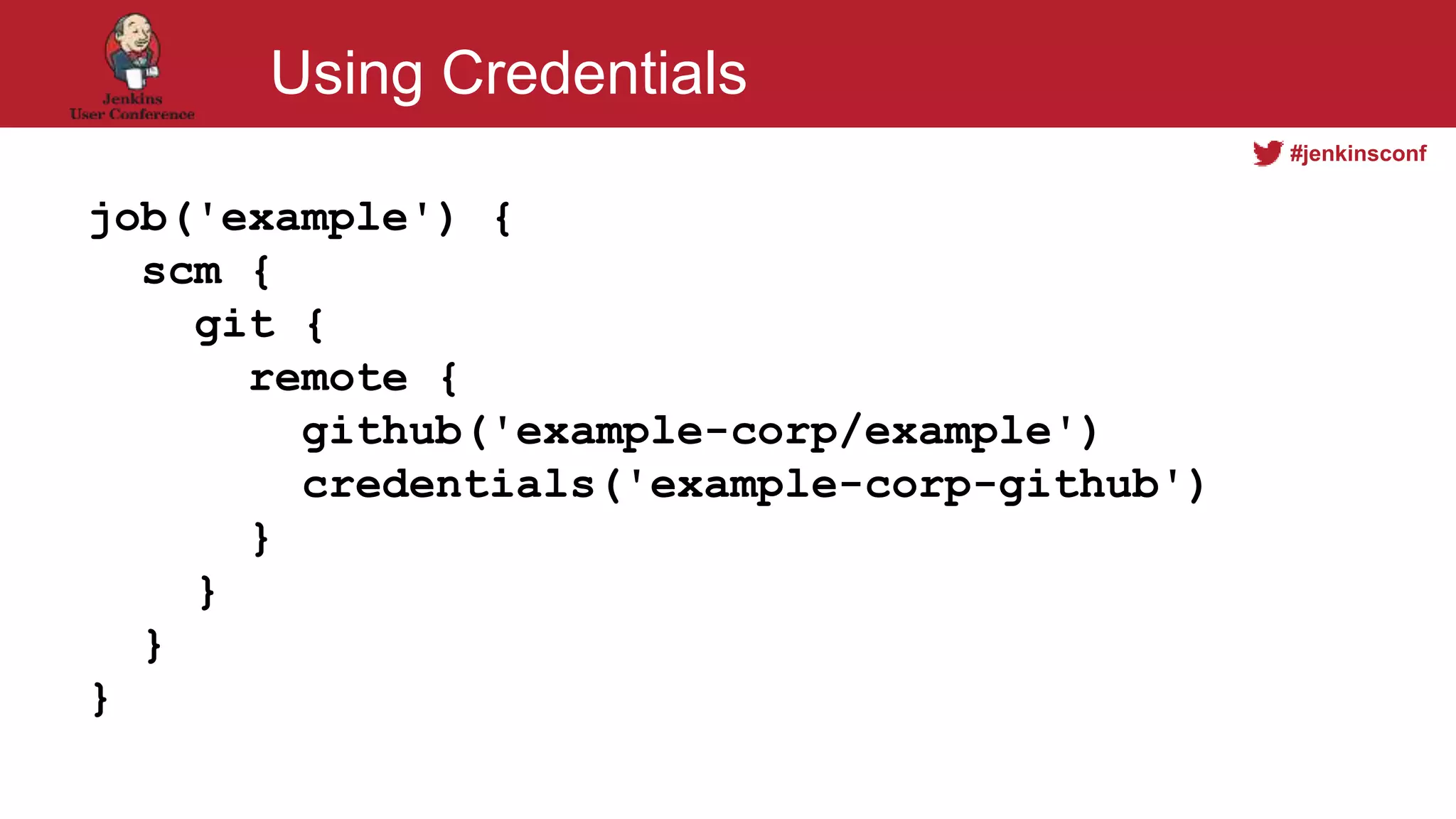

Using Credentials
job('example') {
scm {
git {
remote {
github('example-corp/example')
credentials('example-corp-github')
}
}
}
}

#jenkinsconf

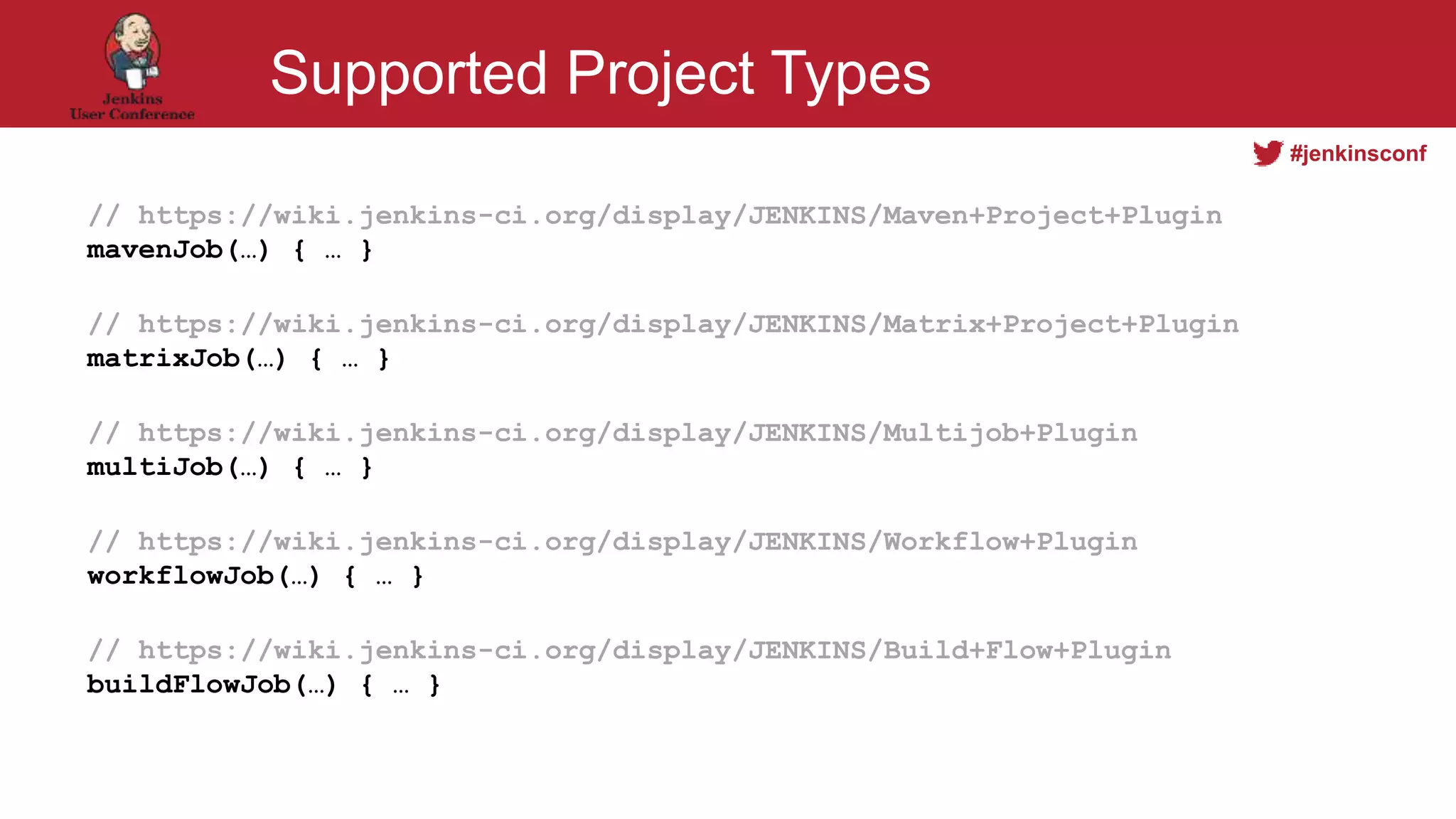

Supported Project Types
// https://wiki.jenkins-ci.org/display/JENKINS/Maven+Project+Plugin
mavenJob(…) { … }
// https://wiki.jenkins-ci.org/display/JENKINS/Matrix+Project+Plugin
matrixJob(…) { … }
// https://wiki.jenkins-ci.org/display/JENKINS/Multijob+Plugin
multiJob(…) { … }
// https://wiki.jenkins-ci.org/display/JENKINS/Workflow+Plugin
workflowJob(…) { … }
// https://wiki.jenkins-ci.org/display/JENKINS/Build+Flow+Plugin
buildFlowJob(…) { … }

#jenkinsconf

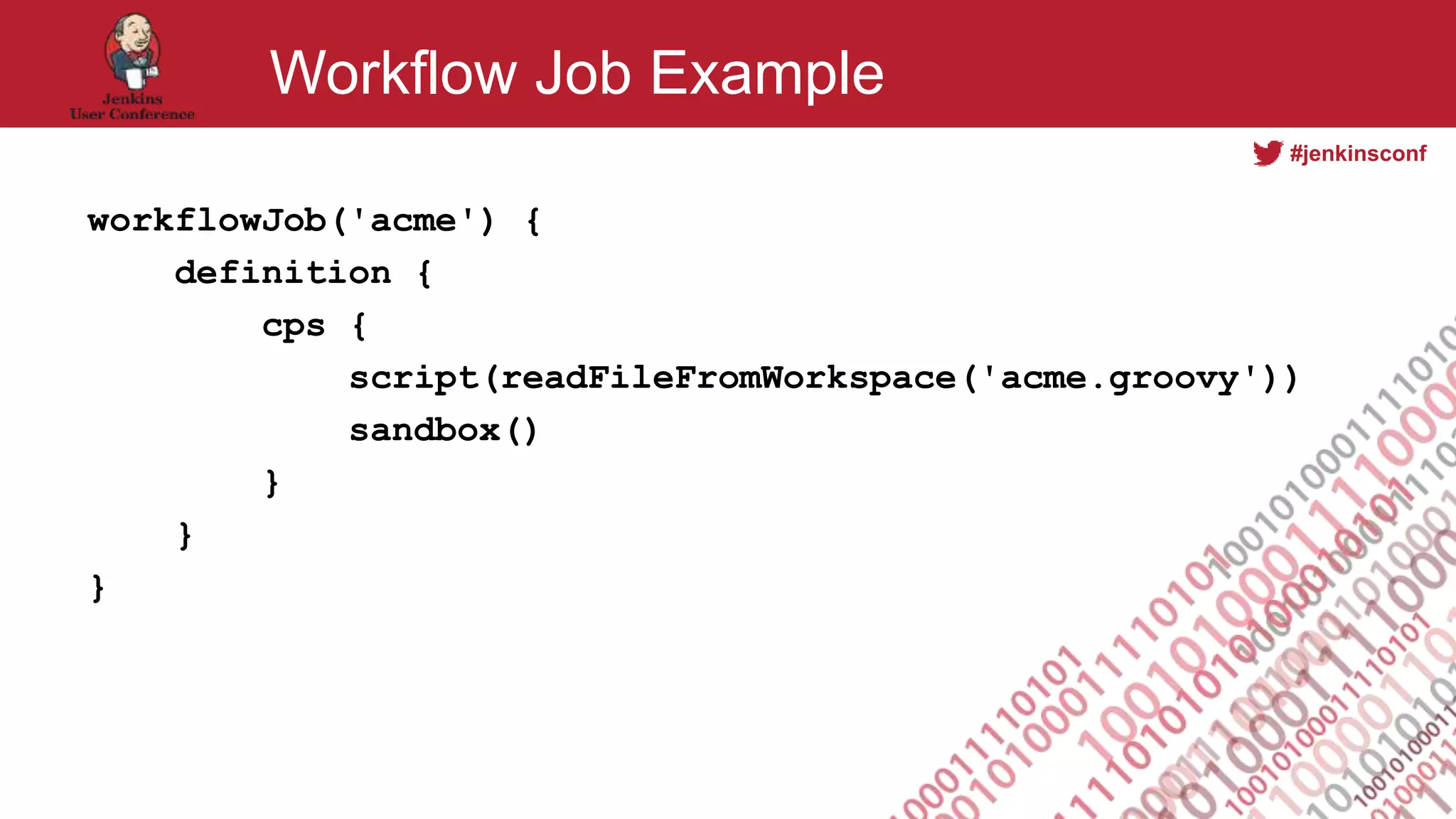

Workflow Job Example
workflowJob('acme') {
definition {
cps {
script(readFileFromWorkspace('acme.groovy'))
sandbox()
}
}
}

#jenkinsconf

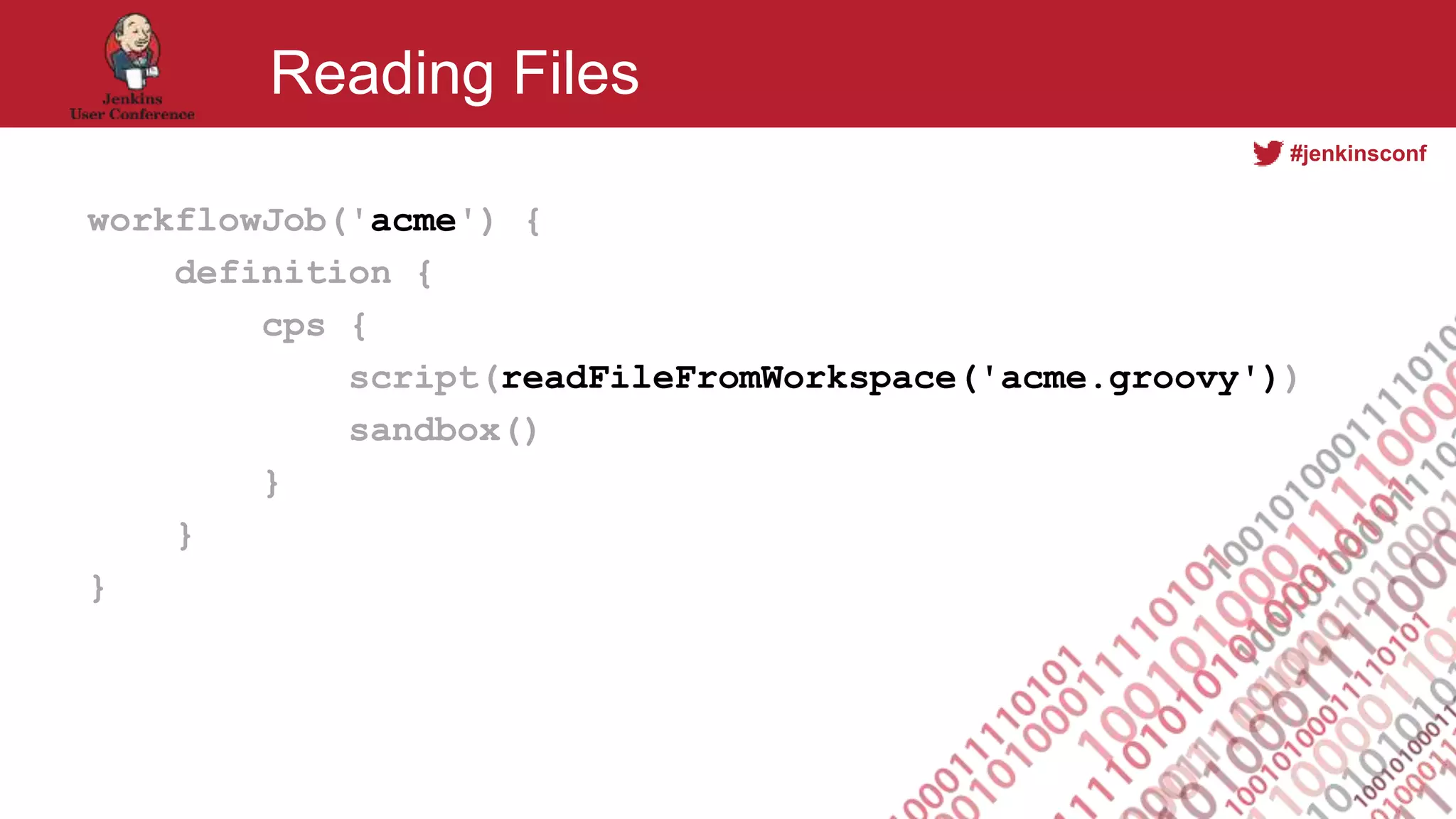

Reading Files
workflowJob('acme') {
definition {
cps {
script(readFileFromWorkspace('acme.groovy'))
sandbox()
}
}
}

#jenkinsconf

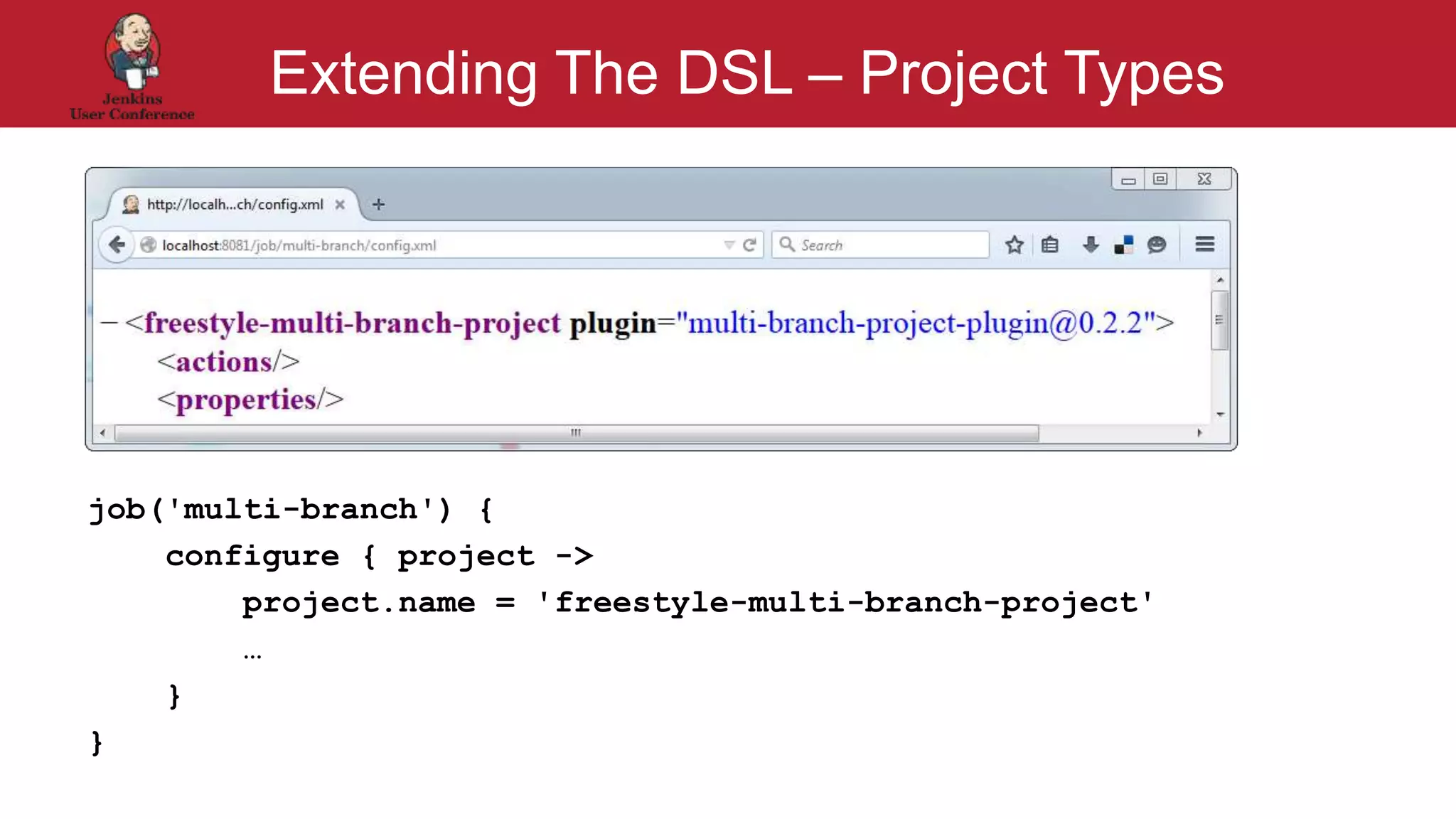

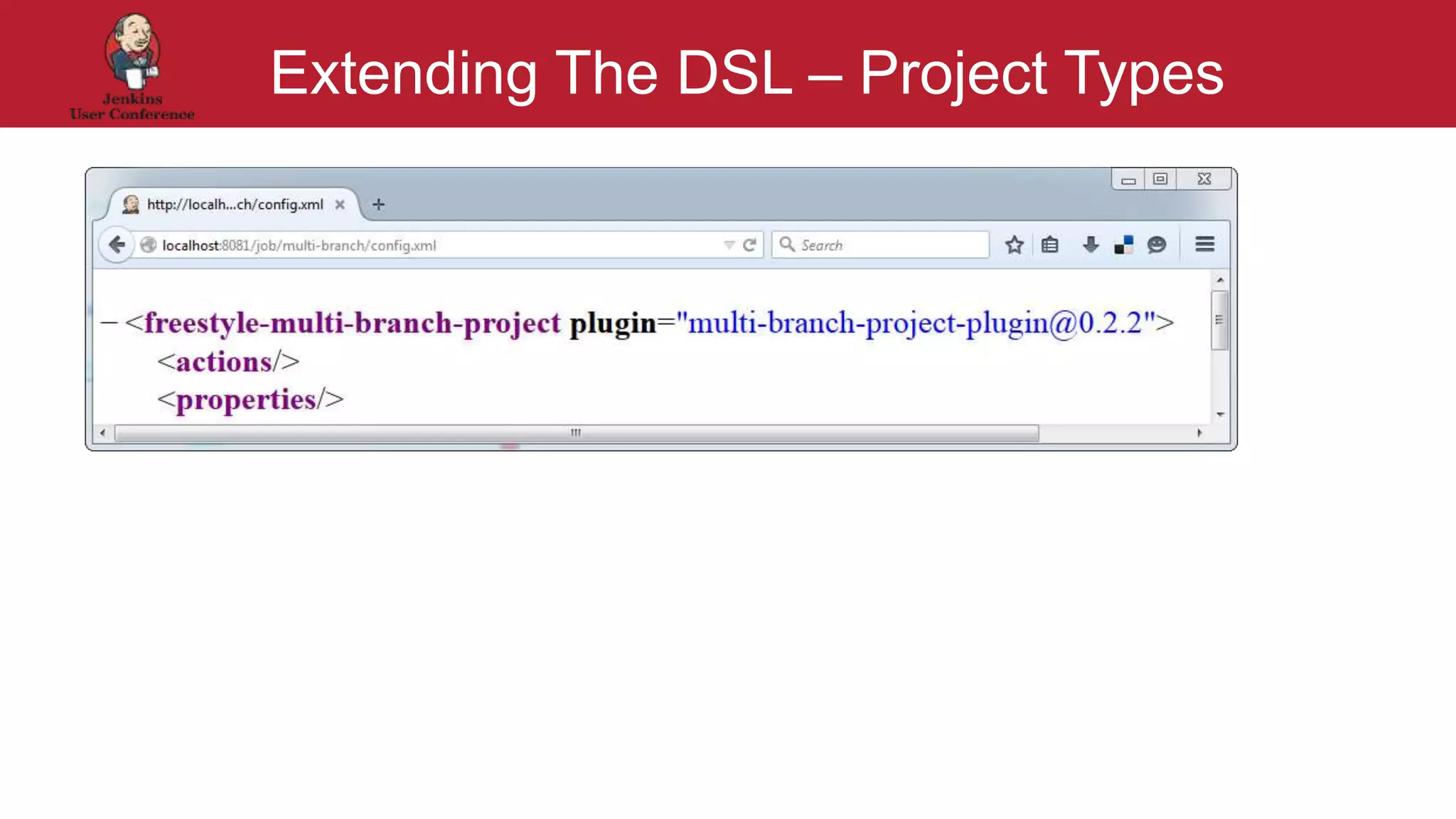

Extending The DSL – Project Types

#jenkinsconf
Extending The DSL – Project Types
job('multi-branch') {
configure { project ->
project.name = 'freestyle-multi-branch-project'
…
}
}

#jenkinsconf

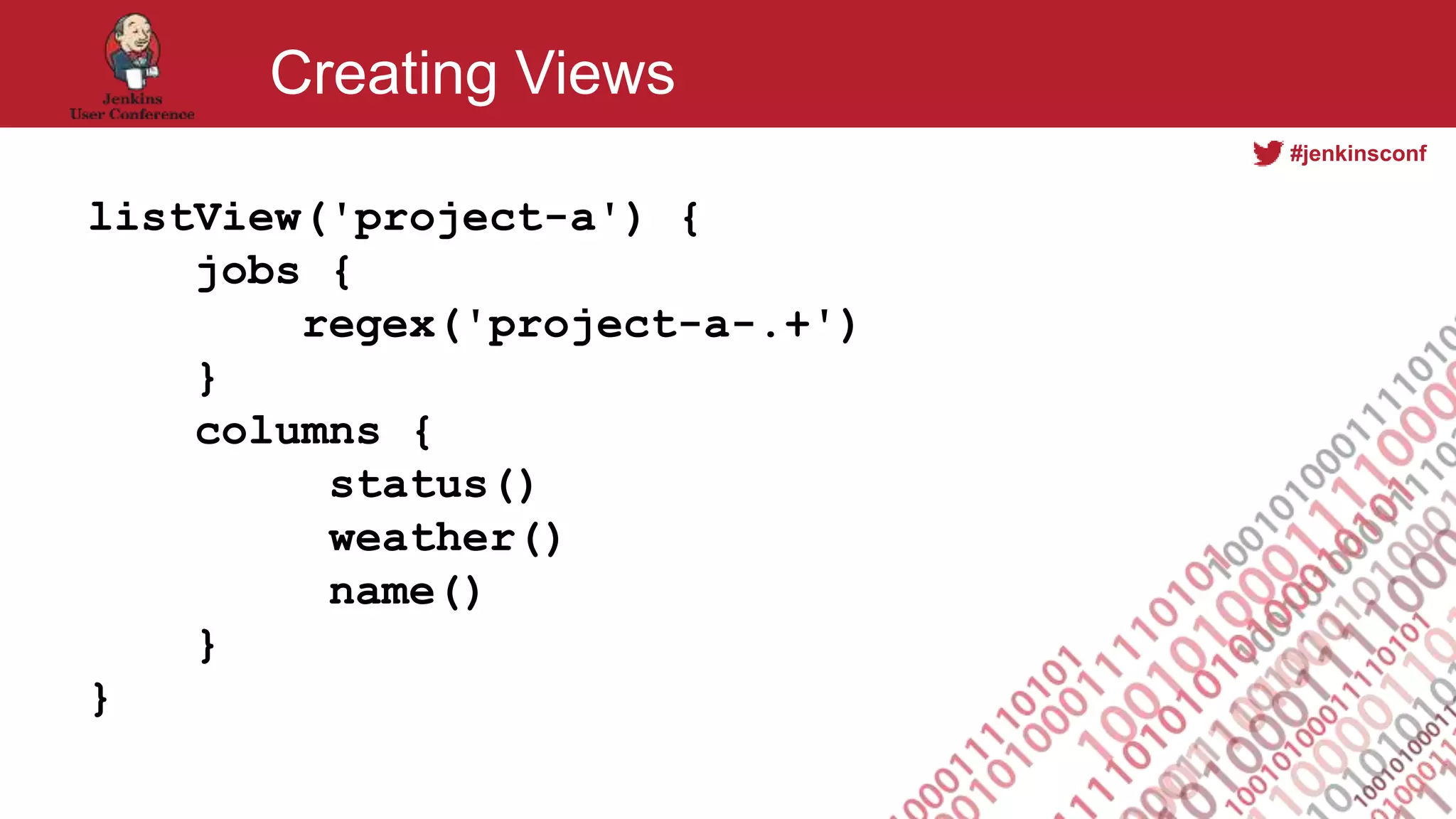

Creating Views
listView('project-a') {
jobs {
regex('project-a-.+')
}
columns {
status()
weather()
name()
}
}

#jenkinsconf

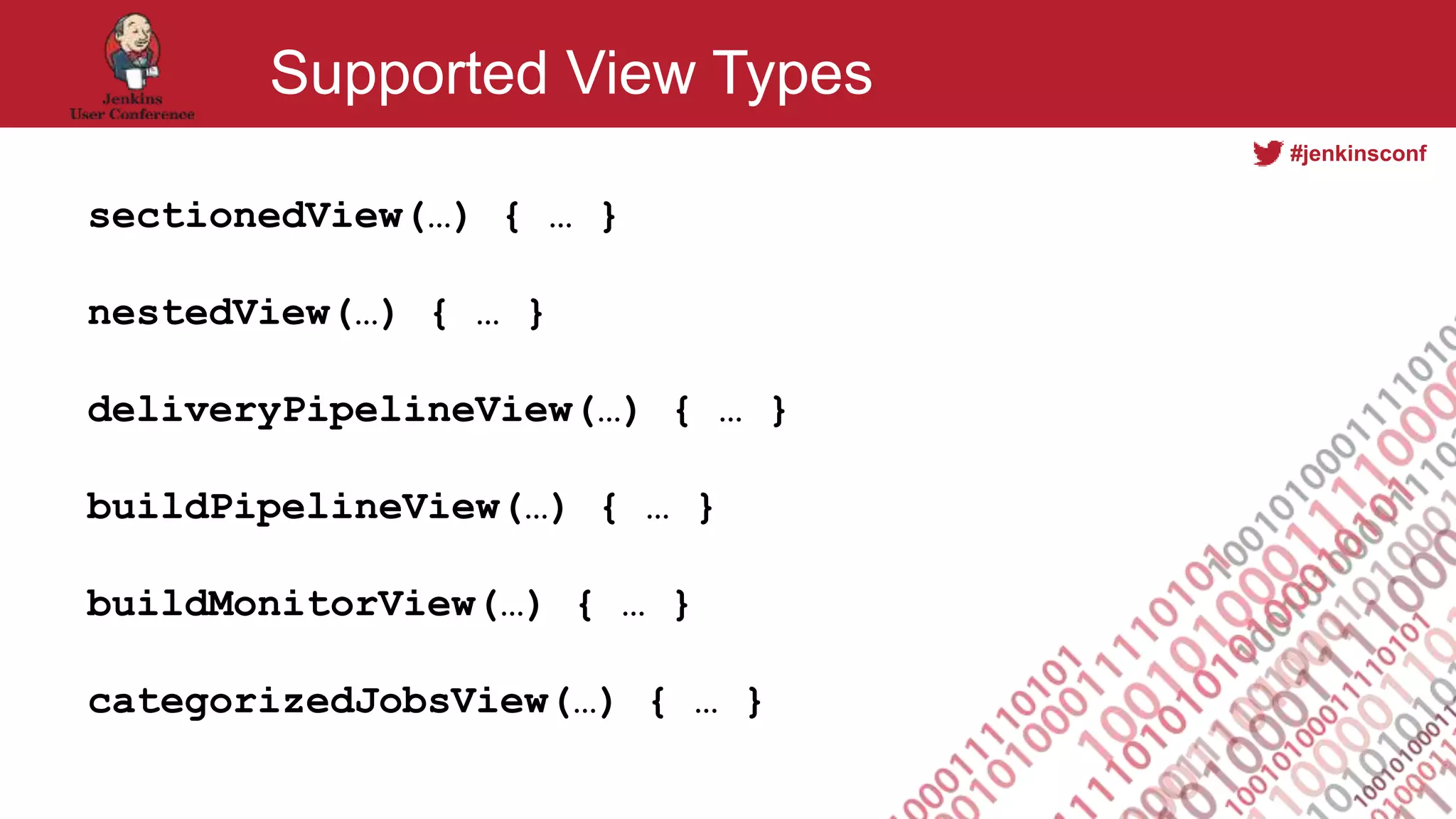

Supported View Types
sectionedView(…) { … }
nestedView(…) { … }
deliveryPipelineView(…) { … }
buildPipelineView(…) { … }
buildMonitorView(…) { … }
categorizedJobsView(…) { … }

#jenkinsconf

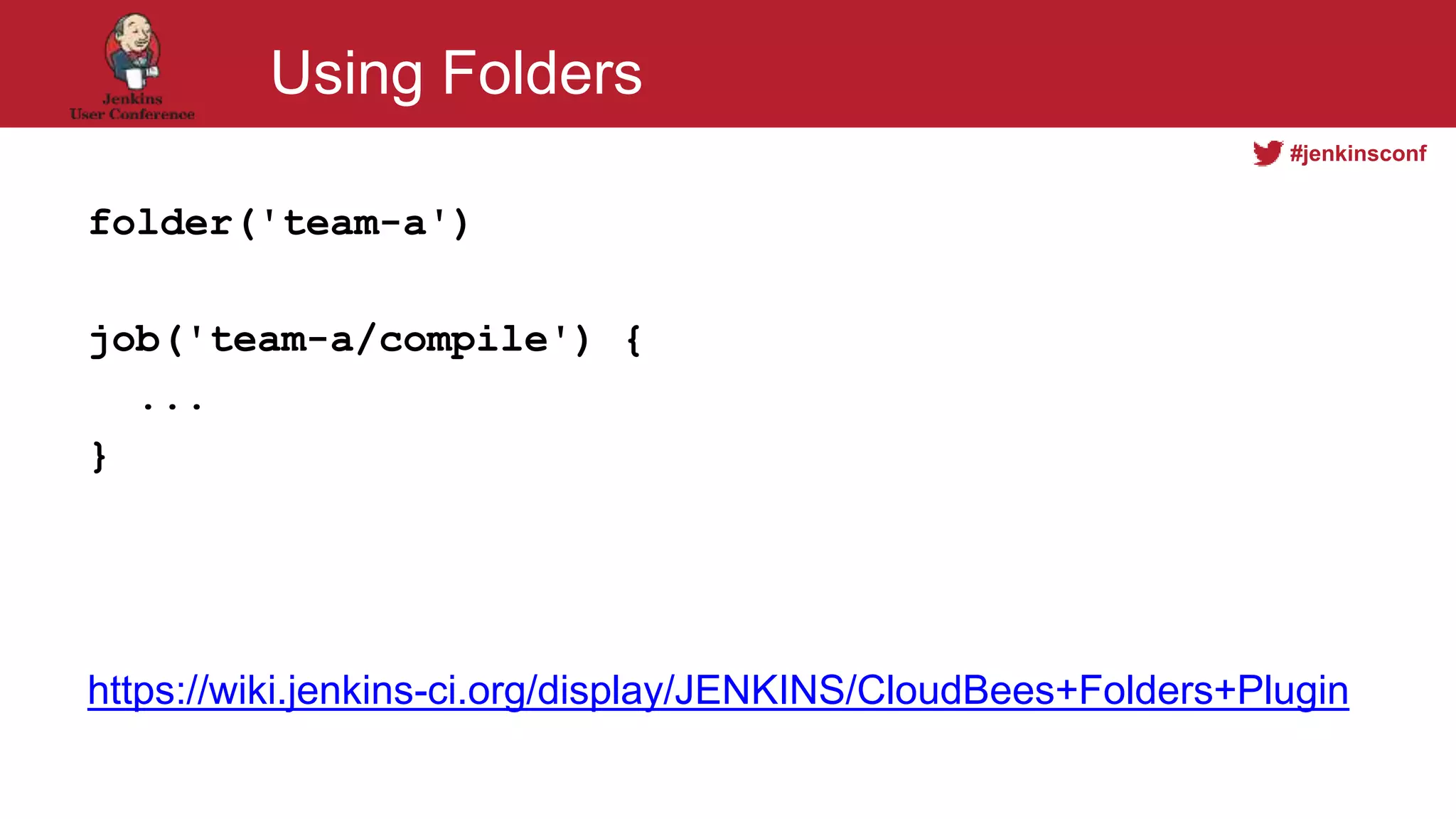

Using Folders
folder('team-a')
job('team-a/compile') {
...
}
https://wiki.jenkins-ci.org/display/JENKINS/CloudBees+Folders+Plugin

#jenkinsconf

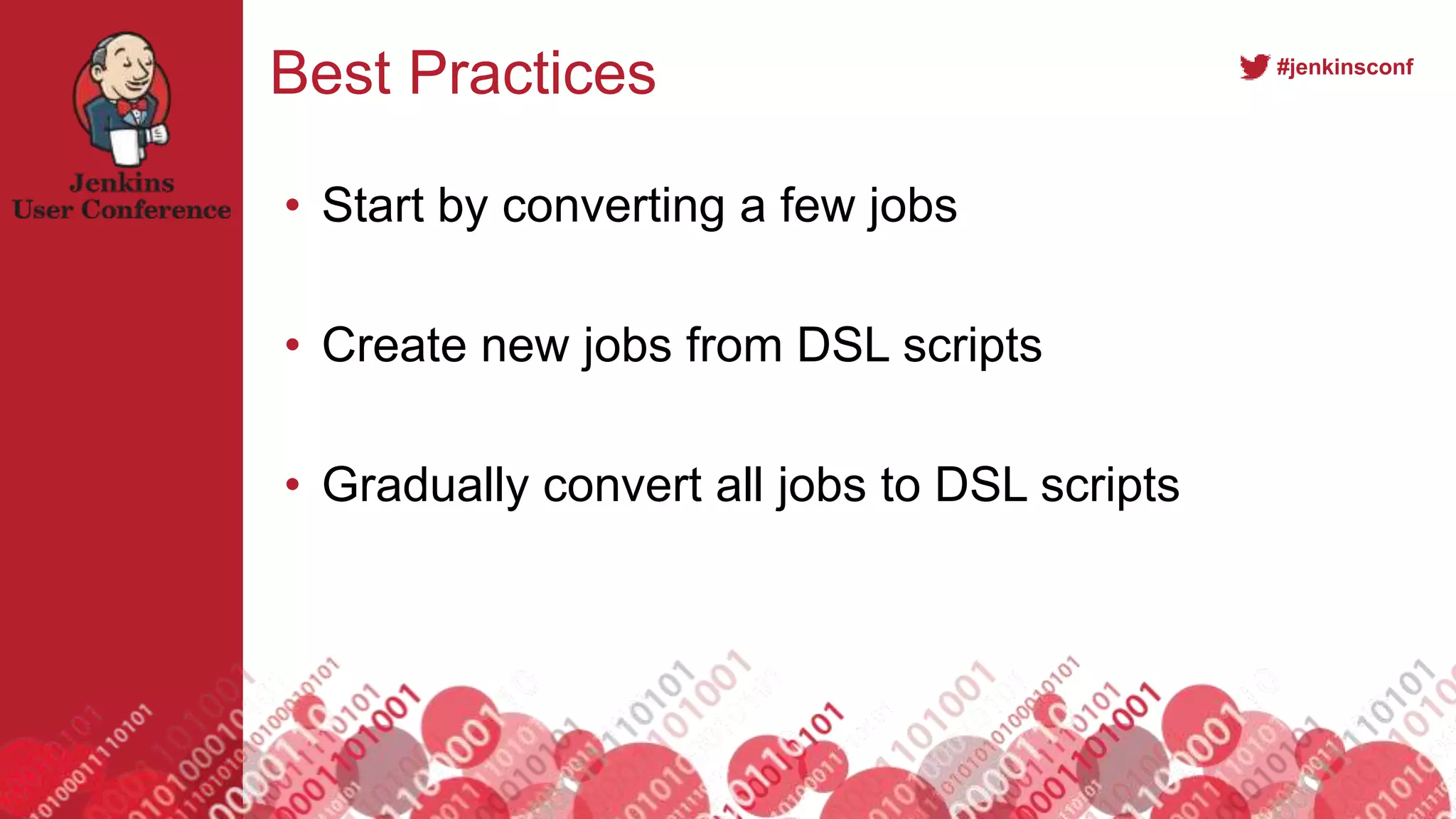

Best Practices
• Start by converting a few jobs
• Create new jobs from DSL scripts
• Gradually convert all jobs to DSL scripts

#jenkinsconf

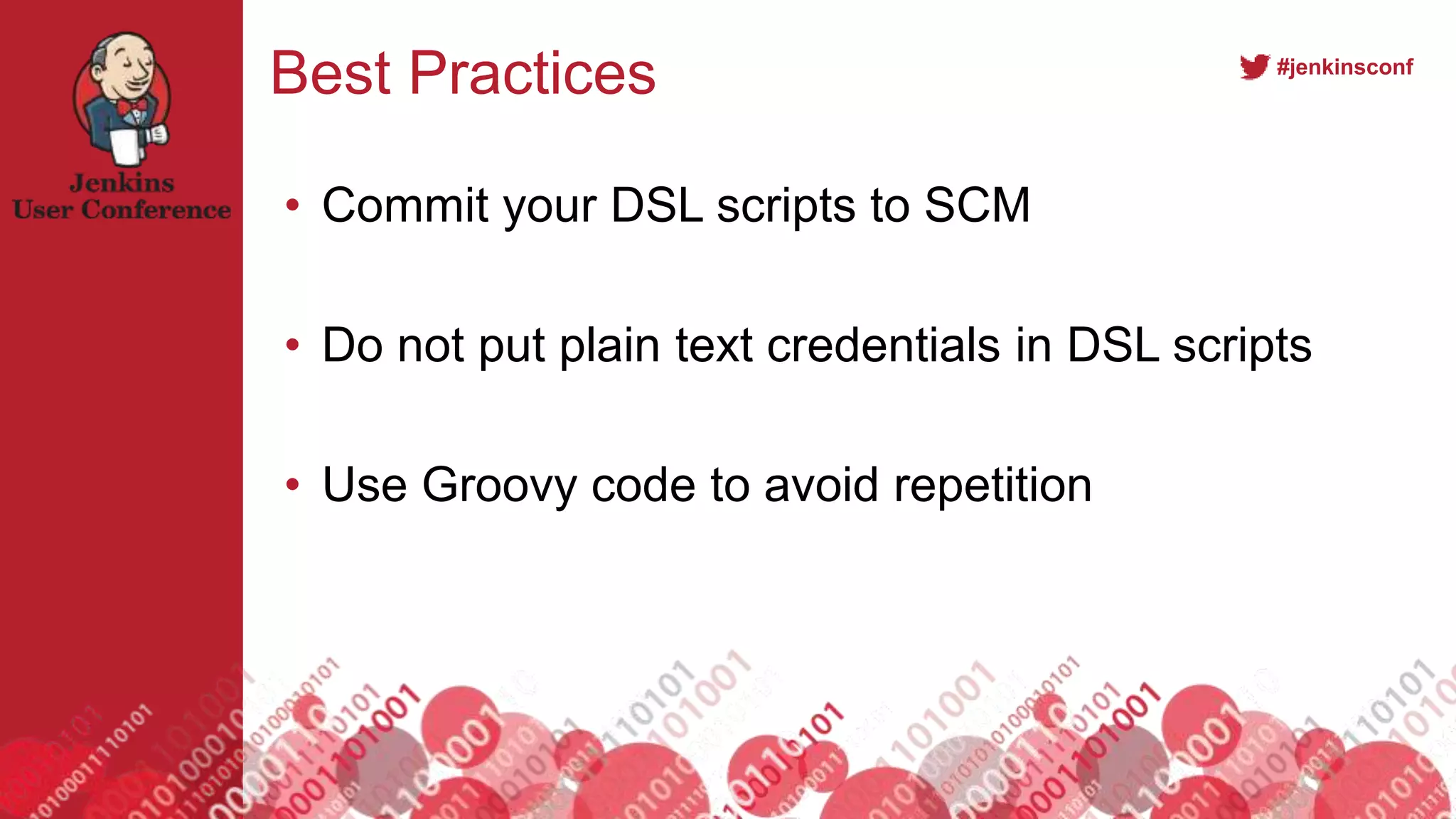

Best Practices
• Commit your DSL scripts to SCM
• Do not put plain text credentials in DSL scripts
• Use Groovy code to avoid repetition

#jenkinsconf

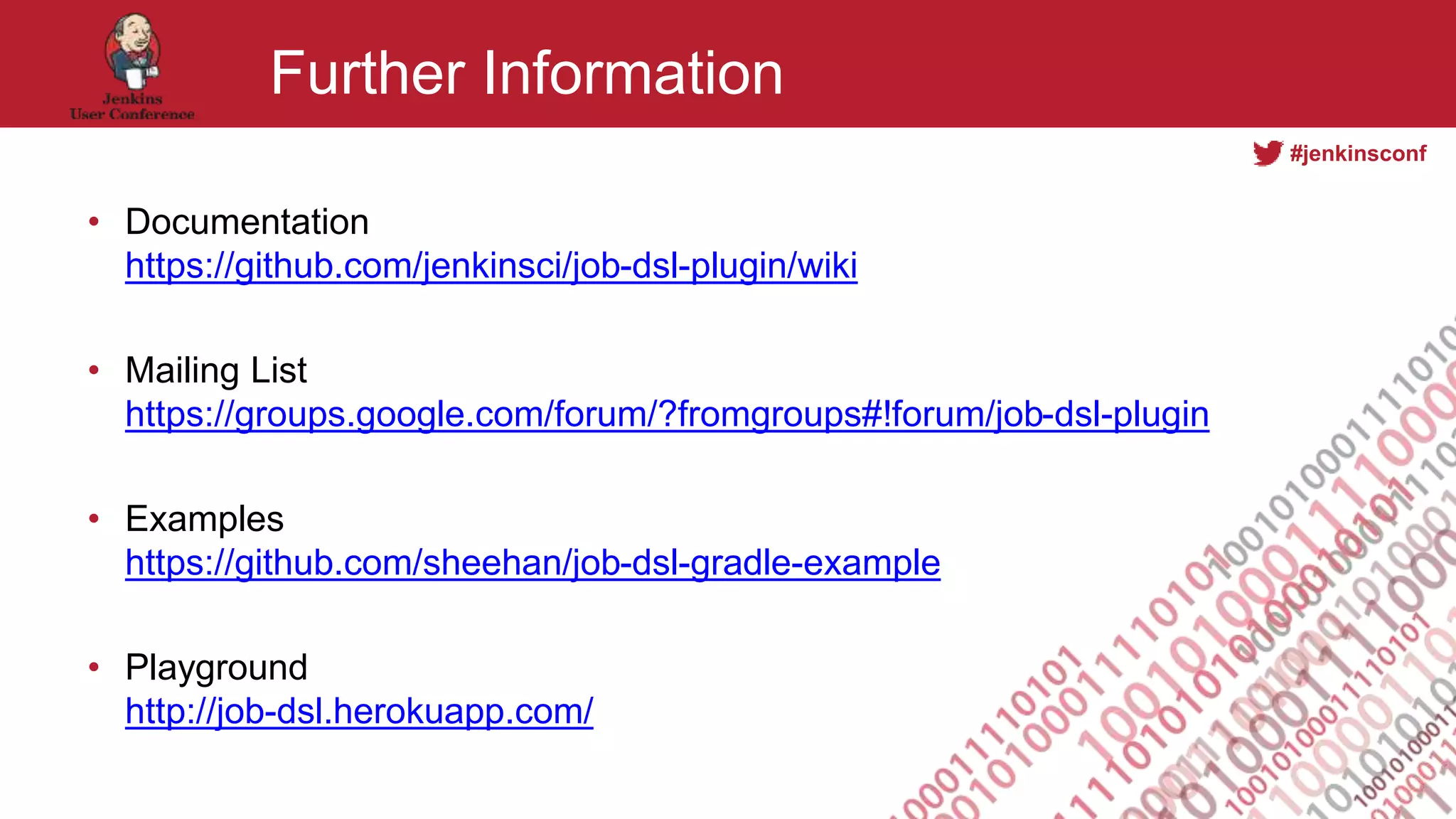

Further Information
• Documentation
https://github.com/jenkinsci/job-dsl-plugin/wiki
• Mailing List
https://groups.google.com/forum/?fromgroups#!forum/job-dsl-plugin
• Examples
https://github.com/sheehan/job-dsl-gradle-example
• Playground
http://job-dsl.herokuapp.com/

#jenkinsconf
Thank You
Daniel Spilker
daniel.spilker@coremedia.com
@daspilker
We‘re hiring
www.coremedia.com
@CoreMediaMinds
