- 1. <Insert Picture Here> Extendingthe Oracle Service Bus into the DMZ and Beyond Andy Rothfield, Oracle - North America Marketing and Strategy Manager, Oracle Embedded Global Business Unit Demed L’Her, Oracle - Director of Product Management, Oracle SOA Suite K Scott Morrison, Layer 7 Technologies - CTO & Chief Architect

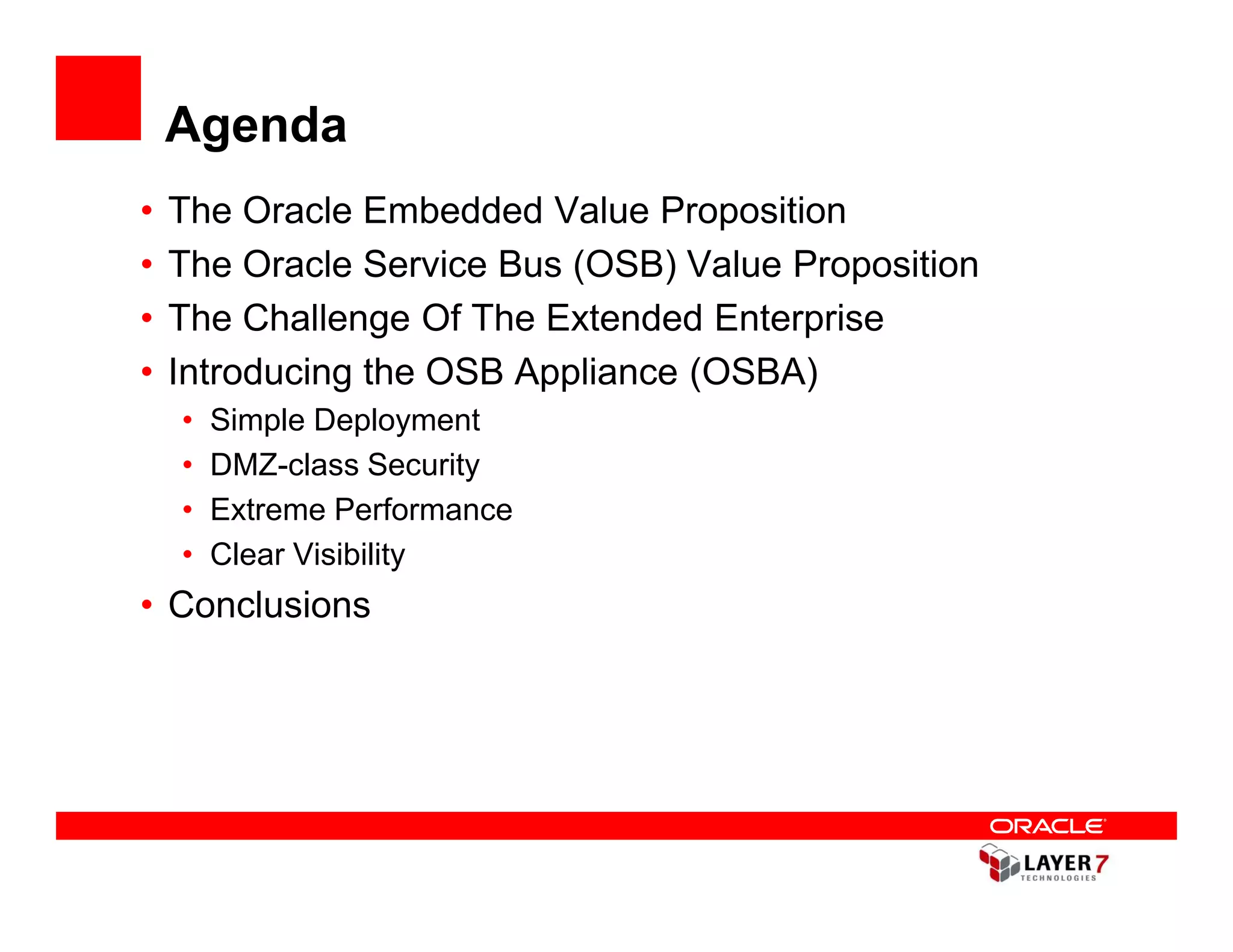

- 2. Agenda • The Oracle Embedded Value Proposition • The Oracle Service Bus (OSB) Value Proposition • The Challenge Of The Extended Enterprise • Introducing the OSB Appliance (OSBA) • Simple Deployment • DMZ-class Security • Extreme Performance • Clear Visibility • Conclusions
- 3. Why Embed Oracle? •Transparent building blocks that: • Create end-user trust • Improve time to market • Ensure reliability
- 4. The OSB ValueProposition • Ability to Adapt To Change • Service virtualization • Protocol Switching • Routing and Transformation BPM • Error Handling, Policy Enforcement Portal BPM B2B • Scaling in Multiple Dimensions • 1,000s of services • Millions of Transactions Oracle Service Bus • Reduce Cost Through Re-use • Connect your services once • Easily configure services for integration Service Adapters • Single view of assets w/ Service Lifecycle Repository • Manage risk Integration Services • Embedded service-level management • Failure Isolation and auto-recovery Business Logic Business Logic • Application Alerts & SLAs • Auditing and Reporting
- 5. Adaptive Connectivity Ina Nutshell… Service Oracle Service Bus Enterprise Clients Service Messaging Services Application HTTP/SOAP WS-RM Service Client Request / Response JMS TUX Application Service Client Synch / Asynch FTP MQ Application Service Client REST Split / Join EJB Application Service Client Application EJB Publish / Subscribe JCA Client Service • Any to Any Protocol • Multiple communications paradigms • Any to Any Payload • Request/response • XML • Synchronous and asynchronous • non-XML • One-to-many, many-to-one • Binary • Pub-sub • No WSDL Required • Mix-and-match (e.g. sync-to-async)
- 6. New Challenges inthe Extended Enterprise Cloud Computing (SaaS, PaaS, IaaS) Industry Trends Customization, Security, Performance, Availability, Regulatory SOA & REST - Across Enterprise Boundaries Customization, Security, Performance, Availability, Regulatory SOA & REST – Inside the Organization Distributed Applications and Shared Services
- 7. Introducing the OracleService Bus Appliance Best of breed XML Gateway + Best of breed ESB for XML security and acceleration for mediation and adaptive connectivity 1. Easy Deployment 2. DMZ-class Security 3. Extreme XML Performance 4. High Degree of Visibility
- 8. Easy Deployment &Simple Configuration • With OSB Appliances the Customer can • Remove the appliance from the shipping carton, install it in the rack, • Connect power and network cable(s), assign an IP address, and turn the appliance on. • At that point it configures itself to run on the network. Concluding initial XML firewalling policy configuration your Service Bus Appliance is ready to use The entire process takes less than an hour versus loading and configuring conventional software.
- 9. What’s in theBox 144.30% to 16,564.97% Improvement XML Accelerator Over Server Install of OSB Cryptographic Accelerator & Hardware Security Module SSL Acceleration & FIPS 140.2 Level 3 Integrate & Customize Protect & Secure
- 10.
- 11. Security - Challenges •Challenges • Cyber Threats • Existing firewalls & IDS/IPS do very little to find application protocol threats • Identity and Access Control Across Boundaries • Privacy and Integrity • Audit & Compliance Risks • Significant time & money • Different expectations across verticals • HIPPA, PCI, etc
- 12. DMZ-Class Security • PerimeterSecurity and Defense in Depth • Threat Protection • Access Control through integration with Oracle IDM Suite • Federated Identity across disparate security realms (SAML) • Support for WS* Security and messaging standards and products • FIPS 140-2 Level 3 with Elliptic Curve/B Suite Support Intercept problematic messages at the enterprise perimeter before they reach your services Oracle Oracle Entitlements Access Server Manager X X X Perform Identity-based access to services and operations in the DMZ
- 13. Performance Challenges • ApplicationLayer Protocols are expensive to process • Often XML-based • Threat Detection Requires • Very Fast Message Processing • Schema Validation • Structure Inspection • Growing Need for Adaptation on-the-fly • Cryptographic Processing is Becoming Expensive Because of Move to Large Keys • Key Protection is Essential for Many Secure Environments • But external HSM processing can incur high latency
- 14. Acceleration of XMLand Cryptography • Hardware-based XML Processing (XPATH, XSLT, XSD) • Hardware-based, FIPS 140-2 Cryptographic Processing (RSA, ECC, 3DES, AES, etc) • On-board Hardware Security Module (HSM) for key protection • Large Message Processing Delegate common or expensive XML-related tasks from your services to your infrastructure
- 15. OSBA Performance ValueProposition • The numbers speak for themselves • 1K • Schema Validation – 261.34% Faster • XSLT – 262.86% Faster • 10K • Schema Validation – 287.92% Faster • XSLT – 187.24% Faster • 100K • Schema Validation - 16564.97% Faster • XSLT – 144.30% Faster
- 16. Visibility Challenges • Twodemands: • Instantaneous state across the extended enterprise • Forensic usage data • Need to know status of infrastructure and applications • Need instant notification of problems • Integration into existing monitoring and management infrastructure • Business needs customized counters • Every application is different • Data must be available • As report • As raw data for metrics, billing etc.
- 17. Monitoring Capability • IntegratedMonitoring and Management • Graphical display • Raw data available through APIs OSBA Console(s)
- 18. OSBA Service Monitoring • Monitor System Operations Warnings • Alerting and reporting key monitoring points 17 4 40 13 • Gauge system health, slowdown notification 72 • Monitoring is optional per service Critical • Service metrics Minor • Response times (min, max, avg) • Message, error, failover counts Error • Action level metrics Responses • Dashboard • # of Generated Errors • By Service • Show fault and performance metrics aggregated cluster wide or per server • JMX Metrics • Metrics available via MBean interfaces • Integration with Enterprise Mgr • Custom Alerts • SLA alerts for conditions requiring attention • Pipeline alerts can flag individual msgs • Service health • # of Alerts by Severity • Configurable Aggregation Intervals 18
- 19. Conclusions • Decrease timeto market and cost of implementation by leveraging a pre-integrated, pre-configured SOA Appliance: • Initial configuration (network configuration, security lock-downs, etc.) • Security configuration (such as XML firewalling, access control, auditing, etc.) • Adapter configuration for enterprise system integration (ERP, CRM, databases, messaging systems, etc) • Monitoring configuration for integration with existing management infrastructure • Thank you for joining us this morning! • Contact info: • Andy Rothfield, andy.rothfield@oracle.com • Demed L’Her, demed.lher@oracle.com, 650-506-1128 • Scott Morrison, smorrison@gov.layer7tech.com, 778-329-9982
