The document outlines the benefits and features of SQL Server 2008 in enhancing BizTalk 2009 projects, including aspects like cost savings, high availability, and performance improvements. It emphasizes the advantages of using the enterprise edition over the standard edition, such as scalability, security, and support for complex integration scenarios. The document also discusses deployment architecture considerations and specific case studies demonstrating the effectiveness of advanced SQL Server functionalities.

1. Ing. Eduardo Castro, PhD
ecastro@grupoasesor.net
http://ComunidadWindows.org

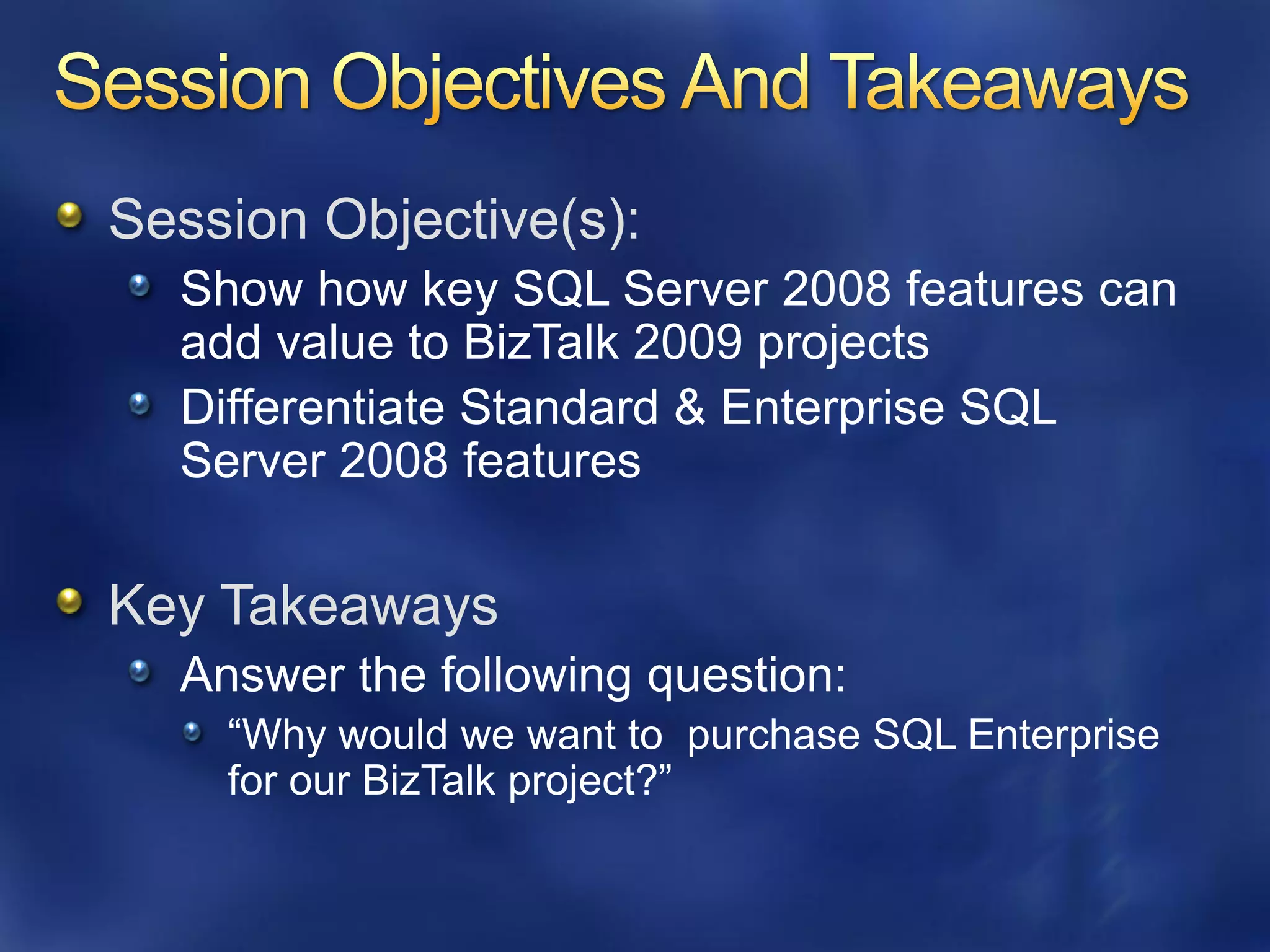

2. Session Objective(s):
Show how key SQL Server 2008 features can
add value to BizTalk 2009 projects
Differentiate Standard & Enterprise SQL
Server 2008 features
Key Takeaways
Answer the following question:
―Why would we want to purchase SQL Enterprise
for our BizTalk project?‖

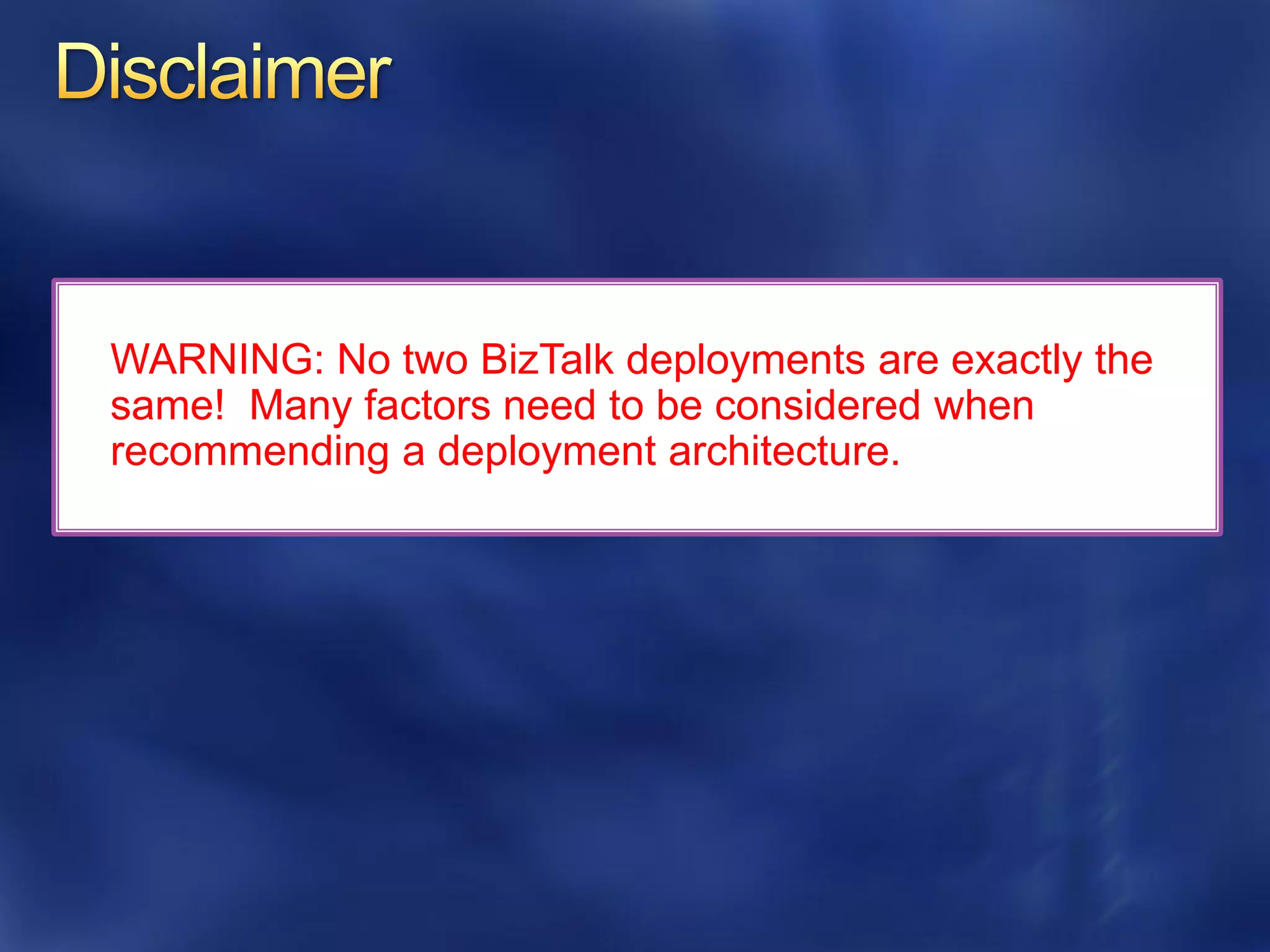

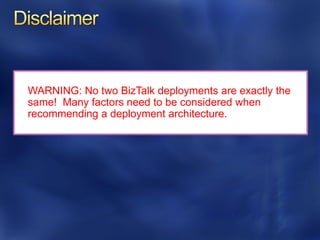

3. WARNING: No two BizTalk deployments are exactly the
same! Many factors need to be considered when
recommending a deployment architecture.

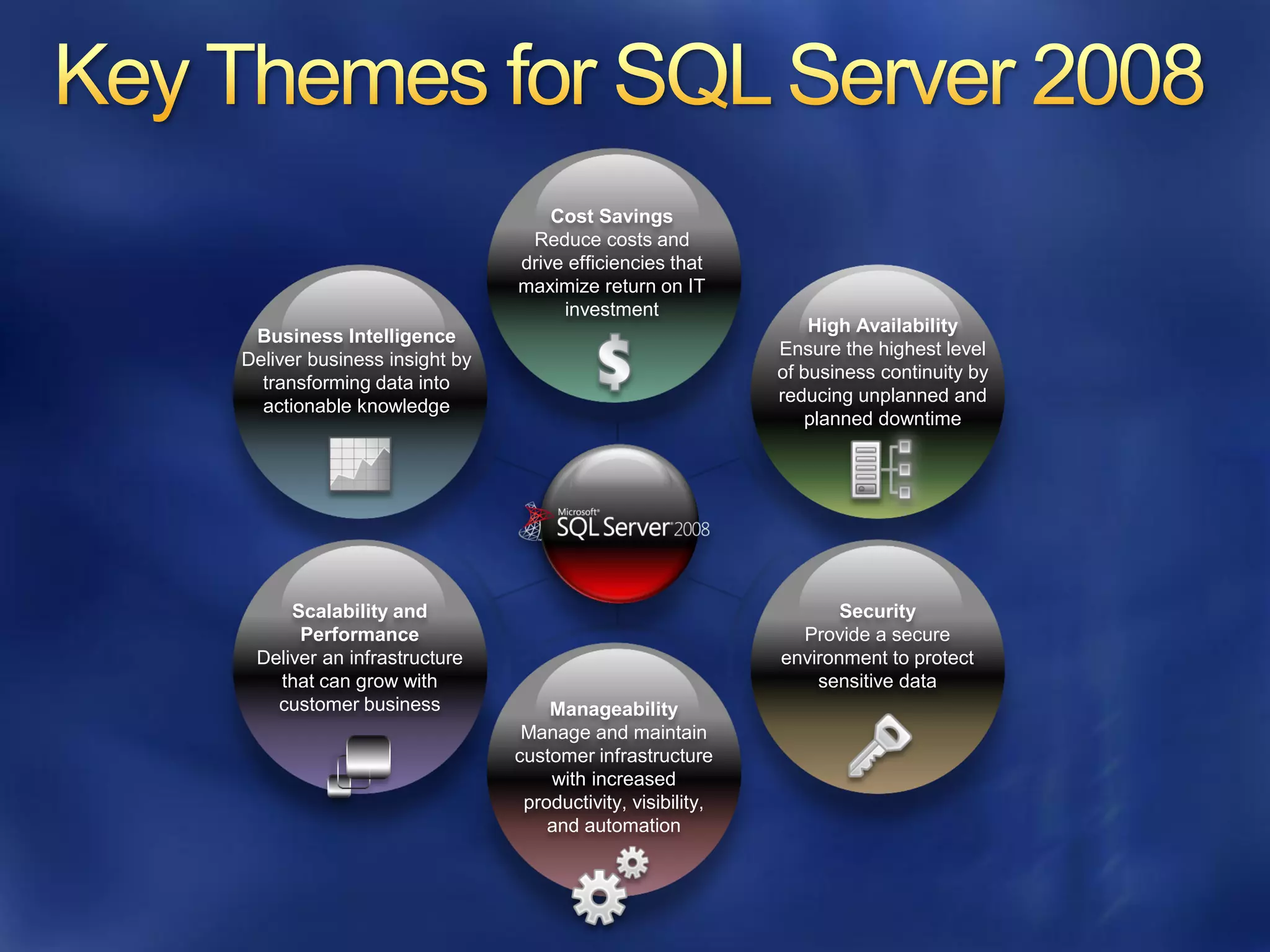

4. Cost Savings
Reduce costs and
drive efficiencies that
maximize return on IT
investment
High Availability
Business Intelligence
Ensure the highest level
Deliver business insight by
of business continuity by
transforming data into
reducing unplanned and
actionable knowledge
planned downtime
Scalability and Security
Performance Provide a secure
Deliver an infrastructure environment to protect
that can grow with sensitive data
customer business Manageability
Manage and maintain
customer infrastructure
with increased
productivity, visibility,
and automation

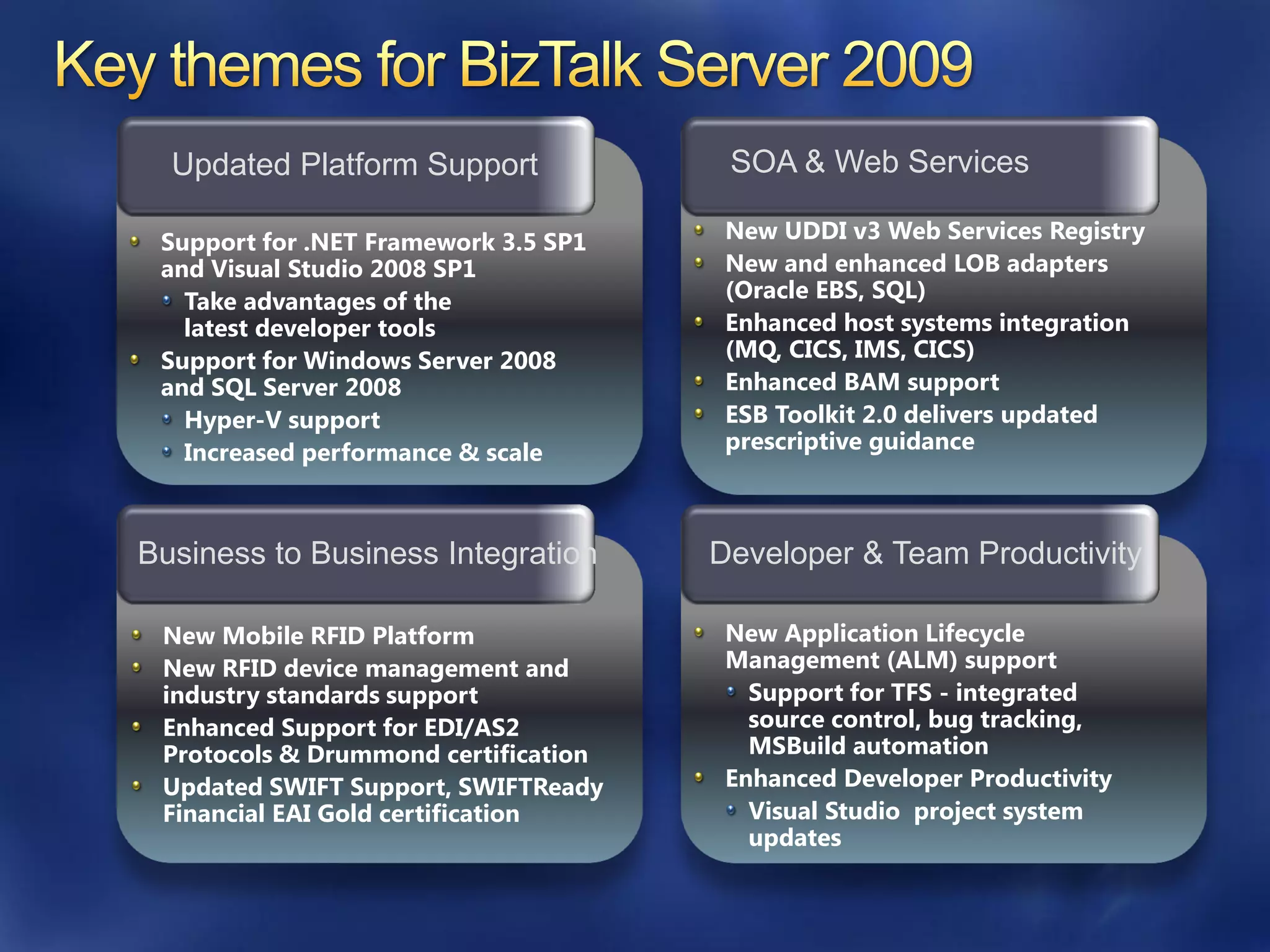

5. Updated Platform Support SOA & Web Services
Support for .NET Framework 3.5 SP1 New UDDI v3 Web Services Registry
and Visual Studio 2008 SP1 New and enhanced LOB adapters
Take advantages of the (Oracle EBS, SQL)
latest developer tools Enhanced host systems integration
Support for Windows Server 2008 (MQ, CICS, IMS, CICS)
and SQL Server 2008 Enhanced BAM support
Hyper-V support ESB Toolkit 2.0 delivers updated
Increased performance & scale prescriptive guidance
Business to Business Integration Developer & Team Productivity
New Mobile RFID Platform New Application Lifecycle
New RFID device management and Management (ALM) support
industry standards support Support for TFS - integrated
Enhanced Support for EDI/AS2 source control, bug tracking,
Protocols & Drummond certification MSBuild automation
Updated SWIFT Support, SWIFTReady Enhanced Developer Productivity
Financial EAI Gold certification Visual Studio project system
updates

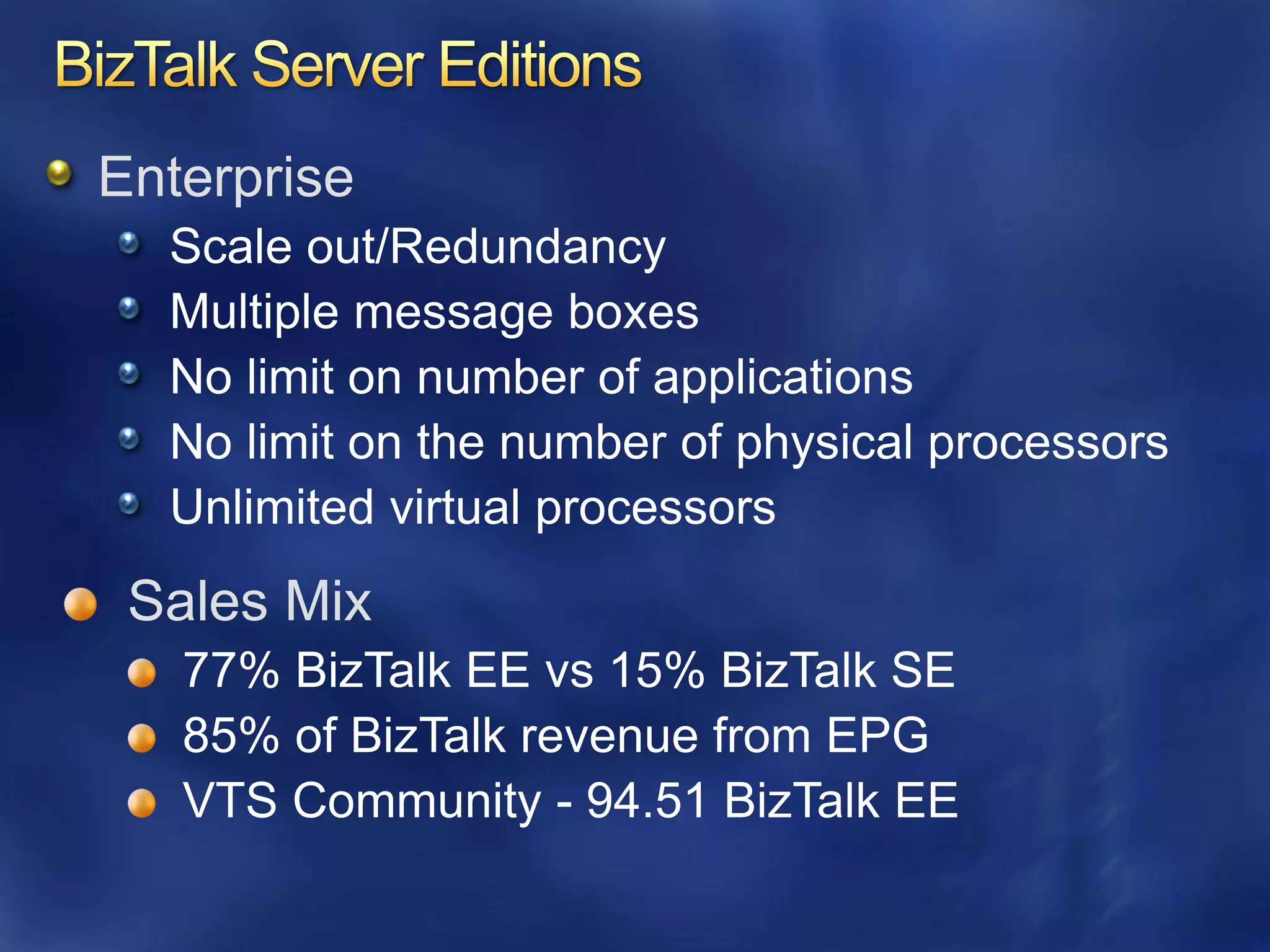

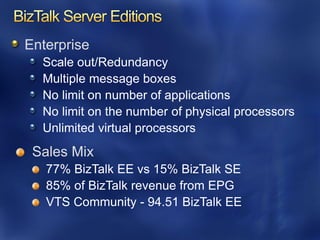

6. Enterprise
Scale out/Redundancy
Multiple message boxes
No limit on number of applications
No limit on the number of physical processors
Unlimited virtual processors
Sales Mix

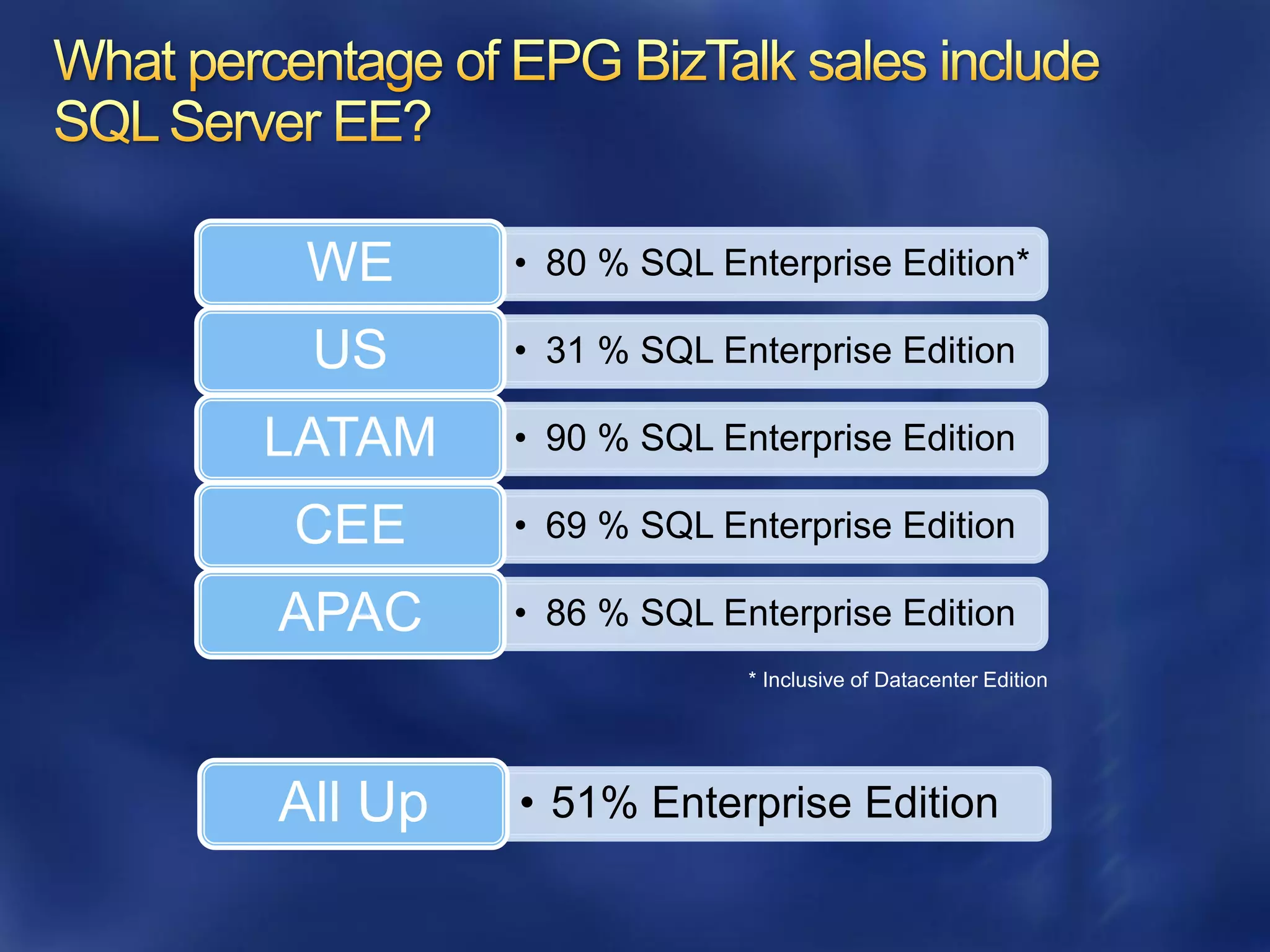

7. WE • 80 % SQL Enterprise Edition*
US • 31 % SQL Enterprise Edition
LATAM • 90 % SQL Enterprise Edition
CEE • 69 % SQL Enterprise Edition
APAC • 86 % SQL Enterprise Edition
All Up • 51% Enterprise Edition

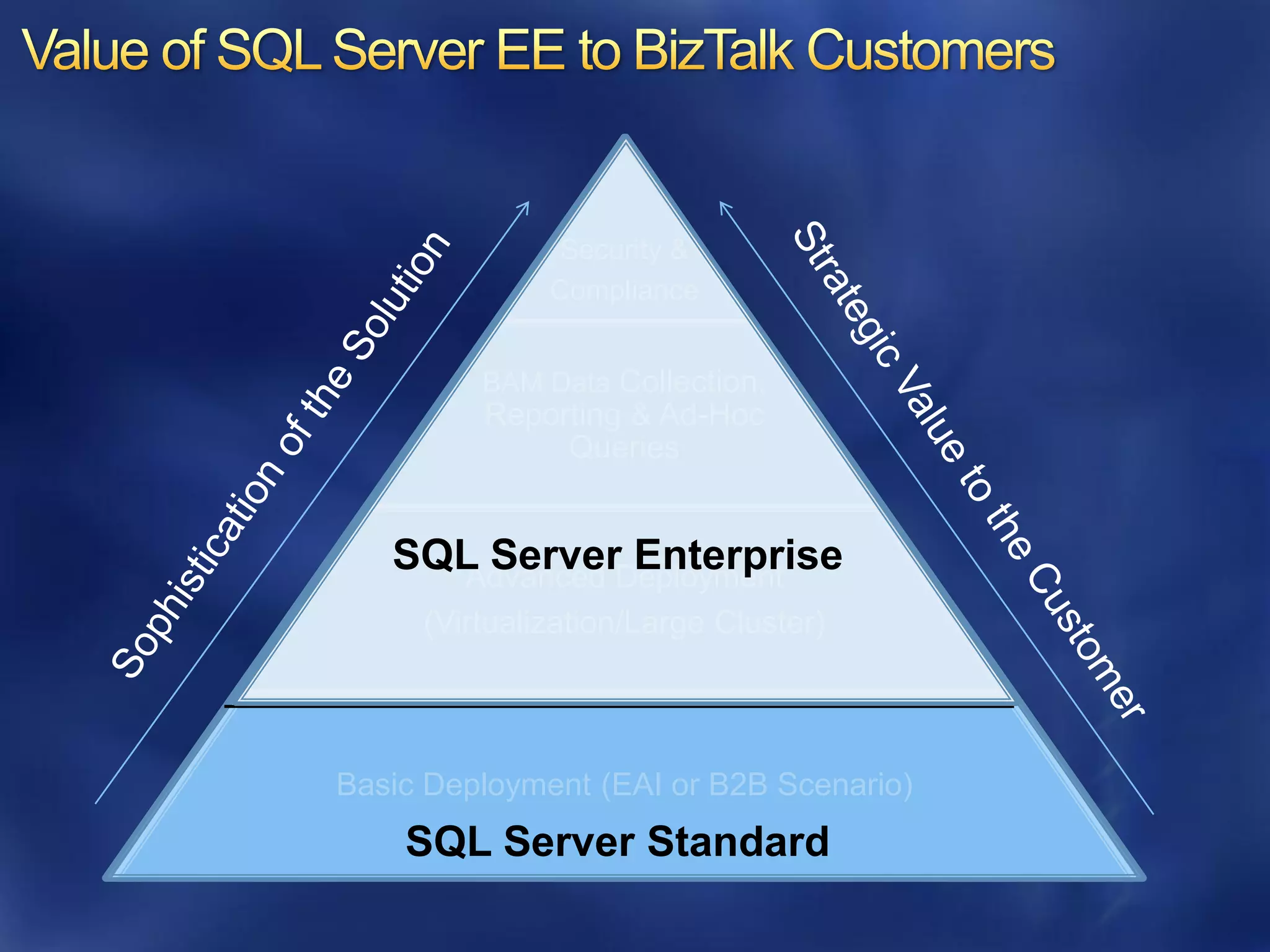

9. Security &
Compliance
BAM Data Collection,
Reporting & Ad-Hoc
Queries
SQL ServerDeployment
Advanced
Enterprise
(Virtualization/Large Cluster)
Basic Deployment (EAI or B2B Scenario)
SQL Server Standard

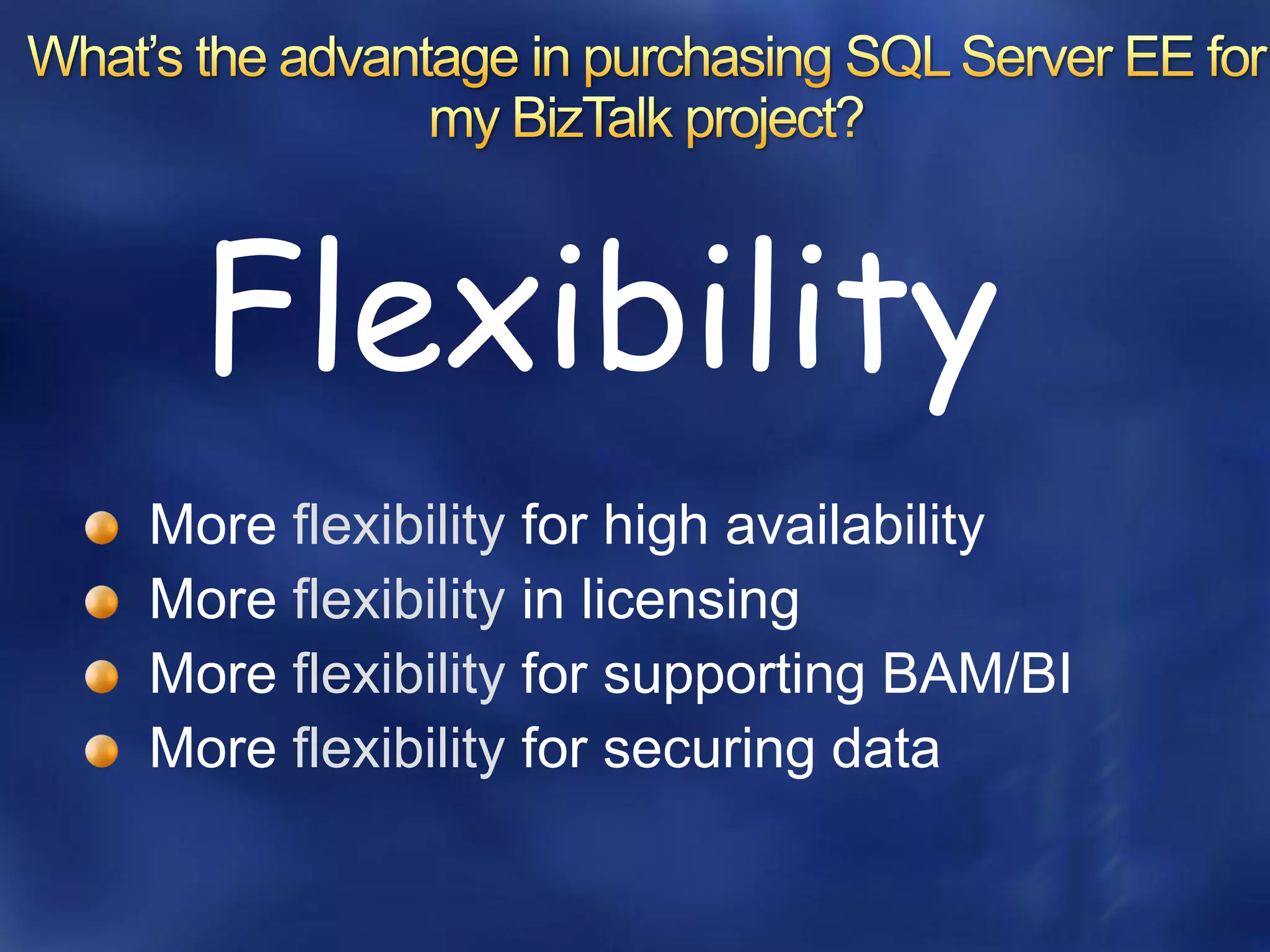

10. More flexibility for high availability
More flexibility in licensing
More flexibility for supporting BAM/BI
More flexibility for securing data

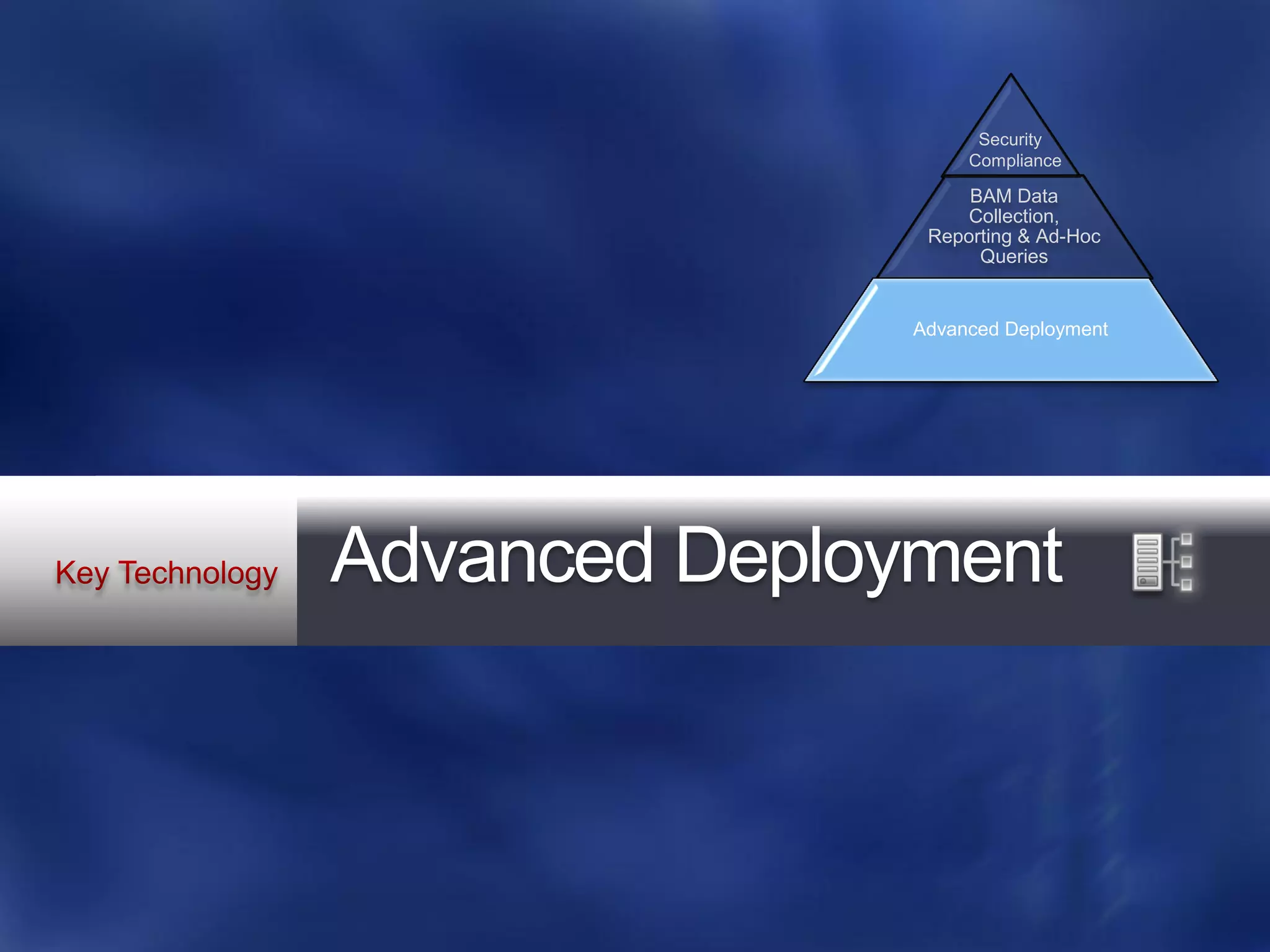

11. Security
Compliance
BAM Data
Collection,
Reporting & Ad-Hoc
Queries
Advanced Deployment
Advanced Deployment

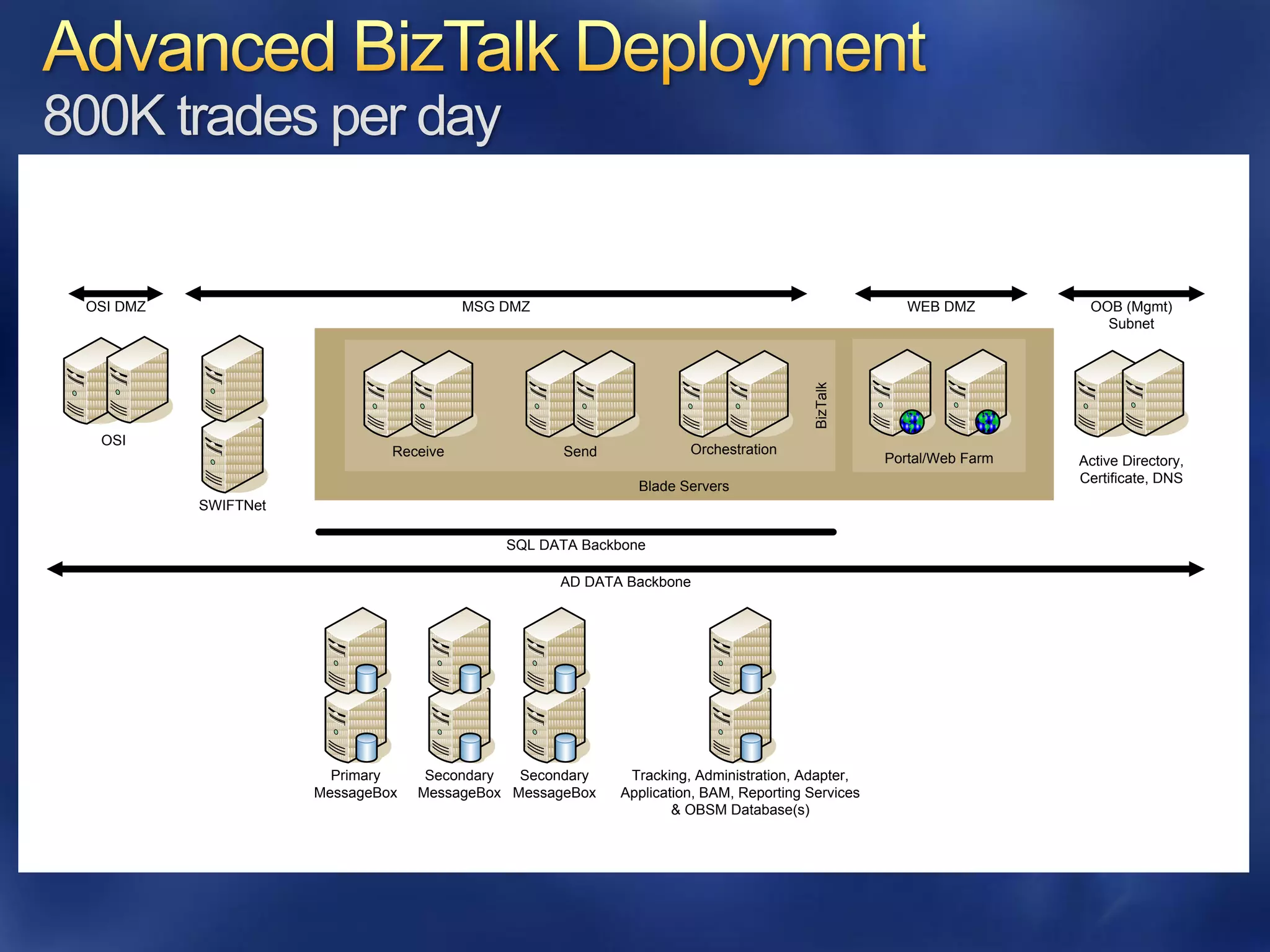

12. 800K trades per day
OSI DMZ MSG DMZ WEB DMZ OOB (Mgmt)
Subnet
BizTalk
OSI
Receive Send Orchestration
Portal/Web Farm Active Directory,
Certificate, DNS
Blade Servers
SWIFTNet
SQL DATA Backbone
AD DATA Backbone
Primary Secondary Secondary Tracking, Administration, Adapter,
MessageBox MessageBox MessageBox Application, BAM, Reporting Services
& OBSM Database(s)

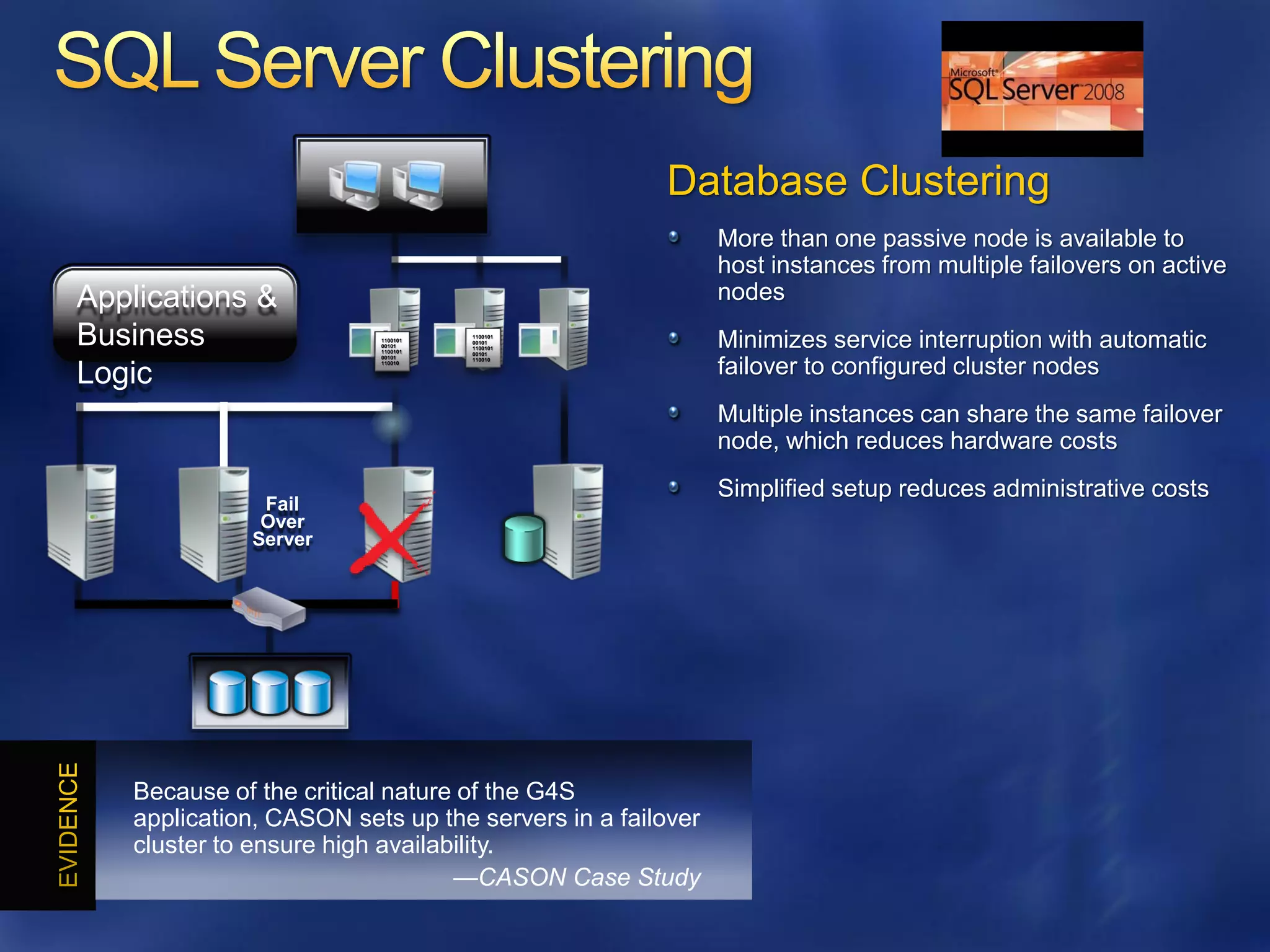

13. Database Clustering
More than one passive node is available to
host instances from multiple failovers on active
Applications & nodes
Business 1100101
00101
0010111
1100101
0010100
00101
101
1100101
00101
1100101
00101
Minimizes service interruption with automatic
failover to configured cluster nodes
110010
Logic
110010
110010
Multiple instances can share the same failover
node, which reduces hardware costs
Simplified setup reduces administrative costs
Fail
Over
Server
Because of the critical nature of the G4S
application, CASON sets up the servers in a failover
cluster to ensure high availability.
—CASON Case Study

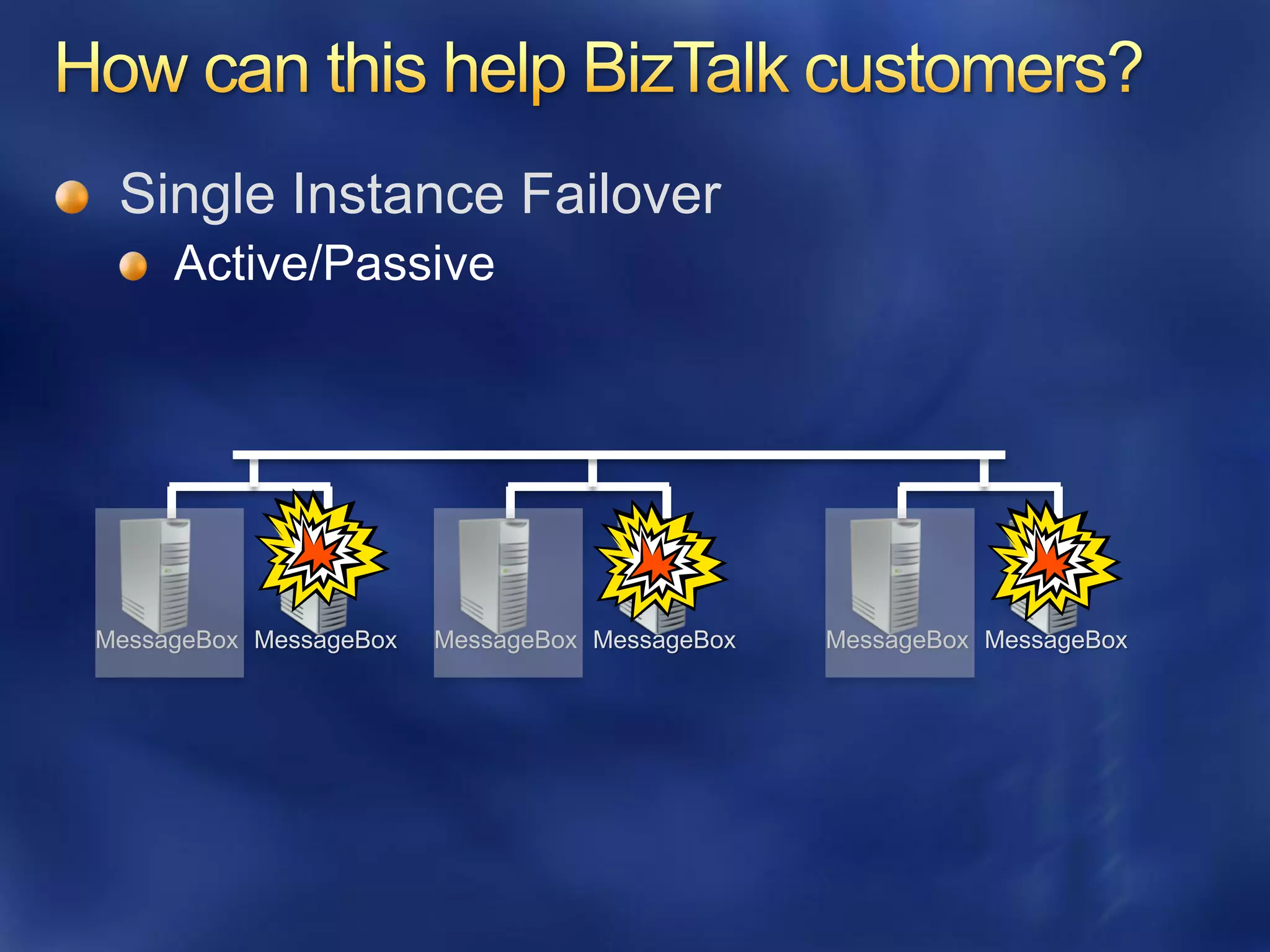

14. Single Instance Failover
MessageBox MessageBox MessageBox MessageBox MessageBox MessageBox

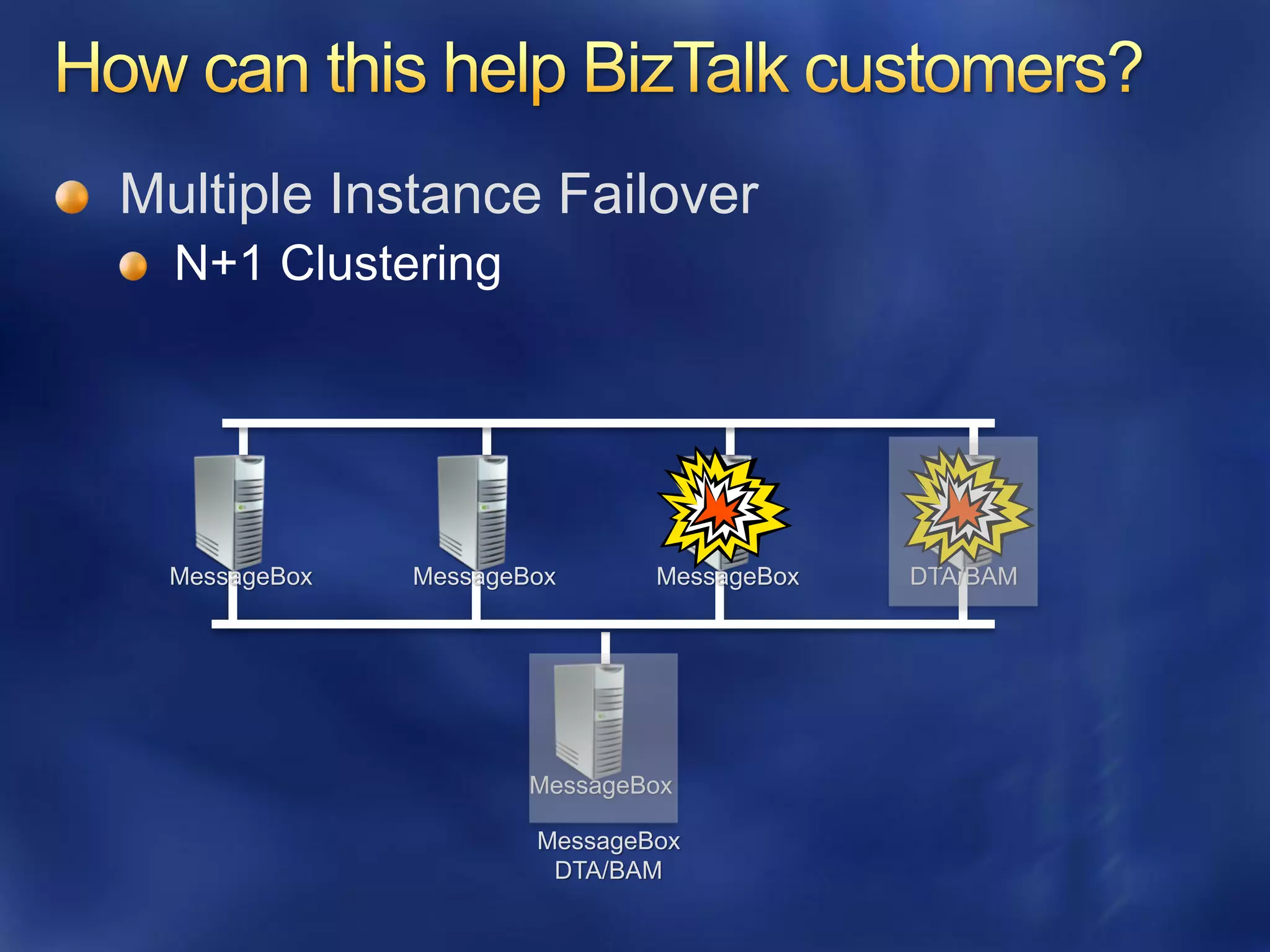

15. Multiple Instance Failover
MessageBox MessageBox MessageBox DTA/BAM
MessageBox
MessageBox
DTA/BAM

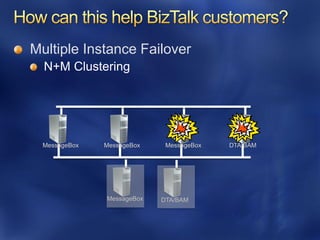

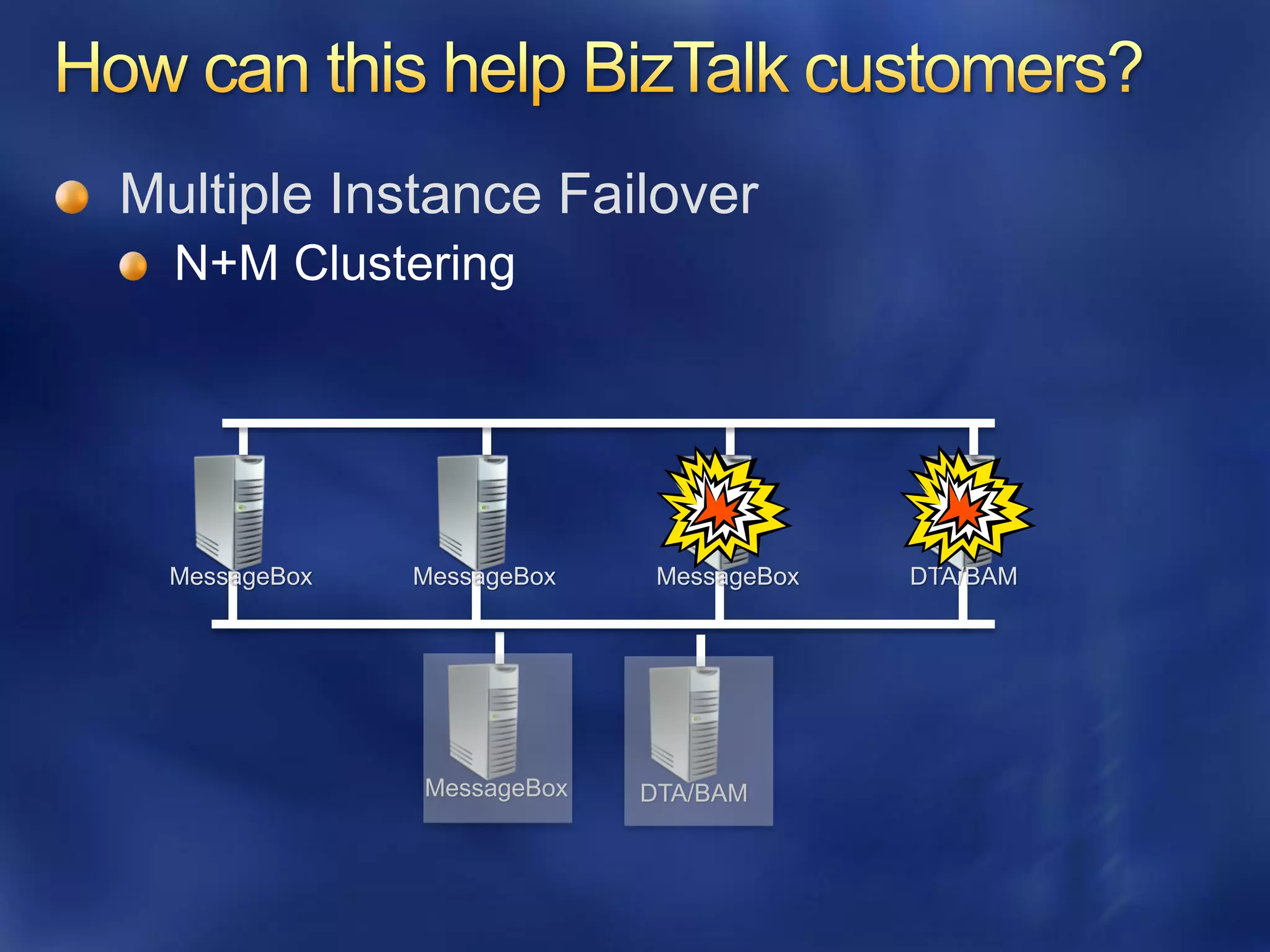

16. Multiple Instance Failover
MessageBox MessageBox MessageBox DTA/BAM
MessageBox DTA/BAM

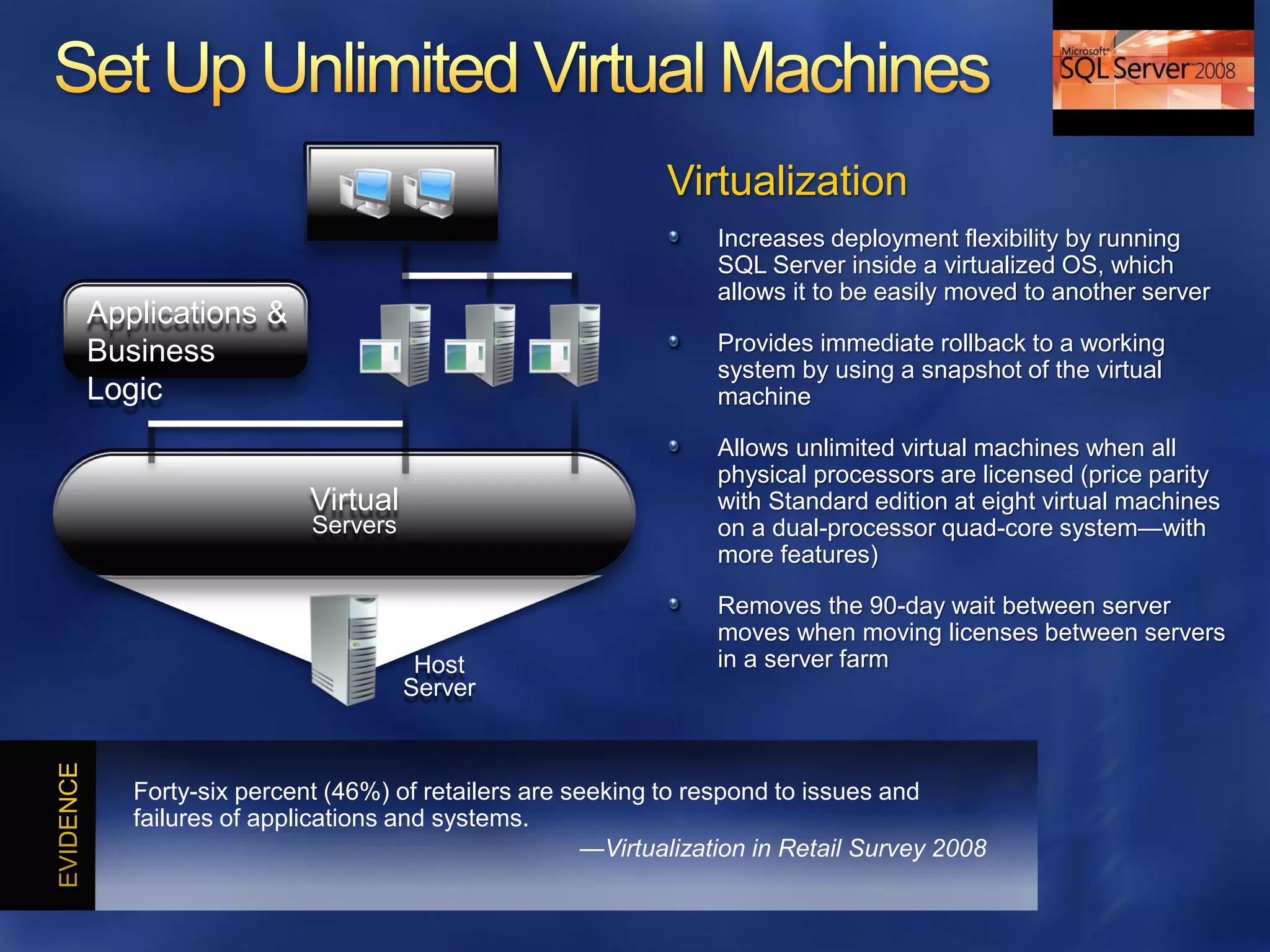

17. Virtualization
Increases deployment flexibility by running
SQL Server inside a virtualized OS, which
allows it to be easily moved to another server
Applications &
Business Provides immediate rollback to a working
system by using a snapshot of the virtual
Logic machine
Allows unlimited virtual machines when all
physical processors are licensed (price parity
Virtual with Standard edition at eight virtual machines
Servers on a dual-processor quad-core system—with
more features)
Removes the 90-day wait between server
moves when moving licenses between servers
Host in a server farm
Server
Forty-six percent (46%) of retailers are seeking to respond to issues and
failures of applications and systems.
—Virtualization in Retail Survey 2008

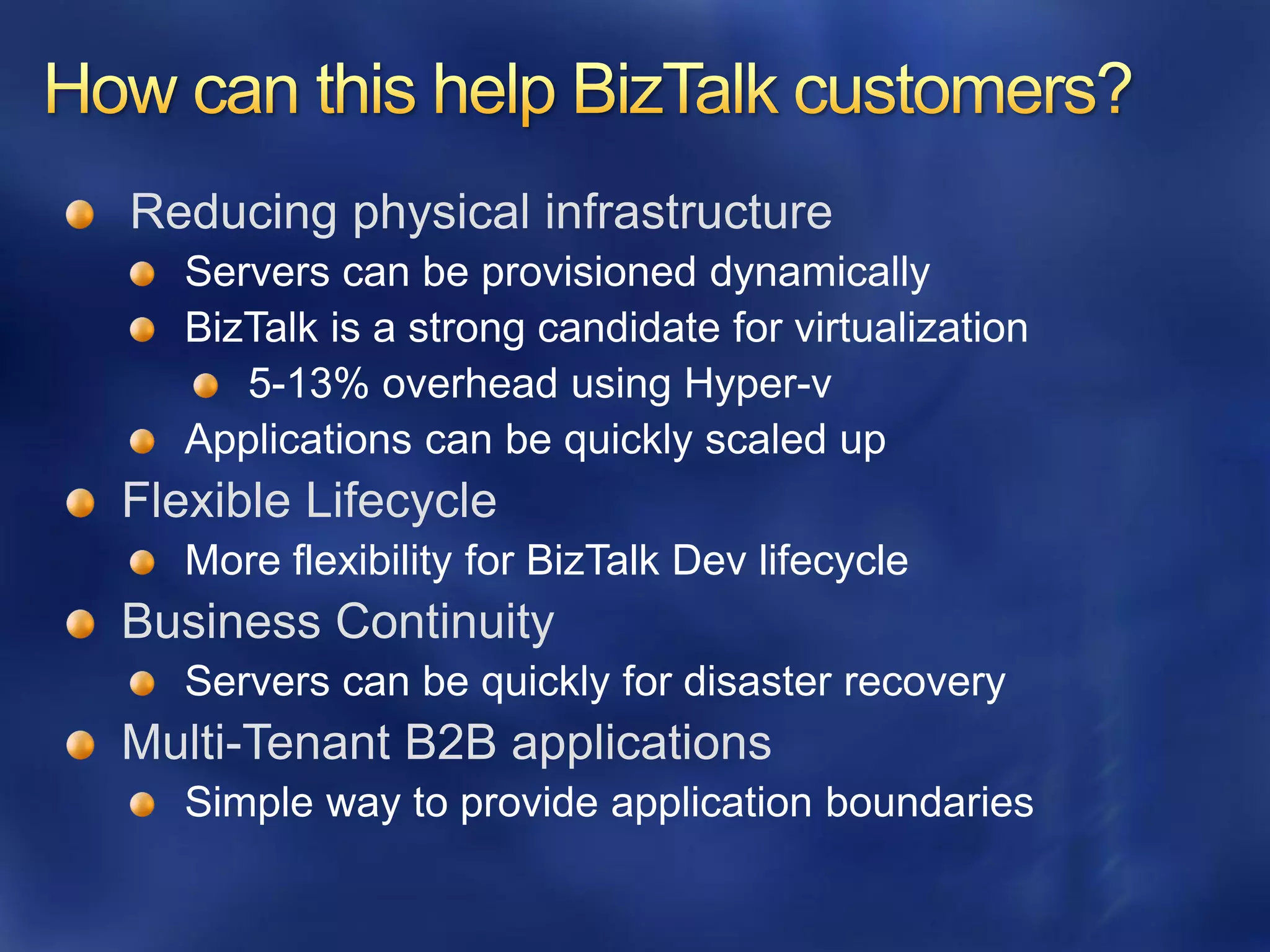

18. Reducing physical infrastructure
Flexible Lifecycle
More flexibility for BizTalk Dev lifecycle
Business Continuity
Multi-Tenant B2B applications

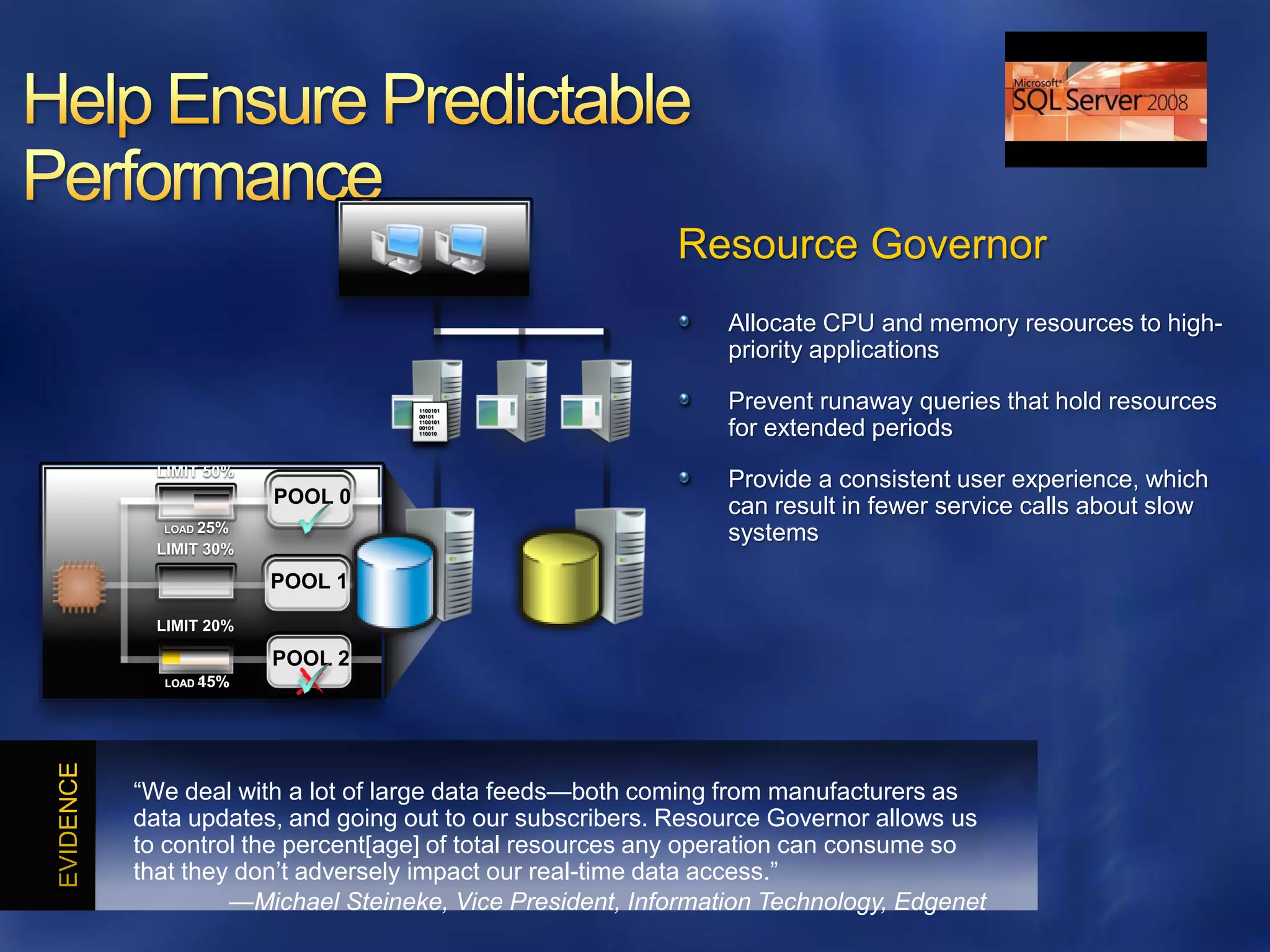

19. Resource Governor
Allocate CPU and memory resources to high-
priority applications
1100101
00101
Prevent runaway queries that hold resources
1100101
00101
110010 for extended periods
LIMIT 50%
Provide a consistent user experience, which
POOL 0 can result in fewer service calls about slow
LOAD 25%
systems
LIMIT 30%
POOL 1
LIMIT 20%
POOL 2
15%
LOAD 45%
―We deal with a lot of large data feeds—both coming from manufacturers as
data updates, and going out to our subscribers. Resource Governor allows us
to control the percent[age] of total resources any operation can consume so
that they don’t adversely impact our real-time data access.‖
—Michael Steineke, Vice President, Information Technology, Edgenet

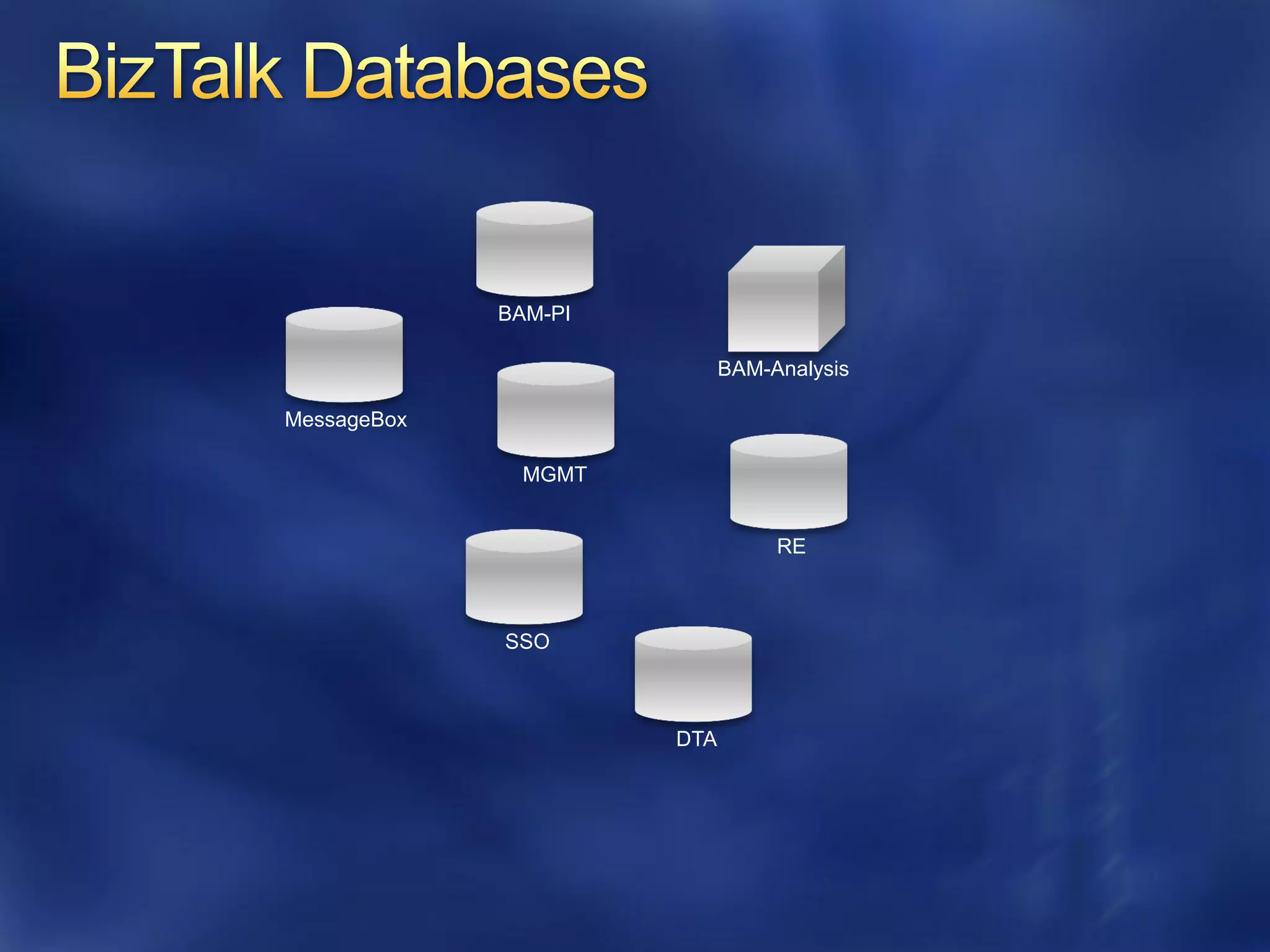

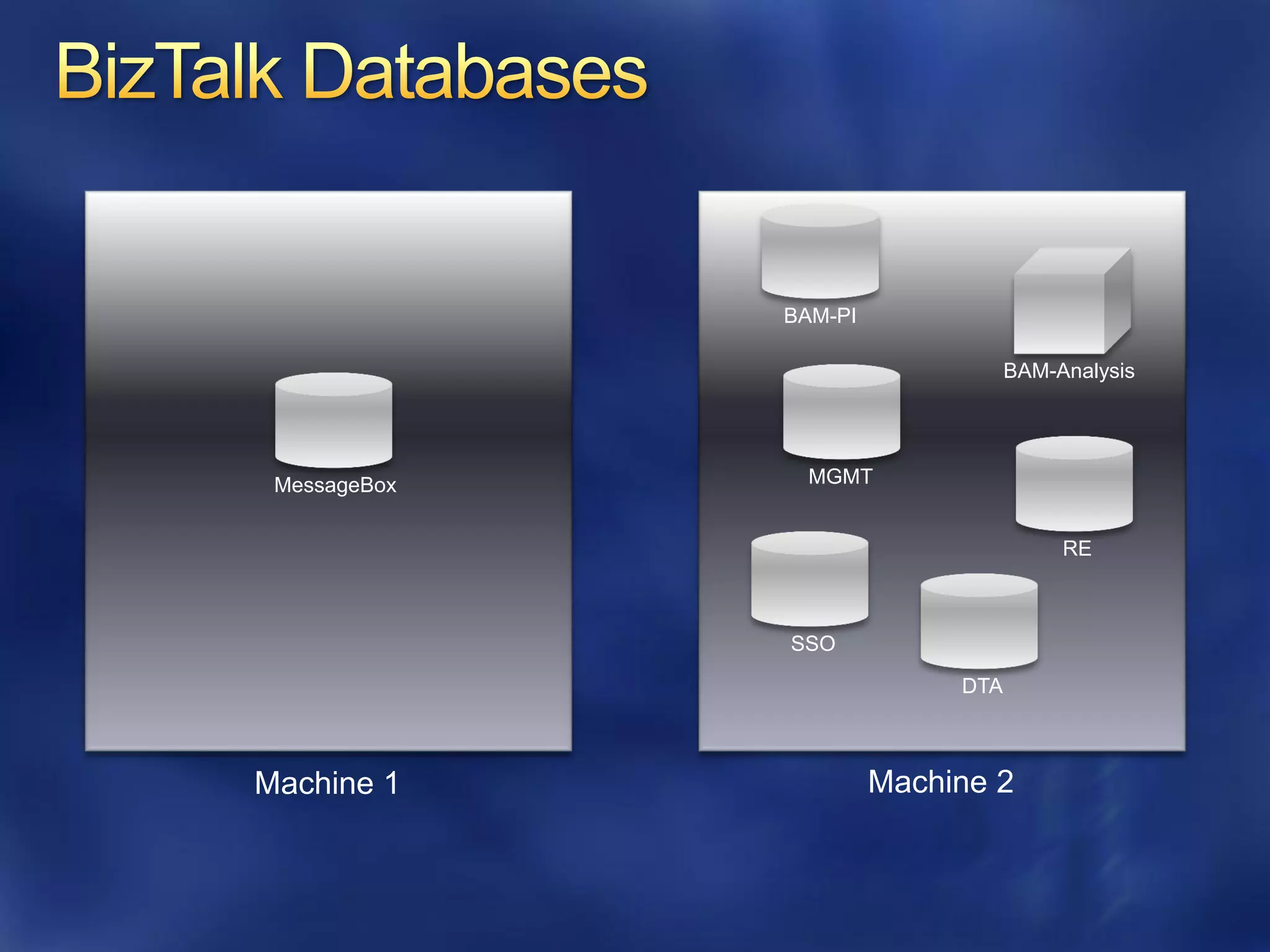

20. BAM-PI
BAM-Analysis
MessageBox
MGMT
RE
SSO
DTA

21. BAM-PI
BAM-Analysis
MessageBox MGMT
RE
SSO
DTA

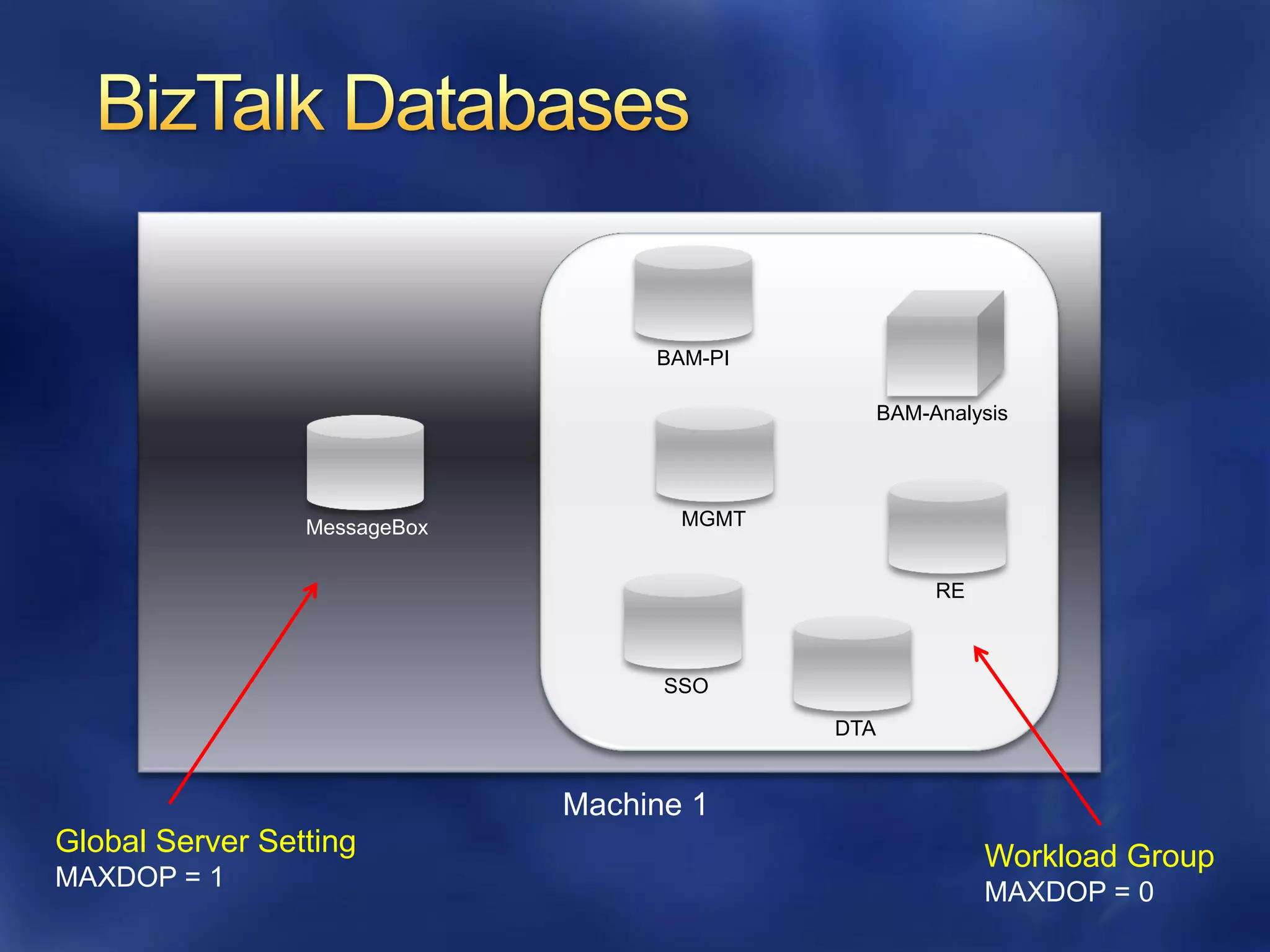

22. BAM-PI
BAM-Analysis
MessageBox MGMT
RE
SSO
DTA
Machine 1
Global Server Setting Workload Group
MAXDOP = 1
MAXDOP = 0

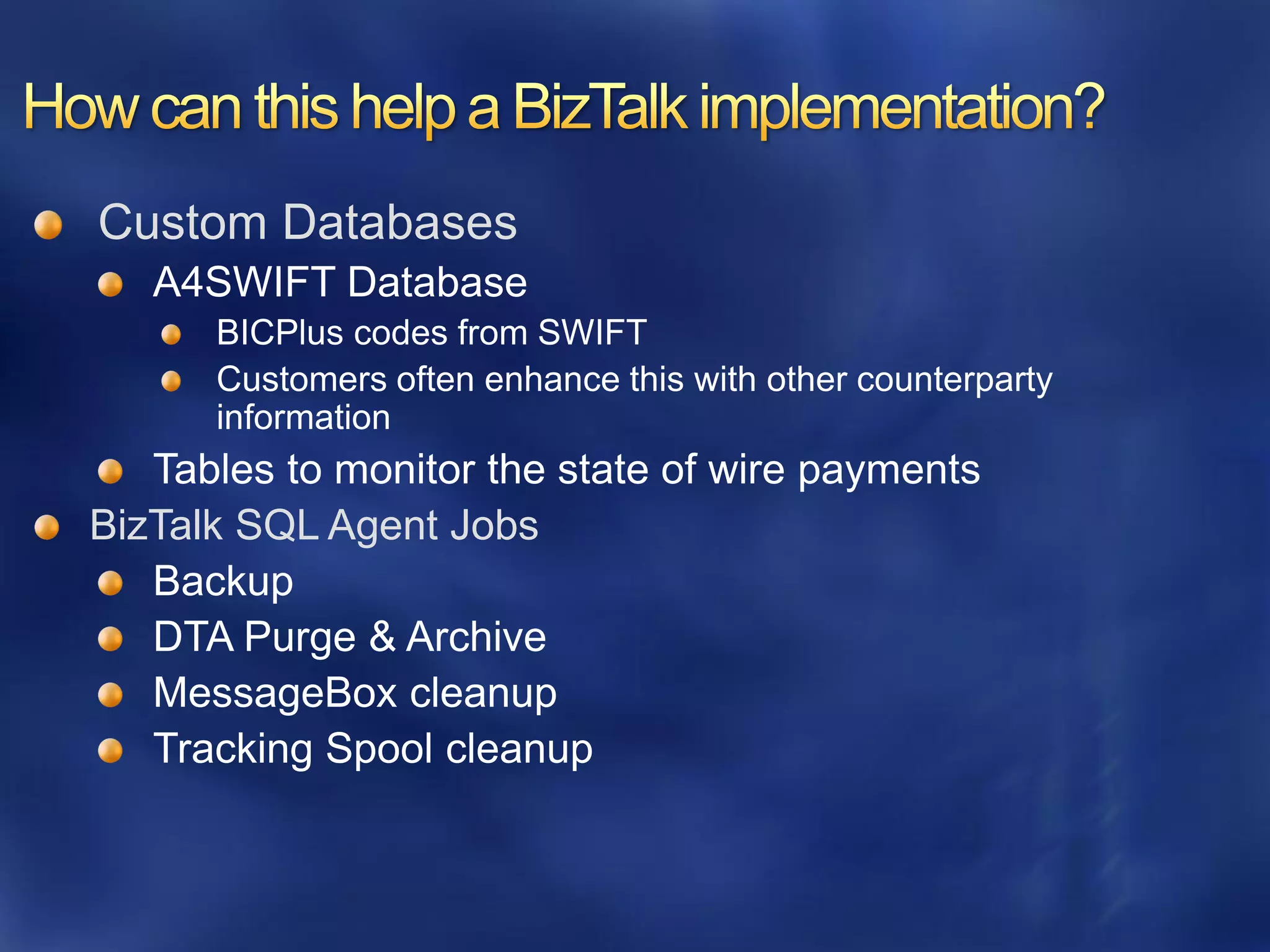

23. Custom Databases
BizTalk SQL Agent Jobs
Backup

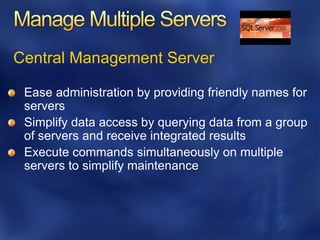

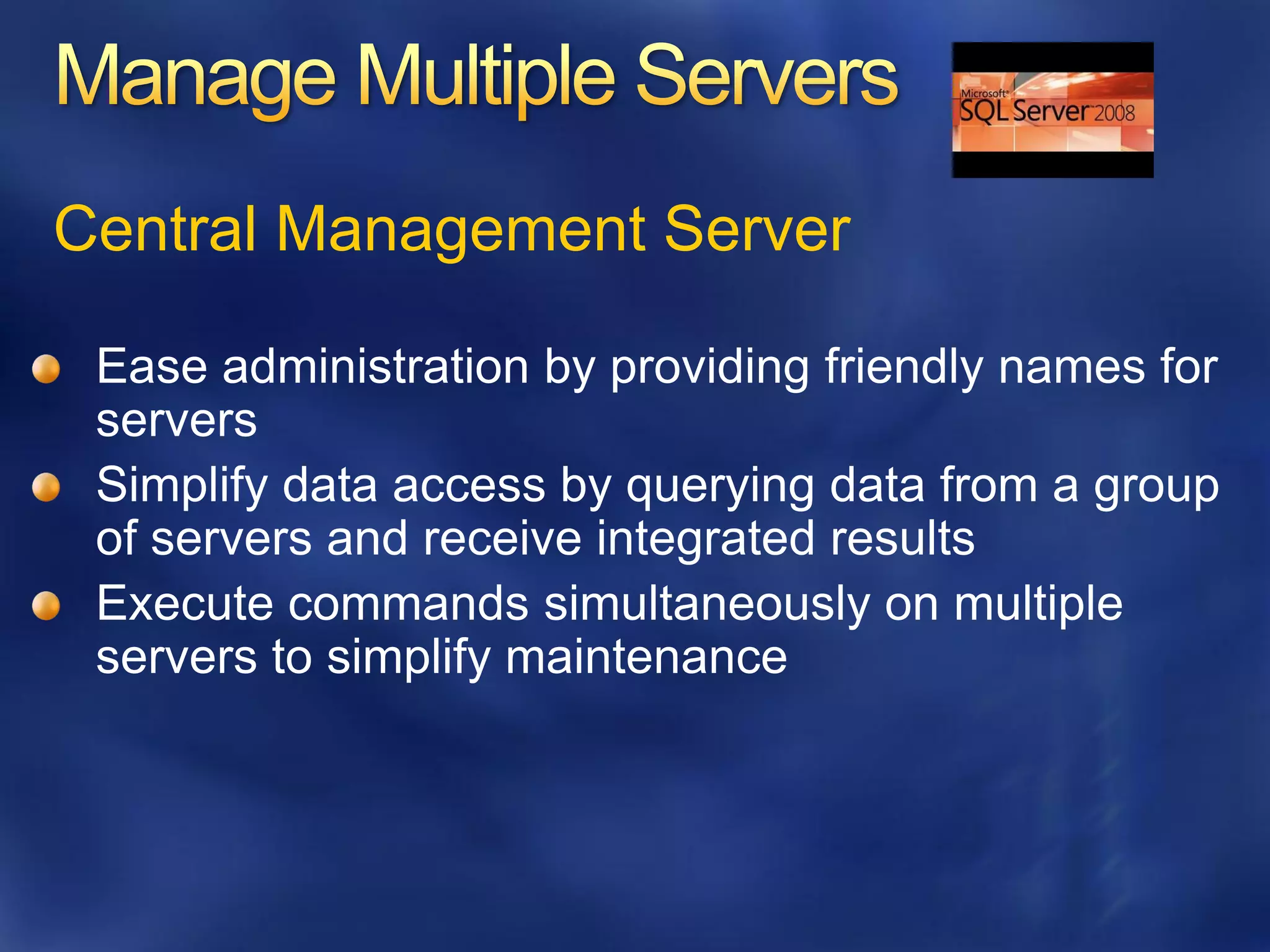

24. Central Management Server

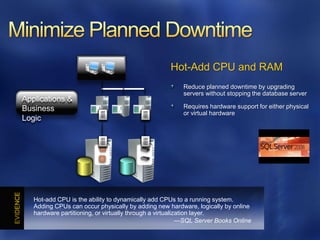

25. Hot-Add CPU and RAM
Reduce planned downtime by upgrading
servers without stopping the database server
Applications &
Business Requires hardware support for either physical
or virtual hardware
110010 110010
100101 100101
110010 110010
Logic 100101
110010
100101
110010
110010 110010
100101 100101
110010 110010
100101 100101
110010 110010
Hot-add CPU is the ability to dynamically add CPUs to a running system.
Adding CPUs can occur physically by adding new hardware, logically by online
hardware partitioning, or virtually through a virtualization layer.
—SQL Server Books Online

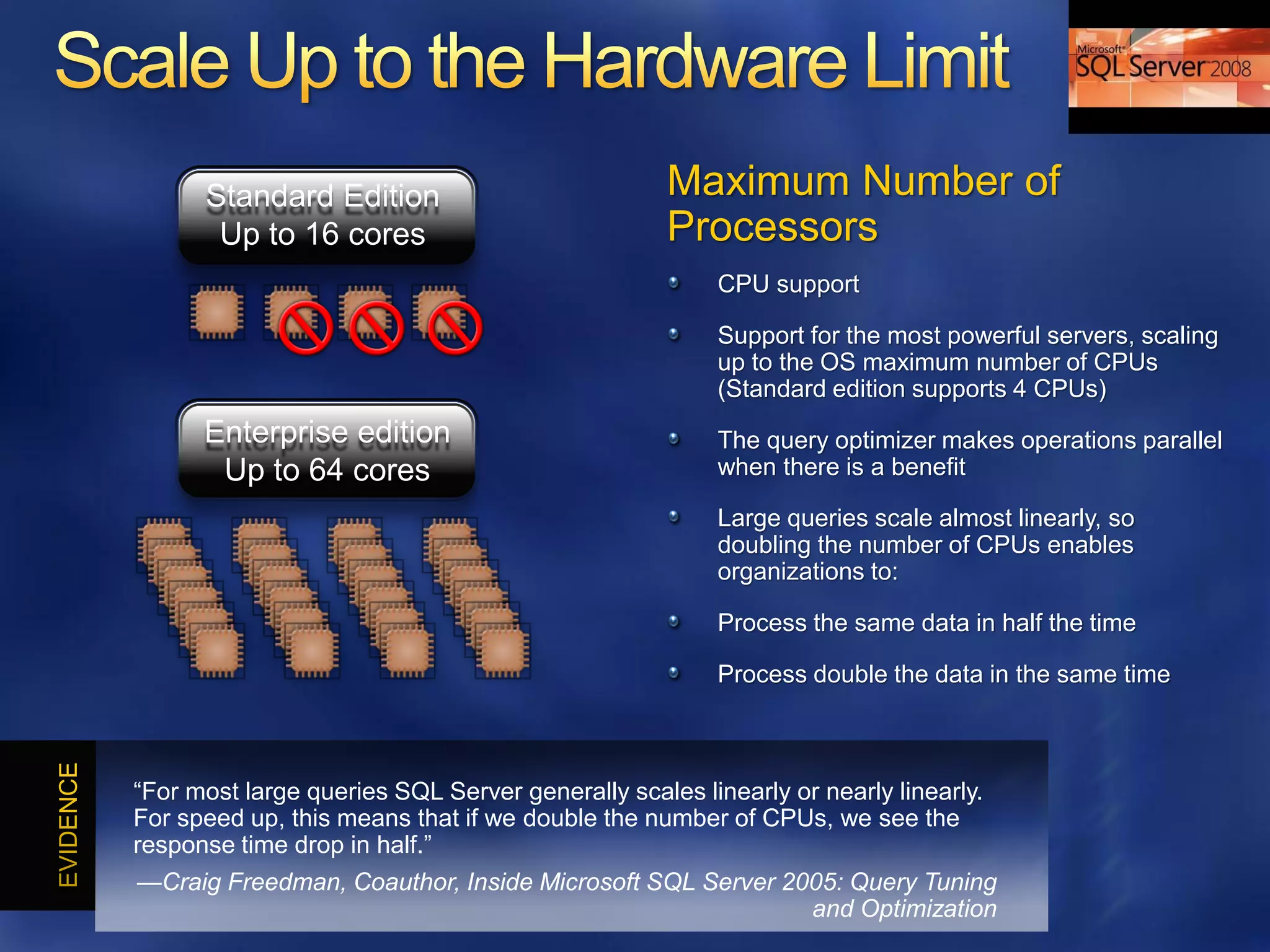

26. Standard Edition Maximum Number of
Up to 16 cores Processors
CPU support
Support for the most powerful servers, scaling
up to the OS maximum number of CPUs
(Standard edition supports 4 CPUs)
Enterprise edition The query optimizer makes operations parallel
Up to 64 cores when there is a benefit
Large queries scale almost linearly, so
doubling the number of CPUs enables
organizations to:
Process the same data in half the time
Process double the data in the same time
―For most large queries SQL Server generally scales linearly or nearly linearly.
For speed up, this means that if we double the number of CPUs, we see the
response time drop in half.‖
—Craig Freedman, Coauthor, Inside Microsoft SQL Server 2005: Query Tuning
and Optimization

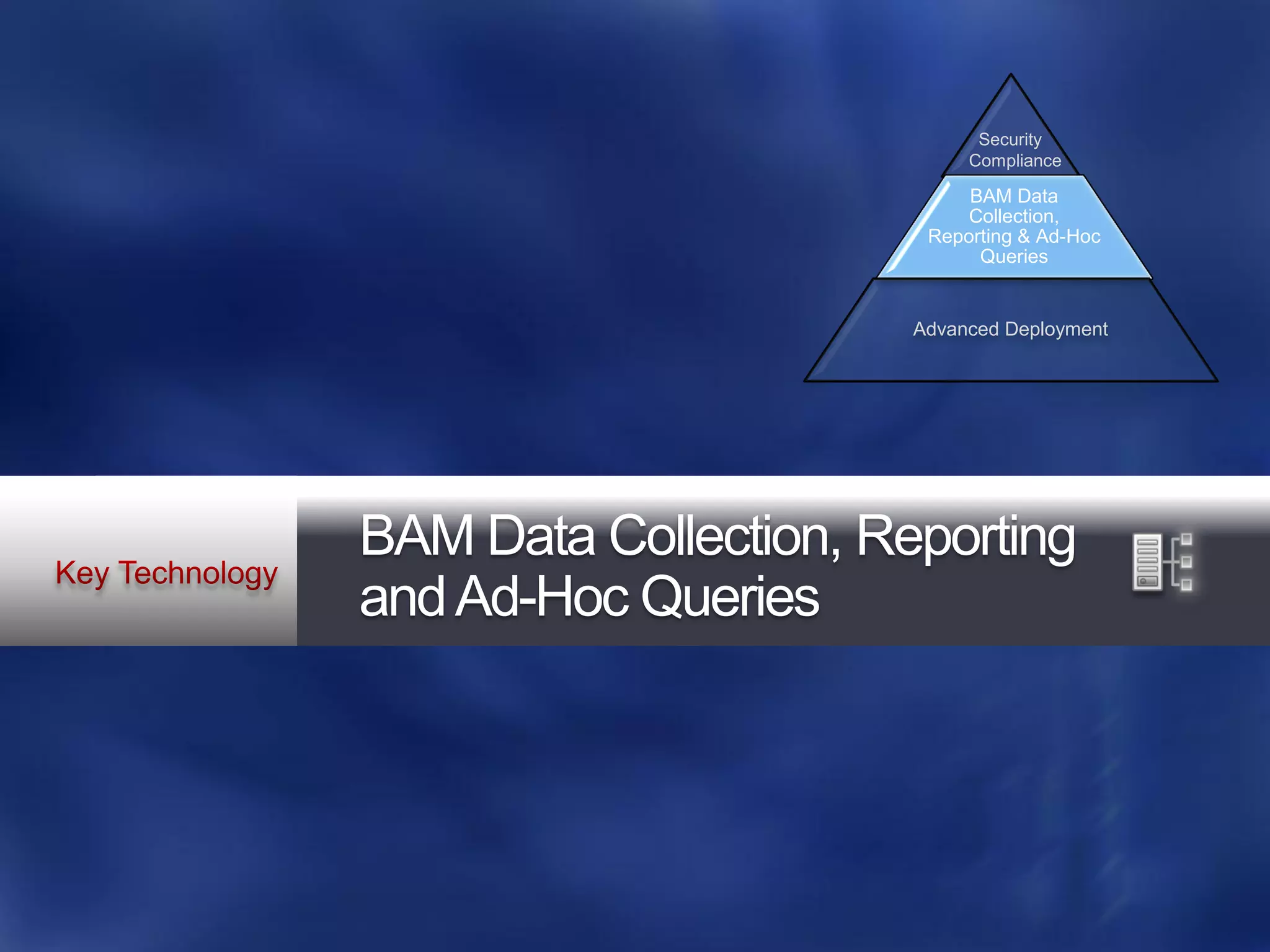

27. Security
Compliance
BAM Data
Collection,
Reporting & Ad-Hoc
Queries
Advanced Deployment
BAM Data Collection, Reporting
and Ad-Hoc Queries

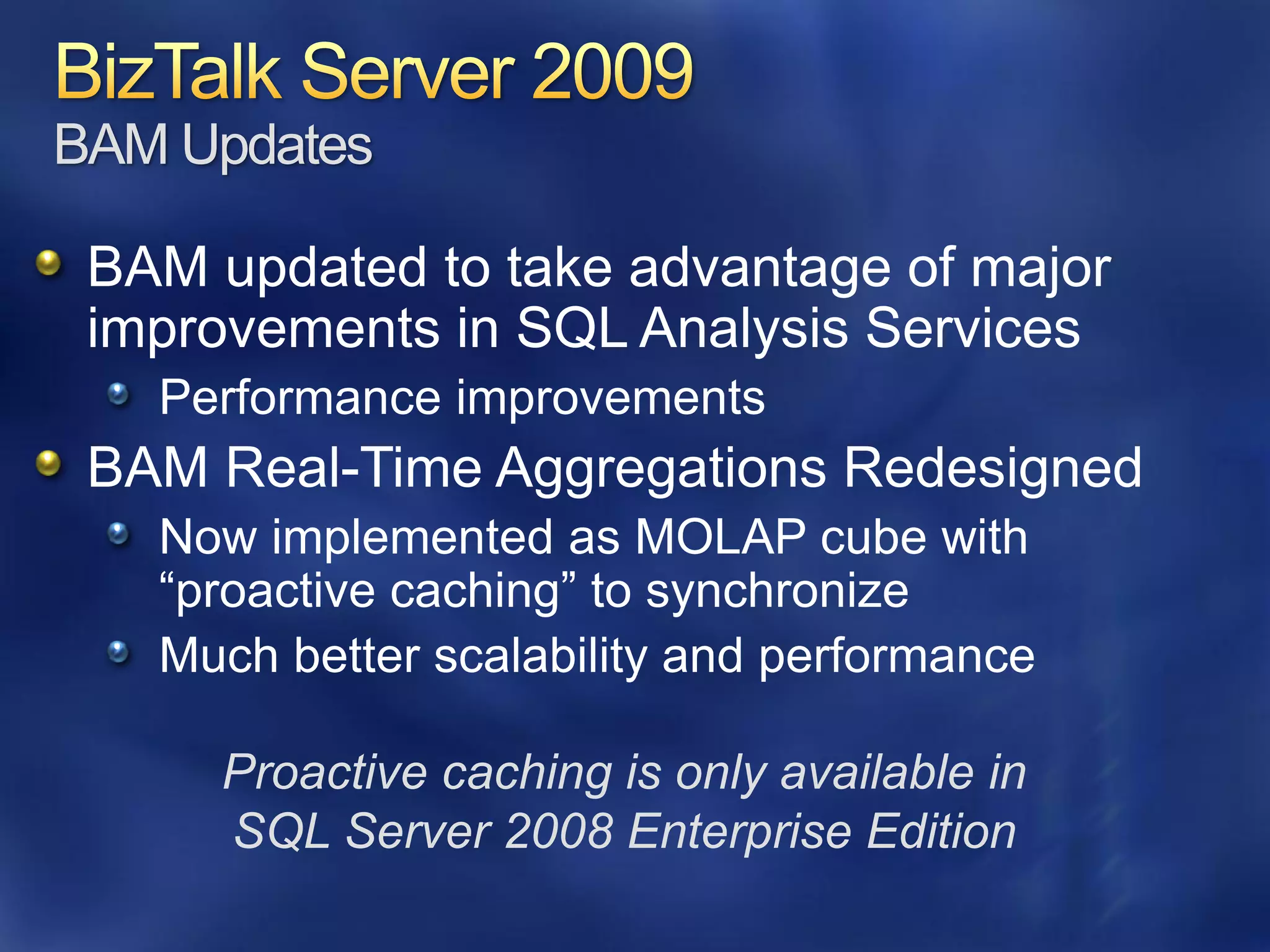

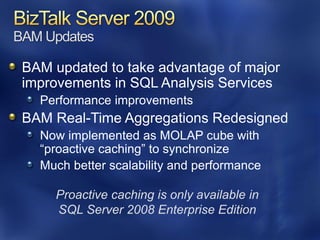

28. Proactive caching is only available in
SQL Server 2008 Enterprise Edition

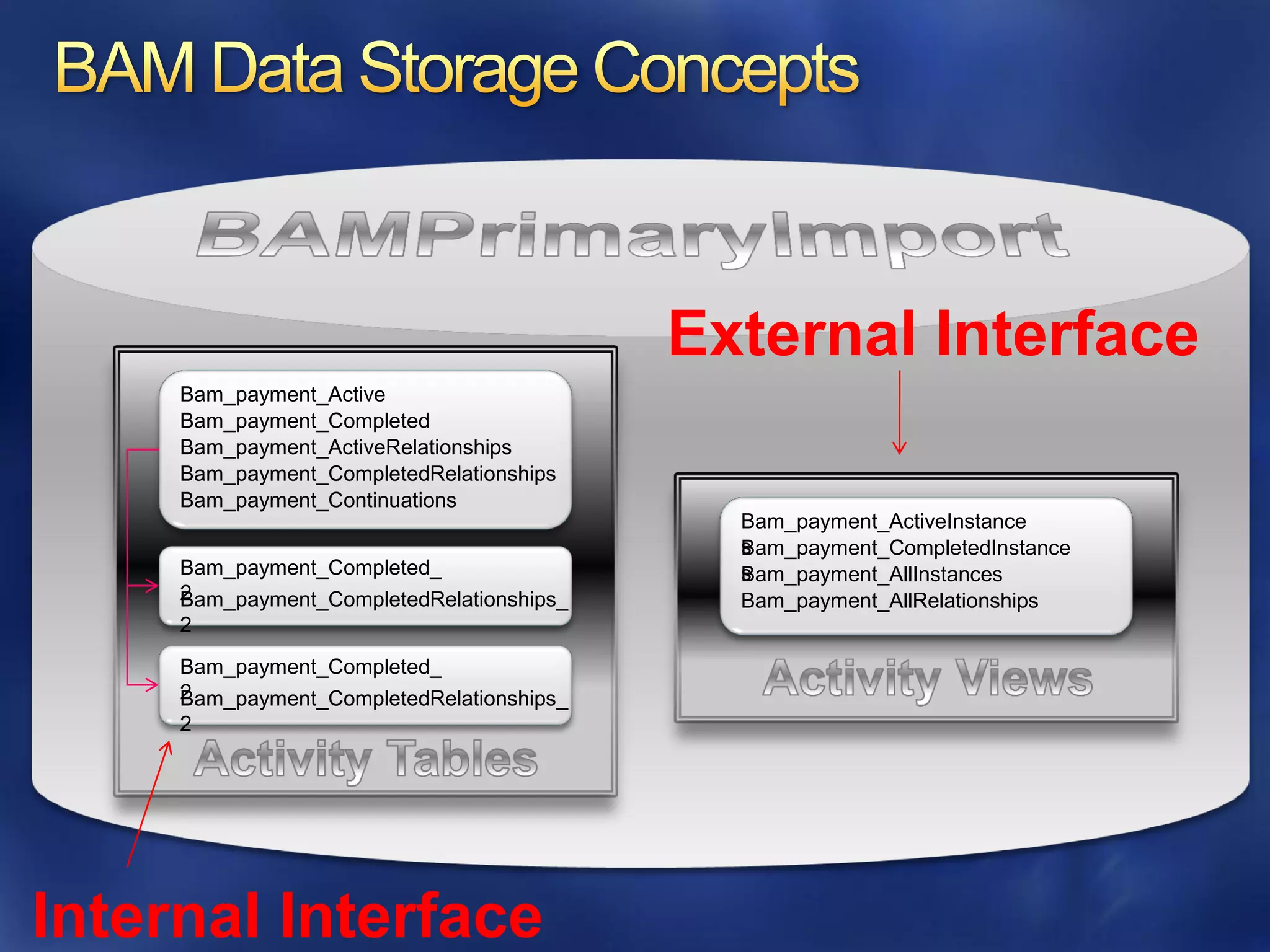

29. External Interface
Bam_payment_Active
Bam_payment_Completed
Bam_payment_ActiveRelationships
Bam_payment_CompletedRelationships
Bam_payment_Continuations
Bam_payment_ActiveInstance
s
Bam_payment_CompletedInstance
Bam_payment_Completed_ s
Bam_payment_AllInstances
2
Bam_payment_CompletedRelationships_ Bam_payment_AllRelationships
2
Bam_payment_Completed_
2
Bam_payment_CompletedRelationships_
2
Internal Interface

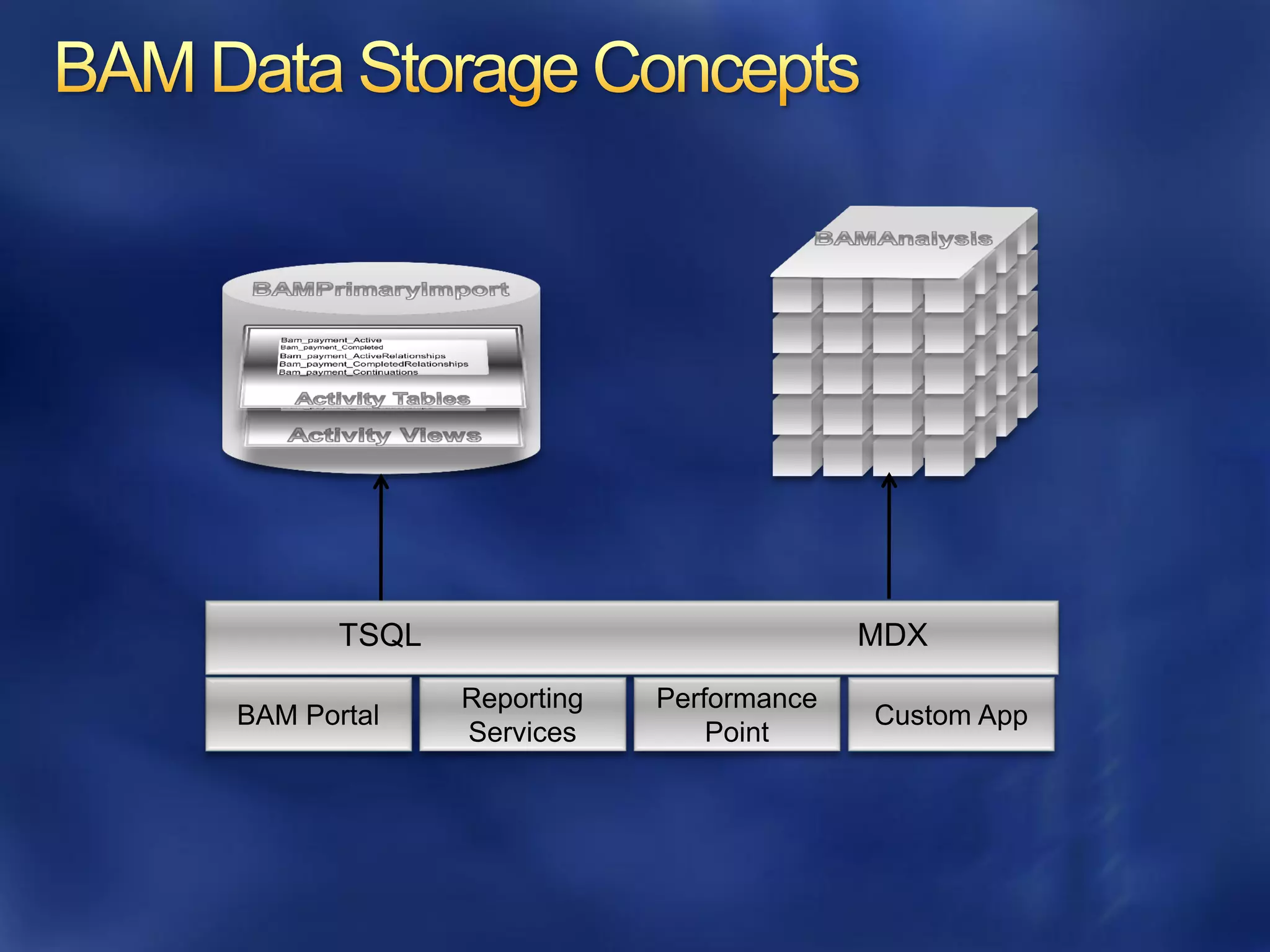

30. TSQL MDX
Reporting Performance
BAM Portal Custom App
Services Point

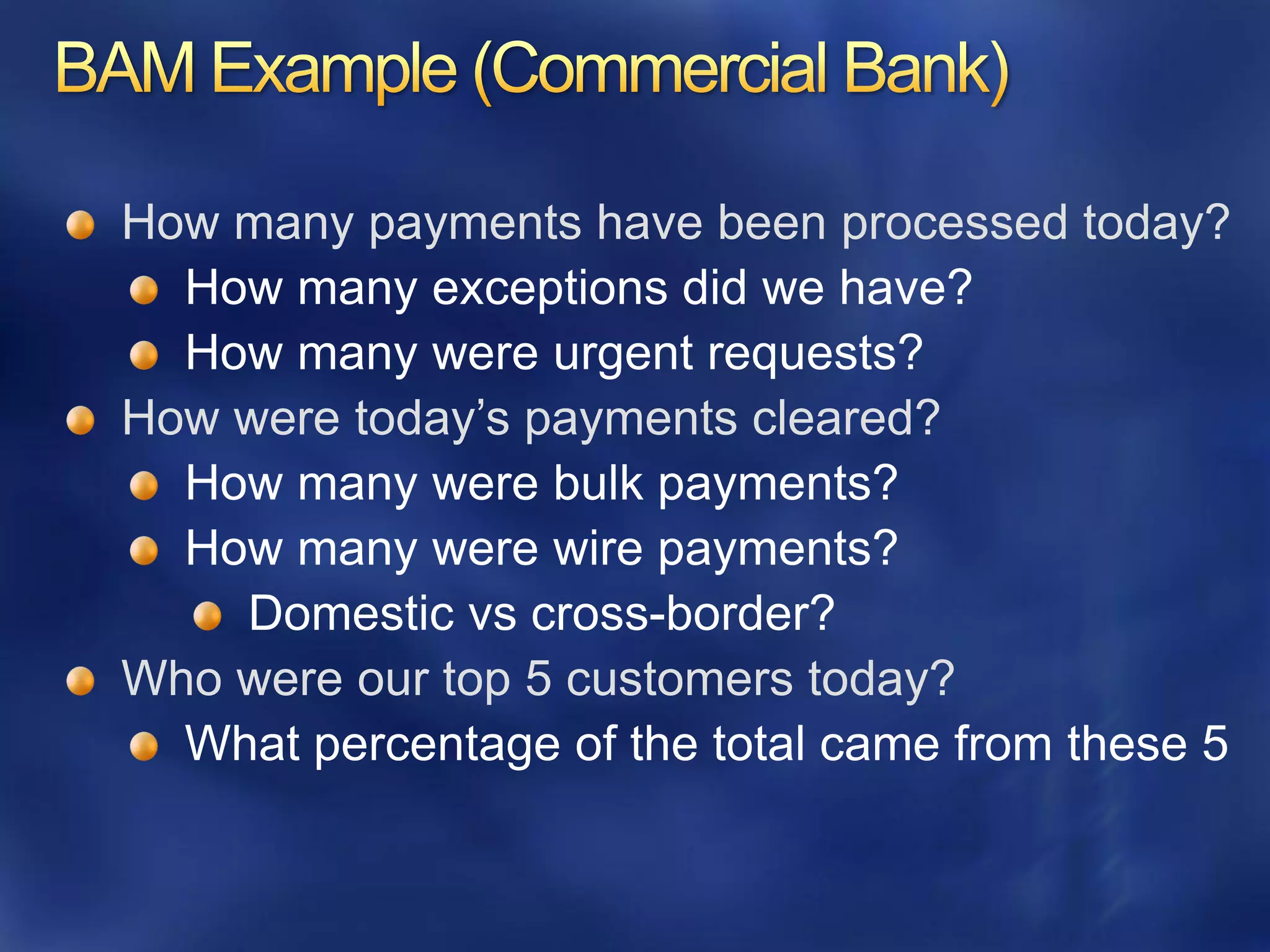

31. How many payments have been processed today?
How were today’s payments cleared?
Who were our top 5 customers today?

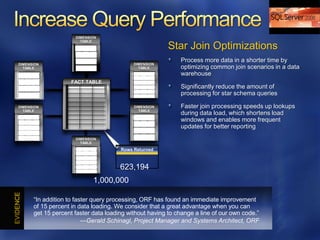

33. DIMENSION
TABLE
Star Join Optimizations
Process more data in a shorter time by
DIMENSION DIMENSION
TABLE TABLE optimizing common join scenarios in a data
warehouse
FACT TABLE
Significantly reduce the amount of
processing for star schema queries
DIMENSION DIMENSION Faster join processing speeds up lookups
TABLE TABLE
during data load, which shortens load
windows and enables more frequent
updates for better reporting
DIMENSION
TABLE
Rows Returned
623,194
1,000,000
―In addition to faster query processing, ORF has found an immediate improvement
of 15 percent in data loading. We consider that a great advantage when you can
get 15 percent faster data loading without having to change a line of our own code.‖
—Gerald Schinagl, Project Manager and Systems Architect, ORF

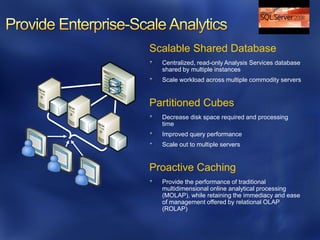

34. Scalable Shared Database
Centralized, read-only Analysis Services database
shared by multiple instances
Scale workload across multiple commodity servers
Partitioned Cubes
Decrease disk space required and processing
time
Improved query performance
Scale out to multiple servers
Proactive Caching
Provide the performance of traditional
multidimensional online analytical processing
(MOLAP), while retaining the immediacy and ease
of management offered by relational OLAP
(ROLAP)

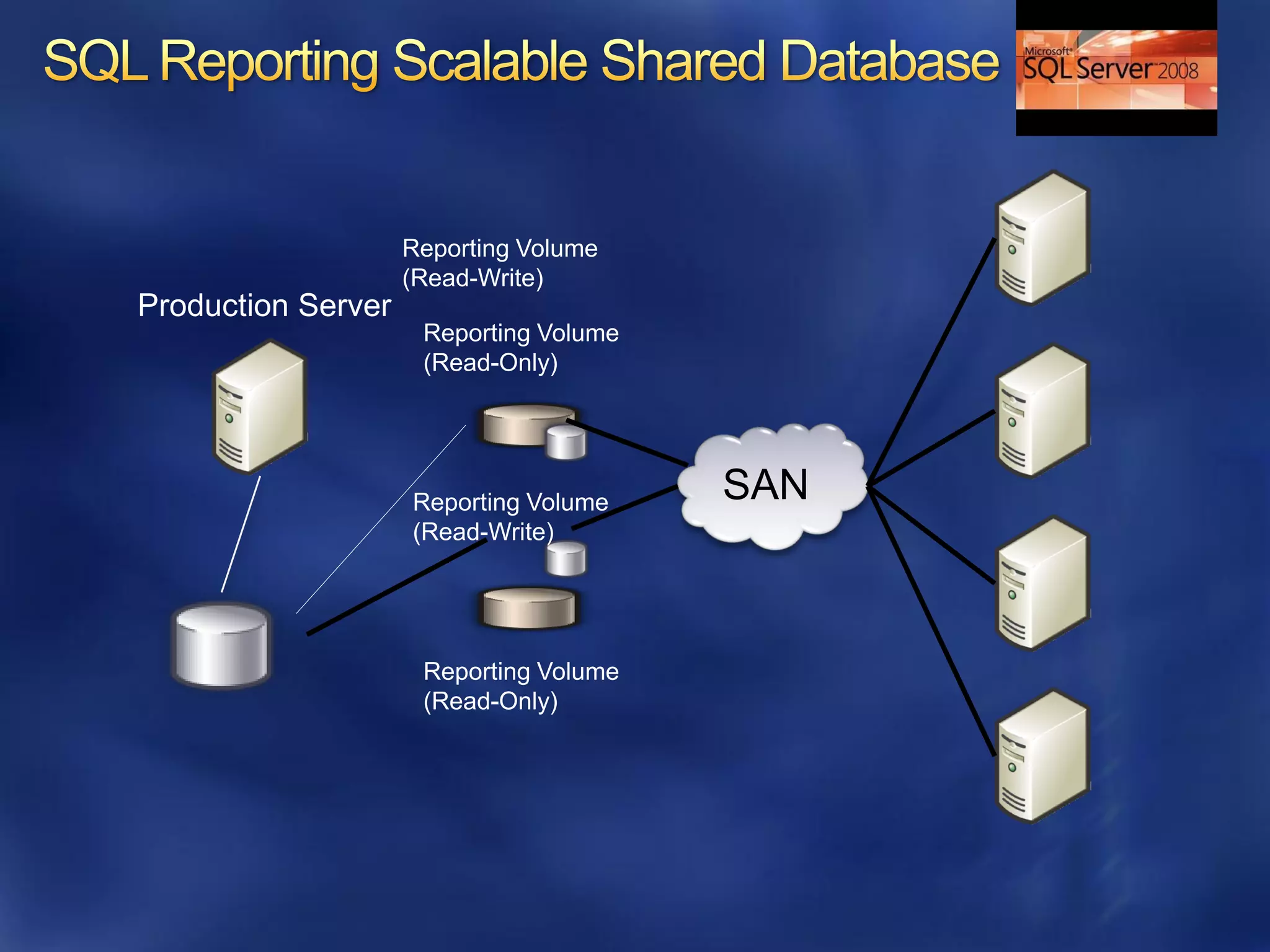

36. SAN

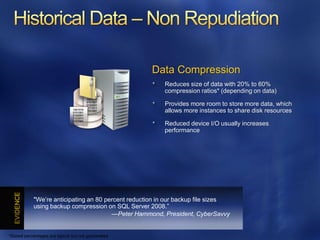

37. Data Compression
Reduces size of data with 20% to 60%
compression ratios* (depending on data)
1001010
0101001
0100001 Provides more room to store more data, which
1111011
1001010
0101001
0101001 allows more instances to share disk resources
0100001
1111011
0101001
Reduced device I/O usually increases
performance
"We’re anticipating an 80 percent reduction in our backup file sizes
using backup compression on SQL Server 2008.‖
—Peter Hammond, President, CyberSavvy
*Stated percentages are typical but not guaranteed

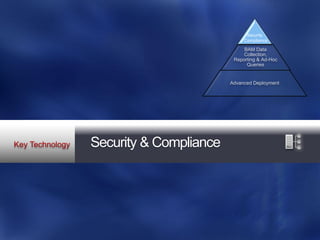

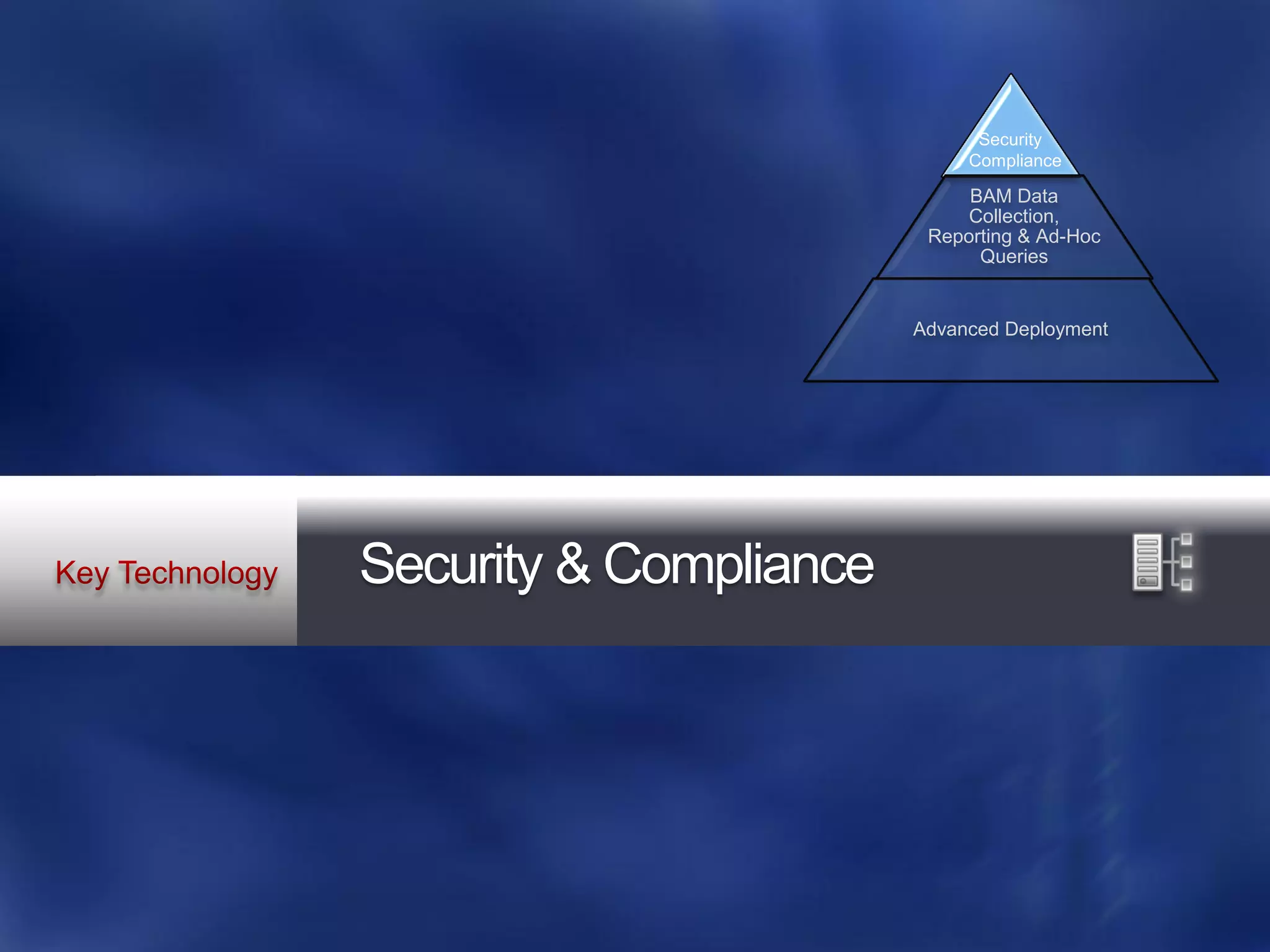

38. Security
Compliance
BAM Data
Collection,
Reporting & Ad-Hoc
Queries
Advanced Deployment
Security & Compliance

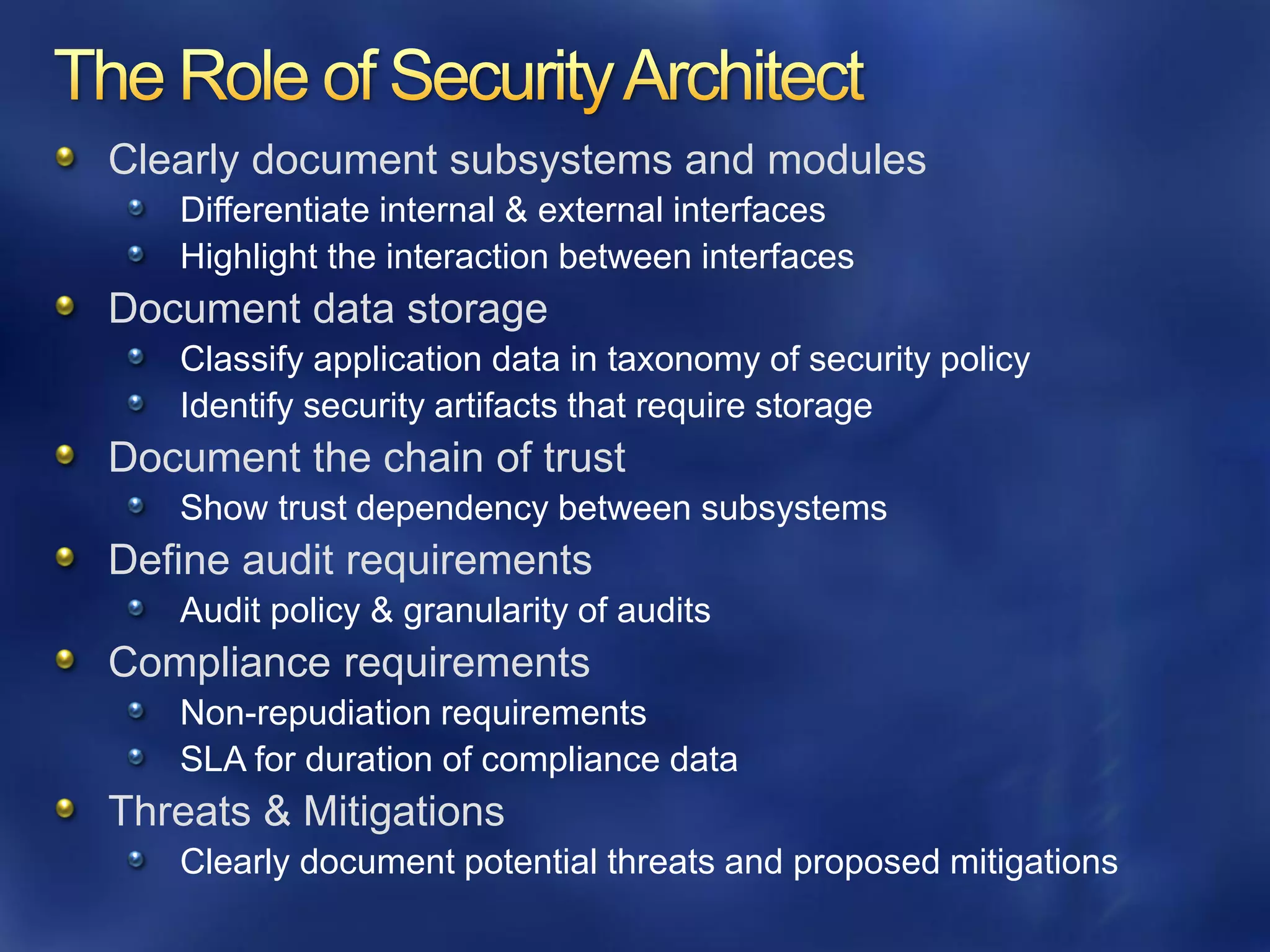

39. Clearly document subsystems and modules
Differentiate internal & external interfaces
Highlight the interaction between interfaces
Document data storage
Classify application data in taxonomy of security policy
Identify security artifacts that require storage
Document the chain of trust
Show trust dependency between subsystems
Define audit requirements
Audit policy & granularity of audits
Compliance requirements
Non-repudiation requirements
SLA for duration of compliance data
Threats & Mitigations
Clearly document potential threats and proposed mitigations

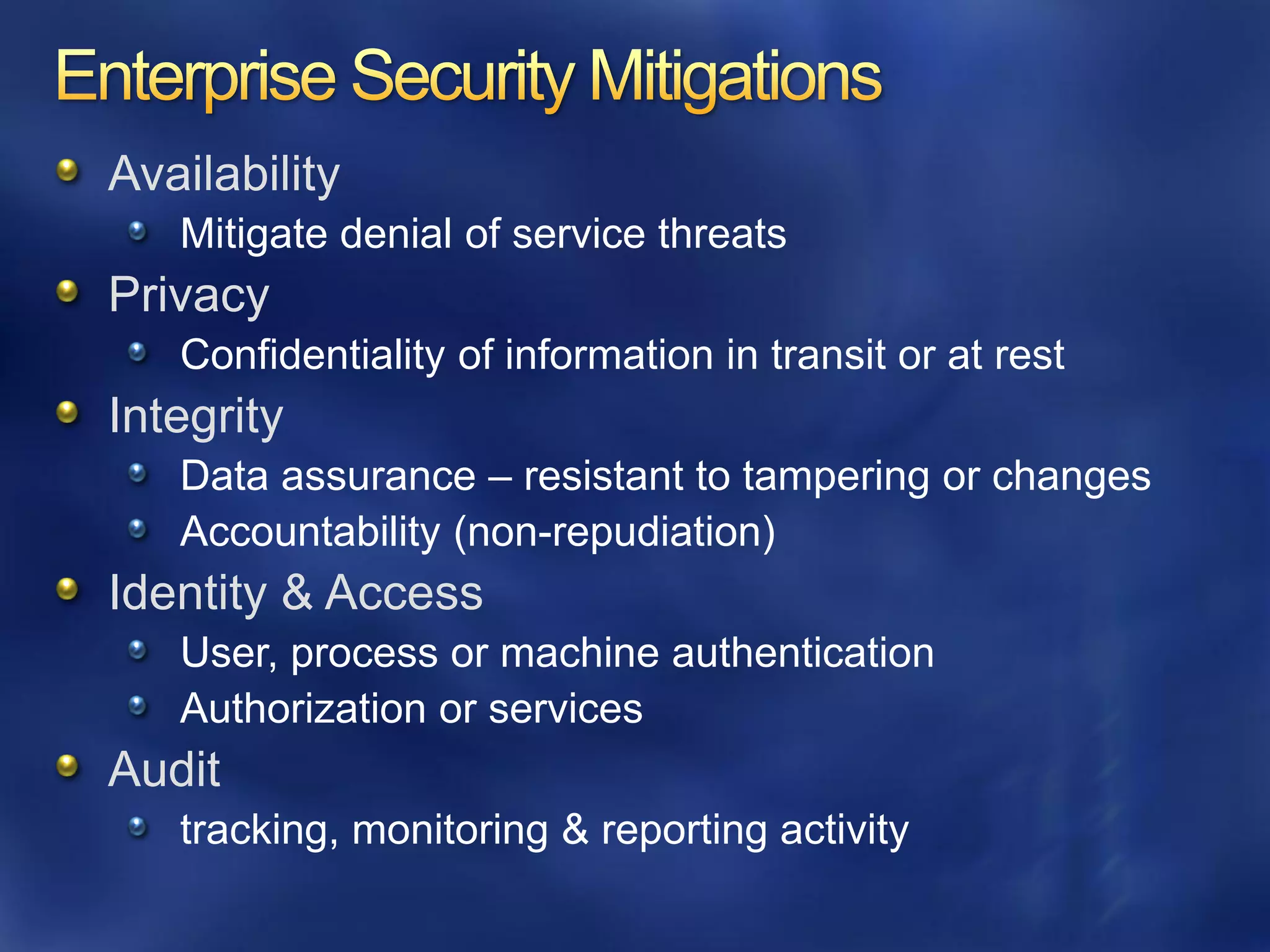

40. Availability
Mitigate denial of service threats
Privacy
Confidentiality of information in transit or at rest
Integrity
Data assurance – resistant to tampering or changes
Accountability (non-repudiation)
Identity & Access
User, process or machine authentication
Authorization or services
Audit
tracking, monitoring & reporting activity

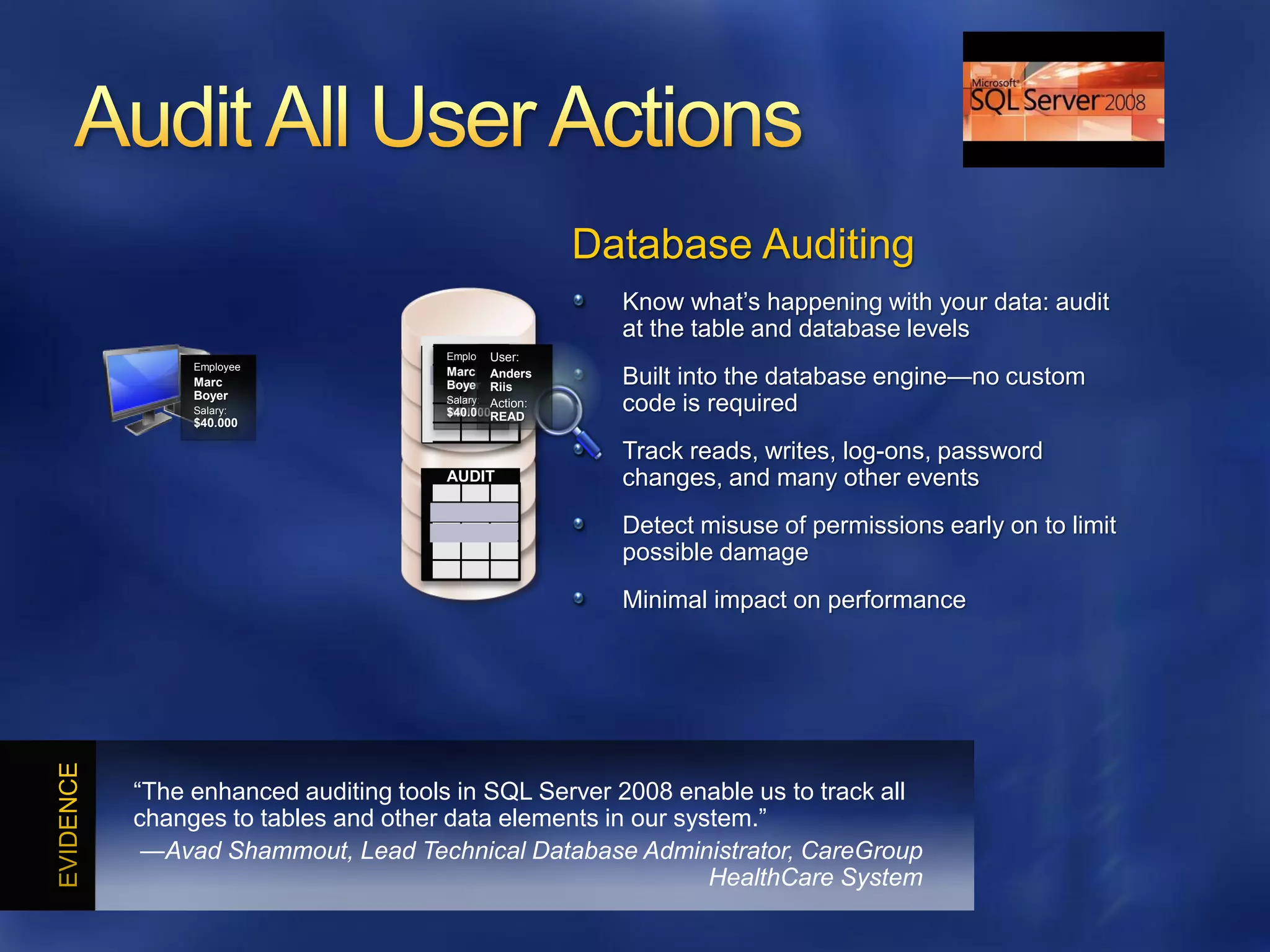

41. Database Auditing
Know what’s happening with your data: audit
at the table and database levels
Employee
User: User:
Employee
Marc
Marc
Tina Anders
Boyer Riis
Makovec Built into the database engine—no custom
Boyer
Salary:
Salary:
Action: Action:
$40.000
WRITE READ code is required
$40.000
Track reads, writes, log-ons, password
AUDIT changes, and many other events
Detect misuse of permissions early on to limit
possible damage
Minimal impact on performance
―The enhanced auditing tools in SQL Server 2008 enable us to track all
changes to tables and other data elements in our system.‖
—Avad Shammout, Lead Technical Database Administrator, CareGroup
HealthCare System

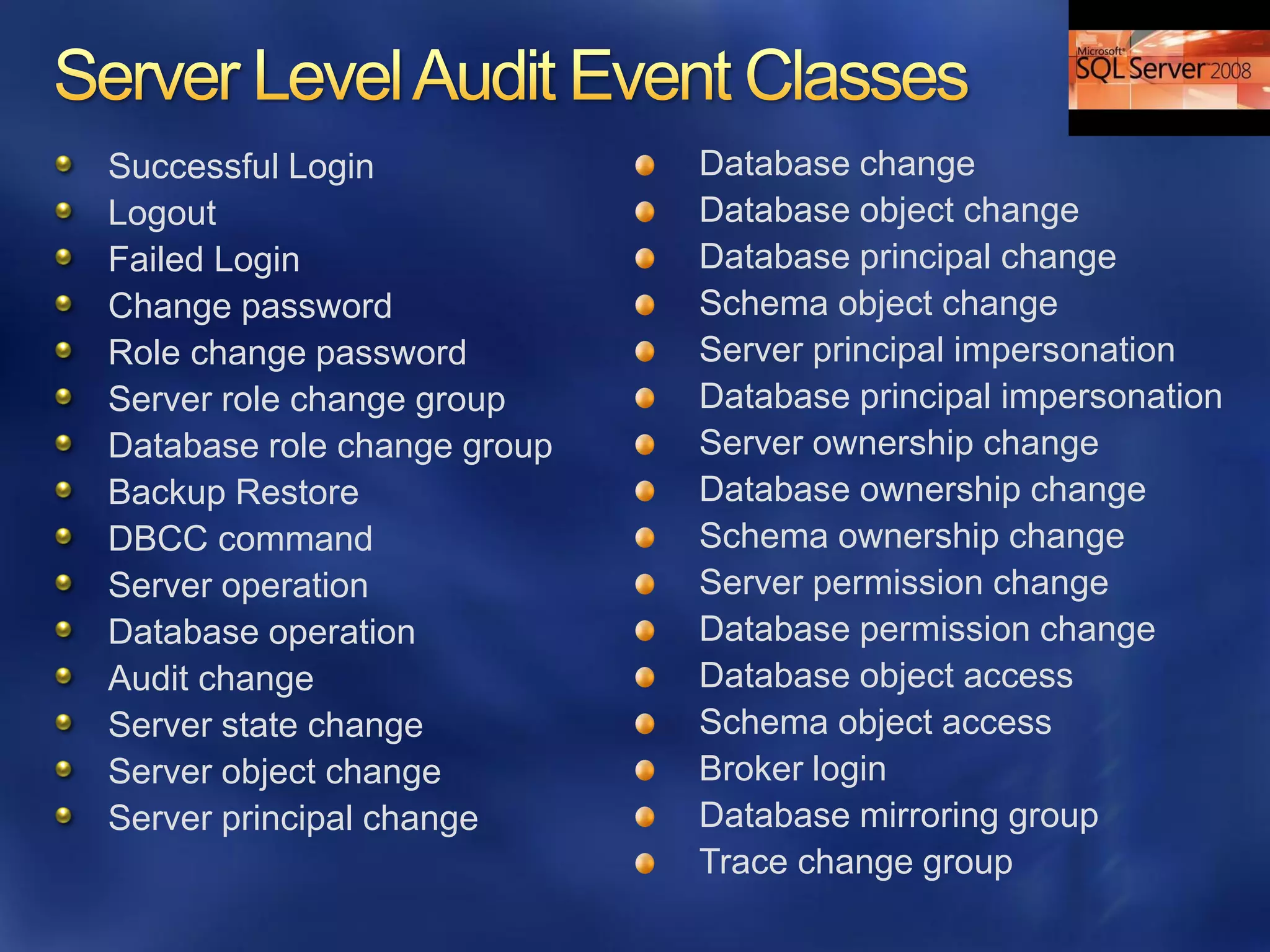

42. Successful Login Database change
Logout Database object change
Failed Login Database principal change
Change password Schema object change
Role change password Server principal impersonation
Server role change group Database principal impersonation
Database role change group Server ownership change
Backup Restore Database ownership change
DBCC command Schema ownership change
Server operation Server permission change
Database operation Database permission change
Audit change Database object access
Server state change Schema object access
Server object change Broker login
Server principal change Database mirroring group
Trace change group

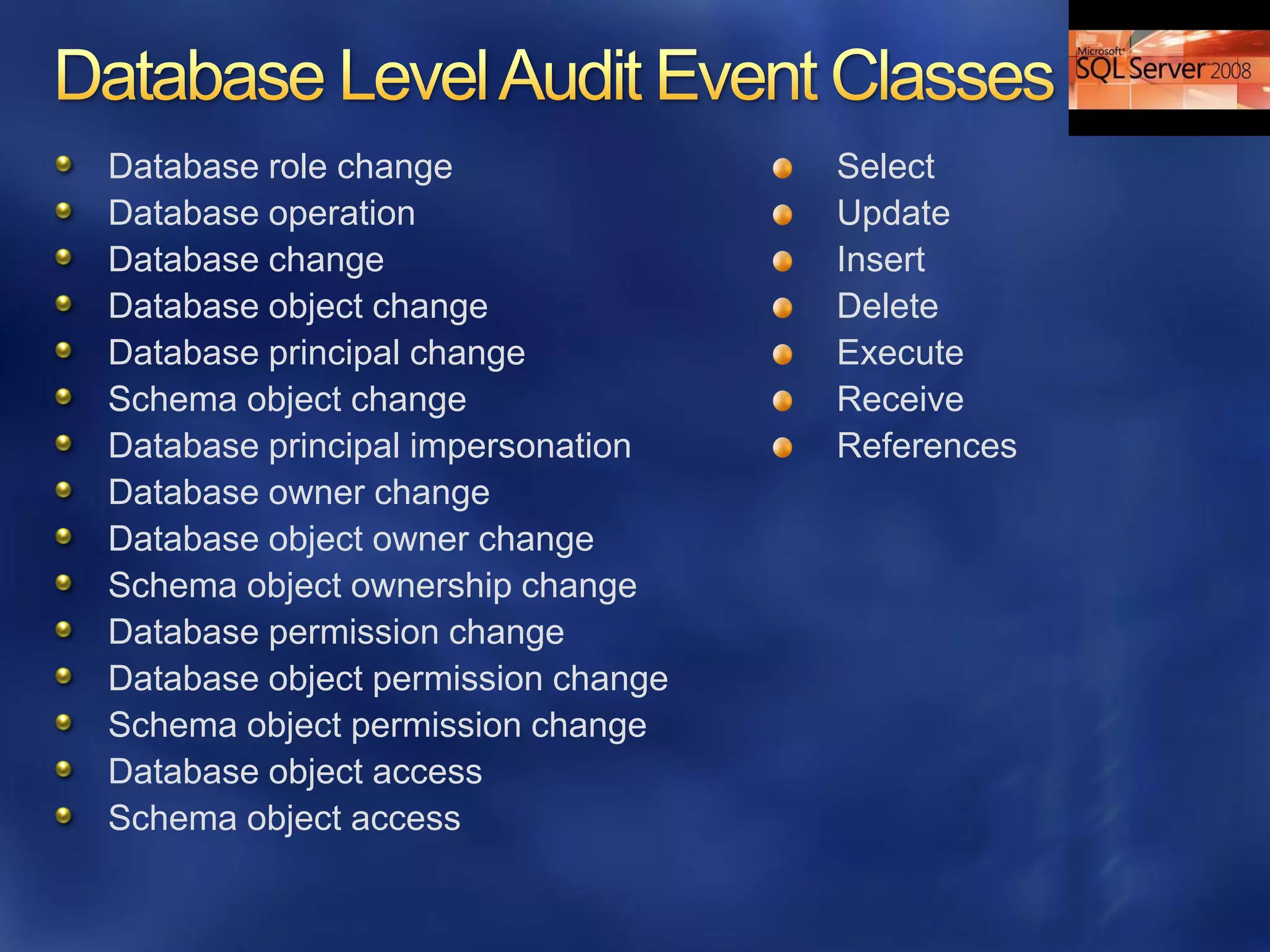

43. Database role change Select
Database operation Update
Database change Insert
Database object change Delete
Database principal change Execute
Schema object change Receive
Database principal impersonation References
Database owner change
Database object owner change
Schema object ownership change
Database permission change
Database object permission change
Schema object permission change
Database object access
Schema object access

44. ISO 15408 – International Standard for Info Sec
Framework for making security claims for a product
Mutual Recognition Agreement (MRA)
Australia & New Zealand Japan
Austria Republic of Korea
Canada Malaysia
Czech Republic Netherlands
Denmark Norway
Finland Pakistan
France Singapore
Germany Spain
Greece Sweden
Hungary Turkey
India United Kingdon
Israel United States
Italy

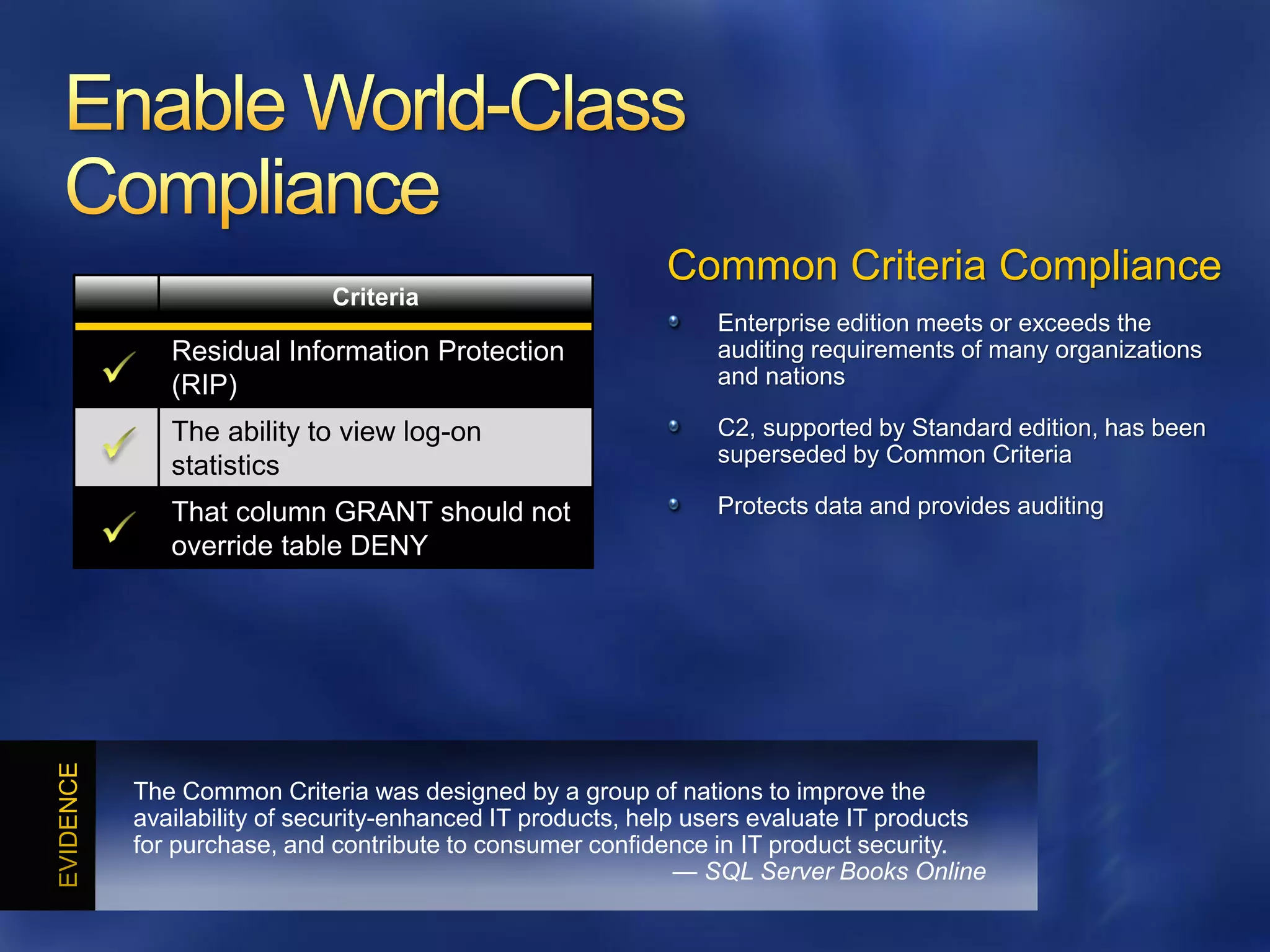

45. Common Criteria Compliance
Criteria
Enterprise edition meets or exceeds the
Residual Information Protection auditing requirements of many organizations
(RIP) and nations
The ability to view log-on C2, supported by Standard edition, has been
statistics superseded by Common Criteria
That column GRANT should not Protects data and provides auditing
override table DENY
The Common Criteria was designed by a group of nations to improve the
availability of security-enhanced IT products, help users evaluate IT products
for purchase, and contribute to consumer confidence in IT product security.
— SQL Server Books Online

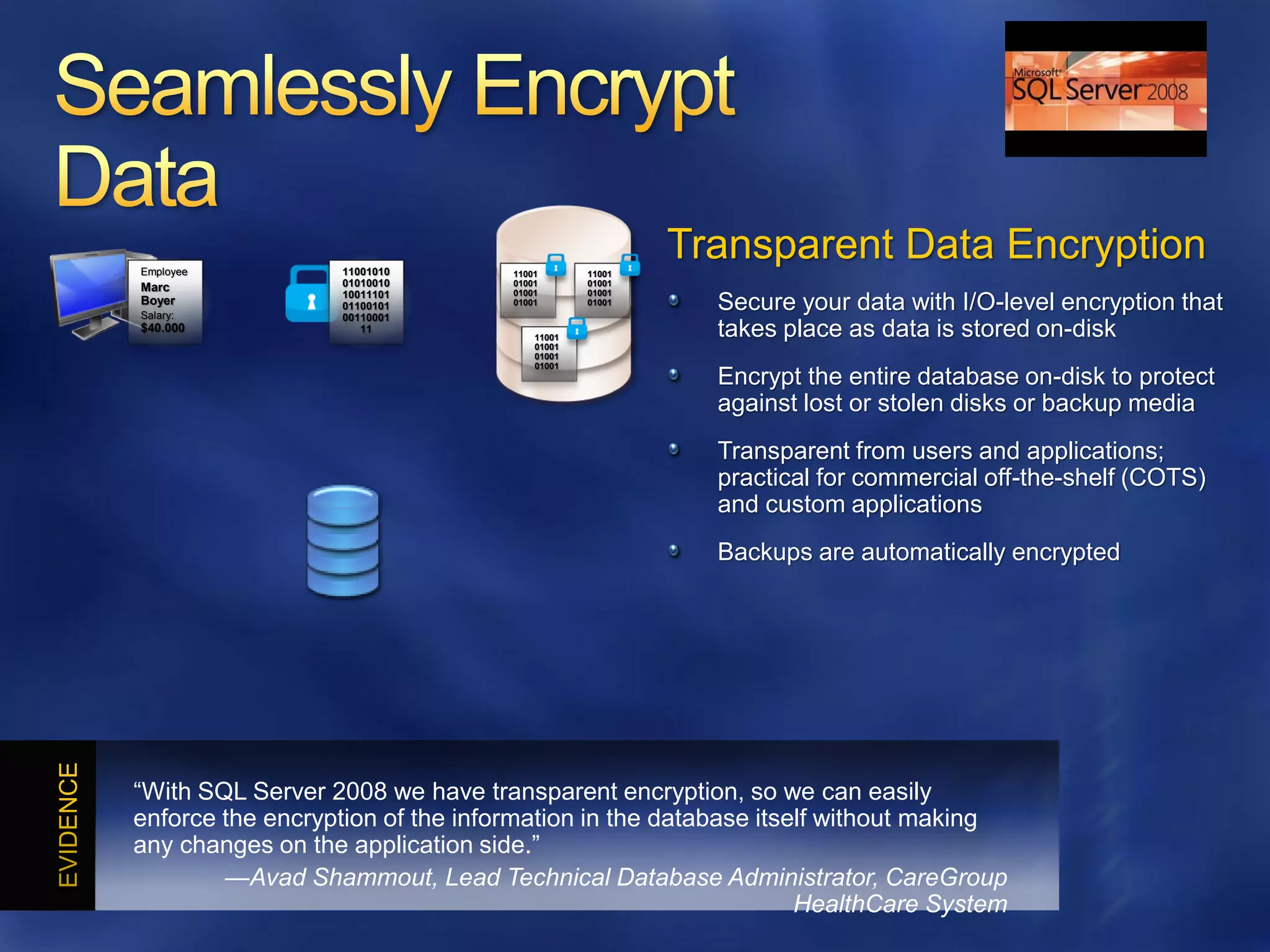

46. Employee 11001010 11001 11001
Transparent Data Encryption
Marc 01010010 01001 01001
10011101 01001 01001
Boyer
Salary:
01100101
00110001
01001 01001 Secure your data with I/O-level encryption that
$40.000 11
11001 takes place as data is stored on-disk
01001
01001
01001
Encrypt the entire database on-disk to protect
against lost or stolen disks or backup media
Transparent from users and applications;
practical for commercial off-the-shelf (COTS)
and custom applications
Backups are automatically encrypted
―With SQL Server 2008 we have transparent encryption, so we can easily
enforce the encryption of the information in the database itself without making
any changes on the application side.‖
—Avad Shammout, Lead Technical Database Administrator, CareGroup
HealthCare System

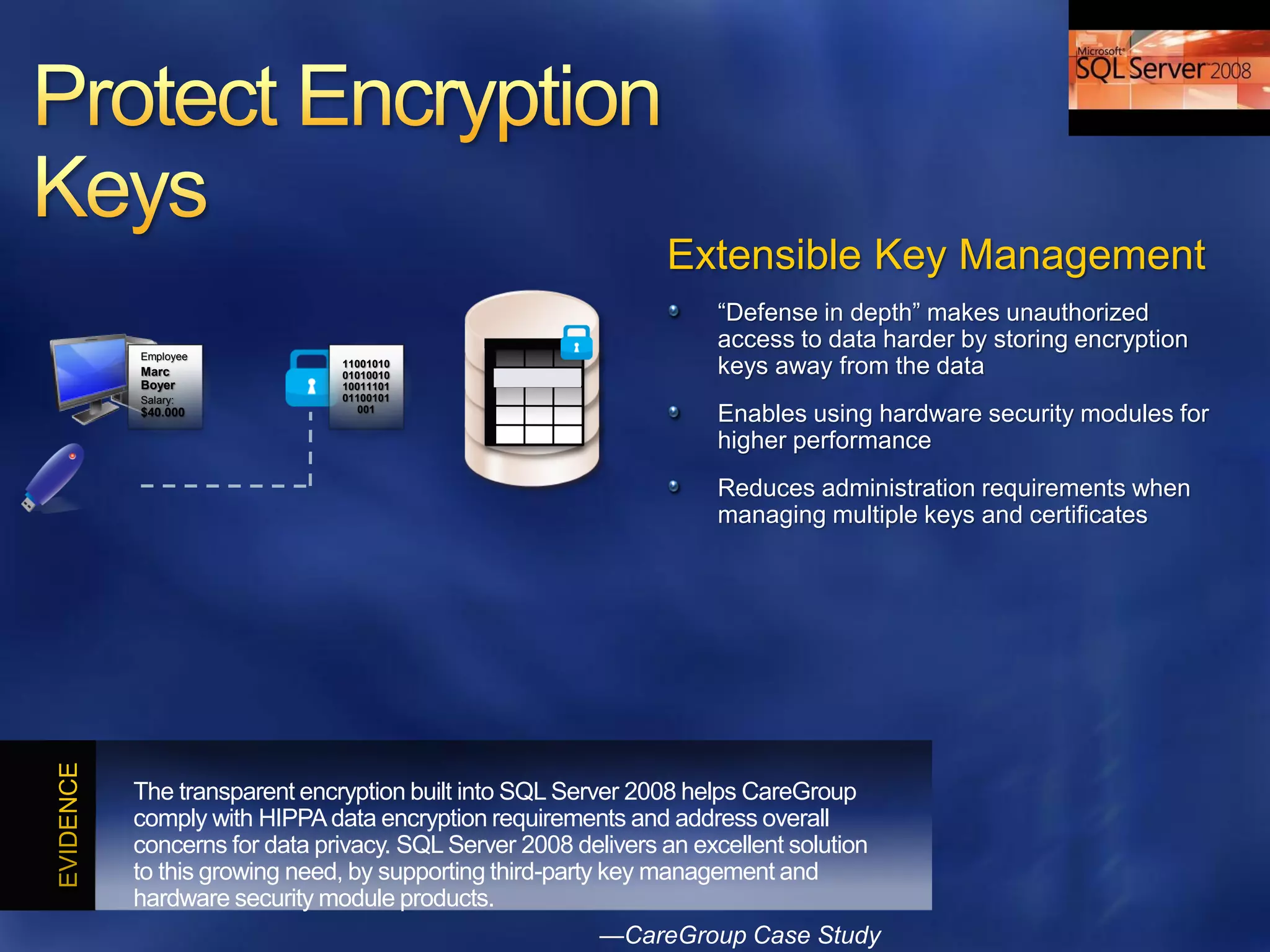

47. Extensible Key Management
―Defense in depth‖ makes unauthorized
access to data harder by storing encryption
Employee
Marc
11001010
01010010 keys away from the data
Boyer 10011101
Salary: 01100101
$40.000 001
Enables using hardware security modules for
higher performance
Reduces administration requirements when
managing multiple keys and certificates
The transparent encryption built into SQL Server 2008 helps CareGroup
comply with HIPPA data encryption requirements and address overall
concerns for data privacy. SQL Server 2008 delivers an excellent solution
to this growing need, by supporting third-party key management and
hardware security module products.
—CareGroup Case Study

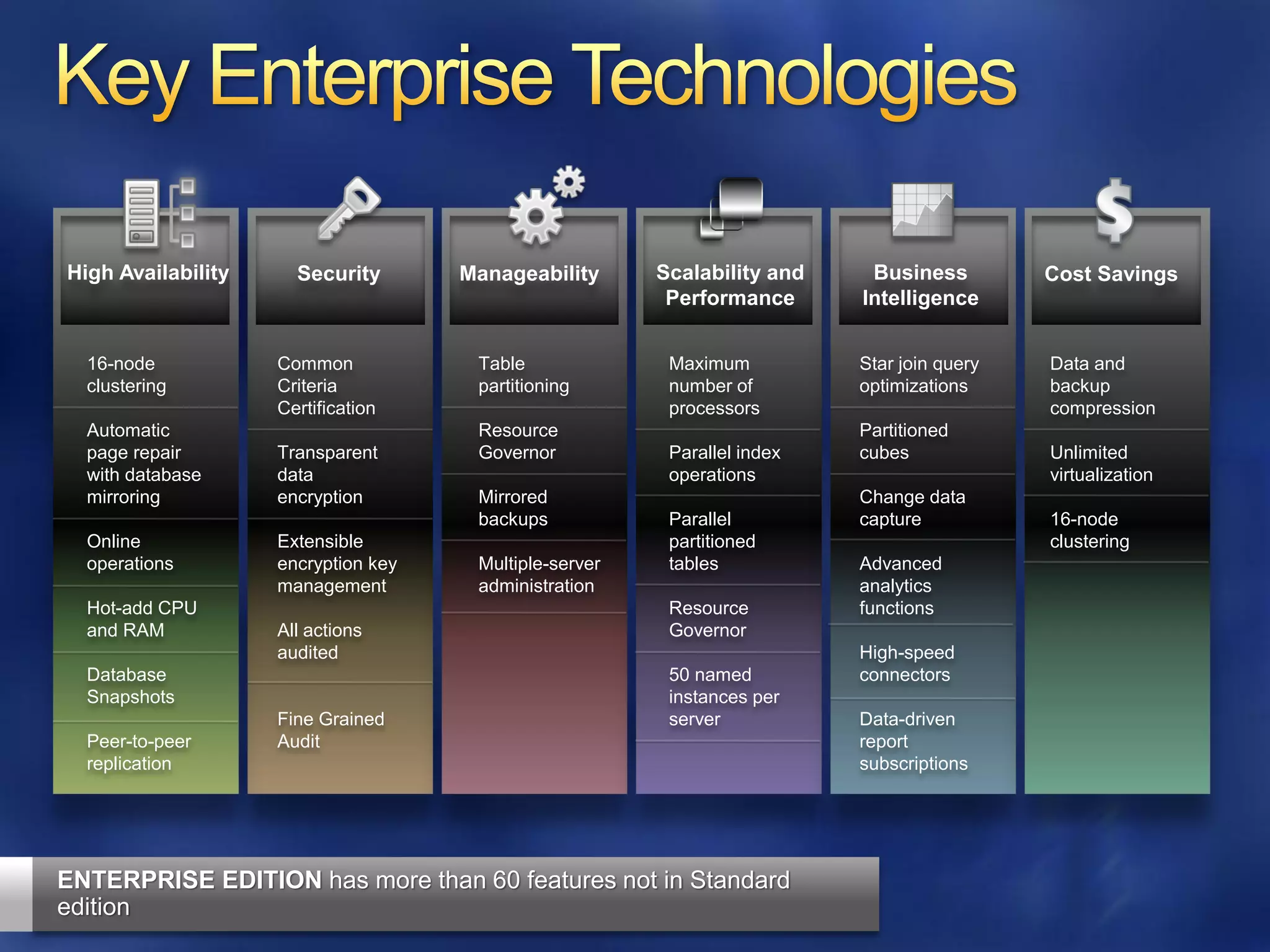

48. High Availability Security Manageability Scalability and Business Cost Savings
Performance Intelligence
16-node Common Table Maximum Star join query Data and
clustering Criteria partitioning number of optimizations backup
Certification processors compression
Automatic Resource Partitioned
page repair Transparent Governor Parallel index cubes Unlimited
with database data operations virtualization
mirroring encryption Mirrored Change data
backups Parallel capture 16-node
Online Extensible partitioned clustering
operations encryption key Multiple-server tables Advanced
management administration analytics
Hot-add CPU Resource functions
and RAM All actions Governor
audited High-speed
Database 50 named connectors
Snapshots instances per
Fine Grained server Data-driven
Peer-to-peer Audit report
replication subscriptions
ENTERPRISE EDITION has more than 60 features not in Standard
edition

49. Preguntas

50. Ing. Eduardo Castro, PhD
ecastro@grupoasesor.net
