This document provides instructions for drawing the permanent maxillary right central incisor tooth. It includes a table of contents, list of drawing materials, and step-by-step directions for drawing the labial, mesial, and reference surfaces of the tooth at a 1mm scale. Key steps include labeling the tooth name and surfaces, indicating measurement points and thirds divisions, and connecting points to draw the outlines of the crown and root on each surface. Dimensions in millimeters are provided for landmarks and diameters.

1. Dental Anatomy
Permanent Maxillary Right Central Incisor

2. Contents
* Table.
* Drawing
A- Kit.
B- Steps.

3. Measurement

4. Drawing Kit
1- Graphical copybook.
2- Pencil.
3- eraser.
4- Ruler.
1
4
3
2

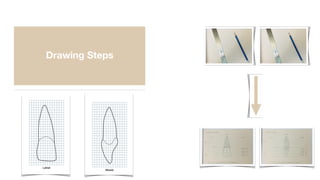

5. Drawing Steps

6. Note :
Scale Drawing
Each 1 mm in table
=
1 medium square in graph paper.

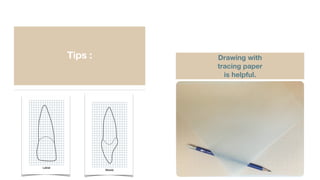

7. Tips : Drawing with
tracing paper
is helpful.

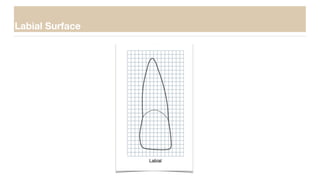

8. Labial Surface

9. 1- Tooth name
• Full name =
Dentition + Arch + Side + Tooth

10. 2- Surface name
• Labial surface.

11. 3- Midline
• To identify the mesial and distal surfaces. Distal Mesial

12. 4- Cervical line

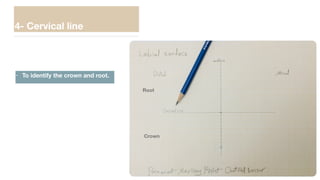

• To identify the crown and root.
Root
Crown

13. 5- Measurements :
Table 6-1
• A- Length of crown.

14. • B- Length of Root.
5- Measurements :
Table 6-1

15. C- Thirds division :
• Cervico- Incisal =
Cervical + middle + incisal
• 3.5 mm for each third.

16. • D- Mesiodistal diameter of crown at
cervical line.
5- Measurements :
Table 6-1

17. • E- Mesiodistal diameter of crown.
• Location of contact area.
Mesial = within incisal third near mesioincisal angle.
Distal = at junction between incisal and middle third .
4.25
4.25
5- Measurements :
Table 6-1

18. 6- Draw the surface.
• Connect between the points
(Mesial outline) slight convex .
4.25
4.25

19. 6- Draw the surface.
• Connect between the points
(Distal outline) more convex.
4.25
4.25

20. • Connect between the points
(Root) cone + Blunt end .
4.25
4.25
6- Draw the surface.

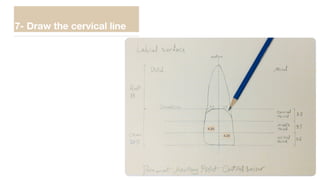

21. 7- Draw the cervical line
4.25
4.25

22. 8- The Final Draw
4.25
4.25

23. Mesial Surface

24. 1- Tooth name
• Full name= Dentition + Arch + Side + Tooth

25. 2- Surface name
• Mesial surface

26. 3- Midline
• To identify the Labial and Lingual surfaces.

27. 4- Cervical line
• To identify the crown and root.

28. • A- Length of crown.
5- Measurements :
Table 6-1

29. • B- Length of Root.
5- Measurements :
Table 6-1

30. 5- Measurements :
Table 6-1
C- Thirds division :
• Cervico- Incisal =
Cervical + middle + incisal
• 3.5 mm for each third.

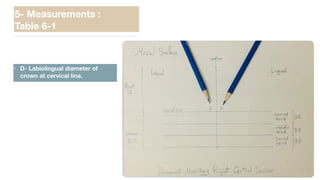

31. • D- Labiolingual diameter of
crown at cervical line.
5- Measurements :
Table 6-1

32. • E- Labiolingual diameter of crown.
• Crest of curvature
Labial and Lingual = within cervical third.
5- Measurements :
Table 6-1

33. • Connect between the points
(Labial outline) from crest of curvature
to incisal ridge slightly convex .
6- Draw the surface.

34. 6- Draw the surface.
• Connect between the points
(Lingual outline) convex at
cingulum then concave at mesial
marginal ridge then convex at
incisal edge.

35. 6- Draw the surface.

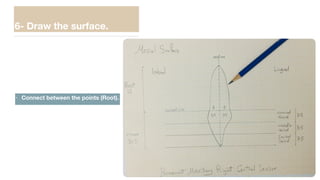

• Connect between the points (Root).

36. 7- Draw the cervical line

37. 8- The
fi
nal draw

38. 4.25
4.25
The Final draw

39. Reference :
*Wheeler’s Dental Anatomy and Physiology.

40. END OF LAB
