1. LE MOTEUR DE VOTRE INNOVATION

2. Webinar du 21.03.2017
Visualisation distante 3D avec
NICE DCV
Vincent Bosquier
HPC & Visualization Architect – NICE Software
Cyril Baudillon
Ingénieur avant-vente HPC – transtec France
Philippe Bricard
Business Development & Alliances– NICE Software

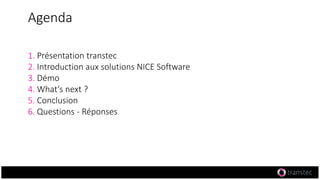

3. Agenda
1. Présentation transtec
2. Introduction aux solutions NICE Software
3. Démo
4. What‘s next ?
5. Conclusion
6. Questions - Réponses

4. Présentation transtec

5. transtec France
Siège social à Reutlingen
(Allemagne)
Plus de 5.500 clients125 employés Chiffre d‘affaires 44,6 millions d'euros
(exercice 2015)
Chiffre d‘affaires TF 4,8 millions d'euros
(exercice 2015)
Dont ~2,4 M€ en HPC
Solution HPC & Datacenter
Infrastructure, Cloud et Industrie 4.0 ou IoT
Clients du monde de l‘industrie, de la recherche et de l‘enseignement

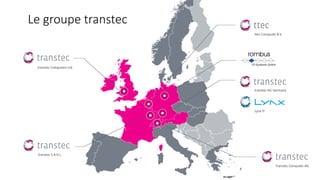

6. Le groupe transtec
transtec Computers Ltd
ttec Computer B.V.
transtec S.A.R.L.
transtec Computer AG
transtec AG Germany
Lynx IT

7. Réalisations transtec France
~40% ~60%

8. Nos domaines de compétence
HPC – High Performance Computing CSA – Customized Systems and AppliancesPSO – Products and Solutions

9. Voilà pourquoi transtec
Expérience
Plus de 30 ans d'expérience
dans les systèmes informatiques et les
solutions
pour utilisateurs professionnels
Made in Germany
Offre complète de produits et de
services « Made in Germany »
Partenariat
Une sélection pointue avec
des partenaires solides
Personnalisation
Solutions individuelles -
même en petites séries !
Satisfaction des clients
Satisfaction des clients à 98% -
qualité « Made in Germany »

10. Introduction aux solutions NICE Software

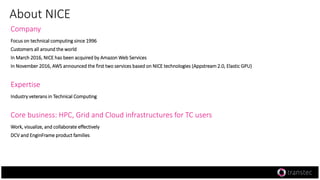

11. About NICE
Company
Focus on technical computing since 1996
Customers all around the world
In March 2016, NICE has been acquired by Amazon Web Services
In November 2016, AWS announced the first two services based on NICE technologies (Appstream 2.0, Elastic GPU)
Expertise
Industry veterans in Technical Computing
Core business: HPC, Grid and Cloud infrastructures for TC users
Work, visualize, and collaborate effectively
DCV and EnginFrame product families

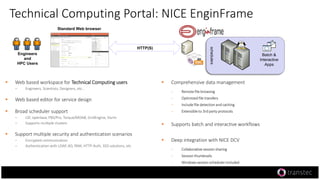

12. schedulers
Technical Computing Portal: NICE EnginFrame
 Comprehensive data management
‒ Remote file browsing
‒ Optimized file transfers
‒ Include file detection and caching
‒ Extensible to 3rd party protocols
 Supports batch and interactive workflows
 Deep integration with NICE DCV
‒ Collaborative session sharing
‒ Session thumbnails
‒ Windows session scheduler included
Batch &
Interactive
Apps
Engineers
and
HPC Users
Standard Web browser
HTTP(S)
 Web based workspace for Technical Computing users
‒ Engineers, Scientists, Designers, etc…
 Web based editor for service design
 Broad scheduler support
‒ LSF, openlava, PBS/Pro, Torque/MOAB, GridEngine, Slurm
‒ Supports multiple clusters
 Support multiple security and authentication scenarios
‒ Encrypted communication
‒ Authentication with LDAP, AD, PAM, HTTP-Auth, SSO solutions, etc

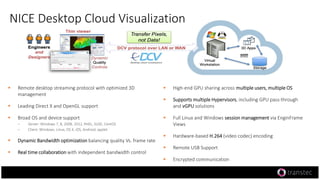

13.  High-end GPU sharing across multiple users, multiple OS
 Supports multiple Hypervisors, including GPU pass-through
and vGPU solutions
 Full Linux and Windows session management via EnginFrame
Views
 Hardware-based H.264 (video codec) encoding
 Remote USB Support
 Encrypted communication
 Remote desktop streaming protocol with optimized 3D
management
 Leading Direct X and OpenGL support
 Broad OS and device support
‒ Server: Windows 7, 8, 2008, 2012, RHEL, SUSE, CentOS
‒ Client: Windows, Linux, OS X, iOS, Android, applet
 Dynamic Bandwidth optimization balancing quality Vs. frame rate
 Real time collaboration with independent bandwidth control
NICE Desktop Cloud Visualization

14. Why DCV?
Reduces infrastructure costs
No more need of multiple expensive workstations
Protects intellectual property
No more data downloaded outside of the datacenter
Enables remote/mobile working
Performant access to 2D/3D applications on standard networks
Simplifies the management and the users workflow
IT Admins provide the Users with easy access to centralized applications (users authentication, applications and data
remain in the datacenter)

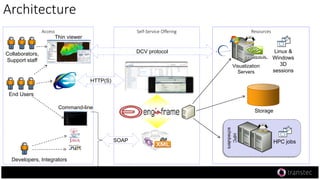

15. Linux &
Windows
3D
sessions
Architecture
Collaborators,
Support staff
Self-Service Offering
End Users
Thin viewer
ResourcesAccess
Visualization
Servers
HTTP(S)
HPC
schedulers
HPC jobs
Command-line
Developers, Integrators
SOAP
DCV protocol
Storage

16. DEMO

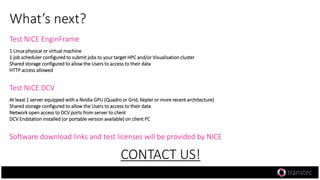

17. What’s next?
Test NICE EnginFrame
1 Linux physical or virtual machine
1 job scheduler configured to submit jobs to your target HPC and/or Visualisation cluster
Shared storage configured to allow the Users to access to their data
HTTP access allowed
Test NICE DCV
At least 1 server equipped with a Nvidia GPU (Quadro or Grid, Kepler or more recent architecture)
Shared storage configured to allow the Users to access to their data
Network open access to DCV ports from server to client
DCV Endstation installed (or portable version available) on client PC
Software download links and test licenses will be provided by NICE
CONTACT US!

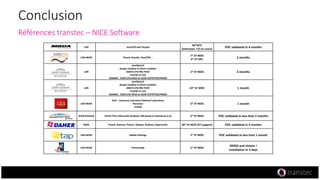

18. Conclusion
Références transtec – NICE Software
LAN IcemCFD and Tecplot
40*DCV
(extension +15 en cours)
POC validated in 4 months
LAN+WAN Fluent, Gambit, StarCCM …
7* EF MOS
4* EF HPC
2 months
LAN
workbench
design modeler et direct modeler
ANSYS CFD PRE-POST
FLUENT et CFX
GAMBIT, ICEM CFD HEXA et ICEM CFDTETRA/PRISM
2* EF MOS 3 months
LAN
workbench
design modeler et direct modeler
ANSYS CFD PRE-POST
FLUENT et CFX
GAMBIT, ICEM CFD HEXA et ICEM CFDTETRA/PRISM
23* EF MOS 1 month
LAN+WAN
VisIt - Lawrence Livermore National Laboratory
Paraview
matlab
5* EF MOS 1 month
WAN (Poland) CATIA (Thru Microsoft windows VM based on XenServer 6.2) 5* EF MOS POC validated in less than 2 months
WAN Fluent, Nastran, Patran, Abaqus, Radioss, Hypermesh 50* EF MOS (5Y support) POC validated in 3 months
LAN+WAN Adobe InDesign 5* EF MOS POC validated in less than 1 month
LAN+WAN Homemade 5* EF MOS
DEMO and chosen !
Installation in 3 days

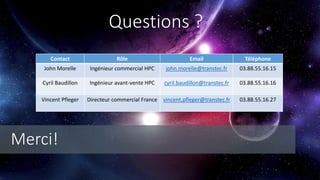

19. Questions ?
Contact Rôle Email Téléphone
John Morelle Ingénieur commercial HPC john.morelle@transtec.fr 03.88.55.16.15
Cyril Baudillon Ingénieur avant-vente HPC cyril.baudillon@transtec.fr 03.88.55.16.16
Vincent Pfleger Directeur commercial France vincent.pfleger@transtec.fr 03.88.55.16.27
Merci!
