Everyone building or operating cloud native applications must understand the fundamentals of security issues and modern threat models. Although this topic is vast, in this talk Nic and Daniel will focus on the end-to-end communication and higher-level networking threats, and explore how the combination of an edge proxy and service mesh using TLS and mTLS can be used to mitigate many man-in-the-middle attacks. Key takeaways include: - An understanding of the "three pillars" of service mesh functionality: observability, reliability, and security. A service mesh is in a unique place to enforce security features like mTLS - Learn how to ensure that there are no exploitable "gaps" within the end-to-end/user-to-service communication path. - Explore the differences in ingress/mesh control planes, with brief demonstrations using Ambassador and Consul Connect

1. Copyright © 2019 HashiCorp
Securing Cloud Native
Communication:
From End User to Service
Daniel Bryant
Product Architect, Datawire
Nic Jackson
Developer Advocate, HashiCorp

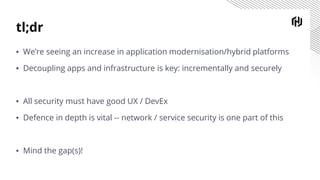

2. tl;dr
▪ We’re seeing an increase in application modernisation/hybrid platforms
▪ Decoupling apps and infrastructure is key: incrementally and securely
▪ All security must have good UX / DevEx
▪ Defence in depth is vital -- network / service security is one part of this
▪ Mind the gap(s)!

3. Who are we?
Nic Jackson
Developer Advocate, HashiCorp
@sheriffjackson
Daniel Bryant
Product Architect, Datawire
@danielbryantuk

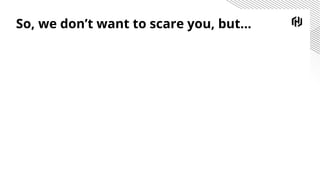

4. So, we don’t want to scare you, but...

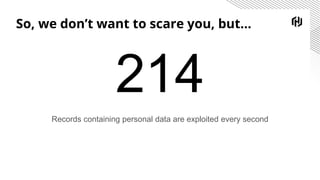

5. So, we don’t want to scare you, but...
214
Records containing personal data are exploited every second

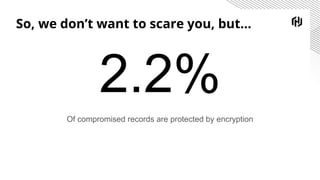

6. So, we don’t want to scare you, but...
2.2%
Of compromised records are protected by encryption

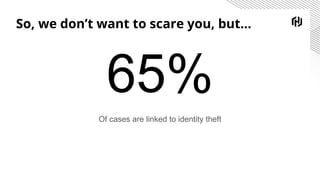

7. So, we don’t want to scare you, but...
65%
Of cases are linked to identity theft

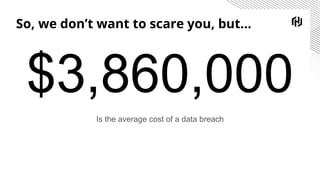

8. So, we don’t want to scare you, but...
$3,860,000
Is the average cost of a data breach

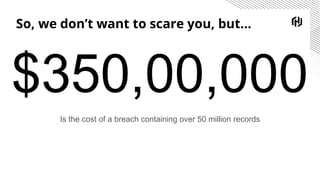

9. So, we don’t want to scare you, but...
$350,00,000
Is the cost of a breach containing over 50 million records

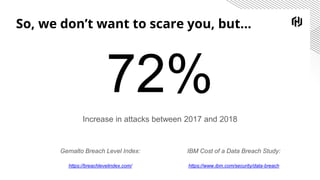

10. So, we don’t want to scare you, but...
72%
Increase in attacks between 2017 and 2018
Gemalto Breach Level Index:
https://breachlevelindex.com/
IBM Cost of a Data Breach Study:
https://www.ibm.com/security/data-breach

12. We’re assuming that you have
secured your data at rest…
...and hardened compute

13. But what about data in motion?
Are your comms vulnerable?

14. And what about during application modernisation?
Network heterogeneity typically increases:
- Private DC, cloud, k8s...

15. https://www.rgoarchitects.com/Files/fallacies.pdf

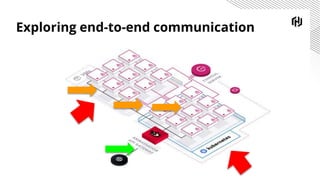

16. Exploring end-to-end communication

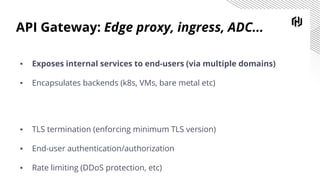

18. API Gateway: Edge proxy, ingress, ADC...
▪ Exposes internal services to end-users (via multiple domains)
▪ Encapsulates backends (k8s, VMs, bare metal etc)
▪ TLS termination (enforcing minimum TLS version)
▪ End-user authentication/authorization
▪ Rate limiting (DDoS protection, etc)

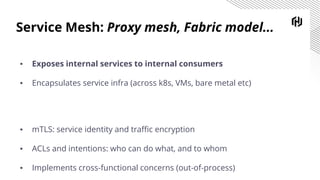

20. Service Mesh: Proxy mesh, Fabric model...
▪ Exposes internal services to internal consumers
▪ Encapsulates service infra (across k8s, VMs, bare metal etc)
▪ mTLS: service identity and traffic encryption
▪ ACLs and intentions: who can do what, and to whom
▪ Implements cross-functional concerns (out-of-process)

21. Service Mesh: Three Pillars
▪ Observability
– “Golden signals”: latency, errors, traffic, saturation (USE, RED)
– Both global and service-to-service
▪ Reliability
– Abstracting health checks, retries, circuit breakers etc.
– Providing sane default to protect system
▪ Security
– Authn/z propagation, mTLS, network segmentation

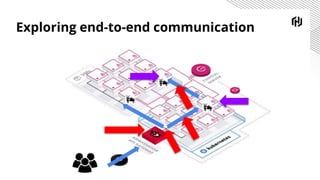

22. Exploring end-to-end communication

24. © 2019 HashiCorp 24
Bypass the perimeter by attacking services

25. © 2019 HashiCorp 25
We need internal network isolation

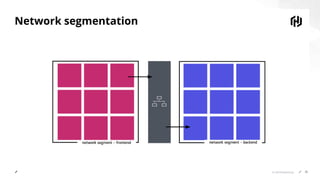

26. © 2019 HashiCorp 26
Network segmentation

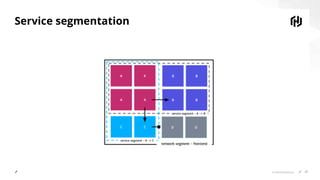

27. © 2019 HashiCorp 27
Service segmentation

28. © 2019 HashiCorp 28
Problem: Dynamic environments...

29. © 2019 HashiCorp 29
Network / Service segmentation with
intention-based security

30. Exploring end-to-end communication

31. https://blog.envoyproxy.io/service-mesh-data-plane-vs-control-plane-2774e720f7fc
Control planes and data planes
Data plane
Control plane

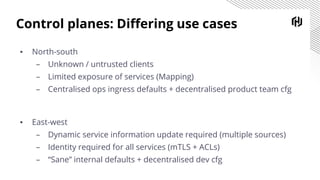

32. Control planes: Differing use cases
▪ North-south
– Unknown / untrusted clients
– Limited exposure of services (Mapping)
– Centralised ops ingress defaults + decentralised product team cfg
▪ East-west
– Dynamic service information update required (multiple sources)
– Identity required for all services (mTLS + ACLs)
– “Sane” internal defaults + decentralised dev cfg

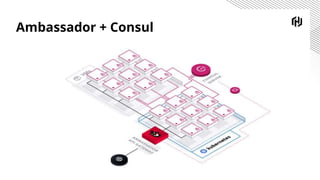

33. Ambassador + Consul

34. Copyright © 2019 HashiCorp
Demo

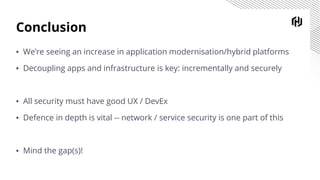

35. Conclusion
▪ We’re seeing an increase in application modernisation/hybrid platforms
▪ Decoupling apps and infrastructure is key: incrementally and securely
▪ All security must have good UX / DevEx
▪ Defence in depth is vital -- network / service security is one part of this
▪ Mind the gap(s)!

36. References
▪ Context:
– https://www.infoq.com/articles/api-gateway-service-mesh-app-modernisation/
▪ Reference:
– https://www.getambassador.io/user-guide/consul-connect-ambassador/
– https://www.getambassador.io/user-guide/consul/
– https://www.consul.io/docs/platform/k8s/ambassador.html
Experiment in an Instruqt sandbox: https://instruqt.com/hashicorp/tracks/sock-shop-tutorial
Code examples: https://github.com/emojify-app

37. Copyright © 2019 HashiCorp
Questions?

38. Copyright © 2019 HashiCorp
Thanks!
@sheriffjackson | @danielbryantuk
