初探 OpenTelemetry - 蒐集遙測數據的新標準
The document discusses observability in cloud-native environments, highlighting its importance and the challenges developers face. It provides an overview of OpenTelemetry, its integration with .NET, and the tools necessary for monitoring and troubleshooting in distributed systems. Key points include the need for effective data collection and the differentiation between monitoring and observability.
More Related Content
Similar to 初探 OpenTelemetry - 蒐集遙測數據的新標準
初探 OpenTelemetry - 蒐集遙測數據的新標準
- 1. Marcus @ Will保哥的技術交流中心

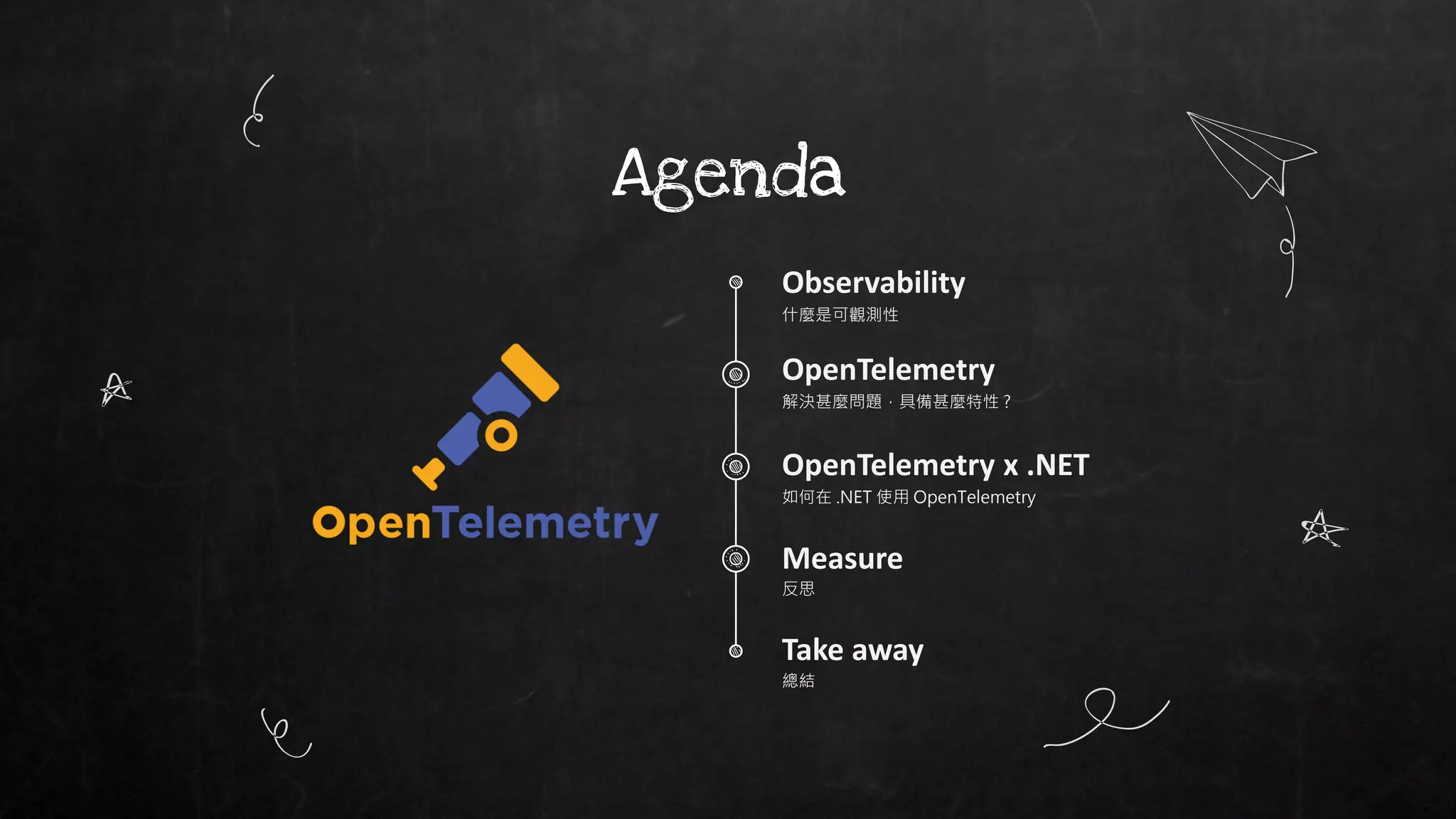

- 2. Agenda 什麼是可觀測性 Observability 解決甚麼問題，具備甚麼特性 ? OpenTelemetry 如何在 .NET使用 OpenTelemetry OpenTelemetry x .NET 總結 Take away 反思 Measure
- 3. • 專注在後端開發的工程師 • 喜歡上技術課程，參與外部研討會吸收新知識 MarcusTung Blog : m@rcus 學習筆記 Fb : 技術管理者論壇
- 4.

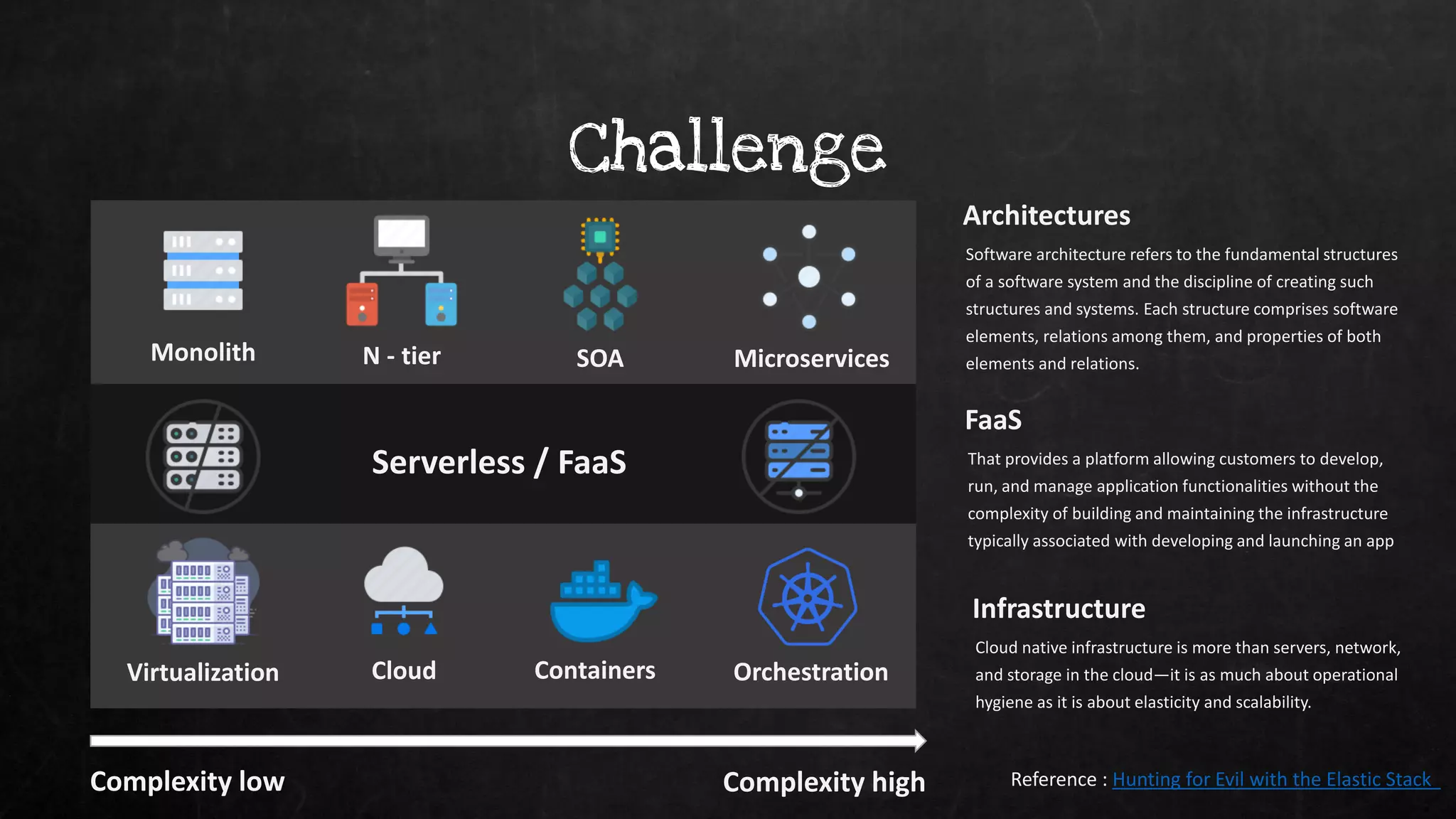

- 5. Virtualization Cloud Orchestration Containers Serverless/ FaaS Monolith N - tier SOA Microservices Challenge Infrastructure Cloud native infrastructure is more than servers, network, and storage in the cloud—it is as much about operational hygiene as it is about elasticity and scalability. FaaS That provides a platform allowing customers to develop, run, and manage application functionalities without the complexity of building and maintaining the infrastructure typically associated with developing and launching an app Architectures Software architecture refers to the fundamental structures of a software system and the discipline of creating such structures and systems. Each structure comprises software elements, relations among them, and properties of both elements and relations. Complexity low Reference : Hunting for Evil with the Elastic Stack Complexity high

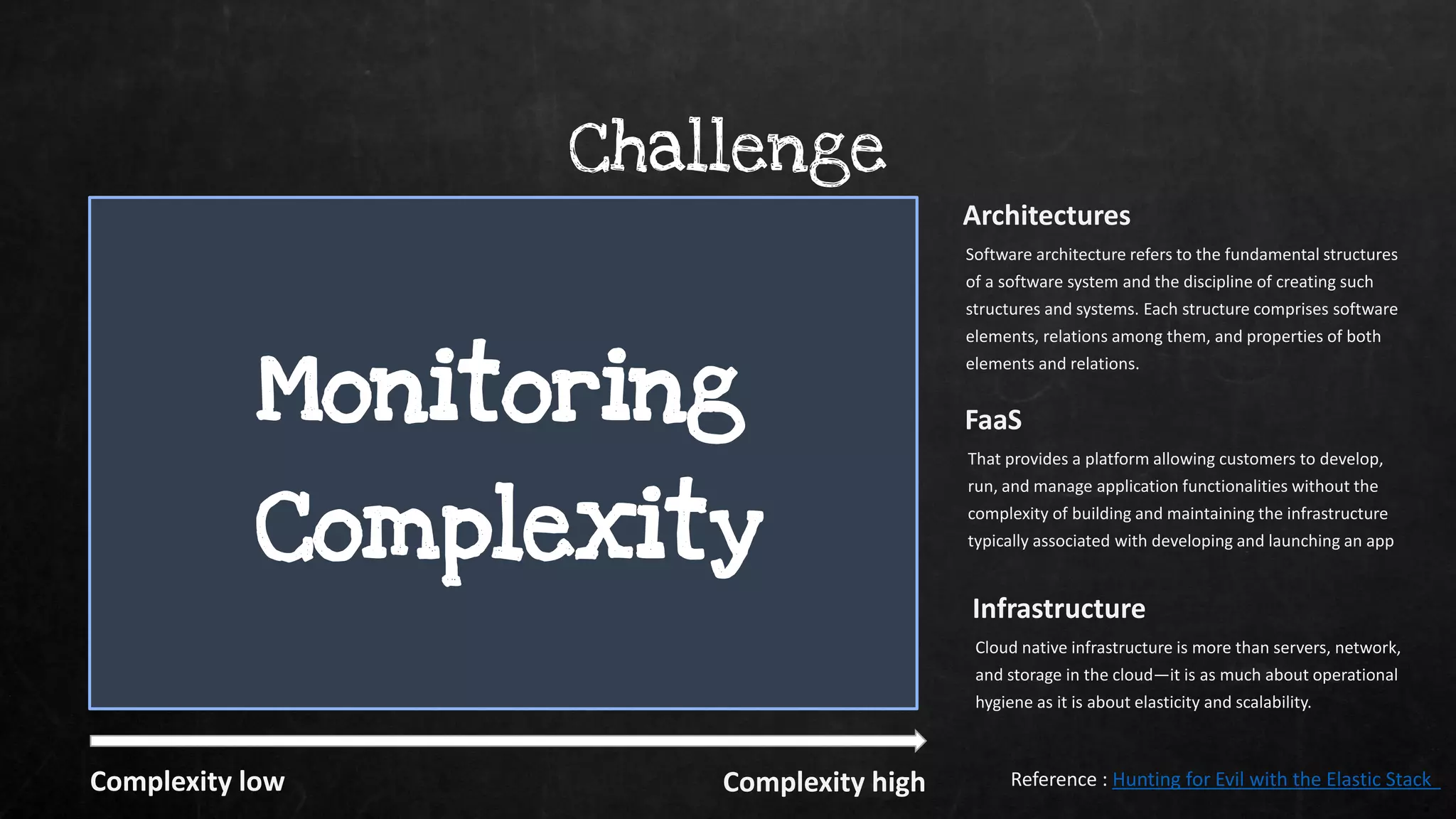

- 6. Virtualization Cloud Orchestration Containers Serverless/ FaaS Monolith N - tier SOA Microservices Challenge Infrastructure Cloud native infrastructure is more than servers, network, and storage in the cloud—it is as much about operational hygiene as it is about elasticity and scalability. FaaS That provides a platform allowing customers to develop, run, and manage application functionalities without the complexity of building and maintaining the infrastructure typically associated with developing and launching an app Architectures Software architecture refers to the fundamental structures of a software system and the discipline of creating such structures and systems. Each structure comprises software elements, relations among them, and properties of both elements and relations. Reference : Hunting for Evil with the Elastic Stack Monitoring Complexity Complexity low Complexity high

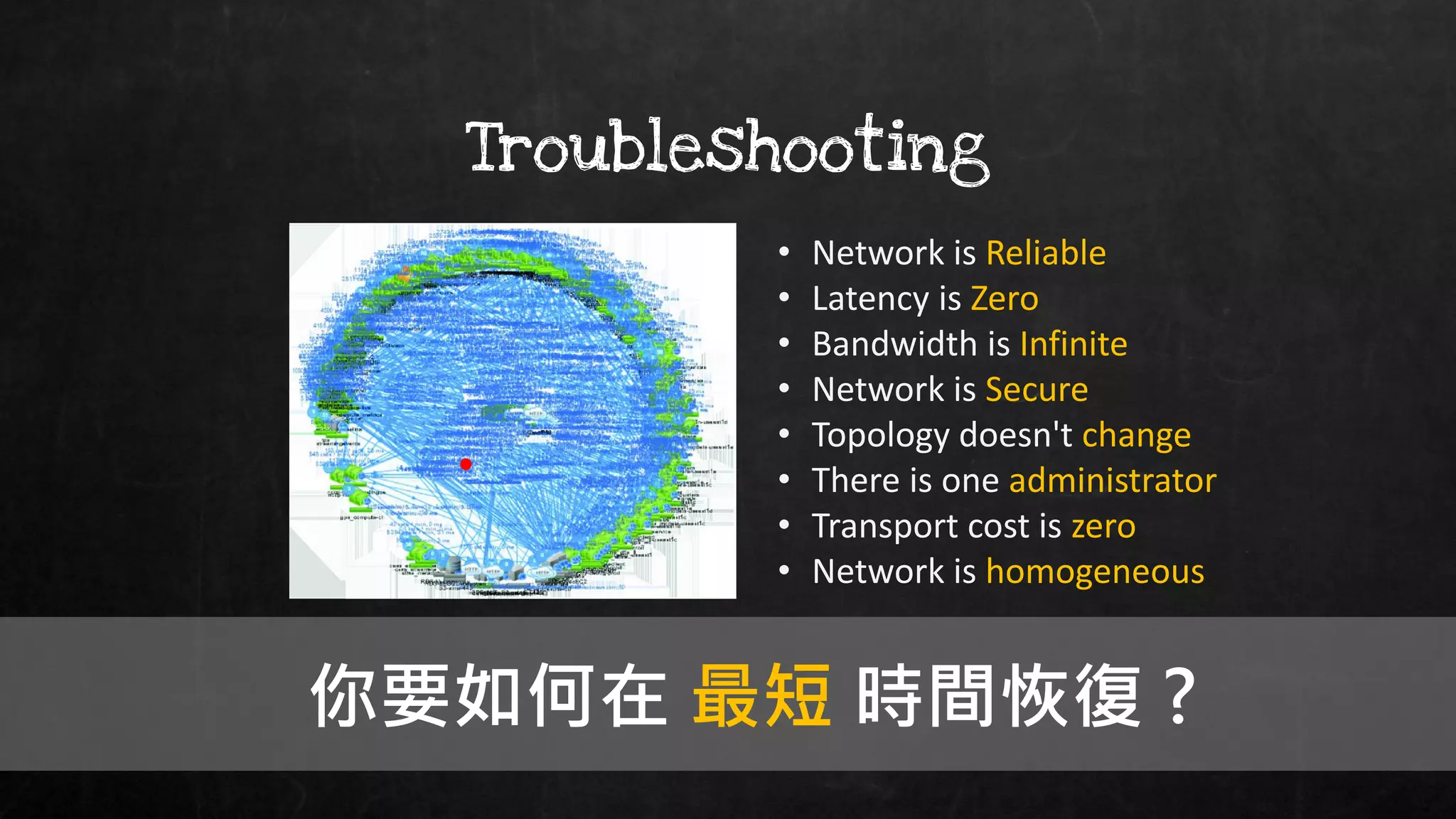

- 7. Troubleshooting 你要如何在 最短 時間恢復? • Network is Reliable • Latency is Zero • Bandwidth is Infinite • Network is Secure • Topology doesn't change • There is one administrator • Transport cost is zero • Network is homogeneous
- 8. 案例 : 10/4Meta facebook 大當機 Reference : 臉書全球當機7小時！故障原因找到了
- 9. • 影響時間 :6 小時 • 影響人數 : 八千萬人 • 損失金額 : 10 億台幣 • 影響股價 : 4.89 % Meta 服務中斷 orem Ipsum is simply dummy text of the printing and orem Ipsum is simply dummy text of the printing and orem Ipsum is simply dummy text of the printing and orem Ipsum is simply dummy text of the printing and orem Ipsum is simply dummy text of the printing and
- 10.
- 11.
- 12. The Pillars Observability isa measure of how well internal states of a system can be inferred from knowledge of its external outputs.
- 13. Why is observability importantnow ? “ ”

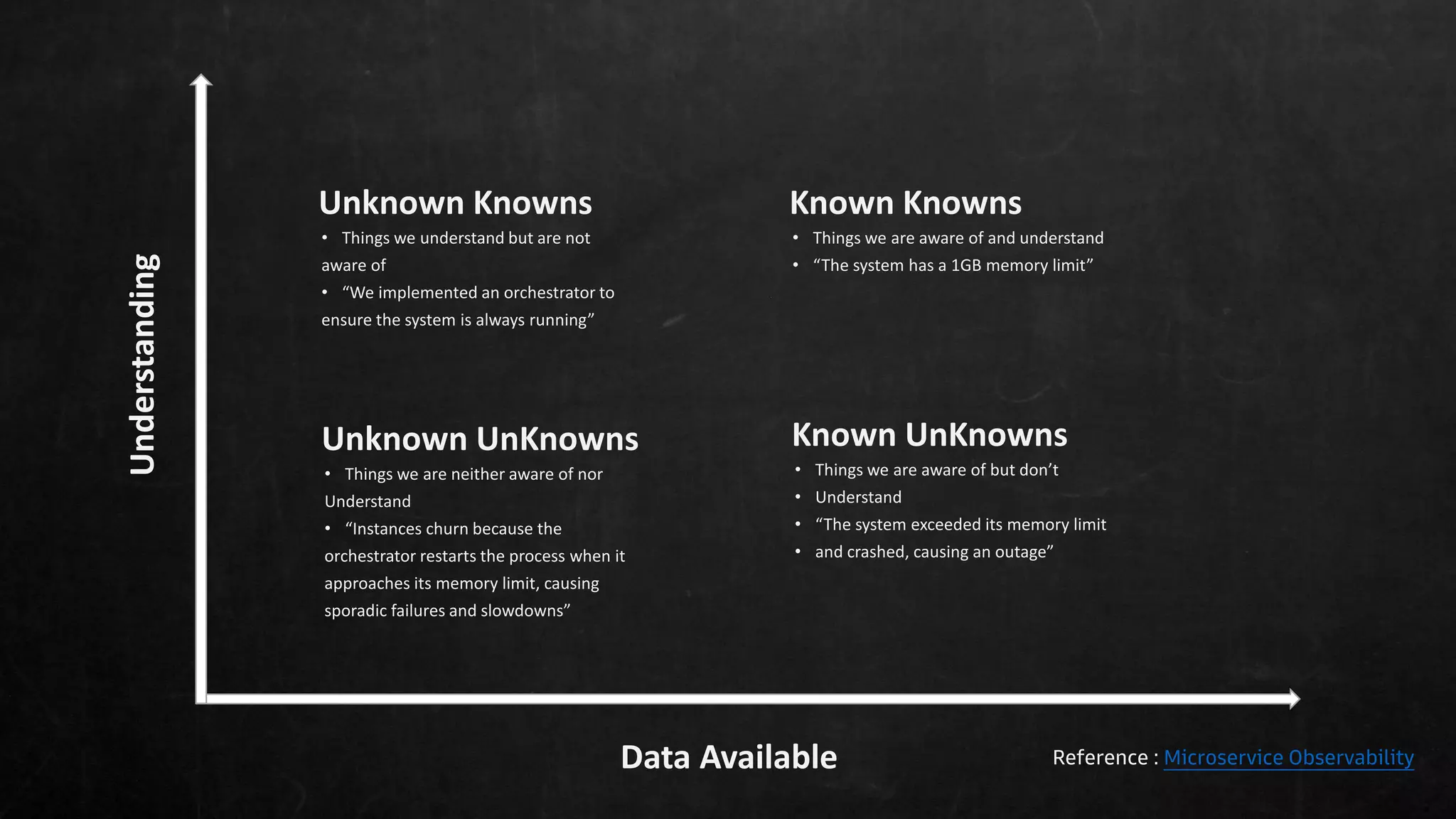

- 14. Data Available Understanding Unknown Knowns •Things we understand but are not aware of • “We implemented an orchestrator to ensure the system is always running” Unknown UnKnowns • Things we are neither aware of nor Understand • “Instances churn because the orchestrator restarts the process when it approaches its memory limit, causing sporadic failures and slowdowns” Known Knowns • Things we are aware of and understand • “The system has a 1GB memory limit” Known UnKnowns • Things we are aware of but don’t • Understand • “The system exceeded its memory limit • and crashed, causing an outage” Reference : Microservice Observability

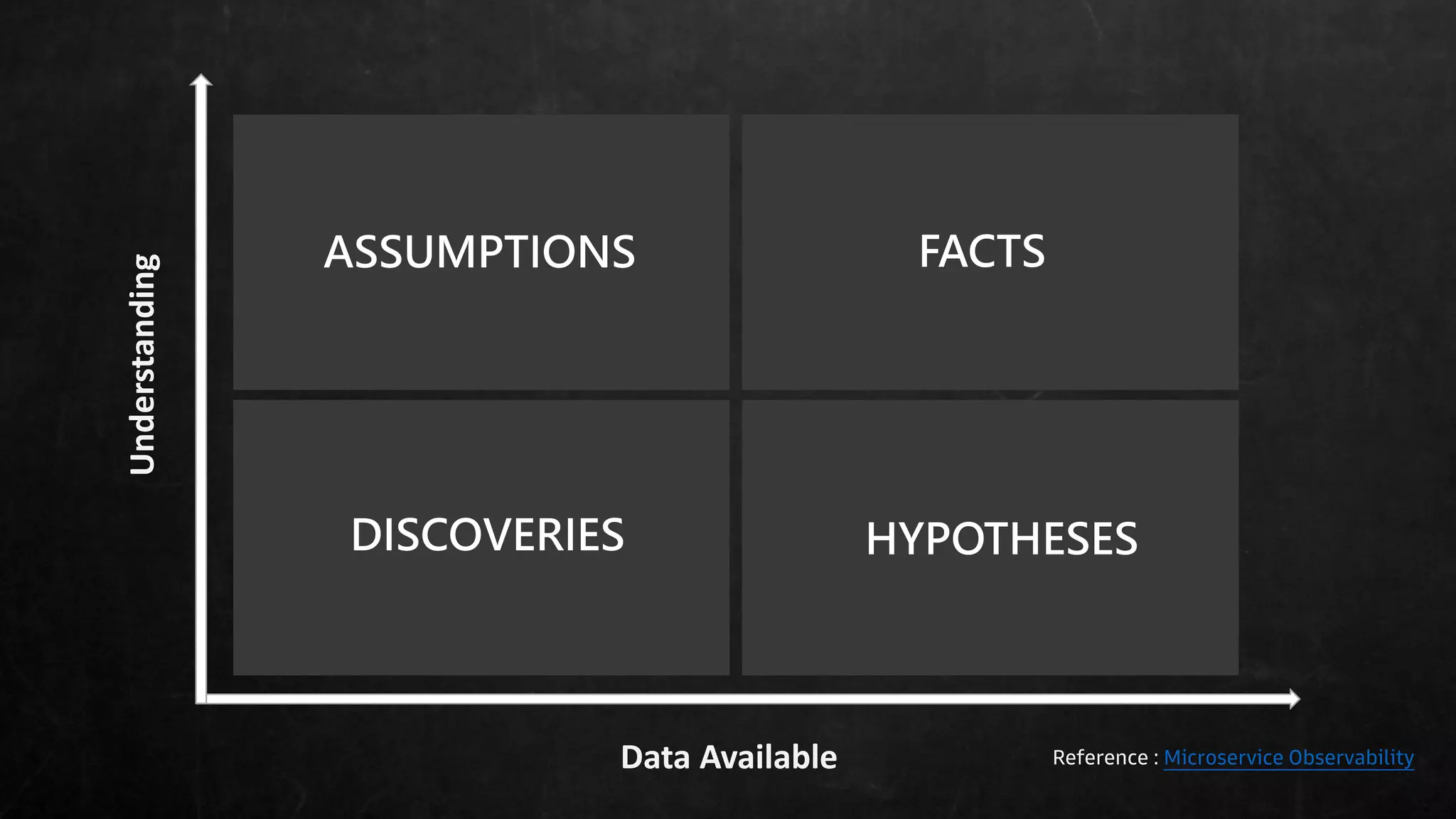

- 15. Data Available Understanding Unknown Knowns Thereare many variations of passages of Lorem Ipsum available, but the majority have suffered alteration in some form. Unknown Knowns There are many variations of passages of Lorem Ipsum available, but the majority have suffered alteration in some form. Known Knowns There are many variations of passages of Lorem Ipsum available, but the majority have suffered alteration in some form. Known UnKnowns There are many variations of passages of Lorem Ipsum available, but the majority have suffered alteration in some form. ASSUMPTIONS DISCOVERIES FACTS HYPOTHESES Reference : Microservice Observability

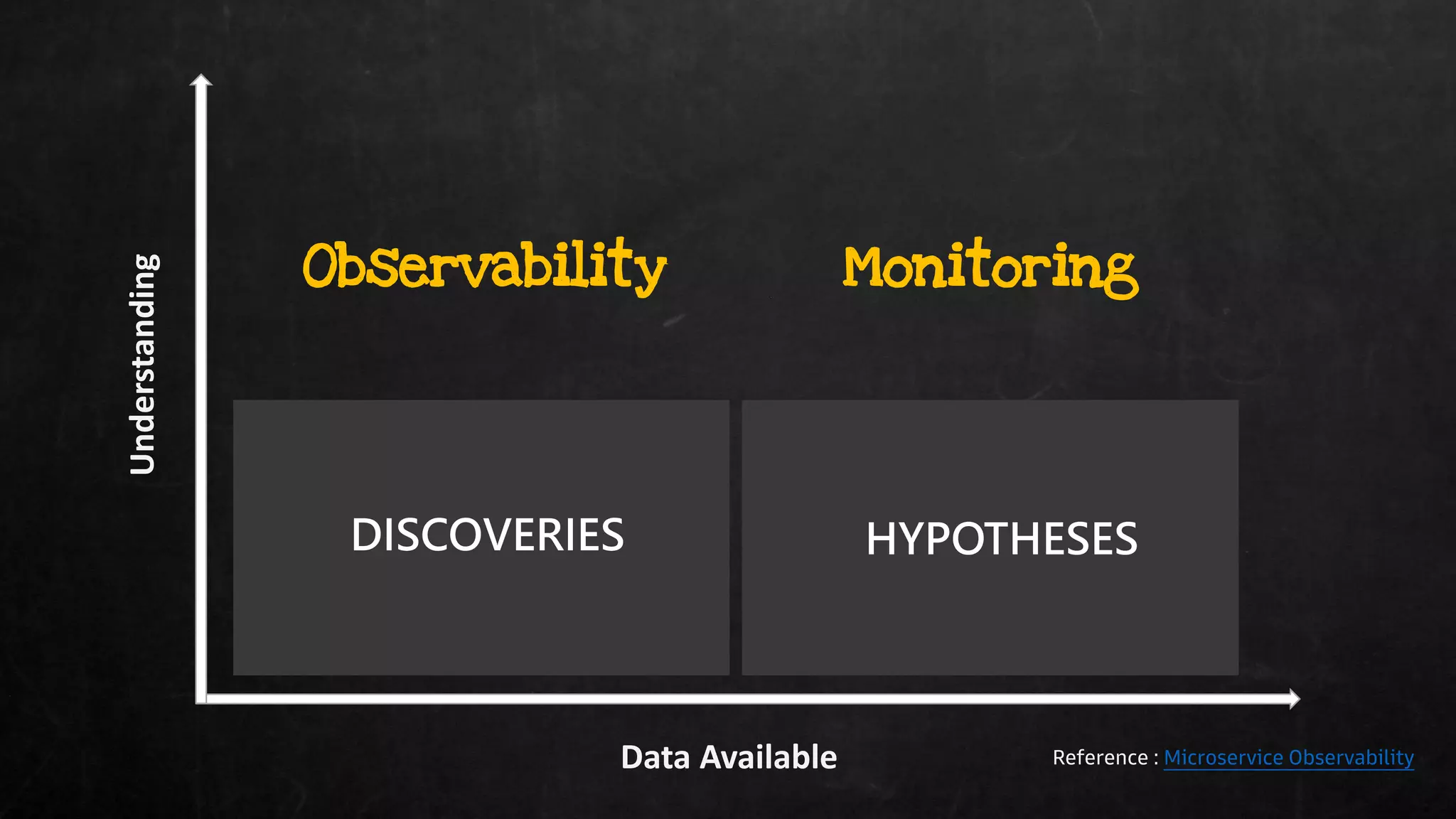

- 16. Data Available Understanding Unknown Knowns Thereare many variations of passages of Lorem Ipsum available, but the majority have suffered alteration in some form. Known UnKnowns There are many variations of passages of Lorem Ipsum available, but the majority have suffered alteration in some form. Observability DISCOVERIES Monitoring HYPOTHESES Reference : Microservice Observability

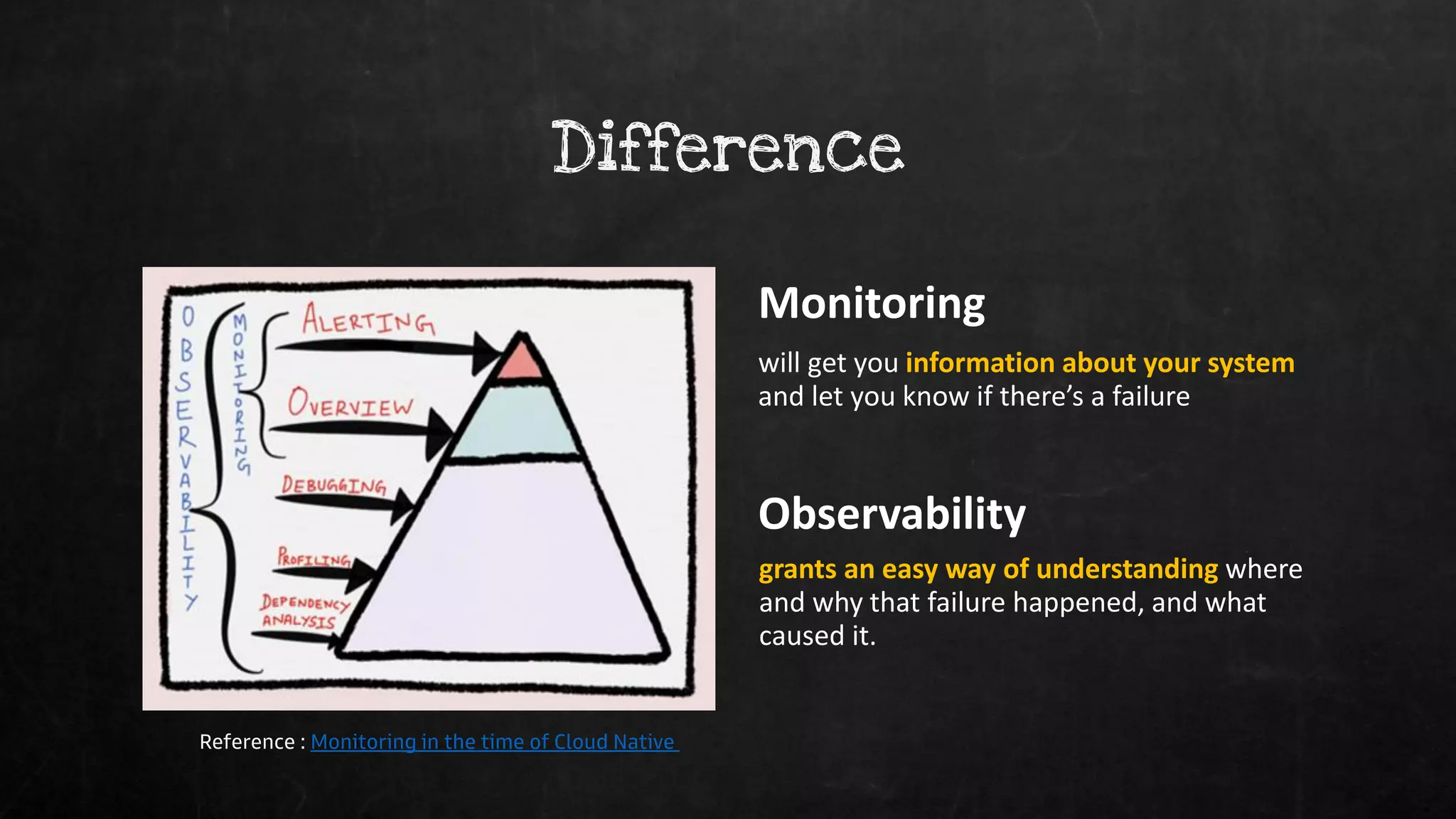

- 17. Difference Monitoring Observability will get youinformation about your system and let you know if there’s a failure grants an easy way of understanding where and why that failure happened, and what caused it. Reference : Monitoring in the time of Cloud Native
- 18. How to collectdata that will provide observability? “ ”
- 19.

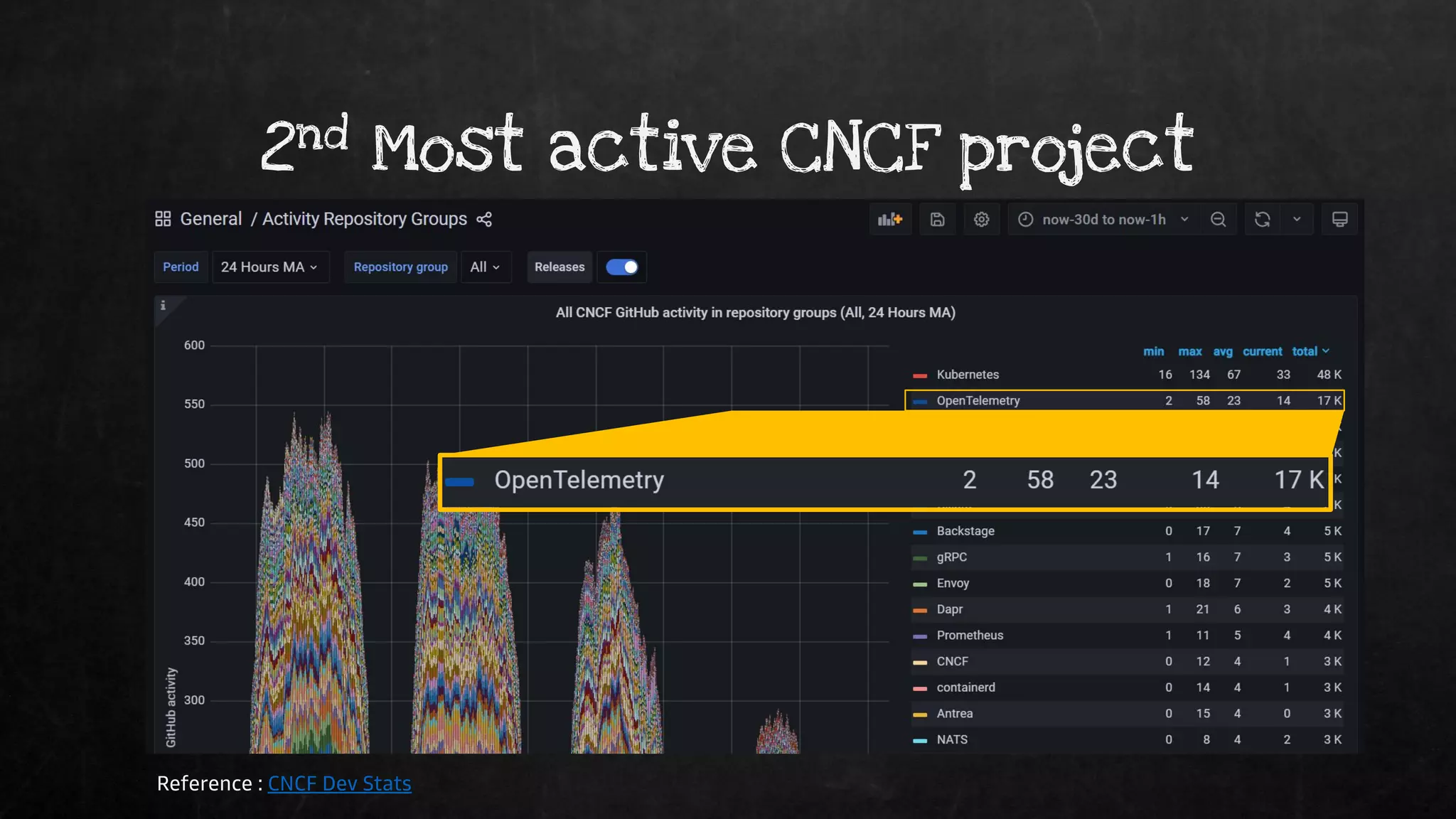

- 20. 2nd Most activeCNCF project Reference : CNCF Dev Stats

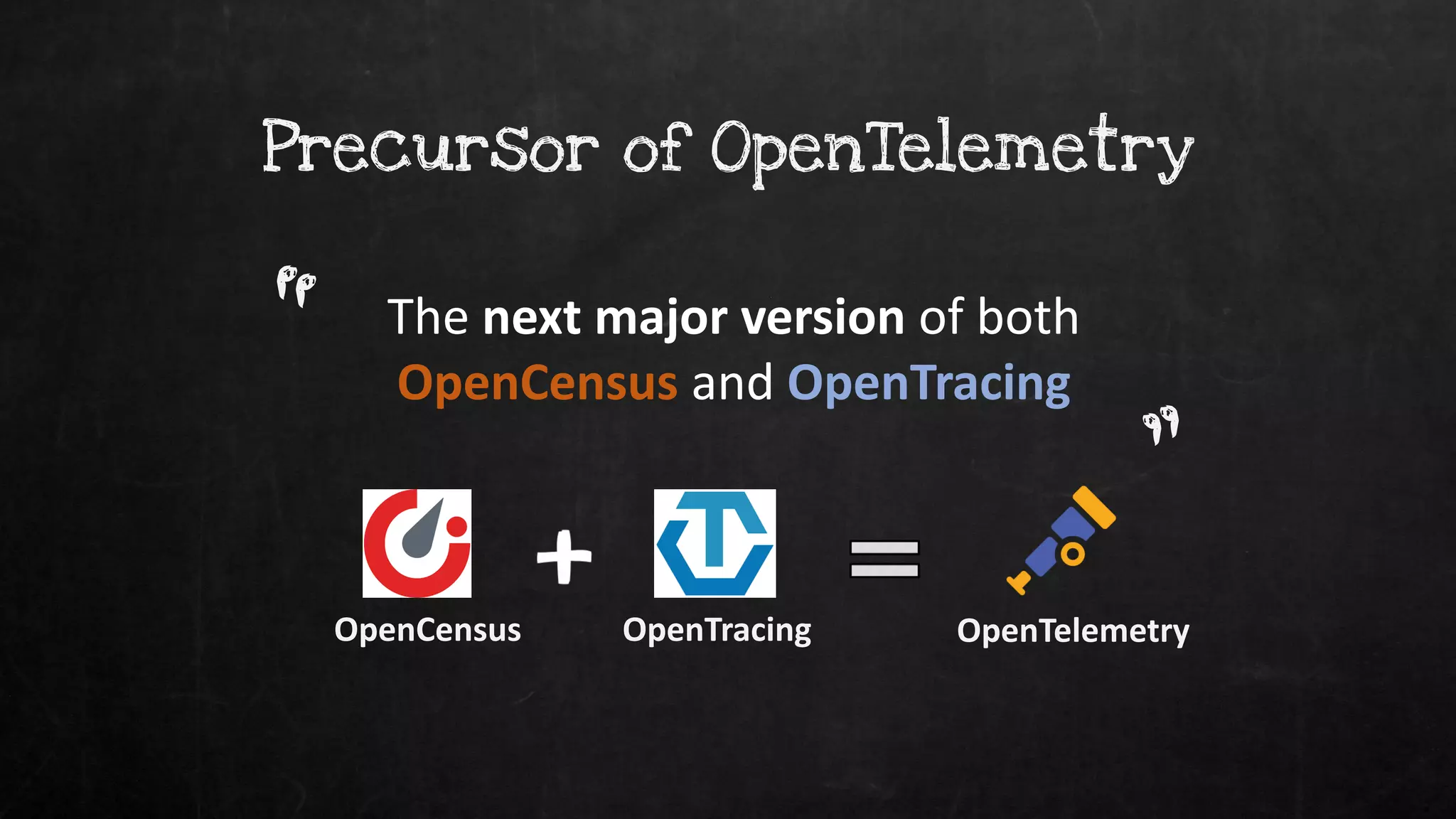

- 21. Precursor of OpenTelemetry Thenext major version of both OpenCensus and OpenTracing “ ” OpenCensus OpenTracing OpenTelemetry

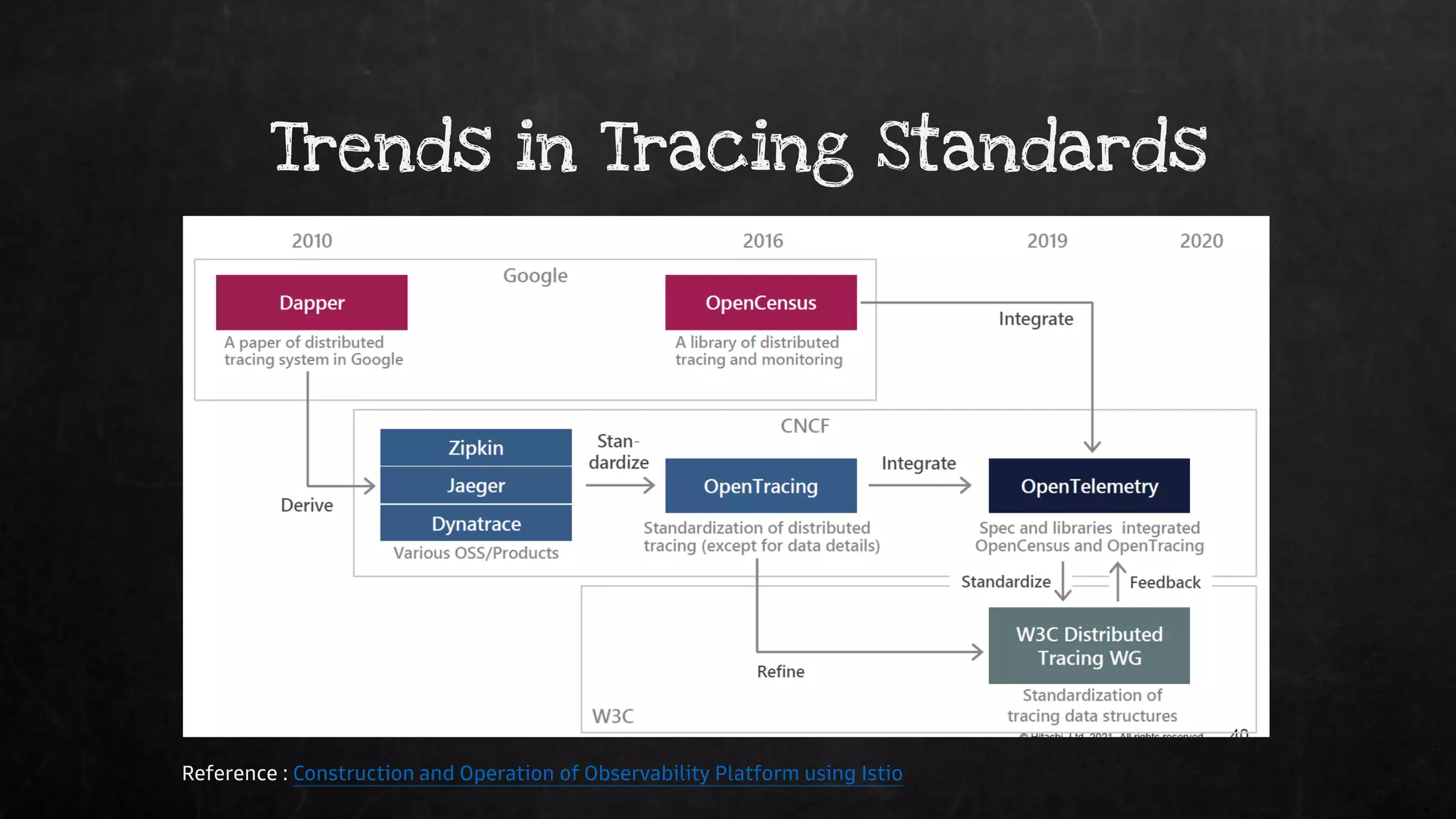

- 22. Trends in TracingStandards Reference : Construction and Operation of Observability Platform using Istio

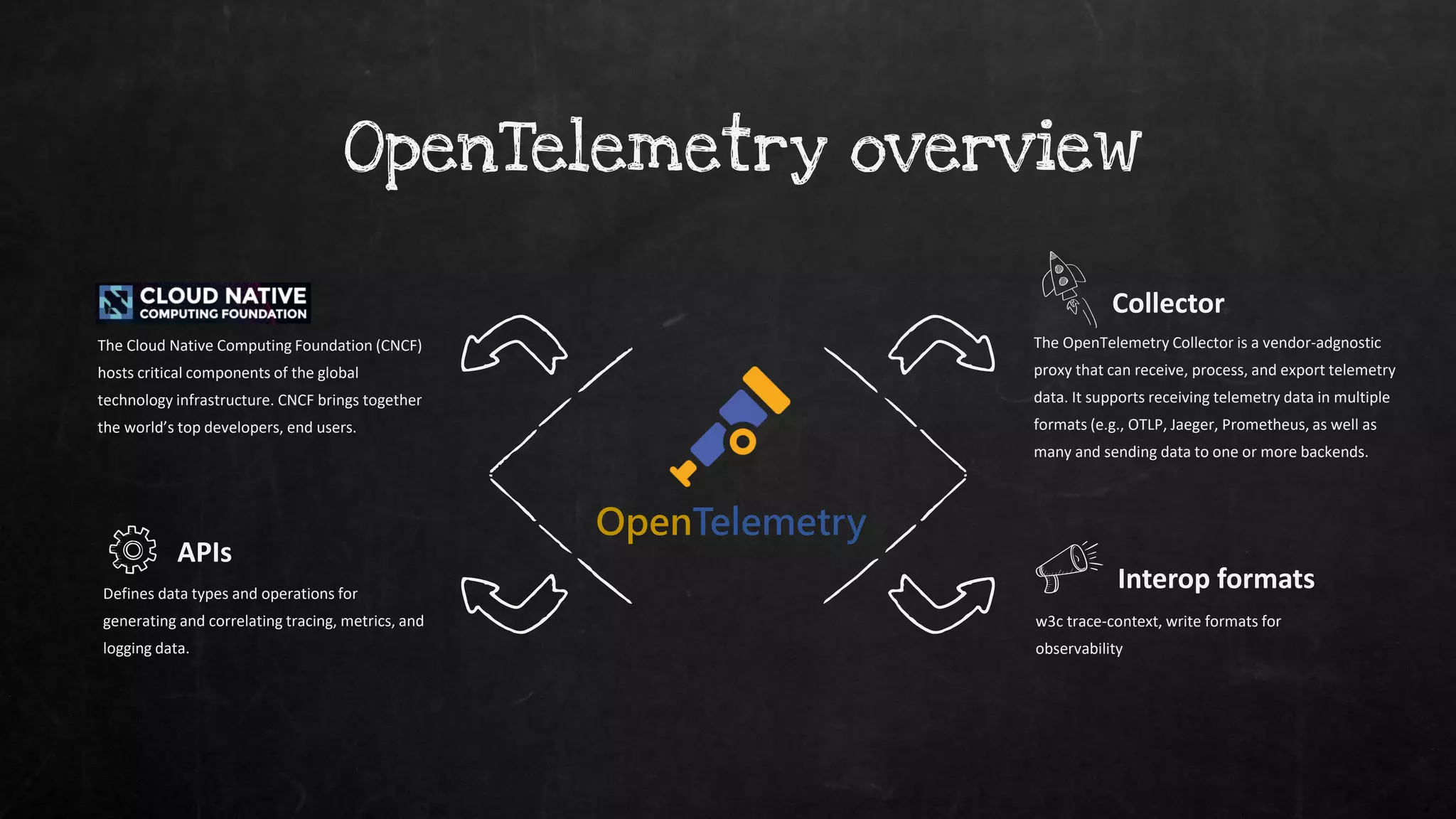

- 23. OpenTelemetry overview Interop formats w3ctrace-context, write formats for observability Collector The OpenTelemetry Collector is a vendor-adgnostic proxy that can receive, process, and export telemetry data. It supports receiving telemetry data in multiple formats (e.g., OTLP, Jaeger, Prometheus, as well as many and sending data to one or more backends. The Cloud Native Computing Foundation (CNCF) hosts critical components of the global technology infrastructure. CNCF brings together the world’s top developers, end users. APIs Defines data types and operations for generating and correlating tracing, metrics, and logging data. OpenTelemetry

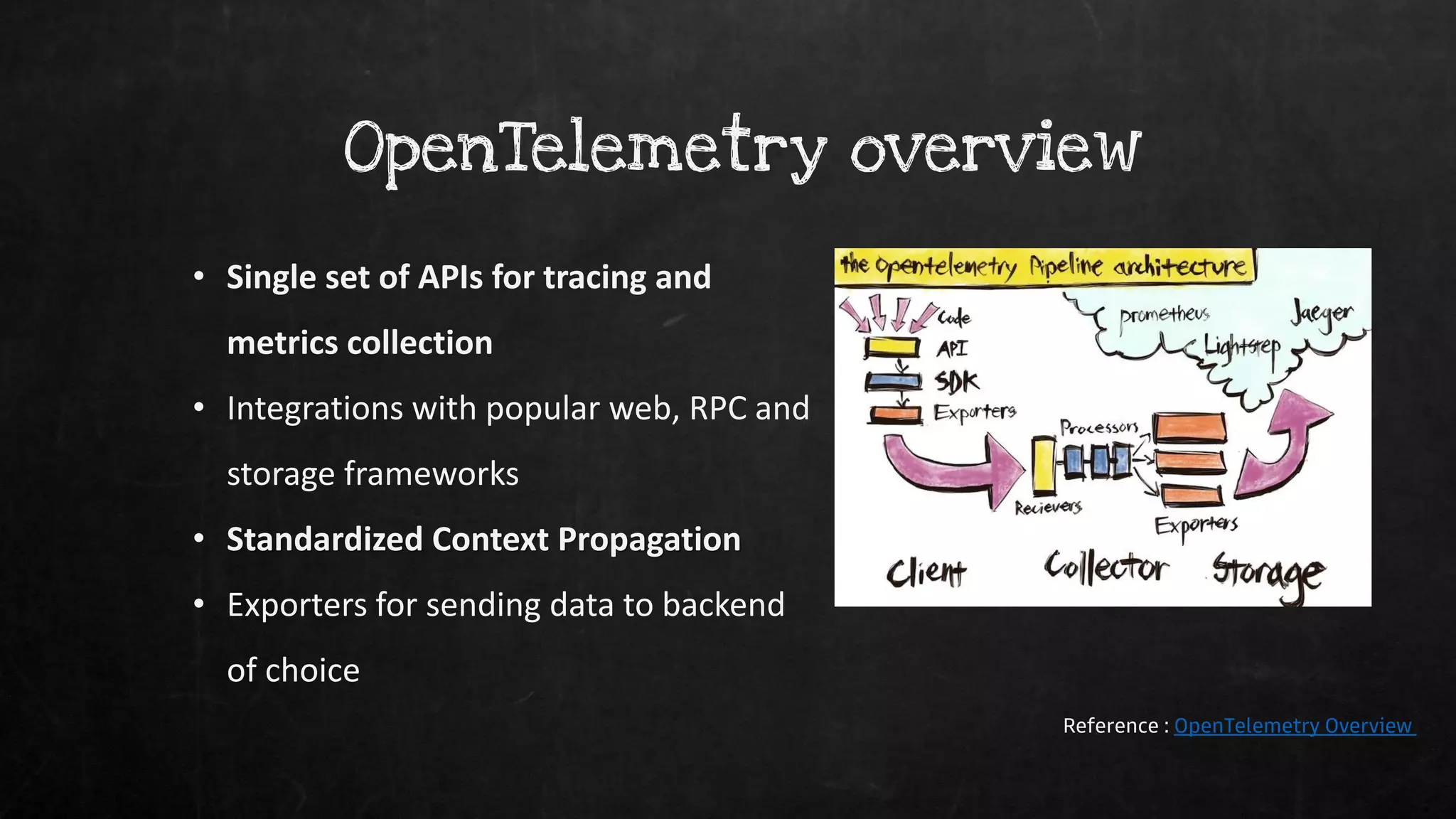

- 24. OpenTelemetry overview • Singleset of APIs for tracing and metrics collection • Integrations with popular web, RPC and storage frameworks • Standardized Context Propagation • Exporters for sending data to backend of choice Reference : OpenTelemetry Overview

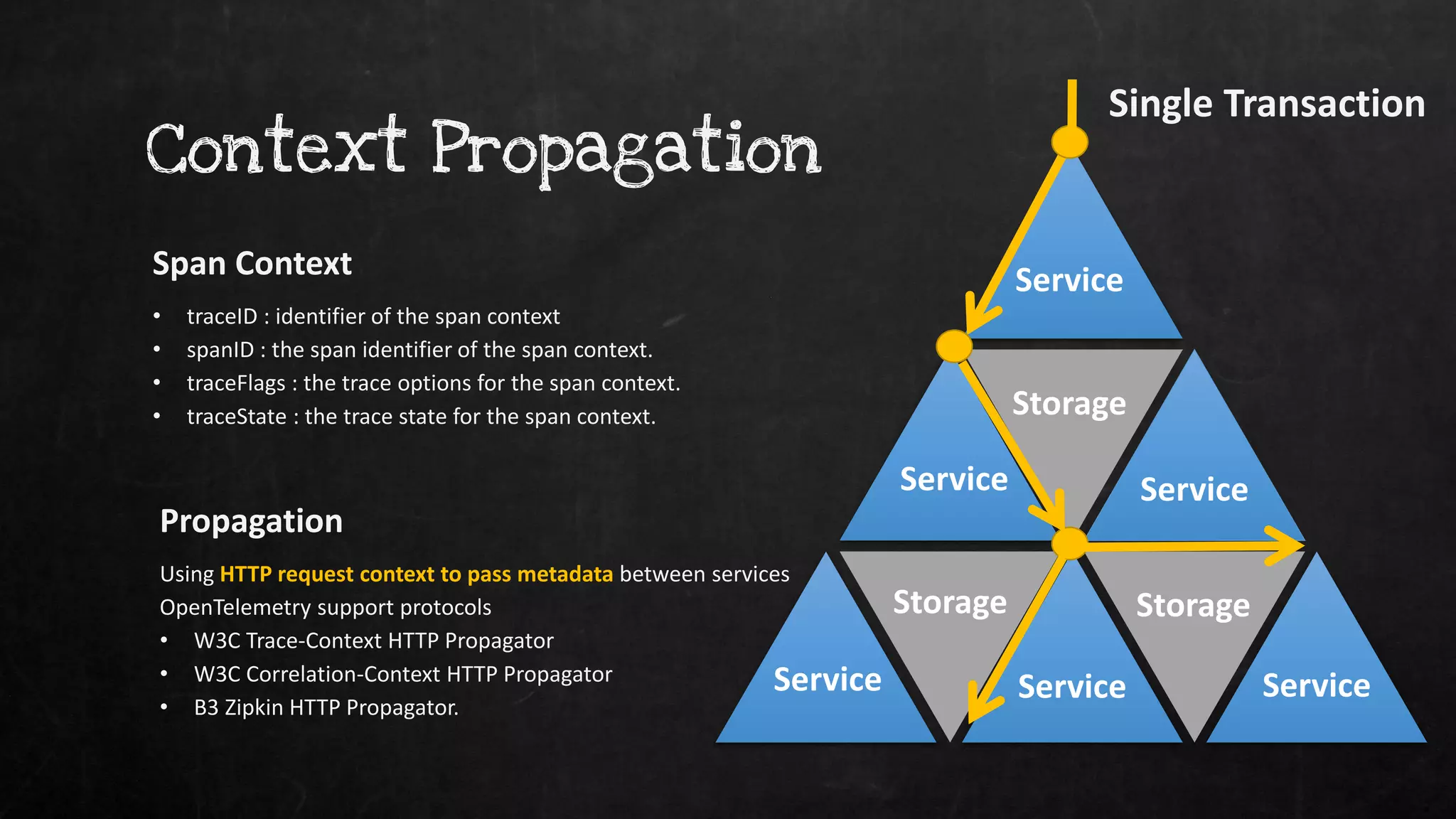

- 25. Context Propagation • traceID: identifier of the span context • spanID : the span identifier of the span context. • traceFlags : the trace options for the span context. • traceState : the trace state for the span context. Span Context Using HTTP request context to pass metadata between services OpenTelemetry support protocols • W3C Trace-Context HTTP Propagator • W3C Correlation-Context HTTP Propagator • B3 Zipkin HTTP Propagator. Propagation Single Transaction Service Service Storage Service Storage Service Storage Service Service

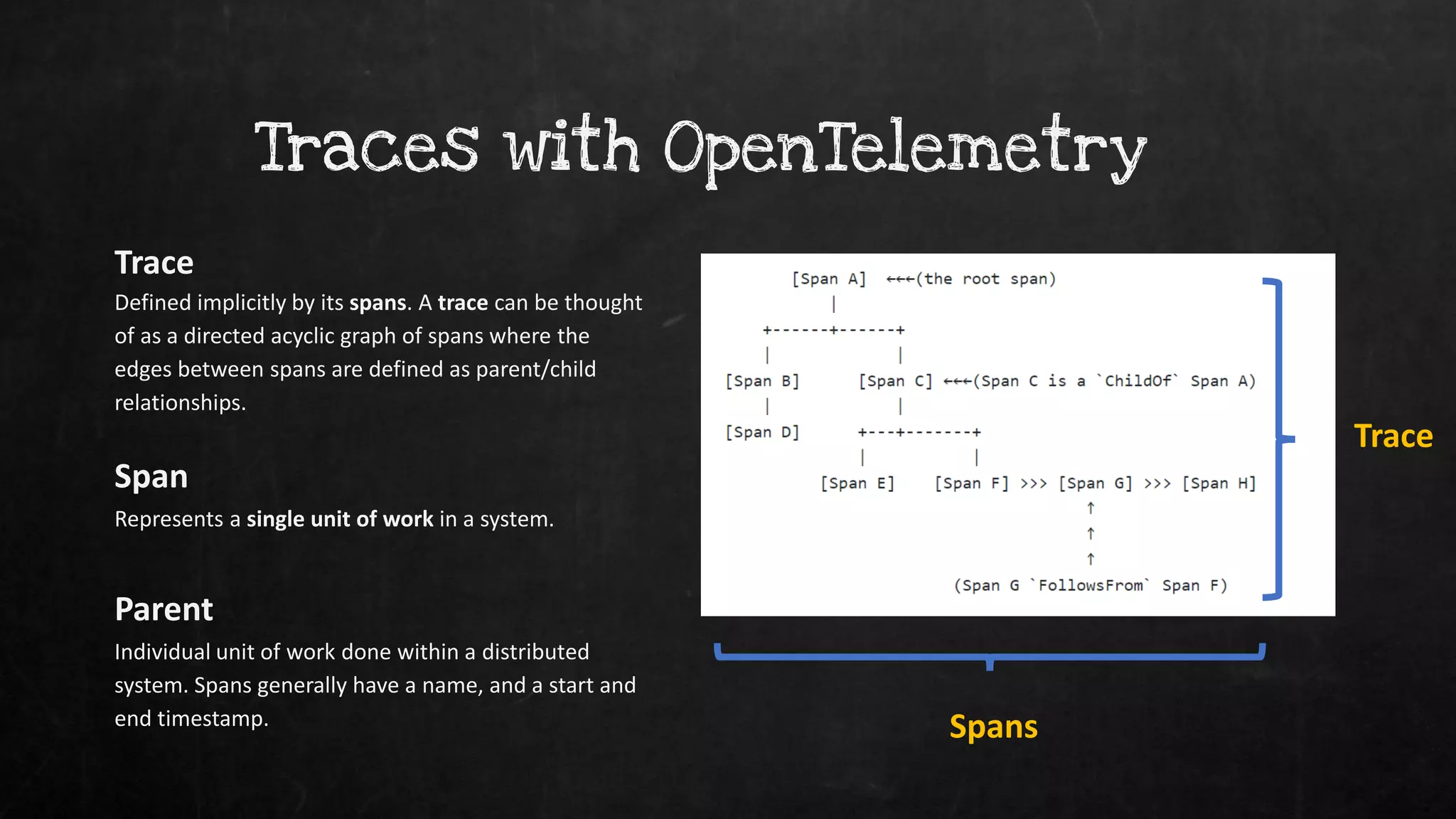

- 26. Traces with OpenTelemetry Definedimplicitly by its spans. A trace can be thought of as a directed acyclic graph of spans where the edges between spans are defined as parent/child relationships. Trace Represents a single unit of work in a system. Span Individual unit of work done within a distributed system. Spans generally have a name, and a start and end timestamp. Parent Trace Spans

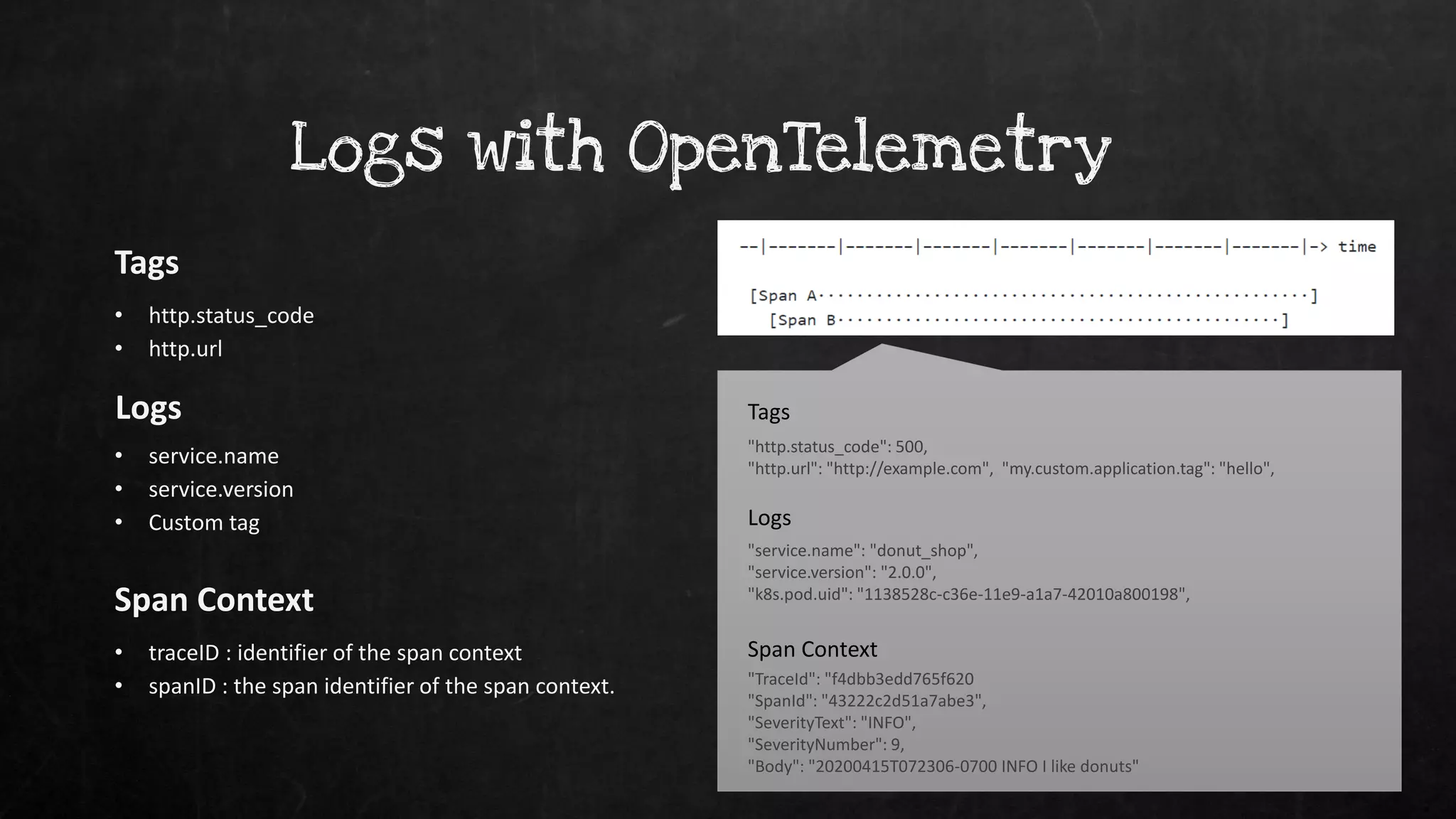

- 27. • http.status_code • http.url Tags "http.status_code":500, "http.url": "http://example.com", "my.custom.application.tag": "hello", Tags "service.name": "donut_shop", "service.version": "2.0.0", "k8s.pod.uid": "1138528c-c36e-11e9-a1a7-42010a800198", Logs "TraceId": "f4dbb3edd765f620 "SpanId": "43222c2d51a7abe3", "SeverityText": "INFO", "SeverityNumber": 9, "Body": "20200415T072306-0700 INFO I like donuts" Span Context • service.name • service.version • Custom tag Logs • traceID : identifier of the span context • spanID : the span identifier of the span context. Span Context Logs with OpenTelemetry
- 28. Languages SDKs &Platform
- 29.
- 30. Exporter • Azure ApplicationInsights • Azure Monitor Collector SDK It implements the Tracing API, the Metrics API, and the Context API. This SDK also supports ILogger integration. Instrumentation libraries • ASP.NET、ASP.NET Core • Grpc.Net.Client、HTTP clients • Redis client、SQL client • …etc APIs • Tracing (1.0) • Metrics (Alpha) • Logging (Beta) OpenTelemetry in .NET OpenTelemetry

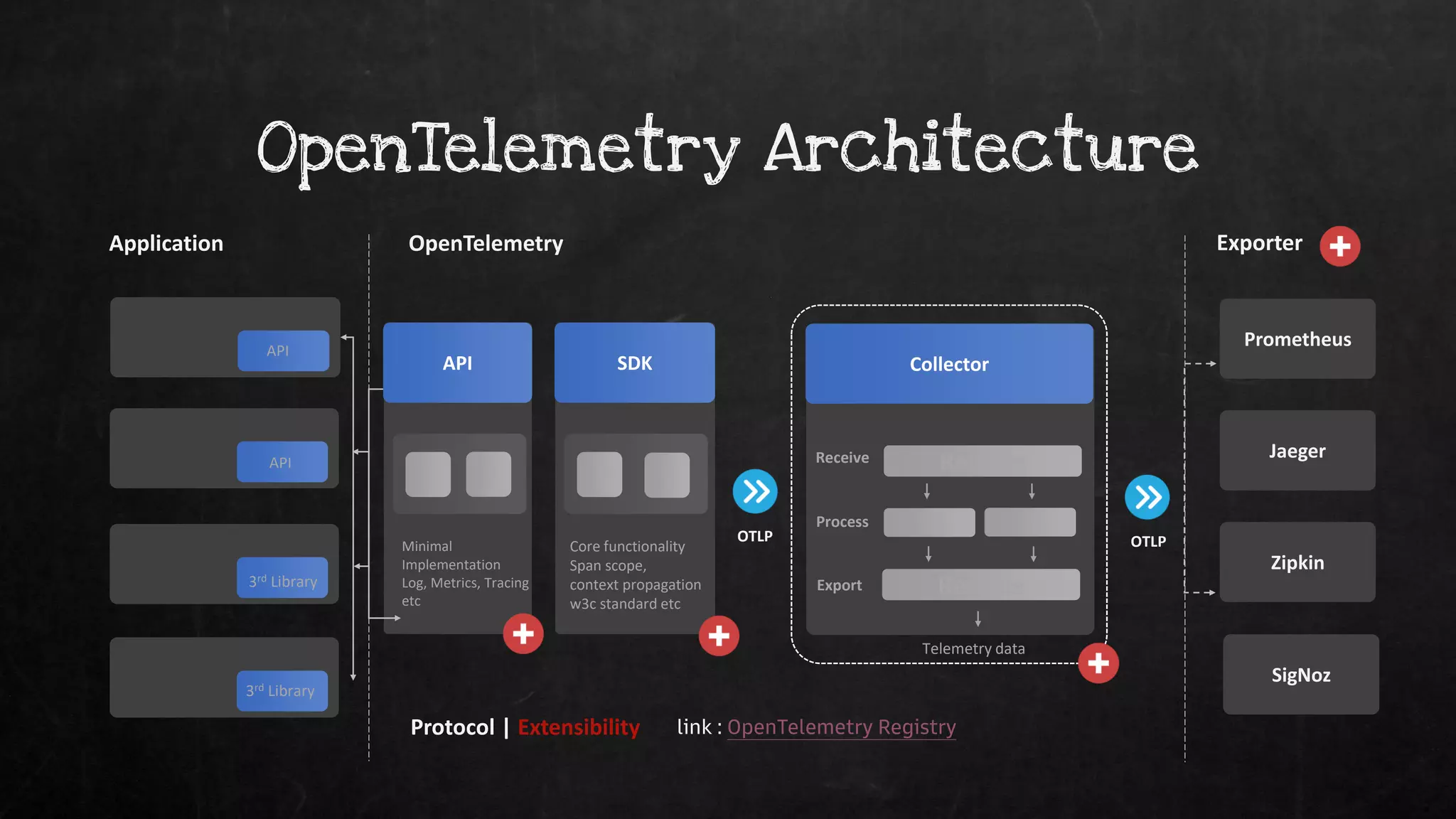

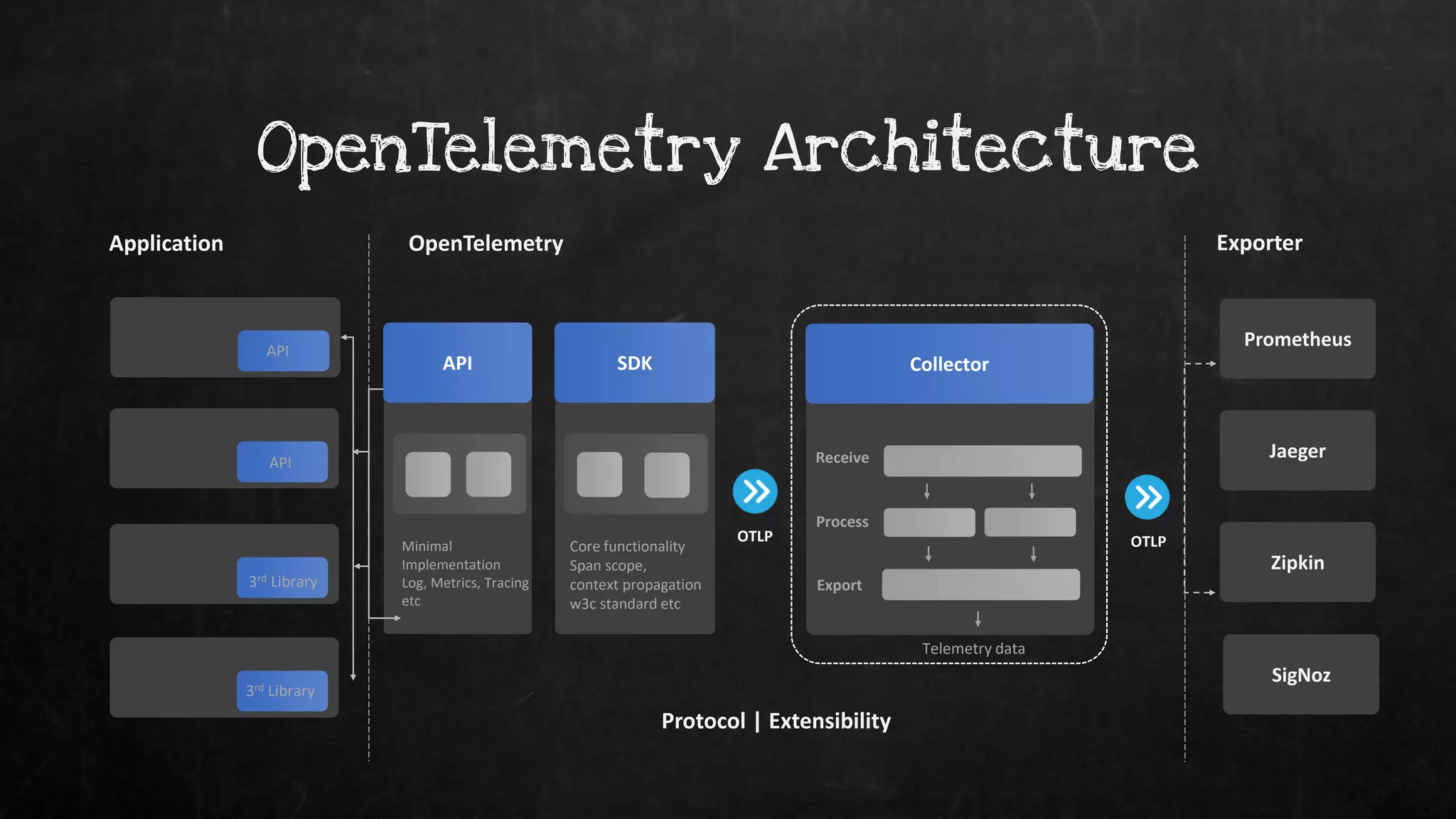

- 31. OpenTelemetry Architecture Application OpenTelemetry API Exporter API API 3rdLibrary 3rd Library Protocol | Extensibility Minimal Implementation Log, Metrics, Tracing etc Prometheus Jaeger Zipkin SigNoz SDK Collector Receive Core functionality Span scope, context propagation w3c standard etc Telemetry data Receive Process Receive Export OTLP OTLP

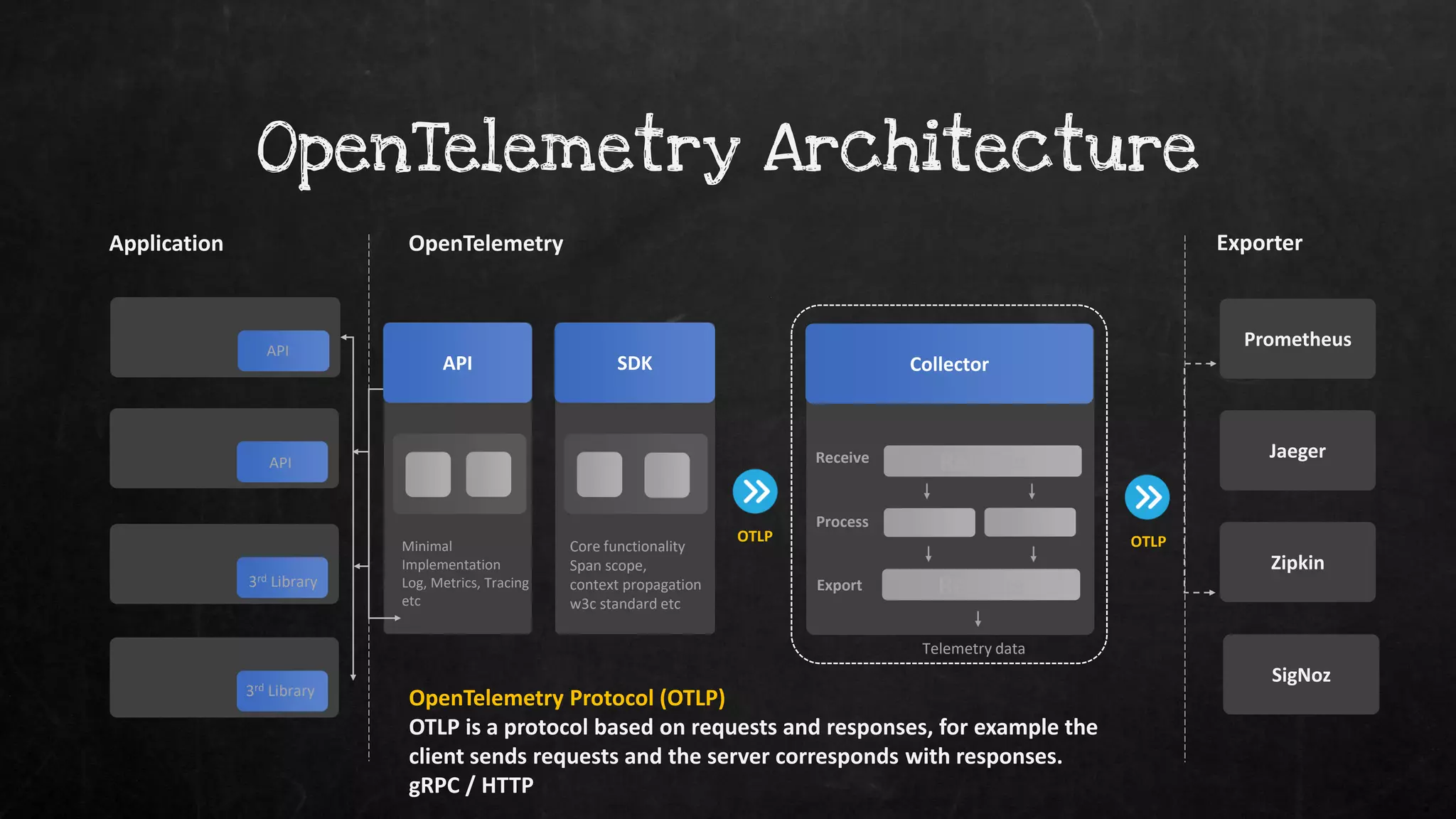

- 32. OpenTelemetry Architecture Application OpenTelemetry API Exporter API API 3rdLibrary 3rd Library OpenTelemetry Protocol (OTLP) OTLP is a protocol based on requests and responses, for example the client sends requests and the server corresponds with responses. gRPC / HTTP Minimal Implementation Log, Metrics, Tracing etc Prometheus Jaeger Zipkin SigNoz SDK Collector Receive Core functionality Span scope, context propagation w3c standard etc Telemetry data Receive Process Receive Export OTLP OTLP
- 33. OpenTelemetry Architecture Application OpenTelemetry API Exporter API API 3rdLibrary 3rd Library Protocol | Extensibility Minimal Implementation Log, Metrics, Tracing etc Prometheus Jaeger Zipkin SigNoz SDK Collector Receive Core functionality Span scope, context propagation w3c standard etc Telemetry data Receive Process Receive Export OTLP OTLP link : OpenTelemetry Registry

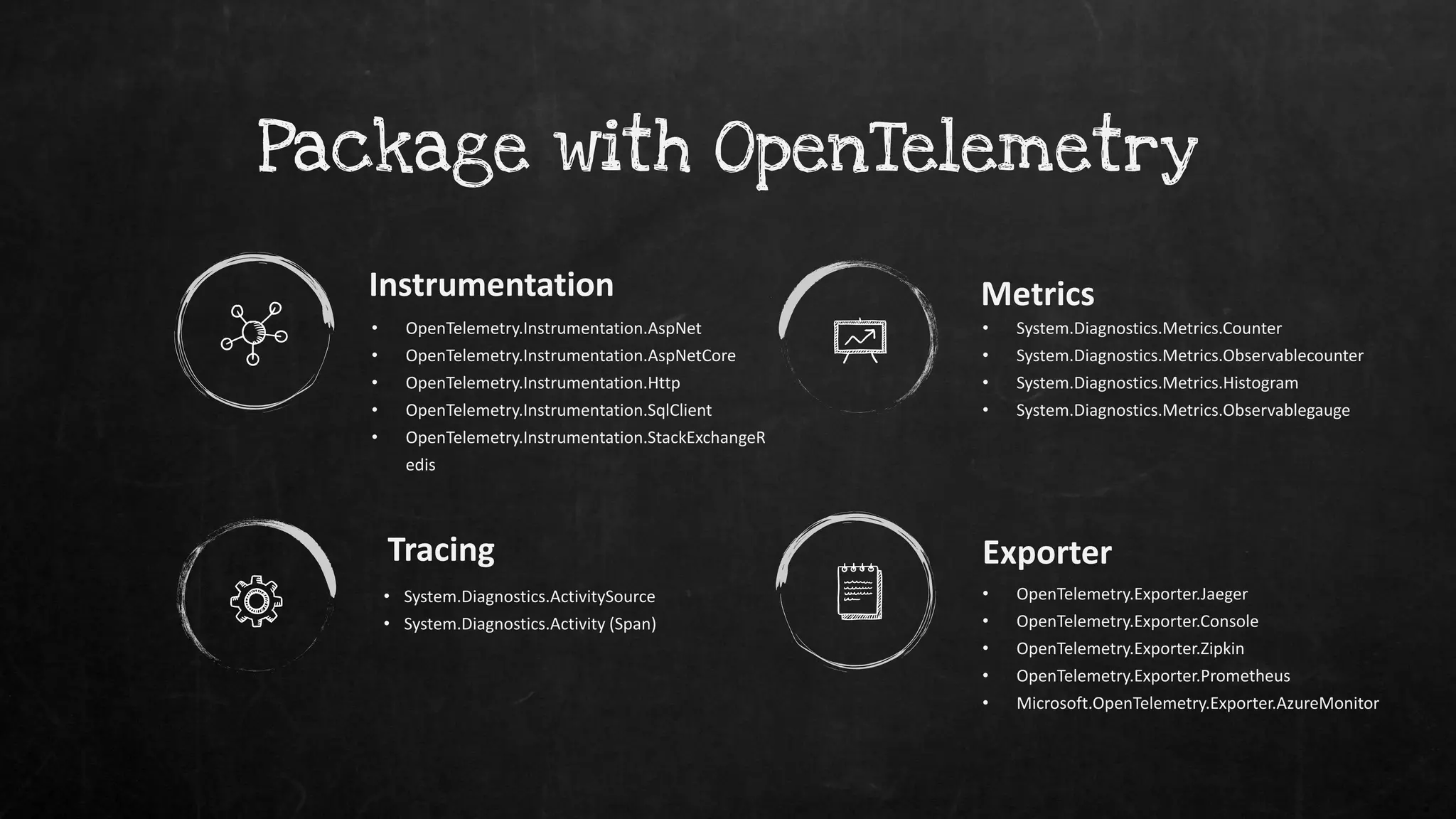

- 34. Package with OpenTelemetry Metrics •System.Diagnostics.Metrics.Counter • System.Diagnostics.Metrics.Observablecounter • System.Diagnostics.Metrics.Histogram • System.Diagnostics.Metrics.Observablegauge Exporter • OpenTelemetry.Exporter.Jaeger • OpenTelemetry.Exporter.Console • OpenTelemetry.Exporter.Zipkin • OpenTelemetry.Exporter.Prometheus • Microsoft.OpenTelemetry.Exporter.AzureMonitor Instrumentation • OpenTelemetry.Instrumentation.AspNet • OpenTelemetry.Instrumentation.AspNetCore • OpenTelemetry.Instrumentation.Http • OpenTelemetry.Instrumentation.SqlClient • OpenTelemetry.Instrumentation.StackExchangeR edis Tracing • System.Diagnostics.ActivitySource • System.Diagnostics.Activity (Span)
- 35.

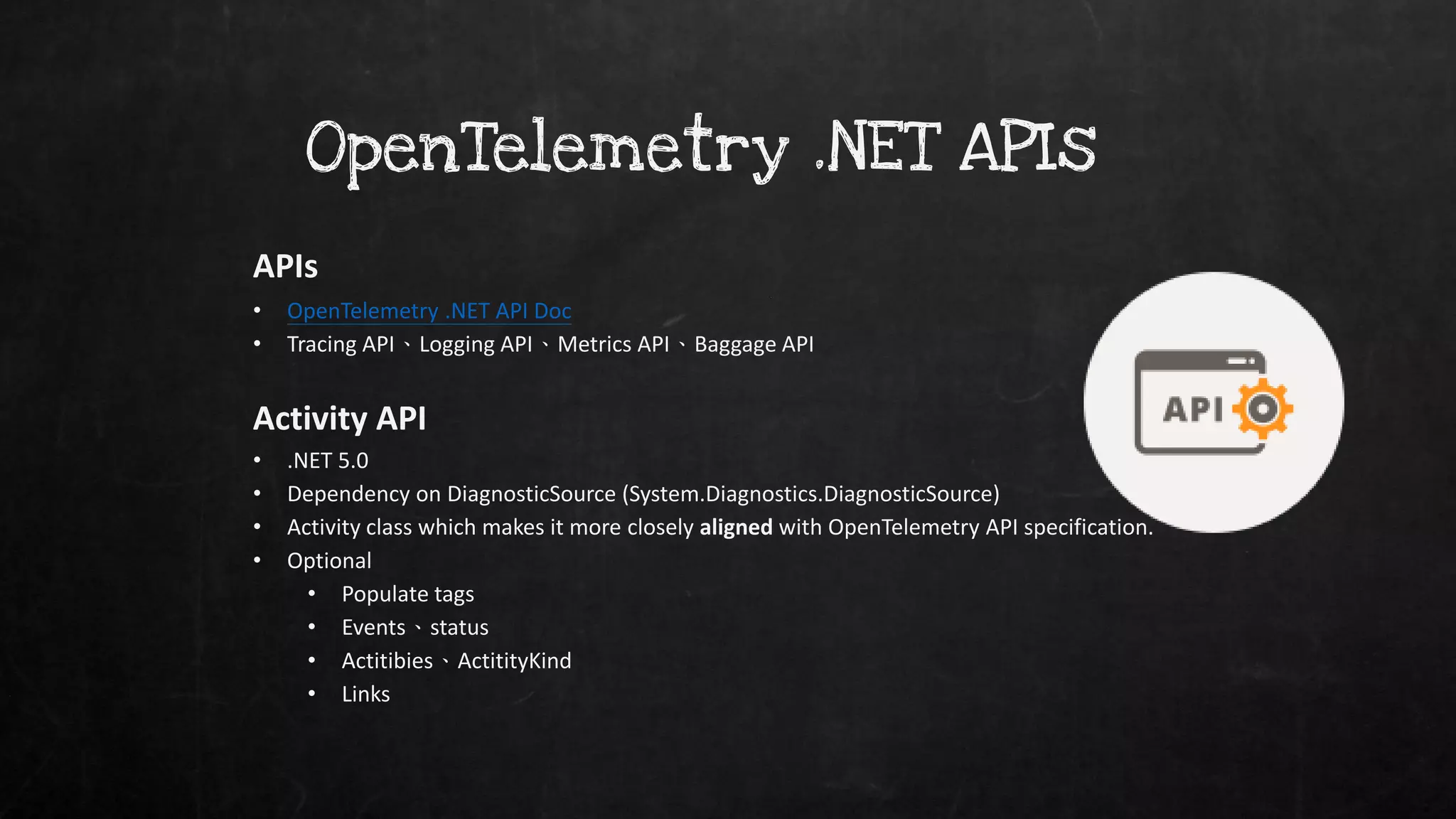

- 36. OpenTelemetry .NET APIs APIs •OpenTelemetry .NET API Doc • Tracing API、Logging API、Metrics API、Baggage API Activity API • .NET 5.0 • Dependency on DiagnosticSource (System.Diagnostics.DiagnosticSource) • Activity class which makes it more closely aligned with OpenTelemetry API specification. • Optional • Populate tags • Events、status • Actitibies、ActitityKind • Links

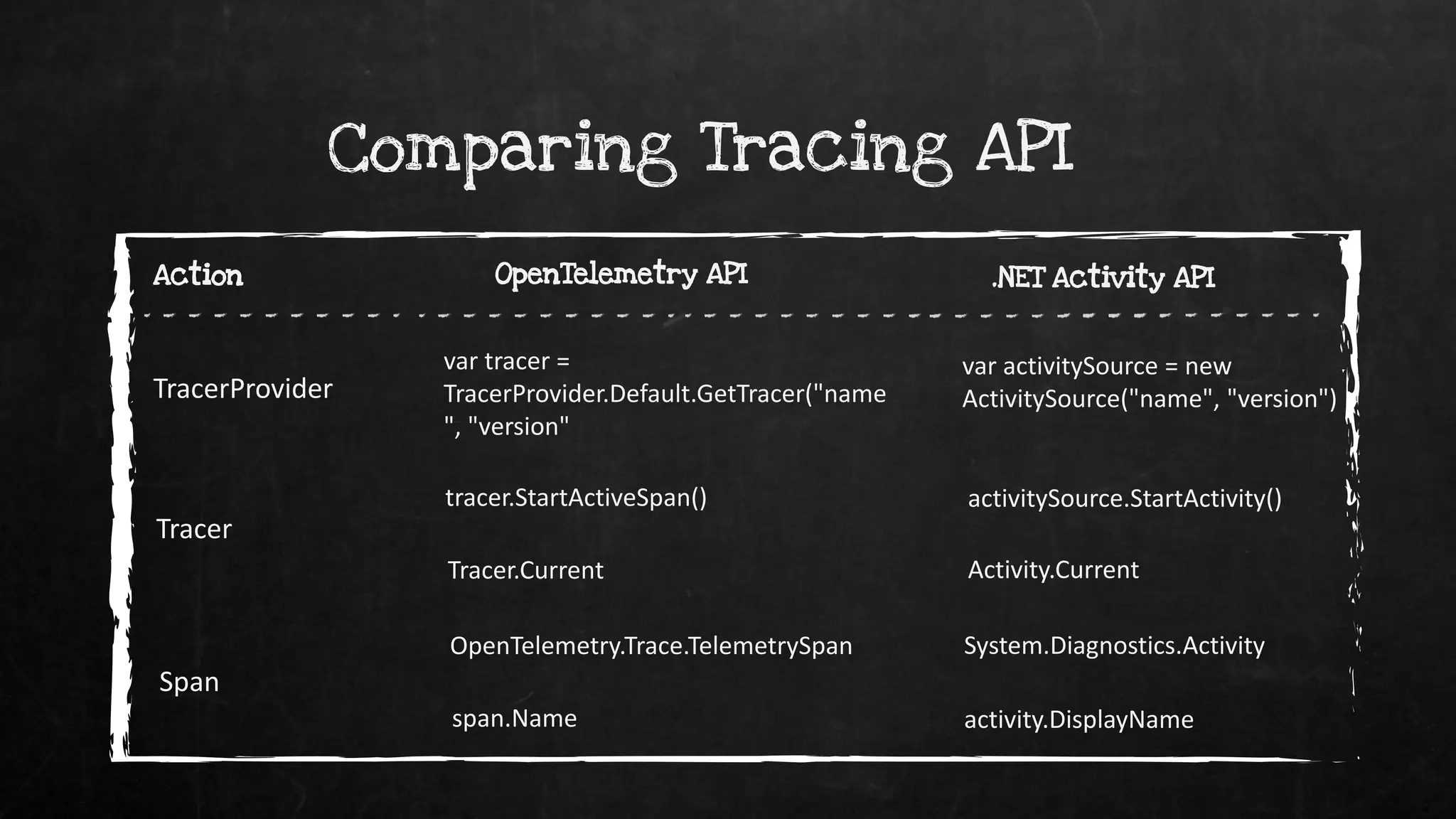

- 37. Comparing Tracing API vartracer = TracerProvider.Default.GetTracer("name ", "version" OpenTelemetry API .NET Activity API Action var activitySource = new ActivitySource("name", "version") tracer.StartActiveSpan() activitySource.StartActivity() Tracer.Current Activity.Current span.Name activity.DisplayName OpenTelemetry.Trace.TelemetrySpan System.Diagnostics.Activity TracerProvider Tracer Span
- 38.

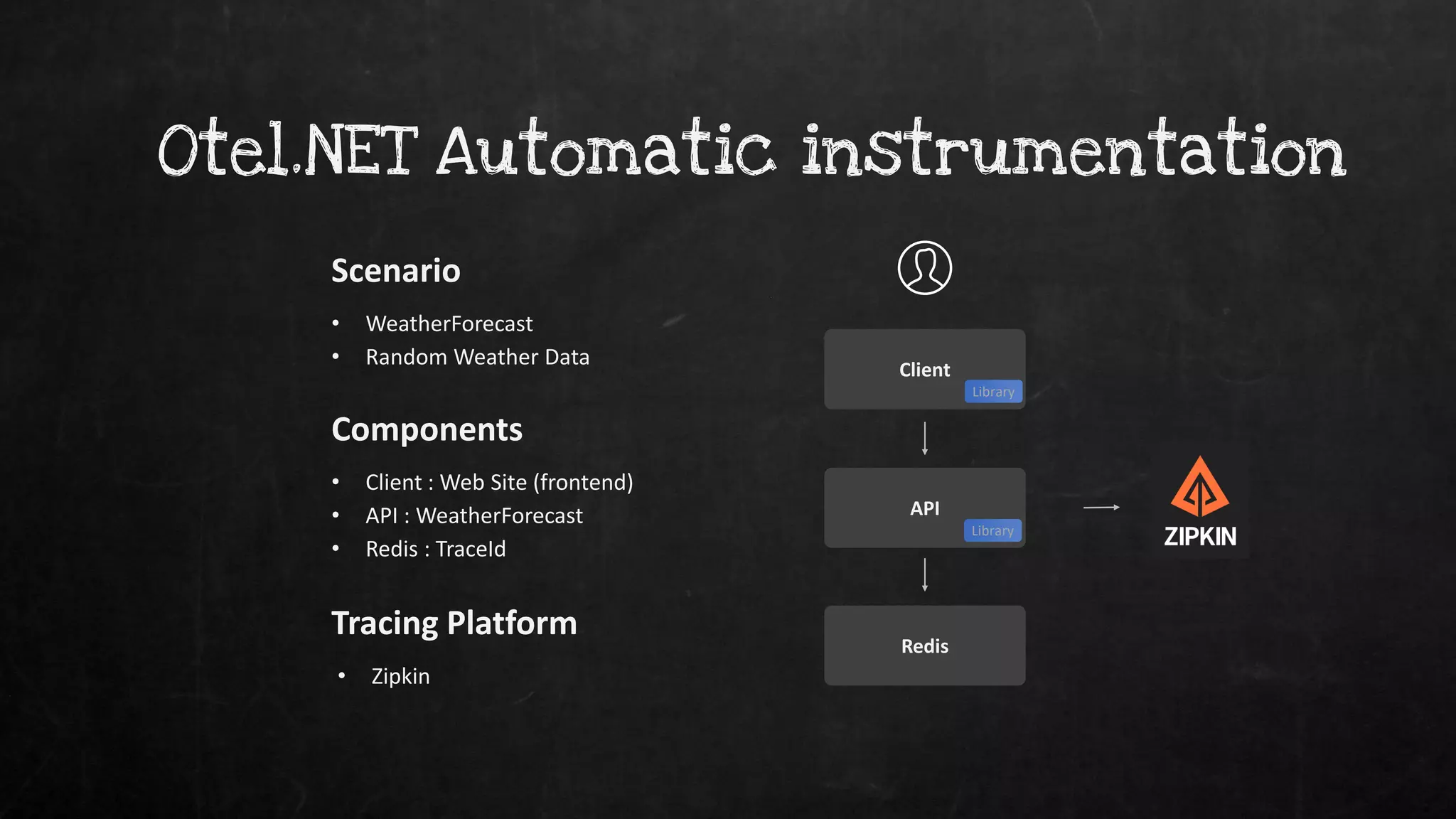

- 39. • WeatherForecast • RandomWeather Data Scenario • Client : Web Site (frontend) • API : WeatherForecast • Redis : TraceId Components • Zipkin Tracing Platform Otel.NET Automatic instrumentation Client API Redis Library Library
- 40.

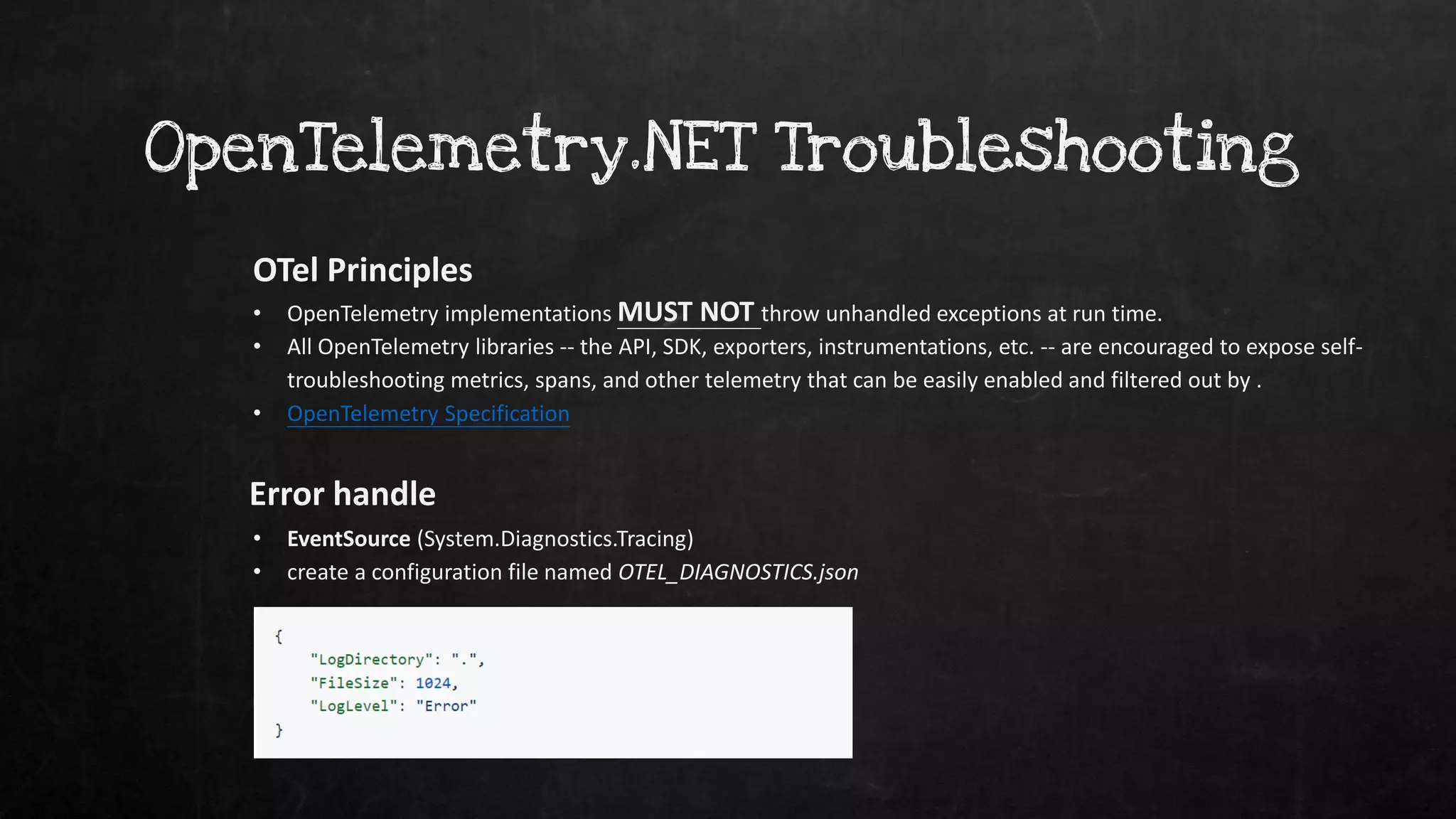

- 41. OpenTelemetry.NET Troubleshooting OTel Principles Errorhandle • EventSource (System.Diagnostics.Tracing) • create a configuration file named OTEL_DIAGNOSTICS.json • OpenTelemetry implementations MUST NOT throw unhandled exceptions at run time. • All OpenTelemetry libraries -- the API, SDK, exporters, instrumentations, etc. -- are encouraged to expose self- troubleshooting metrics, spans, and other telemetry that can be easily enabled and filtered out by . • OpenTelemetry Specification
- 42.

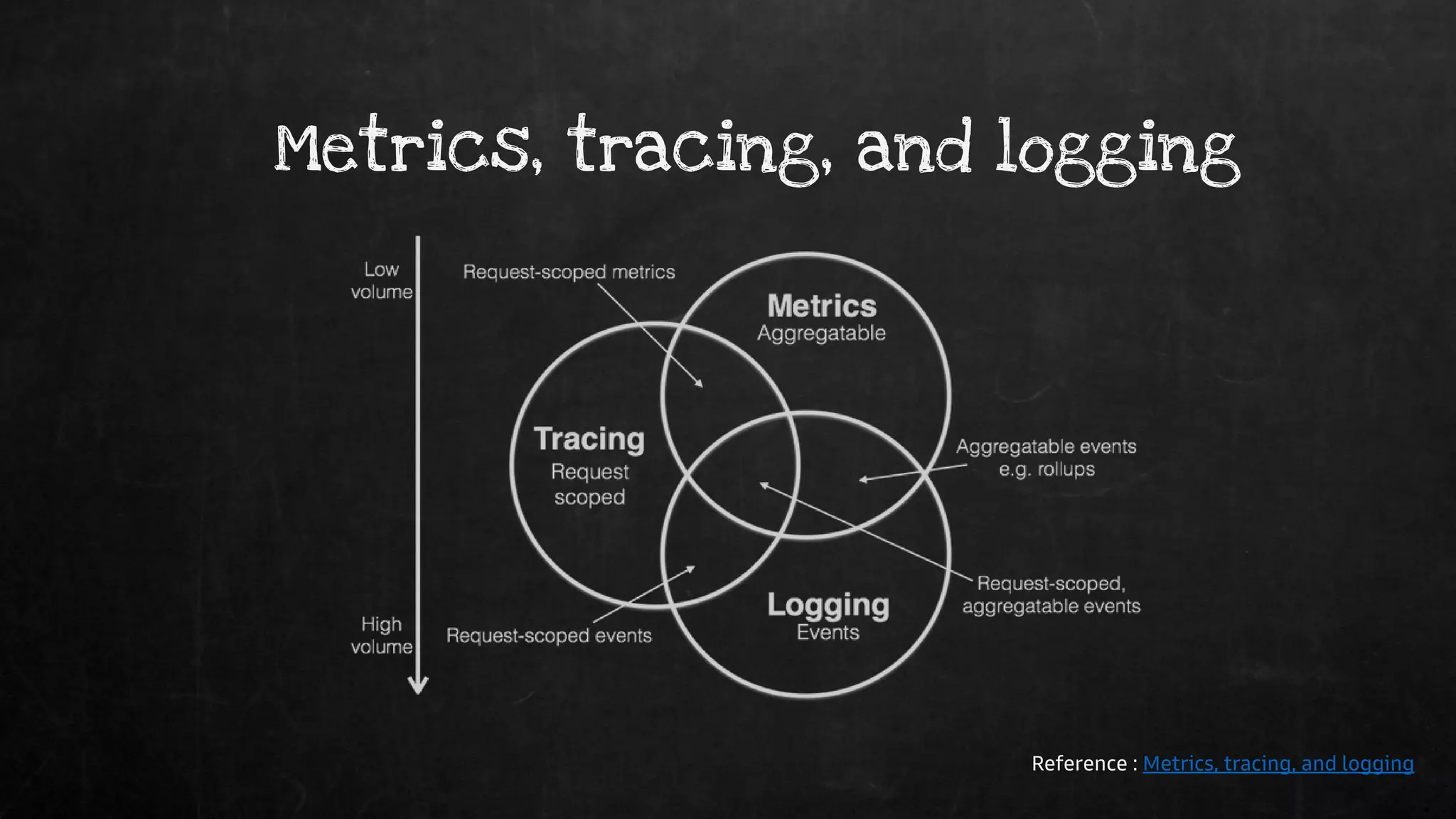

- 43. Metrics, tracing, andlogging Reference : Metrics, tracing, and logging

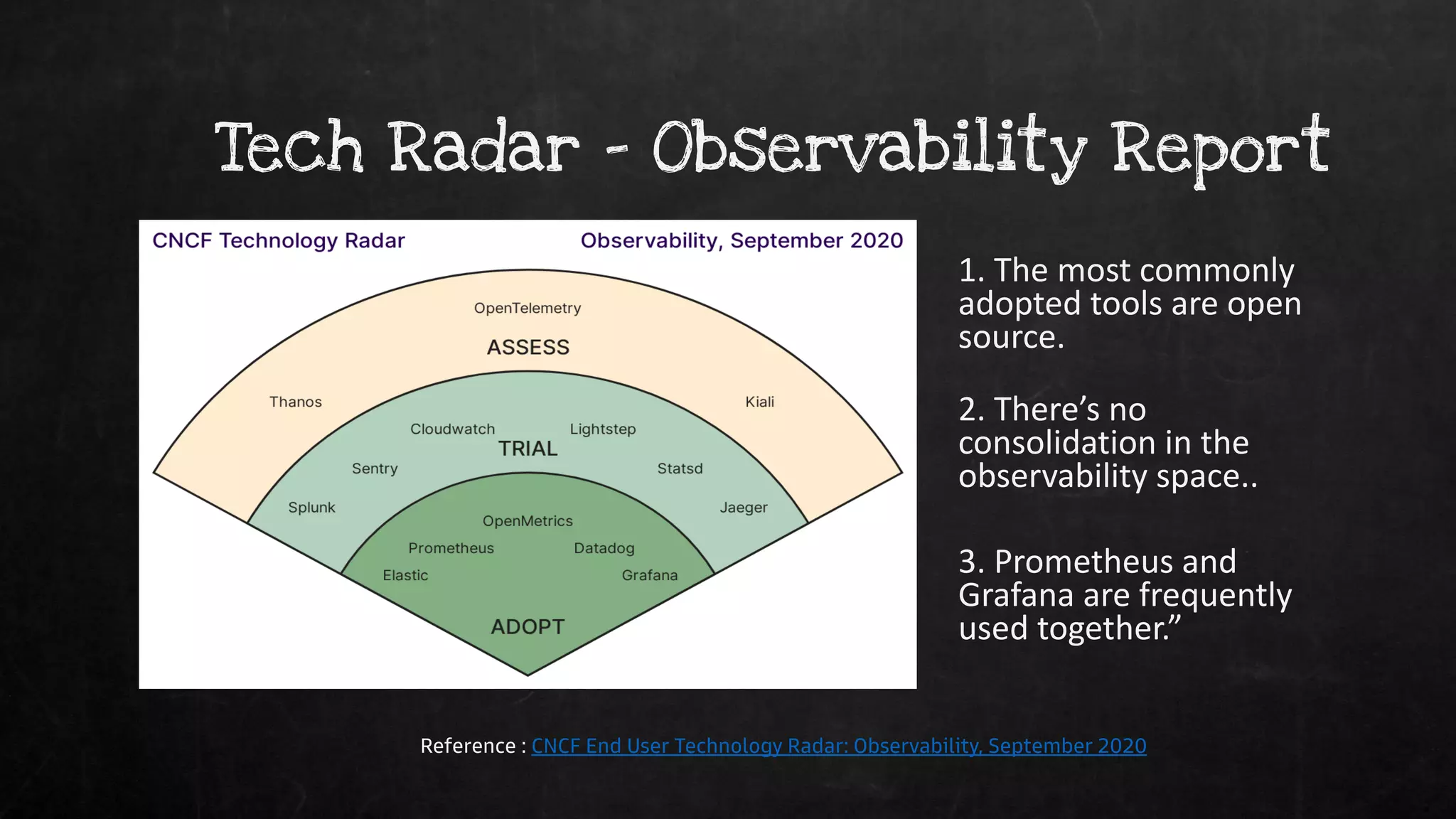

- 44. Tech Radar –Observability Report Reference : CNCF End User Technology Radar: Observability, September 2020 1. The most commonly adopted tools are open source. 2. There’s no consolidation in the observability space.. 3. Prometheus and Grafana are frequently used together.”

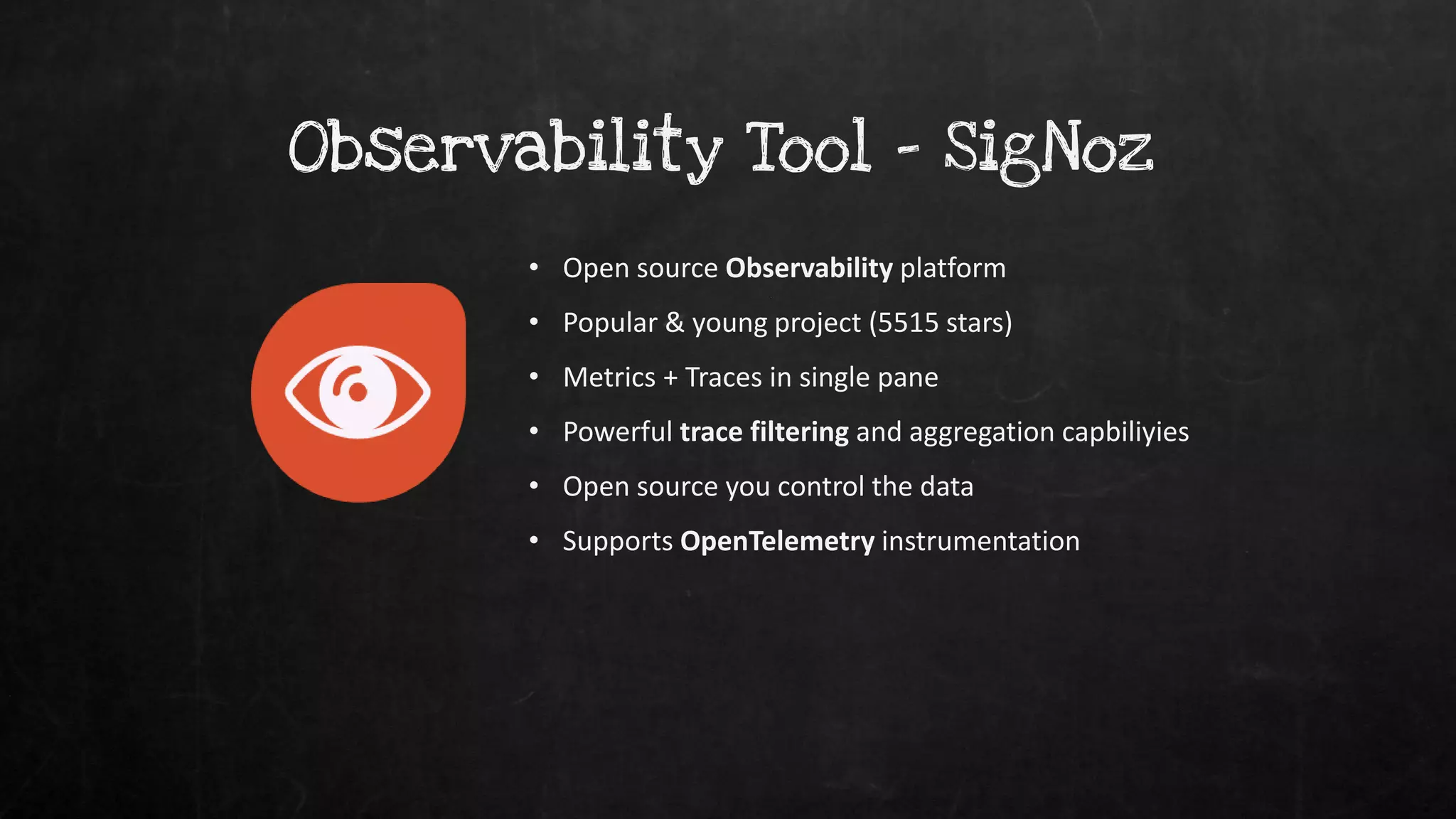

- 45. Observability Tool -SigNoz • Open source Observability platform • Popular & young project (5515 stars) • Metrics + Traces in single pane • Powerful trace filtering and aggregation capbiliyies • Open source you control the data • Supports OpenTelemetry instrumentation
- 46.

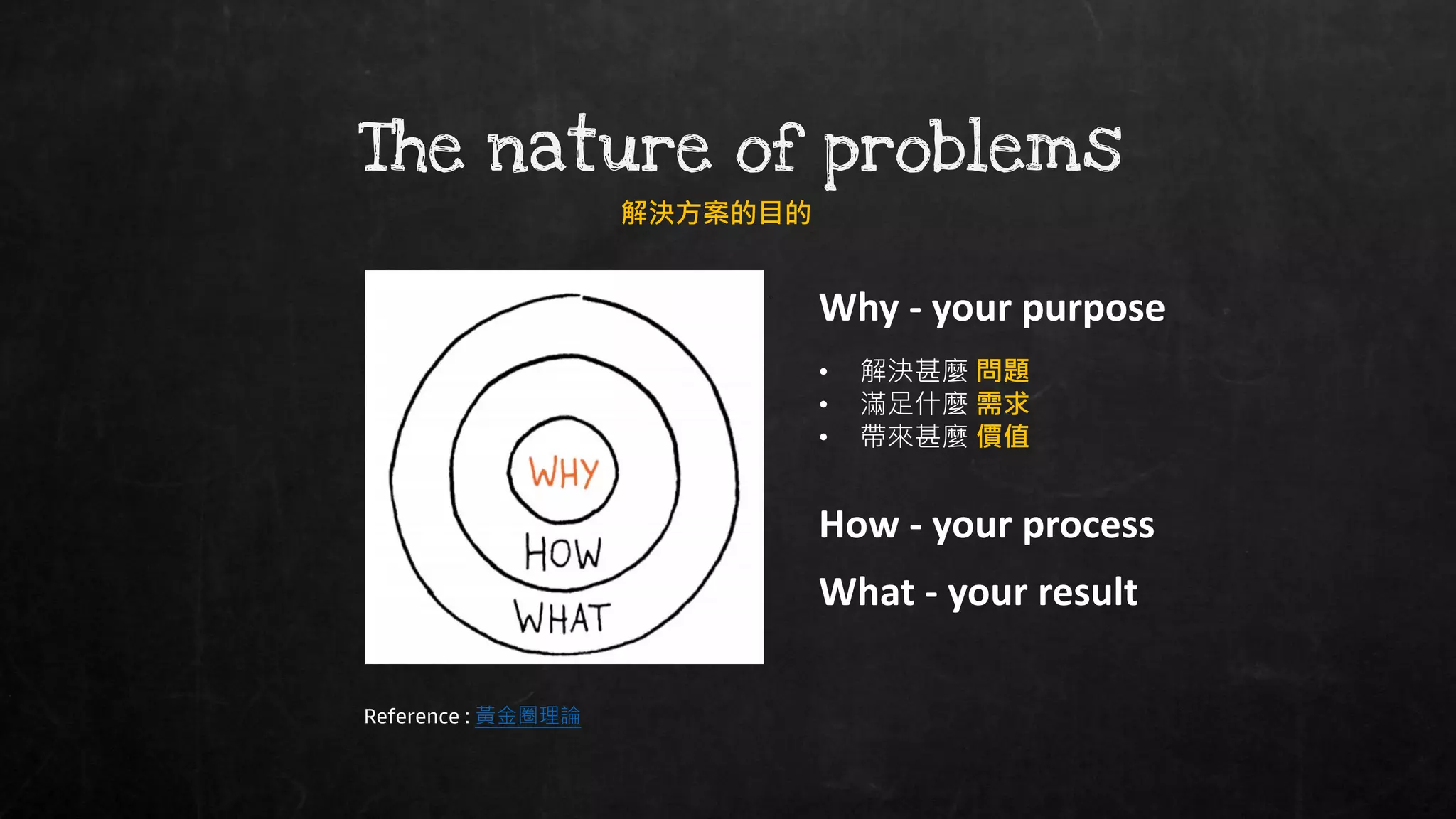

- 47. • 解決甚麼 問題 •滿足什麼 需求 • 帶來甚麼 價值 The nature of problems How - your process What - your result Why - your purpose 解決方案的目的 Reference : 黃金圈理論
- 48.
- 49. Observability • Cloud Native監控的挑戰 • 可觀測性(Observability) • Observability vs Monitor OTel x .NET • APIs、SDK • Instrumentation • Demo x3 OpenTelemetry • 可觀察性的新標準 • 檢測、生成、收集資料 • Context Propagation Re-Think • OpenTelemetry 不是萬靈丹 • Structured Logging • 問題的本質 Take away 工欲善其事，必先利其器
- 50. Thank You ! Doesanyone have any question ? OpenTelemetrySample Referrnce Link list marcus tung m@rcus 學習筆記 { Will 保哥。everyone }
