This document discusses knocking combustion in internal combustion engines. It defines knocking combustion as abnormal combustion in the combustion chamber that leads to a sudden pressure rise and hammering sound, resulting in reduced performance and potential engine damage. It then discusses the causes and effects of knocking in spark ignition (SI) engines and compression ignition (diesel) engines. Some of the key factors that influence knocking include fuel type, compression ratio, ignition timing, and air-fuel ratio. The document also covers related topics like octane rating, cetane rating, and strategies to prevent knocking.

1. SAMBODHI
Enlightment of Knowledge
Knocking in SI & CI engines
28-07-2020 1

2. SAMBODHI
Enlightment of Knowledge
Definition
Abnormal combustion occurring in the
combustion chamber give sudden pressure rise
accompanied by a metallic, hammer like sound
leading to loss of performance and possible
engine damages. This abnormal combustion is
commonly known as “Knocking Combustion”
28-07-2020 2

3. SAMBODHI
Enlightment of Knowledge
Comparison
28-07-2020 3

4. SAMBODHI
Enlightment of Knowledge
Classification of IC Engine
• SI engine ( Spark Ignition)or Gasoline or Petrol
Engine
• CI engine (Compression Ignition) or Diesel
Engine
28-07-2020 4

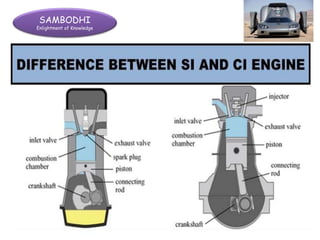

5. SAMBODHI
Enlightment of Knowledge

6. SAMBODHI
Enlightment of Knowledge
Engine Cylinder

7. SAMBODHI
Enlightment of Knowledge

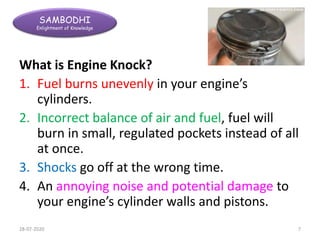

What is Engine Knock?
1. Fuel burns unevenly in your engine’s
cylinders.
2. Incorrect balance of air and fuel, fuel will
burn in small, regulated pockets instead of all
at once.
3. Shocks go off at the wrong time.
4. An annoying noise and potential damage to
your engine’s cylinder walls and pistons.
28-07-2020 7

8. SAMBODHI
Enlightment of Knowledge
SI ENGINE
28-07-2020 8

9. SAMBODHI
Enlightment of Knowledge
What Could Cause Engine Knocking in SI
engine?
Faulty Spark Plugs
Low-Octane Fuel
Carbon Deposits
High compression ratio
Advanced Ignition timing.
Knocking takes place at end of combustion.
28-07-2020 9

10. SAMBODHI
Enlightment of Knowledge
What Could Cause Engine Knocking in SI
engine?
Decrease in Turbulence
Low Engine Speed
Increase in flame travel distance
28-07-2020 10

11. SAMBODHI
Enlightment of Knowledge

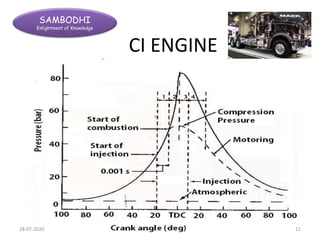

CI ENGINE
28-07-2020 11

12. SAMBODHI
Enlightment of Knowledge
What Could Cause Engine Detonation or Pinking in
CI engine?
Increase in Ignition lag
Increase in Engine speed
Reducing the flame travel distance
Increasing in delay period of the fuel.
Reduce in cetane Number.
Detonation takes place at the beginning of the
combustion.
28-07-2020 12

13. SAMBODHI
Enlightment of Knowledge
28-07-2020 13

14. SAMBODHI
Enlightment of Knowledge
Factors Tending to reduce knocking in IC engine
S.No Factors S.I Engine C.I Engine
1. Self Ignition temp of fuel High Low
2. Time Lag or Delay period
of fuel
Long Short
3. Compression ratio Low High
4. Inlet Temperature Low High
5. Inlet Pressure Low High
6. Combustion chamber of
wall temperature
Low High
7. Speed High Low
8. Cylinder size Small High
28-07-2020 14

15. SAMBODHI
Enlightment of Knowledge
OCTANE NUMBER
• Its the % of iso-octane in a mixture of iso-
octane and n-heptane.
• It is a standard measure of the performance of
an engine fuel.
• It is the measure of resistance of gasoline
against knocking or pre-ignition of fuel .
• Octane number is related to petrol.
28-07-2020 15

16. SAMBODHI
Enlightment of Knowledge
• Higher the octane number, better the quality
of petrol, and hence the vehicle gives higher
efficiency.
• The octane no. of iso-octane is 100, while that
of n heptante is zero(0).
• Increase in octane number reduces the
knocking.
28-07-2020 16

17. SAMBODHI
Enlightment of Knowledge
CETANE NUMBER
• Its the % of n-hexadecane in a mixture of n-
hexadecane and 1-methyl naphthalene.
• It is an indicator of combustion speed of
Diesel Engine.
• It is the measure of ignition quality of fuel.
• Alkyl nitrates and Di-tert-butyal peroxide are
used as additives to raise the Cetane number.
28-07-2020 17

18. SAMBODHI
Enlightment of Knowledge
• High cetane number fuels have low octane
numbers, and vice versa. This is one reason why
we can't use petrol in diesel engine and vice
versa.
• High cetane number reduces the pinking or
detonation in CI engine.
• In India Current BIS specification of Anti-Knocking
Index of petrol is 84 (unleaded regular) and 88
(unleaded premium), And cetane index of diesel
is 45-50.
28-07-2020 18

19. SAMBODHI
Enlightment of Knowledge
COMPRESSION RATIO:
The ratio of the maximum to minimum volume
in the cylinder of an internal combustion engine.
• For SI Engine : 10 to 14
• For CI Engine :18 to 23
28-07-2020 19

20. SAMBODHI
Enlightment of Knowledge
Air-Fuel ratio (AFR) for various fuel:
S.NO FUEL AFR
1. Methanol 6.47:1
2. Ethanol 9:1
3. Butanol 11.2:1
4. Diesel 14.5:1
5. Gasoline 14.7:1
6. Propane 15.67:1
7. Methane 17.19:1
8. Hydrogen 34.3:1
28-07-2020 20

21. SAMBODHI
Enlightment of Knowledge
Air fuel ratio
It is the ratio between mass of the air to the mass
of fuel.
AFR = ma / mf
Inverse ratio = 1/AFR is called as Fuel – air ratio.
The theoretical air – fuel ratio for a complete
combustion is called as stoichiometric air fuel ratio.
28-07-2020 21

22. SAMBODHI
Enlightment of Knowledge
For petrol engine fuel Stoichiometric ratio is
14.7:1
i.e In order to burn completely 1 kg of fuel, we
need 14.7 kg of air.
AFR> Stoichiometric ratio = Lean Mixture
AFR< Stoichiometric ratio = Rich Mixture
28-07-2020 22

23. SAMBODHI
Enlightment of Knowledge
AFR for S.I Engine - 12: 1 (Rich Mixture)
20: 1 ( Lean Mixture)
AFR for C.I Engine – 18:1 to 70:1 (Lean Mixture)
C.I Engine – Air and fuel are mixed randomly in
CC, so it is a Non –Homogenous mixture
S.I Engine – Air and Fuel is mixed well as a single
mixture so it is a Homogenous mixture
28-07-2020 23

24. SAMBODHI
Enlightment of Knowledge
AFR GRAPH
28-07-2020 24

25. SAMBODHI
Enlightment of Knowledge
S.I Engine AFR
For Engine starting ,
AFR = 9: 1 ( Rich Mixture)
For Warming up ( Idling )
AFR = 12: 1(Rich Mixture)
For Accelerating,
AFR =11:1 – 13:1( Rich Mixture)
28-07-2020 25

26. SAMBODHI
Enlightment of Knowledge
C.I Engine AFR
For Heavy load,
AFR = 12: 1 ( Rich Mixture)
For Constant speed,( Cruising )
AFR = 14.7: 1(Stoichiometric Mixture)
For Decelerating
AFR = 17:1( Lean Mixture)
Air-fuel ratio of 12:1 is considered as maximum
output ratio, where as the air-fuel ratio of 16:1 is
considered as maximum fuel economy ratio.
28-07-2020 26

27. SAMBODHI
Enlightment of Knowledge
• Physical Delay : Time b/w beginning of the
injection and attainment of chemical reaction.
• Chemical Delay: Time b/w beginning of the
combustion reaction and then accelerating.
• C.I Engine – Physical + Chemical delay ( Paraffins)
• S.I Engine – Chemical delay ( Aromatics)
28-07-2020 27

28. SAMBODHI
Enlightment of Knowledge
• Air–fuel equivalence ratio (λ)
The ratio of actual AFR to the Stoichiometric AFR is
given by symbol Lambda
If < 1 - Rich Mixture.
= 1 - Stoichiometric
> 1 - Lean Mixture.
Fuel–air equivalence ratio (ϕ)
It’s a Vice versa of
28-07-2020 28

29. SAMBODHI
Enlightment of Knowledge
GATE QNS
A diesel engine is usually more efficient than a
spark ignition engine because (Gate ME-03)
a. Diesel being a heavier hydrocarbon, releases
more heat per Kg than gasoline.
b. The air std.efficiency of Diesel cycle is higher
than the Otto cycle, at a fixed compression ratio.
c. The compression ratio of a diesel engine is
higher than of an SI engine.
d. Self Ignition temperature of diesel is higher than
that of gasoline.
28-07-2020 29

30. SAMBODHI
Enlightment of Knowledge
At the time of starting, idling and low speed
operation, the carburetor supplies a mixture
which can be termed as (Gate ME 04)
a. Lean
b. Slightly leaner than stoichiometric
c. Stoichiometric
d. Rich
28-07-2020 30

31. SAMBODHI
Enlightment of Knowledge
Knocking tendency in a SI engine reduces with
increasing (GATE ME 93)
a. Compression ratio
b. Wall temperature
c. Supercharging
d. Engine speed
Presentation prepared by C.PRASATH
28-07-2020 31

32. SAMBODHI
Enlightment of Knowledge
28-07-2020 32
