This document discusses kite power generation as a new trend in clean power. Kite power generation was conceived by an Italian researcher as a way to generate electric energy without fossil fuels. It works by using kites attached to electric actuators on the ground to harness wind power and convert it to electricity through a continuous cycle of two phases. Kite power generation has advantages over traditional wind turbines in that it can access stronger and more consistent winds higher in the sky and can be easily scaled up by using multiple kites to generate more power.

1. A new trend in clean power
Presented by
T16ee010
11/1/2018Kite Gen 1

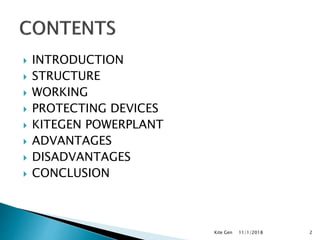

2.  INTRODUCTION
 STRUCTURE
 WORKING
 PROTECTING DEVICES
 KITEGEN POWERPLANT
 ADVANTAGES
 DISADVANTAGES
 CONCLUSION
11/1/2018Kite Gen 2

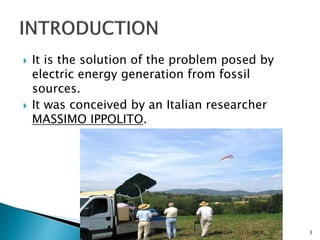

3.  It is the solution of the problem posed by
electric energy generation from fossil
sources.
 It was conceived by an Italian researcher
MASSIMO IPPOLITO.
11/1/2018Kite Gen 3

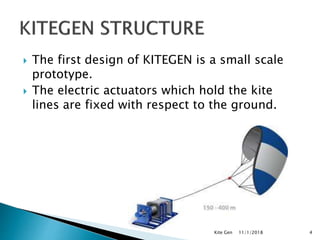

4.  The first design of KITEGEN is a small scale
prototype.
 The electric actuators which hold the kite
lines are fixed with respect to the ground.
11/1/2018Kite Gen 4

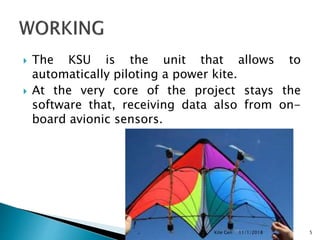

5.  The KSU is the unit that allows to
automatically piloting a power kite.
 At the very core of the project stays the
software that, receiving data also from on-
board avionic sensors.
11/1/2018Kite Gen 5

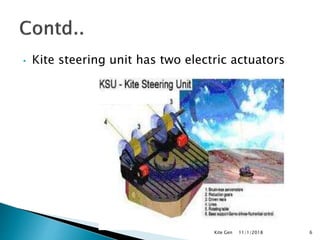

6. • Kite steering unit has two electric actuators
11/1/2018Kite Gen 6

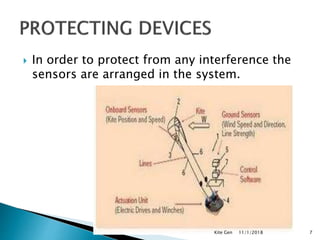

7.  In order to protect from any interference the
sensors are arranged in the system.
11/1/2018Kite Gen 7

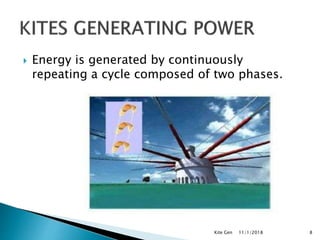

8.  Energy is generated by continuously
repeating a cycle composed of two phases.
11/1/2018Kite Gen 8

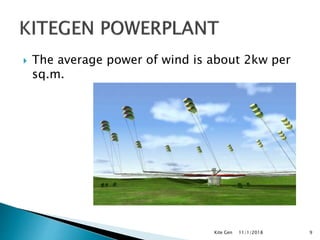

9.  The average power of wind is about 2kw per
sq.m.
11/1/2018Kite Gen 9

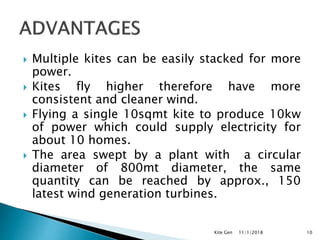

10.  Multiple kites can be easily stacked for more
power.
 Kites fly higher therefore have more
consistent and cleaner wind.
 Flying a single 10sqmt kite to produce 10kw
of power which could supply electricity for
about 10 homes.
 The area swept by a plant with a circular
diameter of 800mt diameter, the same
quantity can be reached by approx., 150
latest wind generation turbines.
11/1/2018Kite Gen 10

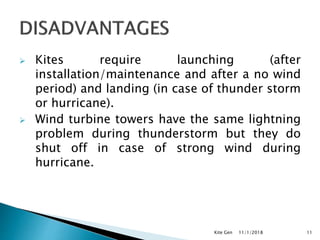

11.  Kites require launching (after
installation/maintenance and after a no wind
period) and landing (in case of thunder storm
or hurricane).
 Wind turbine towers have the same lightning
problem during thunderstorm but they do
shut off in case of strong wind during
hurricane.
11/1/2018Kite Gen 11

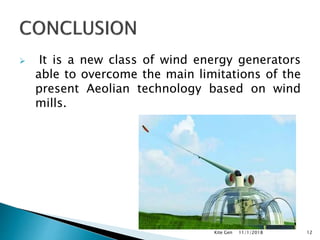

12.  It is a new class of wind energy generators
able to overcome the main limitations of the
present Aeolian technology based on wind
mills.
11/1/2018Kite Gen 12

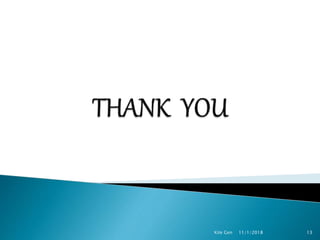

13. 11/1/2018Kite Gen 13
