The document discusses Motorola's managed service gateway called the MS1000, which is a universal networking gateway that acts as a home gateway and WiFi access point. It runs the Motorola Sunrise software platform and can host Java applications. The MS1000 is managed by Motorola's Gateway Management System (MGMS) which monitors the gateway and manages software downloads. The presentation provides an overview of the MS1000 and MGMS and discusses how they enable new connected home and managed services.

1. Place your image on
top of this gray box.
If no graphic is
applicable, delete gray
box and notch-out
behind gray box, from
the Title Master
MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. All other
product or service names are the property of their respective owners. © Motorola, Inc. 2003.
The Connected Home
It Starts With a Managed Service
Gateway
Vince Izzo
Director, Business Development
10/22/2003
I n f o r m e d
C o n n e c t e d
E n t e r t a i n e d

2. MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. All other
product or service names are the property of their respective owners. © Motorola, Inc. 2003.
Slide 2
Motorola Structure

3. MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. All other
product or service names are the property of their respective owners. © Motorola, Inc. 2003.
Slide 3

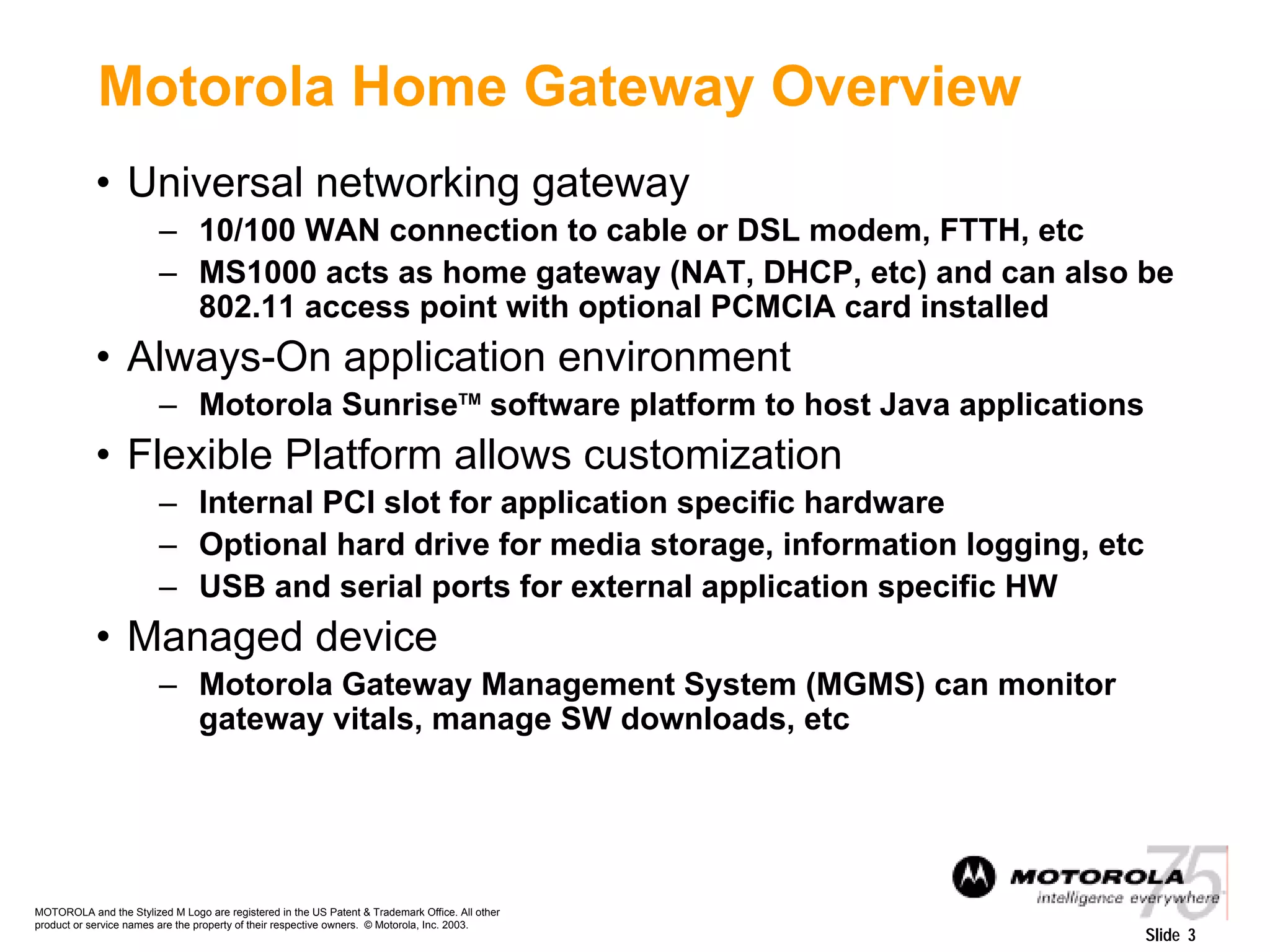

Motorola Home Gateway Overview
• Universal networking gateway
– 10/100 WAN connection to cable or DSL modem, FTTH, etc
– MS1000 acts as home gateway (NAT, DHCP, etc) and can also be
802.11 access point with optional PCMCIA card installed
• Always-On application environment
– Motorola SunriseTM
software platform to host Java applications
• Flexible Platform allows customization
– Internal PCI slot for application specific hardware
– Optional hard drive for media storage, information logging, etc
– USB and serial ports for external application specific HW
• Managed device
– Motorola Gateway Management System (MGMS) can monitor
gateway vitals, manage SW downloads, etc

4. MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. All other
product or service names are the property of their respective owners. © Motorola, Inc. 2003.
Slide 4

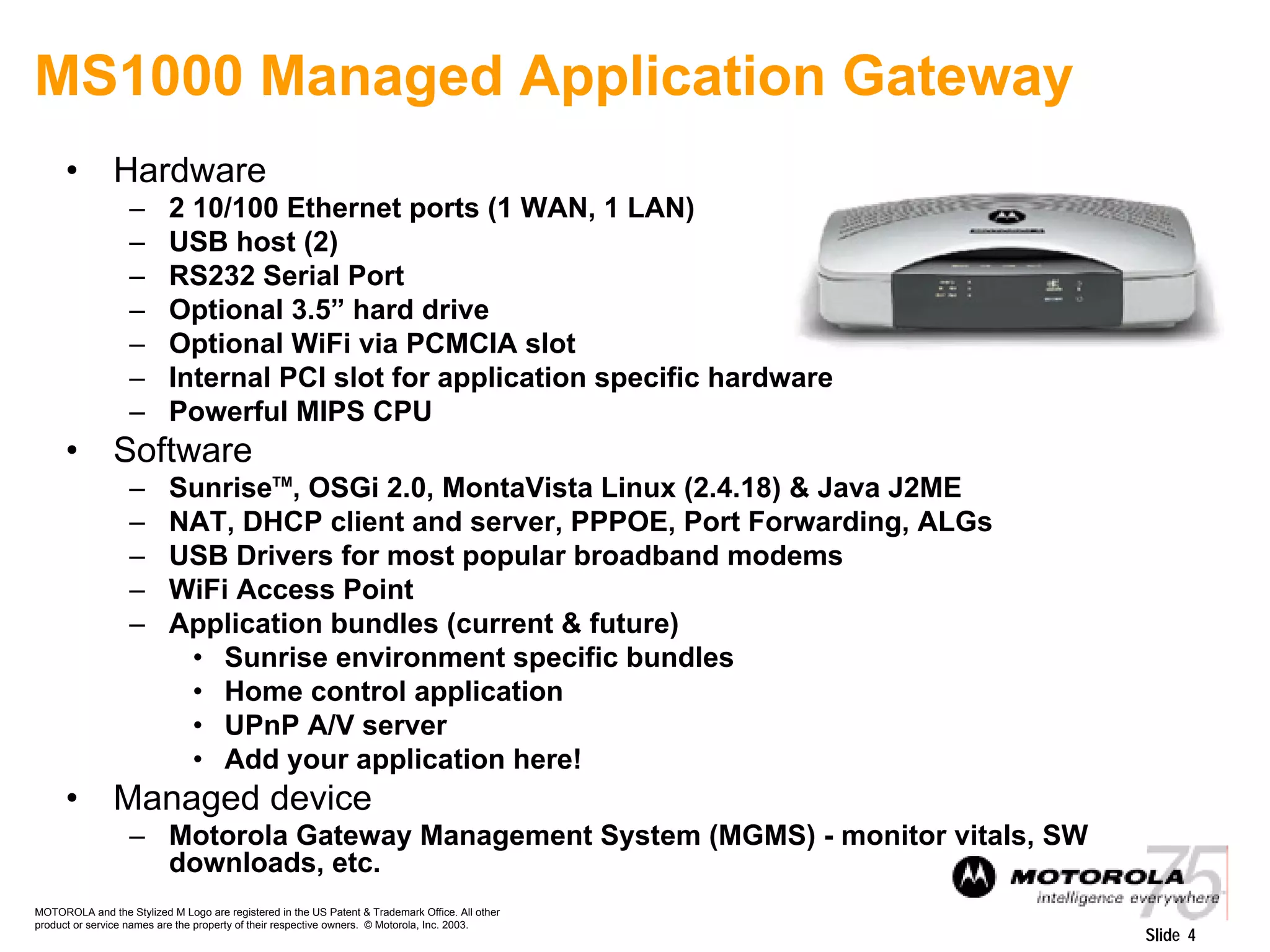

MS1000 Managed Application Gateway
• Hardware
– 2 10/100 Ethernet ports (1 WAN, 1 LAN)
– USB host (2)
– RS232 Serial Port
– Optional 3.5” hard drive
– Optional WiFi via PCMCIA slot
– Internal PCI slot for application specific hardware
– Powerful MIPS CPU
• Software
– SunriseTM
, OSGi 2.0, MontaVista Linux (2.4.18) & Java J2ME
– NAT, DHCP client and server, PPPOE, Port Forwarding, ALGs
– USB Drivers for most popular broadband modems
– WiFi Access Point
– Application bundles (current & future)
• Sunrise environment specific bundles
• Home control application
• UPnP A/V server
• Add your application here!
• Managed device
– Motorola Gateway Management System (MGMS) - monitor vitals, SW
downloads, etc.

5. MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. All other
product or service names are the property of their respective owners. © Motorola, Inc. 2003.
Slide 5

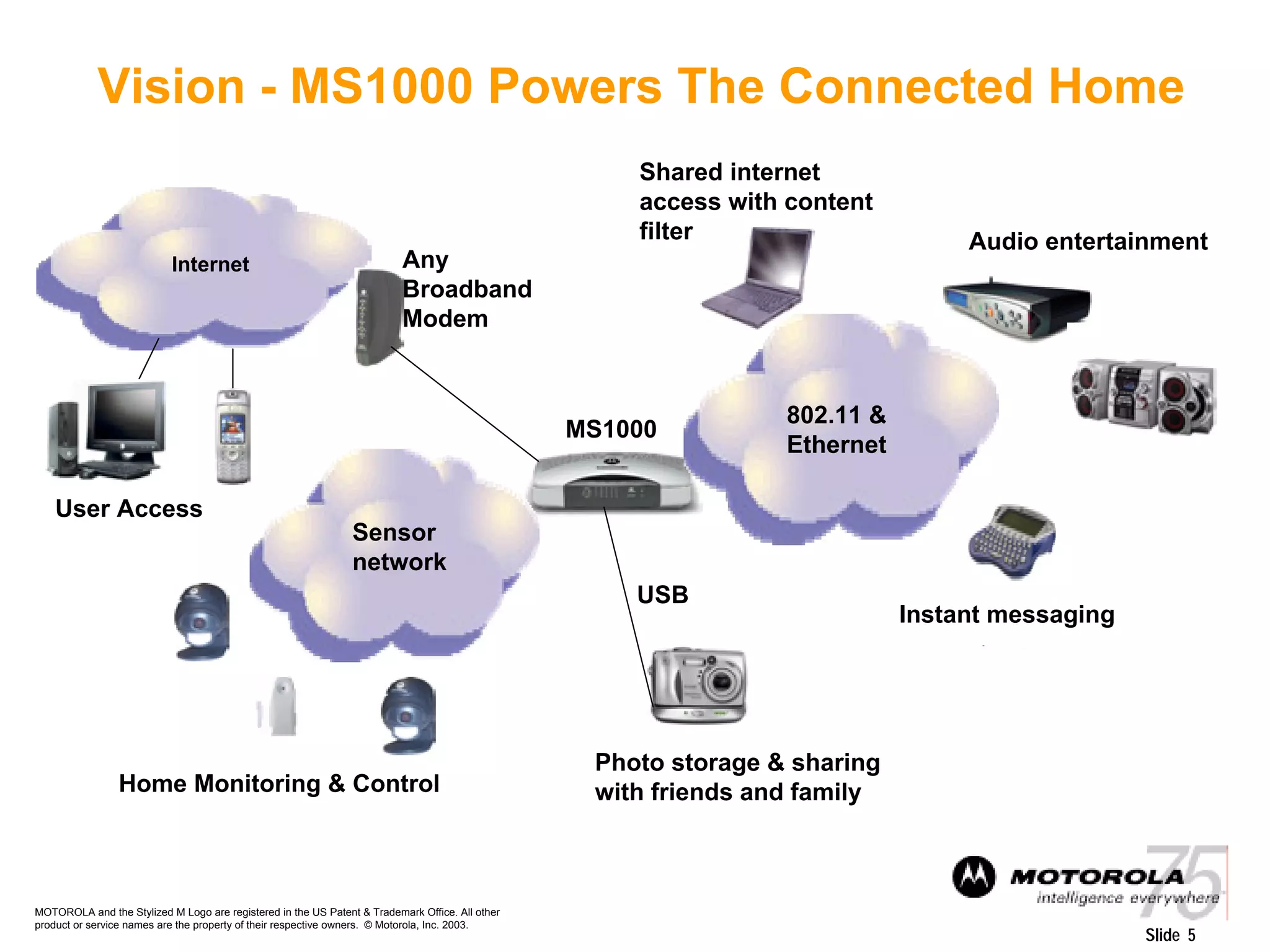

Vision - MS1000 Powers The Connected Home
Internet Any
Broadband
Modem
MS1000
Home Monitoring & Control
Audio entertainment
Photo storage & sharing
with friends and family
Shared internet
access with content
filter
USB
802.11 &
Ethernet
Sensor
network
User Access
Instant messaging

6. MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. All other
product or service names are the property of their respective owners. © Motorola, Inc. 2003.
Slide 6

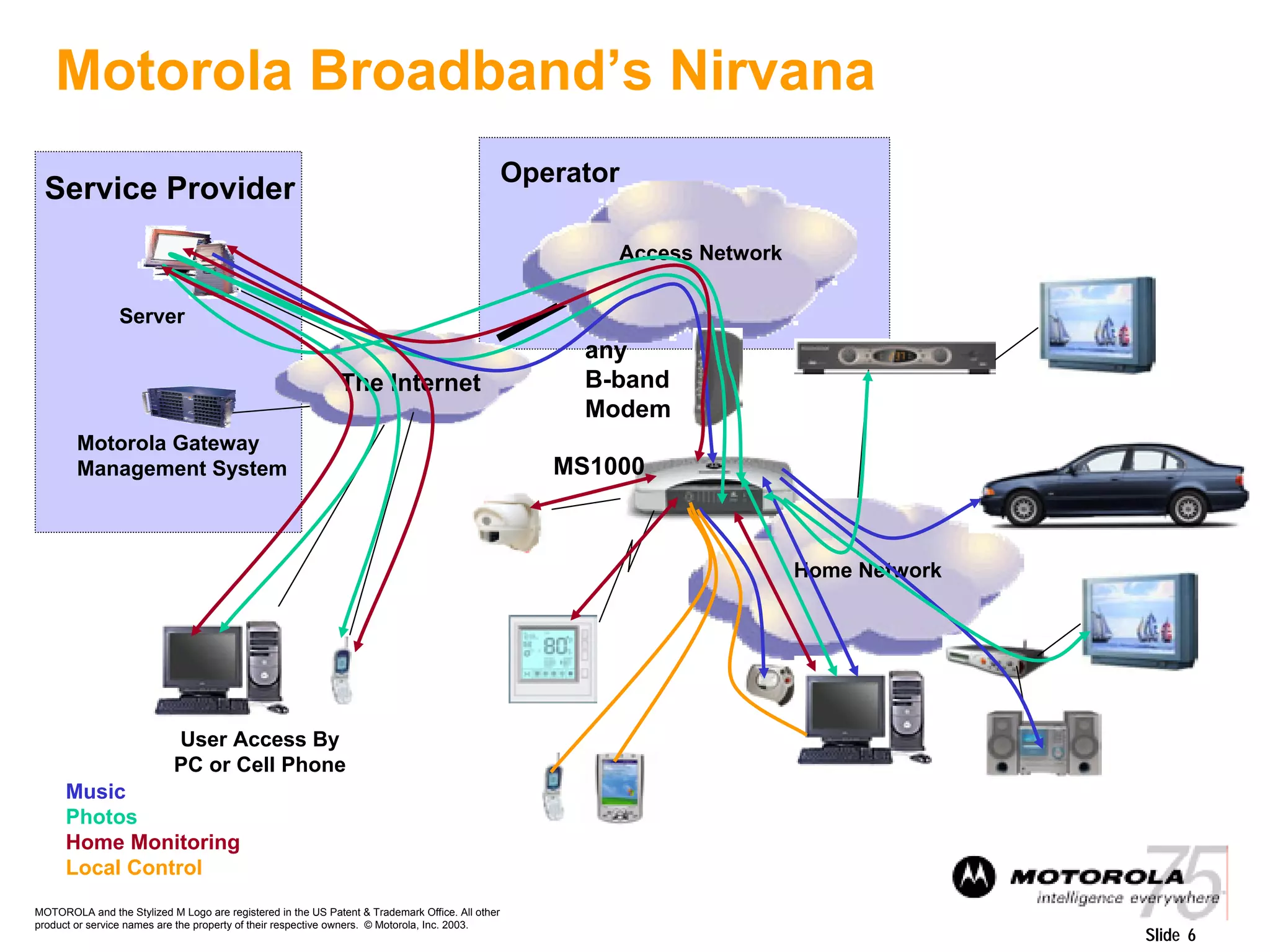

Motorola Broadband’s Nirvana
Music
Photos
Home Monitoring
Local Control
Access Network
Operator
Server
Motorola Gateway
Management System
Service Provider
The Internet
any
B-band
Modem
MS1000
User Access By
PC or Cell Phone
Home Network

7. MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. All other
product or service names are the property of their respective owners. © Motorola, Inc. 2003.
Slide 7

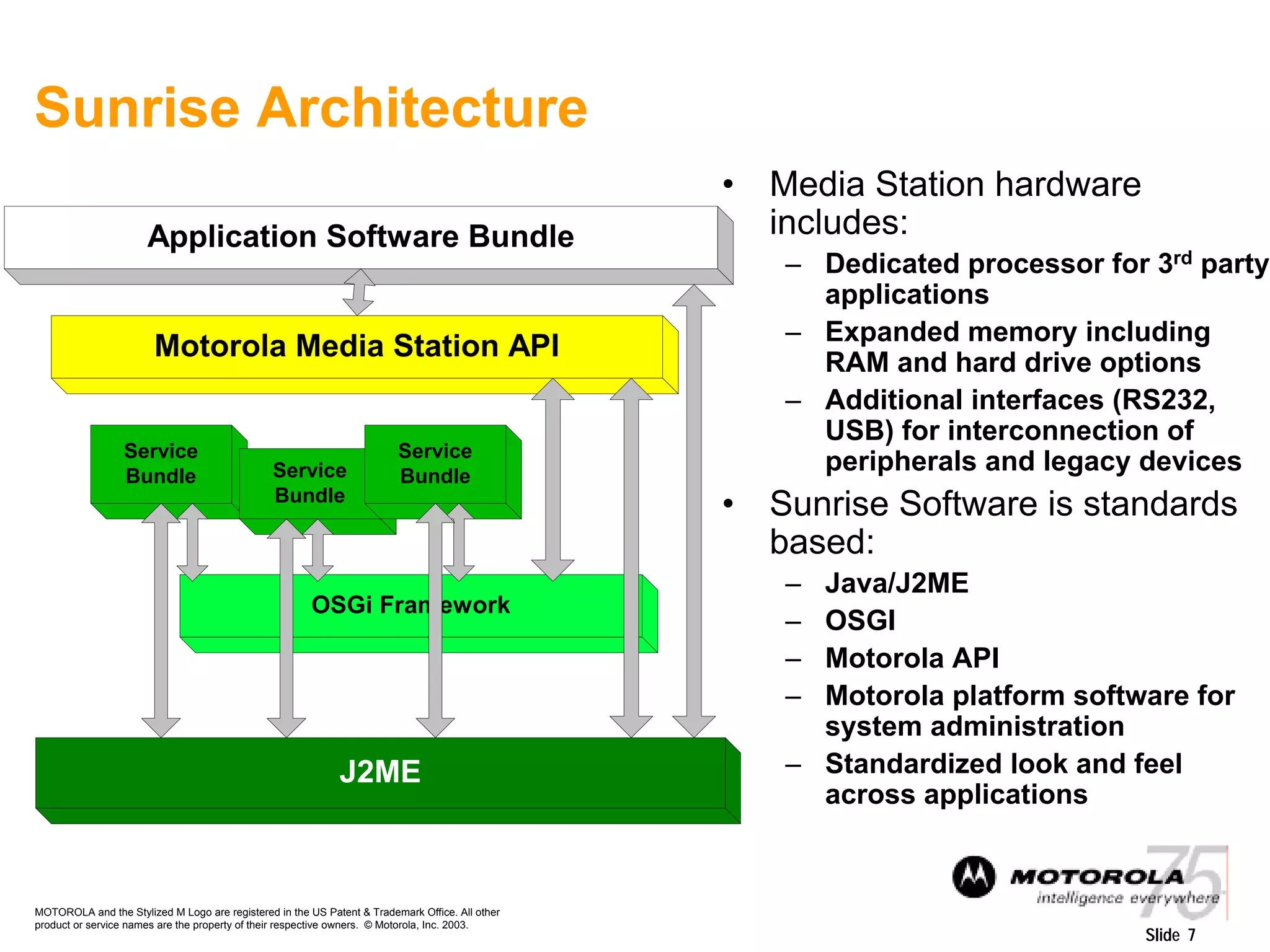

Sunrise Architecture
• Media Station hardware
includes:
– Dedicated processor for 3rd party
applications
– Expanded memory including
RAM and hard drive options
– Additional interfaces (RS232,
USB) for interconnection of
peripherals and legacy devices
• Sunrise Software is standards
based:
– Java/J2ME
– OSGI
– Motorola API
– Motorola platform software for
system administration
– Standardized look and feel
across applications
Service
Bundle Service
Bundle
Service
Bundle
Motorola Media Station API
OSGi Framework
J2ME
Application Software Bundle

8. MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. All other
product or service names are the property of their respective owners. © Motorola, Inc. 2003.
Slide 8

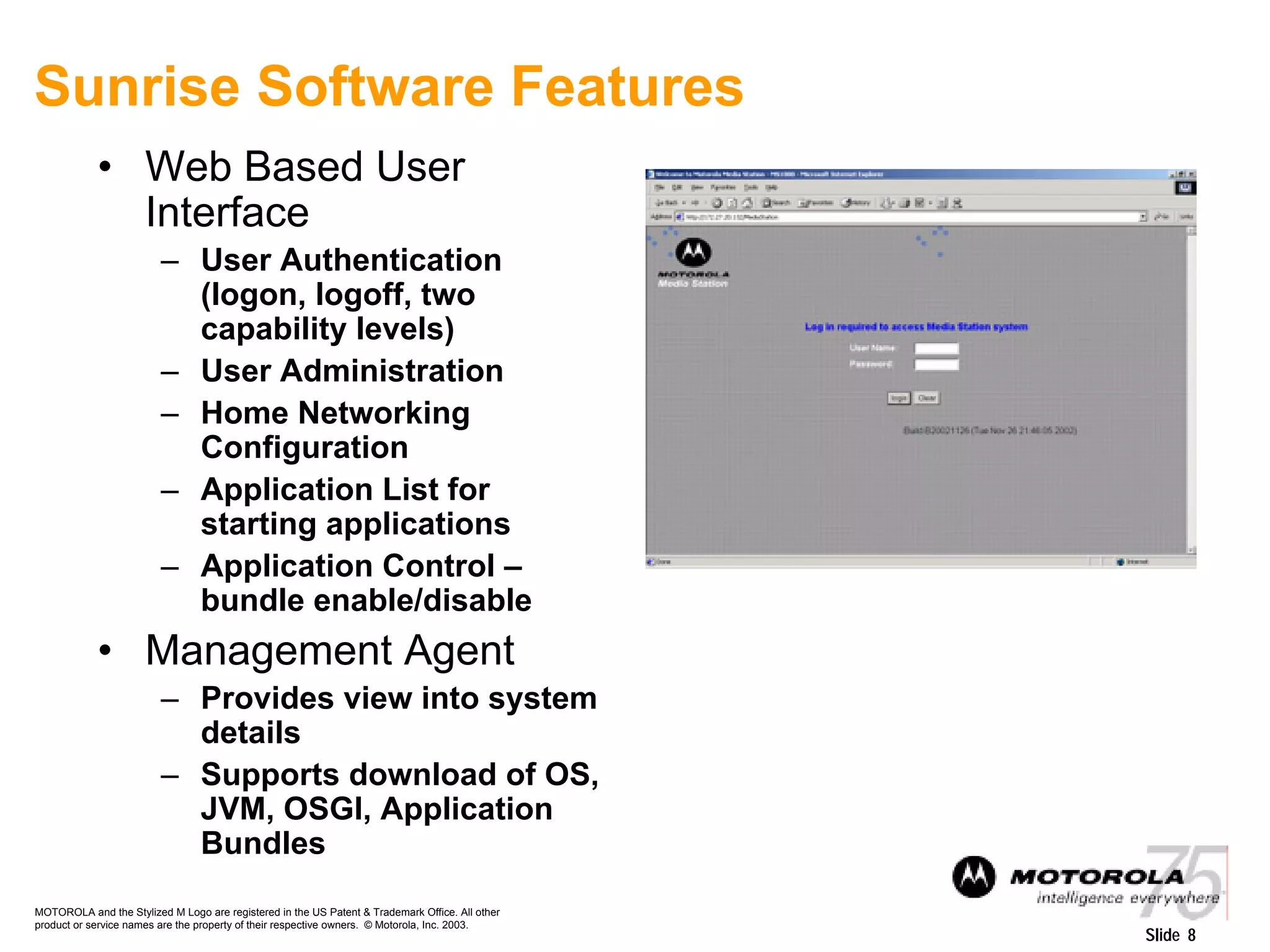

Sunrise Software Features
• Web Based User
Interface
– User Authentication
(logon, logoff, two
capability levels)
– User Administration
– Home Networking
Configuration
– Application List for
starting applications
– Application Control –
bundle enable/disable
• Management Agent
– Provides view into system
details
– Supports download of OS,
JVM, OSGI, Application
Bundles

9. MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. All other
product or service names are the property of their respective owners. © Motorola, Inc. 2003.
Slide 9

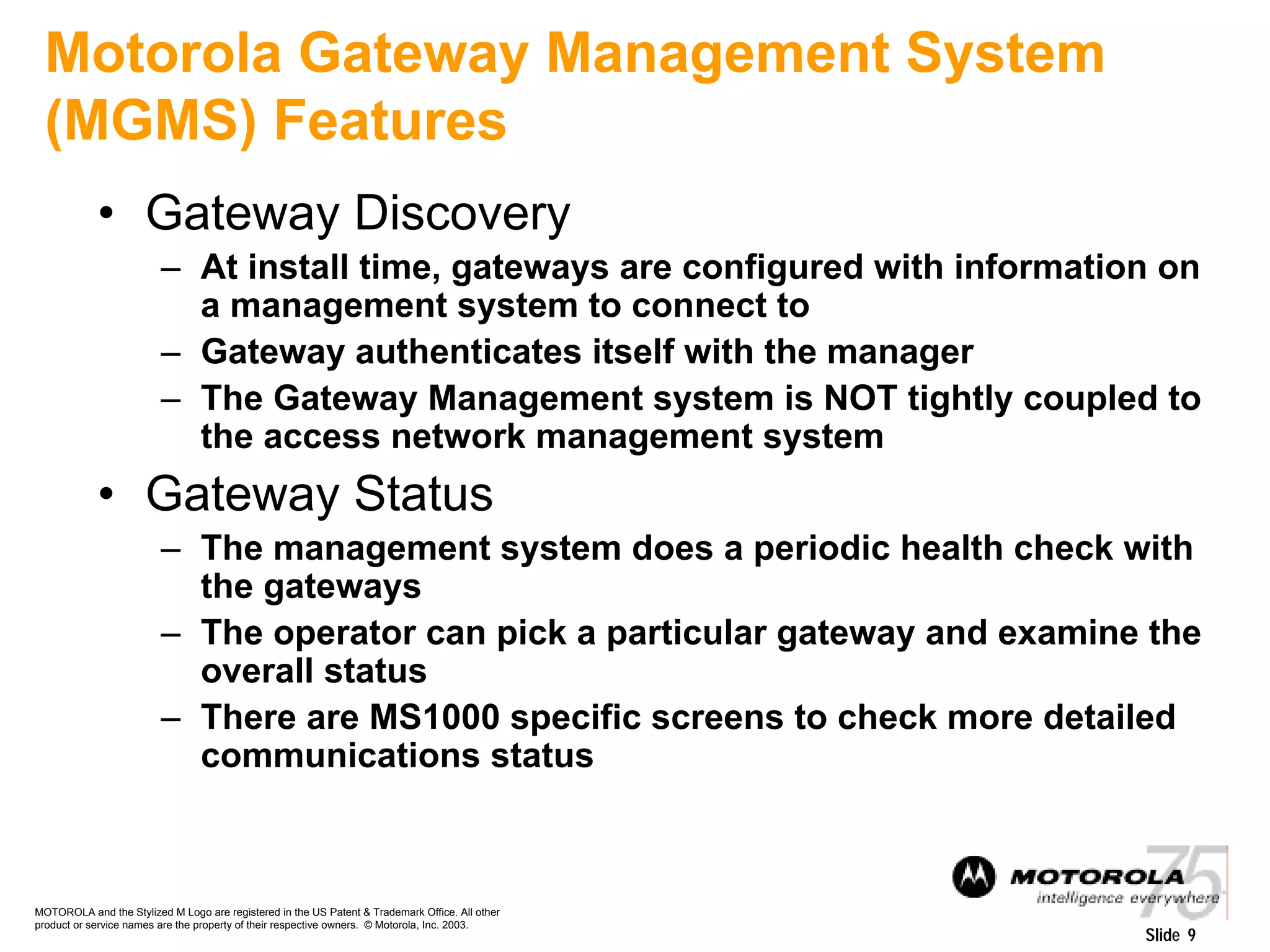

Motorola Gateway Management System
(MGMS) Features
• Gateway Discovery
– At install time, gateways are configured with information on
a management system to connect to
– Gateway authenticates itself with the manager
– The Gateway Management system is NOT tightly coupled to
the access network management system
• Gateway Status
– The management system does a periodic health check with
the gateways
– The operator can pick a particular gateway and examine the
overall status
– There are MS1000 specific screens to check more detailed
communications status

10. MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. All other
product or service names are the property of their respective owners. © Motorola, Inc. 2003.
Slide 10

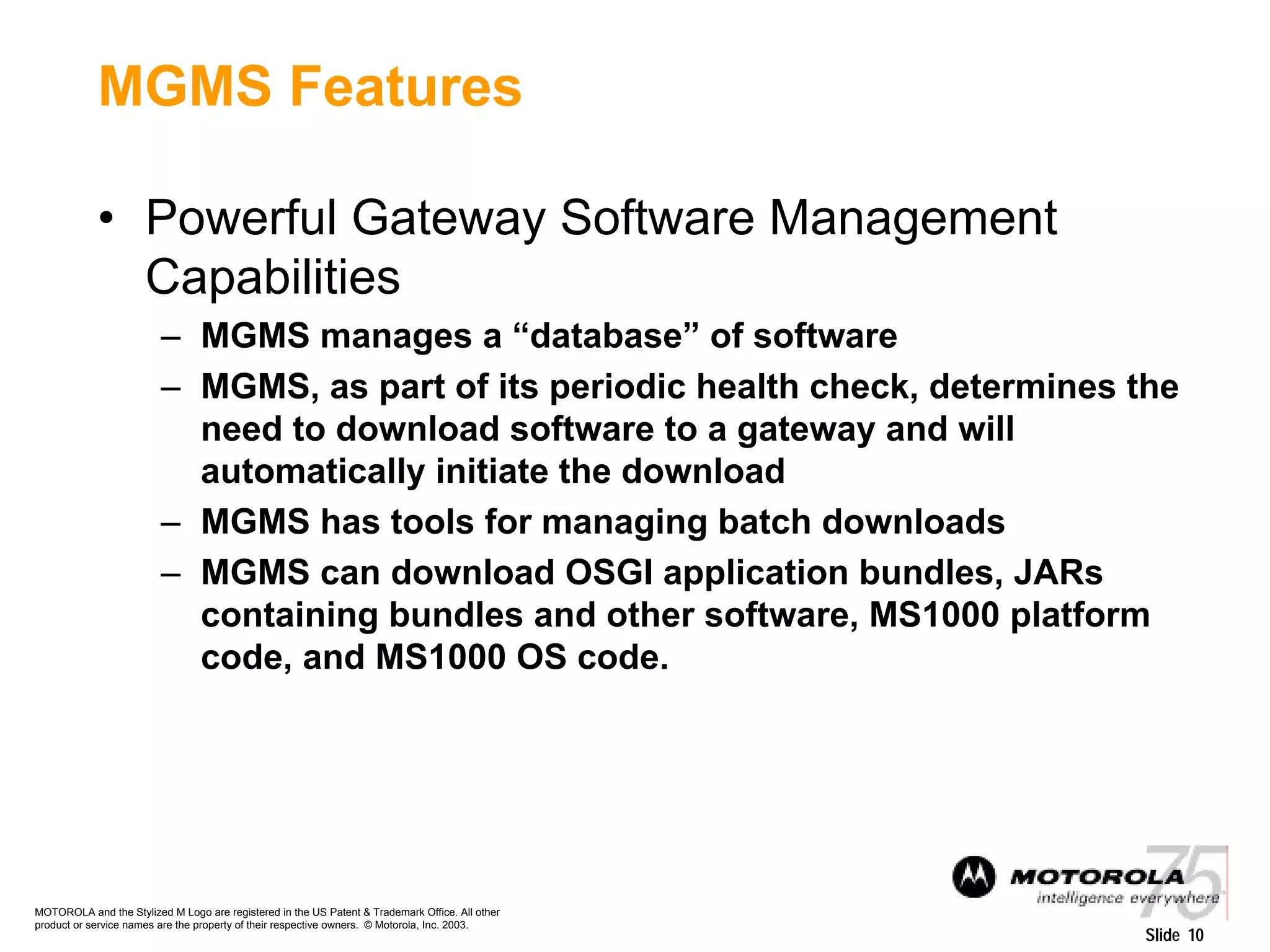

MGMS Features
• Powerful Gateway Software Management
Capabilities
– MGMS manages a “database” of software
– MGMS, as part of its periodic health check, determines the
need to download software to a gateway and will
automatically initiate the download
– MGMS has tools for managing batch downloads
– MGMS can download OSGI application bundles, JARs
containing bundles and other software, MS1000 platform
code, and MS1000 OS code.

11. MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. All other
product or service names are the property of their respective owners. © Motorola, Inc. 2003.
Slide 11
Introducing a New Service Provider
• Motorola Gateway and MGMS
selected as the heart of
• Shell HomeGenie™ is initially
focused on home comfort and
management
• Over time, new services can be
added to the Shell
HomeGenie™ offering, thereby
offering a more connected and
valuable user experience
• A service that makes broadband
more universally appealing

12. MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. All other
product or service names are the property of their respective owners. © Motorola, Inc. 2003.
Slide 12
Sample Advertising

13. MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. All other
product or service names are the property of their respective owners. © Motorola, Inc. 2003.
Slide 13
Other Managed Services and Connected
Home Products for 2003/2004

14. MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. All other
product or service names are the property of their respective owners. © Motorola, Inc. 2003.
Slide 14

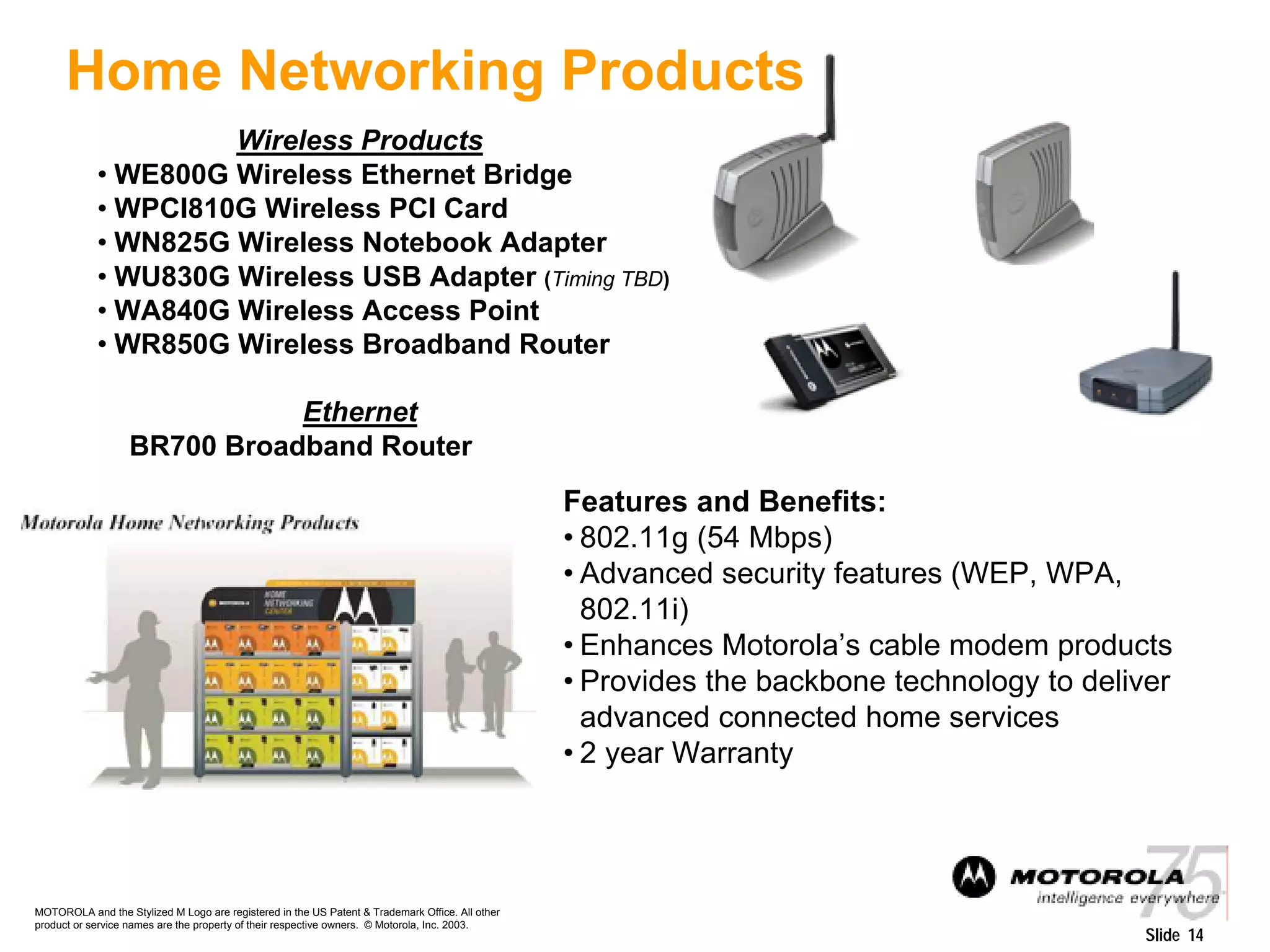

Wireless Products
• WE800G Wireless Ethernet Bridge
• WPCI810G Wireless PCI Card
• WN825G Wireless Notebook Adapter
• WU830G Wireless USB Adapter (Timing TBD)
• WA840G Wireless Access Point
• WR850G Wireless Broadband Router
Ethernet
BR700 Broadband Router
Features and Benefits:
• 802.11g (54 Mbps)
• Advanced security features (WEP, WPA,
802.11i)
• Enhances Motorola’s cable modem products
• Provides the backbone technology to deliver
advanced connected home services
• 2 year Warranty
Home Networking Products

15. MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. All other
product or service names are the property of their respective owners. © Motorola, Inc. 2003.
Slide 15

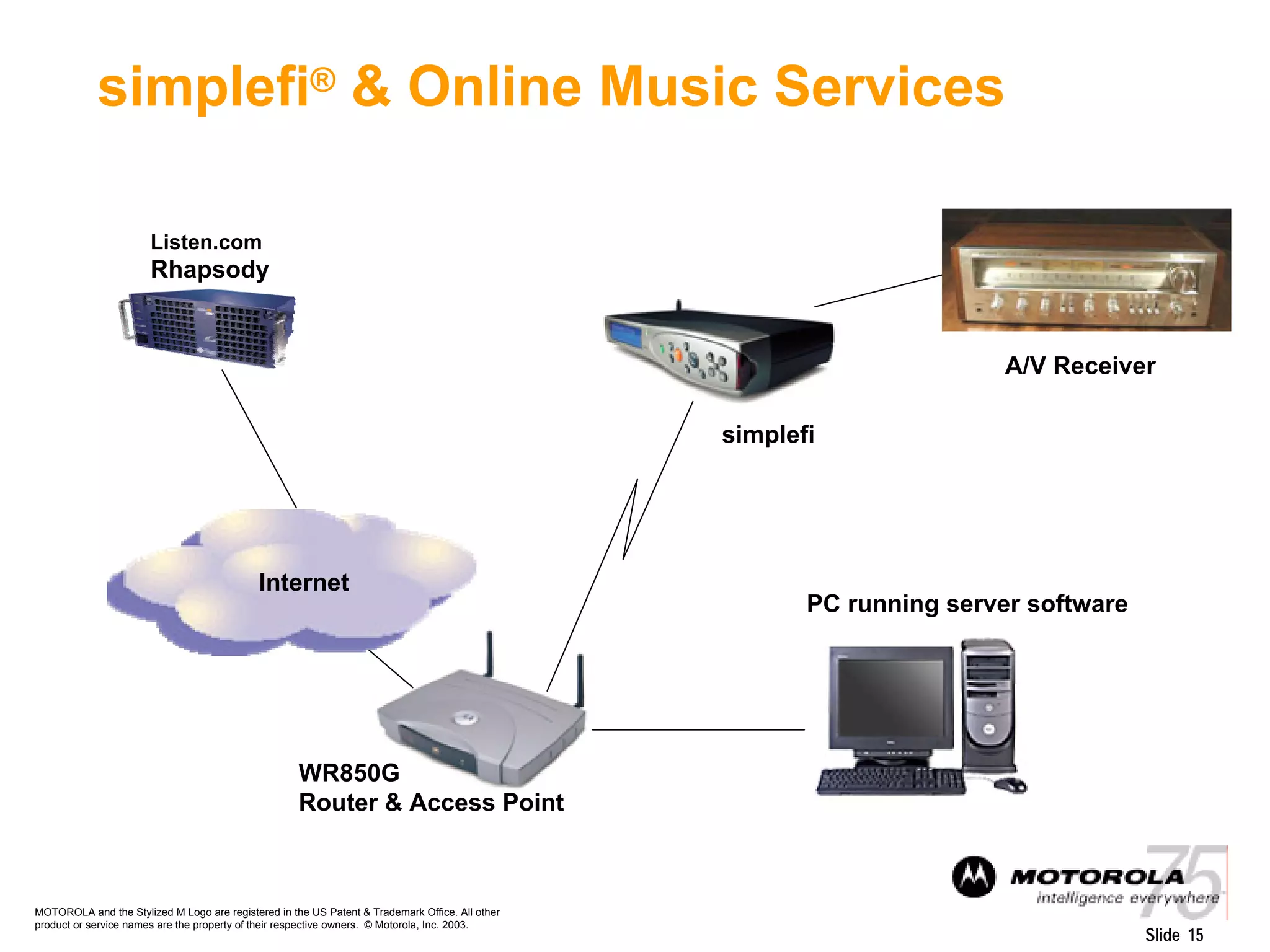

simplefi® & Online Music Services
Internet
Listen.com
Rhapsody
WR850G
Router & Access Point
simplefi
A/V Receiver
PC running server software

16. MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. All other
product or service names are the property of their respective owners. © Motorola, Inc. 2003.
Slide 16

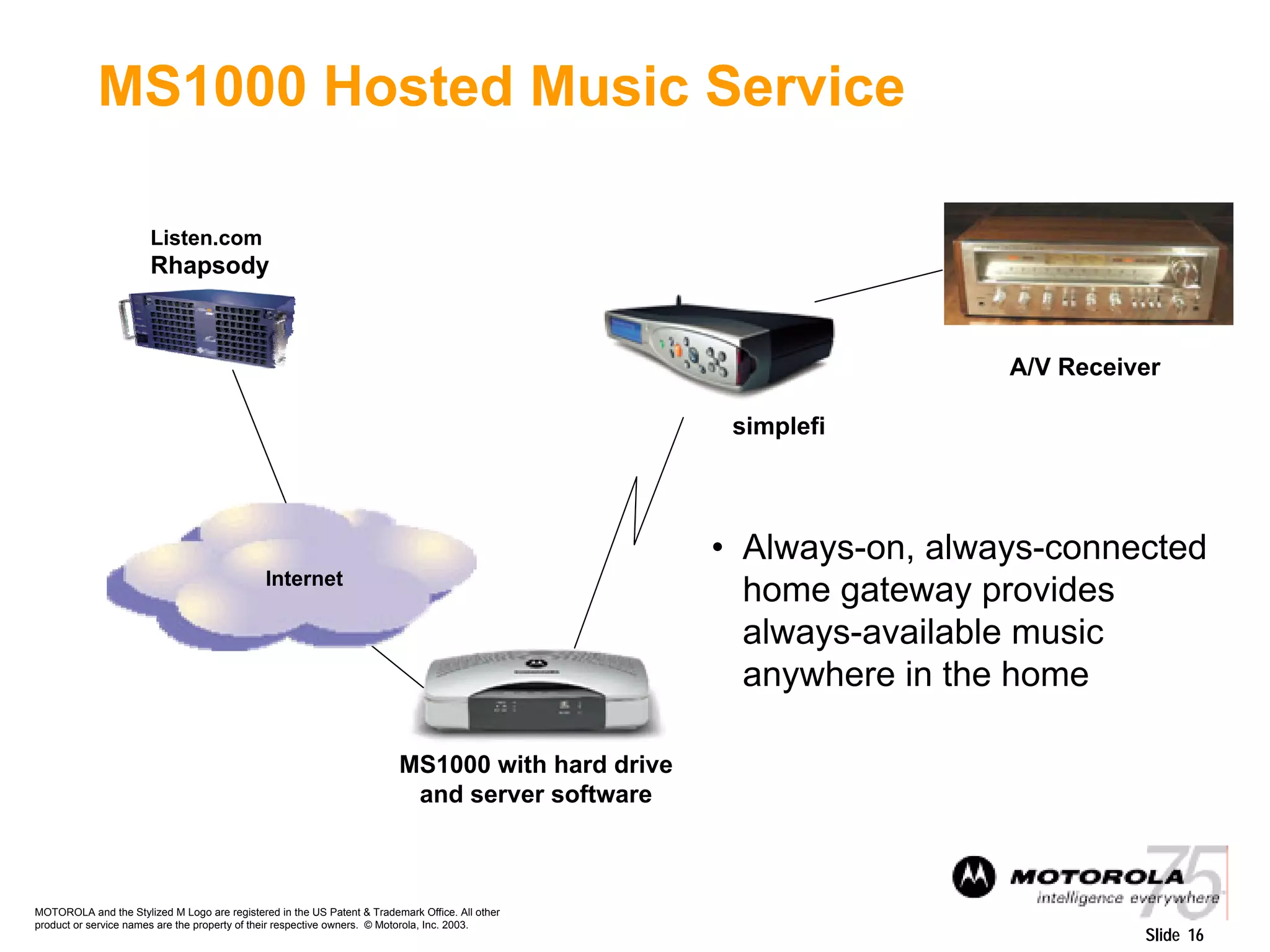

MS1000 Hosted Music Service
Internet
Listen.com
Rhapsody
MS1000 with hard drive
and server software
simplefi
A/V Receiver
• Always-on, always-connected
home gateway provides
always-available music
anywhere in the home
