![Response Prediction
• Click prediction
– Estimate P(click | user, item, context)
– Use to calculate E[utility] = P(click) * utility
• Logistic regression for click prediction, LTR for Search like problems
– Scalable
– Well understood
• Challenges
– Integrating feature data from multiple sources
– Scaling training on large data with many features
– Flexible and rapid experimentation
– Real time scoring](https://image.slidesharecdn.com/c0ed2c75-317c-463a-8296-5e064faccda3-150815181242-lva1-app6891/75/kdd2015-22-2048.jpg)
![Scaling Model Building
Data
Tracking
Pre-
Processing
Feature
Generation
Model
Training
Offline
Model
Evaluation
Online
experiment
Only if Good
Extremely
Computationally
Intensive
▪ Research and Development: Flexible and easy to use software
environment to create models [offline compatible with online]
▪ Maintenance: Models in production trained continuously and
automatically, proper monitoring and testing for building reliable
workflows, config based model deployment, A/B testing platform
▪ Stack of Models: From simple baselines to more sophistication
▪ Feature Management: Easy to discover and share features across
applications](https://image.slidesharecdn.com/c0ed2c75-317c-463a-8296-5e064faccda3-150815181242-lva1-app6891/75/kdd2015-35-2048.jpg)
Uploaded byDeepak Agarwal
kdd2015
This document discusses scaling machine learning and statistics for web applications like recommendations, search, and advertising. It describes LinkedIn's vision of connecting the world's professionals to make them more productive and successful. It discusses using algorithmic match-making via machine learning and data mining to connect talent with opportunities at scale. This involves continuously learning from historical user data and interactions through machine learning models and experiments to power services like search, personalized content recommendations, and advertising.
kdd2015
- 1. Scaling Machine Learningand Statistics for Web Applications Recommendations, Search, Advertising Deepak Agarwal dagarwal@linkedin.com KDD, Aug 12th, 2015 @ Sydney, AUS
- 2. 2 Our vision Create economicopportunity for every member of the global workforce Our mission Connect the world’s professionals to make them more productive and successful Our core value Members first!
- 3.

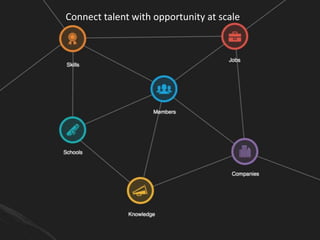

- 4. Connect talent withopportunity at scale
- 5.

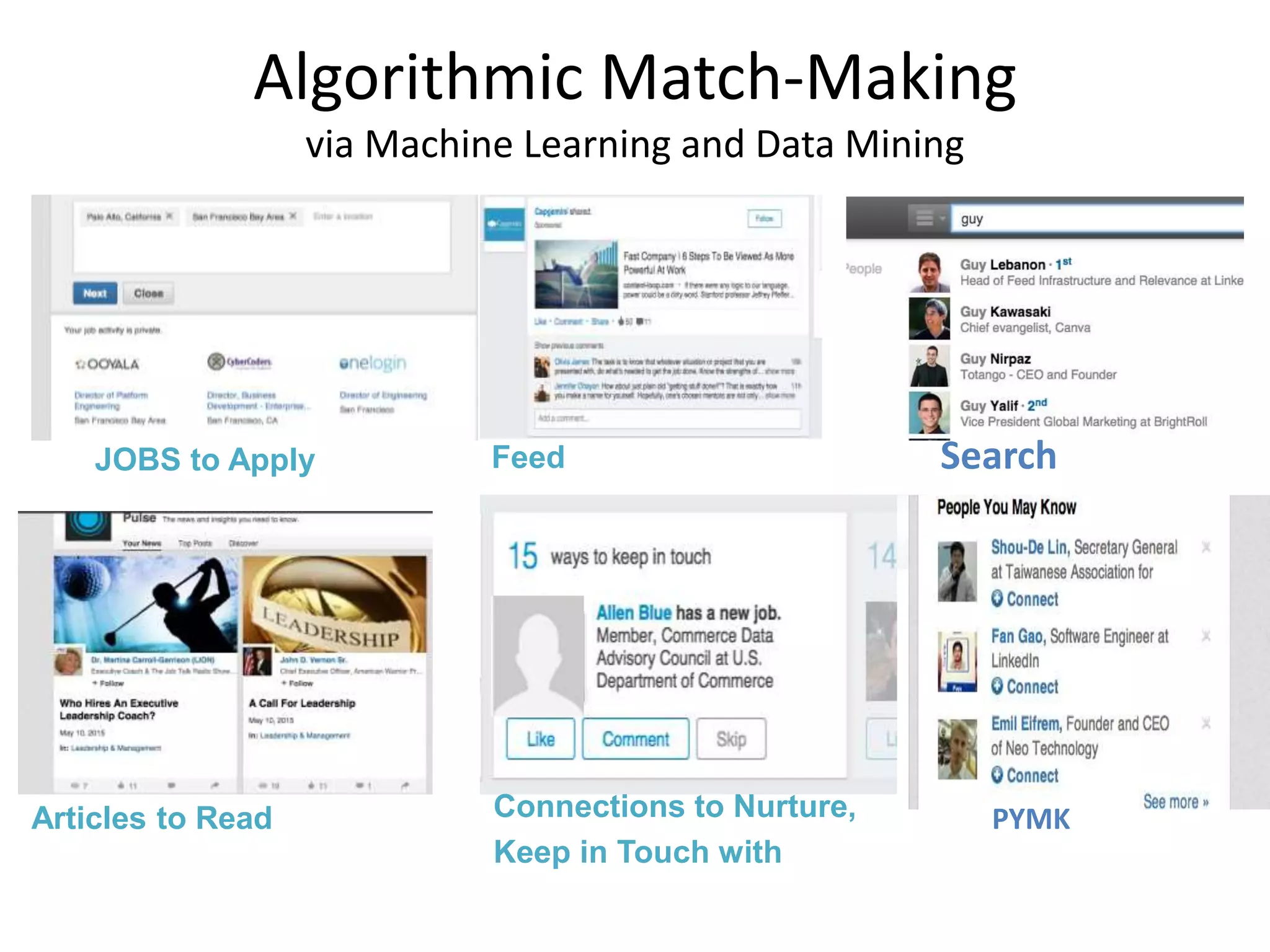

- 6. Algorithmic Match-Making via MachineLearning and Data Mining JOBS to Apply Feed Articles to Read Connections to Nurture, Keep in Touch with Search PYMK

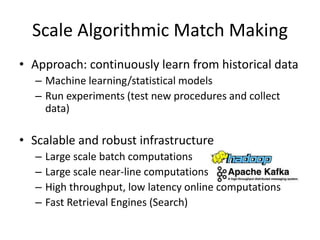

- 7. Scale Algorithmic MatchMaking • Approach: continuously learn from historical data – Machine learning/statistical models – Run experiments (test new procedures and collect data) • Scalable and robust infrastructure – Large scale batch computations – Large scale near-line computations – High throughput, low latency online computations – Fast Retrieval Engines (Search)

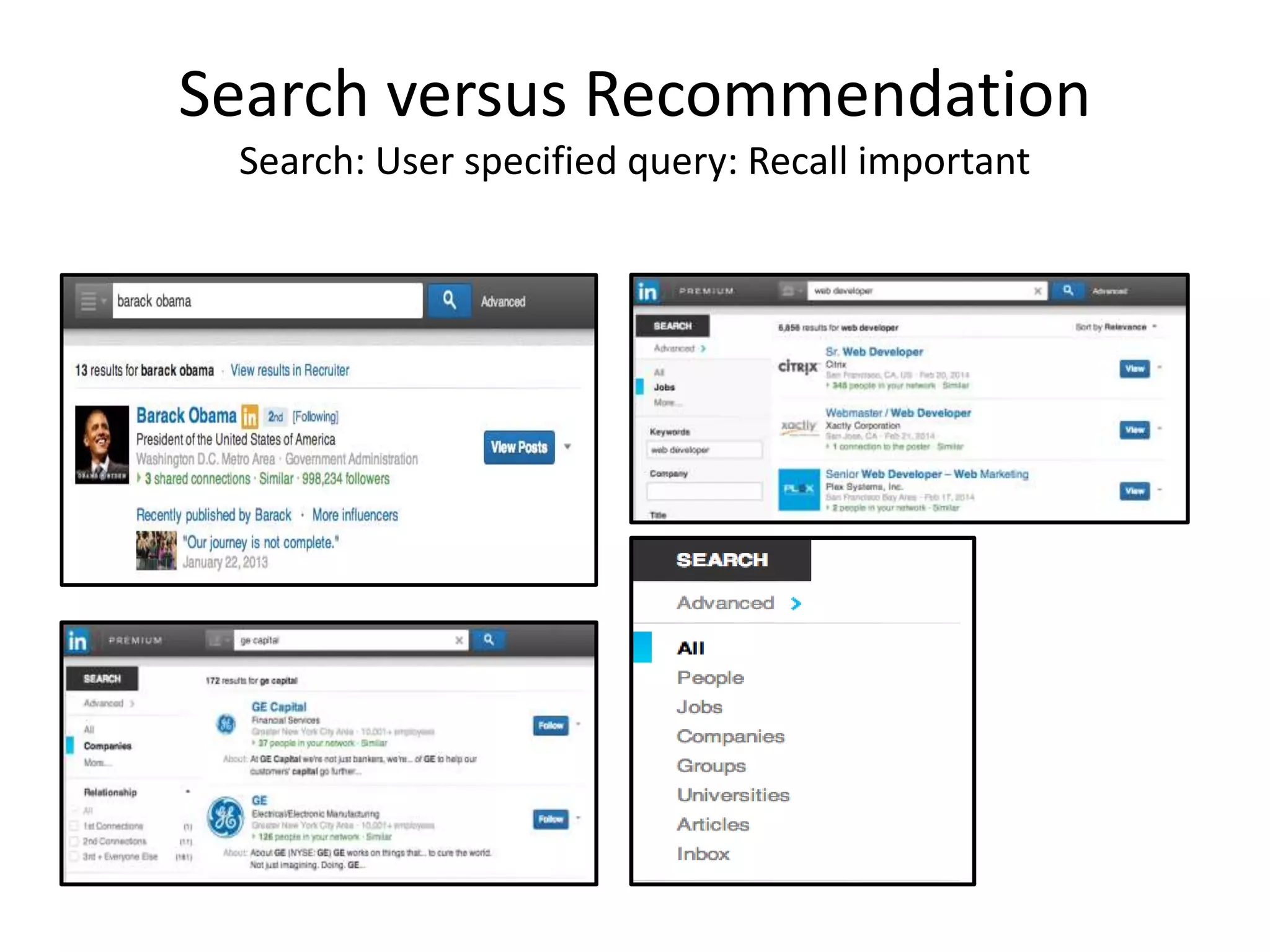

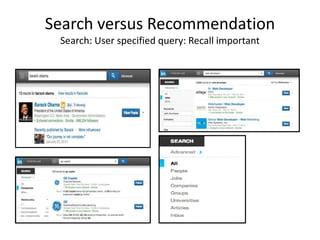

- 8. Search versus Recommendation Search:User specified query: Recall important

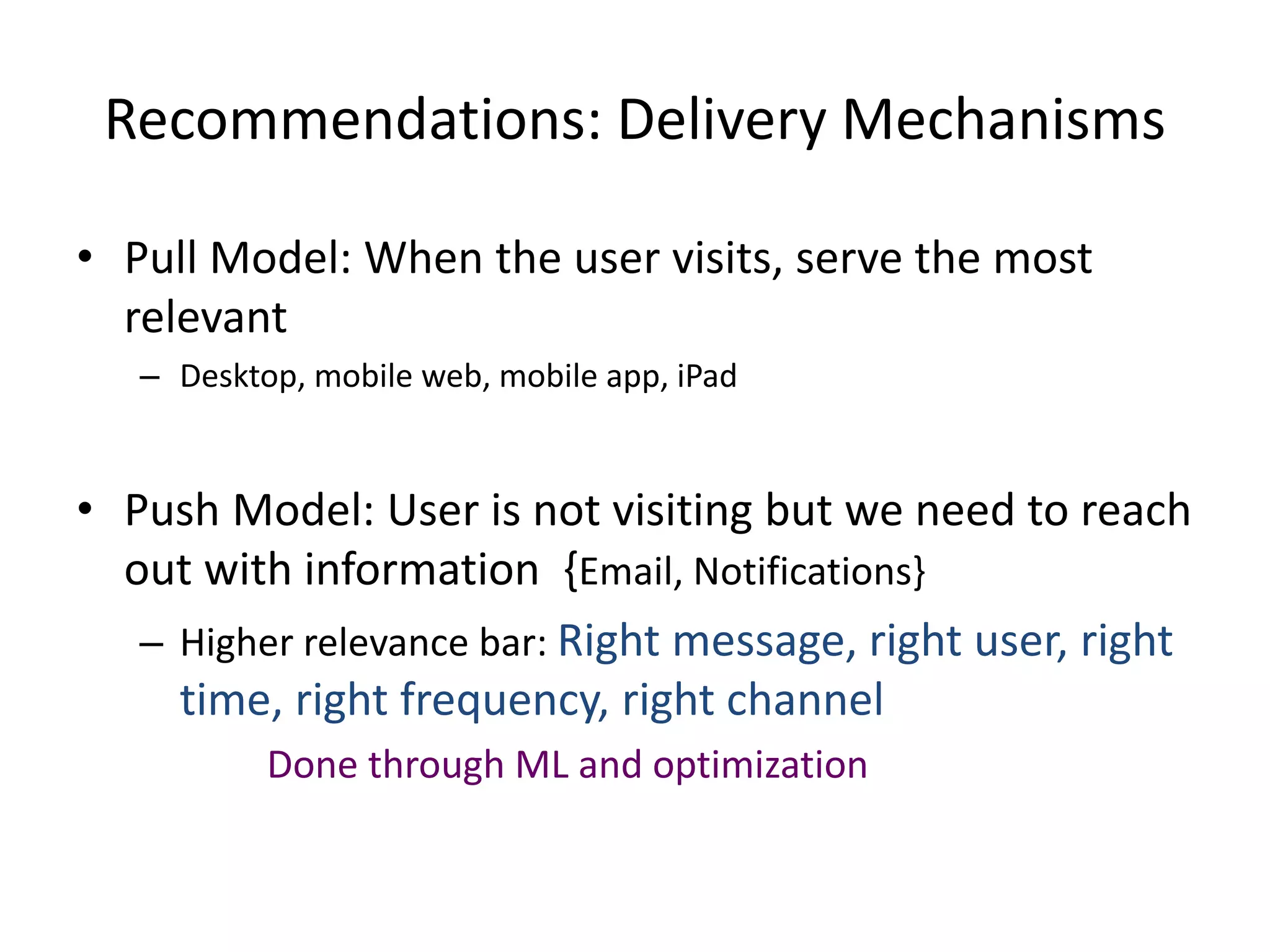

- 9. Recommendations: Delivery Mechanisms •Pull Model: When the user visits, serve the most relevant – Desktop, mobile web, mobile app, iPad • Push Model: User is not visiting but we need to reach out with information {Email, Notifications} – Higher relevance bar: Right message, right user, right time, right frequency, right channel Done through ML and optimization

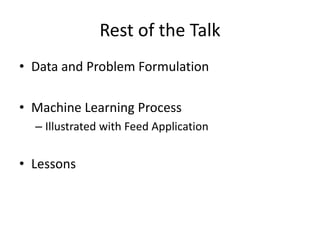

- 10. Rest of theTalk • Data and Problem Formulation • Machine Learning Process – Illustrated with Feed Application • Lessons

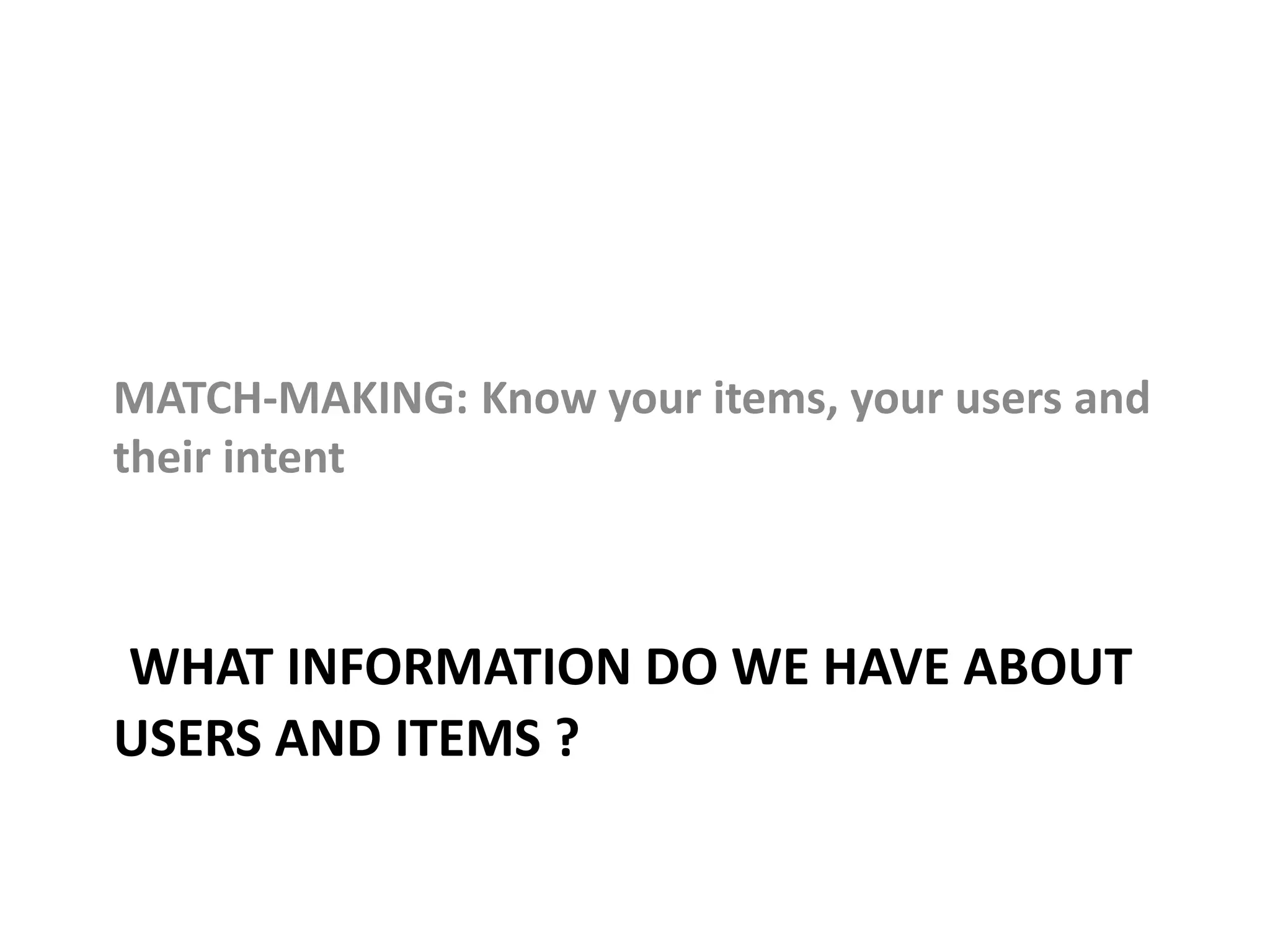

- 11. WHAT INFORMATION DOWE HAVE ABOUT USERS AND ITEMS ? MATCH-MAKING: Know your items, your users and their intent

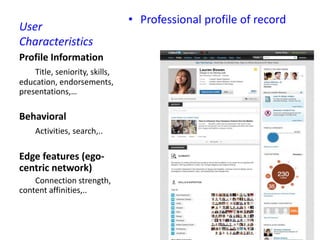

- 12. User Characteristics Profile Information Title, seniority,skills, education, endorsements, presentations,… Behavioral Activities, search,.. Edge features (ego- centric network) Connection strength, content affinities,.. • Professional profile of record

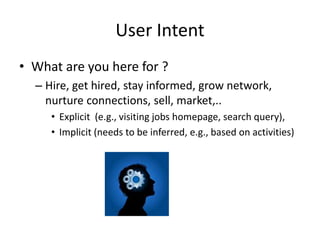

- 13. User Intent • Whatare you here for ? – Hire, get hired, stay informed, grow network, nurture connections, sell, market,.. • Explicit (e.g., visiting jobs homepage, search query), • Implicit (needs to be inferred, e.g., based on activities)

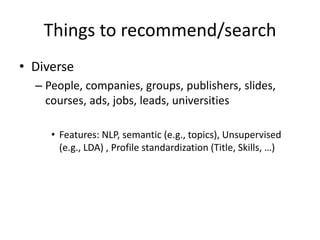

- 14. Things to recommend/search •Diverse – People, companies, groups, publishers, slides, courses, ads, jobs, leads, universities • Features: NLP, semantic (e.g., topics), Unsupervised (e.g., LDA) , Profile standardization (Title, Skills, …)

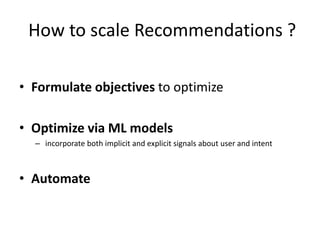

- 15. How to scaleRecommendations ? • Formulate objectives to optimize • Optimize via ML models – incorporate both implicit and explicit signals about user and intent • Automate

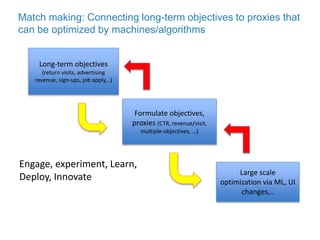

- 16. Match making: Connectinglong-term objectives to proxies that can be optimized by machines/algorithms Long-term objectives (return visits, advertising revenue, sign-ups, job apply,..) Formulate objectives, proxies (CTR, revenue/visit, multiple-objectives, …) Large scale optimization via ML, UI changes,.. Engage, experiment, Learn, Deploy, Innovate

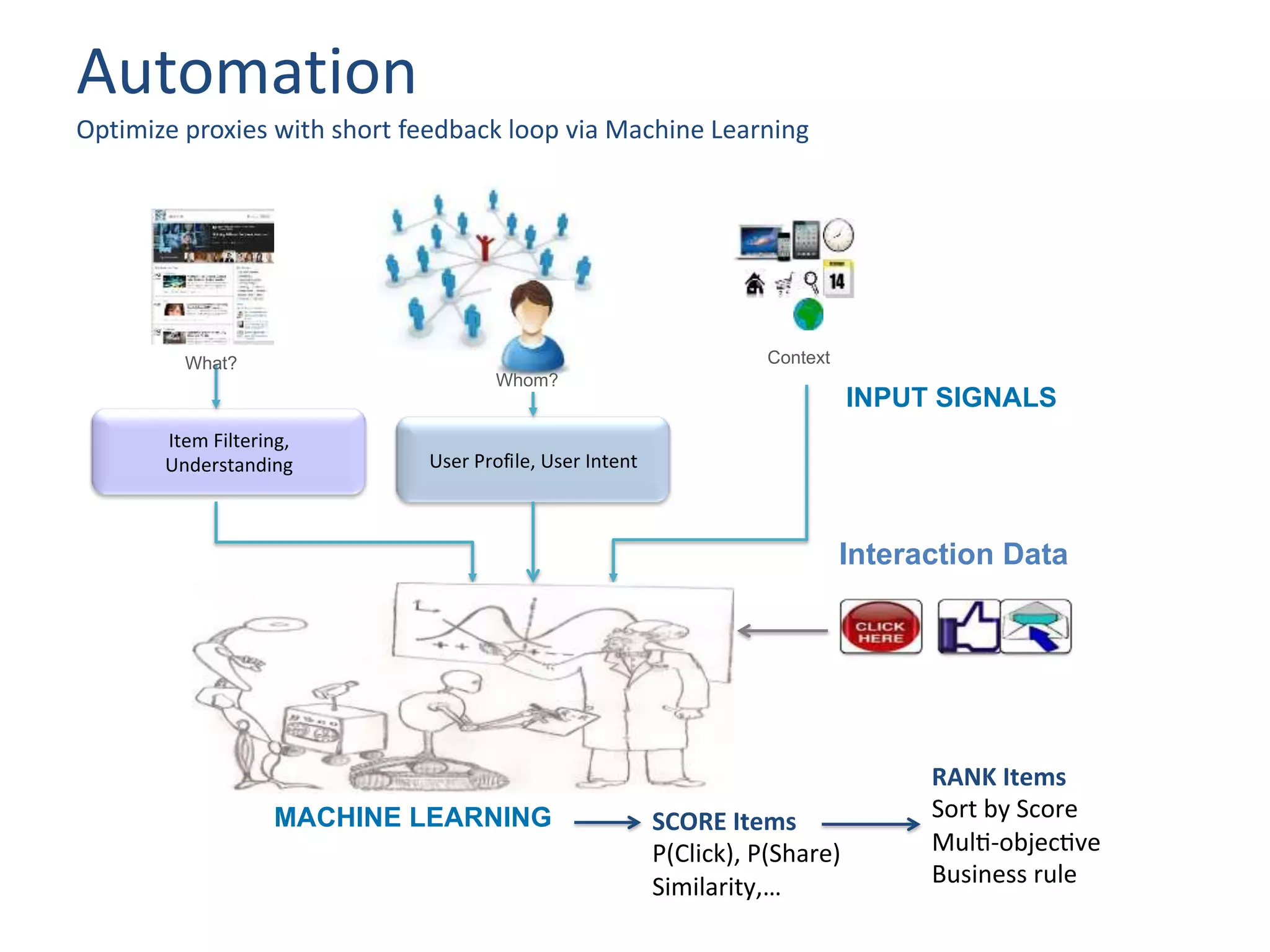

- 17. Automation Optimize proxies withshort feedback loop via Machine Learning Whom? User Profile, User Intent Item Filtering, Understanding ContextWhat? Interaction Data INPUT SIGNALS MACHINE LEARNING RANK Items Sort by Score Mul -objec ve Business rule SCORE Items P(Click), P(Share) Similarity,…

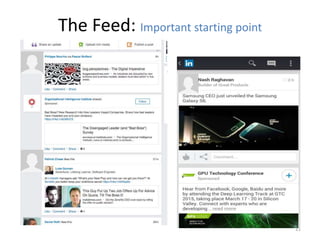

- 18. The Feed: Importantstarting point 21

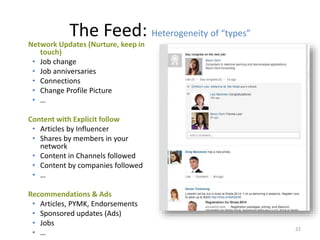

- 19. The Feed: Heterogeneityof “types” Network Updates (Nurture, keep in touch) • Job change • Job anniversaries • Connections • Change Profile Picture • … Content with Explicit follow • Articles by Influencer • Shares by members in your network • Content in Channels followed • Content by companies followed • … Recommendations & Ads • Articles, PYMK, Endorsements • Sponsored updates (Ads) • Jobs • … 22

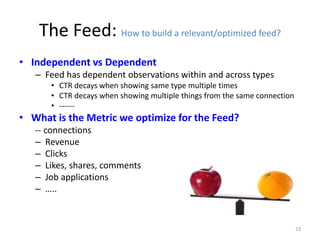

- 20. The Feed: Howto build a relevant/optimized feed? • Independent vs Dependent – Feed has dependent observations within and across types • CTR decays when showing same type multiple times • CTR decays when showing multiple things from the same connection • ------ • What is the Metric we optimize for the Feed? -- connections – Revenue – Clicks – Likes, shares, comments – Job applications – ….. 23

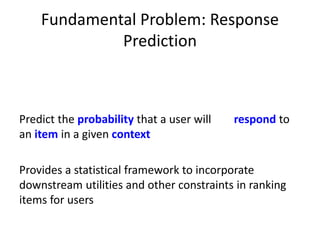

- 21. Fundamental Problem: Response Prediction Predictthe probability that a user will respond to an item in a given context Provides a statistical framework to incorporate downstream utilities and other constraints in ranking items for users

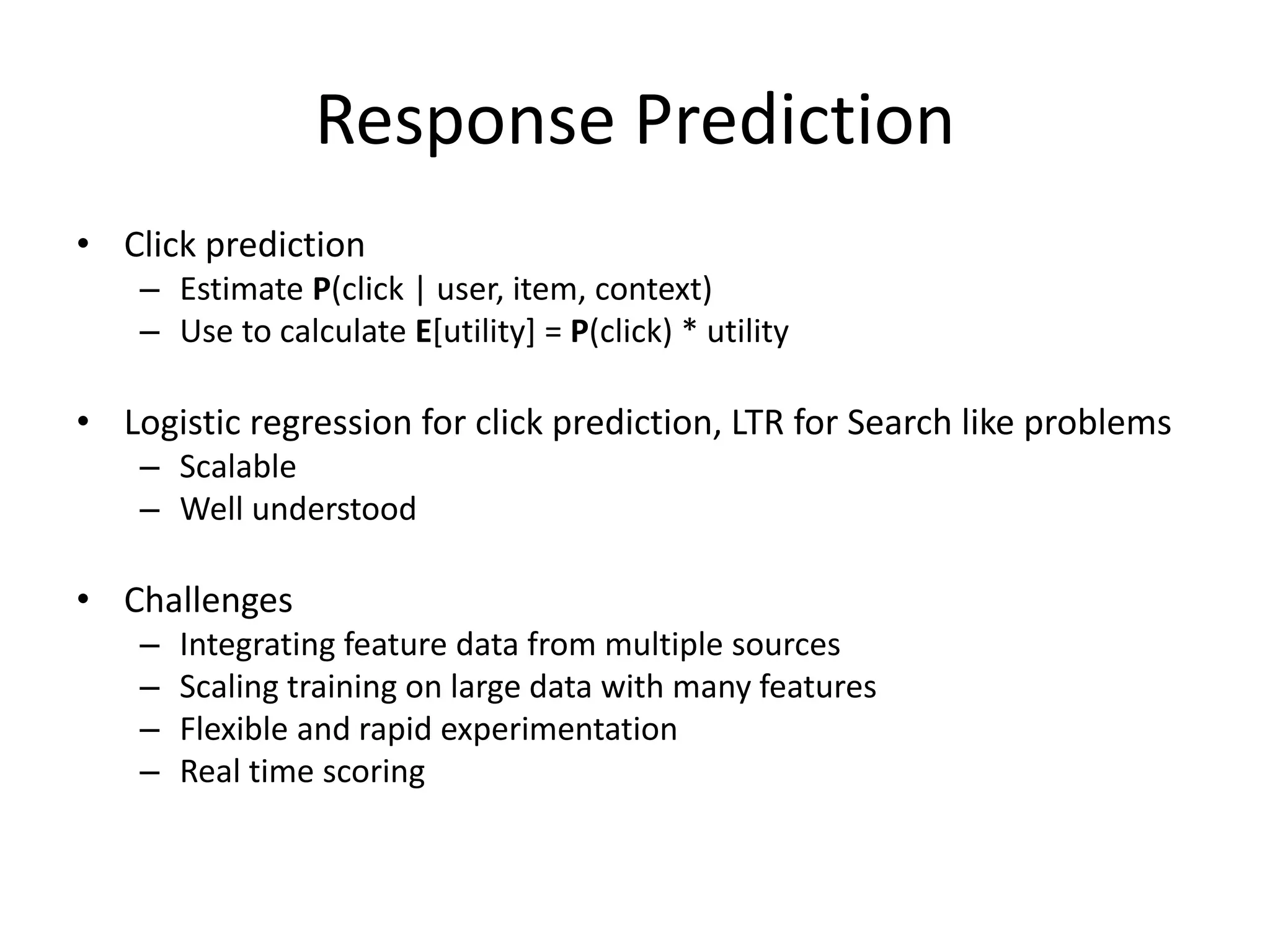

- 22. Response Prediction • Clickprediction – Estimate P(click | user, item, context) – Use to calculate E[utility] = P(click) * utility • Logistic regression for click prediction, LTR for Search like problems – Scalable – Well understood • Challenges – Integrating feature data from multiple sources – Scaling training on large data with many features – Flexible and rapid experimentation – Real time scoring

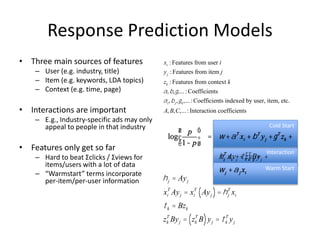

- 23. Response Prediction Models •Three main sources of features – User (e.g. industry, title) – Item (e.g. keywords, LDA topics) – Context (e.g. time, page) • Interactions are important – E.g., Industry-specific ads may only appeal to people in that industry • Features only get so far – Hard to beat Σclicks / Σviews for items/users with a lot of data – “Warmstart” terms incorporate per-item/per-user information xi : Features from user i yj : Features from item j zk : Features from context k a,b,g,... :Coefficients ai,bj,gk,... :Coefficients indexed by user, item, etc. A, B,C,... : Interaction coefficients Interaction Cold Start Warm Start log p 1- p æ è ç ö ø ÷ = w +aT xi + bT yj +gT zk + xi T Ayj + zk T Byj + wj +aj xi log p 1- p æ è ç ö ø ÷ = w +aT xi + bT yj +gT zk + hj T xi +tk T yjj + wj +aj xi hj = Ayj xi T Ayj = xi T Ayj( )=hj T xi tk = Bzk zk T Byj = zk T B( )yj = tk T yj

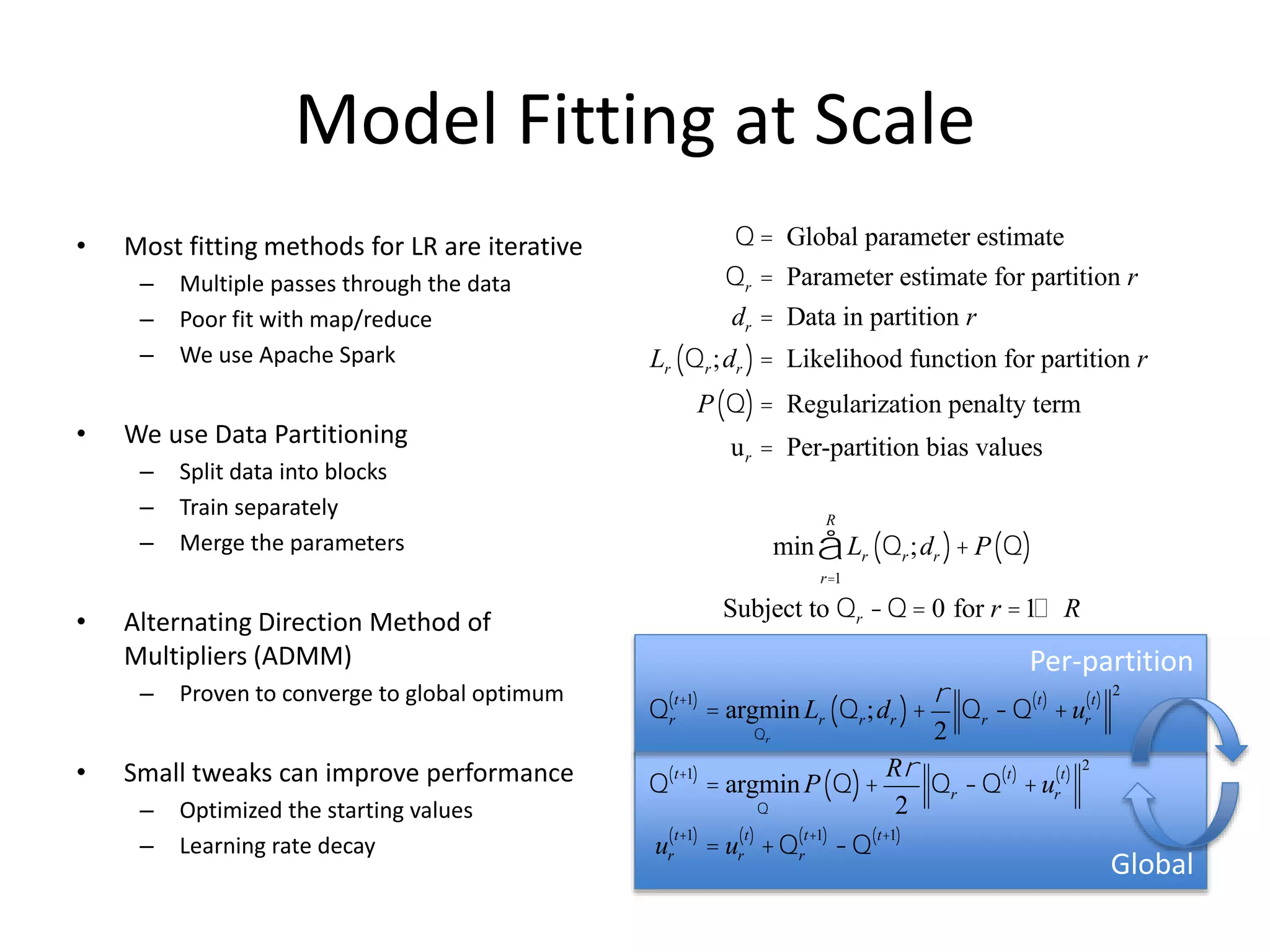

- 24. Global Per-partition Model Fitting atScale • Most fitting methods for LR are iterative – Multiple passes through the data – Poor fit with map/reduce – We use Apache Spark • We use Data Partitioning – Split data into blocks – Train separately – Merge the parameters • Alternating Direction Method of Multipliers (ADMM) – Proven to converge to global optimum • Small tweaks can improve performance – Optimized the starting values – Learning rate decay Q = Global parameter estimate Qr = Parameter estimate for partition r dr = Data in partition r Lr Qr;dr( ) = Likelihood function for partition r P Q( ) = Regularization penalty term ur = Per-partition bias values Qr t+1( ) = argmin Qr Lr Qr;dr( )+ r 2 Qr -Q t( ) +ur t( ) 2 Q t+1( ) = argmin Q P Q( )+ Rr 2 Qr -Q t( ) +ur t( ) 2 ur t+1( ) = ur t( ) +Qr t+1( ) -Q t+1( ) min Lr Qr;dr( )+ P Q( ) r=1 R å Subject to Qr -Q = 0 for r =1… R
- 25. Flexible Configuration • Featureengineering – Every problem is different – Lots of trial and error – Faster, easier feature engineering translates to gains sooner • JSON-based config language – Sources: import features from outside – Transformers: apply functions to feature vectors – Assembler: packages feature terms for fitting/scoring • Rapid development – No code for most changes – Offline and Online in sync User Source Context Source Item Source SubsetSubset Interaction Assembler Request User Item Training or Scoring

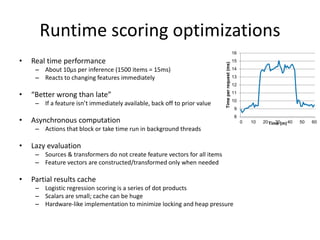

- 26. Runtime scoring optimizations •Real time performance – About 10µs per inference (1500 items = 15ms) – Reacts to changing features immediately • “Better wrong than late” – If a feature isn’t immediately available, back off to prior value • Asynchronous computation – Actions that block or take time run in background threads • Lazy evaluation – Sources & transformers do not create feature vectors for all items – Feature vectors are constructed/transformed only when needed • Partial results cache – Logistic regression scoring is a series of dot products – Scalars are small; cache can be huge – Hardware-like implementation to minimize locking and heap pressure 8 9 10 11 12 13 14 15 16 0 10 20 30 40 50 60 Timeperrequest(ms) Time (m)

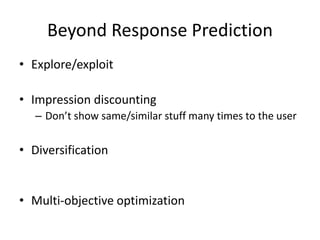

- 27. Beyond Response Prediction •Explore/exploit • Impression discounting – Don’t show same/similar stuff many times to the user • Diversification • Multi-objective optimization

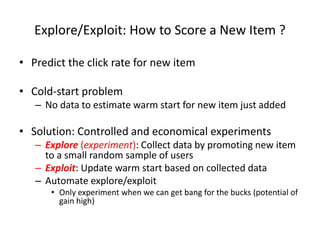

- 28. Explore/Exploit: How toScore a New Item ? • Predict the click rate for new item • Cold-start problem – No data to estimate warm start for new item just added • Solution: Controlled and economical experiments – Explore (experiment): Collect data by promoting new item to a small random sample of users – Exploit: Update warm start based on collected data – Automate explore/exploit • Only experiment when we can get bang for the bucks (potential of gain high)

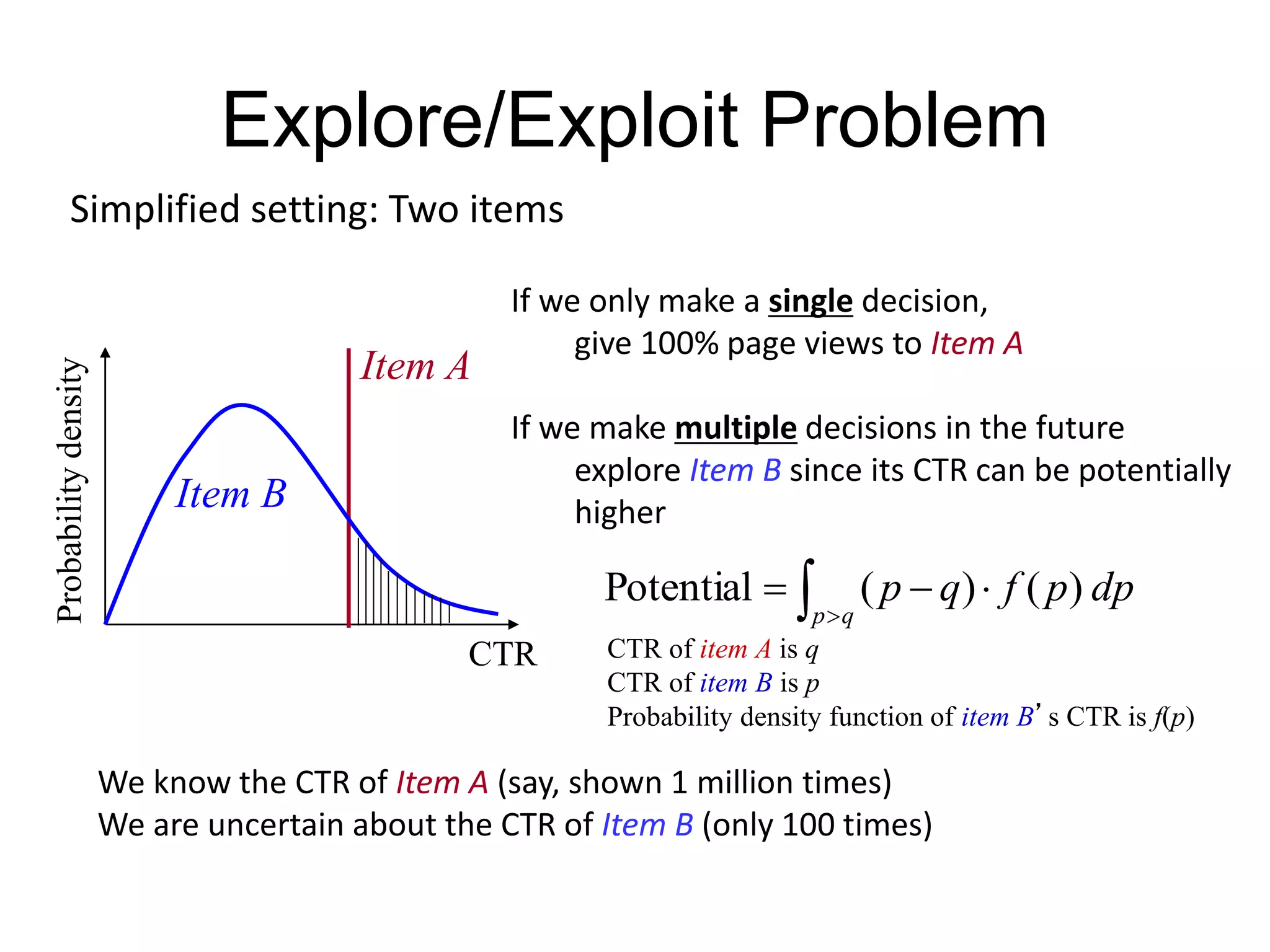

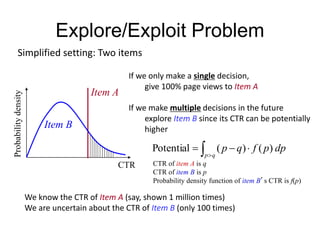

- 29. Explore/Exploit Problem Simplified setting:Two items CTR Probabilitydensity Item A Item B We know the CTR of Item A (say, shown 1 million times) We are uncertain about the CTR of Item B (only 100 times) If we only make a single decision, give 100% page views to Item A If we make multiple decisions in the future explore Item B since its CTR can be potentially higher qp dppfqp )()(Potential CTR of item A is q CTR of item B is p Probability density function of item B’s CTR is f(p)

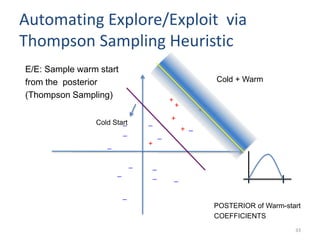

- 30. Automating Explore/Exploit via ThompsonSampling Heuristic 33 + + + + + + + _ _ _ _ _ _ _ _ _ _ _ _ _ Cold Start Cold + Warm POSTERIOR of Warm-start COEFFICIENTS E/E: Sample warm start from the posterior (Thompson Sampling)

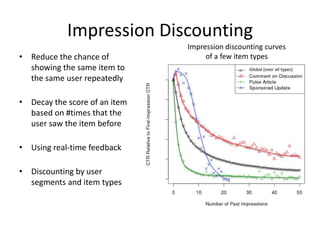

- 31. Impression Discounting • Reducethe chance of showing the same item to the same user repeatedly • Decay the score of an item based on #times that the user saw the item before • Using real-time feedback • Discounting by user segments and item types Global (over all types) Impression discounting curves of a few item types
- 32. Diversification • Users’ experiencedeteriorates when exposed to the same kind of items multiple times on the same page Discounting actor repetitions Group Discussion CTR Drop 2 adjacent discussions 21% 3 adjacent discussions 48%

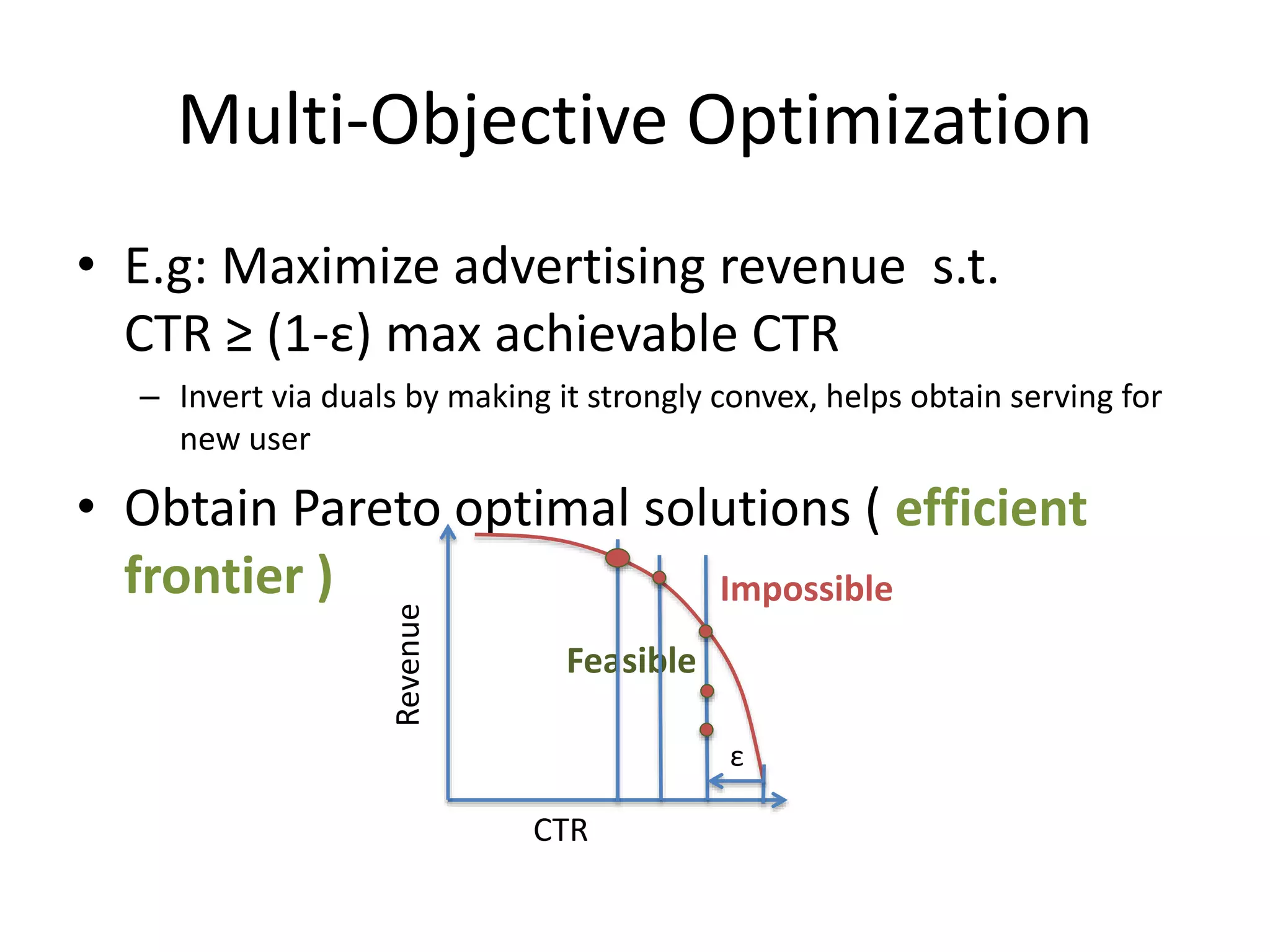

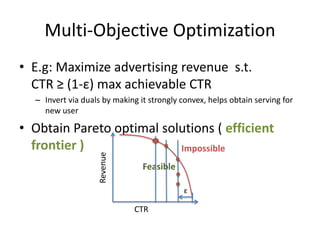

- 33. Multi-Objective Optimization • E.g:Maximize advertising revenue s.t. CTR ≥ (1-ε) max achievable CTR – Invert via duals by making it strongly convex, helps obtain serving for new user • Obtain Pareto optimal solutions ( efficient frontier ) CTR Revenue ε Feasible Impossible

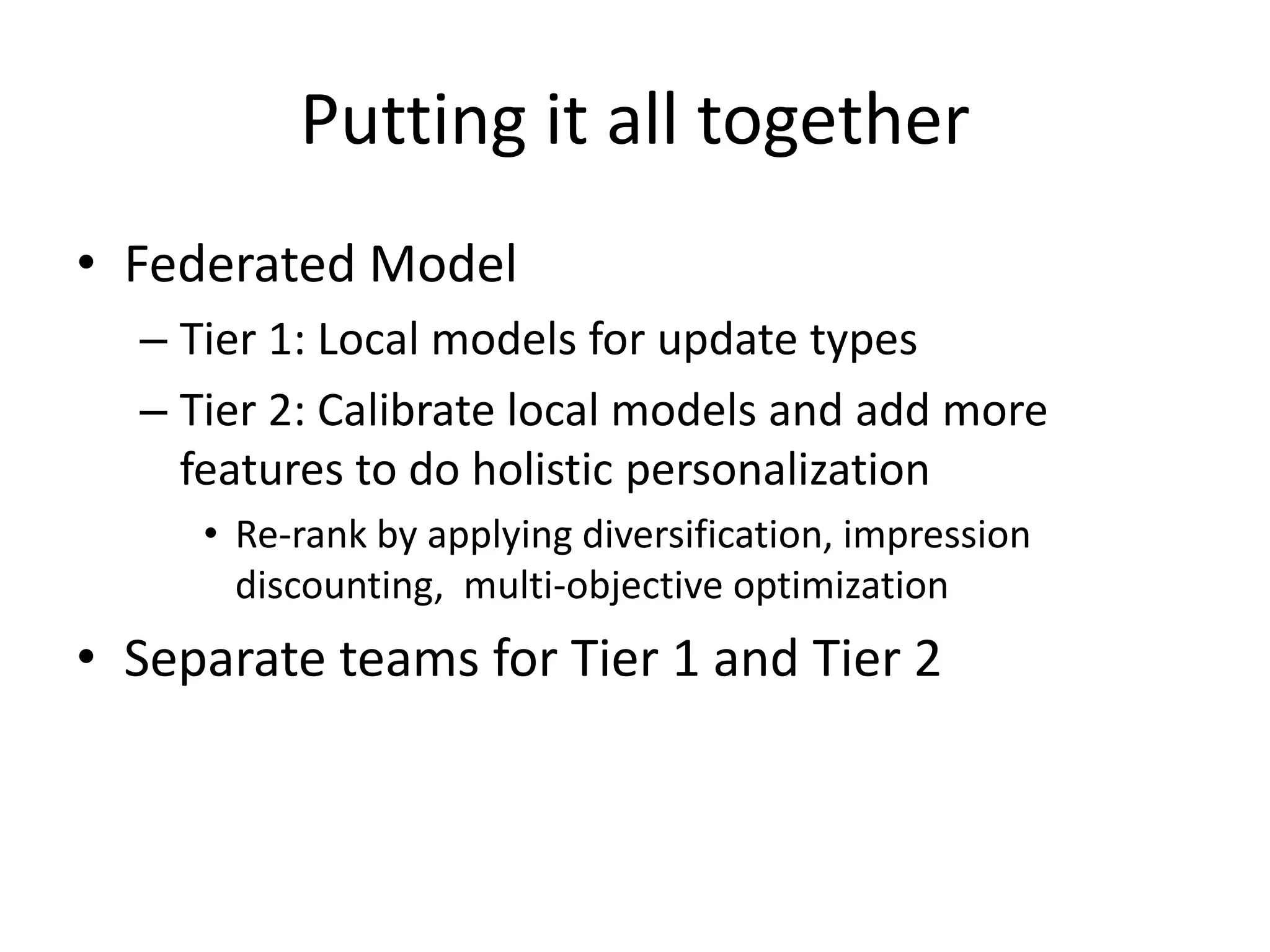

- 34. Putting it alltogether • Federated Model – Tier 1: Local models for update types – Tier 2: Calibrate local models and add more features to do holistic personalization • Re-rank by applying diversification, impression discounting, multi-objective optimization • Separate teams for Tier 1 and Tier 2

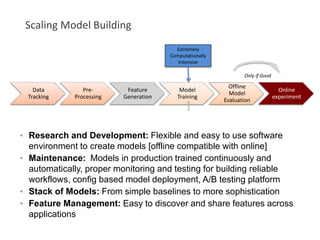

- 35. Scaling Model Building Data Tracking Pre- Processing Feature Generation Model Training Offline Model Evaluation Online experiment Onlyif Good Extremely Computationally Intensive ▪ Research and Development: Flexible and easy to use software environment to create models [offline compatible with online] ▪ Maintenance: Models in production trained continuously and automatically, proper monitoring and testing for building reliable workflows, config based model deployment, A/B testing platform ▪ Stack of Models: From simple baselines to more sophistication ▪ Feature Management: Easy to discover and share features across applications
- 36. Going beyond ML,Statistics Dogfooding our own products – Look at employee experience – Debug model scores if something does not look right Focus research group studies, user surveys Product strategy & Intuition – E.g., remove/add certain content types – Adding constraints like freshness bounds, etc Presentation – Testing different UI, presentation templates, fonts etc

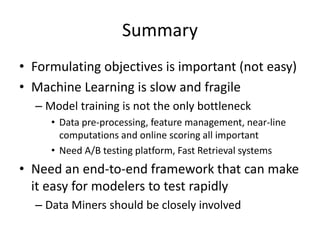

- 37. Summary • Formulating objectivesis important (not easy) • Machine Learning is slow and fragile – Model training is not the only bottleneck • Data pre-processing, feature management, near-line computations and online scoring all important • Need A/B testing platform, Fast Retrieval systems • Need an end-to-end framework that can make it easy for modelers to test rapidly – Data Miners should be closely involved
- 38.
- 39.

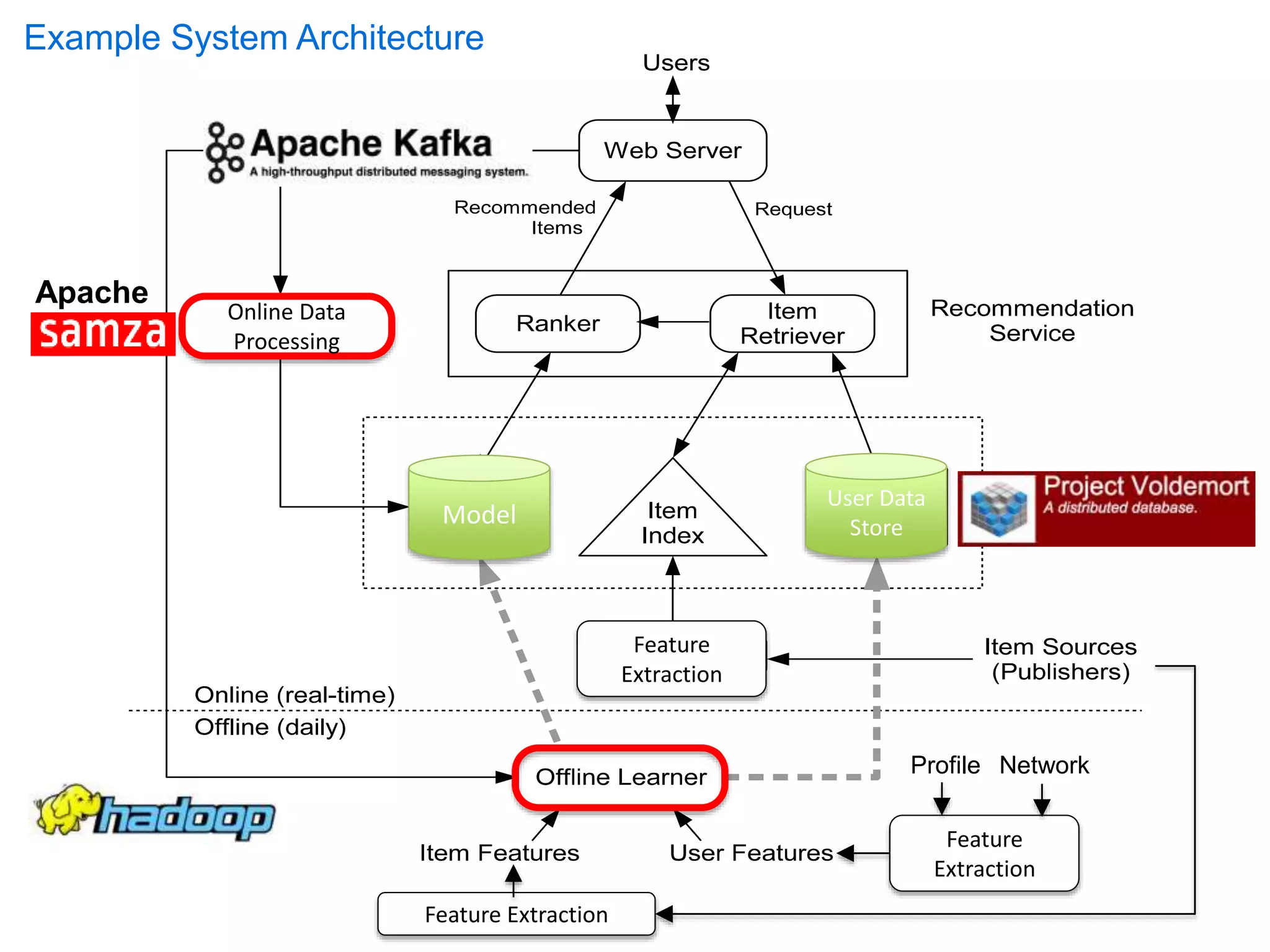

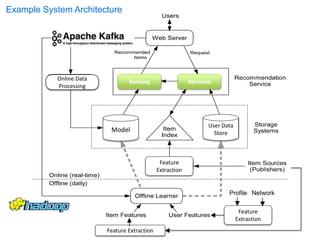

- 40. Example System Architecture Feature Extraction Feature Extraction ProfileNetwork Feature Extraction Model User Data Store Online Data Processing Apache
- 41. Example System Architecture Feature Extraction Feature Extraction ProfileNetwork Feature Extraction Model User Data Store Online Data Processing Ranking Retrieval
