This document provides an orientation for visitors to KDC #16 drilling rig. It outlines the HSE policies to comply with, including the right to stop work if unsafe conditions exist. Emergency response procedures and muster points are described. Specific hazards like toxic gases, confined spaces, and wildlife are addressed. The layout of the rig is shown, along with waste disposal procedures and the process for leaving the site. Visitors are instructed to wear PPE and follow all posted signs and procedures.

1. 1
KDC#16 Site Visitor HSE Orientation
Development Drilling Group (I) , Team : V

2. 2
KDC # 16

3. Comply Wtih All KDC HSE Rules 3
OUR Policy Gives the right to every
individual to STOP WORK.
KDC HSE POLICY
We are committed to conduct our activities:
• In a manner that does not expose employees,
business partners, subcontractors and
communities to injury or harm, ill-health
• In an environmentally responsible manner with
due regards to the natural areas
• In accordance to applicable local laws &
regulations, industry codes, and client’s
requirements.

4. Welcome to RIG 16
Rig Personnel:
POSITION NAMES CONTACT NUMBER
Rig Superintendent Hamad Al Rish 99244068
Company Man • Bader
• Abdul Rahuman
96923174
SENIOR TOOL PUSHER • Hamed Moneer
• Gamal El Said
97895053
NIGHT TOOL PUSHERS • Balchandra Pandey
• Ali Mohammed
97895053
Medics • Jaidevan V.
• Basil John
• Jibu Varghese
97895053
HSE Field Advisors • Julius Tharakan
• Rajesh Kumar Rath
99319867
3

5. LTI Fee Days
5
As of 5th Jan 2023 we have
completed 1754 Days of
LTI Free Days

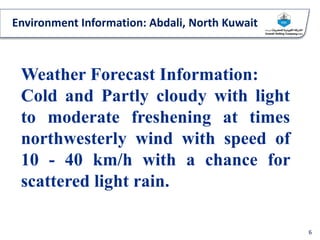

6. Environment Information: Abdali, North Kuwait
6
Weather Forecast Information:
Cold and Partly cloudy with light
to moderate freshening at times
northwesterly wind with speed of
10 - 40 km/h with a chance for
scattered light rain.

7. 7
Cairn India – 2011
SMOKING
Smoking permitted only in the designated Smoking area.
Camera
Photography is prohibited. Permission to be obtained
from Rig Manager
MOBILE
Mobiles are prohibited in Hazardous Zones
Lighters /Match Box
Deposit at Office / mess halls.
Speed Limit
10 Km / Hr.
Site Specific Rules

8. 8
Field Location - SABRIYA
Field
Location -
RAUDHATAI
N
WELL # RA-801 spudded on: 27-09-19

9. 9
Rig Organization
KOC Company Man
Badar
Abdul Rahuman
KDC Rig Manager
Hamed Moneer /Gamal El
Said
Medics
1.Jai Devan
2. Jibu Varghese
3. Basil John
HSE Advisor
1.Rajesh Kumar
Rath
2. Julius Tharakan
Night Pusher
1.Balchandra
Pandey
2. Ali Mohammed
Drillers
Muhammed Kutty
Robert A.
Domingo A.
Tamer Bedir
Senior Electrician
Arun/ Pradeep
Senior Mechanic
Istiaq/Asif
DS
Hamad Al Rish
HSE Coordinator
Miguel H.

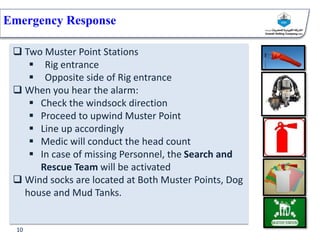

10. Emergency Response
 Two Muster Point Stations
 Rig entrance
 Opposite side of Rig entrance
 When you hear the alarm:
 Check the windsock direction
 Proceed to upwind Muster Point
 Line up accordingly
 Medic will conduct the head count
 In case of missing Personnel, the Search and
Rescue Team will be activated
 Wind socks are located at Both Muster Points, Dog
house and Mud Tanks.
10

11. Fire Alarm
Siren + Red Flashing Light
H2S Alarm
Warning tone+ Amber Light
Kick – Blow Out Alarm
Continuous sound blast from the rig air horn
All-Clear Signal
Different Types of Alarms
11
Emergency Response

12. GREEN-SAFE TO ENTER
YELLOW-WITH CAUTION
RED-DO NOT ENTER
RIG ENTRY H2S SIGN

13. Rig Layout
Please update with rig specific route map 13
Emergency Rig Layout of KDC-16

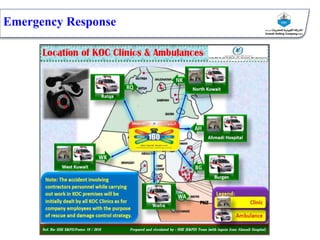

14. 14
Emergency Response

15. 15
 Be aware of snakes and
scorpions, especially in dark.
 Check your room thoroughly
before going to bed.
 Check boots and clothes in the
morning before putting on.
 Do not touch any unidentified
things with bare hands.
COMMON HAZARD – IN & AROUND

16. 16
Specific Hazards and Risks
What are the more
common risks on a Drilling
site ?

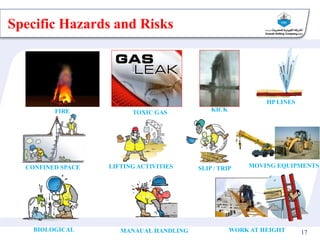

17. 17
TOXIC GAS KICK
HP LINES
CONFINED SPACE LIFTING ACTIVITIES SLIP / TRIP
BIOLOGICAL MANAUAL HANDLING WORK AT HEIGHT
MOVING EQUIPMENTS
Specific Hazards and Risks
FIRE

18. General HSE Rules
 Use of PPE is mandatory in working areas.
 Facial hair that might inhibit the seal of a respirator is not
permitted.
 The following items are prohibited on location
 Waste Segregation: Use appropriate trash bins
 Report any spillage or leakage
 Report to the Medic if under specific medication or allergy

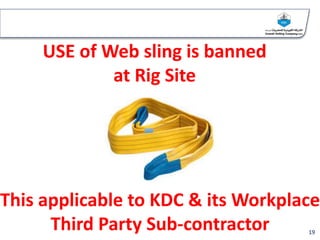

19. USE of Web sling is banned
at Rig Site
19
This applicable to KDC & its Workplace
Third Party Sub-contractor

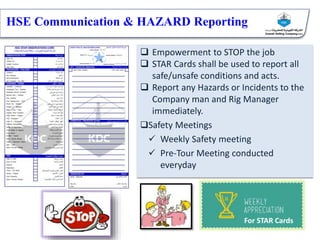

20. HSE Communication & HAZARD Reporting
 Empowerment to STOP the job
 STAR Cards shall be used to report all
safe/unsafe conditions and acts.
 Report any Hazards or Incidents to the
Company man and Rig Manager
immediately.
Safety Meetings
 Weekly Safety meeting
 Pre-Tour Meeting conducted
everyday
For STAR Cards

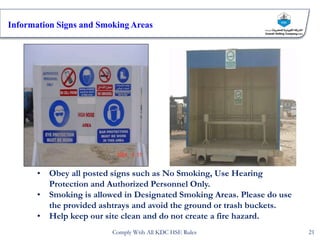

21. • Obey all posted signs such as No Smoking, Use Hearing
Protection and Authorized Personnel Only.
• Smoking is allowed in Designated Smoking Areas. Please do use
the provided ashtrays and avoid the ground or trash buckets.
• Help keep our site clean and do not create a fire hazard.
Information Signs and Smoking Areas
21
Comply Wtih All KDC HSE Rules

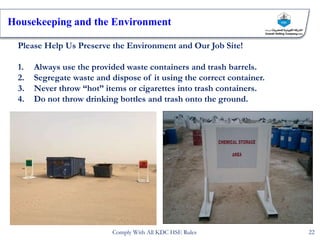

22. Please Help Us Preserve the Environment and Our Job Site!
1. Always use the provided waste containers and trash barrels.
2. Segregate waste and dispose of it using the correct container.
3. Never throw “hot” items or cigarettes into trash containers.
4. Do not throw drinking bottles and trash onto the ground.
Housekeeping and the Environment
22
Comply With All KDC HSE Rules

23. CONCLUSION
 Log in onto visitor’s log book.
 Make sure to sign out before leaving the location.
 Wear your full PPE at all the times in working areas.
 Do not put yourself in the “Line of Fire”.
Respect the sign posted.
 Report all Hazardous situations and unsafe acts to supervisors.
 Secure your laptop properly.
 STOP THE JOB, if you feel it is unsafe to proceed.

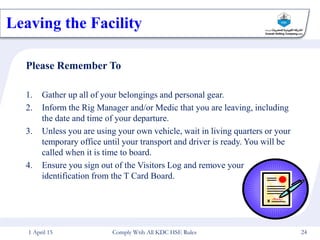

24. Please Remember To
1. Gather up all of your belongings and personal gear.
2. Inform the Rig Manager and/or Medic that you are leaving, including
the date and time of your departure.
3. Unless you are using your own vehicle, wait in living quarters or your
temporary office until your transport and driver is ready. You will be
called when it is time to board.
4. Ensure you sign out of the Visitors Log and remove your
identification from the T Card Board.
Leaving the Facility
1 April 15 24
Comply Wtih All KDC HSE Rules
