Uploaded byHiromitsu Komatsu
Kafka spark cassandra webinar feb 16 2016
The document outlines a presentation by Ben Bromhead, co-founder and CTO of Instaclustr, on building data pipelines using Cassandra, Spark, and Kafka. It introduces the features and benefits of Cassandra, a distributed database that offers high availability and linear scalability, as well as Spark, a distributed computing engine that provides faster data processing capabilities than Hadoop. The integration of Kafka is emphasized for handling high-volume messaging streams, facilitating real-time data processing with the combined trio of Cassandra, Spark, and Kafka.
More Related Content
Similar to Kafka spark cassandra webinar feb 16 2016
Kafka spark cassandra webinar feb 16 2016
- 1. Kafka, Spark andCassandra instaclustr.com

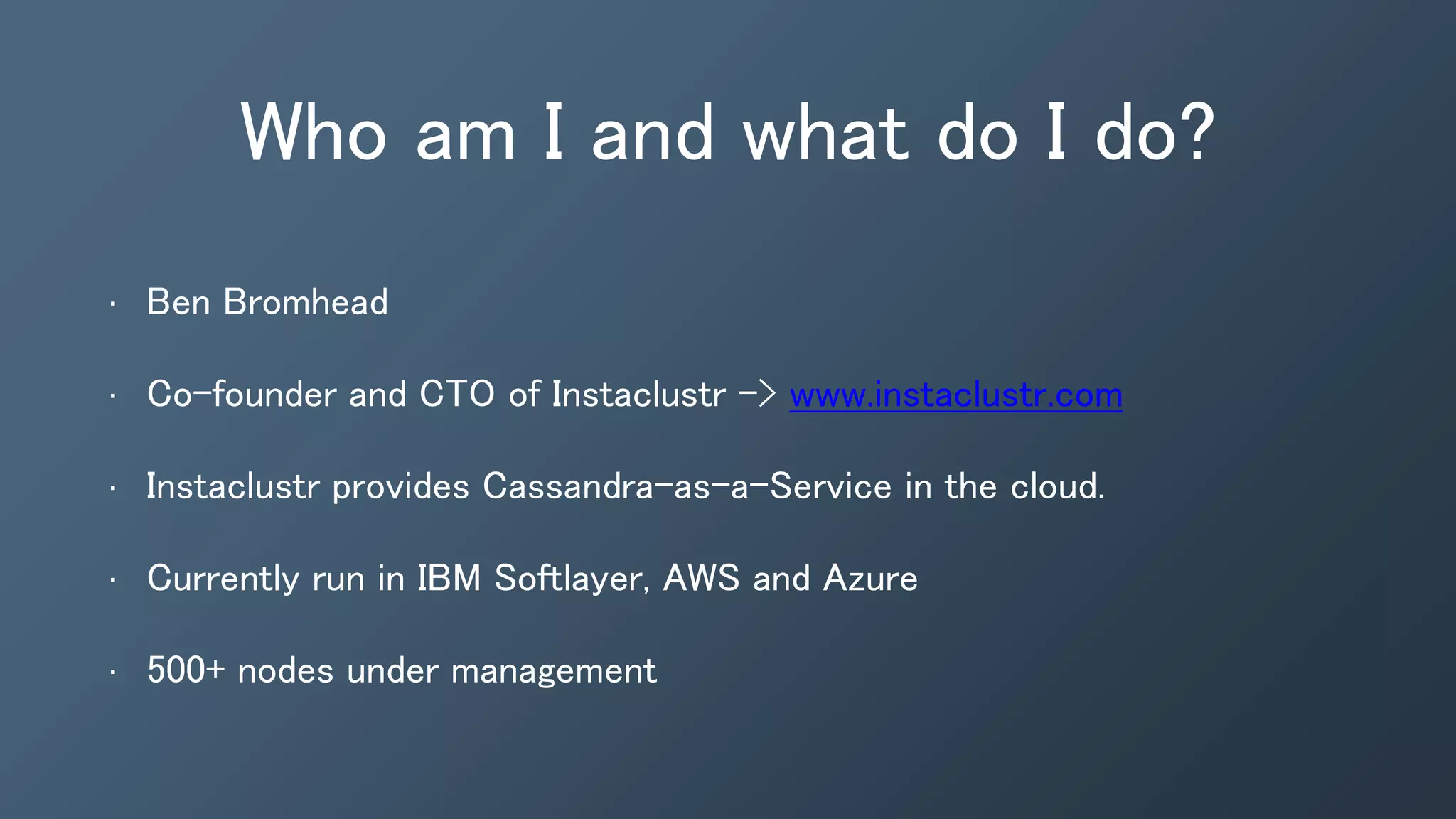

- 2. Who am Iand what do I do? • Ben Bromhead • Co-founder and CTO of Instaclustr -> www.instaclustr.com • Instaclustr provides Cassandra-as-a-Service in the cloud. • Currently run in IBM Softlayer, AWS and Azure • 500+ nodes under management

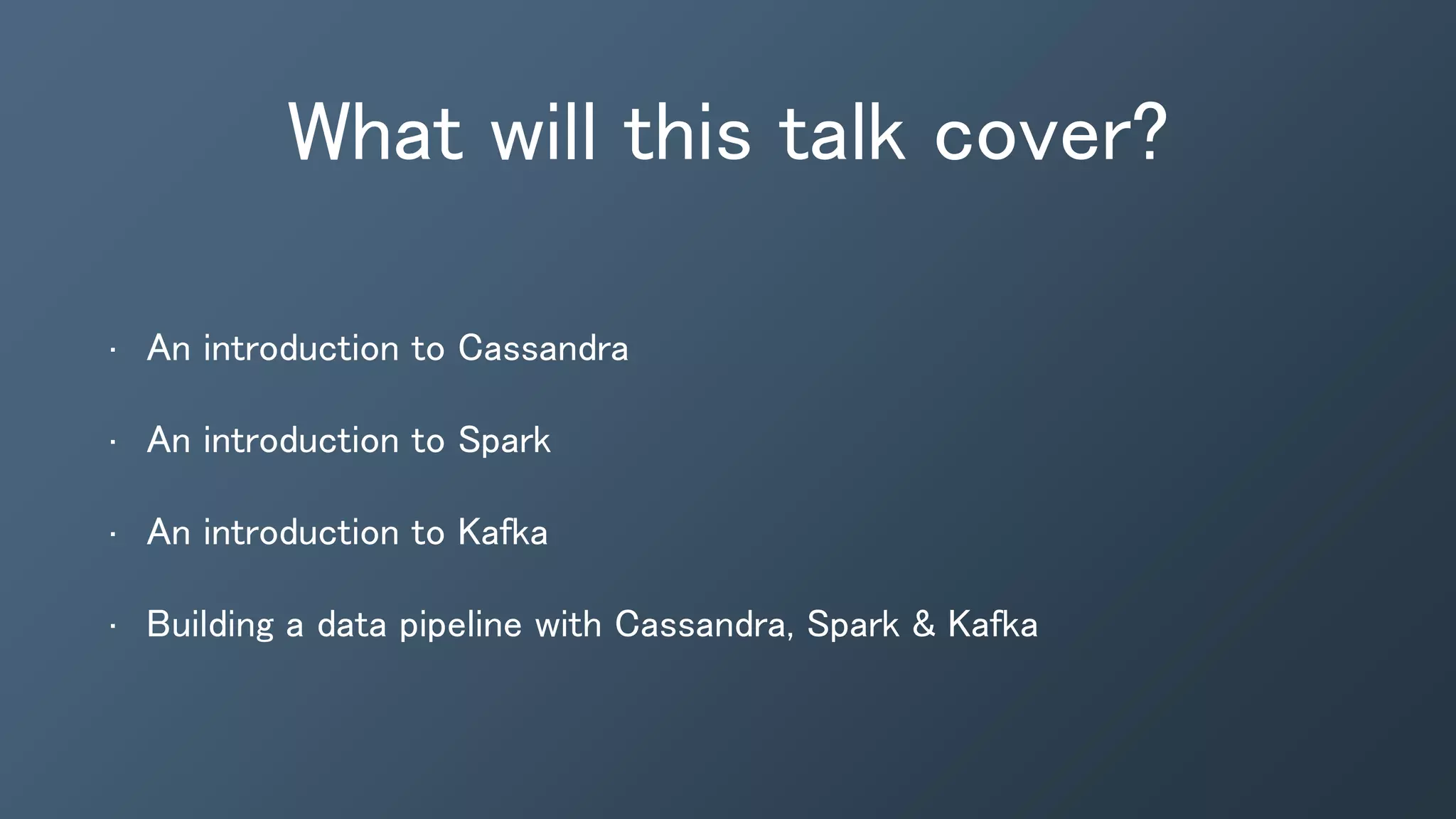

- 3. What will thistalk cover? • An introduction to Cassandra • An introduction to Spark • An introduction to Kafka • Building a data pipeline with Cassandra, Spark & Kafka
- 4. What happens whenyou have more data than could fit on a single server?
- 5. Throw money awayat the problem

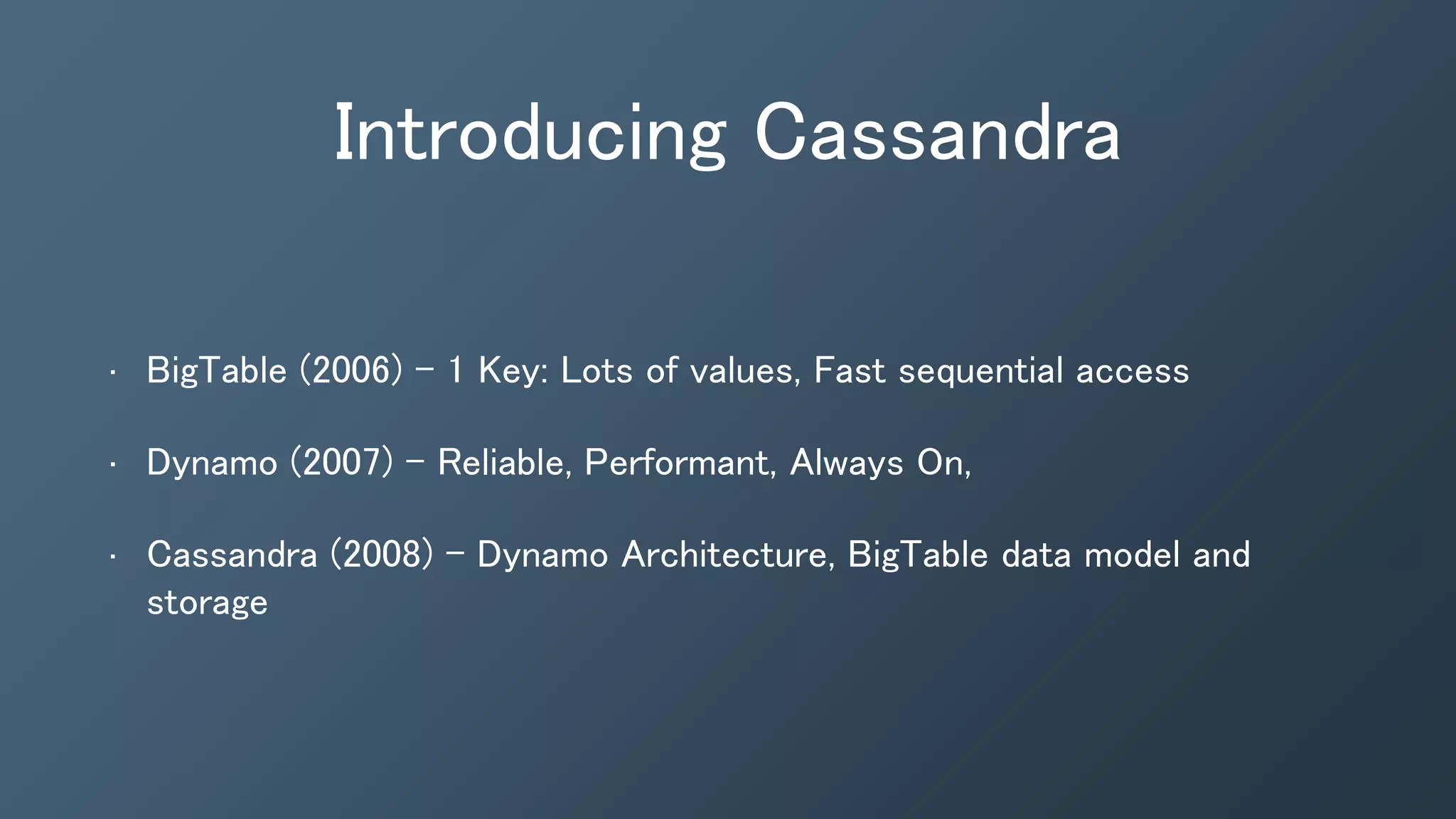

- 6. Introducing Cassandra • BigTable(2006) - 1 Key: Lots of values, Fast sequential access • Dynamo (2007) - Reliable, Performant, Always On, • Cassandra (2008) - Dynamo Architecture, BigTable data model and storage
- 7. One database, manyservers • All servers (nodes) participate in the cluster • Shared nothing • Need more capacity add more servers • Multiple servers == built in redundancy 1 3 24
- 8. How does itwork ? 0 4 28

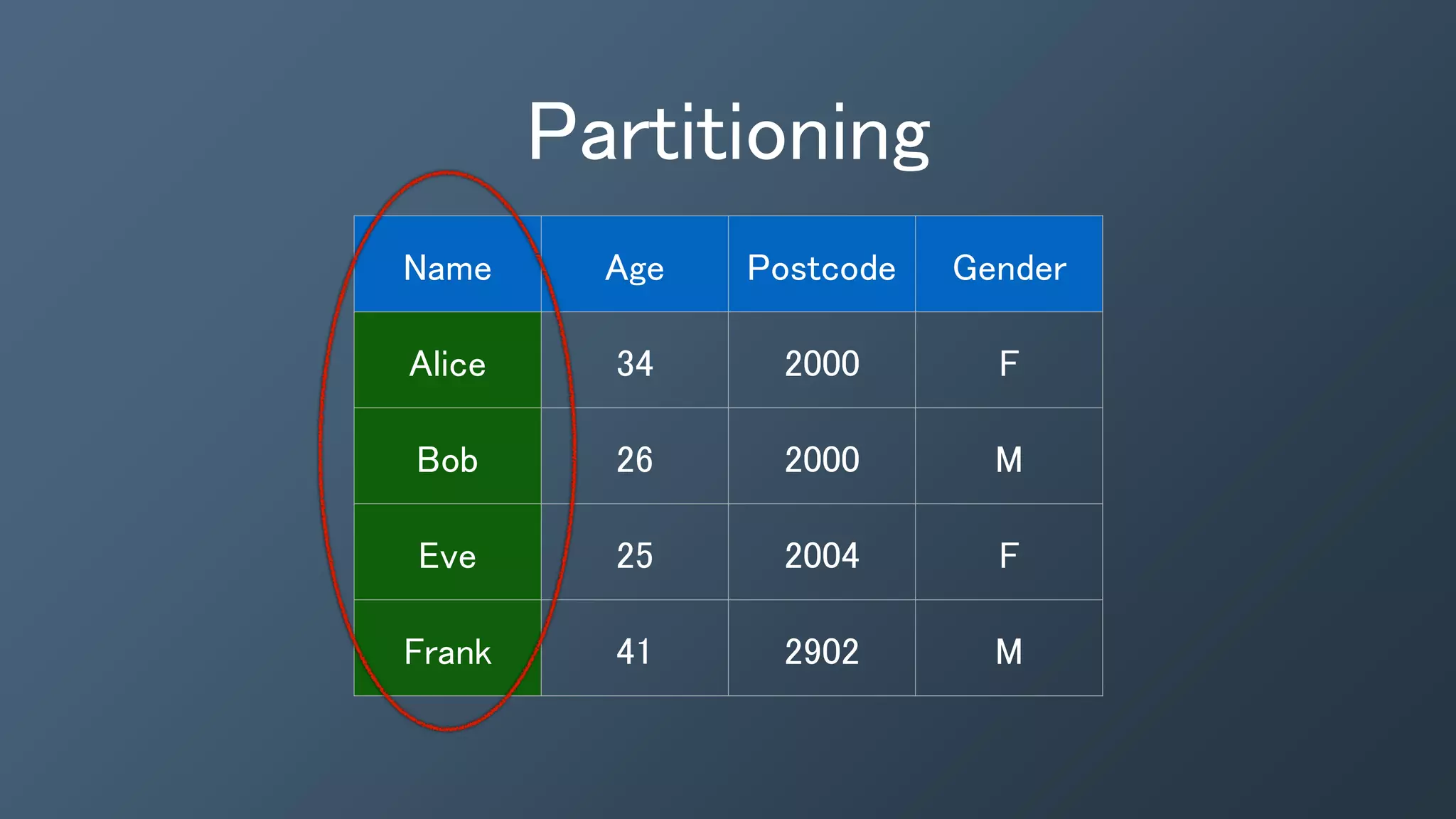

- 9. Partitioning Name Age PostcodeGender Alice 34 2000 F Bob 26 2000 M Eve 25 2004 F Frank 41 2902 M
- 10. How does itwork ? 0 4 28 client consistentHash(“Alice”)

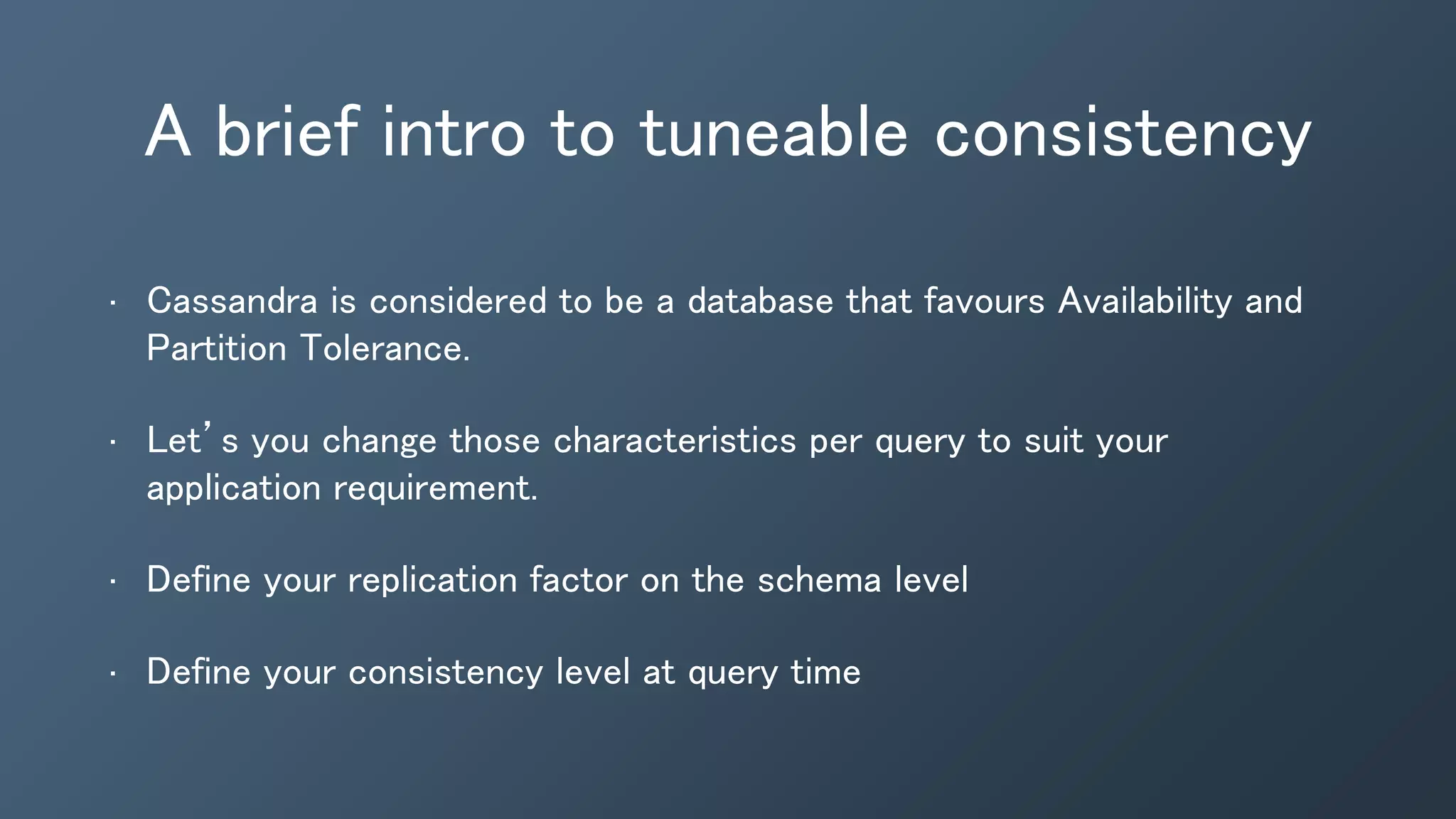

- 11. A brief introto tuneable consistency • Cassandra is considered to be a database that favours Availability and Partition Tolerance. • Let’s you change those characteristics per query to suit your application requirement. • Define your replication factor on the schema level • Define your consistency level at query time

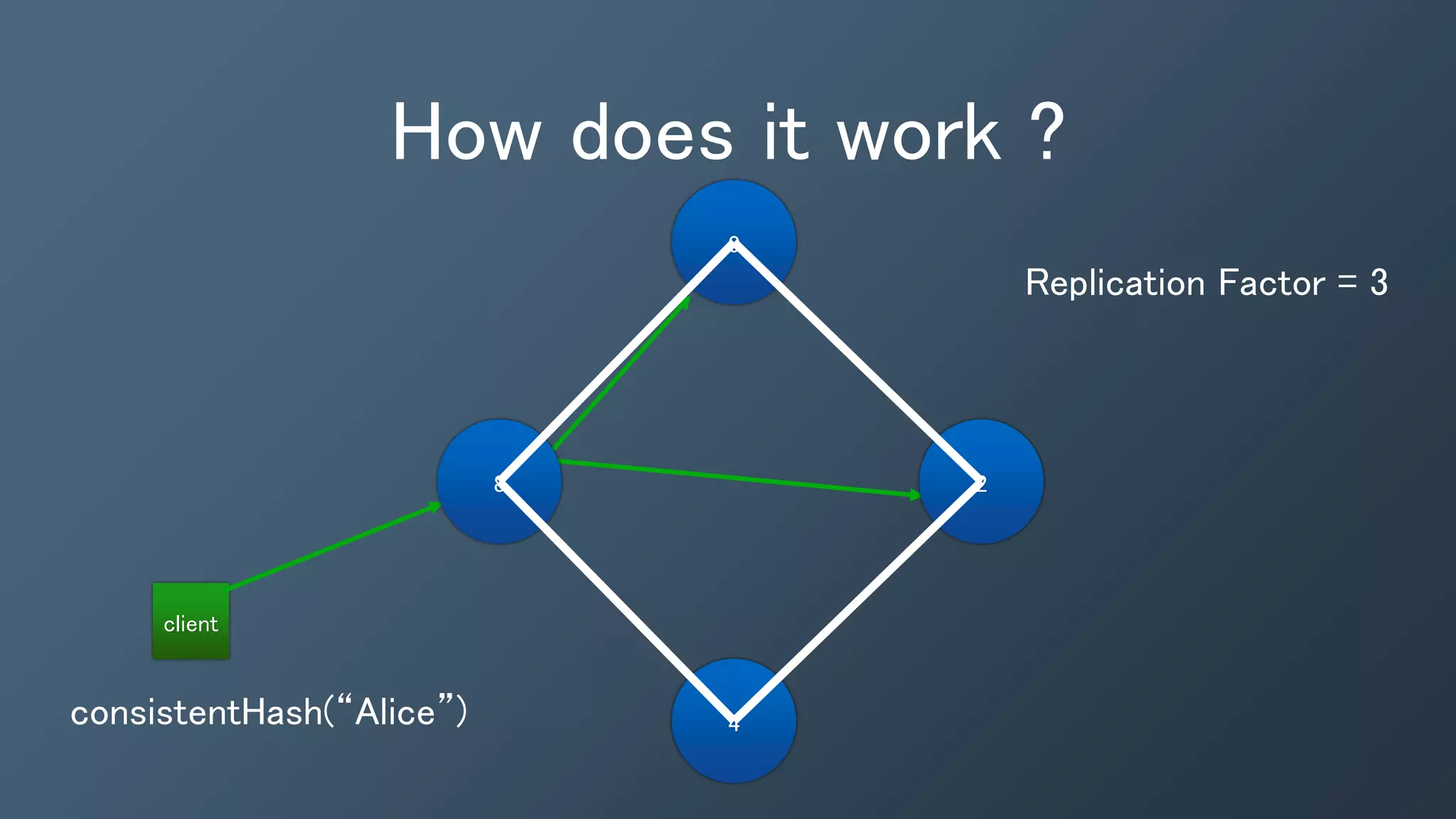

- 12. How does itwork ? client consistentHash(“Alice”) 0 4 28 Replication Factor = 3

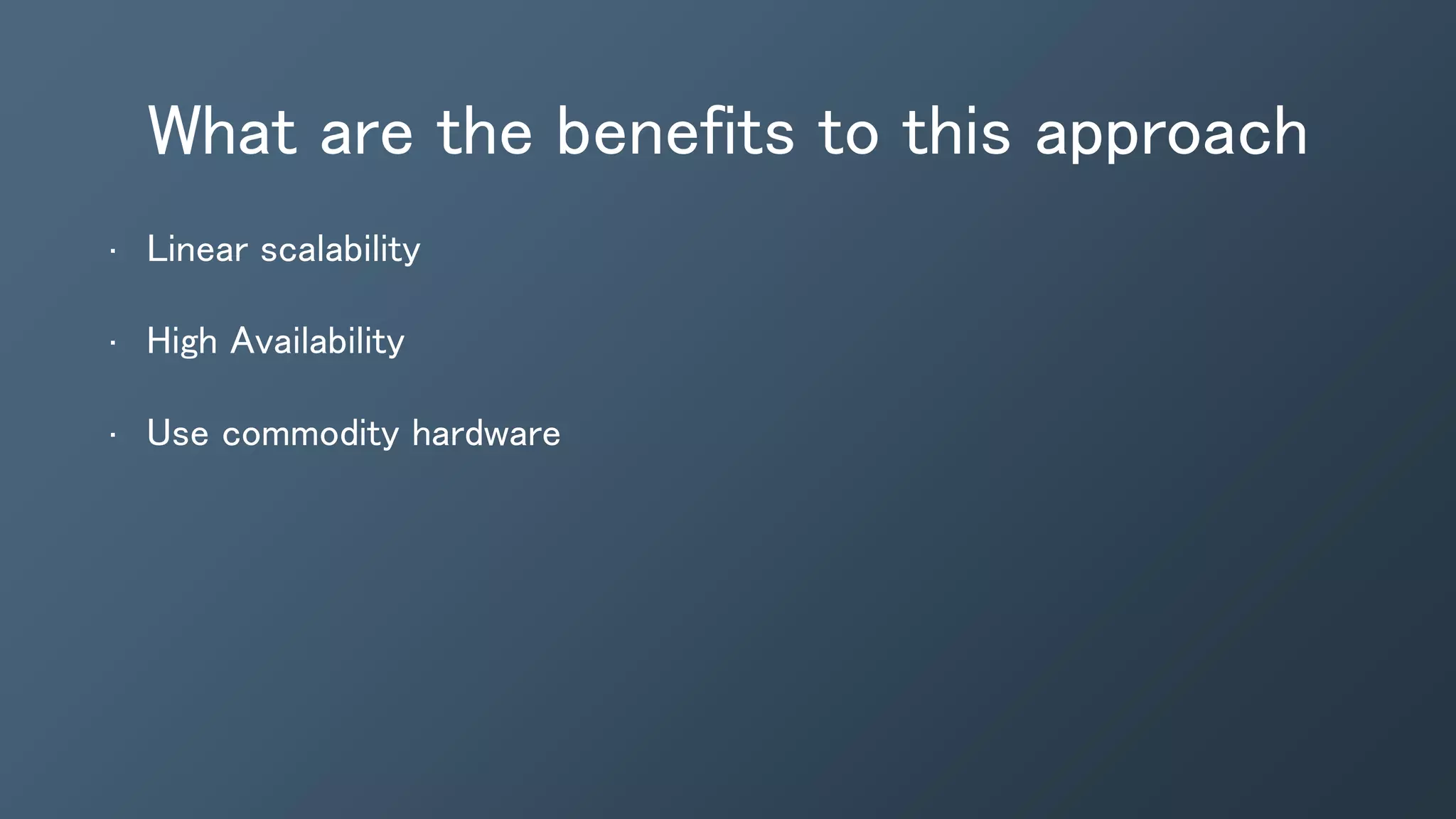

- 13. What are thebenefits to this approach • Linear scalability • High Availability • Use commodity hardware

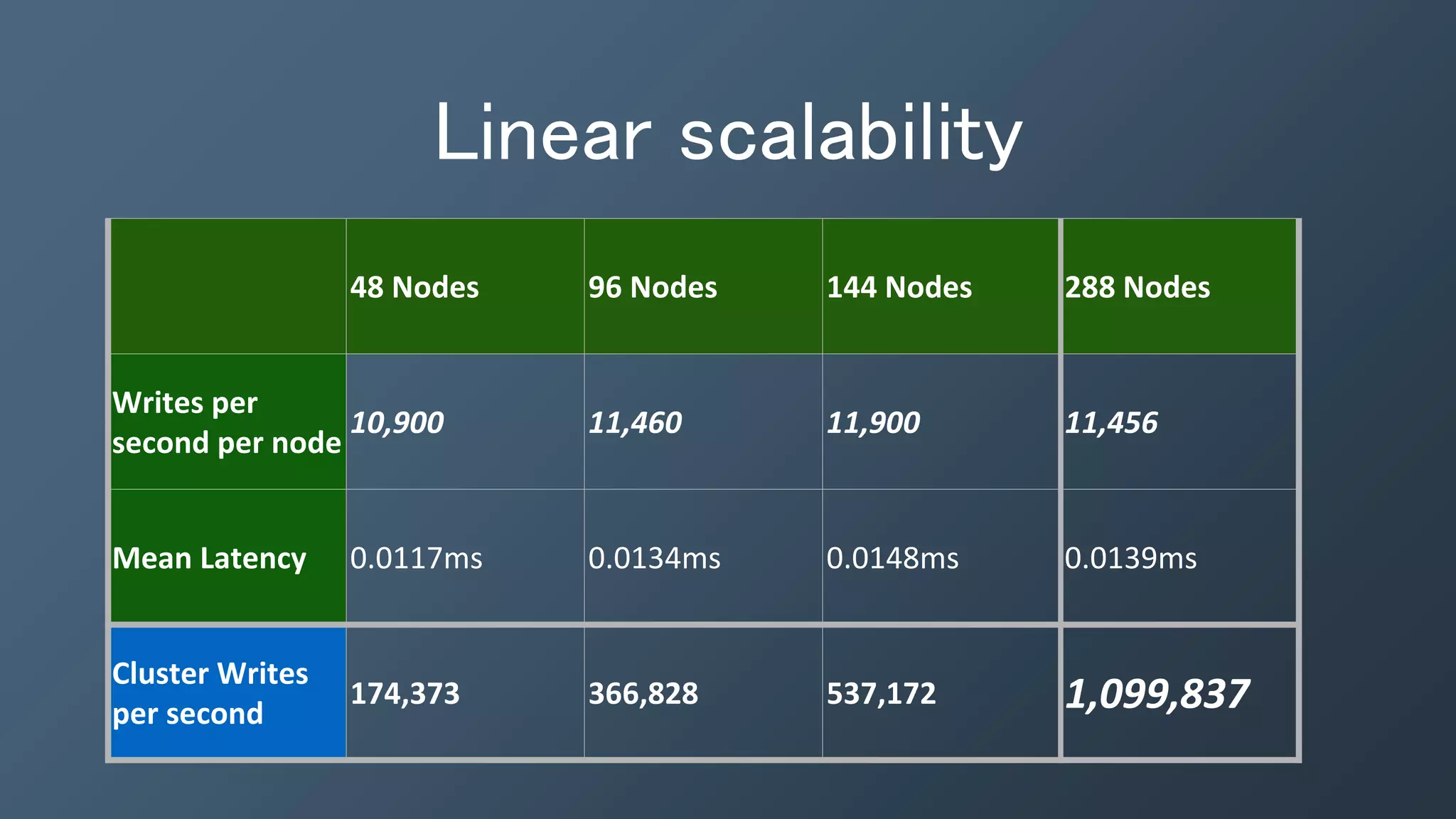

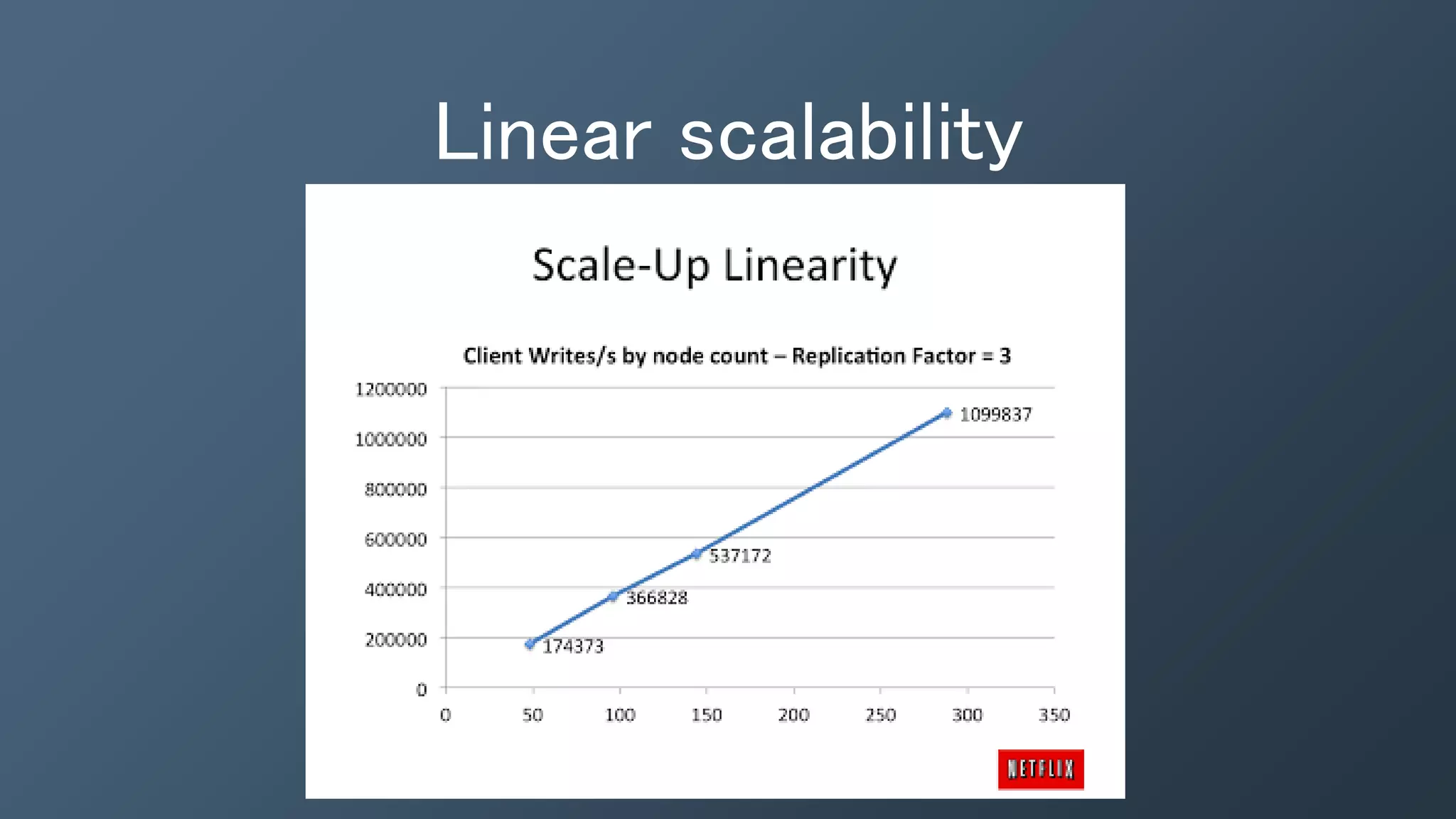

- 14. Linear scalability 48 Nodes96 Nodes 144 Nodes 288 Nodes Writes per second per node 10,900 11,460 11,900 11,456 Mean Latency 0.0117ms 0.0134ms 0.0148ms 0.0139ms Cluster Writes per second 174,373 366,828 537,172 1,099,837
- 15.

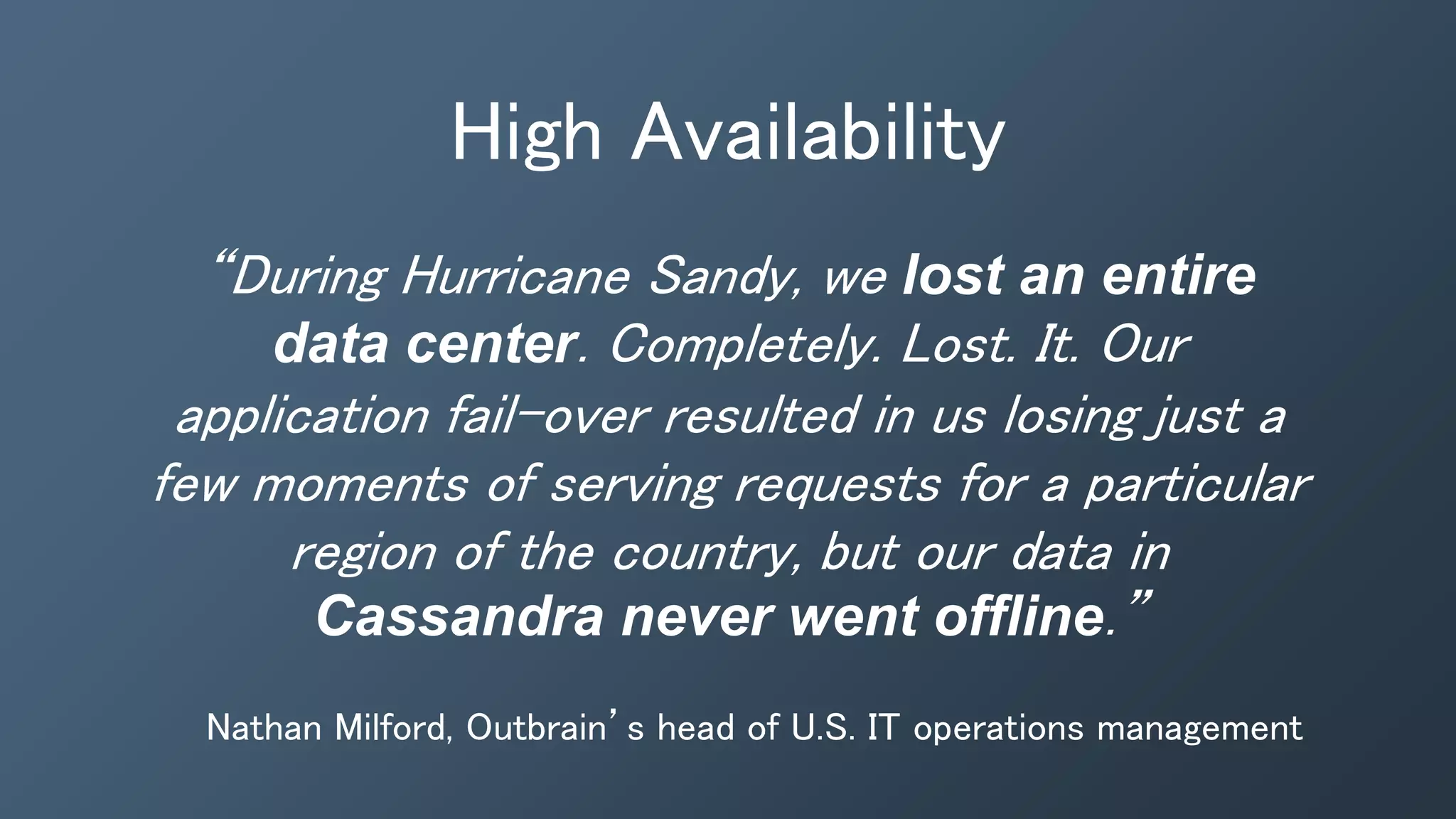

- 16. High Availability “During HurricaneSandy, we lost an entire data center. Completely. Lost. It. Our application fail-over resulted in us losing just a few moments of serving requests for a particular region of the country, but our data in Cassandra never went offline.” Nathan Milford, Outbrain’s head of U.S. IT operations management
- 17.

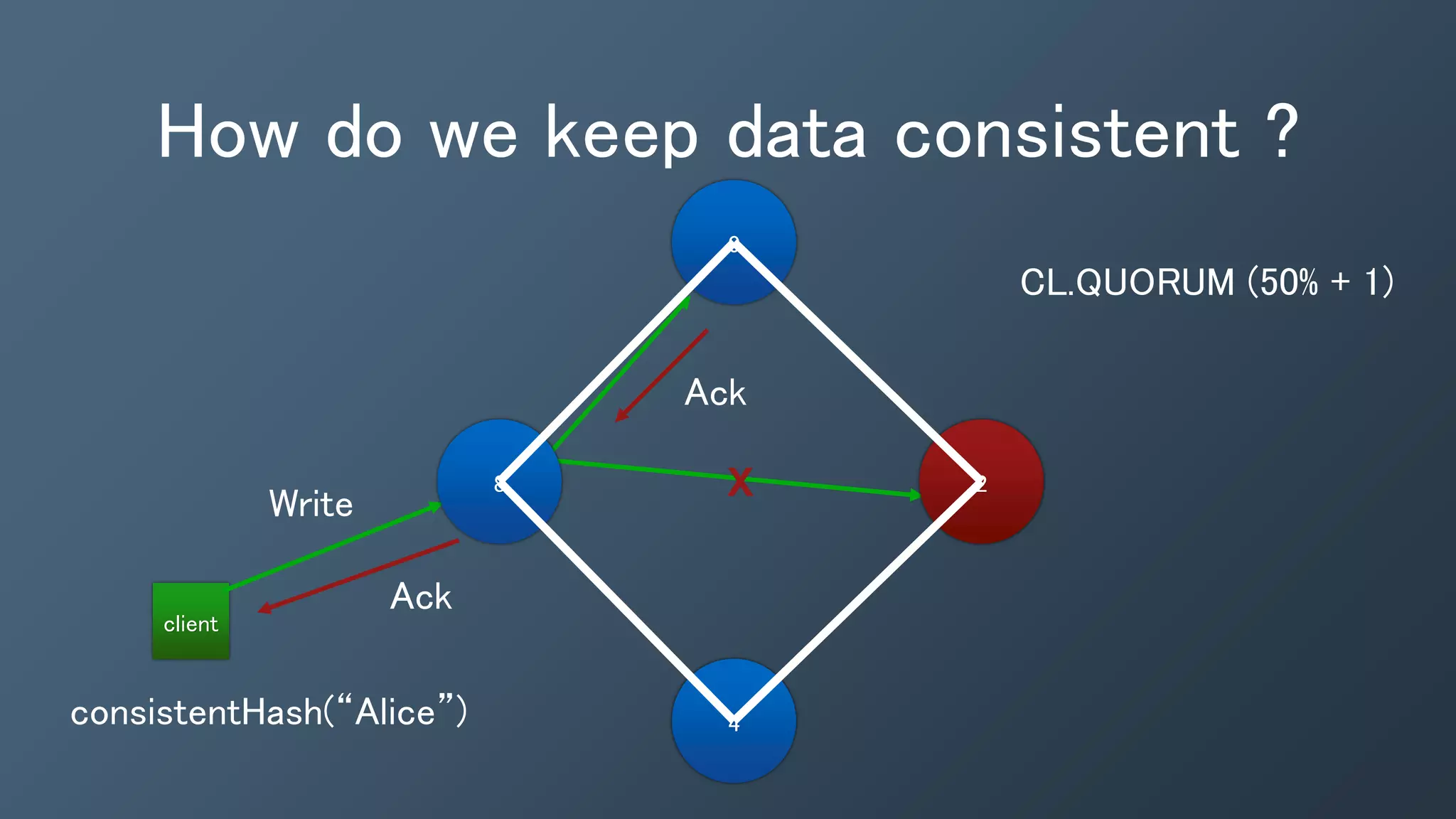

- 18. How do wekeep data consistent ? client consistentHash(“Alice”) 0 4 28 CL.QUORUM (50% + 1) Write Ack Ack X
- 19.

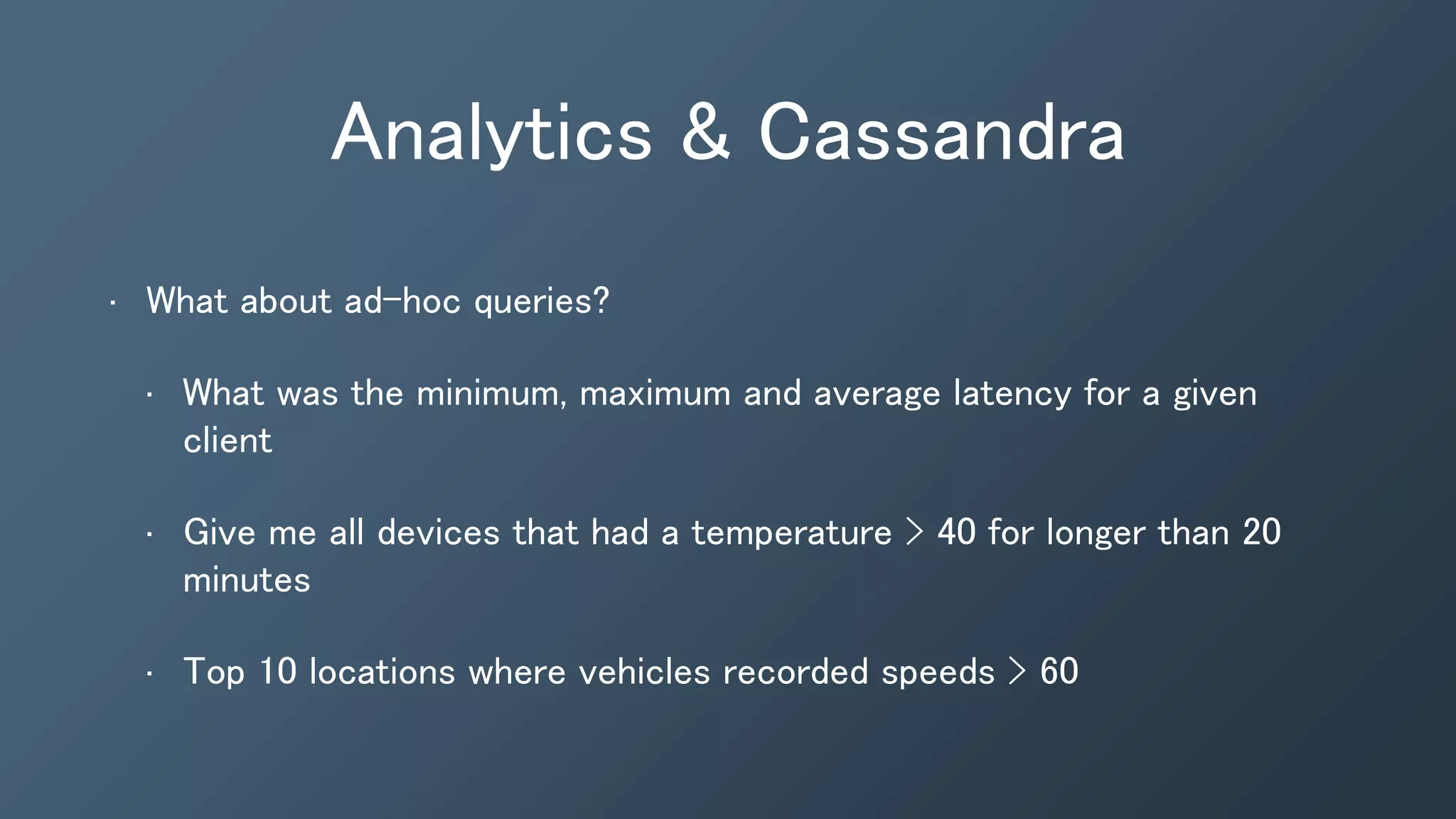

- 20. Analytics & Cassandra •What about ad-hoc queries? • What was the minimum, maximum and average latency for a given client • Give me all devices that had a temperature > 40 for longer than 20 minutes • Top 10 locations where vehicles recorded speeds > 60

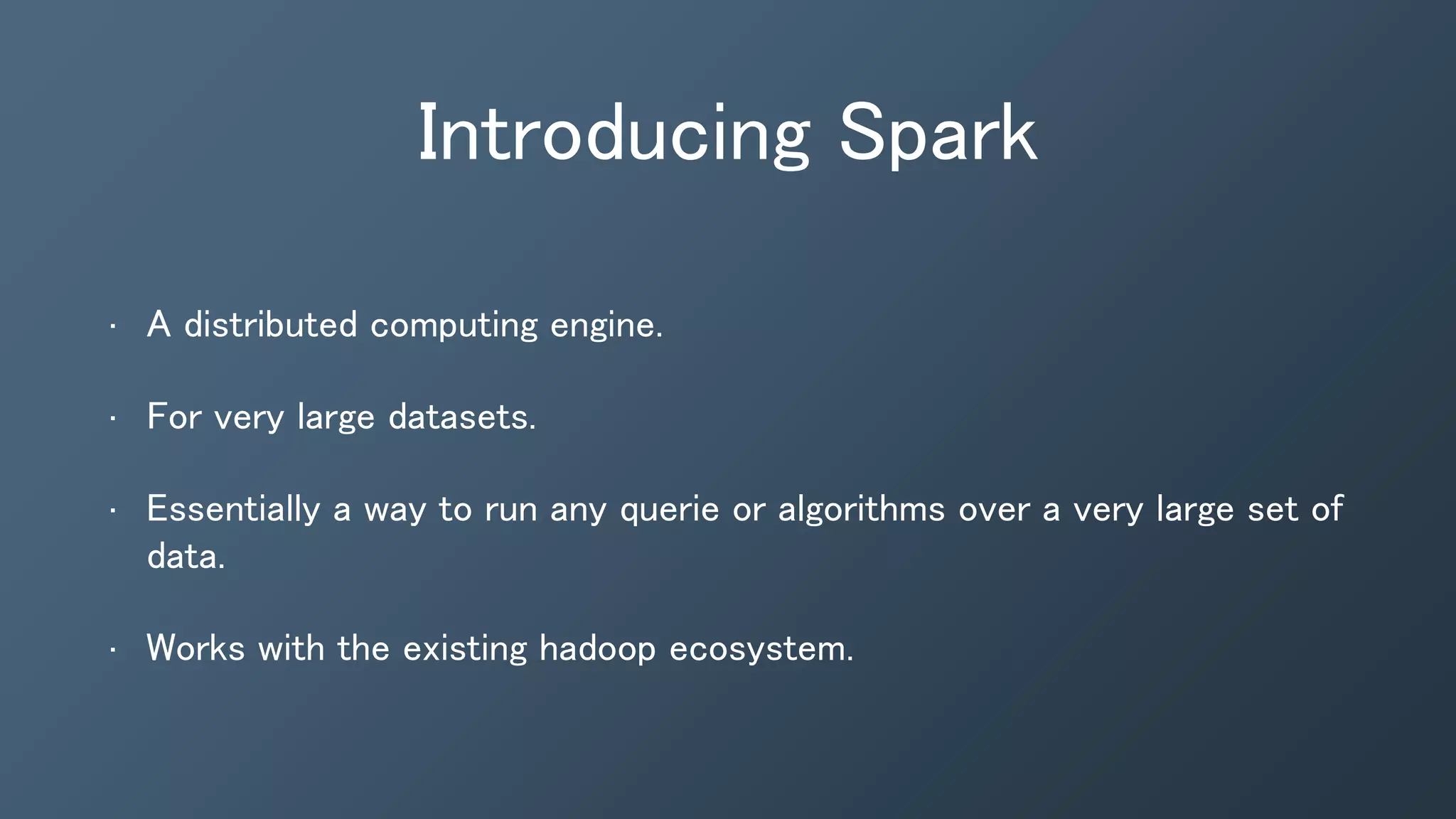

- 21. Introducing Spark • Adistributed computing engine. • For very large datasets. • Essentially a way to run any querie or algorithms over a very large set of data. • Works with the existing hadoop ecosystem.

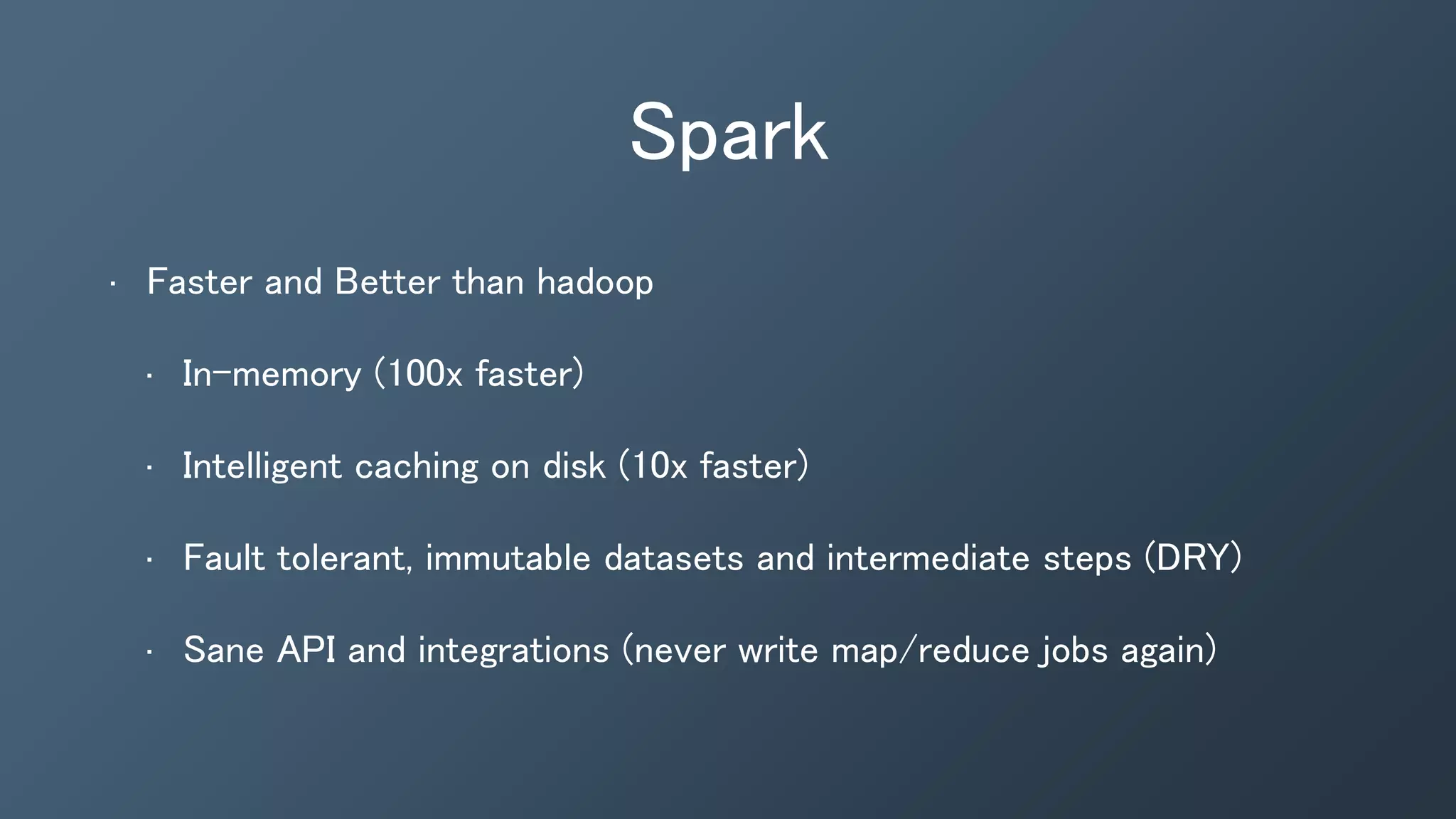

- 22. Spark • Faster andBetter than hadoop • In-memory (100x faster) • Intelligent caching on disk (10x faster) • Fault tolerant, immutable datasets and intermediate steps (DRY) • Sane API and integrations (never write map/reduce jobs again)

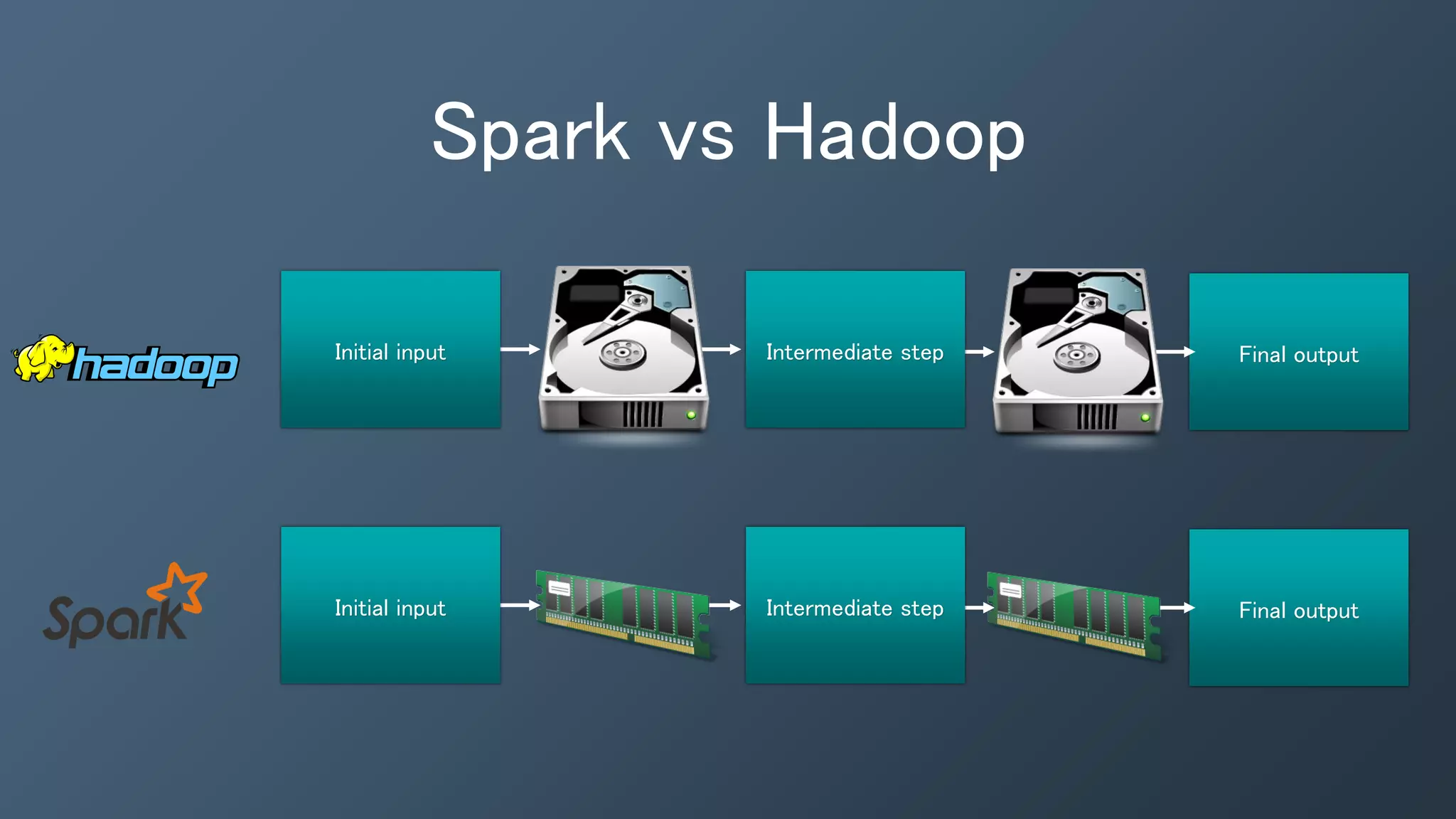

- 23. Spark vs Hadoop Initialinput Intermediate step Final output Initial input Intermediate step Final output

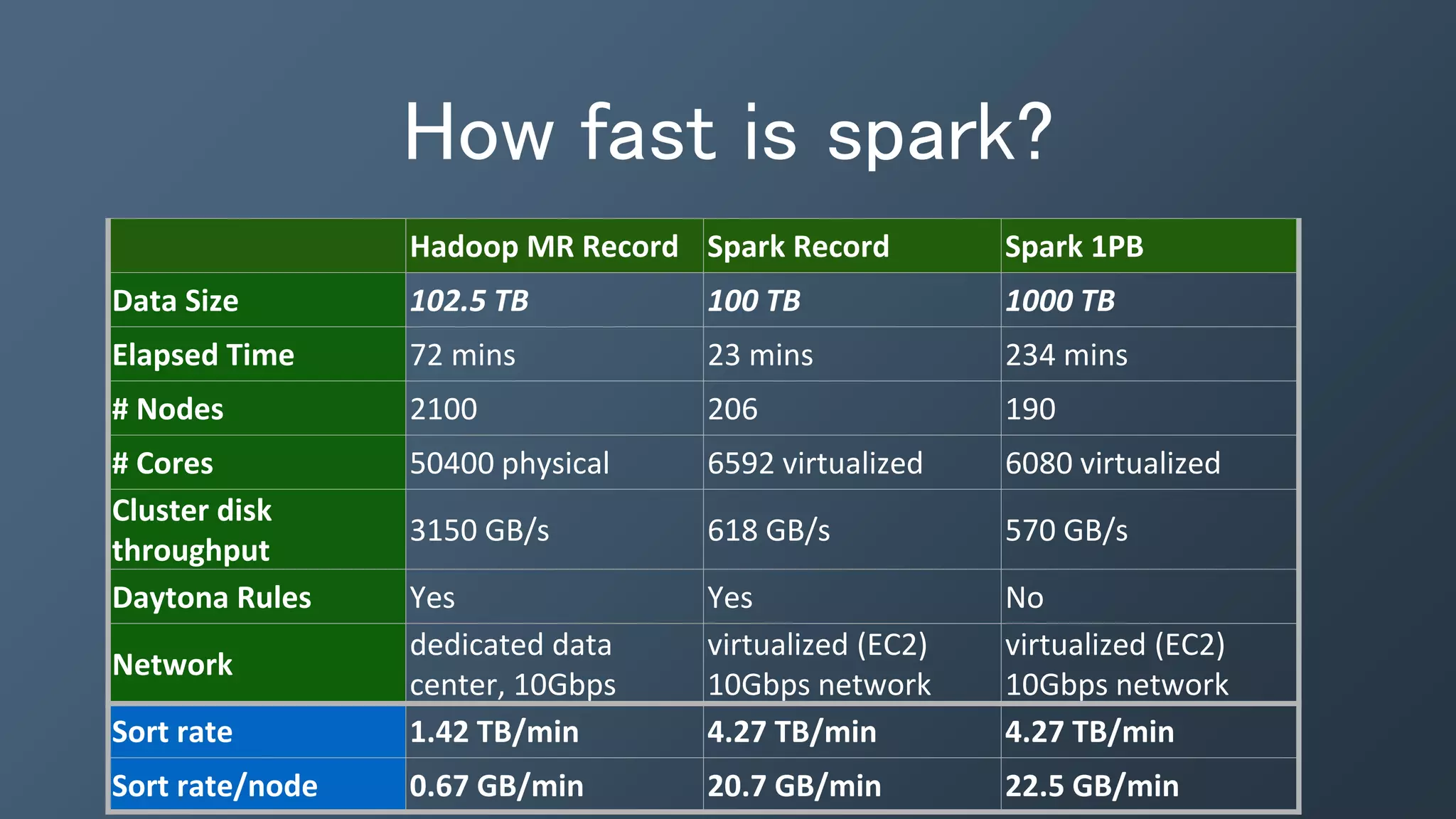

- 24. How fast isspark? Hadoop MR Record Spark Record Spark 1PB Data Size 102.5 TB 100 TB 1000 TB Elapsed Time 72 mins 23 mins 234 mins # Nodes 2100 206 190 # Cores 50400 physical 6592 virtualized 6080 virtualized Cluster disk throughput 3150 GB/s 618 GB/s 570 GB/s Daytona Rules Yes Yes No Network dedicated data center, 10Gbps virtualized (EC2) 10Gbps network virtualized (EC2) 10Gbps network Sort rate 1.42 TB/min 4.27 TB/min 4.27 TB/min Sort rate/node 0.67 GB/min 20.7 GB/min 22.5 GB/min

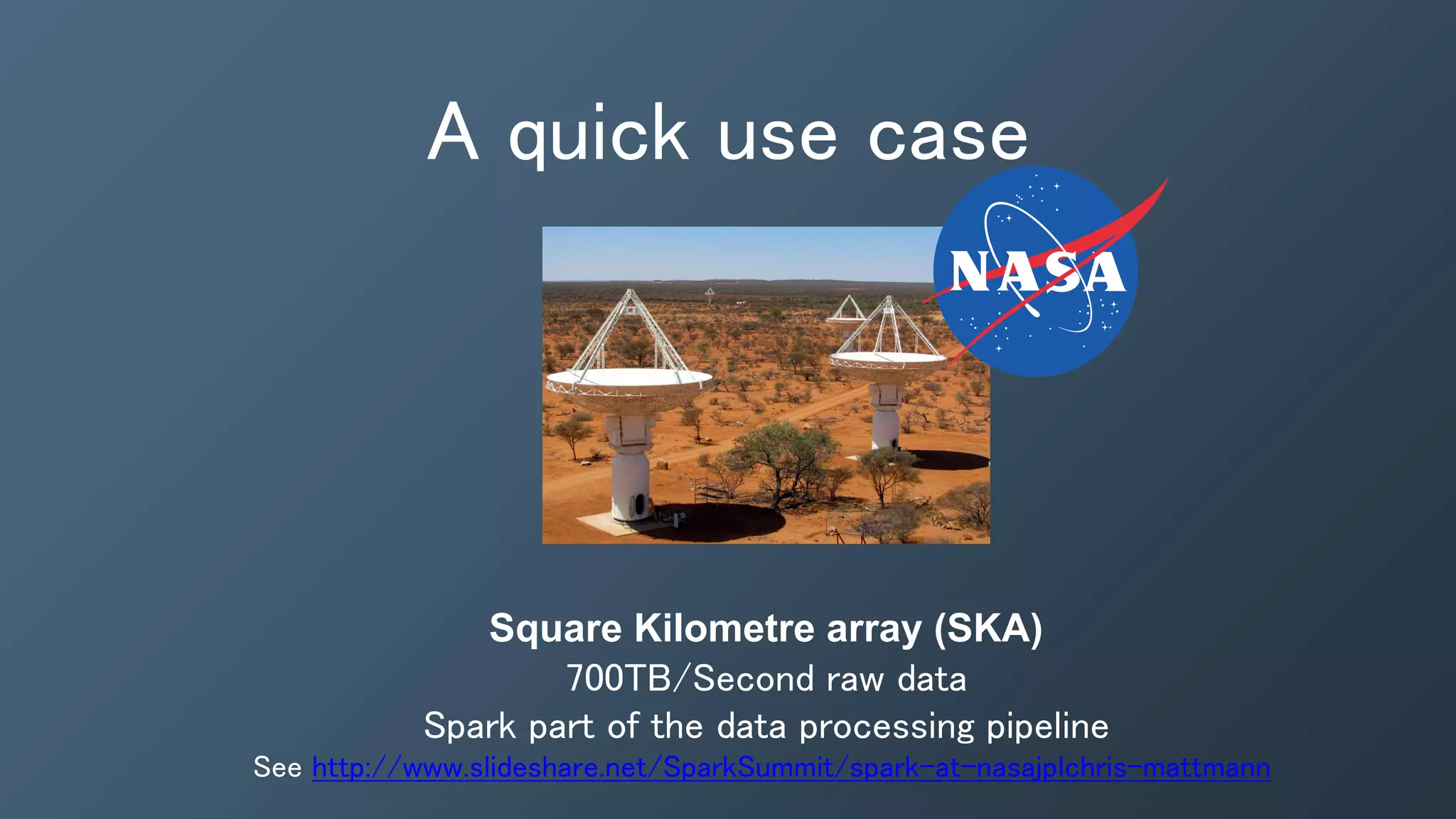

- 25. A quick usecase Square Kilometre array (SKA) 700TB/Second raw data Spark part of the data processing pipeline See http://www.slideshare.net/SparkSummit/spark-at-nasajplchris-mattmann

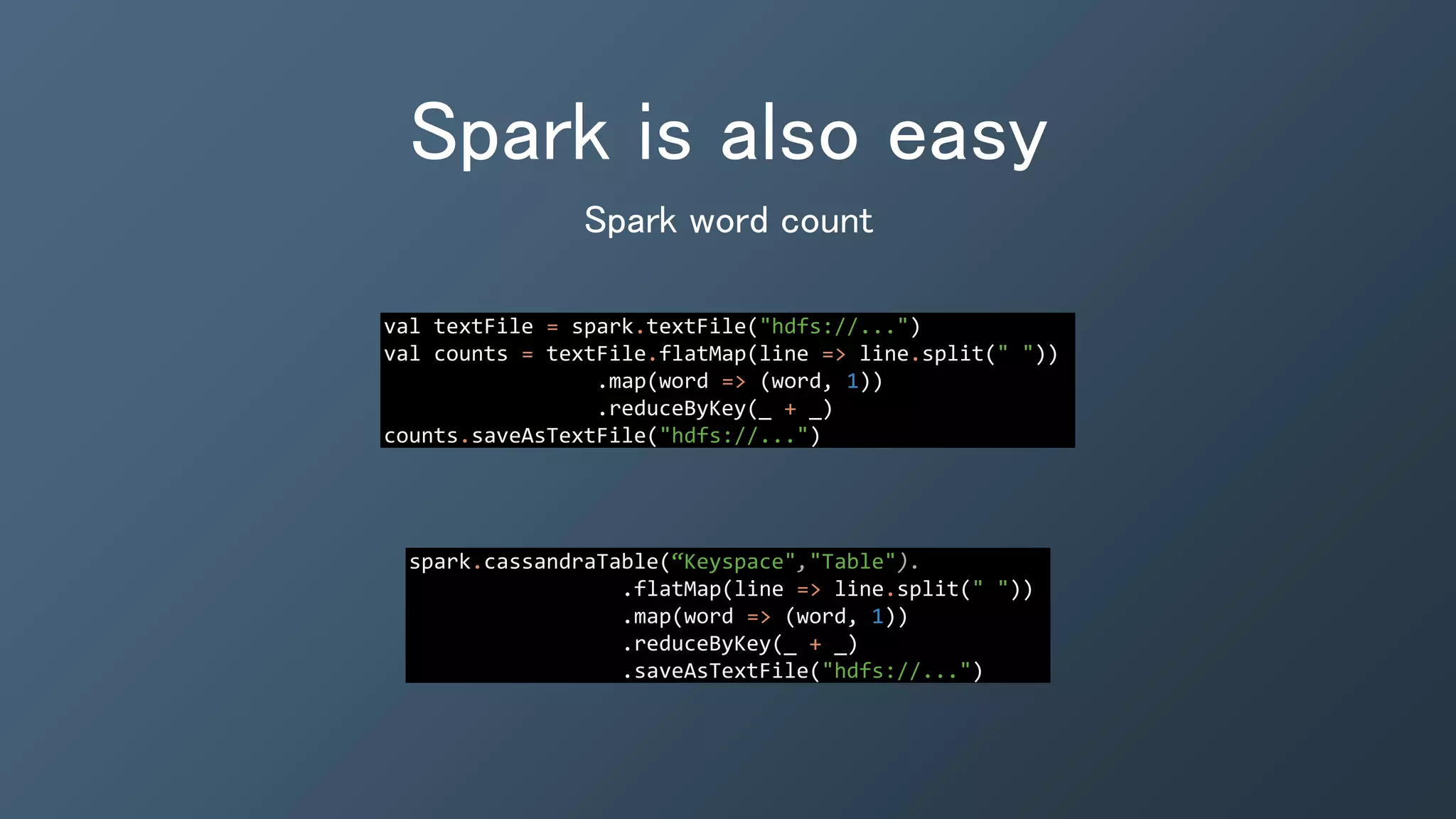

- 26. Spark is alsoeasy val textFile = spark.textFile("hdfs://...") val counts = textFile.flatMap(line => line.split(" ")) .map(word => (word, 1)) .reduceByKey(_ + _) counts.saveAsTextFile("hdfs://...") Spark word count spark.cassandraTable(“Keyspace","Table"). .flatMap(line => line.split(" ")) .map(word => (word, 1)) .reduceByKey(_ + _) .saveAsTextFile("hdfs://...")

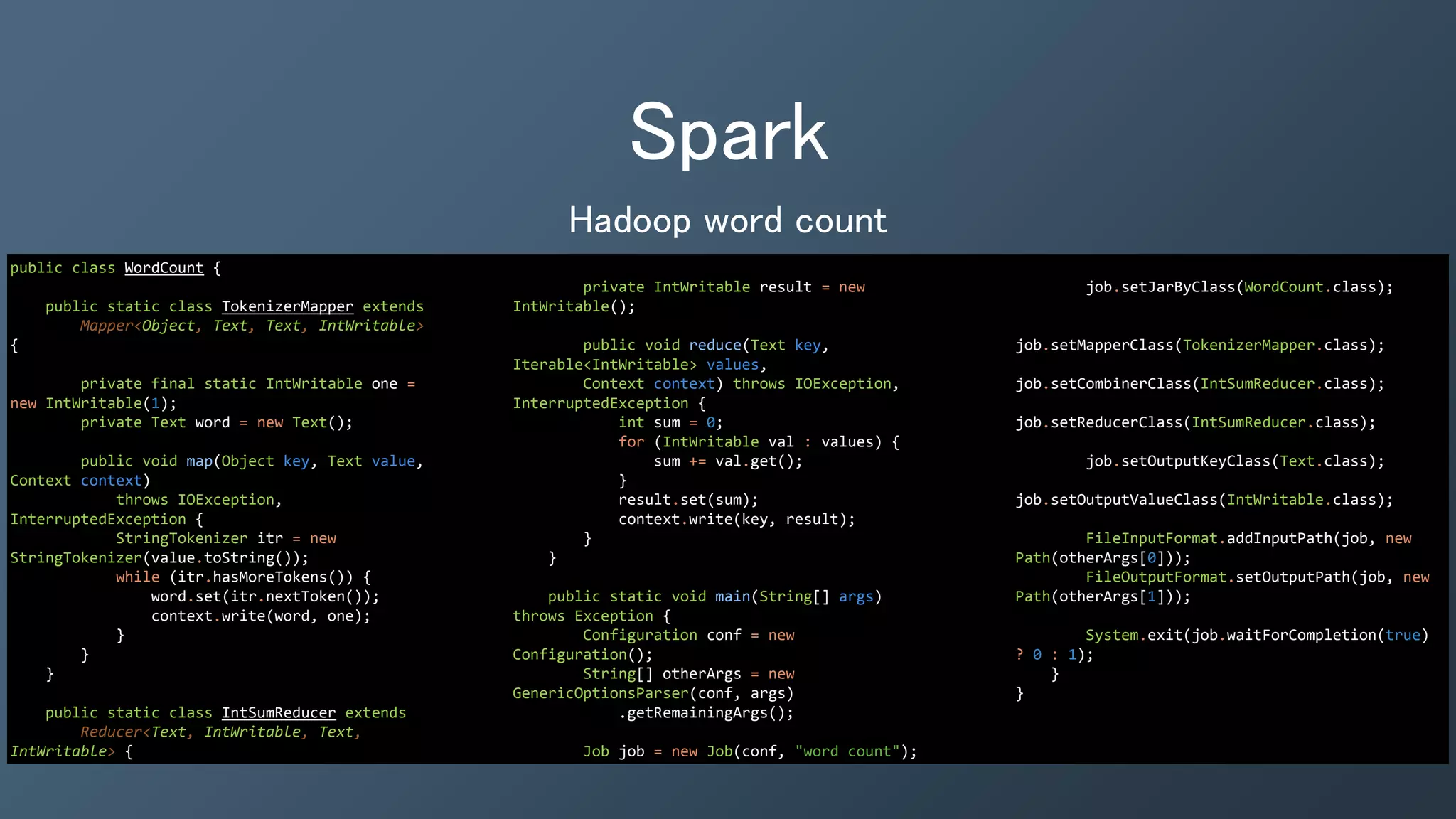

- 27. Spark Hadoop word count publicclass WordCount { public static class TokenizerMapper extends Mapper<Object, Text, Text, IntWritable> { private final static IntWritable one = new IntWritable(1); private Text word = new Text(); public void map(Object key, Text value, Context context) throws IOException, InterruptedException { StringTokenizer itr = new StringTokenizer(value.toString()); while (itr.hasMoreTokens()) { word.set(itr.nextToken()); context.write(word, one); } } } public static class IntSumReducer extends Reducer<Text, IntWritable, Text, IntWritable> { private IntWritable result = new IntWritable(); public void reduce(Text key, Iterable<IntWritable> values, Context context) throws IOException, InterruptedException { int sum = 0; for (IntWritable val : values) { sum += val.get(); } result.set(sum); context.write(key, result); } } public static void main(String[] args) throws Exception { Configuration conf = new Configuration(); String[] otherArgs = new GenericOptionsParser(conf, args) .getRemainingArgs(); Job job = new Job(conf, "word count"); job.setJarByClass(WordCount.class); job.setMapperClass(TokenizerMapper.class); job.setCombinerClass(IntSumReducer.class); job.setReducerClass(IntSumReducer.class); job.setOutputKeyClass(Text.class); job.setOutputValueClass(IntWritable.class); FileInputFormat.addInputPath(job, new Path(otherArgs[0])); FileOutputFormat.setOutputPath(job, new Path(otherArgs[1])); System.exit(job.waitForCompletion(true) ? 0 : 1); } }

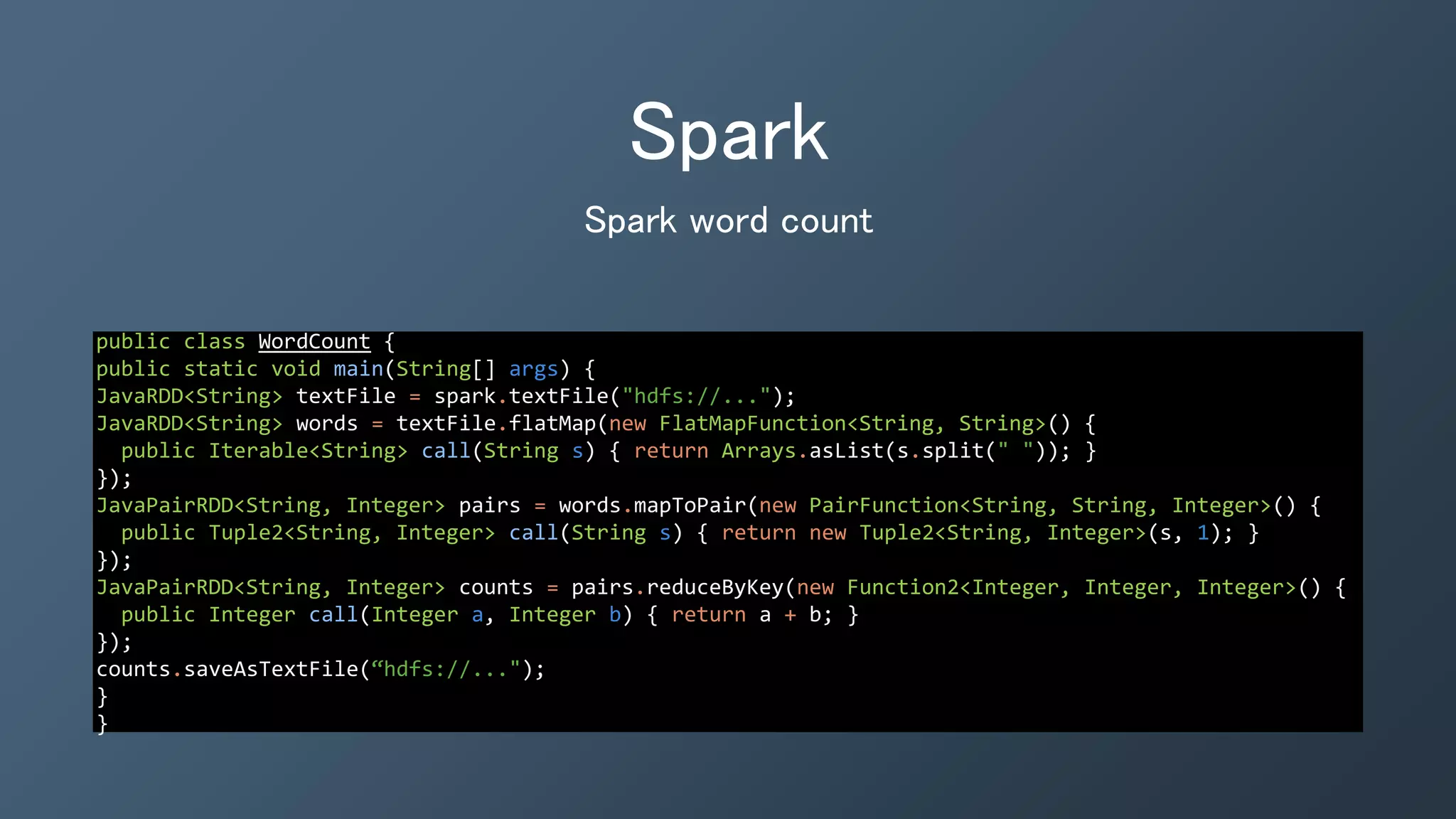

- 28. Spark public class WordCount{ public static void main(String[] args) { JavaRDD<String> textFile = spark.textFile("hdfs://..."); JavaRDD<String> words = textFile.flatMap(new FlatMapFunction<String, String>() { public Iterable<String> call(String s) { return Arrays.asList(s.split(" ")); } }); JavaPairRDD<String, Integer> pairs = words.mapToPair(new PairFunction<String, String, Integer>() { public Tuple2<String, Integer> call(String s) { return new Tuple2<String, Integer>(s, 1); } }); JavaPairRDD<String, Integer> counts = pairs.reduceByKey(new Function2<Integer, Integer, Integer>() { public Integer call(Integer a, Integer b) { return a + b; } }); counts.saveAsTextFile(“hdfs://..."); } } Spark word count

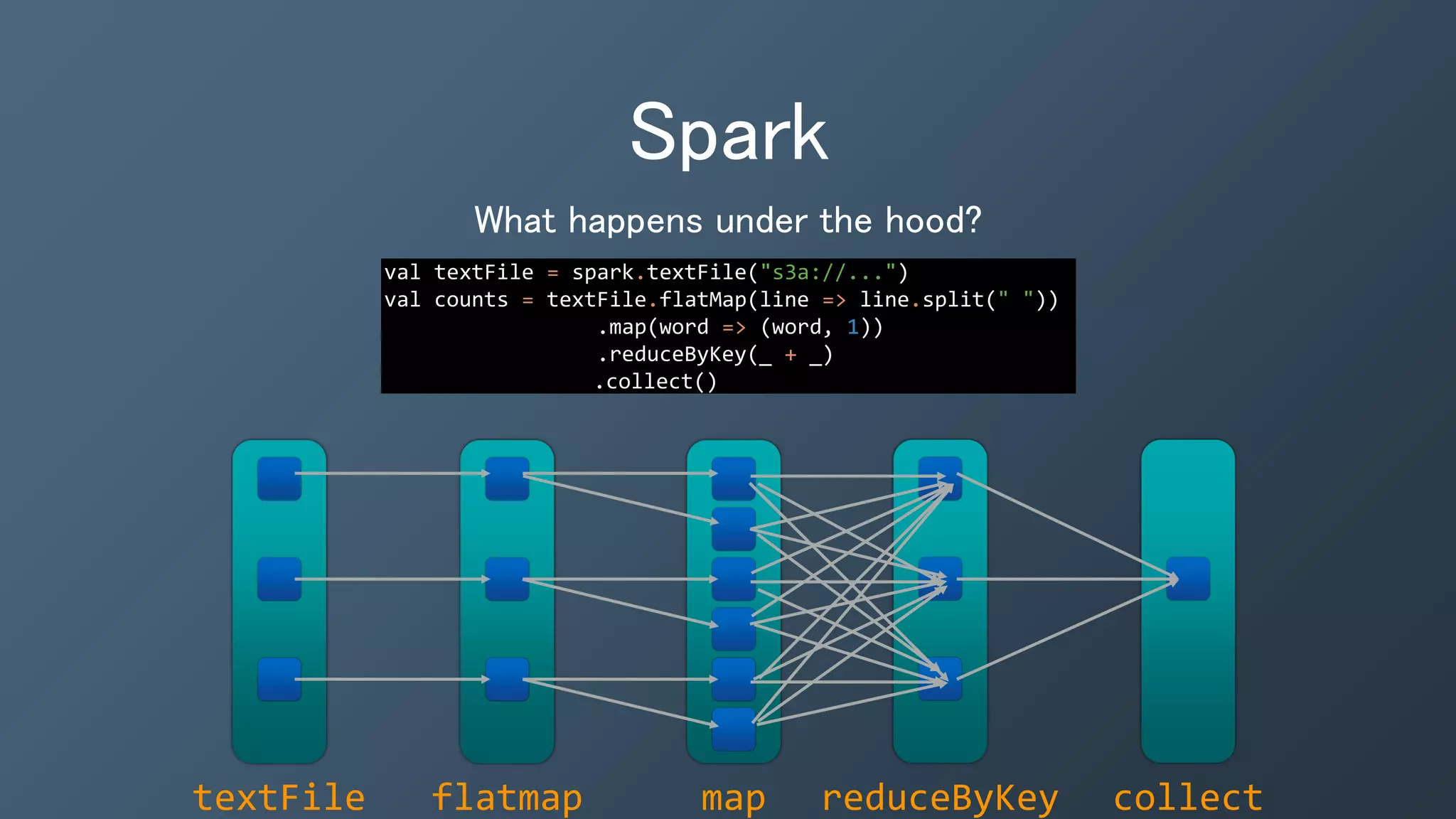

- 29. Spark What happens underthe hood? val textFile = spark.textFile("s3a://...") val counts = textFile.flatMap(line => line.split(" ")) .map(word => (word, 1)) .reduceByKey(_ + _) .collect() textFile flatmap map reduceByKey collect
- 30.

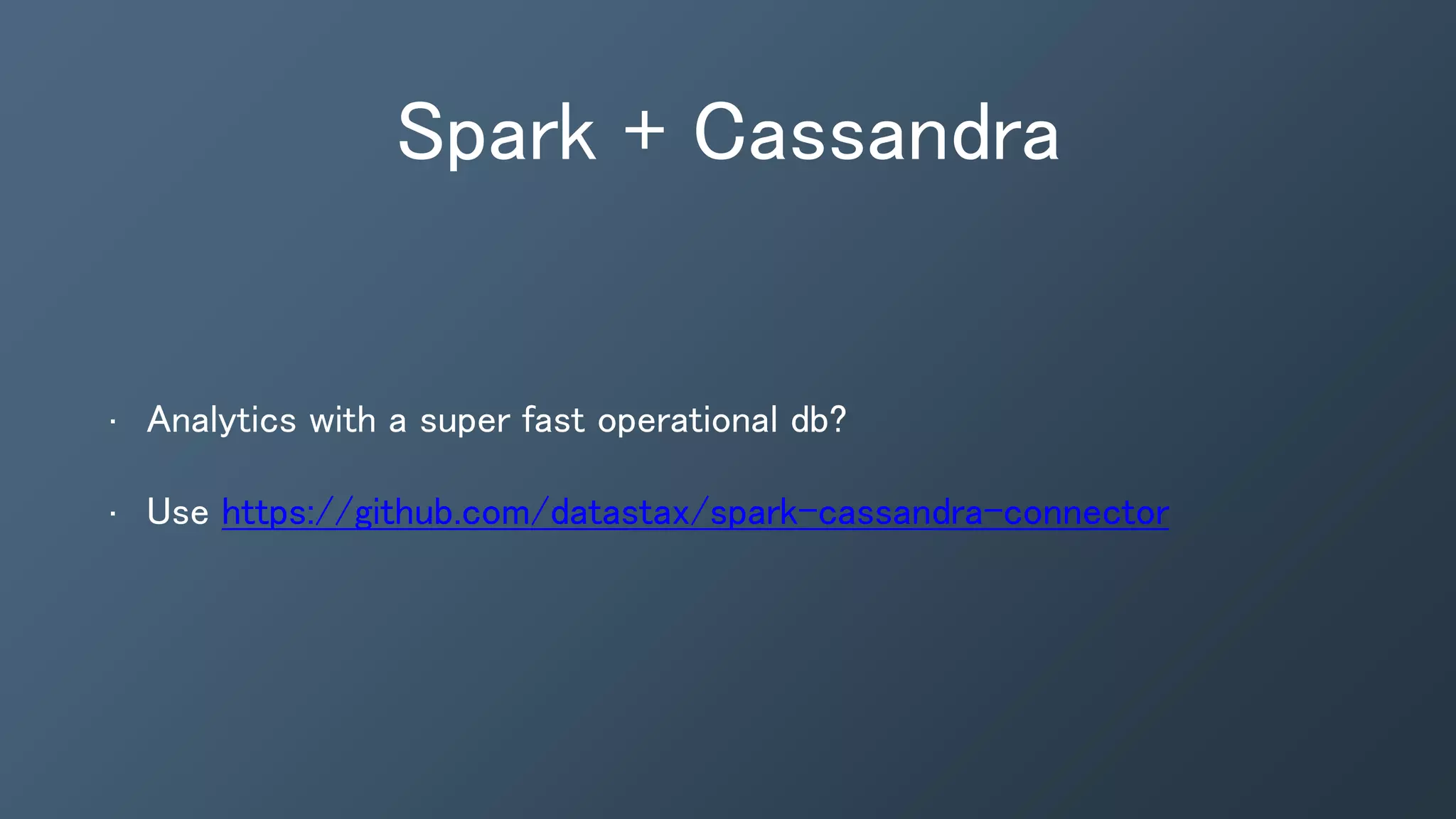

- 31. Spark + Cassandra •Analytics with a super fast operational db? • Use https://github.com/datastax/spark-cassandra-connector
- 32.
- 33.

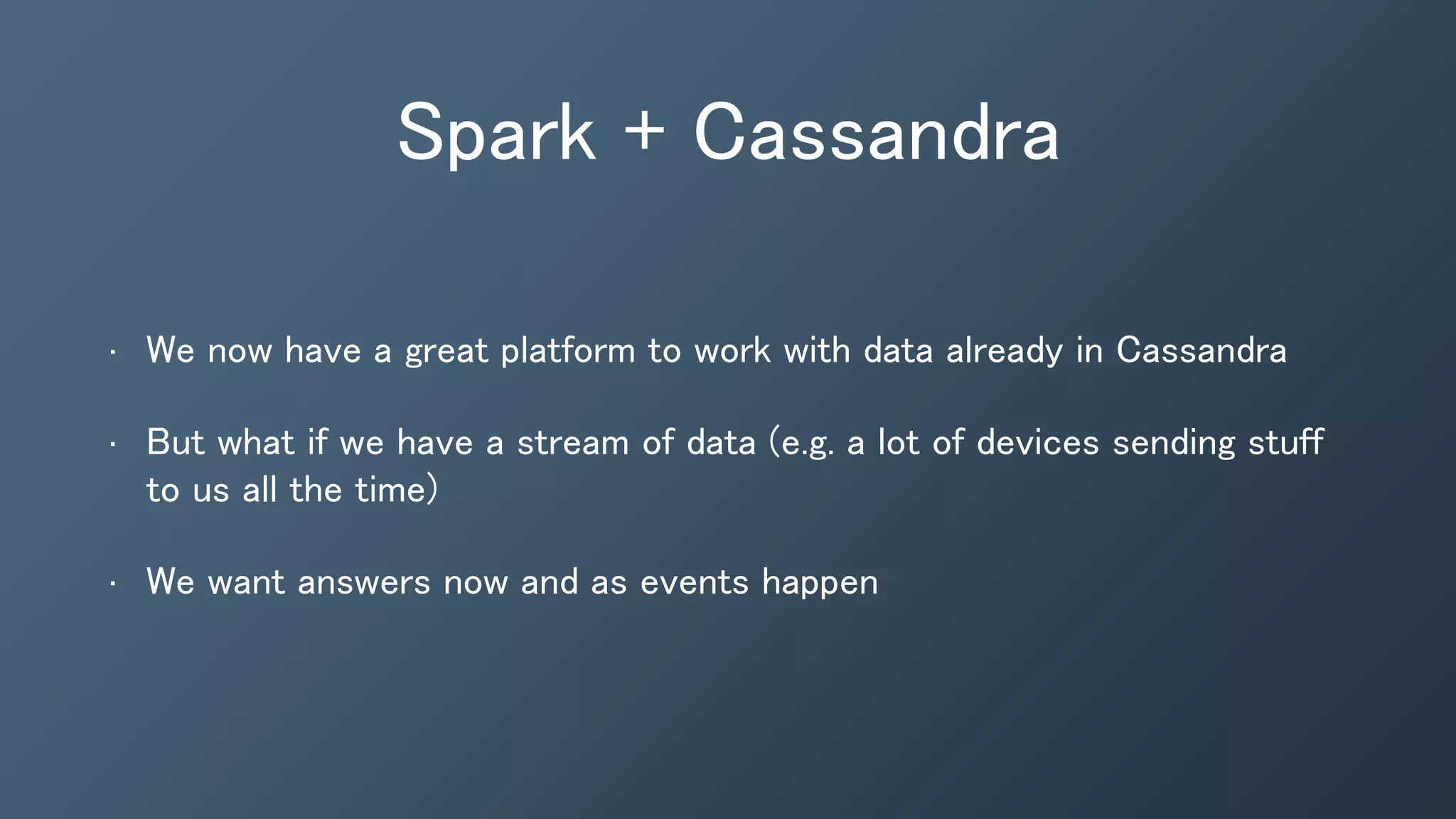

- 34. Spark + Cassandra •We now have a great platform to work with data already in Cassandra • But what if we have a stream of data (e.g. a lot of devices sending stuff to us all the time) • We want answers now and as events happen
- 35.

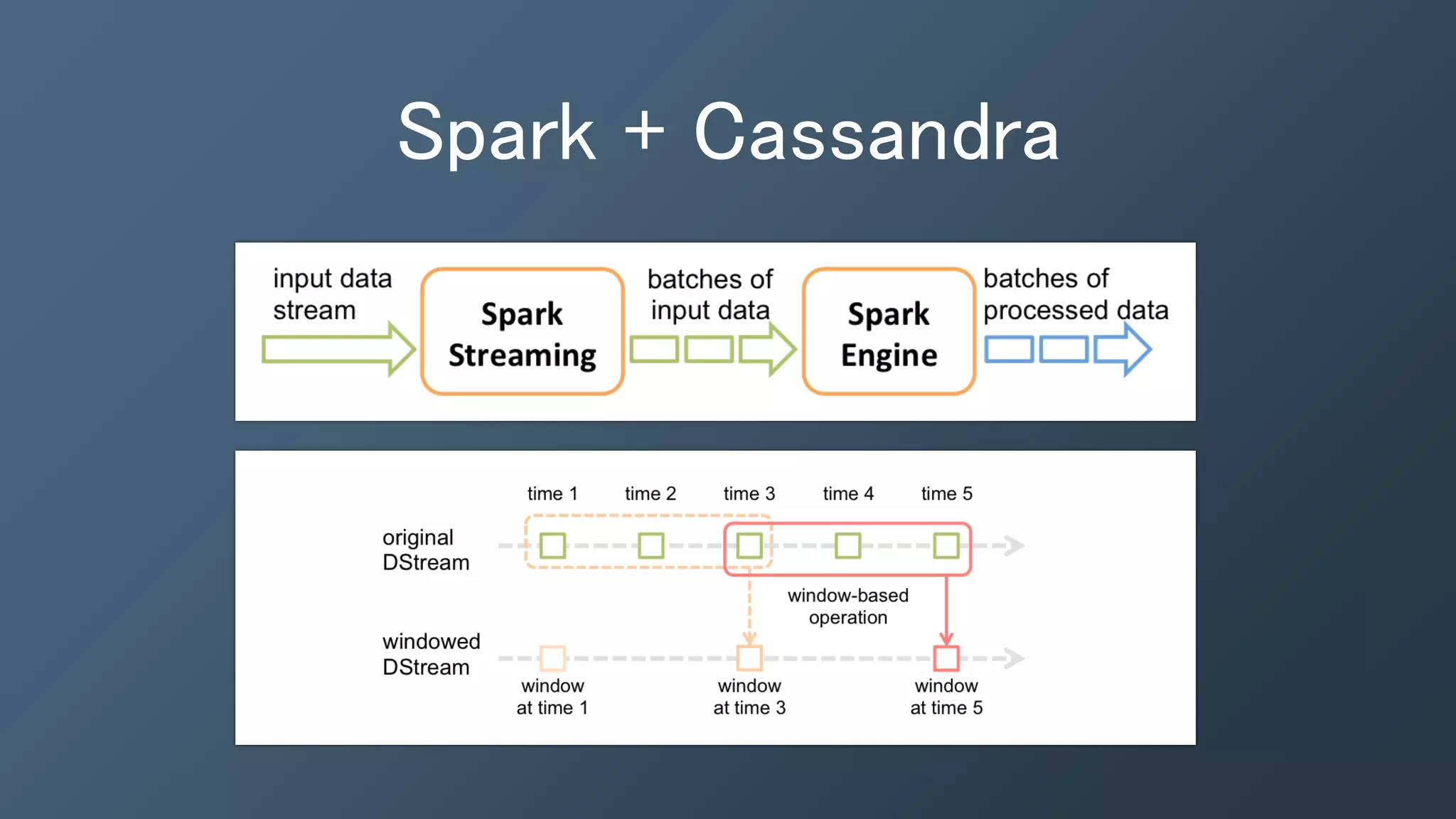

- 36.

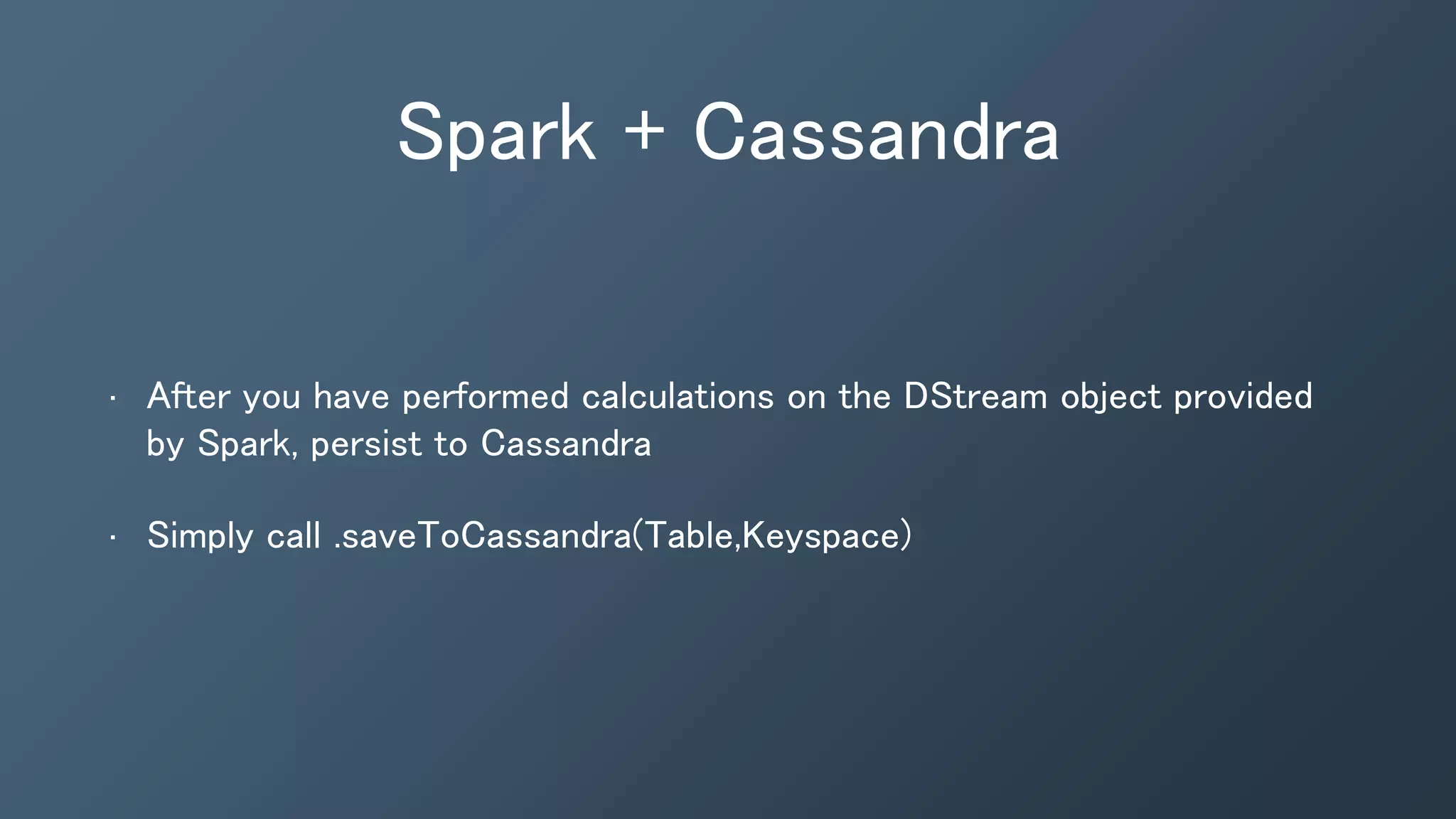

- 37. Spark + Cassandra •After you have performed calculations on the DStream object provided by Spark, persist to Cassandra • Simply call .saveToCassandra(Table,Keyspace)

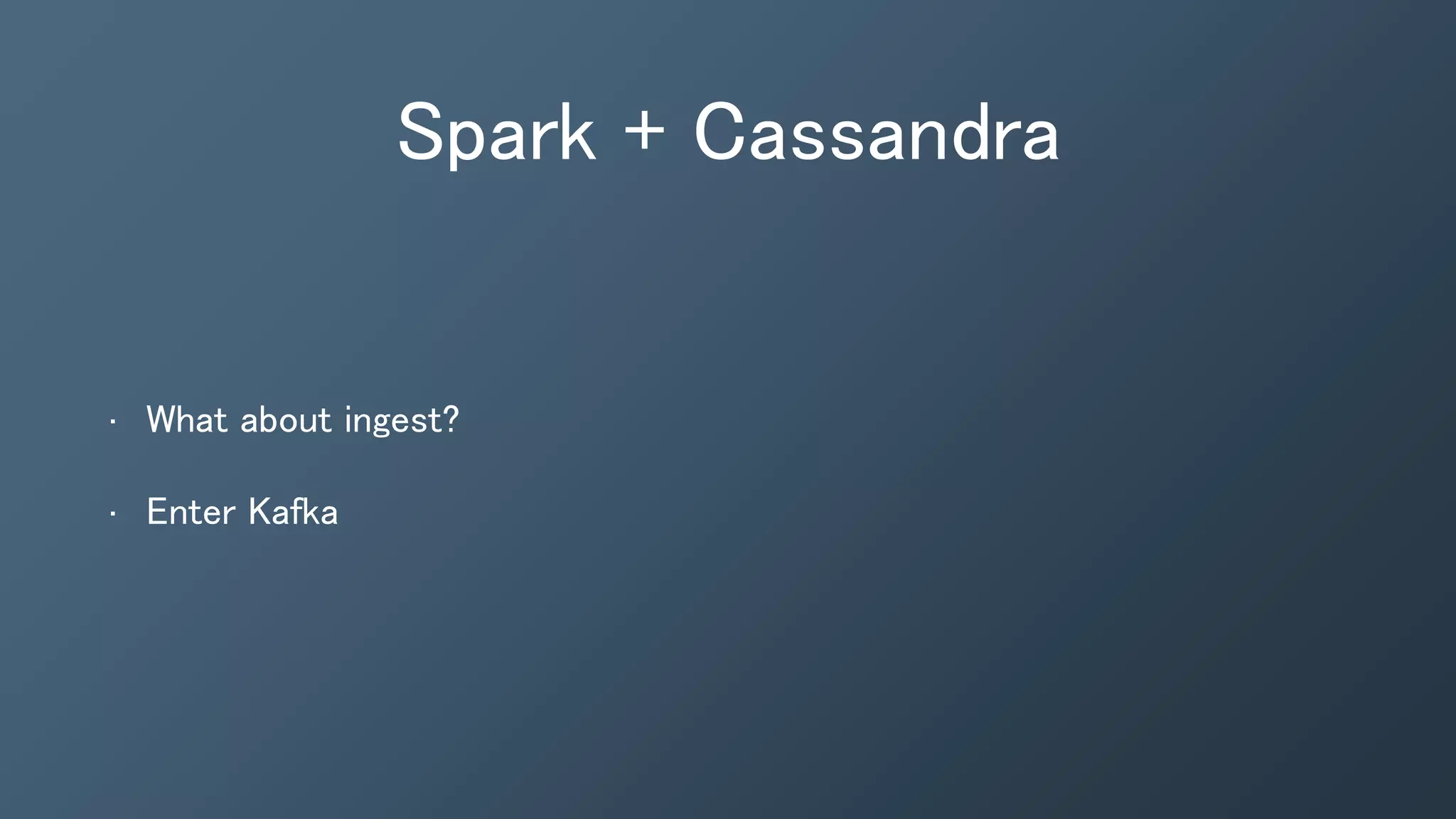

- 38. Spark + Cassandra •What about ingest? • Enter Kafka

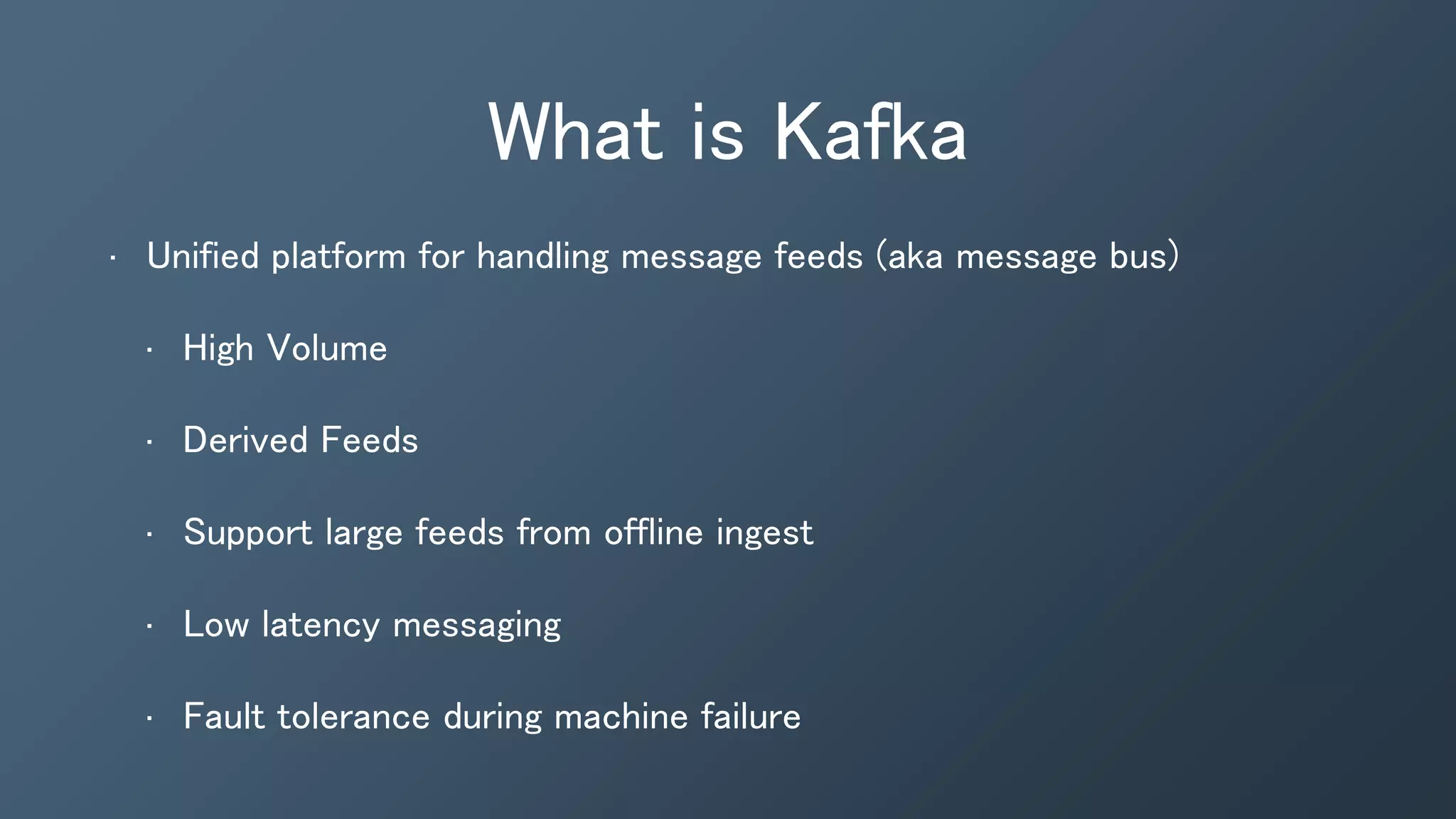

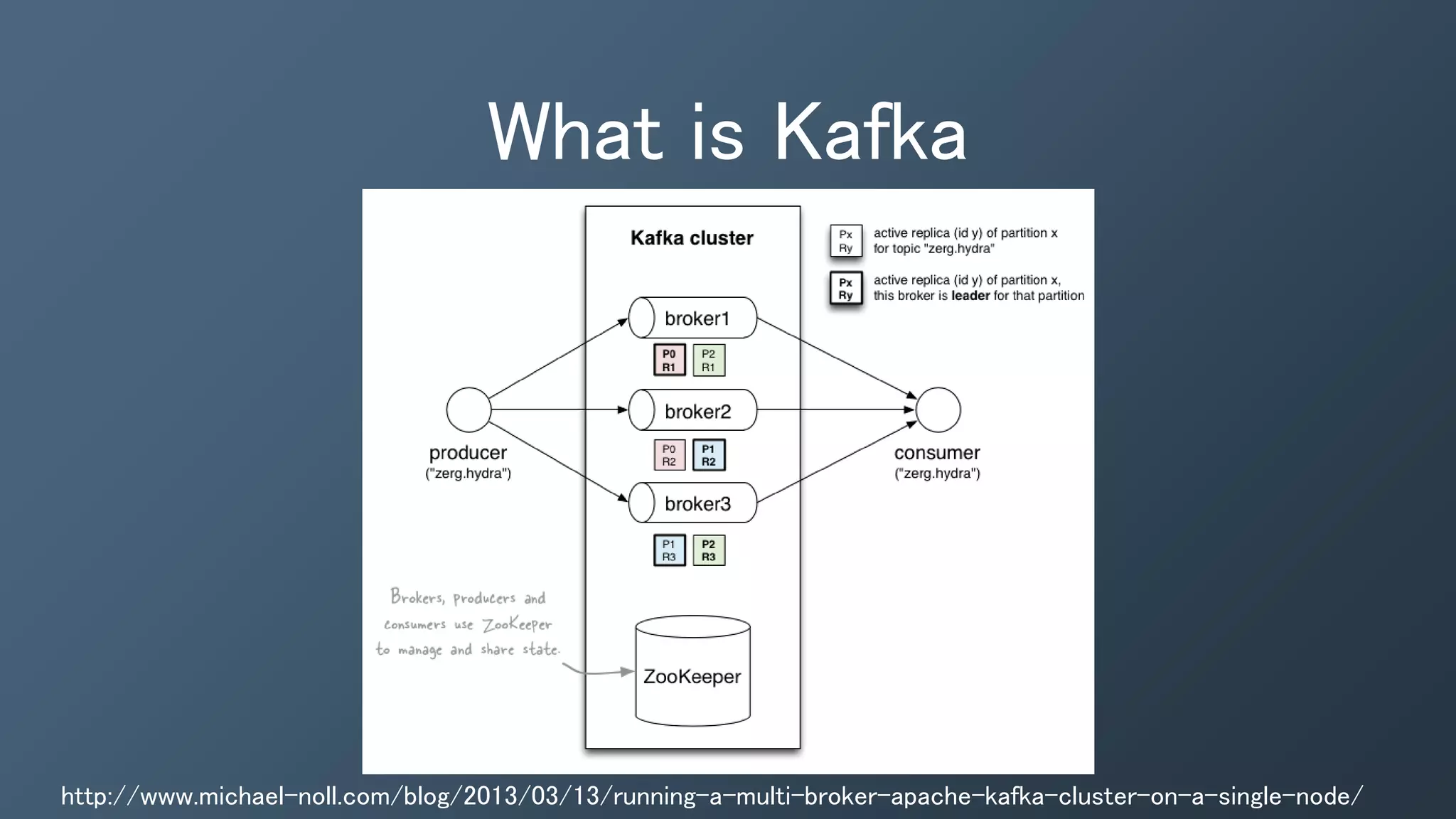

- 39. What is Kafka •Unified platform for handling message feeds (aka message bus) • High Volume • Derived Feeds • Support large feeds from offline ingest • Low latency messaging • Fault tolerance during machine failure

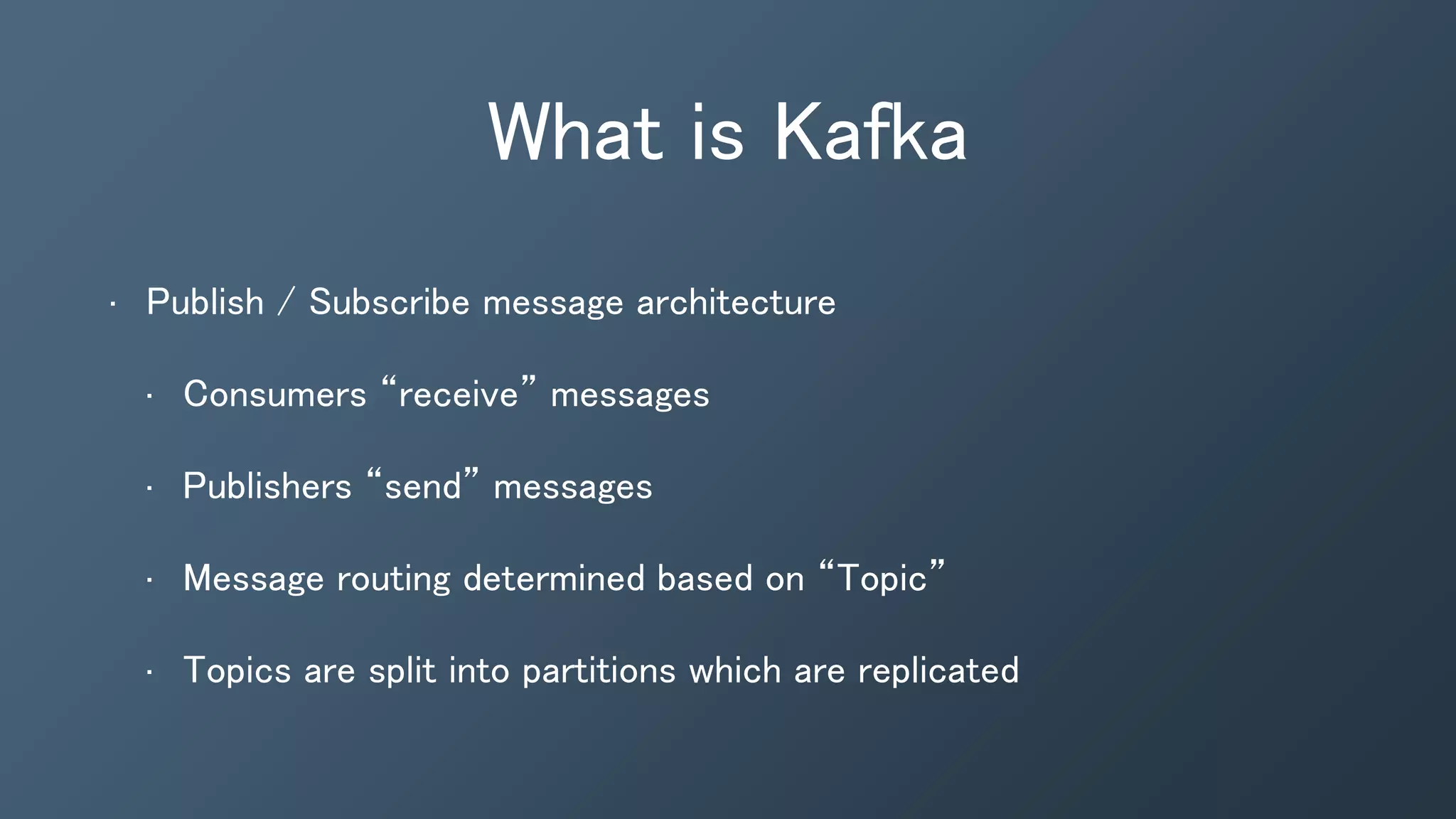

- 40. What is Kafka •Publish / Subscribe message architecture • Consumers “receive” messages • Publishers “send” messages • Message routing determined based on “Topic” • Topics are split into partitions which are replicated
- 41.
- 42.

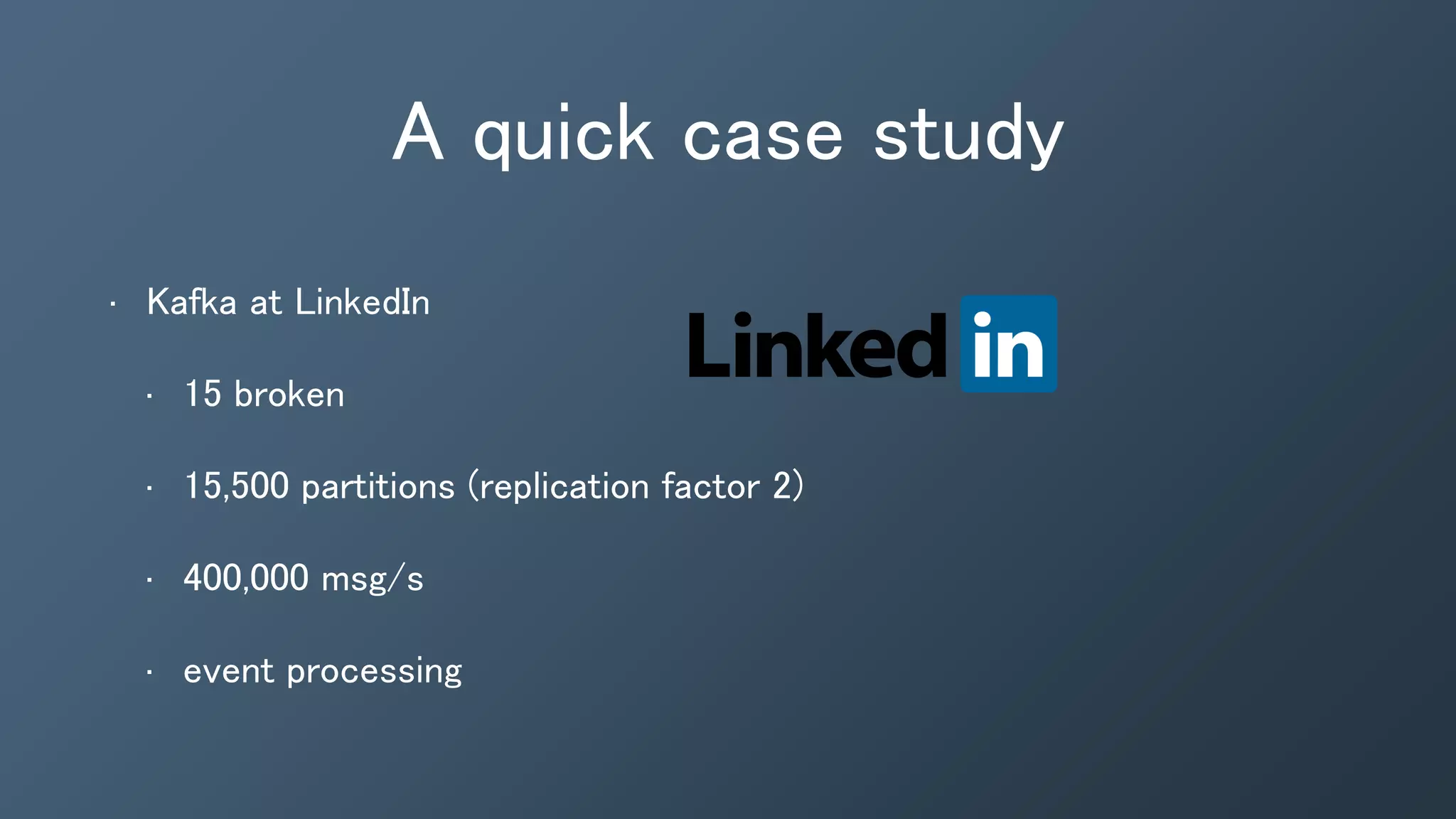

- 43. A quick casestudy • Kafka at LinkedIn • 15 broken • 15,500 partitions (replication factor 2) • 400,000 msg/s • event processing

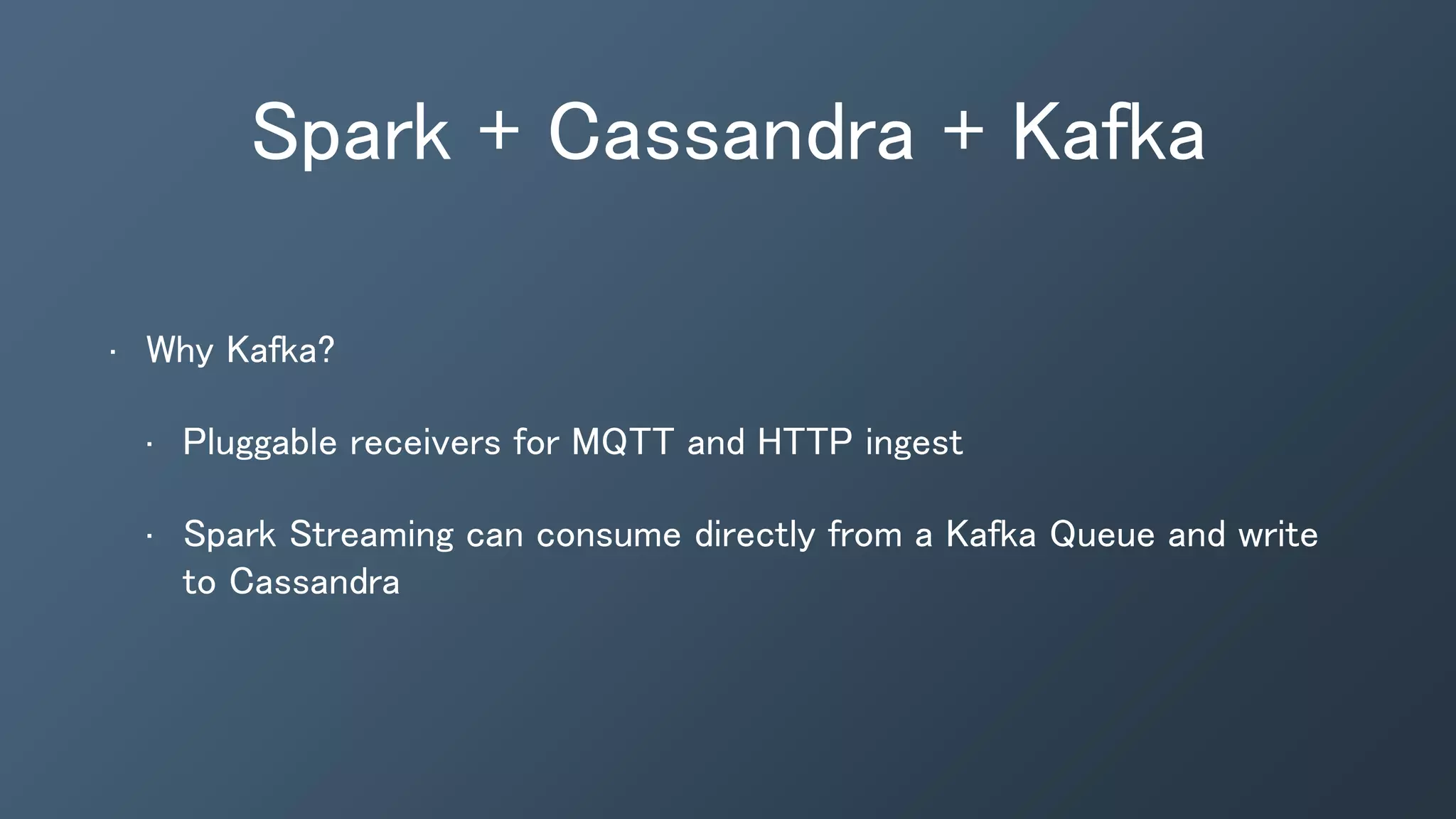

- 44. Spark + Cassandra+ Kafka • Why Kafka? • Pluggable receivers for MQTT and HTTP ingest • Spark Streaming can consume directly from a Kafka Queue and write to Cassandra

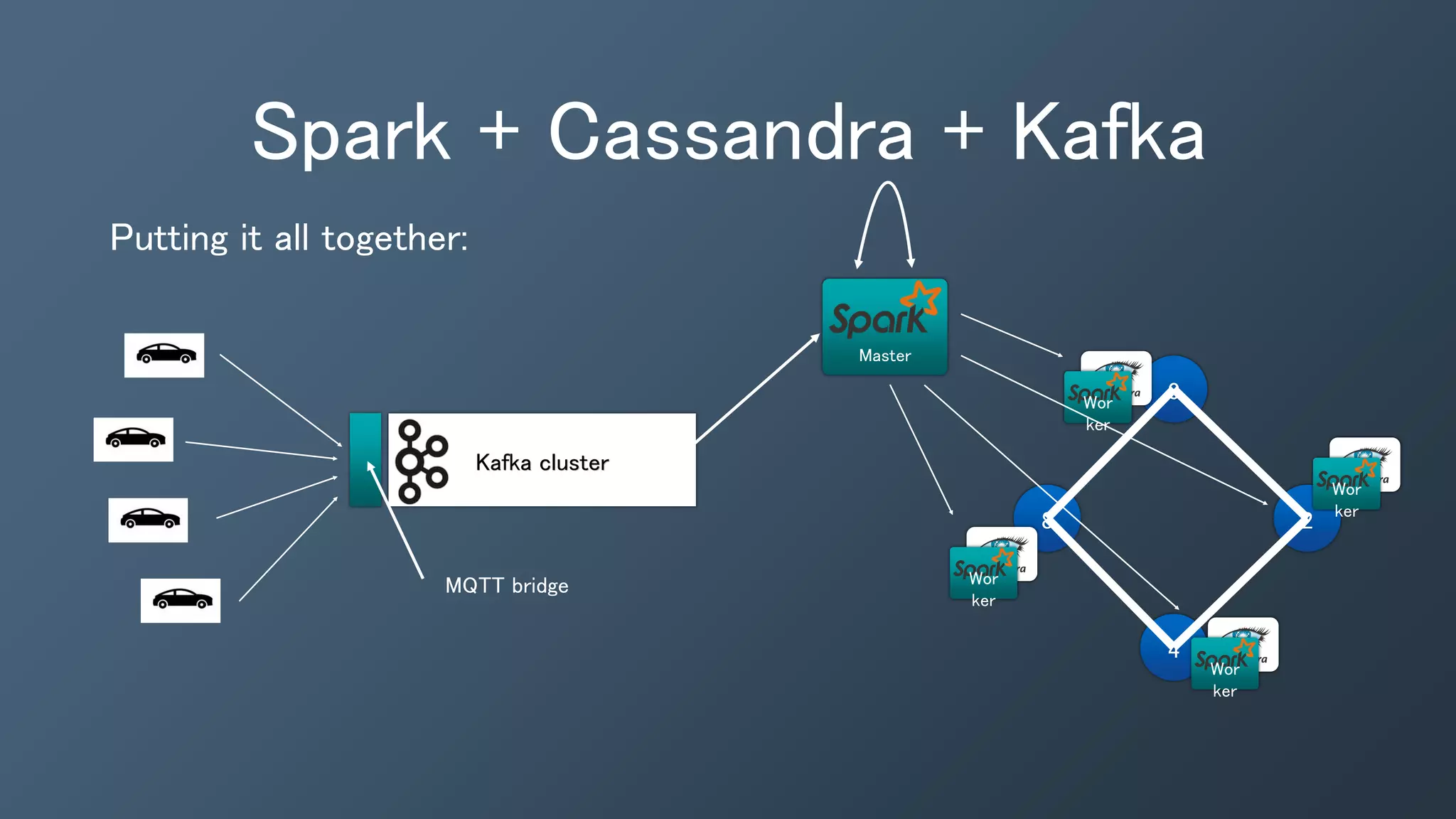

- 45. Spark + Cassandra+ Kafka Putting it all together: Kafka cluster Master 0 4 28 Wor ker Wor ker Wor ker Wor ker MQTT bridge

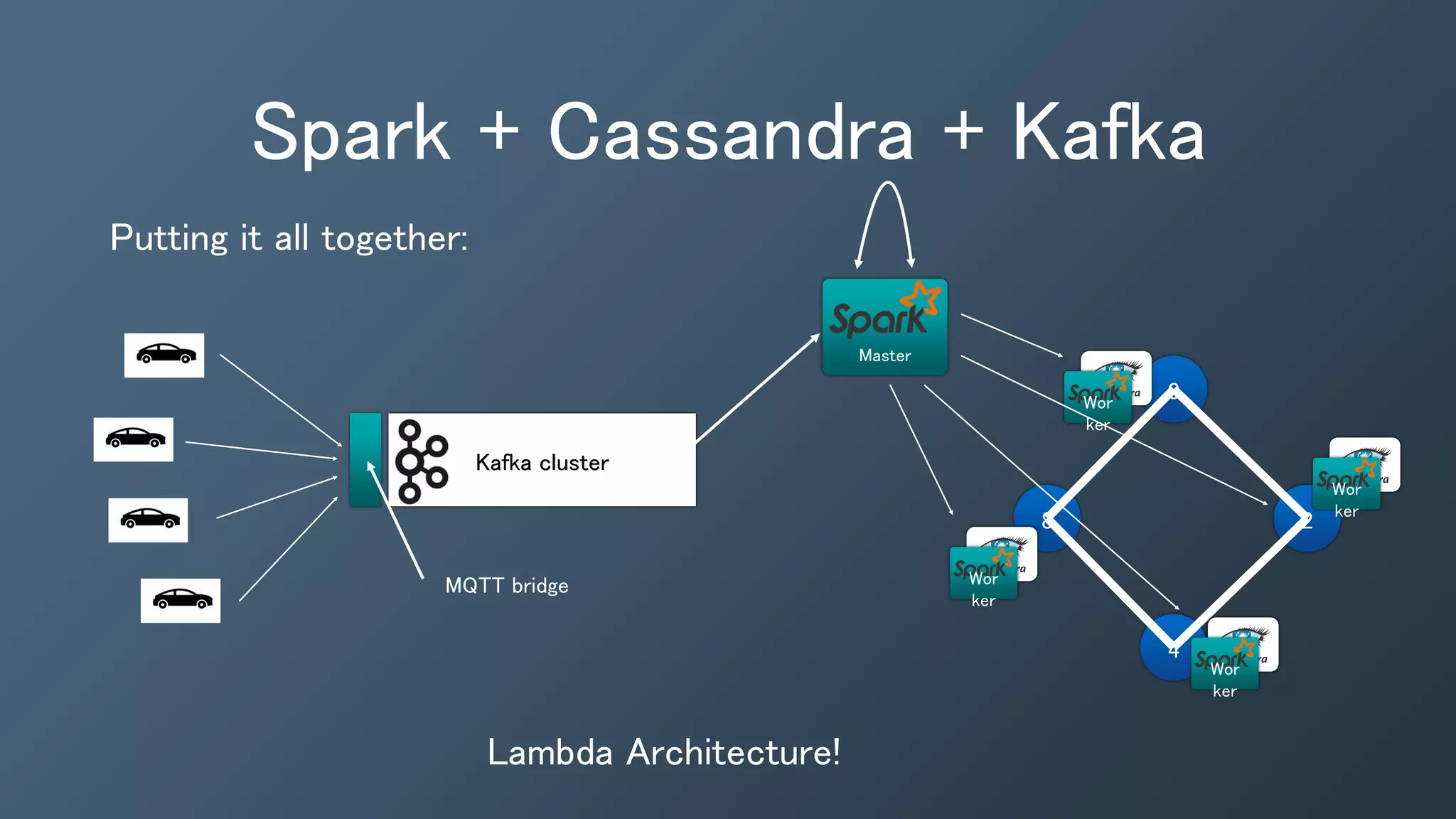

- 46. Spark + Cassandra+ Kafka Putting it all together: Kafka cluster Master 0 4 28 Wor ker Wor ker Wor ker Wor ker MQTT bridge Lambda Architecture!

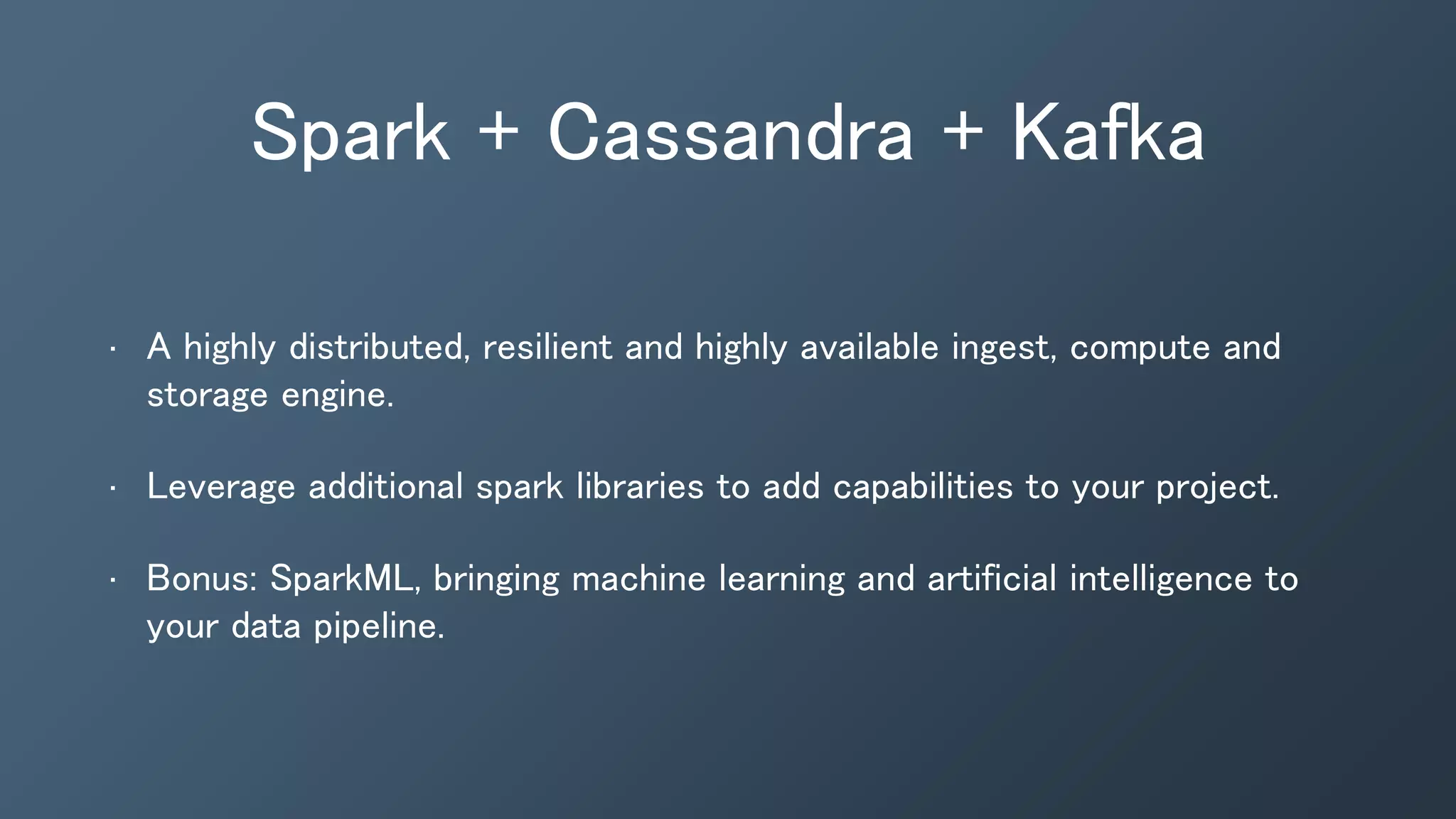

- 47. • A highlydistributed, resilient and highly available ingest, compute and storage engine. • Leverage additional spark libraries to add capabilities to your project. • Bonus: SparkML, bringing machine learning and artificial intelligence to your data pipeline. Spark + Cassandra + Kafka
- 48.
