The document is an introduction to reporting in Joget Workflow v5, covering fundamental components such as SQL charts and JasperReports. It includes prerequisites, exercises for practical implementation, and instructions on setting up data sources. Additionally, it provides resources for further connection with Joget, including links to social media and community support.

1. All Rights Reserved © Joget Inc
Joget Workflow v5
Introduction to Reporting
http://facebook.com/jogetworkflow
http://twitter.com/jogetworkflow
Last Revised on May 2016Joget Inc Internal Use Only

2. All Rights Reserved © Joget Inc
Prerequisites

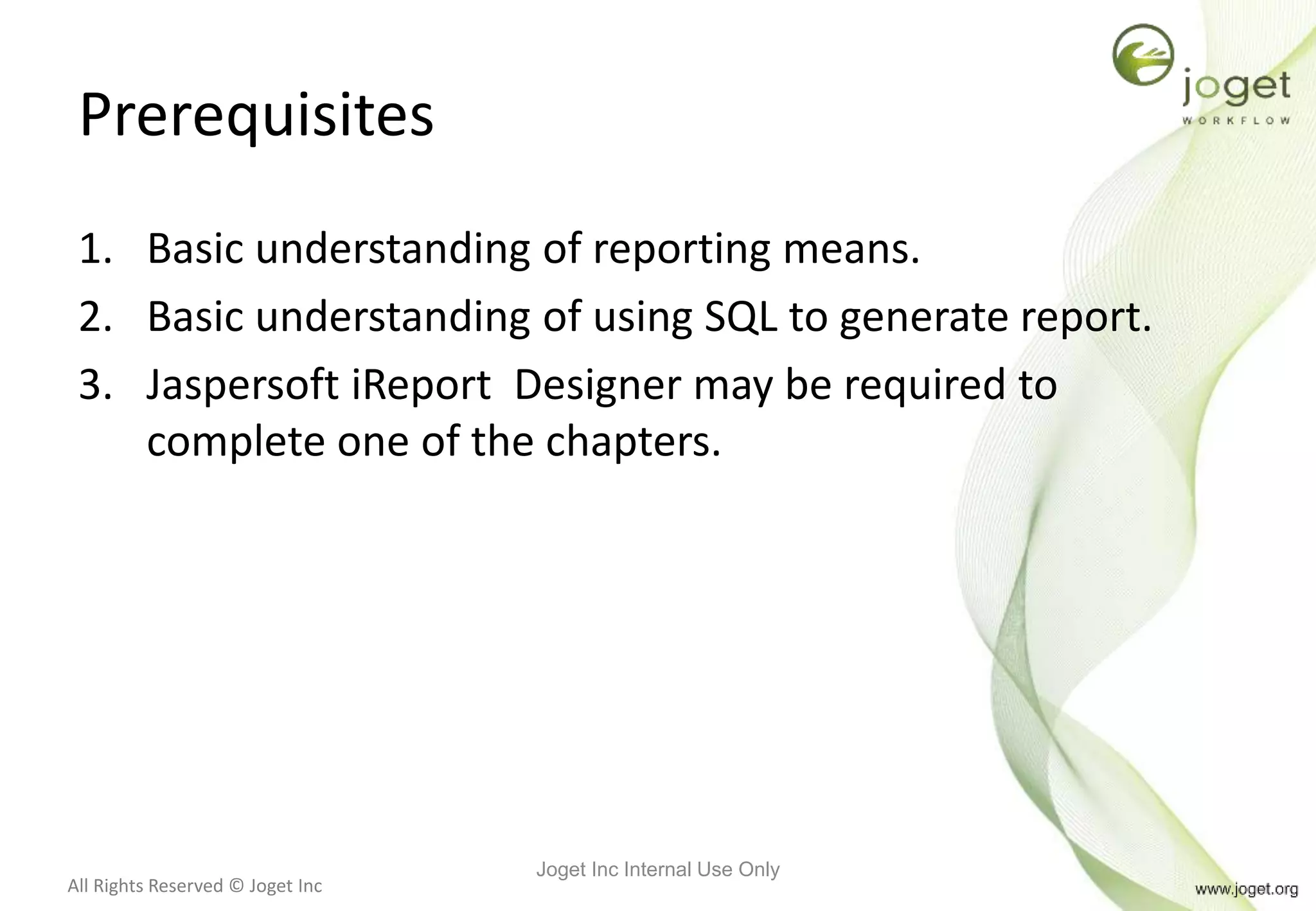

1. Basic understanding of reporting means.
2. Basic understanding of using SQL to generate report.
3. Jaspersoft iReport Designer may be required to
complete one of the chapters.
Joget Inc Internal Use Only

3. All Rights Reserved © Joget Inc

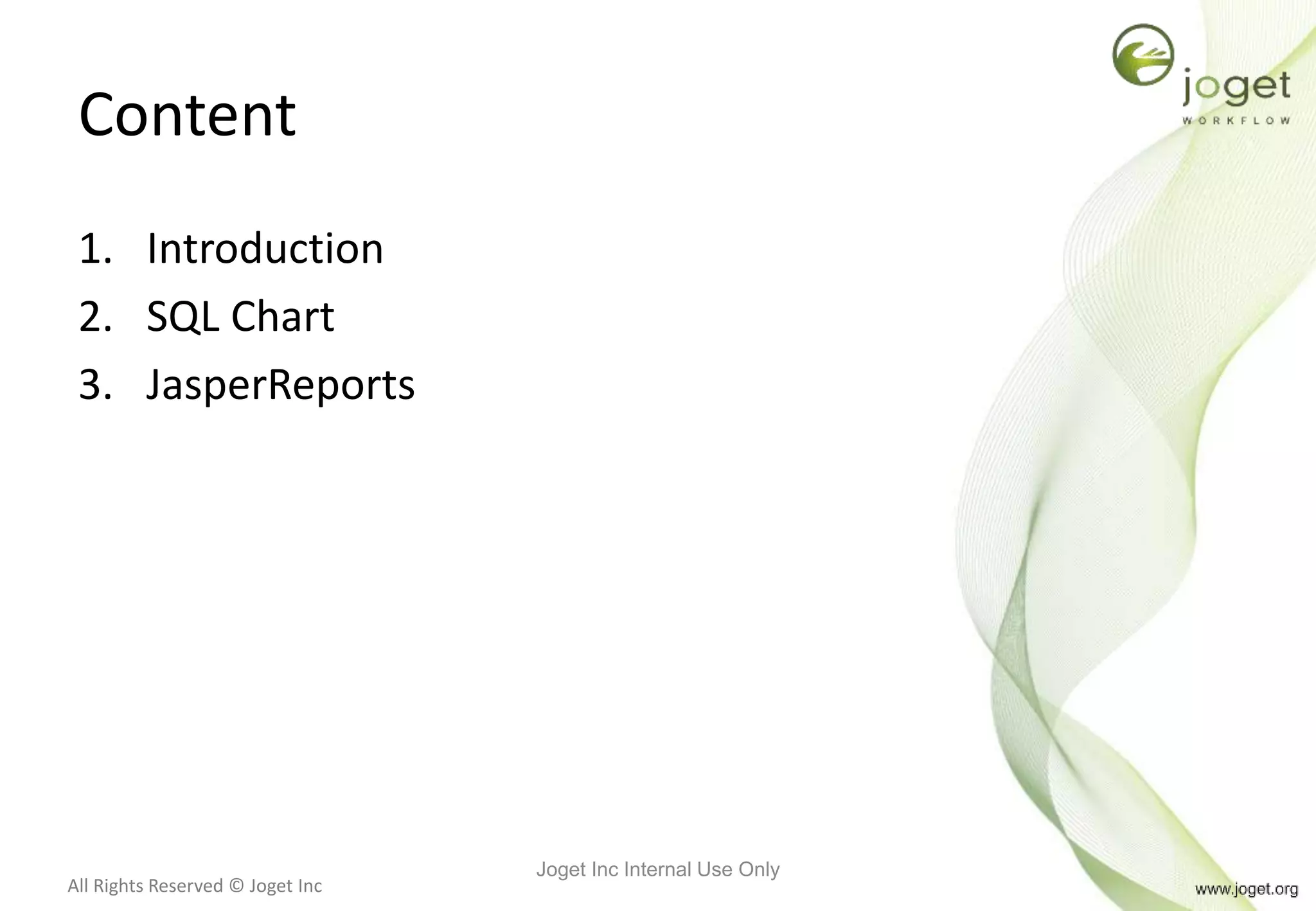

Content
1. Introduction
2. SQL Chart
3. JasperReports
Joget Inc Internal Use Only

4. All Rights Reserved © Joget Inc
Chapter 1
Introduction
Joget Inc Internal Use Only

5. All Rights Reserved © Joget Inc

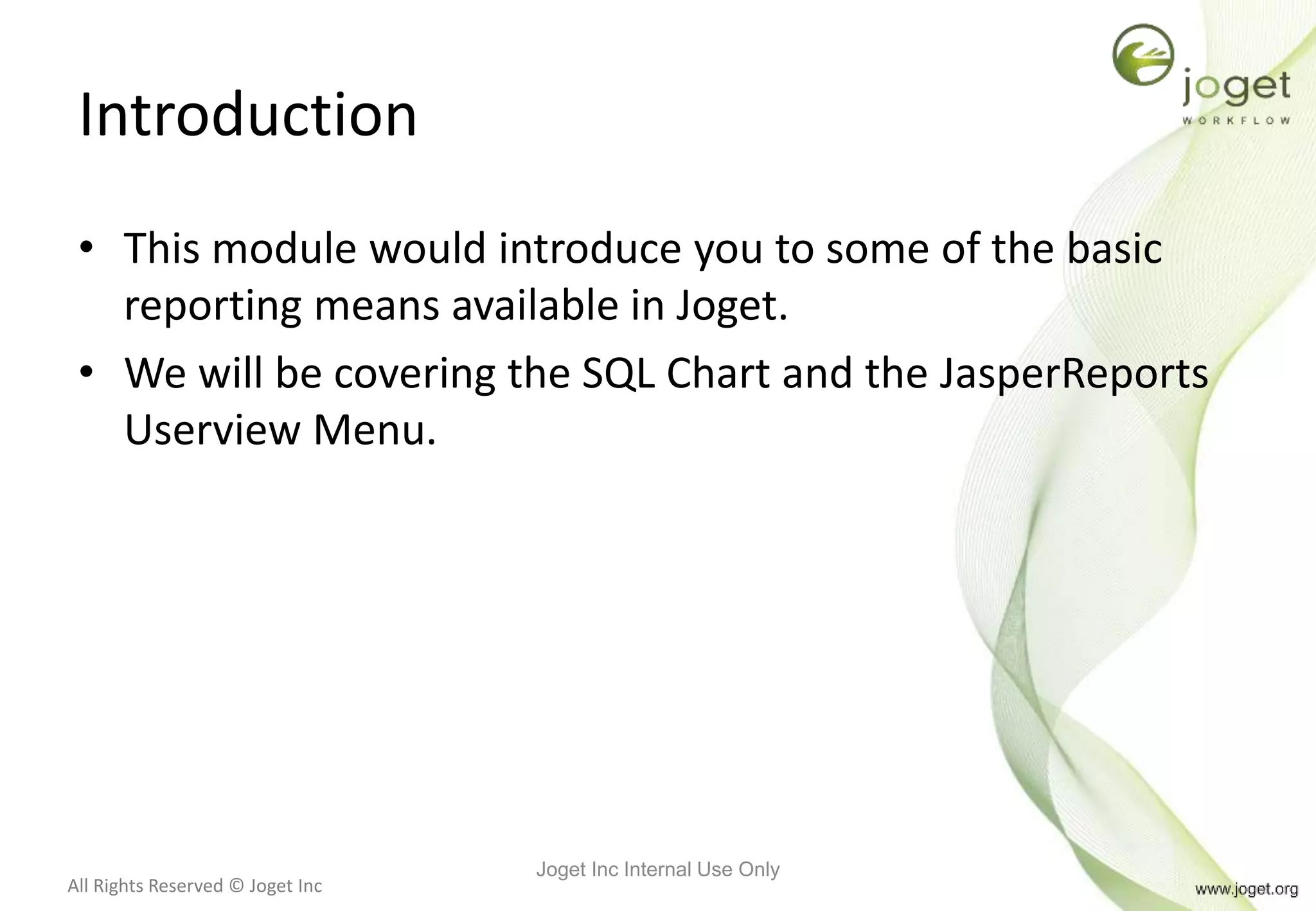

Introduction
• This module would introduce you to some of the basic
reporting means available in Joget.
• We will be covering the SQL Chart and the JasperReports
Userview Menu.
Joget Inc Internal Use Only

6. All Rights Reserved © Joget Inc

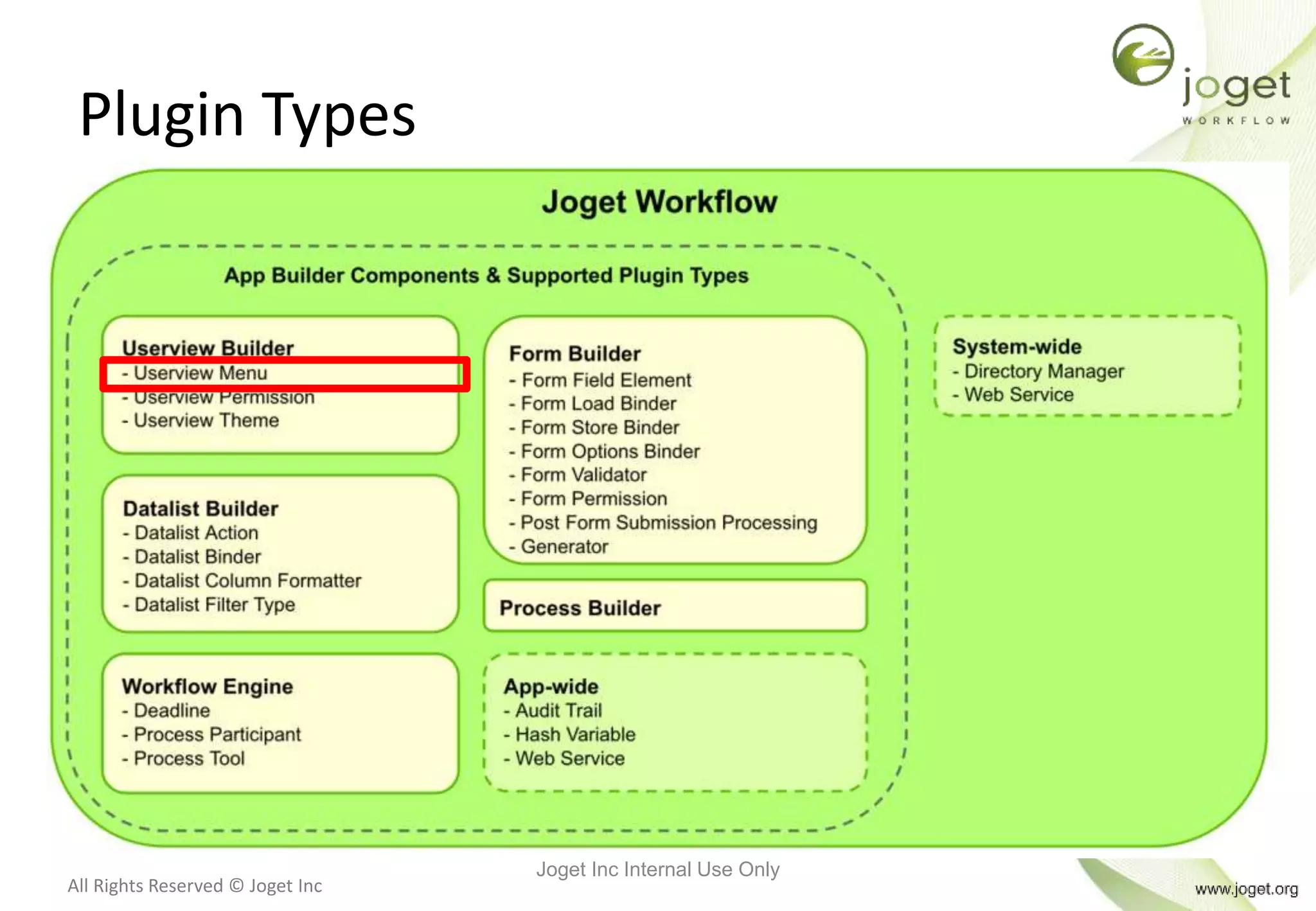

Plugin Types
Joget Inc Internal Use Only

7. All Rights Reserved © Joget Inc
Chapter 2

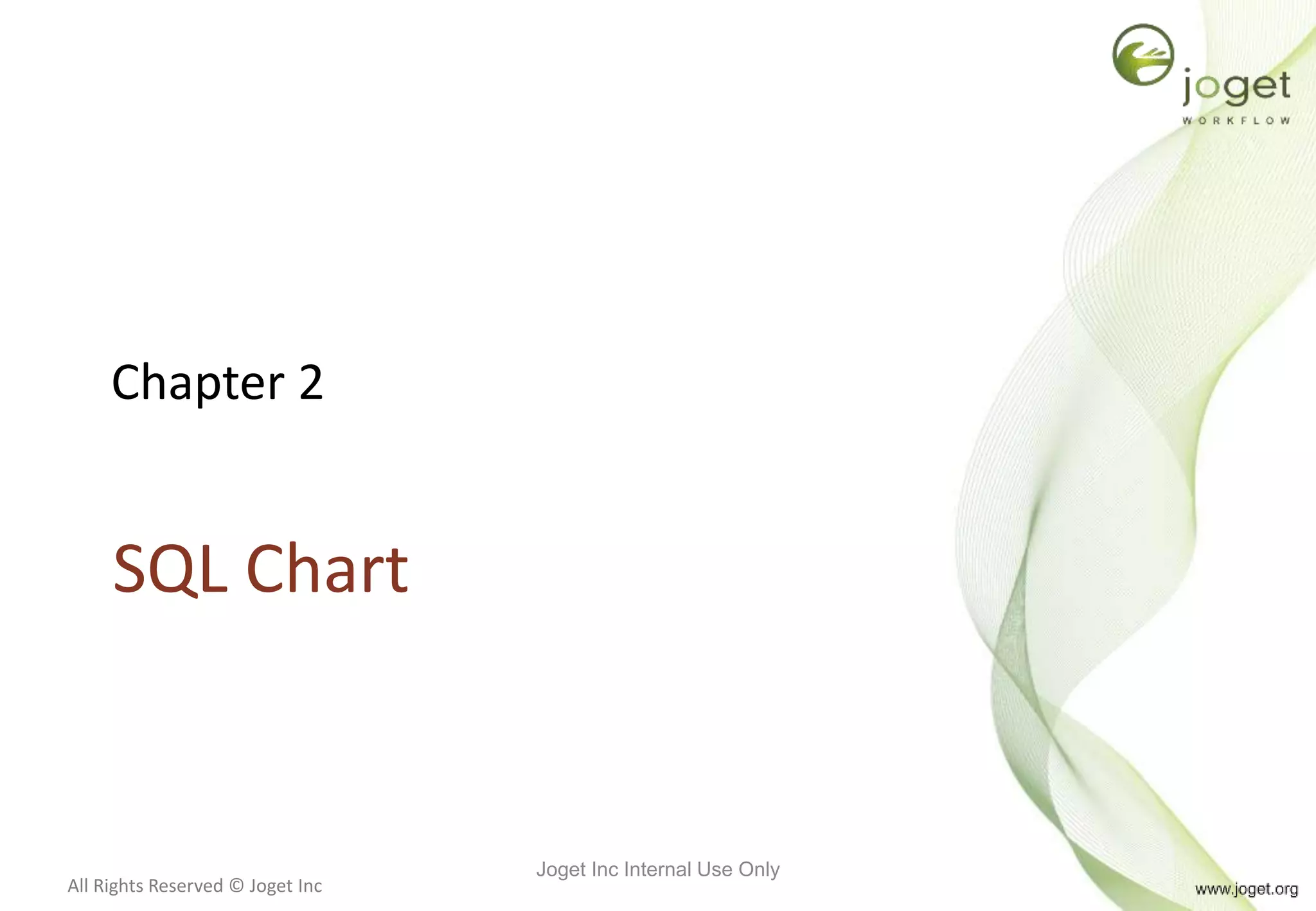

SQL Chart
Joget Inc Internal Use Only

8. All Rights Reserved © Joget Inc

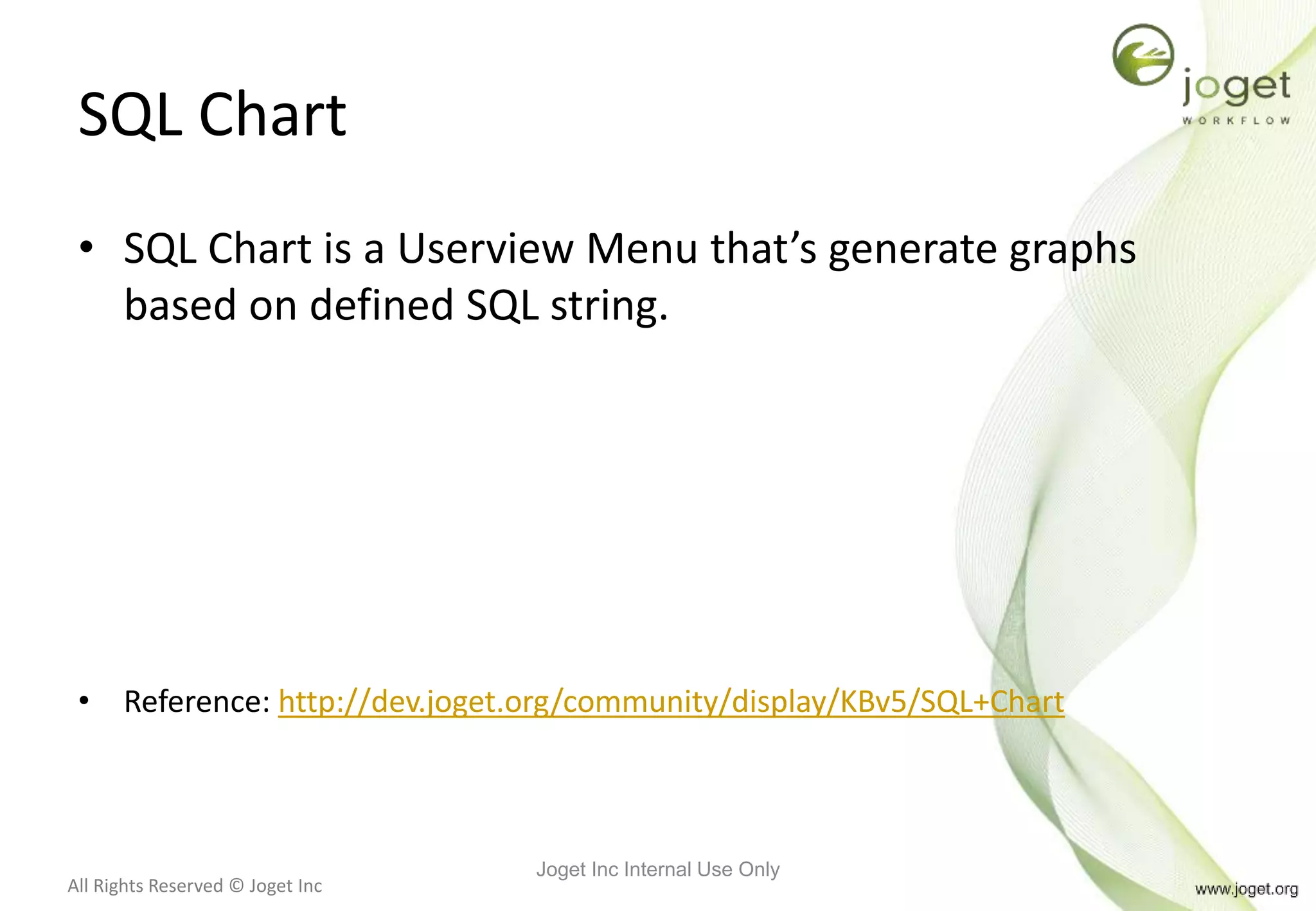

SQL Chart
• SQL Chart is a Userview Menu that’s generate graphs
based on defined SQL string.
• Reference: http://dev.joget.org/community/display/KBv5/SQL+Chart
Joget Inc Internal Use Only

9. All Rights Reserved © Joget Inc

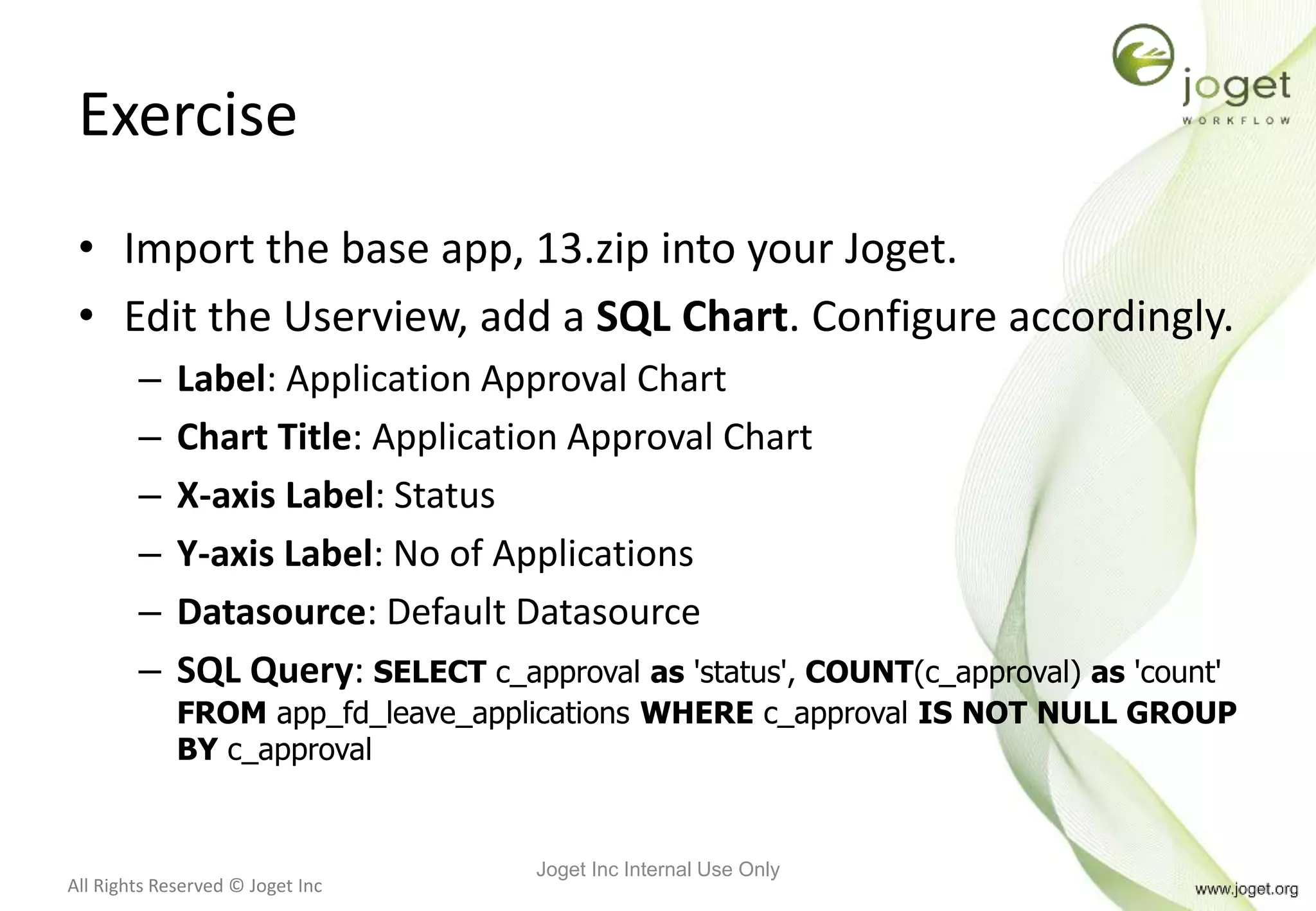

Exercise
• Import the base app, 13.zip into your Joget.
• Edit the Userview, add a SQL Chart. Configure accordingly.
– Label: Application Approval Chart
– Chart Title: Application Approval Chart
– X-axis Label: Status
– Y-axis Label: No of Applications
– Datasource: Default Datasource
– SQL Query: SELECT c_approval as 'status', COUNT(c_approval) as 'count'
FROM app_fd_leave_applications WHERE c_approval IS NOT NULL GROUP
BY c_approval
Joget Inc Internal Use Only

10. All Rights Reserved © Joget Inc

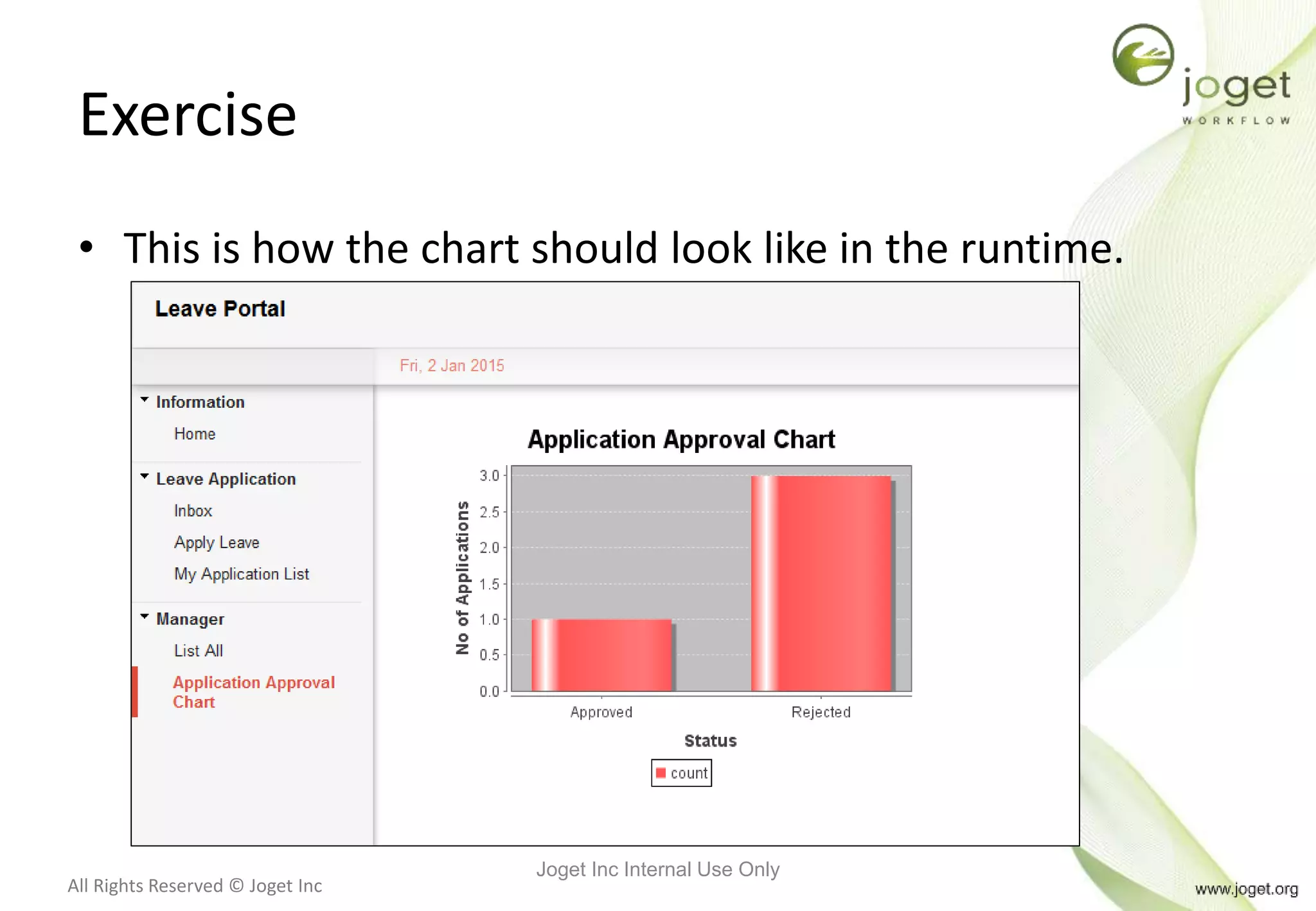

Exercise
• This is how the chart should look like in the runtime.
Joget Inc Internal Use Only

11. All Rights Reserved © Joget Inc

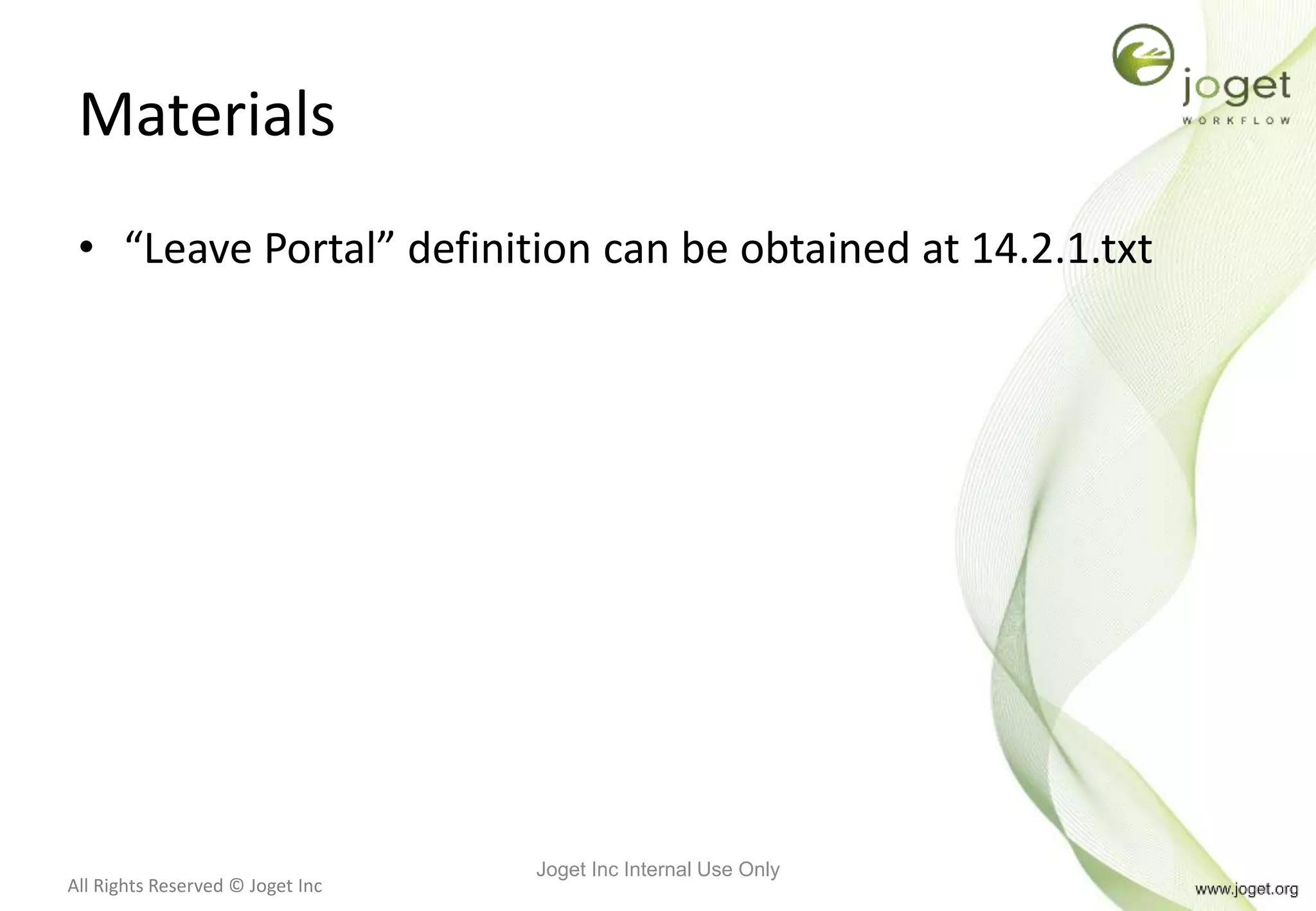

Materials
• “Leave Portal” definition can be obtained at 14.2.1.txt
Joget Inc Internal Use Only

12. All Rights Reserved © Joget Inc

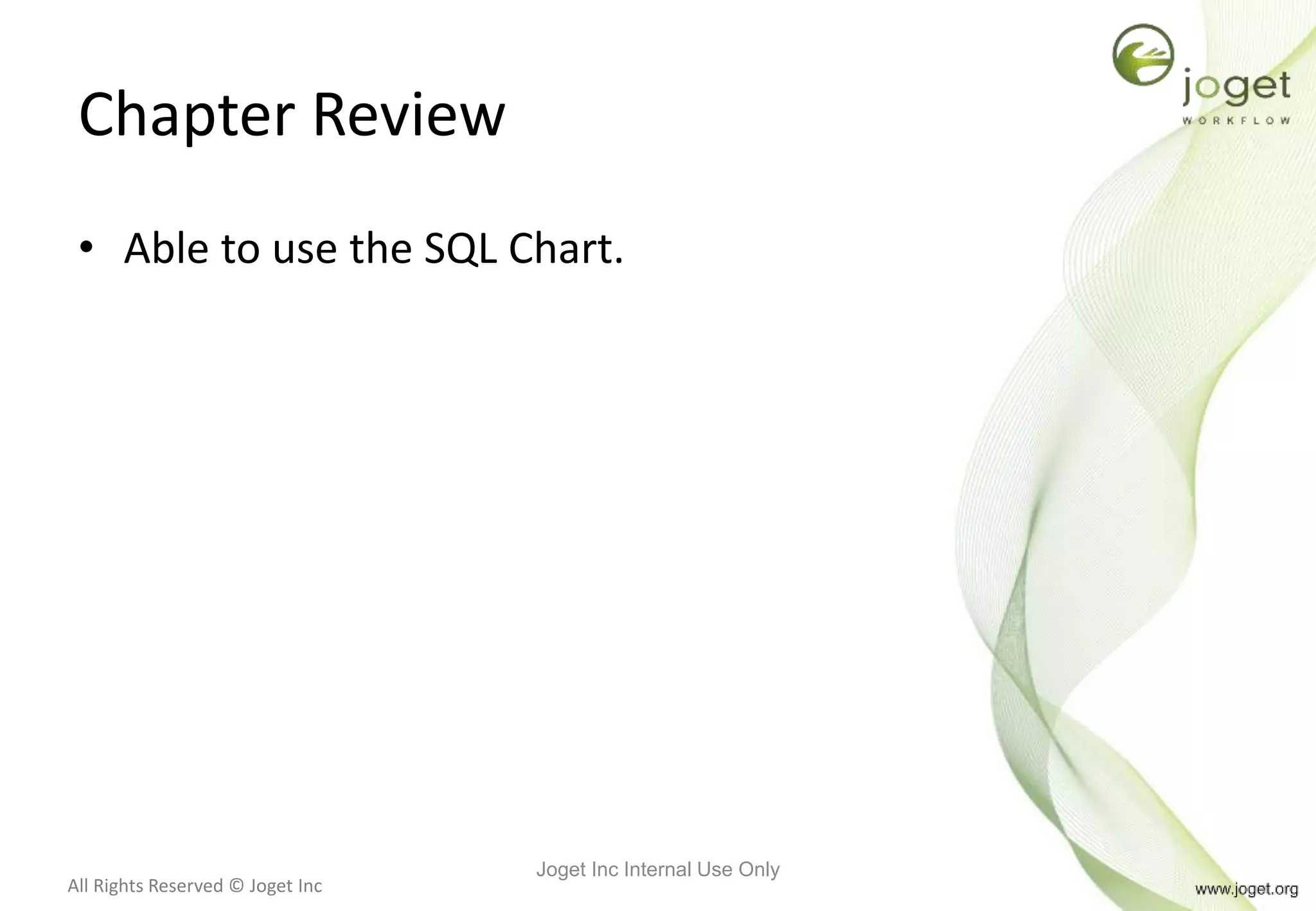

Chapter Review
• Able to use the SQL Chart.
Joget Inc Internal Use Only

13. All Rights Reserved © Joget Inc

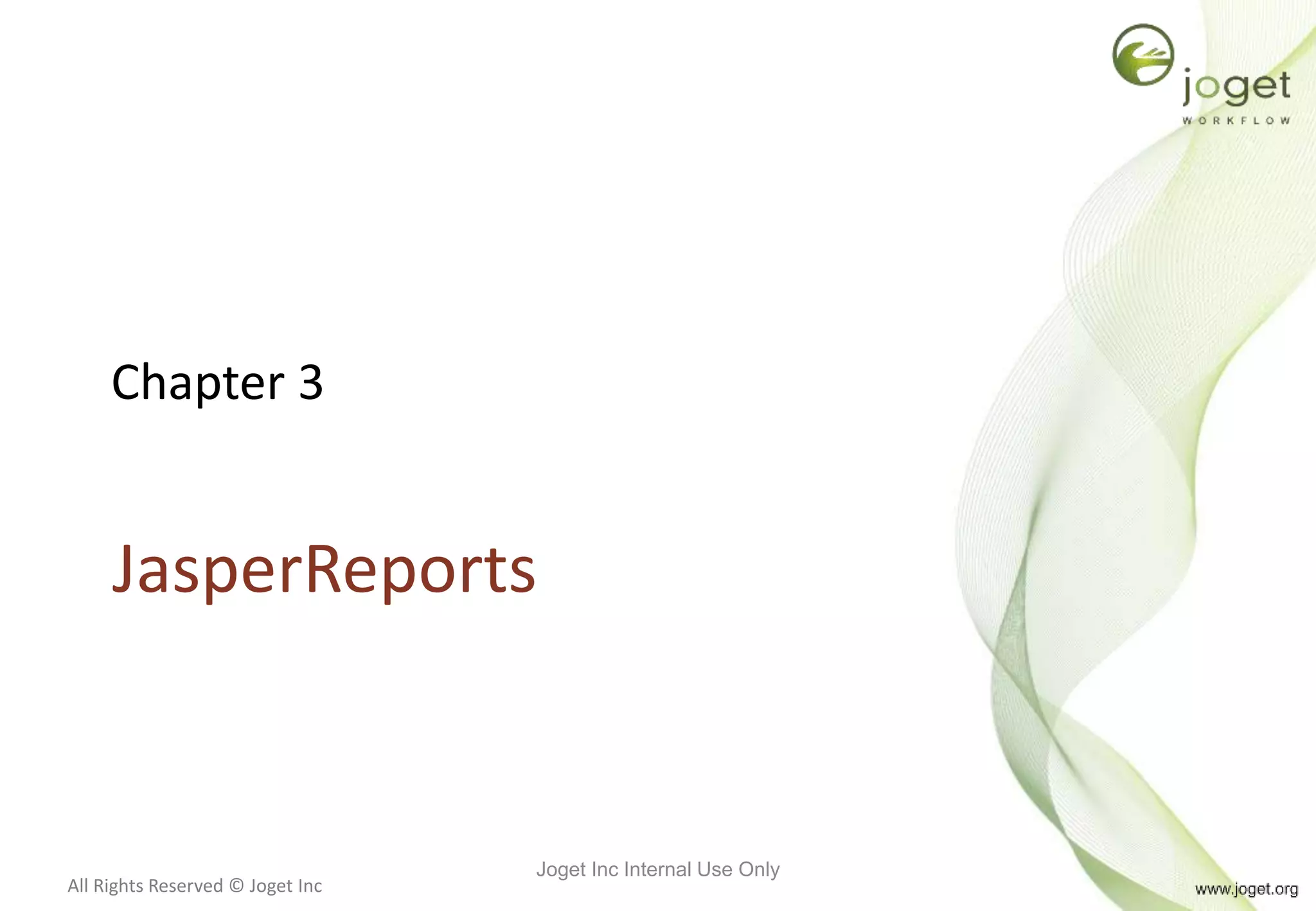

Chapter 3
JasperReports
Joget Inc Internal Use Only

14. All Rights Reserved © Joget Inc

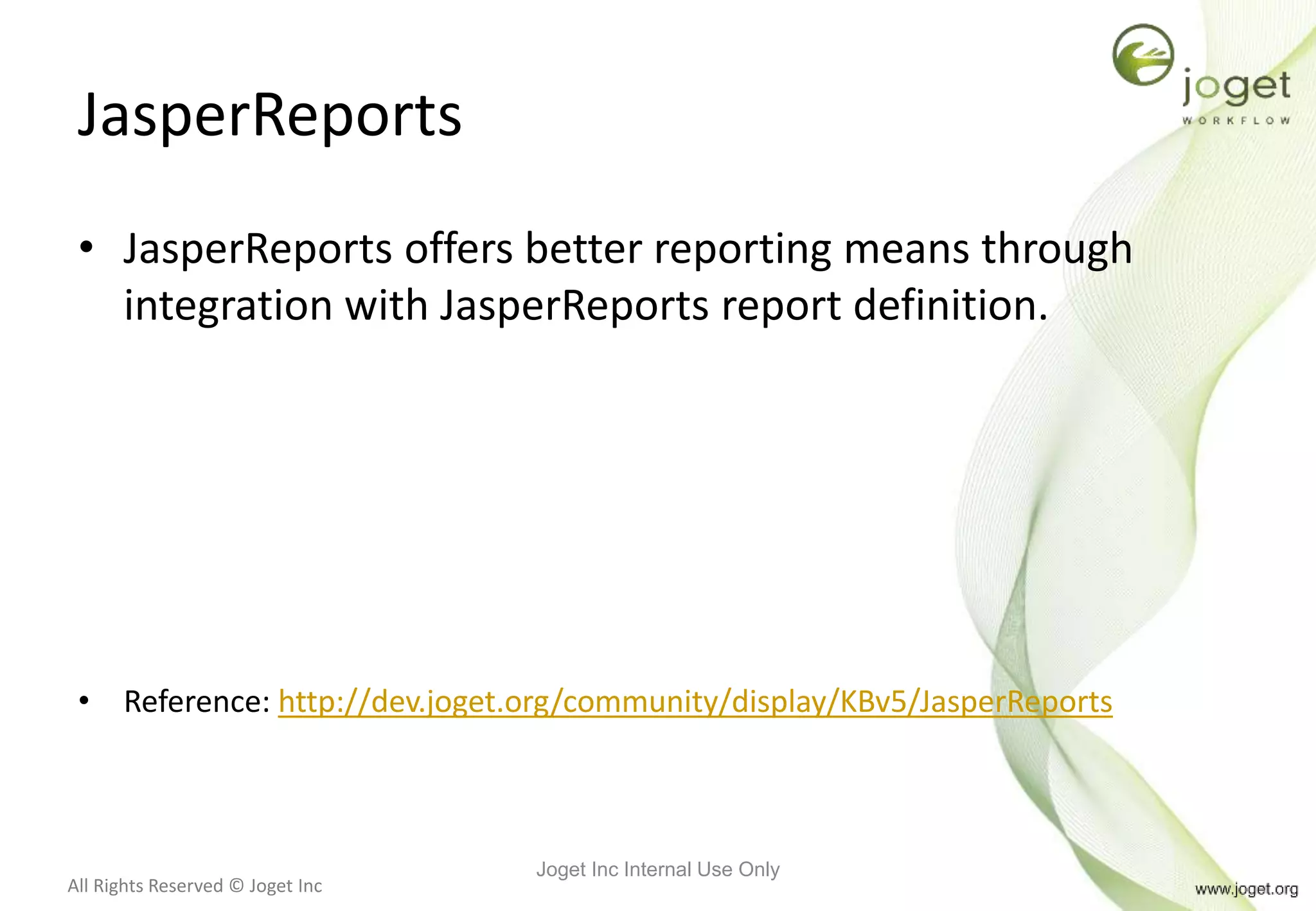

JasperReports
• JasperReports offers better reporting means through
integration with JasperReports report definition.
• Reference: http://dev.joget.org/community/display/KBv5/JasperReports
Joget Inc Internal Use Only

15. All Rights Reserved © Joget Inc
Exercise

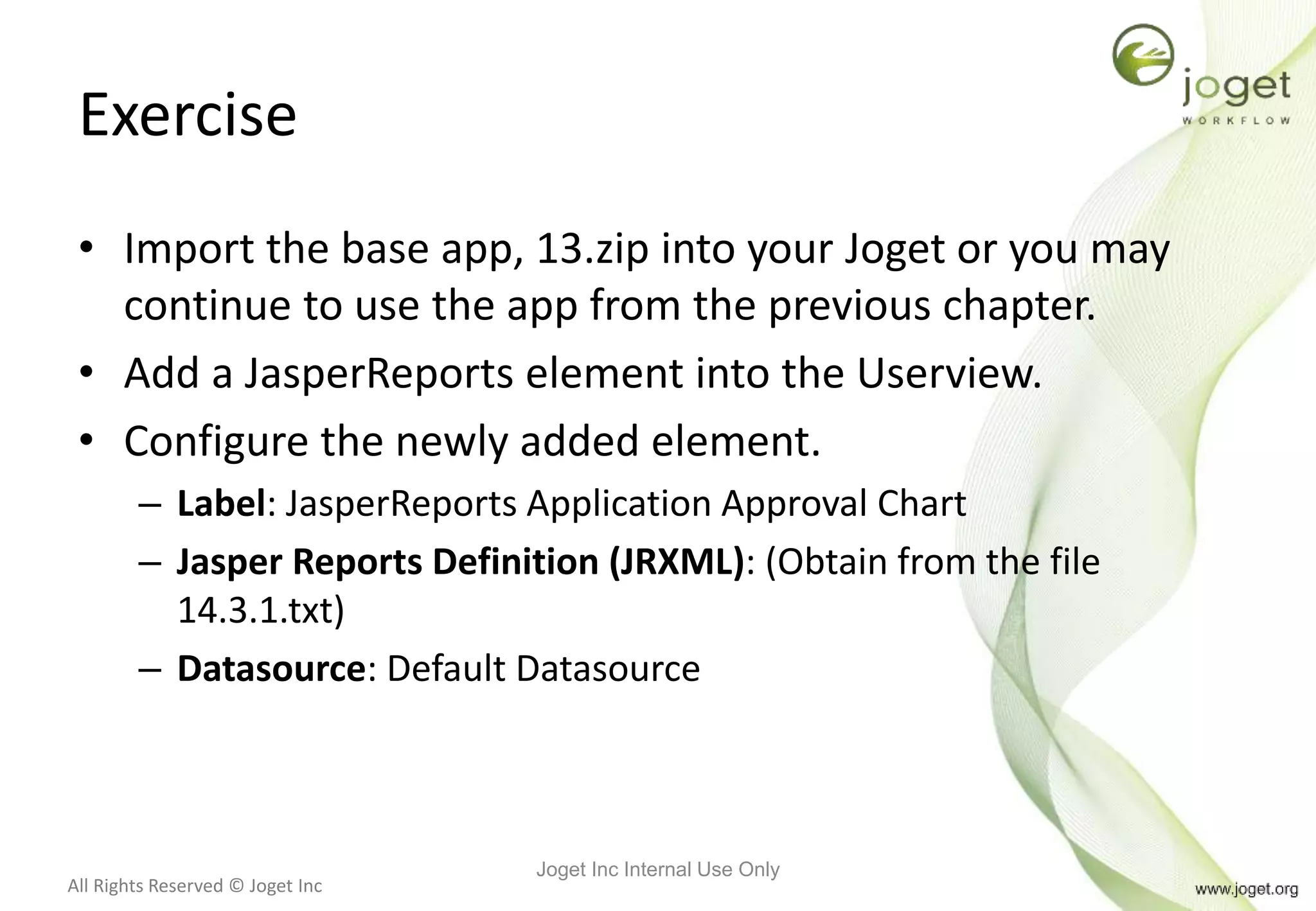

• Import the base app, 13.zip into your Joget or you may
continue to use the app from the previous chapter.
• Add a JasperReports element into the Userview.
• Configure the newly added element.
– Label: JasperReports Application Approval Chart
– Jasper Reports Definition (JRXML): (Obtain from the file
14.3.1.txt)
– Datasource: Default Datasource
Joget Inc Internal Use Only

16. All Rights Reserved © Joget Inc

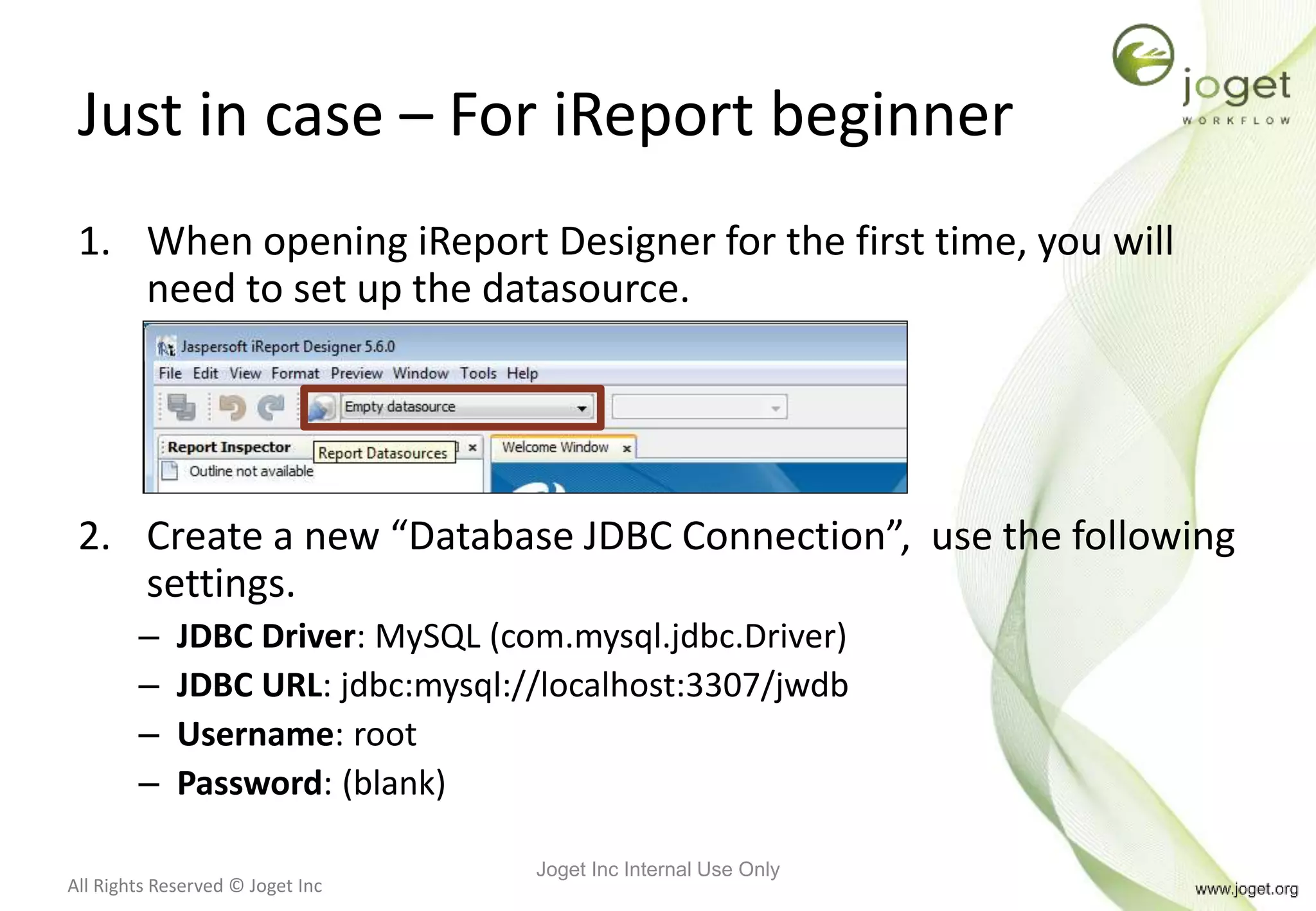

Just in case – For iReport beginner
1. When opening iReport Designer for the first time, you will
need to set up the datasource.
2. Create a new “Database JDBC Connection”, use the following
settings.
– JDBC Driver: MySQL (com.mysql.jdbc.Driver)
– JDBC URL: jdbc:mysql://localhost:3307/jwdb
– Username: root
– Password: (blank)
Joget Inc Internal Use Only

17. All Rights Reserved © Joget Inc
Just in case – For iReport beginner

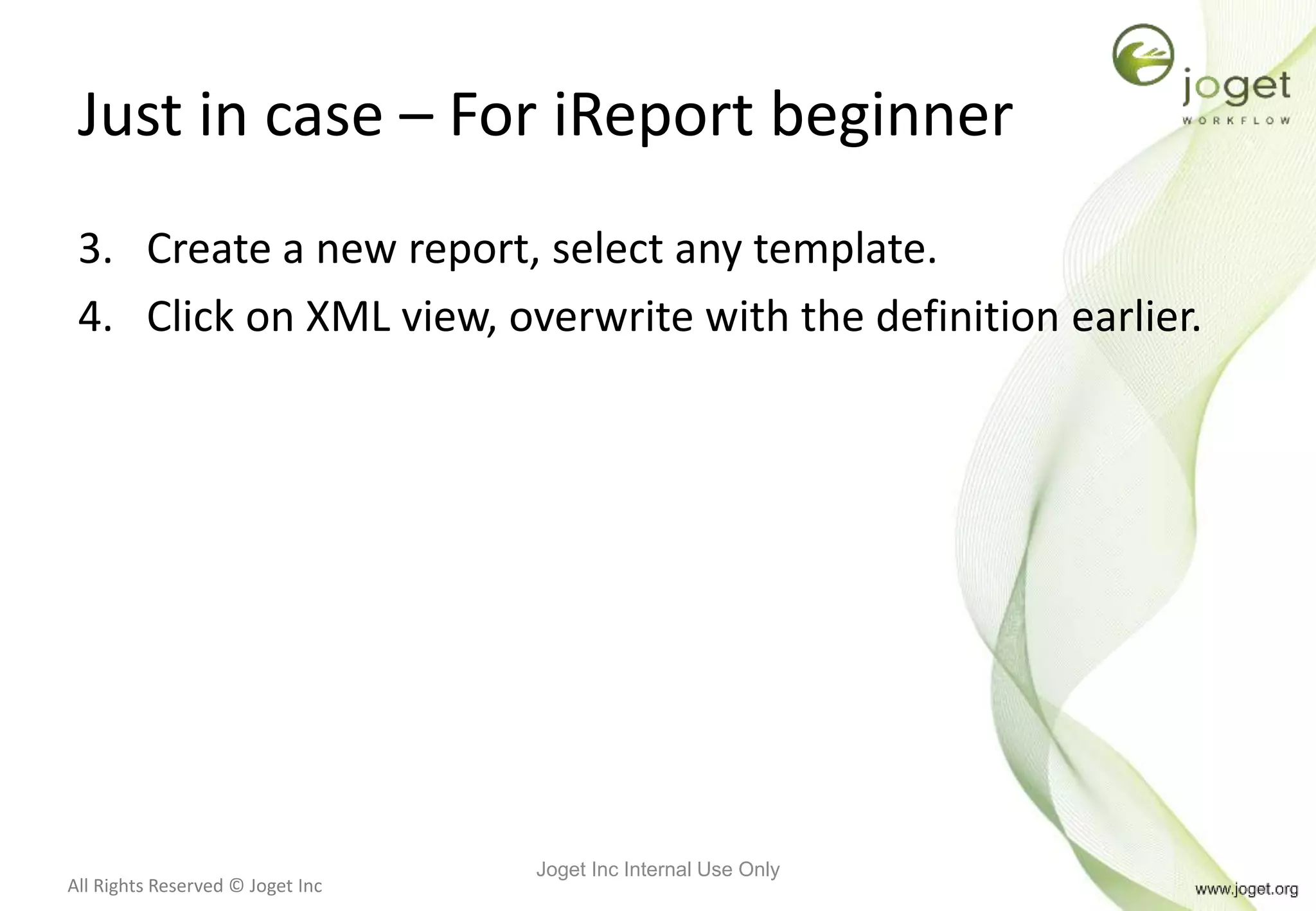

3. Create a new report, select any template.
4. Click on XML view, overwrite with the definition earlier.
Joget Inc Internal Use Only

18. All Rights Reserved © Joget Inc
Exercise

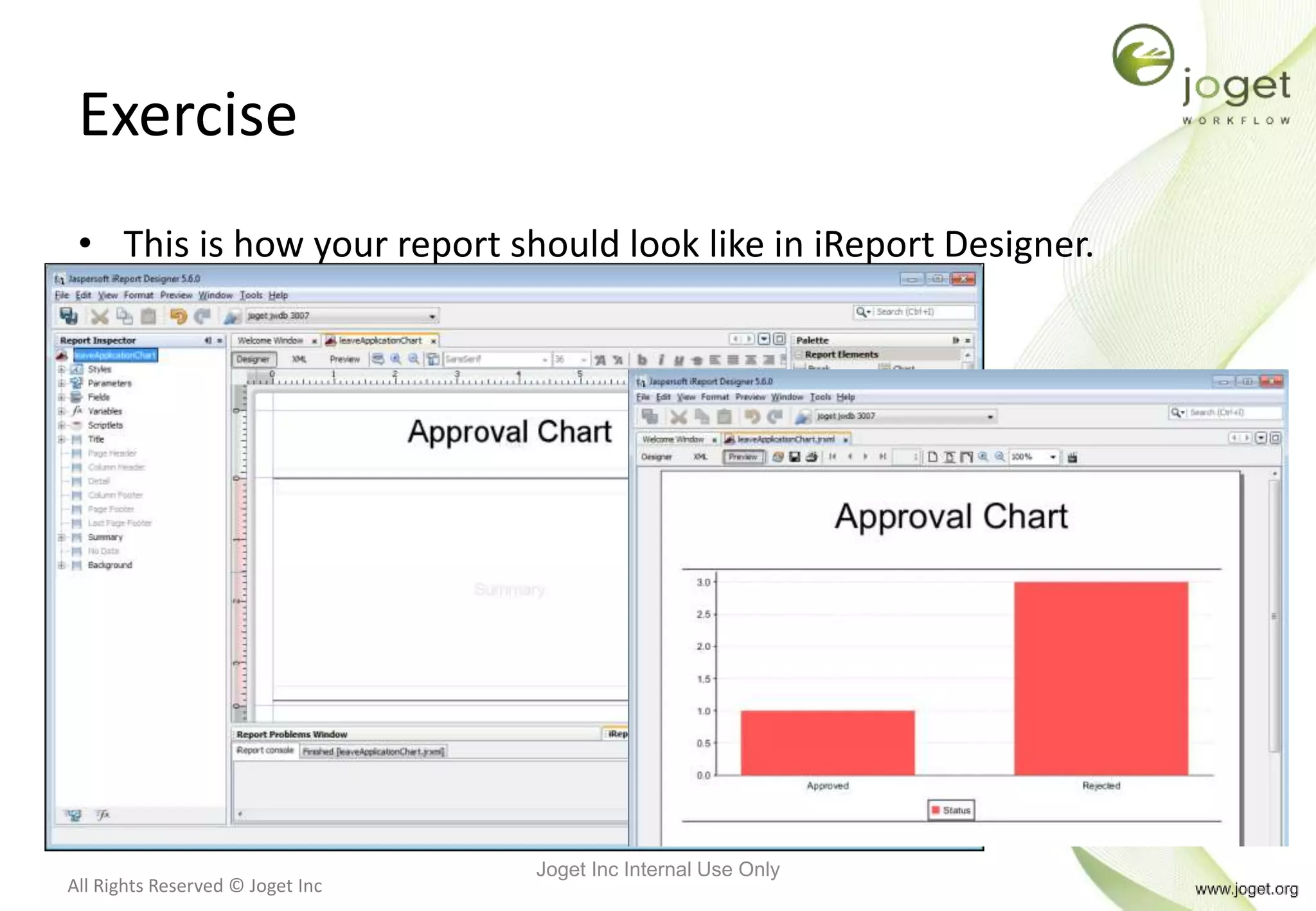

• This is how your report should look like in iReport Designer.
Joget Inc Internal Use Only

19. All Rights Reserved © Joget Inc
Exercise

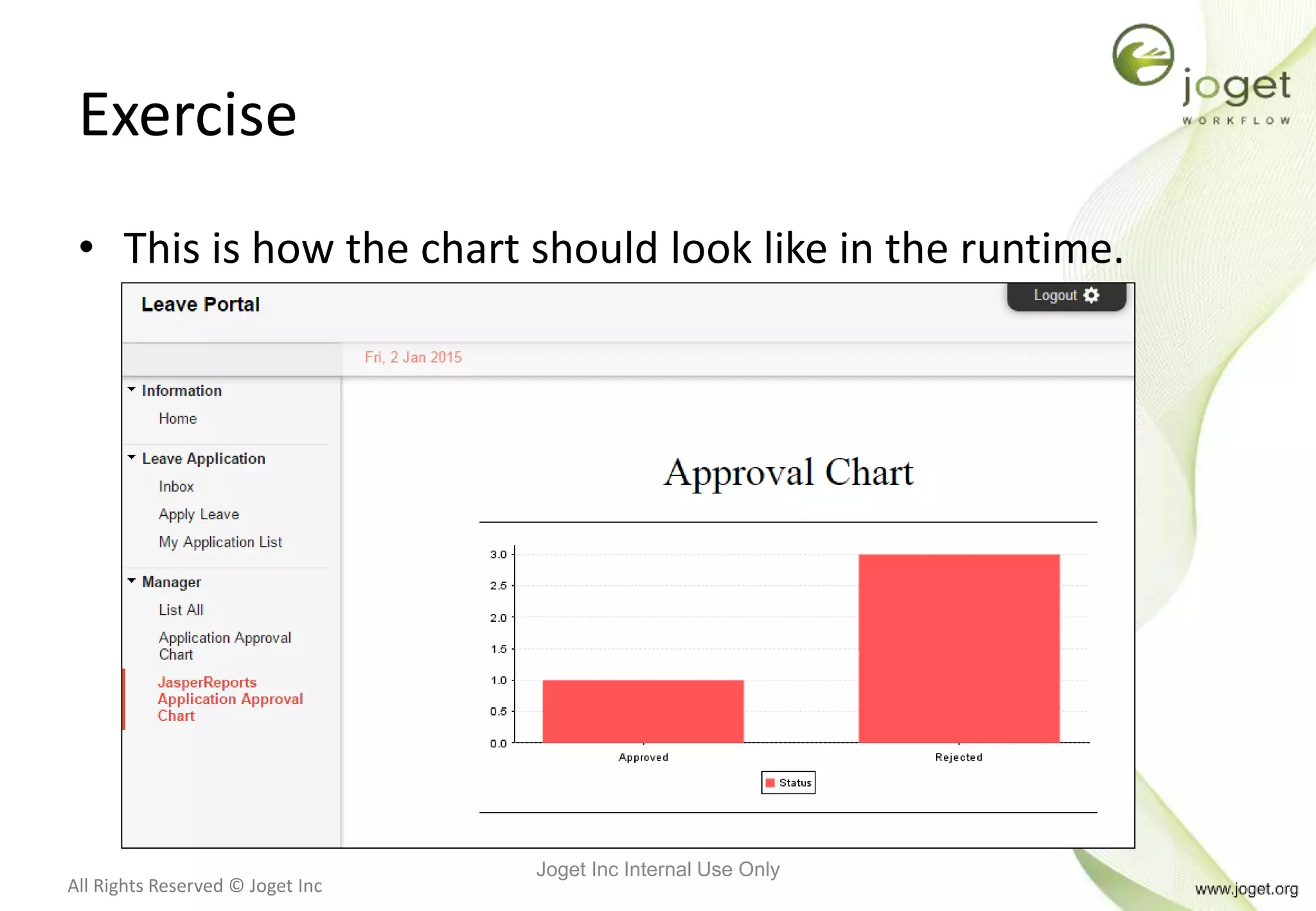

• This is how the chart should look like in the runtime.
Joget Inc Internal Use Only

20. All Rights Reserved © Joget Inc

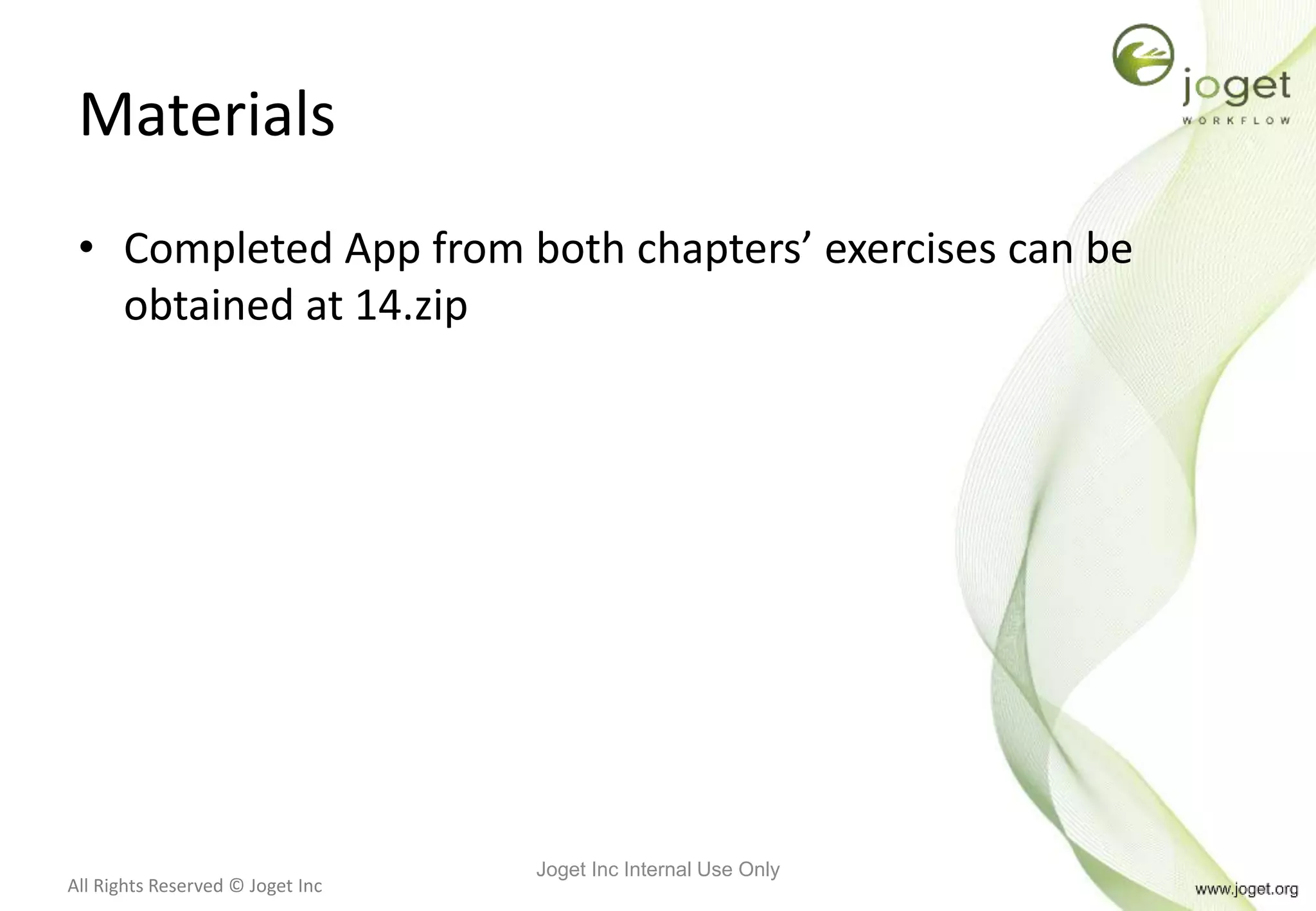

Materials
• Completed App from both chapters’ exercises can be
obtained at 14.zip
Joget Inc Internal Use Only

21. All Rights Reserved © Joget Inc
Chapter Review

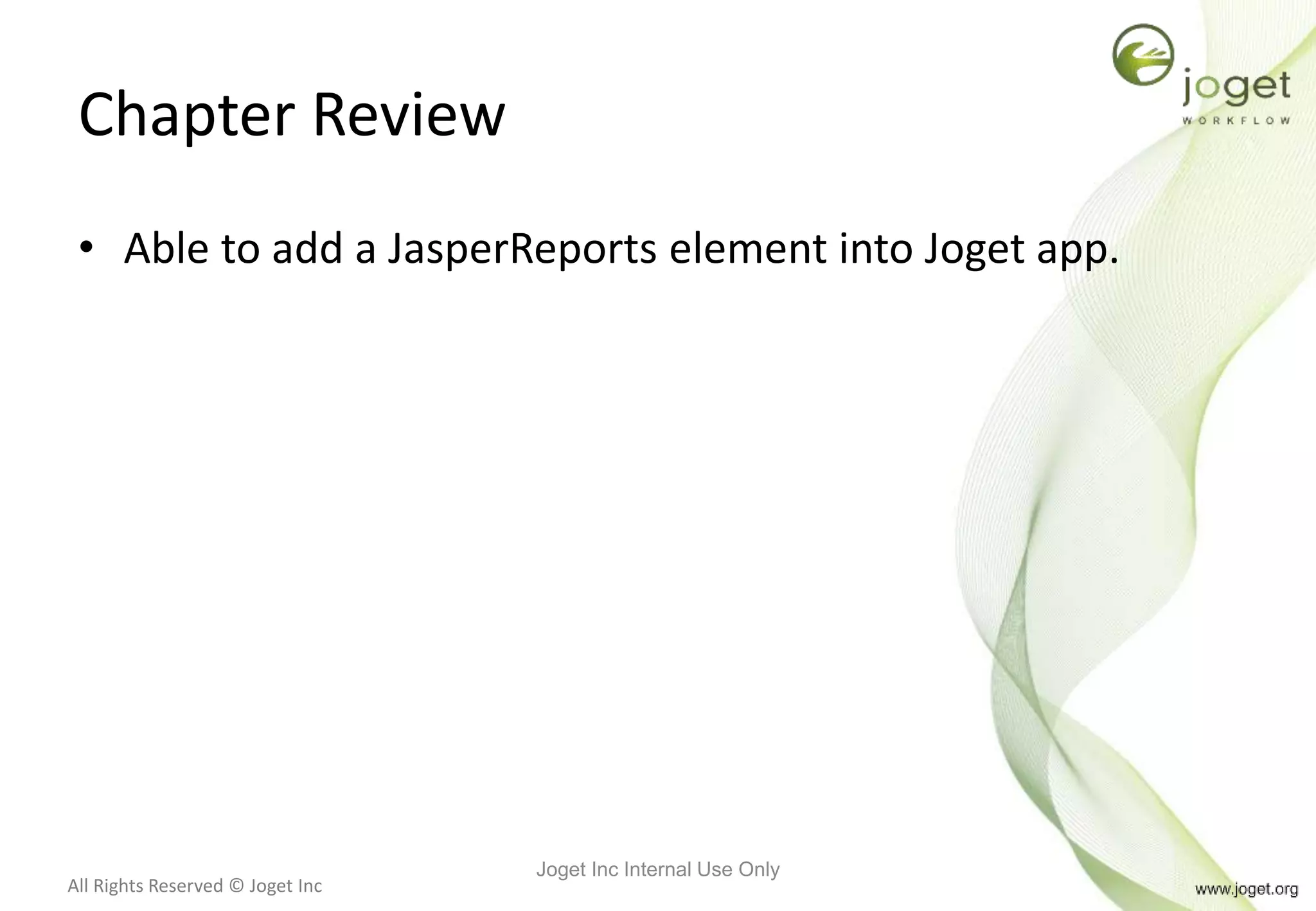

• Able to add a JasperReports element into Joget app.
Joget Inc Internal Use Only

22. All Rights Reserved © Joget Inc
Module Review

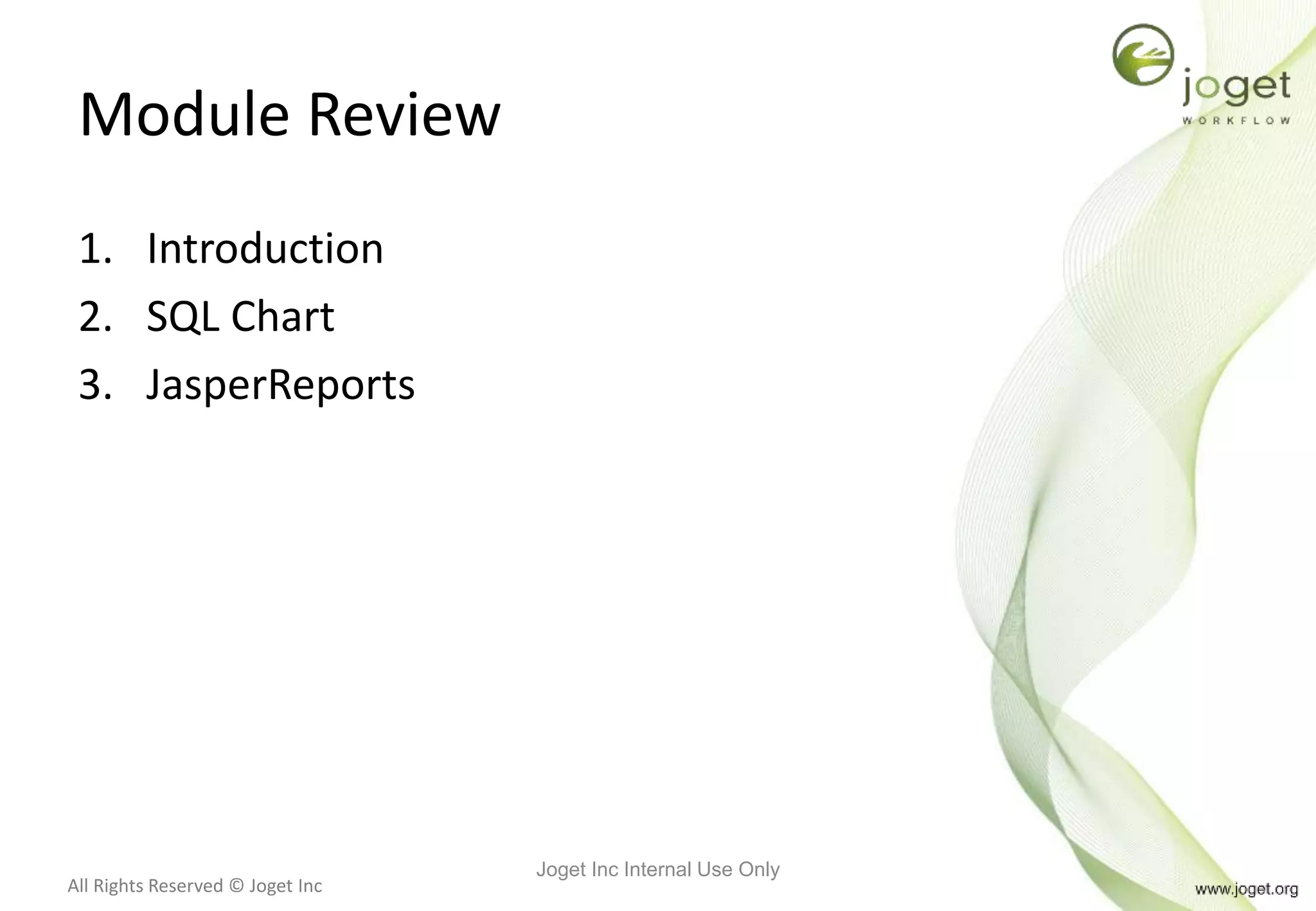

1. Introduction
2. SQL Chart
3. JasperReports
Joget Inc Internal Use Only

23. All Rights Reserved © Joget Inc

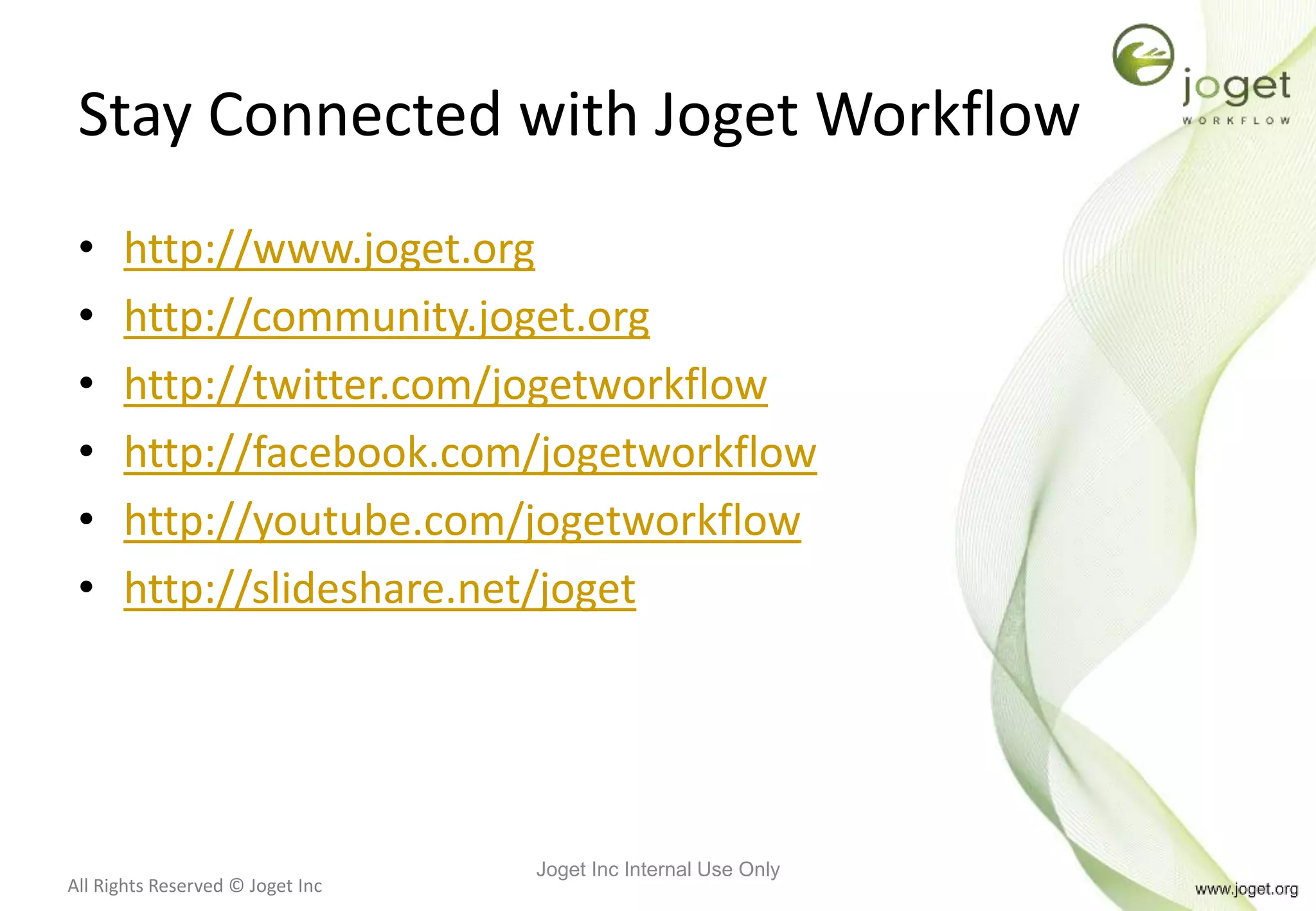

Stay Connected with Joget Workflow
• http://www.joget.org
• http://community.joget.org
• http://twitter.com/jogetworkflow
• http://facebook.com/jogetworkflow
• http://youtube.com/jogetworkflow
• http://slideshare.net/joget
