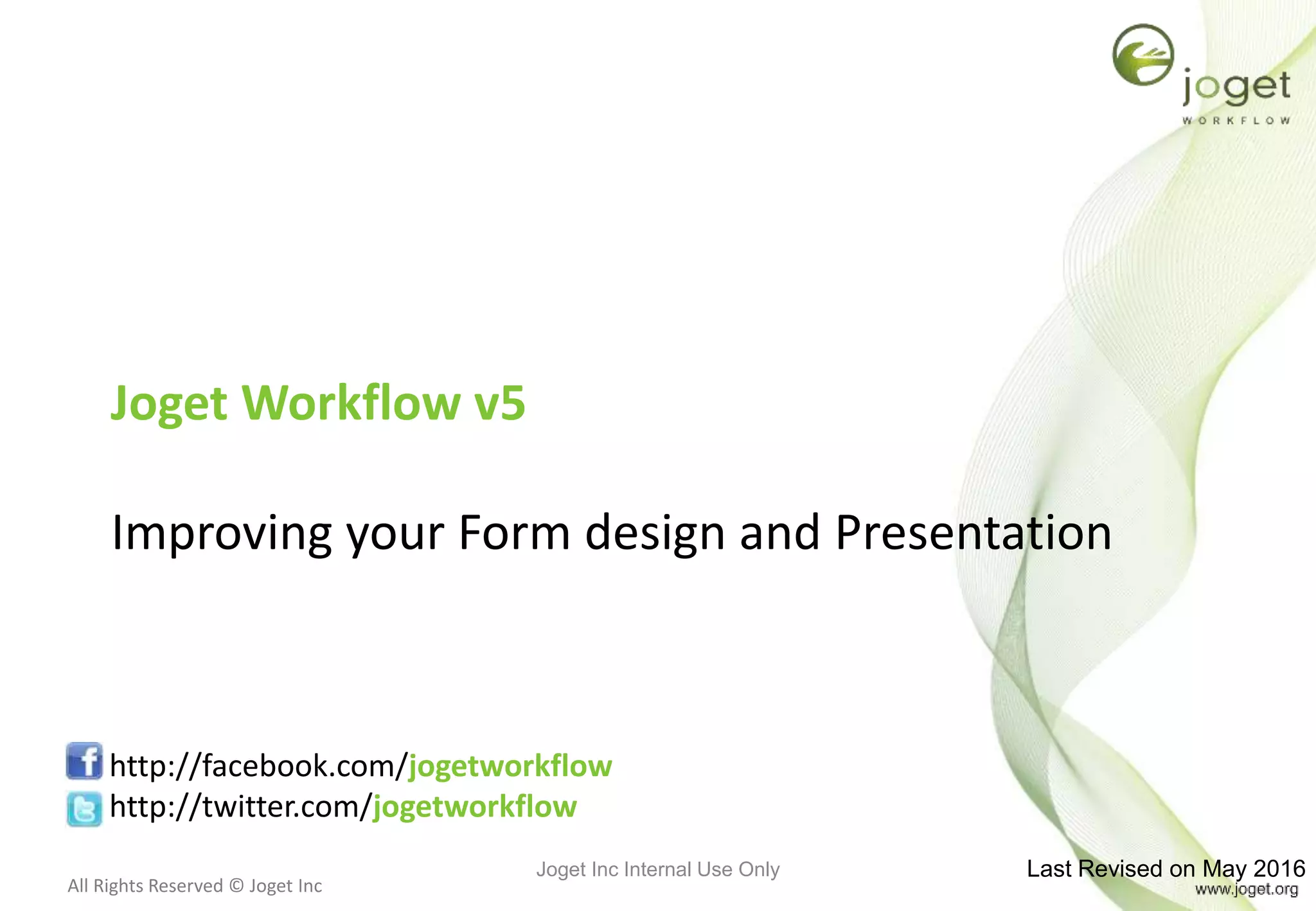

Joget Workflow v5 Training Slides - Module 13 - Improving your form design and presentation

All Rights Reserved © Joget Inc
Joget Workflow v5
Improving your Form design and Presentation
http://facebook.com/jogetworkflow
http://twitter.com/jogetworkflow
Last Revised on May 2016Joget Inc Internal Use Only

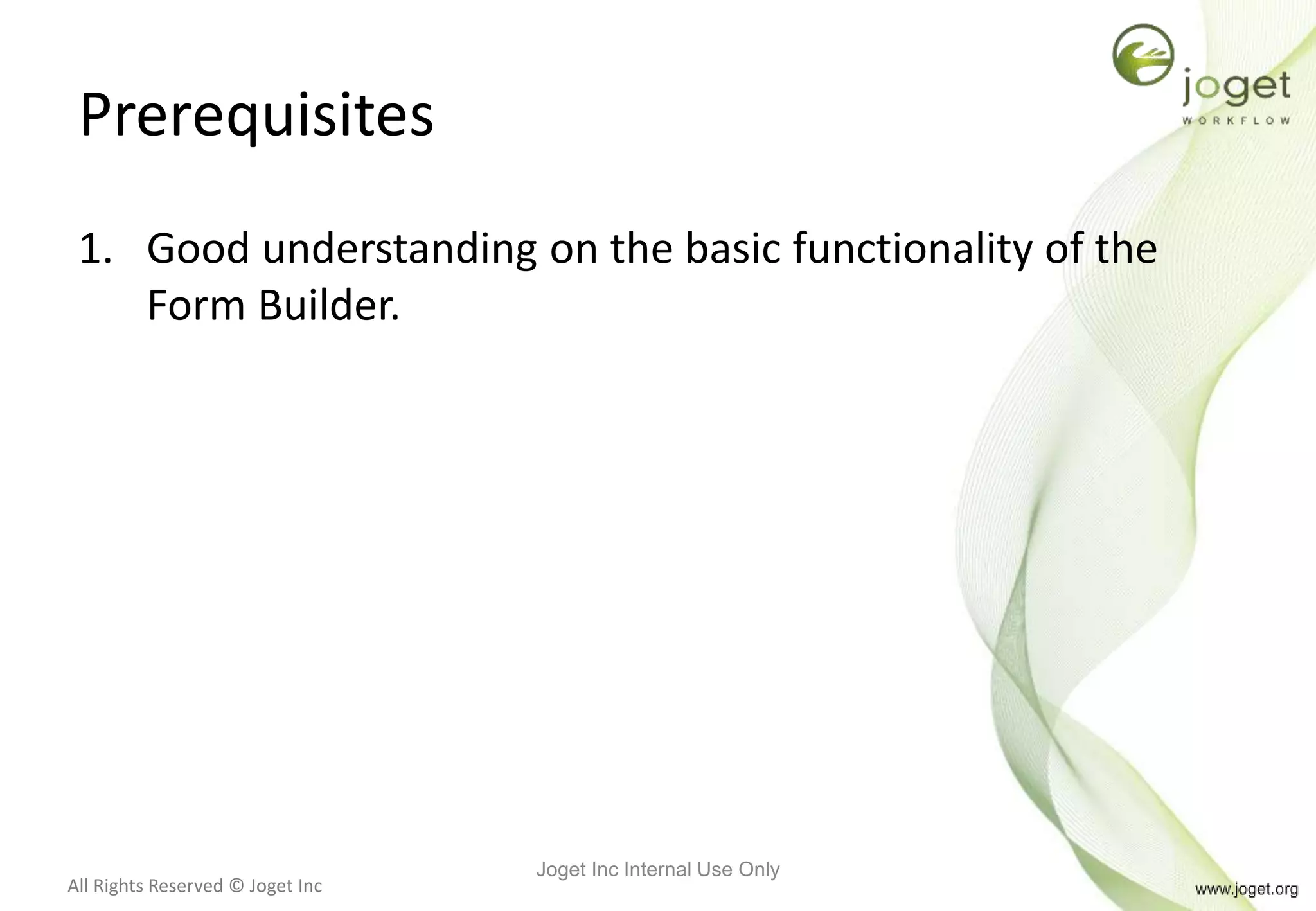

Prerequisites
1. Good understanding on the basic functionality of the
Form Builder.
Joget Inc Internal Use Only

Content
1. Introduction
2. Grid
3. Form Grid
4. Multirow Form Binder
5. List Grid
6. CRUD
7. Custom HTML

Chapter 1
Introduction

Introduction
• Learning about more Joget Workflow plugins/elements to
improve your form design and presentation.
• In this module, we will be covering the following
elements.
1. Grid (Form Element)
2. Form Grid (Form Element)
3. Multirow Form Binder (Form Binder)
4. List Grid (Form Element)
5. CRUD (Userview Menu)

List of available Elements
• Check out
http://dev.joget.org/community/display/KBv5/Create+New+Form
for the list of Form related elements (Form Element,
Form Validator, Form Binder, Form Options Binder).
• Check out
http://dev.joget.org/community/display/KBv5/Userview+Element
for the list of Userview Menu elements.

Chapter 2
Grid

Grid
• Grid is the most basic element available in the Form
Builder in capturing multi-row data.
• Reference: http://dev.joget.org/community/display/KBv5/Grid
• For your information: The other grid-like element available in Form Builder is
Form Grid.

Exercise
• Import the base app “13.zip” into your copy of Joget.
• Edit the “1-Submit Leave” form.
• Add a “Grid” to the end of the form.
• Configure accordingly.

Exercise
• This is how your form design should look like.

Exercise
• Run a new “Leave Process” process, and submit the form
to observe.

Materials
• Completed exercise Form Definition for “1-Submit Leave“
can be obtained from 13.2.1.txt.

Chapter Review
• Being able to use the Grid element.

Chapter 3
Form Grid

Form Grid
• Form Grid works similarly like the basic Grid.
• Instead of editing data row inline, editing is done on a full
fledged Form that opens up in a dialog.
• Reference:
http://dev.joget.org/community/display/KBv5/Form+Grid

Exercise
• Import the base app “13.zip” into your copy of Joget OR
delete the Grid created in previous chapter.
• Create a new form with the following details.

Exercise
• Add 2 text fields with the following details:-
– ID: name, Label: Name
– ID: contact_no, Label: Contact No
• Save the form

Exercise
• Edit the “1-Submit Leave” form.
• Add a “Form Grid” to the end of the form.

Exercise
• This is how the form should look like in runtime.

Exercise
• Run a new “Apply Leave” process, and submit the form to
observe.

Materials
• "1-Submit Leave" form can be obtained from the file
“13.3.1.txt”
• “Emergency Contact” form can be obtained from the file
“13.3.2.txt”

Chapter Review
• Being able to use the Form Grid element.
• PS: Check out Advanced Grid
(http://dev.joget.org/community/display/KBv5/Advanced+Grid)
Form Element that performs similarly as the Form Grid.

Chapter 4
Multirow Form Binder

Multirow Form Binder
• Multirow Form Binder is a Store/Load Form Binder that is
designed to treat multi-row data for grid form element.
• Rather than storing in the traditional JSON data format in
a single column cell, the Multirow Form Binder saves the
data into its respective tables.
• This would make data retrieval easier for sorting,
statistics, and indexing/performance purpose.
• Reference:
http://dev.joget.org/community/display/KBv5/Multirow+Form+Binder

Exercise
• Continue to use the application from the previous chapter
OR import app from the file “13.4.1.zip”.
• Edit the “Emergency Contact” form.
• Add a Hidden Field to the form.

Exercise
• This is how your “Emergency Contact” form should look
like.

Exercise
• Edit the "1-Submit Leave" form.
• Configure the Form Grid element to utilize the Multirow
Form Binder in Data Binder.

Exercise
• Click next to configure the Binder.

Exercise
• Inspect the database table of “Emergency Contact”, you
will notice that rows of data is now being saved into this
table rather than the parent table.

Materials
• "1-Submit Leave" form definition is available at 13.4.2.txt
• “Emergency Contact” form definition is available at
13.4.3.txt
• Complete app is available at 13.4.4.zip

Chapter Review
• Understand the use case of the Multirow Form Binder
and the benefits that it brings.

Chapter 5
List Grid

List Grid
• List Grid is a grid table that populates its data from a
Datalist.
• It behaves similarly like a Grid (Chapter 2) but new rows
are added from a specific Datalist instead.
• It also behaves similarly like a Form Grid that allows one
to open up a Form for editing.
• Reference: http://dev.joget.org/community/display/KBv5/List+Grid

Exercise
• Continue to use the application from the previous chapter
OR import app from the file “13.4.1.zip”.
• Remove the Form Grid from "1-Submit Leave" form.

Exercise
• Create a new Datalist as follow:-
– ID: contactList
– Name: Contact List
– Binder: JDBC Datalist Database Binder
• Datasource: Default Datasource
• SQL Select Query:
select con.id, app.c_name as 'applicant', con.c_name as
'name', con.c_contact_no as 'contact_no' from
app_fd_leave_applications app join app_fd_leave_contacts con
on app.id = con.c_application_id
(refer to the file 13.5.1.txt for the SQL)
Refer to 13.5.2.txt for the Datalist definition.

Exercise
• Drag in 2 columns (name and contact_no) into the
Datalist design pane. Change the labels accordingly.

Exercise
• Edit the "1-Submit Leave" form. Add a List Grid to the
bottom of the form. Configure accordingly and save.

Materials
• "1-Submit Leave" form definition is available at
“13.5.3.txt”
• “Contact List” definition is available at “13.5.2.txt”

Chapter Review
• Understand the List Grid element and be able to think of
the use case of it.
• Able to different between Grid, Form Grid and List Grid.

Chapter 6
CRUD

CRUD
• CRUD is a Userview Menu allows one to easily achieve the
functionality of Create, Retrieve, Update, and Delete on a
data entity.
• Reference: http://dev.joget.org/community/display/KBv5/CRUD

What is needed for CRUD to run?
• A Form entity
• A List of the same data entity as the form
• A Userview

Exercise
• Continue to use the application from the previous chapter OR import app from
the file “13.4.1.zip”.
• Add a CRUD element into the Userview in the base app. Configure accordingly.

Exercise
• This is how the CRUD element would look like in runtime.

Materials
• “Leave Portal” Userview definition is available at
13.6.1.txt

Chapter Review
• Able to use CRUD and understand the linkages.

Chapter 7
Custom HTML

Custom HTML
Custom HTML in Form Builder can be used to achieve advanced
form design by putting in any valid -
• HTML
E.g.: <b>this text is in bold</b>
• JavaScript (jQuery is supported)
Don’t forget to put in <script type="text/javascript"></script>
block
• CSS
Don’t forget to put in <style type="text/css"></style> block
Reference: http://dev.joget.org/community/display/KBv5/Custom+HTML

Exercise - CSS
• Customize the look and feel of how the form is rendered
by modifying its CSS.
– Add a Custom HTML form element into the bottom of the form.
– Edit it, add the following code into Custom HTML property.
<style type="text/css">
.form-cell .label, .subform-cell .label{
width: 100%;
}
</style>

Exercise - Javascript
• Make use of jQuery’s Tooltip library to add hints into
existing form “Submit Leave” using Custom HTML also.
Reference: https://jqueryui.com/tooltip/

Exercise - Javascript
Reference:
http://dev.joget.org/community/display/KBv5/Add+jQuery+Tooltip+to+form
<script type="text/javascript">
$(function() {
//customize your hints here by specifying form element ID on the left and message on the right
messages = { 'name' : 'Key in your full name',
'start_date' : 'When are you going on leave?'};
//do not modify anything below here.
$( document ).tooltip({
items: "input",
content: function() {
var element = $( this );
if( messages[$(element).attr("name")] ){
return messages[$(element).attr("name")];
}else{
return false;
}
}
});
});
</script>
