1. Jan 21, 2016
JAXB
Java Architecture for XML Binding

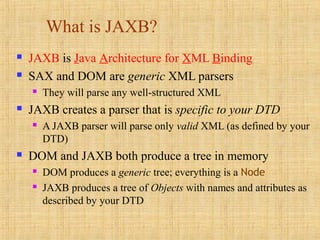

2. What is JAXB?
 JAXB is Java Architecture for XML Binding
 SAX and DOM are generic XML parsers
 They will parse any well-structured XML
 JAXB creates a parser that is specific to your DTD
 A JAXB parser will parse only valid XML (as defined by your
DTD)
 DOM and JAXB both produce a tree in memory
 DOM produces a generic tree; everything is a Node
 JAXB produces a tree of Objects with names and attributes as
described by your DTD

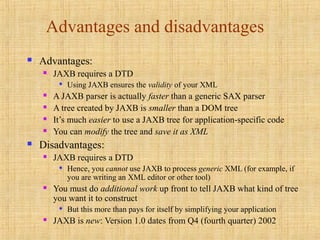

3. Advantages and disadvantages
 Advantages:
 JAXB requires a DTD

Using JAXB ensures the validity of your XML
 A JAXB parser is actually faster than a generic SAX parser
 A tree created by JAXB is smaller than a DOM tree
 It’s much easier to use a JAXB tree for application-specific code
 You can modify the tree and save it as XML
 Disadvantages:
 JAXB requires a DTD

Hence, you cannot use JAXB to process generic XML (for example, if
you are writing an XML editor or other tool)
 You must do additional work up front to tell JAXB what kind of tree
you want it to construct

But this more than pays for itself by simplifying your application
 JAXB is new: Version 1.0 dates from Q4 (fourth quarter) 2002

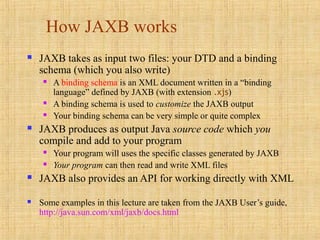

4. How JAXB works
 JAXB takes as input two files: your DTD and a binding
schema (which you also write)
 A binding schema is an XML document written in a “binding
language” defined by JAXB (with extension .xjs)
 A binding schema is used to customize the JAXB output
 Your binding schema can be very simple or quite complex
 JAXB produces as output Java source code which you
compile and add to your program
 Your program will uses the specific classes generated by JAXB
 Your program can then read and write XML files
 JAXB also provides an API for working directly with XML
 Some examples in this lecture are taken from the JAXB User’s guide,
http://java.sun.com/xml/jaxb/docs.html

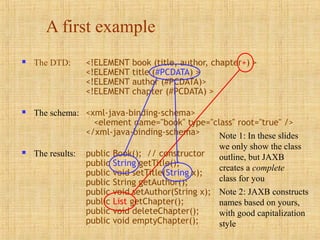

5. A first example
 The DTD: <!ELEMENT book (title, author, chapter+) >
<!ELEMENT title (#PCDATA) >
<!ELEMENT author (#PCDATA)>
<!ELEMENT chapter (#PCDATA) >
 The schema: <xml-java-binding-schema>
<element name="book" type="class" root="true" />
</xml-java-binding-schema>
 The results: public Book(); // constructor
public String getTitle();
public void setTitle(String x);
public String getAuthor();
public void setAuthor(String x);
public List getChapter();
public void deleteChapter();
public void emptyChapter();
Note 1: In these slides
we only show the class
outline, but JAXB
creates a complete
class for you
Note 2: JAXB constructs
names based on yours,
with good capitalization
style

6. Adding complexity
 Adding a choice can reduce the usefulness of the parser
 <!ELEMENT book (title, author, (prologue | preface), chapter+)>
<!ELEMENT prologue (#PCDATA) >
<!ELEMENT preface (#PCDATA) >
 With the same binding schema, this gives:

public Book();
public List getContent();
public void deleteContent();
public void emptyContent();
 An improved binding schema can give better results

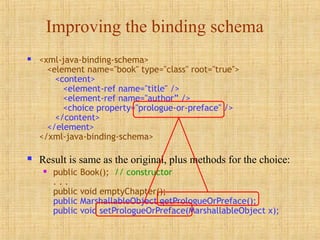

7. Improving the binding schema
 <xml-java-binding-schema>
<element name="book" type="class" root="true">
<content>
<element-ref name="title" />
<element-ref name="author” />
<choice property="prologue-or-preface" />
</content>
</element>
</xml-java-binding-schema>
 Result is same as the original, plus methods for the choice:
 public Book(); // constructor
. . .
public void emptyChapter();
public MarshallableObject getPrologueOrPreface();
public void setPrologueOrPreface(MarshallableObject x);

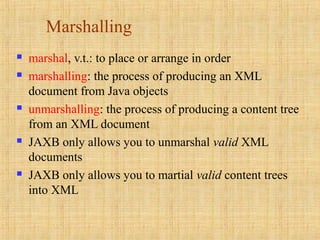

8. Marshalling
 marshal, v.t.: to place or arrange in order
 marshalling: the process of producing an XML
document from Java objects
 unmarshalling: the process of producing a content tree
from an XML document
 JAXB only allows you to unmarshal valid XML
documents
 JAXB only allows you to martial valid content trees
into XML

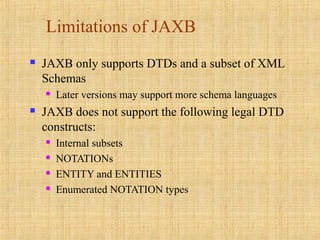

9. Limitations of JAXB
 JAXB only supports DTDs and a subset of XML
Schemas
 Later versions may support more schema languages
 JAXB does not support the following legal DTD
constructs:
 Internal subsets
 NOTATIONs
 ENTITY and ENTITIES
 Enumerated NOTATION types

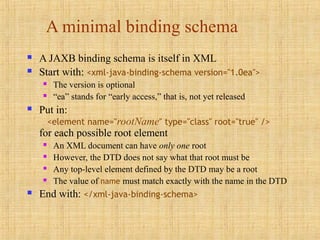

10. A minimal binding schema
 A JAXB binding schema is itself in XML
 Start with: <xml-java-binding-schema version="1.0ea">
 The version is optional
 “ea” stands for “early access,” that is, not yet released
 Put in:
<element name="rootName" type="class" root="true" />
for each possible root element
 An XML document can have only one root
 However, the DTD does not say what that root must be
 Any top-level element defined by the DTD may be a root
 The value of name must match exactly with the name in the DTD
 End with: </xml-java-binding-schema>

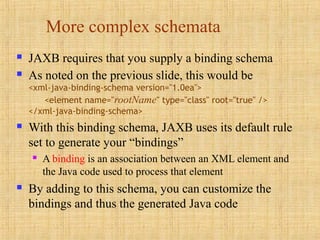

11. More complex schemata
 JAXB requires that you supply a binding schema
 As noted on the previous slide, this would be
<xml-java-binding-schema version="1.0ea">
<element name="rootName" type="class" root="true" />
</xml-java-binding-schema>
 With this binding schema, JAXB uses its default rule
set to generate your “bindings”
 A binding is an association between an XML element and
the Java code used to process that element
 By adding to this schema, you can customize the
bindings and thus the generated Java code

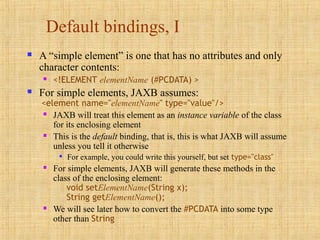

12. Default bindings, I
 A “simple element” is one that has no attributes and only
character contents:
 <!ELEMENT elementName (#PCDATA) >
 For simple elements, JAXB assumes:
<element name="elementName" type="value"/>
 JAXB will treat this element as an instance variable of the class
for its enclosing element
 This is the default binding, that is, this is what JAXB will assume
unless you tell it otherwise

For example, you could write this yourself, but set type="class"
 For simple elements, JAXB will generate these methods in the
class of the enclosing element:
void setElementName(String x);
String getElementName();
 We will see later how to convert the #PCDATA into some type
other than String

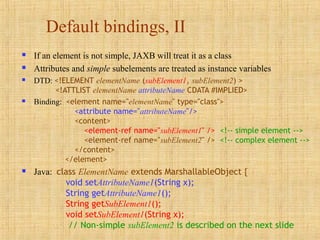

13. Default bindings, II
 If an element is not simple, JAXB will treat it as a class
 Attributes and simple subelements are treated as instance variables
 DTD: <!ELEMENT elementName (subElement1, subElement2) >
<!ATTLIST elementName attributeName CDATA #IMPLIED>
 Binding: <element name="elementName" type="class">
<attribute name="attributeName"/>
<content>
<element-ref name="subElement1" /> <!-- simple element -->
<element-ref name="subElement2" /> <!-- complex element -->
</content>
</element>
 Java: class ElementName extends MarshallableObject {
void setAttributeName1(String x);
String getAttributeName1();
String getSubElement1();
void setSubElement1(String x);
// Non-simple subElement2 is described on the next slide

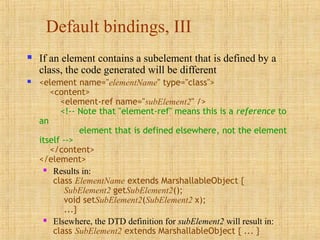

14. Default bindings, III
 If an element contains a subelement that is defined by a
class, the code generated will be different
 <element name="elementName" type="class">
<content>
<element-ref name="subElement2" />
<!-- Note that "element-ref" means this is a reference to
an
element that is defined elsewhere, not the element
itself -->
</content>
</element>
 Results in:
class ElementName extends MarshallableObject {
SubElement2 getSubElement2();
void setSubElement2(SubElement2 x);
...}
 Elsewhere, the DTD definition for subElement2 will result in:
class SubElement2 extends MarshallableObject { ... }

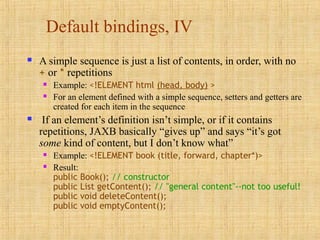

15. Default bindings, IV
 A simple sequence is just a list of contents, in order, with no
+ or * repetitions
 Example: <!ELEMENT html (head, body) >
 For an element defined with a simple sequence, setters and getters are
created for each item in the sequence
 If an element’s definition isn’t simple, or if it contains
repetitions, JAXB basically “gives up” and says “it’s got
some kind of content, but I don’t know what”
 Example: <!ELEMENT book (title, forward, chapter*)>
 Result:
public Book(); // constructor
public List getContent(); // "general content"--not too useful!
public void deleteContent();
public void emptyContent();

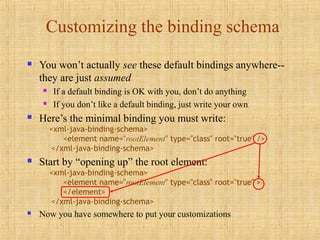

16. Customizing the binding schema
 You won’t actually see these default bindings anywhere--
they are just assumed
 If a default binding is OK with you, don’t do anything
 If you don’t like a default binding, just write your own
 Here’s the minimal binding you must write:
<xml-java-binding-schema>
<element name="rootElement" type="class" root="true" />
</xml-java-binding-schema>
 Start by “opening up” the root element:
<xml-java-binding-schema>
<element name="rootElement" type="class" root="true" >
</element>
</xml-java-binding-schema>
 Now you have somewhere to put your customizations

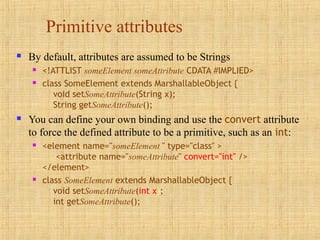

17. Primitive attributes
 By default, attributes are assumed to be Strings
 <!ATTLIST someElement someAttribute CDATA #IMPLIED>
 class SomeElement extends MarshallableObject {
void setSomeAttribute(String x);
String getSomeAttribute();
 You can define your own binding and use the convert attribute
to force the defined attribute to be a primitive, such as an int:
 <element name="someElement " type="class" >
<attribute name="someAttribute" convert="int" />
</element>
 class SomeElement extends MarshallableObject {
void setSomeAttribute(int x);
int getSomeAttribute();

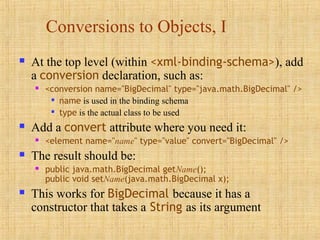

18. Conversions to Objects, I
 At the top level (within <xml-binding-schema>), add
a conversion declaration, such as:
 <conversion name="BigDecimal" type="java.math.BigDecimal" />

name is used in the binding schema

type is the actual class to be used
 Add a convert attribute where you need it:
 <element name="name" type="value" convert="BigDecimal" />
 The result should be:
 public java.math.BigDecimal getName();
public void setName(java.math.BigDecimal x);
 This works for BigDecimal because it has a
constructor that takes a String as its argument

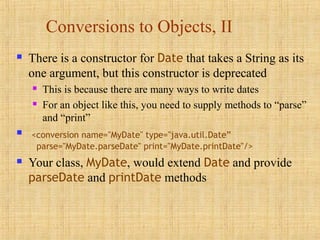

19. Conversions to Objects, II
 There is a constructor for Date that takes a String as its
one argument, but this constructor is deprecated
 This is because there are many ways to write dates
 For an object like this, you need to supply methods to “parse”
and “print”
 <conversion name="MyDate" type="java.util.Date”
parse="MyDate.parseDate" print="MyDate.printDate"/>
 Your class, MyDate, would extend Date and provide
parseDate and printDate methods

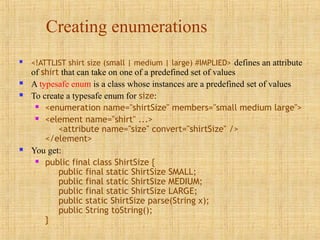

20. Creating enumerations
 <!ATTLIST shirt size (small | medium | large) #IMPLIED> defines an attribute
of shirt that can take on one of a predefined set of values
 A typesafe enum is a class whose instances are a predefined set of values
 To create a typesafe enum for size:
 <enumeration name="shirtSize" members="small medium large">
 <element name="shirt" ...>
<attribute name="size" convert="shirtSize" />
</element>
 You get:
 public final class ShirtSize {
public final static ShirtSize SMALL;
public final static ShirtSize MEDIUM;
public final static ShirtSize LARGE;
public static ShirtSize parse(String x);
public String toString();
}

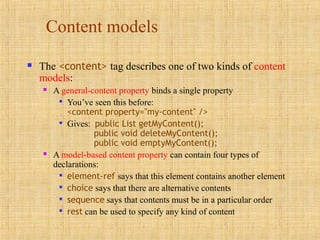

21. Content models
 The <content> tag describes one of two kinds of content
models:
 A general-content property binds a single property

You’ve seen this before:
<content property="my-content" />

Gives: public List getMyContent();
public void deleteMyContent();
public void emptyMyContent();
 A model-based content property can contain four types of
declarations:

element-ref says that this element contains another element

choice says that there are alternative contents

sequence says that contents must be in a particular order

rest can be used to specify any kind of content

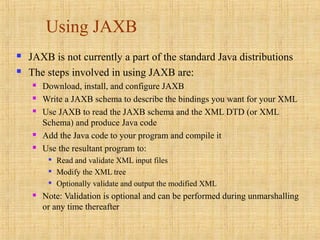

22. Using JAXB
 JAXB is not currently a part of the standard Java distributions
 The steps involved in using JAXB are:
 Download, install, and configure JAXB
 Write a JAXB schema to describe the bindings you want for your XML
 Use JAXB to read the JAXB schema and the XML DTD (or XML
Schema) and produce Java code
 Add the Java code to your program and compile it
 Use the resultant program to:

Read and validate XML input files

Modify the XML tree

Optionally validate and output the modified XML
 Note: Validation is optional and can be performed during unmarshalling
or any time thereafter

23. The End
