The document discusses the structure and design of JavaFX applications. It explains that JavaFX uses a scene graph to organize visual elements in a tree structure with nodes like stages, scenes, containers and controls. It also covers using FXML to define the view and a controller class to link the view to the model/logic. Stylesheets are used to separate design from code. Common elements like media players, effects and animations are demonstrated.

4. Structure

5. Structure
SceneGraph

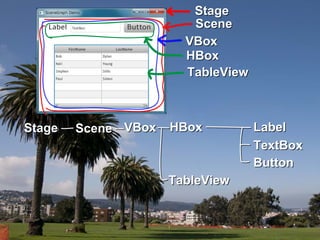

6. GUI = Tree

7. Stage
Stage
Scene
Scene
VBox
VBox
HBox
HBox
TableView
TableView
Stage
Stage Scene VBox
Scene VBox HBox
HBox Label
Label
TextBox
TextBox
Button
Button
TableView
TableView

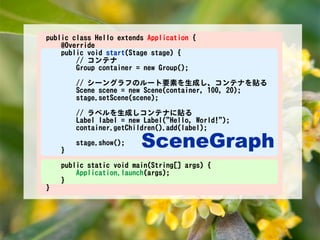

8. public class Hello extends Application {
@Override
public void start(Stage stage) {
// コンテナ
Group container = new Group();
// シーングラフのルート要素を生成し、コンテナを貼る
Scene scene = new Scene(container, 100, 20);
stage.setScene(scene);
// ラベルを生成しコンテナに貼る
Label label = new Label("Hello, World!");
container.getChildren().add(label);
}
stage.show(); SceneGraph
stage.setVisible(true);
public static void main(String[] args) {
Application.launch(args);
}
}

9. XML Script
GroovyFX
FXML ScalaFX
Visage

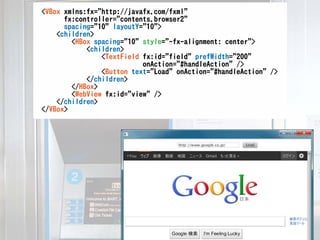

10. <VBox xmlns:fx="http://javafx.com/fxml"
fx:controller="contents.browser2"
spacing="10" layoutY="10">
<children>
<HBox spacing="10" style="-fx-alignment: center">
<children>
<TextField fx:id="field" prefWidth="200"
onAction="#handleAction" />
<Button text="Load" onAction="#handleAction" />
</children>
</HBox>
<WebView fx:id="view" />
</children>
</VBox>

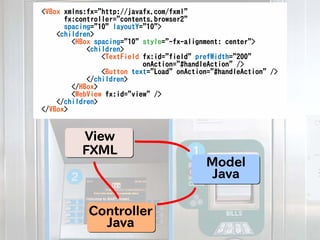

11. <VBox xmlns:fx="http://javafx.com/fxml"
fx:controller="contents.browser2"
spacing="10" layoutY="10">
<children>
<HBox spacing="10" style="-fx-alignment: center">
<children>
<TextField fx:id="field" prefWidth="200"
onAction="#handleAction" />
<Button text="Load" onAction="#handleAction" />
</children>
</HBox>
<WebView fx:id="view" />
</children>
</VBox>
View
FXML
Model
Java
Controller
Java

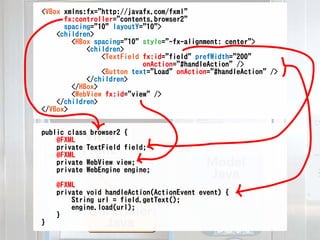

12. <VBox xmlns:fx="http://javafx.com/fxml"
fx:controller="contents.browser2"
spacing="10" layoutY="10">
<children>
<HBox spacing="10" style="-fx-alignment: center">
<children>
<TextField fx:id="field" prefWidth="200"
onAction="#handleAction" />
<Button text="Load" onAction="#handleAction" />
</children>
</HBox>
<WebView fx:id="view" />
</children>
</VBox>
public class browser2 {
@FXML View
private TextField field;
@FXML FXML
private WebView view;
private WebEngine engine;
Model
Java
@FXML
private void handleAction(ActionEvent event) {
String url = field.getText();
engine.load(url);
} Controller
} Java

13. Contents

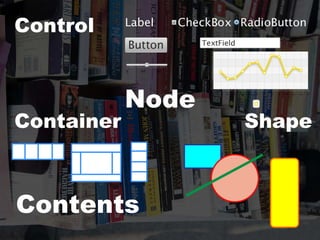

14. Control
Node
Container Shape
Contents

15. Web/HTML Media

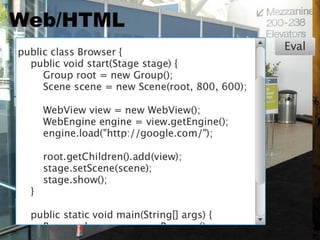

16. Web/HTML

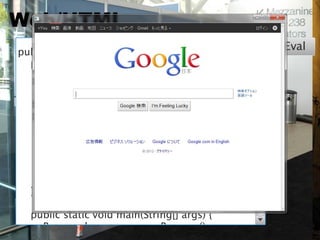

17. Web/HTML

18. Web/HTML

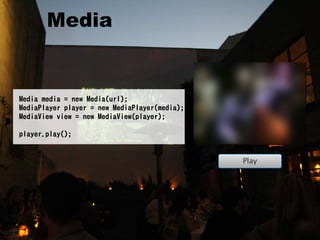

Media
Media media = new Media(url);
MediaPlayer player = new MediaPlayer(media);
MediaView view = new MediaView(player);
player.play();

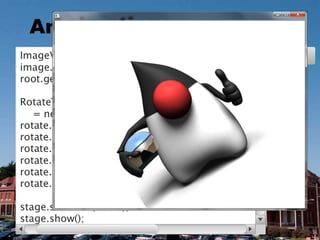

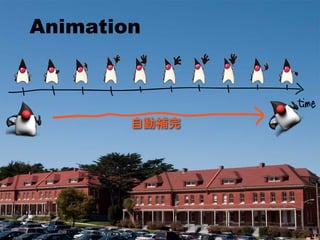

19. Animation
自動補完

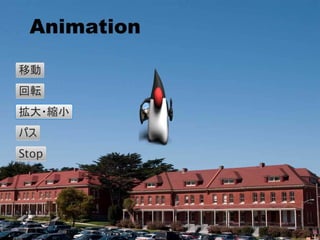

20. Animation
自動補完

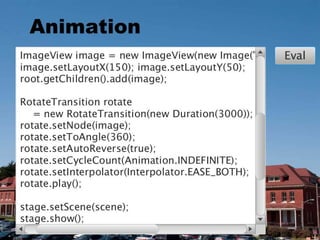

21. Animation

22. Animation

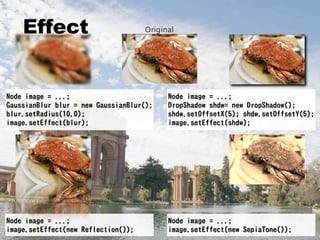

23. Effect
Node image = ...; Node image = ...;
GaussianBlur blur = new GaussianBlur(); DropShadow shdw= new DropShadow();
blur.setRadius(10.0); shdw.setOffsetX(5); shdw.setOffsetY(5);
image.setEffect(blur); image.setEffect(shdw);
Node image = ...; Node image = ...;
image.setEffect(new Reflection()); image.setEffect(new SepiaTone());

24. CSS
Contents Design

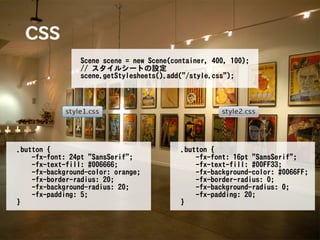

25. CSS
Scene scene = new Scene(container, 400, 100);
// スタイルシートの設定
scene.getStylesheets().add("/style.css");
.button { .button {
-fx-font: 24pt "SansSerif"; -fx-font: 16pt "SansSerif";
-fx-text-fill: #006666; -fx-text-fill: #00FF33;
-fx-background-color: orange; -fx-background-color: #0066FF;
-fx-border-radius: 20; -fx-border-radius: 0;
-fx-background-radius: 20; -fx-background-radius: 0;
-fx-padding: 5; -fx-padding: 20;
} }

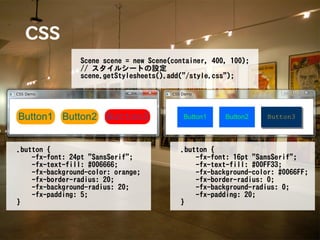

26. CSS
Scene scene = new Scene(container, 400, 100);
// スタイルシートの設定
scene.getStylesheets().add("/style.css");
.button { .button {
-fx-font: 24pt "SansSerif"; -fx-font: 16pt "SansSerif";
-fx-text-fill: #006666; -fx-text-fill: #00FF33;
-fx-background-color: orange; -fx-background-color: #0066FF;
-fx-border-radius: 20; -fx-border-radius: 0;
-fx-background-radius: 20; -fx-background-radius: 0;
-fx-padding: 5; -fx-padding: 20;
} }

27. Structure
Tool
Logic
Design SceneBuilder
Contents Design

28. Conclusion
Structure Design
JavaFX
Contents Tool

29. で開く
新世代 GUI
