TinyMCE: WYSIWYG editor

andyg@geekscape.org / @geekscape

First Melbourne JavaScript meet-up #melbjs

2010-12-08

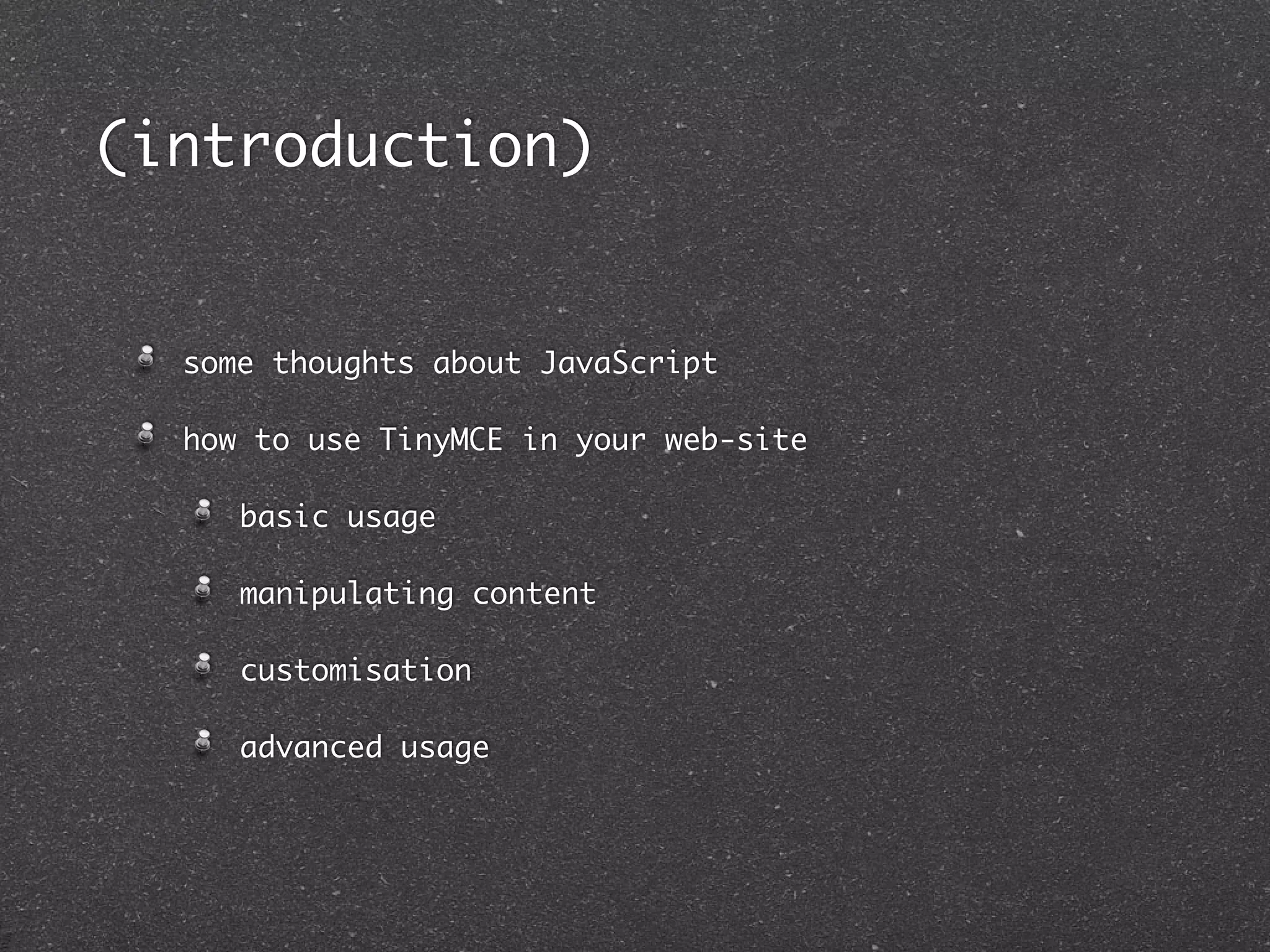

(introduction)

some thoughts about JavaScript

how to use TinyMCE in your web-site

basic usage

manipulating content

customisation

advanced usage

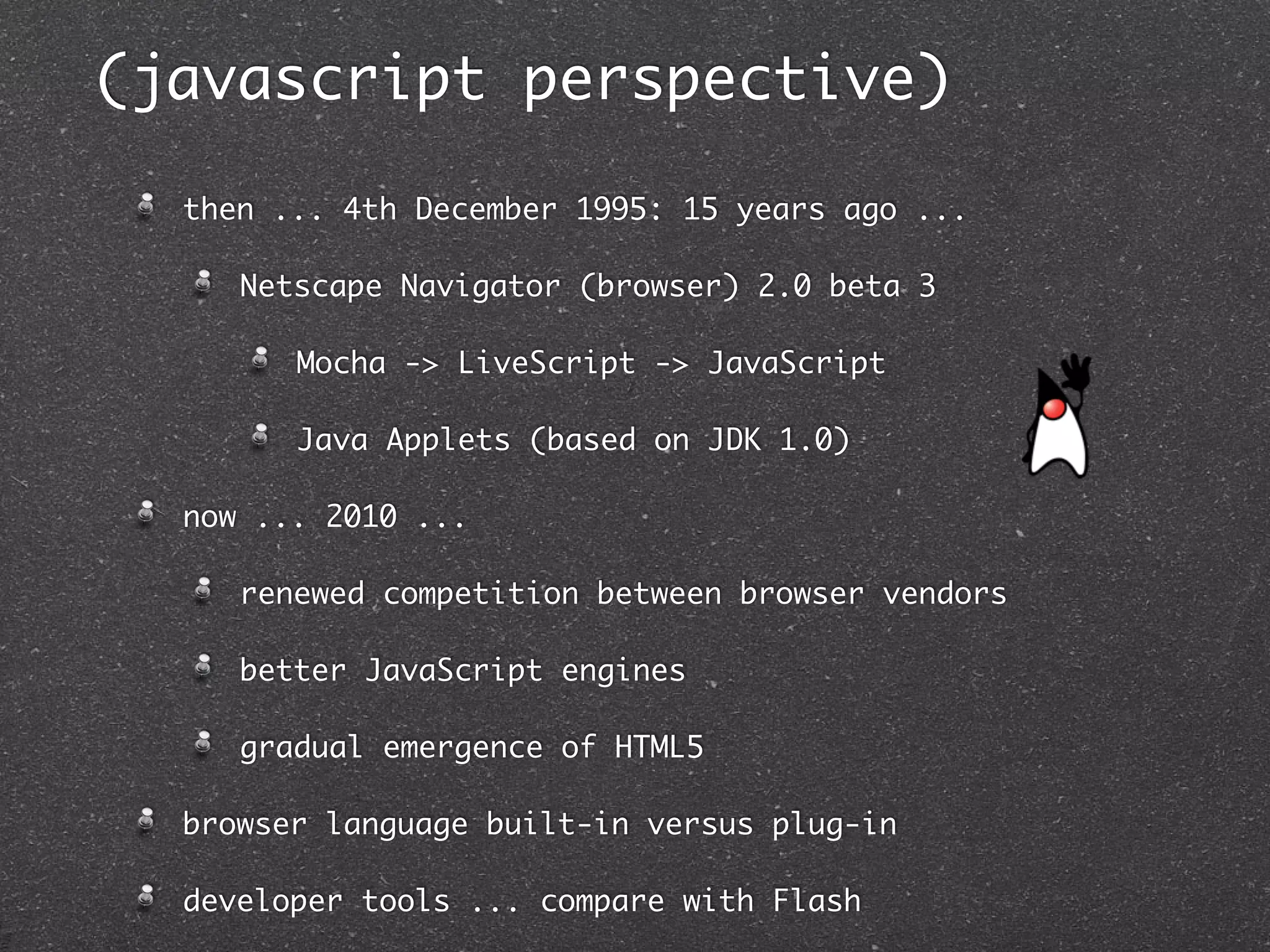

(javascript perspective)

then ... 4th December 1995: 15 years ago ...

Netscape Navigator (browser) 2.0 beta 3

Mocha -> LiveScript -> JavaScript

Java Applets (based on JDK 1.0)

now ... 2010 ...

renewed competition between browser vendors

better JavaScript engines

gradual emergence of HTML5

browser language built-in versus plug-in

developer tools ... compare with Flash

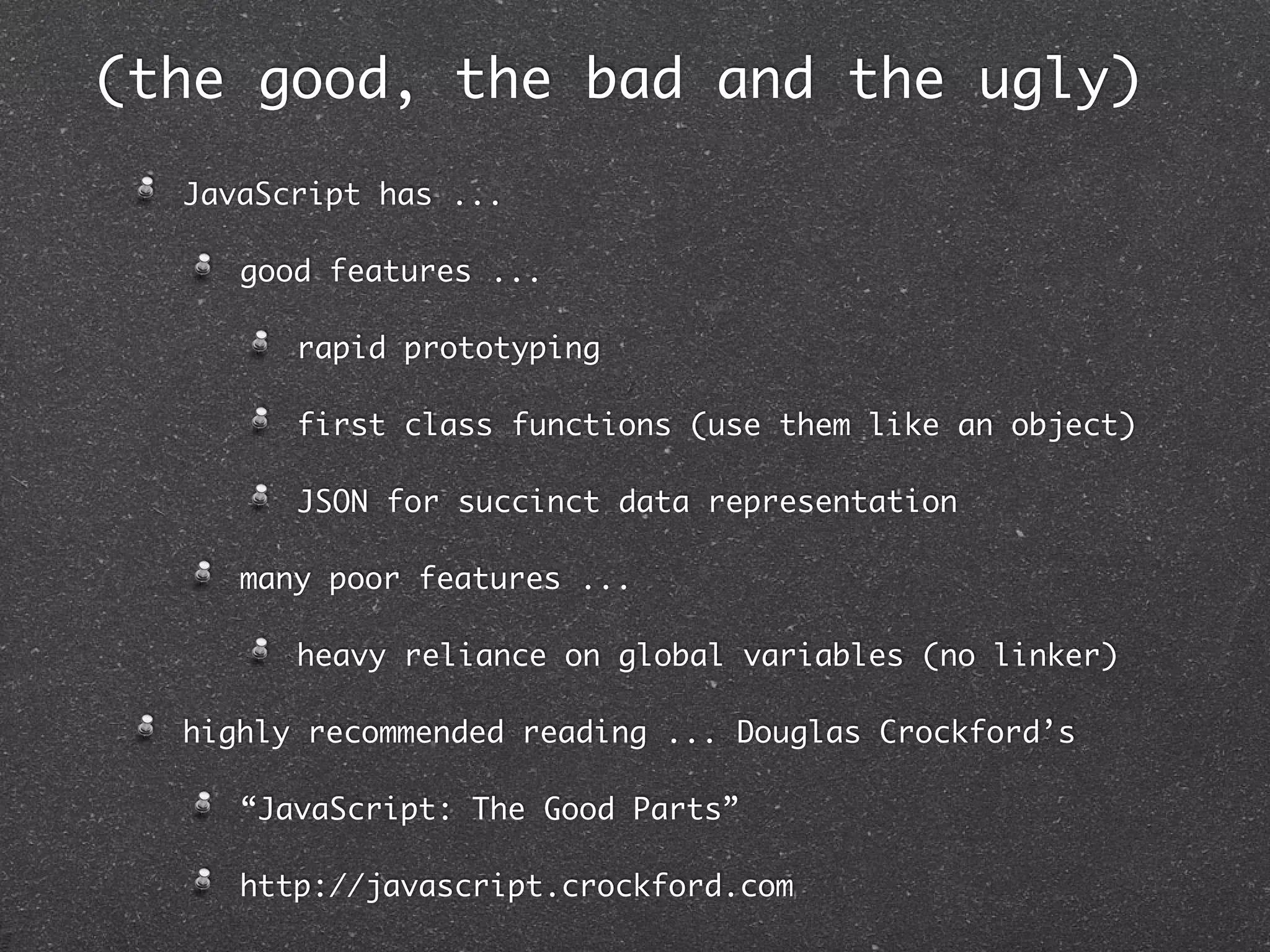

(the good, the bad and the ugly)
JavaScript has ...

good features ...

rapid prototyping

first class functions (use them like an object)

JSON for succinct data representation

many poor features ...

heavy reliance on global variables (no linker)

highly recommended reading ... Douglas Crockford’s

“JavaScript: The Good Parts”

http://javascript.crockford.com

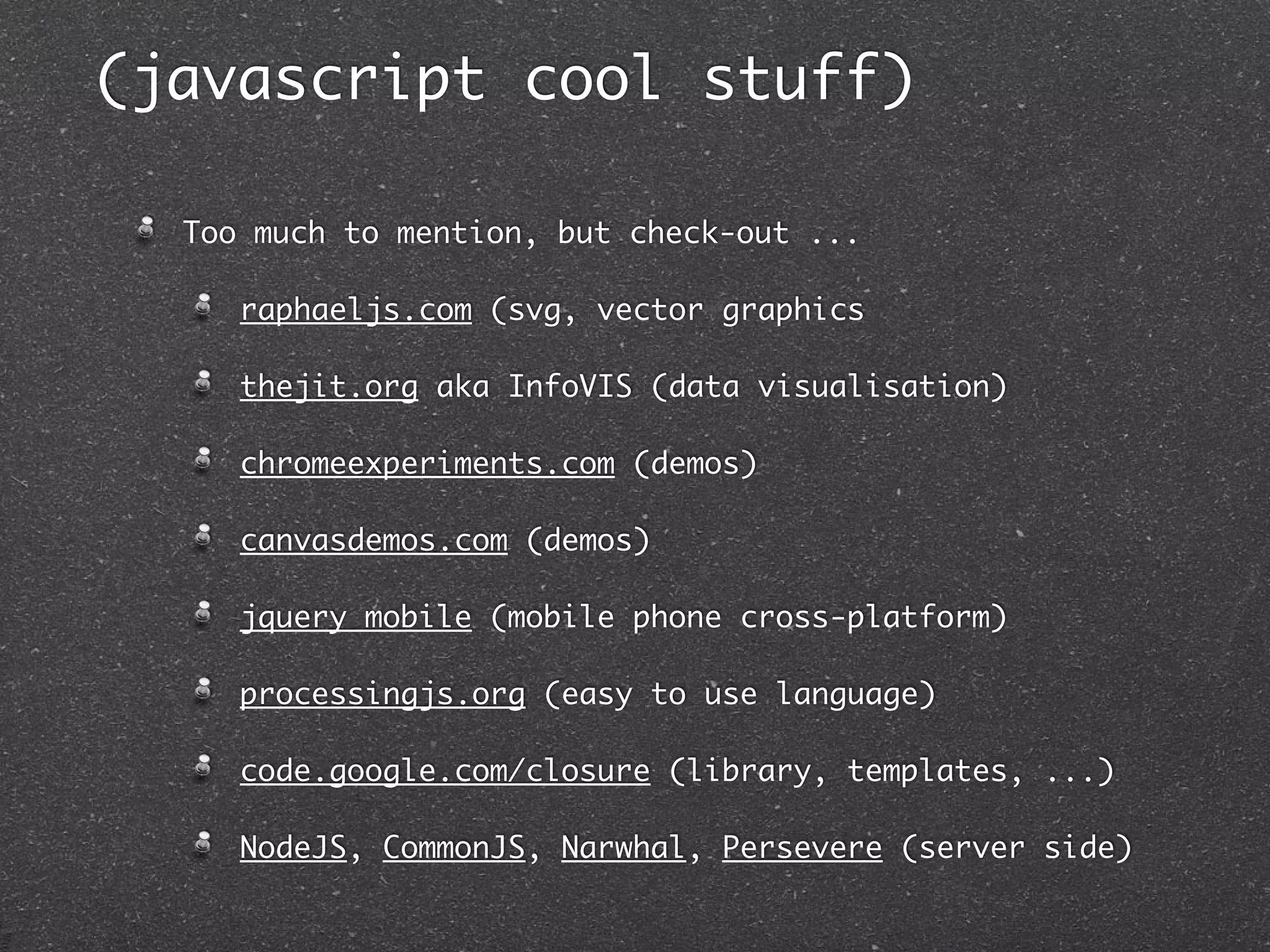

(javascript cool stuff)

Too much to mention, but check-out ...

raphaeljs.com (svg, vector graphics

thejit.org aka InfoVIS (data visualisation)

chromeexperiments.com (demos)

canvasdemos.com (demos)

jquery mobile (mobile phone cross-platform)

processingjs.org (easy to use language)

code.google.com/closure (library, templates, ...)

NodeJS, CommonJS, Narwhal, Persevere (server side)

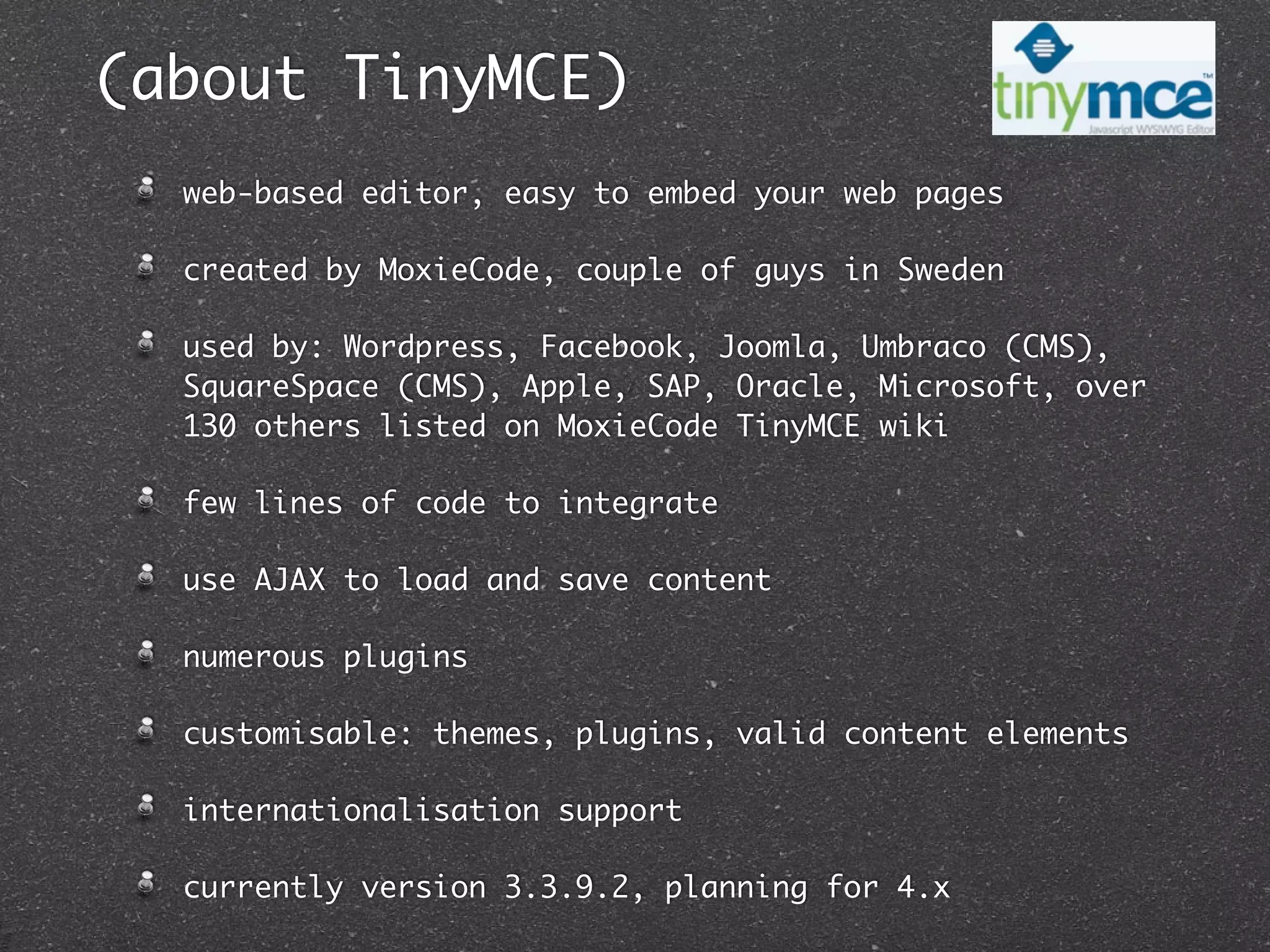

(about TinyMCE)
web-based editor, easy to embed your web pages

created by MoxieCode, couple of guys in Sweden

used by: Wordpress, Facebook, Joomla, Umbraco (CMS),
SquareSpace (CMS), Apple, SAP, Oracle, Microsoft, over
130 others listed on MoxieCode TinyMCE wiki

few lines of code to integrate

use AJAX to load and save content

numerous plugins

customisable: themes, plugins, valid content elements

internationalisation support

currently version 3.3.9.2, planning for 4.x

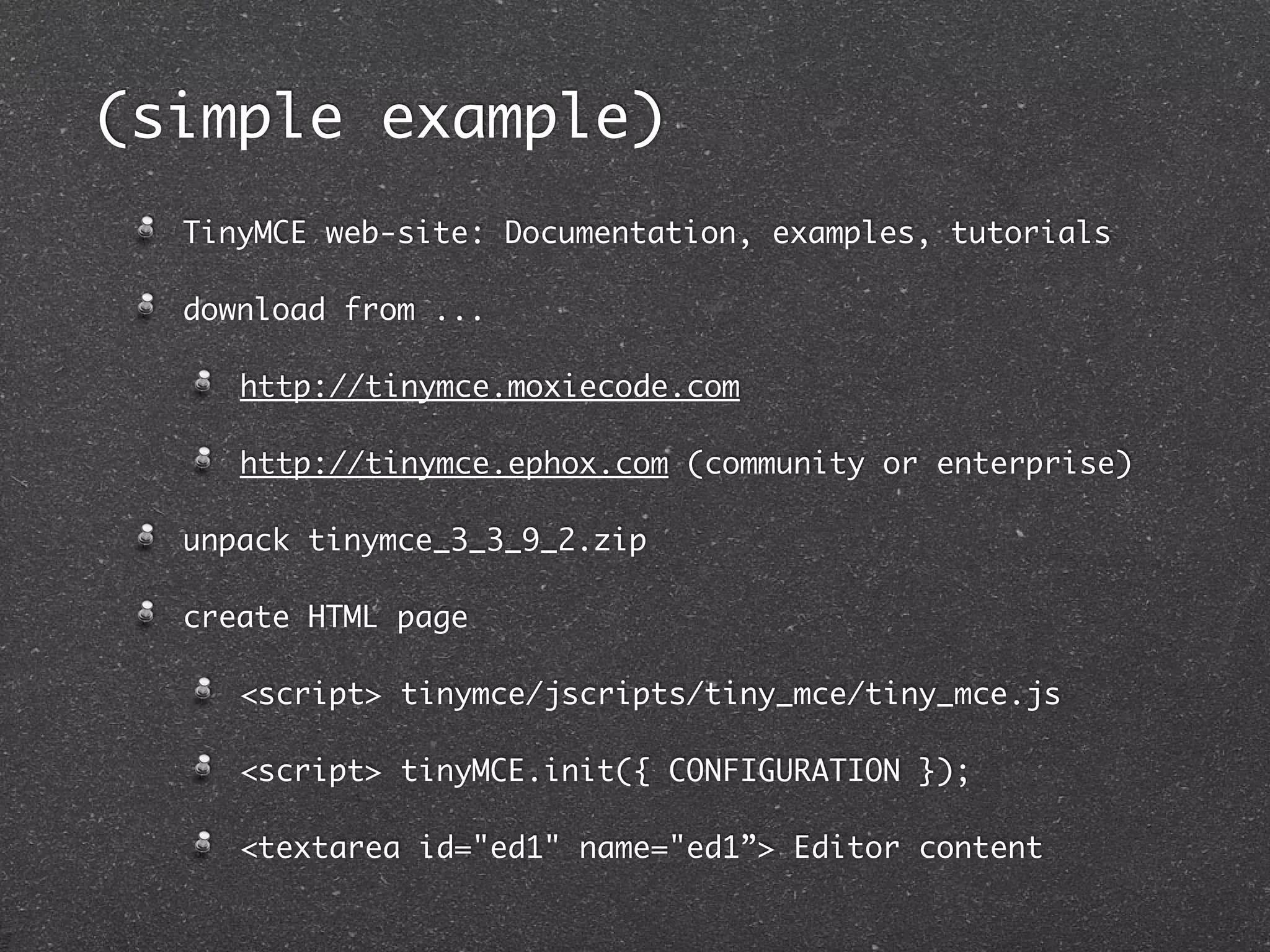

(simple example)
TinyMCE web-site: Documentation, examples, tutorials

download from ...

http://tinymce.moxiecode.com

http://tinymce.ephox.com (community or enterprise)

unpack tinymce_3_3_9_2.zip

create HTML page

<script> tinymce/jscripts/tiny_mce/tiny_mce.js

<script> tinyMCE.init({ CONFIGURATION });

<textarea id="ed1" name="ed1”> Editor content

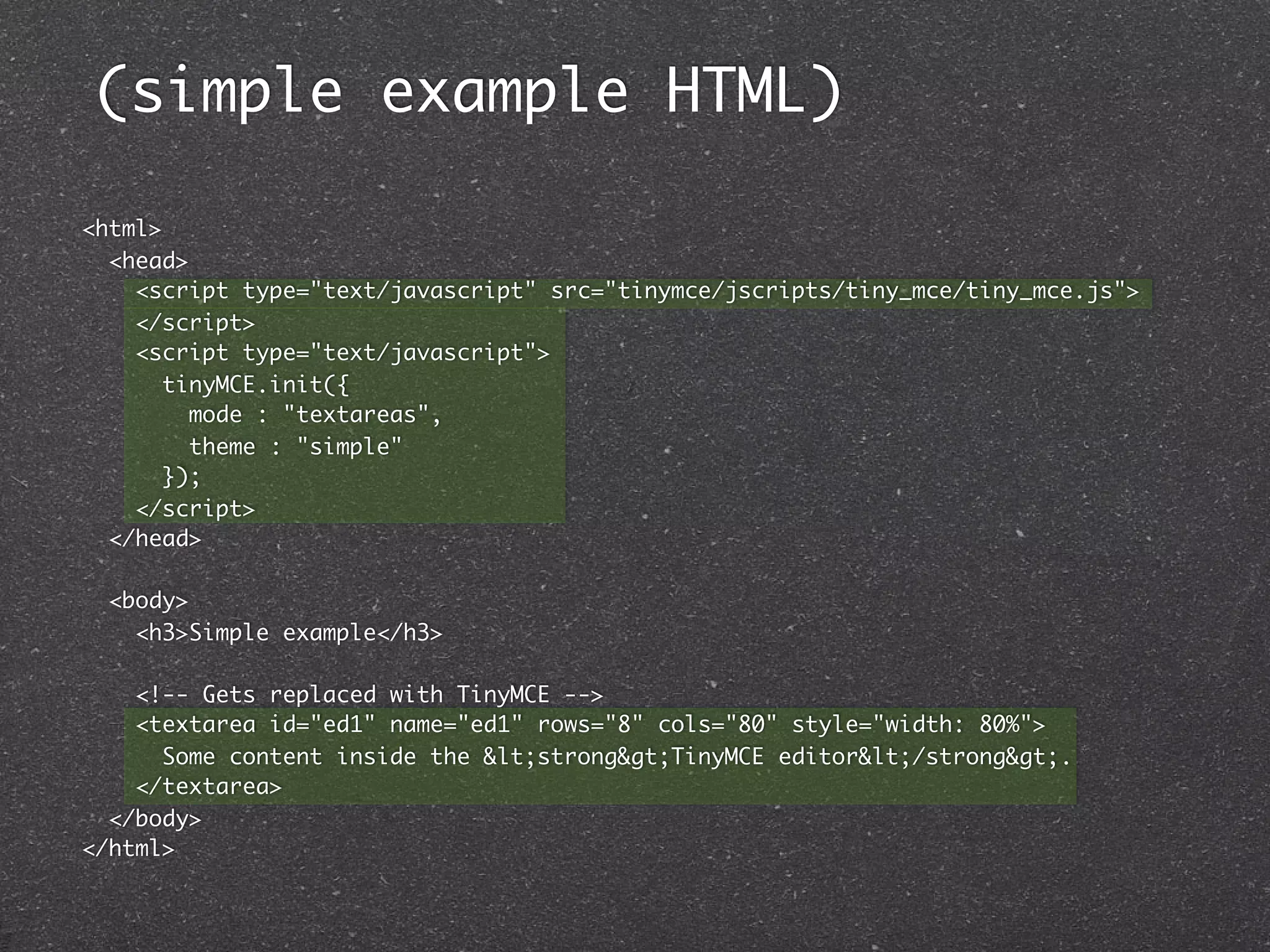

(simple example HTML)

<html>
<head>
<script type="text/javascript" src="tinymce/jscripts/tiny_mce/tiny_mce.js">
</script>
<script type="text/javascript">
tinyMCE.init({
mode : "textareas",
theme : "simple"
});
</script>
</head>

<body>
<h3>Simple example</h3>


<textarea id="ed1" name="ed1" rows="8" cols="80" style="width: 80%">
Some content inside the <strong>TinyMCE editor</strong>.
</textarea>
</body>
</html>

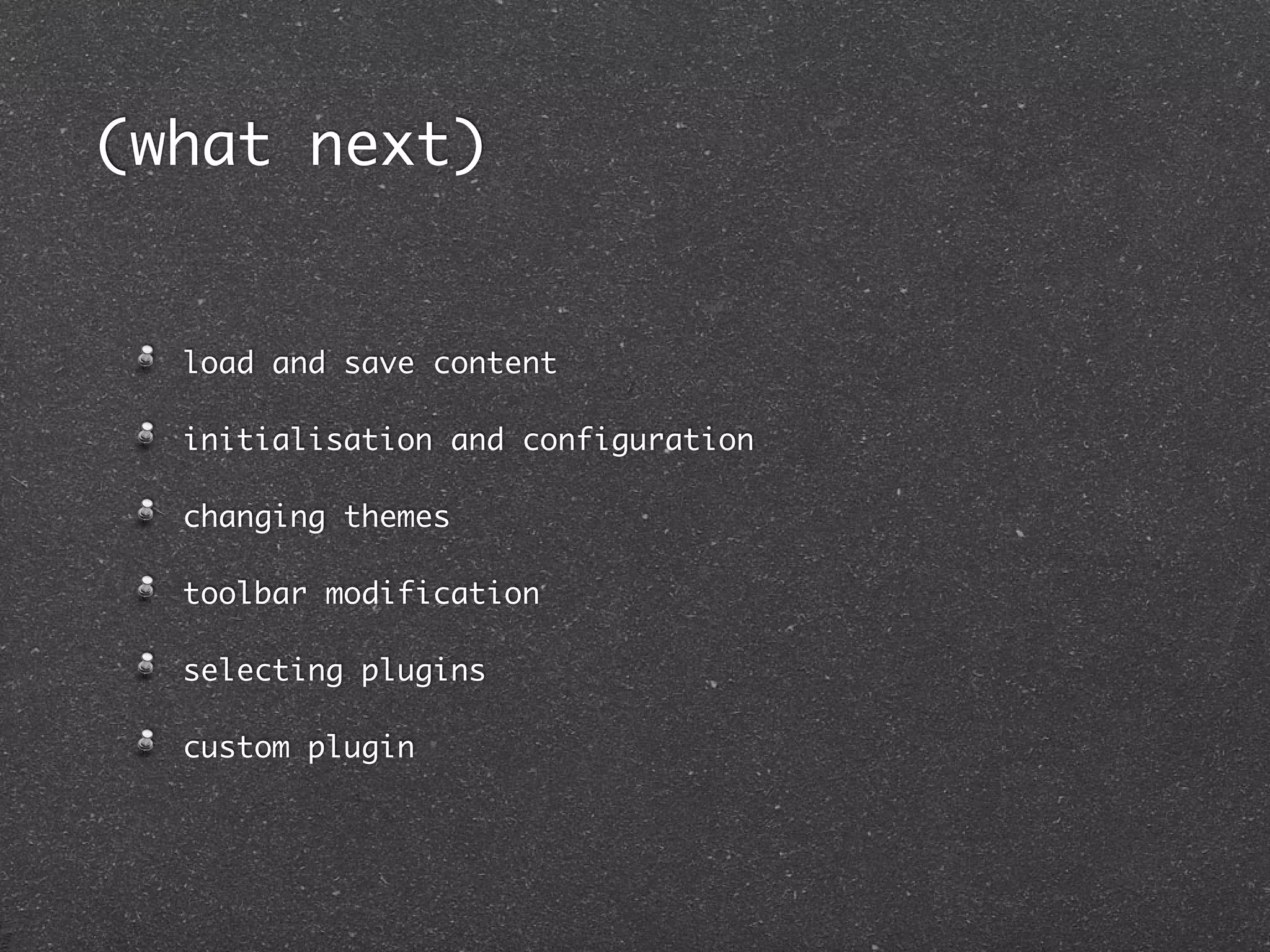

(what next)

load and save content

initialisation and configuration

changing themes

toolbar modification

selecting plugins

custom plugin

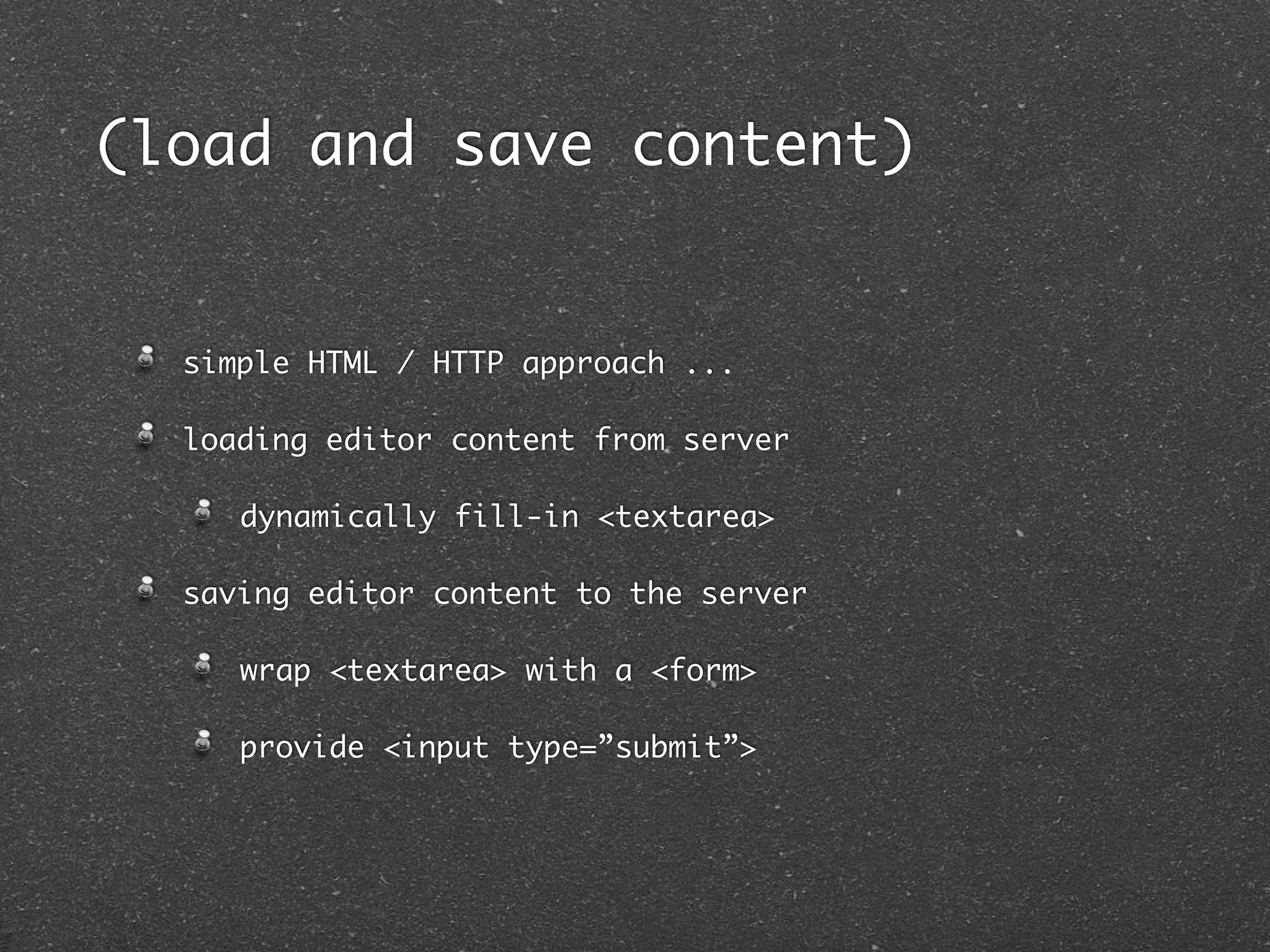

(load and save content)

simple HTML / HTTP approach ...

loading editor content from server

dynamically fill-in <textarea>

saving editor content to the server

wrap <textarea> with a <form>

provide <input type=”submit”>

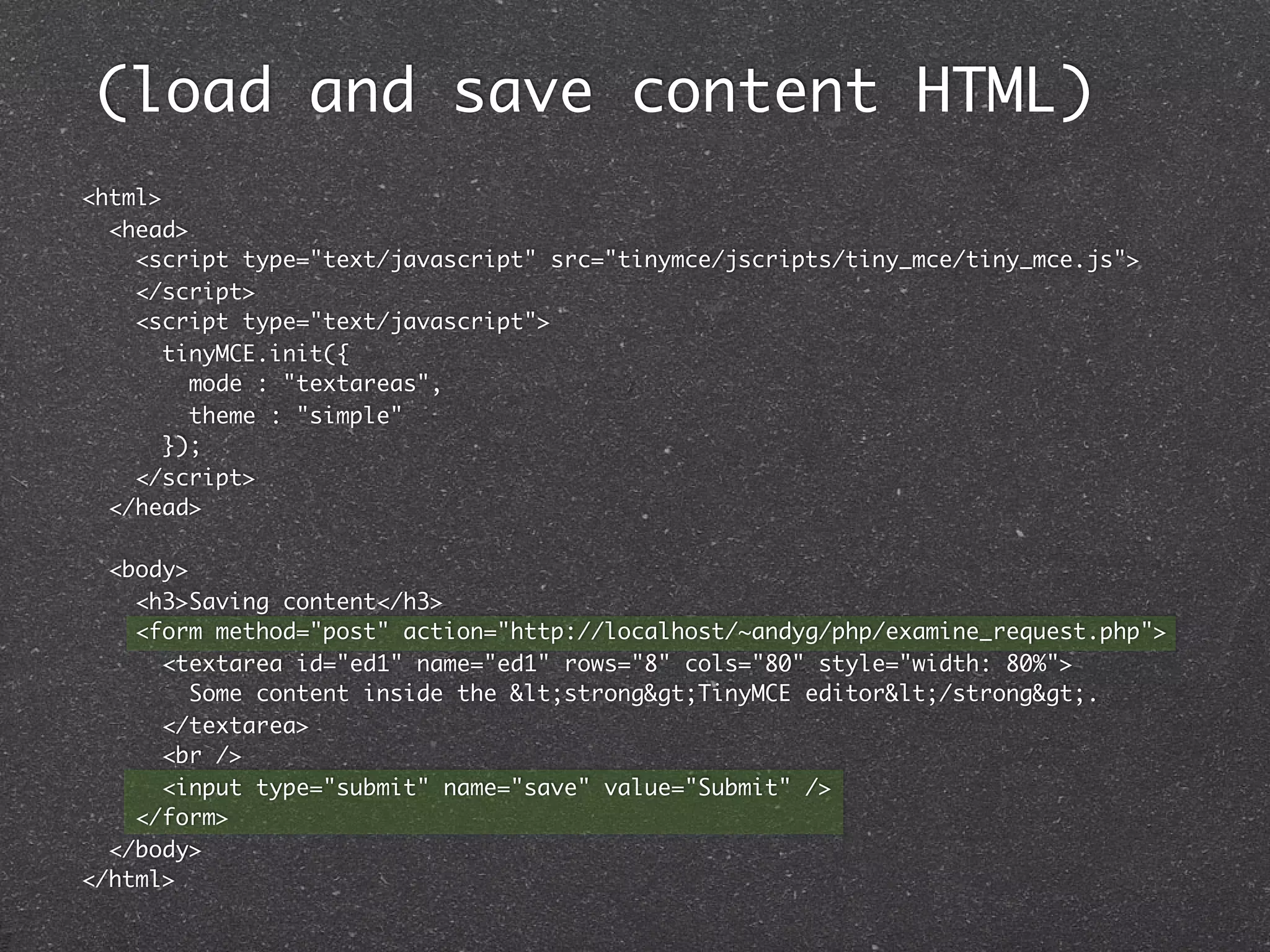

(load and save content HTML)
<html>
<head>
<script type="text/javascript" src="tinymce/jscripts/tiny_mce/tiny_mce.js">
</script>
tinyMCE.init({
mode : "textareas",
theme : "simple"
});
</script>
</head>

<body>
<h3>Saving content</h3>
<form method="post" action="http://localhost/~andyg/php/examine_request.php">
<textarea id="ed1" name="ed1" rows="8" cols="80" style="width: 80%">
Some content inside the <strong>TinyMCE editor</strong>.
</textarea>
<br />
<input type="submit" name="save" value="Submit" />
</form>
</body>
</html>

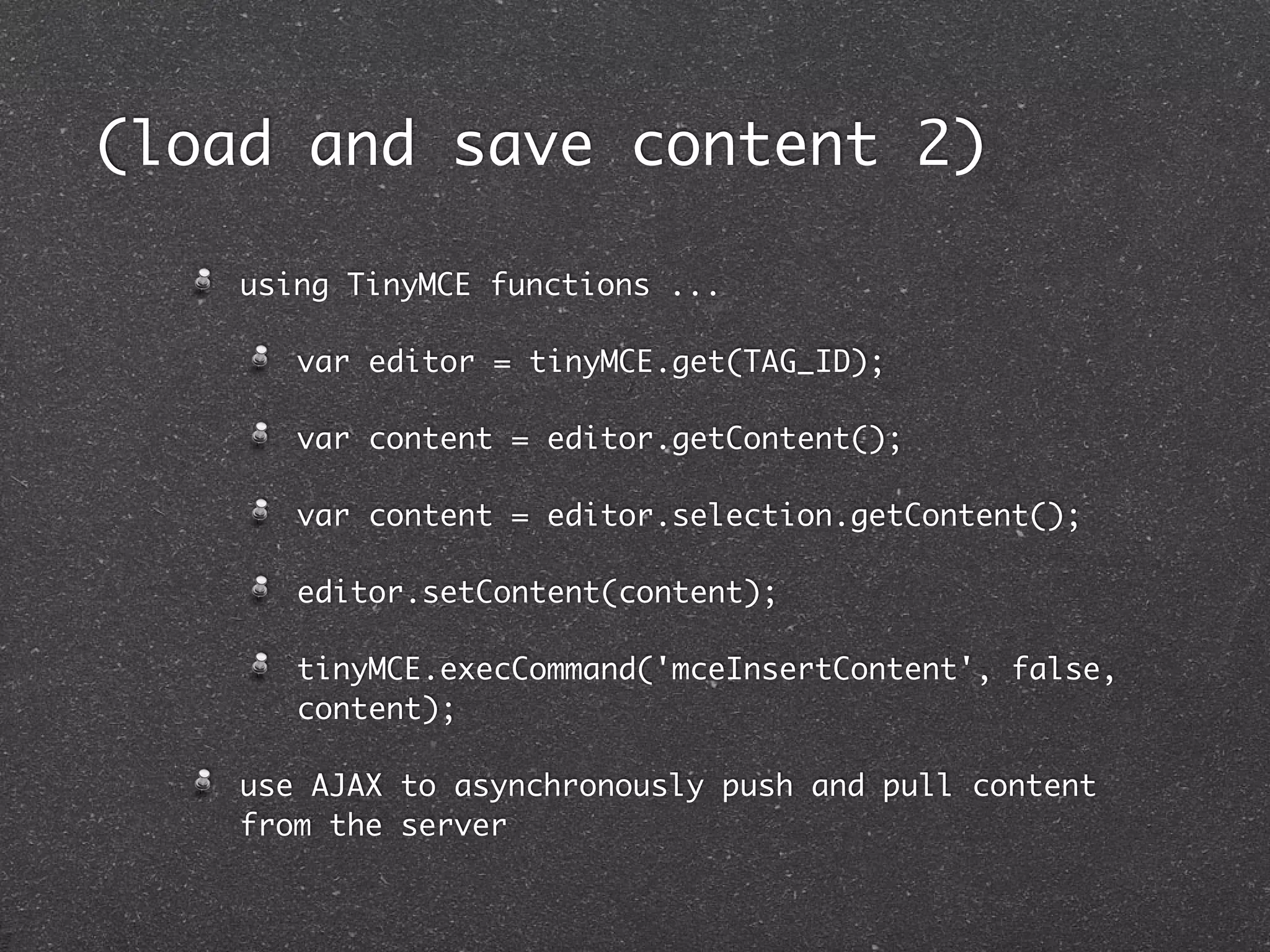

(load and save content 2)

using TinyMCE functions ...

var editor = tinyMCE.get(TAG_ID);

var content = editor.getContent();

var content = editor.selection.getContent();

editor.setContent(content);

tinyMCE.execCommand('mceInsertContent', false,
content);

use AJAX to asynchronously push and pull content
from the server

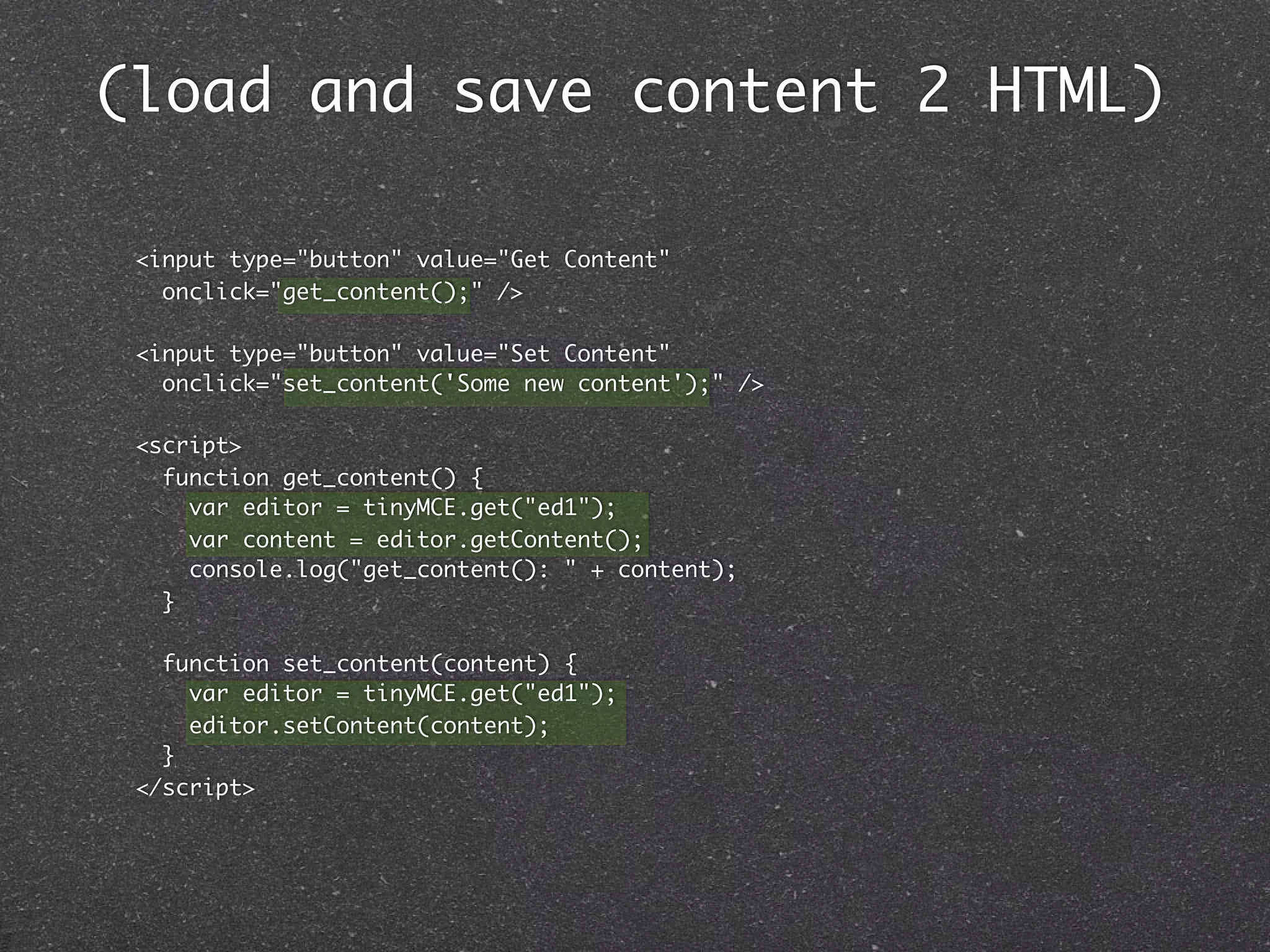

(load and save content 2 HTML)

<input type="button" value="Get Content"
onclick="get_content();" />

<input type="button" value="Set Content"
onclick="set_content('Some new content');" />

<script>
function get_content() {
var editor = tinyMCE.get("ed1");
var content = editor.getContent();
console.log("get_content(): " + content);
}

function set_content(content) {
var editor = tinyMCE.get("ed1");
editor.setContent(content);
}
</script>

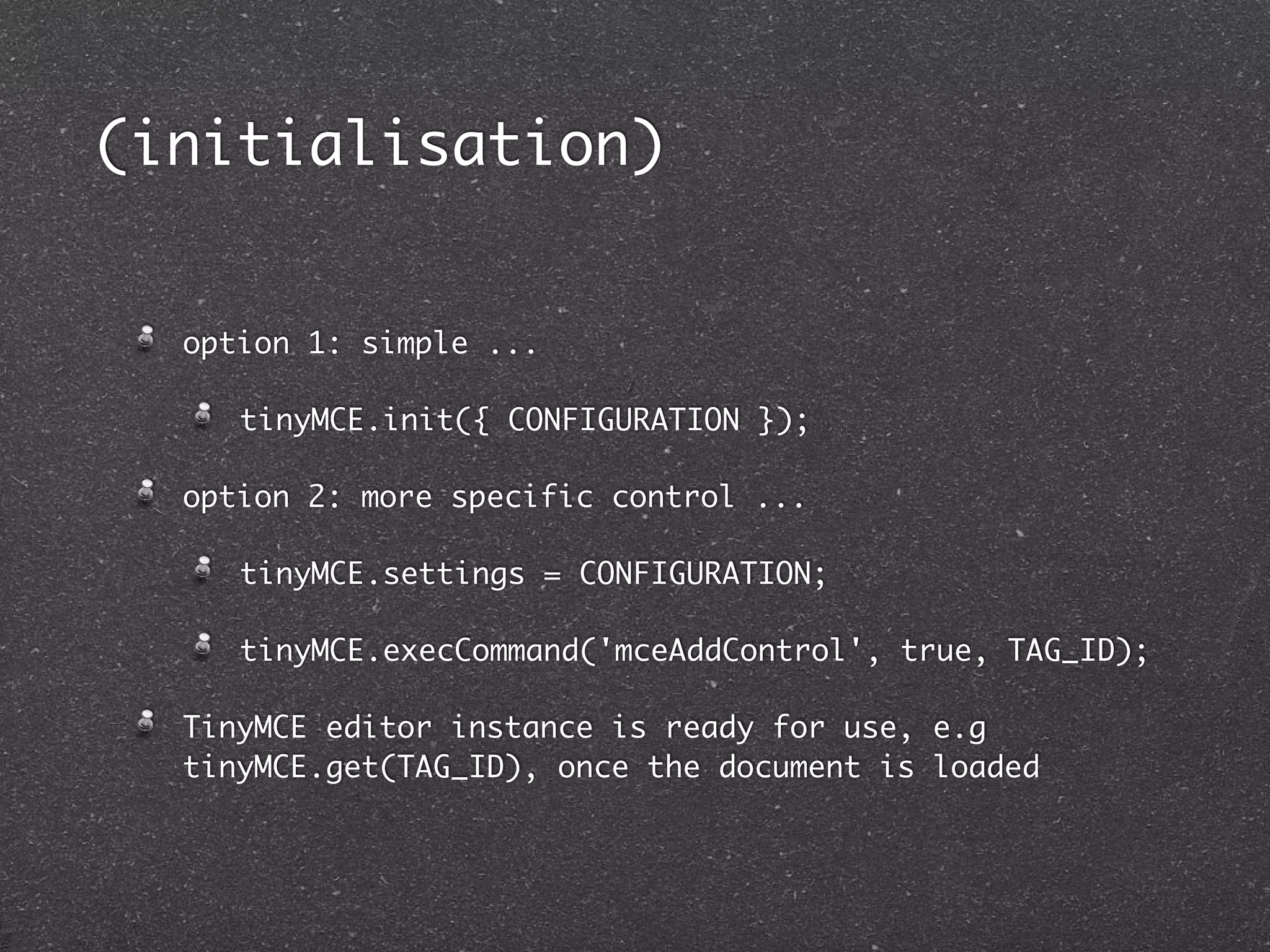

(initialisation)

option 1: simple ...

tinyMCE.init({ CONFIGURATION });

option 2: more specific control ...

tinyMCE.settings = CONFIGURATION;

tinyMCE.execCommand('mceAddControl', true, TAG_ID);

TinyMCE editor instance is ready for use, e.g
tinyMCE.get(TAG_ID), once the document is loaded

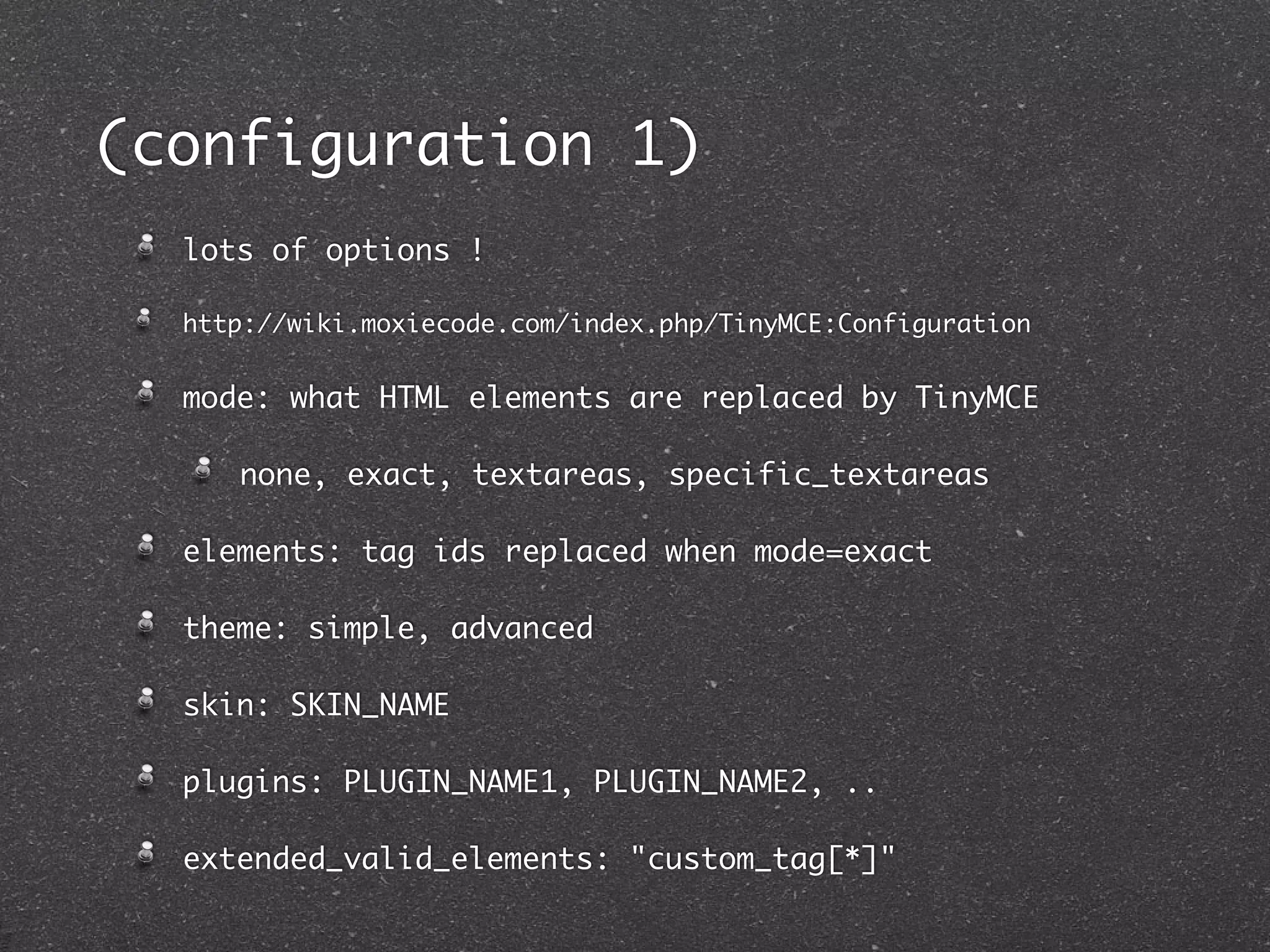

(configuration 1)
lots of options !

http://wiki.moxiecode.com/index.php/TinyMCE:Configuration

mode: what HTML elements are replaced by TinyMCE

none, exact, textareas, specific_textareas

elements: tag ids replaced when mode=exact

theme: simple, advanced

skin: SKIN_NAME

plugins: PLUGIN_NAME1, PLUGIN_NAME2, ..

extended_valid_elements: "custom_tag[*]"

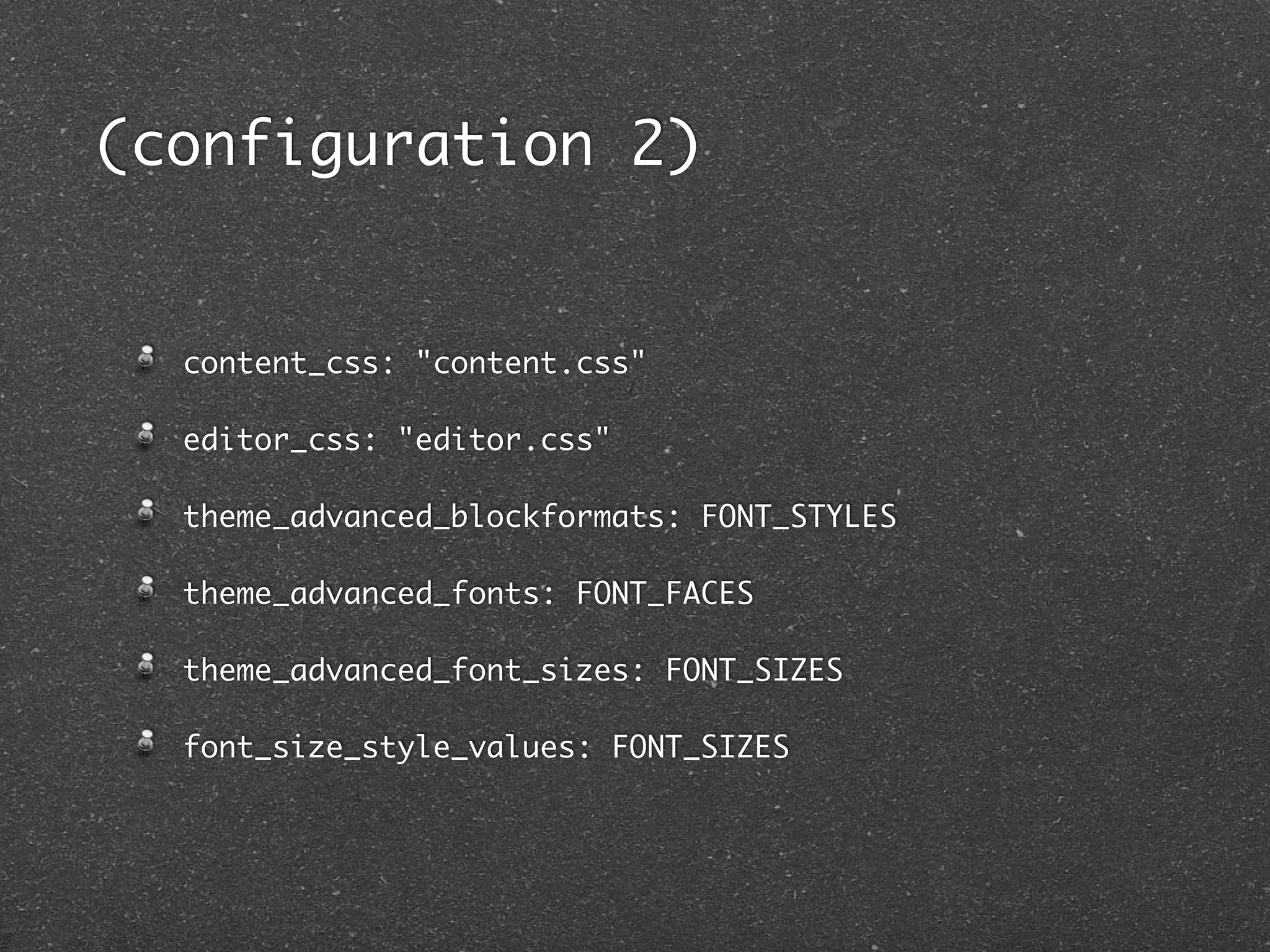

(configuration 2)

content_css: "content.css"

editor_css: "editor.css"

theme_advanced_blockformats: FONT_STYLES

theme_advanced_fonts: FONT_FACES

theme_advanced_font_sizes: FONT_SIZES

font_size_style_values: FONT_SIZES

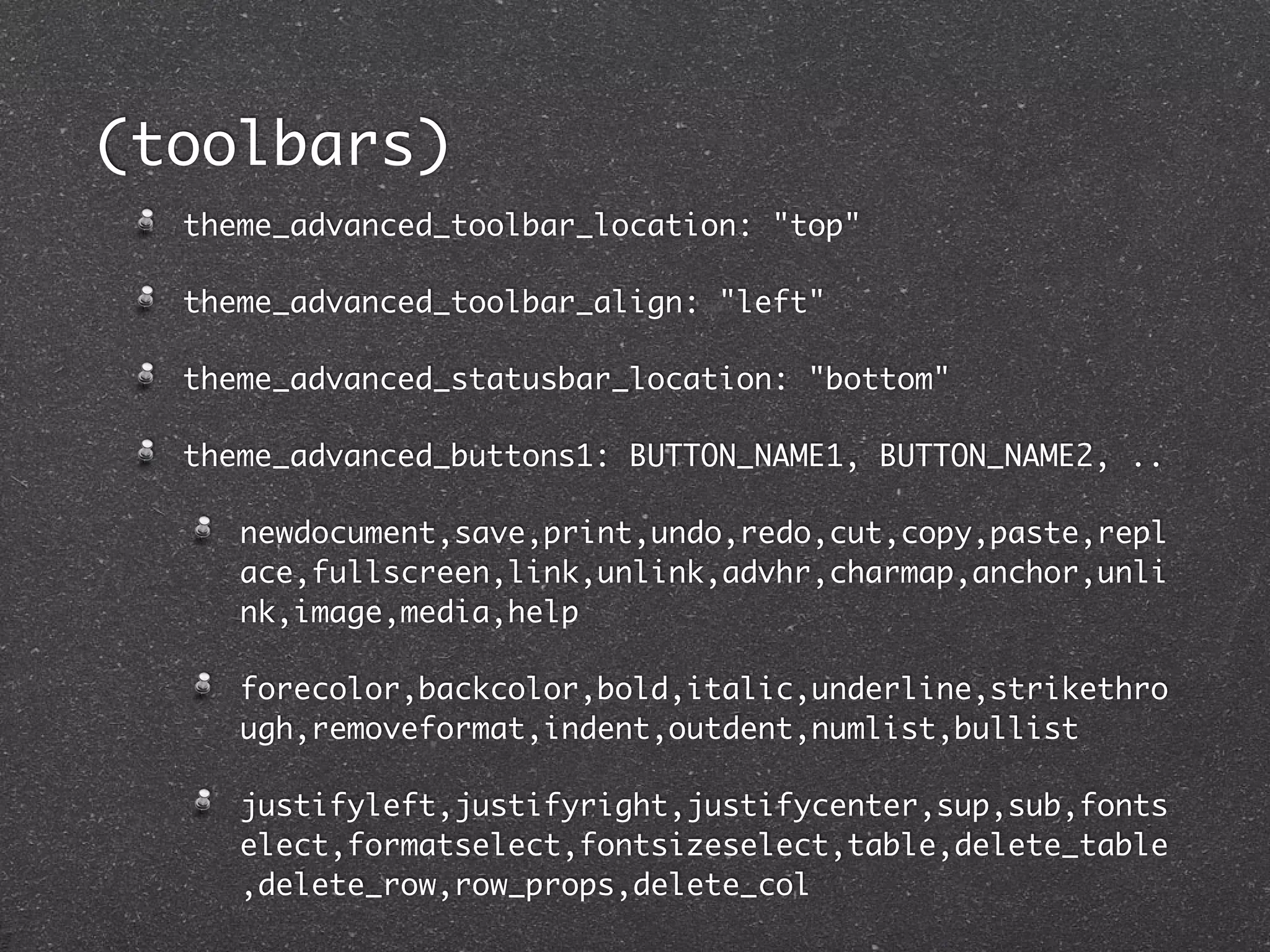

(toolbars)
theme_advanced_toolbar_location: "top"

theme_advanced_toolbar_align: "left"

theme_advanced_statusbar_location: "bottom"

theme_advanced_buttons1: BUTTON_NAME1, BUTTON_NAME2, ..

newdocument,save,print,undo,redo,cut,copy,paste,repl
ace,fullscreen,link,unlink,advhr,charmap,anchor,unli
nk,image,media,help

forecolor,backcolor,bold,italic,underline,strikethro
ugh,removeformat,indent,outdent,numlist,bullist

justifyleft,justifyright,justifycenter,sup,sub,fonts
elect,formatselect,fontsizeselect,table,delete_table
,delete_row,row_props,delete_col

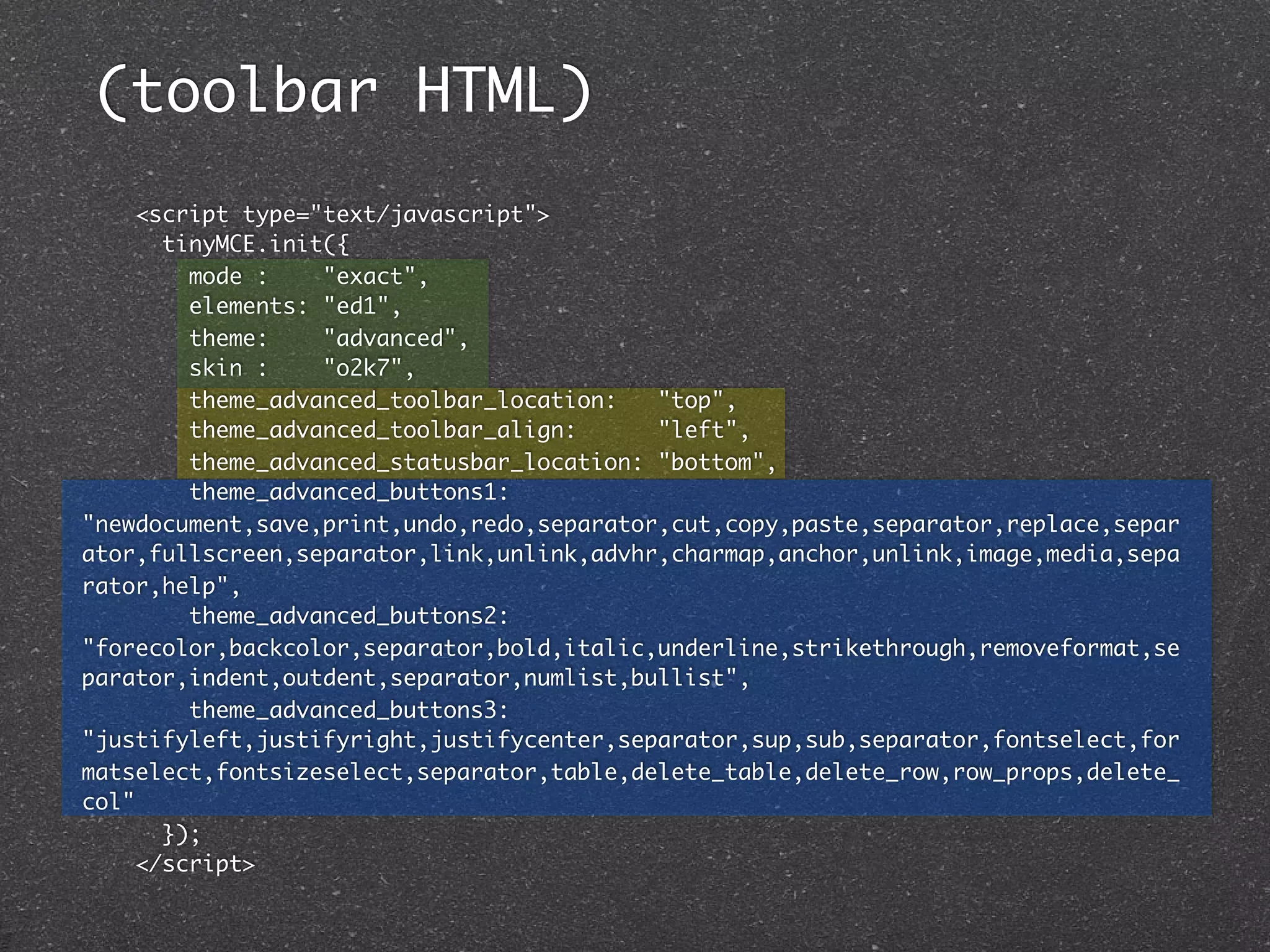

(toolbar HTML)
tinyMCE.init({
mode : "exact",
elements: "ed1",
theme: "advanced",
skin : "o2k7",
theme_advanced_toolbar_location: "top",
theme_advanced_toolbar_align: "left",
theme_advanced_statusbar_location: "bottom",
theme_advanced_buttons1:
"newdocument,save,print,undo,redo,separator,cut,copy,paste,separator,replace,separ
ator,fullscreen,separator,link,unlink,advhr,charmap,anchor,unlink,image,media,sepa
rator,help",
"forecolor,backcolor,separator,bold,italic,underline,strikethrough,removeformat,se
parator,indent,outdent,separator,numlist,bullist",
"justifyleft,justifyright,justifycenter,separator,sup,sub,separator,fontselect,for
matselect,fontsizeselect,separator,table,delete_table,delete_row,row_props,delete_
col"
});
</script>

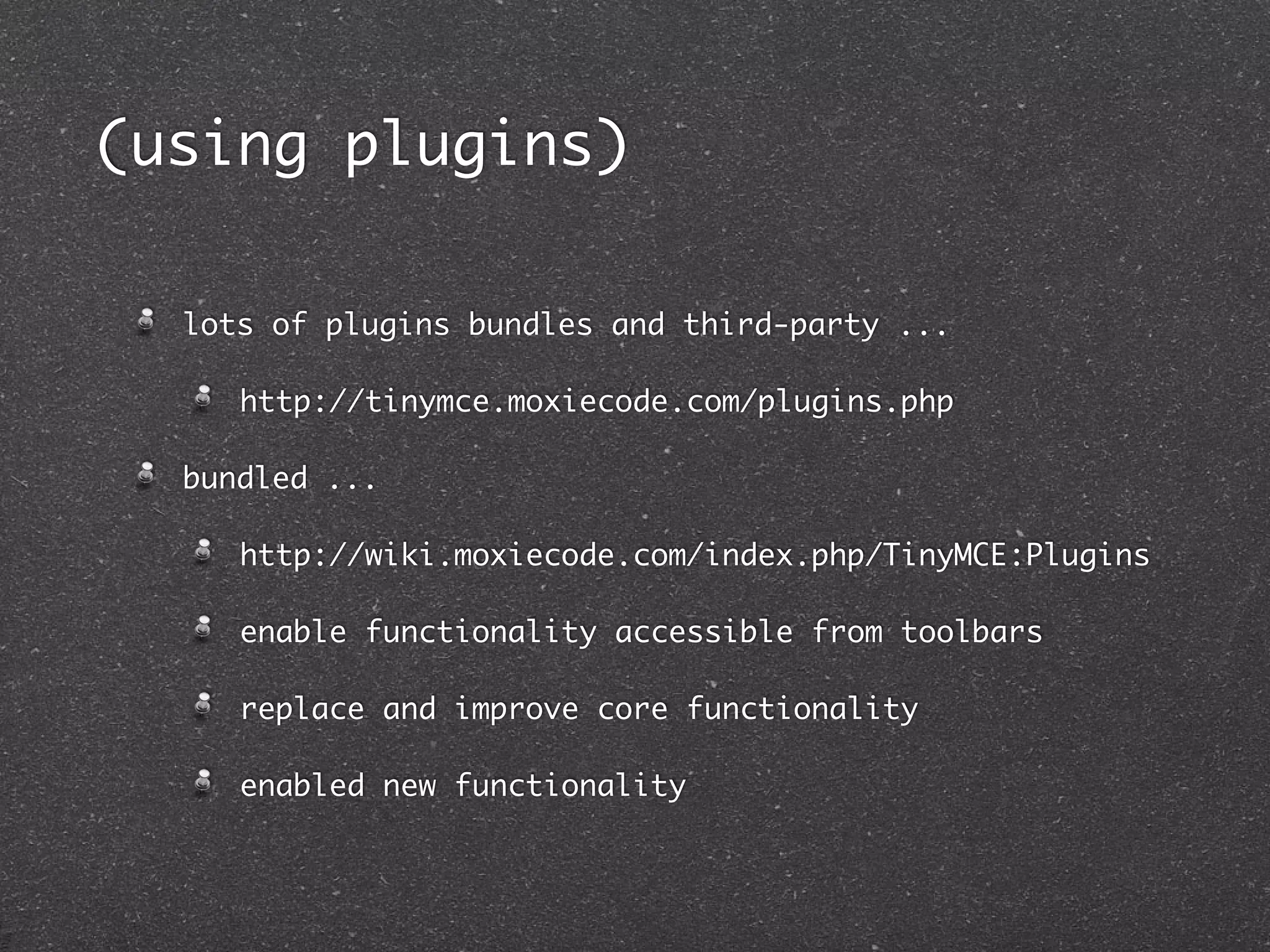

(using plugins)

lots of plugins bundles and third-party ...

http://tinymce.moxiecode.com/plugins.php

bundled ...

http://wiki.moxiecode.com/index.php/TinyMCE:Plugins

enable functionality accessible from toolbars

replace and improve core functionality

enabled new functionality

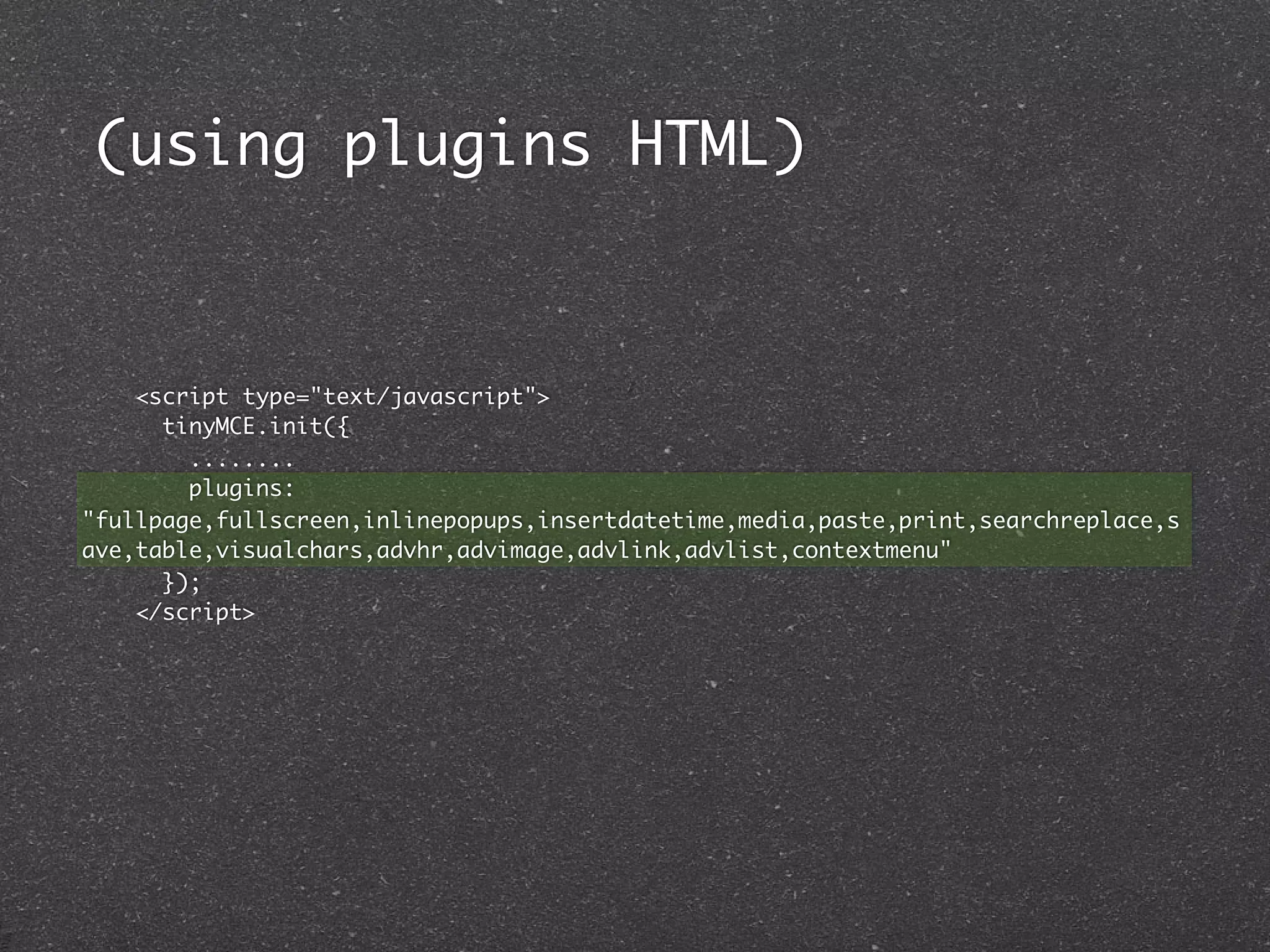

(using plugins HTML)

tinyMCE.init({
........
plugins:
"fullpage,fullscreen,inlinepopups,insertdatetime,media,paste,print,searchreplace,s
ave,table,visualchars,advhr,advimage,advlink,advlist,contextmenu"
});
</script>

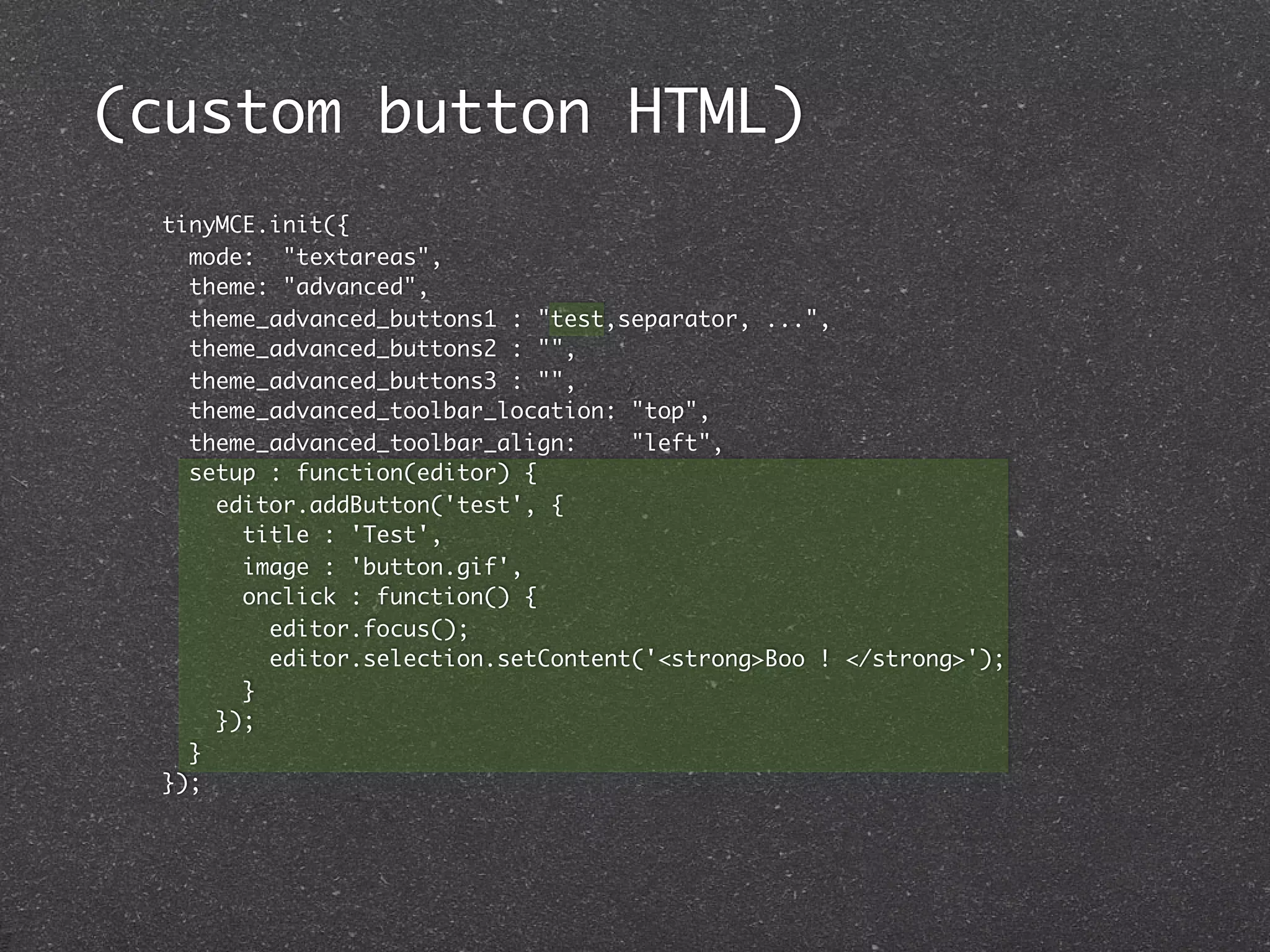

(custom button HTML)
tinyMCE.init({
mode: "textareas",
theme: "advanced",
theme_advanced_buttons1 : "test,separator, ...",
theme_advanced_buttons2 : "",
setup : function(editor) {
editor.addButton('test', {
title : 'Test',
image : 'button.gif',
onclick : function() {
editor.focus();
editor.selection.setContent('<strong>Boo ! </strong>');
}
});
}
});

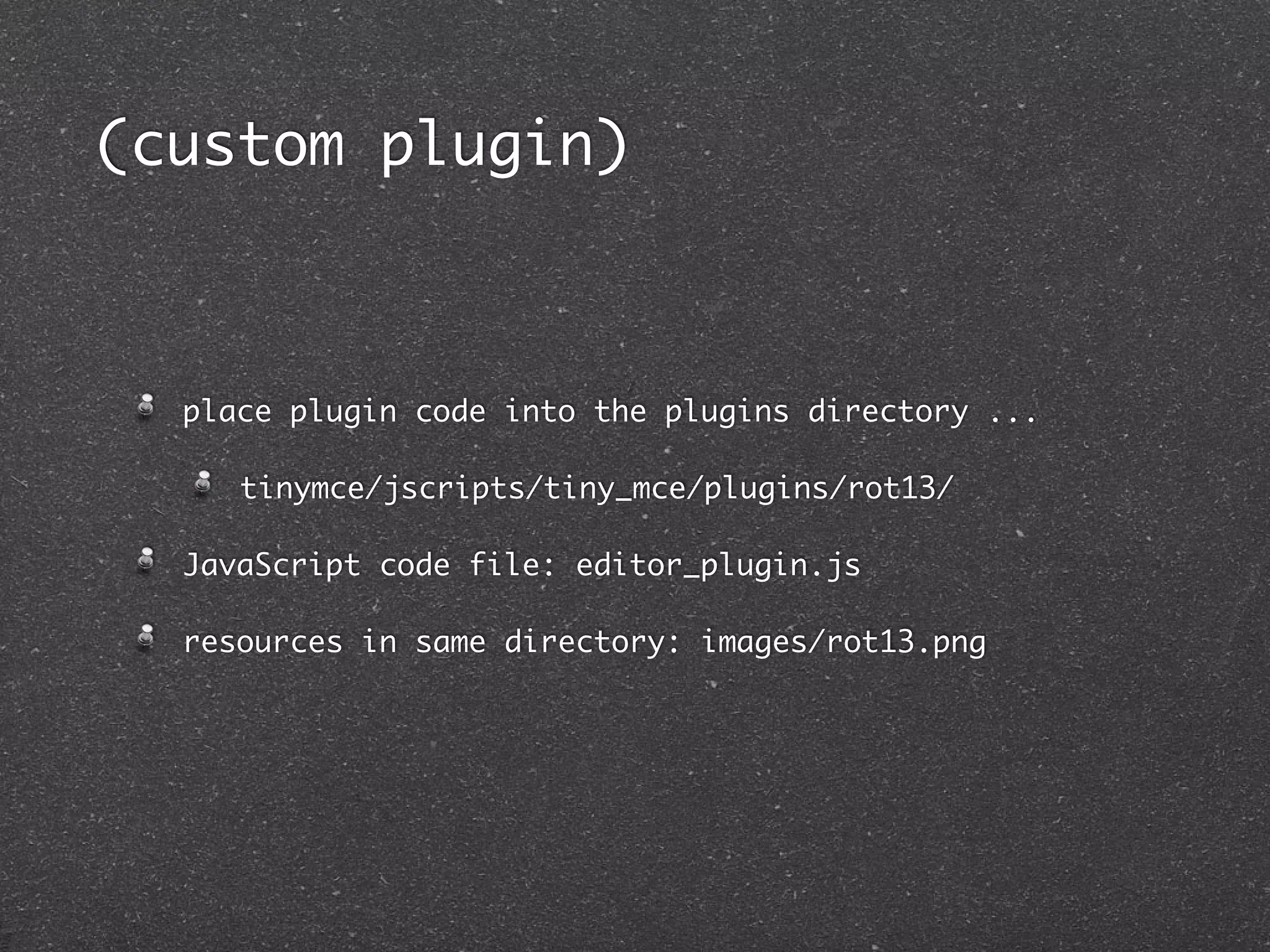

(custom plugin)

place plugin code into the plugins directory ...

tinymce/jscripts/tiny_mce/plugins/rot13/

JavaScript code file: editor_plugin.js

resources in same directory: images/rot13.png

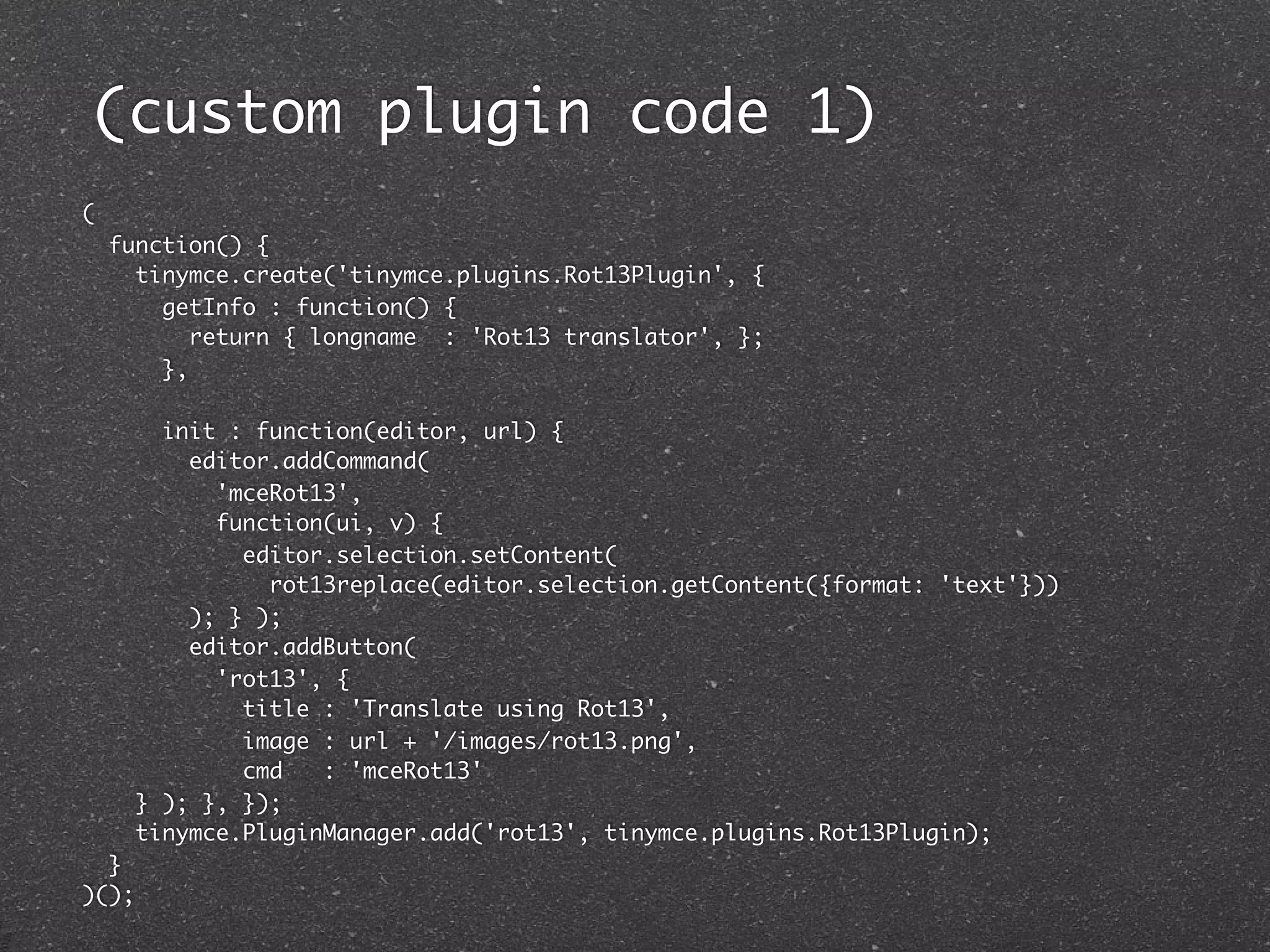

(custom plugin code 1)
(
function() {
tinymce.create('tinymce.plugins.Rot13Plugin', {
getInfo : function() {
return { longname : 'Rot13 translator', };
},

init : function(editor, url) {
editor.addCommand(
'mceRot13',
function(ui, v) {
editor.selection.setContent(
rot13replace(editor.selection.getContent({format: 'text'}))
); } );
editor.addButton(
'rot13', {
title : 'Translate using Rot13',
image : url + '/images/rot13.png',
cmd : 'mceRot13'
} ); }, });
tinymce.PluginManager.add('rot13', tinymce.plugins.Rot13Plugin);
}
)();

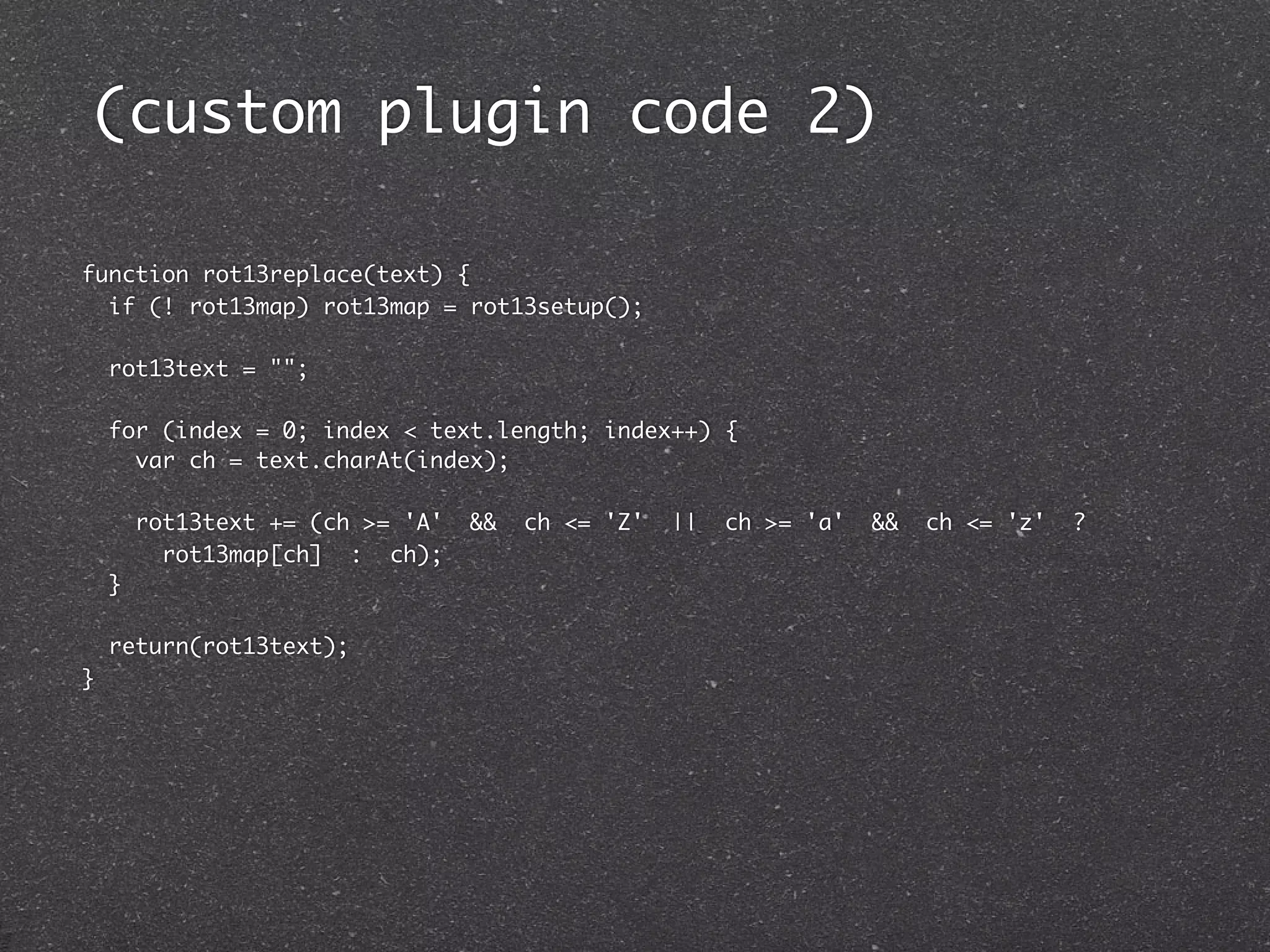

(custom plugin code 2)

function rot13replace(text) {
if (! rot13map) rot13map = rot13setup();

rot13text = "";

for (index = 0; index < text.length; index++) {
var ch = text.charAt(index);

rot13text += (ch >= 'A' && ch <= 'Z' || ch >= 'a' && ch <= 'z' ?
rot13map[ch] : ch);
}

return(rot13text);
}

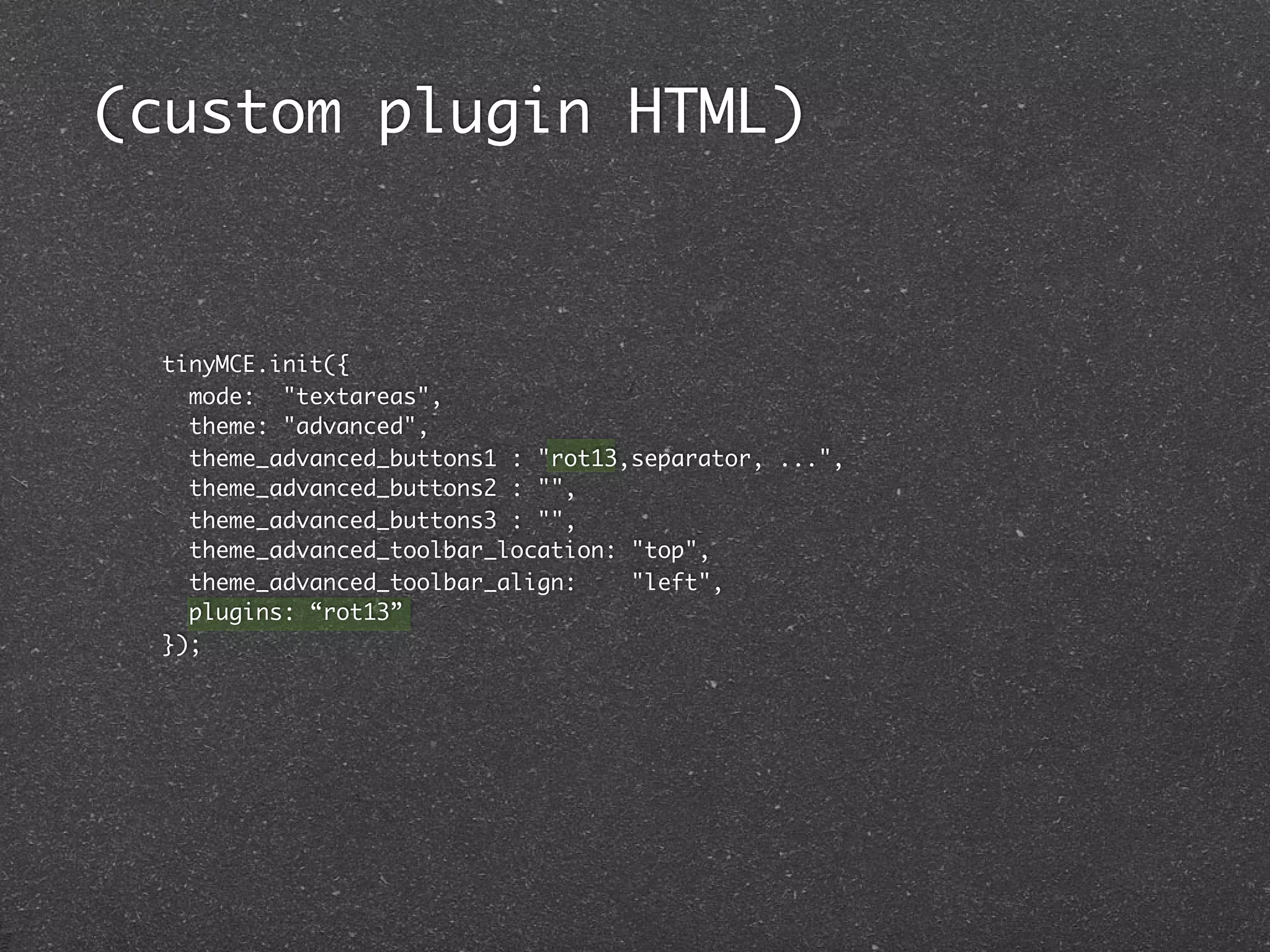

(custom plugin HTML)

tinyMCE.init({
mode: "textareas",
theme: "advanced",
theme_advanced_buttons1 : "rot13,separator, ...",
plugins: “rot13”
});

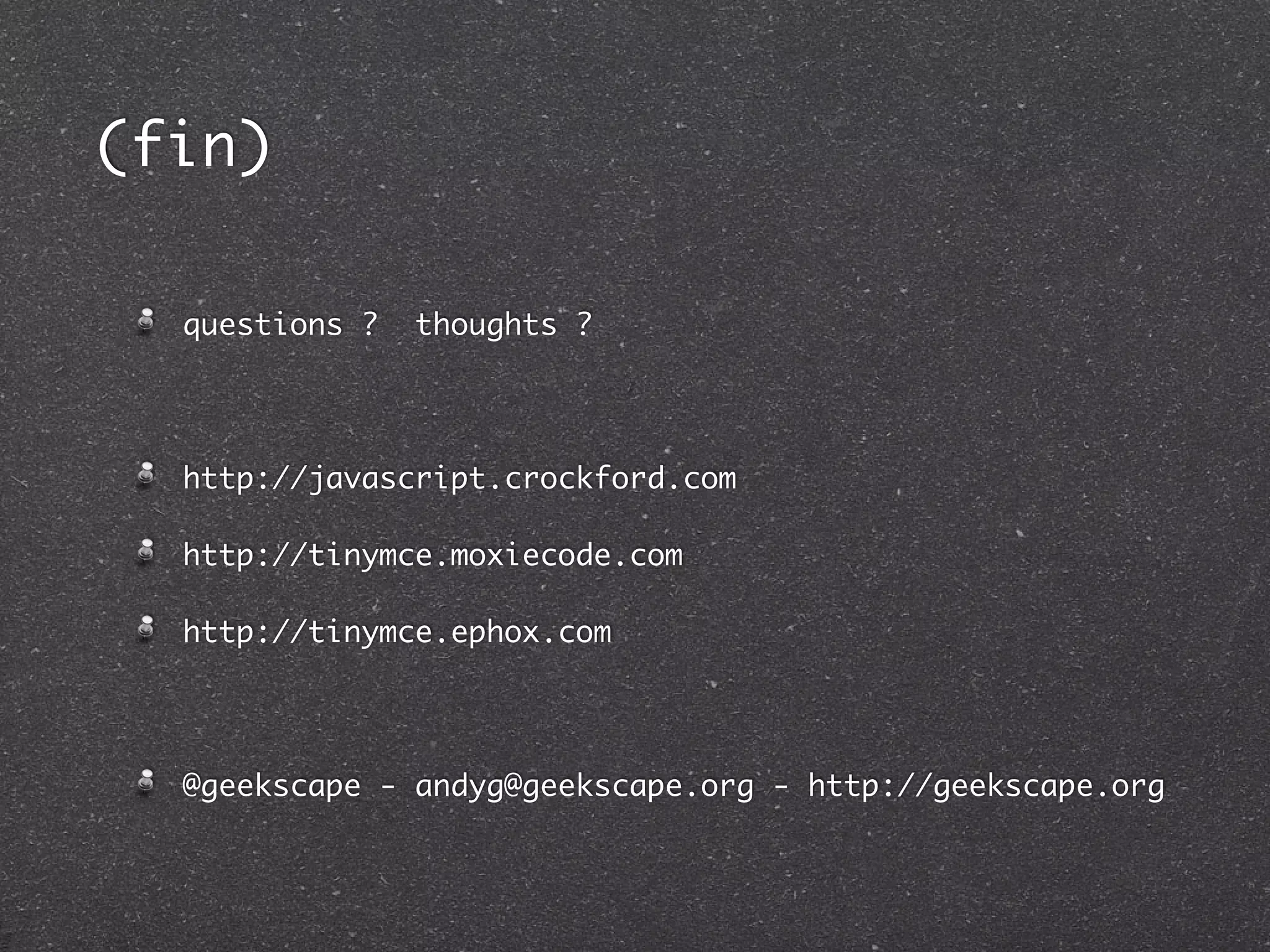

(fin)

questions ? thoughts ?

http://javascript.crockford.com

http://tinymce.moxiecode.com

http://tinymce.ephox.com

@geekscape - andyg@geekscape.org - http://geekscape.org
