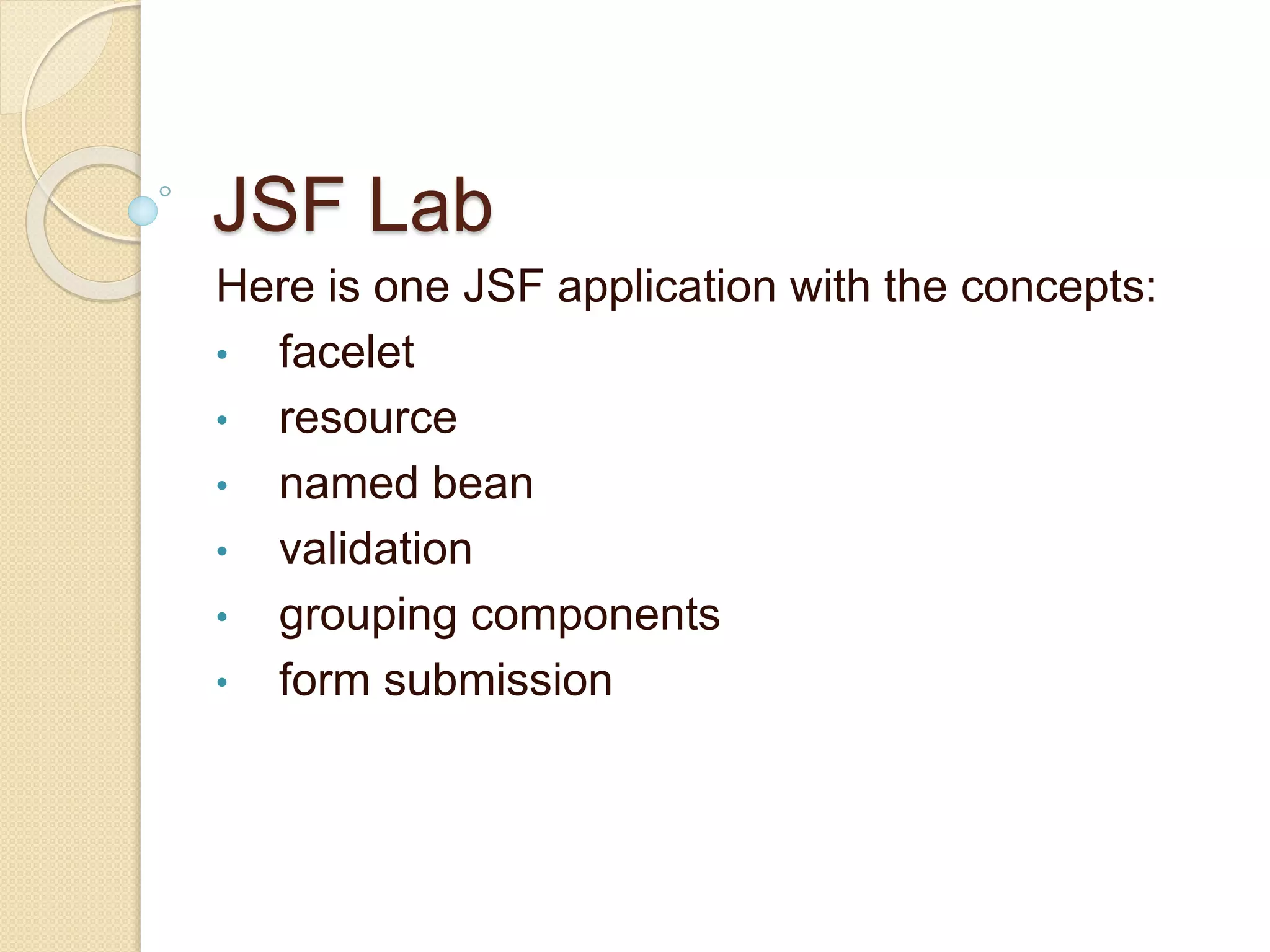

JSF Lab
Here is one JSF application with the concepts:
• facelet
• resource
• named bean
• validation
• grouping components
• form submission

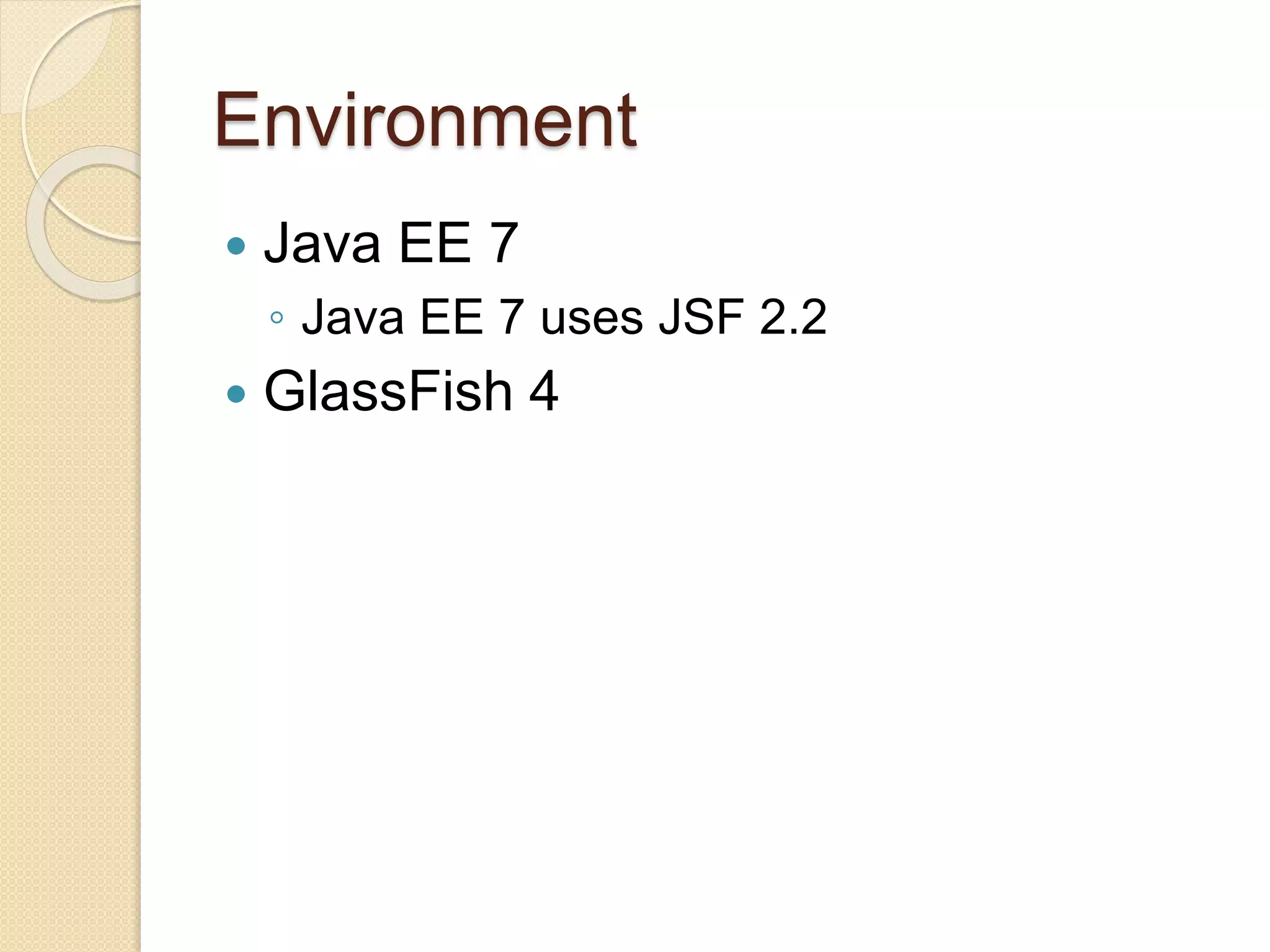

Environment
 Java EE 7
◦ Java EE 7 uses JSF 2.2
 GlassFish 4

Facelets
 JSF 1.x
◦ JSP as their default view technology
◦ Mismatch of lifecycle between JSP &
JSFs
 JSF 2.x
◦ Facelets became a de facto standard for
JSF
◦ in Version 2.0 of the JSF specification

Resource Location (1/2)
 resource directory
◦ at the root of WAR
◦ under META-INF
 my war file example:

Resource Location (2/2)
 my war file example:
 In JSF, I retrieve these files:
◦ <h:outputStylesheet library="css" name="styles.css"/>
◦ <h:outputScript library="scripts" name="somescript.js"/>
◦ <h:graphicImage library="images" name="logo.png"/>

LAB
• Demo the first version of JSF application

Deploy and Run (1/3)
http://localhost:8080/jsf/faces/customer_data_entry.xhtml
Save invalid inputs

http://localhost:8080/jsf/faces/customer_data_entry.xhtml
Save valid inputs

HTML code
 <?xml version='1.0' encoding='UTF-8' ?>
 <!DOCTYPE html>
 <html xmlns="http://www.w3.org/1999/xhtml">
 <head id="j_idt2">
 <title>Enter Customer Data</title>
 <link type="text/css" rel="stylesheet"
href="/jsf/faces/javax.faces.resource/styles.css;jsessionid=
f6a6a03cf586f6537c2c236ae198?ln=css" />
 </head>
 <body>
 <form id="customerForm" name="customerForm"
method="post"
action="/jsf/faces/customer_data_entry.xhtml;jsessionid=f6
a6a03cf586f6537c2c236ae198" enctype="application/x-
www-form-urlencoded">
 <input type="hidden" name="customerForm"
value="customerForm" />
 <table>
 <tbody>
 <tr>
 <td class="rightAlign">
 <label for="customerForm:firstName">First
Name:</label>
 </td>
 <td class="leftAlign">
 <input id="customerForm:firstName"
type="text" name="customerForm:firstName" />
 </td>
 </tr>

 <tr>
 <td class="rightAlign"></td>
 <td class="leftAlign">
 <input type="submit"
name="customerForm:j_idt12" value="Save" />
 </td>
 </tr>
 </tbody>
 </table>
 <input type="hidden" name="javax.faces.ViewState"
id="j_id1:javax.faces.ViewState:0"
value="7091375556898980807:-6127233417766167060"
autocomplete="off" />
 </form>
 </body>
 </html>

OBSERVE FACELET
We should focus on how to transfer from facelet to
HTML

customer_data_entry.xhtml
 <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN"
 "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
 <html xmlns="http://www.w3.org/1999/xhtml"
 xmlns:h="http://java.sun.com/jsf/html"
 xmlns:f="http://java.sun.com/jsf/core">
 <h:head>
 </h:head>
 <h:body>
 <h:outputStylesheet library="css" name="styles.css"/>
 <h:form id="customerForm">
 <h:messages/>
 <h:panelGrid columns="2"
 columnClasses="rightAlign,leftAlign">
 <h:outputLabel for="firstName" value="First Name:">
 </h:outputLabel>
 <h:inputText id="firstName"
 label="First Name"
 value="#{customer.firstName}"
 required="true">
 <f:validateLength minimum="2" maximum="30">
 </f:validateLength>
 </h:inputText>
 <h:outputLabel for="lastName" value="Last Name:">
 <h:inputText id="lastName"
 label="Last Name"
 value="#{customer.lastName}"
 </h:inputText>
 <h:outputLabel for="email" value="Email:">
 <h:inputText id="email"
 label="Email"
 value="#{customer.email}">
 </h:inputText>
 <h:panelGroup></h:panelGroup>
 <h:commandButton action="confirmation" value="Save">
 </h:commandButton>
 </h:panelGrid>
 </h:form>
 </h:body>
 </html>

confirmation.xhtml
"http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
 xmlns:h="http://java.sun.com/jsf/html">
 <h:head>
 <title>Customer Data Entered</title>
 </h:head>
 <h:body>
 <h:panelGrid columns="2" columnClasses="rightAlign,leftAlign">
 <h:outputText value="First Name:"></h:outputText>
 <h:outputText value="#{customer.firstName}"></h:outputText>
 <h:outputText value="Last Name:"></h:outputText>
 <h:outputText value="#{customer.lastName}"></h:outputText>
 <h:outputText value="Email:"></h:outputText>
 <h:outputText value="#{customer.email}"></h:outputText>
 </h:panelGrid>
 </h:body>
 </html>

Overview the JSF page (1/2)
 "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
 xmlns:h="http://java.sun.com/jsf/html"
 xmlns:f="http://java.sun.com/jsf/core">
 <h:head>
 </h:head>
 <h:body>
 <h:outputStylesheet library="css" name="styles.css"/>

 </h:form>
 </h:body>
 </html>

Overview the JSF page (2/2)
 Two namespaces:
◦ h: for HTML components
◦ f: for faces
 Analogous to standard HTML
 Load CSS (explained)

Look inside the form (1/3)
 <h:messages/>
 <h:panelGrid columns="2"
 columnClasses="rightAlign,leftAlign">
 <h:outputLabel for="firstName" value="First Name:"></h:outputLabel>
 <h:inputText id="firstName"
 label="First Name"
 value="#{customer.firstName}"
 </h:inputText>

 <h:panelGroup></h:panelGroup>
 <h:commandButton action="confirmation" value="Save"></h:commandButton>
 </h:panelGrid>
 </h:form>

 form does NOT need action and
method
◦ action: generated automatically
◦ method: always post
 messages is used to display any
messages
◦ explain latter
 panelGrid is like HTML table
◦ NOT declaring rows and columns
◦ declare the number of columns for each

 Observe the table and the facelet
◦ In panelGrid, one cell for one tag
◦ Use panelGroup to combine tags into 1 cell
 Observe the HTML file and the facelet
◦ columnClasses set the CSS class
 Invalid data is submitted
◦ required, validateLength chekcs the
inputs
◦ Error message is displayed at messages
 Click the label in page
◦ for (outputLabel) <-> id (inputText)

Value-binding expression
value="#{customer.firstName}”
value="#{customer.lastName}”
value="#{customer.email}”
 customer is the named
bean
 one customer object for
each request
Source code:
@Named
@RequestScoped
public class Customer {
private String firstName;
private String lastName;
private String email;
//public getter and setter
}

Navigation
 Valid inputs is submit
1. customer named bean’s is bound
2. To facelet confirmation.xhtml
3. This page also use value binding
expression
 Invalid inputs is submit
1. Navigate the same page
2. Show message

Reference
 Java EE 7 with GlassFish 4
Application Server
