Java Messaging Service (JMS) is a specification that describes a common way for Java programs to create, send, receive and read distributed enterprise messages using a loosely coupled and asynchronous messaging approach. A JMS provider delivers messages to clients as they arrive without requiring the client to request them. JMS supports point-to-point, publish-subscribe, and request-reply messaging domains. The JMS API defines programming elements like connections, sessions, producers and consumers that Java programs use to participate in messaging.

1. Java Messaging Service (JMS)
Presentation By
-Anil Prajapati

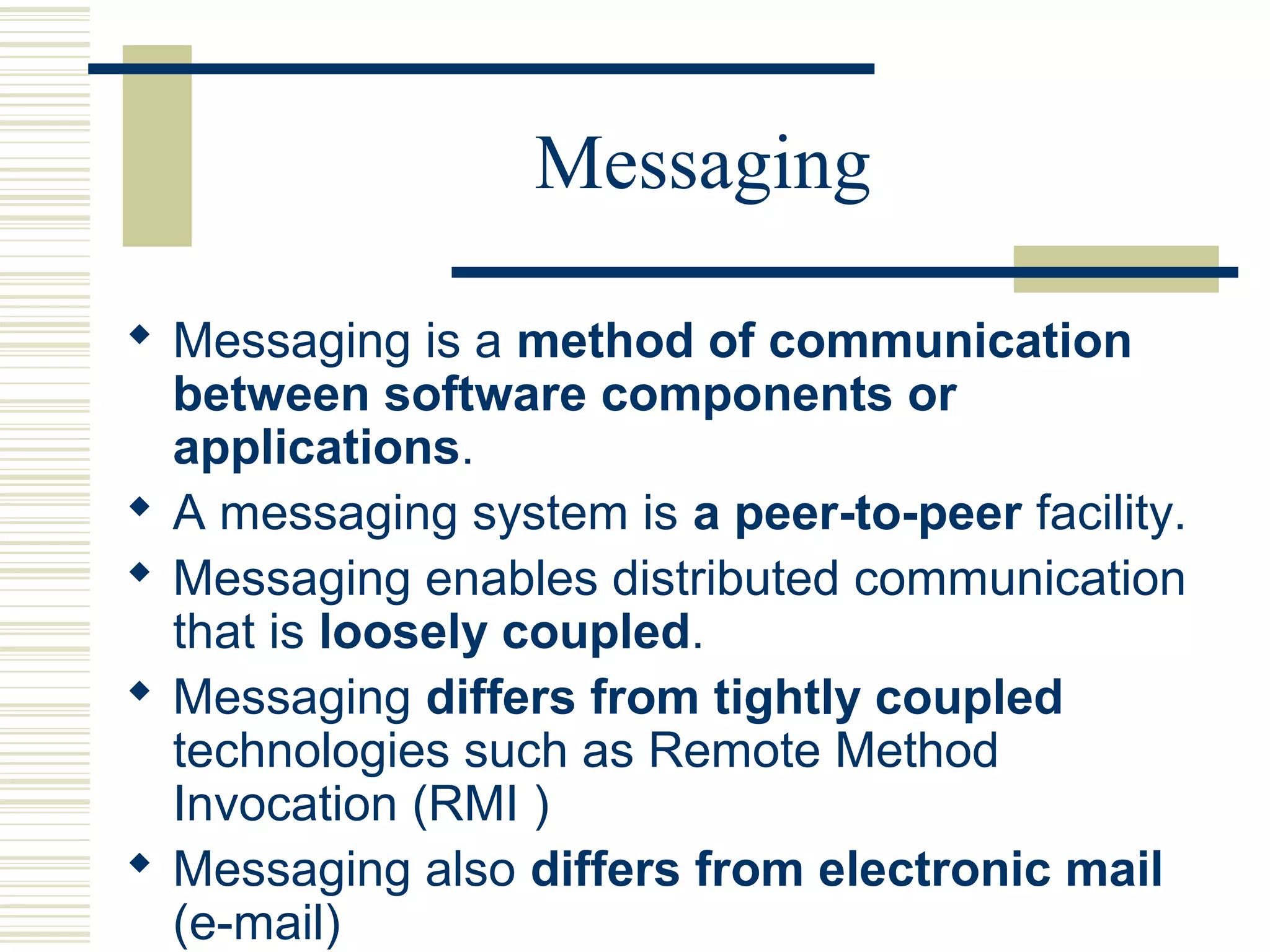

2. Messaging
 Messaging is a method of communication
between software components or
applications.
 A messaging system is a peer-to-peer facility.
 Messaging enables distributed communication
that is loosely coupled.
 Messaging differs from tightly coupled
technologies such as Remote Method
Invocation (RMI )
 Messaging also differs from electronic mail
(e-mail)

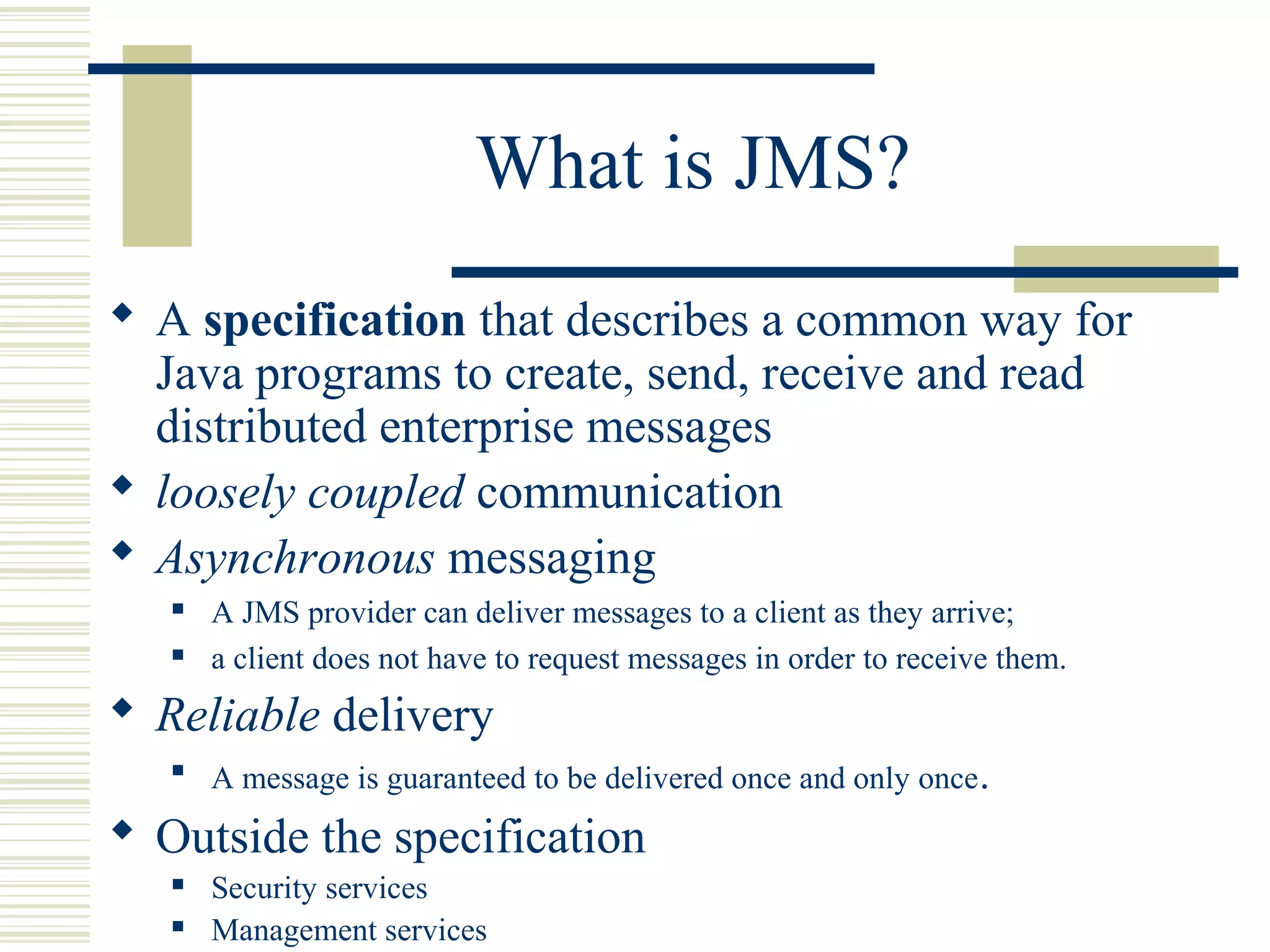

3. What is JMS?
 A specification that describes a common way for
Java programs to create, send, receive and read
distributed enterprise messages
 loosely coupled communication
 Asynchronous messaging
 A JMS provider can deliver messages to a client as they arrive;
 a client does not have to request messages in order to receive them.
 Reliable delivery

A message is guaranteed to be delivered once and only once.
 Outside the specification
 Security services
 Management services

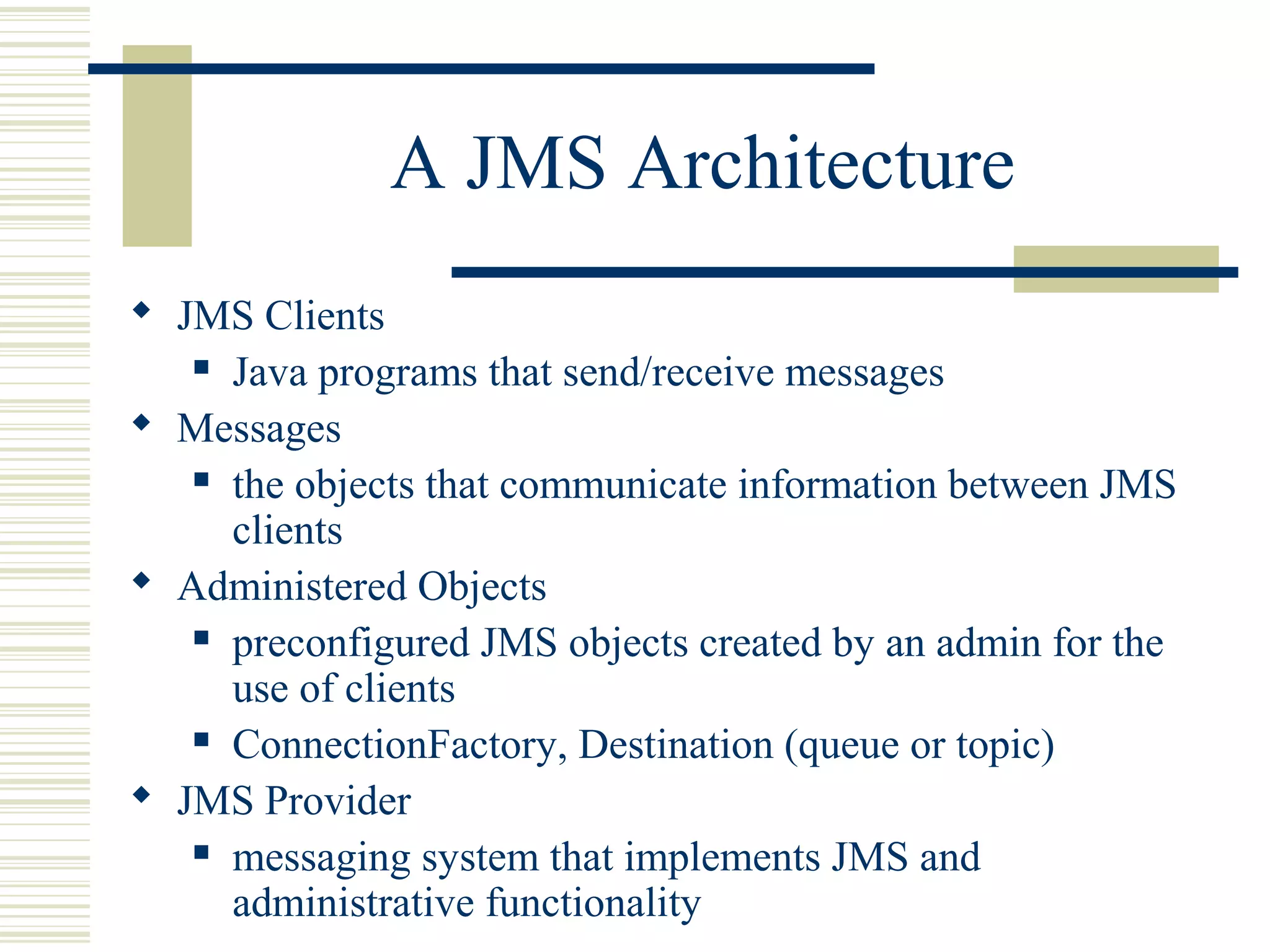

4. A JMS Architecture
 JMS Clients
 Java programs that send/receive messages
 Messages
 the objects that communicate information between JMS
clients
 Administered Objects
 preconfigured JMS objects created by an admin for the
use of clients
 ConnectionFactory, Destination (queue or topic)
 JMS Provider
 messaging system that implements JMS and
administrative functionality

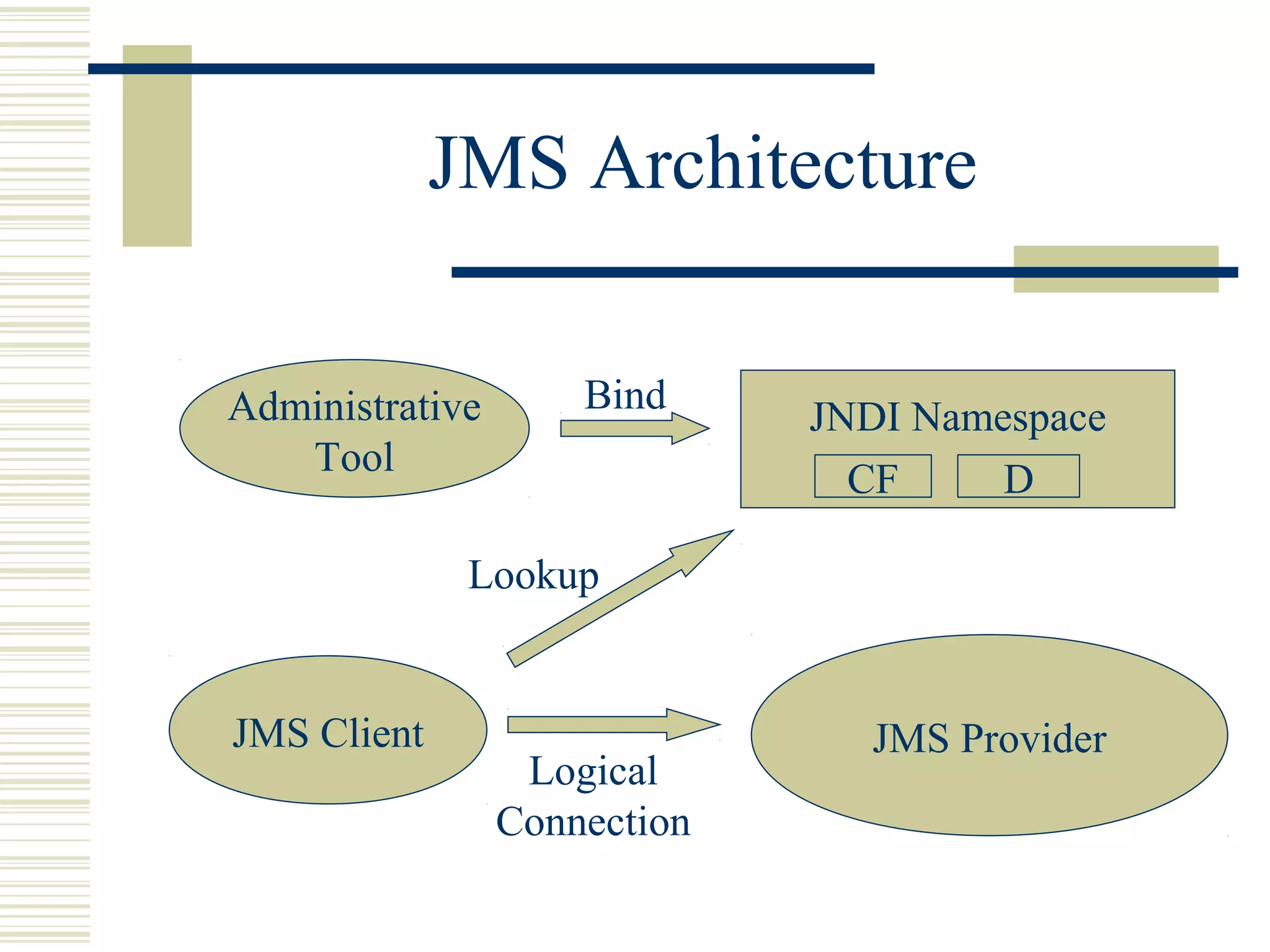

5. JMS Architecture
Administrative
Tool
JNDI Namespace
JMS Client JMS Provider
Bind
Lookup
Logical
Connection
CF D

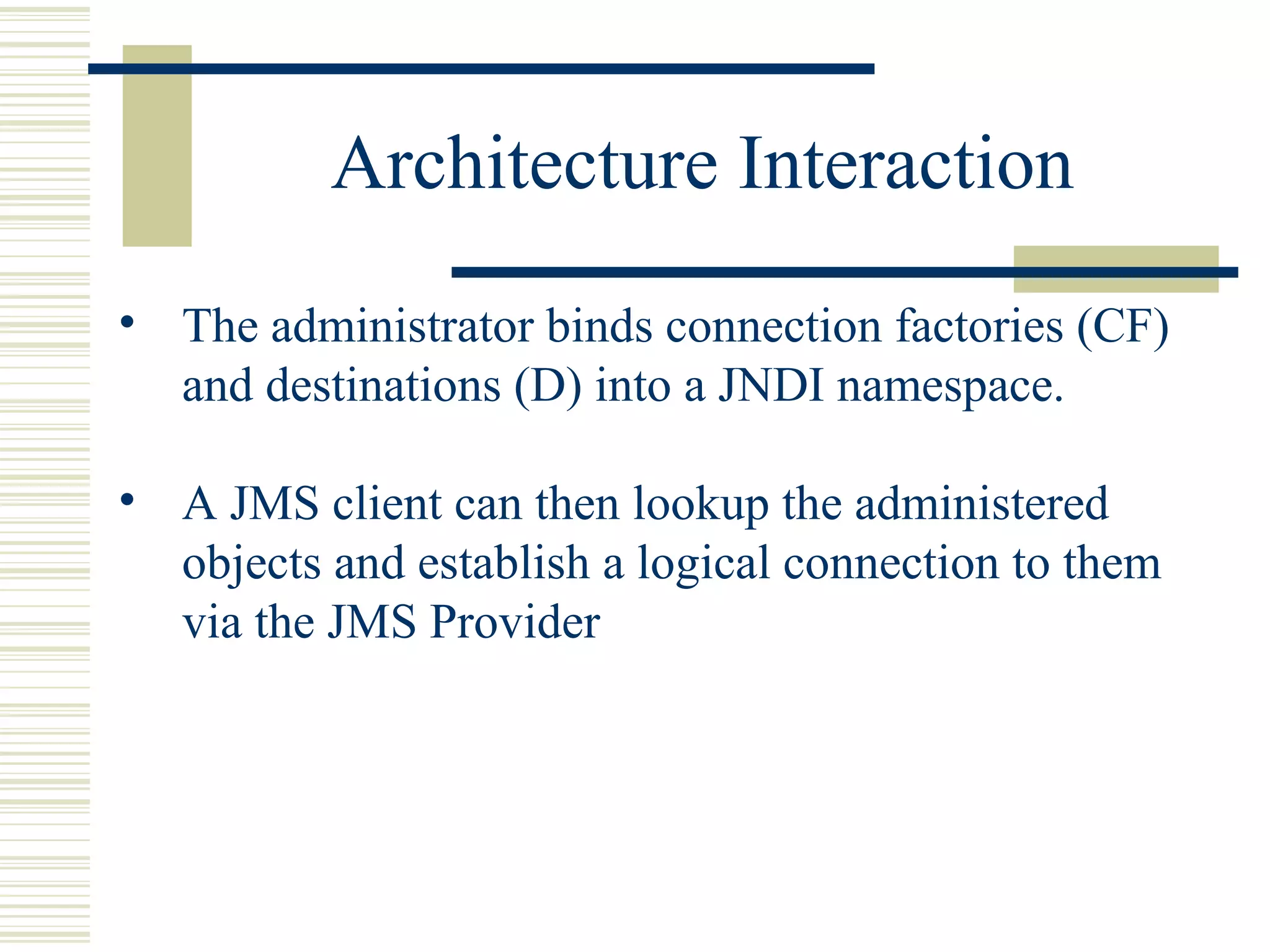

6. Architecture Interaction
• The administrator binds connection factories (CF)
and destinations (D) into a JNDI namespace.
• A JMS client can then lookup the administered
objects and establish a logical connection to them
via the JMS Provider

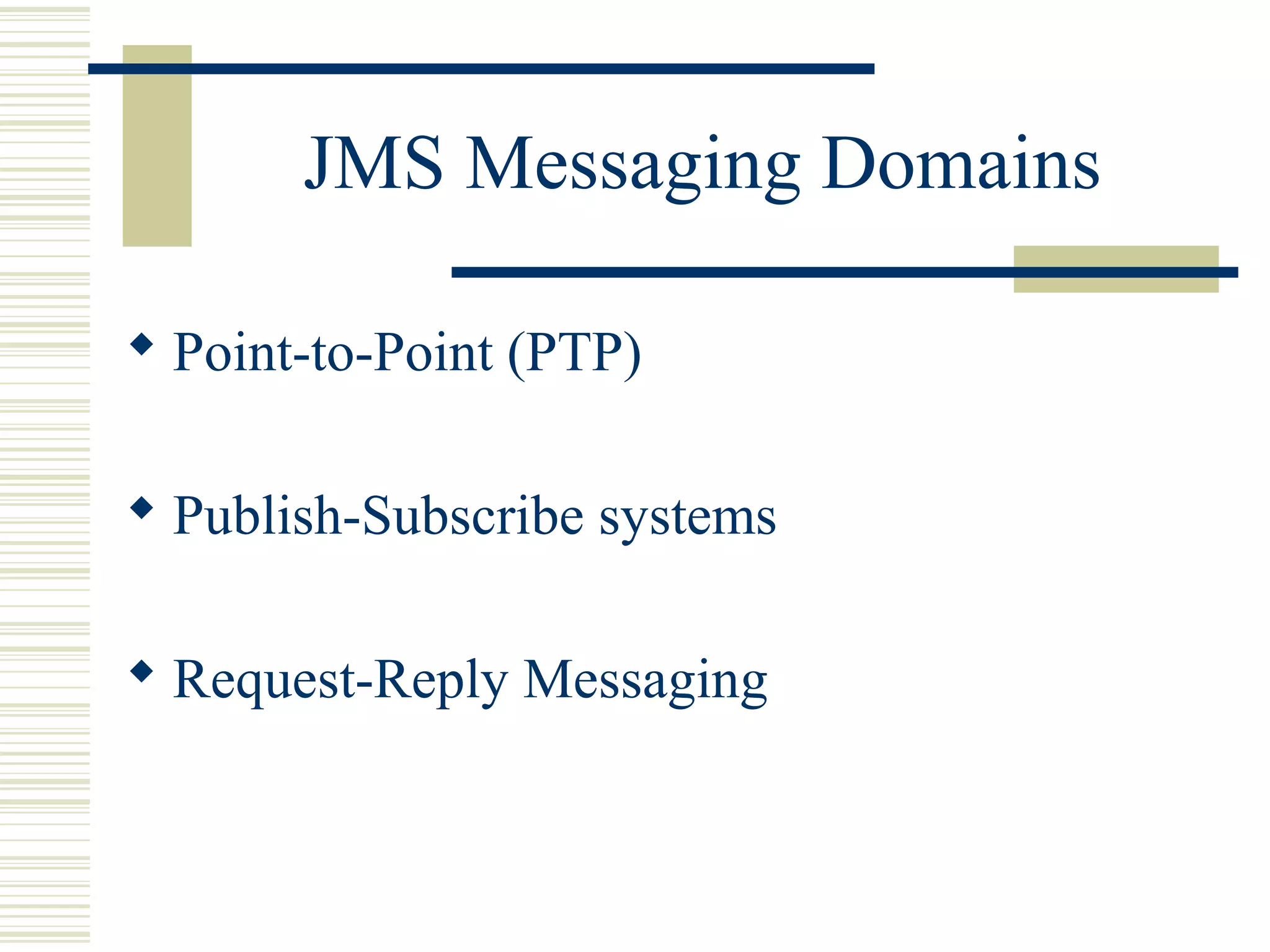

7. JMS Messaging Domains
 Point-to-Point (PTP)
 Publish-Subscribe systems
 Request-Reply Messaging

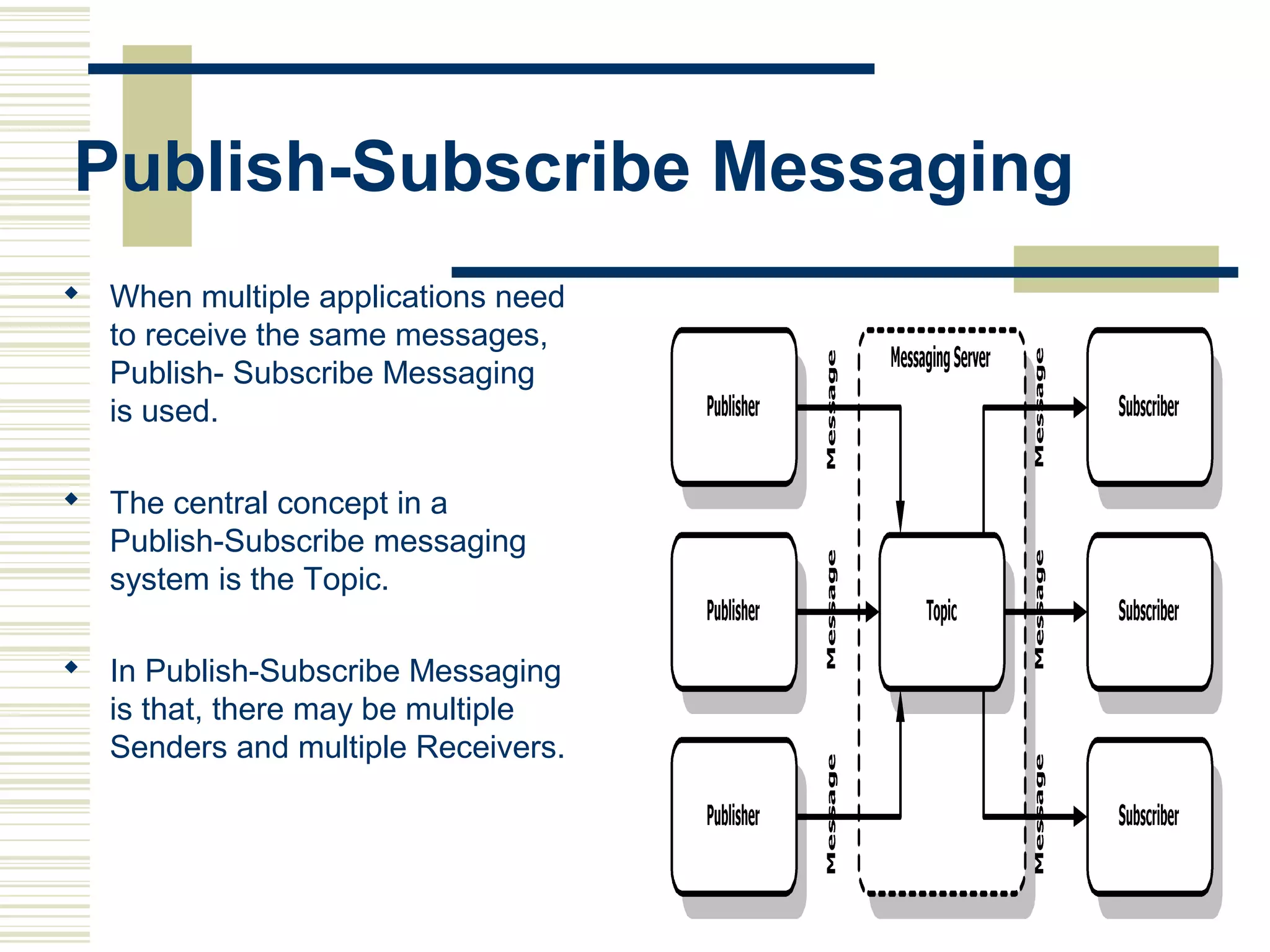

8. Publish-Subscribe Messaging
 When multiple applications need
to receive the same messages,
Publish- Subscribe Messaging
is used.
 The central concept in a
Publish-Subscribe messaging
system is the Topic.
 In Publish-Subscribe Messaging
is that, there may be multiple
Senders and multiple Receivers.

9. Point- To-Point Messaging
 When one process needs to send a
message to another process,
Point-To-Point Messaging can be
used.
 There are two basic types:
• The first one involves a client
that directly sends a message to
another client.
• The second and more common
implementation is based on the
concept of a Message Queue.
 in Point-to-Point messaging even
though there may be multiple
Senders of messages, but there is
only a single Receiver.

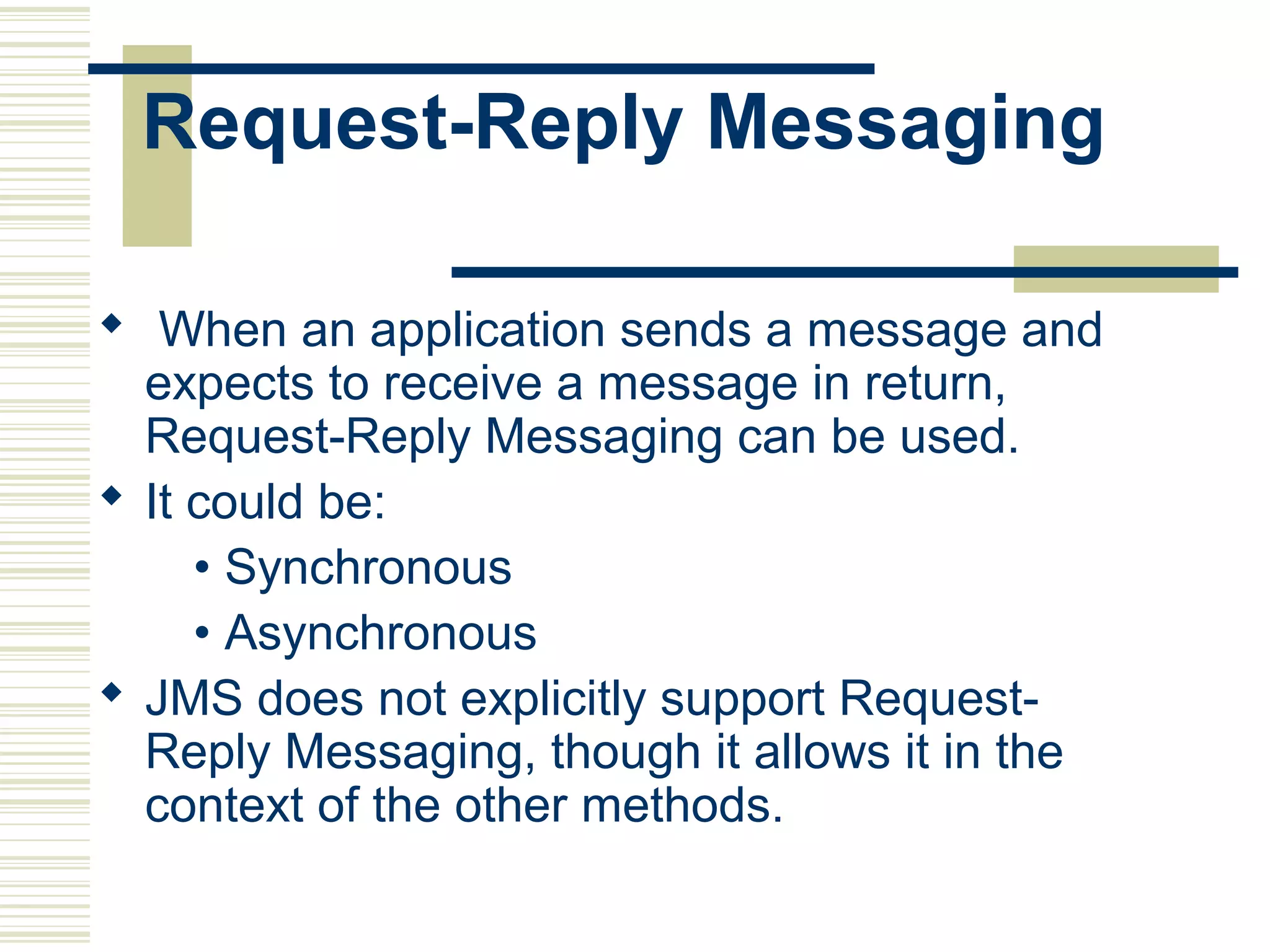

10. Request-Reply Messaging
 When an application sends a message and
expects to receive a message in return,
Request-Reply Messaging can be used.
 It could be:
• Synchronous
• Asynchronous
 JMS does not explicitly support Request-
Reply Messaging, though it allows it in the
context of the other methods.

11. JMS API Programming Model
Connection
creates creates
creates
MsgDestination
receives
from
sends to
Connection
Factory
Destination
Message
ConsumerSession
Message
Producer
creates

12. JMS Messages
 Message Header
 used for identifying and routing messages
 contains vendor-specified values, but could also contain
application-specific data
 typically name/value pairs
 Message Properties (optional)
 Message Body(optional)
 contains the data
 five different message body types in the JMS
specification :-Bytes Messages ,Map Messages, Object Messages,
Stream Messages , Text Messages

13. JMS Message Types
Message Type Contains Some Methods
TextMessage String getText,setText
MapMessage set of name/value pairs setString,setDouble,setLo
ng,getDouble,getString
BytesMessage stream of uninterpreted
bytes
writeBytes,readBytes
StreamMessage stream of primitive
values
writeString,writeDouble,
writeLong,readString
ObjectMessage serialize object setObject,getObject

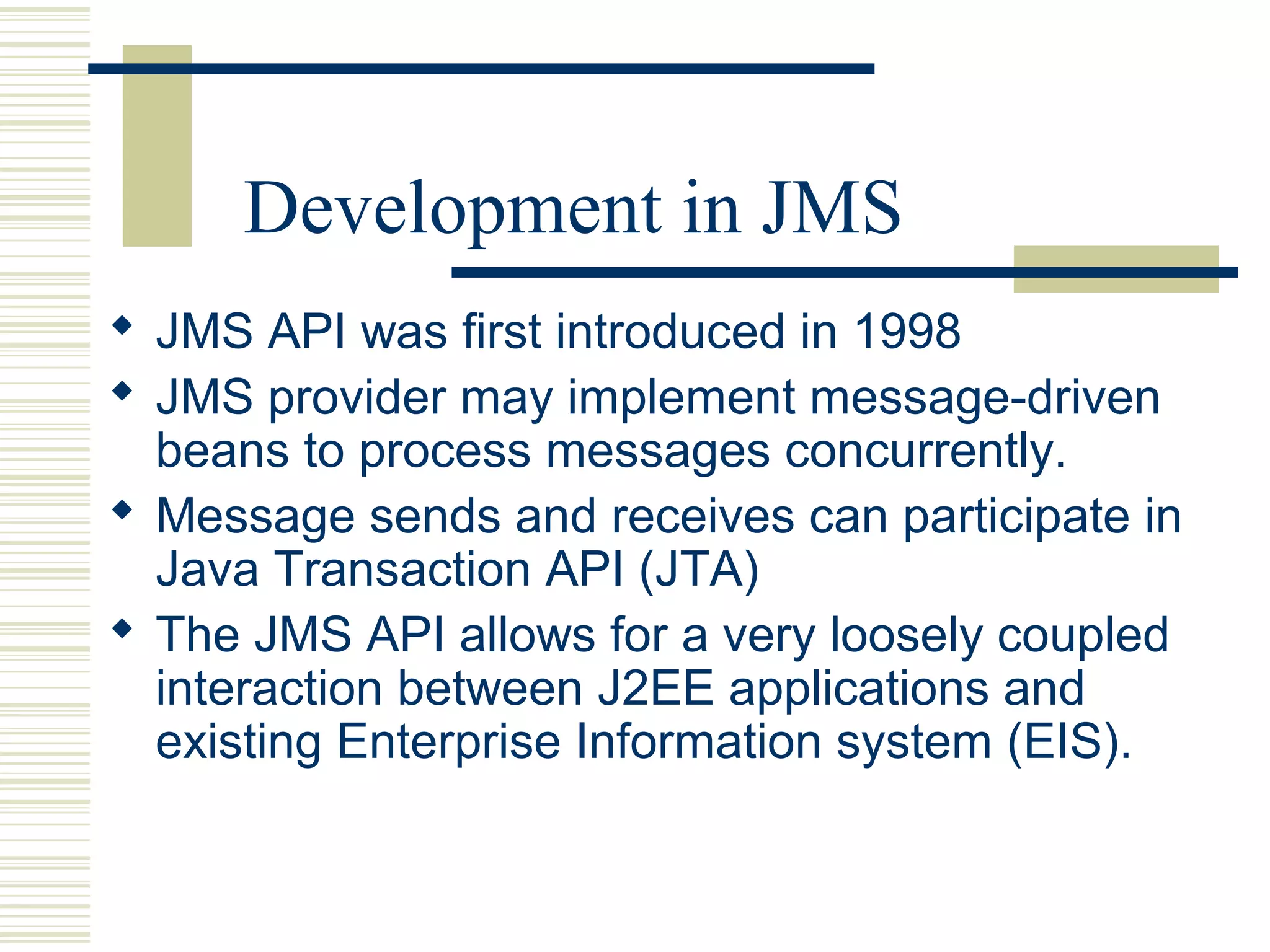

14. Development in JMS
 JMS API was first introduced in 1998
 JMS provider may implement message-driven
beans to process messages concurrently.
 Message sends and receives can participate in
Java Transaction API (JTA)
 The JMS API allows for a very loosely coupled
interaction between J2EE applications and
existing Enterprise Information system (EIS).

15. JMS Availability
 Allaire Corporation - JRun Server
 BEA Systems, Inc.
 Brokat Technologies (formerly GemStone)
 IBM
 iPlanet (formerly Sun Microsystems, Inc. Java Message Queue)
 Oracle Corporation
 Pramati
 SilverStream Software, Inc.
 Sonic Software
 SpiritSoft, Inc. (formerly Push Technologies Ltd.)
 Talarian Corp.
 TIBCO Software, Inc.

16. Thank You
