Java and LINUX Containers
Java and Docker, Ralf Ernst, ITSYS, April 2016

2. Seite 2

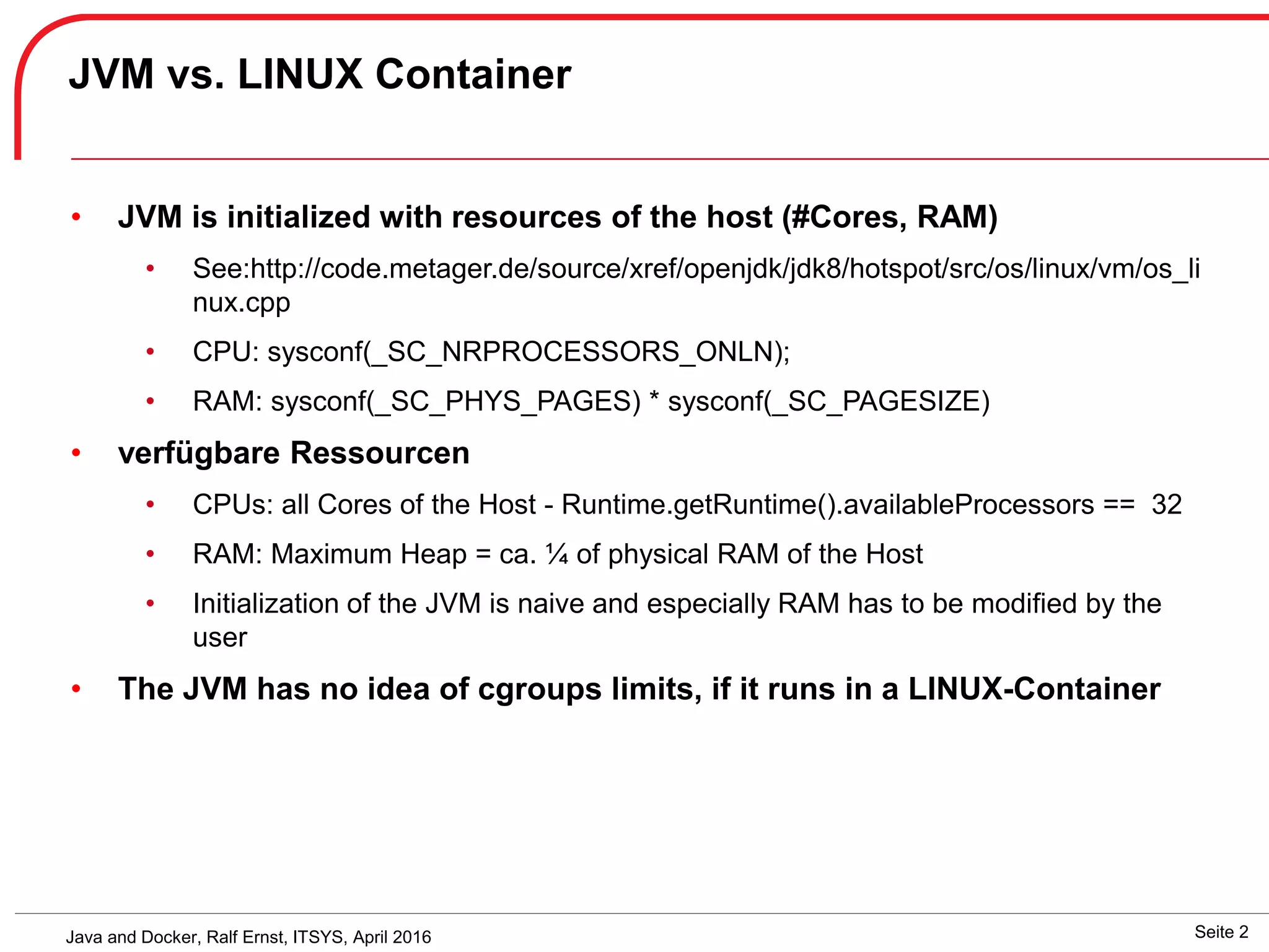

JVM vs. LINUX Container
Java and Docker, Ralf Ernst, ITSYS, April 2016
• JVM is initialized with resources of the host (#Cores, RAM)
• See:http://code.metager.de/source/xref/openjdk/jdk8/hotspot/src/os/linux/vm/os_li
nux.cpp
• CPU: sysconf(_SC_NRPROCESSORS_ONLN);
• RAM: sysconf(_SC_PHYS_PAGES) * sysconf(_SC_PAGESIZE)
• verfügbare Ressourcen
• CPUs: all Cores of the Host - Runtime.getRuntime().availableProcessors == 32
• RAM: Maximum Heap = ca. ¼ of physical RAM of the Host
• Initialization of the JVM is naive and especially RAM has to be modified by the
user
• The JVM has no idea of cgroups limits, if it runs in a LINUX-Container
Java and Docker, Ralf Ernst, ITSYS, April 2016

3. Seite 3
Java Heap: mandatory options: Xms und Xmx
Java and Docker, Ralf Ernst, ITSYS, April 2016
• Xmx (max Heap) is absolutely mandatory
• generous Heap enables adequate sizing of Eden and Old Space by JVMs
defaults
• Solves most GC-problems too
• RAM is cheaper than GC-Tuning
• Xms (initial Heap) should be the same as Xmx
• Faster Startup
• Container Memory is reserved by Schedulers like Kubernetes, Mesos, Swarm
anyway
• Out-of-scope for today:
• -Xmn young generation
• -XX:SurvivorRatio Ratio of Survivor Spaces relative to young space
Java and Docker, Ralf Ernst, ITSYS, April 2016

4. Seite 4
Okay - Xmx is set and here we go with Java in a
Container…
Java and Docker, Ralf Ernst, ITSYS, April 2016Java and Docker, Ralf Ernst, ITSYS, April 2016

5. Seite 5
CPU / available Cores
Java and Docker, Ralf Ernst, ITSYS, April 2016
• JVM sets the following parameters during initialization according to the
available cores of the host-system:
• Number of Threads for gc
• -XX:ParallelGCThreads
• -XX:ConcGCThreads
• Initialization of ForkJoinPool 32 Cores = 32 Threads
• -Djava.util.concurrent.ForkJoinPool.common.parallelism
• Number of Threads for JIT-Compiler
• HotSpot Optimization
• Time To Safe Point (TTSP)
• If number of parallel Threads higher than the number of cores
• Usually you have no problem if you are sticking to cpu-shares (soft limit
in cgroups) because modern CPUs don‘t run at the limit
• CPU Problems of Java-Processes are mostly caused by frequent GCs caused by
too low heap-size or Xms < Xmx
Java and Docker, Ralf Ernst, ITSYS, April 2016

6. Seite 6
Thanks for the memory – Memory of a container with
JDK8
Java and Docker, Ralf Ernst, ITSYS, April 2016
• Container
• OS Tools
• OS FSCache / Page Cache
• JRE itself
• Heap (Eden / Old space)
• Out of Heap
• Meta Space
• JIT Bytecode (Code Cache)
• AND
• JNI
• NIO
• Threads
• AND lots of Virtual Memory
Java and Docker, Ralf Ernst, ITSYS, April 2016

7. Seite 7
Memory-Management JDK7 vs. JDK8 – Meta Space
Java and Docker, Ralf Ernst, ITSYS, April 2016
Eden Old space Perm space
JDK7:
-Xms=1g –Xmx=1g –XX:MaxPermSize=512m
Eden Old space Perm space
JDK8:
META space
MetaSpace = memory outside of heap for Class-
Metadata, statics, string interning, …
-Xms=1g –Xmx=1g
Java and Docker, Ralf Ernst, ITSYS, April 2016

8. Seite 8
JDK8: No more PermGen Problems – Welcome
MetaSpace ;-)
Java and Docker, Ralf Ernst, ITSYS, April 2016
• Meta Space replaces PermGen
• Known design like IBM JVM or BEA/Oracle JRockit
• Memory NOT inside the JVM but on the machine
• No Default! metaspace is unlimited…
• limit with -XX:MaxMetaspaceSize=512m
• You‘ll might get OOM or Container-Swapping
• If RAM-limit of the container is too low
• Or a Metadata Leak
• OOM of container means: no Exception, no Application-Log, only a
Restart if your orchestration platform supports it

9. Seite 9
NIO with native memory Buffer (direct java.nio.ByteBuffer)
Examples: Apache Cassandra, Lucene, Elasticsearch…
Java and Docker, Ralf Ernst, ITSYS, April 2016
!!!
Java and Docker, Ralf Ernst, ITSYS, April 2016

10. Seite 10
Virtual
Memory
Tradeoffs with Lucene (Elasticsearch - index.store.type:
mmapfs / niofs) as an example
Java and Docker, Ralf Ernst, ITSYS, April 2016
FSCache JVM HeapHeap
Buffer
NIOFSDirectory with Heap Buffer (new Versions of Lucene)
copy read
Code
FSCache JVM Heap
Direct
Buffer
NIOFSDirectory with Direct Buffer (older Versions of Lucene)
copy read
Code
MMapDirectory with MappedByte
Buffer
FSCache JVM Heap
read
Mapped
ByteBuffer
Code
slow Copy, fast Reads, but huge Heap
slow Copy, slow Reads, small Heap
no Copy, slow Reads, small Heap, Default on 64bit

11. Seite 11
Container-Memory: JRE, Code Cache, Thread-Stack,
Page Cache, etc.
Java and Docker, Ralf Ernst, ITSYS, April 2016
• JRE8: ca. 256M
• Code Cache for JIT JRE8: 96M
• Thread-Stack 1m per Thread on 64bit Systems
• OS Tools (ca. 60MB with RHEL)
• FS-Cache (Page Cache) of OS for File I/O
• Recommendation:
• Container-RAM = 2 * Heap for small Stateless Containers like SpringBoot and for
stateful services like Cassandra, Kafka, Elasticsearch...
• I/O intensive applications (DBs, etc.): More Container-RAM means more FS-
Cache of OS
• IBM: Thanks for the memory
• http://www.ibm.com/developerworks/library/j-nativememory-linux/index.html
• Old article for IBM JVM, which had a similar memory-management like JDK8
Java and Docker, Ralf Ernst, ITSYS, April 2016

12. Seite 12
Native Memory Tracking of a Webapplication using
Tomcat8 on JDK8
Java and Docker, Ralf Ernst, ITSYS, April 2016
sudo -u tomcat /opt/jdk1.8.0_91/bin/jcmd 22239 VM.native_memory summary
22239:
Native Memory Tracking:
Total: reserved=2894609KB, committed=1723517KB
- Java Heap (reserved=1048576KB, committed=1048576KB)
(mmap: reserved=1048576KB, committed=1048576KB)
- Class (reserved=1258404KB, committed=239444KB)
(classes #41586)
(malloc=5028KB #81169)
(mmap: reserved=1253376KB, committed=234416KB)
- Thread (reserved=184932KB, committed=184932KB)
(thread #176)
(stack: reserved=179900KB, committed=179900KB)
(malloc=580KB #885)
(arena=4453KB #352)
- Code (reserved=270879KB, committed=120795KB)
(malloc=21279KB #27527)
(mmap: reserved=249600KB, committed=99516KB)
- GC (reserved=81676KB, committed=81676KB)
(malloc=9996KB #52352)
(mmap: reserved=71680KB, committed=71680KB)
- Compiler (reserved=4901KB, committed=4901KB)
(malloc=312KB #745)
(arena=4589KB #9)
- Internal (reserved=12462KB, committed=12462KB)
(malloc=12430KB #55846)
(mmap: reserved=32KB, committed=32KB)
- Symbol (reserved=19876KB, committed=19876KB)
(malloc=16192KB #176321)
(arena=3684KB #1)

13. Seite 13
JDK8 and LINUX Virtual Memory
Java and Docker, Ralf Ernst, ITSYS, April 2016
• Virtual memory gets more and more and will never be released
• Issue #15020: growing reported docker container virtual memory size with java
processes
• Issue #31594 docker 1.13.1: Memory Restrictions not works to Virtual Memory
• Java 8 Threading uses malloc arenas (glibc > 2.10) on Metaspace 
reservation: 64MB Virtual Memory per Thread
• Garbage Collection needs Threads too  virtual memory gets more and more
• No problem, just virtual memory (16 Exabyte…), which never gets really
used?
• Here comes mlockall()
• mlockall() allocates, every mapped page residently into physical RAM, even
unused address space like the one mentioned above
• Recommendation Elasticsearch Guide Heap-Sizing: bootstrap.mlockall: true
(means no Swapping too…)  Ouch
• MALLOC_ARENA_MAX=3 limits per-thread-malloc-arenas
Java and Docker, Ralf Ernst, ITSYS, April 2016

14. Seite 14
Takeaways – Running Java Applications in LINUX
Containers
Java and Docker, Ralf Ernst, ITSYS, April 2016
• Careful sizing of JVM and its container is crucial
• Cpu-limits under cgroups are soft limits (cpu-share) and are reached only on
hosts with unusual high loads
• Usually no problem
• If these limits are reached you usually get long response-times because no new
threads can be started
• Careful sizing of JVMs memory management (heap and outside) and setting
appropriate limits is crucial. You need to take care of enough container-
memory
• JDK8 uses a significant lot of native-memory outside the JVM
• Container-Swapping can kill your host! Don‘t enable swapping on the host-system
• I / O intensive Applications take benefits of LINUX Page Cache
• Monitoring of virtual memory makes no sense (e.g. top)
• Memory is a hard limit in cgroups!
• Configuration and tuning recommendations of popular services are not always
appropriate for runnign the service in a container

15. Seite 15
The JVM -as of today- is neither container-aware or
rather container-friendly…
Java and Docker, Ralf Ernst, ITSYS, April 2016
Enhancement Requests for JDK9 are on the way…
