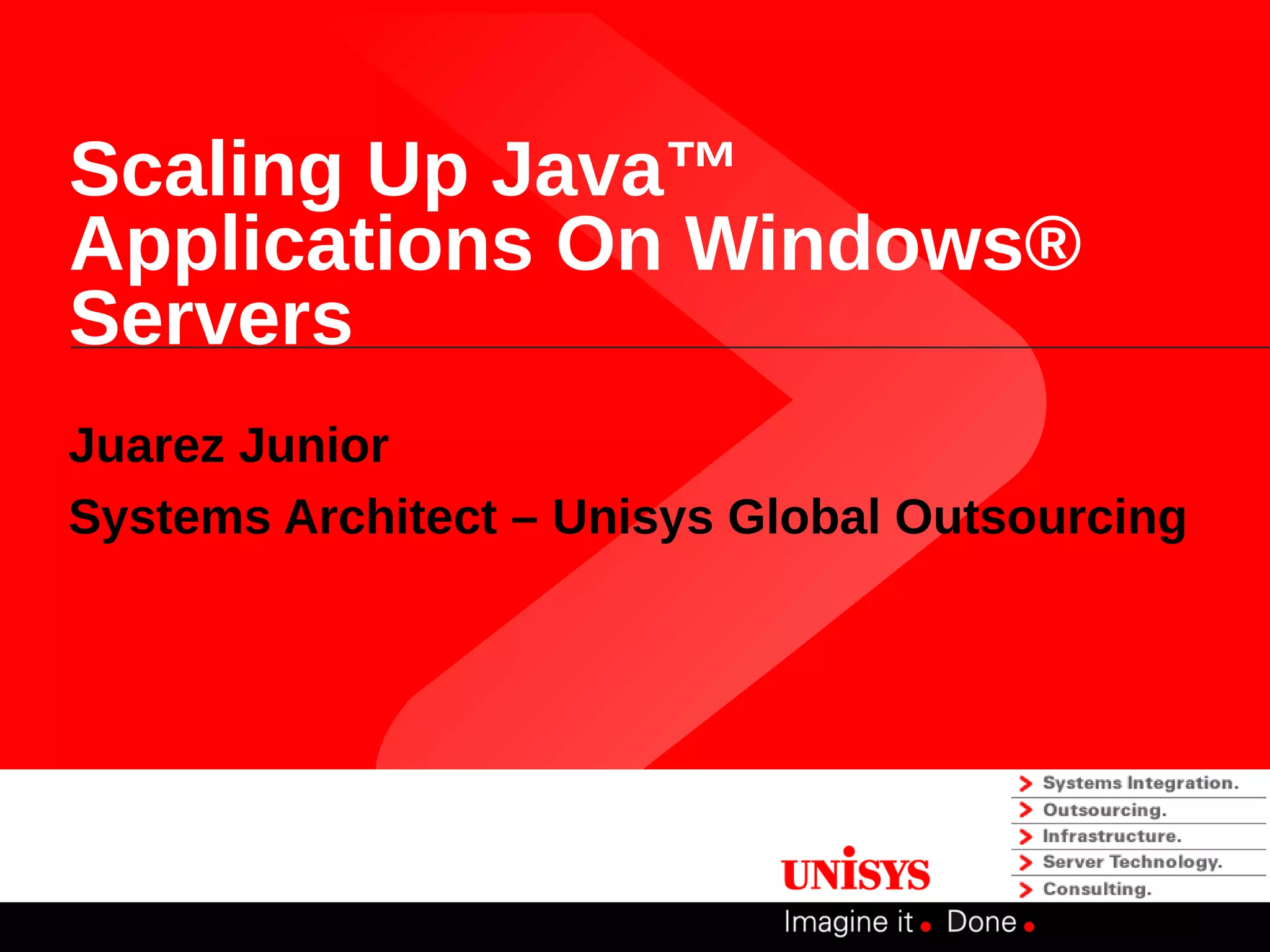

1. Scaling Up Java™

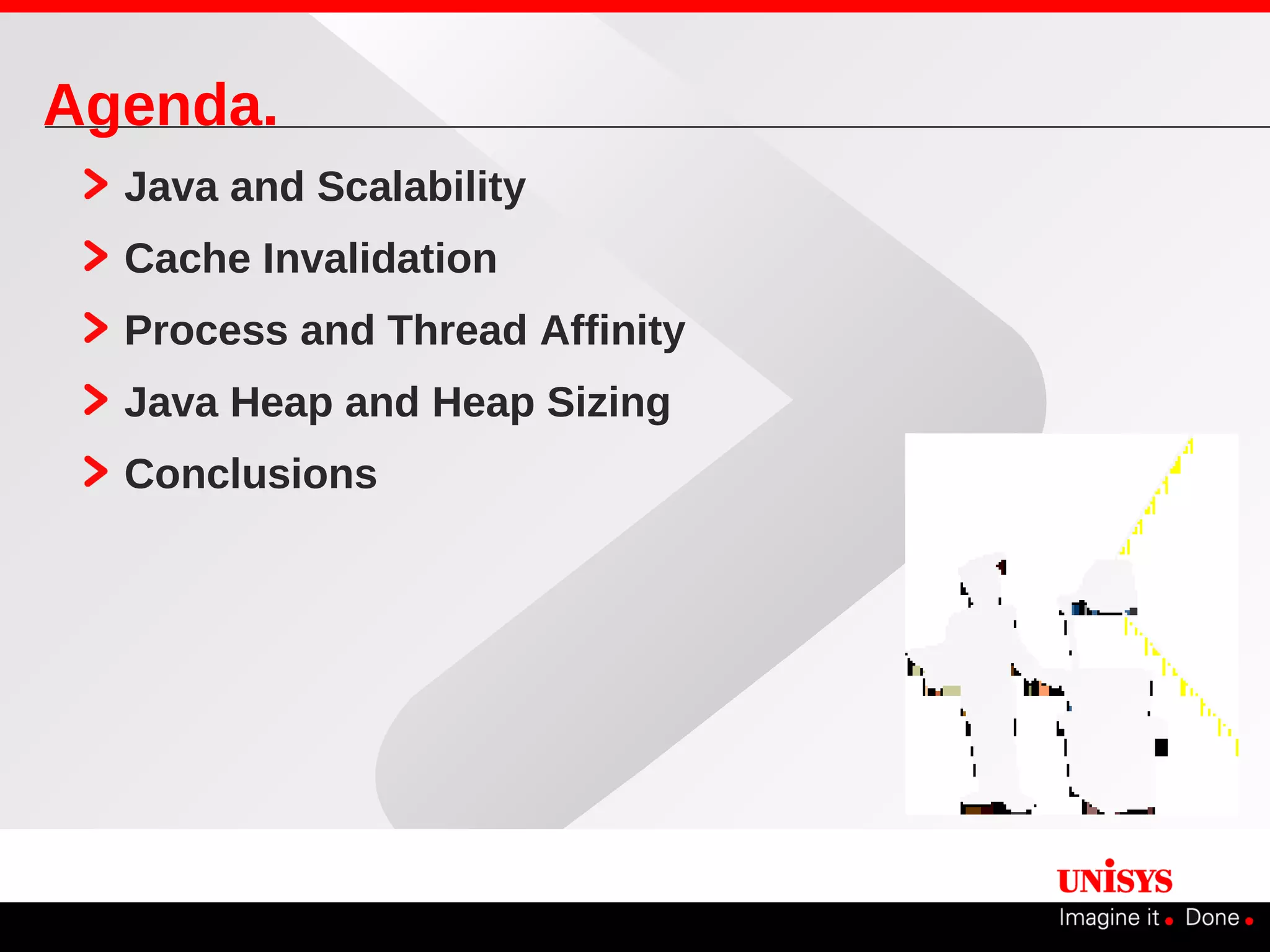

Applications On Windows®
Servers
Juarez Junior
Systems Architect – Unisys Global Outsourcing

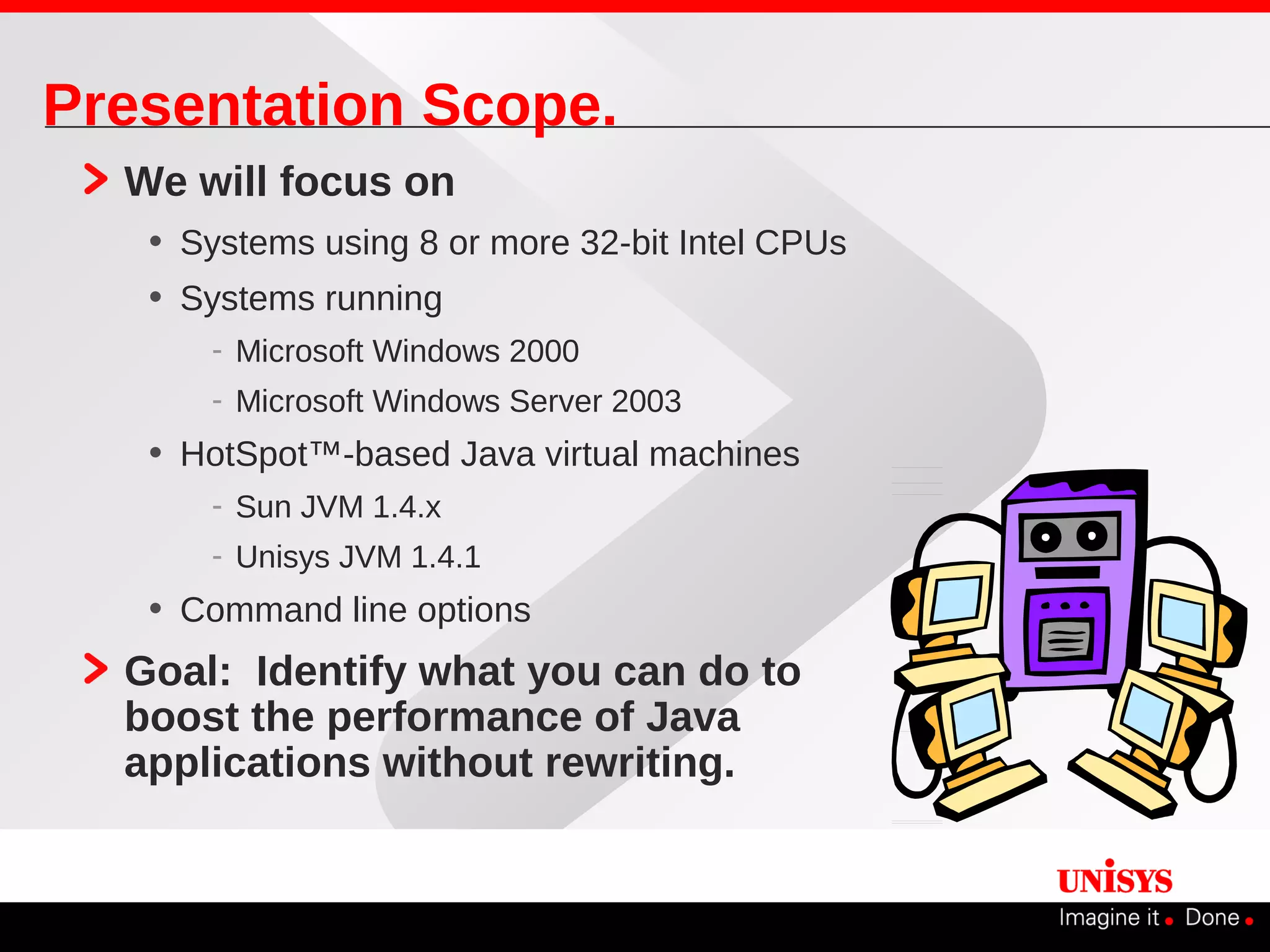

2. Presentation Scope.
We will focus on
• Systems using 8 or more 32-bit Intel CPUs
• Systems running
- Microsoft Windows 2000
- Microsoft Windows Server 2003
• HotSpot™-based Java virtual machines
- Sun JVM 1.4.x
- Unisys JVM 1.4.1
• Command line options
Goal: Identify what you can do to
boost the performance of Java
applications without rewriting.

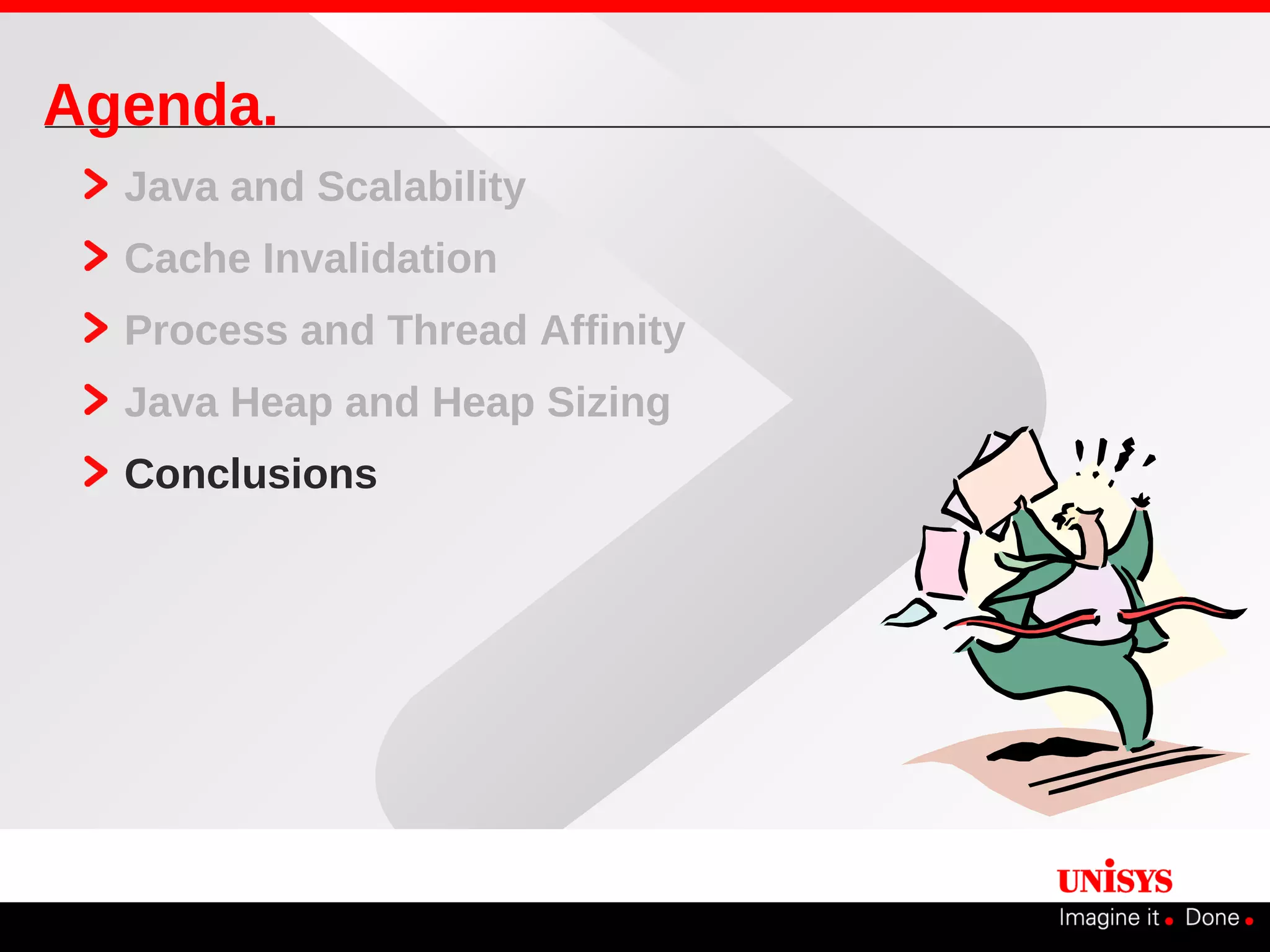

3. Agenda.
Java and Scalability
Cache Invalidation
Process and Thread Affinity
Java Heap and Heap Sizing
Conclusions

4. Agenda.
Java and Scalability
Cache Invalidation
Process and Thread Affinity
Java Heap and Heap Sizing
Conclusions

5. Definition of Scalability.
The ability to reliably increase performance by
increasing numbers of resources
• Scale out • Scale up
Increase the number of Increase the number of CPUs
systems available to process and other system resources to
the workload, all systems process the workload, all in one
operating semi-independently. system (single OS instance).

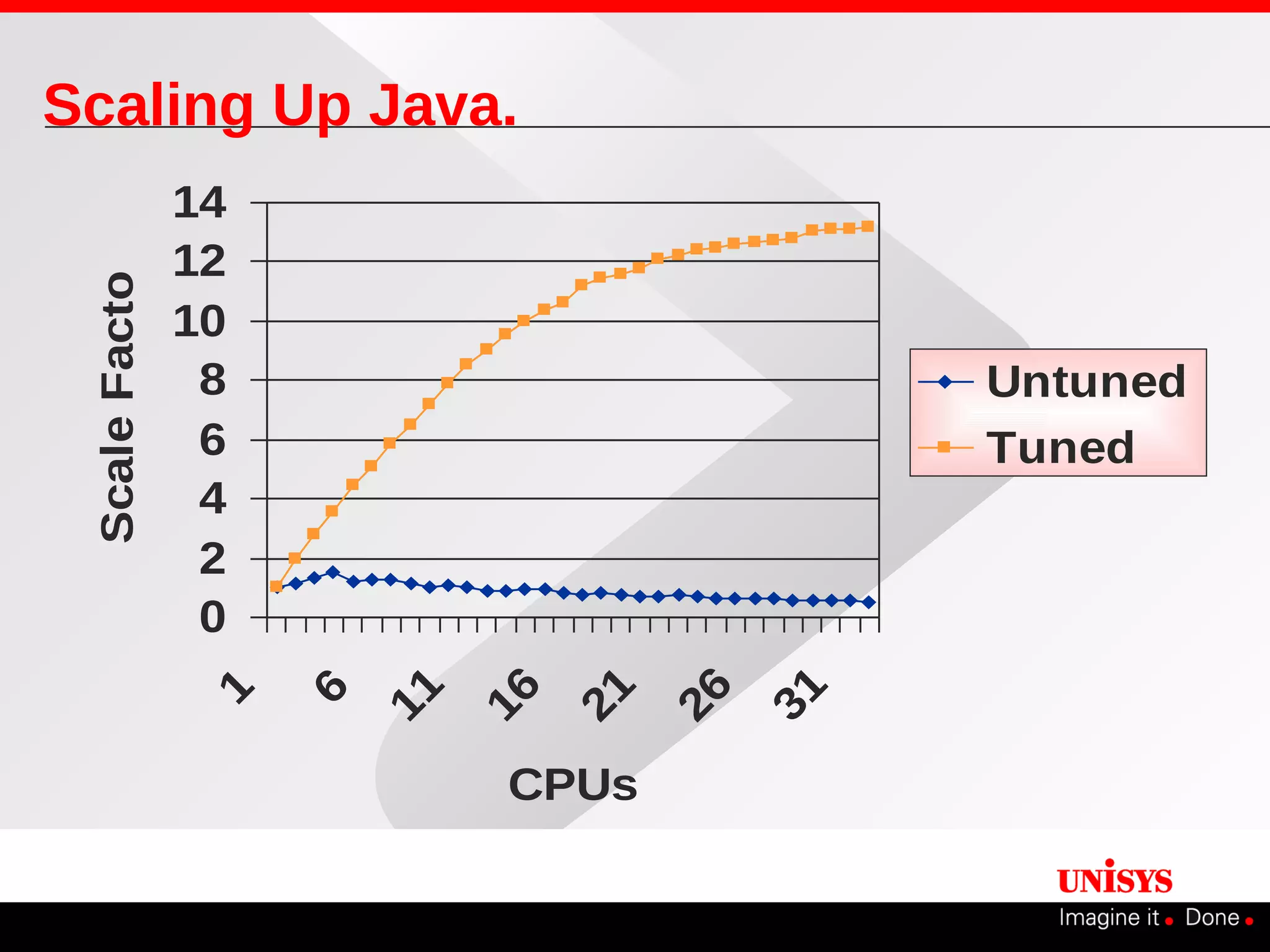

6. Scaling Up Java.
14
12
Scale Factor
10
8 Untuned
6 Tuned
4
2
0
11
16
21
26
31
1
6
CPUs

7. Agenda.
Java and Scalability
Cache Invalidation
Process and Thread Affinity
Java Heap and Heap Sizing
Conclusions

8. Cache Invalidation.
Consider two threads in same application accessing
same data
• Data is loaded into cache on each processor Memory
• One thread updates data Data
- Data in other cache becomes invalid
Now consider many threads running on many
X
processors Data Data
• One update can invalidate data in 31 caches
Cache Cache
Similar story with a shared cache
• External cache shared among 4 processors CPU CPU
False sharing
• Threads have independent data that resides in adjacent
memory
• Caches are loaded based on cache line size (16-128 bytes)

9. Agenda.
Java and Scalability
Cache Invalidation
Process and Thread Affinity
Java Heap and Heap Sizing
Conclusions

10. Process and Thread Affinity.
Contain process/threads to run on
CPU CPU
certain processors
• Keep threads within processor group if external
cache CPU CPU
Process affinity App1 App2
• Useful if threads share many common objects
- J2EE-based application servers CPU CPU
Thread affinity
• Useful if threads are independent CPU CPU
• Useful in scale-up scenario
App3
OS

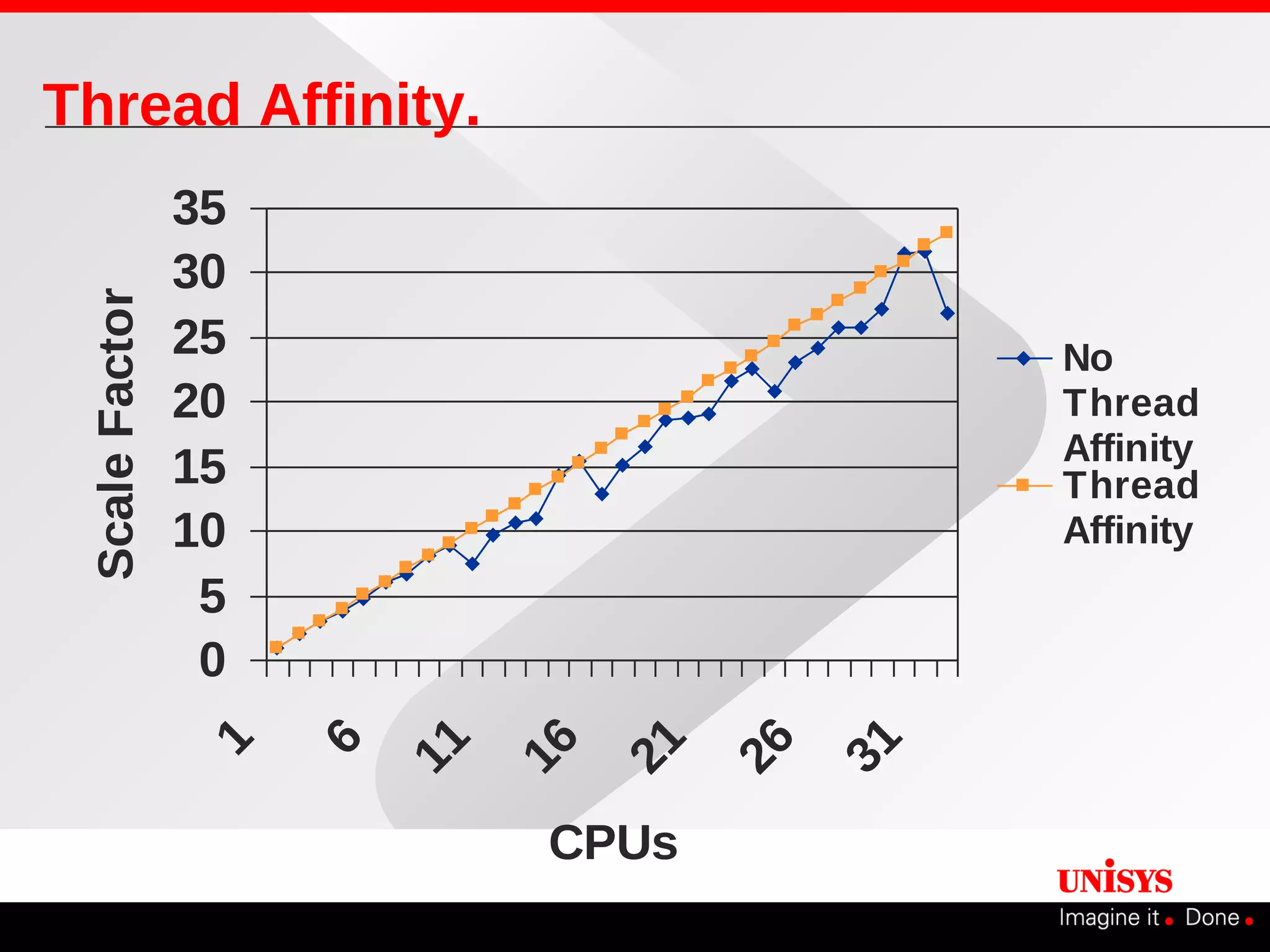

11. Thread Affinity.
35
30
Scale Factor
25 No
20 Thread
Affinity
15 Thread
10 Affinity
5
0
11
16
21
26
31
1
6
CPUs

12. Process Affinity.
Demo

13. Process Affinity For Application Servers.
Assign 2 – 4 CPUs per application server instance
• Cluster the instances
• Load balance among them
Issue:
FACT: Affinity is set by process name or id
FACT: Process id is assigned at runtime
FACT: Process name for every instance is java.exe
PROBLEM: How do you assign affinity for each instance?
SOLUTION: Make copies of java.exe (e.g. java01.exe)
- assign affinity for each copy
- modify batch files to use copies

14. Agenda.
Java and Scalability
Cache Invalidation
Process and Thread Affinity
Java Heap and Heap Sizing
Conclusions

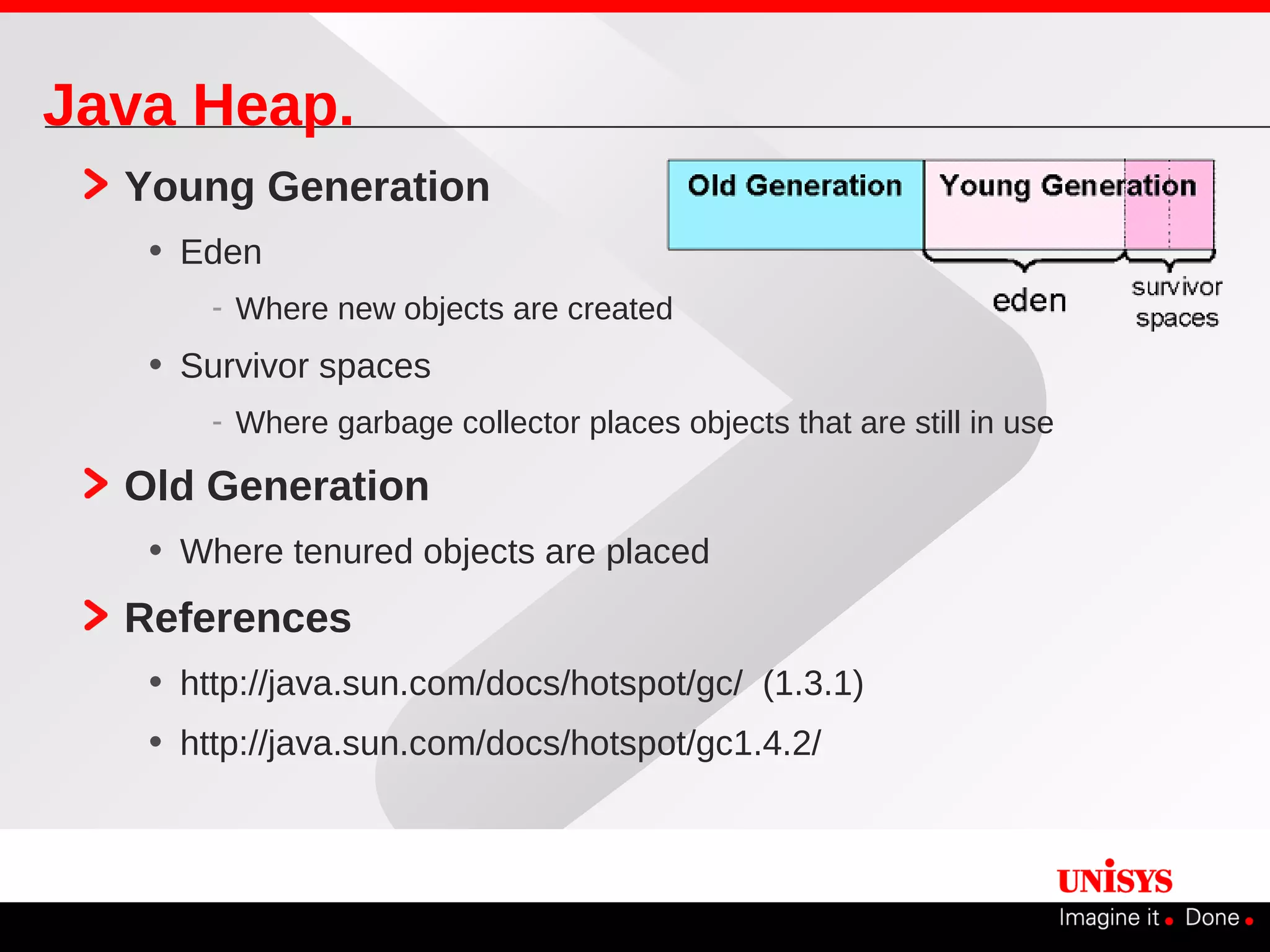

15. Java Heap.
Young Generation
• Eden
- Where new objects are created
• Survivor spaces
- Where garbage collector places objects that are still in use
Old Generation
• Where tenured objects are placed
References
• http://java.sun.com/docs/hotspot/gc/ (1.3.1)
• http://java.sun.com/docs/hotspot/gc1.4.2/

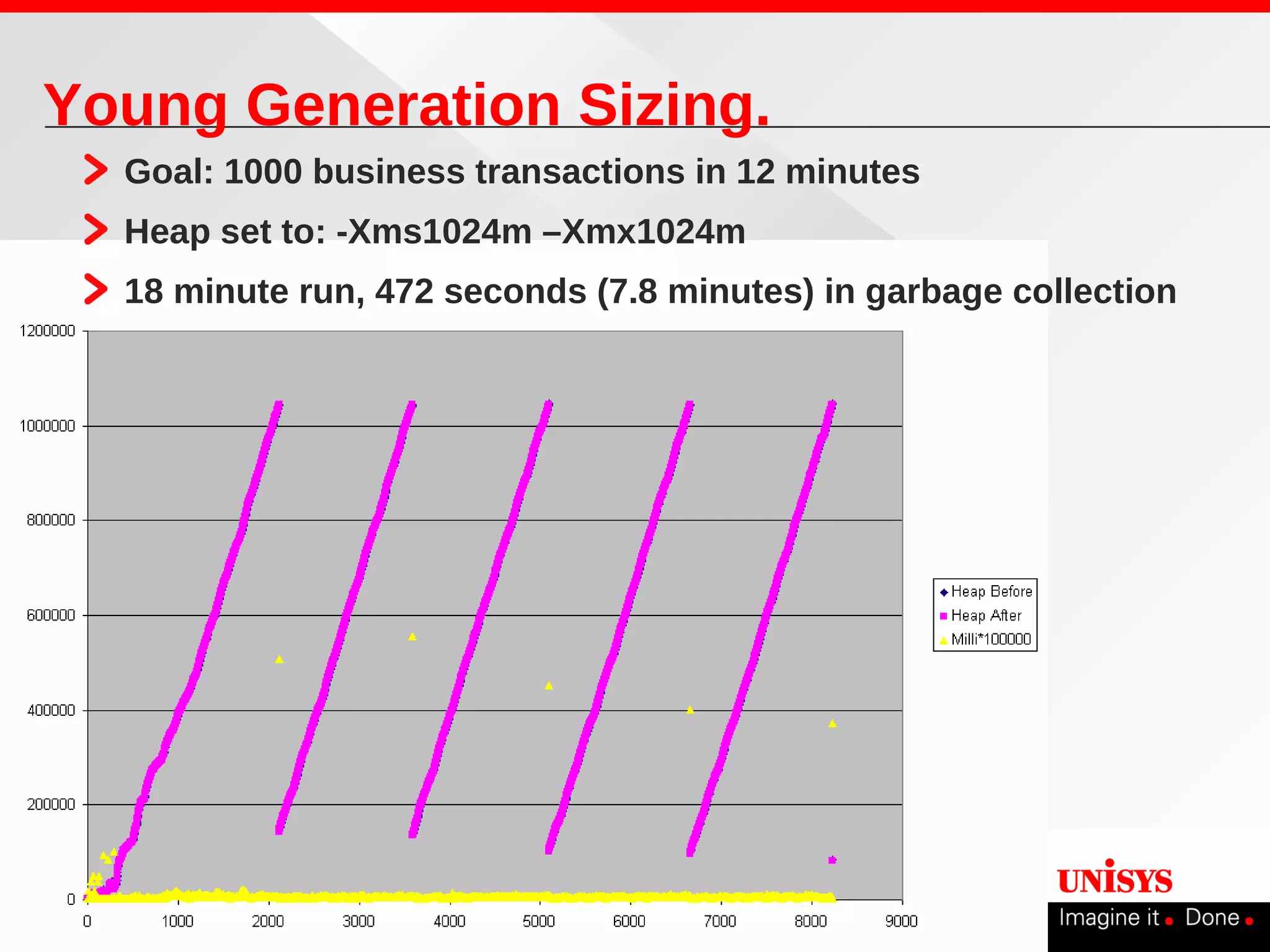

16. Young Generation Sizing.
Goal: 1000 business transactions in 12 minutes
Heap set to: -Xms1024m –Xmx1024m
18 minute run, 472 seconds (7.8 minutes) in garbage collection

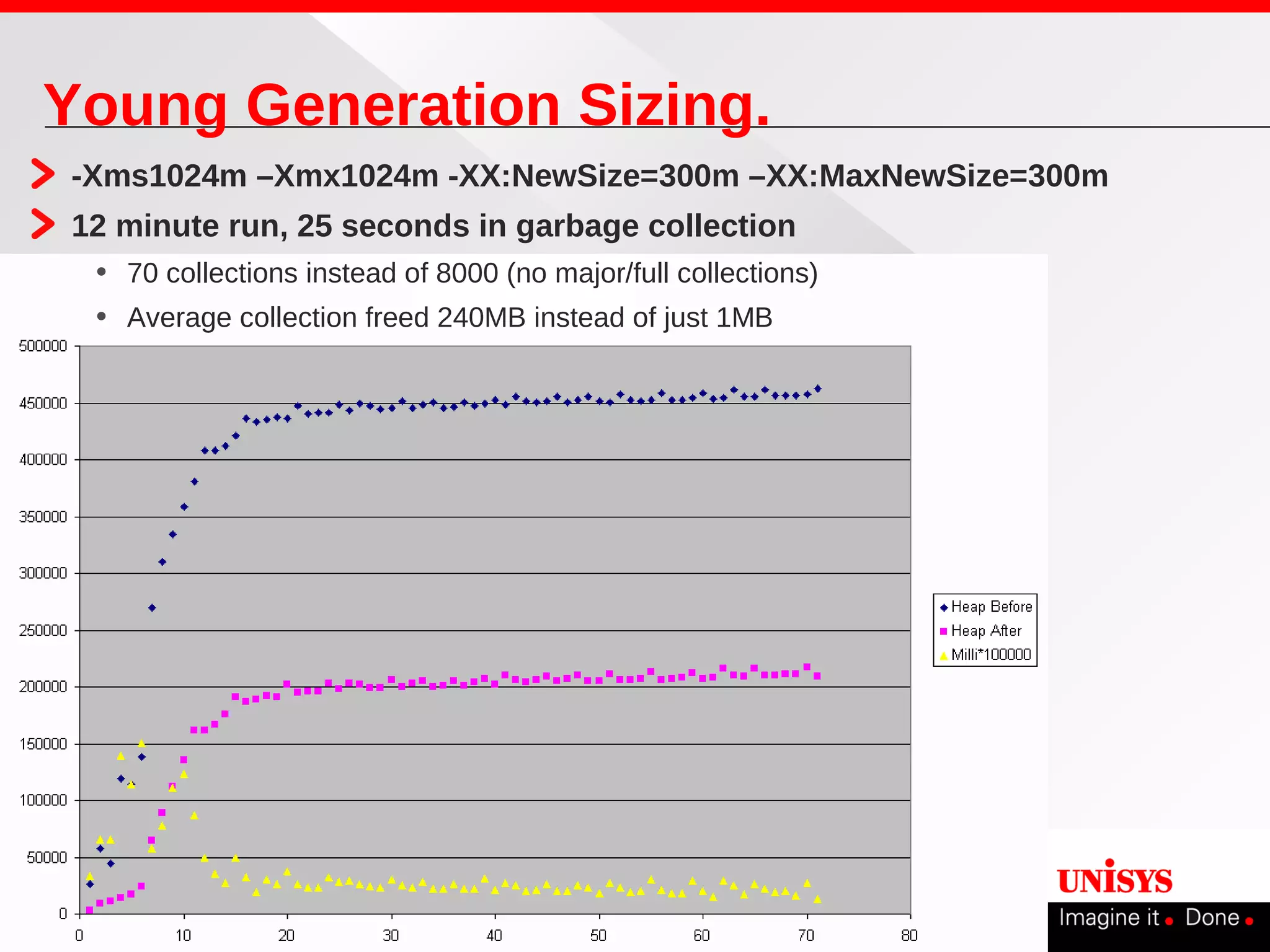

17. Young Generation Sizing.
-Xms1024m –Xmx1024m -XX:NewSize=300m –XX:MaxNewSize=300m
12 minute run, 25 seconds in garbage collection
• 70 collections instead of 8000 (no major/full collections)
• Average collection freed 240MB instead of just 1MB

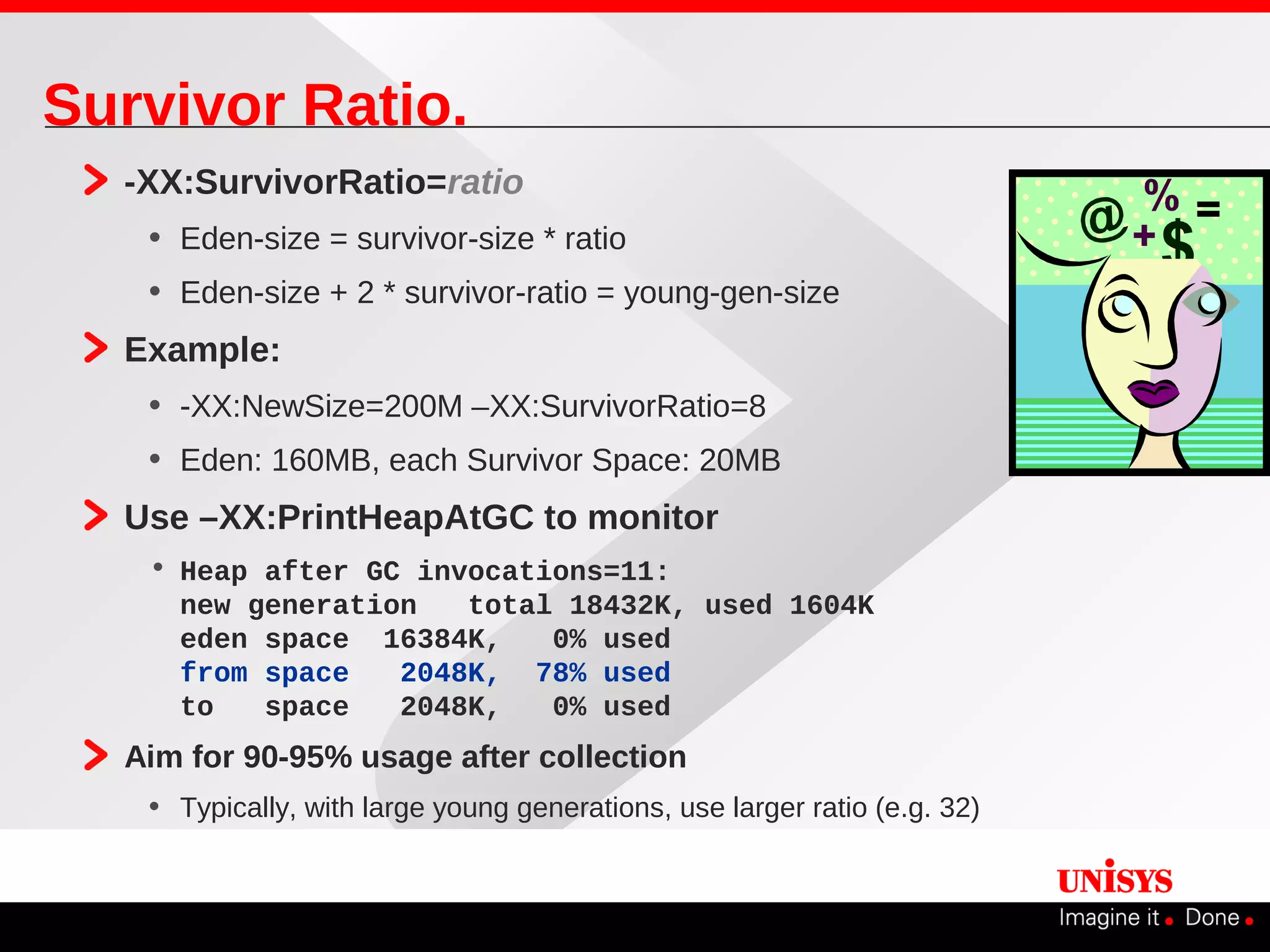

18. Survivor Ratio.
-XX:SurvivorRatio=ratio
• Eden-size = survivor-size * ratio
• Eden-size + 2 * survivor-ratio = young-gen-size
Example:
• -XX:NewSize=200M –XX:SurvivorRatio=8
• Eden: 160MB, each Survivor Space: 20MB
Use –XX:PrintHeapAtGC to monitor
• Heap after GC invocations=11:
new generation total 18432K, used 1604K
eden space 16384K, 0% used
from space 2048K, 78% used
to space 2048K, 0% used
Aim for 90-95% usage after collection
• Typically, with large young generations, use larger ratio (e.g. 32)

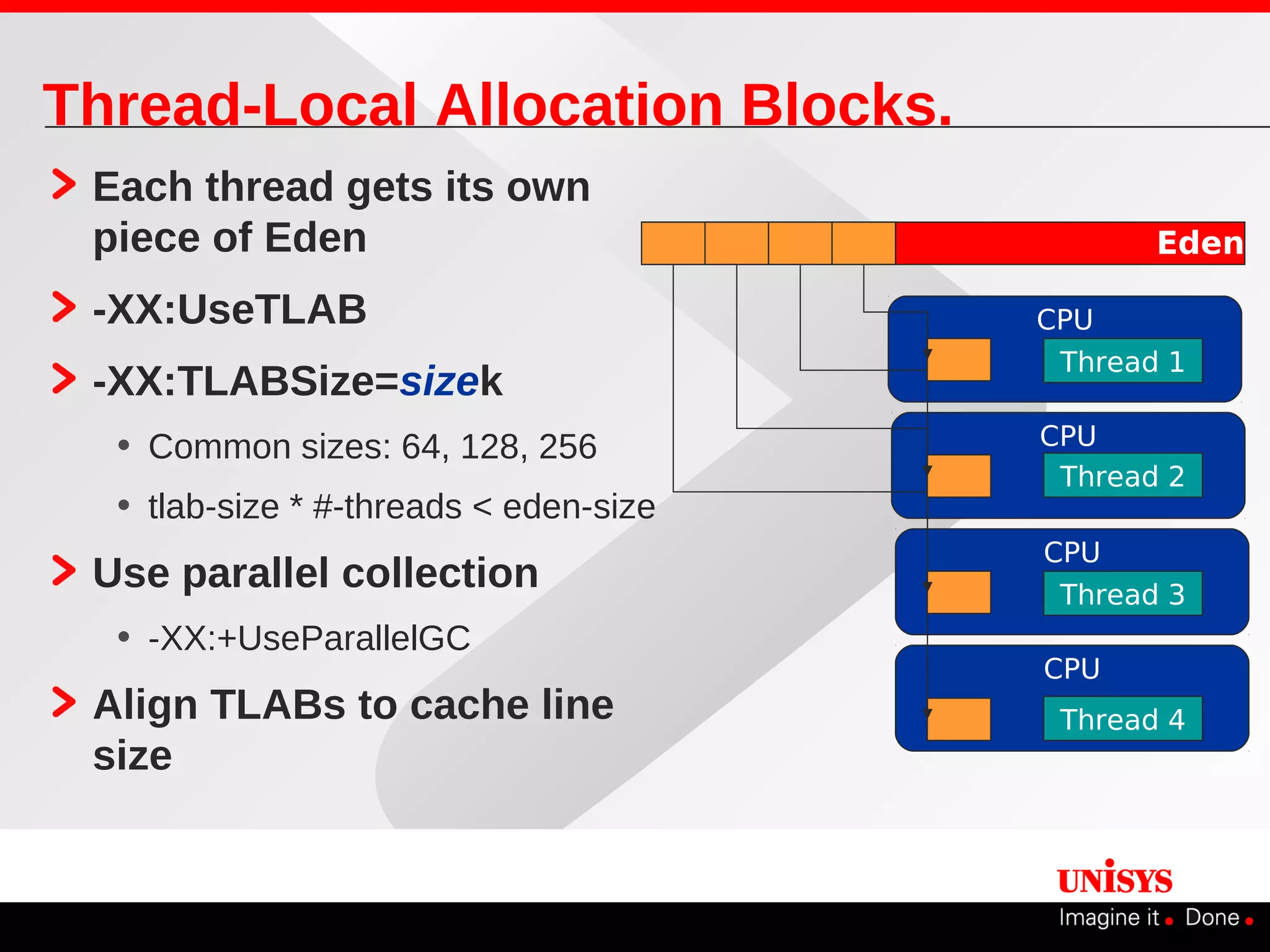

19. Thread-Local Allocation Blocks.
Each thread gets its own
piece of Eden Eden
-XX:UseTLAB CPU
Thread 1
-XX:TLABSize=sizek
• Common sizes: 64, 128, 256 CPU
Thread 2
• tlab-size * #-threads < eden-size
CPU
Use parallel collection Thread 3
• -XX:+UseParallelGC
CPU
Align TLABs to cache line Thread 4
size

20. Agenda.
Java and Scalability
Cache Invalidation
Process and Thread Affinity
Java Heap and Heap Sizing
Conclusions

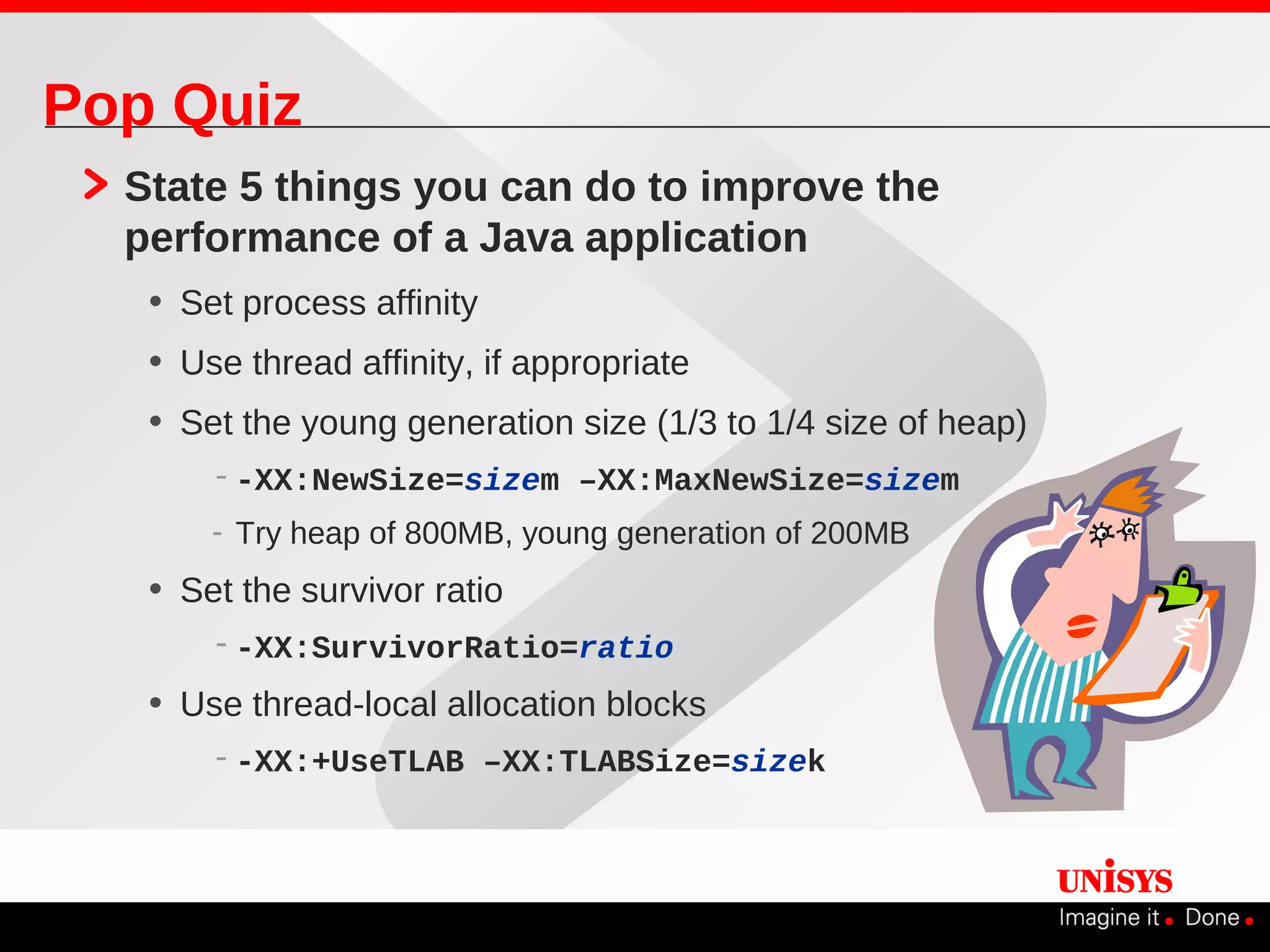

21. Pop Quiz
State 5 things you can do to improve the
performance of a Java application
• Set process affinity
• Use thread affinity, if appropriate
• Set the young generation size (1/3 to 1/4 size of heap)
- -XX:NewSize=sizem –XX:MaxNewSize=sizem
- Try heap of 800MB, young generation of 200MB
• Set the survivor ratio
- -XX:SurvivorRatio=ratio
• Use thread-local allocation blocks
- -XX:+UseTLAB –XX:TLABSize=sizek
