Replication Solutions for
            PostgreSQL
             Peter Eisentraut
          petere@postgresql.org
What's in a Term?
•   Replication?
•   Clustering?
•   High availability?
•   Failover?
•   Standby?

• Putting data on more than one computer

                                           2

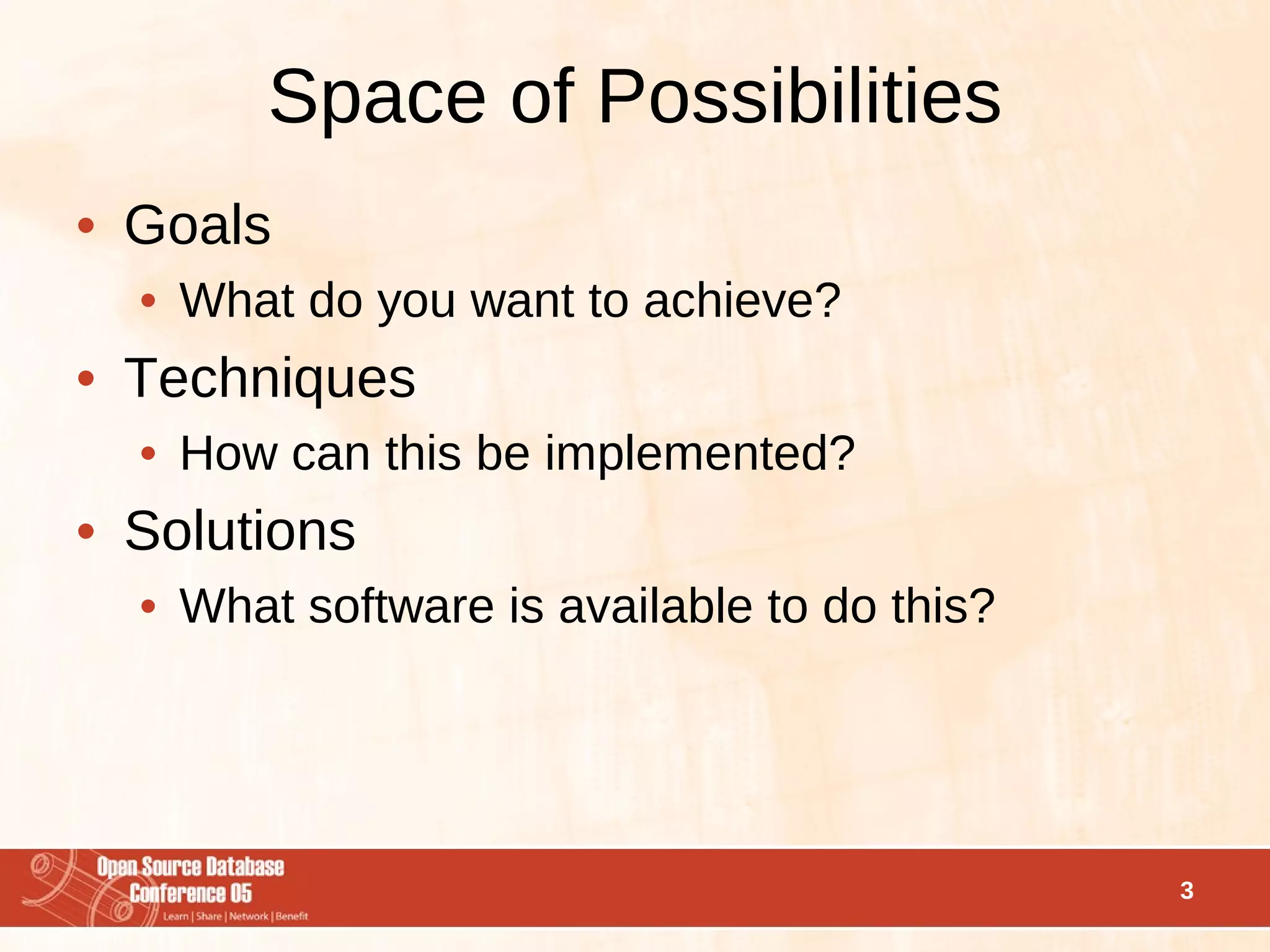

Space of Possibilities
• Goals
  • What do you want to achieve?
• Techniques
  • How can this be implemented?
• Solutions
  • What software is available to do this?




                                             3
Goals
• High availability
• Performance
  • Read
  • Write
• Wide-area networks
• Offline peers



                              4

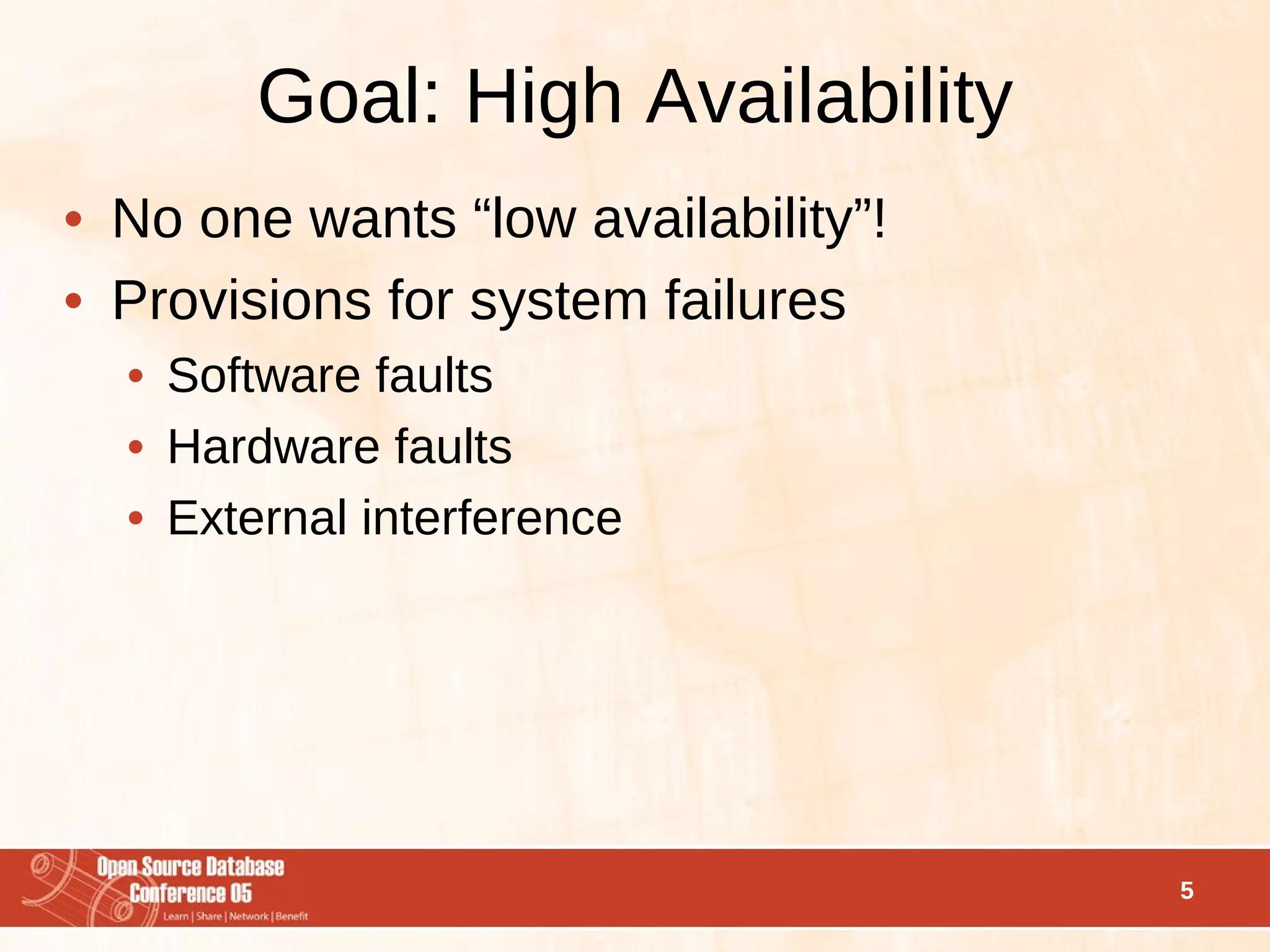

Goal: High Availability
• No one wants “low availability”!
• Provisions for system failures
  • Software faults
  • Hardware faults
  • External interference




                                     5

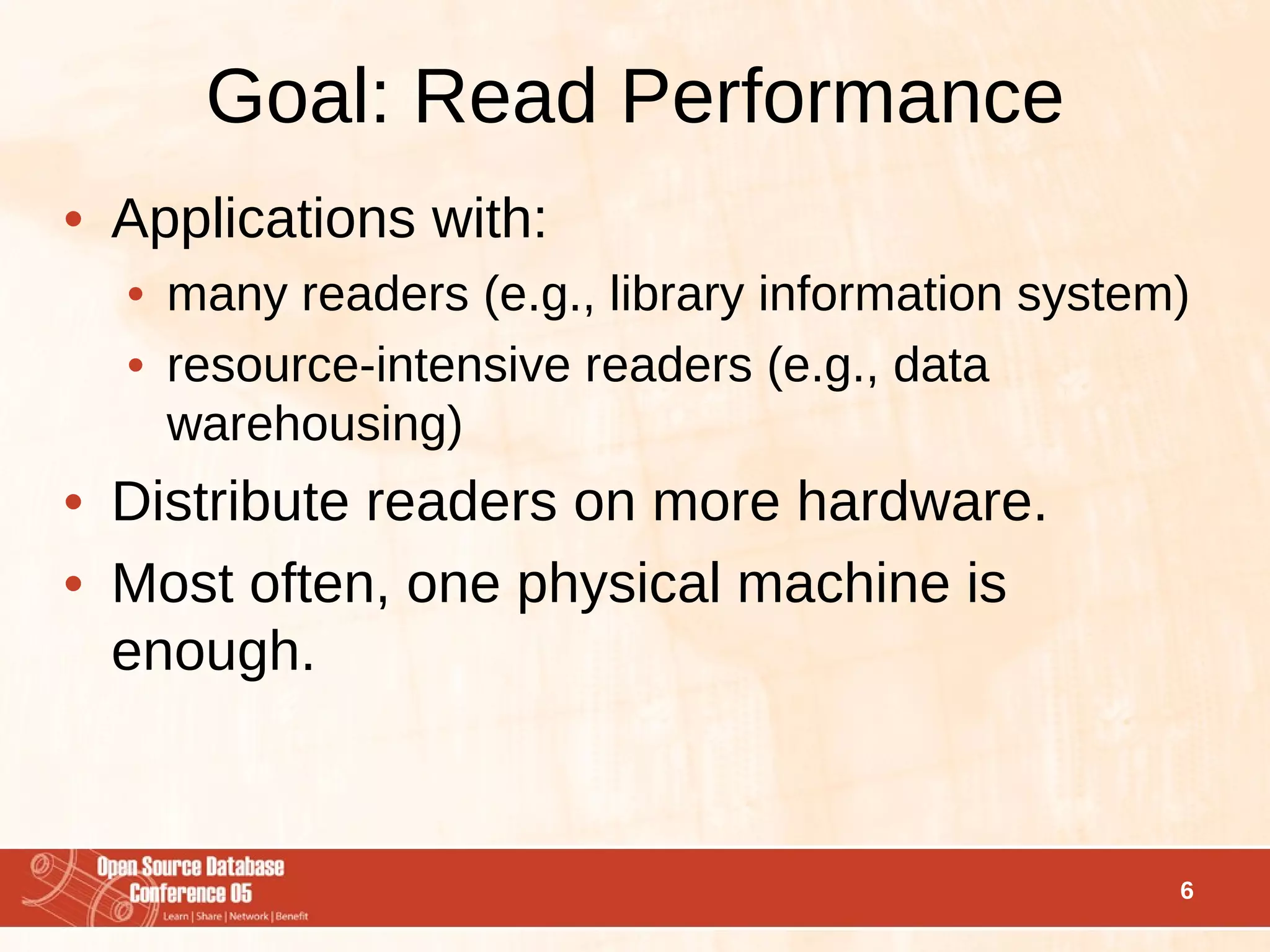

Goal: Read Performance
• Applications with:
  • many readers (e.g., library information system)
  • resource-intensive readers (e.g., data
    warehousing)
• Distribute readers on more hardware.
• Most often, one physical machine is
  enough.



                                                  6
Goal: Write Performance
• Applications with:
  • Many writers
• Distribute writers on more hardware?
  • Constraint checking, conflict resolution?!?
• Faster writing contradicts replication.
  • Partition, don't replicate!
  • RAID 0/striping is not replication – it makes
    things “worse”.
  • RAID 10 is a good idea, but not the topic here.
                                                  7
Goal: Wide-Area Networks
• Faster access across WANs
• Reading?
  • Local copies
• Writing?
  • Synchronization?




                               8

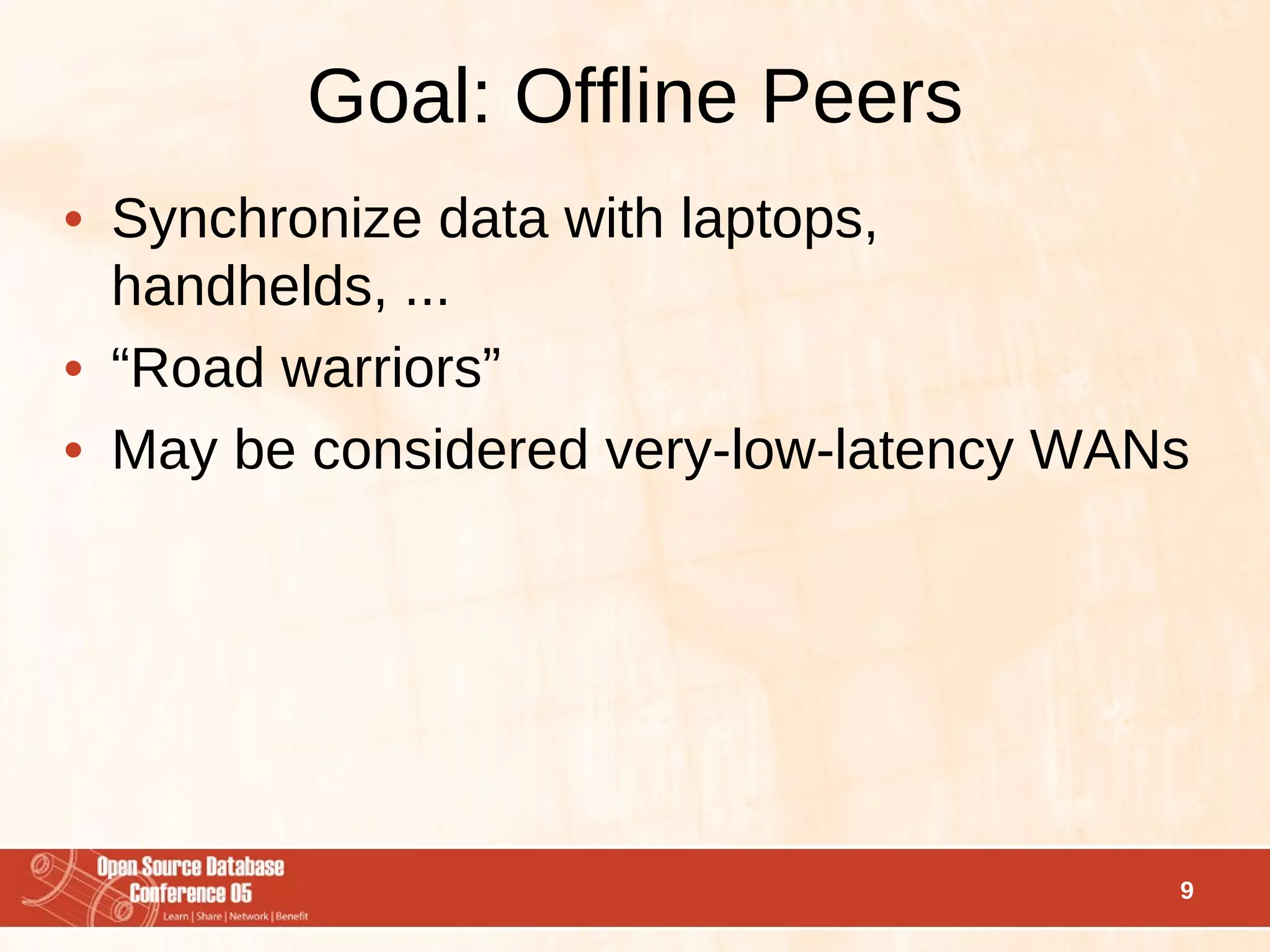

Goal: Offline Peers
• Synchronize data with laptops,
  handhelds, ...
• “Road warriors”
• May be considered very-low-latency WANs




                                        9

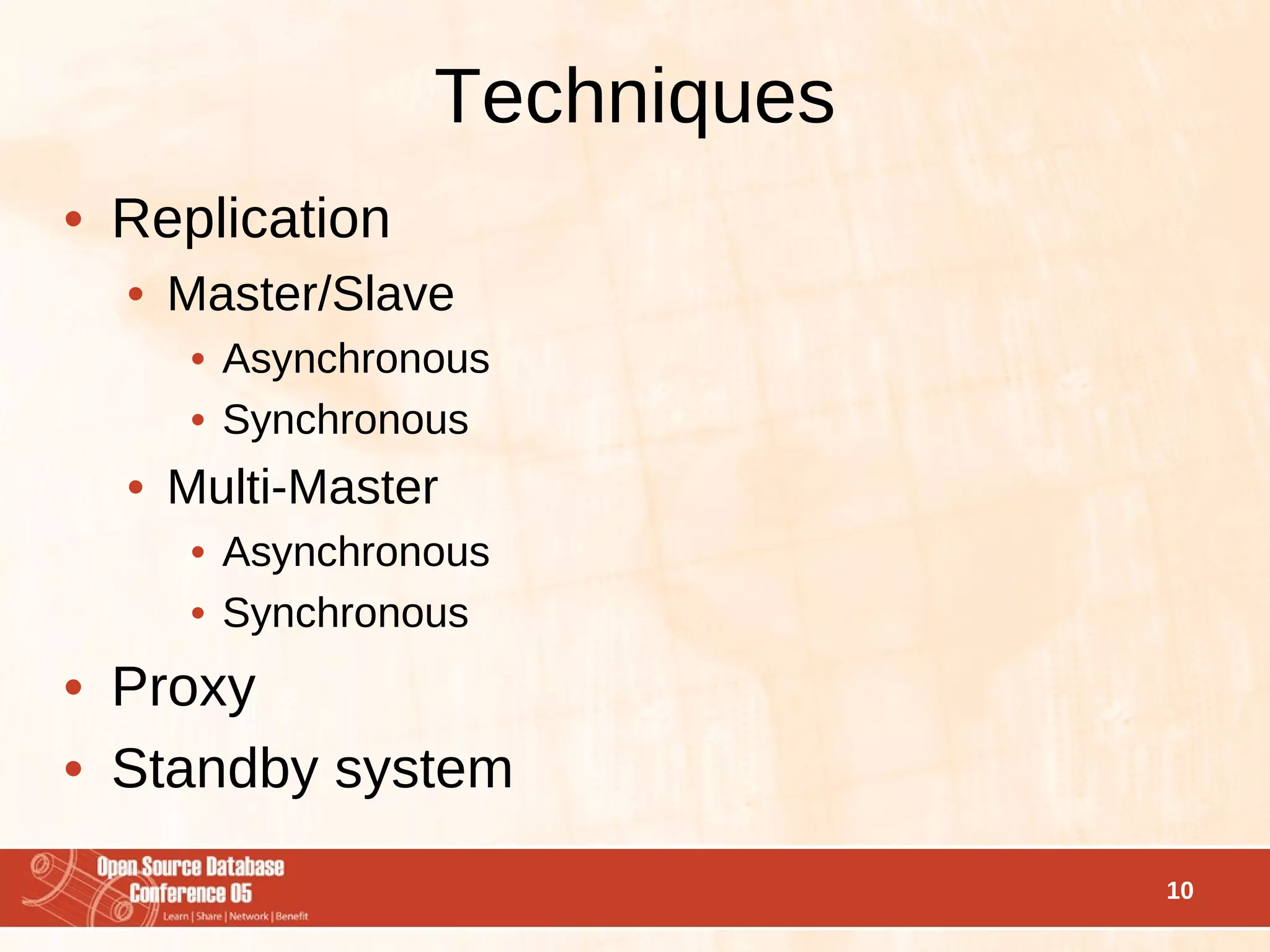

Techniques
• Replication
  • Master/Slave
     • Asynchronous
     • Synchronous
  • Multi-Master
     • Asynchronous
     • Synchronous
• Proxy
• Standby system
                             10

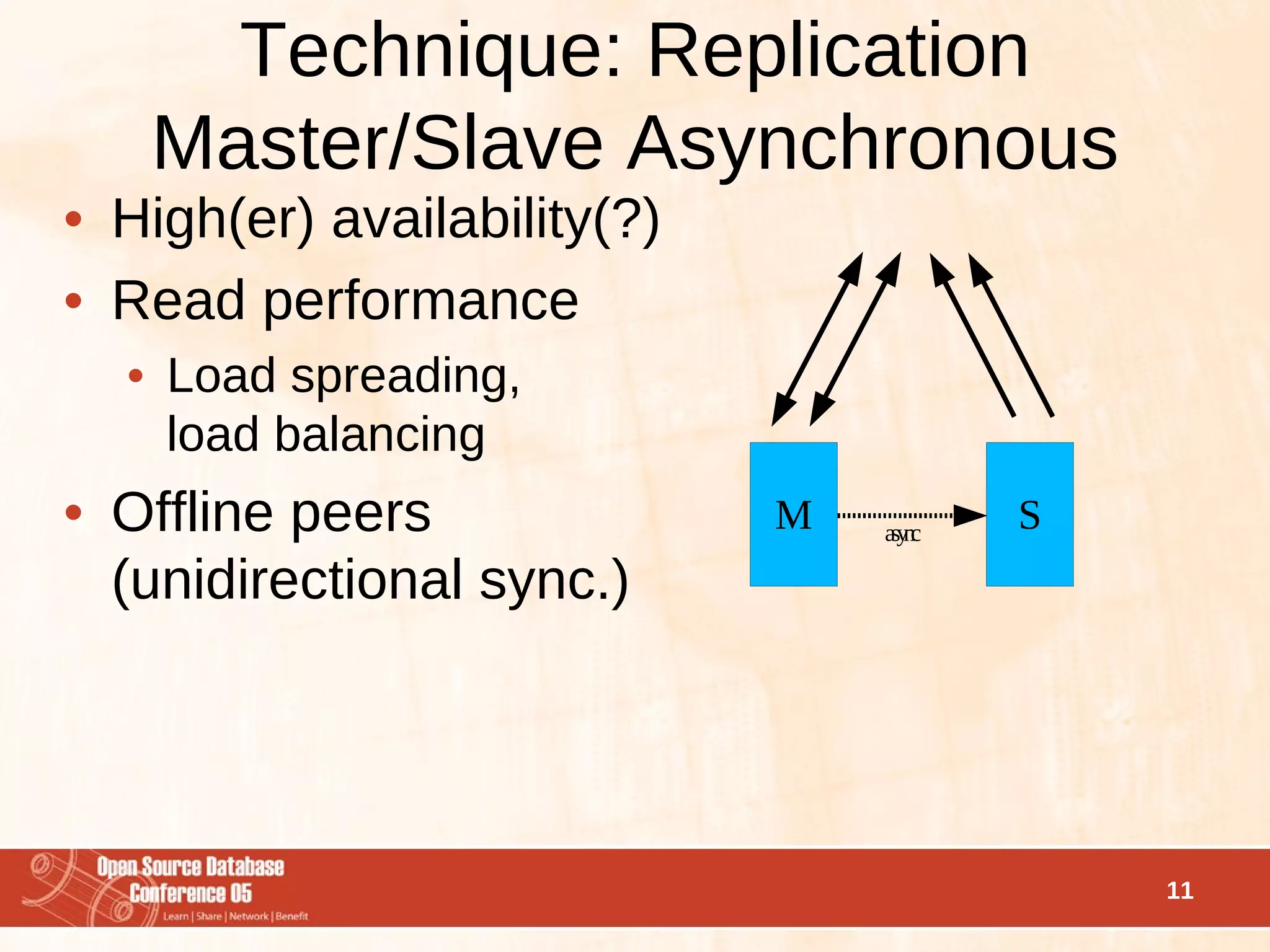

Technique: Replication
   Master/Slave Asynchronous
• High(er) availability(?)
• Read performance
  • Load spreading,
    load balancing
• Offline peers              M   asy c
                                    n    S
  (unidirectional sync.)




                                             11

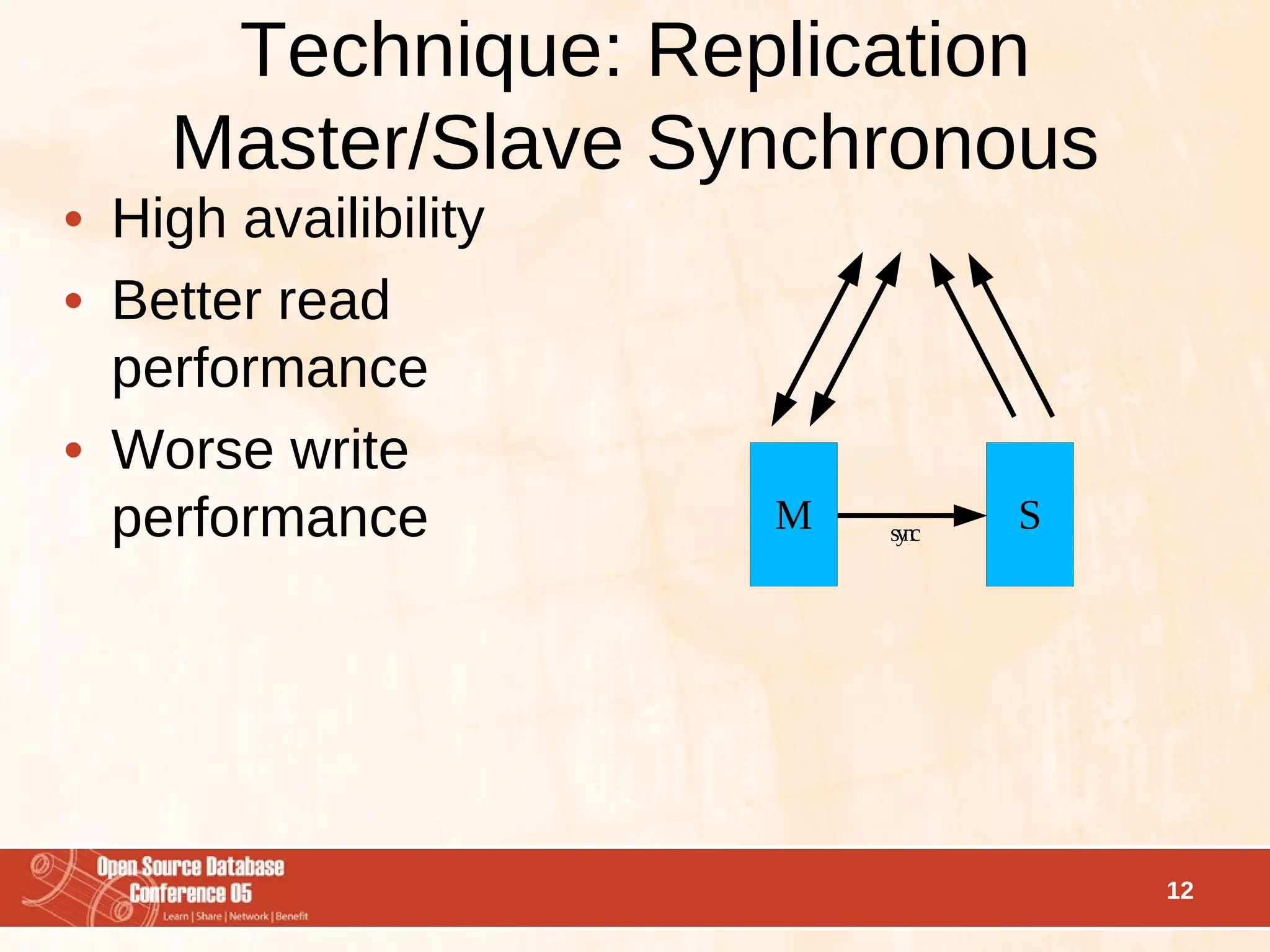

Technique: Replication
    Master/Slave Synchronous
• High availibility
• Better read
  performance
• Worse write
  performance         M   sy c
                            n    S




                                     12

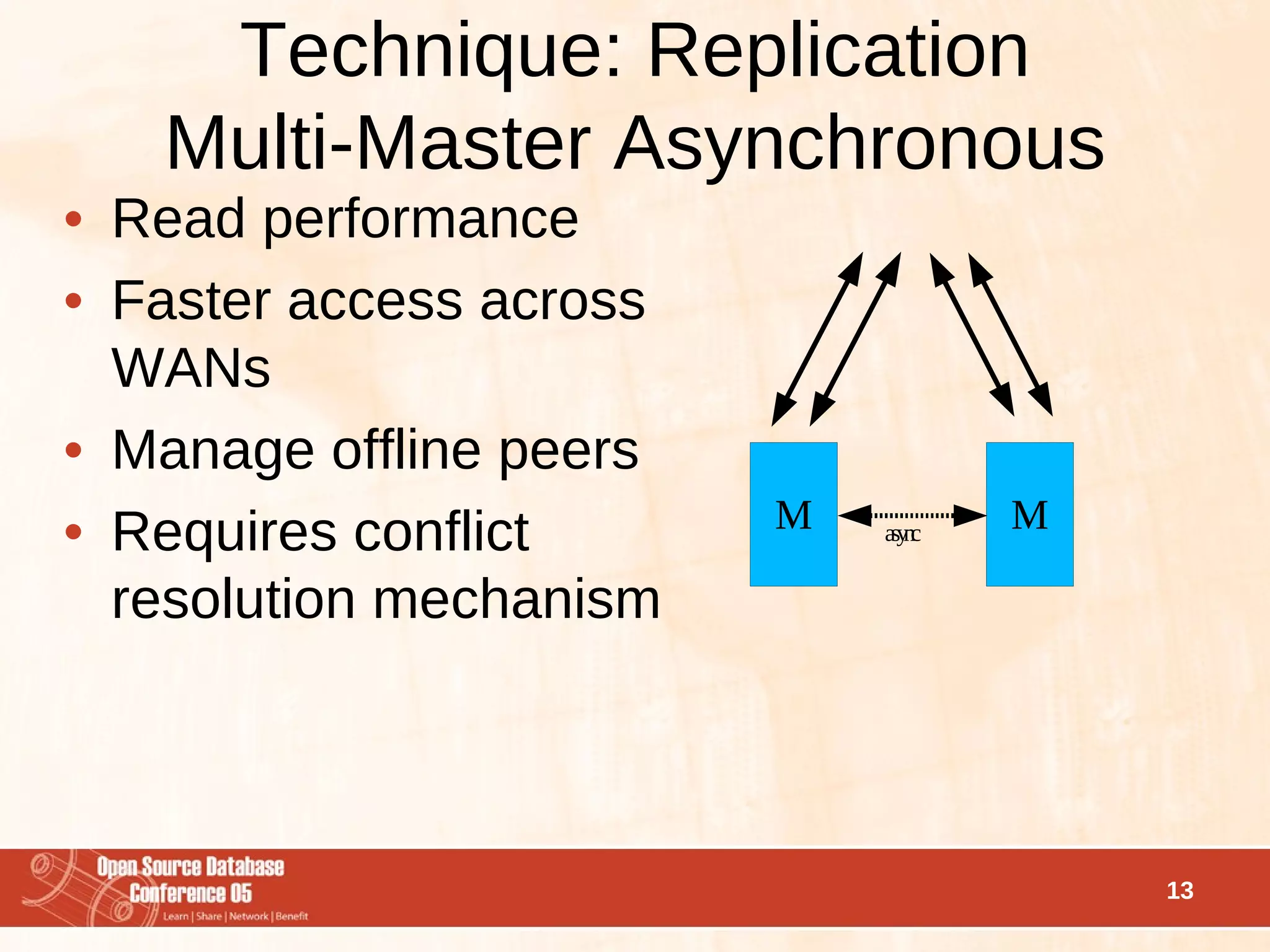

Technique: Replication
   Multi-Master Asynchronous
• Read performance
• Faster access across
  WANs
• Manage offline peers
                         M           M
• Requires conflict          asy c
                                n


  resolution mechanism



                                         13

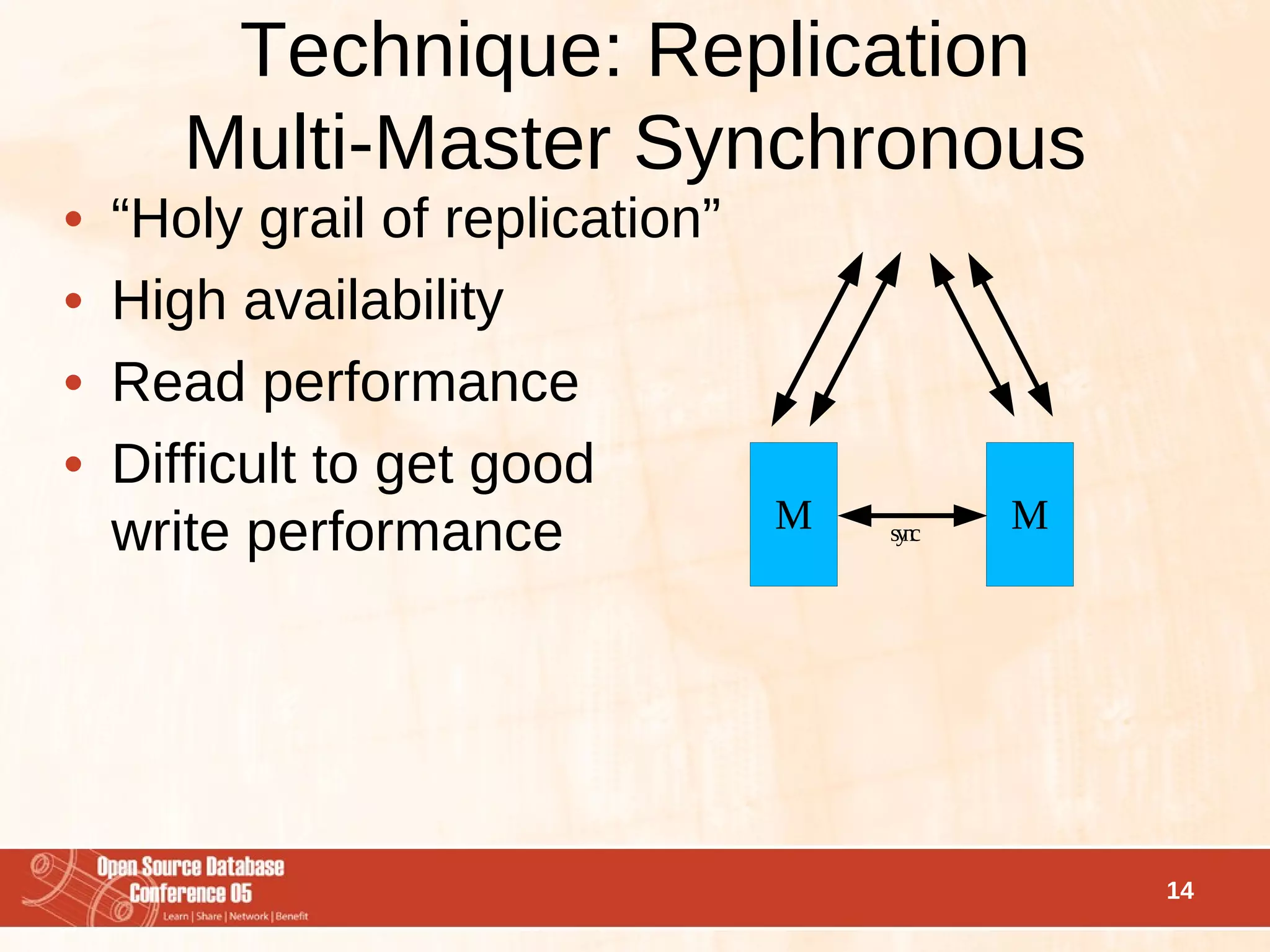

Technique: Replication
       Multi-Master Synchronous
•   “Holy grail of replication”
•   High availability
•   Read performance
•   Difficult to get good
                                  M          M
    write performance                 sy c
                                        n




                                                 14
Technique: Proxy
• High availability
• Read performance
• Proxy instance should       Proxy
  be redundant
• Transparent to the
  application
                          C           C



                                          15

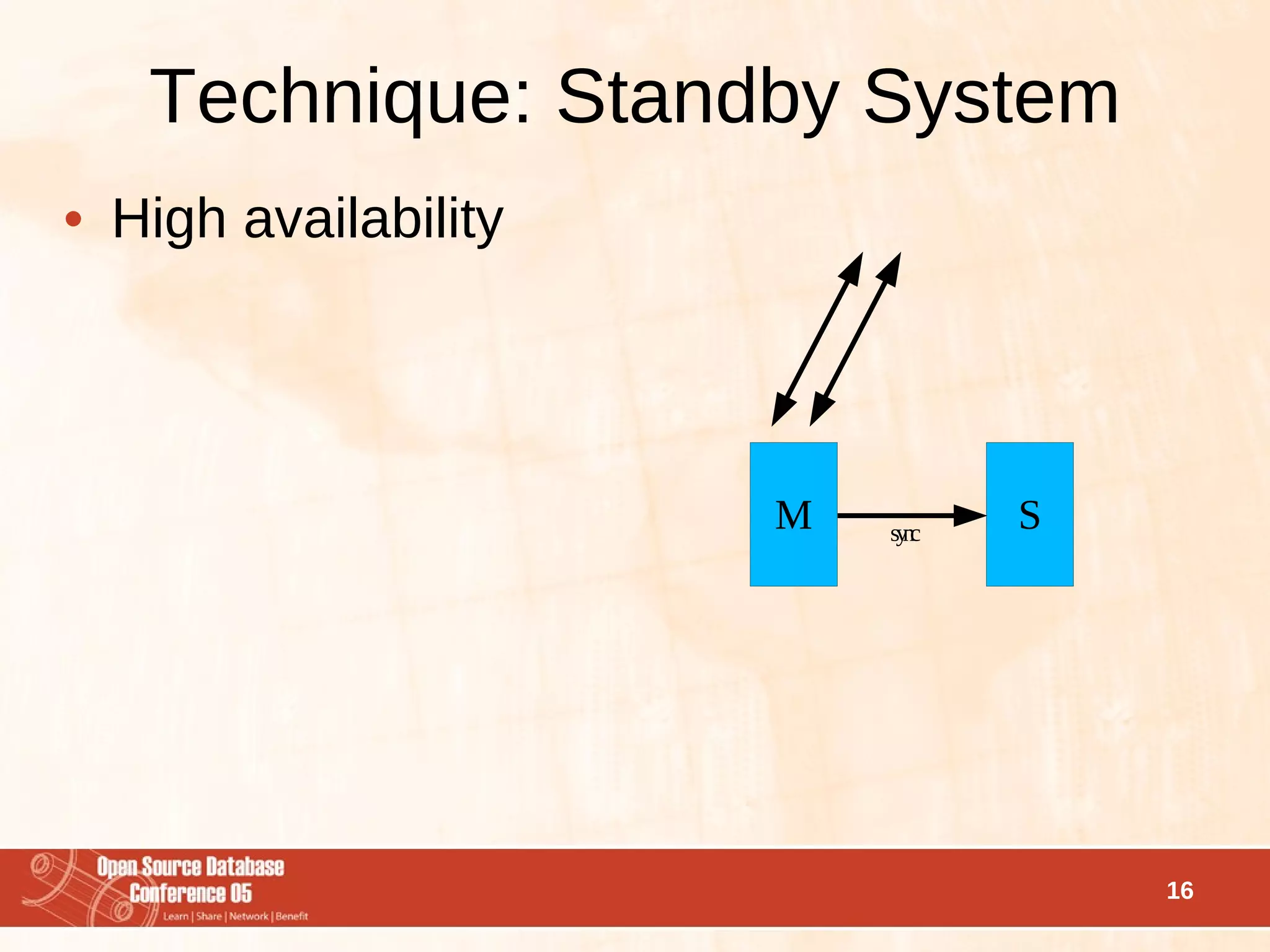

Technique: Standby System
• High availability




                      M   sy c
                            n    S




                                     16

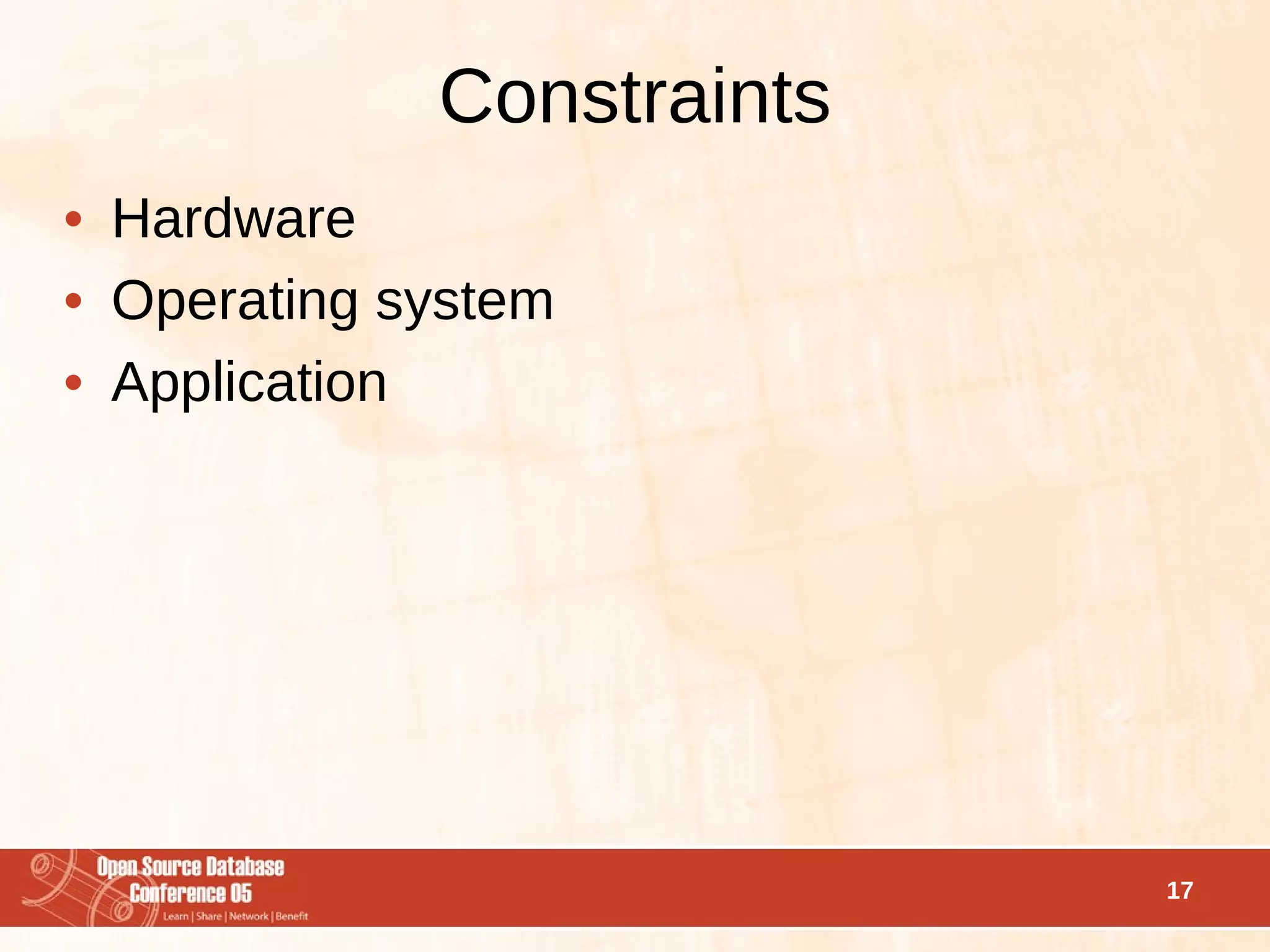

Constraints
• Hardware
• Operating system
• Application




                           17

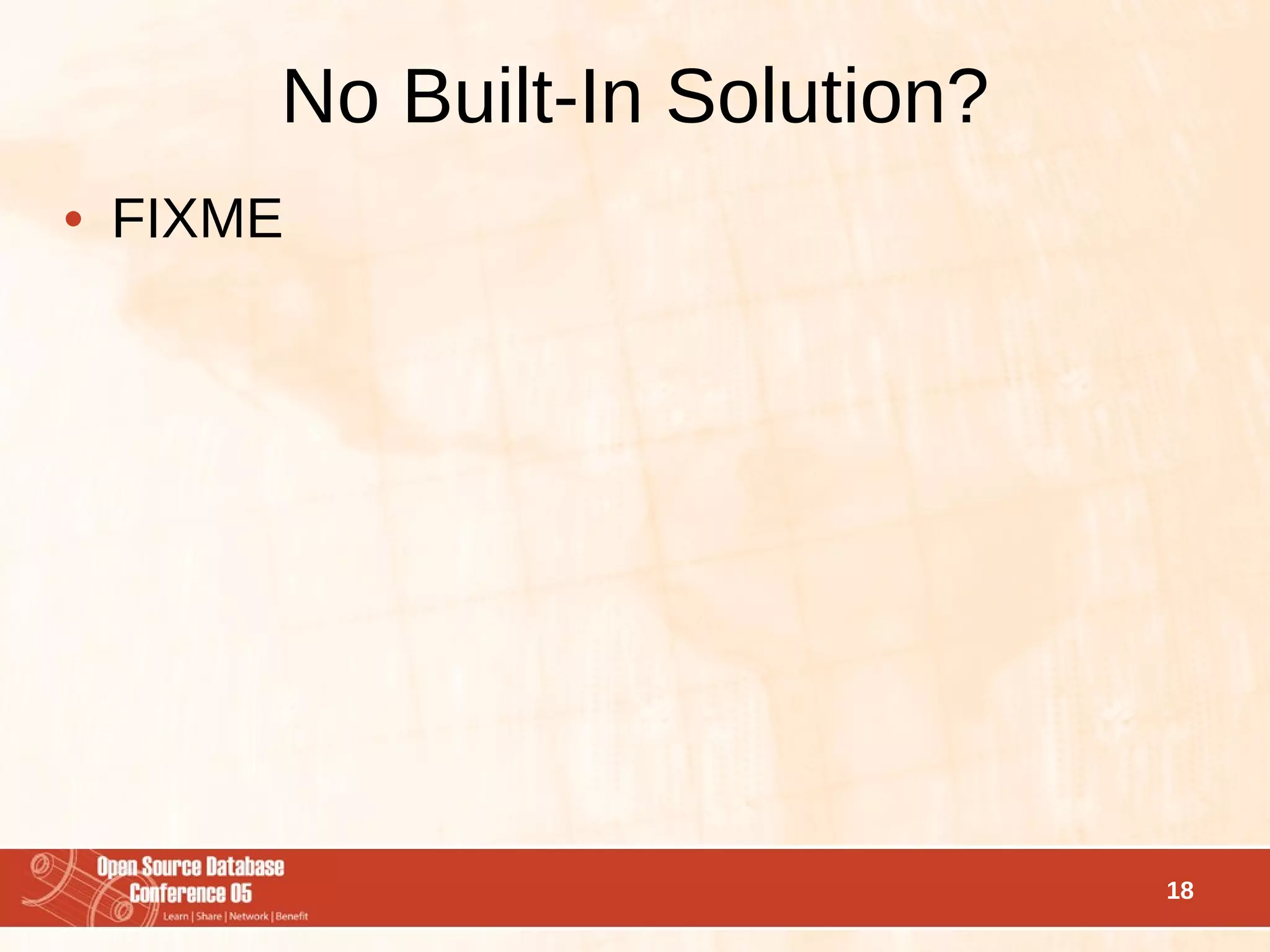

No Built-In Solution?
• FIXME




                              18

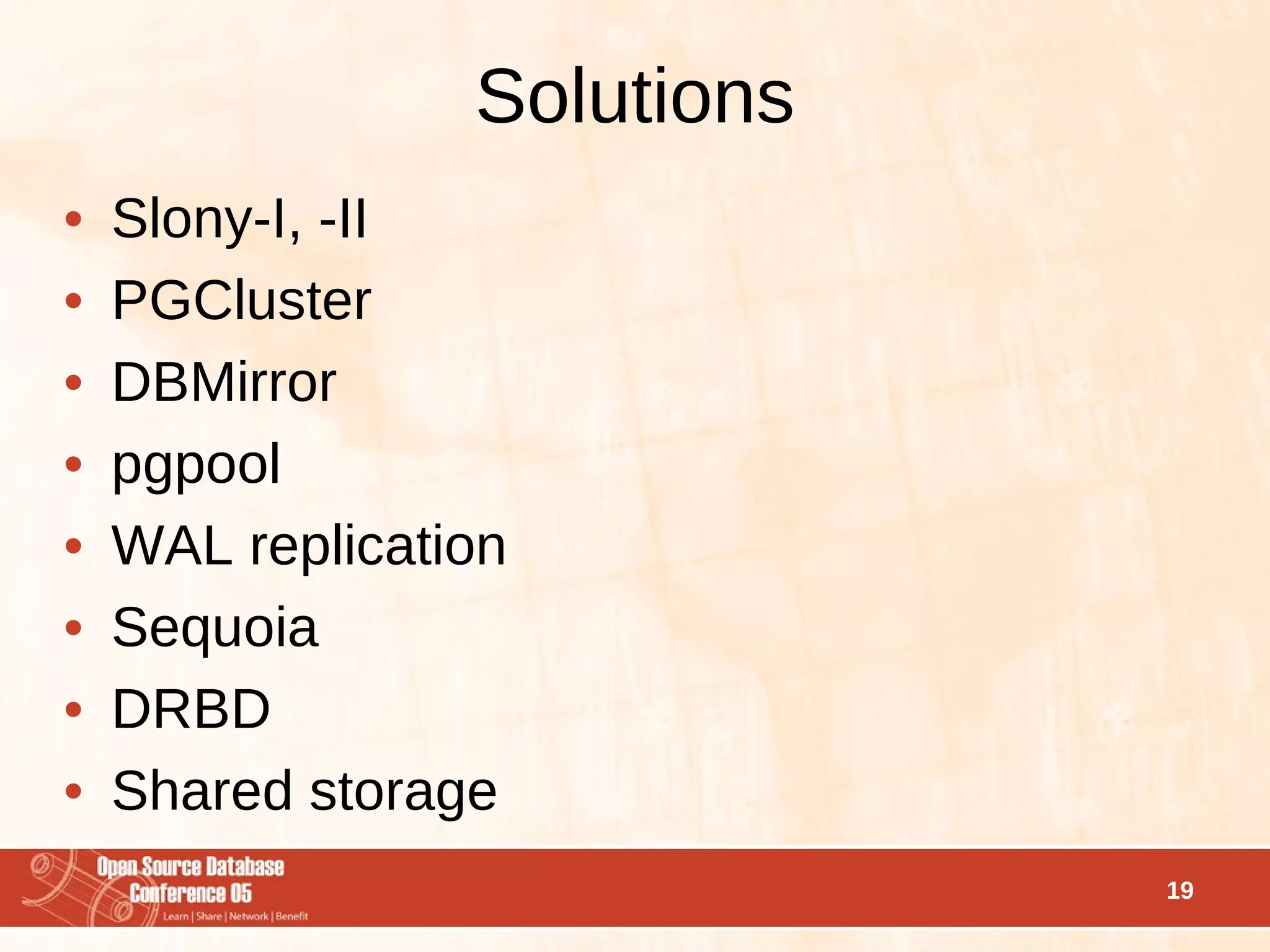

Solutions
•   Slony-I, -II
•   PGCluster
•   DBMirror
•   pgpool
•   WAL replication
•   Sequoia
•   DRBD
•   Shared storage
                             19

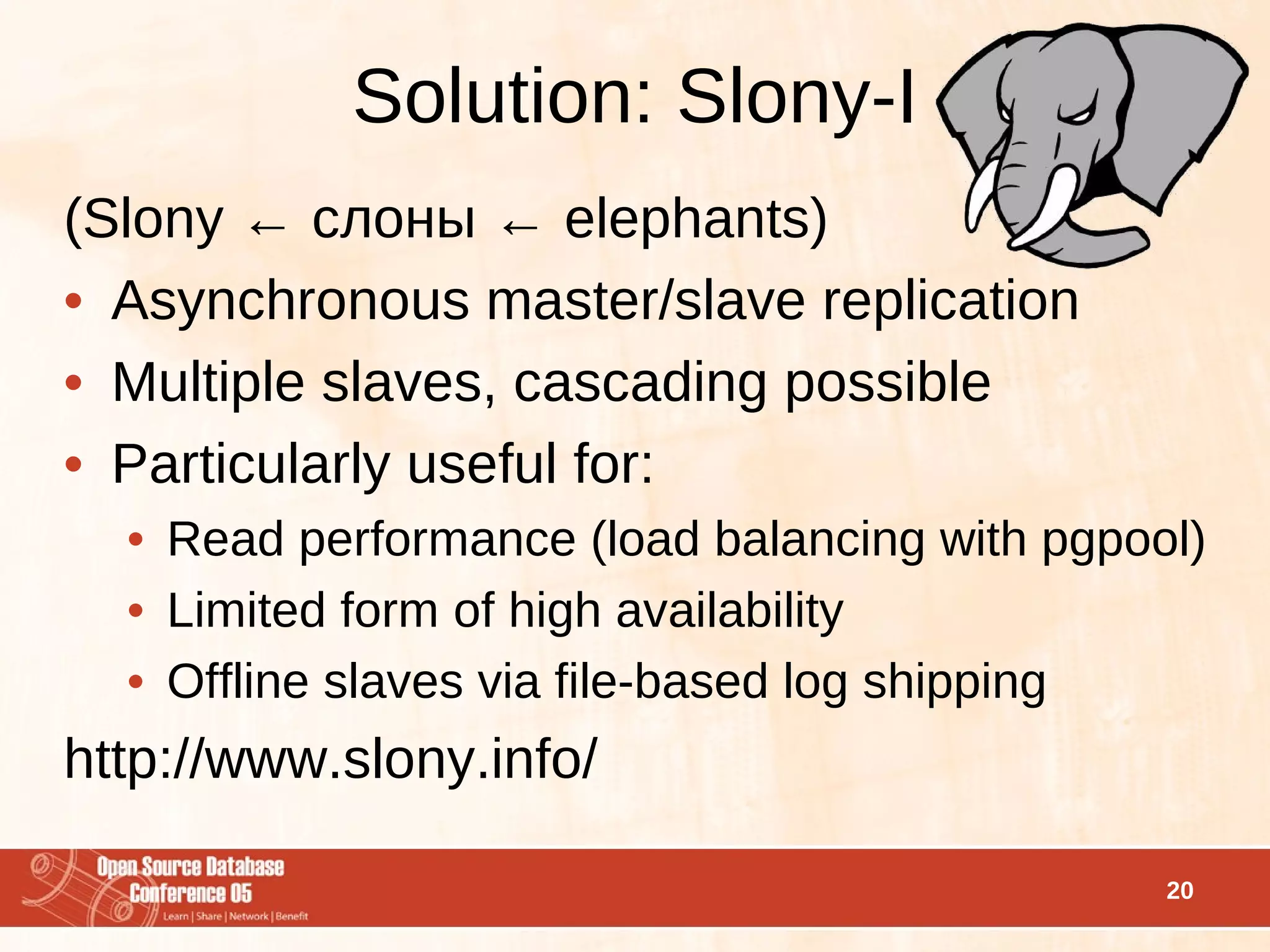

Solution: Slony-I
(Slony ← слоны ← elephants)
• Asynchronous master/slave replication
• Multiple slaves, cascading possible
• Particularly useful for:
  • Read performance (load balancing with pgpool)
  • Limited form of high availability
  • Offline slaves via file-based log shipping
http://www.slony.info/

                                               20

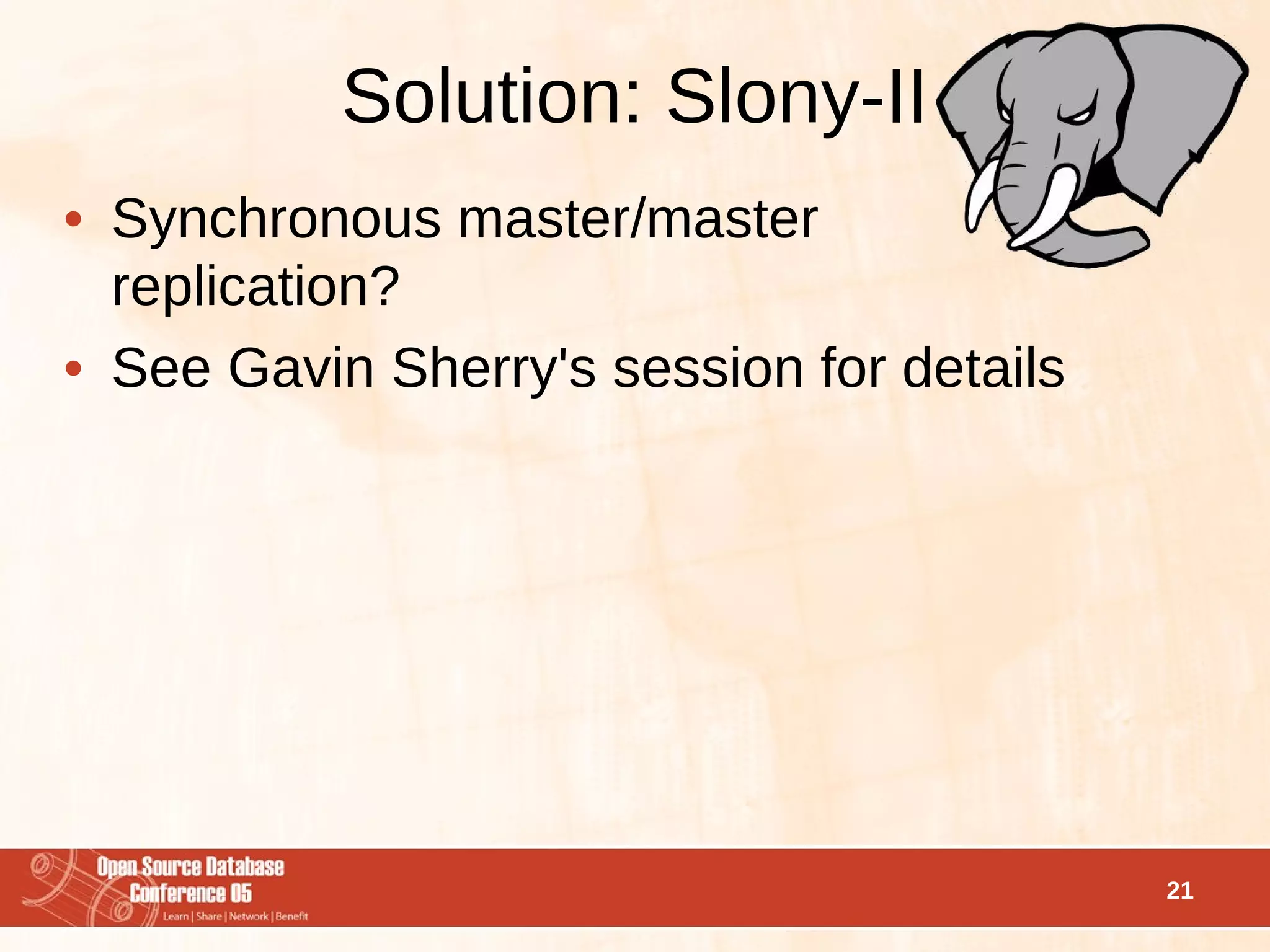

Solution: Slony-II
• Synchronous master/master
  replication?
• See Gavin Sherry's session for details




                                           21

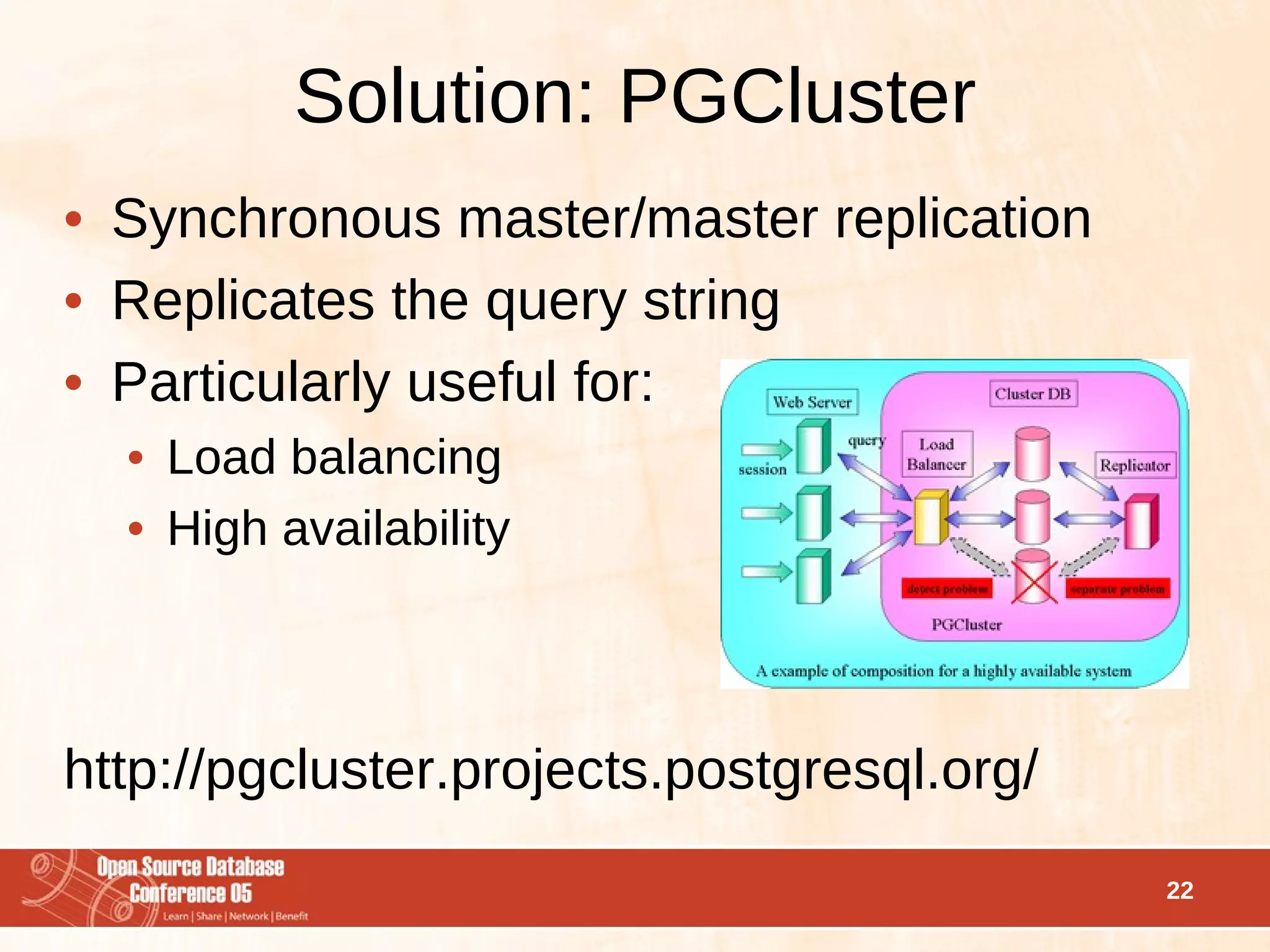

Solution: PGCluster
• Synchronous master/master replication
• Replicates the query string
• Particularly useful for:
  • Load balancing
  • High availability



http://pgcluster.projects.postgresql.org/
                                            22

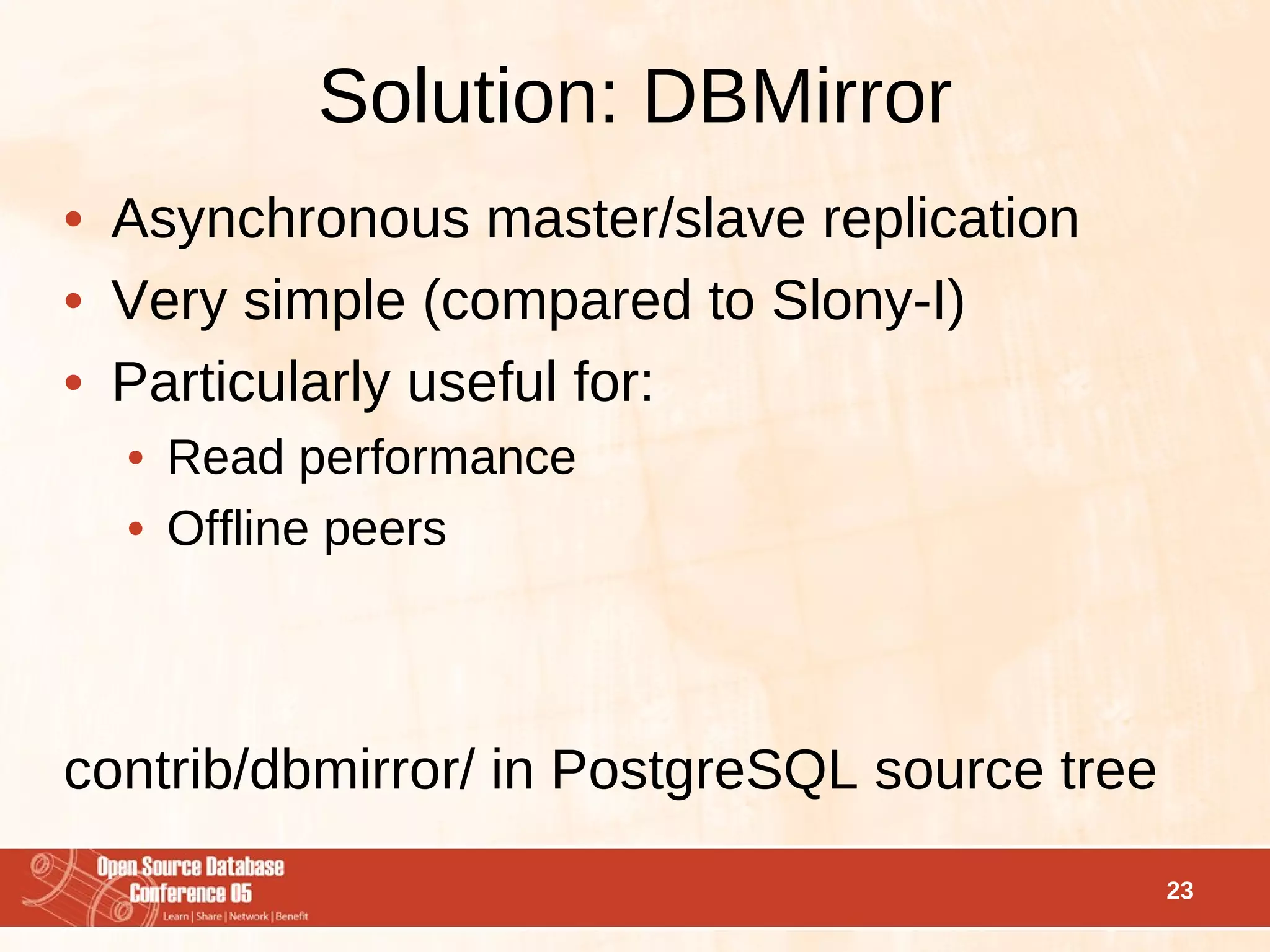

Solution: DBMirror
• Asynchronous master/slave replication
• Very simple (compared to Slony-I)
• Particularly useful for:
  • Read performance
  • Offline peers



contrib/dbmirror/ in PostgreSQL source tree
                                              23
Solution: pgpool
• Connection pool daemon for PostgreSQL
• Supports simple proxying
• Useful as frontend for Slony-I




http://pgpool.projects.postgresql.org/
                                          24

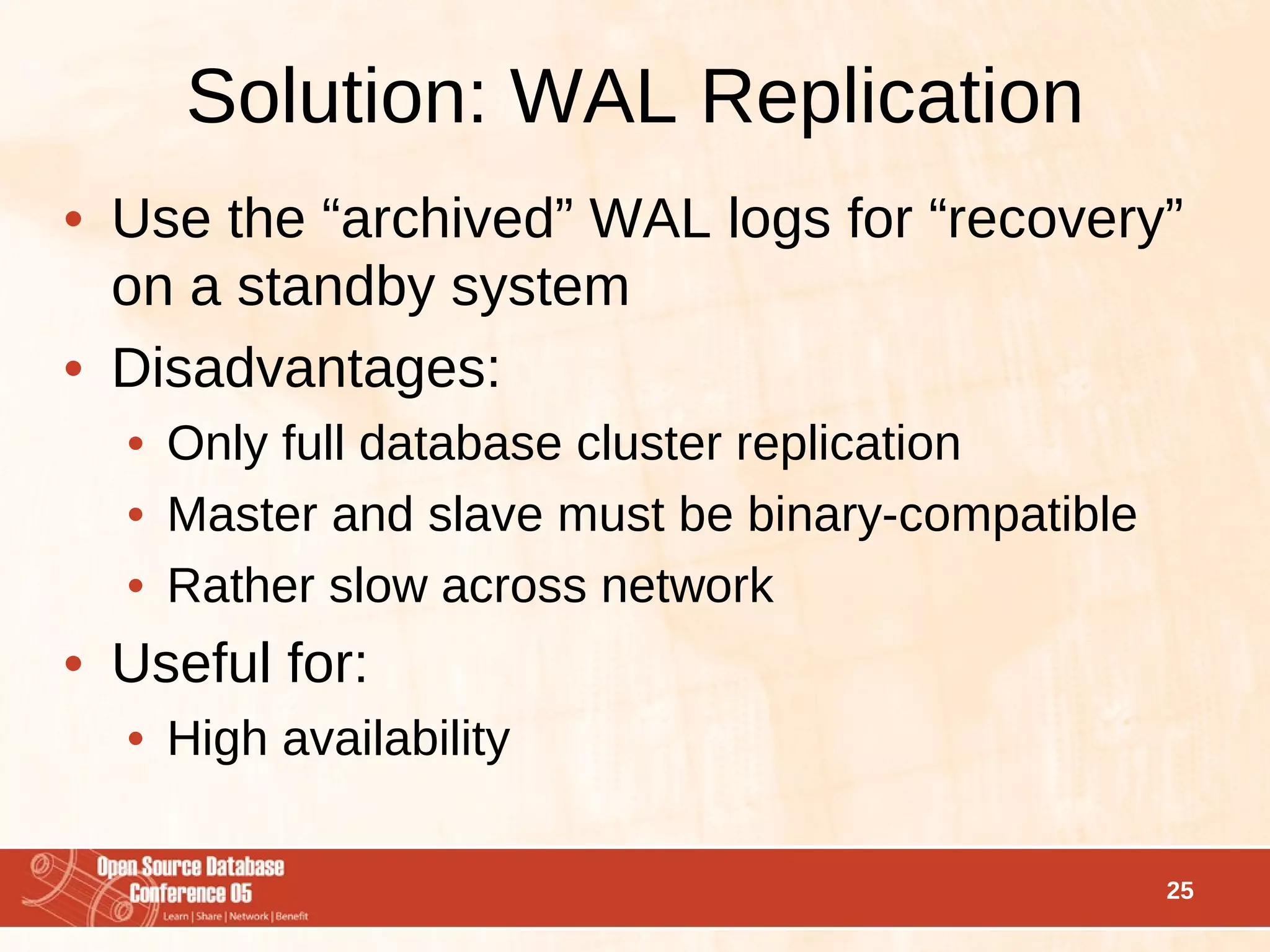

Solution: WAL Replication
• Use the “archived” WAL logs for “recovery”
  on a standby system
• Disadvantages:
  • Only full database cluster replication
  • Master and slave must be binary-compatible
  • Rather slow across network
• Useful for:
  • High availability

                                                 25

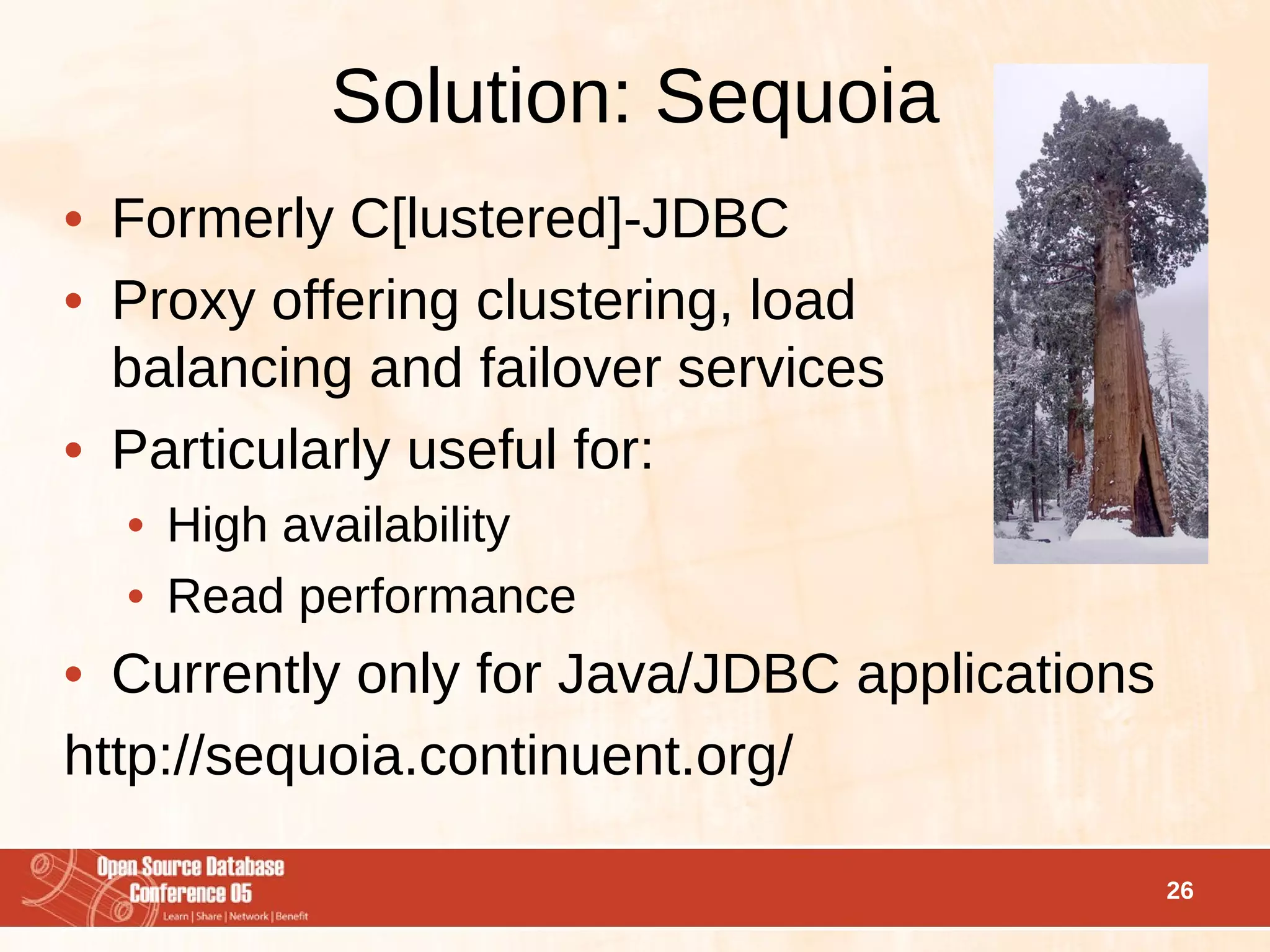

Solution: Sequoia
• Formerly C[lustered]-JDBC
• Proxy offering clustering, load
  balancing and failover services
• Particularly useful for:
  • High availability
  • Read performance
• Currently only for Java/JDBC applications
http://sequoia.continuent.org/

                                              26

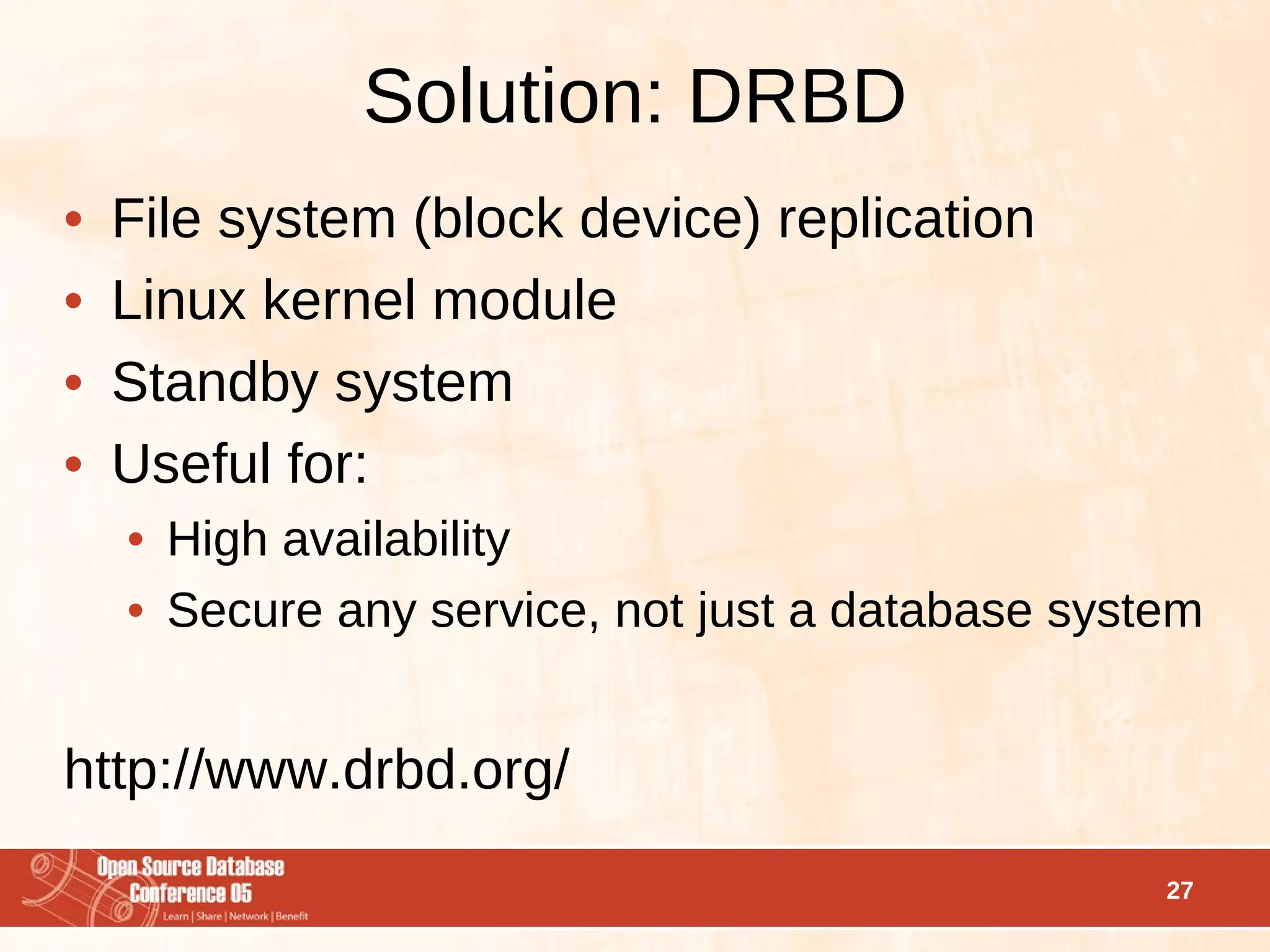

Solution: DRBD
•   File system (block device) replication
•   Linux kernel module
•   Standby system
•   Useful for:
    • High availability
    • Secure any service, not just a database system


http://www.drbd.org/
                                                  27
Solution: Shared Storage
•   NAS, iSCSI, Fiberchannel, ...
•   Available from many vendors
•   Standby system
•   Useful for:
    • High availability
    • Secure any service, not just a database system
• Single storage system is a possible point of
  failure

                                                  28

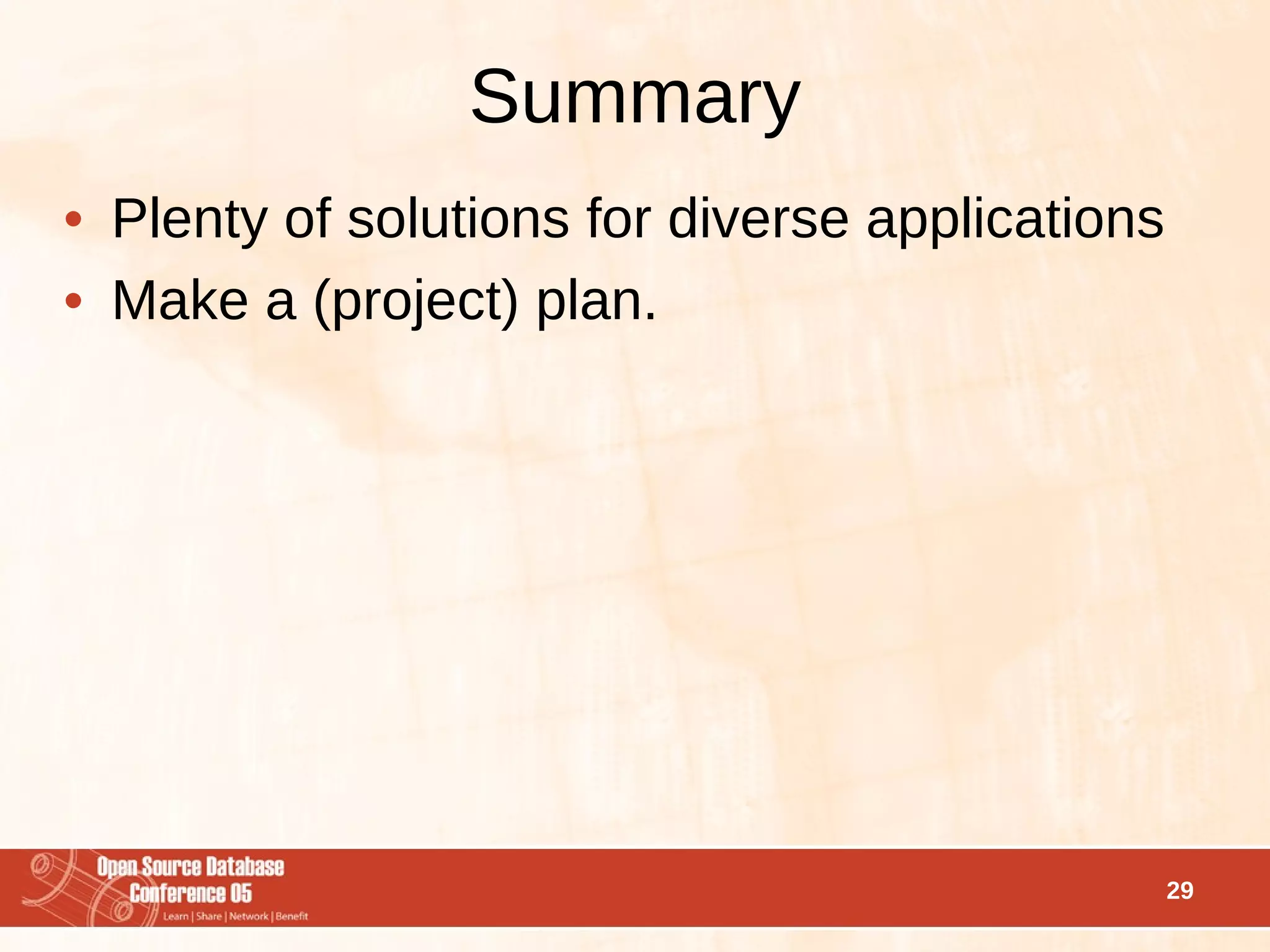

Summary
• Plenty of solutions for diverse applications
• Make a (project) plan.




                                                 29

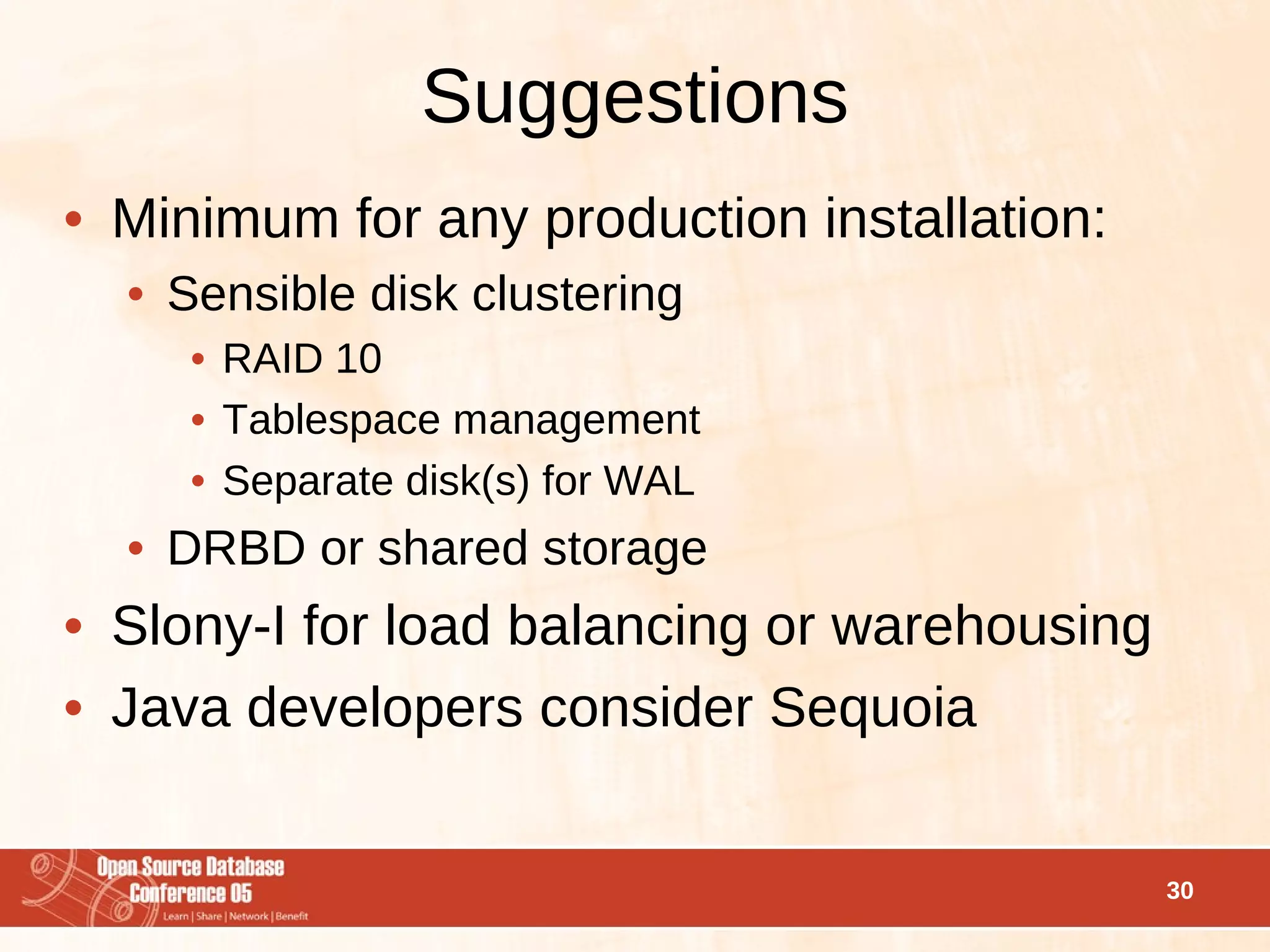

Suggestions
• Minimum for any production installation:
  • Sensible disk clustering
     • RAID 10
     • Tablespace management
     • Separate disk(s) for WAL
  • DRBD or shared storage
• Slony-I for load balancing or warehousing
• Java developers consider Sequoia


                                              30

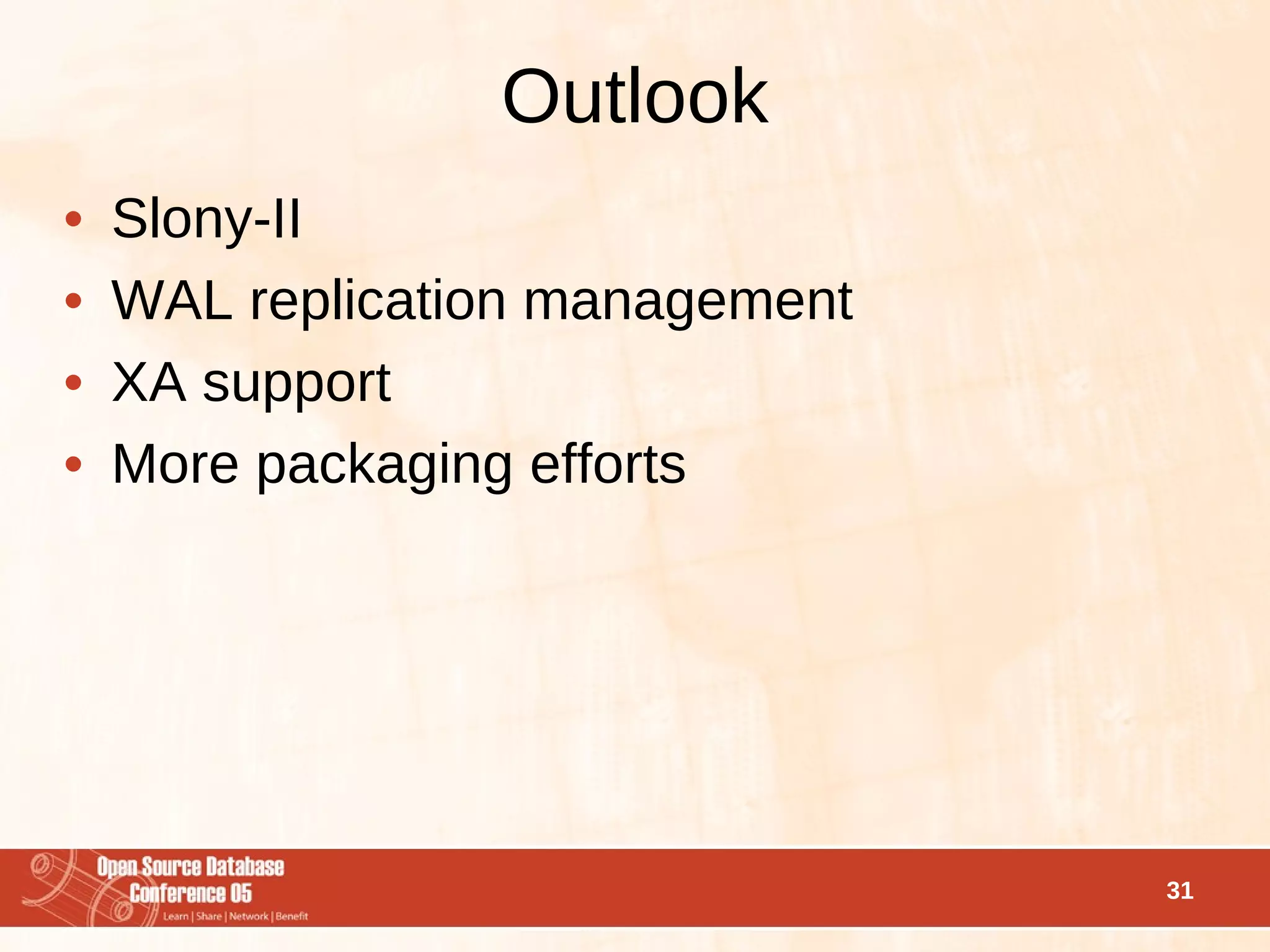

Outlook
•   Slony-II
•   WAL replication management
•   XA support
•   More packaging efforts




                                 31

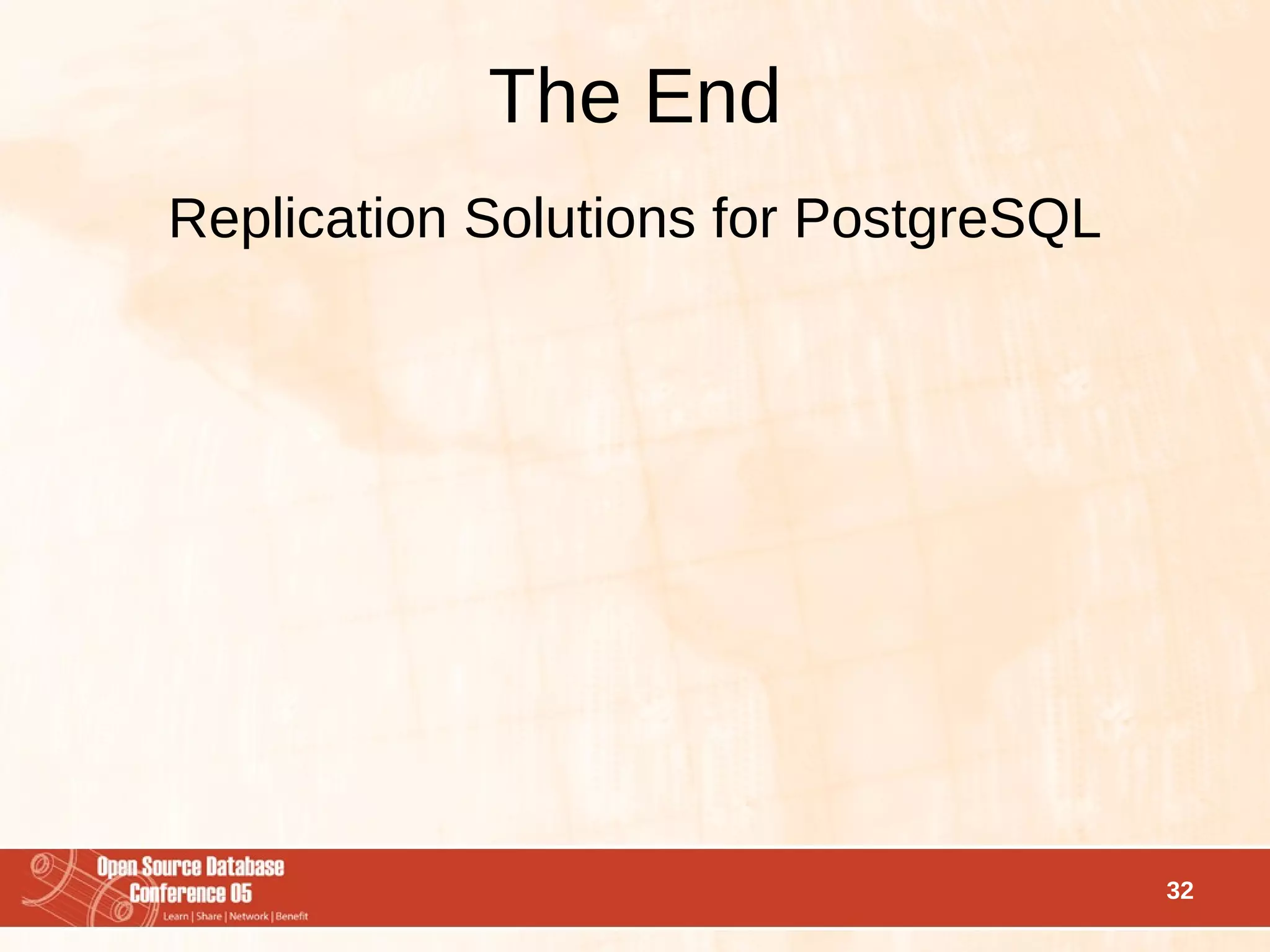

The End
Replication Solutions for PostgreSQL




                                       32
