Test Review
  Scale and Similarity

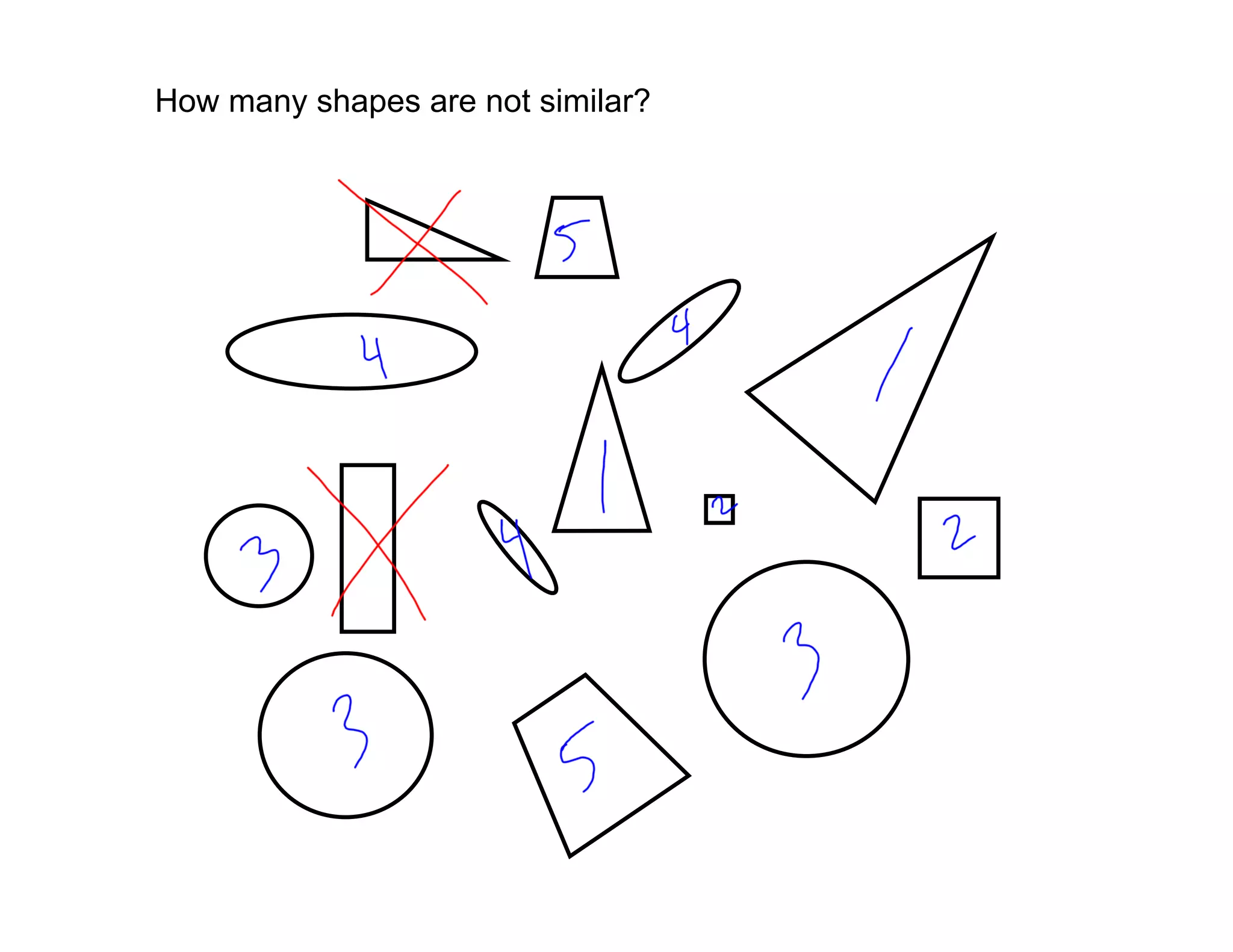

How many shapes are not similar?

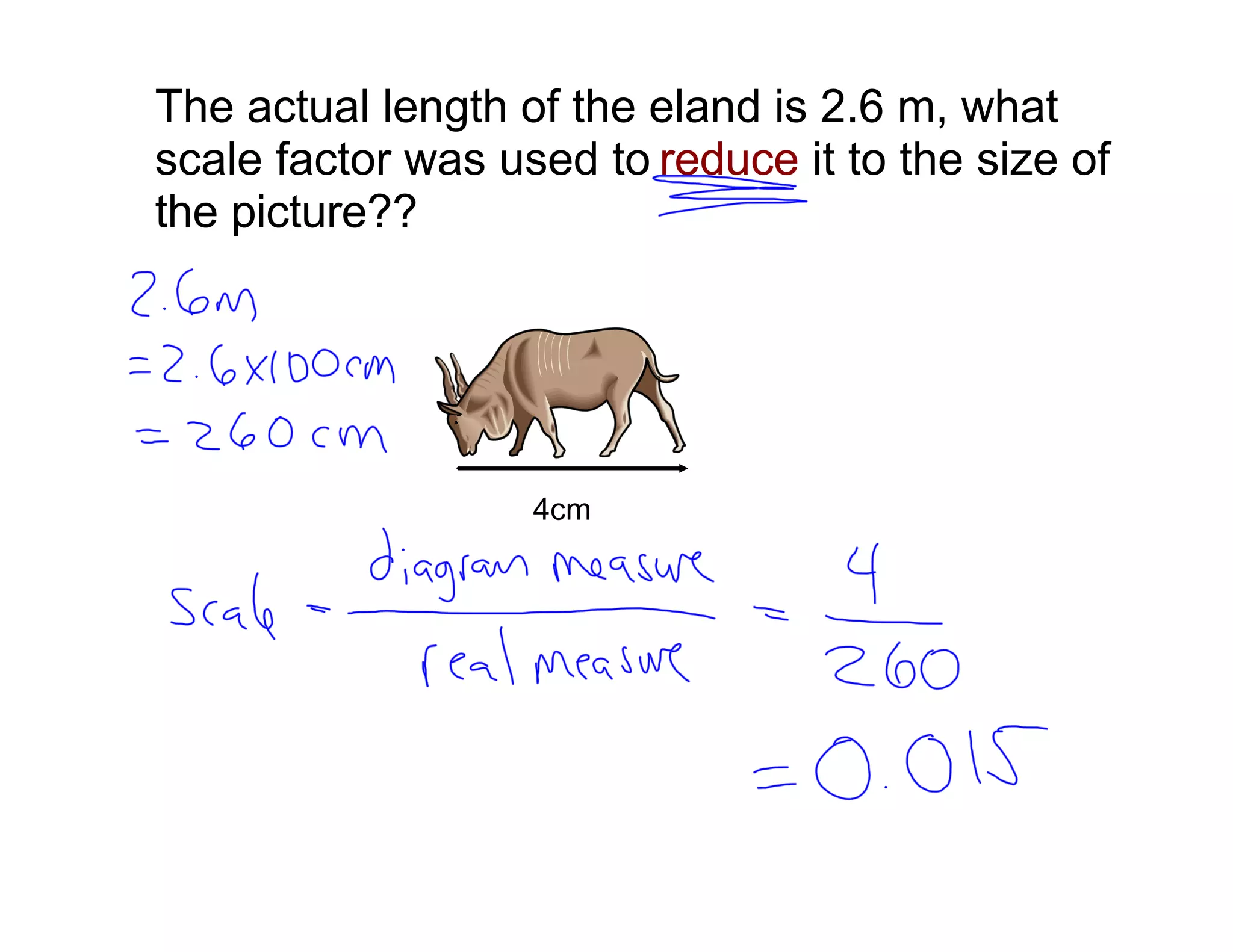

The actual length of the eland is 2.6 m, what
scale factor was used to reduce it to the size of
the picture??




                   4cm

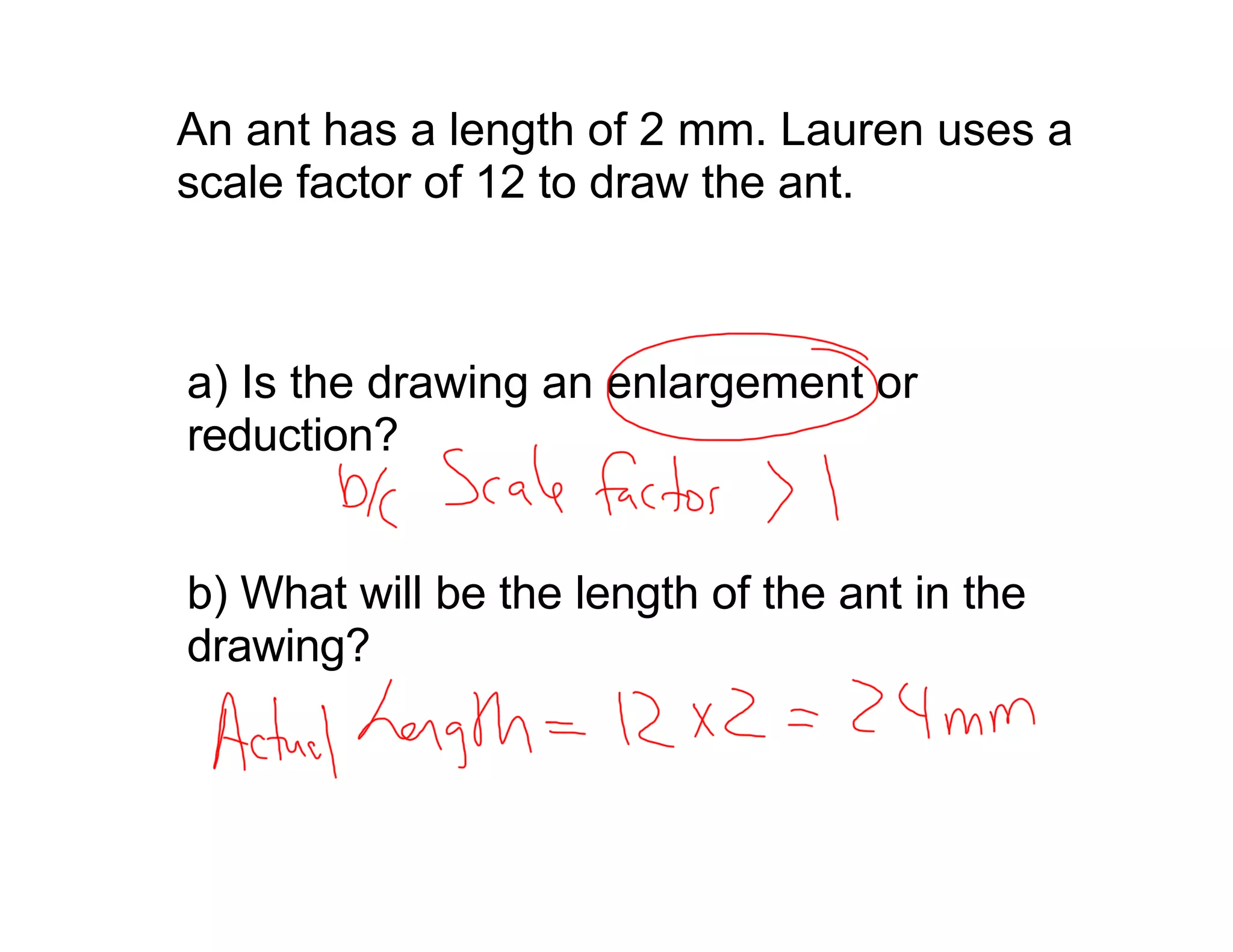

An ant has a length of 2 mm. Lauren uses a
scale factor of 12 to draw the ant.



a) Is the drawing an enlargement or
reduction?


b) What will be the length of the ant in the
drawing?

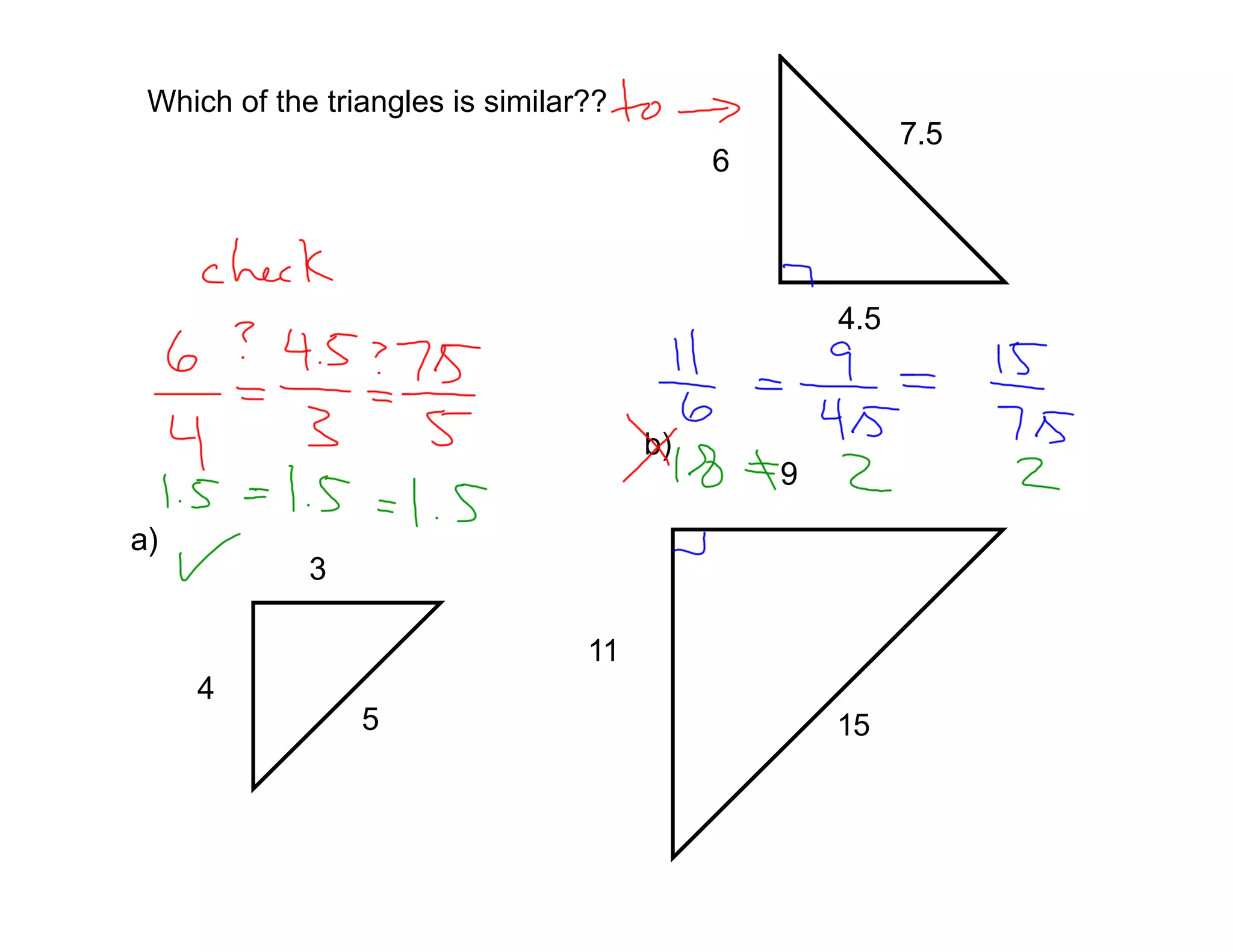

Which of the triangles is similar??
                                                          7.5
                                            6



                                                    4.5


                                       b)
                                                9

a)
             3

                                  11
     4
                 5                                  15

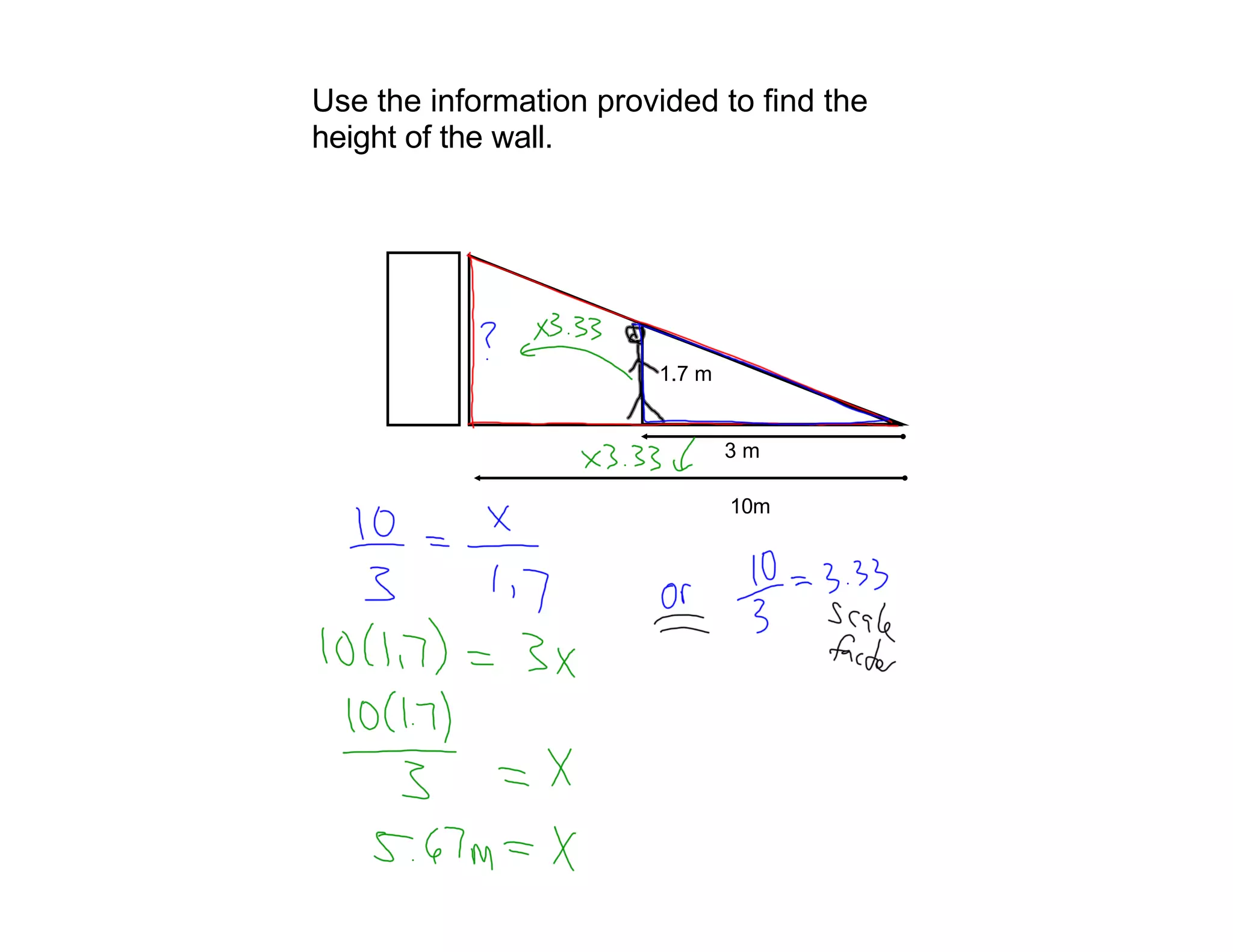

Use the information provided to find the
height of the wall.




                        1.7 m


                                3m

                                10m

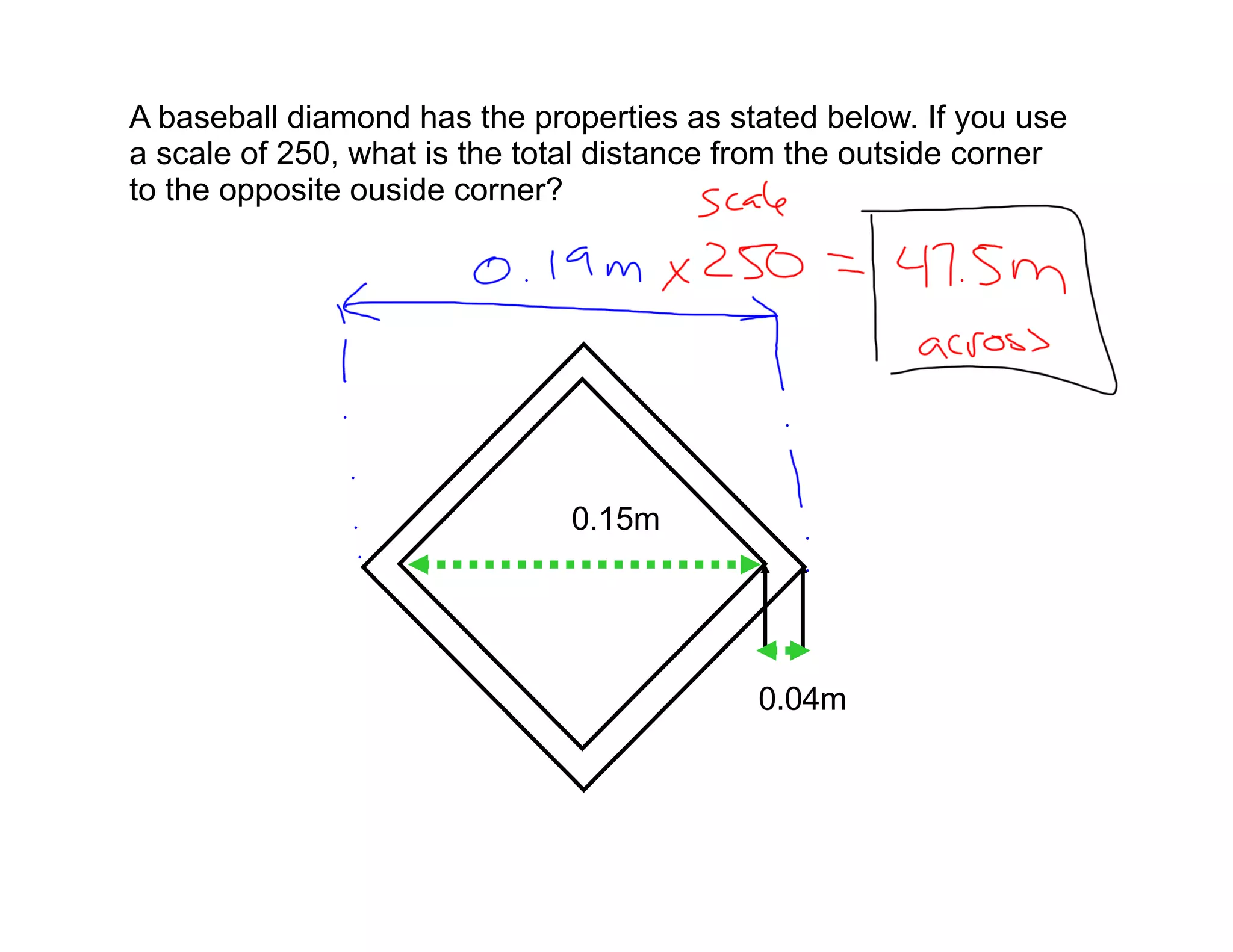

A baseball diamond has the properties as stated below. If you use
a scale of 250, what is the total distance from the outside corner
to the opposite ouside corner?




                               0.15m




                                            0.04m

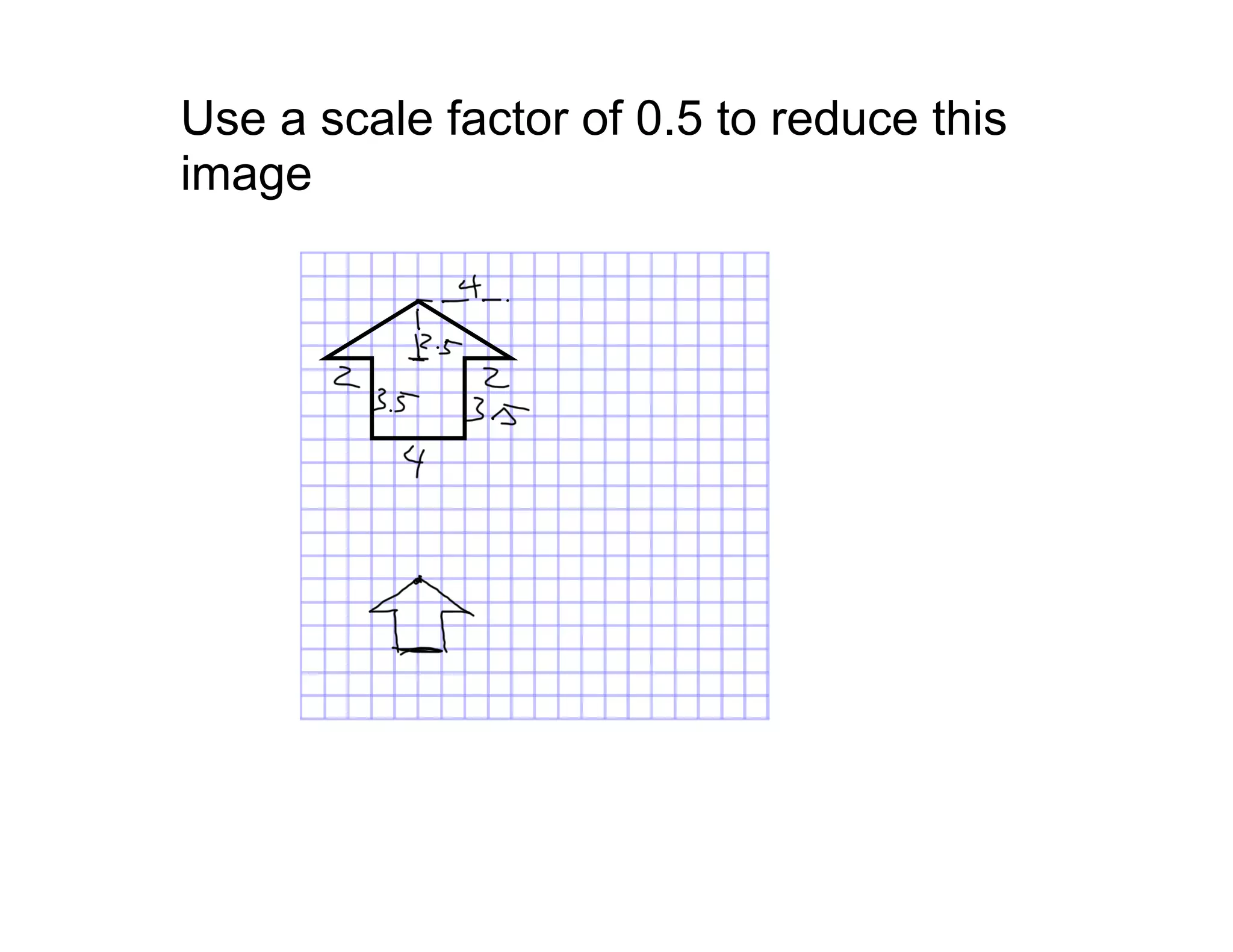

Use a scale factor of 0.5 to reduce this

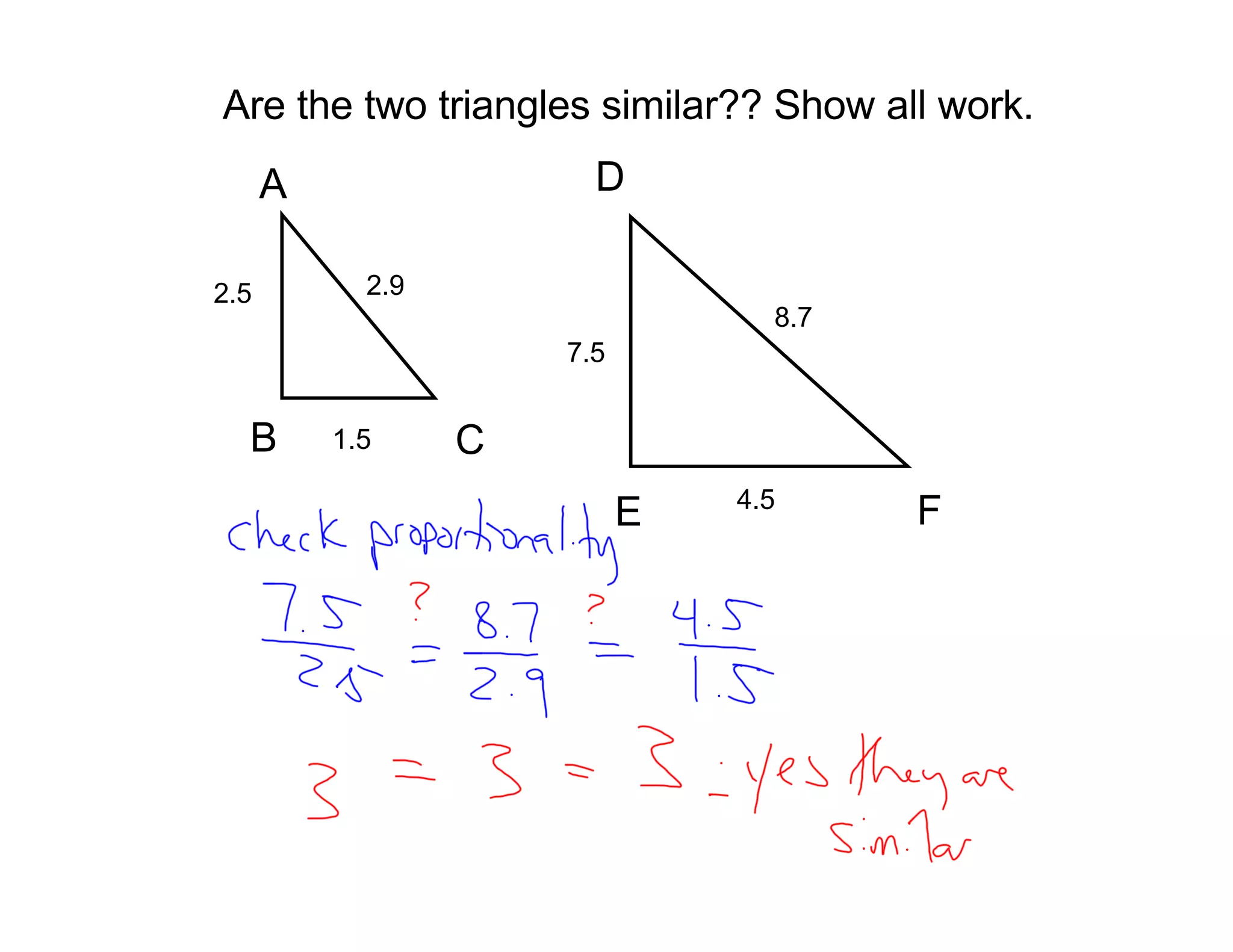

Are the two triangles similar?? Show all work.
      A                 D

2.5         2.9
                                  8.7
                      7.5


  B       1.5     C
                                4.5
                            E           F

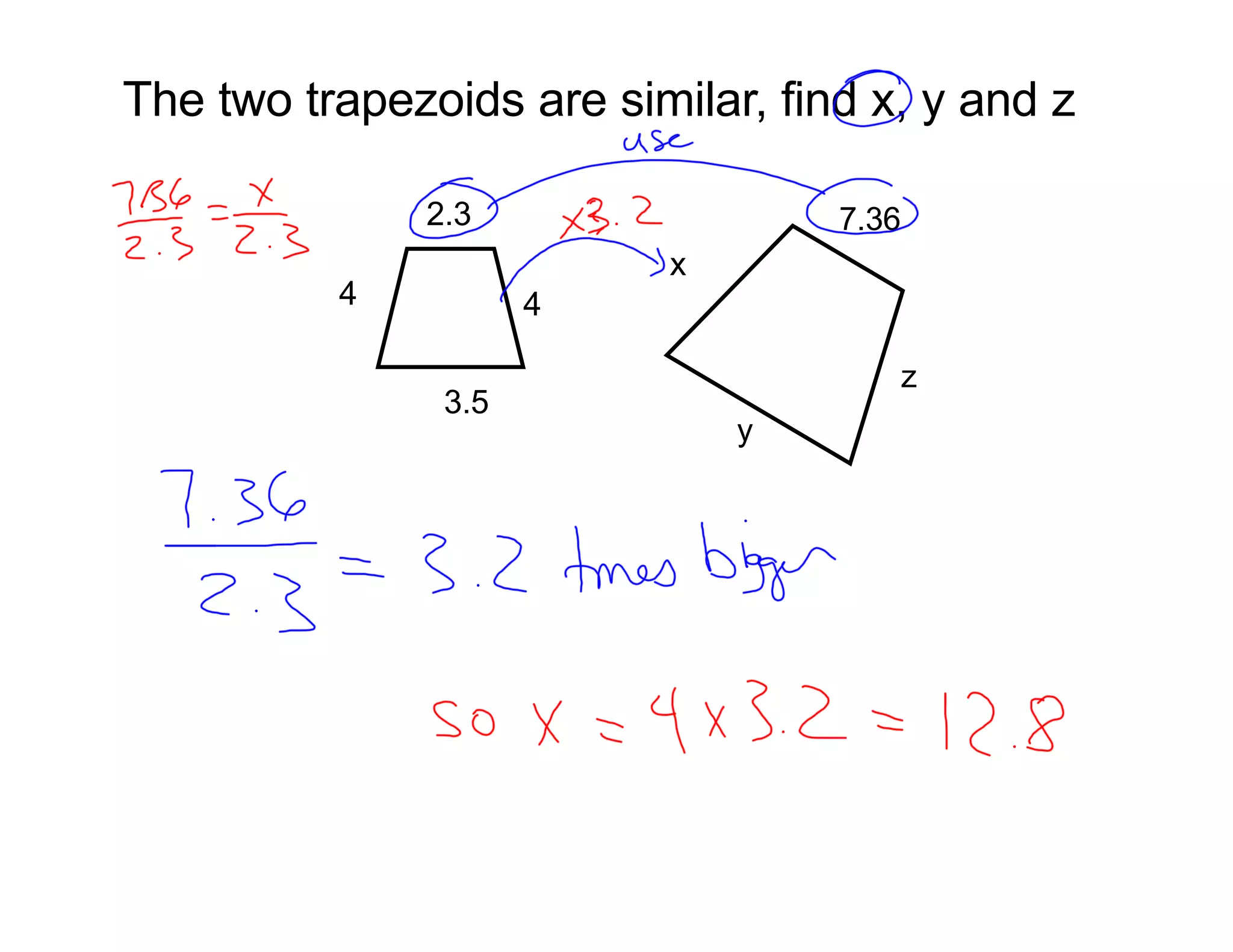

The two trapezoids are similar, find x, y and z

              2.3                  7.36
                          x
          4          4

                                      z
               3.5
                              y

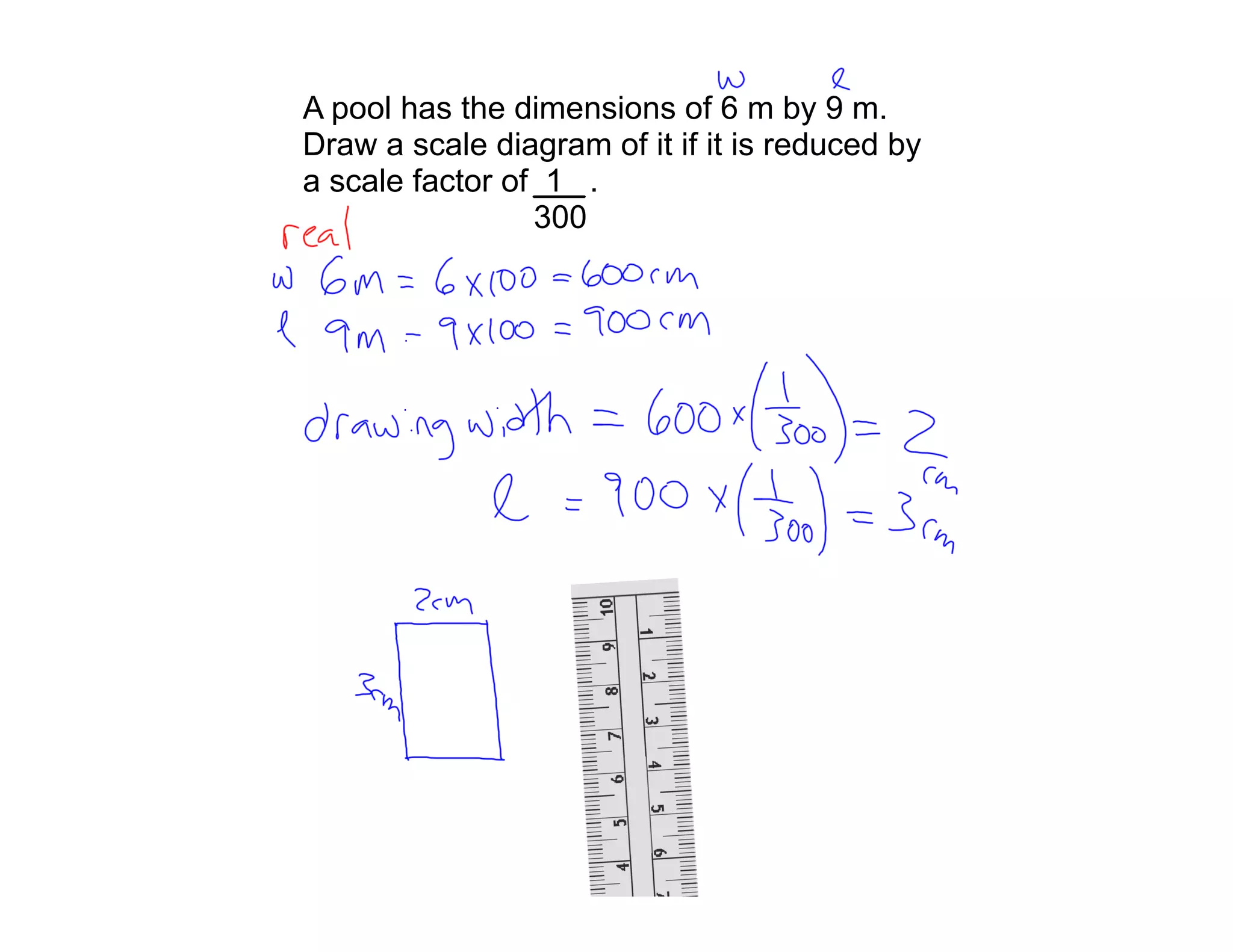

A pool has the dimensions of 6 m by 9 m.
Draw a scale diagram of it if it is reduced by
a scale factor of 1 .
                 300

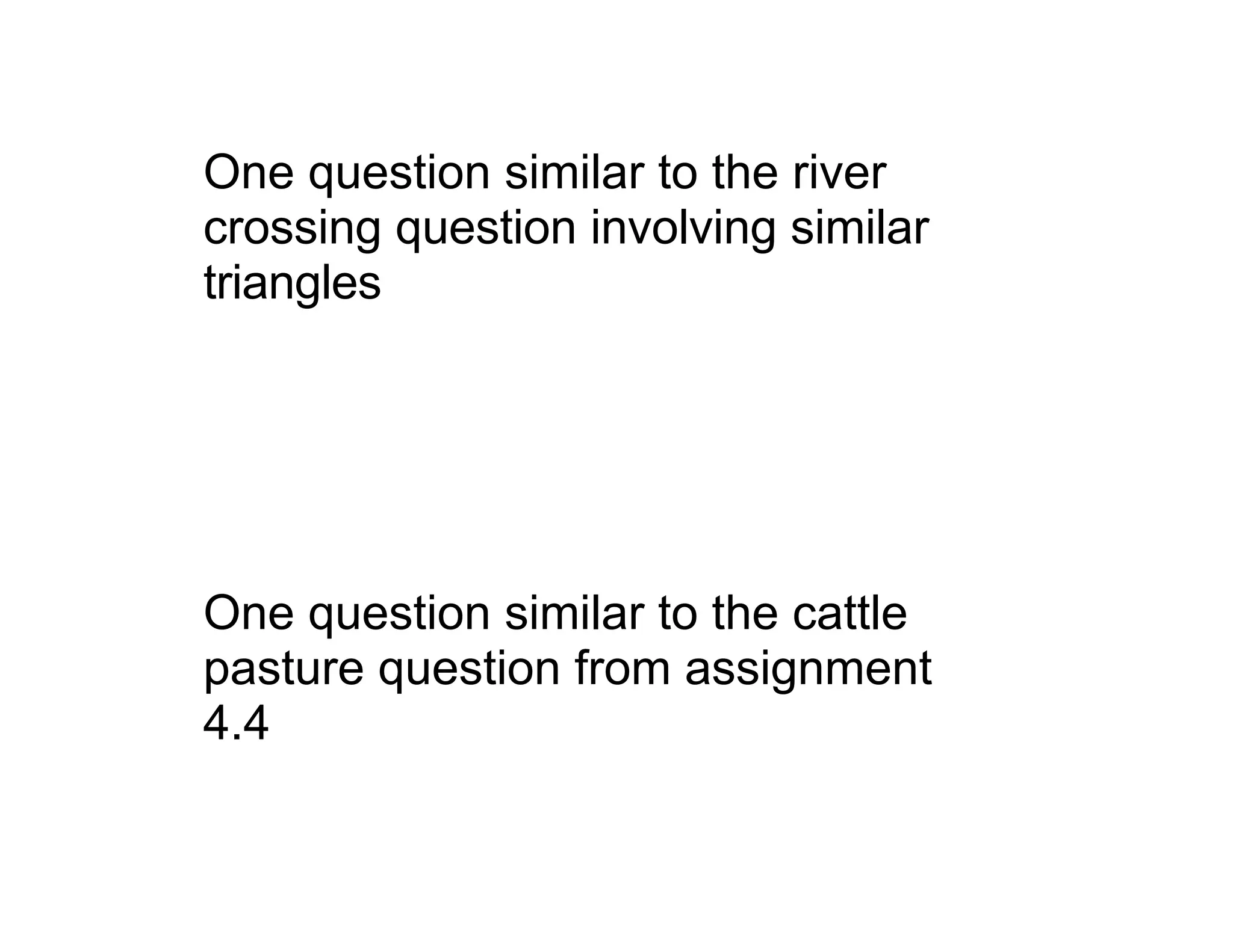

One question similar to the river
crossing question involving similar
triangles




One question similar to the cattle
pasture question from assignment
4.4
