This document discusses iWave Systems' products and services related to embedded software development. It describes iWave's expertise in developing board support packages (BSPs) for various operating systems including Windows Embedded Compact 7, Embedded Linux, Android, and others. It also lists iWave's driver development experience and capabilities across domains like storage, display, multimedia, wireless technologies and more. Product details are provided for some of iWave's BSP offerings for Freescale platforms like i.MX6, i.MX53 and Sabre boards.

1. Confidential
Your Smart Embedded Solutions Partner
www.iwavesystems.com

2. Confidential
iWave’s Products- Software BSPs

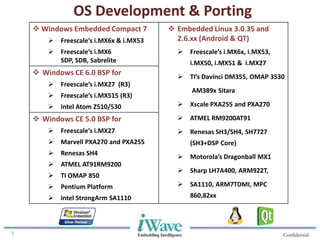

3. Confidential3
OS Development & Porting
 Windows Embedded Compact 7
 Freescale’s i.MX6x & i.MX53
 Freescale’s i.MX6
SDP, SDB, Sabrelite
 Embedded Linux 3.0.35 and
2.6.xx (Android & QT)
 Freescale’s i.MX6x, i.MX53,
i.MX50, i.MX51 & i.MX27
 TI’s Davinci DM355, OMAP 3530
AM389x Sitara
 Xscale PXA255 and PXA270
 ATMEL RM9200AT91
 Renesas SH3/SH4, SH7727
(SH3+DSP Core)
 Motorola’s Dragonball MX1
 Sharp LH7A400, ARM922T,
 SA1110, ARM7TDMI, MPC
860,82xx
 Windows CE 6.0 BSP for
 Freescale’s i.MX27 (R3)
 Freescale’s i.MX515 (R3)
 Intel Atom Z510/530
 Windows CE 5.0 BSP for
 Freescale’s i.MX27
 Marvell PXA270 and PXA255
 Renesas SH4
 ATMEL AT91RM9200
 TI OMAP 850
 Pentium Platform
 Intel StrongArm SA1110

4. Confidential4
OS Development & Porting
 Android
 Freescale’s i.MX6x (Android 4.0)
 Freescale’s i.MX53 & i.MX51 (Android 2.3)
 Freescale’s i.MX27 (Android 1.6)
 iTron / eCOS
 SH, ARM, PPC
 VxWorks 6.6 BSP
 Freescale’s i.MX27
 QnX
 Freescale’s i.MX6x, i.MX53 & i.MX51
http://www.iwavesystems.com/product/board-support-packages.html

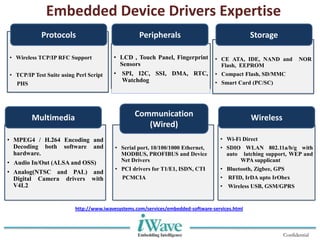

5. Confidential
Embedded Device Drivers Expertise
• LCD , Touch Panel, Fingerprint
Sensors
• SPI, I2C, SSI, DMA, RTC,
Watchdog
• MPEG4 / H.264 Encoding and
Decoding both software and
hardware.
• Audio In/Out (ALSA and OSS)
• Analog(NTSC and PAL) and
Digital Camera drivers with
V4L2
• CE ATA, IDE, NAND and NOR
Flash, EEPROM
• Compact Flash, SD/MMC
• Smart Card (PC/SC)
• Serial port, 10/100/1000 Ethernet,
MODBUS, PROFIBUS and Device
Net Drivers
• PCI drivers for T1/E1, ISDN, CTI
PCMCIA
•
• Wireless TCP/IP RFC Support
• TCP/IP Test Suite using Perl Script
PHS
• Wi-Fi Direct
• SDIO WLAN 802.11a/b/g with
auto latching support, WEP and
WPA supplicant
• Bluetooth, Zigbee, GPS
• RFID, IrDA upto IrObex
• Wireless USB, GSM/GPRS
Protocols Peripherals Storage
Multimedia Communication
(Wired)
Wireless
http://www.iwavesystems.com/services/embedded-software-services.html

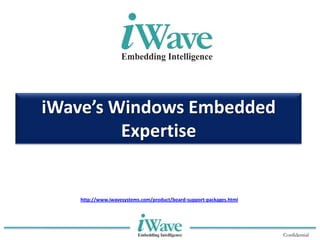

6. Confidential
iWave’s Windows Embedded
Expertise
http://www.iwavesystems.com/product/board-support-packages.html

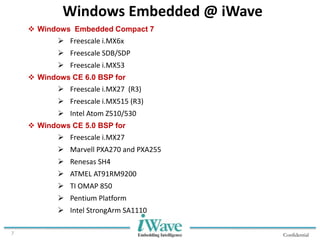

7. Confidential7
Windows Embedded @ iWave
 Windows Embedded Compact 7
 Freescale i.MX6x
 Freescale SDB/SDP
 Freescale i.MX53
 Windows CE 6.0 BSP for
 Freescale i.MX27 (R3)
 Freescale i.MX515 (R3)
 Intel Atom Z510/530
 Windows CE 5.0 BSP for
 Freescale i.MX27
 Marvell PXA270 and PXA255
 Renesas SH4
 ATMEL AT91RM9200
 TI OMAP 850
 Pentium Platform
 Intel StrongArm SA1110

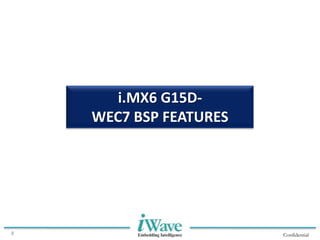

8. Confidential8
i.MX6 G15D-
WEC7 BSP FEATURES

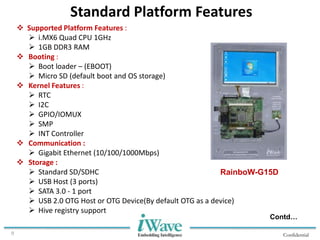

9. Confidential9
Standard Platform Features
 Supported Platform Features :
 i.MX6 Quad CPU 1GHz
 1GB DDR3 RAM
 Booting :
 Boot loader – (EBOOT)
 Micro SD (default boot and OS storage)
 Kernel Features :
 RTC
 I2C
 GPIO/IOMUX
 SMP
 INT Controller
 Communication :
 Gigabit Ethernet (10/100/1000Mbps)
 Storage :
 Standard SD/SDHC
 USB Host (3 ports)
 SATA 3.0 - 1 port
 USB 2.0 OTG Host or OTG Device(By default OTG as a device)
 Hive registry support
Contd…
RainboW-G15D

10. Confidential10
Standard Platform Features (Contd.)
 Display & User Interface:
 LVDS1 Port- 800X480 RGB TFT LCD
 HDMI– 1 Port*
 I2C Touch controller MAX11801 (4-Wire Resistive touch)
 PWM Backlight control
 Multimedia:
 Multimedia codecs
 DirectShow filters for decode
 GPU (OpenGL ES 2.0, Open VG)
 Silverlight 3.0 with XAML support
 Development Support:
 Serial/Debug UART console
 Active Sync support
 KITL Debugger(Ethernet or OTG Device)
 CETK Support
 SDK for Application development
 Image flashing tool
Note: *Any one display will be (RGB or LVDS or HDMI) supported at a time.
In board default display will be 7" LVDS LCD
http://www.iwavesystems.com/product/board-support-packages/wec7-on-i-mx6-rainbow-g15d/wec7-on-i-mx6-rainbow-g15d.html

11. Confidential11
i.MX6 G11D-
WEC7 BSP FEATURES

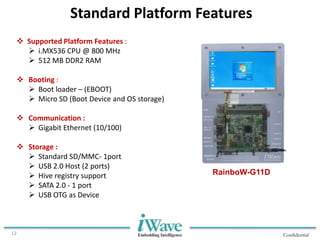

12. Confidential12
Standard Platform Features
 Supported Platform Features :
 i.MX536 CPU @ 800 MHz
 512 MB DDR2 RAM
 Booting :
 Boot loader – (EBOOT)
 Micro SD (Boot Device and OS storage)
 Communication :
 Gigabit Ethernet (10/100)
 Storage :
 Standard SD/MMC- 1port
 USB 2.0 Host (2 ports)
 Hive registry support
 SATA 2.0 - 1 port
 USB OTG as Device
RainboW-G11D

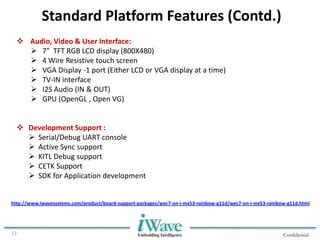

13. Confidential13
Standard Platform Features (Contd.)
 Audio, Video & User Interface:
 7" TFT RGB LCD display (800X480)
 4 Wire Resistive touch screen
 VGA Display -1 port (Either LCD or VGA display at a time)
 TV-IN interface
 I2S Audio (IN & OUT)
 GPU (OpenGL , Open VG)
 Development Support :
 Serial/Debug UART console
 Active Sync support
 KITL Debug support
 CETK Support
 SDK for Application development
http://www.iwavesystems.com/product/board-support-packages/wec7-on-i-mx53-rainbow-g11d/wec7-on-i-mx53-rainbow-g11d.html

14. Confidential14
i.MX6 SABRE SDP/B -
WEC7 BSP FEATURES

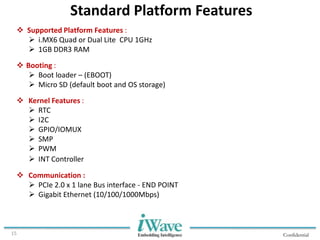

15. Confidential15
Standard Platform Features
 Supported Platform Features :
 i.MX6 Quad or Dual Lite CPU 1GHz
 1GB DDR3 RAM
 Booting :
 Boot loader – (EBOOT)
 Micro SD (default boot and OS storage)
 Kernel Features :
 RTC
 I2C
 GPIO/IOMUX
 SMP
 PWM
 INT Controller
 Communication :
 PCIe 2.0 x 1 lane Bus interface - END POINT
 Gigabit Ethernet (10/100/1000Mbps)

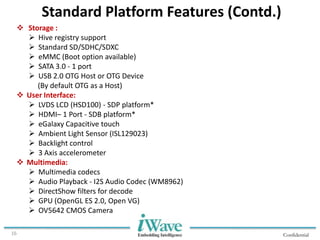

16. Confidential16
Standard Platform Features (Contd.)
 Storage :
 Hive registry support
 Standard SD/SDHC/SDXC
 eMMC (Boot option available)
 SATA 3.0 - 1 port
 USB 2.0 OTG Host or OTG Device
(By default OTG as a Host)
 User Interface:
 LVDS LCD (HSD100) - SDP platform*
 HDMI– 1 Port - SDB platform*
 eGalaxy Capacitive touch
 Ambient Light Sensor (ISL129023)
 Backlight control
 3 Axis accelerometer
 Multimedia:
 Multimedia codecs
 Audio Playback - I2S Audio Codec (WM8962)
 DirectShow filters for decode
 GPU (OpenGL ES 2.0, Open VG)
 OV5642 CMOS Camera

17. Confidential17
 Development Support:
 Serial/Debug UART console
 Active Sync support
 KITL Debugger(Ethernet or OTG Device)
 CETK Support SDK for Application
development
 Image flashing & Manufacturing tool
 Miscellaneous Features:
 SmartDMA
 MAX8903 Battery Charger
Note: *Any one display will be (RGB or LVDS or HDMI) supported at a time.
In SDP board default display will be LVDS LCD and in SDB board default display
will be HDMI
Standard Platform Features (Contd.)
http://www.iwavesystems.com/product/board-support-packages/wec7-on-i-mx6-sabre-sdp/wec7-on-i-mx6-sabre-sdp.html
