2. JT1 Universal Flight Control Station
The JT1 Universal Flight Control
Station is built upon flexible station
architecture. The system is fully
customizable according to mission
and aircraft requirements. Common
hardware and software interfaces
provide a consistent working
environment.
We’ve integrated state of the art
equipment from top US
manufacturers. The result is
unsurpassed comfort, functionality
and ergonomics. In addition, the
entire system can be customized to
your specifications. Lengthy
missions are not a problem due to
seat comfort. Incomparable video
quality is provided by the latest in
computer and wrap around monitor
technology.
The exclusive relationship with our
partners brings new functionality,
quality and durability to this
demanding market.
The JT1 meets established inter-
operability standards including
NATO 4586. The JT1 will remain
robust, easily upgraded and mult-
platform operable for years to come.
The is the next generation in real-
time UAV command and control
station. The following pages
provide more detailed information
about our system.

3. The JT1 Seating System
Ergonomic UAV Systems
proudly incorporates a complete
line of ergonomic stationary
seating for the twenty-first
century and beyond by STIDD
Systems. Armed with the latest
human factors databases, STIDD
Systems has evolved as the
industry benchmark for
quality, comfort, strength and
value with unique and innovative
features. It’s all made possible
by advanced design, proprietary
engineering and state of the art
manufacturing methods.
Ergonomics in Action –
The STIDD Advantage
For individuals of all body
types, STIDD Systems’
Ergonomic Seating provides
anatomically correct,
comfortable positioning and
passive restraint for various
functional environments, while
integrating strong, lightweight,
corrosion proof materials with
ease to operate, multifunctional
adjustment features and
dynamic appearance.
Biomechanical research
indicates that ergonomically
correct positioning and
stabilization (EPS) maximizes
the alertness and performance
of individuals in stressful
settings. The revolutionary
STIDD Systems Series 500,
800, and 1200 product lines are
direct results of combining the
latest EPS data with
developments in
Human Factors Engineering,
Computer Aided Design (CAD)
and Computerized Numerically
Controlled (CNC) production
methods with advanced materials
and coatings.

4. The JT1 Computer System
The JT1 Computer
System is slightly larger
than a football. The case
is made of extruded
aluminum. The integrated
cooling fins allow it to run
extremely cool providing
years of dependable
operation. The endplates
are machined from 1/8”
thick aluminum plate.
Everything about the JT1
Computer is designed for
rugged durability.
Every system includes a
built-in UPS and battery
backup unit. The UPS
sub-system smoothens
out voltage and power
fluctuations and will keep
the computer running for
up to 60 minutes in the
event of a complete power
failure.
The system can be used
with a joystick, keyboard,
mouse,
touch screen monitor, touch pad
or trackball.
The system can use Flacon View
maps and seamlessly export
target data to Falcon View
software on other platforms.
You can provide annotated maps
to ground troops to assist in
facilitating instant situation
comprehension. JT1 meets all
Motion Industry Standards
specifications. You can create
JPB snapshots for display in
Falcon View or any Windows®
image viewer.
Virtually any environment is
suitable for the JT1 Computer
System – stationary, airborne or
marine. Dependability is of the
utmost importance. Failure is
not an option.
Specification Highlights
Intel® Core™ 2 Duo
Processor up to 2.26 GHz
performance.
High-performance Video 3D
video acceleration (Gen 5.0).
Analog and LVDS flat panel
outputs.
Network Support: Dual gigabit
Ethernet with remote boot
support.
System RAM: 4 GB DDR3
Six USB 2.0 ports support
keyboard, mouse, and other
devices.
Device I/O Five serial ports,
dual SATA interface and HD
audio.
Flash Memory Mini Blade™
socket and USB interface for
high reliability flash storage
Extended Temp. Version: -40°
to +85° C operation for harsh
environments.
MIL-STD-202G qualified for
high shock/vibration
environments
SPX™ Expansion Supports
expansion with versatile SPX
add-on I/O modules.
OS Compatibility: Windows
7/XP, Windows Embedded
Standard 7/XP e/CE, Linux, V
x Works, QNX, DOS

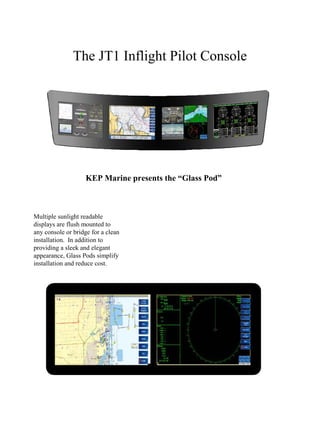

5. The JT1 Inflight Pilot Console
Multiple sunlight readable
displays are flush mounted to
any console or bridge for a clean
installation. In addition to
providing a sleek and elegant
appearance, Glass Pods simplify
installation and reduce cost.
KEP Marine presents the “Glass Pod”

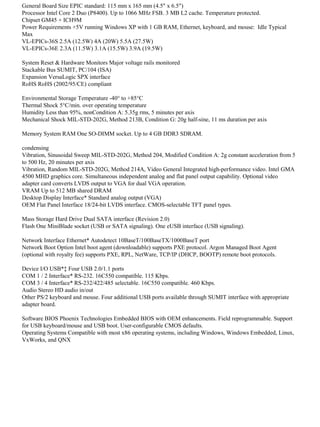

6. General Board Size EPIC standard: 115 mm x 165 mm (4.5" x 6.5")
Processor Intel Core 2 Duo (P8400). Up to 1066 MHz FSB. 3 MB L2 cache. Temperature protected.
Chipset GM45 + ICH9M
Power Requirements +5V running Windows XP with 1 GB RAM, Ethernet, keyboard, and mouse: Idle Typical
Max
VL-EPICs-36S 2.5A (12.5W) 4A (20W) 5.5A (27.5W)
VL-EPICs-36E 2.3A (11.5W) 3.1A (15.5W) 3.9A (19.5W)
System Reset & Hardware Monitors Major voltage rails monitored
Stackable Bus SUMIT, PC/104 (ISA)
Expansion VersaLogic SPX interface
RoHS RoHS (2002/95/CE) compliant
Environmental Storage Temperature -40° to +85°C
Thermal Shock 5°C/min. over operating temperature
Humidity Less than 95%, nonCondition A: 5.35g rms, 5 minutes per axis
Mechanical Shock MIL-STD-202G, Method 213B, Condition G: 20g half-sine, 11 ms duration per axis
Memory System RAM One SO-DIMM socket. Up to 4 GB DDR3 SDRAM.
condensing
Vibration, Sinusoidal Sweep MIL-STD-202G, Method 204, Modified Condition A: 2g constant acceleration from 5
to 500 Hz, 20 minutes per axis
Vibration, Random MIL-STD-202G, Method 214A, Video General Integrated high-performance video. Intel GMA
4500 MHD graphics core. Simultaneous independent analog and flat panel output capability. Optional video
adapter card converts LVDS output to VGA for dual VGA operation.
VRAM Up to 512 MB shared DRAM
Desktop Display Interface* Standard analog output (VGA)
OEM Flat Panel Interface 18/24-bit LVDS interface. CMOS-selectable TFT panel types.
Mass Storage Hard Drive Dual SATA interface (Revision 2.0)
Flash One MiniBlade socket (USB or SATA signaling). One eUSB interface (USB signaling).
Network Interface Ethernet* Autodetect 10BaseT/100BaseTX/1000BaseT port
Network Boot Option Intel boot agent (downloadable) supports PXE protocol. Argon Managed Boot Agent
(optional with royalty fee) supports PXE, RPL, NetWare, TCP/IP (DHCP, BOOTP) remote boot protocols.
Device I/O USB*‡ Four USB 2.0/1.1 ports
COM 1 / 2 Interface* RS-232. 16C550 compatible. 115 Kbps.
COM 3 / 4 Interface* RS-232/422/485 selectable. 16C550 compatible. 460 Kbps.
Audio Stereo HD audio in/out
Other PS/2 keyboard and mouse. Four additional USB ports available through SUMIT interface with appropriate
adapter board.
Software BIOS Phoenix Technologies Embedded BIOS with OEM enhancements. Field reprogrammable. Support
for USB keyboard/mouse and USB boot. User-configurable CMOS defaults.
Operating Systems Compatible with most x86 operating systems, including Windows, Windows Embedded, Linux,
VxWorks, and QNX

7. General Board Size EPIC standard: 115 mm x 165 mm (4.5" x 6.5")
Processor Intel Core 2 Duo (P8400). Up to 1066 MHz FSB. 3 MB L2 cache. Temperature protected.
Chipset GM45 + ICH9M
Power Requirements +5V running Windows XP with 1 GB RAM, Ethernet, keyboard, and mouse: Idle Typical
Max
VL-EPICs-36S 2.5A (12.5W) 4A (20W) 5.5A (27.5W)
VL-EPICs-36E 2.3A (11.5W) 3.1A (15.5W) 3.9A (19.5W)
System Reset & Hardware Monitors Major voltage rails monitored
Stackable Bus SUMIT, PC/104 (ISA)
Expansion VersaLogic SPX interface
RoHS RoHS (2002/95/CE) compliant
Environmental Storage Temperature -40° to +85°C
Thermal Shock 5°C/min. over operating temperature
Humidity Less than 95%, nonCondition A: 5.35g rms, 5 minutes per axis
Mechanical Shock MIL-STD-202G, Method 213B, Condition G: 20g half-sine, 11 ms duration per axis
Memory System RAM One SO-DIMM socket. Up to 4 GB DDR3 SDRAM.
condensing
Vibration, Sinusoidal Sweep MIL-STD-202G, Method 204, Modified Condition A: 2g constant acceleration from 5
to 500 Hz, 20 minutes per axis
Vibration, Random MIL-STD-202G, Method 214A, Video General Integrated high-performance video. Intel GMA
4500 MHD graphics core. Simultaneous independent analog and flat panel output capability. Optional video
adapter card converts LVDS output to VGA for dual VGA operation.
VRAM Up to 512 MB shared DRAM
Desktop Display Interface* Standard analog output (VGA)
OEM Flat Panel Interface 18/24-bit LVDS interface. CMOS-selectable TFT panel types.
Mass Storage Hard Drive Dual SATA interface (Revision 2.0)
Flash One MiniBlade socket (USB or SATA signaling). One eUSB interface (USB signaling).
Network Interface Ethernet* Autodetect 10BaseT/100BaseTX/1000BaseT port
Network Boot Option Intel boot agent (downloadable) supports PXE protocol. Argon Managed Boot Agent
(optional with royalty fee) supports PXE, RPL, NetWare, TCP/IP (DHCP, BOOTP) remote boot protocols.
Device I/O USB*‡ Four USB 2.0/1.1 ports
COM 1 / 2 Interface* RS-232. 16C550 compatible. 115 Kbps.
COM 3 / 4 Interface* RS-232/422/485 selectable. 16C550 compatible. 460 Kbps.
Audio Stereo HD audio in/out
Other PS/2 keyboard and mouse. Four additional USB ports available through SUMIT interface with appropriate
adapter board.
Software BIOS Phoenix Technologies Embedded BIOS with OEM enhancements. Field reprogrammable. Support
for USB keyboard/mouse and USB boot. User-configurable CMOS defaults.
Operating Systems Compatible with most x86 operating systems, including Windows, Windows Embedded, Linux,
VxWorks, and QNX
