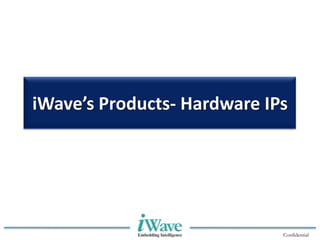

iWave’s Products- Hardware IPs

3. Confidential

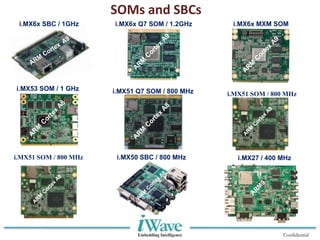

SOMs and SBCs
i.MX53 SOM / 1 GHz
i.MX50 SBC / 800 MHz
i.MX6x MXM SOM
i.MX51 Q7 SOM / 800 MHz
i.MX6x Q7 SOM / 1.2GHzi.MX6x SBC / 1GHz
i.MX27 / 400 MHzi.MX51 SOM / 800 MHz
i.MX51 SOM / 800 MHz

4. Confidential

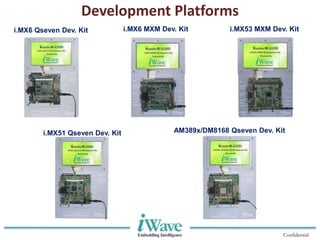

Development Platforms
i.MX6 Qseven Dev. Kit i.MX6 MXM Dev. Kit i.MX53 MXM Dev. Kit
i.MX51 Qseven Dev. Kit AM389x/DM8168 Qseven Dev. Kit

5. Confidential

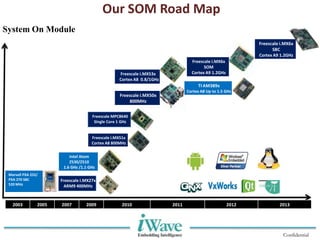

Our SOM Road Map
2003 2005 2007 2009 2010 2011 2012 2013
Freescale i.MX51x
Cortex A8 800MHz
Freescale i.MX53x
Cortex A8 0.8/1GHz
Freescale i.MX50x
800MHz
Freescale i.MX27x
ARM9 400MHz
TI AM389x
Cortex A8 Up to 1.5 GHz
Intel Atom
Z530/Z510
1.6 GHz /1.1 GHz
Freescale MPC8640
Single Core 1 GHz
System On Module
Freescale i.MX6x
SOM
Cortex A9 1.2GHz
Freescale i.MX6x
SBC
Cortex A9 1.2GHz
Our SOM Road Map
Marvell PXA 255/
PXA 270 SBC
520 MHz

6. Confidential

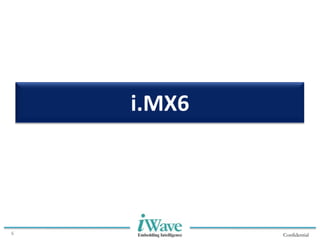

i.MX6
6

7. Confidential7

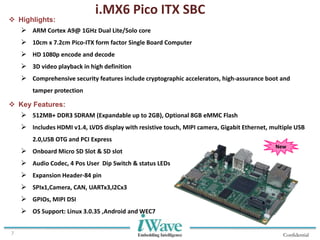

i.MX6 Pico ITX SBC
 Highlights:
 ARM Cortex A9@ 1GHz Dual Lite/Solo core
 10cm x 7.2cm Pico-ITX form factor Single Board Computer
 HD 1080p encode and decode
 3D video playback in high definition
 Comprehensive security features include cryptographic accelerators, high-assurance boot and
tamper protection
 Key Features:
 512MB+ DDR3 SDRAM (Expandable up to 2GB), Optional 8GB eMMC Flash
 Includes HDMI v1.4, LVDS display with resistive touch, MIPI camera, Gigabit Ethernet, multiple USB
2.0,USB OTG and PCI Express
 Onboard Micro SD Slot & SD slot
 Audio Codec, 4 Pos User Dip Switch & status LEDs
 Expansion Header-84 pin
 SPIx1,Camera, CAN, UARTx3,I2Cx3
 GPIOs, MIPI DSI
 OS Support: Linux 3.0.35 ,Android and WEC7
New

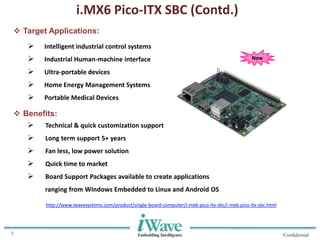

8. Confidential8
 Target Applications:
i.MX6 Pico-ITX SBC (Contd.)
 Intelligent industrial control systems
 Industrial Human-machine interface
 Ultra-portable devices
 Home Energy Management Systems
 Portable Medical Devices
 Benefits:
 Technical & quick customization support
 Long term support 5+ years
 Fan less, low power solution
 Quick time to market
 Board Support Packages available to create applications
ranging from Windows Embedded to Linux and Android OS
New
http://www.iwavesystems.com/product/single-board-computer/i-mx6-pico-itx-sbc/i-mx6-pico-itx-sbc.html

9. Confidential

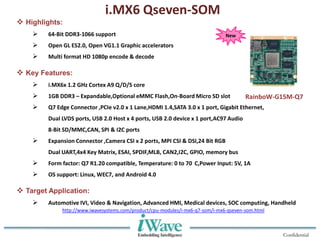

i.MX6 Qseven-SOM
 Highlights:
 64-Bit DDR3-1066 support
 Open GL ES2.0, Open VG1.1 Graphic accelerators
 Multi format HD 1080p encode & decode
 Key Features:
 i.MX6x 1.2 GHz Cortex A9 Q/D/S core
 1GB DDR3 – Expandable,Optional eMMC Flash,On-Board Micro SD slot
 Q7 Edge Connector ,PCIe v2.0 x 1 Lane,HDMI 1.4,SATA 3.0 x 1 port, Gigabit Ethernet,
Dual LVDS ports, USB 2.0 Host x 4 ports, USB 2.0 device x 1 port,AC97 Audio
8-Bit SD/MMC,CAN, SPI & I2C ports
 Expansion Connector ,Camera CSI x 2 ports, MPI CSI & DSI,24 Bit RGB
Dual UART,4x4 Key Matrix, ESAI, SPDIF,MLB, CAN2,I2C, GPIO, memory bus
 Form factor: Q7 R1.20 compatible, Temperature: 0 to 70 C,Power Input: 5V, 1A
 OS support: Linux, WEC7, and Android 4.0
 Target Application:
 Automotive IVI, Video & Navigation, Advanced HMI, Medical devices, SOC computing, Handheld
RainboW-G15M-Q7
New
http://www.iwavesystems.com/product/cpu-modules/i-mx6-q7-som/i-mx6-qseven-som.html

10. Confidential
i.MX6 MXM-SOM
 Highlights:
 Supports i.MX6 Quad, Dual, Dual Lite & Solo series of i.MX6 CPU
 ARM Cortex A9, each @ 1GHz
 Form factor: 85mm X 85mm
 Key Features:
 1GB DDR3 (Expandable up to 4GB), 4GB eMMC Flash (Expandable up to 32GB)
 Micro SD (Optional), SPI NOR Flash (Optional), NAND Flash(Optional)
 MXM PCB Edge Connector : PCIe v2.0 (1 No.), SATA II (1 No.), USB OTG 2.0 (1 No.),
USB Host 2.0 (1 No.), Gigabit Ethernet through On-SOM Gigabit Ethernet PHY ,
CAN (2 Nos.), UART (3 Nos.), CSI (2 Nos.),ESAI (1No.), SPDIF (1No.)
 Expansion Connector : HDMI (1 No.), MIPI-DSI (1 No.), MIPI-CSI (1 No.), MLB 6 Pin ((1 No.)
 Power Input: 5V, compatible, Temperature: -40 C to +85 C
 OS support: Linux, WEC7, and Android 4.0
 Target Application:
 Automotive IVI, Video & Navigation, Advanced HMI, Medical devices, SOC computing, Handheld
RainboW-G15M-MXM
http://www.iwavesystems.com/product/cpu-modules/imx6-mxm-som/i-mx6-mxm-som.html

11. Confidential11

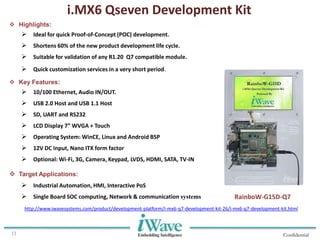

i.MX6 Qseven Development Kit
 Highlights:
 Ideal for quick Proof-of-Concept (POC) development.
 Shortens 60% of the new product development life cycle.
 Suitable for validation of any R1.20 Q7 compatible module.
 Quick customization services in a very short period.
 Key Features:
 10/100 Ethernet, Audio IN/OUT.
 USB 2.0 Host and USB 1.1 Host
 SD, UART and RS232
 LCD Display 7” WVGA + Touch
 Operating System: WinCE, Linux and Android BSP
 12V DC Input, Nano ITX form factor
 Optional: Wi-Fi, 3G, Camera, Keypad, LVDS, HDMI, SATA, TV-IN
 Target Applications:
 Industrial Automation, HMI, Interactive PoS
 Single Board SOC computing, Network & communication systems RainboW-G15D-Q7
http://www.iwavesystems.com/product/development-platform/i-mx6-q7-development-kit-26/i-mx6-q7-development-kit.html

12. Confidential12
i.MX6 MXM Development Kit
 Highlights:
 Ideal for Quick Proof of concept (POC) development.
 Shortens 60% of the new product development life cycle
 Quad Display Support
 Compact (NanoITX 120mm X 120mm) form factor
 Quick customization services in a very shorter period
 Key Features:
 Gigabit Ethernet, Audio and Video In/Out
 USB 2.0 Host and USB 2.0 OTG
 Micro and Standard SD slot, UART and RS232
 LCD Display 7" WVGA + Touch
 Optional : Wi-Fi, 2G, Keypad, LVDS, HDMI, SATA, TV-IN
 OS: WinCE, Linux and Android BSP
 12V DC Input, Nano ITX form factor
 Target Application:
 Automotive Navigation & Entertainment, HMI, High End PDAs
 High-performance speech processing with large databases, Video Processing and Display
RainboW-G15D-MXM
http://www.iwavesystems.com/product/development-platform/i-mx6-mxm-development-kit/i-mx6x-mxm-development-kit.html

13. Confidential
i.MX53
13

14. Confidential

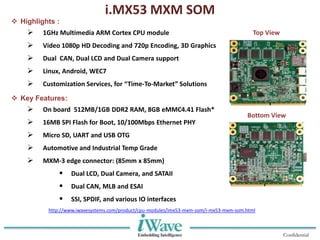

i.MX53 MXM SOM
 Highlights :
 1GHz Multimedia ARM Cortex CPU module
 Video 1080p HD Decoding and 720p Encoding, 3D Graphics
 Dual CAN, Dual LCD and Dual Camera support
 Linux, Android, WEC7
 Customization Services, for “Time-To-Market” Solutions
 Key Features:
 On board 512MB/1GB DDR2 RAM, 8GB eMMC4.41 Flash*
 16MB SPI Flash for Boot, 10/100Mbps Ethernet PHY
 Micro SD, UART and USB OTG
 Automotive and Industrial Temp Grade
 MXM-3 edge connector: (85mm x 85mm)
 Dual LCD, Dual Camera, and SATAII
 Dual CAN, MLB and ESAI
 SSI, SPDIF, and various IO interfaces
Top View
Bottom View
http://www.iwavesystems.com/product/cpu-modules/imx53-mxm-som/i-mx53-mxm-som.html

15. Confidential15
 Highlights:
 Suitable for advance multimedia requirements
 Quick Customization Services
 Facilitate shorter development life cycle
 Key Features:
 7” Parallel RGB LCD, Resistive touch
 HDMI , VGA, SATA, CAN DB9 port
 Ethernet, Audio Head phone In/Out
 2 USB Host, 1USB OTG, RS232
 Optional Wi-Fi, Camera, dual LVDS
 MOST, CAN, ESAI and UART headers
 Expansion: UART, SPI, I2C, MLB, Audio, GPIOs
 Compact Nano ITX size 120mmx120mm
 Target Application:
 Automotive IVI, Rear seat entertainment, Instrument Cluster, Portable Navigation, Telematics, Industrial
HMI, Tele-health, POS terminal, security systems, High end PDAs, Digital signage.

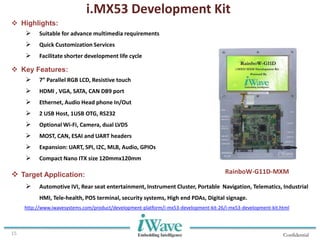

i.MX53 Development Kit
RainboW-G11D-MXM
http://www.iwavesystems.com/product/development-platform/i-mx53-development-kit-26/i-mx53-development-kit.html

16. Confidential
i.MX51
16

17. Confidential
 Highlights:
 Compact, Low power CPU Module, ARM Cortex A8 @ 800 MHz
 Compliance to Q7 Standard R1.20 standard (70mm x 70mm)
 Technical & Customization support, even for the low volume segment
 Key Features:
 Q7 SOM with i.MX51x ARM cortex A8 @ 800MHz
 Memory: 128MB+ DDR2 SDRAM,128MB+ NAND Flash, Onboard Micro SD
 Q7 Edge Connector:
• USB 2.0 Host x 4 ports, USB 2.0 Device, LVDS Channel - 1port, AC'97 Port
• 10/100 Ethernet - 1 port, Standard SD - 1 Port,I2C & SPI ports,
 Expansion Connector:
• 4 x 4 Keypad Interface , CSI Interface x 2Port,UART,
• 4 wire Resistive Touch Interface, GPIOs, SSI ,TV Out
 Temperature: 0 to 70 C,Power Input: 5V, 1A,
 OS: Linux 2.6.31, WinCE 6.0
 Target Application:
 Green Energy Controller, Panel PC, PDAs Secure Devices, Kiosks, POS

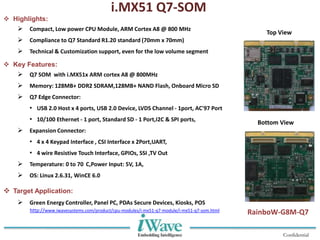

i.MX51 Q7-SOM
Top View
Bottom View
RainboW-G8M-Q7http://www.iwavesystems.com/product/cpu-modules/i-mx51-q7-module/i-mx51-q7-som.html

18. Confidential

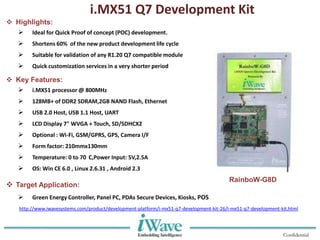

i.MX51 Q7 Development Kit
 Highlights:
 Ideal for Quick Proof of concept (POC) development.
 Shortens 60% of the new product development life cycle
 Suitable for validation of any R1.20 Q7 compatible module
 Quick customization services in a very shorter period
 Key Features:
 i.MX51 processor @ 800MHz
 128MB+ of DDR2 SDRAM,2GB NAND Flash, Ethernet
 USB 2.0 Host, USB 1.1 Host, UART
 LCD Display 7" WVGA + Touch, SD/SDHCX2
 Optional : Wi-Fi, GSM/GPRS, GPS, Camera I/F
 Form factor: 210mmx130mm
 Temperature: 0 to 70 C,Power Input: 5V,2.5A
 OS: Win CE 6.0 , Linux 2.6.31 , Android 2.3
 Target Application:
 Green Energy Controller, Panel PC, PDAs Secure Devices, Kiosks, POS
RainboW-G8D
http://www.iwavesystems.com/product/development-platform/i-mx51-q7-development-kit-26/i-mx51-q7-development-kit.html

19. Confidential
AM389x/DM8168
19

20. Confidential

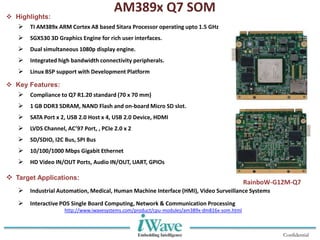

AM389x Q7 SOM
 Highlights:
 TI AM389x ARM Cortex A8 based Sitara Processor operating upto 1.5 GHz
 SGX530 3D Graphics Engine for rich user interfaces.
 Dual simultaneous 1080p display engine.
 Integrated high bandwidth connectivity peripherals.
 Linux BSP support with Development Platform
 Key Features:
 Compliance to Q7 R1.20 standard (70 x 70 mm)
 1 GB DDR3 SDRAM, NAND Flash and on-board Micro SD slot.
 SATA Port x 2, USB 2.0 Host x 4, USB 2.0 Device, HDMI
 LVDS Channel, AC’97 Port, , PCIe 2.0 x 2
 SD/SDIO, I2C Bus, SPI Bus
 10/100/1000 Mbps Gigabit Ethernet
 HD Video IN/OUT Ports, Audio IN/OUT, UART, GPIOs
 Target Applications:
 Industrial Automation, Medical, Human Machine Interface (HMI), Video Surveillance Systems
 Interactive POS Single Board Computing, Network & Communication Processing
RainboW-G12M-Q7
http://www.iwavesystems.com/product/cpu-modules/am389x-dm816x-som.html

21. Confidential

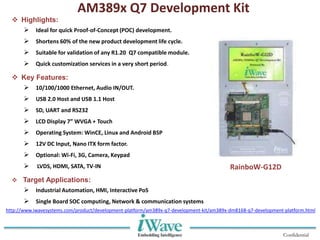

AM389x Q7 Development Kit
 Highlights:
 Ideal for quick Proof-of-Concept (POC) development.
 Shortens 60% of the new product development life cycle.
 Suitable for validation of any R1.20 Q7 compatible module.
 Quick customization services in a very short period.
 Key Features:
 10/100/1000 Ethernet, Audio IN/OUT.
 USB 2.0 Host and USB 1.1 Host
 SD, UART and RS232
 LCD Display 7” WVGA + Touch
 Operating System: WinCE, Linux and Android BSP
 12V DC Input, Nano ITX form factor.
 Optional: Wi-Fi, 3G, Camera, Keypad
 LVDS, HDMI, SATA, TV-IN
 Target Applications:
 Industrial Automation, HMI, Interactive PoS
 Single Board SOC computing, Network & communication systems
RainboW-G12D
http://www.iwavesystems.com/product/development-platform/am389x-q7-development-kit/am389x-dm8168-q7-development-platform.html

22. Confidential
DM8168 Q7 SOM
 Highlights:
 ARM Cortex-A8 Processor Up to 1.35 GHz + C674x VLIW DSP Up to 1.125 GHz
 High-Performance DaVinci Video Processors
 TI Video Codecs with H.264 BP/MP/HP,MPEG-4,MPEG-2,JPEG/MJPEG
 Integrated high bandwidth connectivity peripherals
 Linux BSP support with Development Platform
 Key Features:
 Compliance to Q7 R1.20 standard (70 x 70 mm)
 1 GB DDR3 SDRAM, NAND Flash and on-board Micro SD slot
 10/100/1000 Mbps Gigabit Ethernet
 HD Video IN/OUT Ports, Audio IN/OUT, UART, GPIOs
 SATA Port x 2, USB 2.0 Host x 4, USB 2.0 Device, HDMI
 LVDS Channel, AC’97 Port, , PCIe 2.0 x 2
 SD/SDIO, I2C Bus, SPI Bus
 Target Applications:
 Industrial Automation, Medical, Human Machine Interface (HMI), Video Surveillance Systems
 Video Security, Thin Client, Video Conferencing, Video Phones
RainboW-G12M-Q7
http://www.iwavesystems.com/product/cpu-modules/am389x-dm816x-som.html

23. Confidential

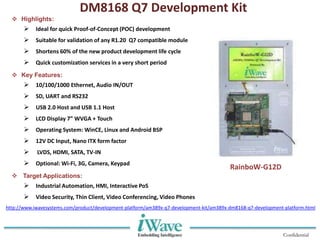

DM8168 Q7 Development Kit
 Highlights:
 Ideal for quick Proof-of-Concept (POC) development
 Suitable for validation of any R1.20 Q7 compatible module
 Shortens 60% of the new product development life cycle
 Quick customization services in a very short period
 Key Features:
 10/100/1000 Ethernet, Audio IN/OUT
 SD, UART and RS232
 USB 2.0 Host and USB 1.1 Host
 LCD Display 7” WVGA + Touch
 Operating System: WinCE, Linux and Android BSP
 12V DC Input, Nano ITX form factor
 LVDS, HDMI, SATA, TV-IN
 Optional: Wi-Fi, 3G, Camera, Keypad
 Target Applications:
 Industrial Automation, HMI, Interactive PoS
 Video Security, Thin Client, Video Conferencing, Video Phones
RainboW-G12D
http://www.iwavesystems.com/product/development-platform/am389x-q7-development-kit/am389x-dm8168-q7-development-platform.html

24. Confidential

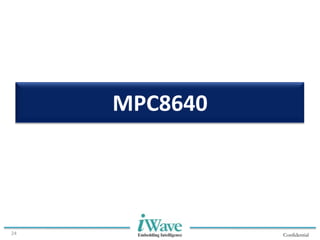

MPC8640
24

25. Confidential25

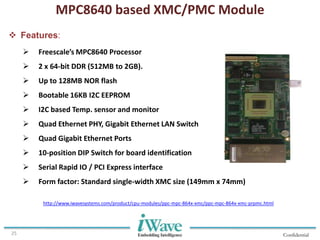

MPC8640 based XMC/PMC Module
 Features:
 Freescale’s MPC8640 Processor
 2 x 64-bit DDR (512MB to 2GB).
 Up to 128MB NOR flash
 Bootable 16KB I2C EEPROM
 I2C based Temp. sensor and monitor
 Quad Ethernet PHY, Gigabit Ethernet LAN Switch
 Quad Gigabit Ethernet Ports
 10-position DIP Switch for board identification
 Serial Rapid IO / PCI Express interface
 Form factor: Standard single-width XMC size (149mm x 74mm)
http://www.iwavesystems.com/product/cpu-modules/ppc-mpc-864x-xmc/ppc-mpc-864x-xmc-prpmc.html

26. Confidential
Thank You
More info: www.iwavesystems.com
Email : mktg@iwavesystems.com
HQ: INDIA
iWave Systems Technologies Pvt Ltd.
No. 7/B, 29th Main, BTM Layout 2nd Stage,
Bangalore - 560 076,
INDIA
Ph: +91-80-26683700, 26786245
Fax : +91-80-26685200
Email: mktg@iwavesystems.com
JAPAN:
iWave Japan Inc..
8F Kannai Sumiyoshi Building, 3-29,
Sumiyoshi-cho, Naka-ku, Yokohama Kanagawa
JAPAN
Ph: 045-227-7626, 045-227-7646
Email: info@iwavejapan.co.jp
FRANCE:
iWave Systems Technologies Pvt. Ltd.
11, Rue Emmanuel Mounier
78370 PLAISIR. FRANCE.
Ph: +33 6 82 67 57 46
Email: dradjou@iwavesystems.com
iWave has Global Presence through esteemed and reliable Partners in the below countries:
AUSTRALIA, AUSTRIA, BELGIUM, CANADA, CHINA, DENMARK, FINLAND, FRANCE,
GERMANY, IRELAND, ISRAEL, ITALY, JAPAN, KOREA, LUXEMBOURG, MALAYSIA,
NETHERLANDS, NEWZEALAND, NORWAY, RUSSIA, SINGAPORE, SPAIN, SWEDEN,
SWITZERLAND, TAIWAN, TURKEY, UK and USA
