This document provides configuration notes for using the Intel 82599 10G NIC's SRIOV functionality to assign virtual functions to a virtual machine on an Ubuntu Linux host. It outlines downloading the driver, declaring the number of virtual functions, verifying the modules and virtual functions are present on the host, creating an XML file to attach a virtual function to a VM, and verifying the VM can see the attached NIC.

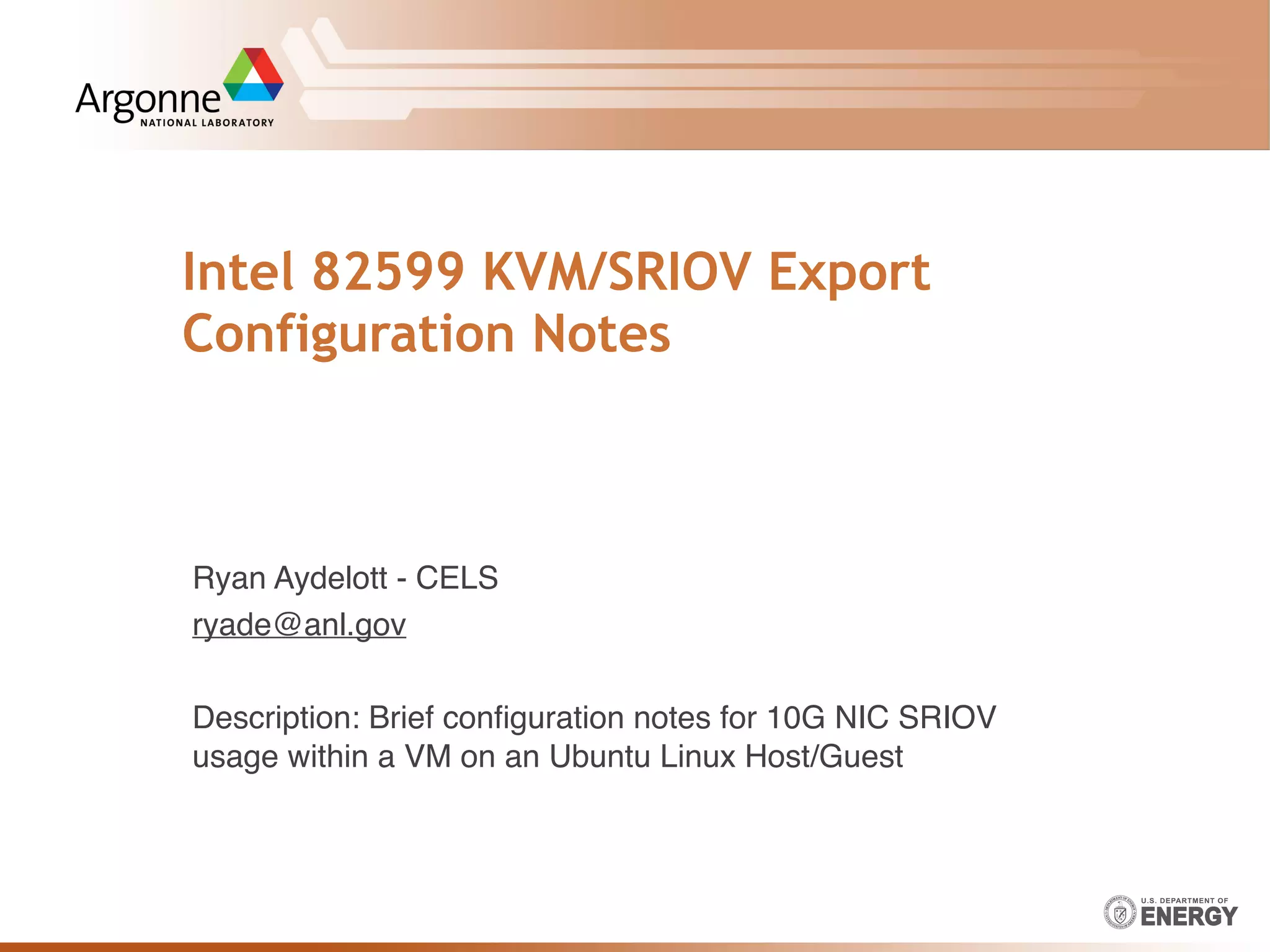

1. Intel 82599 KVM/SRIOV Export
Configuration Notes
Ryan Aydelott - CELS
ryade@anl.gov
Description: Brief configuration notes for 10G NIC SRIOV
usage within a VM on an Ubuntu Linux Host/Guest

2. Ryan Aydelott - CELS

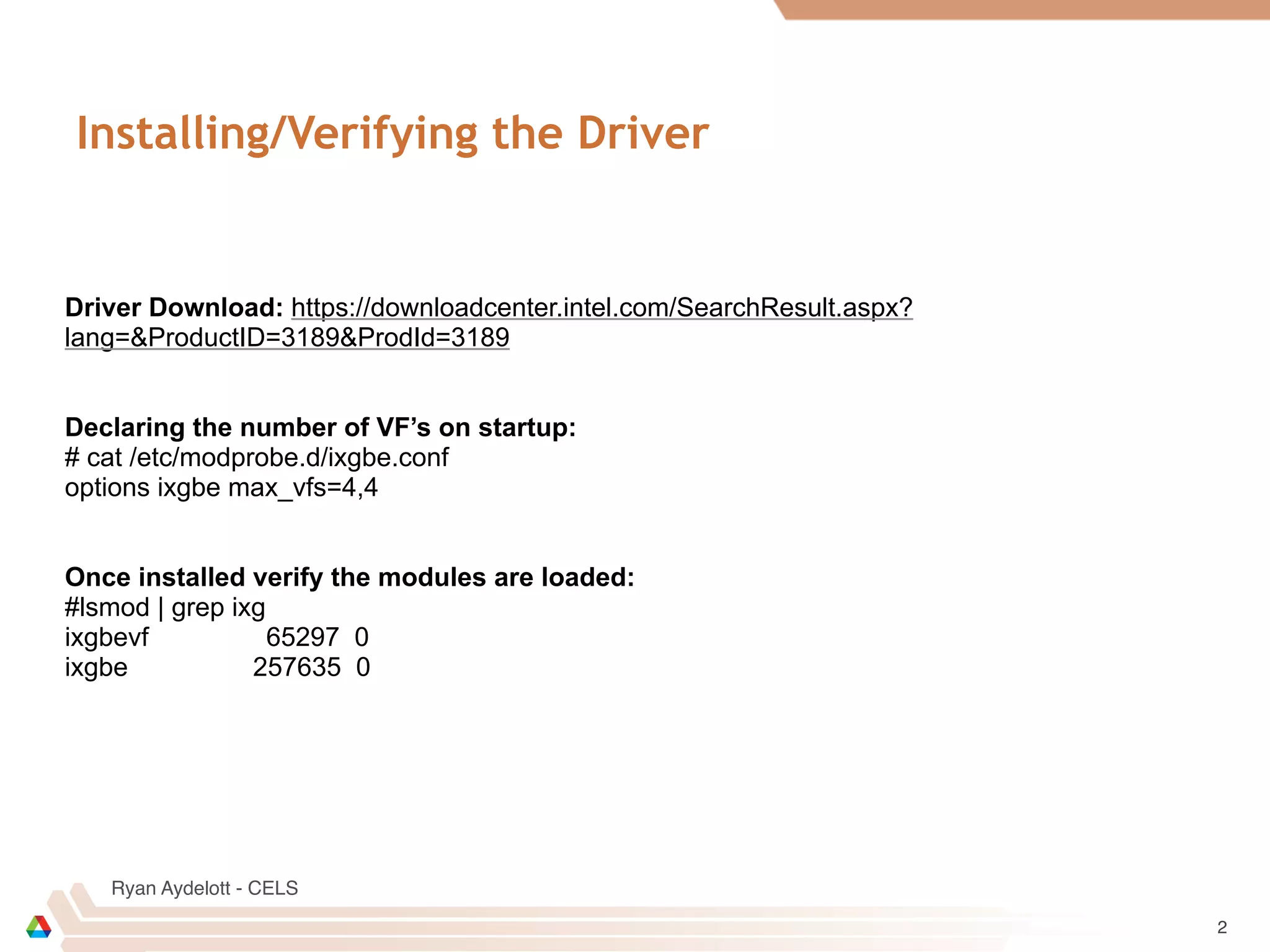

Installing/Verifying the Driver
2
Driver Download: https://downloadcenter.intel.com/SearchResult.aspx?
lang=&ProductID=3189&ProdId=3189
Declaring the number of VF’s on startup:
# cat /etc/modprobe.d/ixgbe.conf
options ixgbe max_vfs=4,4
Once installed verify the modules are loaded:
#lsmod | grep ixg
ixgbevf 65297 0
ixgbe 257635 0

3. Ryan Aydelott - CELS

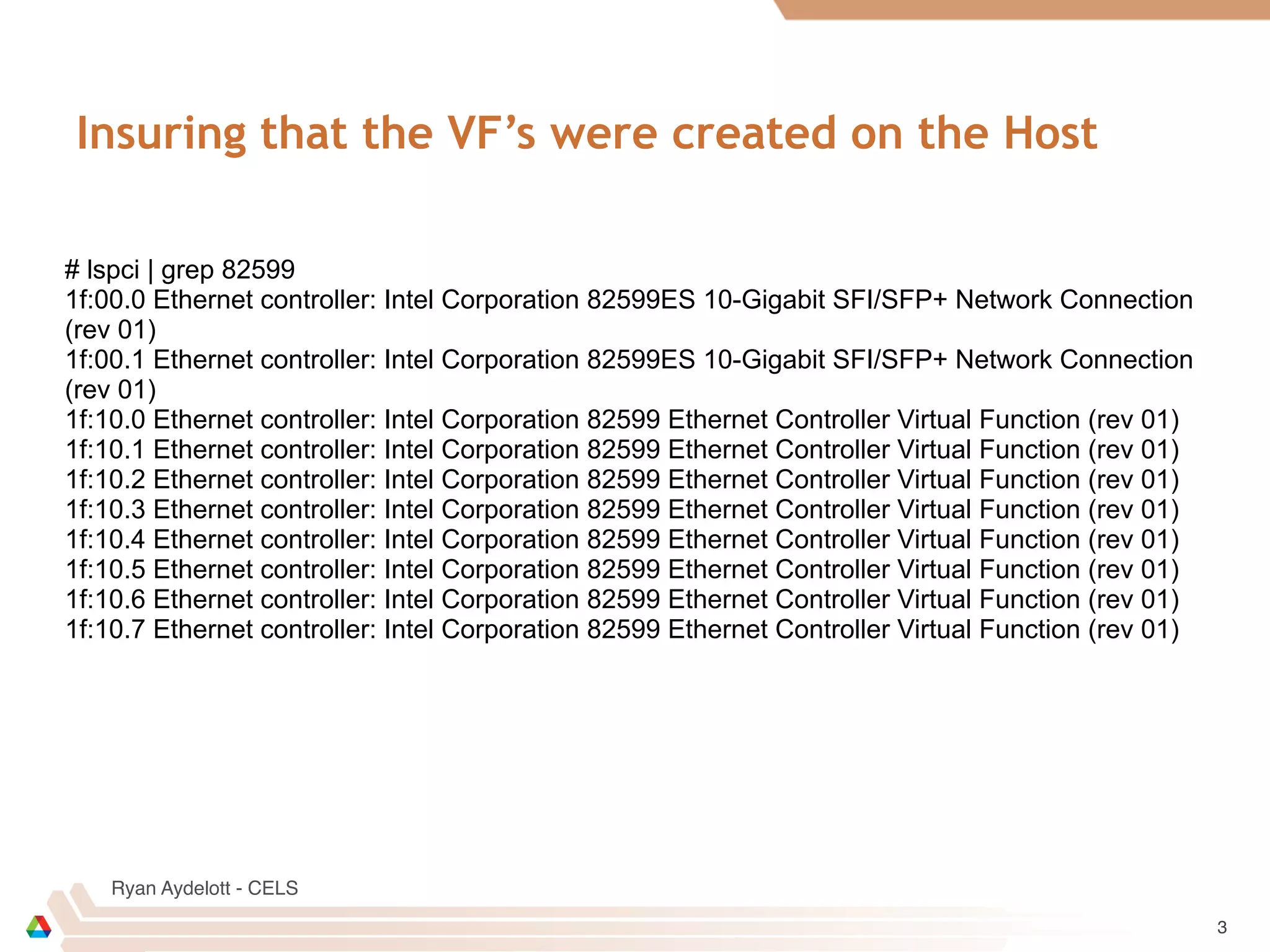

Insuring that the VF’s were created on the Host
3
# lspci | grep 82599
1f:00.0 Ethernet controller: Intel Corporation 82599ES 10-Gigabit SFI/SFP+ Network Connection
(rev 01)
1f:00.1 Ethernet controller: Intel Corporation 82599ES 10-Gigabit SFI/SFP+ Network Connection
(rev 01)
1f:10.0 Ethernet controller: Intel Corporation 82599 Ethernet Controller Virtual Function (rev 01)
1f:10.1 Ethernet controller: Intel Corporation 82599 Ethernet Controller Virtual Function (rev 01)
1f:10.2 Ethernet controller: Intel Corporation 82599 Ethernet Controller Virtual Function (rev 01)
1f:10.3 Ethernet controller: Intel Corporation 82599 Ethernet Controller Virtual Function (rev 01)
1f:10.4 Ethernet controller: Intel Corporation 82599 Ethernet Controller Virtual Function (rev 01)
1f:10.5 Ethernet controller: Intel Corporation 82599 Ethernet Controller Virtual Function (rev 01)
1f:10.6 Ethernet controller: Intel Corporation 82599 Ethernet Controller Virtual Function (rev 01)
1f:10.7 Ethernet controller: Intel Corporation 82599 Ethernet Controller Virtual Function (rev 01)

4. Ryan Aydelott - CELS

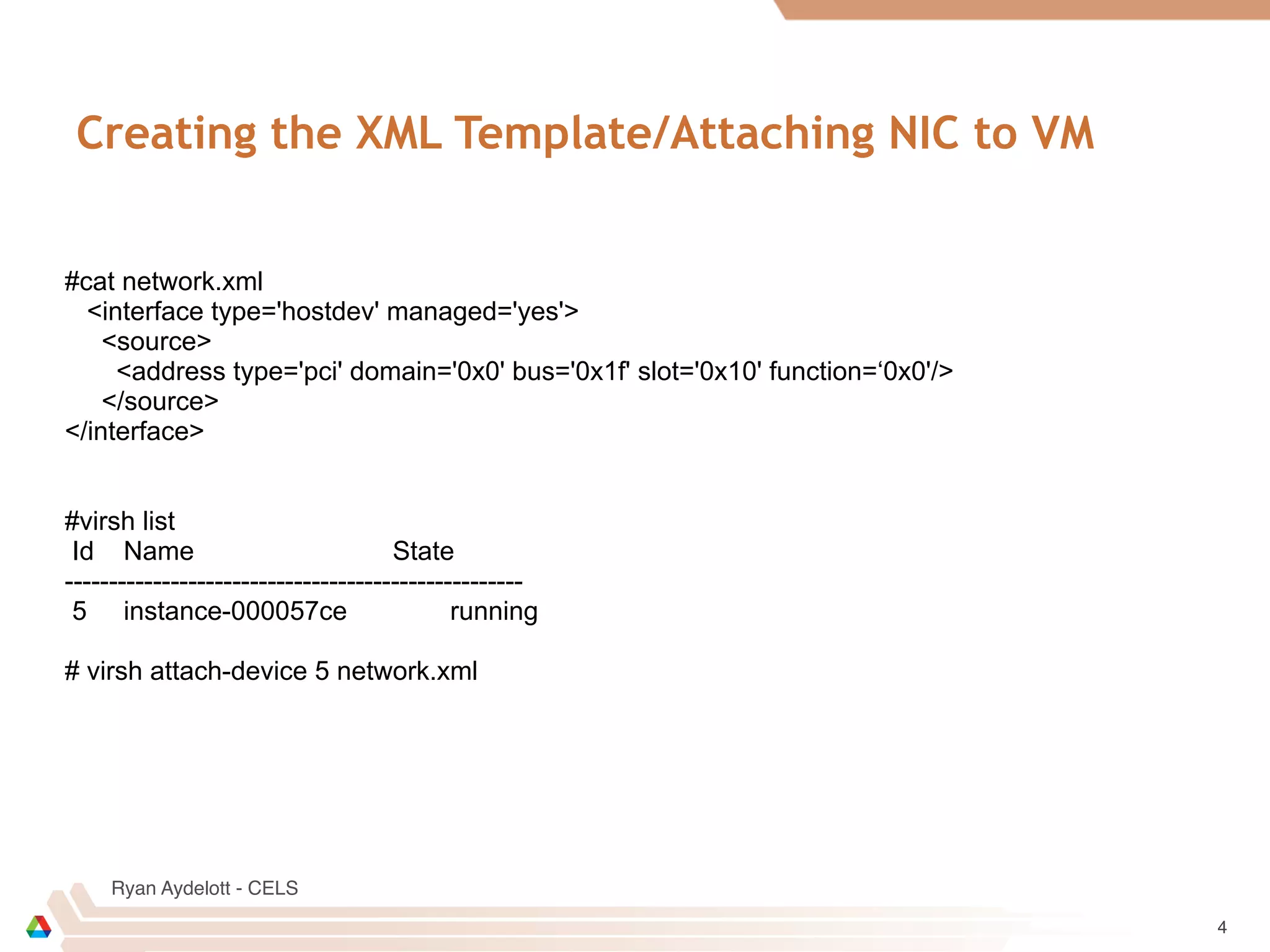

Creating the XML Template/Attaching NIC to VM
4
#cat network.xml
<interface type='hostdev' managed='yes'>
<source>
<address type='pci' domain='0x0' bus='0x1f' slot='0x10' function=‘0x0'/>
</source>
</interface>
#virsh list
Id Name State
----------------------------------------------------
5 instance-000057ce running
# virsh attach-device 5 network.xml

5. Ryan Aydelott - CELS

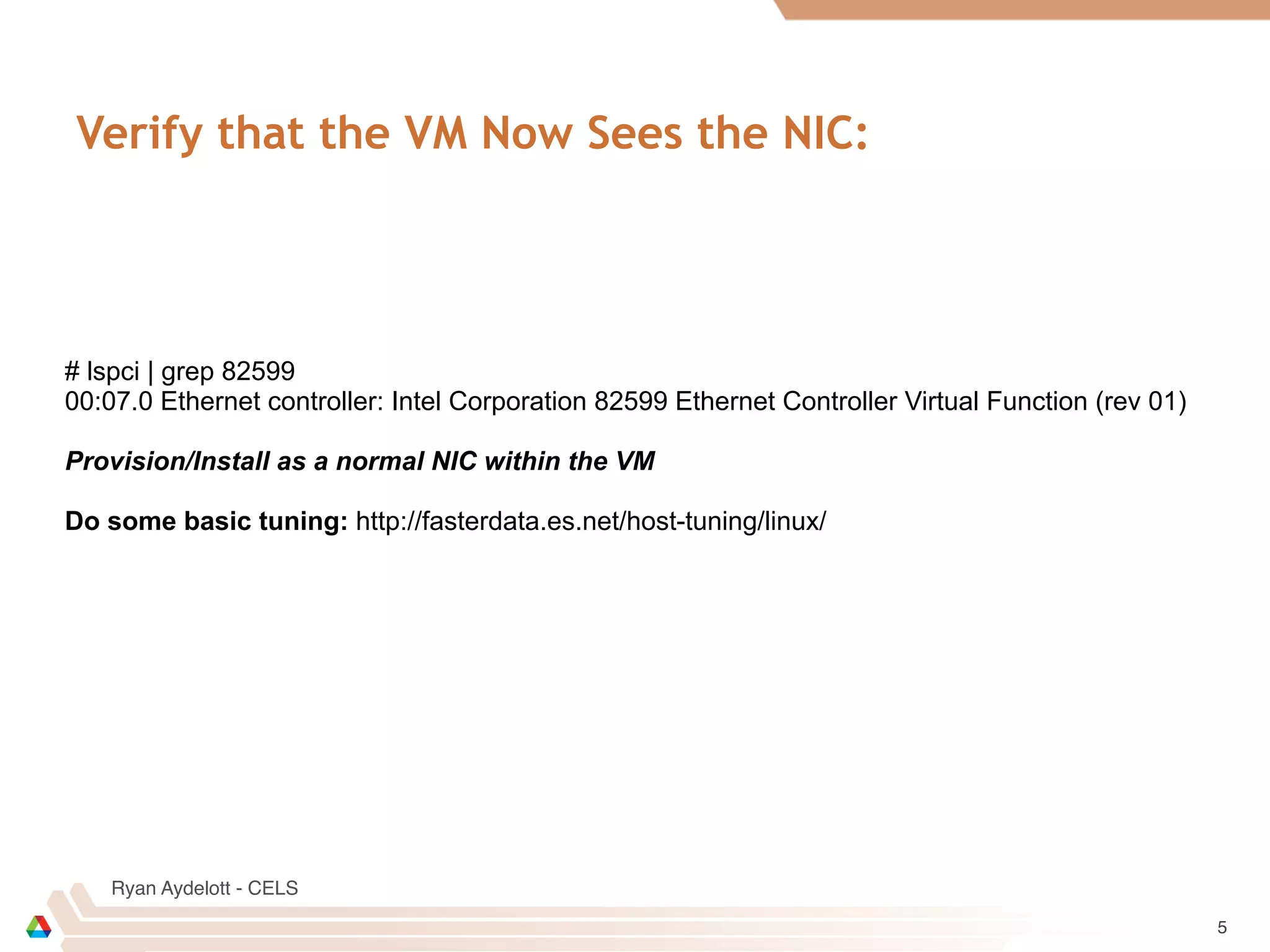

Verify that the VM Now Sees the NIC:
5
# lspci | grep 82599
00:07.0 Ethernet controller: Intel Corporation 82599 Ethernet Controller Virtual Function (rev 01)
Provision/Install as a normal NIC within the VM
Do some basic tuning: http://fasterdata.es.net/host-tuning/linux/
